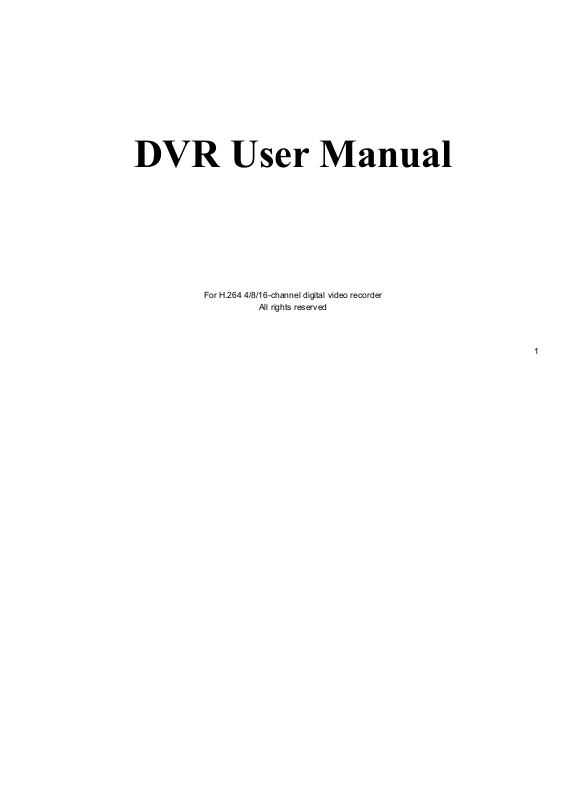

DVR User Manual
For H.264 4/8/16-channel digital video recorder
All rights reserved
1
Page 2
Digital Video Recorder User Manual
CAUTION
Please read this user manual carefully to ensure that you can use the device correctly and safely
The contents of this manual are subject to change without notice
This device should be operated only from the type of power source indicated on the marking label. The voltage of the
power must be verified before using. Kindly remove the cables from the power source if the device is not to be used for a
long period of time.
Do not install this device near any sources of heat such as radiators, heat registers, stoves or other device that produce
heat
Do not install this device near water. Clean only with a dry cloth
Do not block any ventilation openings and ensure well ventilation around the machine
Do not power off the DVR when the device is function. The correct procedure to shut down DVR is to stop recording
firstly, and then use “shut down” button from the menu, and finally switching off the main power.
This equipment is for indoor use only. Do not expose the machine in rain or moist environment. In case any solid or
liquid get inside the machine’s case, please cut off the power supply immediately, and get it checked by a qualified
technician.
Refer all servicing to qualified service personnel. No any parts repaired by yourself without technical aid or approval.
This manual is suitable for 4/8/16-channel digital video recorders. All examples and pictures used in the manual are from
16-channel DVR.
Page 3
Digital Video Recorder User Manual
Table of Contents
1 Introduction ............................................................................................................................................................. 1
1.1 DVR Introduction ........................................................................................................................................................................... 1
1.2 Main Features................................................................................................................................................................................ 1
2 Hardware Installation .............................................................................................................................................. 4
2.1 Install Hard Drive &DVD Writer ...................................................................................................................................................... 4
2.1.1 Install Hard Drive .................................................................................................................................................................................................... 4
2.1.2 Install DVD Writer ................................................................................................................................................................................................... 6
2.2 Front Panel Descriptions ............................................................................................................................................................... 7
2.3 Rear Panel Instructions ................................................................................................................................................................. 8
2.3.1 Rear Panel Interface ............................................................................................................................................................................................... 8
2.4 Remote Controller ....................................................................................................................................................................... 12
2.5 Control with Mouse ...................................................................................................................................................................... 14
2.5.1 Connect Mouse..................................................................................................................................................................................................... 14
2.5.2 Use Mouse ........................................................................................................................................................................................................... 15
3 Basic Function Instruction ..................................................................................................................................... 16
3.1 Power On/Off ............................................................................................................................................................................... 16
3.1.1 Power on .............................................................................................................................................................................................................. 16
3.1.2 Power off .............................................................................................................................................................................................................. 16
3.2 Login ............................................................................................................................................................................................ 17
3.3 Live preview................................................................................................................................................................................. 17
3.3.1 Live playback ........................................................................................................................................................................................................ 18
4 Main menu setup guide .......................................................................................................................................... 19
4.1 Basic configuration ...................................................................................................................................................................... 20
4.1.1 System ................................................................................................................................................................................................................. 20
4.1.2 Time & date .......................................................................................................................................................................................................... 21
Page 4
Digital Video Recorder User Manual
4.1.3 DST ...................................................................................................................................................................................................................... 21
4.2 Live configuration ........................................................................................................................................................................ 22
4.2.1 Live ...................................................................................................................................................................................................................... 22
4.2.2 Main monitor ......................................................................................................................................................................................................... 23
4.2.3 Spot ...................................................................................................................................................................................................................... 24
4.2.4 Mask..................................................................................................................................................................................................................... 24
4.3 Record configuration ................................................................................................................................................................... 25
4.3.1 Enable .................................................................................................................................................................................................................. 25
4.3.2 Record stream ...................................................................................................................................................................................................... 26
4.3.3 Time ..................................................................................................................................................................................................................... 26
4.3.4 Stamp ................................................................................................................................................................................................................... 27
4.3.5 Recycle record ...................................................................................................................................................................................................... 28
4.3.6 Snap ..................................................................................................................................................................................................................... 28
4.4 Schedule configuration ................................................................................................................................................................ 28
4.4.1 Schedule .............................................................................................................................................................................................................. 28
4.4.2 Motion .................................................................................................................................................................................................................. 29
4.4.3 Sensor .................................................................................................................................................................................................................. 30
4.5 Alarm configuration ...................................................................................................................................................................... 30
4.5.1 Sensor .................................................................................................................................................................................................................. 31
4.5.2 Motion .................................................................................................................................................................................................................. 32
4.5.3 Video loss ............................................................................................................................................................................................................. 34
4.5.4 Other alarm........................................................................................................................................................................................................... 35
4.5.5 Alarm out .............................................................................................................................................................................................................. 36
4.6 Network configuration .................................................................................................................................................................. 36
4.6.1 Network ................................................................................................................................................................................................................ 36
4.6.2 Sub stream ........................................................................................................................................................................................................... 37
4.6.3 Email .................................................................................................................................................................................................................... 38
Page 5
Digital Video Recorder User Manual
4.6.4 Other settings ....................................................................................................................................................................................................... 39
4.7 User management configuration.................................................................................................................................................. 42
4.8 P.T.Z configuration ....................................................................................................................................................................... 44
4.9 Advanced ..................................................................................................................................................................................... 47
4.9.1 Reset .................................................................................................................................................................................................................... 47
4.9.2 Import/Export ........................................................................................................................................................................................................ 47
4.9.3 Block/Allow list ...................................................................................................................................................................................................... 47
5 Record search & playback and backup .................................................................................................................. 48
5.1 Time search ................................................................................................................................................................................. 48
5.2 Event search................................................................................................................................................................................ 49
5.3 File management ......................................................................................................................................................................... 50
5.4 Image .......................................................................................................................................................................................... 51
5.5 Backup ........................................................................................................................................................................................ 51
6 Manage DVR ........................................................................................................................................................ 52
6.1 Check system information ........................................................................................................................................................... 52
6.1.1 System information ............................................................................................................................................................................................... 52
6.1.2 Event information .................................................................................................................................................................................................. 52
6.1.3 Log information ..................................................................................................................................................................................................... 52
6.1.4 Network information .............................................................................................................................................................................................. 52
6.1.5 Online information ................................................................................................................................................................................................. 52
6.2 Manual alarm ............................................................................................................................................................................... 52
6.3 Disk management ........................................................................................................................................................................ 53
6.4 Upgrade ....................................................................................................................................................................................... 53
6.5 Logoff........................................................................................................................................................................................... 53
7 Remote Surveillance .............................................................................................................................................. 54
7.1 IE Remote Surveillance ............................................................................................................................................................... 54
7.1.1 On LAN ................................................................................................................................................................................................................ 54
Page 6
Digital Video Recorder User Manual
7.1.2 On WAN ............................................................................................................................................................................................................... 54
7.2 Remote Surveillance through Apple PC ...................................................................................................................................... 56
7.2.1 On LAN ................................................................................................................................................................................................................ 57
7.2.2 On WAN ............................................................................................................................................................................................................... 59
7.3 The remote live preview interface ................................................................................................................................................ 60
7.4 Remote playback & backup ......................................................................................................................................................... 63
7.4.1 Remote playback .................................................................................................................................................................................................. 63
7.4.2 Remote backup..................................................................................................................................................................................................... 69
7.5 Remote System configuration...................................................................................................................................................... 70
7.6 Remote Management .................................................................................................................................................................. 71
Remote Information Search ........................................................................................................................................................................................... 71
8 Mobile Surveillance ............................................................................................................................................... 72
8.1 By Phones with Windows mobile ................................................................................................................................................. 72
8.2 By Phones with Symbian ............................................................................................................................................................. 73
8.3 The Software installation for iPhone mobile clients ...................................................................................................................... 75
8.4 The installation & operation methods for Android mobile clients .................................................................................................. 82
8.5 Installation and operation Methods for BlackBerry Mobile phone Client ...................................................................................... 88
8.5.1 Installation instruction for BlackBerry Mobile phone Client ..................................................................................................................................... 88
8.5.2 Operation method for Blackberry mobile phone client ............................................................................................................................................ 90
Appendix A FAQ..........................................................................................................................................................................94
Appendix B Calculate Recording Capacity.................................................................................................................................100
Appendix C Compatible Devices.101
Appendix D 4-CH DVR Specifications.............................................................................................................................................103
Appendix E 8-CH DVR Specifications.........................................................................................................................................104
Appendix F 16-CH DVR Specifications...........................................................................................................................................105
Page 7
Digital Video Recorder User Manual
1 Introduction
1.1 DVR Introduction
This model DVR (Digital Video Recorder) is designed specially for CCTV system. It adopts high performance video processing
chips and embedded Linux system. Meanwhile, it utilizes many most advanced technologies, such as standard H.264 with low bit
rate, Dual stream, SATA interface, VGA output mouse supported, IE browser supported with full remote control, mobile view(by
phones), etc., which ensure its powerful functions and high stability. Due to these distinctive characteristics, it is widely used in
banks, telecommunication, transportation, factories, warehouse, and irrigation and so on.
1.2 Main Features
COMPRESSION FORMAT
•
Standard H.264 compression with low bit rate and better image quality
LIVE SURVEILLANCE
•
Support HD VGA output
•
Support channel security by hiding live display
•
Display the local record state and basic information
•
Support USB to make full control
RECORD MEDIA
•
Support eight SATA HDDs to record for a longer time without any limitation
BACKUP
•
Support USB 2.0 devices to backup
•
Support built-in SATA DVD writer to backup
1
Page 8
Digital Video Recorder User Manual
•
Support saving recorded files with AVI standard format to a remote computer through internet
RECORD & PLAYBACK
•
Record modes: Manual, Schedule, Motion detection and Sensor alarm recording
•
Support recycle after HDD full
•
Resolution, frame rate and picture quality are adjustable
•
128MB for every video file packaging
•
4/8/16 audio channels available
•
Two record search mode: time search and event search
•
Support 4/8/16 screen playback simultaneously
•
Support deleting and locking the recorded files one by one
•
Support remote playback in Network Client through LAN or internet
ALARM
•
4 channel alarm output and 4/8/16 channel alarm input available
•
Support schedule for motion detection and sensor alarm
•
Support pre-recording and post recording
•
Support linked channels recording once motion or alarm triggered on certain channel
•
Support linked PTZ preset ，auto cruise and track of the corresponding channel
PTZ CONTROL
•
Support various PTZ protocols
•
Support 128 PTZ presets and 8 auto cruise tracks
•
Support remote PTZ control through internet
SECURITY
•
Customize user right: log search, system setup, two way audio, file management, disk management, remote login, live view,
2
Page 9
Digital Video Recorder User Manual
manual record, playback, PTZ control and remote live view
•
Support 1 administrator and 63 users.
•
Support event log recording and checking, events unlimited
NETWORK
•
Support TCP/IP, DHCP, PPPoE, DDNS protocol
•
Support IE browser to do remote view
•
Support setup client connection amount
•
Support dual stream. Network stream is adjustable independently to fit the network bandwidth and environment.
•
Support picture snap and color adjustment in remote live
•
Support remote time and event search, and channel playback with picture snap
•
Support remote PTZ control with preset and auto cruise
•
Support remote full menu setup, changing all the DVR parameters remotely
•
Support mobile surveillance by smart phones , symbian, WinCE, Iphone, Gphone or Blackberry, 3G network available
•
Support CMS to manage multi devices on internet
3
Page 10
Digital Video Recorder User Manual
2 Hardware Installation
Notice: Check the unit and the accessories after getting the DVR.
Please disconnect the power before being connected to other devices. Don't hot plug in/out
2.1 Install Hard Drive &DVD Writer
2.1.1 Install Hard Drive
Notice: 1. this series support eight SATA hard drives. Please use the hard drive the manufacturers recommend specially for security and safe
field.
2. Please calculate HDD capacity according to the recording setting. Please refer to “Appendix B Calculate Recording Capacity”.
Step 1: Unscrew and open the case and then unscrew the screws in the both sides to take out of the upper iron bar as shown
below:
Step 2: Put the HDD under the lower iron bar and let the screw holes of the HDD aim at the iron bars’. Then screw firmly and
connect the power and data cables. The pictures are shown as follows:
4
Page 11
Digital Video Recorder User Manual
Step 3: Install other three HDD according to above-mentioned method. Then cover the upper iron bar and screw it firmly. Put the
HDD under it and screw firmly as shown below:
Step 4: Install other three HDD under the upper iron bar as shown below:
Step 5: Cover the back cover of the device and screw firmly.
5
Page 12
Digital Video Recorder User Manual
2.1.2 Install DVD Writer
Step 1:
Unscrew and open the case and then unscrew the screws in the both sides to take out of the upper iron bar as shown below:
Step 2: Install the DVD holder attached with the device. Please let the screw holes of the DVD aim at the holder’s. Try to place the
holder farther away from the front and then screw firmly. Then, put the DVD with the holder into the case and let the screw holes of
the case aim at the holder’s. Next, screw them firmly.
Step 3: Connect the power and data cables and install the upper iron bar. Then, screw firmly with screws in the both sides.
Note: If the user installs a DVD, he can only install 4 HDD disks. Because too much room has been taken up.
6
Page 13
Digital Video Recorder User Manual
2.2 Front Panel Descriptions
Notice: The front panel descriptions are only for reference; please make the object as the standard.
Notice: The USB port on front panel can only connect to USB backup device; the USB port on rear panel can only connect to
USB mouse.
Item
1
2
3
Type
Work state
indicator
Compound
button
Digital button
Name Description
Power Power indicator, when connection , the light is blue
HDD When HDD is writing and reading , the light is blue
Net When access to network , the light is blue
Backup When backup files and data, the light is blue
Play When playing video, the light is blue
REC When recording, the light is blue
AUDIO/+
P.T.Z./ -
MENU Enter menu in live
INFO Check recording data
BACKUP Enter backup mode in live
SEARCH Enter search mode
1-9 Input number 1-9 or choose camera
0/10+
1. Control voice
2. Increase the value in setup
1. Enter PTZ mode in live
2. Decrease the value in setup
Record manually
Play/Pause
Stop/Esc
Rewind
Fast forward
Input number0, 10 and the above number together with
other digital keys
7
Page 14
Item
4
5
Type
Input button
USB
Direction button Change direction to select items
Multi-screen Change screen display mode like1/4/9/16 channel
Enter button Confirm selection
USB port
2.3 Rear Panel Instructions
2.3.1 Rear Panel Interface
The rear Panel interface for 4-ch is shown as Fig 2.3:
Digital Video Recorder User Manual
Name Description
To connect external USB devices like USB flash, USB HDD
for backup or update firmware;
Fig 2.1 Rear Panel for 4-ch
Item Name Description
1 P/Z Connect to speed dome
2 K/B Connect to keyboard
3 ALARM IN Connect to external sensor1-4
4 HDMI port Connect to high-definition display device (optional)
5 NET Network port
6 VGA port VGA output, connect to monitor
8
Page 15
Digital Video Recorder User Manual
Item Name Description
7 Video out Connect to monitor
8 Audio in 4 CH Audio input
9 POWER SWITCH Power on/off
10 + 5V and GND +5 V and Grounding
11 ALARM OUT 1-ch relay output. Connect to external alarm.
12 USB port
13 Spot out
14 Video in Video input channels from 1-4
15 Audio out Audio output, connect to the sound box
16 POWER INPUT DC12V
17 FAN For cooling the device
The rear Panel interface for 8-ch is shown as Fig 2.2:
To connect external USB devices like USB flash, USB HDD
for backup or update firmware; or connect to USB mouse
Connect to monitor as an AUX output channel by channel.
Only video display, no menu show
Fig 2.2 Rear Panel for 8-ch
9
Page 16
Digital Video Recorder User Manual
Item Name Description
1 Video out Connect to monitor
2 Audio out Audio output, connect to the sound box
3 HDMI port Connect to high-definition display device
4 Audio in 8 CH Audio input
5 Video in Video input channels from 1-8
6 LOOP OUT For outputting 1-8ch image independently
7 Spot out
8 MIC IN Talk
9 VGA port VGA output, connect to monitor
10 USB port connect to USB mouse
11 LAN Network port
12 E-SATA Connect to HDD for backup (optional)
13 ALARM IN Connect to external sensor1-8
14 ALARM OUT 4ch relay output. Connect to external alarm.
15 GND Grounding
16 P/Z Connect to speed dome
17 K/B Connect to keyboard
18 GND Grounding
19 FAN For cooling the device
20 POWER INPUT AC 110V-220V
21 POWER SWITCH Switch on/off
The rear Panel interface for 16-ch is shown as Fig 2.3:
Connect to monitor as an AUX output channel by channel. Only
video display, no menu show
10
Page 17
Digital Video Recorder User Manual
Fig 2.3 Rear Panel for 16-ch
Item Name Description
1 Video out Connect to monitor
2 Video in Video input channels from 1-16
3 E-SATA Connect to HDD for backup (optional)
4 LOOP OUT For outputting 1-16ch image independently
5 Spot out
6 Audio in 16 CH Audio input
7 Audio out Audio output, connect to the sound box
8 MIC IN Talk
9 VGA port VGA output, connect to monitor
10 HDMI port Connect to high-definition display device
11 USB port connect to USB mouse
12 LAN Network port
13 E-SATA Connect to HDD for backup (optional)
Connect to monitor as an AUX output channel by channel. Only
video display, no menu show
11
Page 18
Digital Video Recorder User Manual
Item Name Description
14 ALARM IN Connect to external sensor1-16
15 ALARM OUT 4ch relay output. Connect to external alarm.
16 GND Grounding
17 P/Z Connect to speed dome
18 K/B Connect to keyboard
19 GND Grounding
20 FAN For cooling the device
21 POWER INPUT AC 110V-220V
22 POWER SWITCH Switch on/off
2.4 Remote Controller
It uses two AAA size batteries and works after loading batteries as following:
Step1: Open the battery cover of the Remote Controller
Step2: Place batteries. Please take care the polarity (+ and -)
Step3: Replace the battery cover
Notice: Frequently defect checking as following
1. Check batteries poles
2. Check the remaining charge in the batteries
3. Check IR controller sensor is mask
If it still doesn't work, Please change a new remote controller to try, or contact your dealers
The interface of remote controller is shown in Fig2.4 Remote Controller.
12
Page 19
Digital Video Recorder User Manual
Item Name Function
1 Power Button Soft switch off to stop firmware running. Do it before power off.
2 INFOR Button
3 REC Button To record manually
4 Digital Button Input digital or choose camera
5 Multi Screen Button To choose multi screen display mode
6 SEARCH Button To enter search mode
7 MENU Button To enter menu
8 ENTER Button To confirm the choice or setup
9 Direction Button Move cursor in setup or pan/title PTZ
10 +/- Button To increase or decrease the value in setup
11 Playback Control Button To control playback, Fast forward/rewind/stop/single frame play
12 AUDIO Button To enable audio output in live mode
13 Auto Dwell Button To enter auto dwell mode
Fig 2.4 Remote Controller
Get information about the DVR like firmware version, HDD
information
13
Page 20
Digital Video Recorder User Manual
Item Name Function
14 BACKUP Button To enter backup mode
15 PTZ Control Button
Operation processes with remote controller to control multi-DVR
The device ID of the DVR is 0. It’s not necessary to reset the device ID when a remote is to be used to control a single DVR.
However when controlling multiple DVR with multiple remote controllers, the user would need to configure the device ID, please
refer to below steps:
Step1: Activate remote controller to control DVR: Turn the IR sensor of the remote controller to the IR receiver that on the front
panel, press the number key 8 twice, then input device ID of the DVR to be controlled(Range from: 0-65535; the default device ID is
0.) After that, press ENTER button to confirm.
Step2: User can check the device ID by enter into System configurationBasic configurationdevice ID. User also can set other
DVR with the same device ID. For more convenient to operate, we don’t recommend user to set the device ID too long.
Step3: Cancel controller to control DVR: turn the IR sensor of the remote controller to the IR receiver that on the front panel, press
the number key 8 twice, then input the device ID that needs to be cancelled from controlling, press ENTER button to confirm. After
that, the DVR will not be controlled by remote controller.
To control PTZ camera:
Move camera/ZOOM/FOCUS/IRIS/SPEED control
2.5 Control with Mouse
2.5.1 Connect Mouse
It supports USB mouse through the ports on the rear panel.
Notice: If mouse is not detected or doesn't work, check below steps:
1. Make sure the mouse plugs in the USB mouse port not the USB port
2. Change a mouse to try
14
Page 21
Digital Video Recorder User Manual
2.5.2 Use Mouse
In live:
Double-click left button on one camera to be full screen display. Double-click again to return to the previous screen display.
Click right button to show the control bar at the bottom of the screen. Here are all control and setup. Click right mouse again to hide
the control bar.
In setup:
Click left button to enter. Click right button to cancel setup, or
return to the previous.
If want to input the value, move cursor to the blank and click.
An input window will appear as Fig2.5. It supports digitals,
letters and symbols input.
Users can change some value by the wheel, such as time. Move cursor onto the value, and roll the wheel when the value blinks.
It supports mouse drag. I.e. Set motion detection area: click customized, hold left button and drag to set motion detection area. Set
schedule: hold left button and drag to set schedule time
In playback:
Click left button to choose the options. Click right button to return to live mode.
In backup:
Click left button to choose the options. Click right button to return to previous picture.
In PTZ control:
Click left button to choose the buttons to control the PTZ. Click right button to return to live.
Notice: Mouse is the default tool in all the operation below unless Exceptional indication.
Fig 2.5 Digital Numbers and Letters Input Window
15
Page 22
Digital Video Recorder User Manual
3 Basic Function Instruction
3.1 Power On/Off
Before you power on the unit, please make sure all the connection is good.
3.1.1 Power on
Step1: connect with the source power; switch on the power button near the power port on the rear panel
Step2: the device will be loaded, and the power indicator will display blue
Step3 before start, a WIZZARD window will be pop-up and show some information about time zone，time setup，network
configuration, record configuration and disk management. User can setup here and refer to the concrete setup steps from the
corresponding chapters. If users don’t want to setup Wizard, please click Exit button to exit.
After the device power on, if there is no menu or only has live image display, user can long press ESC button to switch.
Notice: this serial device can only display options on either VGA monitor or BNC monitor at one time, if there is live image display
without menu options, please check if there is display on other device/monitor, or long press ESC key to wait for login dialog box
to appear. Long press ESC key can switch the output between BNC and VGA.
3.1.2 Power off
User can power off the device by using remote controller、keyboard and mouse.
By remote controller:
Step1: press Power button, the Shut down window will appear, click OK, the unit will power off after a while.
Step2: disconnect the power
By keyboard and mouse:
Step1: enter into Menu, then select “System Shut Down” icon, the Shut down window will appear
Step2: click OK, the unit will power off after a while.
Step3: disconnect the power
16
Page 23
Digital Video Recorder User Manual
Symbol
Meaning
3.2 Login
User can login and logout the DVR system. User cannot do any other operations except changing the multi-screen display once
logout.
Fig 3-1 Login
Notice: the default user name and password is “admin” and 123456.

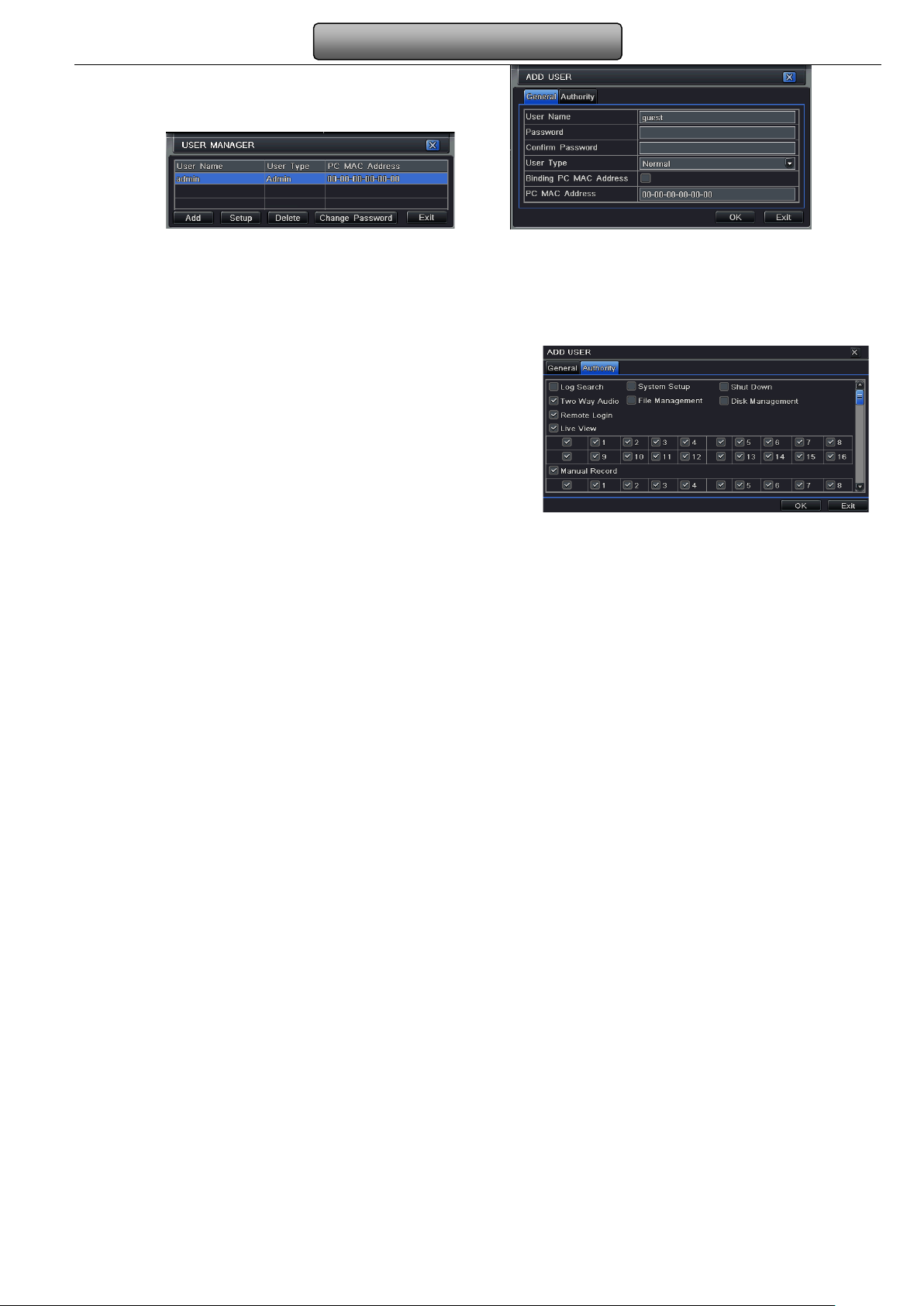

The concrete operation steps for change password, add or delete user please refer to User management configuration for
more details.
3.3 Live preview
Green Manual record
Yellow
Red Sensor Alarm record
Blue Schedule record

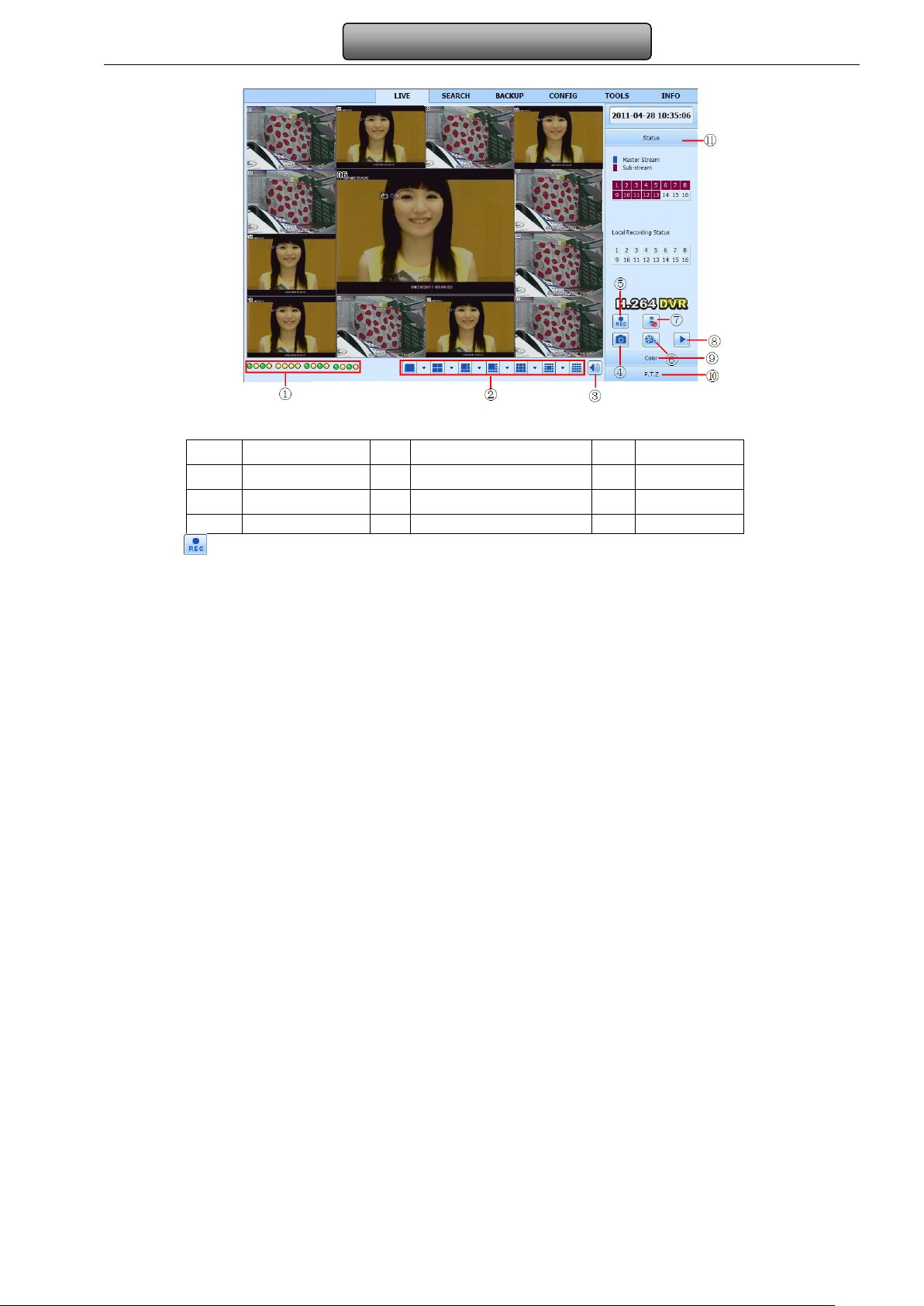

Fig 3-2 live preview interface
Motion detection record
17
Page 24
Digital Video Recorder User Manual
3.3.1 Live playback

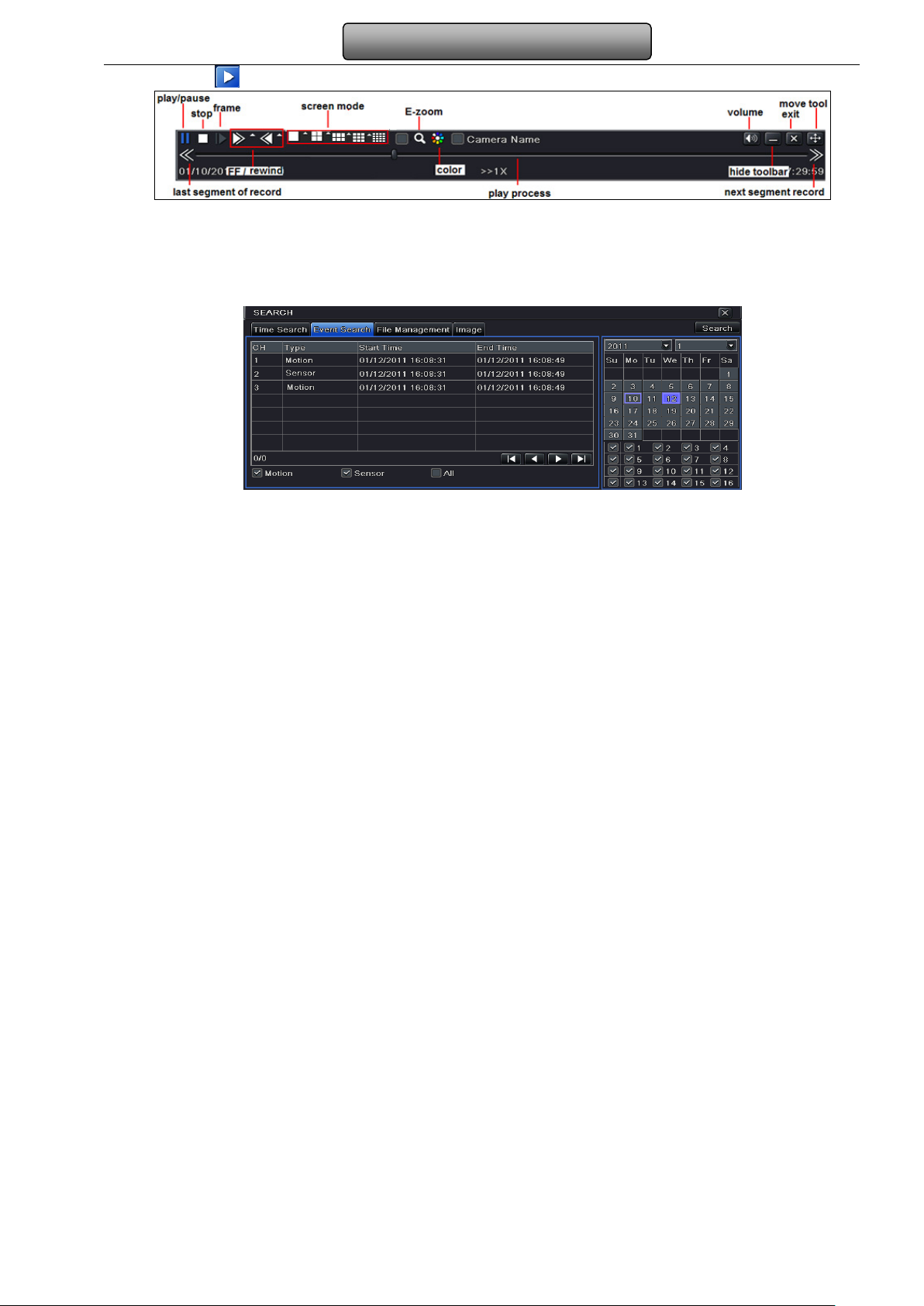

Click Play button to playback the record. Refer to Figure3-3. User can do concrete operation by click the buttons on screen.
Fig 3-3 live playback
18
Page 25
Digital Video Recorder User Manual
4 Main menu setup guide
From the live screen, right click or press ESC button on the front panel to display the control bar at the bottom of the screen, refer to
Fig 4-1:
Fig 4-1 main menu toolbar
Click the icon beside the screen display mode to display a channel select dialog. 6/8/13 channels can realize single channel big
screen. Images can drag to any place to display in the live interface.
Dwell: Dwell means to display live images from different cameras in a sequence. The images may be displayed as a single channel
or in a grid fashion from different cameras. Dwell mode is enabled only when the chosen display mode is not able to display all the
available cameras.

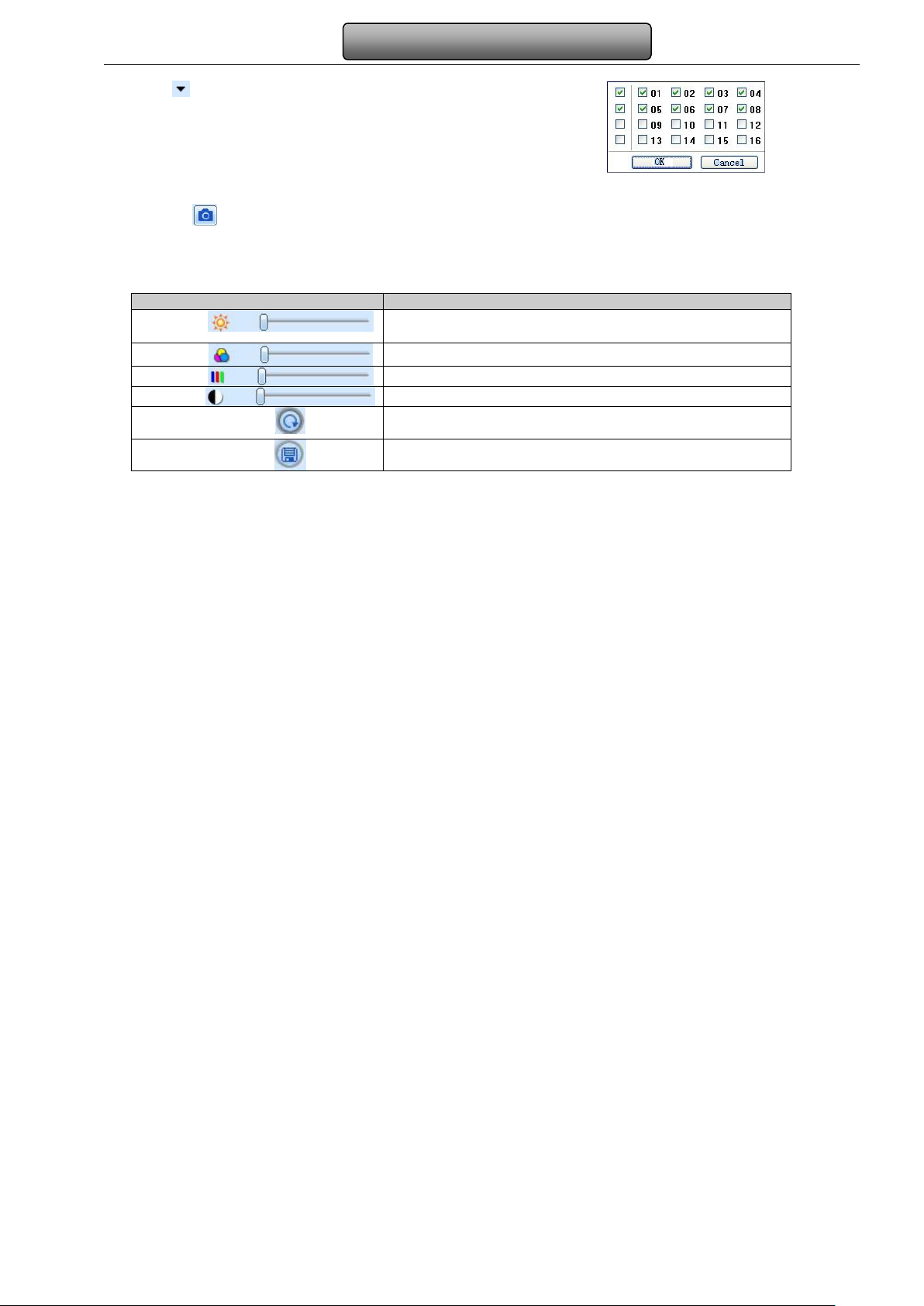

Color: Click this button to adjust the color of live pictures.
E-Zoom: Single channel large screen electronic amplification.
Left click the channel which needs to zoom. Right click select Zoom in button and then click to amplify the image. Left click & hold to
drag the image. Double click to exit; right click to return to the main interface.
Volume: Enable sound.
PTZ: Click the PTZ button to control rotation position, speed of the dome, enable wiper and light and start track, auto scan or cruise
in this interface. User can refer to PTZ configuration for more details.
Snap: click this button to snap the live pictures. These pictures will automatically be saved in the SATA disk.
Record: Click this button, user can start manual record.
Playback: Click this button, the device can playback the record files.
User can click button and drag the tool bar anywhere on screen display with the left mouse. Click Menu button to
19
Page 26
Digital Video Recorder User Manual
display Login window. Input the user name and password to logon the system interface as shown in Fig 4-2. To see the main menu,
press MENU button on the front panel or operate with remote controller. Clicking Setup icon will pop-up the configuration menu:
Fig 4-2 system setup
4.1 Basic configuration
Basic configuration includes three sub menus: system、date& time and DST.
4.1.1 System
Step1: enter into system configurationbasic
configurationsystem; refer to Fig 4-3:
Step2: in this interface user can setup the device name,
device ID, video format, max network users, VGA
resolution and language. The definitions for every
parameters display as below:
Device name: the name of the device. It may display on
the client end or CMS that help user to recognize the
device remotely.
Video format: two modes: PAL and NTSC. User can
select the video format according to the camera.
Fig 4-3 basic configuration-basic
20
Page 27
Digital Video Recorder User Manual
Password check: If enabled, the user would need to input the user name and the password for performing corresponding
operations.
Show time: display time in live.
Show wizard: if this item is selected, there will display an opening wizard with time zone and time setup information
Max network uses: set the max user amount of network connection
VGA resolution: the resolution of live display interface, range from: VGA800*600, VGA1024*768, VGA1280*1024 and CVBS
Note：When switch between VGA and CVBS will change the menu output mode, please connect to relevant monitor.
Language: setup the menu language.
Note: After changed the language and video output, the device needs to login again.
4.1.2 Time & date
Step1: enter into system configurationbasic
configurationtime & date; refer to Fig 4-4:
Step2: set the date format, time format, time zone in this
interface; tick off “sync time with NTP server” to refresh
NTP server date; user also can adjust system date
manually
Fig 4-4 basic configuration-time & date
4.1.3 DST
21
Page 28
Digital Video Recorder User Manual
Step1: enter into system configurationbasic
configurationDST; refer to Fig 4-5:
Step2: in this interface, enable daylight saving time, time
offset, mode, start & end month/week/date, etc.
Fig 4-5 basic configuration-DST
4.2 Live configuration
Live configuration includes four submenus: live, main monitor, Spot and mask.
4.2.1 Live
In this interface, user can setup camera name, adjust colors: brightness, hue, saturation and contrast.
Step1: enter into system configurationlive
configurationlive; refer to Fig 4-6:
Note: Click Camera Name, a soft keyboard will pop
up. User can self-define the camera name. Click Shift
button, user can input Capital letters; click Shift
button again, user can input Chinese characters.
Step2: tick off camera name; click “setting” button, a
window will pop-up as Fig 4-7:
Fig 4-6 live configurationlive
22
Page 29
Digital Video Recorder User Manual
Step3: in this interface, user can adjust brightness, hue,
saturation and contrast in live; click “default” button to
resort default setting; click “OK” button to save the
setting.
Step4: user can setup all channels with same parameters,
tick off “all” to do relevant setup.
Fig 4-7 live-color adjustment
4.2.2 Main monitor
Step1: enter into system configurationlive configurationmain monitor; refer to Fig 4-8:
Step2: select split mode: 1×1、2×2、2×3、3×3、4×4 and channel
Step3: dwell time: the time interval for a certain dwell
picture display switching to next dwell picture display
Step4: while selecting the split mode, user can setup the
current picture group. Click button to setup the
previous channel groups of dwell picture and click
button to set the latter channel groups of dwell picture.
Fig 4-8 live configuration-host monitor
23
Page 30
Digital Video Recorder User Manual
4.2.3 Spot
Step1: enter into system configurationlive configurationSpot; refer to Fig 4-9:
Step2: select split mode: 1×1and channel.
Step 3: dwell time: the time interval for a certain dwell
picture display switching to next dwell picture display
Step 4: while selecting the split mode, user can setup the
current picture group. Click button to setup the
previous channel groups of dwell picture, click button
to set the latter channel groups of dwell picture.
Fig 4-9 live configuration-Spot
4.2.4 Mask

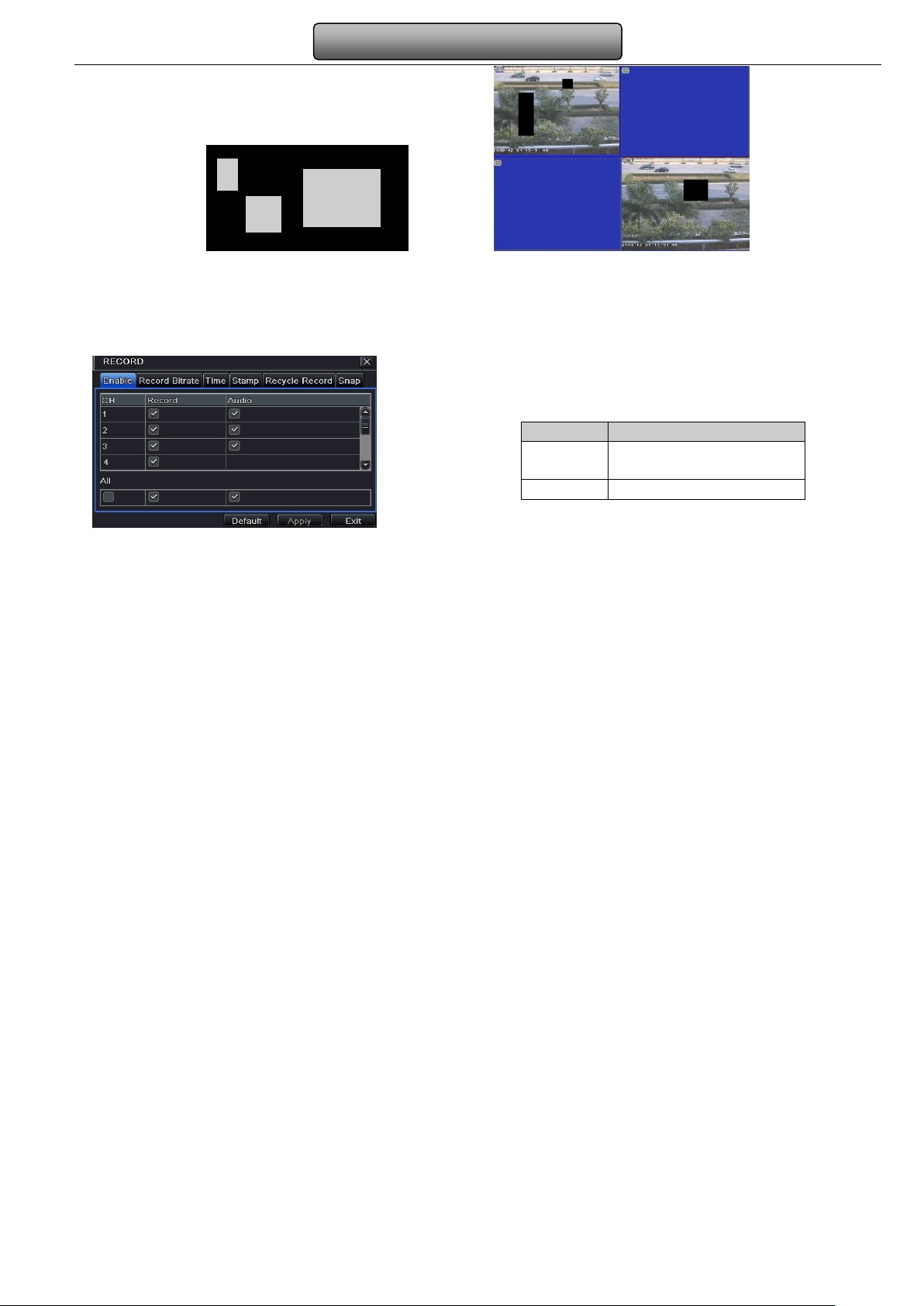

User can setup private mask area on the live image picture, max threes areas.
Setup mask area: click Setting button and then enter
into live image. Next, press left mouse and drag mouse to
set mask area referring to the left picture. Click Apply
button to save the setting.
Delete mask area: select a certain mask area and left
click to delete that mask area. Then click Apply button to
save the setting.
Fig 4-10 live configuration-mask
24
Page 31
Digital Video Recorder User Manual
Setup mask area live image mask area
4.3 Record configuration
Record configuration includes six sub menus: enable, record bit rate, time, recycle record, stamp and snap.
4.3.1 Enable
Step1: enter into system configurationrecord configurationenable; refer to Fig 4-11:
Step2: tick off record, audio and record time
Step3: user can setup all channels with same parameters.
Tick off “all” to do relevant setup.
Parameter Meaning
Record Record switch of every
channels
Audio Enable live record audio
Fig 4-11 record configuration-enable
25
Page 32
Digital Video Recorder User Manual

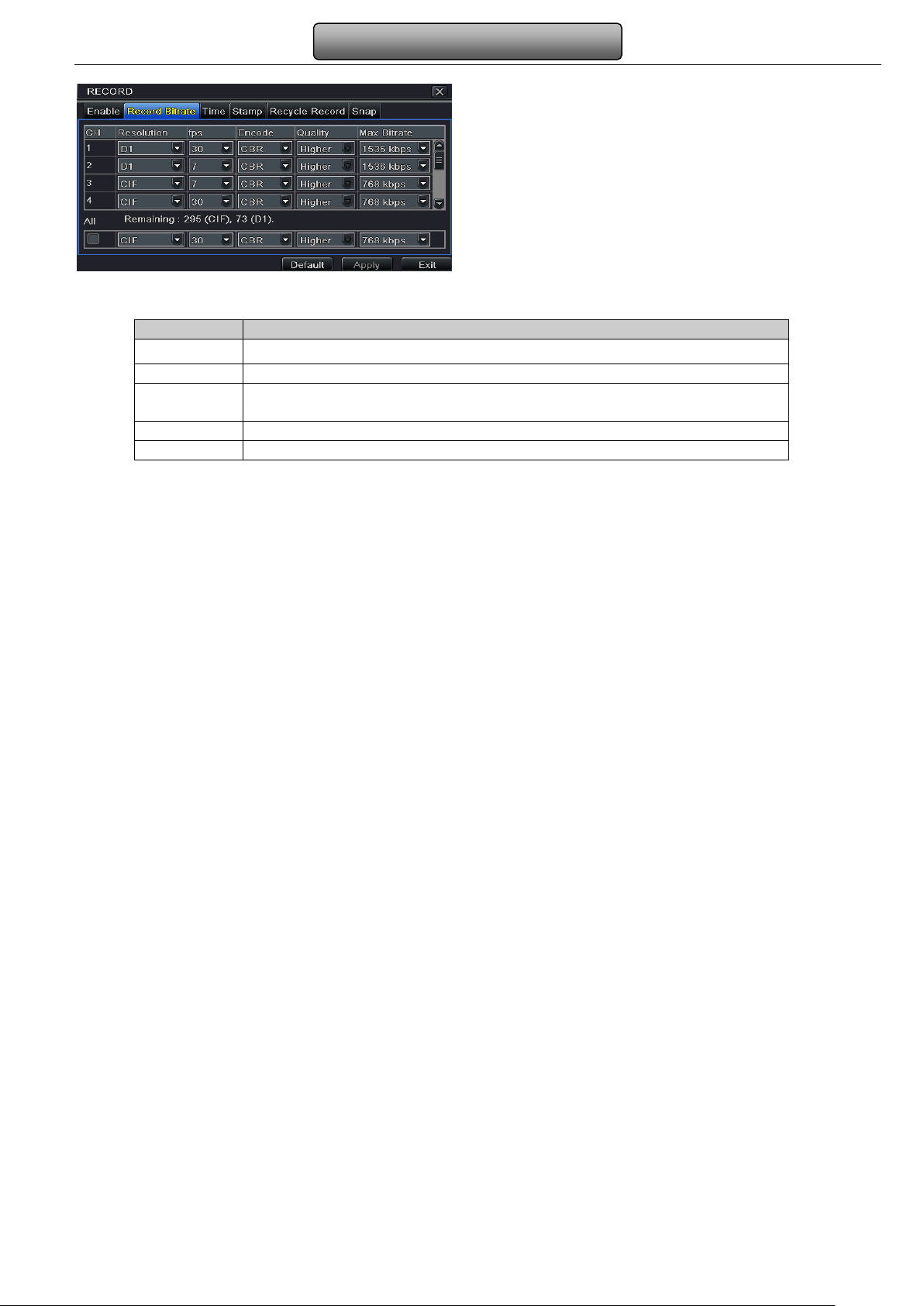

4.3.2 Record stream
Step1: enter into system configurationrecord
configurationrecord bit rate; refer to Fig 4-12:
Step2: setup rate, resolution, quality, encode and max bit
stream
Step3: user can also setup all channels with same
parameters.
Note: if the rate value set is over high the maximum
resources of the device, the value will be adjusted
automatically.
Fig 4-12 record configuration-record bit rate
Definitions and descriptions of Record stream:
Parameter Meaning
Rate
Resolution Support CIF and D1
Quality The higher the value is, the clearer the recorded image is. Six options: lowest, lower,
Encode VBR and CBR
Max bit stream Range from: 64 Kbps, 128 Kbps, 256 Kbps, 512 Kbps, 768 Kbps, 1Mbps, 2 Mbps
Range from: 1-30（NTSC）1-25(PAL)
low, medium, higher and highest.
4.3.3 Time
Step1: enter into system configurationrecord configuration time; refer to Fig 4-13:
Pre-alarm record time: the record time before event happen i.e. record time before motion detection or sensor alarm is
triggered.
26
Page 33
Digital Video Recorder User Manual
Post-alarm record: set post recording time after the alarm is finished, options: 10s, 15s, 20s, 30s, 60s, 120s, 180s and 300s.
Expire time: the hold time of saved records. If the set date is overdue, the record files will be deleted automatically.
Step2: user can setup all channels with same parameters, and then tick off “all” to do relevant setup.

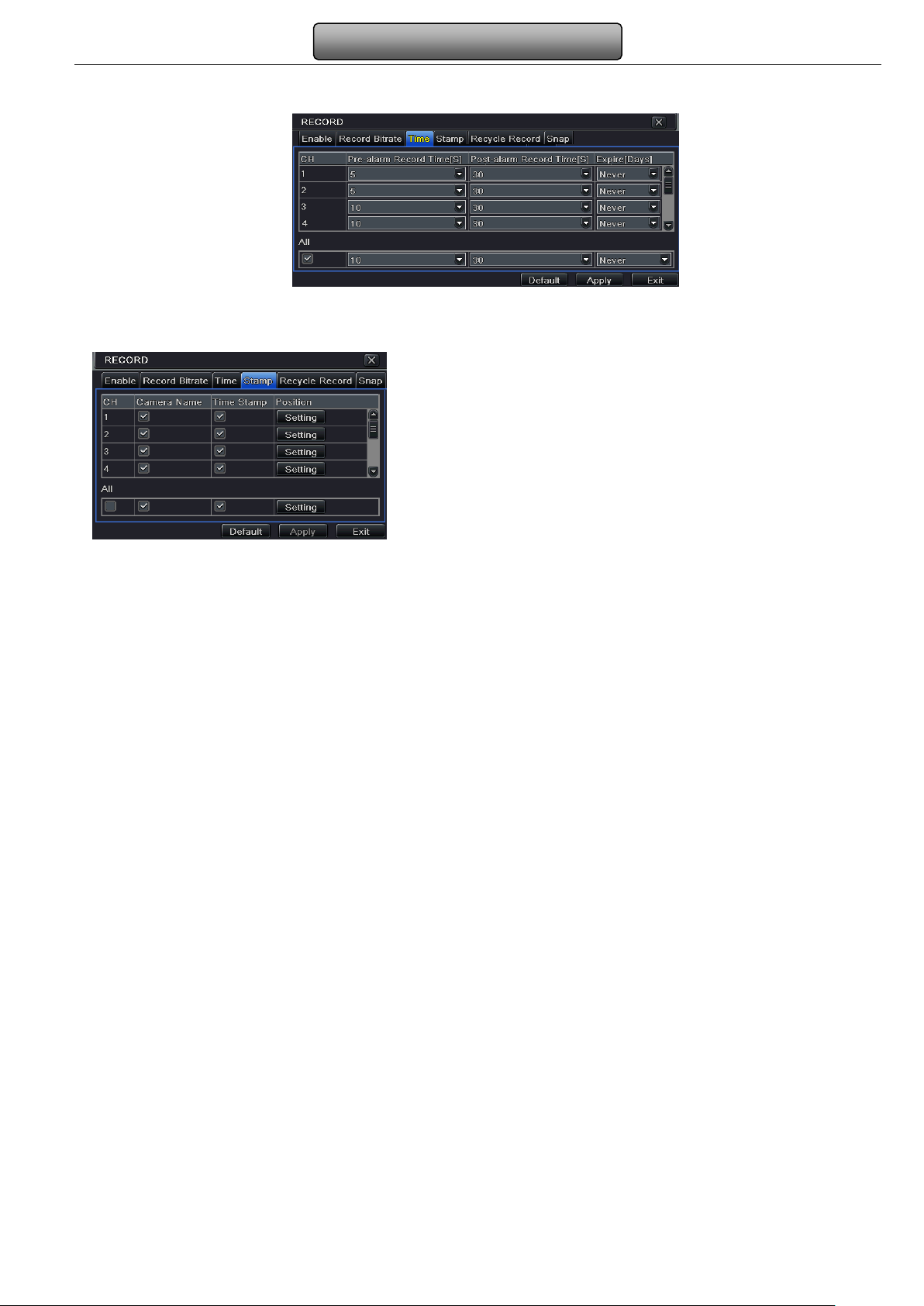

Fig 4-13 record configuration-time
4.3.4 Stamp
Stamp：User can overlap the channel name and time stamp on video.
Step1: enter into system configuration record
configuration stamp; refer to Fig 4-14:
Step2: tick off camera name, time stamp; click Setting
button. User can use cursor to drag the camera name
and time stamp in random positions, referring to below
Figures:
Step3: user can setup all channels with same
parameters. Tick off “all” to do relevant setup.
Fig 4-14 record configuration-stamp
27
Page 34
Digital Video Recorder User Manual

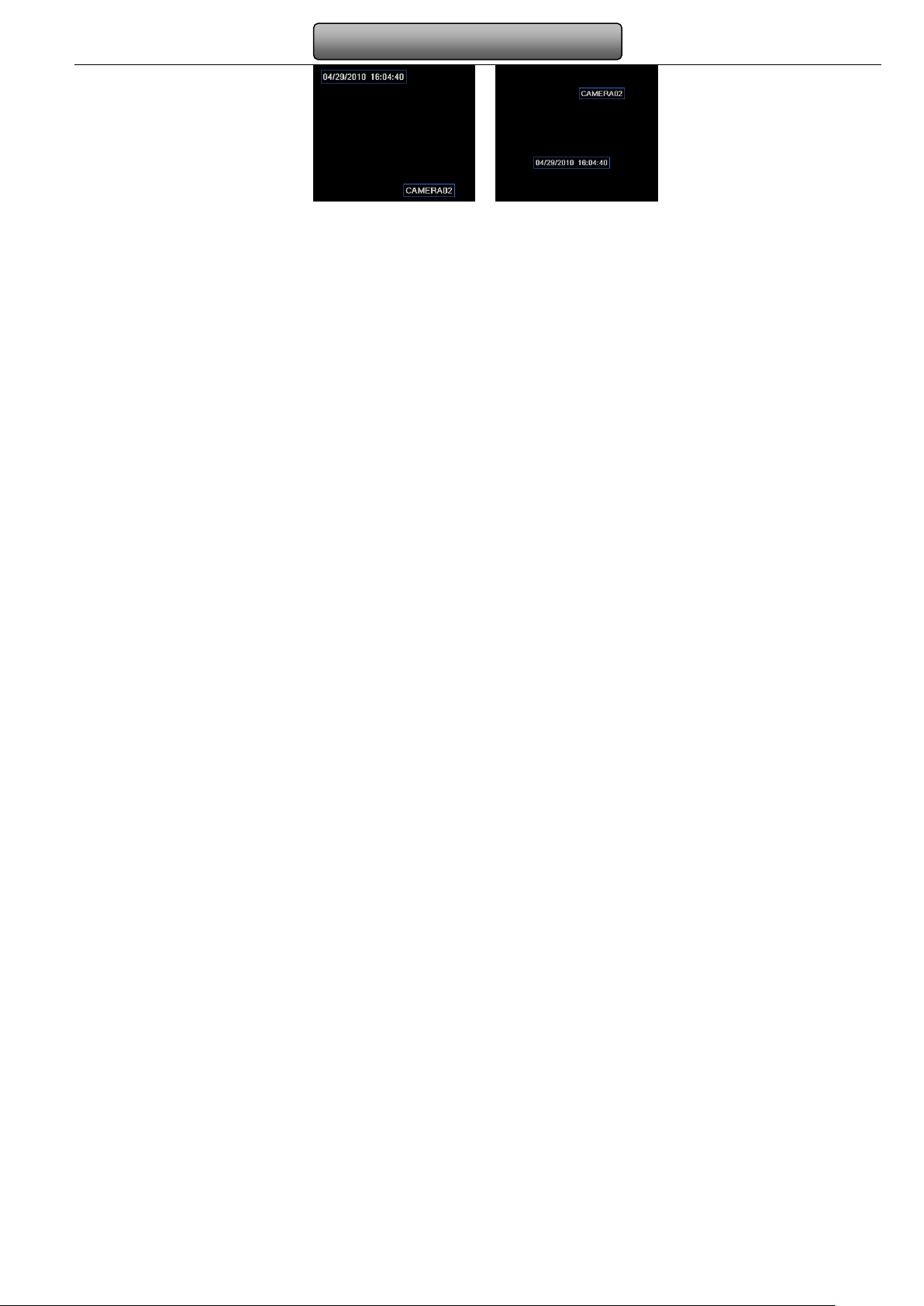

Before drag after drag
4.3.5 Recycle record
Step1: enter into system configurationrecord configurationrecycle record;
Step2: tick off recycle record to enable the recycle record function. It will cover the earlier recorded files and keep recoding when
HDD is full; if user disenables this function, it will stop recording when HDD is full.
Step3: click “default” button to resort default setting; click “apply” button to save the setting; click “exit” button to exit current
interface.
4.3.6 Snap
In this interface, user can set up Resolution, quality, snap interval and snap number.
4.4 Schedule configuration
Schedule configuration includes three sub menus: schedule, motion and alarm.
4.4.1 Schedule
The volume means the seven days of a week from Monday to Sunday and the row means 24 hours of a day. Click the grid to do
relevant setup. Blue means checked area and gray means unchecked area.
Step1: enter into system configurationschedule configurationschedule; referring to Fig 4-15:
28
Page 35
Digital Video Recorder User Manual

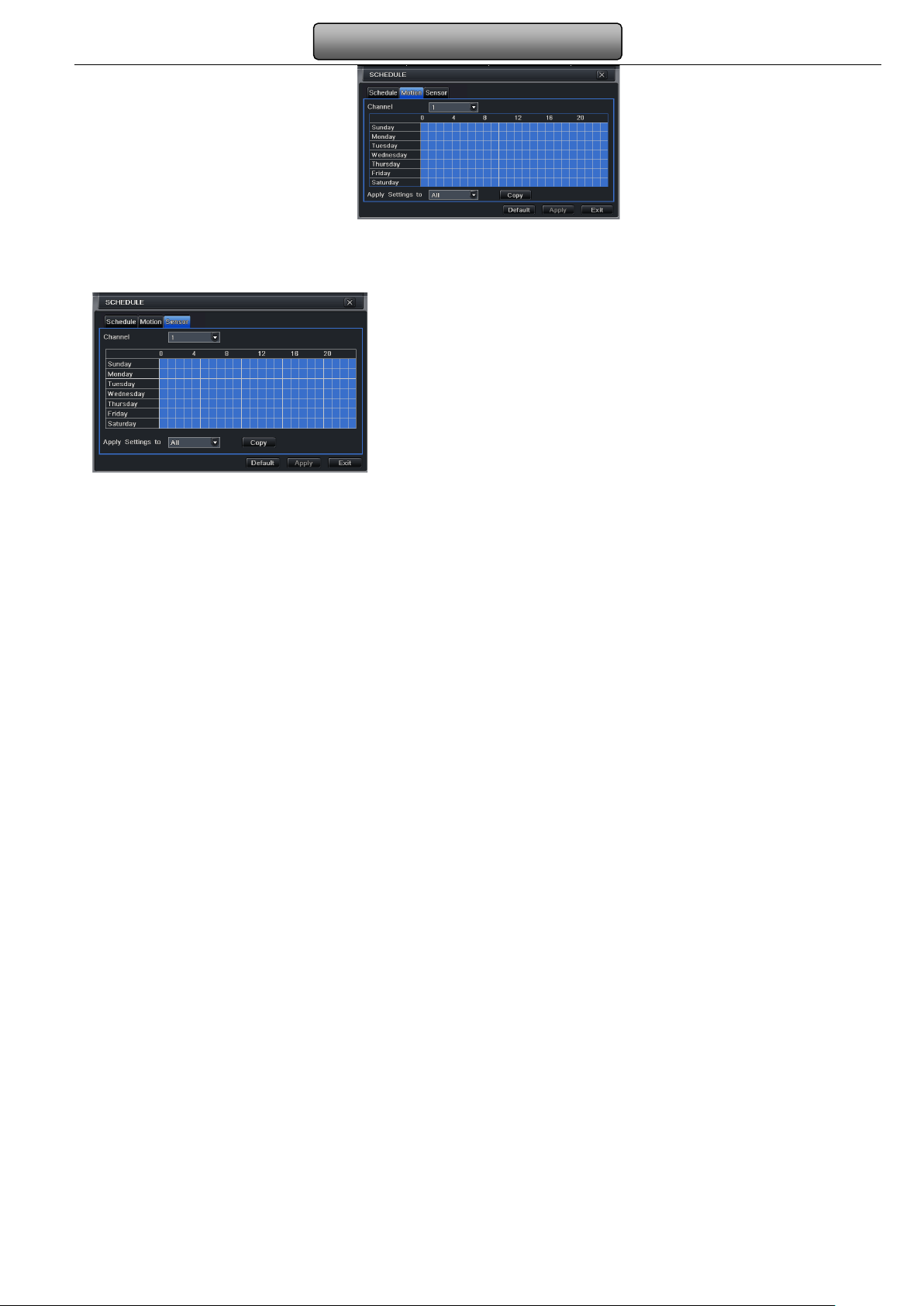

Fig 4-15 schedule configuration-schedule

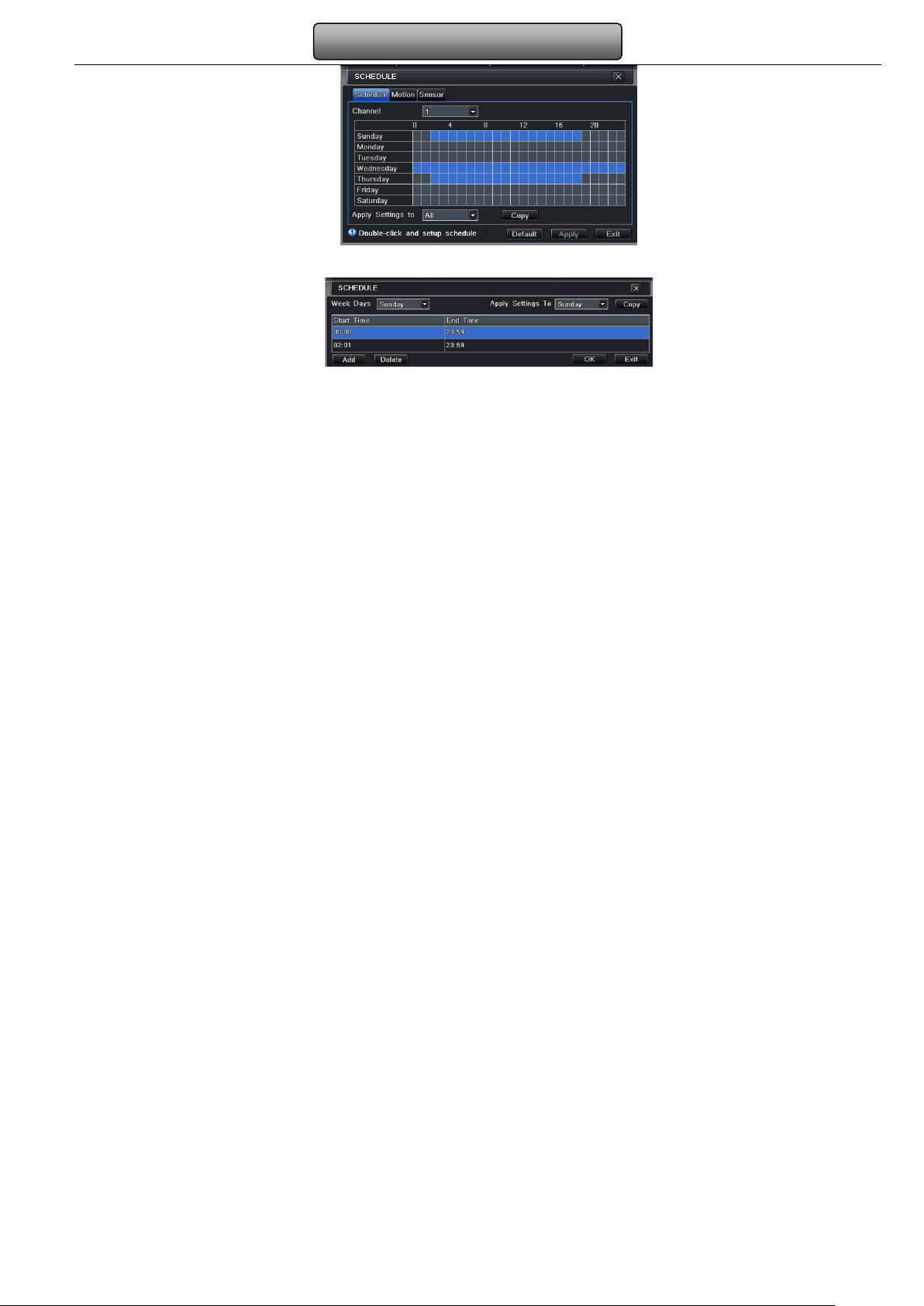

Step2: select channel and double-click to pop up a window as Fig 4-16. Now user can edit week schedule:
Fig 4-16 schedule-week schedule
① Click “add” button to add a certain day schedule; click “delete” button to delete the selected schedule;
Copy: user can copy the specify schedule to other dates.
Click “OK” button to save the setting; click “Exit” button to exit current interface.
② If the user wants to apply the schedule setting of certain channel to other or all channels, he needs to select channel and
click “Copy” button.
4.4.2 Motion

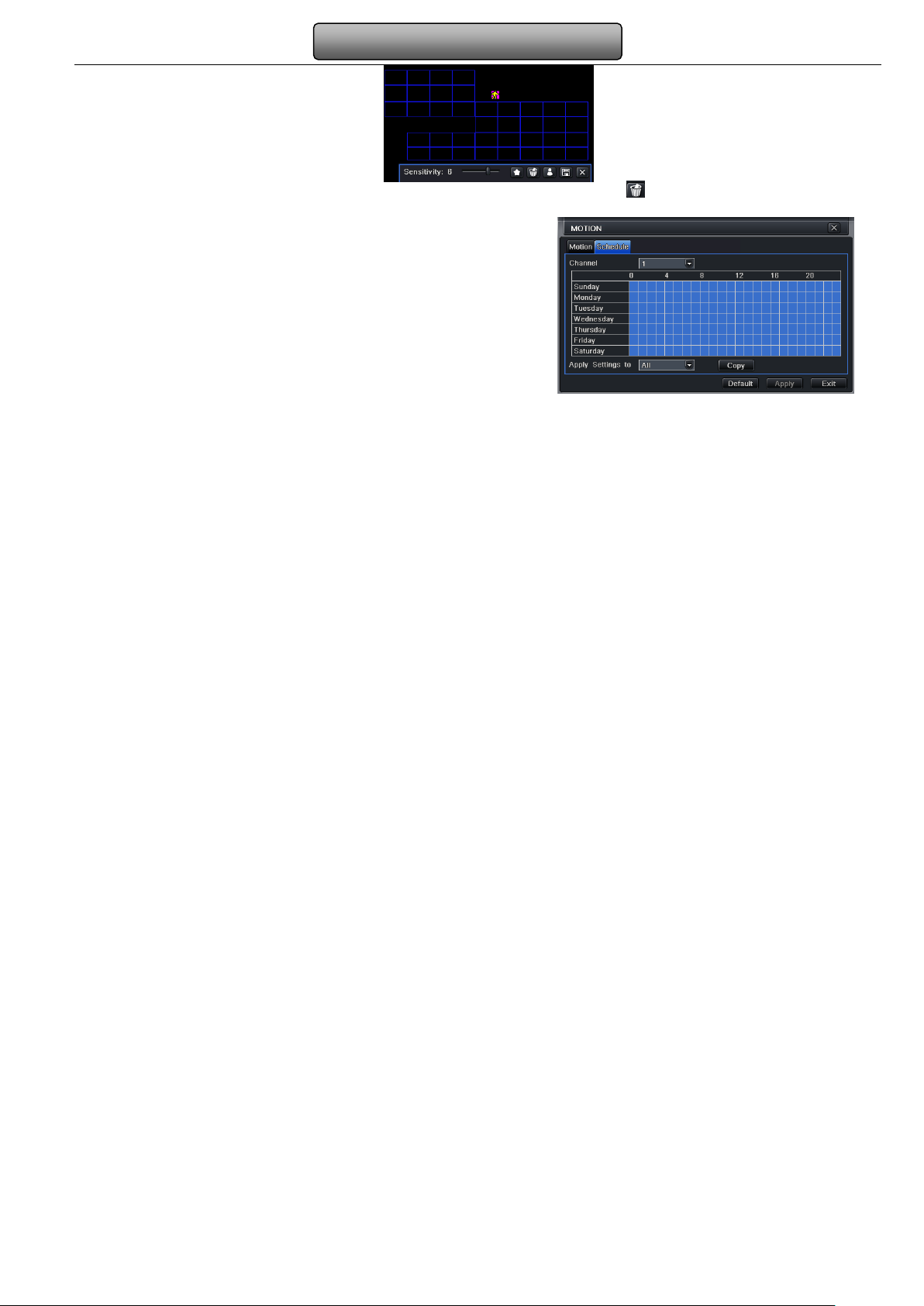

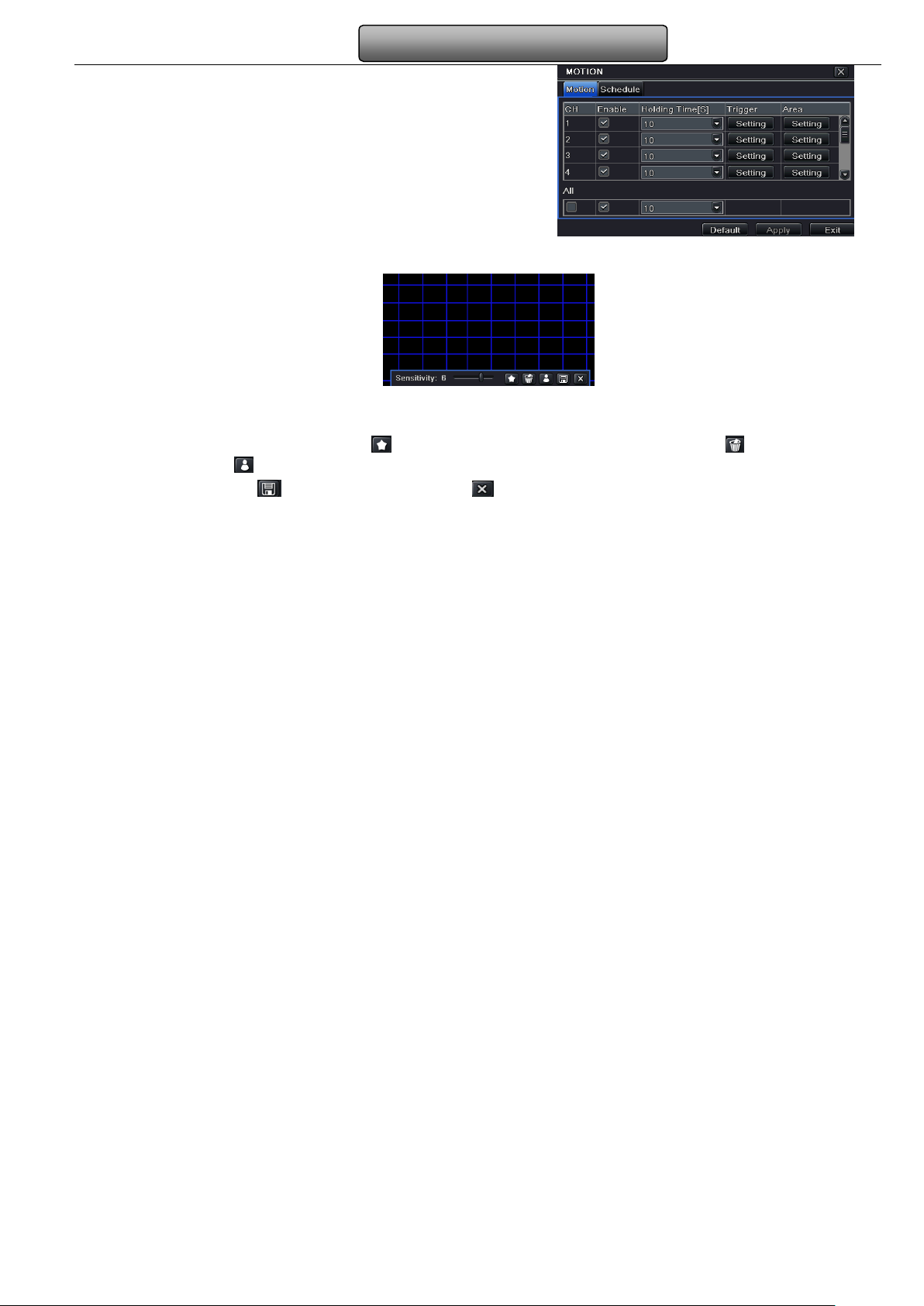

Step1: enter into system configurationschedule configurationmotion; refer to Fig 4-17:
Step2: the setup steps of motion are familiar with schedule; user can refer to 4.4.1 Schedule for details.
29
Page 36
Digital Video Recorder User Manual
Fig 4-17 schedule configuration-motion
Note: the default schedule of motion detection is full-selected, that is, the color of schedule setting interface is blue.

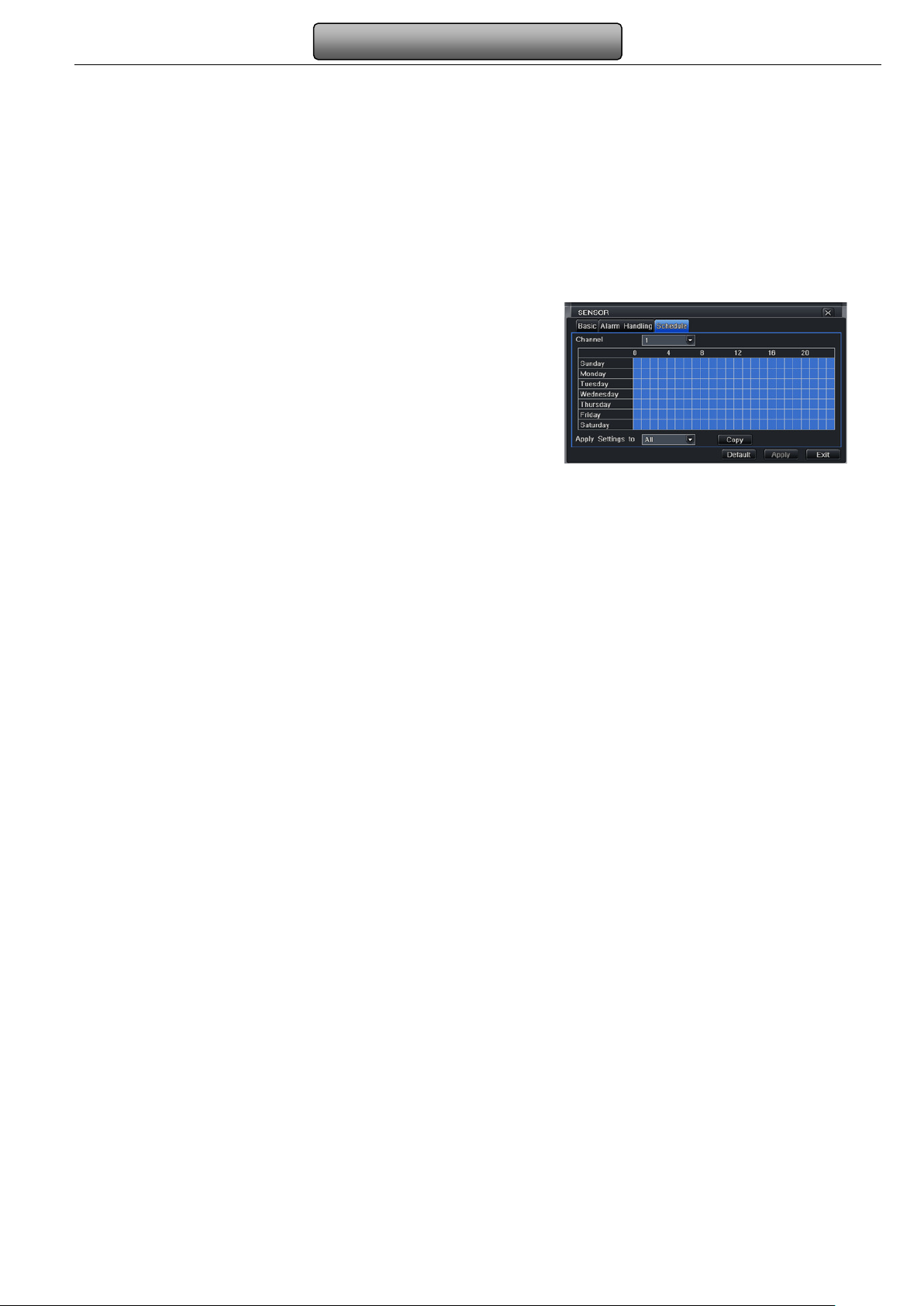

4.4.3 Sensor
Step1: enter into system configurationschedule
configurationalarm; refer to Fig 4-18:
Step2: the setup steps of alarm are familiar with schedule;
user can refer to 4.4.1 Schedule for details.
Note: the default schedule of sensor is full-selected,
that is, the color of schedule setting interface is blue.
Fig 4-18 schedule configuration-sensor
4.5 Alarm configuration
Alarm configuration includes five sub menus: sensor, motion, video loss, other alarm and alarm out.
30
Page 37
Digital Video Recorder User Manual
4.5.1 Sensor
Sensor includes three sub menus: basic, alarm handling and schedule.
① Basic

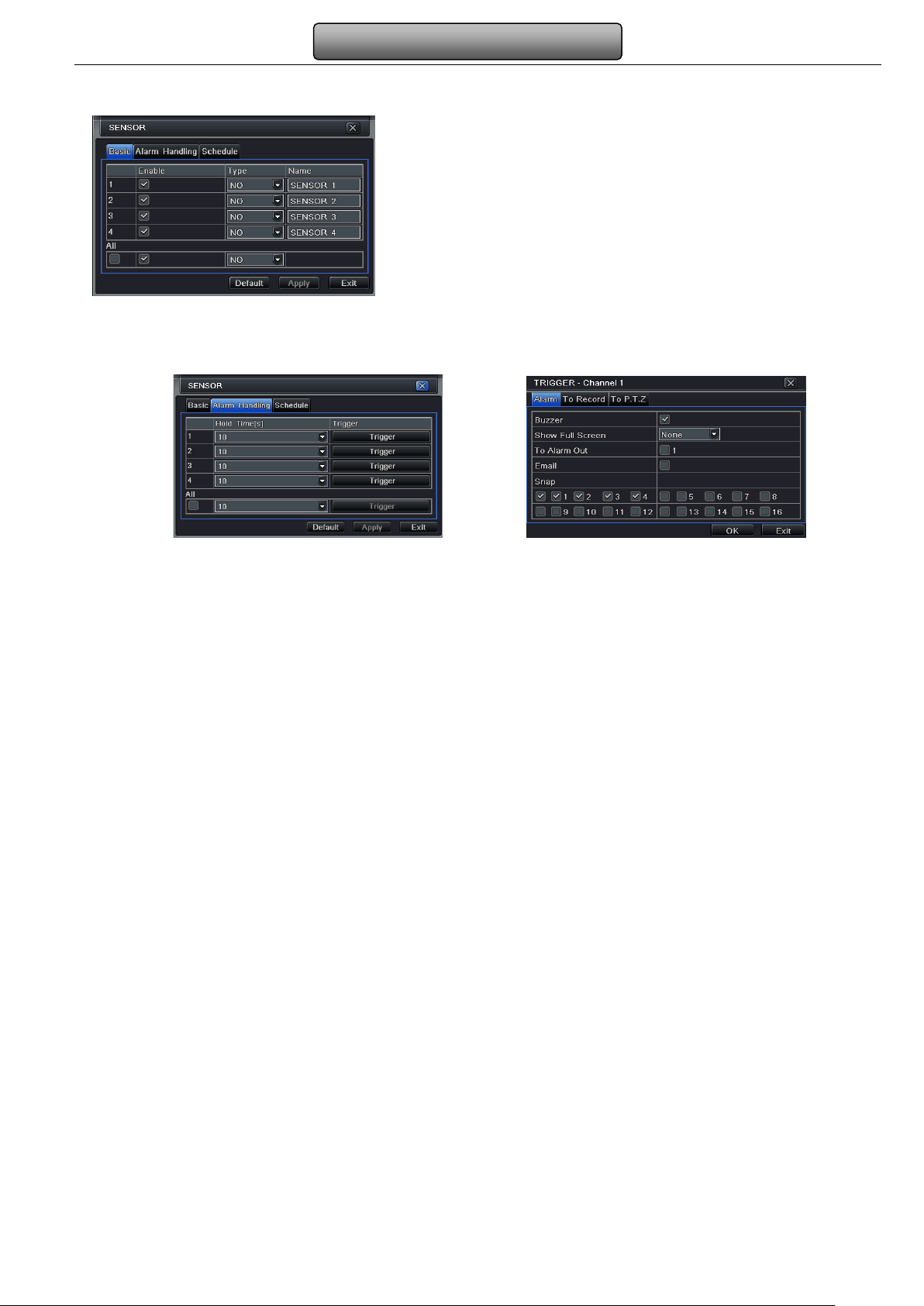

Step1: enter into system configurationalarm
configurationsensorbasic; refer to Fig 4-19:
Step2: enable sensor alarm and then set the alarm type
according to triggered alarm type. Two option: NO and
NC.
Step3: user can setup all channels with same parameters,
tick off “all” to do relevant setup.
Fig 4-19 alarm configuration-sensor-basic
② Alarm handling
Step1: enter into system configurationalarm configurationsensoralarm handling; referring to Fig 4-20:
Step2: select hold time and click Trigger to display a screen as shown in Fig 4-21:
Fig 4-20 alarm configuration-sensor-alarm handling Fig 4-21 alarm handling-trigger
31
Page 38
Digital Video Recorder User Manual
Step 3: If Buzzer is selected, there will be triggered buzzer alarm out.
Full screen alarm: when alarm is triggered, there will pop up full screen alarm;
Email: Select this function. When an alarm is triggered, a notification email will be sent to user’s designed email box including
trigger events, time, snap pictures, device name, ID camera name etc.
Snap: Select channels. When an alarm is trigged, the system will automatically save the captured pictures from the selected
channel. If user ticks off Email function, these pictures will also be sent to user’s designed email box.
To alarm out: After selecting the channel, there will be triggered alarm out in the designated channel. Click OK button to save
the setting; click Exit button to exit the current interface.
To record: Select recoding channels. It will record the camera when alarm is triggered. Click OK button to save the setting; click
Exit button to exit the current interface.
To P.T.Z: set linked preset and cruise for alarm. User can select any channel and multi channels as linked channels. Click OK
button to save the setting; click Exit button to exit the current interface.
Step4: user can setup all channels with same parameters. Tick off “all” to do relevant setup.
③ Schedule
Step1: enter into system configurationalarm
configurationsensorschedule; refer to Fig 4-22:
Step2: the setup steps of sensor schedule are familiar
with schedule; user can refer to 4.4.1 Schedule for
details.
Note: the default schedule of sensor is full-selected,
that is, the color of schedule setting interface is blue.
Fig 4-22 sensor-schedule
4.5.2 Motion
Motion includes two sub menus: motion and schedule.
① Motion
Step 1: enter into system configurationalarm configurationmotion; refer to Fig 4-23:
32
Page 39
Digital Video Recorder User Manual
Step 2: enable motion alarm and set alarm hold time
which means time interval between two adjacent
detective motions. If there is other motion detected
during the interval period, it is considered continuous
movement; otherwise, it will be considered that those
two adjacent detective motions are two different motion
events. While clicking Trigger, a window will pop-up:
Step 3: the setup steps of motion trigger are familiar with
alarm handling; user can refer to Chapter 4.5.1 Sensor
alarm handling for more details.
Step4: while clicking Area button, a window will pop-up
as Fig 4-24:
Fig 4-24 motion-area
Step 5: in the Area interface, user can drag slide bar to set the sensitivity value (1-8), the default value is 4. The higher the value
is the higher sensitivity you get. Due to the sensitivity is influenced by color and time (day or night), user can adjust its value
according to the practical conditions; click icon to set the whole area as detection area; click icon to clear the set
detection area; click icon to test whether the sensitivity value and motion area are suitable accordingly（referring to
following picture）; Click icon to save the setting; click icon to exit current interface.
Fig 4-23 alarm configuration-motion
33
Page 40
Digital Video Recorder User Manual
Note: when users drag mouse to set motion detection area, they have to click icon to clear all set detection area
firstly, and then make the operation.
Step 6: user can setup all channels with same
parameters.
② Schedule
Step 1: enter into system configuration alarm
configuration schedule; refer to Fig 4-25:
Step 2: the setup steps of alarm schedule are familiar
with schedule; user can refer to 4.4.1 Schedule for
details.
Fig3-25 alarm configuration-schedule
4.5.3 Video loss

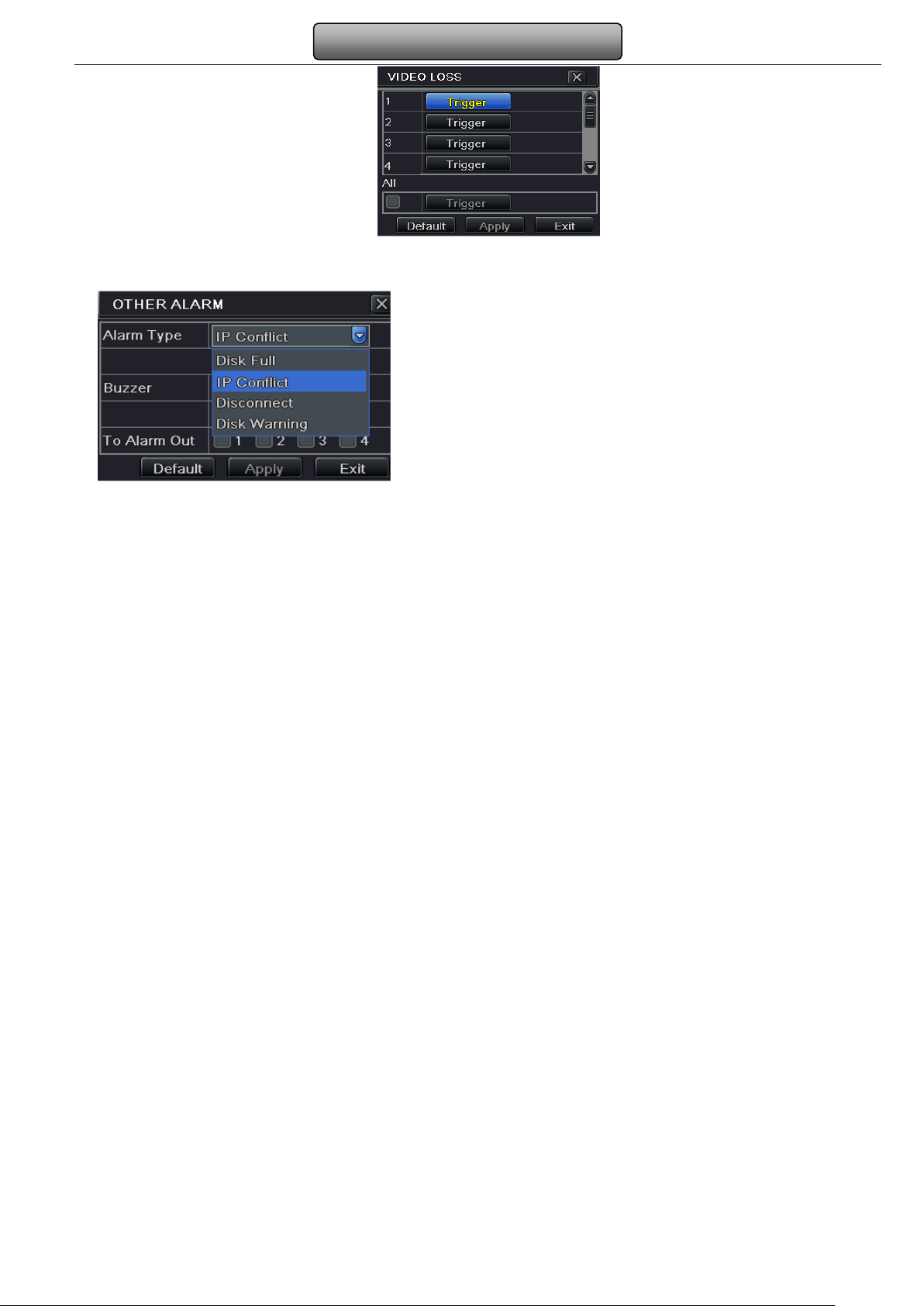

Step 1: enter into system configurationalarm configurationvideo loss; refer to Fig 4-26:
Step 2: the setup steps of video loss trigger are familiar with alarm handling; user can refer to Chapter 4.5.1 Sensor alarm
handling for more details.
Step 3: user can setup all channels with same parameters.
34
Page 41
Digital Video Recorder User Manual
Fig 4-26 alarm configuration-video loss
4.5.4 Other alarm
Step1: enter into system configurationother alarm; refer to Fig 4-27:
Disk full: user can choose the capacity of the disk storage
and select the related alarm. If the disk is full, the system
will alarm according to the setup.
IP conflict: if there is an IP address conflict within the same
network, the device will alarm after user selects buzzer and
the channel to alarm out.
Disconnect: if the disconnect happens, the device will the
device will alarm after the user selects buzzer and the
channel to alarm out.
Disk Warning: if the disk reduces, the system will send
email to the designated mailbox or alarm to notify the
Fig4-27 other alarm
Step 2: select a hard disk in the pull down list box. When the disk capacity is lower than that value, there will appear some text
information on the lower right of the live image.
reducing information after the user has selected the
corresponding function.
35
Page 42
Digital Video Recorder User Manual
4.5.5 Alarm out
Alarm out includes three sub menus: alarm out, schedule and buzzer
① Alarm out

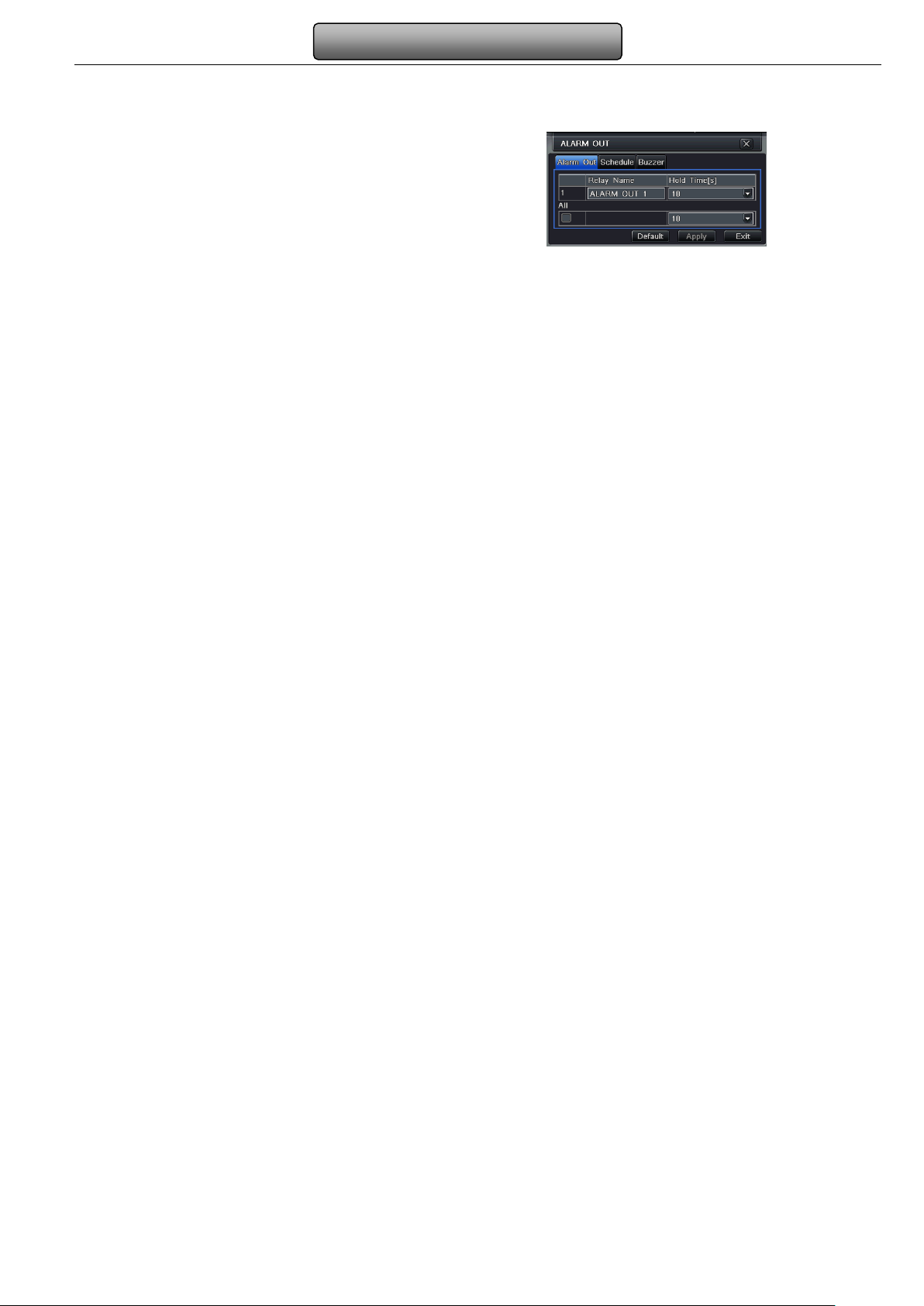

Step 1: enter into system configurationalarm out; refer to Fig 4-28:
Step 2: in this interface, user can set relay alarm out
name and select hold time which means the interval
time between the two adjacent alarms.
Step 3: user can setup all channels with same
parameters.
② Schedule
Step 1: enter into system configurationschedule;
Step 2: the setup steps of alarm out schedule are
familiar with schedule; user can refer to 4.4.1 Schedule
for details.
Note: the default schedule of motion detection is full-selected, that is, the color of schedule setting interface is blue.
③ Buzzer
Step1: enter into system configurationbuzzer;
Step2: tick off Buzzer and set buzzer alarm hold time
Fig 4-28 system configuration-alarm out
4.6 Network configuration
Network configuration includes four submenus: network, sub stream, Email and other settings.
4.6.1 Network
Step 1: enter into system configurationnetwork configurationnetwork; refer to Fig4-29:
Step 2: HTTP port: the default value is 80. If the value changed, user needs to add the port number when typing IP address in
IE address blank .i.e. set HTTP port to 82, IP address: http://192.168.0.25, user needs to input that address:
http://192.168.0.25:82
into IE browser.
36
Page 43

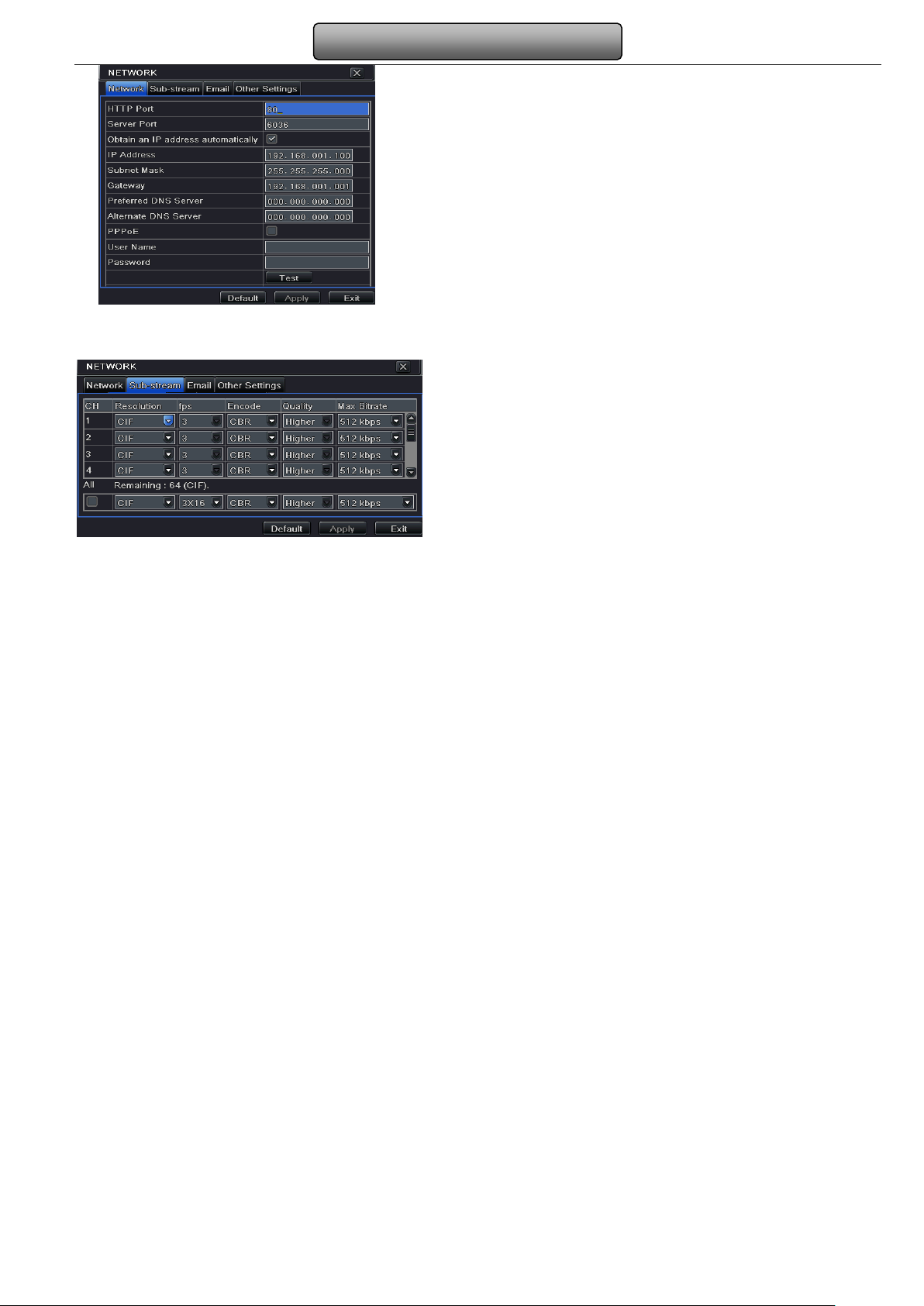

Fig 4-29 network configuration-network
4.6.2 Sub stream
Digital Video Recorder User Manual
Server port: communication port.
Step 3: If user selects the "Obtain an IP address
automatically", the device will distribute IP address,
subnet mask, and gateway IP and DNS server.
Step 4: enable PPPoE to directly connect the DVR to
internet via ADSL, and then input the user name and
password. Next, click TEST button to test the
effectiveness of the relevant information.
Step 1: enter into system configurationnetwork
configurationsub stream; refer to Fig 4-30:
Step 2: select fps, resolution, quality, encode and max bit
rate
Step 3: user can setup all channels with same
parameters. Tick off “all” to do relevant setup.
Fig 4-30 network configuration-sub stream
37
Page 44
Digital Video Recorder User Manual
Definitions and descriptions of Sub stream:
Parameter Meaning
FPS
Resolution
Quality
Encode
Max bit rate
Range from: 1-25
Support CIF
The quality of the clients’ image. The higher the value is, the clearer the record image.
Six options: lowest, lower, low, medium, higher and highest.
VBR and CBR
Range from: 64 Kbps、128 Kbps、256 Kbps、512 Kbps、768 Kbps、1Mbps、2 Mbps
4.6.3 Email

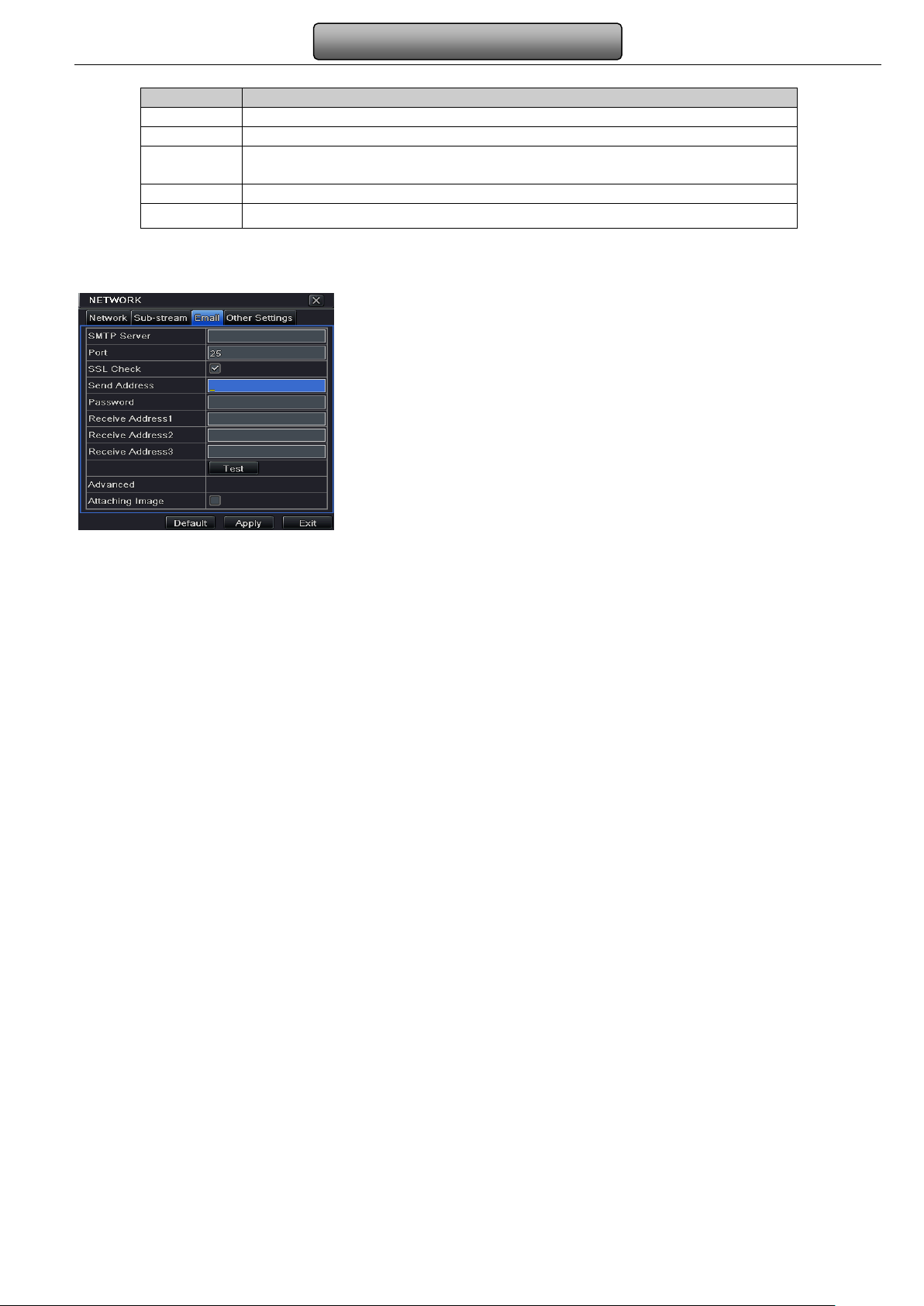

Step 1: enter into system configurationnetwork configurationemail; refer to Fig 4-31:
SMTP Server/Port: the name and port number of SMTP
server. After selecting “This server requires a secure
connection (SSL)”, user can setup mail servers (such as
Gmail) according to actual needs.
Send address/password: sender’s email
address/password
Receive address: receiver’s email address. Here user can
add at least three mail addresses.
Click TEST button to test the validity of the mailbox.
Attaching image: After selecting it, the system will attach
images when sending the emails.
Fig 4-31 network configuration-email
38
Page 45
Digital Video Recorder User Manual
4.6.4 Other settings

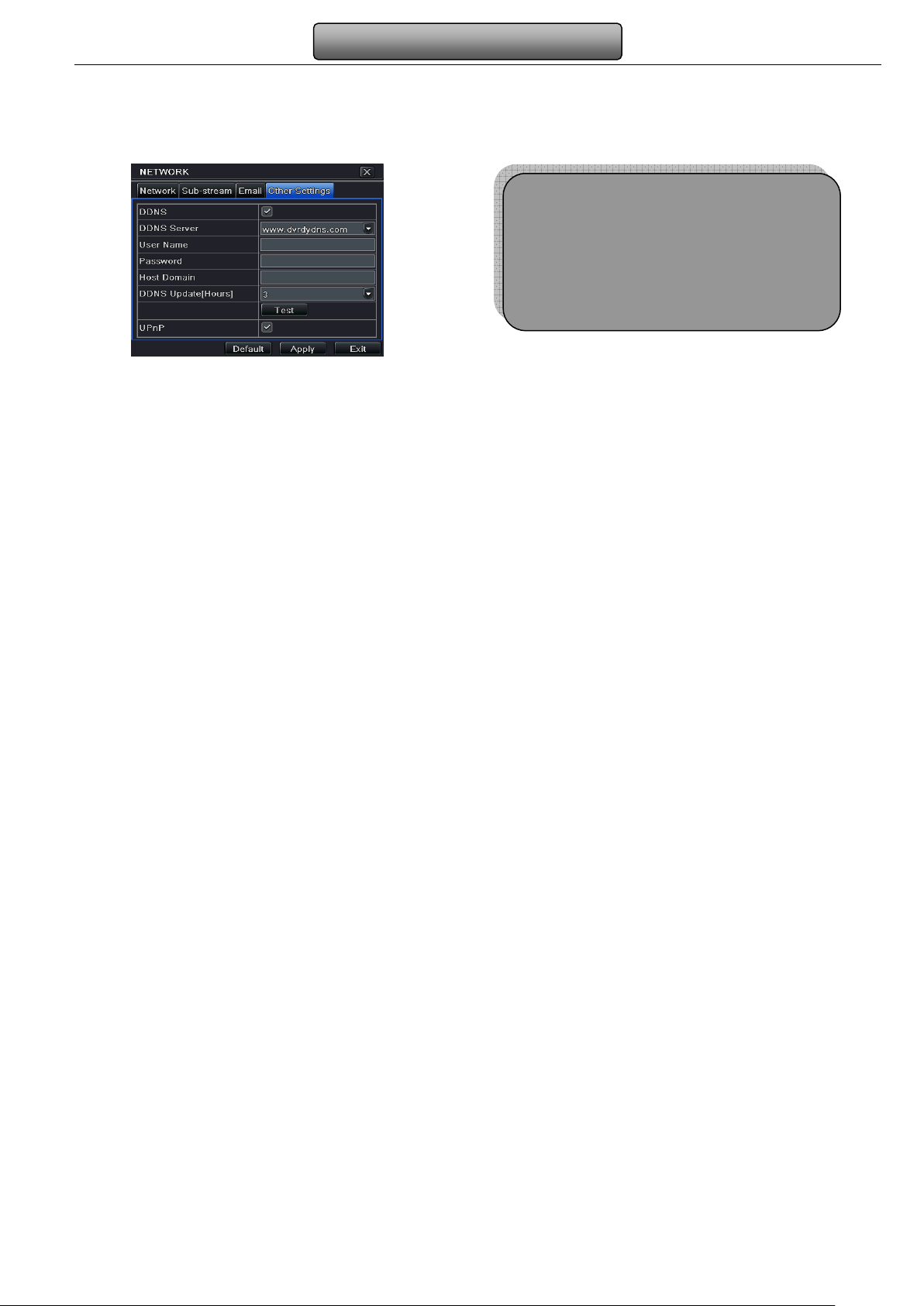

Step 1: enable DDNS server: user needs to input user name， password and host domain name of the registered website, click
TEST to test the effectiveness of the relevant information.
Step 2: click “default” button to resort default setting; click “apply” button to save the setting; click “exit” button to exit current
interface.
Note: The domain name server that selected by user is
a banding domain name of DVR. User should logon the
website which provided by the server supplier to
register a user name and password firstly, and then
apply for a domain name on line. After the successful
application, user can access the server from the IE
client by inputting that domain name.
Fig 4-32 network configuration-other settings
Enable UPnP: User may select UPnP and then enable UPnP function in the user’s router. Then user can access DVR through
WAN. When accessing the DVR through IE, user can check the IP address by the following method: Double-click the “My Network
Places” icon on the desktop in PC, select “Show icons for networked UPnP devices” in the “Network Tasks” list box, a information
window will pop up, click “YES” button, “Windows Components Wizard” dialog box will pop up as shown as below picture, press
“Next” to continue. After finished the installation of configuring components, the UPnP icons will display. Users can double-click
certain icon and check the IP address of the device.
39
Page 46
Digital Video Recorder User Manual

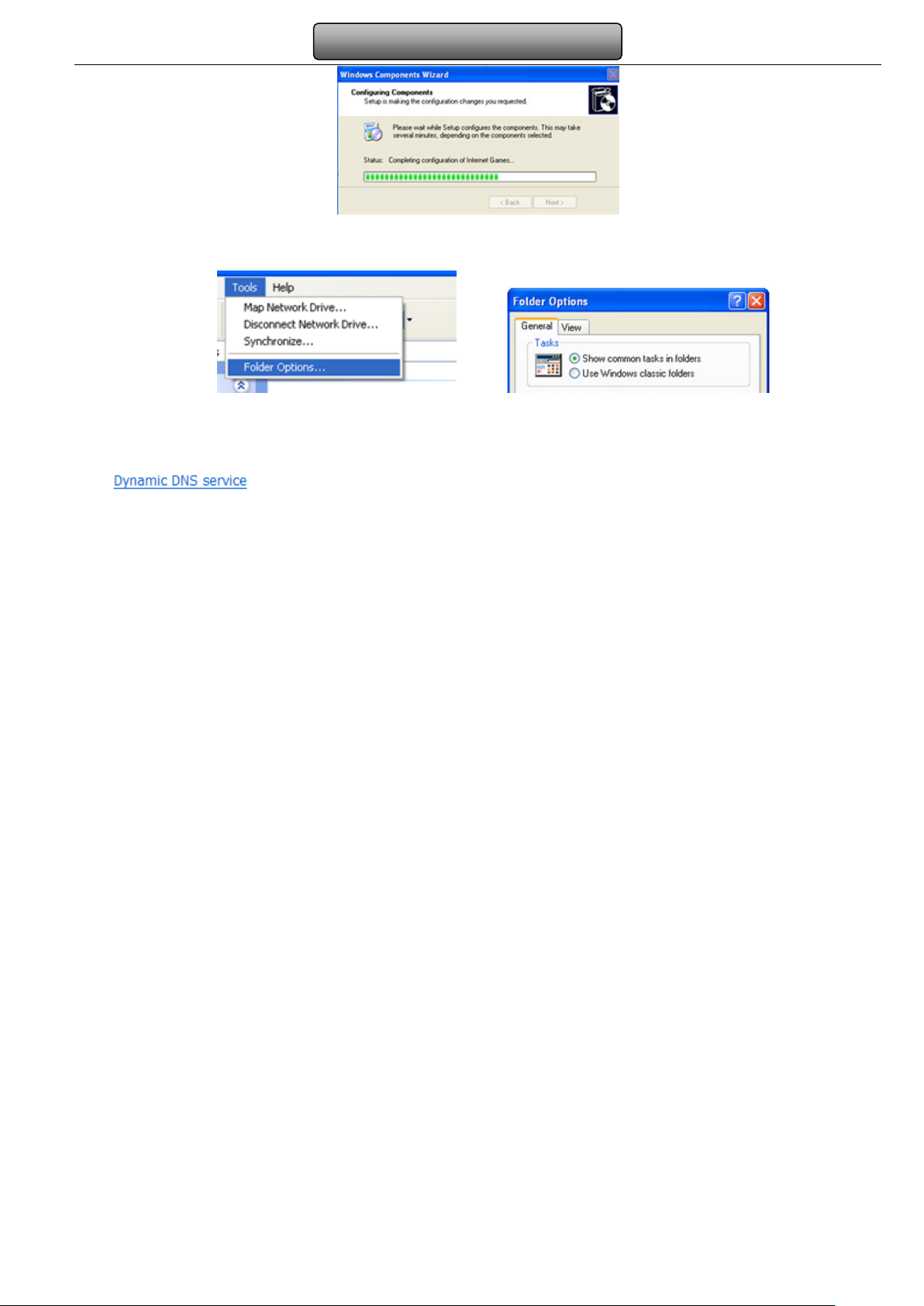

If “Show icons for networked UPnP devices” can’t display in the “Network Tasks” list box, please follow the below operation:
Click “Tools”-- “Folder options”
Select the “Show common tasks in folders” in the “Tasks” check box to display the UPnP icon.
1． Domain name Registration （Take www.dyndns.com for example）
Note: Users can self-define the hostname, username and password.
Input www.dyndns.com in the IE address bar, user can access the domain name registration interface.

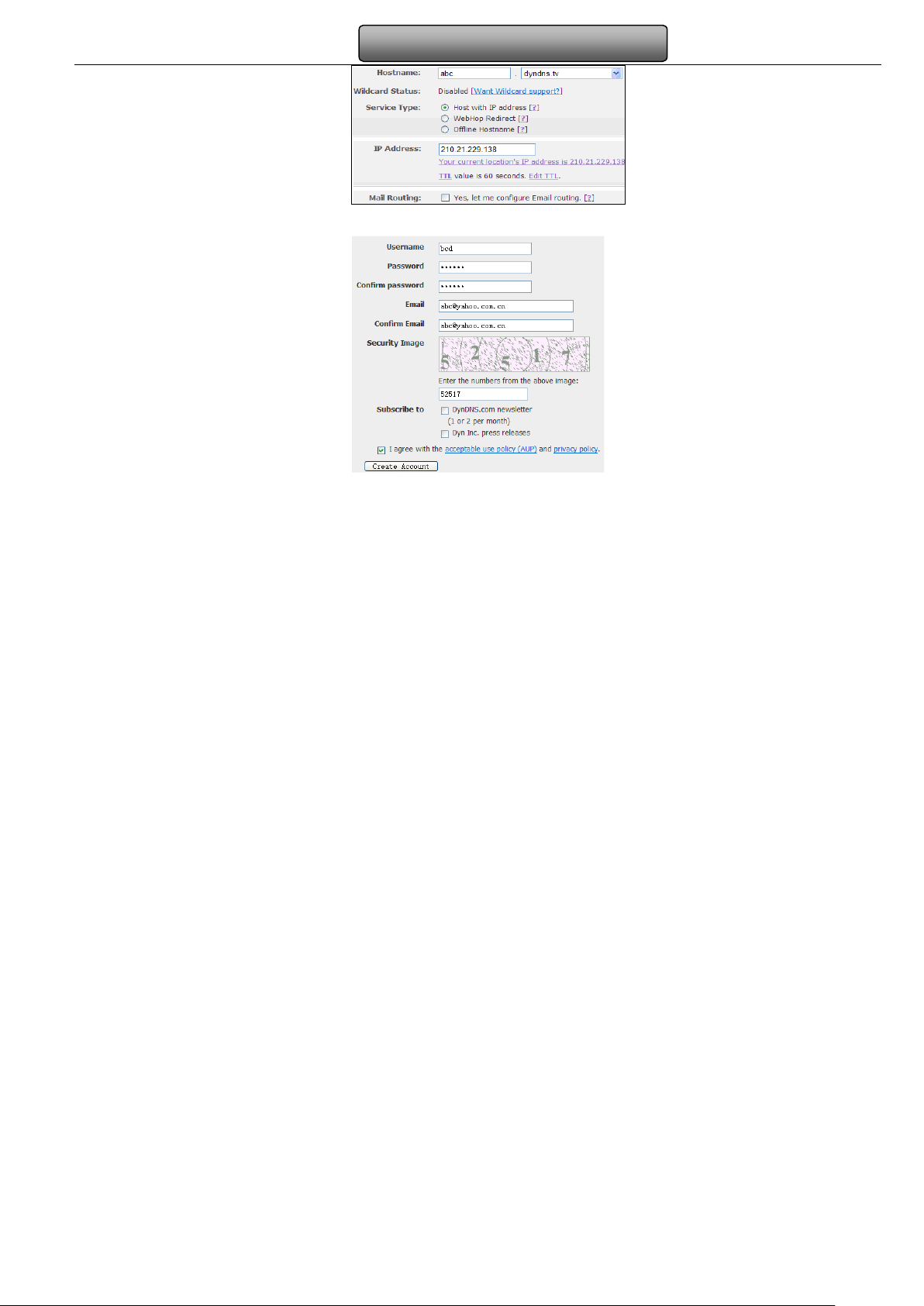

Click” ””Create Free Hostname” to register. For example: Hostname is “abc.dyndns.tv. The picture is shown
as follows:
40
Page 47
Digital Video Recorder User Manual
After user fill in the blank, click “Add to cart”. Then Dynamic DNS Hosts dialog box will be displayed.
Next, create user account. For example, the username is “bcd”, password is “123456”.
Click” Create Account” button to create user account.
2． DVR Setting
（1） Domain name
According to the domain name registration of “DDNS”，the domain name for DVR is “abc.dyndns.tv”
41
Page 48
Digital Video Recorder User Manual
（2） Username and password
According to the above registration, username is “bcd”.
According to the above registration, password is “123456”
3． Application
Connect DVR to the Network Client.
① Enter into Main menuNetworkother settings, tick off DDNS, select “Dyndns” at the DDNS Sever pull down list box and
input user name and password.
② Enter into configuration interface of the router to map the server port and IP address (if the user enables UPnP function, he
can skip this step). Click Save button to save the setting
③ Login IE browser and input registered domain name “http://www.abc.dyndns.tv”, connect to DVR client.
NNoottee
Definitions and descriptions of network configuration:
If the value changed, user needs to add the port number when typing IP address in IE address blank .i.e. set HTTP port
to 82, IP address: http://192.168.0.25, user needs to input that address: http://192.168.0.25:82 into IE browser.
DDNS server
DDNS server Website provided by dynamic domain name supplier. The optional:
www.dns2p.net ， www.meibu.com ，www.dyndns.comandwww.no-ip.com
User name User name for log in the website of domain name supplier
Password Password for log in the website of domain name supplier
Host domain The domain name user registered at the supplier’s website.
Update interval The interval time of upgrading DVR IP address
4.7 User management configuration
Step 1: enter into system configurationuser management configuration; refer to Fig 4-33:
Step 2: click Add button to display a dialog box as Fig 4-34:
42
Page 49
Digital Video Recorder User Manual
Fig 4-33 user management configuration Fig 4-34 add-general
① General: Input user name, password; select user type: normal and advance, input the MAC address of the PC; click OK
button. Then this user will be added into the user list box; click Exit button to exit the current interface.
Note: when the default value of binding PC MAC address is 0, the user is not bind with the specify computer; the, the
user can log in DVR on the binding computer after set the specific binding MAC address.
② Authority:
Step 1: enter into Add userauthority; refer to Fig 4-35:
Step 2: In the authority interface, assign the definite
operation right for that user.
Step 3: in the user management interface, click Setup
button to modify user name, user type and binding PC
MAC address.
Step 4: select the user that user wants to delete in the
user list box and then click Delete button to delete this
user.
Step 5: click Change password button to modify the
password; click Exit button to exit the current interface.
Fig 4-35 add user-authority
43
Page 50
4.8 P.T.Z configuration
P.T.Z configuration includes two submenus: serial port and advance
① Serial port

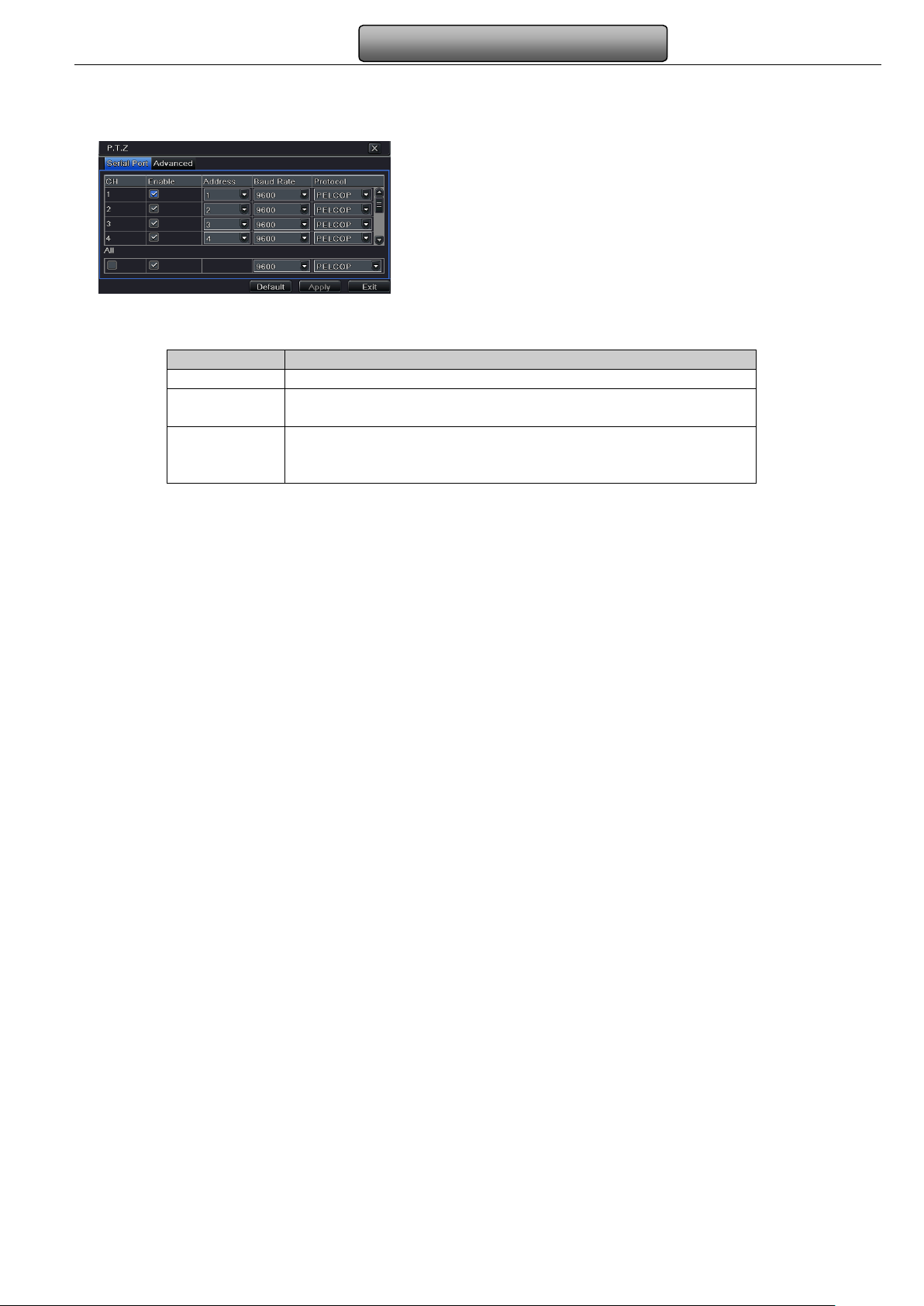

Fig 4-36 P.T.Z configuration-serial port
Definitions and descriptions of network stream:
③ Advance
Step 1: enter into system configuration P.T.Z configurationadvance; refer to Fig 4-37:
Step 2: in the Advance interface, click preset “Setting” button to see a dialog box as Fig 4-38:
Parameter Meaning
Address The address of the PTZ device
Baud rate Baud rate of the PTZ device. Range form: 110, 300, 600, 1200, 2400,
Protocol Communication protocol of the PTZ device. Range from: NULL, PELCOP,
Digital Video Recorder User Manual
4800, 9600, 19200, 34800, 57600, 115200, 230400, 460800, 921600.
PELCOD, LILIN, MINKING, NEON, STAR, VIDO, DSCP, VISCA,
SAMSUNG, RM110, HY, N-control.
Step 1: enter into system configuration P.T.Z
configurationserial port; refer to Fig 4-36:
Step 2: tick off Enable and then setup the value of
address, baud rate and protocol according to the
settings of the speed dome.
Step 3: user can setup all channels with same
parameters.
44
Page 51
Digital Video Recorder User Manual

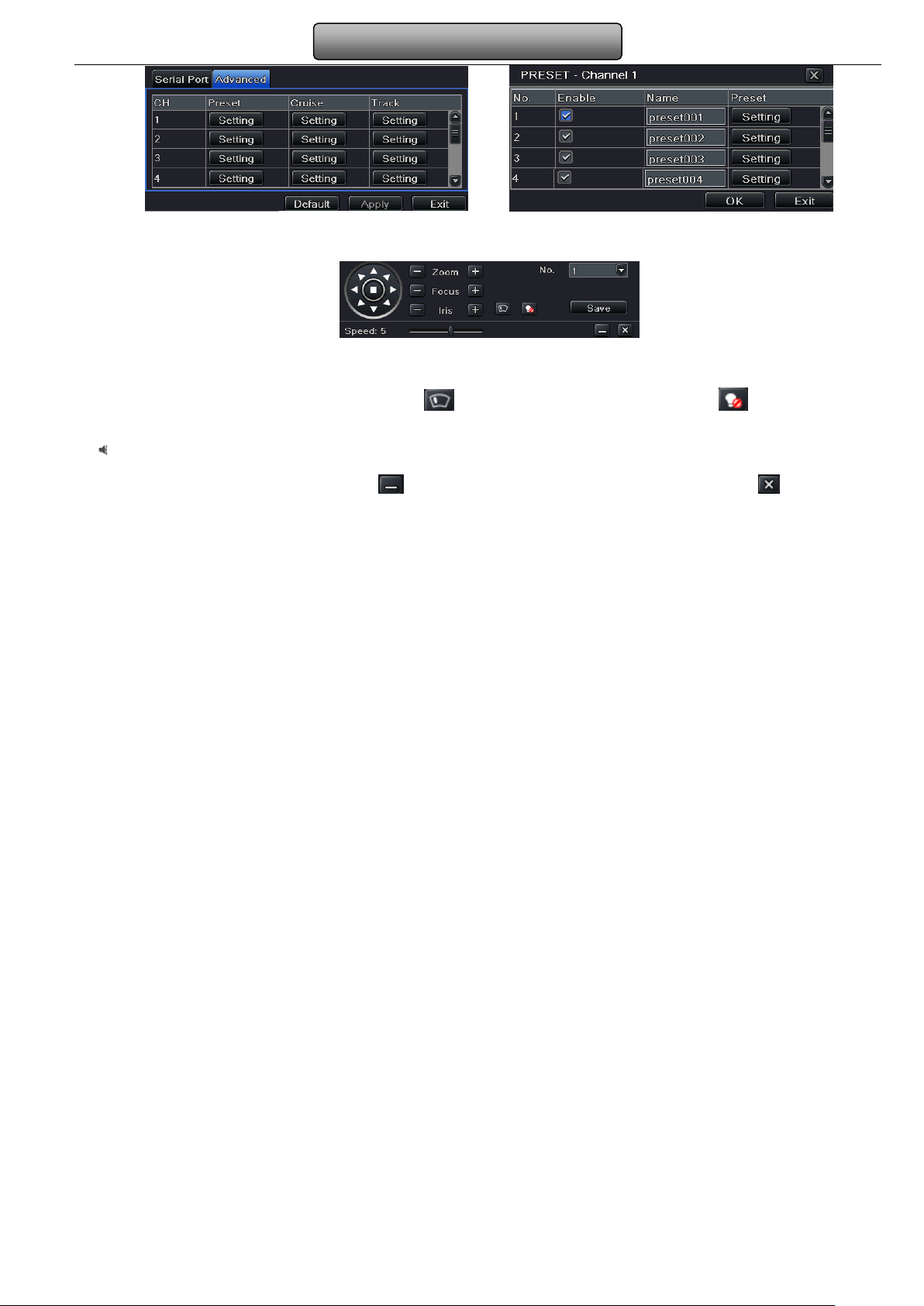

Fig 4-37 P.T.Z configuration-advance Fig 4-38 advance-preset setting
a. in the preset set interface, while clicking Setting button, a dialog will pop-up as Fig 3-39:
Fig 4-39 preset set-setting
b. user can control the dome rotates up, up left, down, right down, left , left down, right and up right and stop rotating; adjust the
rotate speed and the value of zoom, focus and iris of the dome;
c. select the serial number of the preset point. Click button to enable the PTZ wiper and click button to enable the
PTZ light.
Note: PTZ must support wiper and light, these two functional buttons can take effect. At the same time these two
buttons are just available when selecting PELCOP or PELCOD.
Click Save button to save the settings, click icon to hide the tool bar, right-key can remerge it; click icon to exit the
current interface.
d. in the preset interface, click OK button to save the setting; click Exit button to exit current interface.
Step 3: in the Advance interface, while clicking cruise “Setting” button, a dialog box will pop-up as Fig 4-40:
45
Page 52
Digital Video Recorder User Manual

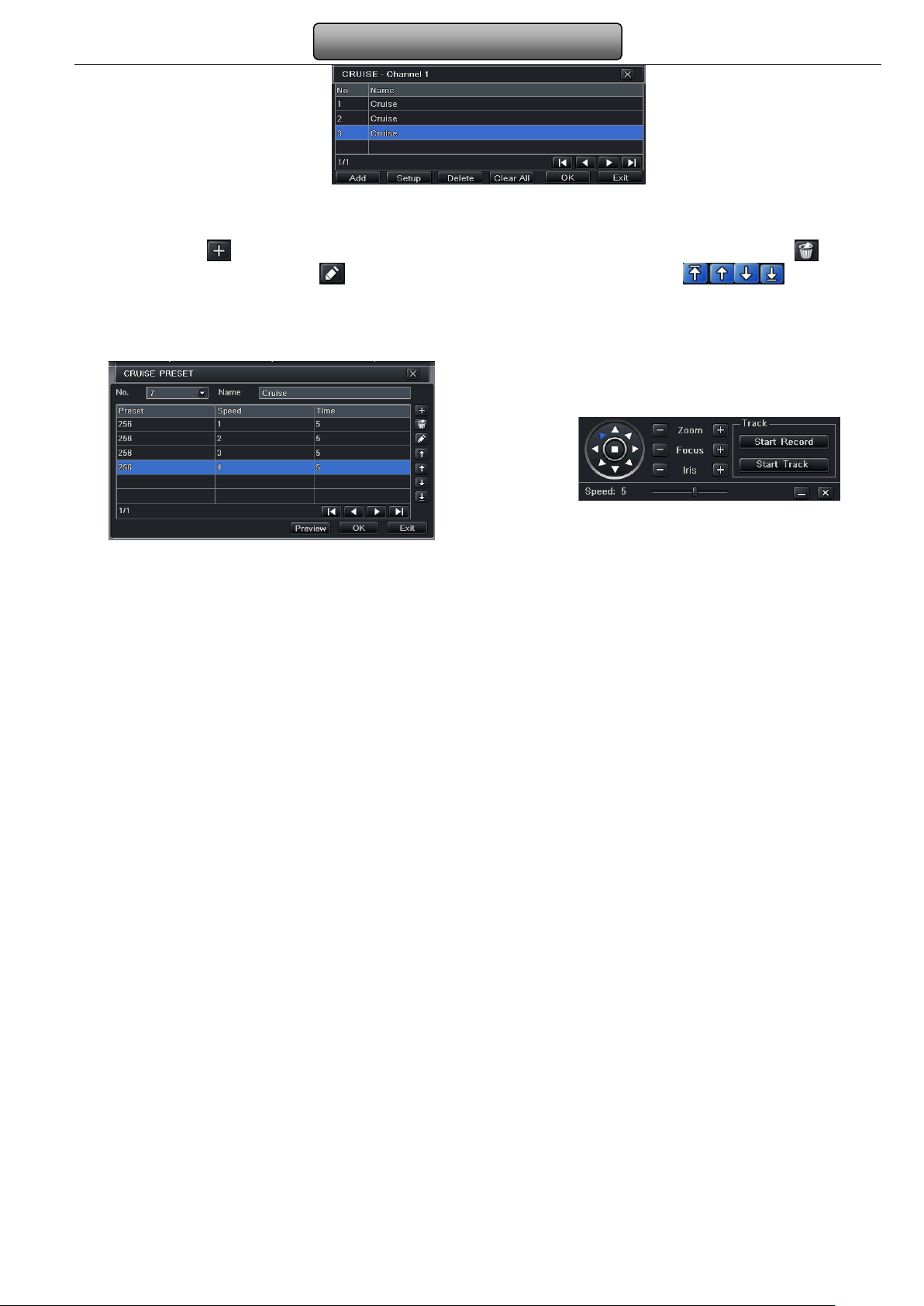

Fig 4-40 cruise set
a. click Add button to add cruise line in the list box (max 8 cruise line can be added); select a cruise line and click Setup button
to see a dialog box as Fig 4-41:
b. click Add icon to set the speed and time of preset point; select a preset point and then click Delete icon to delete
that preset point; click Modify icon to modify the setting of a preset point. User can click those icons to
adjust the position of preset point. Click Preview button to preview the cruise line; click OK button to save the setting; click Exit
button to exit current interface.
c. select a preset point in the cruise line list box. Click Delete button to delete that cruise line; click Clear all button to clear all
cruise line from the list box; click OK button to save the setting; click Exit button to exit current interface.
Step4: in the Advance interface, while clicking
track “Setting” button, a dialog box will pop-up as
Fig 4-42:
Fig 4-41 cruise set-modify cruise line
Fig 4-42 track setting
46
Page 53
Digital Video Recorder User Manual
a. user can control the dome rotates up, up left, down, right down, left, left down, right and up right and stop rotating;
adjust the rotate speed and the value of zoom, focus and iris of the dome; click Start Record button to record the move
track of PTZ; click this button again can stop record; click Start track button to play recorded track; click this button again
can stop play.
b. click icon to hide the tool bar, right-key can remerge it; click icon to exit the current interface.
4.9 Advanced
Advanced configuration includes three submenus: reset, import/export and Block/Allow list.
4.9.1 Reset
Reset all settings the device will reboot.
4.9.2 Import/Export
User can export the data files into mobile storage devices as backup function, and then import specified data files from
mobile storage device to DVR.
4.9.3 Block/Allow list

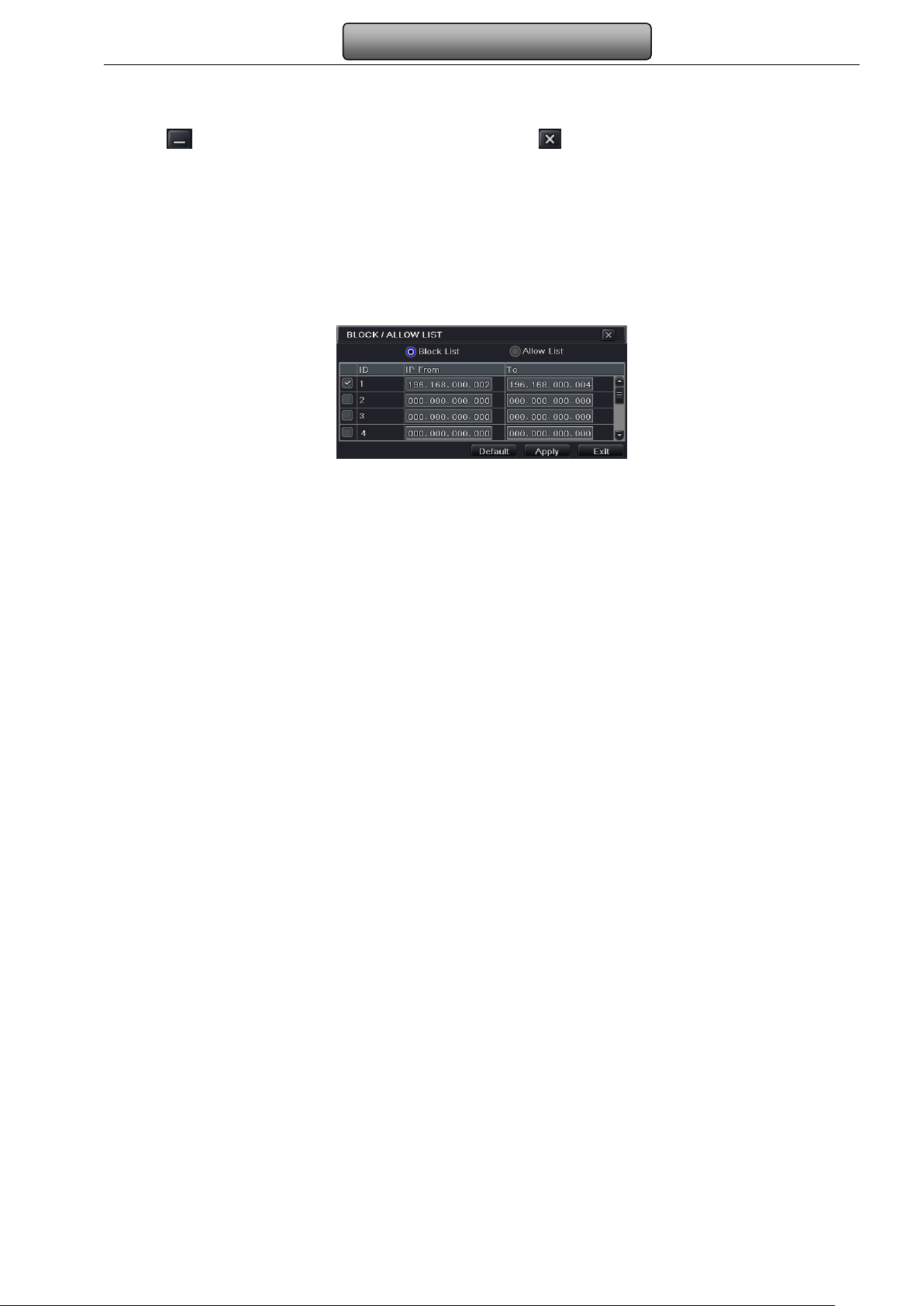

Fig 4-43 Block/Allow list
Here authorized user can prohibit computer users within a certain IP address segment from accessing to DVR or admit
computer users within a certain IP address segment into DVR. For example, if authorized user don’t want computer users
within IP address segment from 196.168.000.002 to 196.168.000.004 to access to DVR, authorized user can tick off Block
list, and then input such IP address segment. After that, click Apply to save settings. If authorized users allow computer
users within a certain IP address segment to access DVR, they can tick off Allow-list, and then operate in the same way.
47
Page 54
Digital Video Recorder User Manual
5 Record search & playback and backup
Search configuration includes four submenus: time search, event search, file management and image.
5.1 Time search
Step1: enter into Search configurationtime search; refer to Fig 5-1:

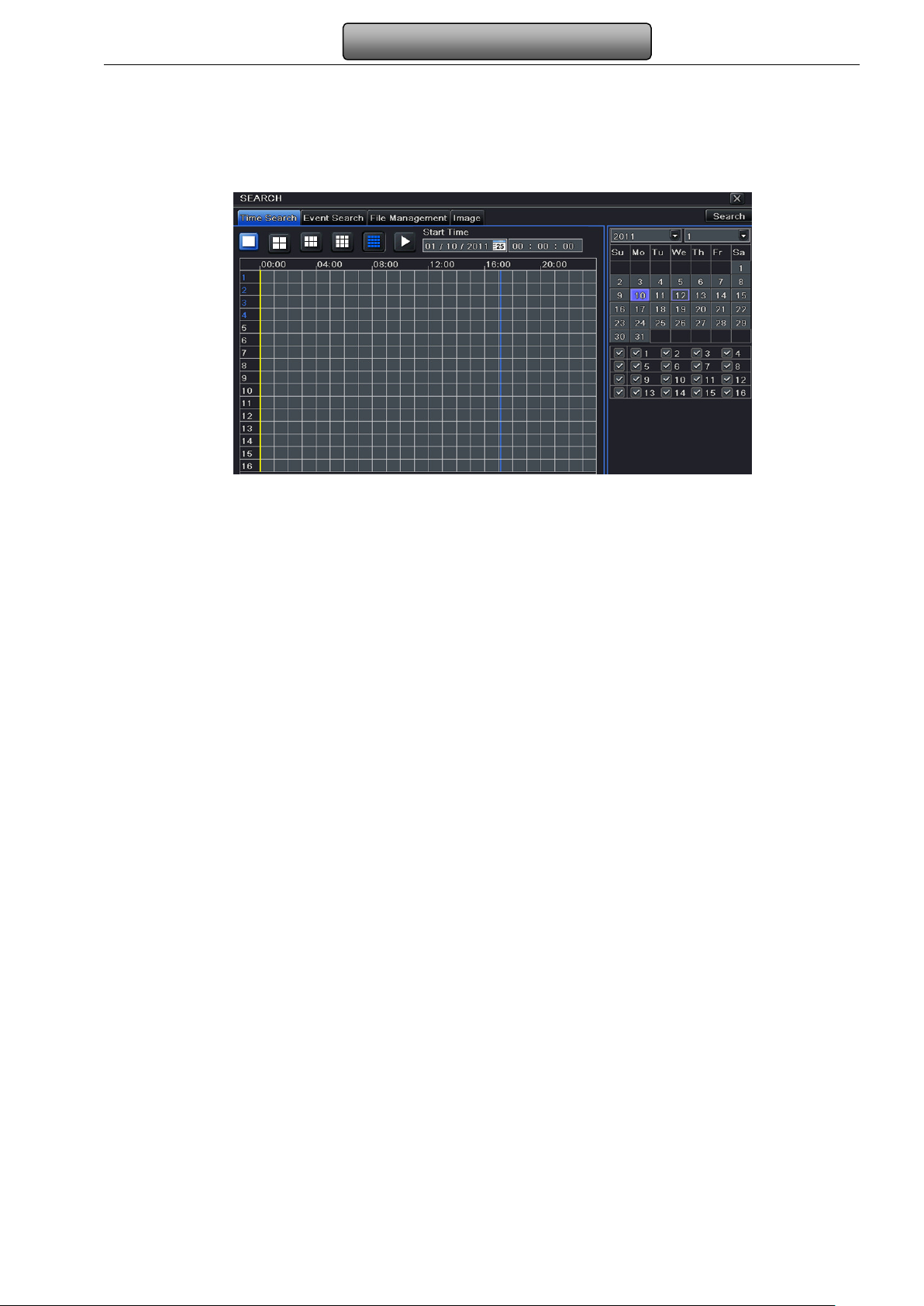

Fig 5-1 Search configuration-time search
Step2: select channel, screen display mode, the highlight date in the calendar means have record data
Step3: select a date, press Search button, click the time grid to set the play start time or input play record time manually.
The selected time match the blue grid.
Note: the vertical column means hours, horizontal column means channels.
48
Page 55
Digital Video Recorder User Manual
Step4: click Play button to playback record; click the relevant buttons on the screen to do operation:
Playback buttons
Note: when the monitor resolution is VGA800*600, the time search interface will appear a hide button, click this
button, the whole interface can be expanded.
5.2 Event search
Step1: enter into Search configurationevent search; refer to Fig 5-2:
Fig 5-2 Search configuration-event search
Step2: click Search button to display the searched event information in the event list box. User can select date and channel.
Then tick off Motion, Sensor or All accordingly.
Step3: double check a certain record file to playback.
49
Page 56
Digital Video Recorder User Manual
Note: when the monitor resolution is VGA800*600, the event search interface will appear a hide button. Then click
this button to expand the whole interface.
5.3 File management
Step1: enter into Search configurationfile management; refer to Fig 5-3:

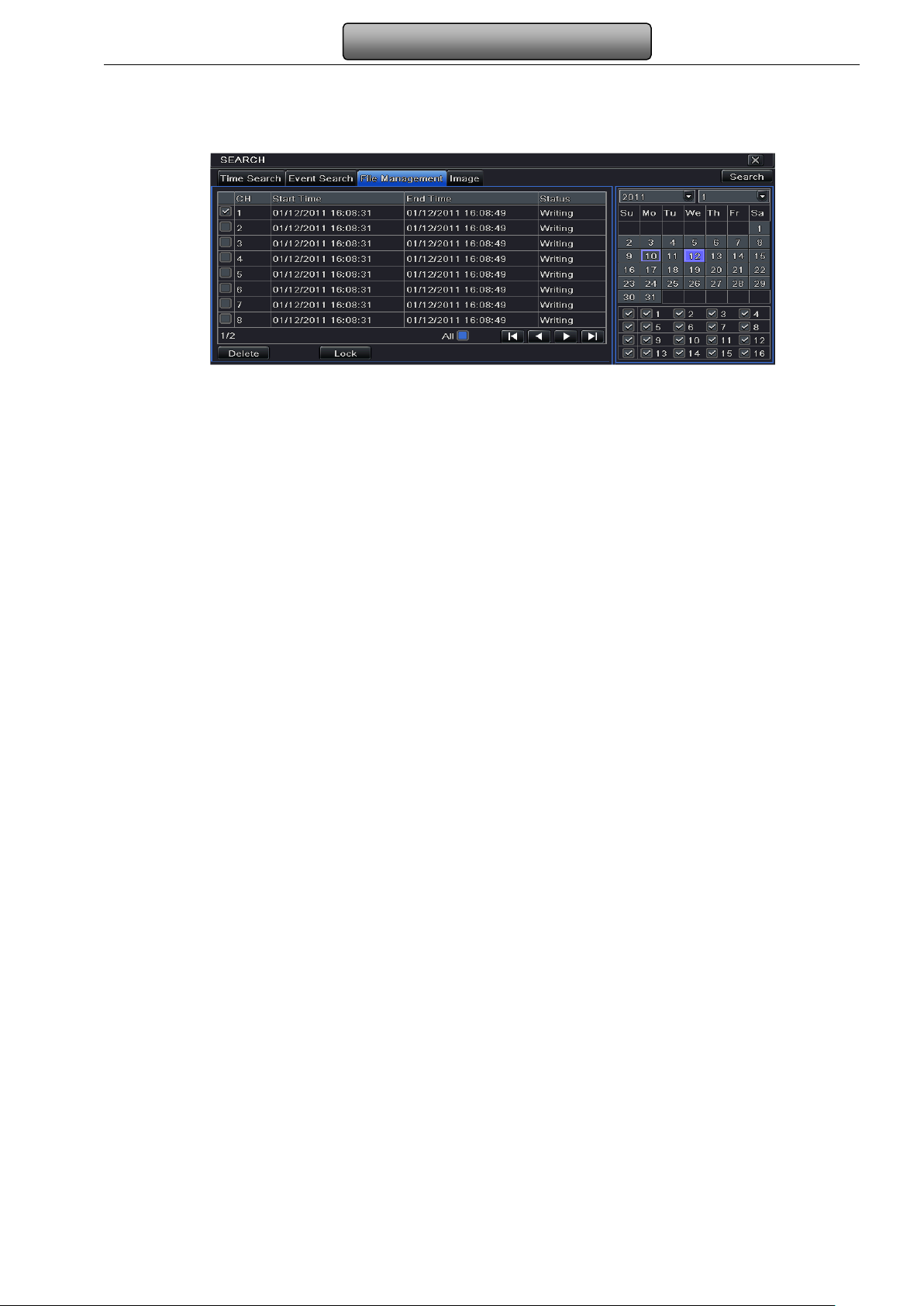

Fig 5-3 Search configuration-file management
Step2: After clicking Search button, the searched files will be displayed in the file list box; user can select date, channels
accordingly.
Lock: select a file and click Lock button to lock this file, after that, that file will not be deleted or covered.
Unlock: select a locked file and click Lock button to unlock this file
Delete: select an unlocked file and click Delete button to delete this file.
Step3: after selecting “All” button; user can lock/unlock or delete all files in the file management column.
Step4: double click an unlocked item to playback.
50
Page 57
Digital Video Recorder User Manual
5.4 Image
In this interface, user can set start, end time and channels to search the captured images and save, lock or delete these
images. There are at most 2000 images which can be saved in the SATA disk. If there are more images saved in the SATA
disks than 2000 images, those additional images will supersede prior images. Double click the image with the left mouse, it
will automatically playback from the time of the image captured.
5.5 Backup
This unit supports backup by built-in SATA DVD Writer with USB Flash. User also can make backup by IE browser via
internet. Refer to 7.3.2 Remote backup.
Step1: enter into backup configuration; refer to Fig 5-4:

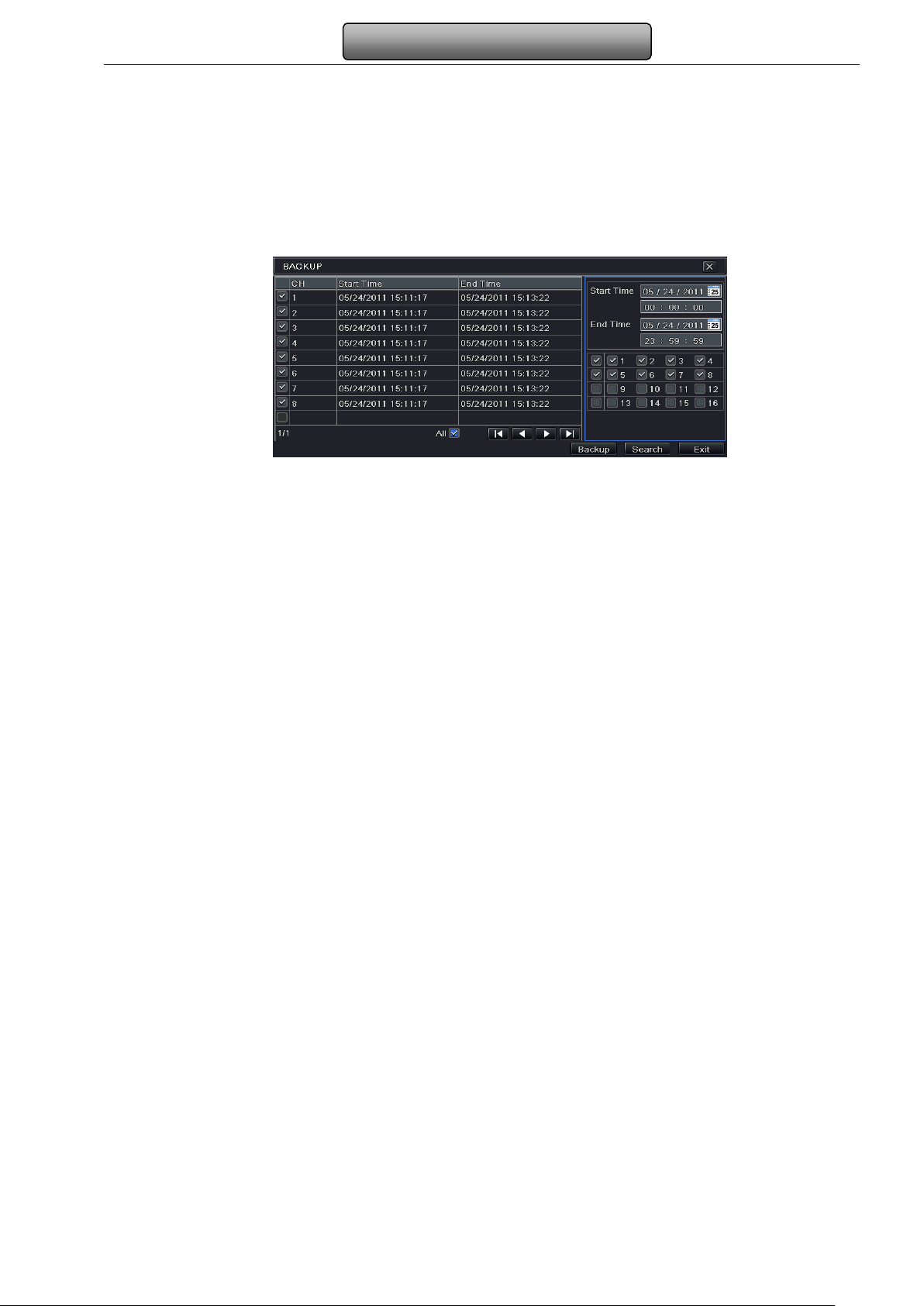

Fig 5-4 backup configuration
Step2: set the start & end time, select channels, click Search button, the searched data will be displayed in the data backup
list box
Step3: select a data file or tick off “All” to select all data files. Click Backup button to display Backup information window.
Step4: in the backup information interface, user can check the relevant information of backup files, storage type, save file
type, etc. Then click Start button to starting backup.
51
Page 58
Digital Video Recorder User Manual
6 Manage DVR
6.1 Check system information
Check system information includes five submenus: system, event, log, network and online user.
6.1.1 System information
In this interface, user can check the hardware version, MCU version, kernel version, device ID, etc.
6.1.2 Event information
In this interface, user can check record events according to the set date.
Note: if there are overlapping files, a “+” character will show behind the channel ID.
6.1.3 Log information
In this interface, user can check relevant log information according to set date.
User can export the data files into mobile storage devices as backup function.
6.1.4 Network information
In this interface, user can check relevant parameters of network.
6.1.5 Online information
In this interface, user can check the details of the current connection of online users.
Refresh: refresh the current interface.
Disconnect: the administrator authorized to disconnect the client terminal. When disconnected, that PC will not be able to
access the device within five minutes.
6.2 Manual alarm
In this interface, user can check the relevant parameters of manual alarm.
52
Page 59
Digital Video Recorder User Manual
6.3 Disk management
1.
1. Format the disk
1.1.
Step1: enter into disk management interface
Note: please format the hard disk before record. If not being formatted, it will show the status of the disk-free
space, and total space show OM at the bottom of screen.
Step2: click Refresh button to refresh the disk information of the list box; set the property of the disk then click Apply button
to save the setting
Step3: select a hard disk and click Format button to star format.
Note: all recorded files in the hard disk will be lost after formatted.
2.
2. Advanced
2.2.
User may check model, S/N, firmware, health status of the disk in this interface. User also can monitor the temperature,
internal circuit, dielectric material of the disk, analysis the potential problems of the disk and warn so as to protect its data.
6.4 Upgrade
At present, it only supports USB update. Get the software from your vendor when there is a new software version, and
make sure it is corresponding with the DVR. User can check the USB information in Disk management.
Upgrade method: the user needs to copy the upgrade software which gets from vendor into the USB storage device and
then connect to the USB port. Enter MenuUpgrade, the upgrade software name is displayed in the upgrade list box,
select that software and then click upgrade button. It will upgrade automatically. Please wait for a while when the system is
rebooted. Never cut off power during upgrading.
6.5 Logoff
Click Log off icon, a log off dialogue box will popup, click OK button, the device will log off. If user wants to log in again,
click icon to enter into user name and password to re-login.
53
Page 60
Digital Video Recorder User Manual
7 Remote Surveillance
7.1 IE Remote Surveillance
In order to view the DVR from a network it must be connected to a LAN/WAN or internet. The network setup should be done
accordingly. Please refer to 4.6 Network Setup. This DVR supports IE browser, on Windows XP and Vista platform.
7.1.1 On LAN
Step 1: Enter into the DVR’s Main MenuSetupNetwork interface to input IP address, Subnet Mask, etc .If using DHCP,
please enable DHCP in both the DVR and the router.
Step 2: Enter Record Setup to set network video parameters like resolution, frame rate etc.
Step 3: Open IE on a computer on the same network. Input the IP address of the DVR in IE address bar and press enter.
Step 4: IE will download ActiveX component automatically. Enter the username and password in the subsequent window
Notice: If HTTP port is not 80, other number instead, need add the port number after IP address. For example, set
HTTP port as 82, need input IP address like 192.168.0.25:82.
User name and password here are the same with that used on the DVR. The default is admin and 123456.
7.1.2 On WAN
There are two ways for the DVR to connect to internet.
1. Connect the DVR to internet through router or virtual server
Step 1: Enter into the DVR’s Main MenuSetupNetwork interface to input IP address, Subnet Mask, etc. If using DHCP,
please enable DHCP in both the DVR and router.
Step 2: Forward IP address and port number in Virtual Server setup of the router or virtual server. Configure the firewall to
allow accessing the DVR. (If the user has enabled the UPnP function in both the DVR and router, he can skip this step.)
Step 4: If users want to utilize dynamic domain name, please apply for a domain name in a DNS server supported by the
DVR or router. Then add to the DVR or router.
This unit supports www.dns2p.com，www.meibu.com，www.dyndns.com，and www.no-ip.com.
Step 5: Open IE browser, input IP address, or dynamic domain name and enter. If HTTP port is not 80, add the port number
54
Page 61
Digital Video Recorder User Manual
after IP address or domain name.
Step 6: IE will download ActiveX automatically. Then a window pops up and asks for user name and password. Input name
and password correctly, and enter to view.
Note: If you cannot download and install ActiveX, please refer to Appendix A
2. Connect the DVR to internet directly.
Step 1: Enter into the DVR’s Main MenuSetupNetwork interface to enable PPPoE and then input user name and
password received from your ISP. Next, click ‘Apply’. The DVR will connect to the server and would give a confirmation
message.
Step 2: When accessing the remote interface of DVR, user can input WAN IP to access directly (user can enter into Main
menuInformationNetwork interface to check IP address). The browser will download Active X control
Step 3: The following setting steps are as the same as Step4, Step 5 and Step 6 in Point 1.

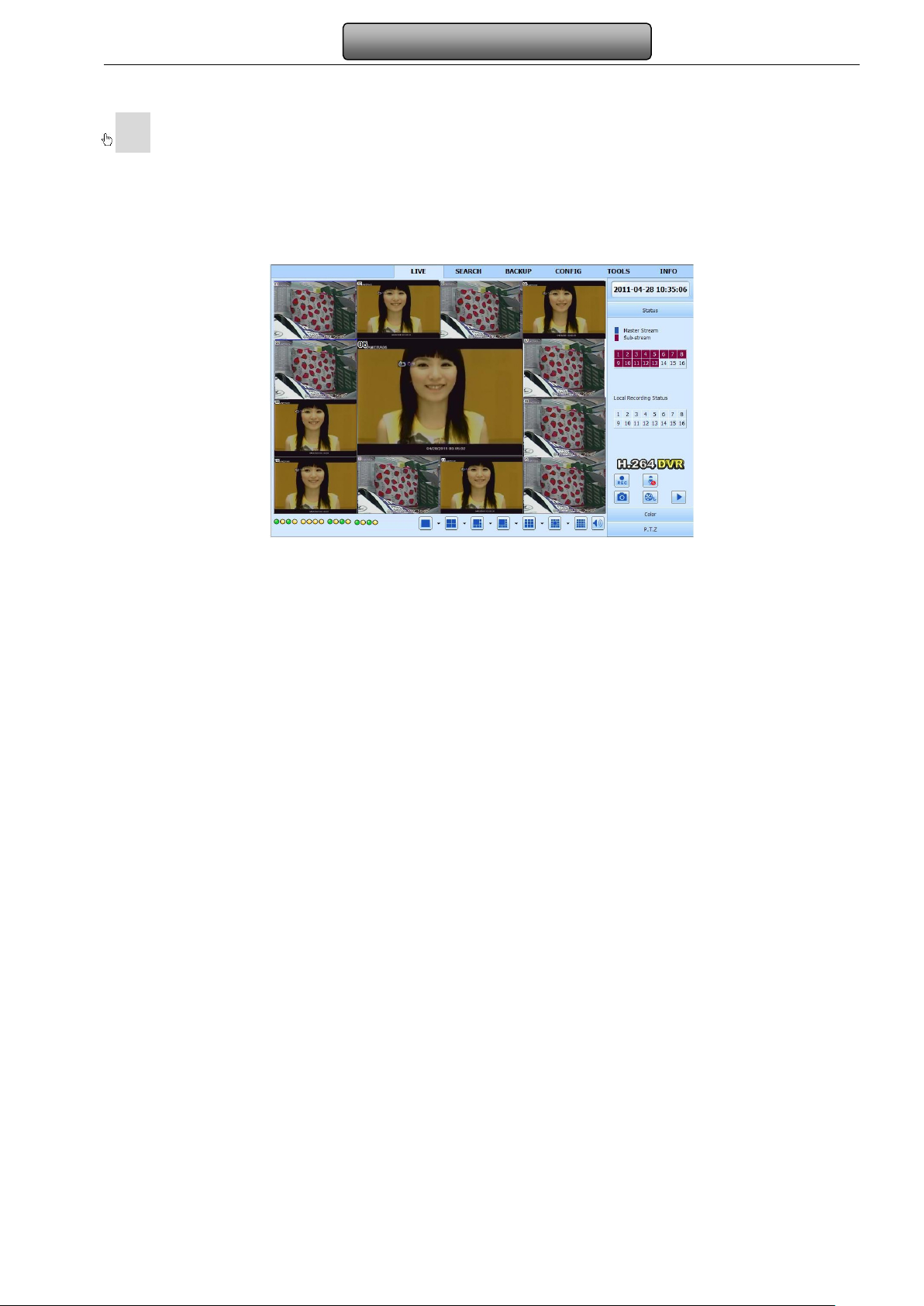

Fig 7-1 View with IE browser
FAQ
Q8.
55
Page 62
Digital Video Recorder User Manual
7.2 Remote Surveillance through Apple PC
Note: Because the current plug-in version of client end just only supports 32-bit mode, so the safari browser shall start
32-bit mode. If the browser is the earlier MACOS version, the default setting is 32-bit mode and the setting can be skipped.
The Setting steps are as follows:

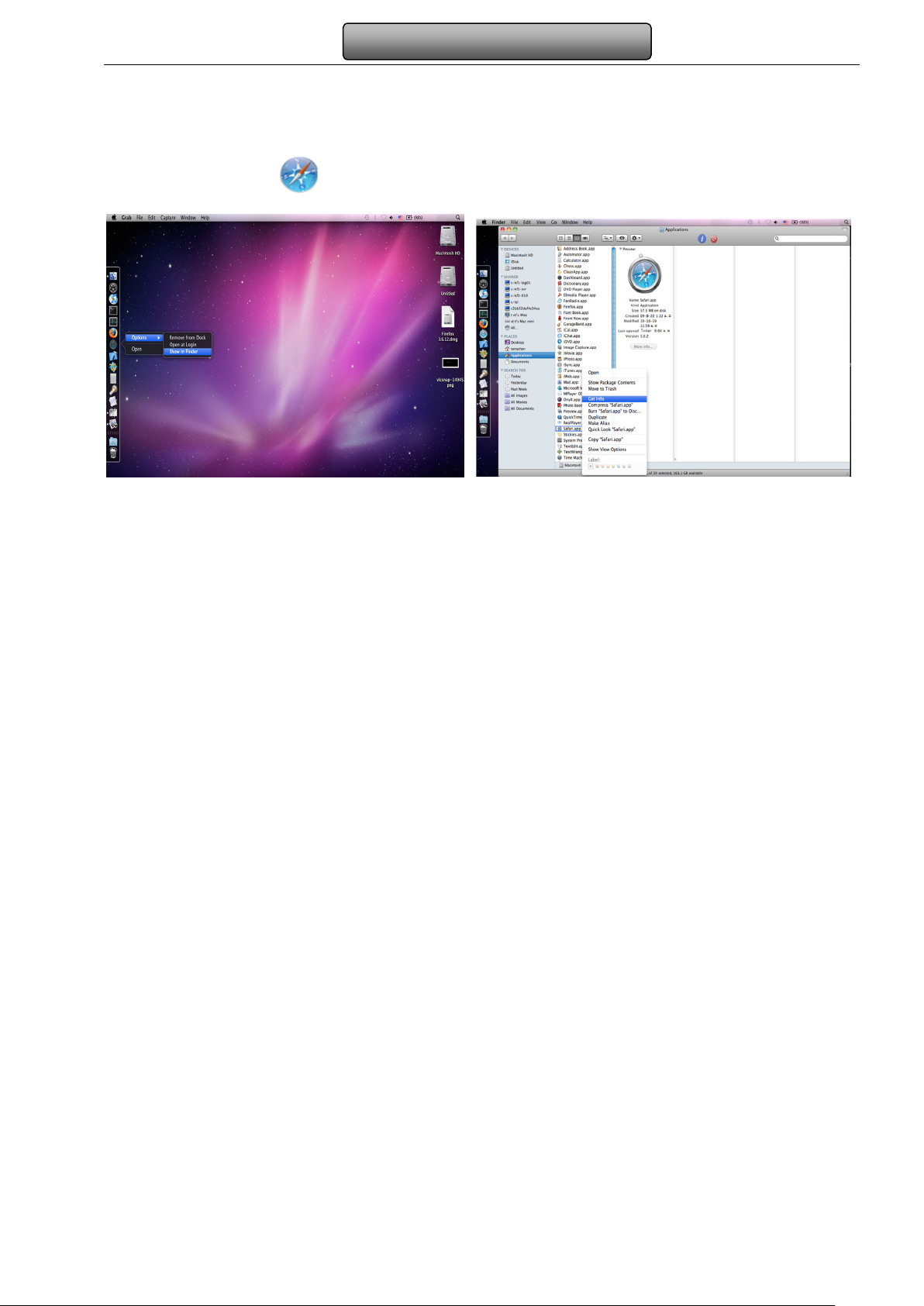

First: Right click safari icon and select “Show in Finder”.
Second: Select ApplicationsRight click “Safari. App”Select “Get Info”.
Third: Select “open in 32- bit mode”.
56
Page 63
Digital Video Recorder User Manual
7.2.1 On LAN

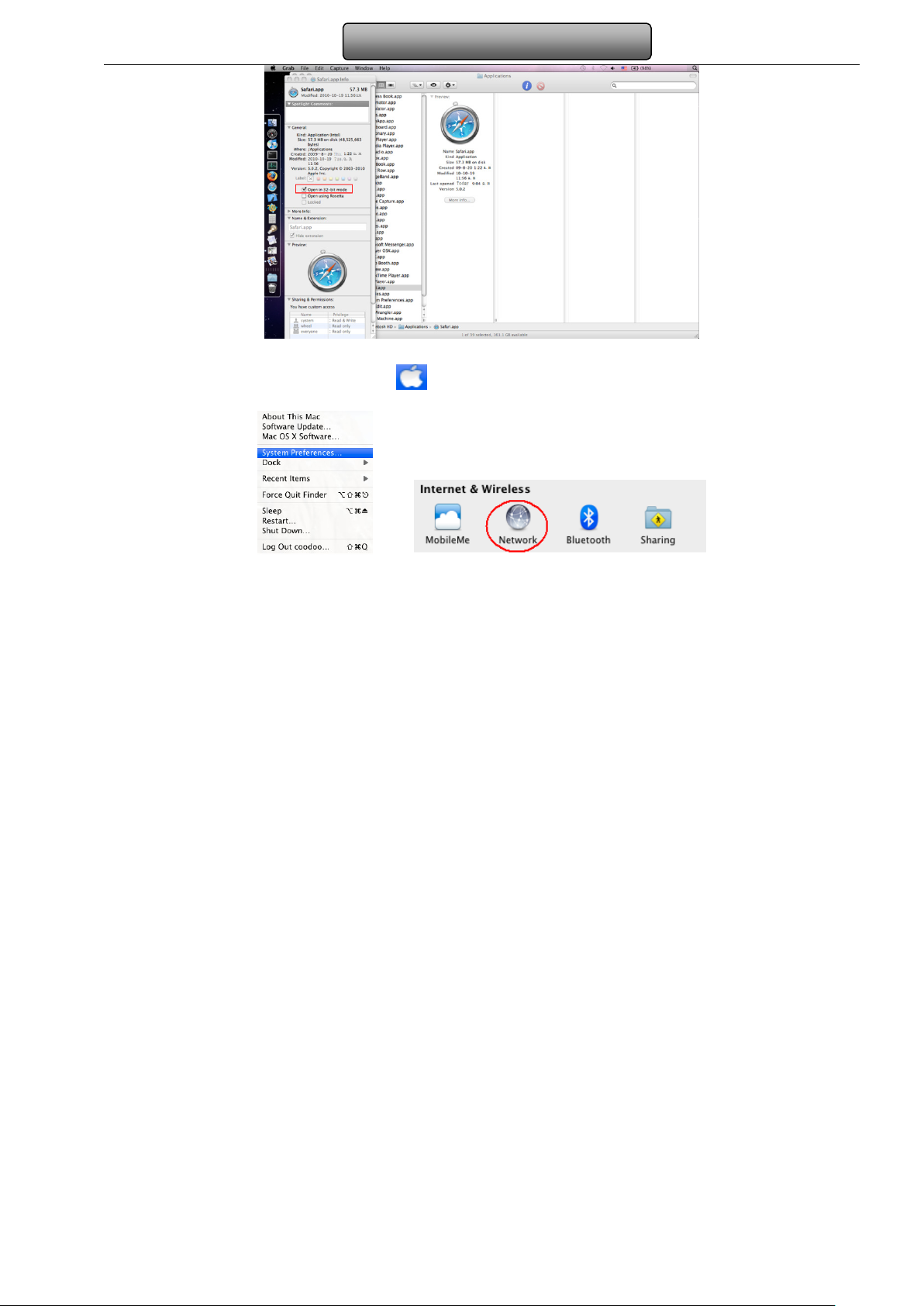

Step 1: After starting Apple computer, click icon. The following window will pop up. Please select “System
Preferences””Internet &Wireless”click “Network”
57
Page 64
Digital Video Recorder User Manual

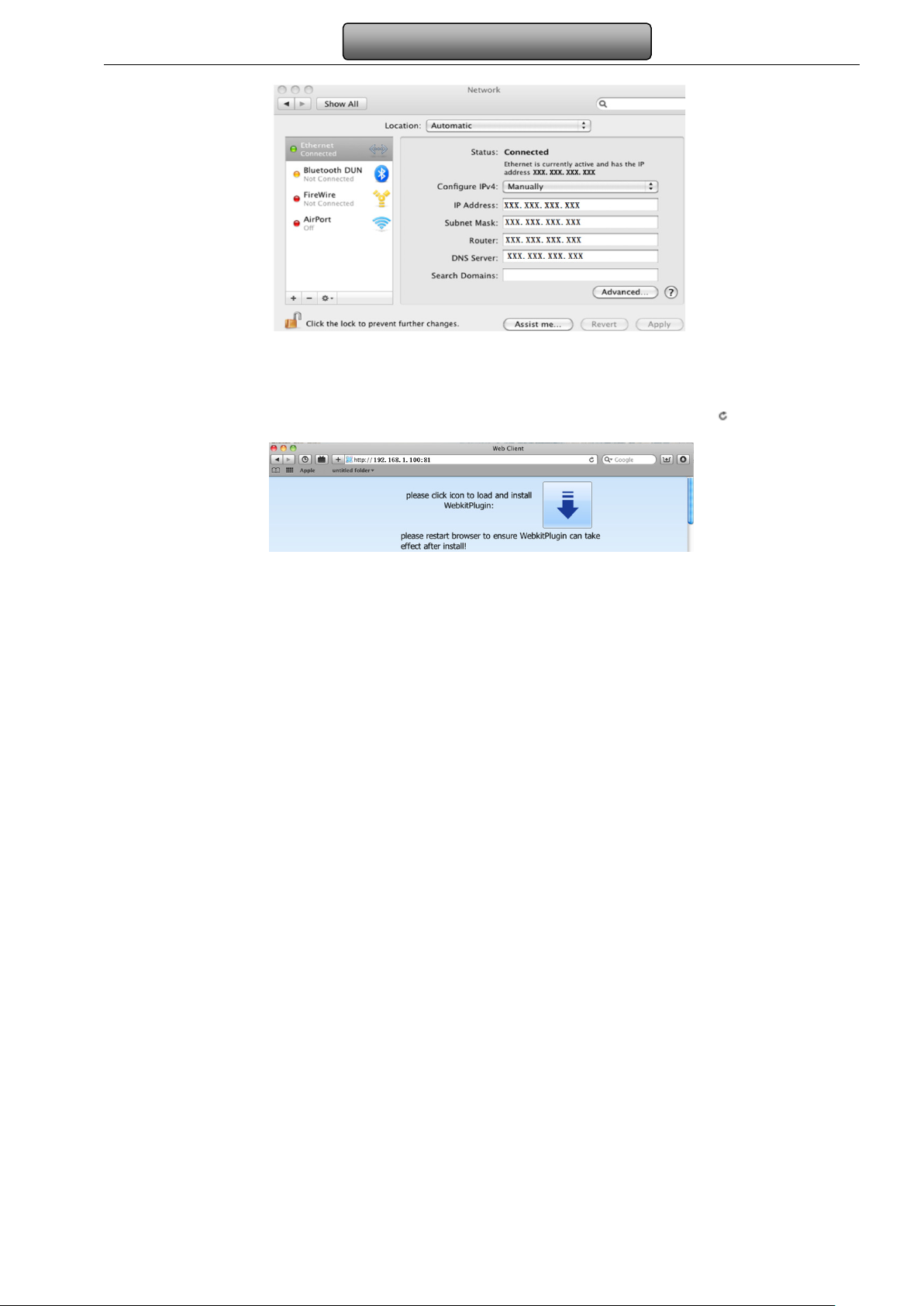

Step 2: Enter into Network interface and then click “Ethernet Connected” to check the internet connection of Apple PC.
Step 3: After acquiring the IP address, Subnet Mask and so on, please enter into the DVR’s Main MenuSetupNetwork
interface to manually input IP address, Subnet Mask and Gateway according to the configuration of PC. The network
segment should be the same as the PC. If using DHCP, please enable DHCP in the DVR and router.
Step 4: After finishing the above information, users can enter LAN IP and http port in the Safari browser. For example: input
http://192.168.1.100:81(here 192.168.1.100 is LAN IP of DVR, 81 is the http port of DVR). Click “ ”button, the browser
will download Active X control as shown below:
58
Page 65
Digital Video Recorder User Manual

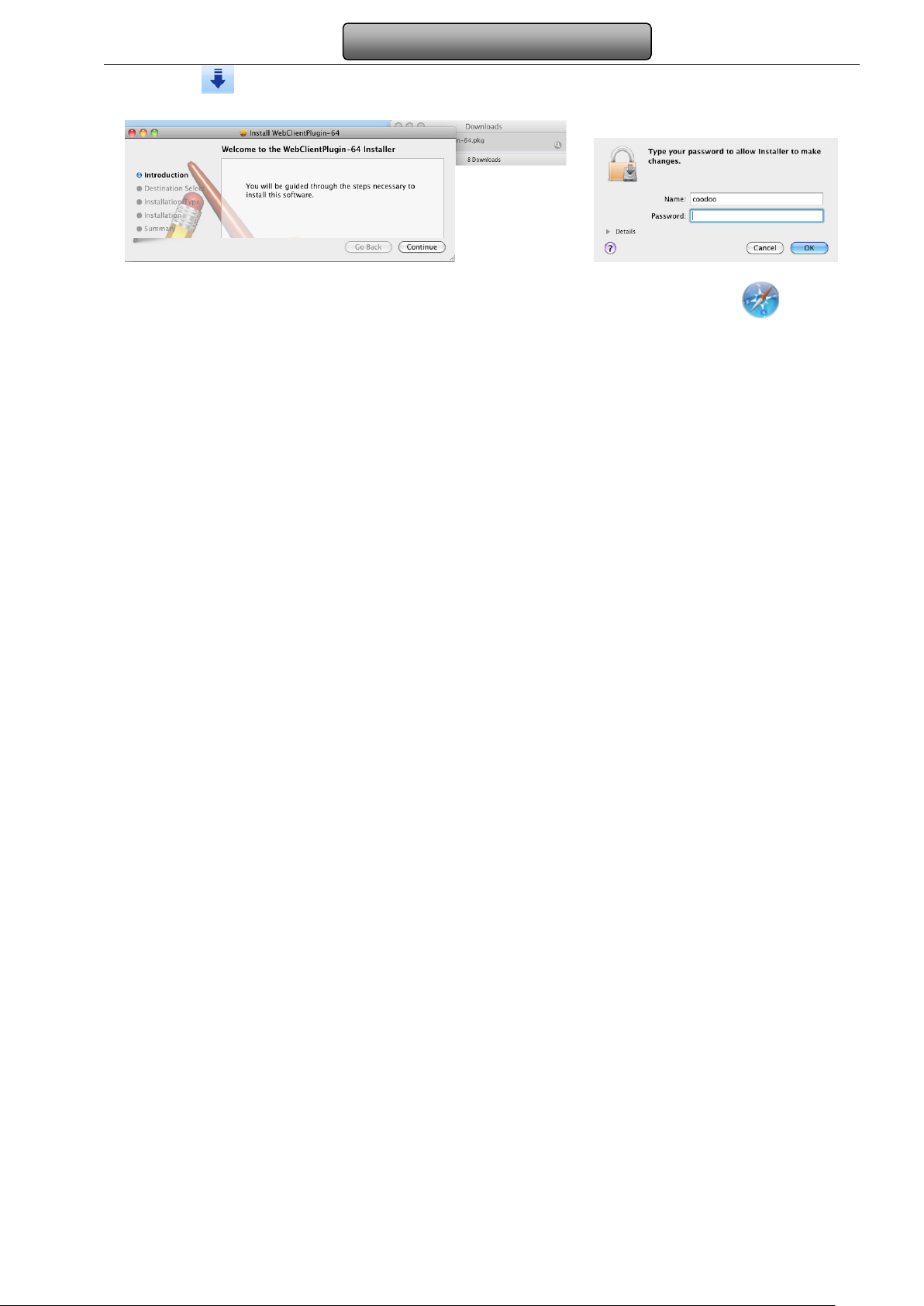

Step 5: Click icon and then select the Active X control, the welcome interface will be shown. Click
“Continue””Install” button，the following window will pop up：
Input the name and password of Apple PC and then click “OK” to install this Active X control.
Step 6: After finishing installing the Active X control, please quit from the Safari browser. Right click icon on the
desktop and then select “Quit” button to quit the browser. Then restart Safari browser. Input the IP address and http port to
enter into the login interface of DVR.
7.2.2 On WAN
There are also two ways for DVR to connect to Internet.
1. Connect the DVR to internet through router or virtual server
Step 1: The network setups are the same as step one to step four of point 1 on WAN of IE remote surveillance.
Step 2: Enter WAN IP and http port in the Safari browser to install the Active control. The concrete steps are the same as
step 5 and 6 of Chapter 7.2.1.
2. Connect the DVR to internet directly.
Step 1: The network setups are the same as step one of point 2 on WAN of IE remote surveillance.
Step 2: Enter WAN IP and http port in the Safari browser to install the Active control. The concrete steps are the same as
step 5 and 6 of Chapter 7.2.1.
59
Page 66
Digital Video Recorder User Manual
7.3 The remote live preview interface
Fig 7-2 Remote live preview interface
Symbol and function Definitions:
①
④
⑦
⑩
Note: click button to record manual and the record file will be saved in user’s PC.
Channel indicator
Snapping picture
Bidirectional talk
PTZ control
Screen display mode
②
Start manual record
⑤
Playback
⑧
⑪
Master/sub stream status
③
⑥
⑨
Volume
Start IE record
Color
60
Page 67
Digital Video Recorder User Manual
Buttons
Description
Screen display mode:
Click the icon beside the screen display mode,
channel select dialog will appear as below:
Take 8-channel DVR for example: user can tick off
channels form 1-ch to 16-ch at random to display the
live pictures, 8 channels can be selected at most. Then
click OK button to confirm the setting.
Snap pictures
Click “Snap” icon, the system will automatically capture pictures and save those pictures in the computer.
User should set up the save path for those picture in the Remote Preview interfaceConfigurationLocal configuration.
Color adjustment:
Drag the slide bar to adjust Brightness, Contrast, Hue, and Saturation. Click Default to reset them to original value.
Drag the scroll bar to adjust the brightness of
channel
Drag the scroll bar to adjust the contrast of channel
Drag the scroll bar to adjust the saturation of channel
Drag the scroll bar to adjust the hue of channel
PTZ control
Please connect speed dome to the device via RS485 firstly, make sure the protocol of the speed dome is supported by the
device and set the relative parameters manually. User can control the dome up, down, right, left or stop rotating on Control
Center, adjust rotation speed, Iris and zoom, focus on the dome, and set the presets, etc.
Click this button to recover the default value of
brightness, contrast, saturation and hue.
Save the adjustment
Fig 7-3 Channel select dialog
61
Page 68

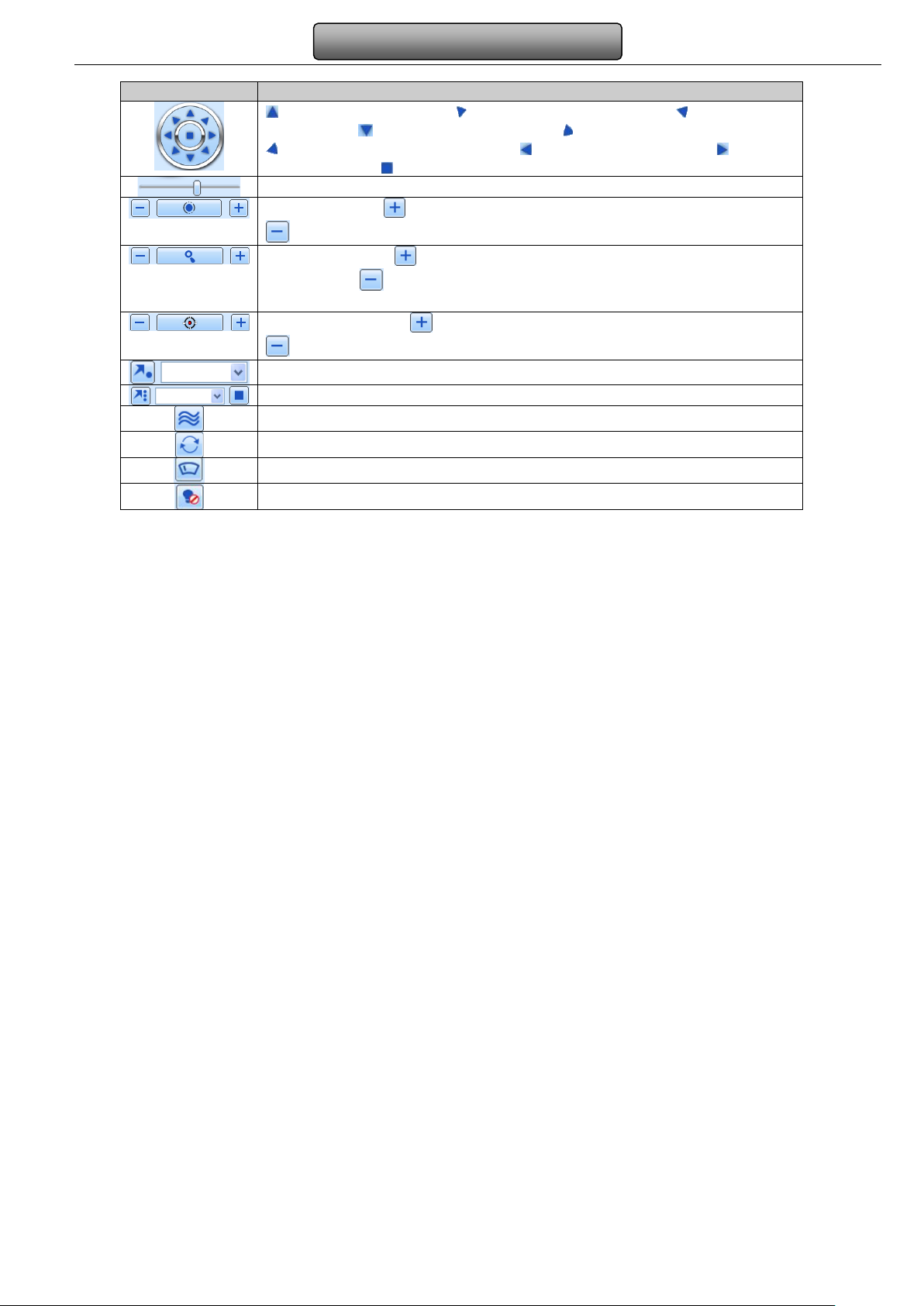

Buttons definition:
Buttons Description
Digital Video Recorder User Manual
means the dome rotate up. means the dome rotate up left. means the dome
rotate up right means the dome rotate down. means the dome rotate left down.
means the dome rotate right down. means the dome rotate left. means the
dome rotate right. means the dome stop rotating.
Drag the scroll bar to adjust rotating speed of the dome.
'Iris' button. Click button near 'Iris' button to increase light of the dome. Click
button near 'Iris' button to decrease light of the dome.
'Zoom' button. Click button near 'Zoom' button to zoom in the locale picture of this
camera. Click button near 'Zoom' button to zoom out the locale picture of this
camera.
'Focus' button. Click button near 'Focus' button to have long focus. Click
button near 'Focus' button to have short focus.
Go to the Preset
Select and do auto cruise
Track
Auto scan
Wiper button
Light button
Click the right mouse on the live interface, a pull-down menu will appear as below
62
Page 69
Digital Video Recorder User Manual

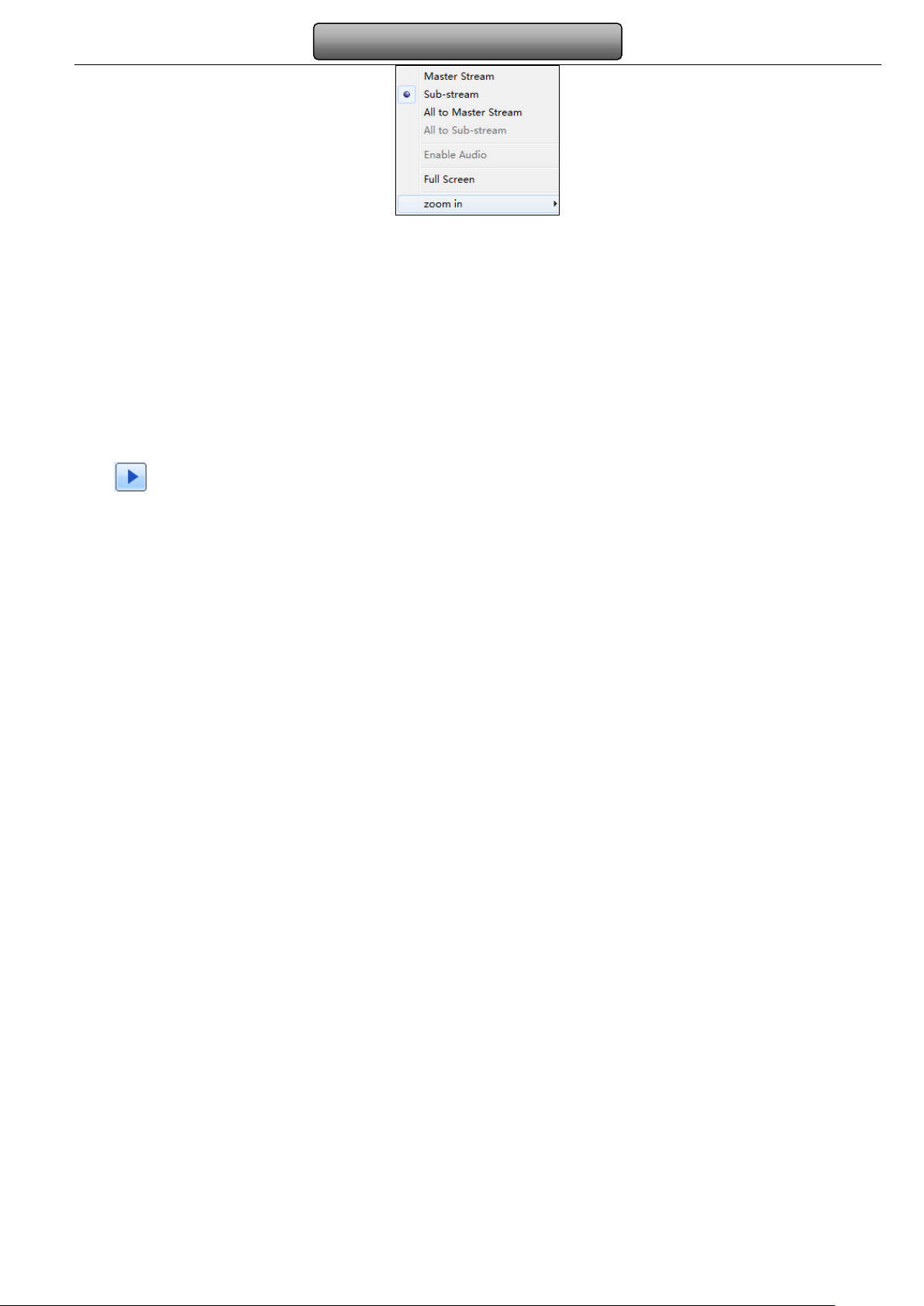

Fig 7-4 right key sub menu
Stream: this DVR supports master stream and sub stream. Master stream has higher frame rate, max 25FPS（PAL）/30 FPS
（NTSC）for every channel, but it needs higher network bandwidth simultaneously; second stream has low frame rate, max 6FPS
（PAL）/7FPS（NTSC） for every channel, it requires low network bandwidth. Therefore, users can select the stream according to
their bandwidth.
All to master/sub stream: set all channel to master stream or sub stream.
Enable audio: enable or disenable audio
Full screen: In full screen status, the live preview picture will display with full screen and the tool bar will be hided; double click left
mouse or click right mouse to return
Zoom in: Single channel large screen electronic amplification
7.4 Remote playback & backup
7.4.1 Remote playback
Click button to enter into record playback interface, refer to Fig 7-5:
Select the record date and channels and double-click the file name in the record file list box. Then user can play that file and
preview the picture.
63
Page 70
Digital Video Recorder User Manual

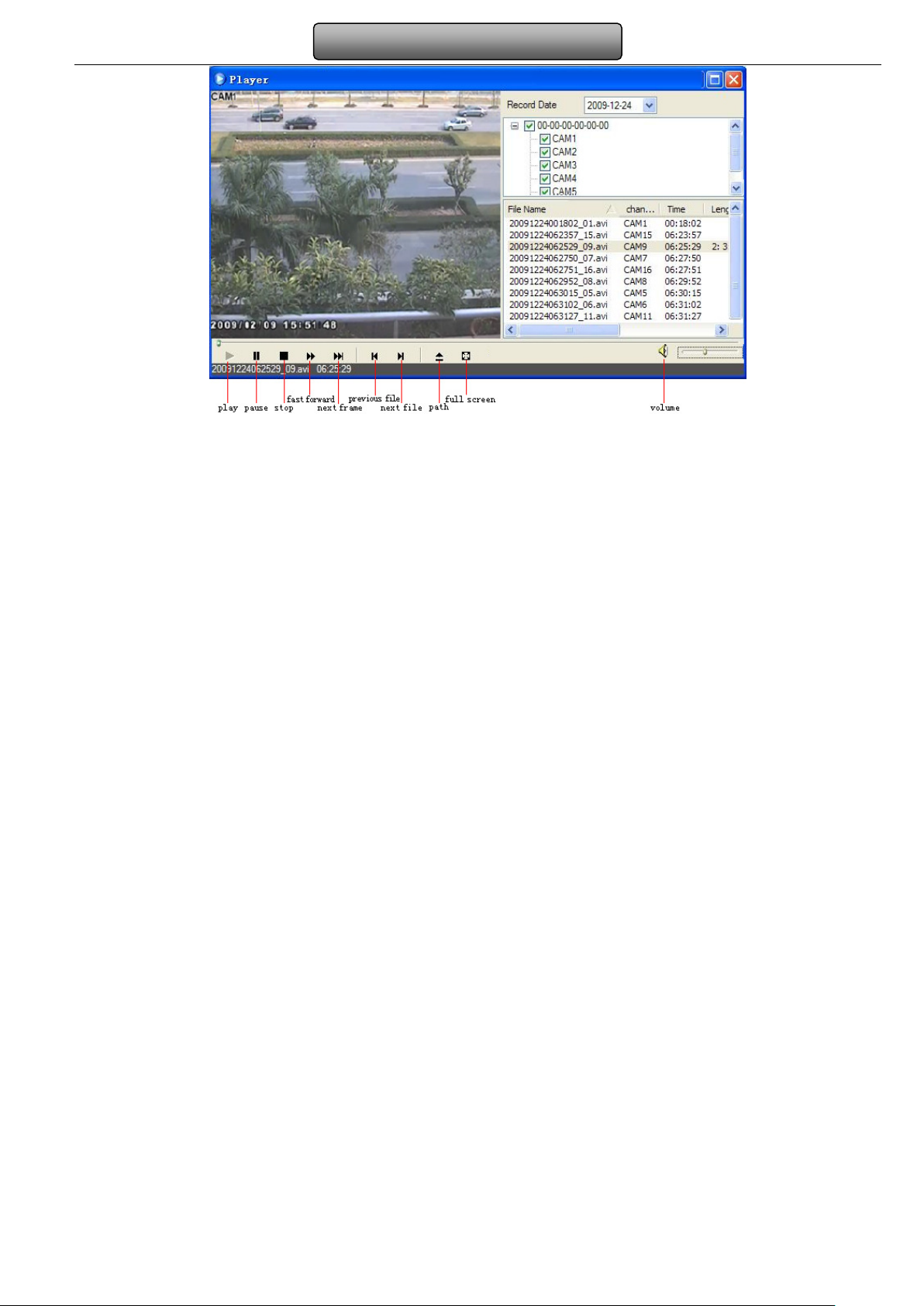

Fig 7-5 Play record file interface
This DVR supports remote time search, event search and file management.
By Time Search:
Step1: Enter into Searchtime search; refer to Fig 7-6:
64
Page 71
Digital Video Recorder User Manual

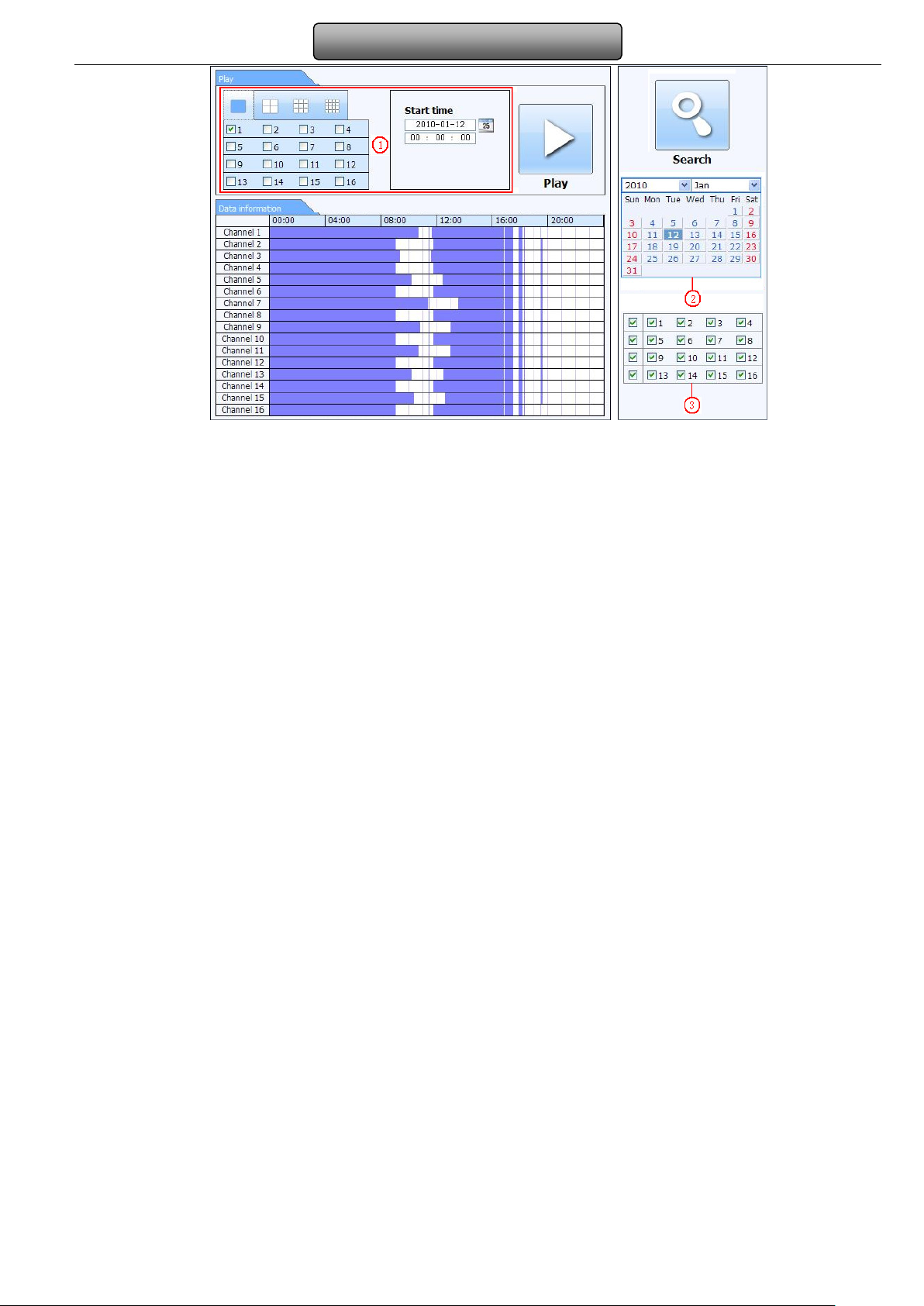

Fig 7-6 time search interface
Step2: click “Search” button. The record data will be displayed in the data information list box; the highlight date in the area②
means have record data, click those data; select the record channels in area③
Step3: User can set the data playing time and display mode in the area① as required
Step4: Select certain item from the data information list box. Click “play” button to playback
Step5: Click the relevant buttons in the interface and then user can do some operations such as: FF, pause, change channel mode,
65
Page 72
Digital Video Recorder User Manual
research, etc. refer to Fig 7-7:

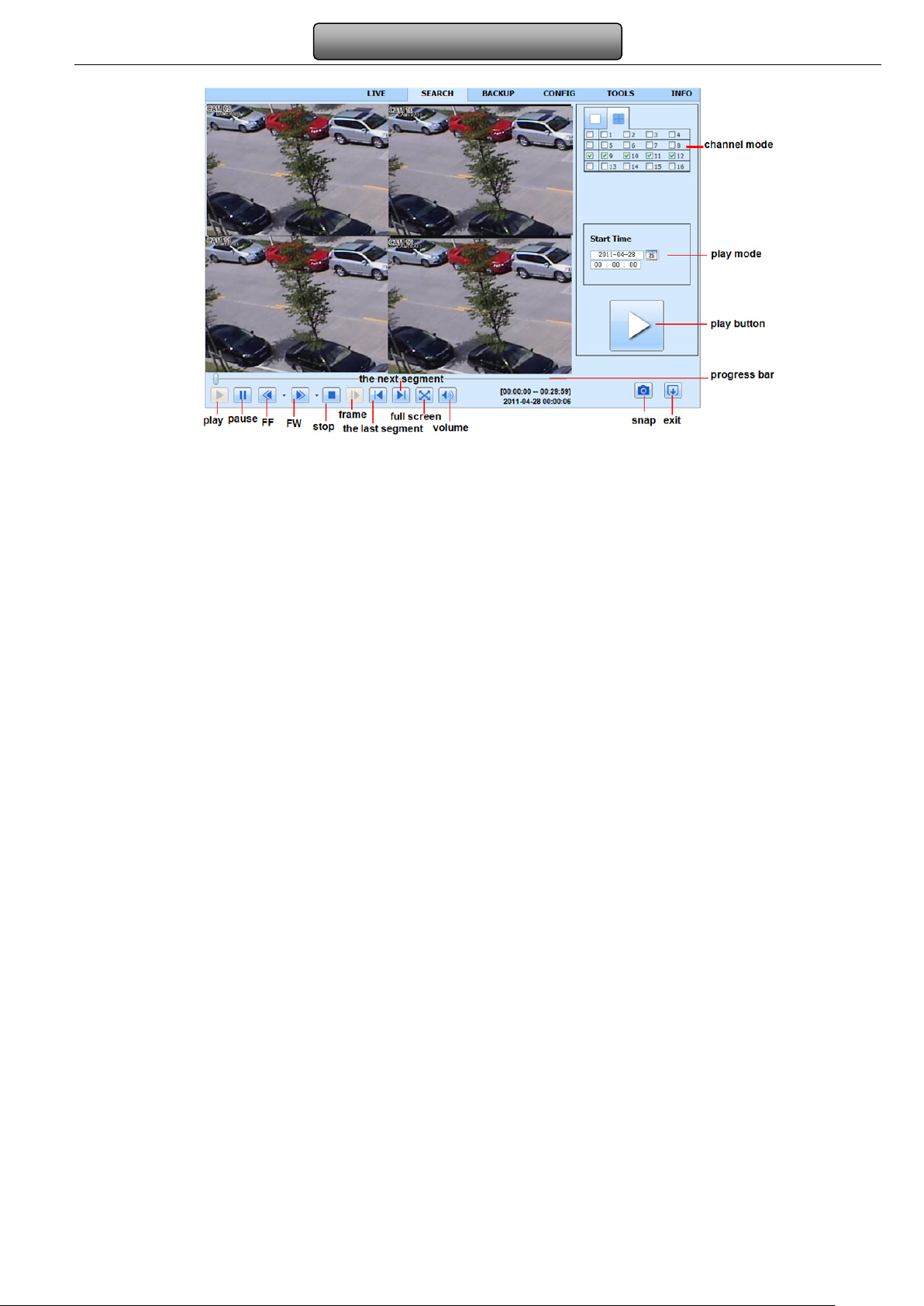

Fig 7-7 Time search playback
By Event Search:
Step1: Enter into Searchevent search; refer to Fig 7-8:
66
Page 73
Digital Video Recorder User Manual

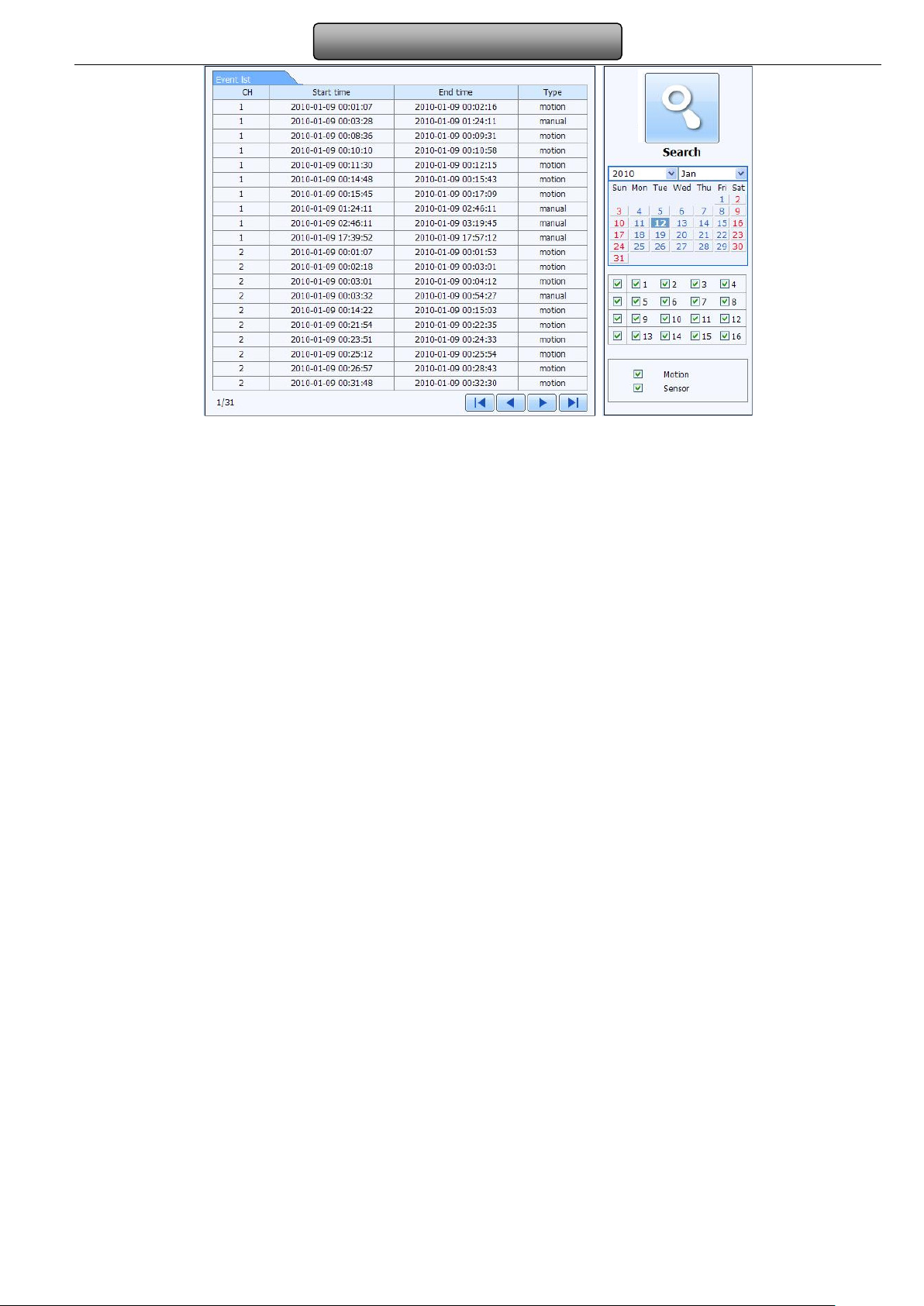

Fig 7-8 event search interface
Step2: click the highlight date and select record channels and then tick off the event type: motion and sensor. Then click “search”
button
Step3: the events will be display in the event list box and then double-click certain item to playback
File Management
Step1: Enter into Searchfile management; refer to Fig 7-9:
67
Page 74
Digital Video Recorder User Manual

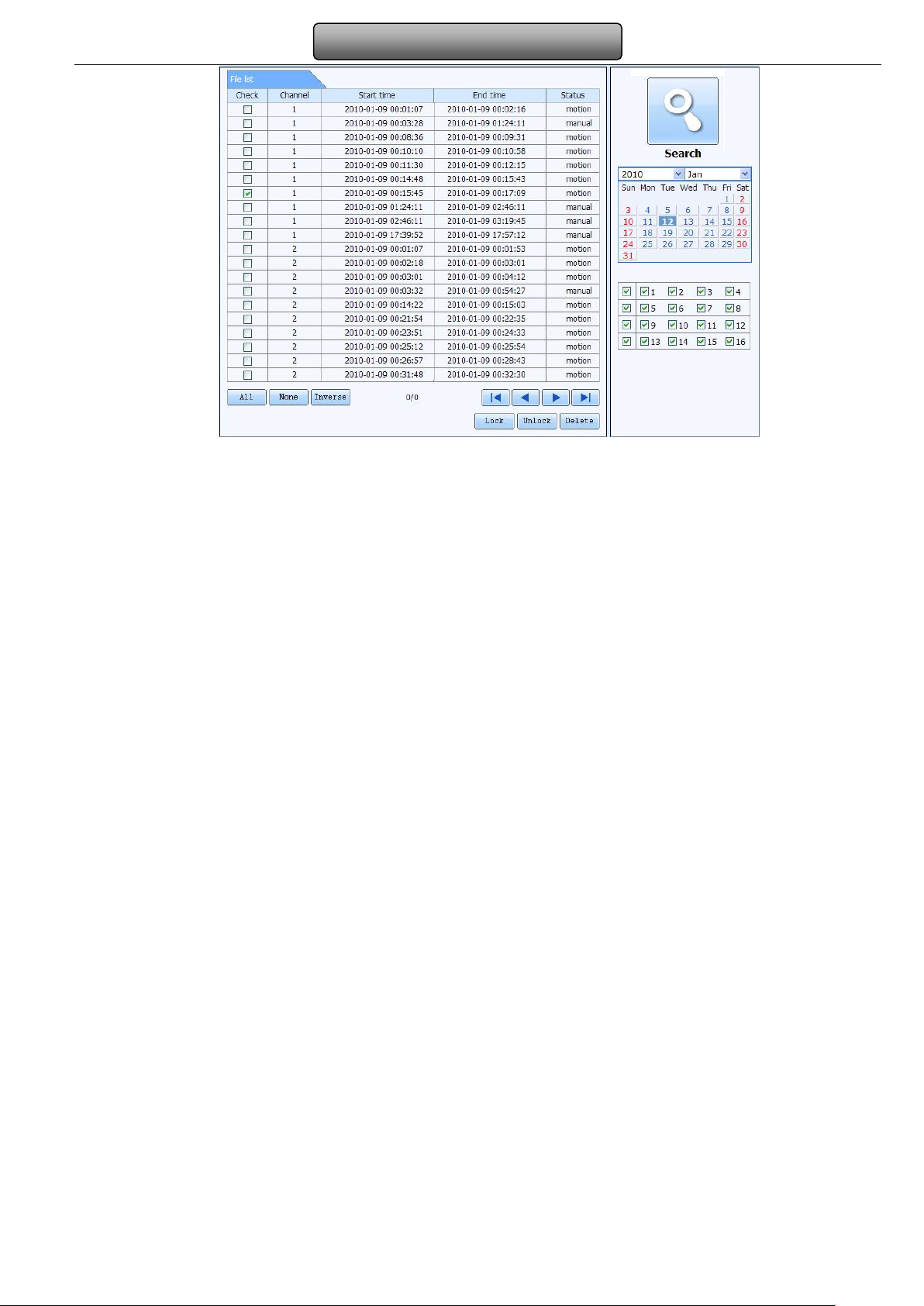

Fig 7-9 file management interface
Lock: select certain file item in the file list box and then click “Lock” button to lock this file that ca not be deleted or overlaid
Unlock: select a locked file and then click “unlock” button to unlock this file
Delete: select an unlock file and then click “delete” button to delete this file from file list
68
Page 75
Digital Video Recorder User Manual
7.4.2 Remote backup
Click Backup button to enter into backup interface, refers to Fig 7-10:

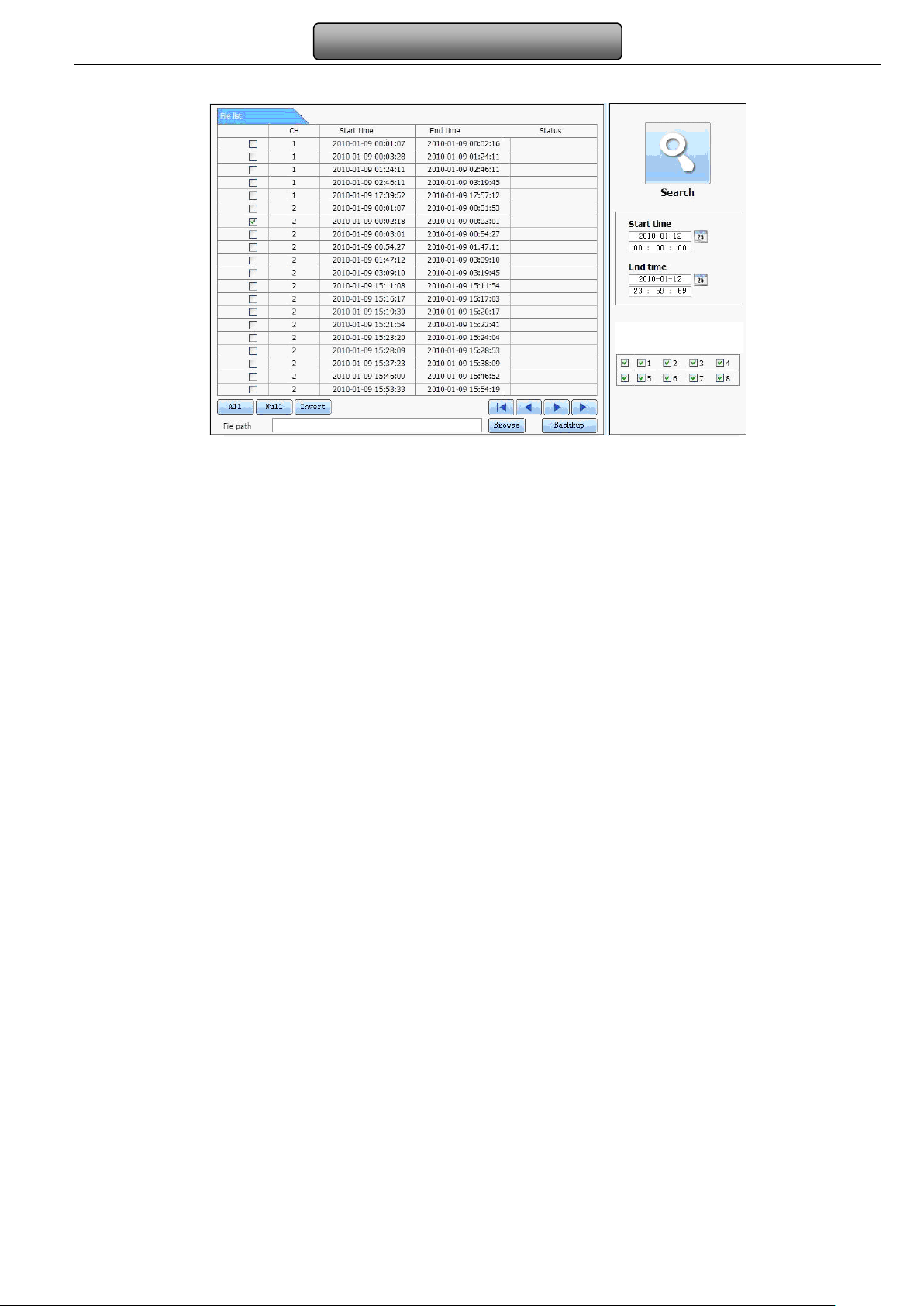

Fig 7-10 remote backup interface
Step1: select channels, set the start and end time and then click “search’ button to display the file information in the file list box
Step2: select backup files and click “browse” button to set the save path. Then click “backup” button to start backup. The backup
files will be saved on user’s PC.
69
Page 76
Digital Video Recorder User Manual
7.5 Remote System configuration
User can remote setup the parameters of the device. Functions of remote configurations include: basic configuration, live
configuration, record configuration, schedule configuration, alarm configuration, network configuration, PTZ configuration and user
configuration. User should firstly select an item in the menu list on the left, and then setup the relative parameters. When one user
setup parameters of a certain item, others cannot setup this one. Click Config to enter into the below interface refer to Fig 7-11:

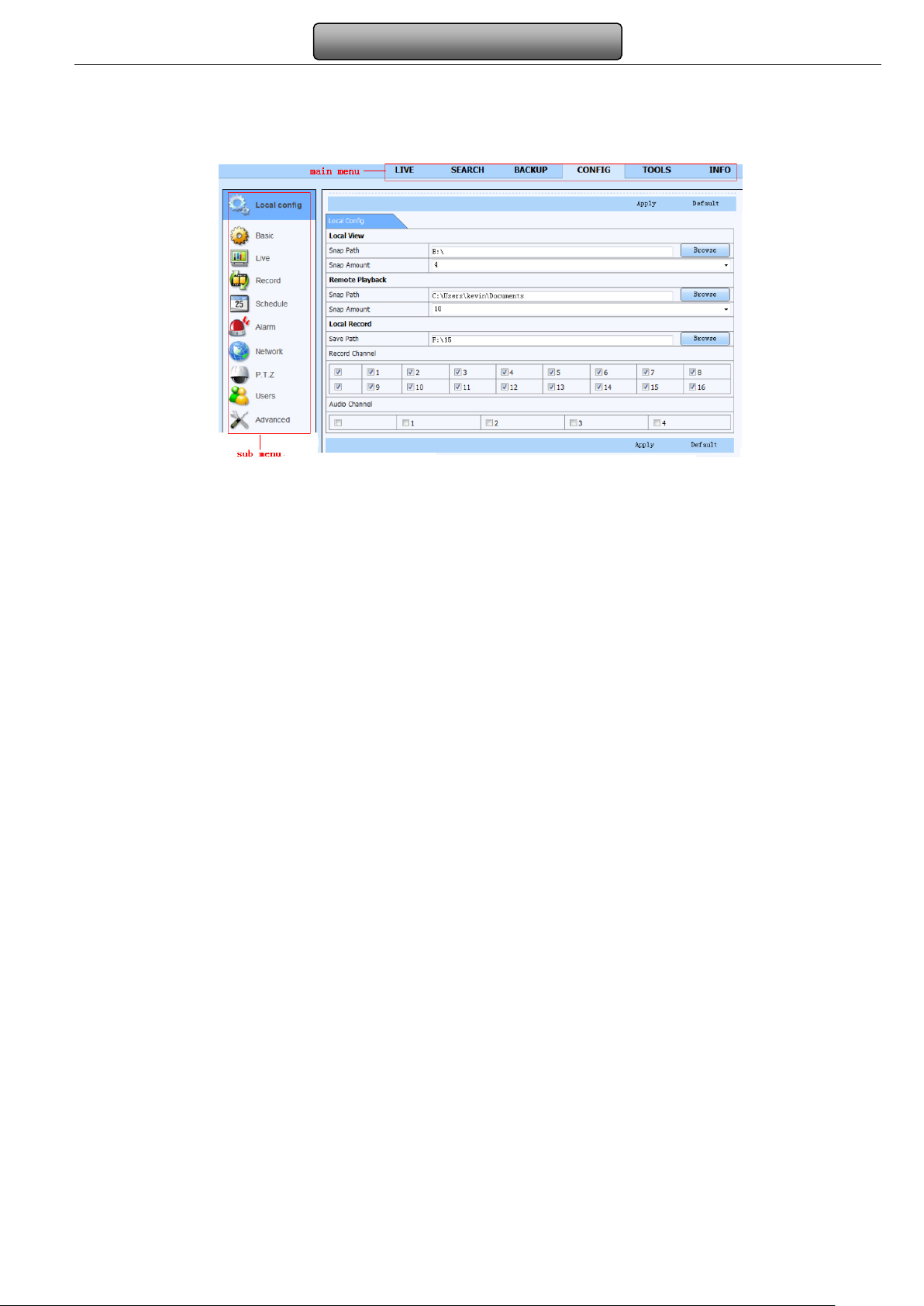

Fig 7-11 remote menu setup
The sub menu lists and the options in every item are similar with those on the DVR. Please refer to Chapter 3 Main Menu Setup
Guide for more details.
Click “Apply” button to save above settings; click “default” button will recover the original settings.
70
Page 77
Digital Video Recorder User Manual
7.6 Remote Management
Remote Information Search
The system will automatically record the working condition and operation process during the period of work. User can view
information, such as username, IP address and so on. Enter into INFO→Log. User can set the start time to view the log record as
follows:

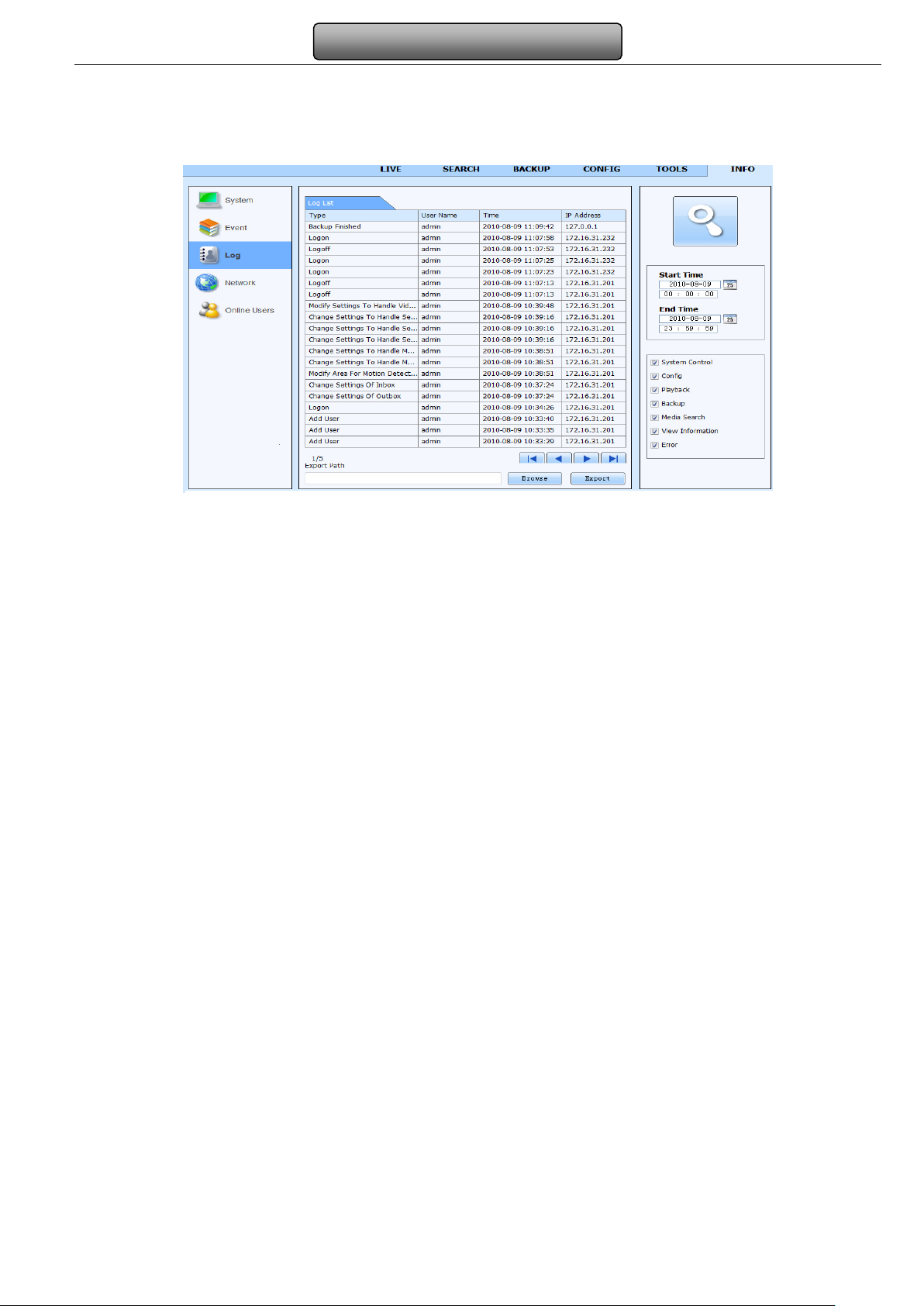

Fig 7-12 Remote information search
Note: There may be subtle differences with respect to functions of remote surveillance between through IE and through
Apple PC. Here we only take IE remote access for example.
71
Page 78
Digital Video Recorder User Manual
8 Mobile Surveillance
This DVR supports mobile surveillance by Iphone, Gphone，blackberry or smart phones with Windows mobile and symbian OS. At
the same time, it supports 3G network. We tested Dopod D600 (WM5) and Dopod S1 (WM6), which work fine with the DVR.
It wants to make mobile surveillance, need first enable network service on the DVR, and refer to Chapter 4.6 Network configuration.
The below is the use instructions on mobile client end for two OS.
8.1 By Phones with Windows mobile

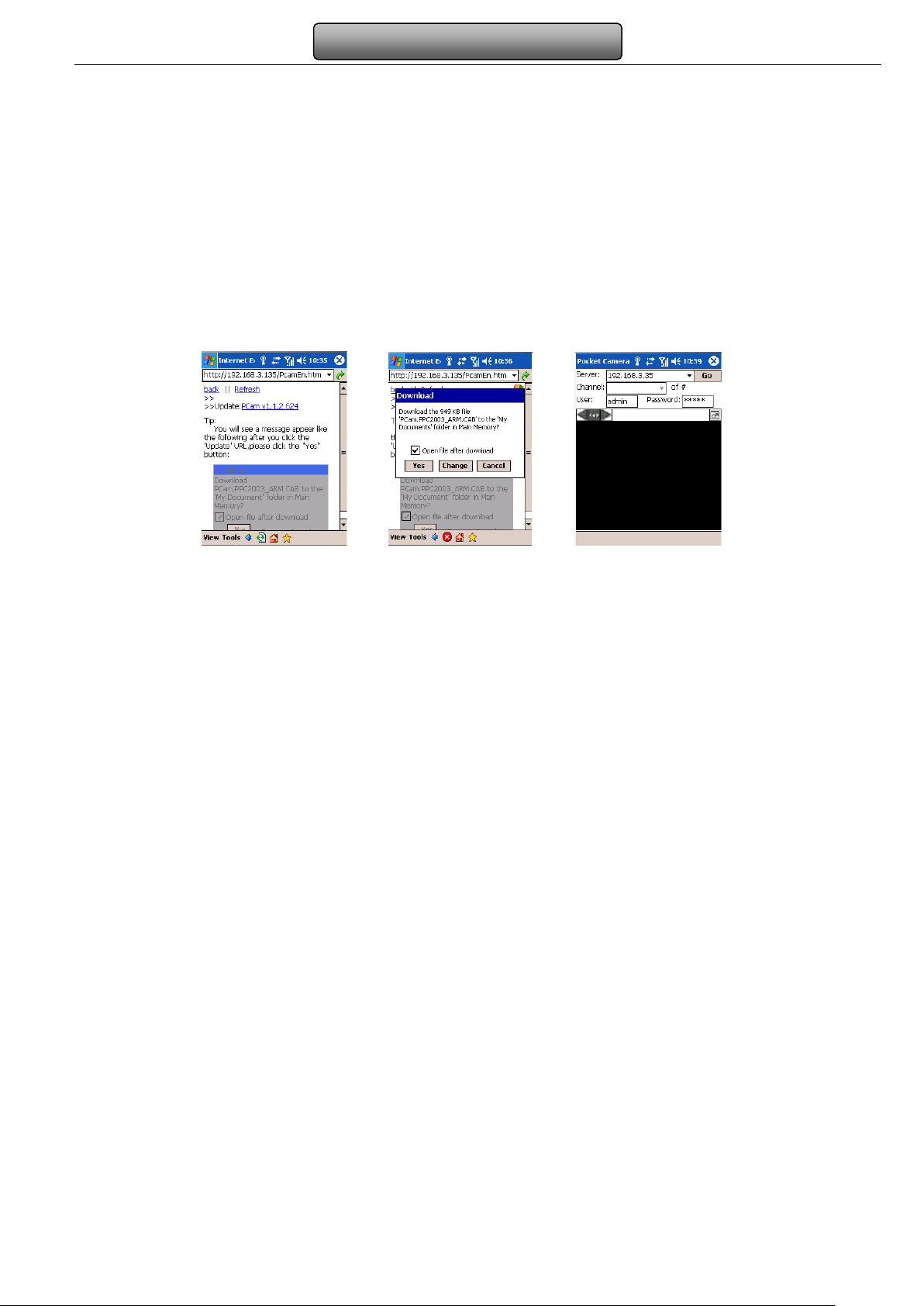

Step1： Firstly activate the network access on mobile phone and then run “Internet Explorer”. Input the server’s address and the
connection is built up shown as below picture in the left:
Step2：Click on the software name. A dialog box pops up as below picture in the middle:
Step3：Click “Yes” to start downloading and installing:
Step4：PCam will be opened automatically after installed. Refer picture in the right:
72
Page 79
Digital Video Recorder User Manual

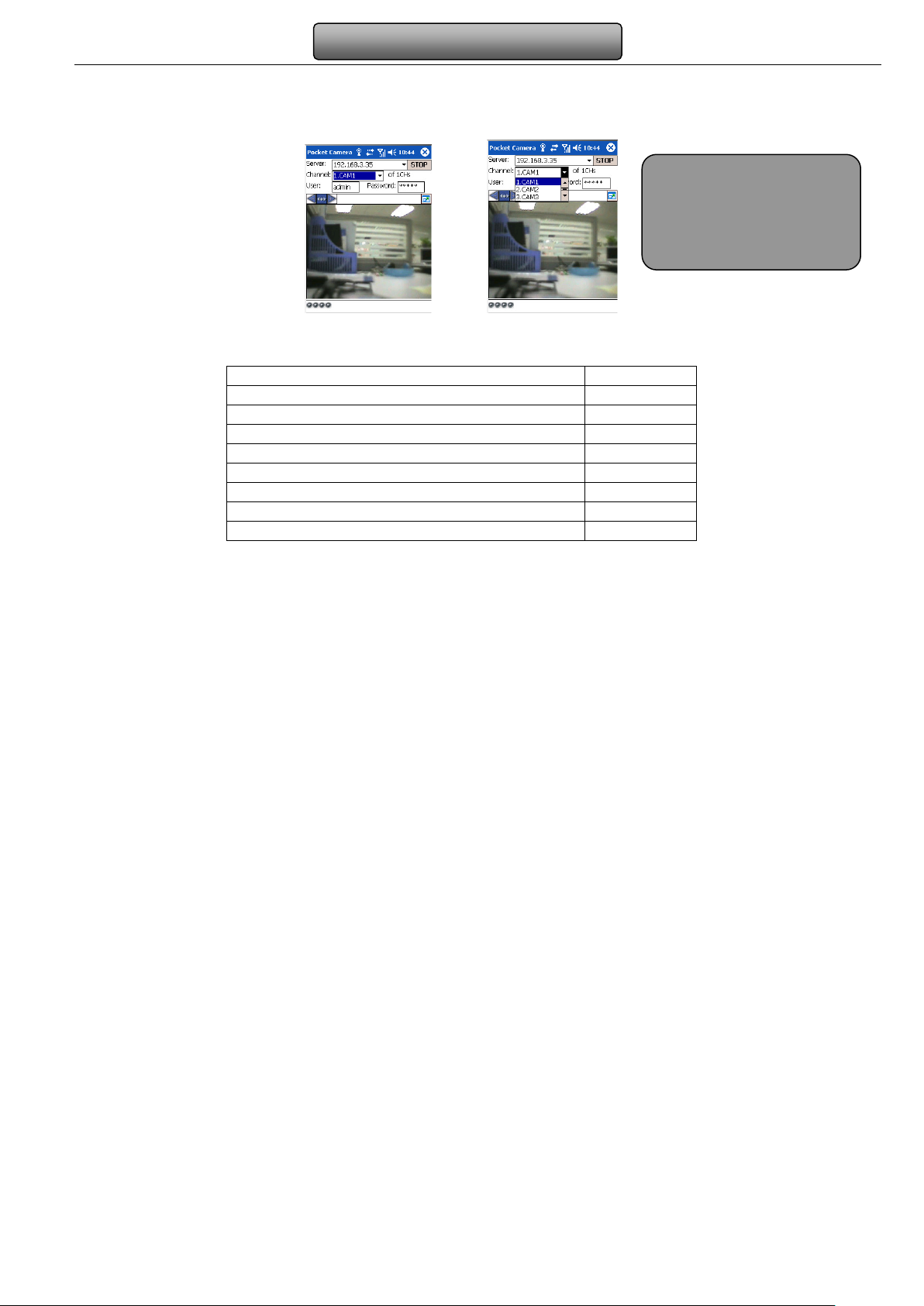

Step5：Input the server’s address, ID and password respectively in the columns of “Server”, “User” and “Password”, and click “Go”
to log on the server. It will show the picture if access successfully. Refer below picture in the left:
Step6：Camera 1 is the default channel after login. Change the channel in rolling-down menu of “Channel”: refer below picture in
the right:
Notice: User name and
password here are the same
with that used on the DVR.
The default is admin and
123456.
8.2 By Phones with Symbian
Please use the smart phones with symbian version supported by this unit. The detail information is as follows:
Symbian S40 support
Symbian UIQ support
Symbian S80 support
Symbian S60 support
Symbian S60 3rd Edition-Symbian OS v9.1 support
Symbian S60 3rd Edition with FP 1-Symbian OS v9.2 support
Symbian S60 3rd Edition with FP2-Symbian OS v9.3 support
Symbian S60 5th Edition-Symbian OS v9.4 support
Symbian S60 5.1 Edition-Symbian OS v9.5 support
Step1：Firstly enable the network access on mobile phone. Then run Web browser.
73
Page 80
Digital Video Recorder User Manual

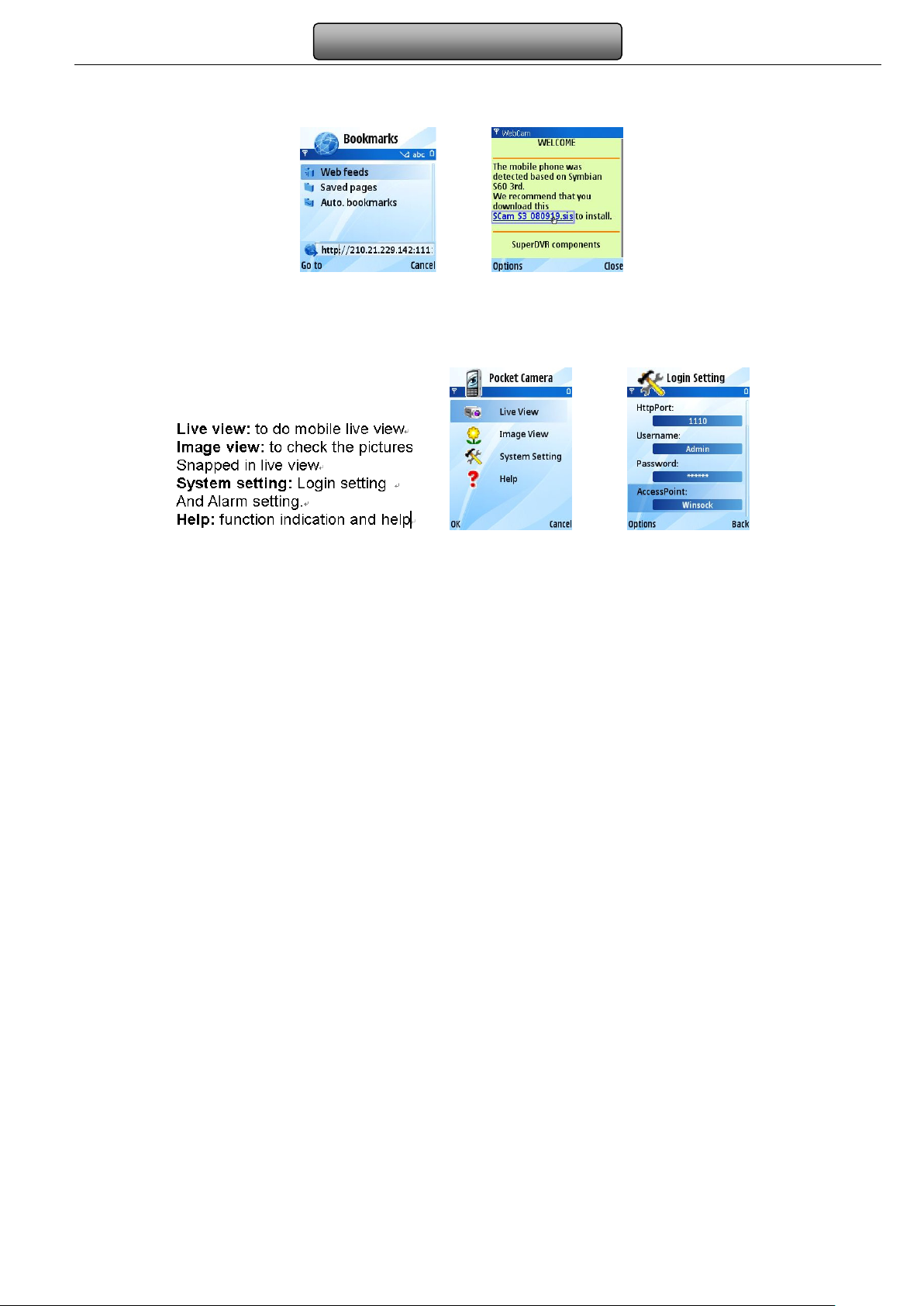

Step2：Input the DVR server’s IP address in a new-built bookmark. Click this bookmark to connect to the DVR. Refer picture in the
left:
Step3：A welcome window will pop up and requires a package. Click the software name to download. Refer picture in the right:
Step4：A security windows will pop up after downloading and ask if install the package. Click YES to install.
Step5：A Scam shortcut icon appears on the system menu after finished.

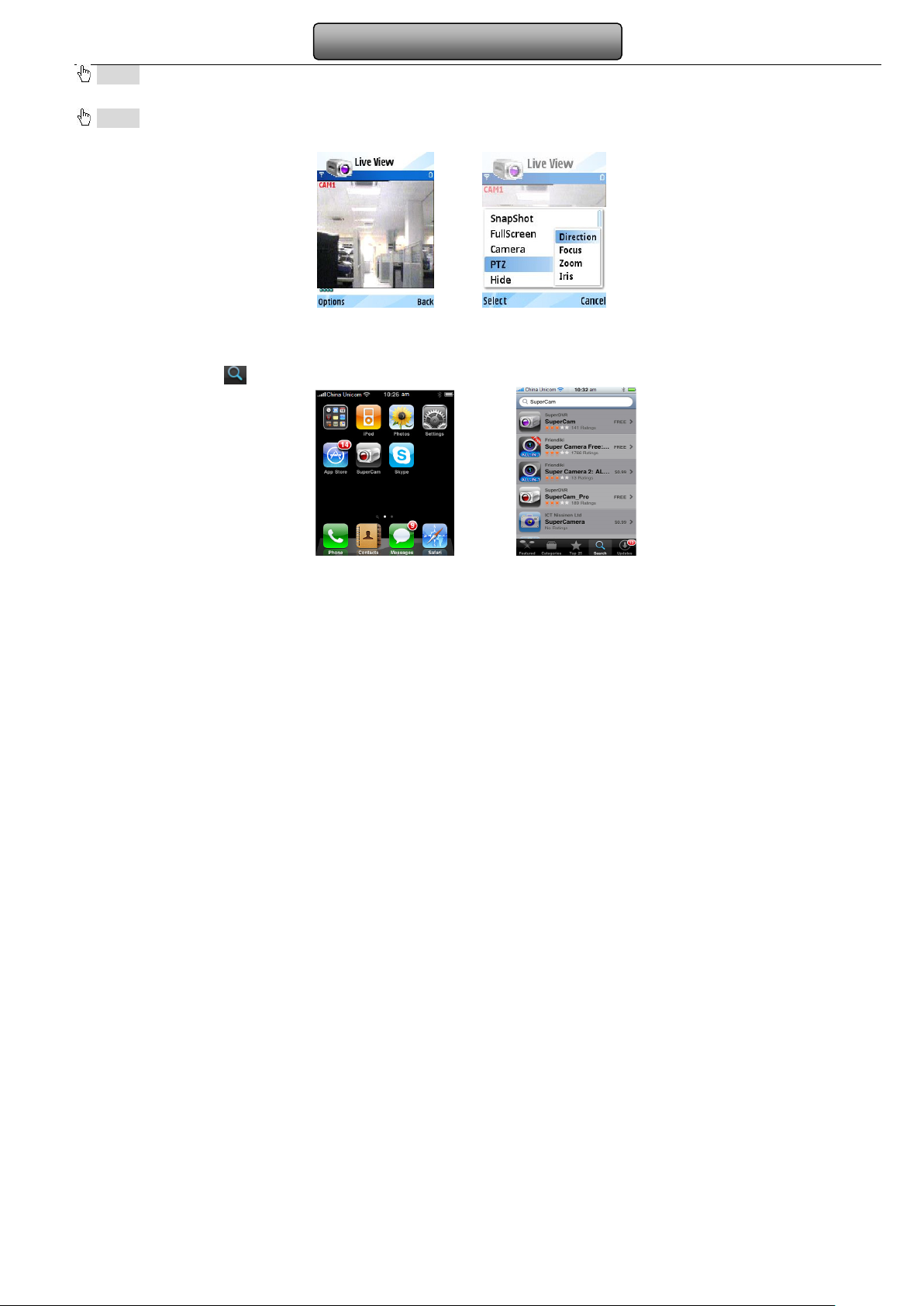

Step6：Run Scam program. It will enter a function interface. Refer picture in the left:
Step7：Click System setting--->Login Setting to enter login interface. Refer picture in the right:
Step8：Input the server’s address, ID and password respectively. Then save.
74
Page 81
Digital Video Recorder User Manual
Notice: About Access point, there may be different access points in different countries or from service providers.
Step9：Enter Live View, it will connect the server and display pictures. Refer picture in the left:
Notice: User name and password here are the same with that used on the DVR. The default is admin and 123456.
Step10：In Live View, users can do snapshot, change channels and control PTZ. Refer picture in the right:
8.3 The Software installation for iPhone mobile clients
1. Install through iphone.
Step 1. Open App Store function of iphone.
Step 2. Enable “search” function to search “SuperCam”.
75
Page 82
Digital Video Recorder User Manual

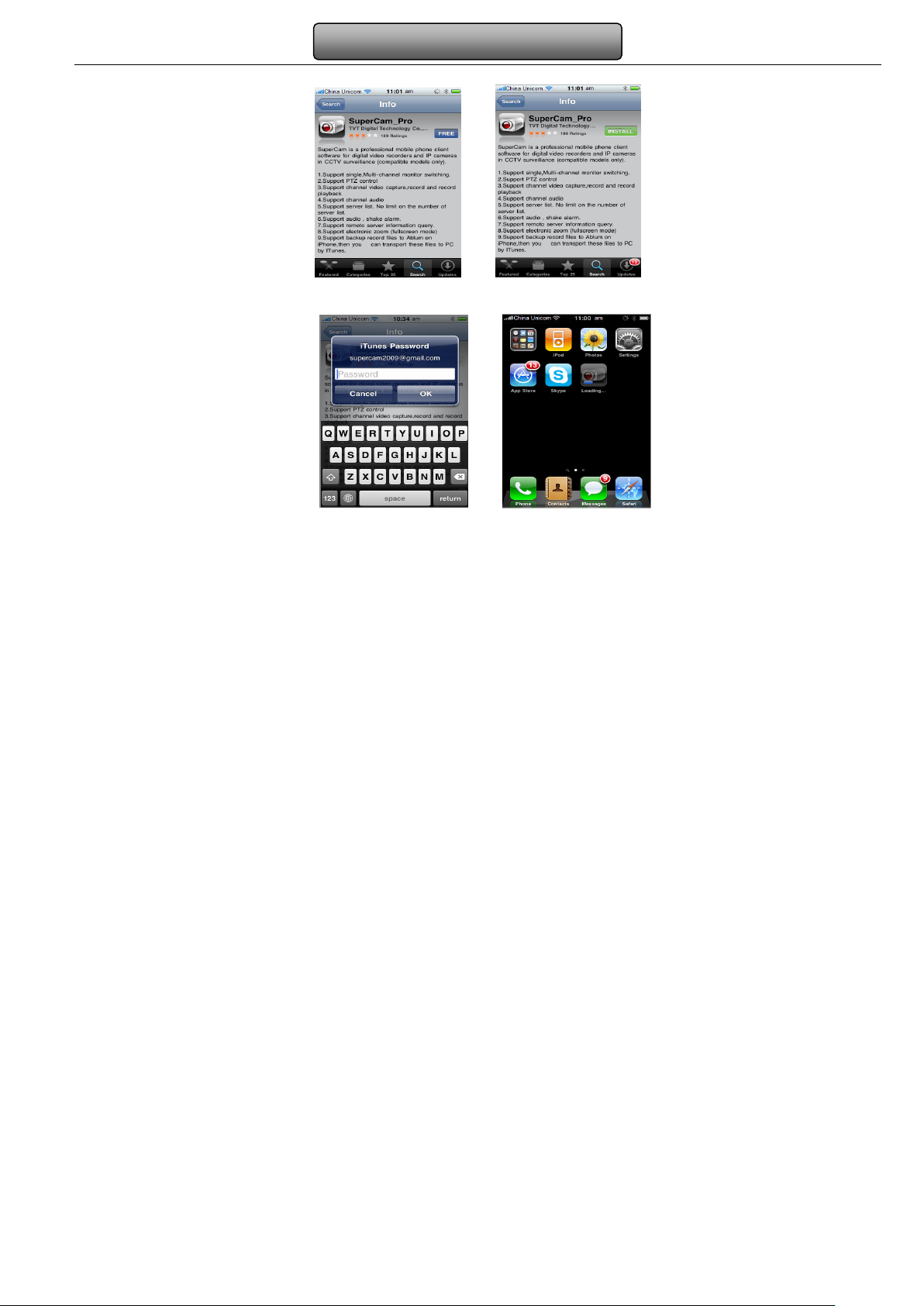

Step 3: Click SuperCam, enter into “introduce” interface and then click “FREE”, it will change into “INSTALL”
Step 4: Input iTunes Store password and then click “OK”, the software will be installed automatically.
Note: if it was the first time for user to operate, please enter user ID; if there is no Store account, user needs to apply one.
76
Page 83

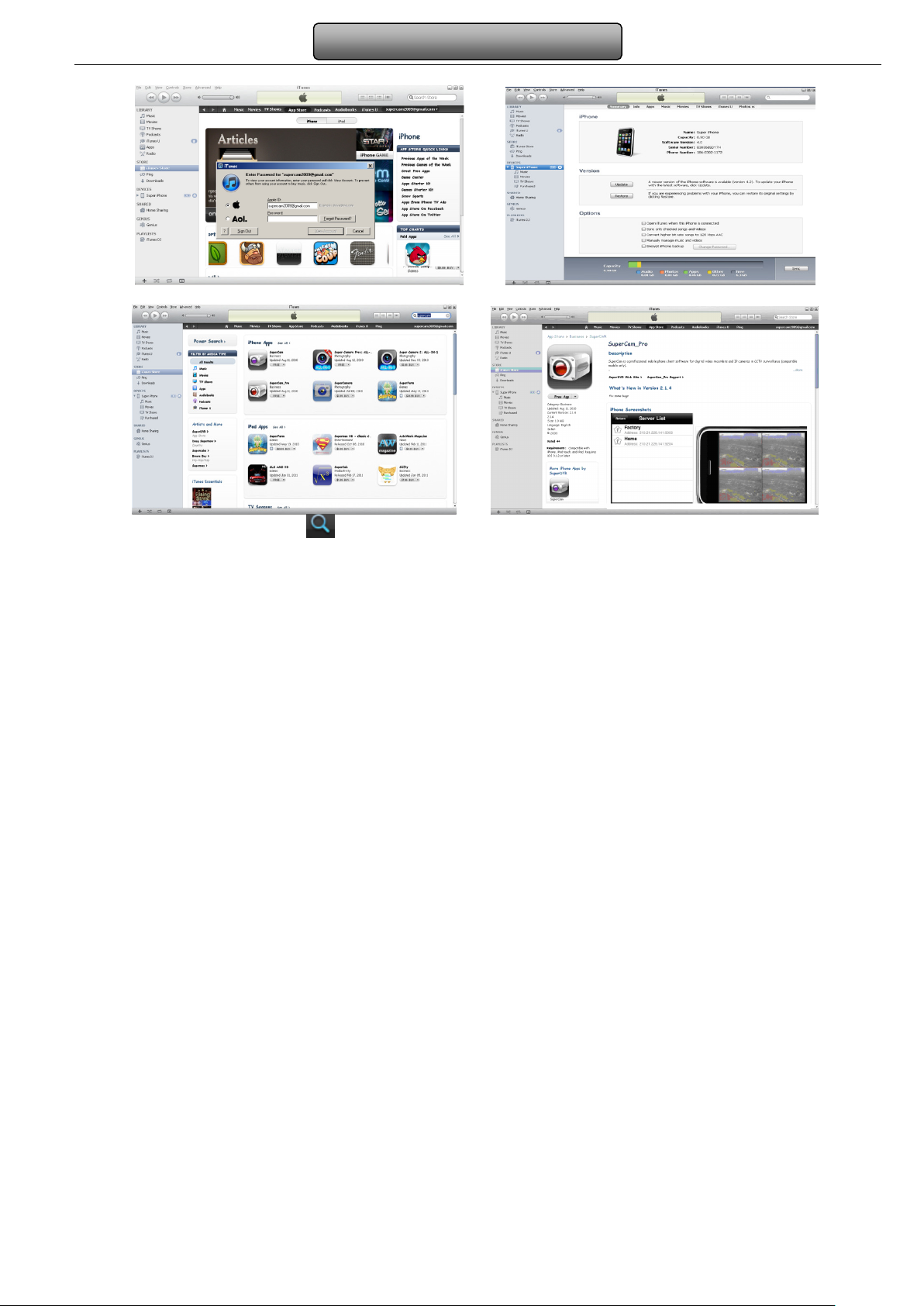

2. Install through PC.
Step 1: Install iTunes store in PC and then login Step 2: Connect iPhone and PC
Digital Video Recorder User Manual
Step 3: Enable “search” function to search “SuperCam” Step 4: Click “free application” button
77
Page 84
Digital Video Recorder User Manual

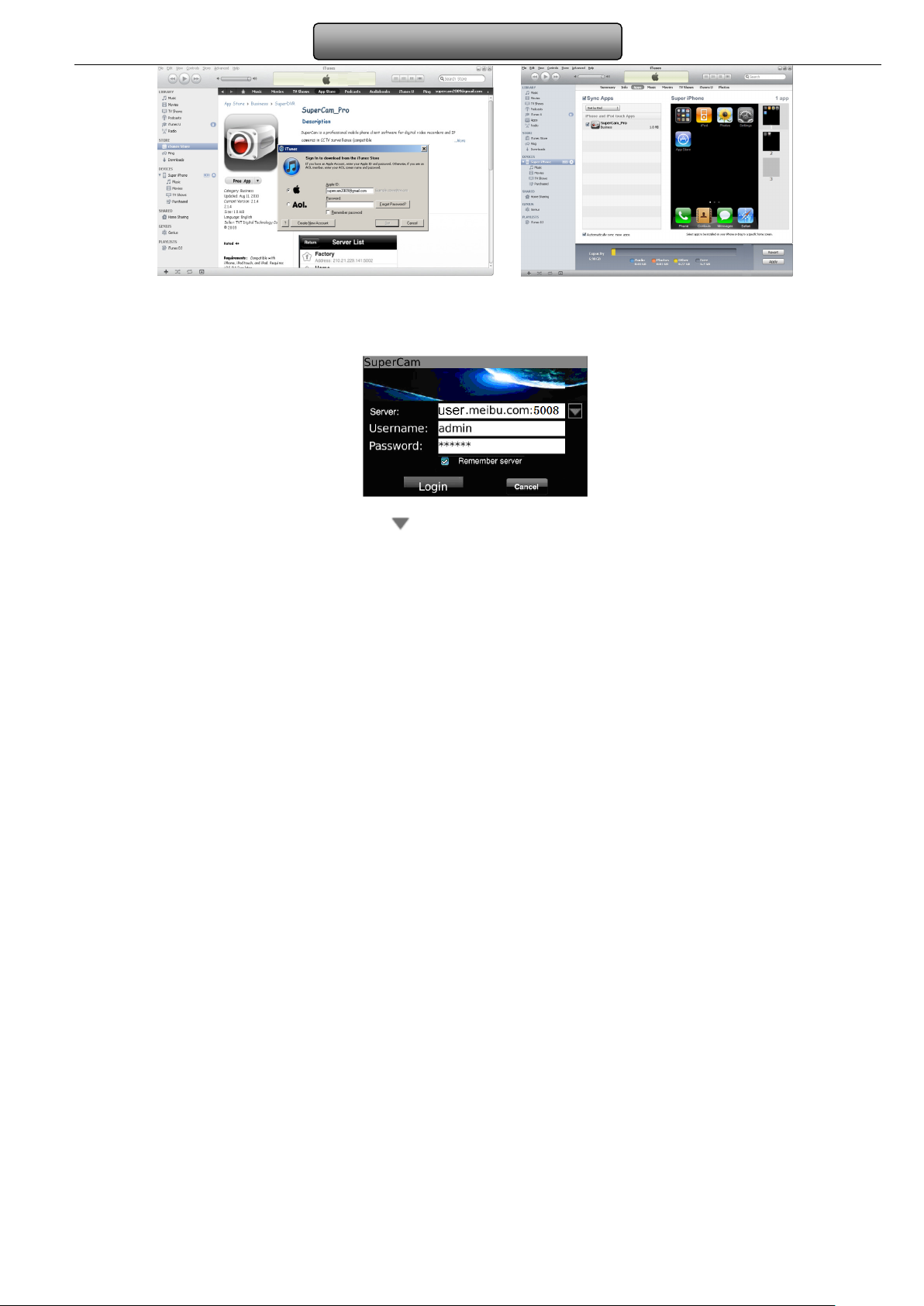

Step 5: Input apple ID and password, then click “acquire”
Step 6: Tick off “synchronously apply program” and “SuperCam”, and then click “apply” button
Operation Instruction for SuperCam (iphone)
1. Login interface
Enter server’s IP address (or domain name), user name and password
Click “Remember server” to save the setting; click button can quick input saved server address, user name and password.
78
Page 85

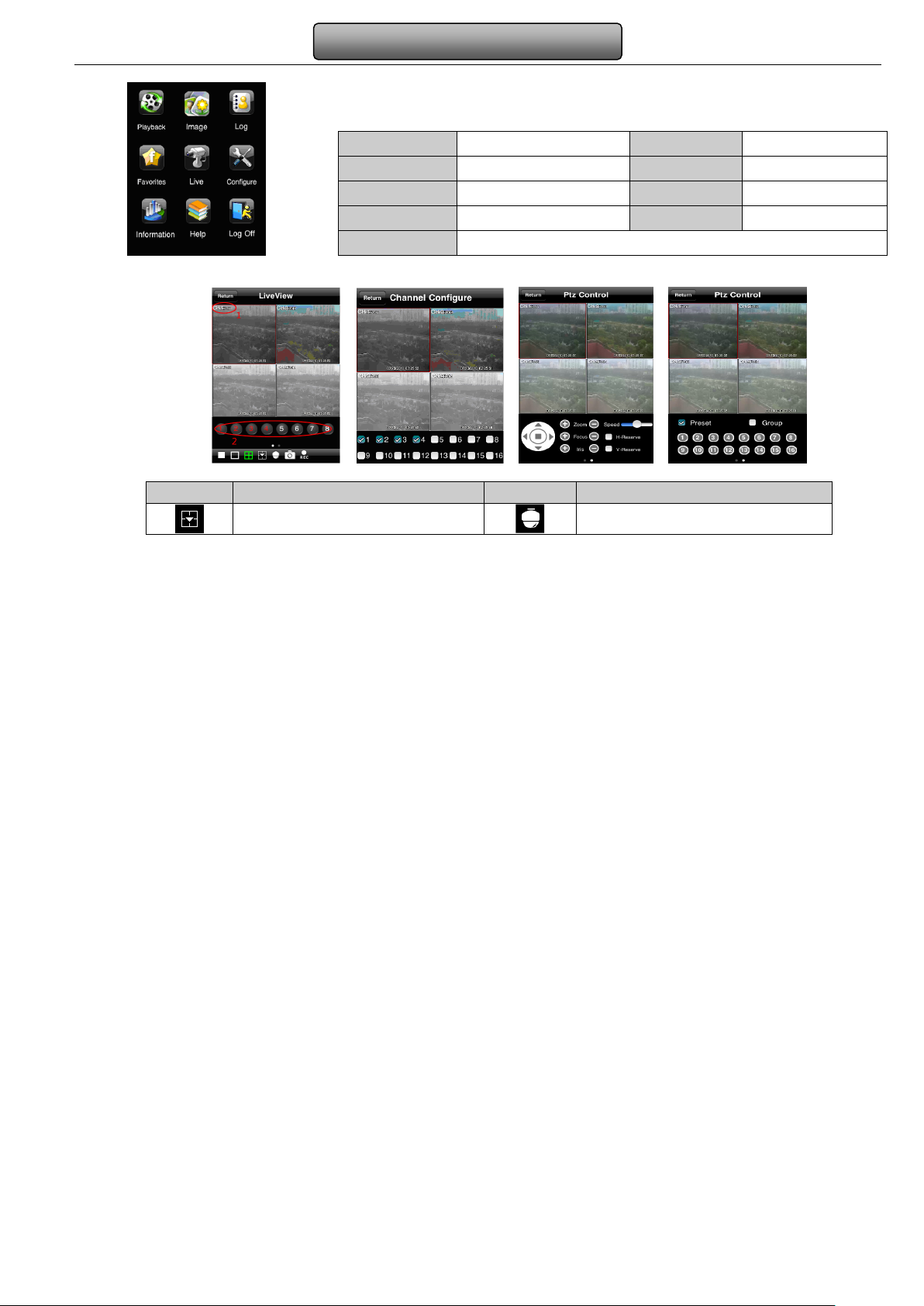

2. Main Interface
Digital Video Recorder User Manual
3. Live View Interface
Mark 1 Current viewing channel Mark 2 Channel status
Switch channels
【Playback】
【Log】
【Live】
【Information】
【Logoff】
playback record file
log record
live view
device information view
logoff and return to login interface
【Image】
【Server List】
【Settings】
【Help】
image view
device list
software setting
software help center
PTZ, click to switch to Fig 2 interface
79
Page 86
Snap picture
Digital Video Recorder User Manual
Record
Close the video of the current channel
Switch to the single image
Upward rotates the PTZ
Leftward rotates the PTZ
Stop rotating the PTZ
Zoom Out/Focus Out/Iris Sub Preset elect the preset point
Group Set the cruise line Speed Rotate speed of the PTZ
H-Reverse Horizontal- Reverse V-Reverse Vertical- Reverse

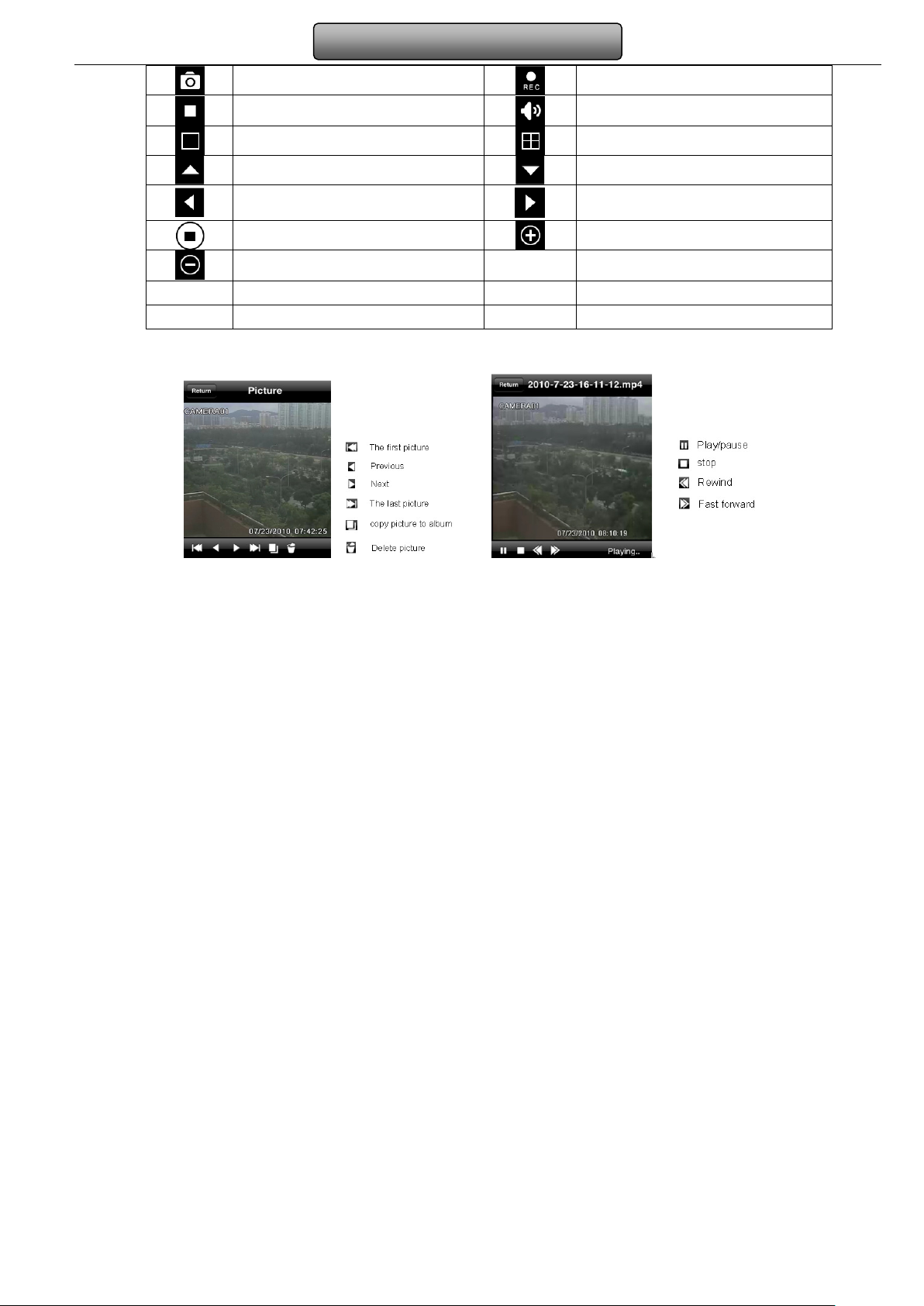

4. Image view interface, refer below picture in the left:
5. Record Playback interface, refer below picture in the right:
Live audio
Switch to four images
Downward rotates the PTZ
Rightward rotates the PTZ
Zoom In/Focus In/Iris Add
80
Page 87
Digital Video Recorder User Manual
Click the record file to playback.

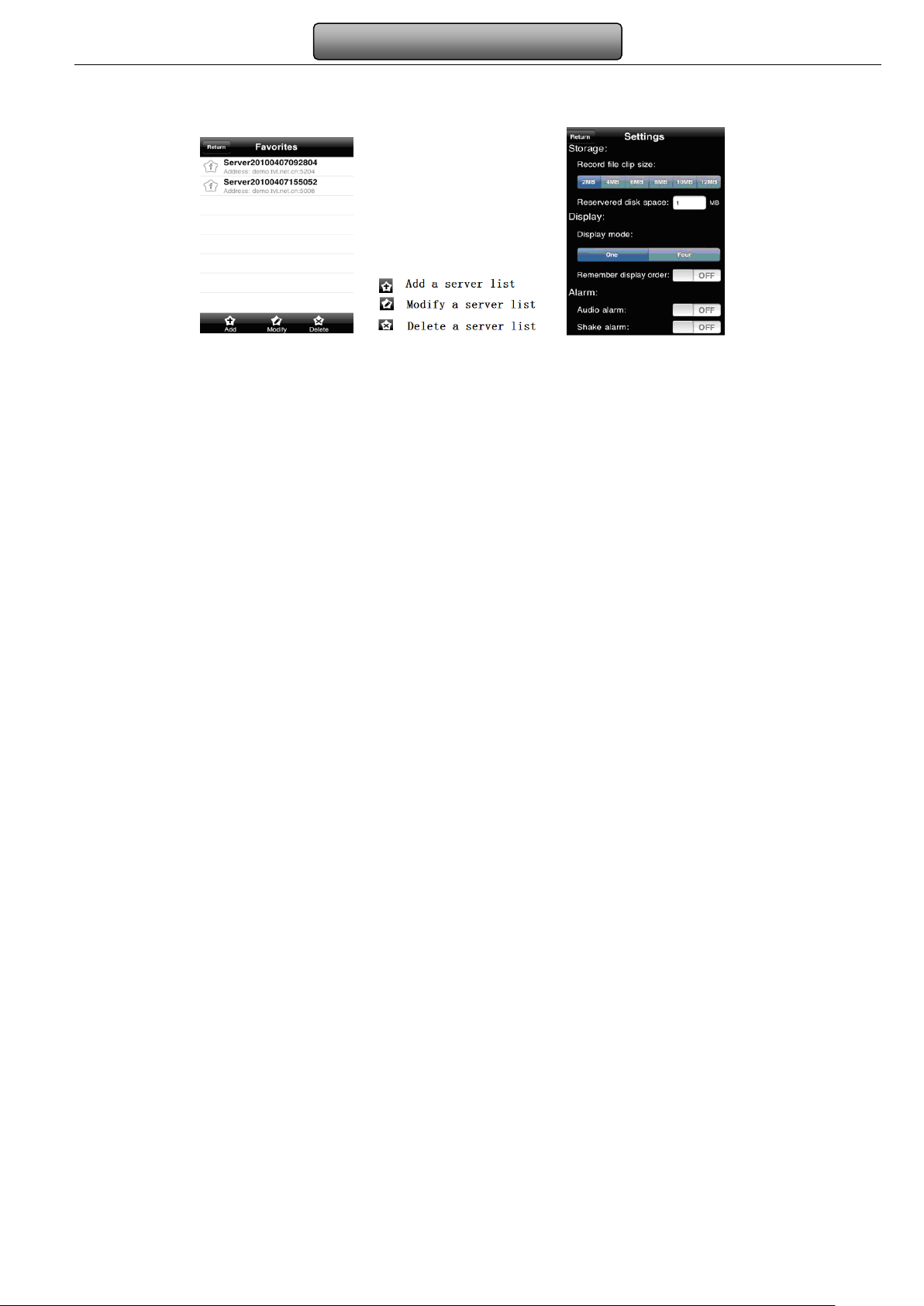

6. Server list Interface, refer to below picture in the left:
7. Config interface, refer to below picture in the right:
Main parameters for mobile phone video config
Record file clip size: Single video size. When the video size is greater than setup value, change another video files
Reserved disk space: Reserved SD Card disk space, when the disk space is less than setup value, the video will be stopped
Display config：
Display mode: User can select one live picture display or four live picture displays
Remember display order: User can choose whether to remember display order or not.
Alarm config：Select Audio Alarm. When Video Loss/Sensor/Motion happens，trigger sound alarm. Select shake Alarm. When
Video Loss/Sensor/Motion happens，trigger vibrate alarm.

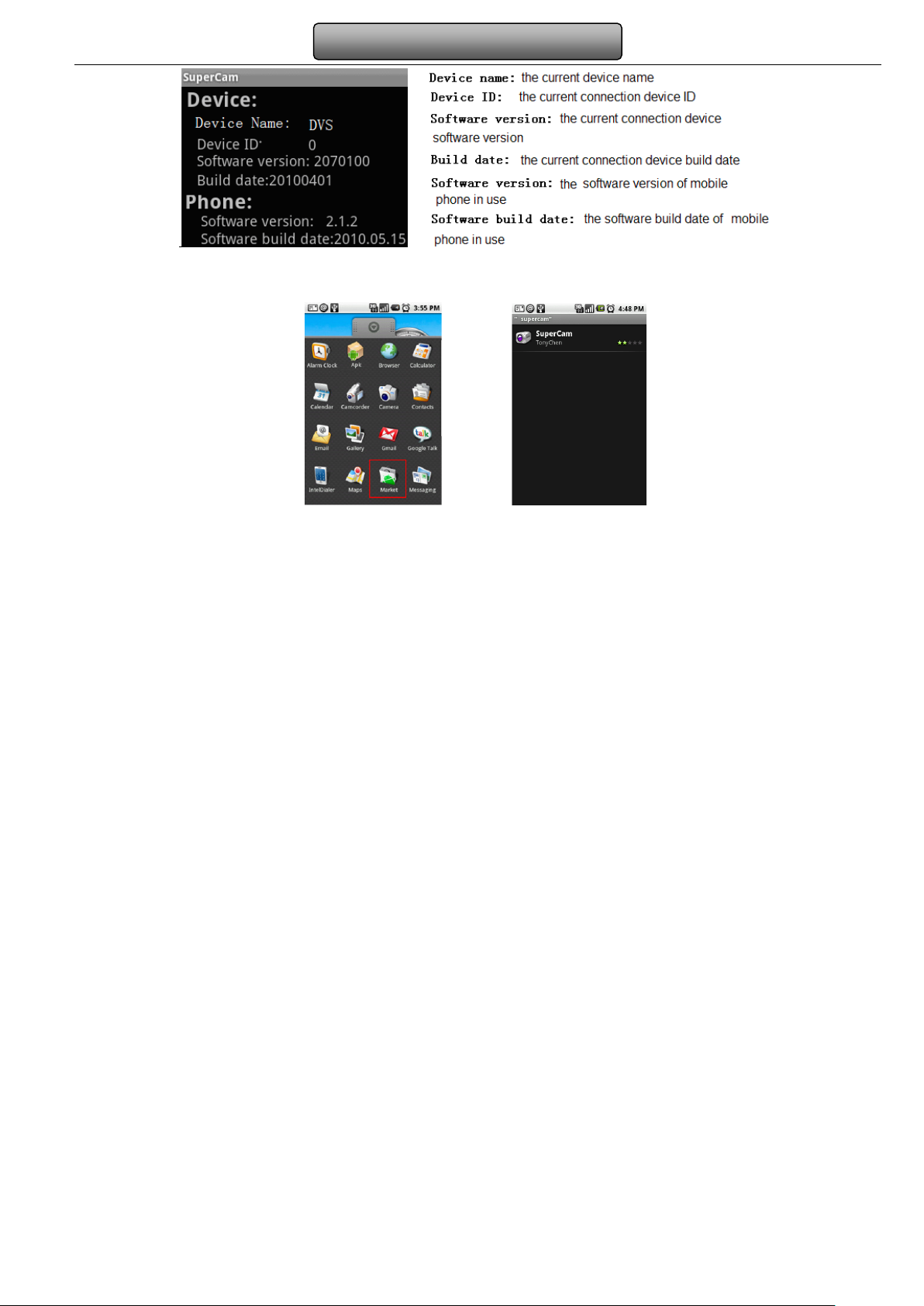

8. Information View Interface
81
Page 88
Digital Video Recorder User Manual
8.4 The installation & operation methods for Android mobile clients
Software Installation
Step 1: run Google Market program Step 2: search”SuperCam”
82
Page 89
Digital Video Recorder User Manual

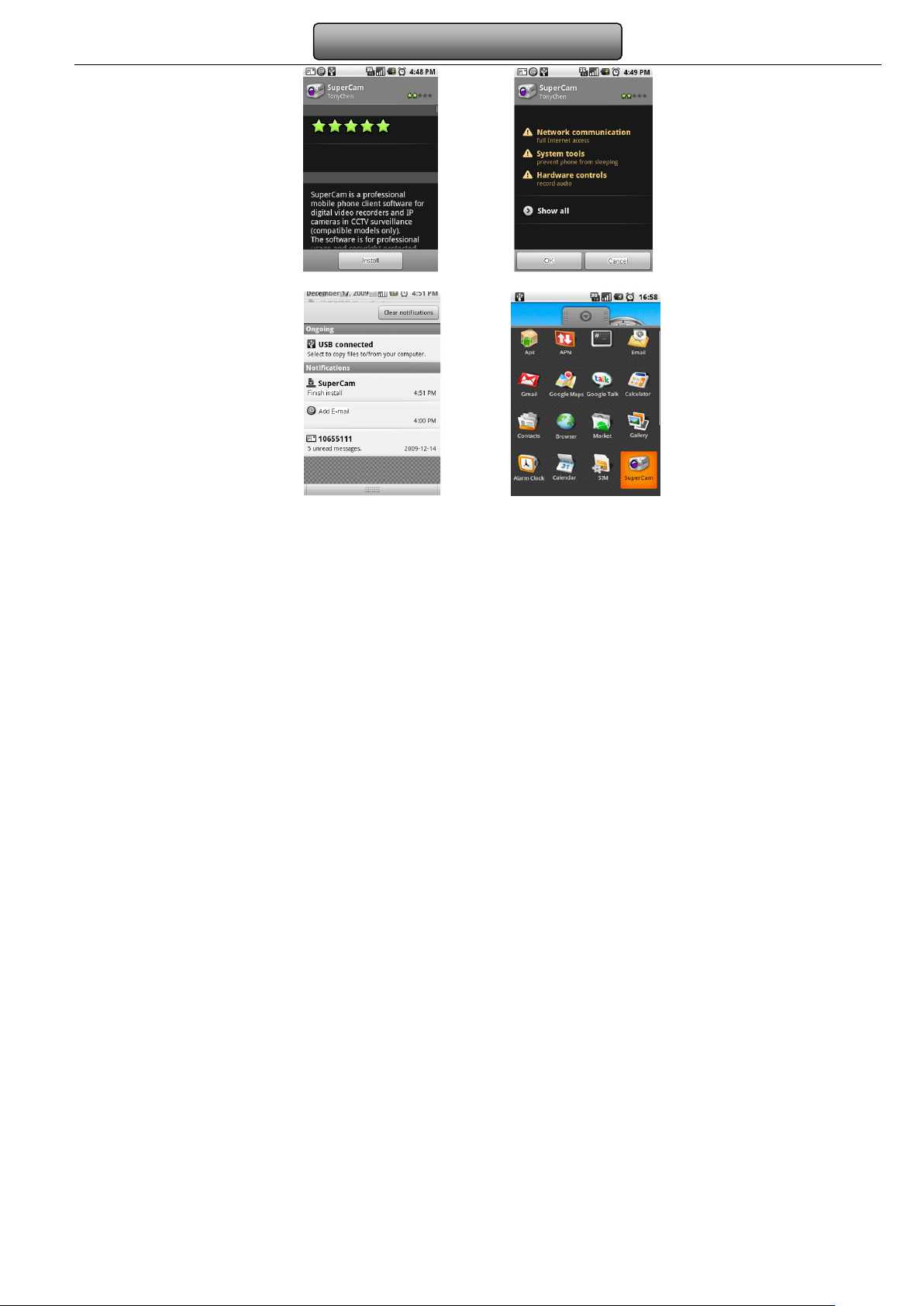

Step 3: press “Install” button Step 4: click “OK” button
Step 5: user can view the download and install process in notifications; finished download, the software will install automatically.
Login
83
Page 90
Digital Video Recorder User Manual

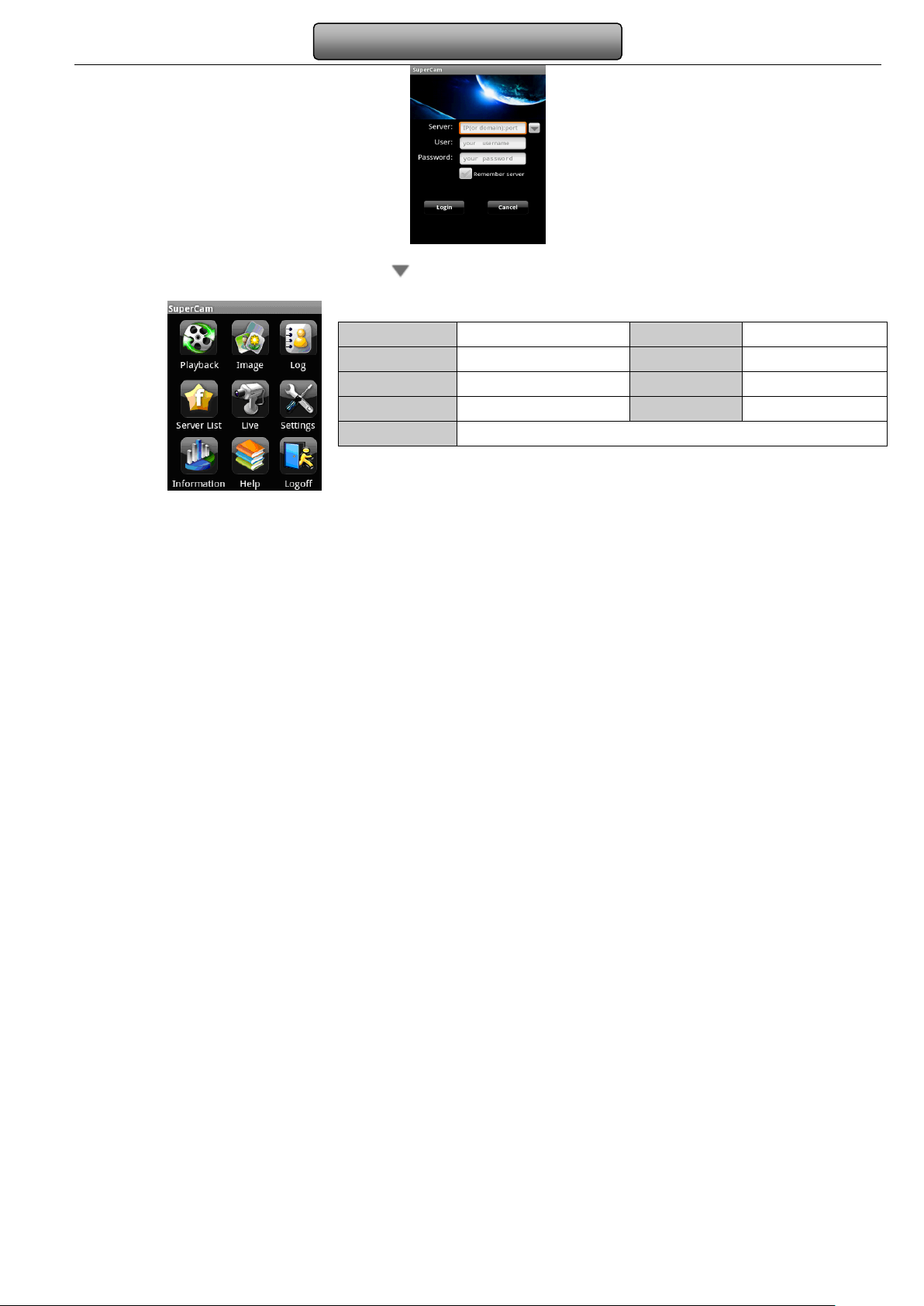

Enter into server’s IP address (or domain name), user’s ID and password.
Click “Remember server” to save the setting; click button can quick input saved server address, user name and password.
Main menu
Live view
【Playback】
【Log】
【Live】
【Information】
【Logoff】
playback record file
log record
live view
device information view
logoff and return to login interface
【Image】
【Server List】
【Settings】
【Help】
image view
device list
software setting
software help center
84
Page 91
Digital Video Recorder User Manual

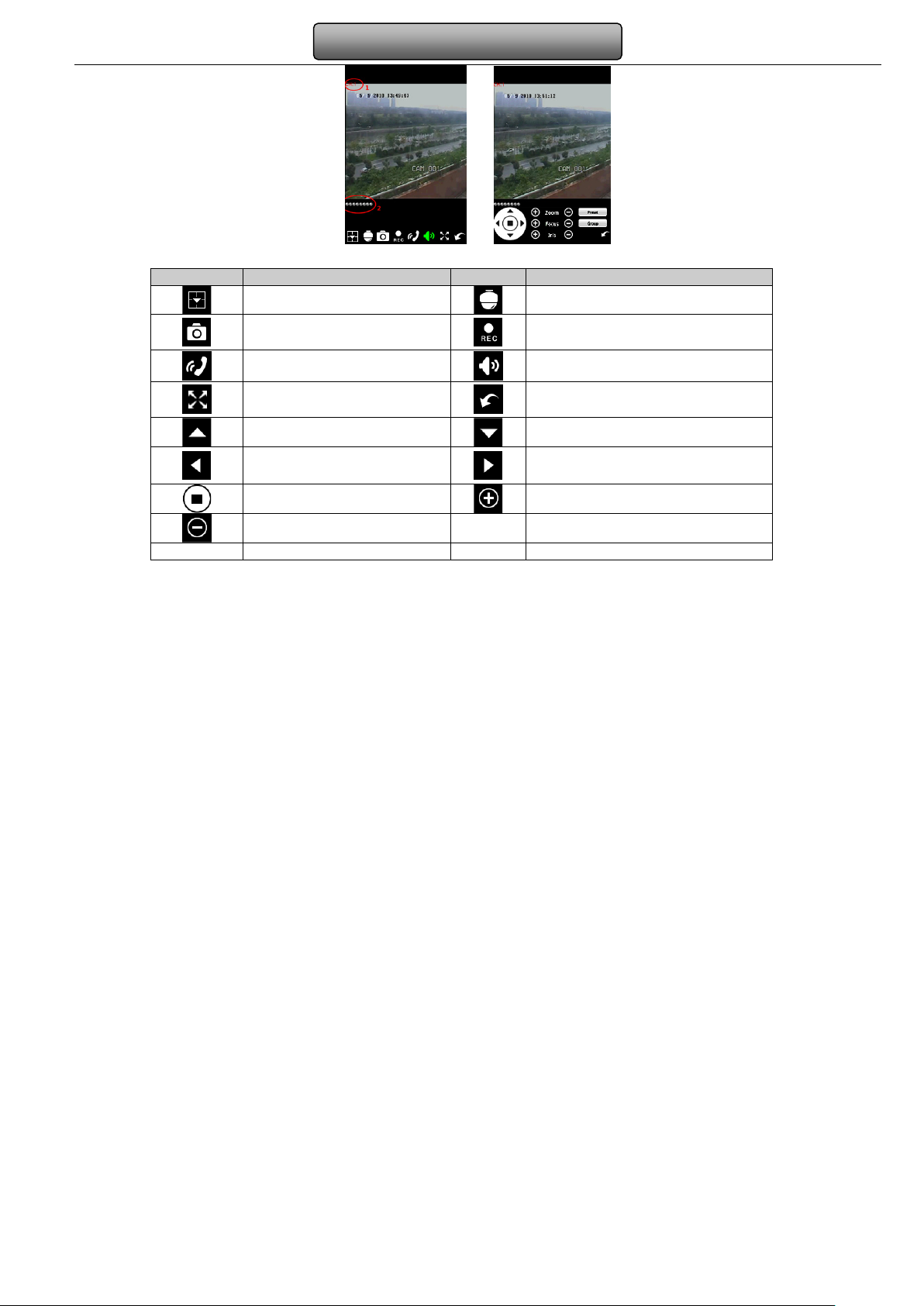

Mark 1
Current viewing channel
Mark 2
Channel status
( Fig 1） （Fig 2）
Switch channels
Snap
talk
Full screen
Upward rotates the PTZ
Leftward rotates the PTZ
Stop rotates the PTZ
Zoom Out/Focus Out/Iris Sub Preset Select the preset point
Group Set the cruise line
PTZ, click to switch to Fig 2 interface
record
Live audio
Return
Downward rotates the PTZ
Rightward rotates the PTZ
Zoom In/Focus In/Iris Add
85
Page 92

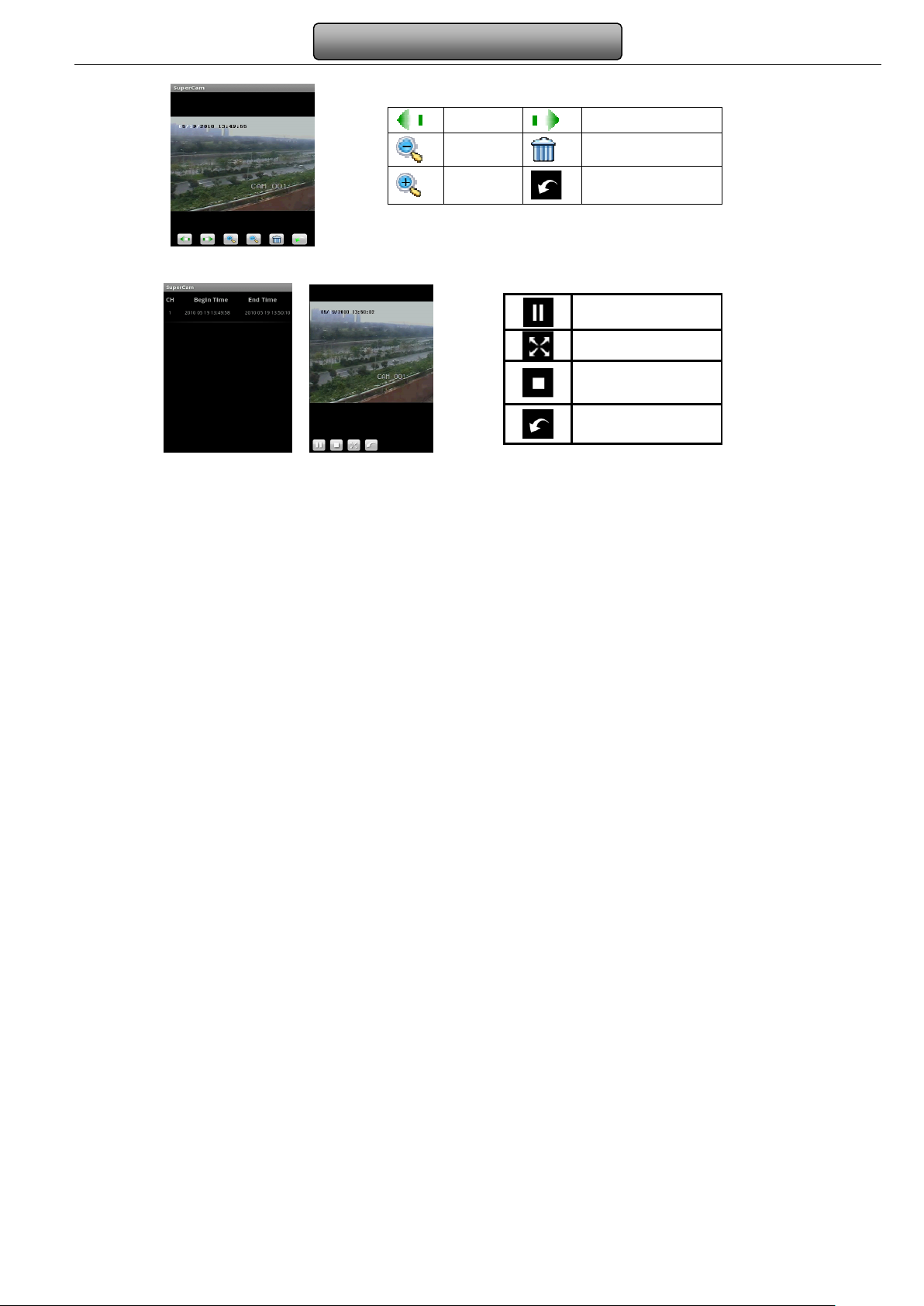

Image view
Digital Video Recorder User Manual
Record playback
（Fig 3） （Fig 4）
Click the record file (Fig 3) to playback (Fig 4)
Server list
Previous
Zoom out
Zoom in
Next
Delete
Return to main
menu
Play/pause
Full screen
stop
Return to record file
interface (Fig 3)
86
Page 93
Digital Video Recorder User Manual

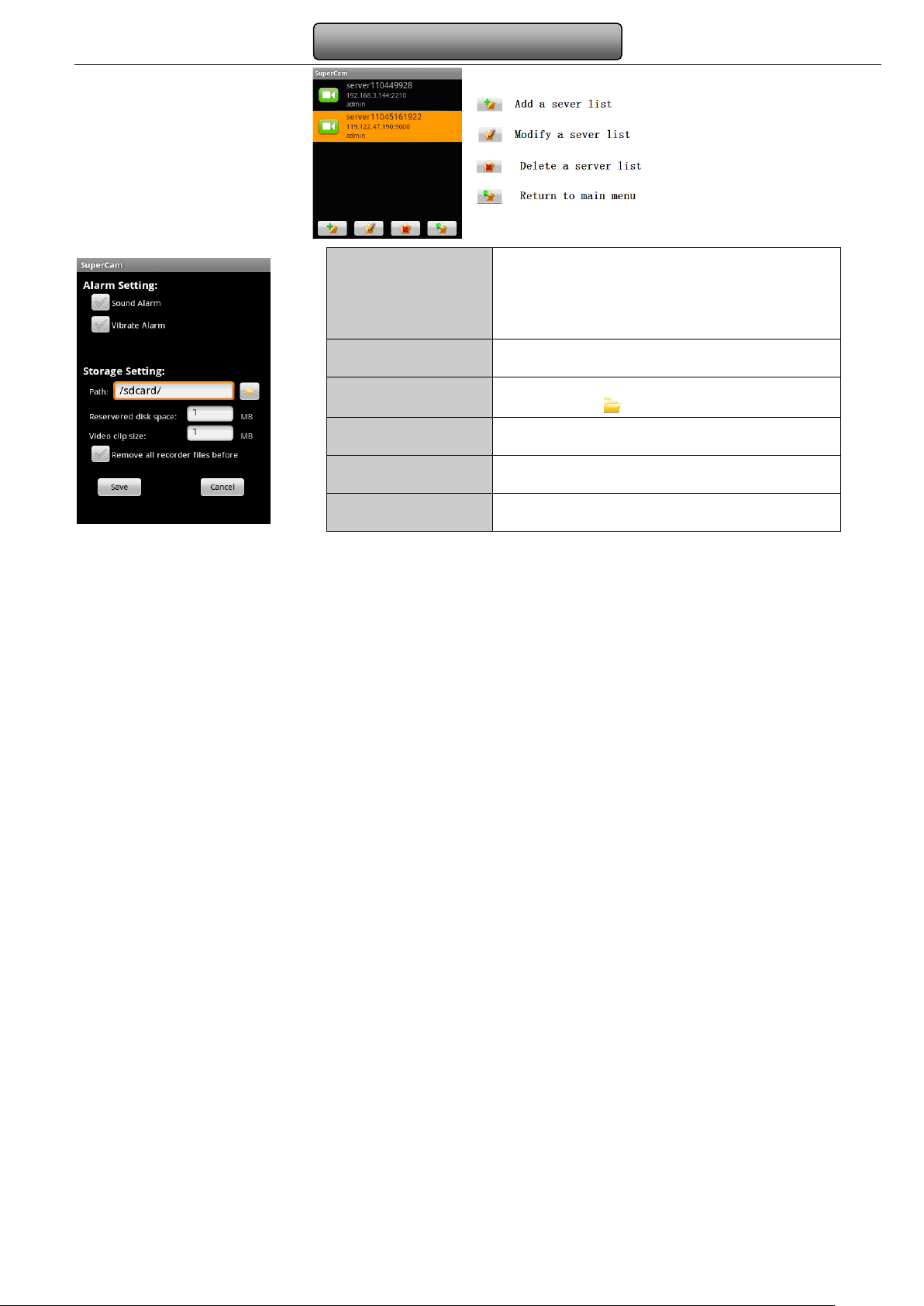

Config interface
Information view
Alarm setting
Storage setting
Path
Reserved disk space
Video clip size
Remove all recorder
files before
Tick off Sound Alarm ， when Video
Loss/Sensor/Motion happen ， trigger sound alarm;
Tick off Vibrate Alarm, when Video
Loss/Sensor/Motion happen，trigger vibrate alarm
User can setup the relevant parameters of mobile
video. This function can be valid only insert SD card.
Save path for mobile video files, the default catalog is
/SDCard/. Click button to change path.
reserved SDCard disk space, when the disk space is
less than setup value, the video will be stopped
Single video size. When the video size is greater than
setup value, change another video files
delete all current video files
87
Page 94
Digital Video Recorder User Manual
8.5 Installation and operation Methods for BlackBerry Mobile phone Client
8.5.1 Installation instruction for BlackBerry Mobile phone Client

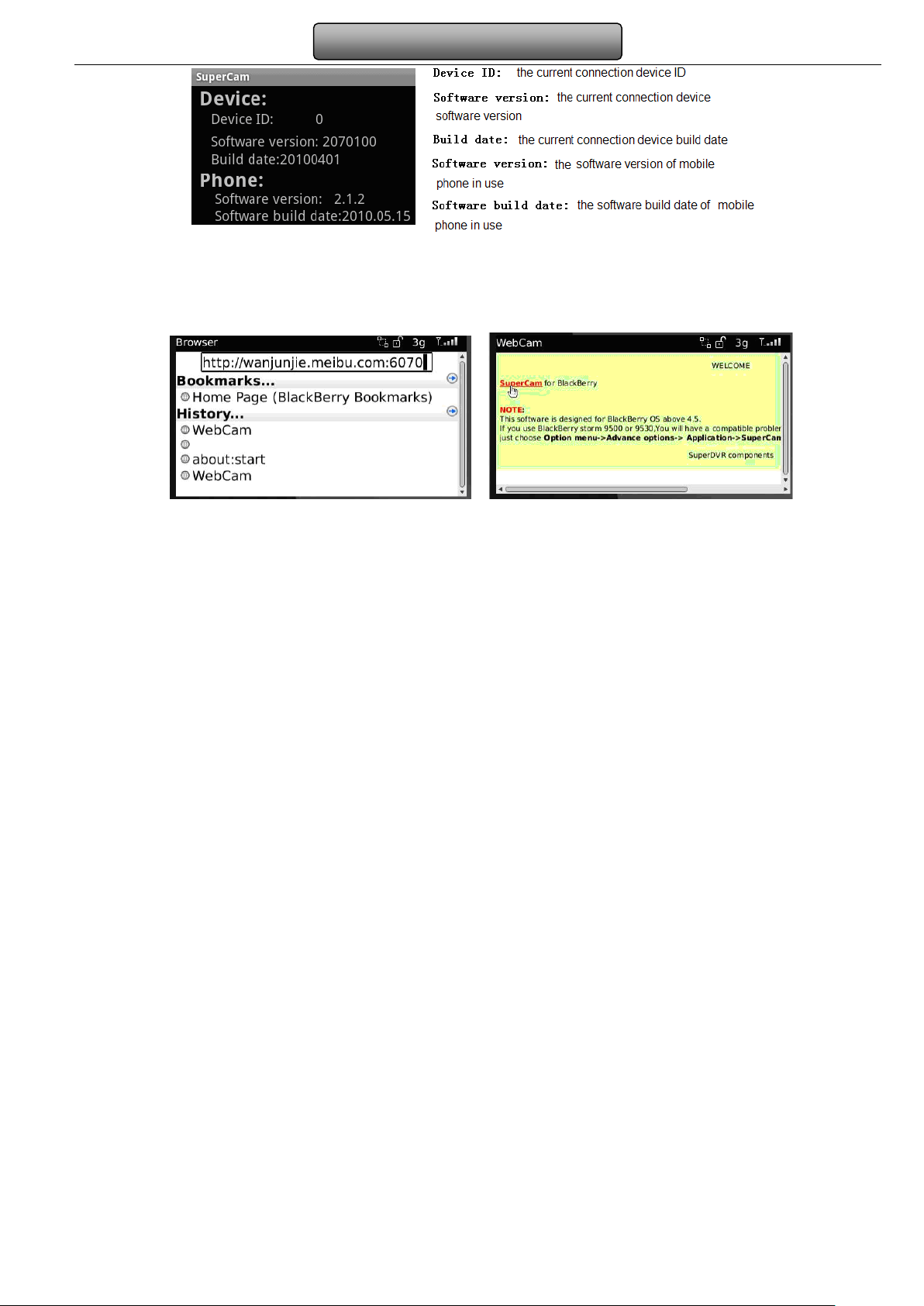

1. Open the browser of BlackBerry phone and enter sever address
2. Click “SuperCam” to link
3. Click “Download” button on the popup interface and the download progress will be shown.
88
Page 95
Digital Video Recorder User Manual

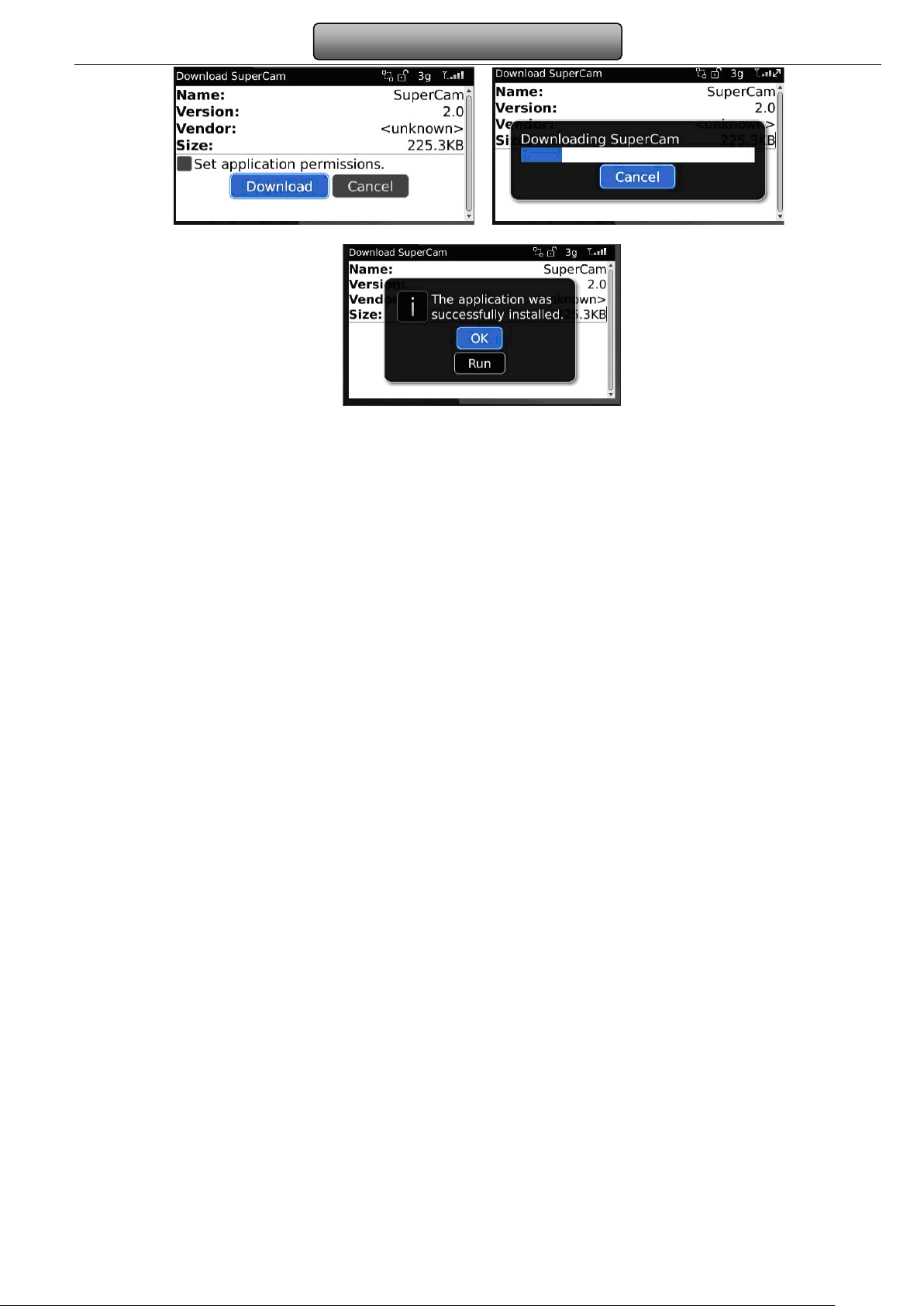

4. Finished downloading, the software will be installed automatically.
Note: If the software fails to download, please check in accordance with the following steps:
1. Check whether the network of mobile phone is normal or not
2. Check whether DVR server connect network normally or not
3. Modify the option of Browser Configuration.

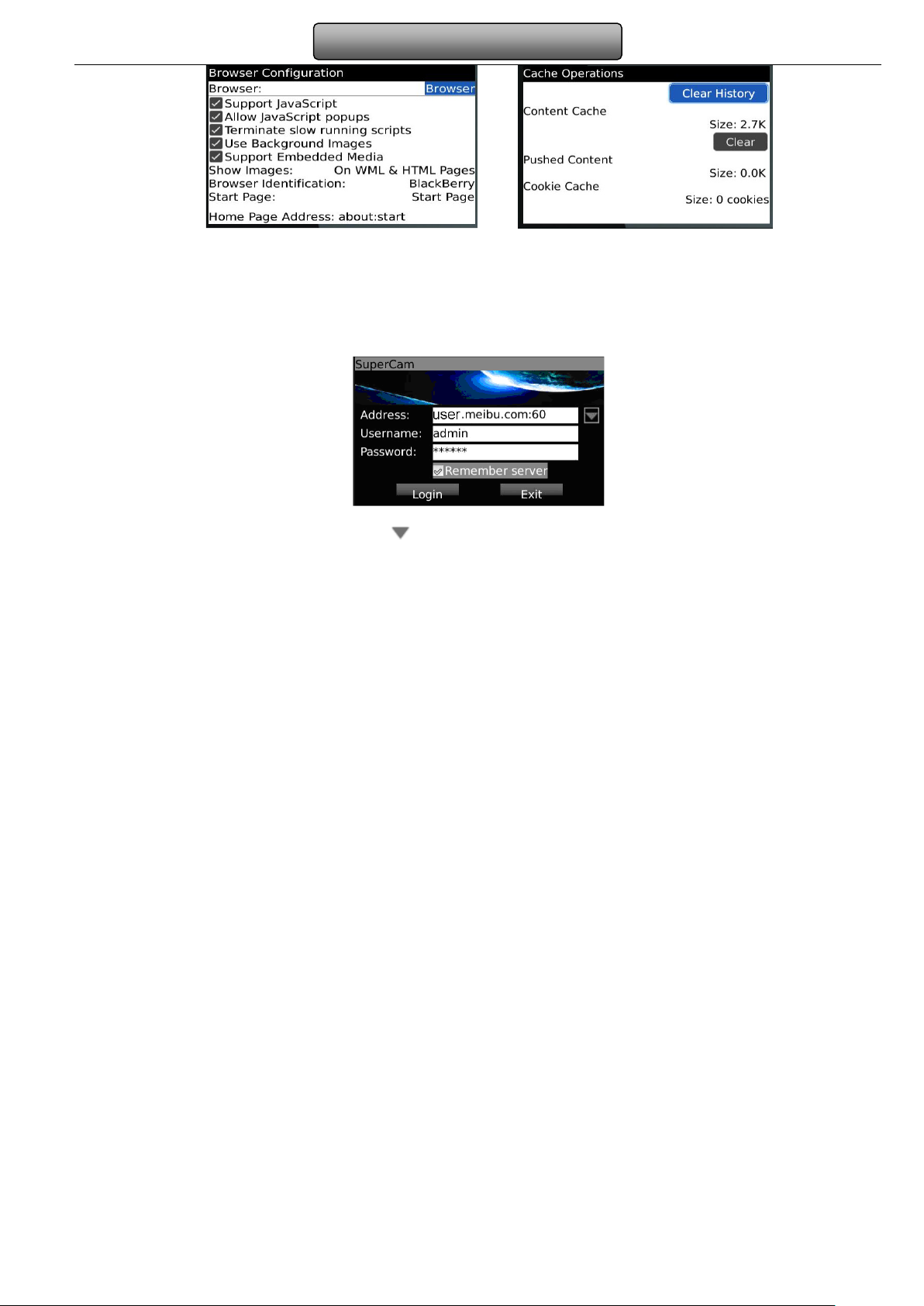

(1) Enter into Menu->Option->Browser Configuration; configure referring to the following figure in the left.
(2) Enter into Menu->Option->Cache Operations, clear up browser cache. Refer below picture in the right:
89
Page 96
Digital Video Recorder User Manual
Note：When user used the SuperCam software in mobile phone with touch screen, there will be compatible problem.
Solution: Enter into Options Menu->Advance options->Applications->SuperCam and click “Disable Compatibility” button. This
problem will be solved.
8.5.2 Operation method for Blackberry mobile phone client
1. Login
Enter server’s IP address (or domain name), user’s ID and password.
Click “Remember server” to save the setting; click button can quick input saved server address, user name and password.
90
Page 97

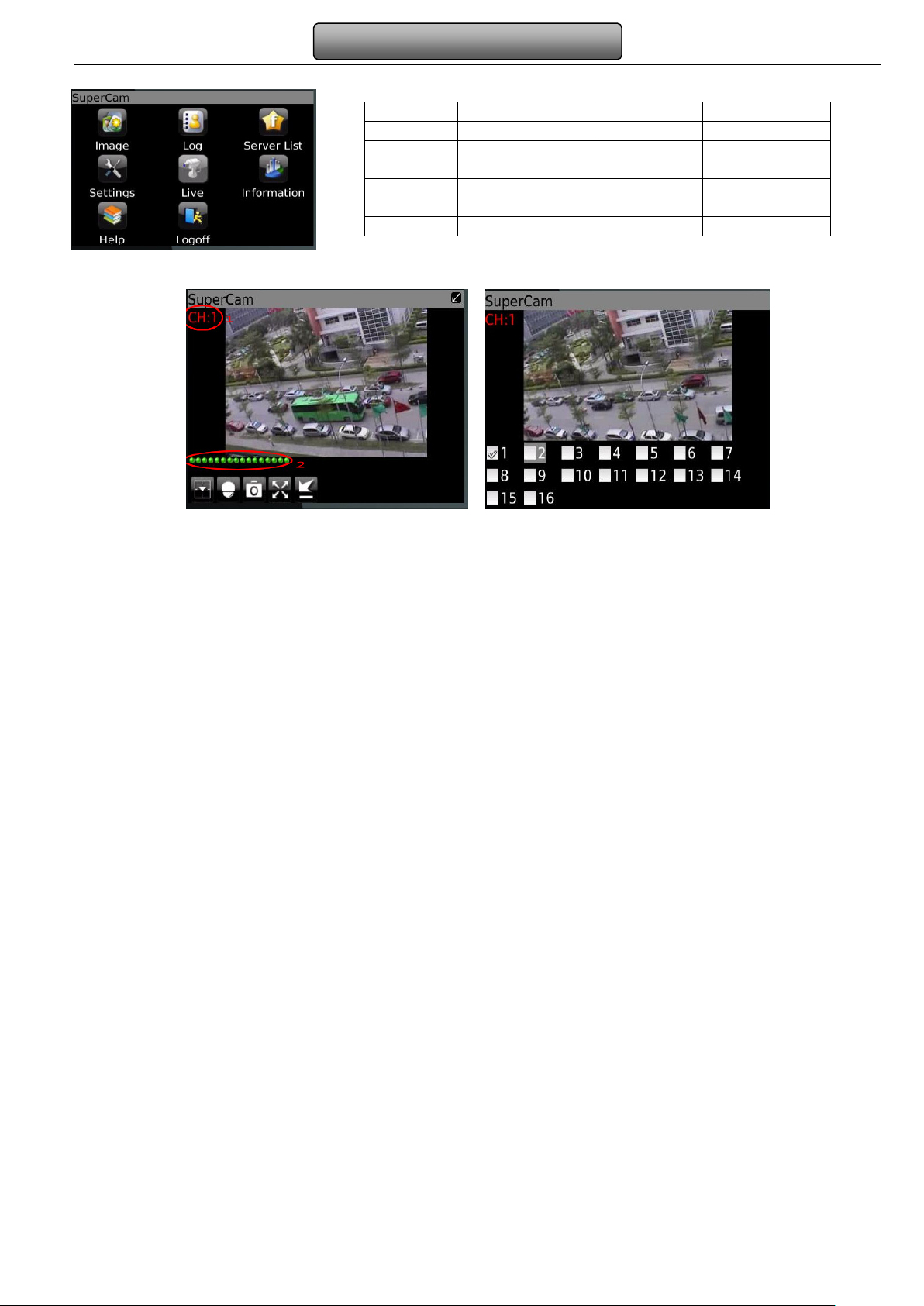

2. Main interface
Digital Video Recorder User Manual
3. Live view
Playback
Log
Information
Logoff
playback record file
log record
device information
view
logoff and return to
Server List
Help
Settings
image view
device list
software help
center
software setting
login interface
Live
live view
91
Page 98
Digital Video Recorder User Manual
Note: User can click Return button on the Blackberry phone to return the previous interface.

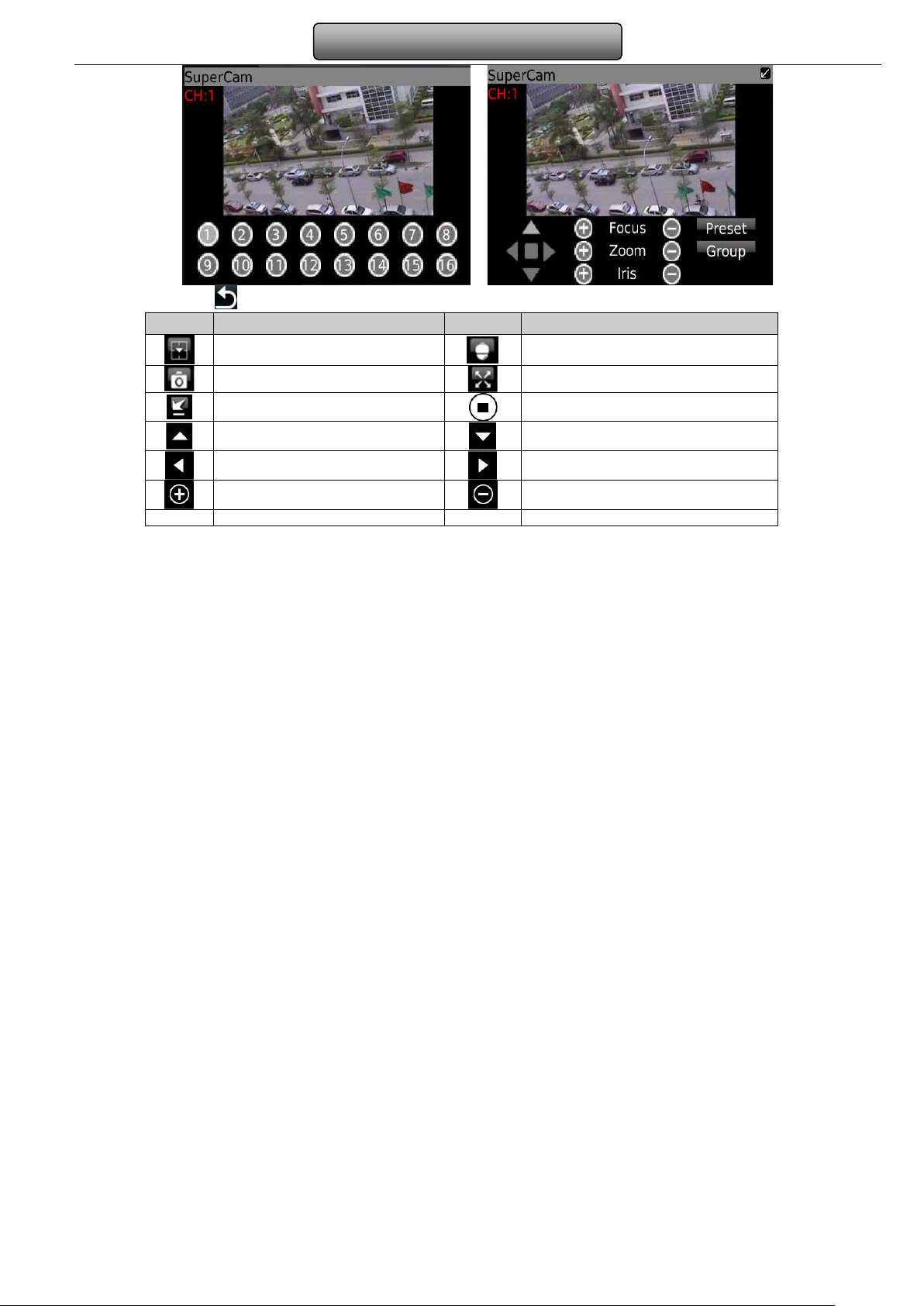

Mark 1 Current viewing channel Mark 2 Channel status
Switch channels
PTZ, click to switch to Fig 2 interface
Snap
Background alarm
Upward rotates the PTZ
Leftward rotates the PTZ
Zoom In/Focus In/Iris Add
Preset Select the preset point Group Set the cruise line
Full screen
Stop rotating the PTZ
Downward rotates the PTZ
Rightward rotates the PTZ
Zoom Out/Focus Out/Iris Sub
92
Page 99

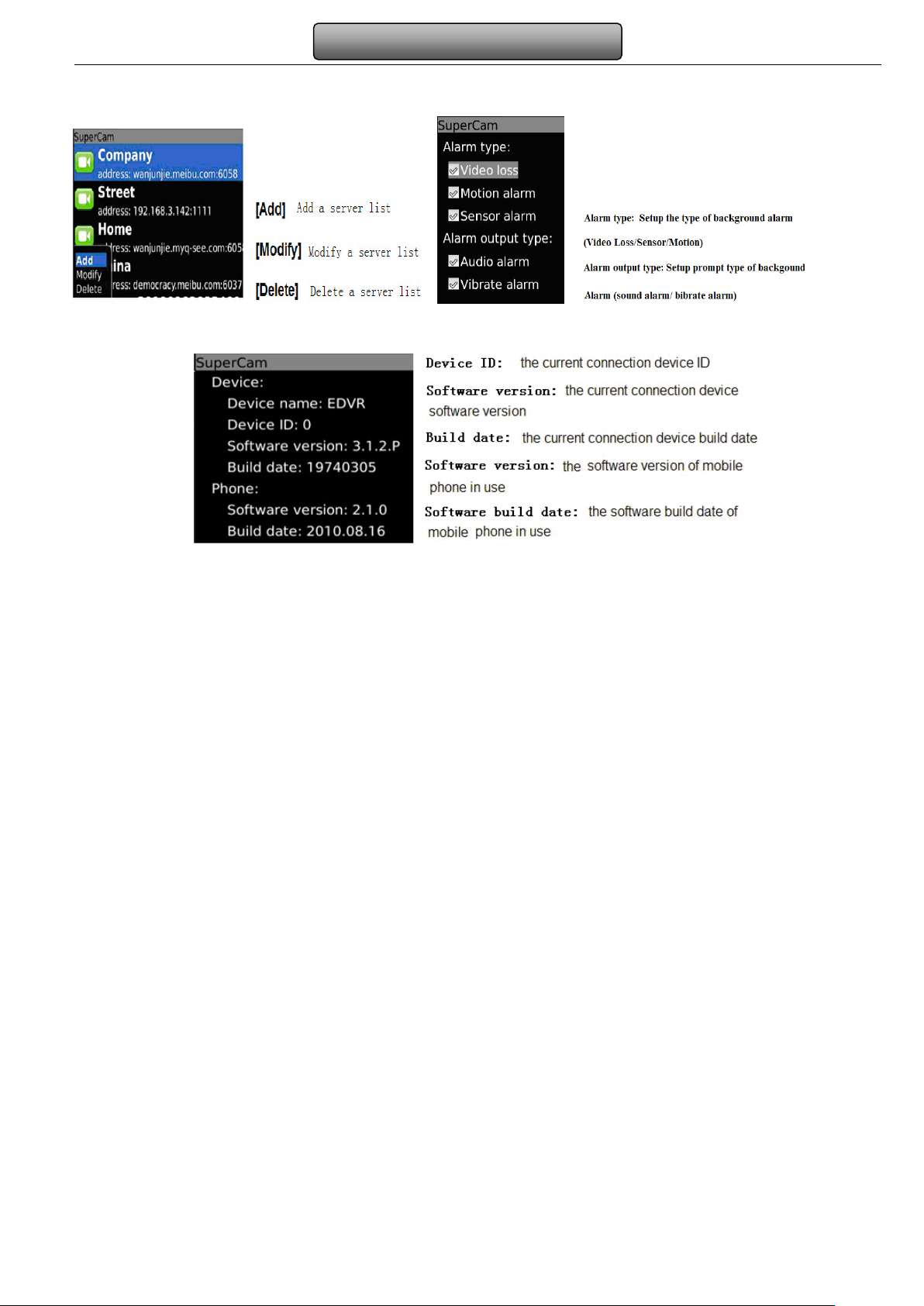

4. Server list
5. Software configuration
6. Information view
Digital Video Recorder User Manual
93
Page 100
Digital Video Recorder User Manual
Appendix A FAQ
Q1. Why the DVR cannot start after connected to the power?
a. The adapter has been damaged. Please change an adapter
b. The power of the adapter is not enough. Please remove the HDD to check
c. Hardware problem
Q2. There is not menu output or only has live image display
a. Check up whether other devices can display menu or long press ESC key to wait for login dialog box to appear.
Q3. The indicator of the DVR lights, but no output. Why?
a. The power of the adapter is not enough. Please remove the HDD or change an adapter to try.
b. The video format of the DVR is different from that of the monitor.
c. Connection problem. Please check the cable and the ports of monitor and DVR.
Q4. Why are no images displayed on parts or all of the channels of the DVR?
a. Connection problem. Please check the cable and the ports of camera and DVR.
b. Camera problem. Please check the cameras.
c. The video format of the DVR is different from that of the cameras. Please change DVR system format.
Q5. Cannot find HDD
a. The power of the adapter is not enough. Please change an adapter to try.
b. Connection problem. Please check the power and data cables.
c. The HDD is damaged. Change a new one.
94
Loading...
