LT Security LTD2308SE-B User Manual
DVR User Manual
For H.264 4/8/16/24-channel digital video recorder
All rights reserved
Digital Video Recorder User Manual
CAUTION
Please read this user manual carefully to ensure that you can use the device correctly and safely
We do not warrant all the content is correct. The contents of this manual are subject to change without notice
This device should be operated only from the type of power source indicated on the marking label. The voltage of the
power must be verified before using. Kindly remove the cables from the power source if the device is not to be used for
a long period of time.
Do not install this device near any heat sources such as radiators, heat registers, stoves or other device that
produce heat
Do not install this device near water. Clean only with a dry cloth
Do not block any ventilation openings and ensure well ventilation around the machine
Do not power off the DVR when the device is function. The correct procedure to shut down DVR is to stop recording
firstly, and then use “shut down” button from the menu, and finally switching off the main power.
This equipment is for indoor use only. Do not expose the machine in rain or moist environment. In case any solid or
liquid get inside the machine’s case, please cut off the power supply immediately, and get it checked by a qualified
technician.
Refer all servicing to qualified service personnel. No any parts repaired by yourself without technical aid or approval.
When this product is in use, the relevant contents of Microsoft, Apple and Google will be involved in. The pictures
and screenshots in this manual are only used to explain the usage of our product. The ownerships of trademarks, logos
and other intellectual properties related to Microsoft, Apple and Google shall belong to the above-mentioned
companies.
This manual is suitable for 4/8/16/24-channel digital video recorders. All examples and pictures used in the manual
are from 8-channel DVR.
Digital Video Recorder User Manual
Table of Contents
1 Introduction ..................................................................................................................................................................... 1
1.1 DVR Introduction ......................................................................................................................................................................................... 1
1.2 Main Features ............................................................................................................................................................................................. 1
2 Hardware Installation ..................................................................................................................................................... 4
2.1 Install Hard Drive ........................................................................................................................................................................................ 4
2.2 Front Panel Instructions .............................................................................................................................................................................. 5
2.3 Rear Panel Instructions ............................................................................................................................................................................... 6
2.4 Remote Controller ..................................................................................................................................................................................... 10
2.5 Control with Mouse ................................................................................................................................................................................... 12
2.5.1 Connect Mouse .............................................................................................................................................................................. 12
2.5.2 Use Mouse ..................................................................................................................................................................................... 12
3 Basic Function Instruction ......................................................................................................................................... 14
3.1 Power On/Off ................................................................................................................................................................ ............................ 14
3.1.1 Power on ....................................................................................................................................................................................... 14
3.1.2 Power off........................................................................................................................................................................................ 14
3.2 Login ......................................................................................................................................................................................................... 15
3.3 Live preview .............................................................................................................................................................................................. 15
3.3.1 Live playback ................................................................................................................................................................................. 16
4 Main menu setup guide ............................................................................................................................................. 17
4.1 Basic configuration .................................................................................................................................................................................... 18
4.1.1 System ........................................................................................................................................................................................... 18
4.1.2 Time & date ................................................................................................................................................................................... 19
4.1.3 DST ................................................................................................................................................................................................ 20
4.2 Live configuration ...................................................................................................................................................................................... 21
Digital Video Recorder User Manual
4.2.1 Live................................................................................................................................................................................................. 21
4.2.2 Main monitor .................................................................................................................................................................................. 22
4.2.3 Spot ................................................................................................................................................................................................ 22
4.2.4 Mask ............................................................................................................................................................................................... 23
4.3 Record configuration ................................................................................................................................................................................. 23
4.3.1 Enable ............................................................................................................................................................................................ 24
4.3.2 Record stream ............................................................................................................................................................................... 24
4.3.3 Time ............................................................................................................................................................................................... 25
4.3.4 Stamp ................................ ................................................................................................................................ ............................. 26
4.3.5 Recycle record ............................................................................................................................................................................... 27
4.3.6 Snap ............................................................................................................................................................................................... 27
4.4 Schedule configuration .............................................................................................................................................................................. 27
4.4.1 Schedule ........................................................................................................................................................................................ 28
4.4.2 Motion ............................................................................................................................................................................................ 29
4.4.3 Sensor ............................................................................................................................................................................................ 29
4.5 Alarm configuration ................................................................................................................................................................................... 30
4.5.1 Sensor ............................................................................................................................................................................................ 30
4.5.2 Motion ............................................................................................................................................................................................ 32
4.5.3 Video loss ................................................................................................ ...................................................................................... 34
4.5.4 Other alarm ................................................................................................................................ .................................................... 34
4.5.5 Alarm out ....................................................................................................................................................................................... 35
4.6 Network configuration ............................................................................................................................................................................... 35
4.6.1 Network .......................................................................................................................................................................................... 35
4.6.2 Sub stream .................................................................................................................................................................................... 36

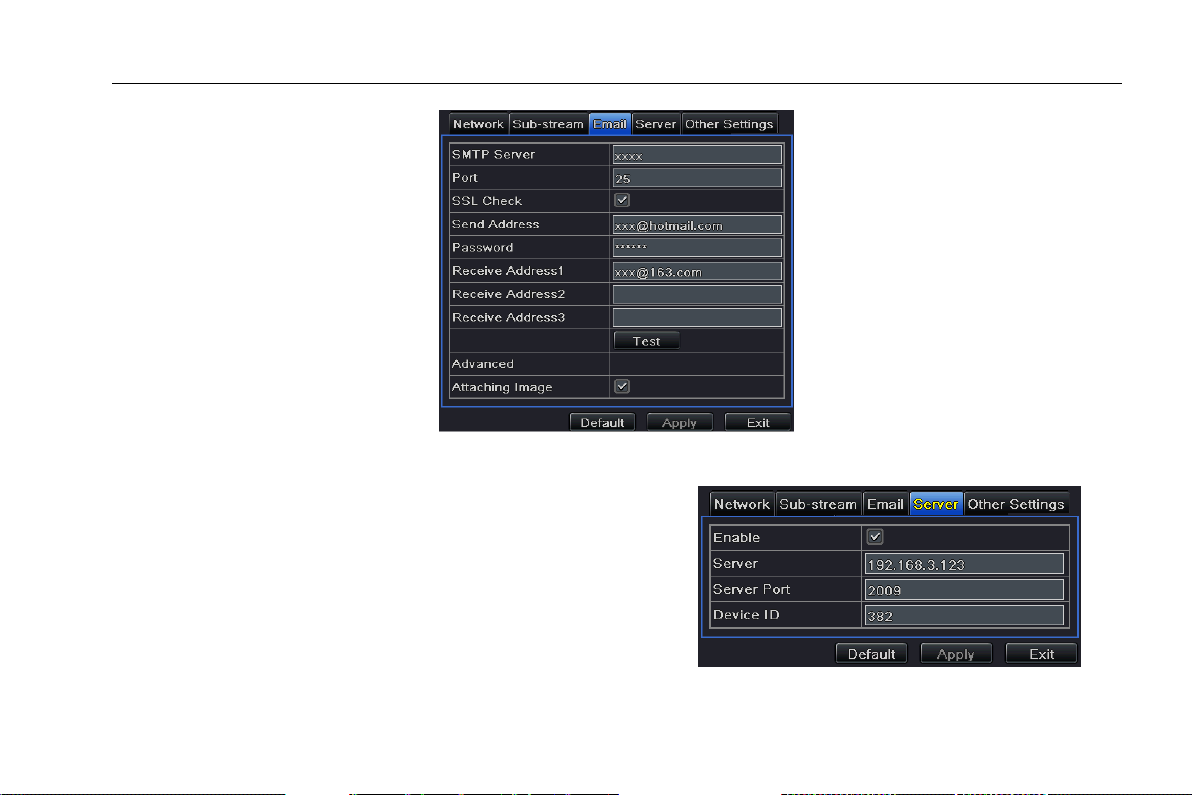

4.6.3 Email .............................................................................................................................................................................................. 37
4.6.4 Server ............................................................................................................................................................................................. 38
Digital Video Recorder User Manual
4.6.5 Other settings................................................................................................................................................................................. 39
4.7 User management configuration ................................................................................................................................................................ 42
4.8 P.T.Z configuration ..................................................................................................................................................................................... 44
4.9 Advanced .................................................................................................................................................................................................. 47
4.9.1 Reset ................................................................................................................................................................ .............................. 47
4.9.2 Import/Export .................................................................................................................................................................................. 47
4.9.3 Block/Allow list ................................ ............................................................................................................................................... 47
5 Record search & playback and backup .................................................................................................................. 48
5.1 Time search .............................................................................................................................................................................................. 48
5.2 Event search ............................................................................................................................................................................................. 49
5.3 File management ...................................................................................................................................................................................... 50
5.4 Image ....................................................................................................................................................................................................... 51
5.5 Backup ..................................................................................................................................................................................................... 51
6 Manage DVR ................................................................................................................................................................. 53
6.1 Check system information ......................................................................................................................................................................... 53
6.1.1 System information ........................................................................................................................................................................ 53
6.1.2 Event information ........................................................................................................................................................................... 53
6.1.3 Log information .............................................................................................................................................................................. 53
6.1.4 Network information ....................................................................................................................................................................... 53
6.1.5 Online information .......................................................................................................................................................................... 53
6.1.6 Record information ......................................................................................................................................................................... 54
6.2 Manual alarm ................................................................................................ ............................................................................................ 54
6.3 Disk management ................................................................................................................................ ..................................................... 54
6.4 Upgrade .................................................................................................................................................................................................... 54
6.5 Logoff ....................................................................................................................................................................................................... 55
7 Remote Surveillance .................................................................................................................................................... 56
Digital Video Recorder User Manual
7.1 IE Remote Surveillance ............................................................................................................................................................................. 56
7.1.1 On LAN .......................................................................................................................................................................................... 56
7.1.2 On WAN ................................ ................................................................................................................................ ......................... 56
7.2 Remote Surveillance through Apple PC ..................................................................................................................................................... 58
7.2.1 On LAN .......................................................................................................................................................................................... 59
7.2.2 On WAN ................................ ................................................................................................................................ ......................... 61
7.3 The remote live preview interface ................................................................................................................................ .............................. 62

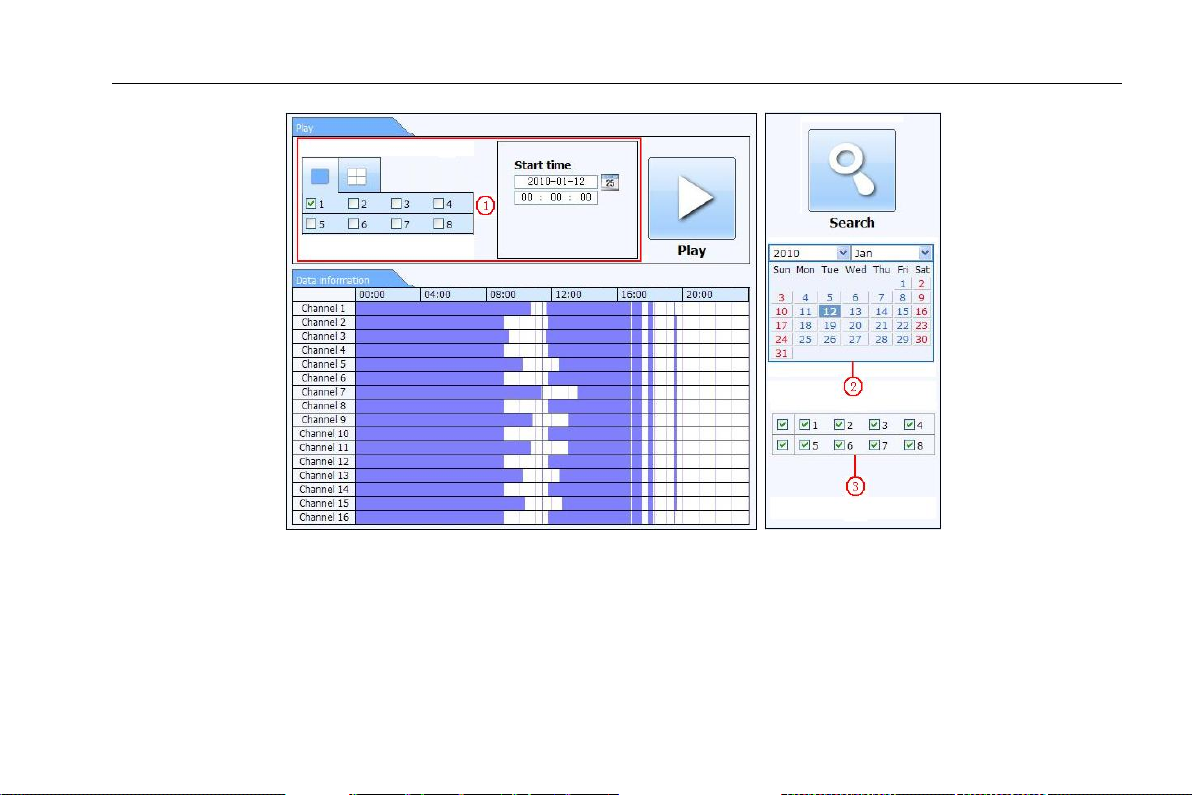

7.4 Remote playback & backup ....................................................................................................................................................................... 66
7.4.1 Remote playback ........................................................................................................................................................................... 66
7.4.2 Remote backup .............................................................................................................................................................................. 71
7.5 Remote System Configuration ................................................................................................................................................................... 72
8 Mobile Surveillance ..................................................................................................................................................... 73
8.1 By Phones with Windows mobile ............................................................................................................................................................... 73
8.2 By Phones with Symbian ........................................................................................................................................................................... 75
8.3 The operation method for iPhone mobile clients ........................................................................................................................................ 77
8.4 The installation & operation methods for Android mobile clients Software Installation ................................................................................. 86
8.5 Installation and Operation methods for blackberry mobile phone Client ...................................................................................................... 92
8.5.1 Installation instruction for Blackberry mobile phone client ............................................................................................................ 92
8.5.2 Operation method for Black berry mobile phone client ............................................................................................................... 94
Appendix A FAQ ................................................................................................................................................................... 99
Appendix B Calculate Recording Capacity ..................................................................................................................... 104
Appendix C Compatible Devices ...................................................................................................................................... 105
Appendix D 4-CH Specifications ...................................................................................................................................... 106
Appendix E 8-CH Specifications ...................................................................................................................................... 107
Appendix F 16-CH Specifications ..................................................................................................................................... 108
Appendix G 24-CH Specifications .................................................................................................................................... 109
Digital Video Recorder User Manual
1 Introduction
1.1 DVR Introduction
This model of DVR (Digital Video Recorder) is designed for high performance CCTV solutions. It adopts state of the art video
processing chips and embedded Linux system. Meanwhile, it utilizes most advanced technologies, such as standard H.264
with low bit rate, Dual stream, SATA interface, VGA output mouse supported, IE browser supported with full remote control,
mobile view(by phones), etc., ensuring powerful functions and high stability. Due to these distinctive characteristics, it is widely
used in banks, telecommunication, transportation, factories, warehouse, and other related applications.
1.2 Main Features
COMPRESSION FORMAT
Standard H.264 compression with low bit rate and better image quality
LIVE SURVEILLANCE
Support HD VGA output
Support channel security by hiding live display
Display the local record state and basic information
Support USB to make full control
RECORD MEDIA
Support one SATA HDD（available for 4/8/16-ch DVR）or three SATA HDD (available for 24-ch DVR) to record for a longer
time without any limitation
BACKUP
Support USB 2.0 devices to backup
1
Digital Video Recorder User Manual
Support saving recorded files with AVI standard format to a remote computer through internet
RECORD & PLAYBACK
Record modes: Manual, Schedule, Motion detection and Sensor alarm recording
Support recycle after HDD full
Resolution, frame rate and picture quality are adjustable
128MB for every video file packaging
4 audio channels available
Two record search mode: time search and event search
Support 4/8/16 screen playback simultaneously
Support deleting and locking the recorded files one by one
Support remote playback in Network Client through LAN or internet
ALARM
1 channel alarm output and 4/8/16 channel alarm input available
Support schedule for motion detection and sensor alarm
Support pre-recording and post recording
Support linked channels recording once motion or alarm triggered on certain channel
Support linked PTZ preset ，auto cruise and track of the corresponding channel
PTZ CONTROL
Support various PTZ protocols
Support 128 PTZ presets and 8 auto cruise tracks
Support remote PTZ control through internet
SECURITY
Customize user right: log search, system setup, two way audio, file management, disk management, remote login, live
2
Digital Video Recorder User Manual
view, manual record, playback, PTZ control and remote live view
Support 1 administrator and 63 users.
Support event log recording and checking, events unlimited
NETWORK
Support TCP/IP, DHCP, PPPoE, DDNS protocol
Support IE browser to do remote view
Support setup client connection amount
Support dual stream. Network stream is adjustable independently to fit the network bandwidth and environment.
Support picture snap and color adjustment in remote live
Support remote time and event search, and channel playback with picture snap
Support remote PTZ control with preset and auto cruise
Support remote full menu setup, changing all the DVR parameters remotely
Support mobile surveillance by smart phones , Symbian, WinCE, Iphone , Gphone, or Blackberry, 3G network available
Support CMS to manage multi devices on internet
3
Digital Video Recorder User Manual
2 Hardware Installation
Notice: Check the unit and the accessories after getting the DVR.
Please disconnect the power before being connected to other devices. Don't hot plug in/out
2.1 Install Hard Drive
Notice: 1. 4/8/16-ch DVR supports one SATA hard drive. 24-ch DVR supports three SATA hard drives. Please use the hard
drive the manufacturers recommend specially for security and safe field. Please refer to “Appendix C Compatible Devices 2”.
2. Please calculate HDD capacity according to the recording setting. Please refer to “Appendix B Calculate
Recording Capacity”.
Step1: Unscrew and Open the top cover
Step2: Connect the power and data cables. Place the HDD onto the bottom case as Fig 2.1.
Step3: Mount the HDD as Fig 2.2.
Note: For installation convenience, please connect the power and data cables first, and then wind the screws to fix the
HDD.
Fig 2.1 Connect HDD Fig 2.2 Screw HDD
4
2.2 Front Panel Instructions
Item
Type
Name
Description
1
Work state
indicator
Power
Power indicator, when connection , the light is blue
HDD
When HDD is writing and reading , the light is blue
Net
When access to network , the light is blue
Backup
When backup files and data, the light is blue
Play
When playing video, the light is blue
REC
When recording, the light is blue
2
Compound
button
MENU/+
1. Enter menu in live
2. Increase the value in setup
BACKUP/-
1. Decrease the value in setup
2. Enter backup mode in live
RECORD/FOCUS
1. Record manually
2. FOCUS function enables at PTZ mode.
REW/SPEED
1. Rewind key
2. SPEED function enables at PTZ mode
SEARCH/ZOOM
1. Enter search mode
2.ZOOM function enables at PTZ mode.
PLAY /IRIS
1. Enter play interface
2. IRIS function enables at PTZ mode
FF/ P.T.Z.
1. Fast forward
2. Enter PTZ mode in live
STOP/ESC
1. Quit play mode
2. Exit the current interface or status
3 1-9
Input number 1-9 or choose camera
Notice: The front panel descriptions are only for reference; please make the object as the standard.
Digital Video Recorder User Manual
5
Digital Video Recorder User Manual
Item
Type
Name
Description
Digital button
0/10+
Input number0, 10 and the above number together
with other digital keys
4
Input button
Direction button
Change direction to select items
Multi-screen
Change screen display mode like1/4/9/16 channel
Enter button
Confirm selection
5
IR receiver
IR
For remote controller
6 USB
USB port
To connect external USB devices like USB flash,
USB HDD for backup or update firmware; or connect
to USB mouse
7
POWER
POWER
Shot switch off
2.3 Rear Panel Instructions
The rear Panel interface for 4-ch is shown as Fig 2.3:
Fig 2.3 Rear Panel for 4-ch
6
Digital Video Recorder User Manual
Item
Name
Description
1
Video out
Connect to monitor
2
Spot out
Connect to monitor as an AUX output channel by channel. Only
video display, no menu show
3
Audio out
Audio output, connect to the sound box
4
Video in
Video input channels from 1-4
5
DC12V
POWER INPUT
6
VGA port
VGA output, connect to monitor
7
LAN
Network port
8
USB port
Connect USB mouse or connect external USB devices
9
P/Z
Connect to speed dome
10
K/B
Connect to keyboard
11
ALARM OUT
1-ch relay output. Connect to external alarm
12
+ 5V and GND
+5 V and Grounding
13
ALARM IN
Connect to external sensor1-4
14
Audio in
4 CH Audio input
The rear Panel interface for 8-ch is shown as Fig 2.4:
Fig 2.4 Rear Panel for 8-ch
7
Digital Video Recorder User Manual
Item
Name
Description
1
Video out
Connect to monitor
2
Spot out
Connect to monitor as an AUX output channel by channel. Only video
display, no menu show
3
Audio out
Audio output, connect to the sound box
4
Video in
Video input channels from 1-8
5
DC12V
POWER INPUT
6
VGA port
VGA output, connect to monitor
7
LAN
Network port
8
USB port
Connect USB mouse or connect external USB devices
9
P/Z
Connect to speed dome
10
K/B
Connect to keyboard
11
ALARM OUT
1-ch relay output. Connect to external alarm
12
+ 5V and GND
+5 V and Grounding
13
ALARM IN
Connect to external sensor1-4
14
Audio in
4 CH Audio input
The rear Panel interface for 16-ch is shown as Fig 2.5:
Fig 2.5 Rear Panel for 16-ch
8
Digital Video Recorder User Manual
Item
Name
Description
1
Audio out
Audio output, connect to the sound box
2
Audio in
4 CH Audio input
3
VGA port
VGA output, connect to monitor
4
Video out
Connect to monitor
5
P/Z
Connect to speed dome
6
K/B
Connect to keyboard
7
ALARM OUT
1-ch relay output. Connect to external alarm.
8
+ 5V and GND
+5 V and Grounding
9
ALARM IN
Connect to external sensor1-16
10
USB port
Connect USB mouse or connect external USB devices
11
NET
Network port
12
Spot out
Connect to monitor as an AUX output channel by channel. Only video
display, no menu show
13
Video in
Video input channels from 1-16
14
DC12V
POWER INPUT
The rear Panel interface for 24-ch is shown as Fig 2.6:
Fig 2.6 Rear Panel for 24-ch
9
Digital Video Recorder User Manual
Item
Name
Description
1
VGA port
VGA output, connect to monitor
2
Video out
Connect to monitor
3
NET
Network port
4
USB port
Connect USB mouse or connect external USB devices
5
Spot out
Connect to monitor as an AUX output channel by channel. Only video
display, no menu show
6
Video in
Video input channels from 1-24
7
Audio in
4 CH Audio input
8
P/Z
Connect to speed dome
9
ALARM OUT
1-ch relay output. Connect to external alarm.
10
K/B
Connect to keyboard
11
ALARM IN
Connect to external sensor1-16
12
DC12V
Power input.
13
Audio out
Audio output, connect to the sound box
2.4 Remote Controller
It uses two AAA size batteries and works after loading batteries as following:
Step1: Open the battery cover of the Remote Controller
Step2: Place batteries. Please take care the poles (+ and -)
Step3: Replace the battery cover
Notice: Frequently defect checking as following
1. Check batteries poles
2. Check the remaining charge in the batteries
3. Check IR controller sensor is mask
If it still doesn't work, Please change a new remote controller to try, or contact your dealers
The interface of remote controller is shown in Fig2.7 Remote Controller.
10
Digital Video Recorder User Manual
Item
Name
Function
1
Power Button
Soft switch off to stop firmware running. Do it before power off.
2
INFOR Button
Get information about the DVR like firmware version, HDD information
3
REC Button
To record manually
4
Digital Button
Input digital or choose camera
5
Multi Screen Button
To choose multi screen display mode
6
SEARCH Button
To enter search mode
7
MENU Button
To enter menu
8
ENTER Button
To confirm the choice or setup
9
Direction Button
Move cursor in setup or pan/title PTZ
10
+/- Button
To increase or decrease the value in setup
11
Playback Control Button
To control playback, Fast forward/rewind/stop/single frame play
12
AUDIO Button
To enable audio output in live mode
13
Auto Dwell Button
To enter auto dwell mode
14
BACKUP Button
To enter backup mode
15
PTZ Control Button
To control PTZ camera:
Move camera/ZOOM/FOCUS/IRIS/SPEED control
Fig 2.7 Remote Controller
11
Digital Video Recorder User Manual
Operation processes with remote controller to control multi-DVR
The device ID of the DVR is 0. When use of remote controller to control single DVR, it‟s not necessarily to reset the device I D,
user can do operation directly; when control multiple DVR with remote controller, please refer to below steps:
Step1: Activate remote controller to control DVR: enable DVR: turn the IR sensor of the remote controller to the IR receiver that
on the front panel, press the number key 8 twice, then input device ID (Range from: 0-65535; the default device ID is 0.) with
other digital number: 0-9, after that, press ENTER button to confirm.
Step2: User can check the device ID by enter into System configurationBasic configurationdevice ID. User also can set
other DVRs with the same device ID. For more convenient to operate, we don‟t recommend user to set the device ID too long.
Step3: Cancel controller to control DVR: turn the IR sensor of the remote controller to the IR receiver that on the front panel,
press the number key 8 twice, then input the device ID that needs to be cancelled from controlling, press ENTER button to
confirm. After that, the DVR will not be controlled by remote controller.
2.5 Control with Mouse
2.5.1 Connect Mouse
It supports USB mouse through the ports on the rear panel.
Notice: If mouse is not detected or doesn't work, check below steps:
1. Make sure the mouse plugs in the USB mouse port not the USB port 2. Change a mouse to try
2.5.2 Use Mouse
In live:
Double-click left button on one camera to be full screen display. Double-click again to return to the previous screen display.
Click right button to show the control bar at the bottom of the screen as Fig 2.6 Remote Controller. Here are all control and
setup. Click right mouse again to hide the control bar.
In setup:
Click left button to enter. Click right button to cancel setup, or return to the previous.
12
Digital Video Recorder User Manual
If want to input the value, move cursor to the blank and click. An input window will appear as Fig2.7. It supports digitals, letters
and symbols input.
Fig 2.7 Digital Numbers and Letters Input Window
Users can change some value by the wheel, such as time. Move cursor onto the value, and roll the wheel when the value
blinks.
It supports mouse drag. I.e. Set motion detection area: click customized, hold left button and drag to set motion detection area.
Set schedule: hold left button and drag to set schedule time
In playback:
Click left button to choose the options. Click right button to return to live mode.
In backup:
Click left button to choose the options. Click right button to return to previous picture.
In PTZ control:
Click left button to choose the buttons to control the PTZ. Click right button to return to live.
Notice: Mouse is the default tool in all the operation below unless Exceptional indication
13
Digital Video Recorder User Manual
3 Basic Function Instruction
3.1 Power On/Off
Before you power on the unit, please make sure all the connection is good.
3.1.1 Power on
Step1: connect with the source power; switch on the power button near the power port in the rear panel
Step2: the device will be loaded, and the power indicator will display blue
Step3: before start, a WIZZARD window will be pop-up and show some information about time zone，time setup，network
configuration, record configuration and disk management. User can setup here and refer to the concrete setup steps from the
corresponding chapters. If users don‟t want to setup Wizard, please click Exit button to exit.
After the device power on, if there is no menu or only has live image display, user can long press ESC button to switch.
Notice: this serial device can only display menu on VGA monitor or BNC monitor at one time, if there is live image display
without menu display, please check up whether other device has menu display firstly, or long press ESC key to wait for login
dialog box to appear. Long press ESC key can switch the output between BNC and VGA.
3.1.2 Power off
User can power off the device by using remote controller、keyboard and mouse.
By remote controller:
Step1: press Power button, the Shut down window will appear, click OK, the unit will power off after a while.
Step2: disconnect the power
By keyboard and mouse:
Step1: enter into Menu, then select “System Shut Down” icon, the Shut down window will appear
Step2: click OK, the unit will power off after a while.
Step3: disconnect the power
14
Digital Video Recorder User Manual
Symbol
Meaning
Green
Manual record
Yellow
Motion detection record
Red
Sensor Alarm record
Blue
Schedule record
3.2 Login
User can login and logout the DVR system. User cannot do any other operations except changing the multi-screen display once
logout.
Fig 3-1 Login
Notice: the default user name and password is “admin” and 123456”
The concrete operation steps for change password, add or delete user please refer to 4.7 User management configuration
for more details.
3.3 Live preview
Fig 3-2 live preview interface
15
Digital Video Recorder User Manual
3.3.1 Live playback
Click Play button to playback the record. Refer to Figure3-3. User can do concrete operation by click the buttons on screen.
Fig 3-3 live playback
16
Digital Video Recorder User Manual
4 Main menu setup guide
Click right mouse or press ESC button on the front panel, the control bar will display on the bottom of the screen, refer to Fig
4-1:
Fig 4-1 menu toolbar
Click the icon beside the screen display mode to display a channel select dialog. 6/8 channels can realize single channel big
screen. Images can drag to any place to display in the live interface. Click icon to set up picture-in-picture. Click the
icon beside the playback icon to select the time to playback. For example, if 2 minutes is selected and then click playback
button, it will start to playback from 2 minutes ago.
Dwell: Range of selecting to dwell is from single picture preview mode to 4/6/8 picture preview mode.
Color: Click this button; user can adjust the color of live pictures.
E-Zoom: Single channel large screen electronic amplification
Left click the channel which needs to amplify; Click the right mouse, select Zoom in button and then click the left mouse to
amplify the image. Press left mouse to drug the cursor, user can view the image. Double-click the left mouse to exit. Click the
right mouse to return to the main interface.
Volume: Enable sound.
PTZ: Click the PTZ button, user can control rotation position, speed of the dome and start track, auto scan or cruise in this
interface. User can refer to PTZ configuration for more details.
Record: Click this button, user can start manual record.
17
Digital Video Recorder User Manual
Playback: Click this button, the device can playback the record files.
User can click button and drag it anywhere with the left mouse. Click Menu button, the interface will pop-up as Fig
4-2; press MENU button on the front panel or operate with remote controller also can display the main menu. Click Setup icon
will pop-up the Setup menu:
Fig 4-2 main menu Setup menu
4.1 Basic configuration
Basic configuration includes three sub menus: system、date& time and DST.
4.1.1 System
Step1: enter into SetupBasicsystem; refer to Fig 4-3:
Step2: in this interface user can setup the device name, device ID, video format, max online users, Video Output and language,
Screensaver and so on. The definitions for every parameters display as below:
Device name: the name of the device. It may display on the client end or CMS that help user to recognize the device remotely.
Video format: two modes: PAL and NTSC. User can select the video format according to that of camera.
Password check: Enable this option. user needs to input user name and password can do corresponding operations with the
relevant right in system configuration.
18
Digital Video Recorder User Manual
Show system time: display time in live.
Startup wizard: tick off this item, there will display an opening wizard with time zone and time setup information
Max online uses: set the max user amount of network
connection
Video output: the resolution of live display interface,
range from: VGA800*600, VGA1024*768,
VGA1280*1024 and CVBS.
Note： When switch between VGA and CVBS will
change the menu output mode, please connect to
relevant monitor.
Language: setup the menu language.
Note: after changed the language and video output,
the device needs to login again.
Screensaver: user can setup the screensaver interval
time (30s, 60s, 180s, 300s), if there is no any operation
within the setting period, the device will auto logout and
return to Login interface.
No Image When Logout: If this item is selected, there
will be no image showing when logout.
Fig 4-3 basic configuration-basic
4.1.2 Time & date
Step1: enter into system configurationbasic configurationtime & date; refer to Fig 4-4:
Step2: set the date format, time format, time zone in this interface; user also can adjust system date manually
Step3: click “default” button to resort default setting; click “apply” button to save the setting; click “exit” button to exit current
interface.
19
Digital Video Recorder User Manual
Fig 4-4 basic configuration-time & date
4.1.3 DST
Step1: enter into system configurationbasic configurationDST; refer to Fig 4-5:
Fig 4-5 basic configuration-DST
Step2: in this interface, enable daylight saving time, time offset, mode, start & end month/week/date, etc.
Step3: click “default” button to resort default setting; click “apply” button to save the setting; click “exit” button to exit current
interface.
20
Digital Video Recorder User Manual
4.2 Live configuration
Live configuration includes four submenus: live, main monitor, Spot and mask.
4.2.1 Live
In this interface, user can setup camera name, adjust colors: brightness, hue, saturation and contrast.
Step1: enter into system configurationlive configurationlive; refer to Fig 4-6:
Note: Click Camera Name to see a soft keyboard. User can self-define the camera name. Click Shift button to input Capital
letters; click Shift button again to input Chinese characters.
Step2: tick off camera name and click “setting” button to display a window as Fig 4-7:
Fig 4-6 live configurationlive Fig 4-7 live-color adjustment
Step3: in this interface, user can adjust brightness, hue, saturation and contrast in live; click “default” button to resort default
setting, click “OK” button to save the setting.
Step4: user can setup all channels with same parameters, please tick off “all” and then do relevant setup.
Step5: click “default” button to resort default setting; click “apply” button to save the setting; click “exit” button to exit current
interface.
21
Digital Video Recorder User Manual
4.2.2 Main monitor
Step1: enter into system configurationlive configurationmain
monitor; refer to Fig 4-8:
Step2: select split mode: 1×1、2×2、2×3、3×3 and channel
Step3: dwell time: the time interval for a certain dwell picture
display switching to next dwell picture display
Step4: selected the split mode, then setup current picture group.
Click button to setup the previous channel groups of dwell
picture, click button to set the latter channel groups of dwell
picture.
Step5: click “default” button to resort default setting; click “apply” Fig 4-8 live configuration-host monitor
button to save the setting; click “exit” button to exit current interface.
4.2.3 Spot
Step1: enter into system configurationlive configurationSpot; refer to Fig 4-9:
Step2: select split mode: 1×1and channel
Step3: dwell time: the time interval for a certain dwell picture
display switching to next dwell picture display
Step4: selected the split mode, then setup current picture group.
Click button to setup the previous channel groups of dwell
picture; click button to set the latter channel groups of dwell
picture.
Step5: click “default” button to resort default setting; click “apply”
button to save the setting; click “exit” button to exit current
interface Fig 4-9 live configuration-Spot
22
Digital Video Recorder User Manual
4.2.4 Mask
User can setup private mask area on the live image picture, max threes areas.
Setup mask area: click Setting button, enter into live image to press left mouse
and drag mouse to set mask area, refer to below picture. Click Apply button to
save the setting.
Delete mask area: select a certain mask area, click left mouse to delete that
mask area, click Apply button to save the setting.
Fig 4-10 live configuration-mask
Setup mask area Live image mask area
4.3 Record configuration
Record configuration includes six sub menus: enable, record bit rate, time, recycle record, stamp and snap.
23
Digital Video Recorder User Manual
Parameter
Meaning
Record
Record switch of every
channels
Audio
Enable live record audio
4.3.1 Enable
Step1: enter into system configurationrecord configurationenable; refer to Fig 4-11:
Fig 4-11 record configuration-enable
Step2: tick off record, audio and record time
Step3: user can setup all channels with same parameters, tick off “all”, then to do relevant setup.
Step4: click “default” button to resort default setting; click “apply” button to save the setting; click “exit” button to exit current
interface.
4.3.2 Record stream
Step1: enter into system configurationrecord configurationrecord bit rate; refer to Fig 4-12:
Step2: setup rate, resolution, quality, encode and max bit stream
Step3: user can setup all channels with same parameters, tick off “All”, then to do relevant setup.
Step4: click “default” button to resort default setting; click “apply” button to save the setting; click “exit” button to exit current
interface.
Note: if the rate value set is over high the maximum resources of the device, the value will be adjusted automatically.
24
Loading...
