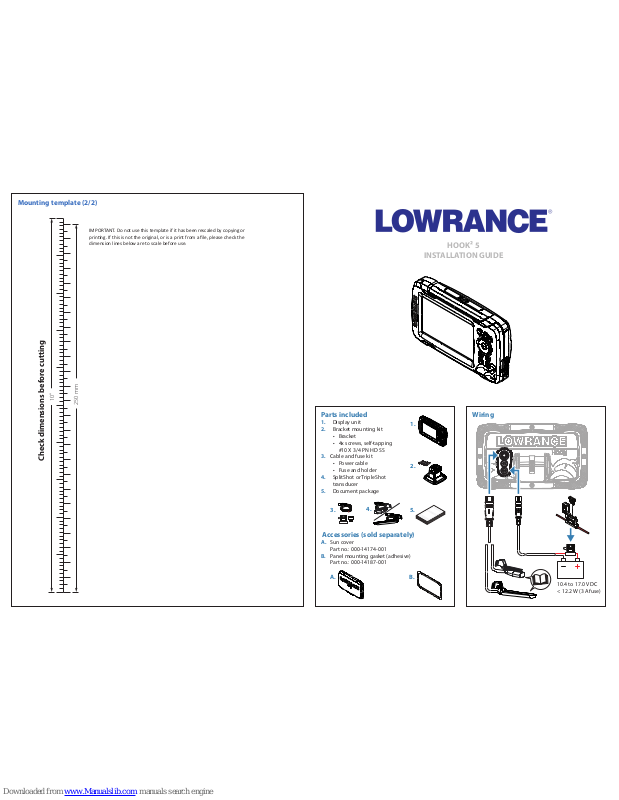

Page 1
IMPORTANT. Do not use this template if it has been rescaled by copying or
prinng. If this is not the original, or is a print from a le, please check the
dimension lines below are to scale before use.
Check dimensions before cutting
10"
250 mm
Accessories (sold separately)
A. Sun cover
Part no.: 000-14174-001
B. Panel mounting gasket (adhesive)
Part no.: 000-14187-001
Parts included
1. Display unit
2. Bracket mounting kit
• Bracket
• 4x screws, self-tapping
#10 X 3/4 PN HD SS
3. Cable and fuse kit
• Power cable
• Fuse and holder
4. SplitShot or TripleShot
transducer
5. Document package
3.
HOOK 5
INSTALLATION GUIDE
1.
A.
Mounting template (2/2)
Wiring
2.
B.
5.
10.4 to 17.0 V DC
< 12.2 W (3 A fuse)
4.
Page 2
Mounting template (1/2)Details
1x card reader slot*
Micro SD
IPX6
IPX7
-15°C to +55°C
+5°F to +131°F
70°/50°, top/bottom
70°/70°, left/right
0.46 Kg
1.00 lbs
Sunlight readable
Kg
83.4 mm
(3.28“)
28.9 mm
(1.14“)
185.7 mm
(7.31“)
128.7 mm
(4.07“)
111.2 mm
(4.38“)
Bracket mounting
Panel mounting
1
3
2
2
1
3
TM
Ø22.0 mm (0.87”)
REMOVE SHADED AREA
L
C
L
C
SUN COVER
PRODUCT OUTLINE
191.4 mm (7.53”)
167.0 mm (6.57”)
185.7 mm (7.31”)
83.5 mm (3.30”)
95.7 mm (3.78”)
92.9 mm (3.66”)
83.5 mm (3.30”)
95.7 mm (3.78”)
92.9 mm (3.66”)
88.4 mm (3.48”)
116.3 mm (4.58”)
111.2 mm (4.38”)
58.2 mm (2.29”)
44.2 mm (1.74”)
55.6 mm (2.19”)
58.2 mm (2.29”)
44.2 mm (1.74”)
55.6 mm (2.19”)
Material 10# screw
Soft materials e.g. Plywood Ø 3.7-4.0 mm (5/32”)
Hard materials e.g. Fiberglass, Acrylic, Hardwoods Ø 4.1-4.7 mm (3/16”)
Recommended pilot holes.
A
B
4
Note: Adhesive panel mounting gasket is sold separately.
Part no.: 000-14187-001.
Maximum curve of the dash
0.5 mm (0.02”)
* Depending on model

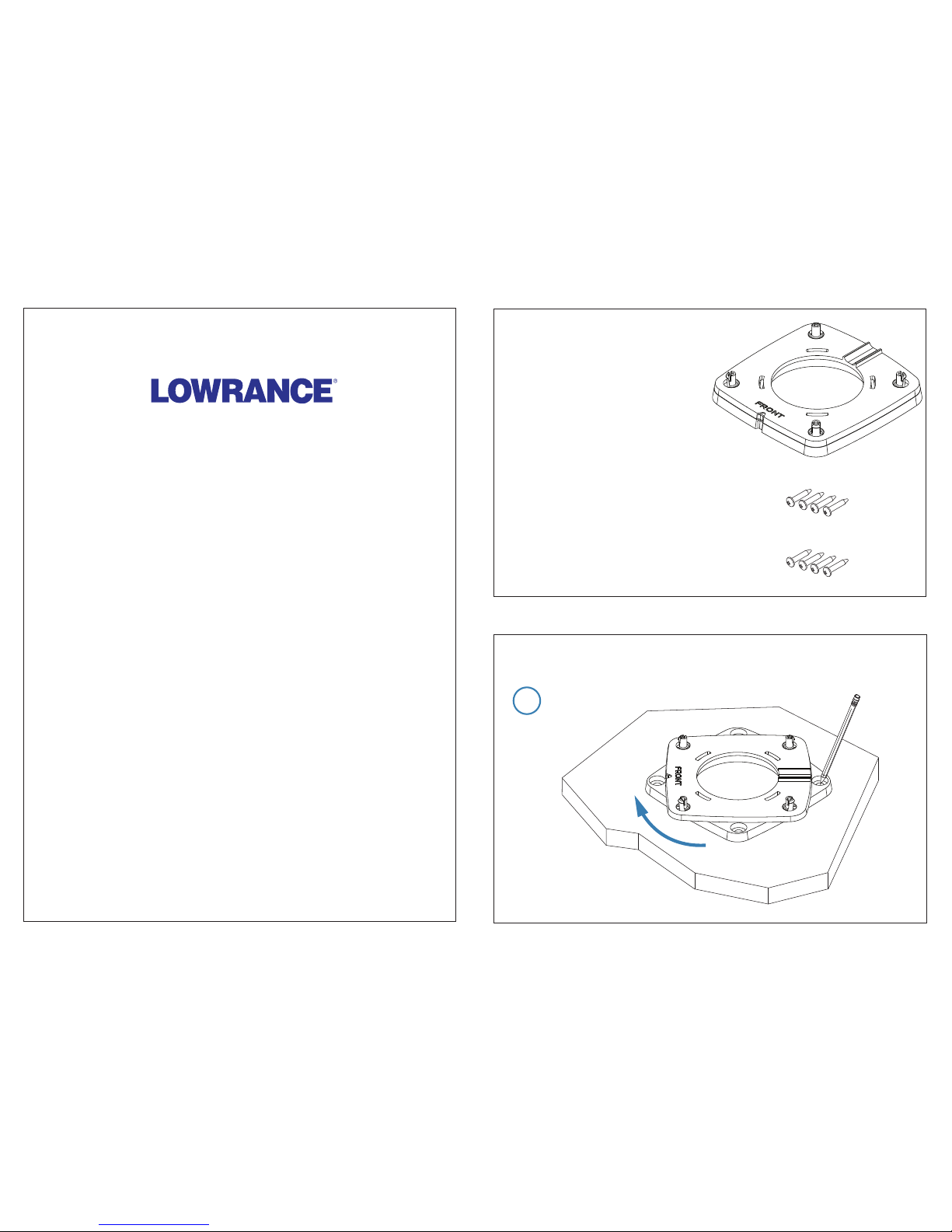

Page 3
Swivel adapter to vessel screws, 4x
Unit to swivel adapter screws, 4x
Bracket swivel adapter, 1x
HOOK 4/5 BRACKET SWIVEL ADAPTER
INSTALLATION GUIDE
1
Mounting 1/2
Parts included
Page 4

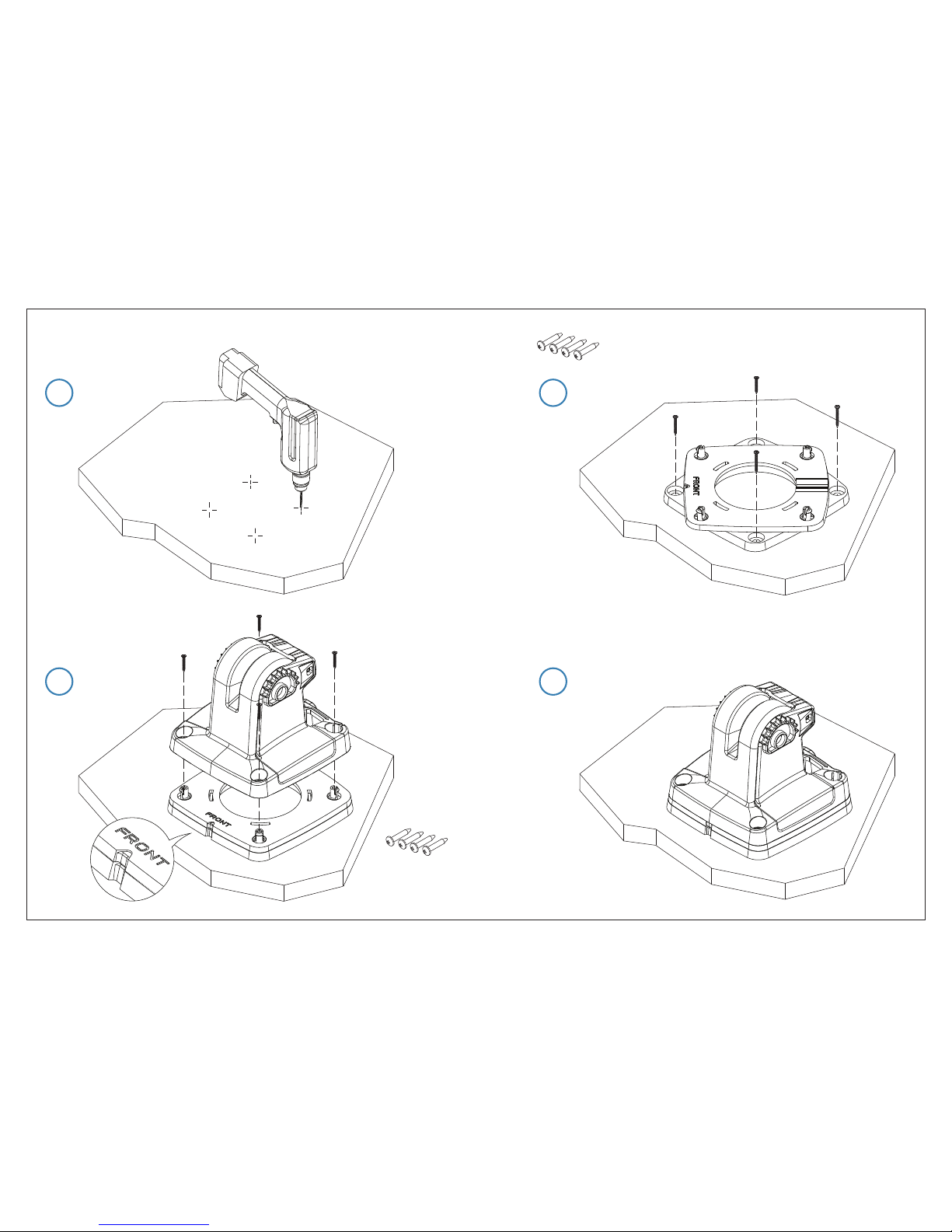

Mounting 2/2
2 3
4 5
#10 X 3/4”, 4x
pan-head, self tapping
2.5 mm x 8 mm, 4x
pan-head, self tapping
