Lowrance HOOK2 Quick Manual

|

1

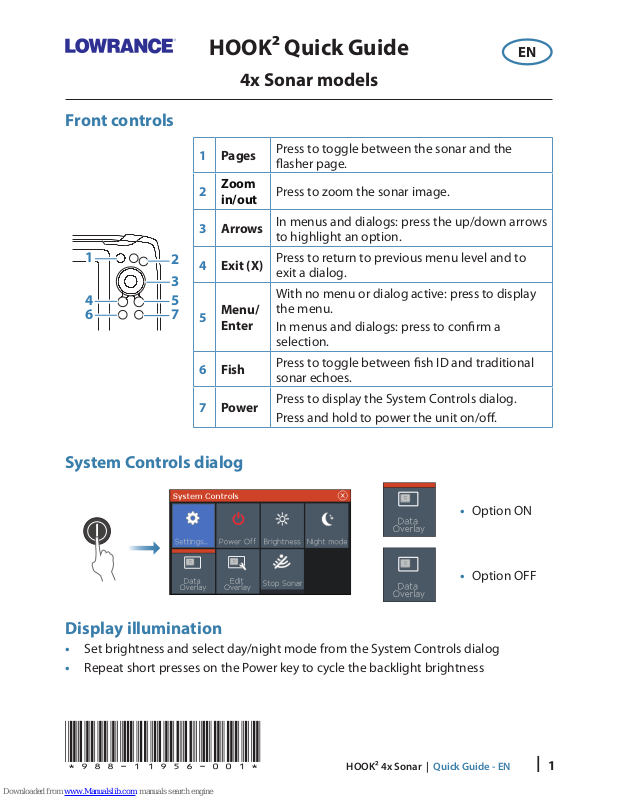

HOOK2 4x Sonar | Quick Guide - EN

HOOK Quick Guide

4x Sonar models

Front controls

2
3

5

4
6

7

1

1 Pages

Press to toggle between the sonar and the
asher page.

2

Zoom
in/out

Press to zoom the sonar image.

3 Arrows

In menus and dialogs: press the up/down arrows
to highlight an option.

4 Exit (X)

Press to return to previous menu level and to
exit a dialog.

5

Menu/
Enter

With no menu or dialog active: press to display
the menu.

In menus and dialogs: press to conrm a
selection.

6 Fish

Press to toggle between sh ID and traditional
sonar echoes.

7 Power

Press to display the System Controls dialog.
Press and hold to power the unit on/o.

System Controls dialog

• Option ON

• Option OFF

Display illumination

• Set brightness and select day/night mode from the System Controls dialog

• Repeat short presses on the Power key to cycle the backlight brightness

EN

*988-11956-001*

2

|

HOOK2 4x Sonar | Quick Guide - EN

Pages

• Toggle between the Sonar and the

Flasher pages by pressing the Pages
key

• Zoom the sonar image by using the

Zoom keys

By default the unit is set to Auto mode, and all settings are automated.

• Change to Custom mode to allow for customizing the settings.

Overlay data

By default, 3 data items are displayed on the image. The data items are
predened (depth, temperature and voltage), and the position is xed.

The data items can be turned on/o from the System Controls dialog.
Each data item can be removed individually from the image:

1. Select the Edit overlay option in the System Controls dialog to turn

the unit into edit mode

2. Press the Menu/Enter key to display edit options

3. Press the X key to leave edit mode

Settings dialogs

Used for system conguration.

Product manuals

For the full Operator manual, technical specications and declarations refer to the
product website: www.lowrance.com.
