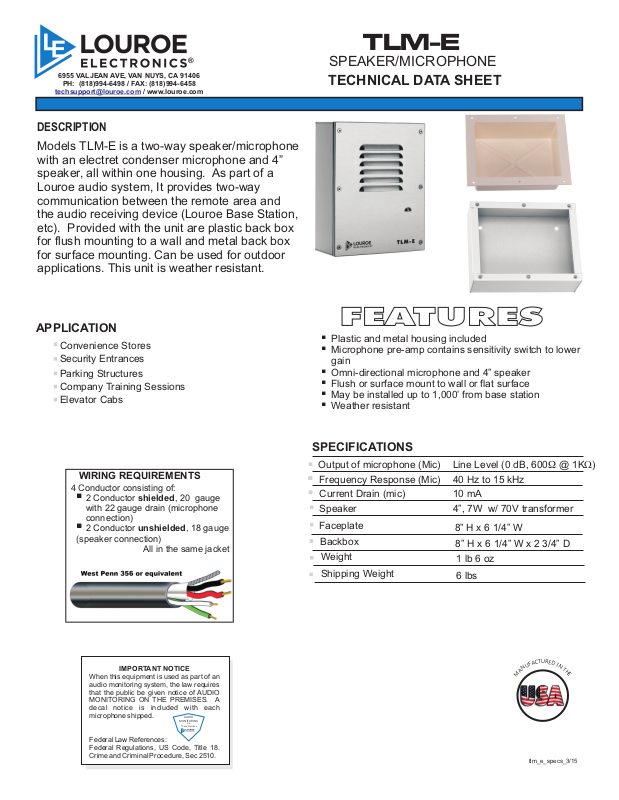

Louroe Electronics TLM-E Specsheet

®

6955 VALJEAN AVE, VAN NUYS, CA 91406

PH: [phone] / FAX: [phone]

/ [e-mail]

DESCRIPTION

Models TLM-E is a two-way speaker/microphone
with an electret condenser microphone and 4”
speaker, all within one housing. As part of a
Louroe audio system, It provides two-way
communication between the remote area and
the audio receiving device (Louroe Base Station,
etc). Provided with the unit are plastic back box
for flush mounting to a wall and metal back box
for surface mounting. Can be used for outdoor
applications. This unit is weather resistant.

TLM-E

SPEAKER/MICROPHONE

TECHNICAL DATA SHEET

APPLICATION

Convenience Stores
Security Entrances

Parking Structures
Company Training Sessions
Elevator Cabs

WIRING REQUIREMENTS

4 Conductor consisting of:

+

2 Conductor shielded, 20 gauge
with 22 gauge drain (microphone
connection)

+

2 Conductor unshielded, 18 gauge

(speaker connection)

All in the same jacket

FEATURES

+

Plastic and metal housing included

+

Microphone pre-amp contains sensitivity switch to lower
gain

+

Omni-directional microphone and 4” speaker

+

Flush or surface mount to wall or flat surface

+

May be installed up to 1,000’ from base station

+

Weather resistant

SPECIFICATIONS

Output of microphone (Mic)

Frequency Response (Mic)
Current Drain (mic)

Speaker

Faceplate

Backbox

Weight

Shipping Weight

Line Level (0 dB, 600W @ 1KW)
40 Hz to 15 kHz
10 mA
4”, 7W w/ 70V transformer

8” H x 6 1/4” W

8” H x 6 1/4” W x 2 3/4” D

1 lb 6 oz

6 lbs

IMPORTANT NOTICE

When this equipment is used as part of an
audio monitoring system, the law requires
that the public be given notice of AUDIO
MONITORING ON THE PREMISES. A
deca l noti ce is included with each
microphone shipped.

Federal Law References:
Federal Regulations, US Code, Title 18.
Crime and Criminal Procedure, Sec 2510.

AUDIO

MONITORING

On

These Premises

®

U

T

C

A

F

U

N

A

M

tlm_e_specs_3/15
