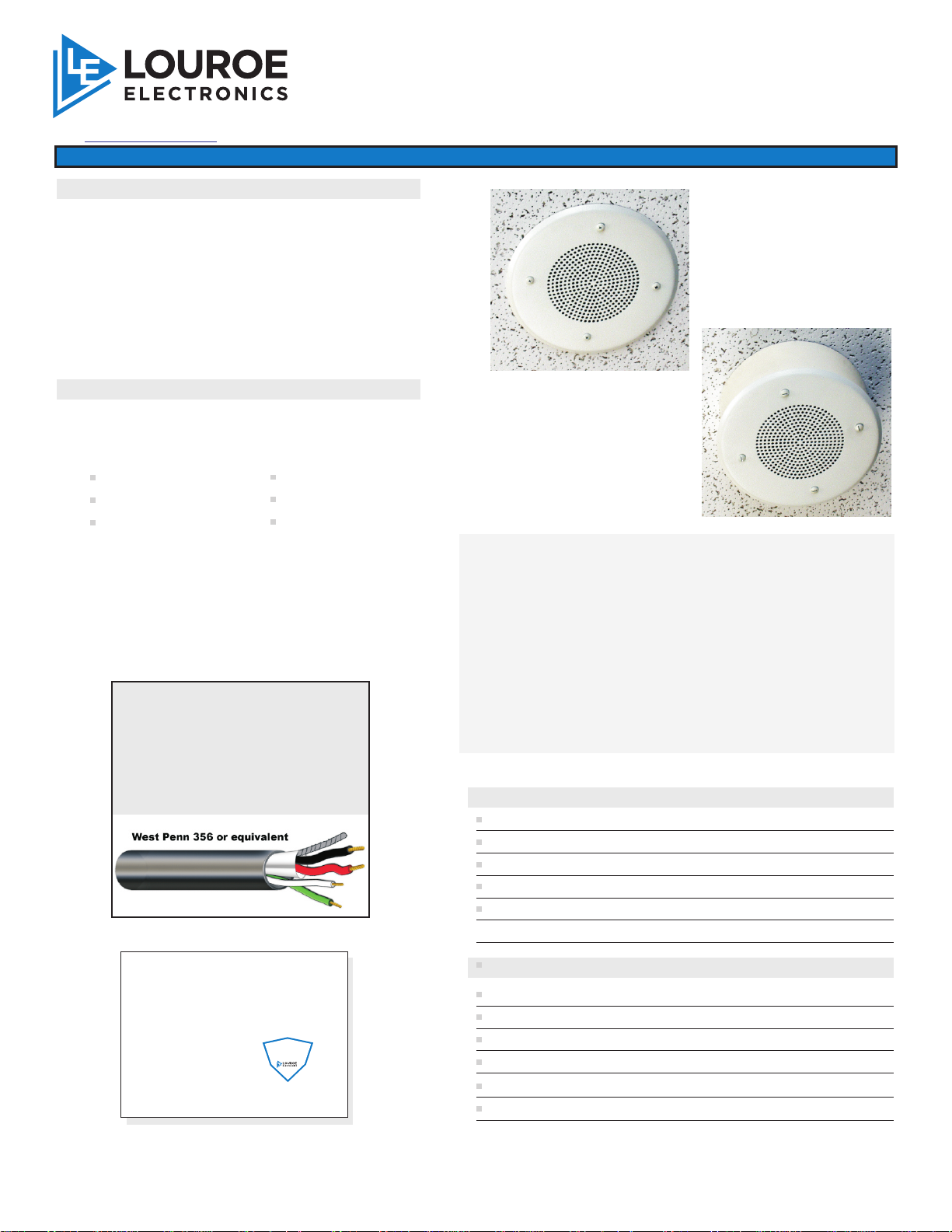

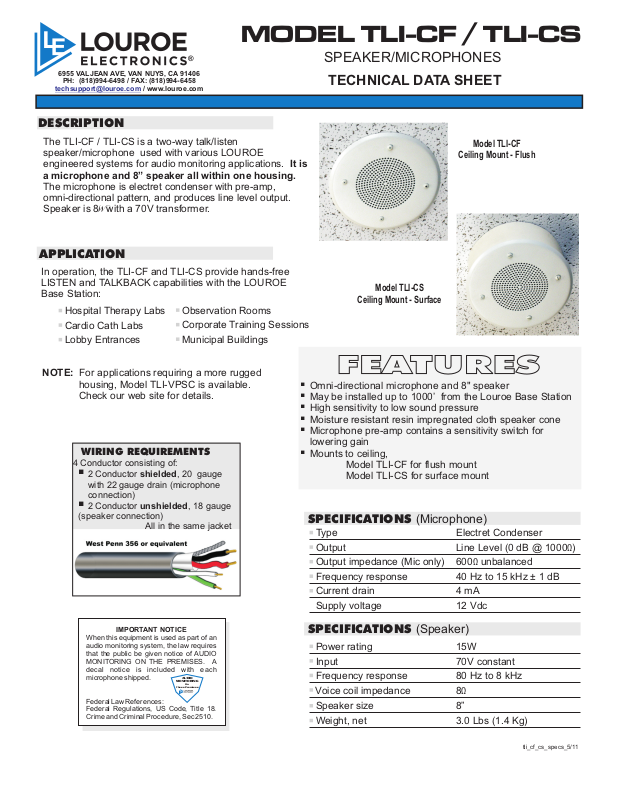

MODEL TLI-CF / TLI-CS
®
6955 VALJEAN AVE, VAN NUYS, CA 91406
PH: (818)994-6498 / FAX: (818)994-6458
/ www.louroe.comtechsupport@louroe.com
DESCRIPTION
The TLI-CF / TLI-CS is a two-way talk/listen
speaker/microphone used with various LOUROE
engineered systems for audio monitoring applications. It is
a microphone and 8” speaker all within one housing.
The microphone is electret condenser with pre-amp,
omni-directional pattern, and produces line level output.
Speaker is 8W with a 70V transformer.
APPLICATION
In operation, the TLI-CF and TLI-CS provide hands-free
LISTEN and TALKBACK capabilities with the LOUROE
Base Station:
Hospital Therapy Labs
Cardio Cath Labs
Lobby Entrances
Observation Rooms
Corporate Training Sessions
Municipal Buildings
SPEAKER/MICROPHONES
TECHNICAL DATA SHEET
Model TLI-CF
Ceiling Mount - Flush
Model TLI-CS
Ceiling Mount - Surface
NOTE: For applications requiring a more rugged
housing, Model TLI-VPSC is available.
Check our web site for details.
WIRING REQUIREMENTS
4 Conductor consisting of:
+
2 Conductor shielded, 20 gauge
with 22 gauge drain (microphone
connection)
+
2 Conductor unshielded, 18 gauge
(speaker connection)
All in the same jacket
IMPORTANT NOTICE
When this equipment is used as part of an
audio monitoring system, the law requires
that the public be given notice of AUDIO
MONITORING ON THE PREMISES. A
deca l noti ce is includ ed with each
microphone shipped.
Federal Law References:
Federal Regulations, US Code, Title 18.
Crime and Criminal Procedure, Sec 2510.
AUDIO
MONITORING
On
These Premises
®
FEATURES
+
Omni-directional microphone and 8" speaker
+
May be installed up to 1000’ from the Louroe Base Station
+
High sensitivity to low sound pressure
+
Moisture resistant resin impregnated cloth speaker cone
+
Microphone pre-amp contains a sensitivity switch for
lowering gain
+
Mounts to ceiling,
Model TLI-CF for flush mount
Model TLI-CS for surface mount
SPECIFICATIONS (Microphone)
Type Electret Condenser
Output
Output impedance (Mic only)
Frequency response
Current drain
Supply voltage
SPECIFICATIONS (Speaker)
Power rating
Input
Frequency response
Voice coil impedance
Speaker size 8”
Weight, net 3.0 Lbs (1.4 Kg)
Line Level (0 dB @ 1000W)
600W unbalanced
40 Hz to 15 kHz ± 1 dB
4 mA
12 Vdc
15W
70V constant
80 Hz to 8 kHz
8W
tli_cf_cs_specs_5/11
