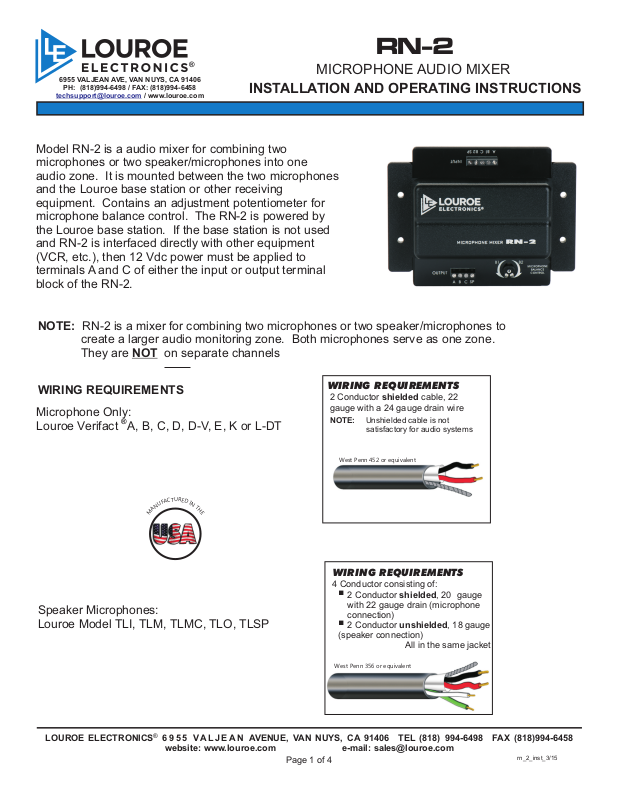

Louroe Electronics RN-2 User Manual

RN-2

®

6955 VALJEAN AVE, VAN NUYS, CA 91406

PH: [phone] / FAX: [phone]

/ [e-mail]

INSTALLATION AND OPERATING INSTRUCTIONS

Model RN-2 is a audio mixer for combining two
microphones or two speaker/microphones into one
audio zone. It is mounted between the two microphones
and the Louroe base station or other receiving
equipment. Contains an adjustment potentiometer for
microphone balance control. The RN-2 is powered by
the Louroe base station. If the base station is not used
and RN-2 is interfaced directly with other equipment
(VCR, etc.), then 12 Vdc power must be applied to
terminals A and C of either the input or output terminal
block of the RN-2.

NOTE: RN-2 is a mixer for combining two microphones or two speaker/microphones to

create a larger audio monitoring zone. Both microphones serve as one zone.
They are NOT on separate channels

MICROPHONE AUDIO MIXER

WIRING REQUIREMENTS

Microphone Only:
Louroe Verifact A, B, C, D, D-V, E, K or L-DT

®

U

R

T

E

C

D

A

I

F

U

N

A

M

N

T

H

E

Speaker Microphones:
Louroe Model TLI, TLM, TLMC, TLO, TLSP

WIRING REQUIREMENTS

2 Conductor shielded cable, 22
gauge with a 24 gauge drain wire

NOTE: Unshielded cable is not

satisfactory for audio systems

West Penn 452 or equivalent

WIRING REQUIREMENTS

4 Conductor consisting of:

+

2 Conductor shielded, 20 gauge
with 22 gauge drain (microphone
connection)

+

2 Conductor unshielded, 18 gauge

(speaker connection)

All in the same jacket

West Penn 356 or equivalent

LOUROE ELECTRONICS 6 9 5 5 VALJEAN AVENUE, VAN NUYS, CA 91406 TEL [phone] FAX [phone]

®

(818)

website: www.louroe.com e-mail: [e-mail]

Page 1 of 4

rn_2_inst_3/15

INSTALLATION AND OPERATING INSTRUCTIONS

MECHANICAL

RN-2 can be installed to a wall or flat surface with mounting screws or by using a strong double
backed adhesive tape. It is located between the microphones and the Louroe base station.

WIRING CONNECTION FROM MICROPHONES TO RN-2

I. Bring in wiring from first Louroe microphone (or speaker/microphone) to INPUT side of RN-2
and connect as follows:

1. Wire from terminal A of microphone goes to A of RN-2

2. Wire from terminal B of microphone goes to B1 of RN-2

3. Wire from terminal C of microphone goes to C of RN-2

If microphone includes a speaker, speaker wires connect as follows:

(a) Positive connection from speaker connects to SP terminal of RN-2
(b) Ground connection from speaker connects to C terminal of RN-2

II. Bring in wiring from second microphone (or speaker/microphone) to INPUT side of RN-2 and

connect as follows::

1. Wire from terminal A of second microphone goes to A of RN-2

2. Wire from terminal B of second microphone goes to B2 of RN-2

3. Wire from terminal C of second microphone goes to C of RN-2

If microphone includes a speaker, speaker wires are doubled up with first speaker at terminals C
and SP of INPUT side.

CONNECTING RN-2 TO LOUROE BASE STATION

From OUTPUT side of RN-2, make connection to the Louroe base station as follows:

1. Terminal A of output goes to terminal A of base station

2. Terminal B of output goes to terminal B of base station

3. Terminal C of output goes to terminal C of base station

4. If speakers are included, terminals C and SP from OUTPUT side connect with C and

SP of base station.

MICROPHONE BALANCE ADJUSTMENT

Located on the output side of the RN-2 Mixer is an adjustment potentiometer for microphone

balance. If more volume is desired from microphone connected to the B-1 input side, turn
potentiometer counterclockwise toward the B-1 arrow. If more volume is desired from microphone
connected to the B-2 input side, turn potentiometer clockwise toward the B-2 arrow. For equal
volume from the two microphones, position potentiometer to the center.

NOTE: DISTANCE BETWEEN MICROPHONE AND BASE STATION SHOULD NOT

EXCEED 1,000’. THE RN-2 MIXER GAIN IS LIMITED THAT IT MAY NOT
SATISFACTORILY DRIVE AN AUDIO LINE OF MORE THAN 1000’.

LOUROE ELECTRONICS 6 9 5 5 VALJEAN AVENUE, VAN NUYS, CA 91406 TEL [phone] FAX [phone]

®

website: www.louroe.com e-mail: [e-mail]

Page 2 of 4

(818)

rn_2_inst_3/15

INSTALLATION AND OPERATING INSTRUCTIONS

INTERCONNECTION DIAGRAM FOR

RN-2 MICROPHONE MIXER

LOUROE

MICROPHONE #2

TERMINAL BLOCK

A B C A B C

TERMINAL BLOCK OF MODEL

A, B, C, D, D-V, E, K, AND L-DT MICROPHONES

WEST PENN 452
OR EQUIVALENT

A B C B 2 S P 1

INPUT

LOUROE

MICROPHONE #1

TERMINAL BLOCK

LOURO E

ELECT RONIC S

OUTPUT

A B C SP

RN -2

MICROPHONE MIXER

B1

B2

B1

MICROPHONE

BALANCE CONTROL

MICROPHONE

BALANCE
CONTROL

MODEL RN-2 MICROPHONE MIXER

B2

WIRING REQUIREMENTS

2 Conductor shielded cable, 22
gauge with a 24 gauge drain wire

NOTE: Unshielded cable is not

West Penn 452 or equivalent

A B C

TO INPUT OF ALL LOUROE BASE STATIONS

IF-1, IF-2, IF-4, IF-8 AUDIO INTERFACE ADAPTERS

satisfactory for audio systems

LOUROE ELECTRONICS 6 9 5 5 VALJEAN AVENUE, VAN NUYS, CA 91406 TEL [phone] FAX [phone]

®

(818)

website: www.louroe.com e-mail: [e-mail]

Page 3 of 4

rn_2_inst_3/15

INSTALLATION AND OPERATING INSTRUCTIONS

SPECIFICATIONS

<Input Impedance 20kW

<Output gain +5dB

<Output Impedance 1kW @ 1kHz

<Supply Voltage 12Vdc

<Dimensions 6 1/8”L x 4 5/8”W x 1 3/8”H

<Weight 5.5 oz

<Shipping Weight 1 lb

IMPORTANT NOTICE

When this equipment is used as part of an
audio monitoring system, the law requires
that the public be given notice of AUDIO
MONITORING ON THE PREMISES. A
deca l noti ce is includ ed with each
microphone shipped.

Federal Law References:
Federal Regulations, US Code, Title 18.
Crime and Criminal Procedure, Sec 2510.

LOUROE ELECTRONICS warrants that at the time of shipment products manufactured by LOUROE ELECTRONICS to be free of defects in material and workmanship.
Should a defect appear within one year (12 months) from date of shipment, LOUROE ELECTRONICS will, at its sole discretion, repair or replace the defective equipment.
This equipment shall not be accepted for repair or return without prior notification by LOUROE ELECTRONICS .

This warranty does not extend to any Louroe product that has been subjected to improper or incorrect installation, misuse, accident, or in violation of installation
instructions provided by LOUROE ELECTRONICS.

Returned shipments to LOUROE ELECTRONICS shall be at customer’s expense. LOUROE ELECTRONICS will return the equipment prepaid via best way.

®

®

®

WARRANTY

AUDIO

MONITORING

On

These Premises

®

®

®

®

LOUROE ELECTRONICS 6 9 5 5 VA L J E A N AVENUE, VAN NUYS, CA 91406 TEL [phone] FAX [phone]

®

(818)

website: www.louroe.com e-mail: [e-mail]

Page 4 of 4

rn_2_inst_3/15
