L

OUROE

E

6955 VALJEAN AVE, VAN NUYS, CA 91406

PH: [phone] / FAX: [phone]

[e-mail] / www.louroe.com

LE CTRONICS

RACKMOUNT

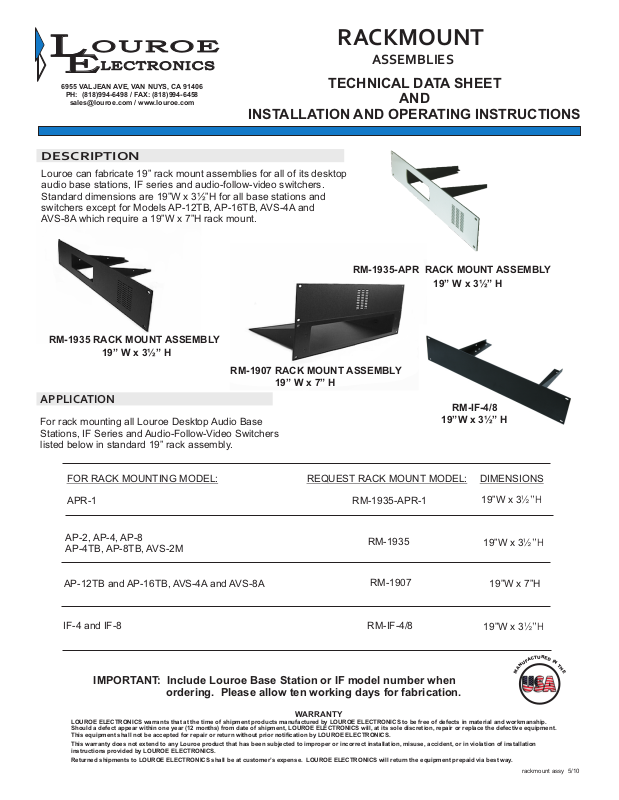

TECHNICAL DATA SHEET

INSTALLATION AND OPERATING INSTRUCTIONS

DESCRIPTION

Louroe can fabricate 19” rack mount assemblies for all of its desktop
audio base stations, IF series and audio-follow-video switchers.
Standard dimensions are 19”W x 3½”H for all base stations and
switchers except for Models AP-12TB, AP-16TB, AVS-4A and
AVS-8A which require a 19”W x 7”H rack mount.

ASSEMBLIES

AND

RM-1935-APR RACK MOUNT ASSEMBLY

19” W x 3½” H

RM-1935 RACK MOUNT ASSEMBLY

19” W x 3½” H

RM-1907 RACK MOUNT ASSEMBLY

19” W x 7” H

APPLICATION

For rack mounting all Louroe Desktop Audio Base

RM-IF-4/8

19”W x 3½” H

Stations, IF Series and Audio-Follow-Video Switchers
listed below in standard 19” rack assembly.

FOR RACK MOUNTING MODEL: REQUEST RACK MOUNT MODEL: DIMENSIONS

APR-1

AP-2, AP-4, AP-8
AP-4TB, AP-8TB, AVS-2M

AP-12TB and AP-16TB, AVS-4A and AVS-8A

IF-4 and IF-8

RM-1935-APR-1

RM-1935

RM-1907

RM-IF-4/8

19”W x 3½”H

19”W x 3½”H

19”W x 7”H

19”W x 3½”H

R

U

T

E

D

C

A

F

U

N

A

M

IMPORTANT: Include Louroe Base Station or IF model number when

ordering. Please allow ten working days for fabrication.

LOUROE ELECTRONICS warrants that at the time of shipment products manufactured by LOUROE ELECTRONICS to be free of defects in material and workmanship.
Should a defect appear within one year (12 months) from date of shipment, LOUROE ELECTRONICS will, at its sole discretion, repair or replace the defective equipment.
This equipment shall not be accepted for repair or return without prior notification by LOUROE ELECTRONICS.

This warranty does not extend to any Louroe product that has been subjected to improper or incorrect installation, misuse, accident, or in violation of installation
instructions provided by LOUROE ELECTRONICS.

Returned shipments to LOUROE ELECTRONICS shall be at customer’s expense. LOUROE ELECTRONICS will return the equipment prepaid via best way.

WARRANTY

rackmount assy 5/10
