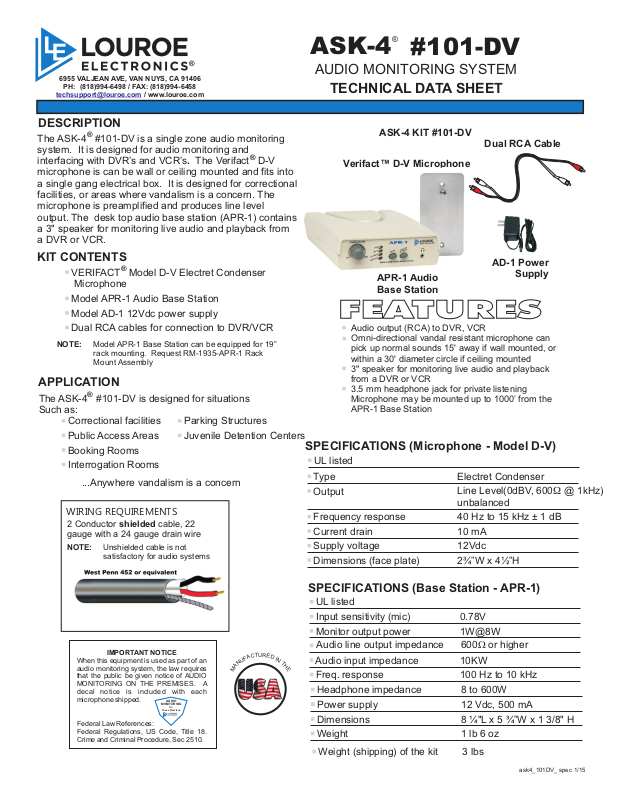

6955 VALJEAN AVE, VAN NUYS, CA 91406
PH: (818)994-6498 / FAX: (818)994-6458
/ www.louroe.comtechsupport@louroe.com
®
ASK-4
#101-DV
AUDIO MONITORING SYSTEM
TECHNICAL DATA SHEET
DESCRIPTION
The ASK-4 #101-DV is a single zone audio monitoring
system. It is designed for audio monitoring and
interfacing with DVR’s and VCR’s. The Verifact D-V
microphone is can be wall or ceiling mounted and fits into
a single gang electrical box. It is designed for correctional
facilities, or areas where vandalism is a concern. The
microphone is preamplified and produces line level
output. The desk top audio base station (APR-1) contains
a 3" speaker for monitoring live audio and playback from
a DVR or VCR.
®
®
KIT CONTENTS
VERIFACT Model D-V Electret Condenser
Microphone
Model APR-1 Audio Base Station
Model AD-1 12Vdc power supply
Dual RCA cables for connection to DVR/VCR
NOTE: Model APR-1 Base Station can be equipped for 19”
®
rack mounting. Request RM-1935-APR-1 Rack
Mount Assembly
APPLICATION
The ASK-4 #101-DV is designed for situations
Such as:
®
Correctional facilities
Public Access Areas
Parking Structures
Juvenile Detention Centers
Booking Rooms
Interrogation Rooms
...Anywhere vandalism is a concern
WIRING REQUIREMENTS
2 Conductor shielded cable, 22
gauge with a 24 gauge drain wire
NOTE: Unshielded cable is not
satisfactory for audio systems
ASK-4 KIT #101-DV
Dual RCA Cable
Verifact™ D-V Microphone
AD-1 Power
APR-1 Audio
Supply
Base Station
FEATURES
Audio output (RCA) to DVR, VCR
Omni-directional vandal resistant microphone can
pick up normal sounds 15' away if wall mounted, or
within a 30' diameter circle if ceiling mounted
3" speaker for monitoring live audio and playback
from a DVR or VCR
3.5 mm headphone jack for private listening
Microphone may be mounted up to 1000’ from the
APR-1 Base Station
SPECIFICATIONS (Microphone - Model D-V)
UL listed
Type
Output
Frequency response
Current drain
Supply voltage
Dimensions (face plate) 2¾”W x 4½”H
Electret Condenser
Line Level(0dBV, 600W @ 1kHz)
unbalanced
40 Hz to 15 kHz ± 1 dB
10 mA
12Vdc
IMPORTANT NOTICE
When this equipment is used as part of an
audio monitoring system, the law requires
that the public be given notice of AUDIO
MONITORING ON THE PREMISES. A
deca l noti ce is included with each
microphone shipped.
Federal Law References:
Federal Regulations, US Code, Title 18.
Crime and Criminal Procedure, Sec 2510.
AUDIO
MONITORING
On
These Premises
®
SPECIFICATIONS (Base Station - APR-1)
UL listed
Input sensitivity (mic)
Monitor output power
Audio line output impedance
R
U
T
E
D
C
A
I
F
U
N
A
M
N
T
H
Audio input impedance
E
Freq. response
Headphone impedance
Power supply
Dimensions
Weight
Weight (shipping) of the kit
0.78V
1W@8W
600W or higher
10KW
100 Hz to 10 kHz
8 to 600W
12 Vdc, 500 mA
8 ¼"L x 5 ¾”W x 1 3/8" H
1 lb 6 oz
3 lbs
ask4_101DV_ spec 1/15
