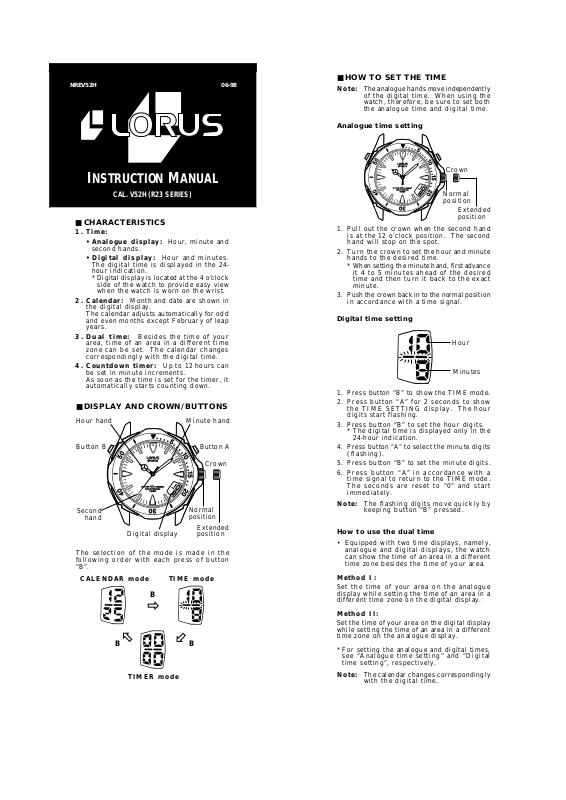

NREV52H
INSTRUCTION MANUAL
CAL. V52H (R23 SERIES)
■ CHARACTERISTICS
1. Time:
•Analogue display: Hour, minute and
second hands.
•Digital display: Hour and minutes.
The digital time is displayed in the 24hour indication.
* Digital display is located at the 4 o’clock
side of the watch to provide easy view
when the watch is worn on the wrist.
2. Calendar: Month and date are shown in
the digital display.
The calendar adjusts automatically for odd
and even months except February of leap
years.
3. Dual time: Besides the time of your
area, time of an area in a different time
zone can be set. The calendar changes
correspondingly with the digital time.
4. Countdown timer: Up to 12 hours can
be set in minute increments.
As soon as the time is set for the timer, it
automatically starts counting down.
■ DISPLAY AND CROWN/BUTTONS
Hour hand Minute hand
Button B
Second
hand
Digital display
The selection of the mode is made in the
following order with each press of button
“B”.
CALENDAR mode TIME mode
B
➡➡
➡➡
B
TIMER mode
Normal
position
➡➡
B
Button A
Crown
Extended
position
06-98
■ HOW TO SET THE TIME
Note: The analogue hands move independently
of the digital time. When using the
watch, therefore, be sure to set both
the analogue time and digital time.
Analogue time setting
Crown
Normal
position
Extended
position
1. Pull out the crown when the second hand
is at the 12 o’clock position. The second
hand will stop on the spot.
2. Turn the crown to set the hour and minute
hands to the desired time.
* When setting the minute hand, first advance
it 4 to 5 minutes ahead of the desired
time and then turn it back to the exact
minute.
3. Push the crown back in to the normal position
in accordance with a time signal.
Digital time setting
Hour
Minutes
1. Press button “B” to show the TIME mode.
2. Press button “A” for 2 seconds to show
the TIME SETTING display. The hour
digits start flashing.
3. Press button “B” to set the hour digits.
* The digital time is displayed only in the
24-hour indication.
4. Press button “A” to select the minute digits
(flashing).
5. Press button “B” to set the minute digits.
6. Press button “A” in accordance with a
time signal to return to the TIME mode.
The seconds are reset to “0” and start
immediately.
Note: The flashing digits move quickly by
keeping button “B” pressed.
How to use the dual time
• Equipped with two time displays, namely,
analogue and digital displays, the watch
can show the time of an area in a different
time zone besides the time of your area.
Method I :
Set the time of your area on the analogue
display while setting the time of an area in a
different time zone on the digital display.
Method II:
Set the time of your area on the digital display
while setting the time of an area in a different
time zone on the analogue display.
* For setting the analogue and digital times,
see “Analogue time setting” and “Digital
time setting”, respectively.
Note: The calendar changes correspondingly
with the digital time.
■HOW TO SET THE CALENDAR
Month
Date
1. Press button “B” to show the CALENDAR
mode.
2. Press button “A” for 2 seconds to show
the CALENDAR SETTING display. The
month digits start flashing.
3. Press button “B” to set the month.
4. Press button “A” to select the date digits
(flashing).
5. Press button “B” to set the date.
6. Press button “A” to return to the CALENDAR
mode.
Note: The flashing digits move quickly by
keeping button “B” pressed.
■ HOW TO USE THE TIMER
• The timer can be set up to 12 hours in
minute increments.
• As soon as the time is set for the timer, it
will automatically starts counting down.
Press button “B” to show the TIMER mode.
Timer setting and operation
Hour
Minutes
1. Press button “A” repeatedly to set the
desired amount of time.
* One minute is advanced with each press
of button “A”. The digits advance quickly
by keeping the button pressed.
2. As soon as button “A” is released after the
timer is set, it will automatically start counting
down as a beep sounds and the bars start
flashing.
• When the set time is up, a warning sound
beeps for 8 seconds.
To stop it manually, press button “A” or “B”.
• The timer can be set anew by pressing
button “A” even while it is counting.
• To stop the timer and reset it to “00”, press
buttons “A” and “B” at the same time.
• While the timer is counting, the remaining
time is displayed as follows:
[Before the last 59 seconds]
Hour
The left and right
bars alternately
flash.
[For the last 59 seconds]
Minutes
Seconds
■NOTE ON UNUSUAL DISPLAY
While in the CALENDAR SETTING display
with the digits flashing, the display as shown
below will appear if both buttons “A” and “B”
are pressed at the same time. This is not a
malfunction. Press button “A” or “B” to return
to the CALENDAR mode, and then set the
calendar again.
[All the segments of the digital display lighting up]
■ LUMIBRITE WATCH
(dial, hands, buttons, case, bezel,
strap, etc.)
✩ If your watch is a LORUS LUMIBRITE watch,
it has following features.
LORUS LUMIBRITE watches absorb and store
light energy from natural and artificial light
sources and emit light in the dark. They are
made of environmentally friendly material,
and therefore, are harmless to human beings
and the environment.
• With a full charge, LORUS LUMIBRITE
watches glow in the dark hours longer than
conventional luminous watches of this type.
If exposed to a light of more than 500 lux
(i.e., the brightness of a typical office) for
approximately 10 minutes, or direct sunlight
for 2 minutes, they will glow for hours.
• Since LORUS LUMIBRITE watches emit
the light they store, the brightness will
decrease gradually over time. The length
of time they will glow may also differ slightly
depending on such factors as the brightness
of and distance from the light source used
to charge the watch.
■BATTERY CHANGE
The miniature battery SEIKO SR927W, MAXELL
SR927W, or SONY SR927W which powers your
watch should last approximately 2 years. However,
because it is inserted at the factory, the actual
life of the battery once in your possession
may be less than the specified period.
Be sure to replace the battery to prevent any
possible malfunction as soon as it runs down.
To replace the battery, we recommend taking
the watch to a local watch repair shop.
Note: If the countdown timer is used more
than three times a day, the battery
life may be less than the specified
period.
• Do not press the buttons or turn the crown
when the watch is wet.
• If the watch is exposed to salt water, rinse
it in fresh water and then wipe it thoroughly
dry.
Caution:
Leather straps are not water resistant except
so indicated, even if the watch head is water
resistant.
• ALLERGIC REACTION
Because the case and band touch the skin
directly, it is important to clean them
regularly. If not, shirt sleeves may be
stained and those with delicate skin may
develop a rash. Please wear the watch
with some play to avoid any possible allergic
reaction. If you develop a rash on your
wrist, stop wearing and consult a physician.
• MAGNETISM
Your watch will not be affected by magnetism generated by household electric
appliances.
• SHOCKS AND VIBRATIONS
Your watch may be worn for normal sports
activities, but be careful not to drop it or
hit it on hard surfaces.
• TEMPERATURE
Your watch is preadjusted so that constant
accuracy may be insured at normal temperature.
■SERVICE
When your LORUS watch requires repair
or servicing, please see the enclosed
WARRANTY/GUARANTEE.
Printed in Hong Kong
■CARE OF YOUR LORUS WATCH
• BATTERY
CAUTION
Do not expose the old battery to
fire or recharge it. Keep it at a
place beyond the reach of children. If a child swallows it, consult
a doctor immediately.
• WATER RESISTANT
Condition
Accidental
of use
contact with
No
water, such
as splashes
and rain
*
)
Indication on
the dial/
case back
indication
WATER
RESISTANT
WATER
RESISTANT
(50 M/5 BAR)*
WATER
RESISTANT
100 M/
10 BAR or
(
above
* If your watch is 200 M/20 BAR, 100 M/10
BAR or 50 M/5 BAR water resistant, it is so
indicated on the dial/case back.
NO
YES
YES
YES
Swimming and
taking a
shower
Skin
diving
NO NO NO
NO NO NO
YES NO NO
YES YES NO
Scuba
diving
