Longshine LCS-GS8416 operation manual

Web Managed GbE Switch

16-Port Gigabit Ethernet Web

Managed Switch

LCS-GS8416

User Manual

Web Managed GbE Switch

FCC Certifications

This Equipment has been tested and found to comply with the limits for a Class A digital device, pursuant to part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference when the equipment is operated in a commercial environment. This equipment generates, uses, and can radiate radio frequency energy and, if not installed and used in accordance with the instruction manual, may cause harmful interference to radio communications.

Operation of this equipment in a residential area is likely to cause harmful interference in which case the user will be required to correct the interference at his own expense.

This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) this device may not cause harmful interference, and (2) this device must accept any interference received; including interference that may cause undesired operation.

CE Mark Warning

This equipment complies with the requirements relating to the EMC Directive 2004/108/EC, the Low Voltage Directive 2006/95/EC, and the RoHS Directive 2011/65/EU.

Company has an on-going policy of upgrading its products and it may be possible that information in this document is not up-to-date. Please check with your local distributors for the latest information. No part of this document can be copied or reproduced in any form without written consent from the company.

Web Managed GbE Switch

Table of Contents

Chapter 1 Introduction to the Web Smart Switch ············································ 5

1.1 General Description ················································································ 5

1.2 The Front Panel ····················································································· 6

1.3 LEDs Definition ······················································································ 6

1.4 The Rear Panel ······················································································ 6

1.5 Installation ····························································································· 8 Chapter 2 Basic Web Management Information ············································ 10

2.1 System login ························································································· 10

2.2 The Graphic User Interface ······································································ 10

2.3 SAVE LOGOUT REBOOT ······································································· 15

2.3.1 SAVE ································································································ 15

2.3.1.1Saving running configurations ······························································ 15

2.3.2 LOGOUT ··························································································· 15

2.3.3 REBOOT ··························································································· 16 Chapter 3 Web Management Configuration ·················································· 17

3.1 Status·································································································· 17

3.1.1 System Information ············································································· 17

3.1.2 Logging Message ················································································ 17

3.1.3 Port ·································································································· 18

3.1.4 Link Aggregation ················································································· 20

3.1.5 LLCP Statistics ··················································································· 21

3.1.6 IGMP Snooping Statistics ····································································· 23

3.2 Network ······························································································· 24

3.2.1 IP Address ························································································· 24

3.2.2 IPv6 Address ······················································································ 25

3.2.3 Management VLAN ············································································· 26

3.2.4 Time Settings ····················································································· 26

3.2.5 SNTP Settings ···················································································· 28

3.3 Switching ····························································································· 28

3.3.1 Port Setting ························································································ 28

3.3.2 Port Mirroring ····················································································· 30

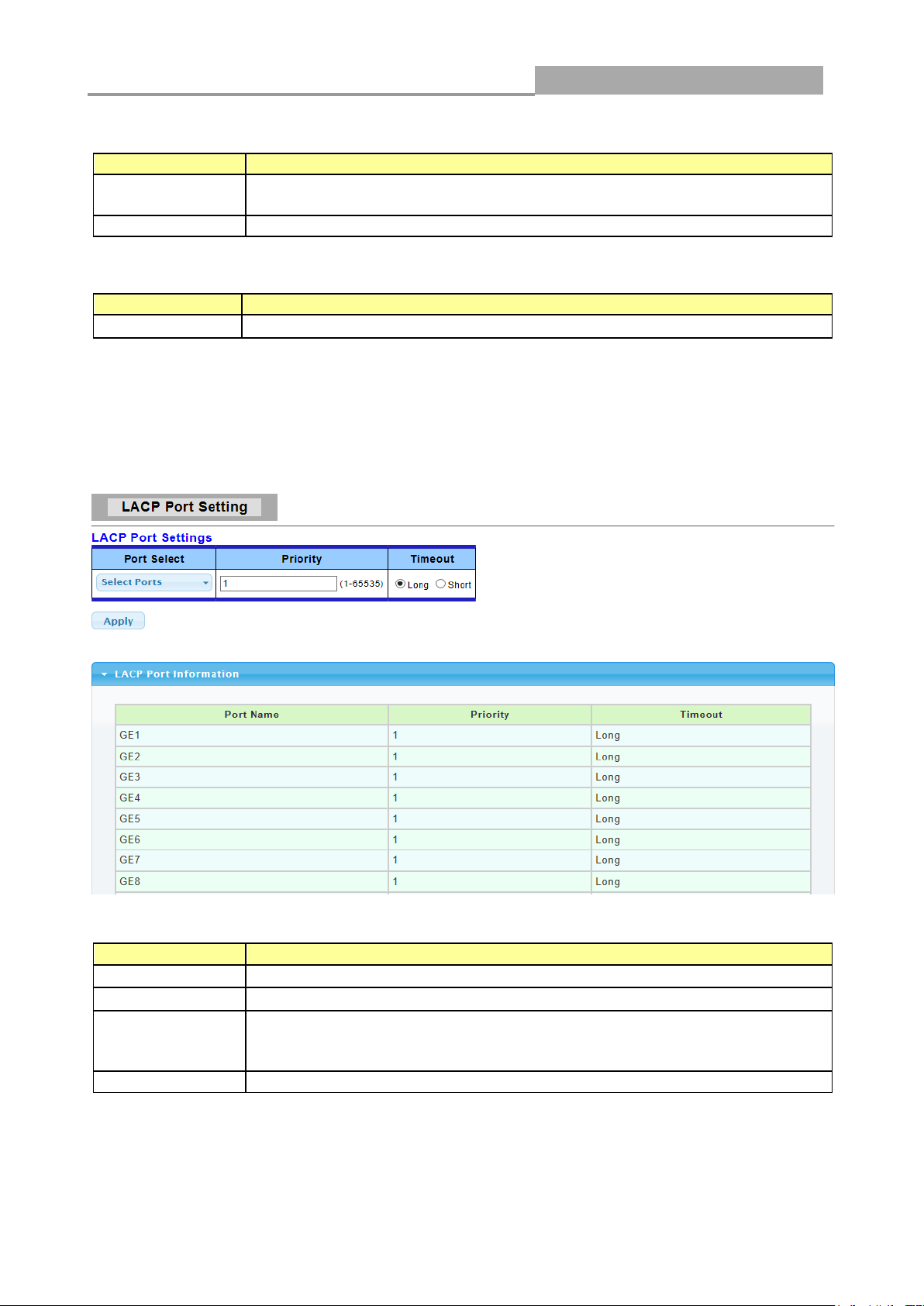

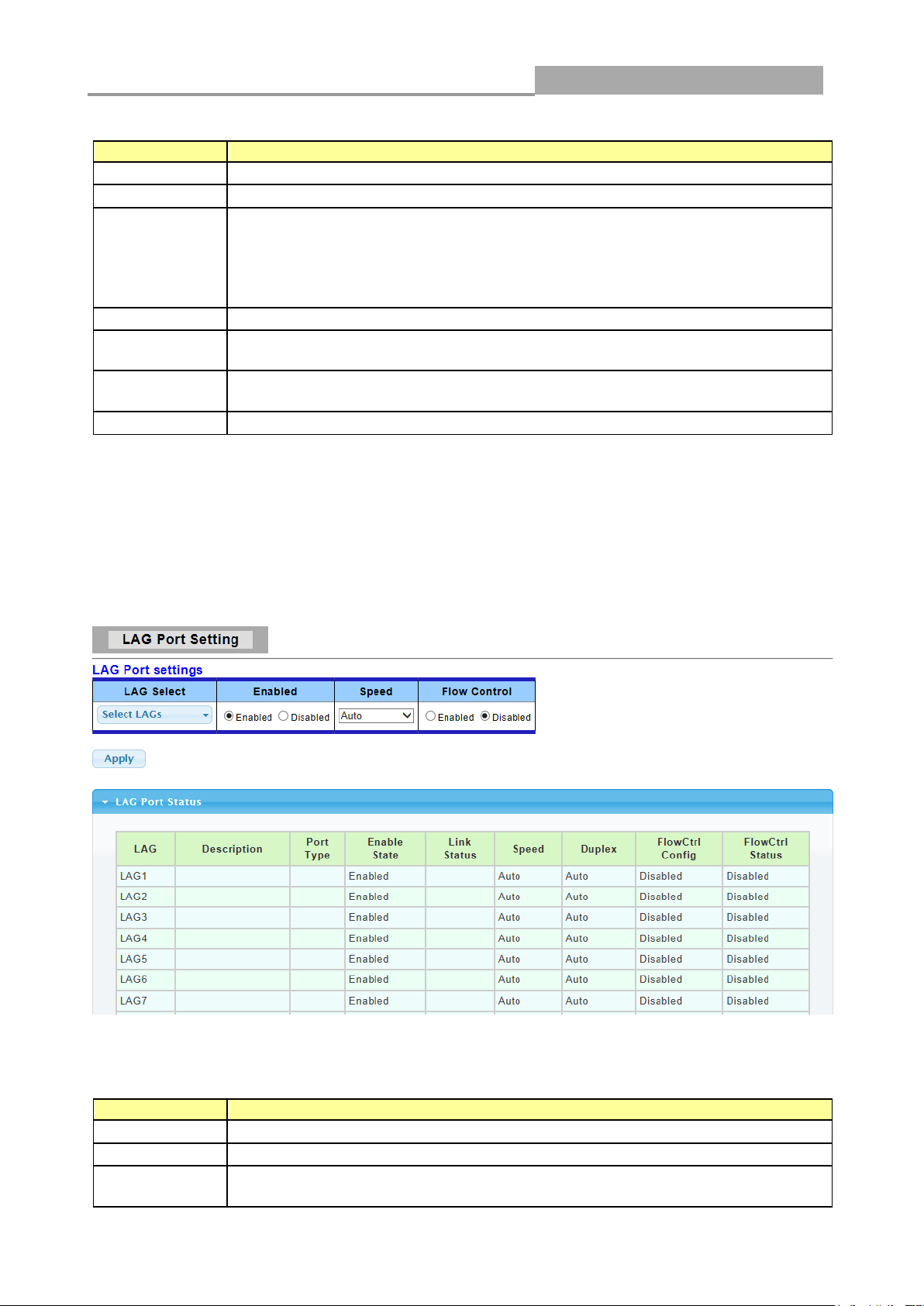

3.3.3 Link Aggregation ················································································· 31

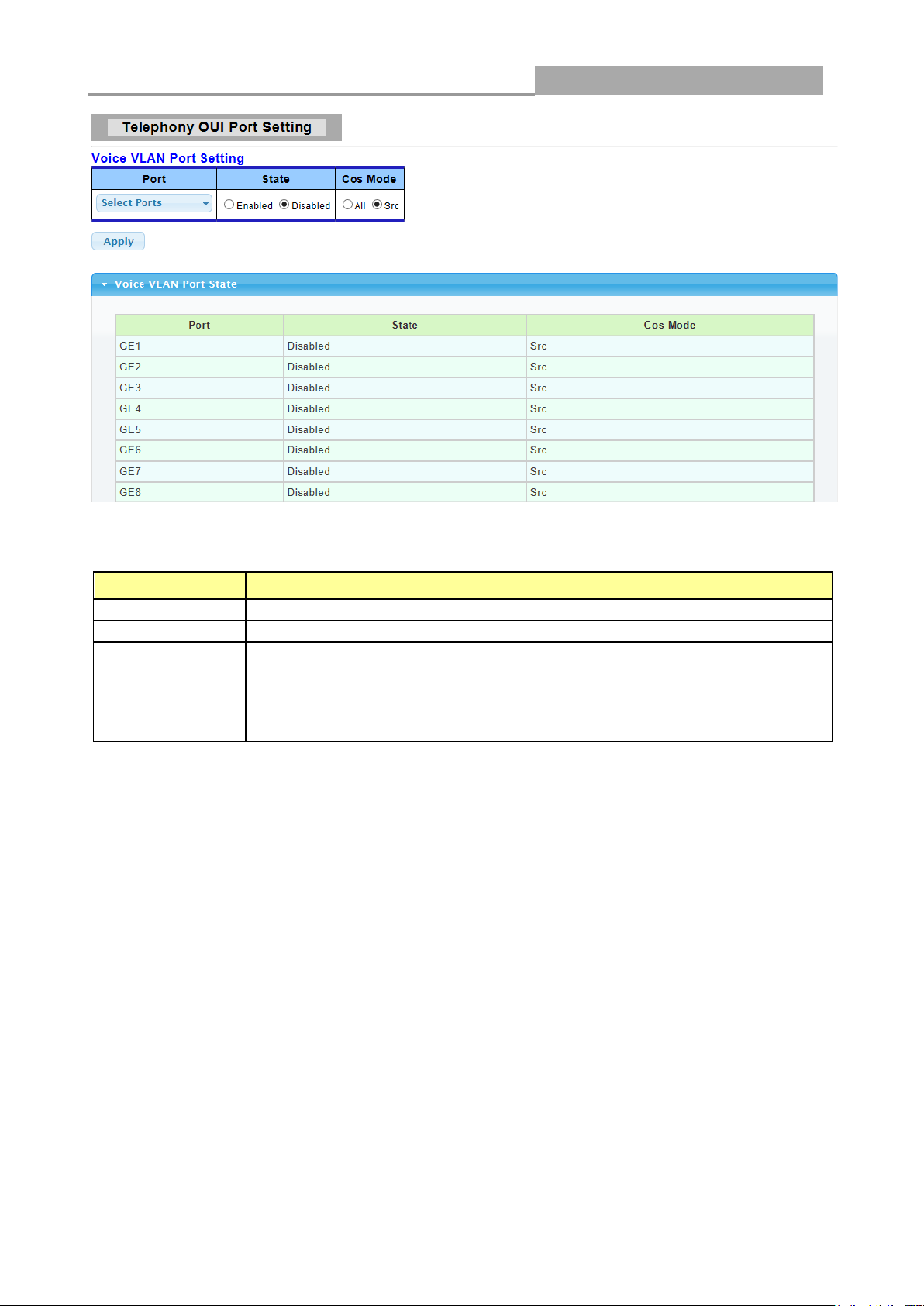

3.3.4 VLAN Management ············································································· 36

3.3.5 EEE·································································································· 43

3.3.6 Multicast ···························································································· 44

3.3.7 Jumbo Frame ····················································································· 51

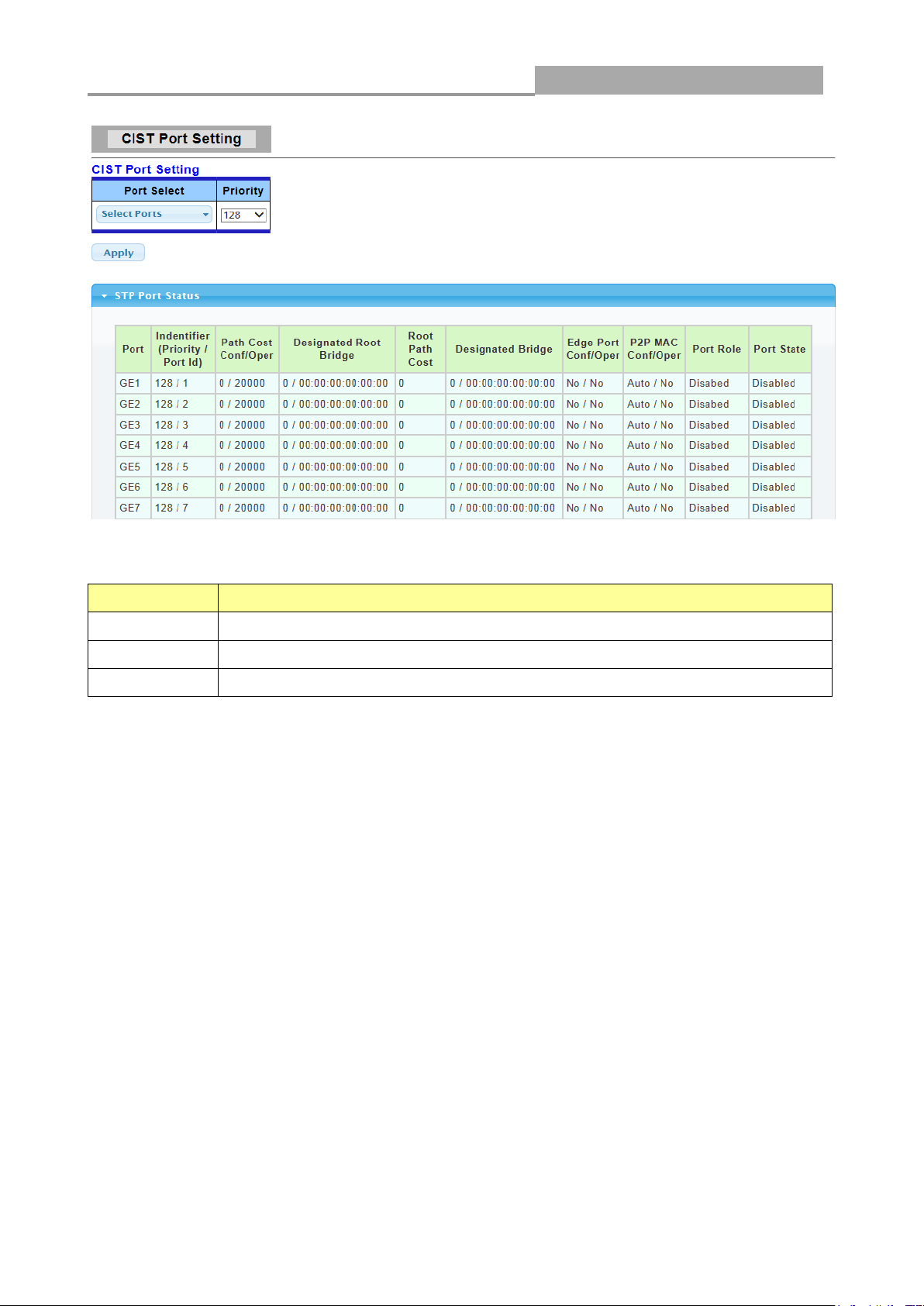

3.3.8 STP ·································································································· 52

Web Managed GbE Switch

3.4 MAC Address Table················································································ 57

3.5 Security ······························································································· 60

3.5.1 Storm Control ····················································································· 60

3.5.2 Protected Ports ··················································································· 61

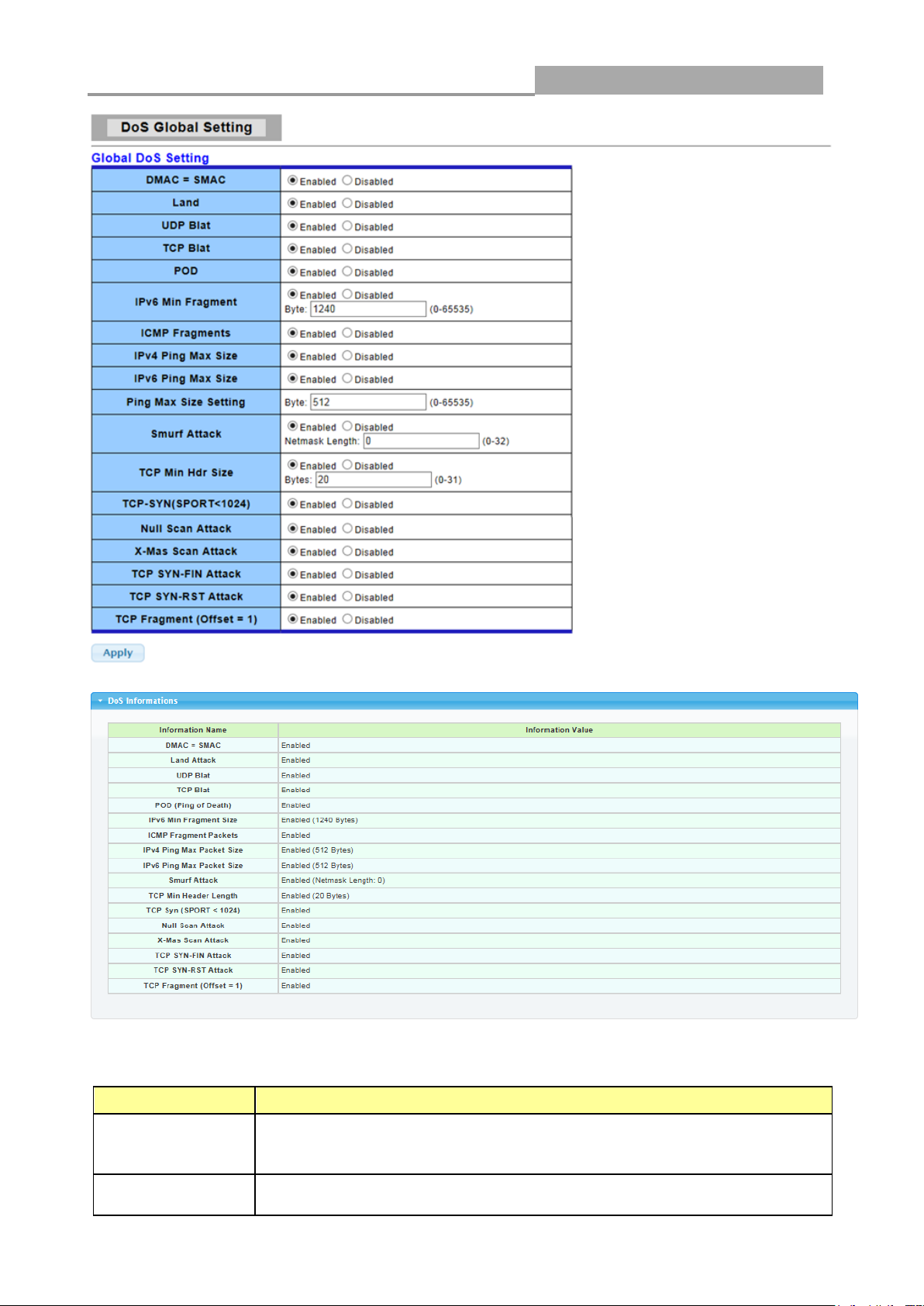

3.5.3 DoS ·································································································· 62

3.5.4 Access ······························································································ 65

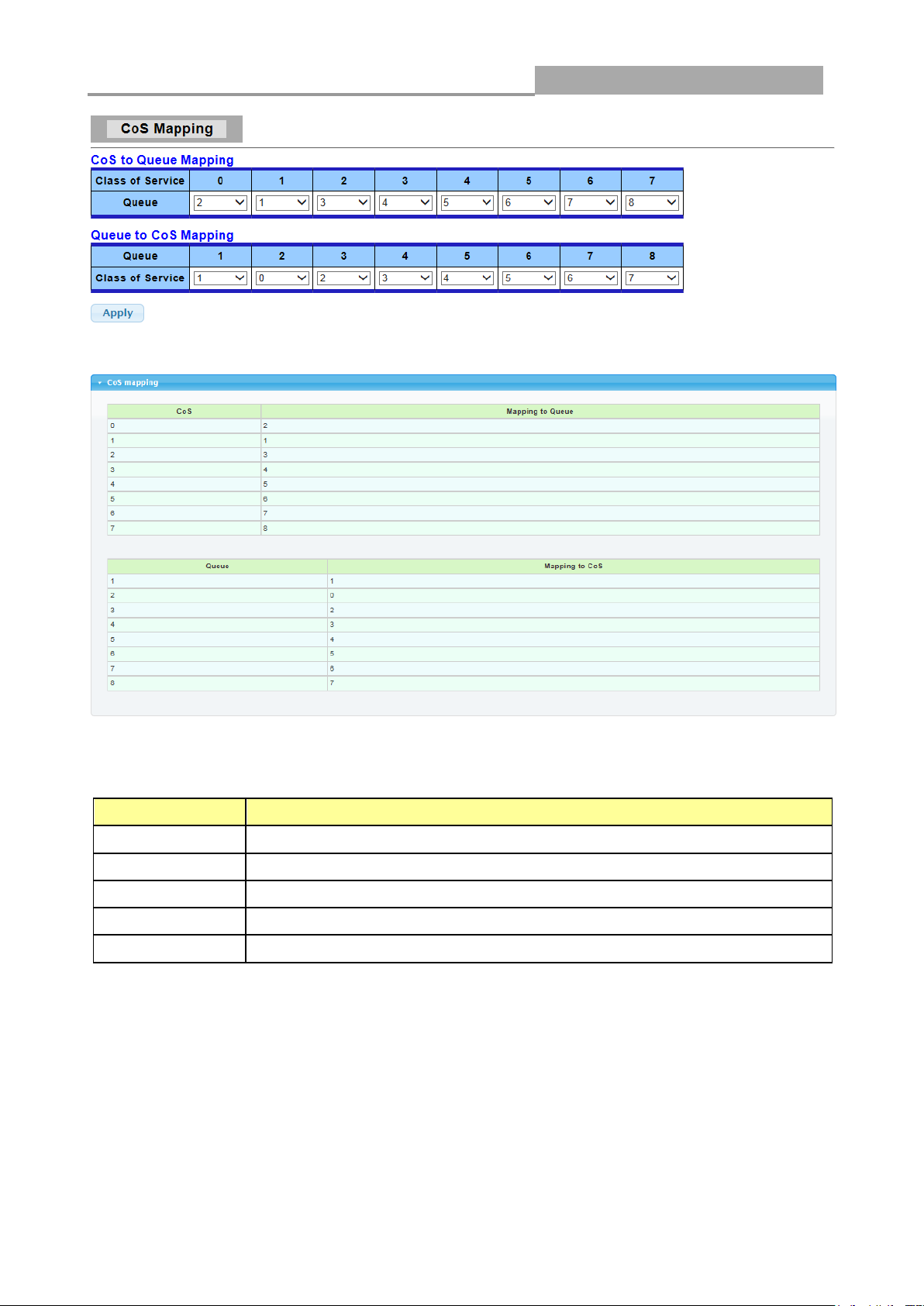

3.6 QoS ···································································································· 67

3.6.1 General ····························································································· 67

3.6.2 QoS Basic Mode ················································································· 73

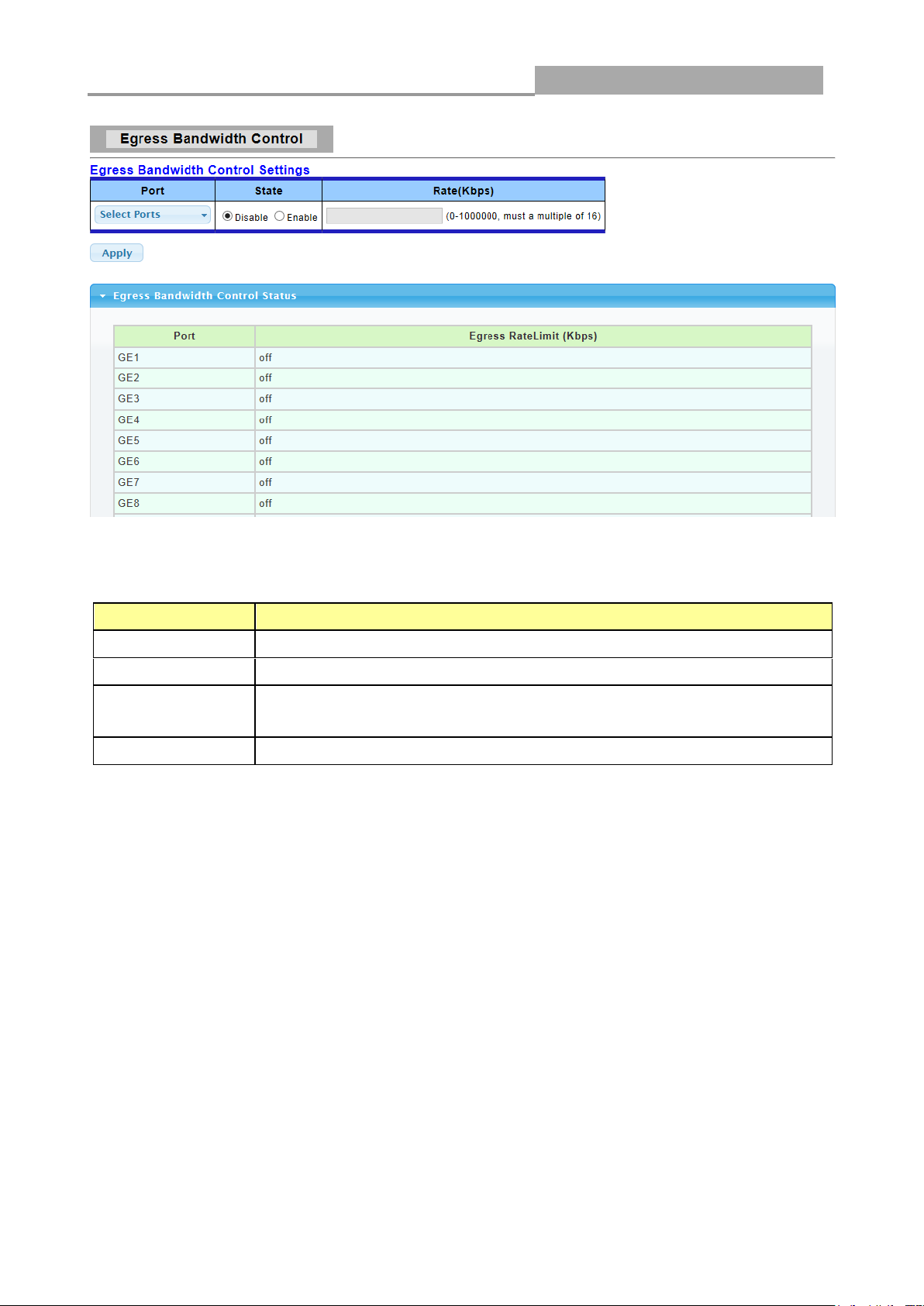

3.6.3 Rate Limit ·························································································· 75

3.7 Management ························································································ 78

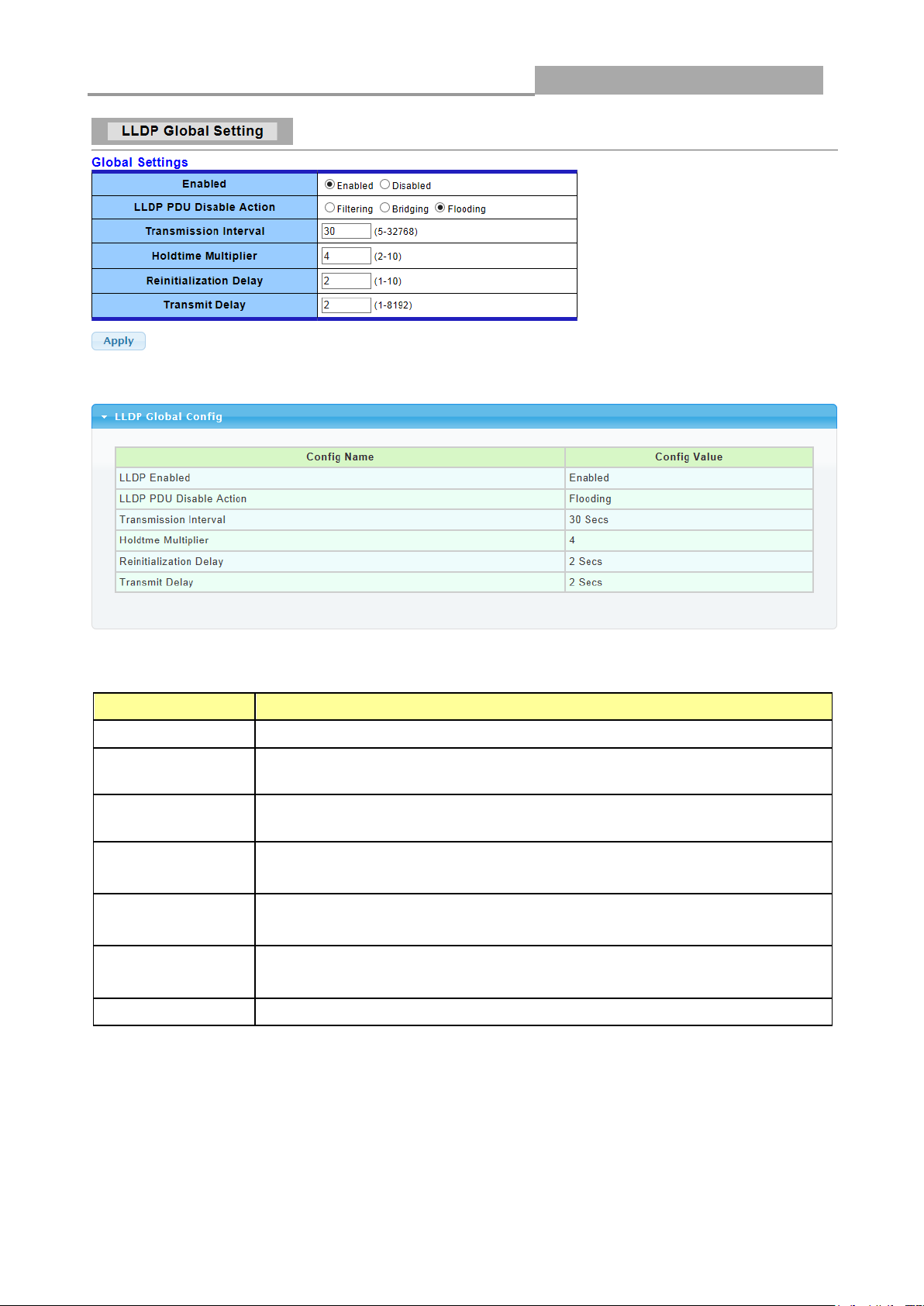

3.7.1 LLDP ································································································ 78

3.7.2 SNMP ······························································································· 86

3.8 Diagnostics ·························································································· 88

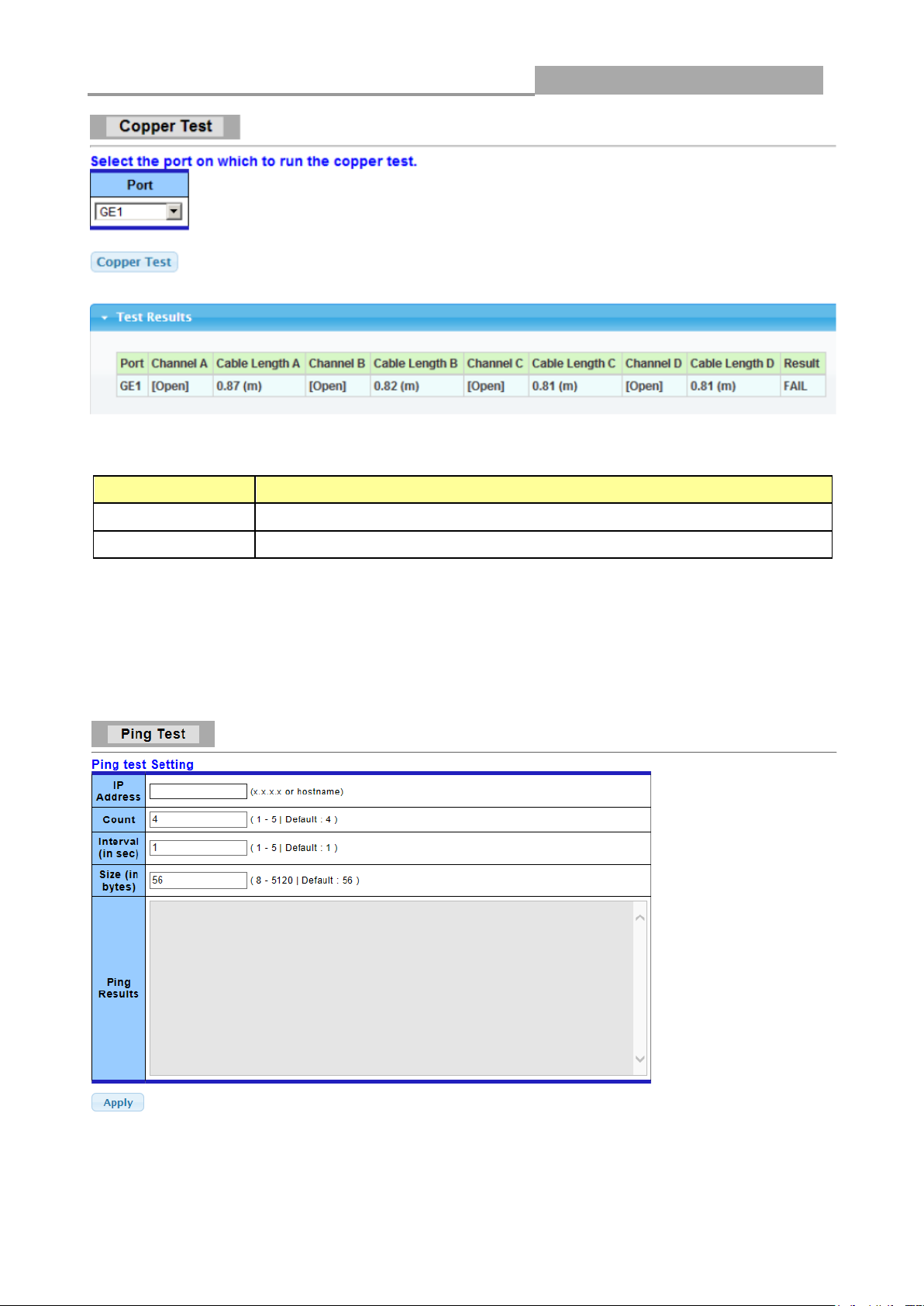

3.8.1 Cable Diagnostics ··············································································· 88

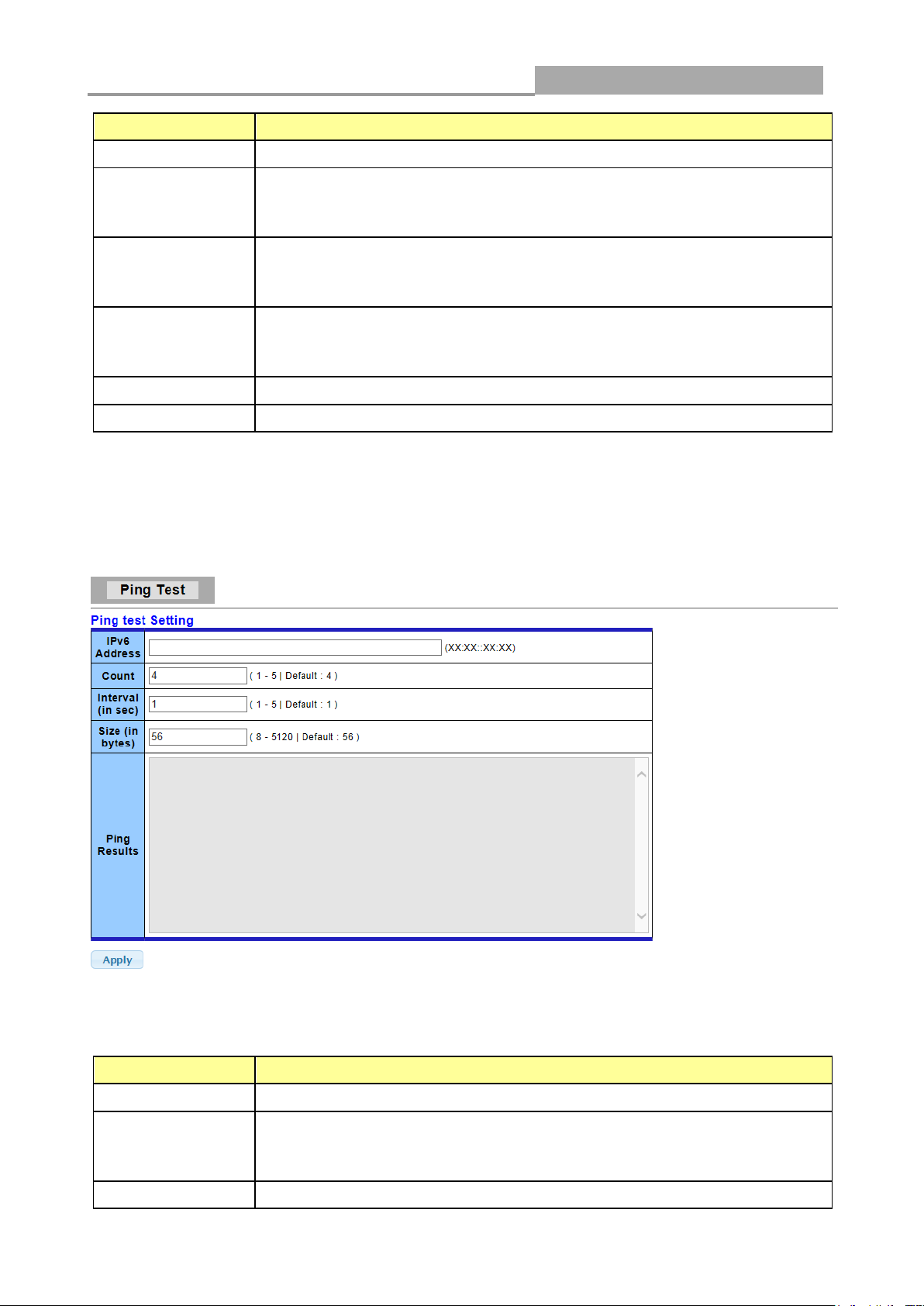

3.8.2 Ping Test ··························································································· 89

3.8.3 IPv6 Ping Test ···················································································· 90

3.8.4 Logging Setting··················································································· 91

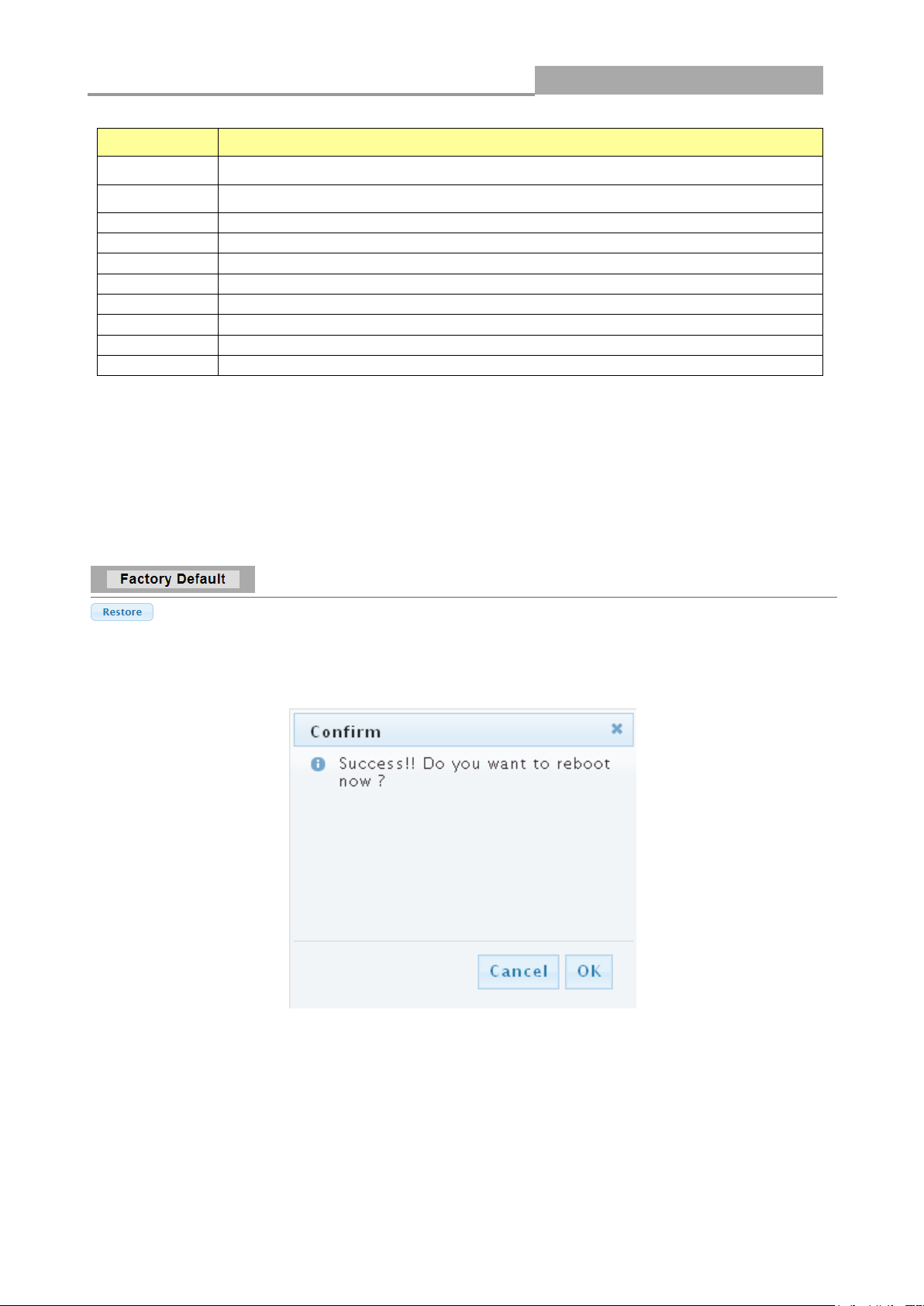

3.8.5 Factory Default ··················································································· 93

3.8.6 Reboot Switch ···················································································· 93

3.9 Maintenance ························································································· 94

3.9.1 Backup Manager ················································································· 94

3.9.2 Upgrade Manager ··············································································· 95

3.9.3 Configuration Manager ········································································· 96

3.9.4 Account Manager ················································································ 97 Product Specifications ················································································· 99

Web Managed GbE Switch

Chapter 1 Introduction to the Web Smart Switch

1.1 General Description

High Performance

The device is a powerful, high-performance Gigabit Ethernet switch with 16 10/100/1000 Mbps ports, providing you a cost-effective, space-saving solution for expanding your network. The gigabit ports can lead you to a real gigabit connection, making you be able to transfer high bandwidth-needed files higher and faster in an easy way. This device provides the easy management function through the Ethernet Web. The network administrator can configure the status and the port function setting of the device through the Web-Based UI. When installing the auto-discovery management tool helps network managers to search and access those switches on LAN easily. Therefore, network managers can access switches that support auto-discovery on LAN without memorizing IP address.

Smart Features

The device provides rich features including Link Aggregation, VLANs, IGMP Snooping, Port Trunking, Spanning Tree, Security and other network management to meet the requirements evolving medium and small-sized enterprises. QoS secures the bandwidth for some bandwidth-demanded applications including VoIP or video conference. Additionally, IEEE 802.3az Energy Efficient Ethernet ability is supported to promise operation in Low Power Idle Mode and save power consumption.

Easy Installation and Management

This switch is plug & play and hassle-free in installation. Auto-MDI/MDI-X crossover on all ports eliminates the need for crossover cables for connection to another switch or hub. Auto-Negotiation on each port senses the link speed of a network device and intelligently adjusts for compatibility and optimal performance. This switch also features diagnostic LEDs, which display the status and activities of the network.

Web Managed GbE Switch

LABEL

DESCRIPTON

16 10/100/1000 RJ-45 Ethernet Ports

Connect these ports to a computer, a hub, an Ethernet switch or router

LED

Status

Operation

PWR

Steady Green

The switch is powered on.

Off

The switch is powered off.

SYS

Steady Green

The switch is on and functioning properly.

Blinking Green

The switch is rebooting and performing self-diagnostic tests.

Off

The power is off or the system is not ready/malfunctioning.

Link/ACT

Steady Green

The link to a 1000 Mbps Ethernet network is up.

Blinking Green

The system is transmitting/receiving to/from a 1000 Mbps Ethernet network.

Off

Port disconnected.

1.2 The Front Panel

The following figure shows the front panel of the switch.

The following table describes the port labels on the front panel.

1.3 LEDs Definition

This device provides extensive leds to show the activities on power, system and ports. See the following description for your reference:

The RESET Button

Reset the switch to its factory default configuration via the RESET button. Press the RESET button for three seconds and release. The switch automatically reboots and reloads its factory configuration file. The RESET button is on the front panel of the switch.

1.4 The Rear Panel

The following figure shows the rear panel of the switch:

Web Managed GbE Switch

Power Receptacle To be compatible with the electric service standards around the world, the switch is designed to

afford the power supply in the range from 100 to 240 VAC, 50/60 Hz. Please make sure that your outlet standard to be within this range. To power on the switch, please plug the female end of the power cord firmly into the receptacle of the switch, the other end into an electric service outlet, and use the POWER ON/OFF switch to have

the Switch power on or off. After the switch powered on, please check if the power LED is lit for a

normal power status.

Web Managed GbE Switch

1.5 Installation

This switch can be placed on your desktop directly, or mounted in a rack. Please refer to the instructions for installation.

Before installing the switch, we recommend:

1. The switch is placed with appropriate ventilation environment. A minimum 25 mm space around the unit is recommended.

2. The switch and the relevant components are away from sources of electrical noise such as radios, transmitters and broadband amplifiers

3. The switch is away from environments beyond recommend moisture

Desktop Installation

1. Install the switch on a level surface that can support the weight of the unit and the relevant

components.

2. Plug the switch with the female end of the provided power cord and plug the male end to the

power outlet.

Rack-mount Installation

The switch may be standalone, or mounted in a rack. Rack mounting facilitate to an orderly installation when you are going to install series of networking devices.

Procedures to Rack-mount the switch:

1. Disconnect all the cables from the switch before continuing.

2. Place the unit the right way up on a hard, flat surface with the front facing you.

3. Locate a mounting bracket over the mounting holes on one side of the unit.

4. Insert the screws and fully tighten with a suitable screwdriver.

5. Repeat the two previous steps for the other side of the unit.

6. Insert the unit into the rack and secure with suitable screws.

7. Reconnect all the cables.

Installing Network Cables

1. Crossover or straight-through cable: All the ports on the switch support Auto-MDI/MDI-X

functionality. Both straight-through or crossover cables can be used as the media to connect the switch with PCs as well as other devices like switches, hubs or router.

Web Managed GbE Switch

Media

Speed

Wiring

10/100/1000 Mbps

copper

10 Mbps

Category 3,4,5 UTP/STP

100 Mbps

Category 5 UTP/STP

1000 Mbps

Category 5e, 6 UTP/STP

2. Category 3, 4, 5 or 5e, 6 UTP/STP cable: To make a valid connection and obtain the optimal

performance, an appropriate cable that corresponds to different transmitting/receiving speed is required. To choose a suitable cable, please refer to the following table.

Web Managed GbE Switch

Chapter 2 Basic Web Management Information

2.1 System login

1. Start your web browser.

2. Type “http://”and the IP address of the switch (for example, the default management IP address

is 192.168.1.1) in the Location or Address field. Press [ENTER].

3. The login screen appears. The default username and password are “admin”, so you can click

OK and go to the web configuration screen directly.

2.2 The Graphic User Interface

After the password authorization, the information page shows up. You may click on each folder on the left column of each page to get access to each configuration page. The Graphic User Interface is as follows:

Web Managed GbE Switch

A B C

A –Click the menu items to open submenu links, and then click on a submenu link to open the

screen in the main window. B –It shows the switch’s current link status. Green squares indicate the port link is up, while black

squares indicate the port link is down.

C –Displays system information such as MAC address and firmware version.

Web Managed GbE Switch

Status

Network

Switching

MAC Address Table

Security

QoS

Management

Diagnostics

Maintenance

LINKS

DESCRIPTION

Status

System Information

This link takes you to a screen that displays general system information.

Logging Message

This sub-menu takes you to screens where you can view and setup system logs.

Port

This link takes you to a screen where you can configure the port information.

Link Aggregation

This link takes you to a screen where you review the LAG Status and the LACP Information.

In the navigation panel, click a main link to reveal a list of submenu links shown as the following:

The following table describes the links in the navigation panel.

Web Managed GbE Switch

LLDP Statistics

This link takes you to view the summary and per-port information for LLDP frames transmitted and received on the switch.

IGMP Snooping Statistics

This link takes you to see the statistics information of IGMP.

Network

IP Address

This link takes you to a screen where you can configure the IP information.

IPv6 Address

This link takes you to a screen where you can configure the IPv6 information.

Management VLAN

This link takes you to view the entry of a VLAN from which a management station will be allowed to manage the device using TCP/IP (in-band via web manager or Telnet).

Time Settings

This link takes you to a screen where you can configure the switch’s time settings.

Switching

Port Setting

This link takes you to a screen where you can configure settings for individual switch ports.

Mirror

This sub-menu takes you to screens where you can copy traffic from one port or ports to another port in order that you can examine the traffic from the first port without interference.

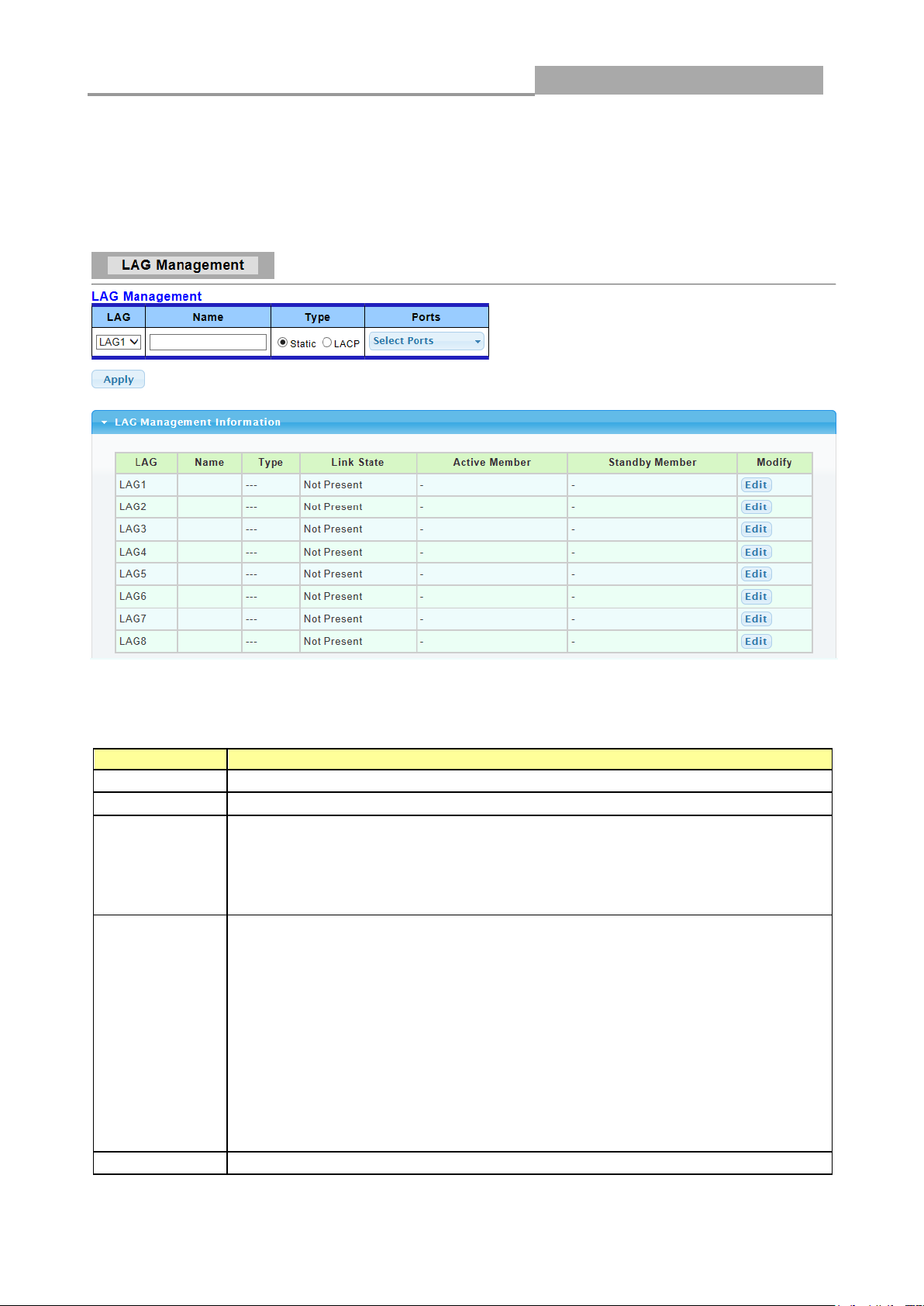

Link Aggregation

This link takes you to a screen where you can configure the trunk settings on a port.

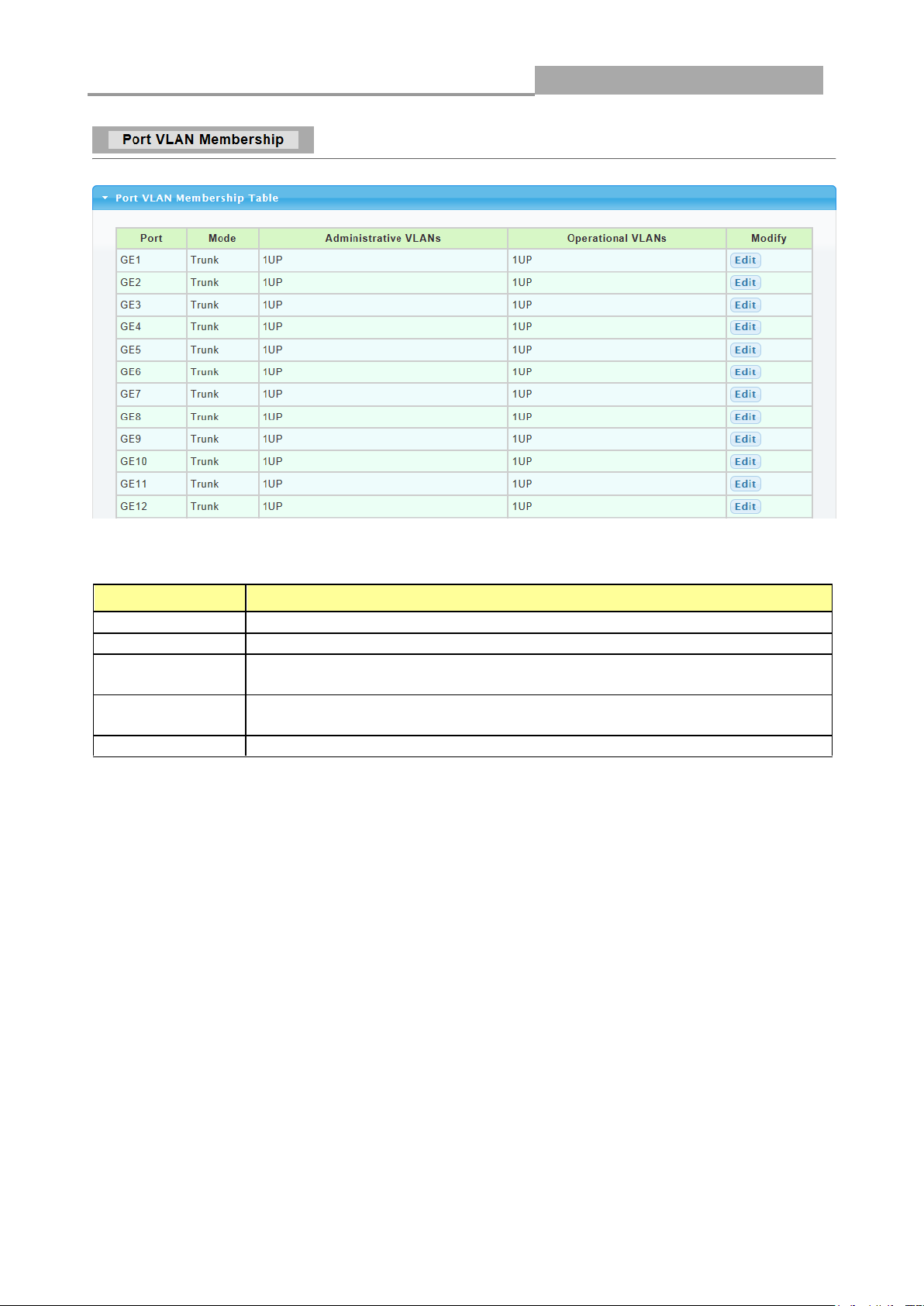

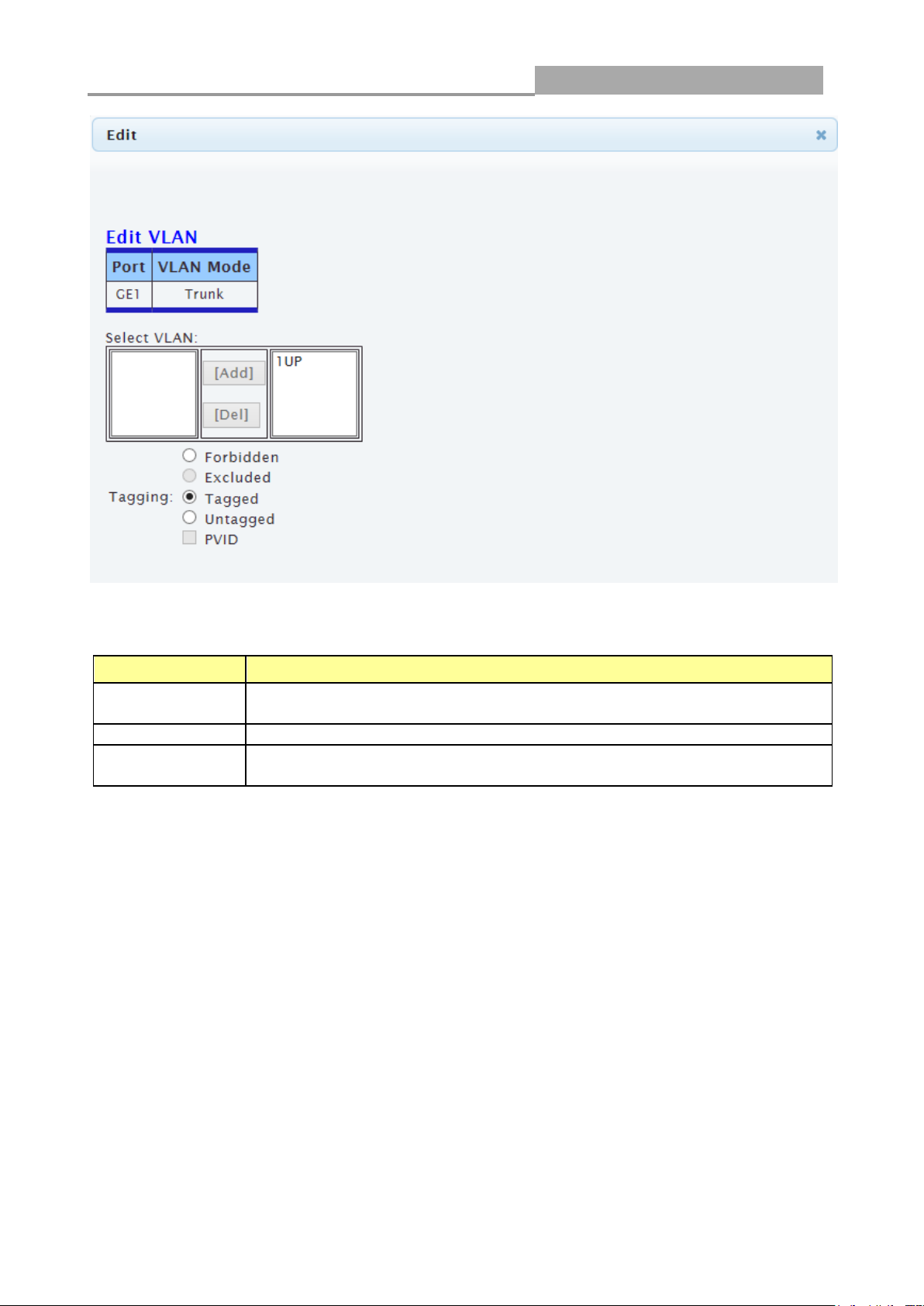

VLAN Management

This link takes you to a screen where you can configure the VLAN (IEEE 802.1Q) settings on a port.

EEE

This link takes you to enable or disable port EEE(Energy Efficient Ethernet) function.

Multicast

This link takes you to set multicast filtering and unknown multicast action.

Jumbo Frame

This link takes you to a screen where you can configure the Jumbo Frame size.

STP

This sub-menu takes you to screens where you can configure the STP to prevent network loops.

MAC Address Table

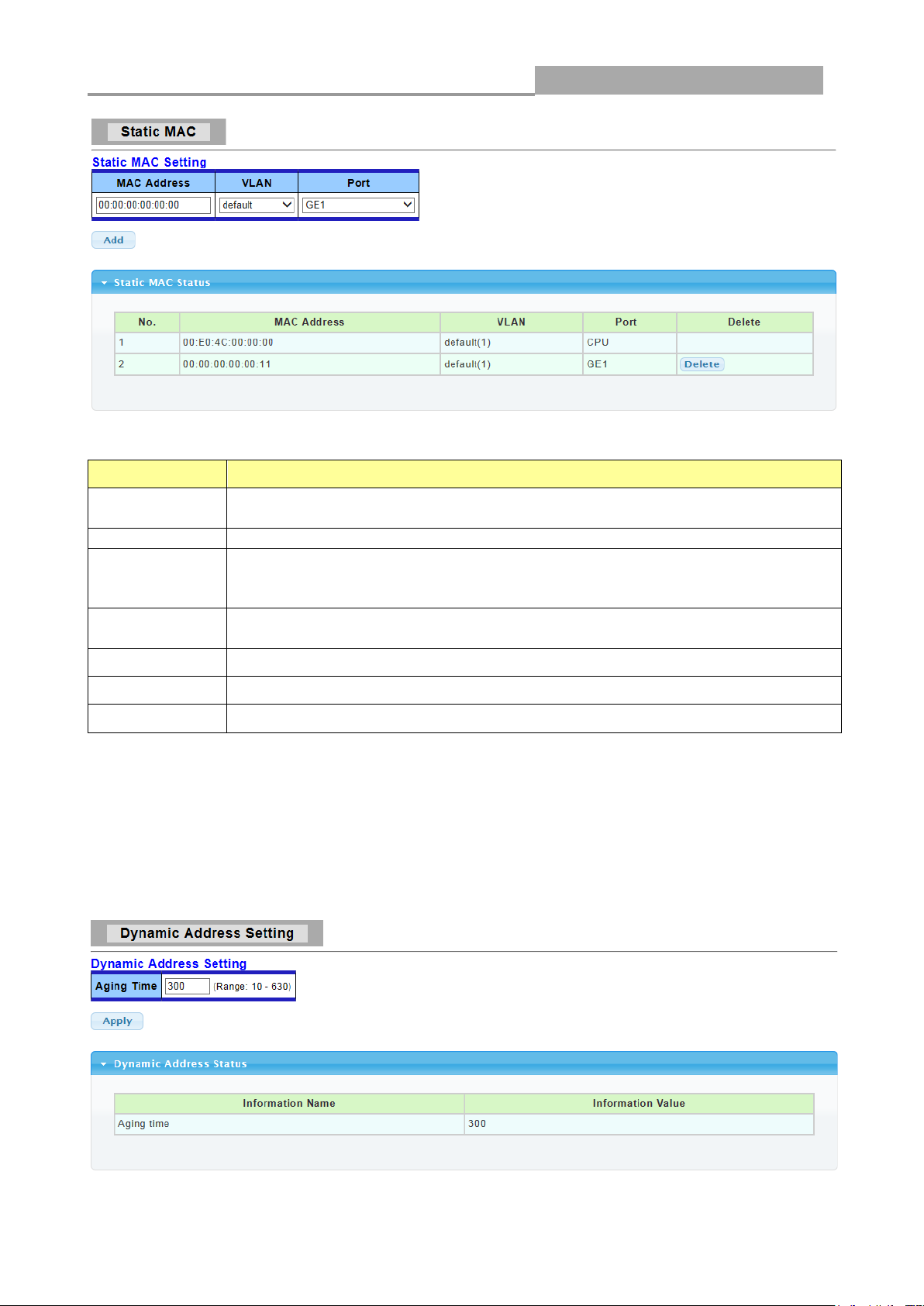

Static MAC Setting

This link takes you to display and configure the Static MAC settings.

Dynamic Address Setting

This link takes you to configure the Dynamic Address settings.

Dynamic Learned

This link takes you to a screen where you can to view the Dynamic Address settings information.

Security

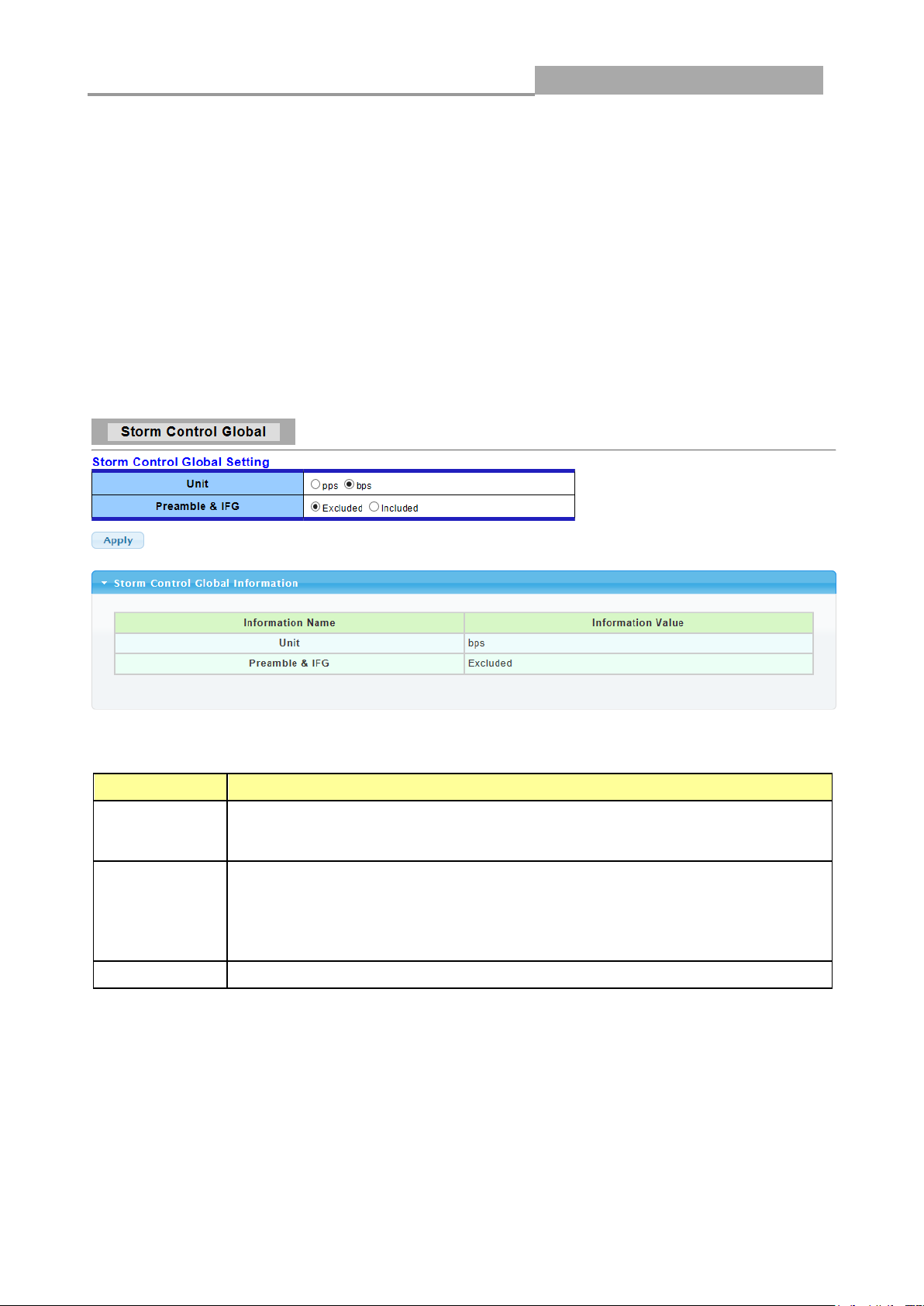

Storm Control

This link takes you to a screen where you can limit the number of broadcast, multicast and unknown unicast and multicast packets the Switch receives per second on the ports.

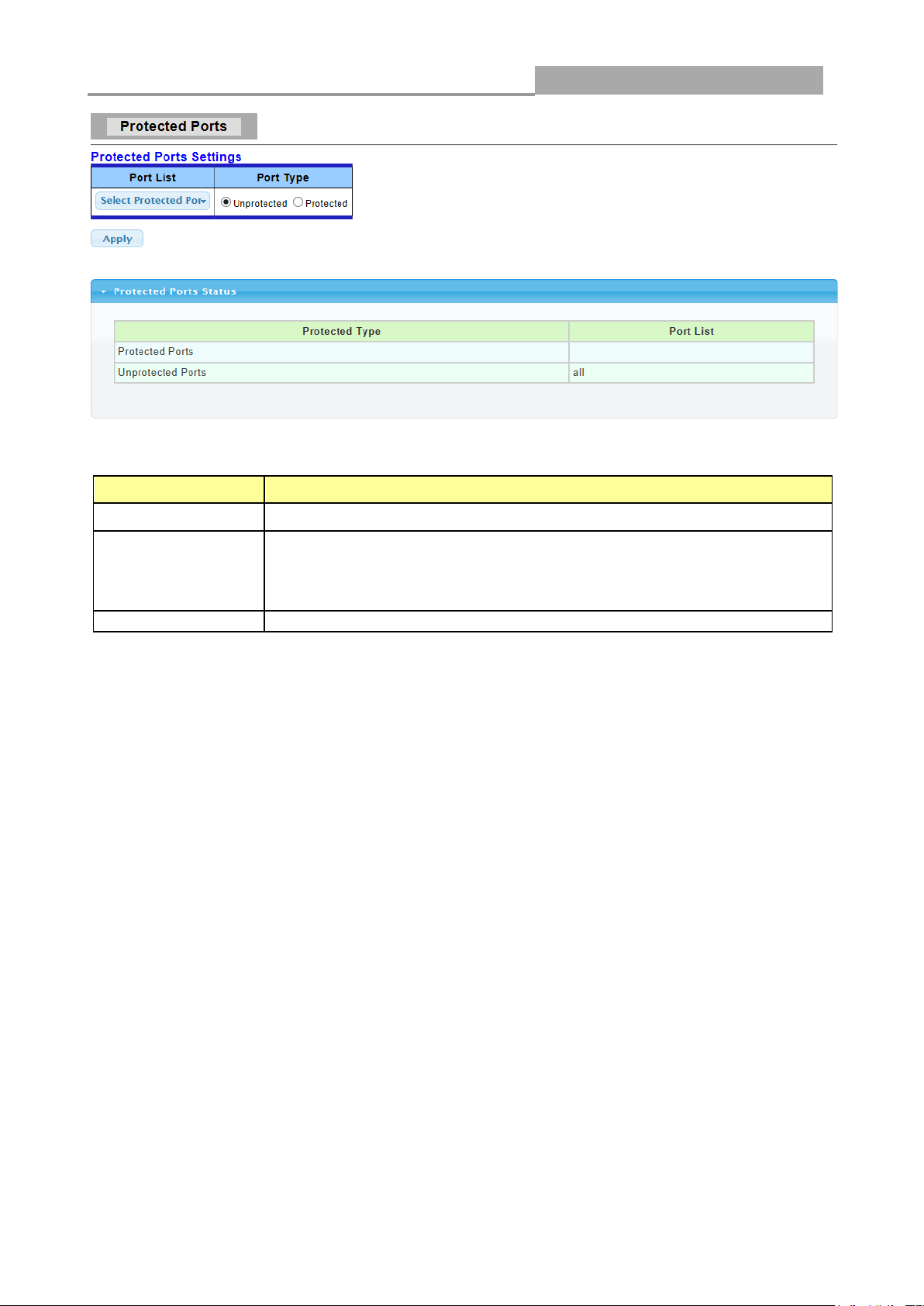

Protected Ports

This link takes you to a screen to setting and revising the protected ports.

Web Managed GbE Switch

DoS

This link takes you to configure DoS setting to enable/disable DoS function and all others related in the sub-menu.

Access

This link takes you a way to access the switch.

QoS

General

This link takes you to a screen where you can configure QoS through the sub-menu, including QoS Priorities, Port Settings, Queue Settings, CoS Mapping, DSCP Mapping, and IP Precedence Mapping.

QoS Basic Mode

This link takes you to a screen where you can configure the QoS Basic Mode through the sub-menu, including the Global Settings and the Port Settings.

Rate Limit

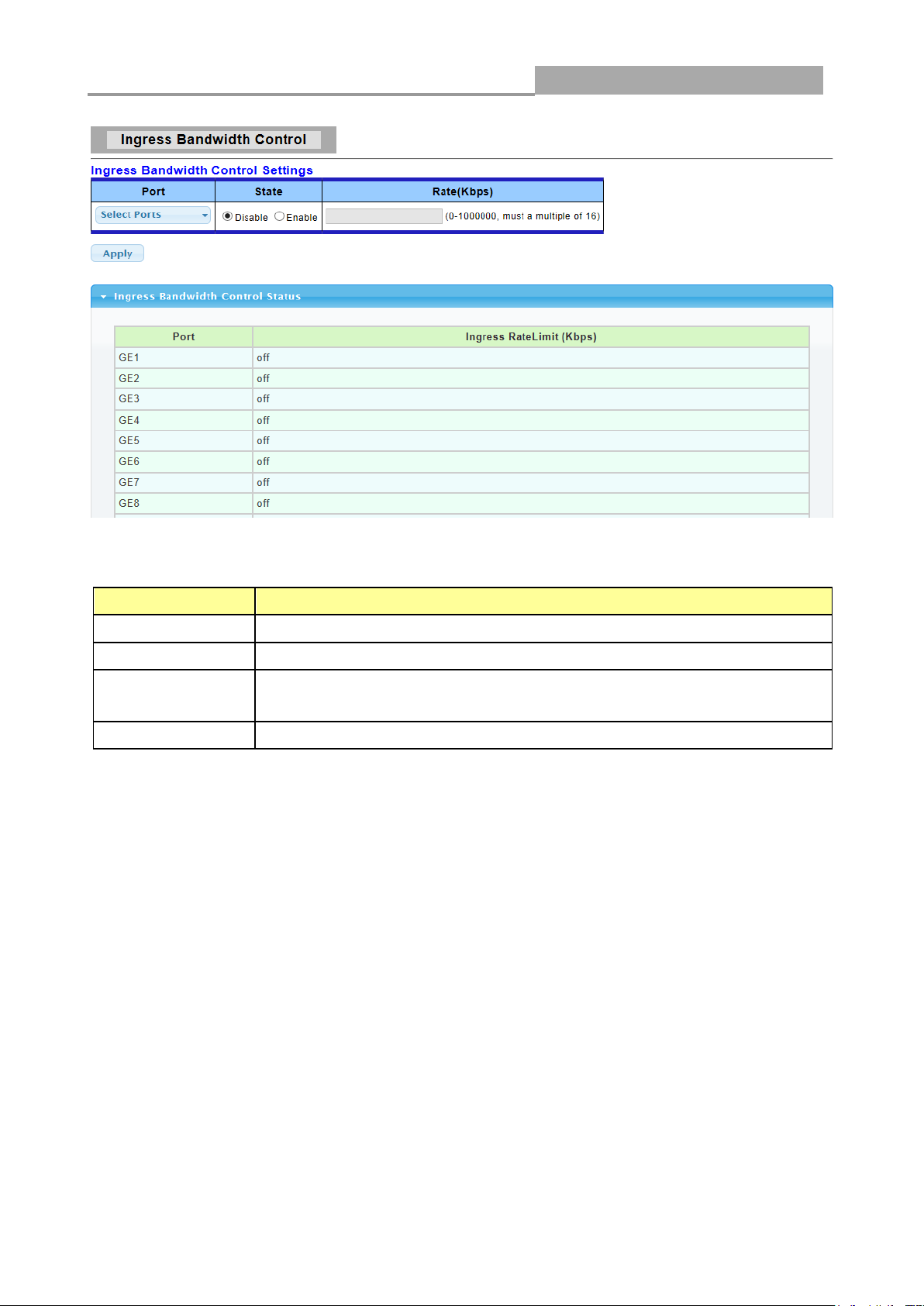

This link takes you to a screen where you can configure the QoS Rate Limit through the sub-menu, including Ingress Bandwidth Control, Egress Bandwidth Control, and Egress Queue.

Management

LLDP

This link takes you to a screen where you can set and revise the LLDP.

SNMP

This link takes you to a screen where you can set and revise the SNMP.

Diagnostics

Cable Diagnostics

This link takes you to a screen where you can do Copper test on each port.

Ping Test

This link takes you to a screen where you can do Ping test.

Ping6 Test

This link takes you to a screen where you can do Ping6 test.

Logging Setting

This link takes you to a screen where you can configure log settings.

Factory Default

This link takes you back to the factory default configuration.

Reboot Switch

This link takes you to a screen where you can reboot the switch.

Maintenance

Backup Manager

This link takes you to a screen where you can backup the settings you have made.

Upgrade Manager

This link takes you to a screen where you can upgrade the switch settings.

Configuration Manager

This link takes you to a screen where you can save all the configurations you have made to the switch.

Account Manager

This link takes you to a screen where you can change the web configuration login account.

Web Managed GbE Switch

LABEL

DESCRIPTION

Source File

Select upgrade method

 Running configuration: Running configuration file  Startup configuration: Startup configuration file

Destination File

Select Upgrade Type  Startup Configuration: Startup configuration file

2.3 SAVE LOGOUT REBOOT

2.3.1 SAVE

2.3.1.1Saving running configurations

Click SAVE-> Save Configuration to FLASH to view the screen as shown next. This page allow user to copy running configuration, startup configuration or backup configuration to startup configuration or backup configuration.

Configuration Manager Page

Configuration Manager Fields

2.3.2 LOGOUT

Click Logout to exit the web configurator. You have to log in with your password again after you log out, if there is any. This is recommended after you finish a management session for security reasons.

Web Managed GbE Switch

2.3.3 REBOOT

Reboot allows you to restart the switch without physically turning the power off.

Follow the steps below to reboot the switch.

1. Click REBOOT to view the screen as shown next.

2. Click Reboot button, then the following interface pops up.

3. When it finished, the switch has been restarted.

Web Managed GbE Switch

LABEL

DESCRIPTION

System Name

System name of the switch. This name will also use as CLI prefix of each line. (“Switch>” or “Switch#”)

System Location

System location of the switch.

System Contact

System contact of the switch.

Chapter 3 Web Management Configuration

3.1 Status

Use the Status pages to view system information and status.

3.1.1 System Information

In the navigation panel, click Status > System Information to display the screen as shown below. This page allow user to configure and browse some system information such as MAC address, IP address, loader version and firmware version and so on.

With “Edit”button in the table，user could configure the field value.

3.1.2 Logging Message

Use this screen to display the switch logs. Click Status > Logging Message in the navigation panel to display the screen as shown below.

Web Managed GbE Switch

LABEL

DESCRIPTION

Target

Select the log message source to show on the table

 Buffered: Logs store in the device buffer.

 FLASH: Logs store in the device flash.

Severity

Select severity to filter log messages.

Category

Select category to filter log messages.

The following table describes the labels in this screen.

3.1.3 Port

The Port configuration page displays port summary and status information.

3.1.3.1 Port Counters

Use this screen to display the Switch port statistics. Click Status->Port > Port Counters to view the screen as shown next.

Web Managed GbE Switch

LABEL

DESCRIPTION

Port

This identifies the Ethernet port.

The following table describes the labels in this screen.

3.1.3.2 Bandwidth Utilization

The following table describes the labels in this screen.

Web Managed GbE Switch

LABEL

DESCRIPTION

Refresh Period

Refresh the web page every period of seconds

IFG

Inter frame gap in bandwidth calculation

 Enable: Add inter frame gap to bandwidth calculation  Disable: Remove inter frame gap to bandwidth

calculation

LABEL

DESCRIPTION

LAG

LAG Name

Name

LAG port description

Type

The type of the LAG  Static: The groups of ports assigned to a static LAG are always active

members.

 LACP: The groups of ports assigned to dynamic LAG are candidate

ports. LACP determines which candidate ports are active member ports.

Link State

LAG port link status

Active Member

Active member ports of the LAG

Standby Member

Inactive or candidate member ports of the LAG

3.1.4 Link Aggregation

Click Status > Link Aggregation in the navigation panel to view the screen as shown below.

The following table describes the labels in this screen. LAG Status Field:

Web Managed GbE Switch

LABEL

DESCRIPTION

LAG

LAG Name

Port

Member port name.

PartnerSysId

The system ID of link partner. This field would be updated when the port receives LACP PDU from link partner.

PnKey

Port key of partner. This field would be updated when the port receives LACP PDU from link partner.

AtKey

Port key of actor. The key is designed to be the same as trunk ID.

Sel

LACP selection logic status of the port. “S” means selected, “U” means unselected, and “D” means standby.

Mux

LACP mux state machine status of the port. “DETACH” means the port is in detach state, “WAIT” means waiting state, “ATTACH” means attach state, “CLLCT”

Receiv

LACP receive state machine status of the port. “INIT” means the port is in initialize state, “PORTds” means port disabled state, “EXPR” means expired state, “LACPds” means LACP disabled state, “DFLT” means defaulted state, “CRRNT” means current state.

PrdTx

LACP periodic transmission state machine status of the port. “no PRD” means the port is in no periodic state, “FstPRD” means fast periodic state, “SlwPRD” means slow periodic state, “PrdTX” means periodic TX state.

AtState

The actor state field of LACP PDU description. The field from left to right

describes: “LACP_Activity”, “LACP_Timeout”, “Aggregation”, “Synchronization”, “Collecting”, “Distributing”, “Defaulted”, and “Expired”. The

contents could be true or false. If the contents are false, the web shows “_”; if the contents are true, the web shows “A”, “T”, “G”, “S”, “C”, “D”, “F” and “E” for each content respectively.

PnState

The partner state field of LACP PDU description. The field from left to right

describes: “LACP_Activity”, “LACP_Timeout”, “Aggregation”, “Synchronization”, “Collecting”, “Distributing”, “Defaulted”, and “Expired”. The

LACP Status Field:

3.1.5 LLCP Statistics

Click Status > LLDP Statistics. The Link Layer Discovery Protocol (LLDP) Statistics page displays summary and per-port information for LLDP frames transmitted and received on the switch.

Web Managed GbE Switch

LABEL

DESCRIPTION

Insertions

The number of times the complete set of information advertised by a particular MAC Service Access Point (MSAP) has been inserted into tables associated with the remote systems.

Deletions

The number of times the complete set of information advertised by MSAP has been deleted from tables associated with the remote systems.

Drops

The number of times the complete set of information advertised by MSAP could not be entered into tables associated with the remote systems because of insufficient resources.

Age Outs

The number of times the complete set of information advertised by MSAP has been deleted from tables associated with the remote systems because the information timeliness interval has expired.

Port

Interface or port number.

TX Frames Total

Number of LLDP frames transmitted on the corresponding port.

RX Frames Total

Number of LLDP frames received by this LLDP agent on the corresponding port, while the LLDP agent is enabled.

RX Frames Discarded

Number of LLDP frames discarded for any reason by the LLDP agent on the corresponding port.

RX Frames Errors

Number of invalid LLDP frames received by the LLDP agent on the corresponding port, while the LLDP agent is enabled.

RX TLVs Discarded

Number of TLVs of LLDP frames discarded for any reason by the LLDP agent on the corresponding port.

RX TLVs Unrecognized

Number of TLVs of LLDP frames that are unrecognized while the LLDP agent is enabled

RX Ageouts Total

Number of age out LLDP frames.

The following table describes the labels in this screen.

Web Managed GbE Switch

LABEL

DESCRIPTION

Total RX

This field displays the total amount of RX

Valid RX

This field displays the total amount of valid RX.

Invalid RX

This field displays the total amount of invalid RX.

Other RX

This field displays the total amount of other RX.

Leave RX

This field displays the total amount of leave RX.

Report RX

This field displays the total amount of report RX.

General Query RX

This field displays the total amount of general query RX.

Special Group Query RX

This field displays the total amount of Special Group query RX.

Special Group & Source Query RX

This field displays the total amount of Special Group & Source query RX.

Leave TX

This field displays the total amount of leave TX.

Report TX

This field displays the total amount of report TX.

General Query TX

This field displays the total amount of general query TX.

Special Group Query TX

This field displays the total amount of Special Group query TX.

Special Group & Source Query TX

This field displays the total amount of Special Group & Source query TX.

3.1.6 IGMP Snooping Statistics

Click Status > IGMP Snooping Statistics in the navigation panel to view the screen as shown below.

The following table describes the labels in this screen.

Web Managed GbE Switch

LABEL

DESCRIPTION

Mode

Select the mode of network connection

 Static: Enable static IP address.  DHCP: Enable DHCP to obtain IP information from a DHCP server on the

network.

3.2 Network

Use the Network pages to configure settings for the switch network interface and how the switch connects to a remote server to get services.

3.2.1 IP Address

Use the IP Setting screen to configure the switch IP address and the default gateway device. The gateway field specifies the IP address of the gateway (next hop) for outgoing traffic. The switch needs an IP address for it to be managed over the network. The factory default IP address is 192.168.1.1. The subnet mask specifies the network number portion of an IP address. The factory default subnet mask is 255.255.255.0.

Click Network > IP Address in the navigation panel to display the screen as shown below.

The following table describes the labels in this screen.

Web Managed GbE Switch

IP Address

Enter the IP address of your switch in dotted decimal notation for example

192.168.1.1. If static mode is enabled, enter IP address in this field.

Subnet Mask

Enter the IP subnet mask of your switch in dotted decimal notation for example 255.255.255.0. If static mode is enabled, enter subnet mask in this field.

Gateway

Enter the IP address of the gateway in dotted decimal notation. If static mode is enabled, enter gateway address in this field.

DNS Server 1

If static mode is enabled, enter primary DNS server address in this field.

DNS Server 2

If static mode is enabled, enter secondary DNS server address in this field.

Apply

Click Apply to save your changes to the switch.

LABEL

DESCRIPTION

Auto Configuration

Select Enable or Disable this function. IPv6 Address

Enter the IPv6 address of your switch. If auto configuration mode is disabled, enter IPv6 address in this field.

Gateway

Enter the IP address of the gateway in dotted decimal notation. If auto configuration mode is disabled, enter IPv6 gateway address in this field.

DHCPv6

DHCPv6 client state.

3.2.2 IPv6 Address

Click Network> IPv6 Address in the navigation panel to display the screen as shown below.

The following table describes the labels in this screen.

IPv6 Information Filed:

Web Managed GbE Switch

Client

 Enable: Enable DHCPv6 client function.  Disable: Disable DHCPv6 client function

Apply

Click Apply to save your changes to the switch.

LABEL

DESCRIPTION

Auto Configuration

It displays whether the auto configuration function is opened or not.

IPv6 In Use Address

It displays the in use address information of IPv6.

IPv6 In Use Router

It displays the in use router information of IPv6.

IPv6 Static Address

It displays the static address of IPv6.

IPv6 Static router

It displays the static router of IPv6.

DHCPv6 Client

It displays the DHCPv6 Client Status.

LABEL

DESCRIPTION

Management VLAN

This allows the entry of a VLAN from which a management station will be allowed to manage the device using TCP/IP (in-band via web manager or Telnet). Management stations that are on VLANs other than the one selected here will not be able to manage the Switch. The default management VLAN is VLAN 1.

IPv6 Address Setting Filed:

3.2.3 Management VLAN

Click Network> Management VLAN in the navigation panel to display the screen as shown below.

The following table describes the labels in this screen.

3.2.4 Time Settings

Web Managed GbE Switch

LABEL

DESCRIPTION

Enable SNTP

Select the radio button to enable or disable using SNTP server.

Manual Time

Specify static time.

Time Zone

Select a time zone

Daylight Saving Time

Select the mode of daylight saving time.

 Disable: Disable daylight saving time.  Recurring: Using recurring mode of daylight saving time.  Non-Recurring: Using non-recurring mode of daylight saving time.  USA: Using daylight saving time in the United States that starts on the

second Sunday of March and ends on the first Sunday of November

 European: Using daylight saving time in the Europe that starts on the

last Sunday

Daylight Saving Time Offset

Specify the adjust offset of daylight saving time.

Recurring From

Specify the starting time of recurring daylight saving time. This field available when selecting “Recurring” mode.

Recurring To

Specify the ending time of recurring daylight saving time. This field available when selecting “Recurring” mode.

Click Network> Time Settings in the navigation panel to display the screen as shown below.

The following table describes the labels in this screen.

Web Managed GbE Switch

Non-recurring From

Specify the starting time of non-recurring daylight saving time. This field available when selecting “Non-Recurring” mode.

Non recurring To

Specify the ending time of recurring daylight saving time. This field available when selecting “Non-Recurring” mode.

Apply

Click Apply to save your changes to the switch.

LABEL

DESCRIPTION

SNTP/NTP Server Address

Input IP address or hostname of time server.

Server port

Input time server port number. Default is 123.

3.2.5 SNTP Settings

Click Network> Time Settings in the navigation panel to display the screen as shown below.

The following table describes the labels in this screen.

3.3 Switching

Use the Switching pages to configure settings for the switch ports, trunk, Layer 2 protocols and other switch features.

3.3.1 Port Setting

This page allow user to configure switch port settings and show port current status. Click Switching > Port Setting in the navigation panel to display the screen as shown below.

Web Managed GbE Switch

LABEL

DESCRIPTION

Port Select

Select the port(s) from the list box that you will change the port settings for.

Enabled

Select Enable from the drop-down box to enable a port. The factory default for all ports is enabled. A port must be enabled for data transmission to occur. Select Disable to not use a port.

Speed

Port speed capabilities:

 Auto: Auto speed with all capabilities.  Auto-10M: Auto speed with 10M ability only.  Auto-100M: Auto speed with 100M ability only.  Auto-1000M: Auto speed with 1000M ability only.  Auto-10/100M: Auto speed with 10/100M ability.  10M: Force speed with 10M ability.  100M: Force speed with 100M ability.  1000M: Force speed with 1000M ability.

Selecting Auto (auto-negotiation) allows one port to negotiate with a peer port automatically to obtain the connection speed and duplex mode that both ends support. When auto-negotiation is turned on, a port on the switch negotiates with the peer automatically to determine the connection speed and duplex mode. If the peer port does not support auto-negotiation or turns off this feature, the switch determines the connection speed by detecting the signal on the cable and using half duplex mode. When the switch’s auto-negotiation is turned off, a port uses the pre-configured speed and duplex mode when making a connection, thus requiring you to make sure that the settings of the peer port are the same in order to connect.

Duplex

Port duplex capabilities:

 Auto: Auto duplex with all capabilities.  Half: Auto speed with 10/100M ability only.  Full: Auto speed with 10/100/1000M ability only.

The following table describes the labels in this screen.

Web Managed GbE Switch

Flow Control

A concentration of traffic on a port decreases port bandwidth and overflows buffer memory causing packet discards and frame losses. Flow Control is used to regulate transmission of signals to match the bandwidth of the receiving port. The switch uses IEEE802.3x flow control in full duplex mode and backpressure flow control in half duplex mode. IEEE802.3x flow control is used in full duplex mode to send a pause signal to the sending port, causing it to temporarily stop sending signals when the receiving port memory buffers fill. Back Pressure flow control is typically used in half duplex mode to send a "collision" signal to the sending port (mimicking a state of packet collision) causing the sending port to temporarily stop sending signals and resend later. Select “Enabled” to enable it. Or select “Disabled” to disable it.

Apply

Click Apply to save your changes to the switch.

Flow Control Config

The Config column displays if Flow Control has been configured to be turned On or Off for the port.

Flow Control Status

The column displays the port’s current Flow Control status.

3.3.2 Port Mirroring

The Mirror function copies all the packets that are transmitted by the source port to the destination port. It allows administrators to analyze and monitor the traffic of the monitored ports.

The Mirror Configuration steps are as follows: Click Switching > Mirror > Local Mirror Setting in the navigation panel to display the screen as shown below.

+ 70 hidden pages
