Unpacking Information
Thank you for purchasing the 24+2G Giga bit Ether net Web Smart Switc h. Befor e
you start, please check all the contents of this package.
The product package should include the following:
1. One 24+2G Gigabit Ethernet Web Smart Switch
2. One power cord
3. Rubber foot and screws
4. Rack-mount brackets
5. One RS-232 Cable (Optional)
6. One CD_ROM for user’s manual
7. One quick installation guide
1
Page 4
1. Introduction to 24+2G Gigabit Ethernet Web Smart Switch
1.1 General Description
The device is a 24+2G 10/100Mbps Ethernet Web Smart Switch.
The device is a powerful, high-performance Gigabit Ethernet switch, which
provides smart and efficient management functions and support 26 ports
connection with 24 ports of 10/100Mbps and 2 ports 10/100/1000Mbps with
Full/Half duplex capability. The NWay auto-negotiation operation automatically
negotiates with the connected part ners on the network speed and du plex mode;
that provides an easy way to integrate 10/100Mbps networ ks with no pain. It is
ideal for micro-segmenting large networks into smaller, connected subnets for
improved performance, enabling the bandwidth demanding multimedia and
imaging applications.
Out of the ordinary dumb switches, the 24+2G Gigabit Ethernet Web Smart
Switch embedded advanced management capability; that the device can be
managed through console port or web-based UI. This is much useful for system
manager to monitor and control the system efficiently.
Store-and-forward switching mode promises the lo w latency plus eliminates all
the network errors, including runt and CRC error packets. To work under
full-duplex mode, transmission and reception of the frames can occur
simultaneously without causing collisions as well as double the network
bandwidth.
The switch is plug-n-play without any software to configure and also fully
compliant with all kinds of network protocols. Moreover, the rich diagnostic LEDs
on the front-panel provide the operating status of individual port and whole
system.
2
Page 5
1.2 Key Features
24 fixed 10/100Mbps Fast Ethernet ports for easy network connecting
application.
Support 2 fixed 10/100/1000Mbps Gigabit ports
Provide Auto-discovery Function for easy Network management.
Provide 8K MAC address entries and 26 groups VLAN table
Support Port aggregation.
Supports 3 types of QoS priority for port base, 802.1p & TCP/IP
TOS/DiffServ(DS) priority field
Support full duplex flow control and half duplex back pressure
Store-and-forward forwarding scheme
Error packet filtering
Supports 320K bytes buffer Memory
Support local Console port or Web-based UI for configuration
Internal switching power supply (100-240Vac/50-60Hz)
1.3 The Front Panel
The front panel of the switch is shown as below
Port Operation
There are 24 * 100Mbps and 2 * 100 0Mbps RJ-45 (copper) ports on the front
panel. The auto-negotiation feature of the switch allows each port of the device
running at one of the following operation modes:
Speed Duplex Mode
All ports supports MDI/MDI-X
connect either the PC or hub without crossover cable adjustment.
10Mbps
100Mbps
1000Mbps
Full Duplex
Half Duplex
Full Duplex
Half Duplex
Full Duplex
auto crossover
capability that is the port can
3
Page 6
Wiring for 10/100/1000Mbps (Copper)
Following are the summaries of cabling required:
Media Speed Wiring
10Mbps
Category 3,4,5 UTP/STP
10/100/1000Mbps copper
100Mbps
1000Mbps
Category 5 UTP/STP
Category 5,5e UTP/STP
LED Definition
The rich diagnostic LEDs on the front panel can provide the operating status of
individual port and whole system.
Power LED
This indicator lights green when the switch is receiving power; otherwise, it is off.
Port LEDs
Every 100Mbps RJ-45 port on the front panel relevant o ne LED for indicating t he
data transmit & receive status. And two 1000Mbps RJ-45 ports support four
LEDs to indicating the connection speed & data activity status.
Port LED summary table
10/100M
10/100M
10/100/1000M
If the port is connected but the Port LED is dark, check the following items:
The switch and the connected device’s power are on or not.
The connecting cable is good and with correct type
The cable is firmly seated in its connectors in the switch and in the
associated device
LED Status Statement
Steady green
Blinking green
Connected as 10/100Mbps
The port is transmitting/receiving data
LEDs Status Statement
1000M Steady green Connected as 1000Mbps
100M Steady green Connected as 100Mbps
10M Steady green Connected as 10Mbps
ACT Blinking green
The port is transmitting/receiving data
4
Page 7
1.4 The Rear Panel
The rear panel of the switch is shown as below
5
Page 8
2. Installing 24+2G Gigabit Ethernet Web Smart Switch
This switch can be placed directly on your des ktop, or mounted in a rack. Users
can immediately use most of the features simply by attaching the cables and
turning the power on.
2.1 Desktop Installation
For desktop installation, the switch needs to put on a clean, flat desk or table
close to a power outlet. Plug in all network cables and the pow er cord, then the
system is ready.
Before installing the switch, you must ensure:
1. It is accessible and cables can be connected easily
2. Cabling is away from:
＊Sources of electrical noise such as radios, transmitters and broadband
amplifiers
＊Power lines and fluorescent lighting fixtures.
3. Keep water or moisture off
4. Airflow around the unit and through the vents in the si de of the c ase is gr eat
for heat radiation (company recommend that you provide a minimum of 25
mm clearance)
To prolong the operational life of your units:
1. Never stack unit more than eight sets high if freestanding
2. Do not place objects on top of any unit or stack
3. Do not obstruct any vents at the sides of the case
2.2 Rack-mount Installation
The switch may standalone, or may be mounted in a standard 19-inch eq uipment
rack. Rack mounting produces an orderly installation when you have a number of
related network devices. The switch is supplied w ith rack mounting brackets and
screws. These are used for rack mounting the unit.
Rack Mounting the Switch in the 19-inch rack:
1. Disconnect all cables from the switch before continuing.
2. Place the unit the right way up on a hard, flat surface with the front faci ng
toward you.
3. Locate a mounting bracket over the mounting holes on one side of the unit.
4. Insert the screws and fully tighten with a suitable screwdriver.
6
Page 9
5. Repeat the two previous steps for the other side of the unit.
6. Insert the unit into the 19" rack and secure with suitable screws (not
provided).
7. Reconnect all cables.
2.3 Installing Network Cables
Station Connections
Reference to the wiring statement of th e previous section; connect eac h station to
the switch with correct type of cables.
Switch-to-Switch Connections
In making a switch-to-switch connection, use every port to connect another switch
or backbone is strongly recommended. Th e Gigabit Ethernet ports provide the fat
pipe to the server or backbone connectivity for boosting the total system
performance. Reference to the wiring statement of the pr evious section; connect
each station to the switch with correct type of cables.

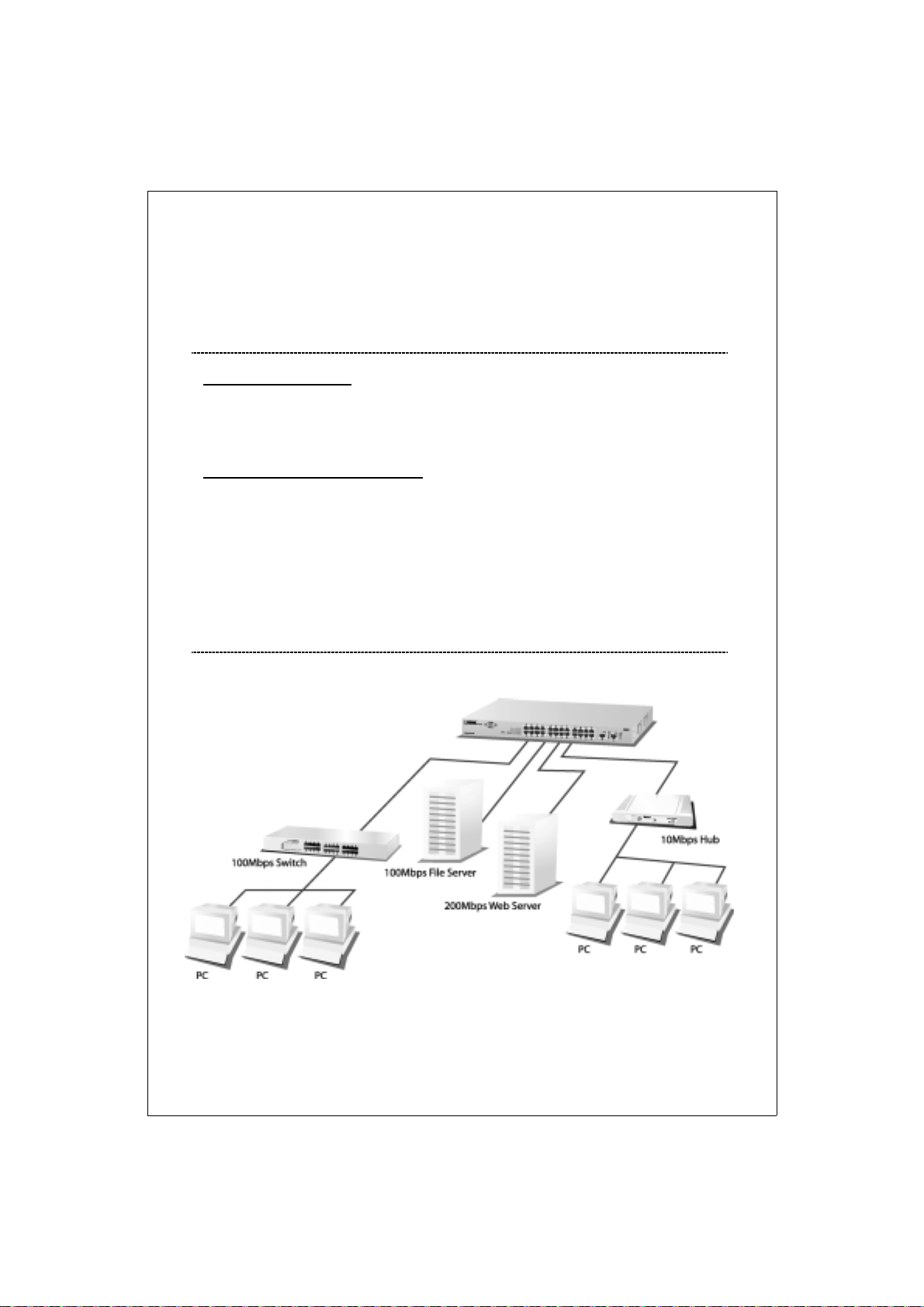

2.4 Network Application
7
Page 10
3. Management guide
This section instructs you how to enter and set up the configur ations, which can be
accessed by RS-232 serial port (out-of-band) on the rear panel or by Telnet session /
Internet Browser over the network (in-band).
.
Factory Default value:
IP
192.168.1.1
：
Subnet Mask
Default Gateway
3.1 Access the Switch
255.255.255.0
：
192.168.1.254
：
Console Port (Out-of-band) connection
The operating mode of the console port is:
DCE
9600 (Fix baud rate)
n (No parity checking)
8 (8 Data bits)
1 (1 stop bit)
None (No flow control)
After attaching a RS-232 cable (Straight-through) to the serial port of a PC
running a terminal emulation program, press “Enter” key then login screen
appears. Enter your username and password to login the management console.
Note：
The management functions of console program are exactly the same with
web-based management interface but in text mode.
Attention： 1. The factory default value of UserName and Password is
“admin”
2. System configurations via the Console Port only will be allowed
by the way of master device
8
Page 11
In-Band Connections (Web Browser / Telnet)
To manage the switch through in-band access, you should configure the
management station with an IP address and subnet mask compatible with your
switch.
1. Running your Web Browser and enter the IP address “192.168.1.1” as the URL in
the “address” field.
2. Key in the User name and password to pass the authentication. The factory
default value of User Name and Password is “admin”.
3. After authentication procedure, the home page shows up.
9
Page 12

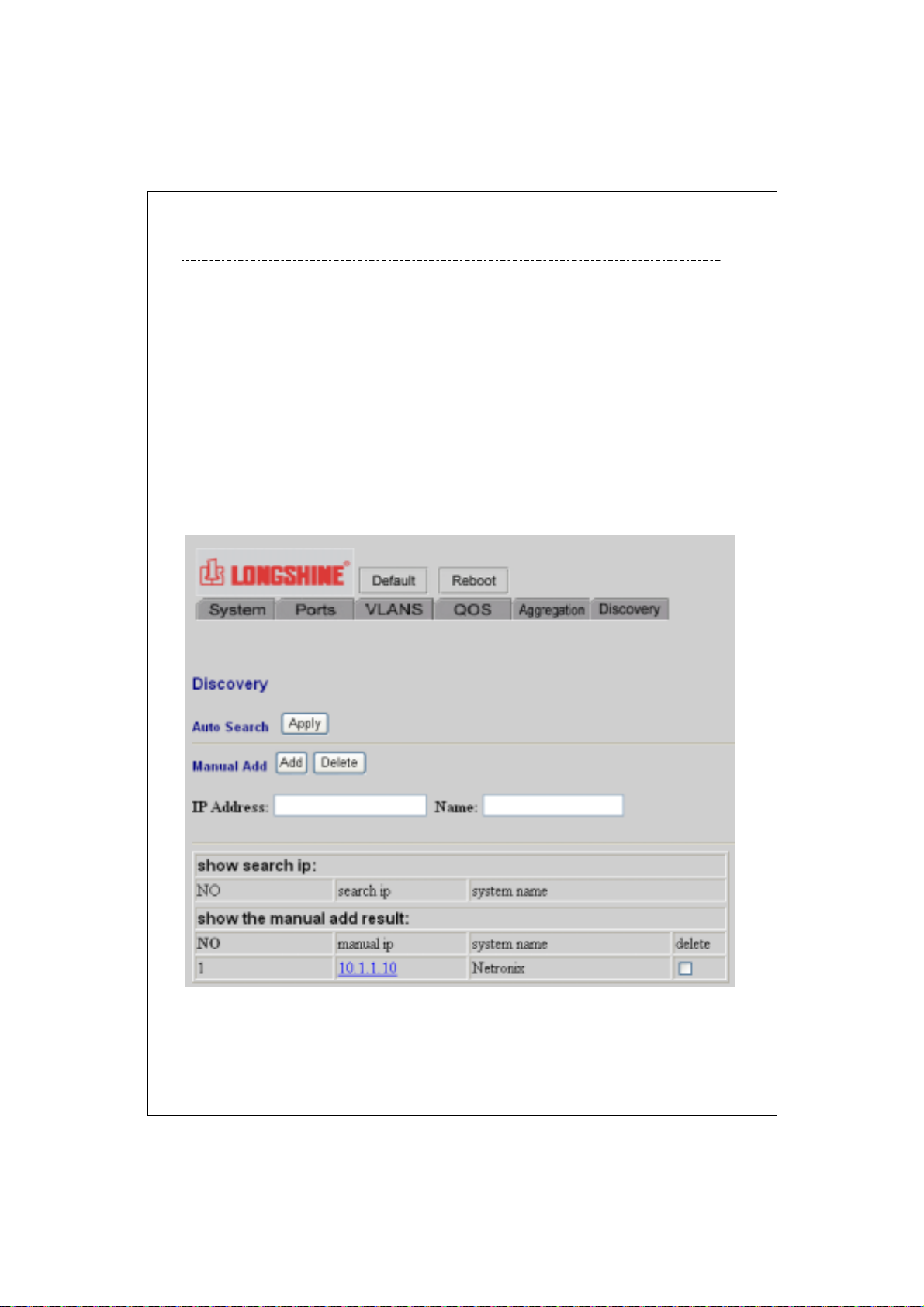

3.2 Home Page
On the Home page, you can select the configuration by clicki ng the menu tabs
located on the upside of the UI.
It includes,
System
Ports
VLANS
QoS
Aggregation
Discovery
To restore the default Values of switch, Click the “Default” Button. If you want to
reboot the switch, click the “Reboot” Button.
10
Page 13

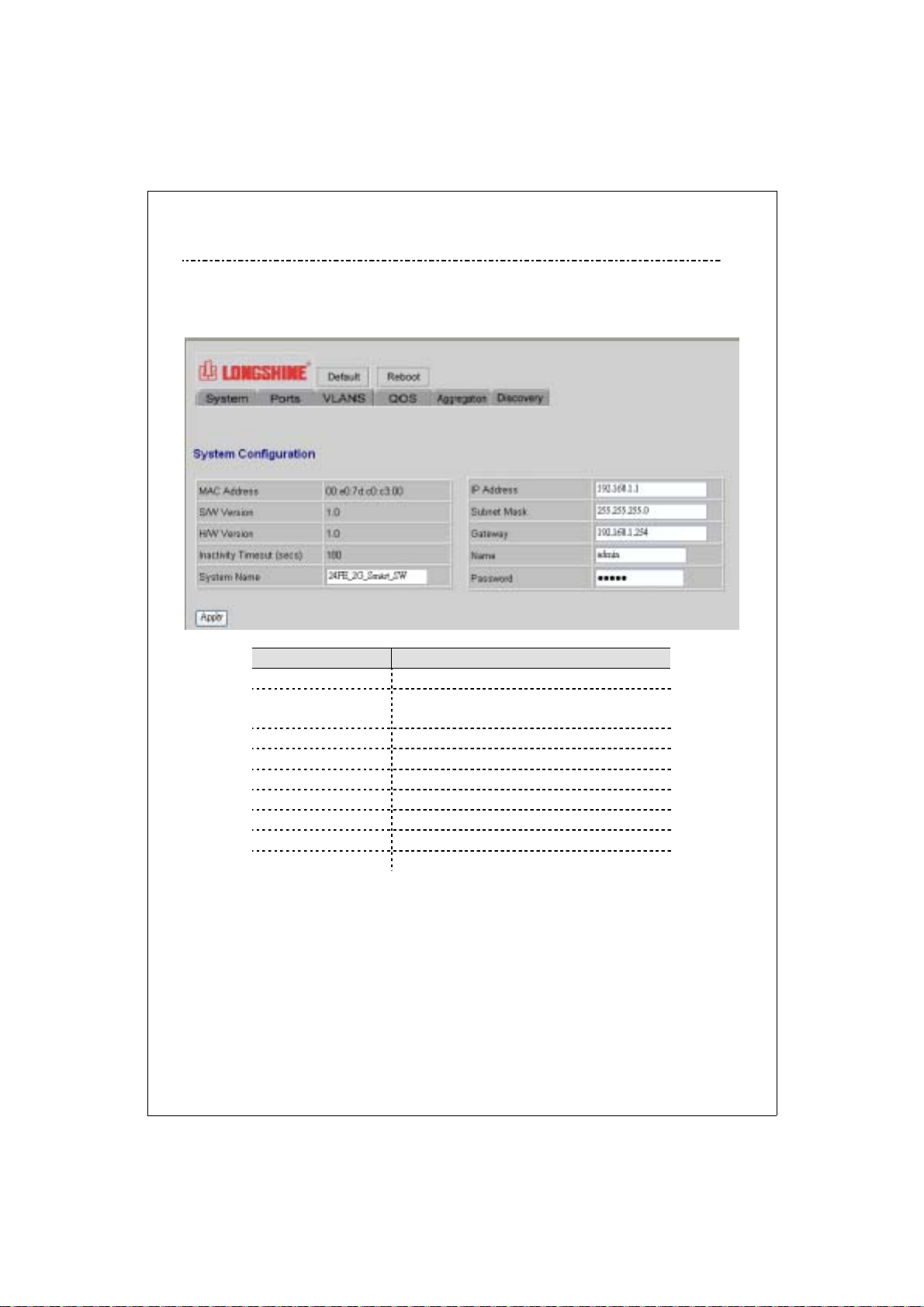

3.2.1 System
To set up the system configurations such as login value, system name and IP
address.
Items Functions
Mac Address The Mac Address of the switch
S/W Version To check up the Software Version, see
this.
H/W Version The Hardware version
System name Name of the Switch
IP Address Set up the IP of Switch
Subnet Mask Set up the Subnet mask of Switch
Gateway Set up the Gateway of Switch
Name The Login name (default admin)
Password The Login password (default admin)
To save the configuration of the system, click “apply” to save
11
Page 14
3.2.2 Ports
On the page, you can view the Port status, set up the Speed mode and enable
the FDX flow control.
Items Functions
Admin Enable or Disable the Admin function
Bandwidth To control the bandwidth, you can select the
speed limitation you need in the drop list.
(Disable/128K/256K/512K/1M/2M/4M/8Mbps)
Operate mode Choose the Speed mode of port 10/100,
Half/Full. If you set to auto speed, it will be
auto-negotiation. (Auto Speed, 10M half,
10M full, 100M half, 100M full)
Flow Control Enable or Disable the Flow control
Link/Status To show the status of each port. When it’s
green, it means the connection is down.
Otherwise, it’s red.
To save the configuration of the system, click “apply” to save. To see the latest
status of port, click refresh button.
12
Page 15
3.2.3 VLANS
VLANS Configuration is for dividing the LAN into subnet groups for better
network management. (26 VLAN groups total)
Mode:
1. Disable: Turn off the VLAN function by selecting the mode.
2. Port BASE: Group the port you select by entering the group number (Ex.1) in
VLAN textbox and selecting the port numbers (Ex.1, 2,3,4) you want.
Buttons
Add: Add the entry into the VLAN Table
Remove: Remove the Entry you select
Modify: Modify the Entry you select
Apply: Apply the Mode you select
Provides web manage security function, click enable VLAN group web manage
to support web manage function for VLAN group
13
Page 16
3.2.4 Aggregation/Trunking Configuration
To set up the Port trunk groups, select “Enable” of the group you need. Don’t
forget to click the “Apply” to save the setting.
Supports 7 trunk groups for network application.
14
Page 17
3.2.5 Qos
There are three modes of Quality of Service to choose, TOS, Tag Base, and Port
base. To Disable the QOS, click Disable and Click apply to save.
To use the TOS, select TOS and click Apply to save.
To enable the Tag Base, select Tag base and click Apply to save.
When you enable Port Base, packets from the port you select will have higher
priority.
To enable the Port base,
1. Select the port-base
2. Select the port-base ratio (1:4; 1:8; 1:16; Always High) The higher a ratio is,
the higher priority the port will get.
3. Select the ports in the table (High means high Priority, and Low means Low
priority). The priority depends on the Port Base rate.
4. Click apply to save
15
Page 18
3.2.6 Discovery
When you install several 24+2G Gigabit Ethernet web-smart switches, the
discovery management tool helps you to search and access those switches on
the LAN easily. Therefore you can access any switch on your LAN without
memorizing those IP addresses. You can only find switches with the IP Address
compatible with the one you access.
Note. The Maximum number of Address list is 16.
Auto Search
1. Click the “Auto search” button to find the switches.
2. The IP address & name of Switch list will appear.
3. Click the one you want to access.
16
Page 19
3.2.7 Default
To restore to default values,
1. Click the default button on the Home page
2. Click “Apply” to activate. Don’t power off the switch while it’s working.
3.2.8 Reboot
To reboot the switch,
1. Click the Reboot button on the Home page
2. Click “Apply” to activate. Don’t power off the switch while it’s working.
17
Page 20
4. Product Specifications
Cable Connections RJ-45 (10BASE-T): Category 3,4,5 UTP/STP
Network Data Rate 10/100/1000Mbps Auto-negotiation
Transmission Mode 10/100/1000Mbps Full-duplex, Half-duplex
LED indications System
Operating Humidity 10% - 90%
Standard
Interface 24 * 10/100Mbps auto MDI/MDI-X RJ-45
Memory 8K MAC entries
Emission FCC Class A
Operating
Temperature
Power Supply Internal power 100-240V/ 50-60Hz
IEEE802.3 10BASE-T
IEEE802.3u 100BASE-TX
IEEE802.3x full-duplex operation and flow
control
IEEE802.1p Traffic prioritization
switching ports
2*10/100/1000Mbps auto MDI/MDI-X RJ-45
switching ports
1 * RS-232 Console port
RJ-45 (100BASE-TX): Category 5 UTP/STP
Power
10/100M
Link/Act
10/100/1000M
1000M; 100M; 10M, ACT
320K bytes Buffer Memory
CE Mark Class A
VCCI-A
00 ~ 400C (320 ~ 1040F)
18
Page 21
FCC Certifications
This Equipment has been tested and found to comply with the limits for a Class A digital device,
pursuant to part 15 of the FCC Rules. These limits are designed to provide reasonable
protection against harmful interference when the equipment is operated in a commercial
environment. This equipment generates, uses, and can radiate radio frequency energy and, if
not installed and used in accordance with the instruction manual, may cause harmful
interference to radio communications.
Operation of this equipment in a residential area is likely to cause harmful interference in which
case the user will be required to correct the interference at his own expense.
This device complies with Part 15 of the FCC Rules. Operation is subject to the following two
conditions: (1) this device may not cause harmful interference, and (2) this device must accept
any interference received; including interference that may cause undesired operation.
CE Mark Warning
This equipment complies with the requirements relating to electromagnetic
compatibility, EN 55022 class A for ITE, the essential protection requirement of Council
Directive 89/336/EEC on the approximation of the laws of the Member States relating to
electromagnetic compatibility.
Company has an on-going policy of upgrading its products and it may be possible that
information in this document is not up-to-date. Please check with your local distributors for the
latest information. No part of this document can be copied or reproduced in any form without
written consent from the company.
Trademarks:
All trade names and trademarks are the properties of their respective companies.
Copyright © 2004, All Rights Reserved.
19
Page 22
DECLARATION OF CONFORMITY
CE = European Community Conformity Mark
We, Manufacturer/Importer
Longshine Technologie (Europe) GmbH
An der Strusbek 9
22926 Ahrensburg
Germany
Declare That The Product
LCS-GFS9326
24-Port Web based Switch
24x10/100Mbps 2x10/100/1000Mbps, Rackmount
Is In Conformity With:
Standards Results
EN 55022 :1994+A1:1995+A2:1997, Class A Pass
EN 61000-3-2 :2000, Class A* see note * below) Pass
EN 61000-3-3:1995+A1:2001 Pass
EN 55024:1998+A1 :2001+A2 :2003 Pass
IEC 61000-4-2:2001 Pass
IEC 61000-4-3:2002+A1:2002 Pass
IEC 61000-4-4:1995+A1:2000+A2:2001 Pass
IEC 61000-4-5:2001 Pass
IEC 61000-4-6:2001 Pass
IEC 61000-4-11:2001 Pass
Identification of signatory empowered to bind the manufacturer or his authorized representative.
Signature
Manufacturer/Importer
Date: 01.09.2004
Note* The power consumption of EUT is 5.645W, which is less than 75W and no limits
apply. Therefore it is deemed to comply with EN61000-3-2:2000 without any testing.
20
Loading...
