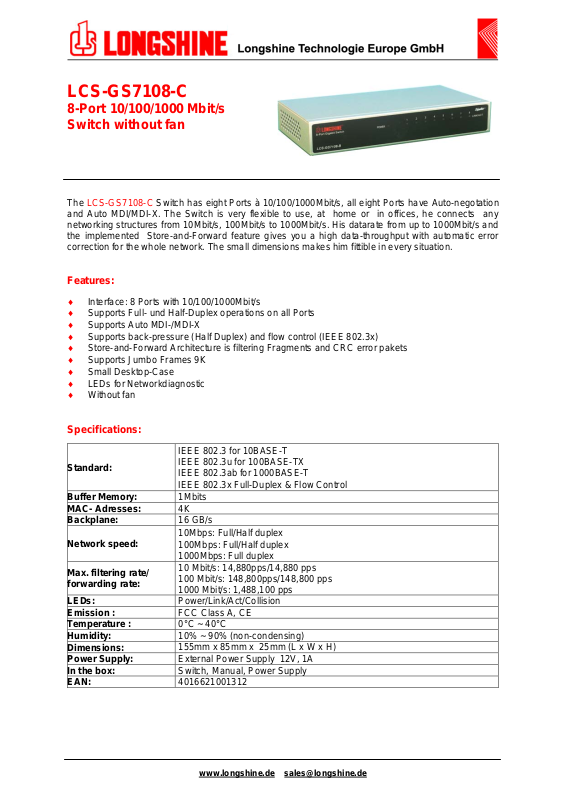

Longshine LCS-GS7108 User Manual

LCS-GS7108-C

8-Port 10/100/1000 Mbit/s
Switch without fan

The LCS-GS7108-C Switch has eight Ports à 10/100/1000Mbit/s, all eight Ports have Auto-negotation
and Auto MDI/MDI-X. The Switch is very flexible to use, at home or in offices, he connects any
networking structures from 10Mbit/s, 100Mbit/s to 1000Mbit/s. His datarate from up to 1000Mbit/s and
the implemented Store-and-Forward feature gives you a high data-throughput with automatic error
correction for the whole network. The small dimensions makes him fittible in every situation.

Features:

♦ Interface: 8 Ports with 10/100/1000Mbit/s
♦ Supports Full- und Half-Duplex operations on all Ports
♦ Supports Auto MDI-/MDI-X
♦ Supports back-pressure (Half Duplex) and flow control (IEEE 802.3x)
♦ Store-and-Forward Architecture is filtering Fragments and CRC error pakets
♦ Supports Jumbo Frames 9K
♦ Small Desktop-Case
♦ LEDs for Networkdiagnostic
♦ Without fan

Specifications:

Standard:

Buffer Memory:
MAC- Adresses:
Backplane:

Network speed:

Max. filtering rate/
forwarding rate:

LEDs:
Emission :
Temperature :
Humidity:
Dimensions:
Power Supply:
In the box:
EAN:

IEEE 802.3 for 10BASE-T
IEEE 802.3u for 100BASE-TX
IEEE 802.3ab for 1000BASE-T

IEEE 802.3x Full-Duplex & Flow Control
1Mbits
4K
16 GB/s

10Mbps: Full/Half duplex
100Mbps: Full/Half duplex

1000Mbps: Full duplex
10 Mbit/s: 14,880pps/14,880 pps
100 Mbit/s: 148,800pps/148,800 pps
1000 Mbit/s: 1,488,100 pps
Power/Link/Act/Collision
FCC Class A, CE
0°C ~ 40°C
10% ~ 90% (non-condensing)
155mm x 85mm x 25mm (L x W x H)
External Power Supply 12V, 1A
Switch, Manual, Power Supply
4016621001312
