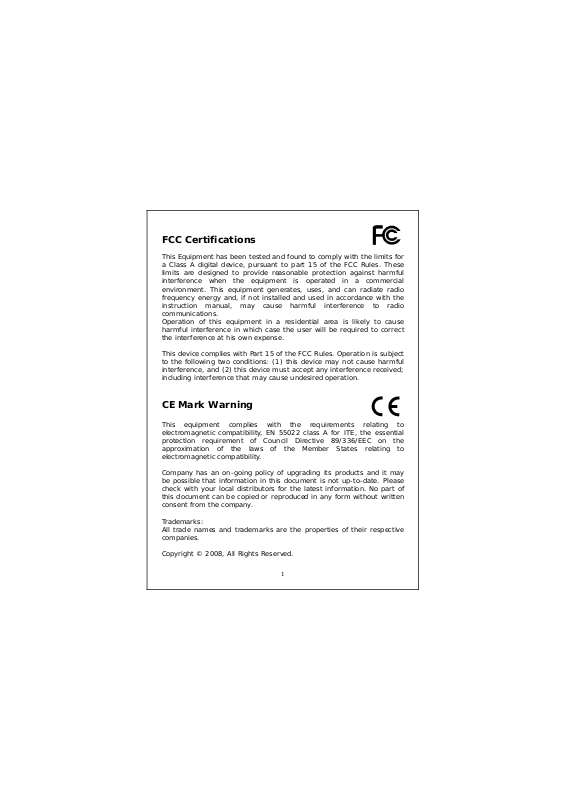

Page 1
FCC Certifications
This Equipment has been tested and found to comply with the limits for
a Class A digital device, pursuant to part 15 of the FCC Rules. These
limits are designed to provide reasonable protection against harmful
interference when the equipment is operated in a commercial
environment. This equipment generates, uses, and can radiate radio
frequency energy and, if not installed and used in accordance with the
instruction manual, may cause harmful interference to radio
communications.
Operation of this equipment in a residential area is likely to cause
harmful interference in which case the user will be required to correct
the interference at his own expense.
This device complies with Part 15 of the FCC Rules. Operation is subject
to the following two conditions: (1) this device may not cause harmful
interference, and (2) this device must accept any interference received;
including interference that may cause undesired operation.
CE Mark Warning
This equipment complies with the requirements relating to
electromagnetic compatibility, EN 55022 class A for ITE, the essential
protection requirement of Council Directive 89/336/EEC on the
approximation of the laws of the Member States relating to
electromagnetic compatibility.
Company has an on-going policy of upgrading its products and it may
be possible that information in this document is not up-to-date. Please
check with your local distributors for the latest information. No part of
this document can be copied or reproduced in any form without written
consent from the company.
Trademarks:
All trade names and trademarks are the properties of their respective
companies.
Copyright © 2008, All Rights Reserved.
1
Page 2
Unpacking Information
Thank you for purchasing this product. Before installation,
please verify that your packa ge contains the following items.
1. 4-Port Gigabit Ethernet Switch with 1-Port Mini-GBIC
2. One power adapter
3. User’s Manual
Introduction
General Description
Easily boost your networking throughput; the product
equips 4 Gigabit ports that lead you to a real Gigabit
connection. Users are now able to transfer large and high
bandwidth-needed files faster and hence get a real efficiency
improvement. In addition to the cooper ports, 1 of the ports
supports fiber connection with the equipped Mini-GBIC ports
for obtaining long-distance co mmunication.
This product offers users with fast and reliable network.
The store-and-forward architecture filters errors and forwards
packets in a non-blocking environment. Flow control prevent s
data loss while transmitting. The 802.3x and backpressure
flow control mechanisms work respectively for full and half
duplex modes.
The switch features with easy installation a nd maintenance.
It supports Nway auto-negotiation protocol that detects the
networking speed (10/100/1000 Mbps) and the duplex modes
(Full/Half) automatically. Auto-MDI/MDI-X function alleviates
the effort to use crossover cables. Also, rich diagnostic LEDs
are provided for users to get real-time information of the
connection status.
2
Page 3
Key Features
Complies with IEEE802.3, IEEE 802.3u, IEEE 802.3ab,
IEEE 802.1x and IEEE 802.3z standards.
4 * 10/100/1000 Mbps RJ-45 Nway ports
1* Mini-GBIC port for optional fiber optical
communication
Supports NWay protocol for speed (10/100/1000Mbps)
and duplex mode (Half/Full) auto-detection
Supports MDI/MDI-X auto crossover
Supports full and half duplex operation on all copper
ports
Supports back-pressure (half duplex) and flow control
(IEEE 802.3x)
Wire-speed packet filtering and forwarding rate
Store-and-forward architecture
Supports 9K bytes jumbo frame.
Supports 1K bytes MAC address entries in whole
system
832K bits buffer memory
FCC, CE Class A
3
Page 4
The Front Panel
Please refer to the following table for LED definition:
LED Status Operation
Power
Link/Act
Steady Green The switch is powered on
Off The switch is powered off
Steady Green Port connected
Blinking Green The port is
transmitting/receiving data
Off Port disconnected
The Rear Panel
To power on the switch, plug the female end of the power cord
firmly into the receptacle of the switch and the other end into
an electric service outlet. After the power cord installation,
please check if the power LED is illuminated for a normal
power status.
4
Page 5
Installation
This switch can be placed on your desktop directly, or mounted
in a rack. The installation is a snap. Users can use all the
features of the switch with simply attaching the cables and
turning the power on.
Before installing the switch, we strongly recommend:
1. The switch is placed with appropriate ventilation
environment. A minimum 25mm space around the unit
is recommended.
2. The switch and the relevant components are away from
sources of electrical noise such as radios, transmitters
and broadband amplifiers
3. The switch is away from environments beyond
recommend moisture
Desktop Installation
1. Attach the provided robber feet to the bottom of the
switch to keep the switch from slipping. The
recommend position has been square-marked.
2. Install the switch on a level surface that can support
the weight of the unit and the relevant components.
3. Plug the switch with the female end of the provided
power cord and plug the male end to the power outlet.
5
Page 6
Network Cables Installation
T
1. Crossover or straight-through ca ble: All the ports on
the switch support Auto-MDI/MDI-X functionality. Both
straight-through or crossover cables can be used to connect
the switch with PCs as well as other devices like switches,
hubs or router.
2. Category 3, 4, 5 or 5e UTP/STP cable: To make a valid
connection and obtain the optima l performance. Appropriate
cables corresponding to different transmitting/receiving
speed is required. To choose a suitable cable, please refer to
the following table.
Media Speed Wiring
10/100/1000Mbp
s copper
1000Mbps Fiber
(Mini GBIC
required)
Port Operation
The auto-negotiation feature allows ports running at o ne
of the following operation modes:
Media Speed Duplex Mode
10/100/1000Mbps
(copper)
1000Mbps(Fiber)
(mini GBIC required)
10Mbps Category 3,4,5 UTP/STP
100Mbps Category 5 UTP/STP
1000Mbps Category 5,5e UTP/STP
1000Mbps
he cable type differs from
the mini-GBIC you choose.
Please refer to the instruction
came with your mini-GBIC.
Full Duplex 10Mbps
Half Duplex
Full Duplex 100Mbps
Half Duplex
1000Mbps Full Duplex
1000Mbps Full Duplex
6
Page 7
Backbone Network Application
This switch is ideal for boosting the throughput of backbone.
For an application sample of network topology, please refer to
the following chart.
7
Page 8
Product Specifications
T
IEEE802.3 10BASE-T
Standard
Interface
Cable
Connections
Transmission
Mode
LED
indications
Memory
Emission FCC, CE class A
Operating
Temperature
Operating
Humidity
Power Supply
IEEE802.3u 100BASE-TX
IEEE802.3x full-duplex flow control
IEEE802.3z/ab 1000BASE-T
4 *10/100/1000 Mbps auto MDI/MDI-X
RJ-45 switching ports
1* Mini-GBIC module sockets
RJ-45 (10BASE-T): Category 3,4,5 UTP/STP
RJ-45 (100BASE-
RJ-45 (1000BASE-T): Category 5,5e or
enhanced UTP/STP
Fiber: depend on Mini-GBIC types
10/100Mbps Full-duplex, Half-duplex
1000Mbps Full-duplex
Power,
LINK/ACT
1K MAC entries
832K bits buffer memory
0
0
~ 400C (320 ~ 1040F)
10% - 90%(non-condensing)
External power adapter
12VDC 1A
X): Category 5 UTP/STP
8
