Longshine LCS-FSP8108-4 User Manual

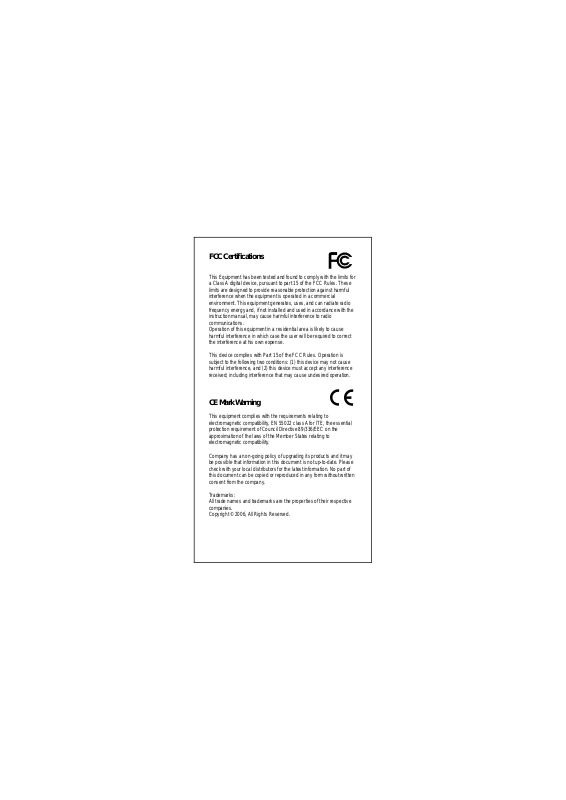

FCC Certifications

This Equipment has been tested and found to comply with the limits for a Class A digital device , purs uant to part 15 of the FCC Rul es. T hese limits are designed to provide reasonable protection against harmful interference when the equipment is operated in a commercial environment. This equipment generates, uses, and can radiate radio frequency energy and, if not installed and used in accordance with the instruction manual, may cause harmful interference to radio communications. Operation of this equipment in a residential area is likely to cause harmful interference in which case the user will be required to correct the interference at his own expense.

This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) this device may not cause harmful interference, and (2) this device must accept any interference received; including interference that may cause undesired operation.

CE Mark Warning

This equipment complies with the requirements relating to electromagnetic compatibility, EN 55022 class A for ITE, the essential protection requirement of Council Directive 89/336/EEC on the approximation of the laws of the Member States relating to electromagnetic compatibility.

Company has an on-going policy of upgrading its products and it may be possible that information in this document is not up-to-date. Please check with your local distributors for the latest information. No part of this document can be copied or reproduced in any form without written consent from the company.

Unpacking Information

Thank you for purchasing this switch. Before installation, please check that your package contains the following items.

1. One 4+4 10/100 PoE Switch

2. One power cord

3. User’s Manual

Introduction

General Description

The device is a powerful, high-performance Fast Ethernet Switch, with all 8 ports capable of 10 or 100Mbps auto-negotiation operation (NWay), which means the switch could automatically negotiate with the connected partners on the network speed and duplex mode. It is ideal for micro-segmenting large networks into smaller, connected subnets for improved performance, enabling the bandwidth demanding multimedia and imaging applications. Moreover, the 10/100Mbps auto-sensing ability provides an easy way to migrate 10Mbps to 100Mbps network with no pain.

This switch supports PoE, which supplies power for connected devices via CAT 5 and above twisted cables. By integrating the

data transmitting cable and power cord, it eliminates the effort constructing your network. You could easily connect a Wireless AP or a VoIP phone to this switch without looking outlets for them. Over current protection and circuit shorting protection are also supported to ensure the safety. The switch is plug-n-play without any software to configure and also fully compliant with all kinds of network protocols. Moreover, the rich diagnostic LEDs on the front-panel provide the operating status of individual port and whole system.

Key Features

 Complies with 10BASE-T specifications

of the IEEE802.3 standard

 Complies with 100BASE-TX

specifications of the IEEE802.3u standard

 Compliant with IEEE 802.3af PoE

standard (DTE power via MDI-X)

 Provides 4 PoE ports with classification

identify

 Supports 15.4W maximum per PoE port  Supports over current protection and

circuit shorting protection

 8 * RJ-45 ports for 100BASE-TX and

10BASE-T connectivity

 Supports NWay protocol for speed

+ 6 hidden pages
