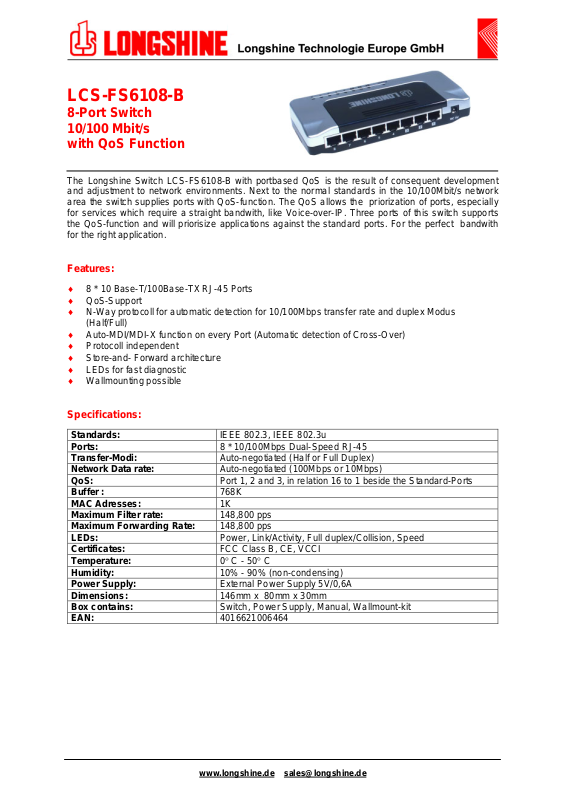

Longshine LCS-FS6108 User Manual

LCS-FS6108-B

8-Port Switch
10/100 Mbit/s
with QoS Function

The Longshine Switch LCS-FS6108-B with portbased QoS is the result of consequent development
and adjustment to network environments. Next to the normal standards in the 10/100Mbit/s network
area the switch supplies ports with QoS-function. The QoS allows the priorization of ports, especially
for services which require a straight bandwith, like Voice-over-IP. Three ports of this switch supports
the QoS-function and will priorisize applications against the standard ports. For the perfect bandwith
for the right application.

Features:

♦ 8 * 10 Base-T/100Base-TX RJ-45 Ports
♦ QoS-Support
♦ N-Way protocoll for automatic detection for 10/100Mbps transfer rate and duplex Modus

(Half/Full)

♦ Auto-MDI/MDI-X function on every Port (Automatic detection of Cross-Over)
♦ Protocoll independent
♦ Store-and- Forward architecture
♦ LEDs for fast diagnostic
♦ Wallmounting possible

Specifications:

Standards:
Ports:
Transfer-Modi:
Network Data rate:
QoS:
Buffer :
MAC Adresses:
Maximum Filter rate:
Maximum Forwarding Rate:
LEDs:
Certificates:
Temperature:
Humidity:
Power Supply:
Dimensions:
Box contains:
EAN:

IEEE 802.3, IEEE 802.3u
8 * 10/100Mbps Dual-Speed RJ-45
Auto-negotiated (Half or Full Duplex)
Auto-negotiated (100Mbps or 10Mbps)
Port 1, 2 and 3, in relation 16 to 1 beside the Standard-Ports
768K
1K
148,800 pps
148,800 pps
Power, Link/Activity, Full duplex/Collision, Speed
FCC Class B, CE, VCCI
0° C - 50° C
10% - 90% (non-condensing)
External Power Supply 5V/0,6A
146mm x 80mm x 30mm
Switch, Power Supply, Manual, Wallmount-kit
401662100

6464
