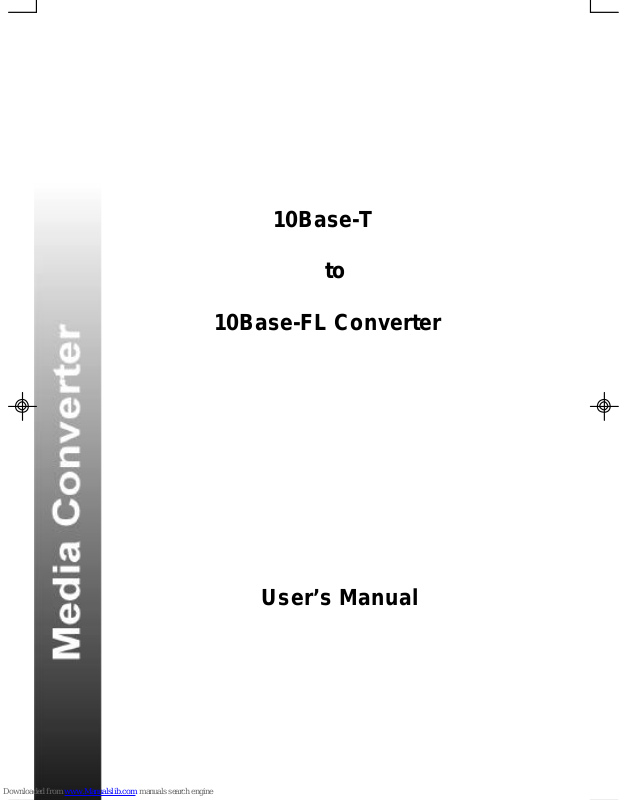

Longshine LCS-883C-TST User Manual

10Base-T

to

10Base-FL Converter

User’s Manual

10Base-T to FL Converter

COPYRIGHT

All rights reserved. No part of this publication may be reproduced,
stored in a retrieval system, or transmitted in any form or by any
means, whether electronic, mechanical, photo copying, recording
or otherwise, without the prior written permission of the publisher.

FCC WARNING

This equipment has been tested and found to comply with the
limits for class A device, pursuant to part 15 of FCC rules. These
limits are designed to provide reasonable protection against
harmful interference in a commercial installation. This equipment
generates, uses and can radiate radio frequency energy and, if not
installed and used in accordance with the instructions, may cause
harmful interference to radio communication. Operation of this
equipment in a residential area is likely to cause harmful
interference, in which case, the user will be required to correct the
interference at the user’s own expense.

Table of Contents

1. Introduction

Product Overview ..................................... 1

Features ................................................. 3

Package Contents .................................. 3

Specification ........................................... 4

2. Installation

10Base-T to FL Converter

MDI/MDIX Connection ............................. 5

Positioning of Converter .......................... 6

Installation of Converter .......................... 10

Connect to a 10/100 Device ............................ 10

3. LED Indicators

LED Indicators ...................................... 11

4. Appendix

A - Internal Power Supply ...………………. 12

B - Mounting............................................ 13

C - Cables ................………...………….. 14

D - About RJ-45 Cables ..…………………. 15

10Base-T to FL Converter

1
Introduction

Product Overview

The 10Base-T to 10Base-FL Converter is primarily designed for
network or data installations that require the migration of cable media
between conventional coppers based wiring to Fiber based
installations. .

These Converters have been specifically designed to support both
a RJ-45 jack and a ST or SC fiber optic connector. It come with the
option of internal or external power supplies. These features allow
them to efficiently connect 10Base-T networks to 10Base-FL (fiber)
networks.

In addition, this Converter features an MDI/MDI-X crossover “push
button” switch for direct connection to either a workstation, switch
or hub. This allows the network manager the freedom to configure
between crossover and straight through when establishing
connection between RJ-45 ports.

These converters can create potential distances of up to 12km
(39600feet) with single mode fiber between a LAN switch, hub or a
file server.

- 1 -

Product Outlook

Front panel view with SC and RJ-45 connectors

10Base-T to FL Converter

Front panel view with ST and RJ-45 connectors

- 2 -

10Base-T to FL Converter

Features

• Complies with 802.3 10Base-T & FL standard

• MDI/MDIX push button selection for RJ-45 port connection

• Support ST, SC, MT-RJ, or WDM fiber connectors

• Extends fiber distance of up to 12km with single mode fiber

• Compatible with other 10Base-T/FL and 10/100 devices

• Status LEDs to easily monitor network

activity

• Internal and external power supply options

Package Contents

• One converter

• One AC adapter(external), or one power cord (internal)

• Four self-adhesive pads

• One user’s manual

- 3 -
