Page 1
Operating Instructions.
Mode d’emploi.
Instrucciones de manejo.
■ Tremo
Sound.
233–31673.002
1
Page 2
Contents
Contenu
Índice
Tremo amplifier 3
About this speaker system 4
Scope of delivery
Available accessories
Installing the subwoofer and satellite
speakers 5
Connection 6 – 14
to the Loewe TV set with Dolby Digital
Module 6
to Articos 55 7
to the Master Unit with Spheros 42 HD/37 8
to the signal box 9
to Loewe Auro 8116 DT 10 – 11
to Loewe Certos 12 – 13
Connecting the satellite speakers to the
subwoofer 14
Mounting the satellite speaker
on the S stand 15
Start-up and operation 16
Selecting the center signal
Switching the subwoofer on/off
Settings on the TV set
Sound via …
Setting listener/speaker distances and adjusting speaker volumes
Sound reproduction via Loewe TV with connected Tremo speaker system
Phase switch/bass intensity
Technical data 17
Amplificateur Tremo 21
A propos du système 22
Contenu de la livraison
Accessoires disponibles
Mise en place du Subwoofer et des
haut-parleurs satellites 23
Raccordement 24 – 32
au téléviseur Loewe équipé du
module Dolby Digital 24
à Articos 55 25
à la Masterunit pour Spheros 42 HD/37 26
à la Signalbox 27
à l’unité Auro 8116 DT de Loewe 28 – 29
à l’unité Certos de Loewe 30 – 31
Raccordement des haut-parleurs satellites
au Subwoofer 32
Montage des haut-parleurs
satellites sur le support S-Stand 33
Mise en service et utilisation 34
Sélection du signal central
Mise en marche / Arrêt du Subwoofer
Réglages à effectuer sur le téléviseur
Sortie du son par ...
Réglage de la distance position d’écoute/hautparleurs et du niveau sonore des hautparleurs
Restitution sonore par le téléviseur Loewe
avec système de haut-parleurs Tremo
Inverseur de phase/Intensité des basses
Amplificador Tremo 39
Acerca de este sistema de altavoces 40
Volumen de suministro
Accesorios disponibles
Colocación del Subwoofer y de los
altavoces satélites 41
Conexión 42 – 50
con el televisor Loewe con módulo Dolby
Digital 42
con Articos 55 43
con la Master Unit en Spheros 42 HD/37 44
con la caja de señales 45
con el Auro 8116 DT de Loewe 46 – 47
con el Certos de Loewe 48 – 49
conexión de los altavoces satélites al
Subwoofer 50
Montaje de los altavoces satélites
en el S-Stand 51
Puesta en marcha y manejo 52
Selección de la señal central
Conexión/desconexión del Subwoofer
Ajustes en el televisor
Sonido por ...
Distancias oyente/altavoz y nivelación de los
altavoces
Reproducción de sonido a través del televisor
Loewe con el sistema de altavoces Tremo
conectado
Conmutador de fase/Intensidad de graves
Caractéristiques techniques 35
2
Datos técnicos 53
Page 3
Tremo amplifier
Switch for center signal
Cubic sockets for
Loewe equipment
Cable clip
Power OUT
R
Surr.
L
R
Front
C
L
Center to
Sat
System connector
TV
Slave
Master
Surr.
Front
Line IN
Right
Subw.
Right
Center
Bass Intensity
Min. Max.
0 180
Left
Left
ON
OFF
Phase
230V~50/60Hz
ON/OFF switch
Terminals for connecting
satellite speakers
Controller for bass intensity
Phase switch
Audio inputs of the
Dolby Digital Decoder
3
Page 4
About this speaker system
Congratulations on your purchase of this Loewe
product. The Tremo speaker system consists of a
subwoofer with amplifier unit and five satellite
speakers, all of the finest quality.
The natural material ceramic forms the basis for
the subwoofer housing. It is made into the Tremo
housing by a complex, multi-stage production
process and skilled craftsmanship. Every piece is
an exclusive original with an individual touch.
The Tremo speaker system is designed for Loewe
TV sets with a Dolby Digital Decoder and connection of the Loewe DVD Preceiver Auro 8116 DT or
the Certos system.
You can then play DVDs in Dolby Digital cinema
quality. You can also convert stereo broadcasts or
playbacks (from a video recorder or DVD player)
in Dolby ProLogic, Virtualize or Circle Surround
into a 5.1 surround signal and play it over the
Tremo speaker system. If your TV is equipped with
a digital tuner (DVB) and Certos or Auro 8116 DT
are connected, the received digital Surround
signal is decoded and played over the Tremo
system.
On the Tremo subwoofer you can set whether the
speakers of the Loewe TV set (from MediaPlus
Q2500) are to transmit the center signal or
whether the satellite speaker provided is to be
used for this.
In sets with signal box and in Articos 55 the center signal is always played over the TV speakers.
The Tremo speaker system switches on and off
automatically with the Loewe TV set, the Loewe
DVD Preceiver or the Certos system.
You can make the settings for Dolby Digital comfortably using the Loewe TV menus or when using
Certos or the DVD Preceiver Auro 8116 DT with
their menus..
Of course you can also operate this speaker system on an external decoder, then it is not possible
to use the TV’s speakers as center speakers and
the Tremo speaker system has to be switched on
and off manually.
Scope of delivery
1 subwoofer
5 satellite speakers with conical base for stand
1 6-wire connecting cable (6 m) for the output
signals of the Dolby Digital Decoder or the
Loewe DVD Preceiver to the subwoofer.
1 connecting cable with cubic plugs (6 m) to the
cubic socket of the Loewe TV set (from chassis
MediaPlus Q2500).
5 speaker cables from the subwoofer to the
satellite speakers in different lengths (3 x 5 m,
2 x 1.5 m).
... and this operating manual
Available accessories
Tremo platinum wall holder order no.
63299A00
Tremo cream wall holder order no. 63299K00
S stand (can also be used for Tremo satellite
speakers)
Order no. 61250B00
Connecting cable to Certos system
Order no. 88947.001
4
Page 5
Installing the subwoofer and satellite speakers
The satellite speakers should all be positioned
at ear height, i.e. about 1 meter above the
floor.
Use the available stands or wall holders or
place the speakers at the appropriate height on
pieces of furniture or on shelves.
The speakers and the TV set can be arranged as
illustrated below.
The front and surround speakers should be
placed symmetrically with the TV set and the
place where you are sitting.
Front
left
You can position the subwoofer anywhere on
the floor. We recommend you to place it in one
of the front corners of the room so that the
bass signals radiate freely.
Front
right
Front
left
When making the settings for initial start-up,
enter the distances of the center speaker, front
and surround speakers from where you are
sitting.
Delay times of the speakers in relation to each
other are calculated and set by the Dolby Digital Module. You also adapt the volume of every
speaker in the settings for initial start-up.
Front
right
Surround
left
Center
Subwoofer
Surround
right
Surround
left
Subwoofer
Surround
right
5
Page 6
Connection
... to the Loewe TV set with Dolby Digital
Module (MediaPlus Q2500, Q2550)
Pull off the subwoofer cover to the back. Open
the cable clip. You will use this later to bundle
the cables.
Subw.
Center
Bass Intensity
Min. Max.
Left
Left
ON
OFF
Phase
0 180
230V~50/60Hz
Power OUT
R
Surr.
L
R
Front
Cen
L
Center to
Sat
System connector
Slave
Master
Line IN
TV
Right
Surr.
Front
Right
Connect the outputs of the Dolby Digital Decoder
on the TV set with the audio inputs on the
subwoofer. Use the ribbon cable with the six
cinch plugs. The red and white plugs are additionally labelled with F for front and S for surround.
Use the white plug for the left audio channel and
the red plug for the right audio channel. Use the
black plug for the subwoofer signal and the grey
plug for the center signal.
DIG IN
AV2/RGB
1
2
DIG OUT
AV3
C
SUB
SAT
SAT A/D
RC5/RC6
VHF/UHF
IR
CTRL
VGA
SERVICE
AUDIO IN
AUDIO OUT
AV1
R
L
SUBWOOFER
STAND
Connect the cubic sockets of both devices to
each other. Use the cable with the two cubic
plugs. Plug the white cubic plug in the ”Master”
cubic socket on the subwoofer. There is no kink
protection fitted to this plug. Plug the black plug
into the cubic socket on the TV set. Pull out the
bridge plug first if one exists.
Lay all cables in the subwoofer downwards to be
able to bundle them with the cable clip later.
First lay the ribbon cable upwards and then
downwards with a loop.
How to connect the satellite speakers is described on page 14.
The settings on the TV and on the subwoofer are
described on page 16.
SUR
R
L
6
Page 7
Connection

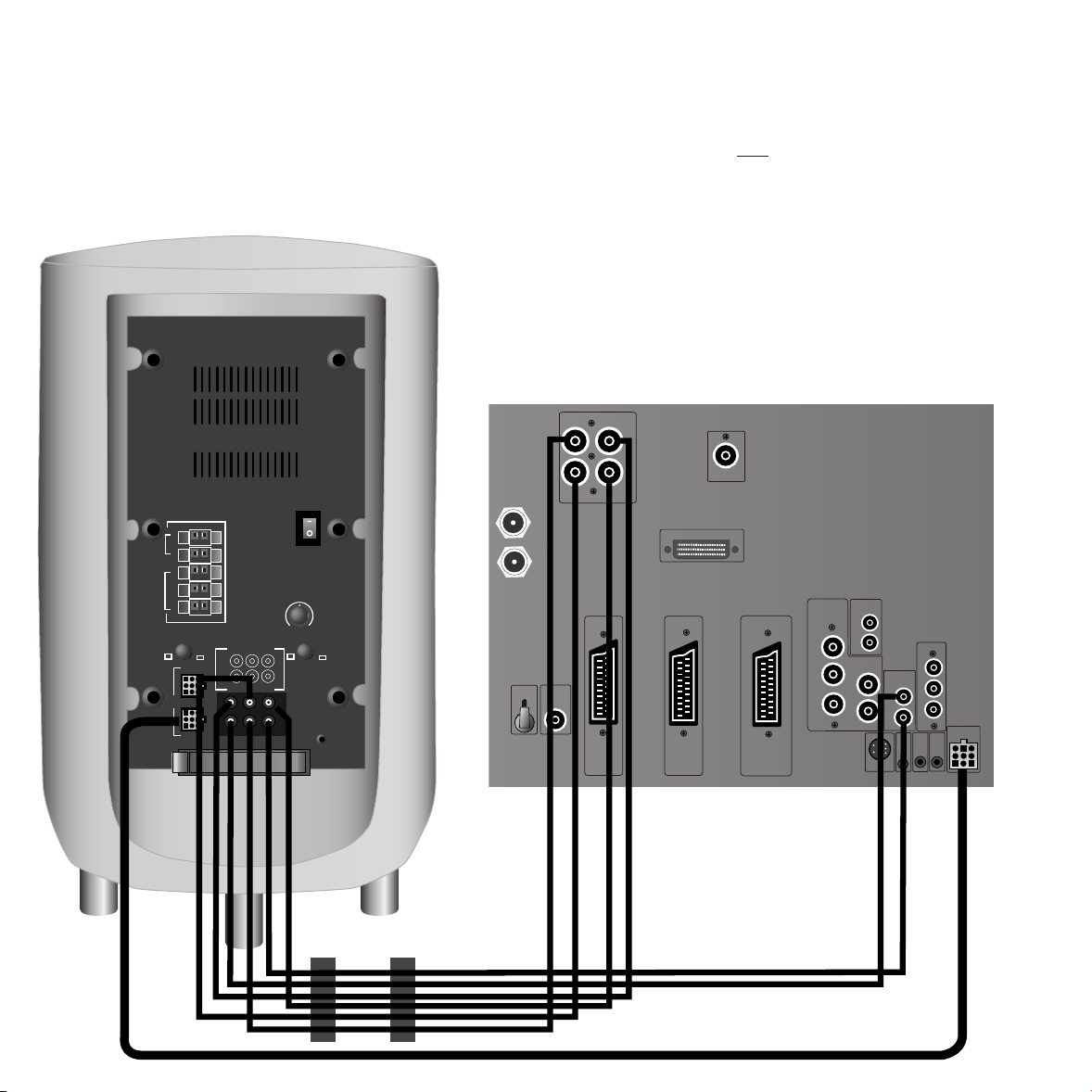

... to Articos 55 with Dolby Digital Module
(from software version 6.20)
See the instructions for laying the cables on
page 6.
Bass Intensity
Min. Max.
Left
Left
ON
OFF
Phase
0 180
230V~50/60Hz
Power OUT
R
Surr.
L
R
Front
C
L
Center to
Sat
System connector
Slave
Master
Line IN
TV
Right
Subw.
Surr.
Front
Right
Center
The ”Center” connections do not necessarily
have to be made because the center signal is
always played over the TV speakers.
R
C
S
U
R
SUB
L
SAT
SAT
A/D
PIP
UHF/VHF
AV 1
AV 2
(RGB)
Note: If the Tremo system is not selectable on
your set in the TV menu - Sound - under
”Sound via”, have your dealer do a software
update.
How to connect the satellite speakers is described on page 14.
The settings on the TV and on the subwoofer
are described on page 16.
CRTL
DVI
COMPONENT
AUDIO IN 3
IN
R
AV 3
(RGB/YUV)
L
Y
AUDIO
IN 1
CR/
PR
R
CB/
L
PB
R
L
SERVICE
DIGITAL
1
AUDIO
OUT
IN
2
OUT
AUDIO
RC5/
IR-
LINK
RC6
IN 2
SYSTEM
7
Page 8
Connection
... to the Master Unit with Dolby Digital
Module with Spheros 42 HD and Spheros 37
(from software version 6.14)
See the instructions for laying the cables on page
6.
Subw.
Center
Bass Intensity
Min. Max.
Left
Left
ON
OFF
Phase
0 180
230V~50/60Hz
Power OUT
R
Surr.
L
R
Front
C
L
Center to
Sat
System connector
Slave
Master
Line IN
TV
Right
Surr.
Front
Right
The ”Center” connections do not necessarily
have to be made because the center signal is
always played over the TV speakers.
R
AV 3
(RGB/YUV)
Y
CR/
PR
CB/
PB
COMPONENT
IN
L
L
PIP
SAT
SAT
A/D
UHF/VHF
AV 1
AV 2
(RGB)
AUDIO
IN 1
SERVICE
Note: If the Tremo system is not selectable on
your set in the TV menu - Sound - under
”Sound via”, have your dealer do a software
update.
How to connect the satellite speakers is described on page 14.
The settings on the TV and on the subwoofer
are described on page 16.
R
AUDIO
IN 3
R
R
L
AUDIO
OUT
RC5/
RC6
1
IN
2
OUT
DIGITAL
IR-
LINK
C
SUB
AUDIO
IN 2
SYSTEM
S
U
R
L
VGA
COM DIGITAL TV
TVO
DVI
Masterunit
120-240V~
50/60 Hz
DISPLAY
8
Page 9
Connection
... to TV sets with the signal box with builtin Dolby Digital Module
See the instructions for laying the cables on
page 6.
Subw.
Center
Bass Intensity
Min. Max.
Left
Left
ON
OFF
Phase
0 180
230V~50/60Hz
Power OUT
Surr.
Front
Center to
Sat
System connector
R
L
R
C
L
Line IN
TV
Right
Surr.
Slave
Front
Right
Master
The ”Center” connections do not necessarily
have to be made because the center signal is
always played over the TV speakers.
How to connect the satellite speakers is described on page 14.
The settings on the TV and on the subwoofer
are described on page 16.
UHF/VHF
PIP
Signalbox
ANT-1
ANT-2
L R
AUDIO OUT
AV 2 ( RGB )
L R
AUDIO IN 3
L R
SOURROUND
AV 1
Center Sub
SERVICE
AUDIO IN1
L R
DIGITAL
RC5/
RC6
IN1
IN2 OUT
Y
CB/P
CR/P
R
AUDIO
IR-
SYSTEM
IN 2
Link
VGA
CONTROL
B
DVI-INPUT
D-SUB
DISPLAY
120-240V
50/60Hz
DVI-OUTPUT
9
Page 10
Connection

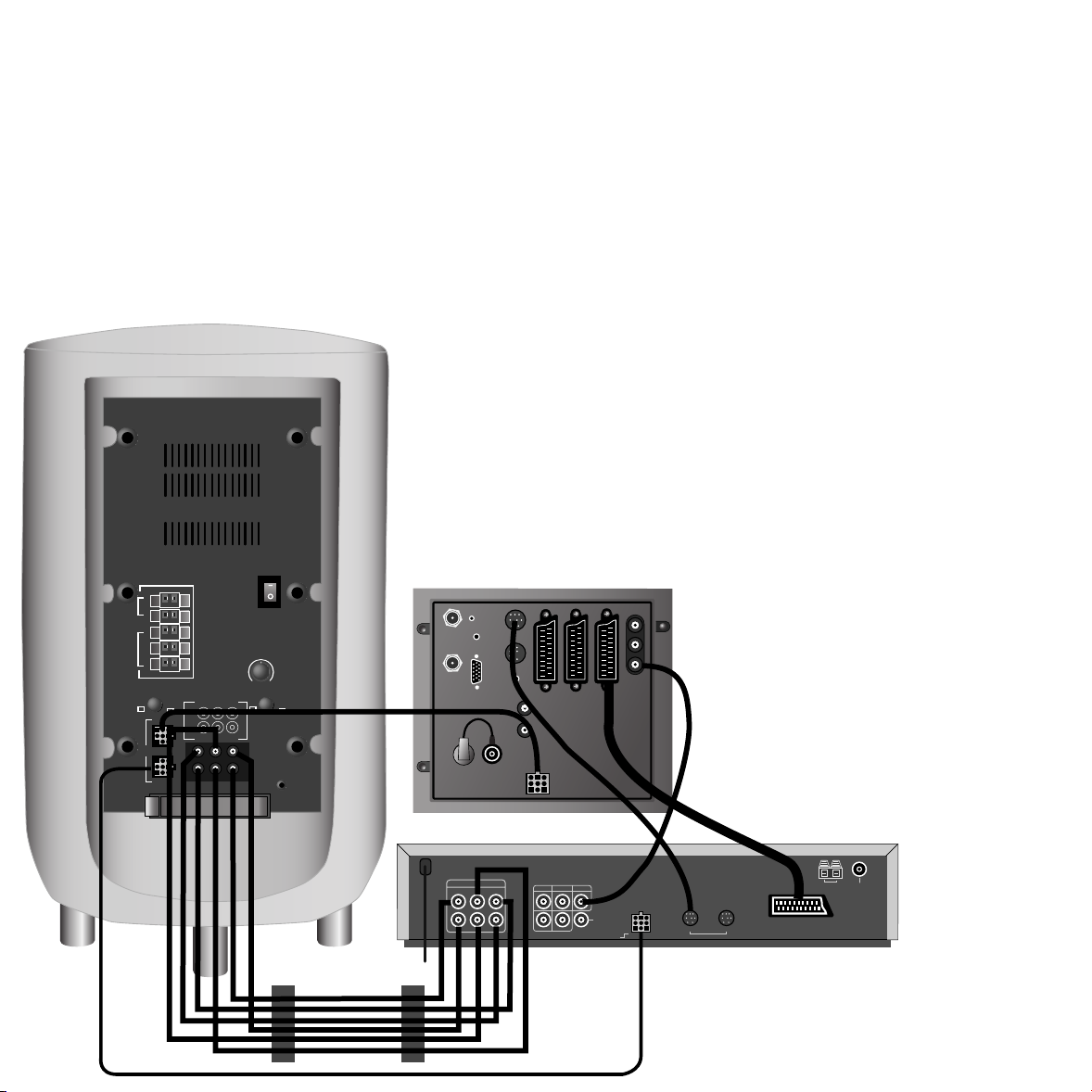

... to Loewe DVD Preceiver Auro 8116 DT
with Loewe TV set (from Loewe TV
MediaPlus Q2500, software 6.x)
If you use the Loewe DVD Preceiver in connection with a Loewe TV set, connect the Tremo
speaker system to the audio outputs of the DVD
Preceiver. See the instructions for laying the
cables on page 6.
Subw.
Center
Bass Intensity
Min. Max.
Left
Left
ON
OFF
Phase
0 180
230V~50/60Hz
Power OUT
R
Surr.
L
R
Front
C
L
Center to
Sat
System connector
Slave
Master
Line IN
TV
Right
Surr.
Front
Right
Connect the cubic socket on the DVD Preceiver to
the ”Master” cubic socket on the Tremo
subwoofer. Use the cubic plug cable provided
with the DVD Preceiver Auro (2-wire cable). Plug
the white plug (without kink protection) into the
cubic socket on the subwoofer.
If the Loewe TV speakers as of chassis MediaPlus
Q2500 are used for center reproduction, connect
the cubic socket on the TV with the ”Slave” cubic
socket on the subwoofer using the cubic plug
cable. Use the cubic plug cable provided with the
Tremo speaker system. Plug the white plug (without kink protection) into the cubic socket on the
subwoofer. Set the ”Center to” switch on the
subwoofer to ”TV”.
If, on the other hand, you want to use the external center speaker, do not connect the Slave to
the TV.
DIG IN
AV2/RGB
1
2
DIG OUT
AV3
SAT
SAT A/D
RC5/RC6
VHF/UHF
IR
CTRL
VGA
SERVICE
AUDIO IN
AUDIO OUT
AV1
R
L
SUBWOOFER
STAND
Set the ”Center to” switch on the subwoofer to
”Sat”.
Connect the TV set (Euro AV socket 3) to the DVD
Preceiver with the Euro AV cable.
Connect the TV (Service socket) to the L-Link
socket of the DVD Preceiver with the TV-L-Link
cable (provided with the DVD Preceiver).
This ensures that the Tremo speaker system is
switched on but the TV stays switched off in the
case of radio or CD playback from the DVD
Preceiver.
If the TV set is equipped with a DVB module with
Digital OUT terminal and/or the DIS module,
connect the digital output of the TV to the DIGITAL IN input of the Auro system by a cinch cable
(if a DVB module with Digital-OUT and a DIS
module are available, use the DIS connection).
This ensures that the digital audio signal is fed to
the DVD Preceiver for decoding.
How to connect the satellite speakers is described on page 14.
Settings on the DVD Preceiver
Auro 8116DT
In the DVD menu under Settings select ”Tremo”
as the speaker system, set the listener/speaker
distances and level the loudspeakers. See also
the DVD Preceiver manual (page 12 and 13).
FL
SL SR SUB
PREOUT
C
AUX1 IN
FR
AUX OUT AUX 2
LL
RR
DIGITAL
DIGITAL
IN
OUT
12V/15mA
TV
EXT
L-Link
AM GND FM (75 Ω)
TO TV
10
Page 11
Connection
to the Loewe DVD Preceiver Auro 8116 DT
with Articos 55 (from Software 6.15), Master
Unit in Spheros 42 HD and Spheros 37 (from
Software 6.20) or with the signal box
If you use the Loewe DVD Preceiver in connection with a Loewe TV set, connect the Tremo
speaker system to the audio outputs of the DVD
preceiver. See the instructions for laying cables
on page 6.
Subw.
Center
Bass Intensity
Min. Max.
Left
Left
ON
OFF
Phase
0 180
230V~50/60Hz
Power OUT
Surr.
Front
Center to
Sat
System connector
R
L
R
C
L
Line IN
TV
Right
Surr.
Slave
Front
Right
Master
Connect the cubic socket on the DVD Preceiver
to the ”Master” cubic socket on the Tremo
subwoofer. Use the cubic plug cable provided
with the DVD Preceiver Auro (2-wire cable).
Plug the white plug (without kink protection)
into the cubic socket on the subwoofer.
If the speakers of the Loewe TV set are used for
center playback, connect the cubic socket on
the TV set to the ”Slave” cubic socket on the
subwoofer with the cubic plug cable. Set the
”Center to” switch on the subwoofer to ”TV”.
If, on the other hand, you want to use the external Center loudspeakers, do not connect the
Slave and the TV set.
Set the switch ”Center to” on the subwoofer to
”Sat”.
Connect the TV set (Euro AV socket 2 for signal
box or Euro AV socket 3 for Articos 55 and the
Master Unit for Spheros) to the DVD Preceiver
with the Euro AV cable.
AV 1
Center Sub
SERVICE
AUDIO IN1
L R
DIGITAL
UHF/VHF
PIP
Signalbox
AV 2 ( RGB )
ANT-1
ANT-2
L R
L R
AUDIO OUT
AUDIO IN 3
L R
SOURROUND
Connect the TV set (Service socket) to the TV-LLink socket of the DVD Preceiver with the LLink cable (enclosed with the DVD Preceiver).
This ensures that the Tremo speaker system is
switched on for radio or CD playback but the
TV stays switched off.
Connect the digital output of the TV set to the
DIGITAL IN input of the Auro system by a cinch
cable (if a DVB module with Digital-OUT terminal is installed, use the DIS connection). This
ensures that the digital audio signal is fed to
the DVD Preceiver for decoding.
How to connect the satellite speakers is described on page 14.
Settings on the DVD Preceiver Auro
8116DT
In the DVD menu under Settings select the
”Tremo” speaker system, set the listener/
speaker distances and level the speakers. Also
see the DVD Preceiver manual (page 12 and
13).
IN1
IN2 OUT
Y
CR/PR
RC5/
AUDIO
IR-
SYSTEM
RC6
IN 2
Link
VGA
CONTROL
CB/PB
DVI-INPUT
120-240V
50/60Hz
DVI-OUTPUT
D-SUB
DISPLAY
FL
SL SR SUB
PREOUT
C
AUX1 IN
FR
AUX OUT AUX 2
LL
RR
DIGITAL
DIGITAL
IN
OUT
12V/15mA
TV
EXT
L-Link
AM GND FM (75 Ω)
TO TV
11
Page 12
Connection

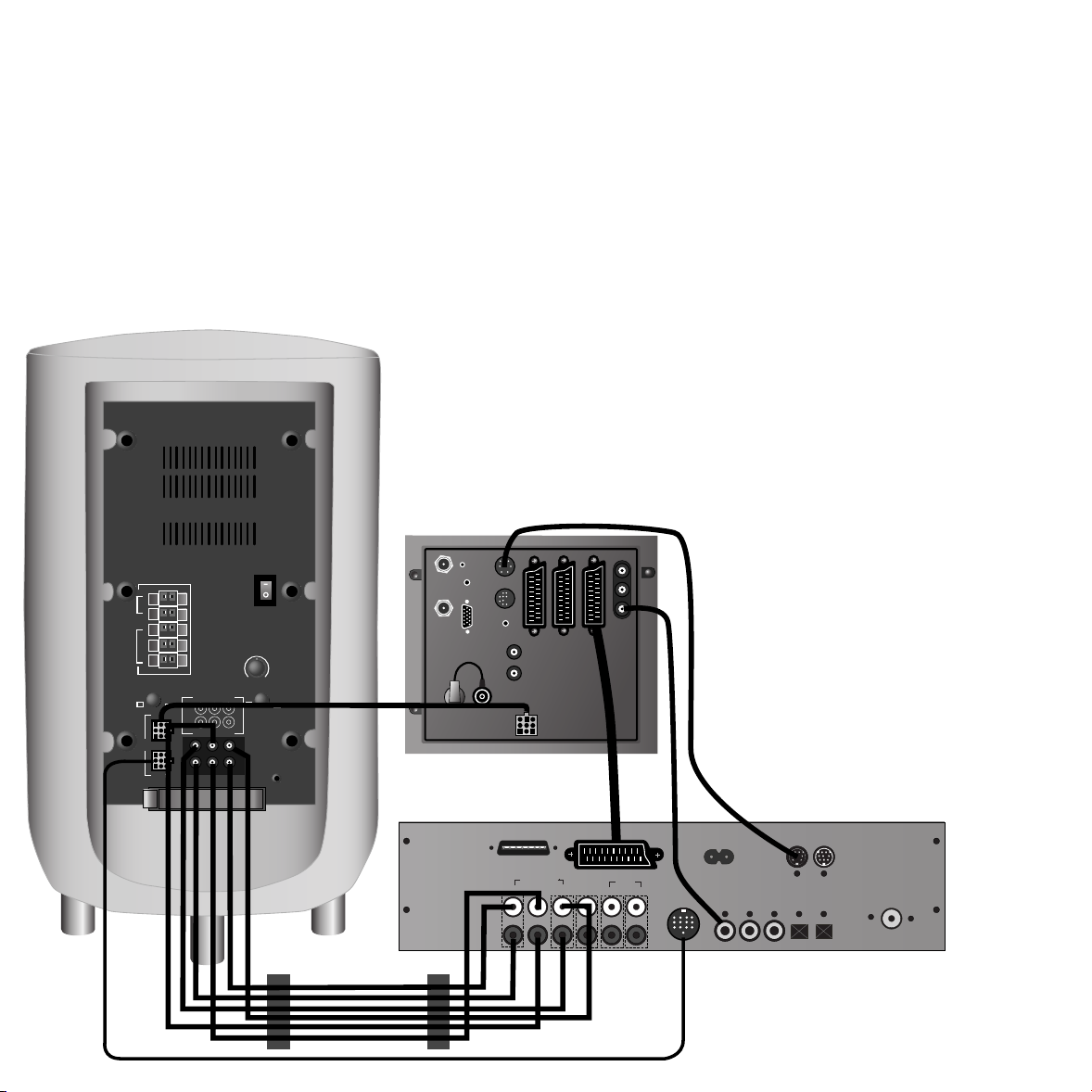

... to Loewe Certos with Loewe TV set (from
Loewe TV MediaPlus Q2500, software 6.x)
Connecting cable to Certos system
Order no. 88947.001
If you use the Loewe Certos system with a Loewe
TV set, connect the Tremo loudspeaker system to
the audio outputs of the Certos system. See the
instructions for laying the cables on page 6.
Subw.
Center
Bass Intensity
Min. Max.
Left
Left
ON
OFF
Phase
0 180
230V~50/60Hz
Power OUT
R
Surr.
L
R
Front
C
L
Center to
Sat
System connector
Slave
Master
Line IN
TV
Right
Surr.
Front
Right
Connect the bass module left hand socket on the
Certos system to the cubic ”Master” socket on
the Tremo subwoofer using the connecting cable
order no. 88947.001.
If the Loewe TV speakers are used for center
reproduction, connect the cubic socket on the TV
with the ”Slave” cubic socket on the subwoofer
using the cubic plug cable. Set the ”Center to”
switch on the subwoofer to ”TV”.
If, on the other hand, you want to use the external center loudspeaker, do not connect the
”Slave” to the TV.
Set the ”Center to” switch on the subwoofer to
”Sat”.
Connect the TV set (Euro AV socket 3) to the
Certos system with the Euro AV cable.
DIG IN
AV2/RGB
1
2
DIG OUT
AV3
SAT
SAT A/D
RC5/RC6
VHF/UHF
IR
VGA
SERVICE
CTRL
AUDIO IN
AUDIO OUT
AV1
R
L
SUBWOOFER
STAND
Connect the TV (SERVICE socket) to the TV-S-Link
socket of the Certos system with the L-Link cable
(provided with the Certos system).
This ensures that the Tremo speaker system is
switched on but the TV stays switched off in the
case of radio or CD playback from the Certos
system.
If the TV set is equipped with a DVB-Module
with Digital OUT terminal and/or the DIS-Module, connect the digital output of the TV set to
DIGITAL IN of the Certos system by a cinch cable
(if a DVB module with Digital-OUT terminal and
a DIS module is available, use the DIS connection). This ensures that the digital audio signal is
fed to the DVD Preceiver for decoding.
How to connect the satellite speakers is described on page 14.
Speaker settings for the Certos system:
Observe the settings for the Certos system
speakers (see operating manual of the Certos
system from page 25).
Set ”small” for front, surround and center speakers.
Select ”yes” for woofer.
Adjust the speakers (level) and also set the listener/speaker distances as described on page 27
of the Certos operating manual.
System-Con.
Front Center Rear
L
R
Pre Out
LFE
Aux 1
Euro AV
Aux 2
In Out
In
Bassmodul
Link
230V / 50-60Hz
DVB
In
D-Aux 3InDigital
Out
S-Link
TV EXT
Digital
D-Aux 4
Out
CERTOS
In
FM
Antenna
12
Page 13
Connection
... to Loewe Certos with Articos 55 (from
Software 6.15), with Master Unit for
Spheros 42 HD and Spheros 37 (from
Software 6.20) or with the signal box.
Connecting cable to the Certos system
Order No. 88947.001
If you use the Loewe Certos system with a
Loewe TV with signal box or Articos 55, connect
the Tremo speaker system to the audio outputs
of the Certos system. See the instructions for
laying the cables on page 6.
Subw.
Center
Bass Intensity
Min. Max.
Left
Left
ON
OFF
Phase
0 180
230V~50/60Hz
Surr.
Front
Sat
System connector
Power OUT
R
L
R
C
L
Center to
TV
Slave
Master
Surr.
Front
Line IN
Right
Right
With the connecting cable order no. 88947.001
connect the bass module link socket to the
Certos system with the cubic socket ”Master”
on the Tremo subwoofer.
If the TV speakers are used for center playback
connect one of the two AUDIO IN 3 inputs on
the signal box or Articos 55 to the Center connection on the Certos system with a cinch
cable.
If, on the other hand, you want to use the external Center speakers, do
not make the connection between the Certos system and AUDIO IN
3 described above. In this case, connect the
Center connection of the Tremo bass module to
the center output of the Certos system (this
connection is shown by a dotted line in the
drawing). Set the ”Center to” switch to ”Sat”.
Connect the TV set (Euro AV socket 2 for signal
box or Euro AV socket 3 for Articos 55 and the
Master Unit for Spheros) to the Certos system
with the Euro AV cable.
Connect the signal box or the Articos 55 (SERVICE socket) to the TV-S-Link socket of the
Certos system with the L-Link cable (enclosed
with the Certos system). This ensures that the
Tremo speaker system is switched on for radio
or CD playback but the TV remains switched
off.
UHF/VHF
PIP
Signalbox
AV 2 ( RGB )
ANT-1
ANT-2
L R
AUDIO OUT
L R
AUDIO IN 3
System-Con.
L R
SOURROUND
Euro AV
AV 1
Center Sub
SERVICE
AUDIO IN1
L R
DIGITAL
IN1
RC5/
IR-
RC6
Link
230V / 50-60Hz
Y
CR/P
AUDIO
IN 2
If the Master Unit/signal box or Articos 55 is
equipped with a DVB module, connect the digital output of the TV set to DIGITAL IN of the
Certos system with a cinch cable (if a DVB module with Digital-OUT terminal is installed, use
the DIS connection). This ensures that the digital
audio signal is fed to the Certos system for
decoding.
How to connect the satellite speakers is described on page 14.
Speaker settings for the Certos system:
Observe the settings for the speakers of the
Certos system (see operating manual of the
Certos system from page 25).
Set ”small” for front and surround speakers. If
the TV speakers are used as center speakers, set
”TV”, if you want to use the external speaker as
center, set ”small”.
For woofer select ”yes”.
Also level speakers and set listener/speaker
distances as described in the Certos operating
manual on page 27.
IN2 OUT
R
SYSTEM
VGA
CONTROL
CB/P
B
DVI-INPUT
S-Link
TV EXT
120-240V
50/60Hz
DVI-OUTPUT
D-SUB
DISPLAY
CERTOS
Front Center Rear
L
R
Pre Out
LFE
Aux 1
Aux 2
In Out
In
Bassmodul
Link
DVB
In
D-Aux 3InDigital
Out
Digital
Out
D-Aux 4
In
FM
Antenna
13
Page 14
Connection
... Connecting the satellite speakers to the
subwoofer
1. Remove the cover over the speaker connections from the satellite speakers.
2. One of the two wires of the speaker cables is
marked black. Connect these black marked
wires with the black terminal on the
subwoofer and the black terminal on the
satellite speaker.
Connect the unmarked wires with the red
terminals.
3. Push the cover over the speaker connections
on the satellite speaker back on.
4. Lay all cables in the subwoofer downwards to
be able to fix them with the cable clip.
... Connecting the subwoofer to the mains
Plug the mains plug of the subwoofer into a 230
V AC socket. Lay this cable downwards too.
Secure all the cables in the clip
Open the cable clip at the bottom of the
subwoofer, lay all the cables in it and close the
clip again. This fixes the cables.
Cover on the subwoofer
Replace the cover after making the following
settings:
The center speaker can be omitted with Loewe
TV sets from chassis MediaPlus Q2500, the
center sound channel is reproduced by the TV
speakers.
Front left Center Front right
Line IN
Right
Right
Subw.
Center
Bass Intensity
Min. Max.
Left
Left
ON
OFF
Phase
0 180
230V~50/60Hz
Power OUT
R
Surr.
L
R
Front
C
L
Center to
Sat
TV
Surr.
Slave
Front
System connector
Surround left Surround right
Master
14
Page 15
Mounting the satellite speaker on the S stand
You can mount the Tremo satellite speaker on the
S stand. See the installation instructions provided
with the stand.
You do not need the following parts:
Flange (2) and the screws (B, C1 – C3).
Proceed as follows:
•Fix the conical base (included in the scope of
delivery of the Tremo speaker system) in place
of the flange at the top end of the pillar with
the screw (B). Use the screws provided with the
Tremo satellite speaker.
Note:
The screws can be found with the speaker
cable.
•Feed the speaker cable from top to bottom
through the conical base. Leave about 5 cm of
the speaker cable protruding.
• Remove the cover over the connections from
the Tremo satellite speaker. Clamp the speaker
cable in the clamp sockets. Push the cover back
on.
• Now lay the cable in the groove of the pillar
(3x).
• Proceed as described in the installation instructions for the S stand. The speaker cable
of the Tremo satellite speakers has no plug
connections, the stripped cable is simply
clamped in sockets.
• Pull back the speaker cable and place the Tremo
satellite speaker on the conical base. It is connected with a bayonet catch with pins of different widths so that the speaker can only be
mounted so that the terminals come to rest
directly over the speaker cable. When the
speaker has been inserted correctly in the bayonet, pull the speaker cable back again and fix it
with a quarter turn to the left. If this proves
difficult, wet the rubber foot of the satellite
speaker slightly with a damp cloth.
15
Page 16
Start-up and operation
Select the center signal on the subwoofer
Use the ”Center to” switch to set whether the
center signal is to be reproduced via the Loewe
TV speakers or by a separately installed center
satellite speaker.
Switch pressed = center via TV set
Switch not pressed = center via satellite speaker
When connecting directly to TV sets with Master
Unit or signal box and direct connection to
Articos 55, this switching is not possible because
the center signal is always played back over the
TV speakers.
Switching the subwoofer on/off
You switch the Tremo speaker system on with the
ON/OFF switch.
If the subwoofer is connected to a Loewe TV set,
the Loewe DVD Preceiver or the Certos system,
you no longer need to switch on and off on the
subwoofer. After switching on the subwoofer for
the first time it is always subsequently switched
on and off automatically with the Loewe device.
Settings on the TV set
Sound via ...
If the Tremo speaker system is connected to the
Dolby Digital Module of the TV set:
1. Call the TV menu with M or MENU.
2. Select ”Sound” with the arrow buttons .
3. Call the Sound menu with OK.
4. Select the menu item ”Sound via” in the
Sound menu with the arrow buttons .
5. Select ”Tremo” with the arrow buttons
and confirm with OK.
Now the sound of the TV set is transmitted by
the satellite speakers and the subwoofer.
Setting listener/speaker distances and
adjusting speaker volumes
Setting of the listener/speaker distances and
adjusting of the speakers to the same volume are
carried out according to the operating instructions of the Dolby Digital Module, the Certos
system or the DVD Preceiver. Set the ”Bass Intensity” knob on the subwoofer to the center position before adjusting the speaker volumes.
Sound reproduction via Loewe TV (from
MediaPlus chassis Q2500) with Tremo
speaker system connected
If you temporarily do not want to use the Tremo
speaker system and want to broadcast the sound
exclusively through the Loewe TV speakers, select
Sound – Sound via – ”TV” in the TV menu as
described above. Confirm with the OK key.
Note:
But please note the following for TV sets as of
software 4.4: If you have switched over to sound
reproduction via TV as described above, the
subwoofer may not be disconnected from the
mains or switched off with the ON/OFF switch or
the cubic plug cable pulled out.
If you have done this, the sound is reproduced via
the Tremo speaker system after switching the
subwoofer back on or after plugging in the cubic
plug or mains plug.
In such a case you have to switch the TV off and
back on so that the Tremo speaker system knows
that you only want to hear the sound over the TV
set.
Phase switch/bass intensity
The phase switch and the bass intensity knob
enable you to optimise bass reproduction.
We recommend you to proceed as follows:
• If the subwoofer is in the corner of the room,
set the bass intensity knob to ”Min”.
• If the subwoofer is against a wall, set the
bass intensity knob to the center position.
• If the subwoofer is standing freely in the
room, set the bass intensity knob to ”Max”.
• Start playing a DVD for example.
• Have a second person activate the phase
switch whilst you sit and listen.
• Decide for yourself which switch position
reproduces the best bass sound.
• Also set the bass intensity to suit your taste.
Note: If Tremo is not selectable on your Loewe TV
in the TV menu - Sound - under ”Sound via”,
have your dealer do a software update.
16
Page 17
Technical data
General
Subwoofer transmission range 40 Hz–150 Hz
Satellite transmission range 150 Hz–20 kHz
Mains voltage 220 – 240 Volt
Max. power consumption 250 Watt
Nominal power consumption 50 Watt
Power consumption on standby < 0.5 Watt
Features
Digital output stages 6 channels
Subwoofer channel (rated/music output) 50/65 Watt
Satellite channels (rated/music output) 30/40 Watt
Bass intensity ±12 dB •
Phase switch •
Power switch •
System link •
Upgrade kits/accessories
Speaker cables satellites FR, FL, Center 3x5m
Speaker cables satellites SR, SL 2x15m
Cubic plug cable 6m
Cinch/cinch cable 6m
Adapter for stands 5
Tremo wall holder (accessory) Set 2 pieces
Dimensions WxHxD (with speaker) in cm 6.8x16x10.5
S stands Set 2 pieces
Dimensions diameter of base plate x height
(with speaker) in cm 25x103
Miscellaneous
Diameter/height subwoofer in cm 30.5x51.5
Diameter/height satellites in cm 10.5x16
Weight subwoofer in kg 15
Weight satellites in kg 1
Colour versions subwoofer/satellites cream, platinum,
anthracite
Printed in Germany
5/09.04/2,5
Modifications without subject.
17
Page 18
18
Loading...
