Operating Instructions.
TV.
233–32190.021
1
Contents
Remote control – TV functions 3
Control panels 4
Rear connections 5
Welcome 6
Thank you
TV equipment
Setup and cleaning
For your own safety 7 – 8
Initial installation 9
Batteries – remote control
Setting the remote control to operate the TV
set
Connection
Switching on
Initial installation

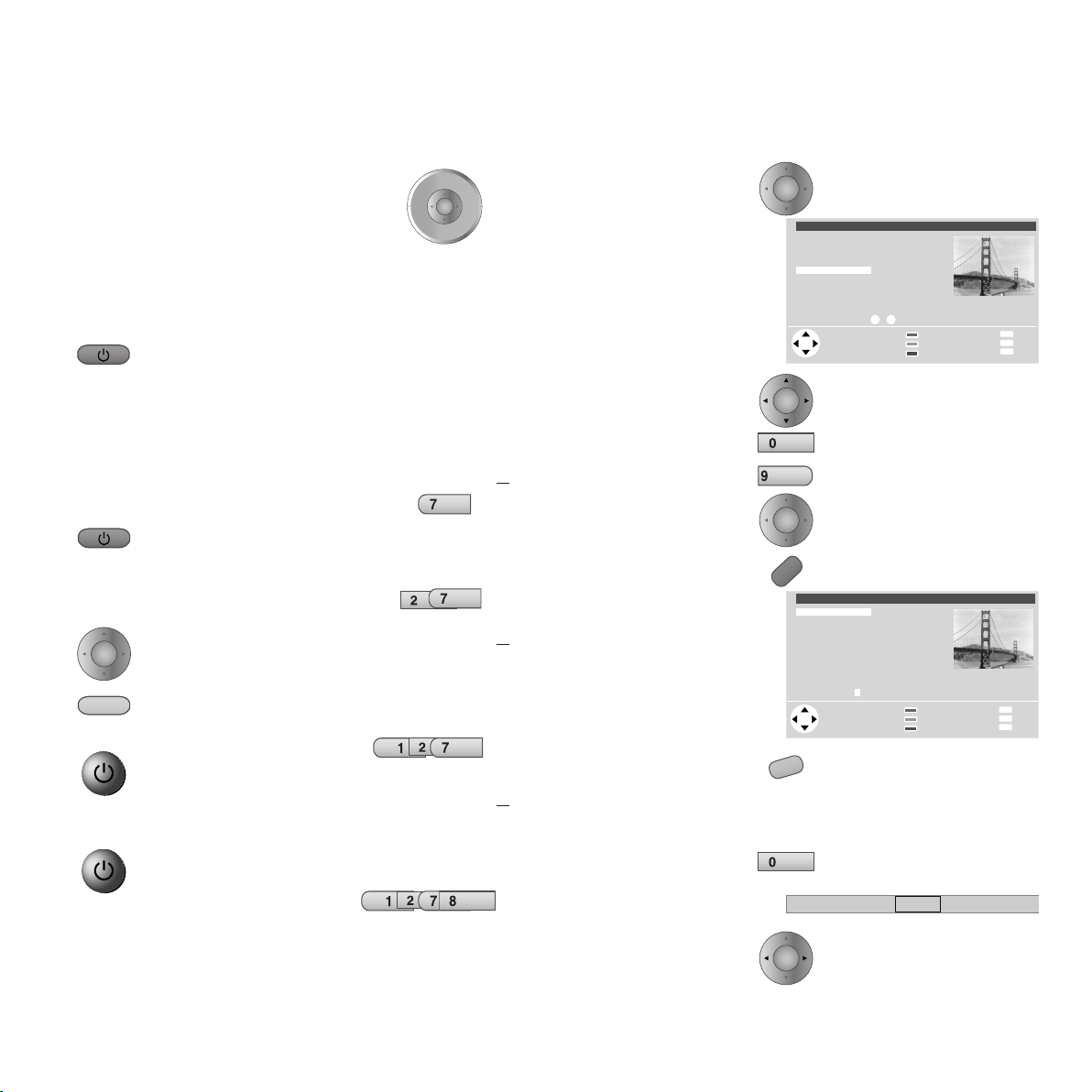

Daily handling 10
Switching on/off 10
Changing channels 10
General menu operation 11
Adjusting the sound 11
Adjusting the picture 11
Operation on the set 11
Modes of operation 12 – 17
TV mode 12

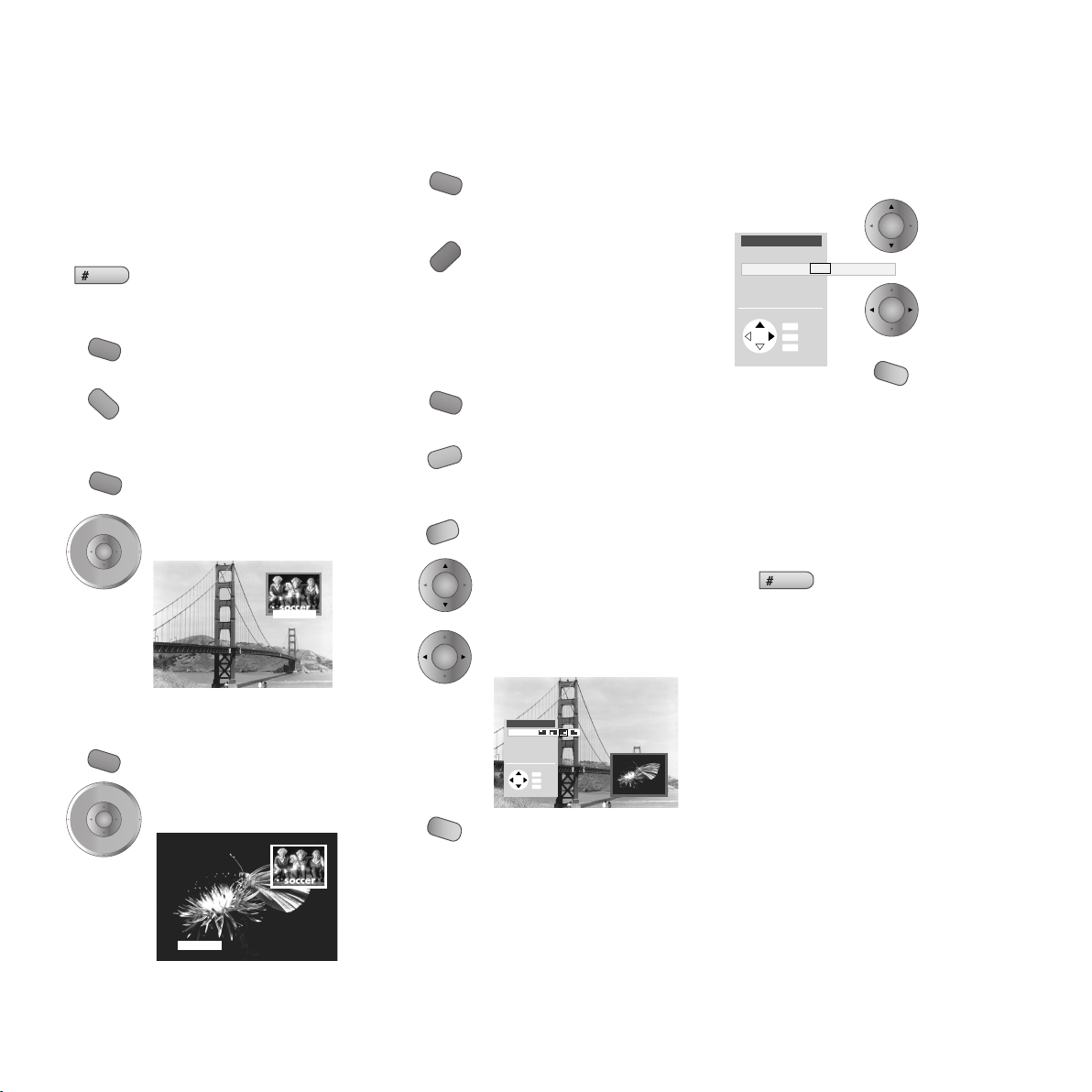

Picture in picture 13
EPG mode 14 –15
Teletext mode 16
Video mode 17
Operating additional equipment 18 – 20
Logging in and connecting
AV equipment 18
Video playback 19
Loewe video recorders and direct
operation of Loewe DVD players 20
What to do if … 21 – 22
Technical data 23
Mechanical data
Electrical data
Accessories 24
Service addresses 25
2
Remote control – TV functions
Sound off/on (mute)
Switching over to operate VCRs
Switching over to operate the TV
Timer overview
Video operation with video operating lin on/off
Set picture format
EPG on/off
Call menu /in menu: back
Teletext mode on/off
P+/P– select program up/down
V–/V+ volume quieter/louder
in menu: select/set
✳ red key: personal teletext pages
✳ green key: call up personal settings
TV
SV SP/LP 000
TEXT
VCR
T-C
DISC-MENU
abc def
ghi jkl
pqrs
EPG
V— V+
tuv
MENU
P+
OK
P—
DVD
RADIO
mno
wxyz
AV
PIP
END
INFO
Switch on/off – in standby
Switching over to operate DVD players
Picture menu on/off
Sound menu on/off
Radio mode on/off
Select programme directly
in menu: enter numbers or letters
Call AV selection
PIP on/off
✳✳
Status display on/off
/in menu: hide menu
Call main information
/in menu: Info texts on/off
Station table list on
/in menu: confirm
blue key: programme info on/off
yellow key: last station
✳
✳
Program –
Freeze frame on
✳
you can assign other functions to the color keys
for the TV mode.
Program +
Freeze frame off
Freeze frame on
✳✳
only in sets with Picture In Picture function
33
Control panels
On/Off key
Standby indicator
Operating indicator
Channel up/down
/in a menu: adjust
To display menu
Connections on the
right side of the TV set
Audio input
(white=left,
+
–
red= right)
Video input AVS
(CVBS)
Video input AVS
(Y/C, CVBS)
Headphones socket
4
Rear connections
✳
with Satellite Digital-Tuner DVB2S-Basic, DVB 2T/S-CI: antenna socket
Antenna socket of the terrestrial digital TV tuner (DVB-T, DVB 2T/S-CI)
✳
Antenna output of the terrestrial Digital-TV tuner (DVB2T-CI/DVB 2T/S-CI)
in Twin-Sat: antenna socket of the 2nd satellite tuner
with terr. digital tuner DVB2T-Basic: digital audio output
✳
in Twin-Sat: antenna socket of the 1st satellite tuner
with Satellite Digital-Tuner DVB2 S-Basic: digital audio output
connect with the antenna socket of the PIP or VHF/UHF tuner
Plug in antenna plug of PIP tuner (distributor) here
connect with the output of the DVB-T tuner DVB2T-CI/DVB 2T/S-CI
✳
depending on type of set or retrofi ttable
/or with the terr. dig. tuner DVB2T-Basic, connect
Antenna socket of the satellite tuner
Antenna socket of the antenna/cable tuner,
plug in antenna cable here,
if no PIP tuner/DVB-T tuner installed
/if PIP tuner installed:
In DVB-T without PIP tuner:
to the antenna system via an antenna splitter
Service
socket/
ConnectionLoewe
audio systems (L-Link)
SAT
IN
VHF/UHF
OUT
✳
Antenna socket of the PIP tuner
/insert antenna cable here
/or connect to the output of the
terr. digital TV tuner DVB2T-CI
/or with the terr. dig. tuner DVB2T-Basic, connect
to the antenna system via an antenna splitter
SERVICE
AUDIO OUT
VHF/UHF
Sockets for video
recorder, DVD,
decoder etc.
AV1
R
L
SUBWOOFER
STAND
(Euro-AV)
AV2/RGB
Audio output sockets
✳
Connection for subwoofer in the stand,
Loewe active loudspeaker systems
or Home Automation
5
Welcome
Thank you,
for choosing a Loewe product.
We are very happy to have you as a customer.
Loewe combines high quality in technology,
design and user friendliness. This applies equally
for TV, video and accessories.
Neither the technology nor the design are an
end in themselves but serve to give our customers pure watching and listening enjoyment.
We have not allowed ourselves to be led astray
by short-lived fashion trends in the design. You
have, after all, purchased a high-quality piece of
equipment which you don’t want to get tired of
looking at tomorrow or the day after .
About the set
We have designed the TV set in such a way
that it is easy to operate with menus. If you
need information about how to operate it,
just display the info texts with the infobutton, you will soon get a grasp of the
relationships.
You will fi nd the answers to many technical questions in the index of your TV set. If
it’s a matter of operating the TV, you can
access a function directly from the index.
This saves you from having to read through
detailed operating instructions and is the
reason why this operating manual you are
reading only explains the most important
operating steps.
TV equipment
This operating manual describes the maximum
equipment.
Functions marked by
TV sets.
The illustrated menu contents may vary depending on the TV equipment.
You can fi nd out what equipment your TV has in
the main information – Technical spec. of TV set.
✳
are not available in all
Setup
Please note that the feet of the TV set could
leave marks on soft wood furniture (e.g. deal,
pine, fi r etc.) due to the weight and moving the
set about.
The plastic material of the feet contains softeners which could in some cases etch the surfaces
of furniture.
In such cases you should place a fi rm underlay
about the same size as the base of the TV set
underneath it.
Please also read and observe the safety instructions on the following pages.
Make sure no bright light or sunlight falls on the
screen and impairs the picture by refl ections.
Cleaning
Clean the TV set only with a damp, soft, clean
cloth (never use aggressive or abrasive cleaning
agents).
Disposal
Packing and box
You have chosen a very high-quality, long-last-
ing piece of technical equipment. In compliance
with national regulations, we have paid a fee to
authorized disposal companies who will collect
the packing from the dealers. Nevertheless we
recommend that you keep the original box and
packing material so that the TV set has optimum
protection if you have to transport it.
The TV set
Please consult your dealer for environmentally
friendly disposal of the TV set.
With the remote control, you can operate three
Loewe units, this TV, a Loewe video recorder and
a Loewe DVD player.
6
For your own safety
For your own safety and in order to avoid
unnecessarily damaging your TV set, please
read and observe the following safety
instructions:
• This TV set is designed exclusively for receiving
and reproducing audio and visual (AV) signals.
• It is designed for the home or offi ce and may
not be used in rooms with high humidity (e.g.
bathroom, sauna) or a high concentration of
dust (e.g. workshops). If the unit is used in
the open air ensure that it is protected against
moisture (rain, dripping or splashing water, or
dew). Do not place containers fi lled with water,
such as vases, on the TV set. High moisture and
dust concentrations produce creep currents in
the set which can lead to danger of electric
shock or fi re.
The manufacturer’s warranty is only valid for
use of the TV set in the specifi ed permissible
environment.
• This set may only be connected to a power
supply with the voltage and frequency specifi ed
on the rating plate using the enclosed power
cable. The wrong voltages can damage the set.
• If the set is moved from a cold environment to
a warm room, condensation forms on all parts
of the set. Moisture produces creep currents
in the set which can cause a fi re. In this case,
you should leave the set for a reasonable time
to acclimatize (when the condensation on the
screen has evaporated) before switching it on.
• Like every piece of electronic equipment,
your TV needs air for cooling. Obstructing the
air supply to the set can cause fi res. The air
vents on the back of the TV set must always
be kept free. Do not leave newspapers or
cloths lying on the TV set. The air supply is
also impaired when the TV set is placed on a
blanket or a thick pile carpet.
10 cm
5 cm
+
—
5 cm
If the TV set is placed in a cabinet or on a
shelf, at least 5 cm clearance at the sides
and at least 10 cm at the top must be left to
allow air to circulate.
Stand the TV set in a place where it is not
exposed to direct sunlight or additional heating from radiators.
• Magnetic fi elds infl uence the picture quality
of the TV set. Do not place loudspeakers or
other magnetic sources immediately next to
the TV set.
• Avoid dropping metal objects, needles, paper
clips, liquids, wax or similar into the air vents
at the back of the set. This causes short
circuiting of the set and could start a fi re. If
anything should get inside the set, switch it
off immediately, pull out the plug and call
the after-sales service to check it.
+
—
Do not place vases fi lled with water, lighted
candles etc. on the top of the TV set.
7
For your own safety
• You should never attempt to remove the rear
panel of the TV yourself. The set operates
with high voltages which could be fatal.
Leave repairs and servicing of your TV set to
authorized TV technicians.
• Due to the picture tube, TV sets have their
center of gravity fairly near to the front.
The TV set therefore has a tendency to tip
forward relatively easily which could cause
injury to persons.
Only stand the TV set on a level, fi rm base.
The set must stand on all feet. The TV should
not overhang particularly when it is placed in
a cabinet or on a shelf.
If the TV is placed on a stand, makes sure
this is larger than the surface area of the
base of the TV.
When using turntables and drawer shelves,
make sure they have a suffi cient load capacity.
+
—
We recommend you to use only original
parts, e.g. Loewe racks and stands.
If the TV set is placed on a console with cas-
tors, move the console carefully because the
console and the TV could tip over. Consoles
with castors may considerably reduce the
stability of the sets placed on them so only
use consoles specially designed and approved for the TV.
Never allow children to handle the TV set
unsupervised.
• Do not place the TV anywhere where it may
be exposed to vibrations because this can
lead to overloading of materials.
• Do not leave the TV on unsupervised.
• Pull out the antenna and mains plugs during
a thunderstorm. Surge voltages from lighting
strikes can damage the set both through the
antenna system and the mains.
You should also pull out the antenna and
mains plugs during long periods of absence.
• The mains plug of the TV must be easily accessible so that it can be disconnected from
the mains quickly at any time.
• Lay the power cable so that it cannot be
damaged. The power cable may not be
kinked or laid over sharp edges, and may not
be walked over or exposed to chemicals; the
latter applies for the entire TV set. A power
cable with defective insulation can lead to
electric shocks and is a fi re risk.
• When you pull out the mains plug, do not
tug the cable but hold the housing of the
plug. The cables in the mains plug could be
damaged and cause a short circuit the next
time it is plugged in.
Do not allow children to play close to the TV
set, they could knock, push or pull it from the
stand and injure someone.
8
Loading...
