Operating Manual
Blu-ray Player
BluTech Vision
233–33146.020
Contents
Remote Control Assist – Blu-ray Player Operation ........... 3
Front View .......................................................................4
Rear View & Display .......................................................5
Welcome .......................................................................... 6
Scope of delivery ...........................................................................................6
Setting Up .....................................................................................................6
Environmental Protection ..............................................................................7
Cardboard Box and Packaging ...................................................................7
The unit ......................................................................................................7
Remote control batteries ............................................................................7
Advantages of connecting to a Loewe TV set ................................................7
Use for the intended purpose and ambient conditions ...............................8
Supervision ................................................................................................8
Cleaning.....................................................................................................8
About this user guide .................................................................................8
For Your Safety ................................................................8
The Basics ........................................................................ 9
Playable Discs ...............................................................................................9
Regional Code ..............................................................................................9
Handling Discs ..............................................................................................9
Storing Discs .............................................................................................9
Cleaning Discs ............................................................................................9
Terminology from the World of Discs ...........................................................10
Title ..........................................................................................................10
Chapter ....................................................................................................10
Messages ....................................................................................................10
Using the remote control for the first time ..................................................10
Resetting the unit .......................................................................................10
Connecting up – General ............................................................................10
Connecting to the TV set .............................................................................10
HDMI connection .....................................................................................10
Component Video Connection ..................................................................10
S Video Connection ..................................................................................10
Video Connection .....................................................................................10
Analogue Stereo Audio Output .................................................................10
Analogue 5.1 Audio Output .....................................................................10
Digital Audio Output ................................................................................10
Initial Set-up .................................................................. 11
Connecting to a Loewe TV System ............................................................... 11
Connecting to a Loewe TV Audio System .....................................................12
Connecting to the Mains Supply .................................................................13
Switching on/off ..........................................................................................13
Concealed Set-up ........................................................................................13
Configuration Menu ....................................................................................13
Navigation in the Menu ...........................................................................13
Menu Language ..........................................................................................14
Menu Settings.............................................................................................14
Audio / Video Settings .................................................................................14
TV Aspect Ratio ........................................................................................14
TV Type .....................................................................................................14
Component Video Out ..............................................................................15
HDMI Video Out .......................................................................................15
HDMI Auto Detection ...............................................................................16
Audio Out ................................................................................................16
Dynamic Range Control ............................................................................17
Speaker settings..........................................................................................17
Speaker Set-up ......................................................................................... 17
Testing Speaker Settings ...........................................................................18
Quick start ..................................................................................................18
- 2
Auto Power Off ...........................................................................................18
Digital Link HD ............................................................................................19
Playback settings ........................................................................................19
Setting PIN code ......................................................................................19
Changing PIN code ..................................................................................19
Deleting PIN code ....................................................................................19
Parental control ........................................................................................20
Disc Language .........................................................................................20
Angle Mark Display ..................................................................................21
Front Display/LED ........................................................................................21
Version........................................................................................................21
Software update .........................................................................................21
Factory Settings ..........................................................................................21
Switching video output ...............................................................................21
Video Operation ............................................................. 22
Playing a BluRay disc or DVD ......................................................................22
Preparation ..............................................................................................22
Playback ..................................................................................................22
Selecting a Title ........................................................................................22
Selecting a Chapter ..................................................................................22
Search ......................................................................................................22
Disc Menu ................................................................................................23
Info Menu ................................................................................................23
Zoom ........................................................................................................23
Function Menu ............................................................................................23
Selecting Title / Chapter............................................................................23
Time (playback from ...) ............................................................................24
Subtitles ...................................................................................................24
Angle mark ..............................................................................................24
Digital Sound Formats, Film Language and Audio Channels .....................24
Repeat .....................................................................................................24
Audio Operation ............................................................ 25
Audio Playback ........................................................................................25
Play another title ......................................................................................25
Search ......................................................................................................25
Info Menu ................................................................................................25
Function menu ............................................................................................25
Selecting a title ........................................................................................26
Time (playback from ...) ............................................................................26
Digital Sound Formats and Audio Channels ..............................................26
Repeat .....................................................................................................26
Troubleshooting ............................................................. 27
Technical Specifications ................................................. 28
Masthead ...................................................................................................28
Operation of Additional Units ........................................ 29
Setting the remote control ..........................................................................29
Operating Loewe Equipment .......................................................................29
Remote Control Assist – TV Operation ..........................30
Service ........................................................................... 31
Glossary ......................................................................... 32
Index .............................................................................. 33
Please fold out this page.
Remote Control Assist – Blu-ray Player Operation
Loewe TV: Sound on / off
LED indicator for current operating mode
Switch over to operate Loewe TV
Switch over to operate Loewe DVD recorder
(page 23) ............................Popup menu on inserted disc
(page 23) ............................................................... Zoom
(page 23) ..................................................Function menu
Back in menu
Menu settings
Loewe TV: Volume
Switch on/off on standby ................................ (page 13)
Loewe TV: Digital radio; long: Auro radio
Loewe Blu-ray Player; long: DVD Player/Auro ..(page 13, 30)
Audio selection
MENU: Enter numbers
MENU: Enter numbers
Delete entry
"Top Menu" / List of titles ................................ (page 22)
Info menu ........................................................ (page 23)
Hide menu
Next/previous chapter ...................................... (page 22)
(page 13) .................................... Confirm menu selection
(page 23) .......................................1) Colour button green
(page 23) ...........................................1) Colour button red
(page 22) ............................................. Search backwards
(page 21) .................................. HDMI/component output
(page 22) ................................................................Pause
MENU: select/set ............................................. (page 13)
1)
Colour button yellow..................................... (page 23)
1)
Colour button blue ........................................ (page 23)
Playback ..........................................................(page 22)
Search forwards ............................................... (page 22)
Stop ................................................................. (page 22)
1)
Function depends on disc
3 -
Front View
Front ap (closed)
On
Off in Standby
- 4
Operating indicator
Display
BluRay indicator
Disc drawer
Front ap
(opened)
Disc drawer
open / close
Rear View & Display
COMPONENT VIDEO
OUT (Y Pb Pr)
Connection of a TV with
component inputs (Cinch)
S-VIDEO
Connection of a
TV with S-video
input
VIDEO
Connection of a
TV with video
input
2CH AUDIO L/R
Connection of a TV with
stereo audio inputs (Cinch)
5.1 CH AUDIO OUT
Connection of a surround
sound audio system (Cinch)
HDMI OUT
Connection of a TV
with HDMI input
Important: Do not touch the inside pins in the connecting sockets on the back of the unit!
Electrostatic discharge which may occur can cause lasting damage to the unit.
USB socket
only for service
COAXIAL DIGITAL
audio digital output
Coaxial
Mains cable
OPTICAL AUDIO OUT
Optical audio digital
output
Numerical information
Total playback time, title /
chapter / track number, status etc.
5 -
Welcome
Thank you
for choosing a Loewe product. We are happy to welcome you as our customer.
At Loewe we combine the highest standards of technology, design and user
friendliness. This is equally true of TV, DVD, video, audio and accessories. Neither
technology nor design is an end in itself, but both are intended to provide our
customers with the best possible audio and visual experience. Our design is not
influenced by short-term, fashionable trends. You have, after all, purchased a
high-quality piece of equipment which you do not want to tire of tomorrow or
the day after.
Scope of delivery
BluRay Player Loewe BluTech Vision
•
Remote Control Assist with 2 batteries
•
HDMI cable
•
AV Cinch cable
•
Mains cable
•
These operating instructions
•
You can control three units using the remote control: this Player, a Loewe TV set
and a Loewe Recorder or Loewe Audio System.
Trademark rights
Manufactured under licence from Dolby Laboratories. Dolby, ProLogic and the
double-D symbol are trademarks of Dolby Laboratories.
"DTS" and "DTS Digital Out" are trademarks of Digital Theater Systems Inc.
HDMI, the HDMI Logo and High-Definition Multimedia Interface are trademarks or
registered logo of HDMI licensing LLC.
Java and all trademarks and logos based on Java are trademarks or registered
trademarks of Sun Microsystems, Inc. in the United States of America and/or other
countries.
Setting Up
Place the Player on a stable, level surface.
•
Do not move the Player during operation or shortly after switching it off.
•
Do not set up the Player near strong heat sources or in direct sunlight.
•
When setting up in a cupboard or enclosed shelving: Leave at least 2.5 cm of
•
free space around the Player to allow air to circulate freely and to prevent heat
accumulation. Do not cover the fan and opening on the back.
The picture and sound of a TV set, a player or a radio nearby could have
•
their transmissions distorted. If this is the case, do not set the unit up in
the immediate vicinity of a TX set, player or radio or switch the unit off after
removing the disc.
Set the Player up so that the infra-red signal of the remote control can directly
•
reach the display of the Player (or, if this is not possible, refer to "Advantages
of connecting up a Loewe TV set" page 7).
Do not place any strong artificial light source in front of the unit. This could
•
have a detrimental effect on the infrared reception.
Incorrect voltages can damage the unit. The unit may only be connected to an
•
electricity supply with the voltage and frequency stated on the rating plate and
using the enclosed mains cable.
During thunderstorms, disconnect the mains plug. A voltage surge caused by
•
lightning conducted through the mains could damage the unit.
During a lengthy absence, the plug should also be disconnected from the
•
mains.
The mains plug must be easy to reach to ensure that the unit can be disconnected
•
from the mains at any time.
Position the mains cable in such a way that it can not be damaged. The mains
•
cable may not be bent or laid across sharp edges, walked on or exposed to any
chemicals; the latter applies to the whole unit. A mains cable with damaged
insulation can cause electric shocks and represents a fire hazard.
When you want to unplug from the mains, do not pull on the cable, but on the
•
housing of the plug. The cables in the mains plug could otherwise be damaged
and could cause a short-circuit when being plugged in again.
- 6
Please also read and follow the safety advice on the following pages.
Welcome
Shipping the Unit
The original shipping box and packaging materials should be used in this case.
To protect the unit as much as possible, pack it in the same way as it was packed
when you originally received it.
Environmental Protection
Cardboard Box and Packaging
In line with national regulations regarding the disposal of packaging materials, we
pay a fee to authorised recyclers who collect packaging from dealers. Nevertheless,
we recommend that you keep the original cardboard box and the rest of the
packaging materials so that the unit can, if necessary, be transported in the safest
possible conditions.
The unit
Important: The EU Directive 2002/96 /EC governs the proper
return, handling and recycling of used electronic appliances. Old
electronic appliances must therefore be disposed of separately.
Never dispose of this unit in the normal domestic waste! You can
hand in your old unit free of charge at identified collection points
or to your dealer if you buy a similar new unit.
Other details about return (also for non-EU countries) are available
from your local authorities.
Remote control batteries
The batteries provided contain no harmful materials such as
cadmium, lead or mercury.
Regulations concerning used batteries mean that batteries may
no longer be thrown out with the household rubbish. You can
dispose of used batteries free of charge at the collection points
in commercial outlets. Your dealer will also have a collection point
for used batteries.
Advantages of connecting to a Loewe TV set
Using the Digital Link HD you can set the Player up for example in a closed rack
or wall unit, without a direct line of sight to the Player. You can operate basic
functions (Play, Pause, Stop, Search backwards/forwards, Top Menu) of the Player
via the Loewe TV set using the remote control. You have to switch on Digital Link
HD on the Player (page 19).
If you use the HDMI connection, the TV set is automatically switched to this input
when the Player is switched on, providing your TV set supports this function.
7 -
For Your Safety
For your own safety, and to avoid unnecessary damage to your unit, please read
and follow the safety advice below.
Use for the intended purpose and ambient conditions
This Player is intended exclusively for the playback of video and audio signals and
is designed for home and office use and may not be operated in rooms with high
humidity (e.g. bathroom or sauna) or a high concentration of dust (e.g.
workshops).
The terms of the warranty only cover normal use of the Player.
If the unit is used outdoors, make sure that it is protected from moisture (rain,
drips, spray or dew). High concentrations of moisture and dust lead to creepage
current in the unit which can make it dangerous by touching a voltage or can cause
a fire.
If you have moved the unit out of the cold into a warm environment, leave it
switched off for about an hour to avoid the formation of condensation.
Always switch off your system (BluTech Vision, TV set and any other components
which may be connected) before connecting or disconnecting other devices or
speakers.
Do not open the housing to ensure that you do not expose yourself directly to the
laser beam. Laser radiation is visible in the open unit.
DO NOT LOOK DIRECTLY INTO THE LASER BEAM!
Protect your Player from:
Wet conditions and moisture.
•
Knocks and mechanical stress.
•
Magnetic and electric fields.
•
Cold, heat, direct sunlight and high temperature fluctuations.
•
Dust.
•
Covers that inhibit ventilation.
•
Interference with the internal workings of the unit.
•
IMPORTANT:TO AVOID RISK OF ELECTRIC SHOCK, DO NOT REMOVE THE
COVER (AND THE BACK OF THE UNIT). THERE ARE NO PARTS INSIDE THE UNIT
THAT CAN BE REPAIRED BY THE USER. REPAIRS SHOULD ONLY BE CARRIED
OUT BY A LOEWE DEALER.
As far as possible, only use original accessories, such as Loewe mounting
systems.
Supervision
Do not allow children to use the Player/TV set unsupervised. Do not allow children
to play in the immediate vicinity of the Player/TV set. The unit could be knocked
over, moved or pulled off the surface it is on and could hurt somebody.
Cleaning
Only clean your Player with a slightly damp, soft, clean cloth (without any aggressive
or scouring cleaning agents).
If the Player does not read a disc correctly, it is possible that the reading device in
the unit is dirty. Use a commercially available cleaning disc.
Keep the disc drawer closed so that no dust gets onto the lens from the drawer.
About this user guide
The information in this guide refers to the Loewe product BluTech Vision.
Unless stated otherwise, the instructions refer to the operating elements on the
Assist remote control.
Paragraphs beginning with the ➠ symbol indicate important hints, tips or conditions
for perfect operation.
Terms which you will find in the menu or printed on the recorder are printed in
bold type.
In the functional descriptions, the necessary operating elements are arranged to
the left of the text containing the handling instructions.
- 8
The Basics
Playable Discs
Only use discs that conform with conventional standards.
This can be ascertained from the logos applied.
Disc Type
BD Video Regional Code
B / ALL
BD-RE/BD-R *
DVD Video Regional Code
2 / ALL
DVD±RW/DVD±R * Video Mode Audio +
Audio CD * Audio CD
CD-RW/CD-R * Audio CD
* only nalised discs
➠ If you write a disc with a PC, it may not be possible to play back the disc,
even though its format is compatible, possibly because of the settings in the
application software used to burn it. (You can get further information on this
from the software provider).
➠ Do not apply stickers or labels of any kind to either side of the disc (either
the side with writing or the recorded side).
➠ Do not use any unusually shaped CDs (e.g. heart-shaped or octagonal).
Otherwise malfunction can not be ruled out.
➠ Dirt and scratches on the disc can impair playback or make it impossible.
Take care of the discs.
➠ Due to the high quality coatings on discs, they are relatively insensitive to
small scratches and fingerprints. This is why no protective casing is required.
Recording
Format
— Audio +
Video Mode Audio +
(CD-DA)
(CD-DA)
Contents Disc Size
Video (Film)
Video (Film)
Video (Film)
Audio
Audio
12 cm (5")
12 cm (5")
8 cm (3")
12 cm (5")
12 cm (5")
8 cm (3")
Regional Code
This Player can only play back coded Blu-ray discs for the region "B" or "All". DVDs
can only be played back for the region "2" or "All".
The regional code on the labels of many DVDs shows which type of DVD player can
play back these discs. If you try to play other discs, you will see the error message
"Wrong country code. Playback not possible." on the TV screen.
On some DVD discs, the label with the regional code is missing, even though the
disc can not be played back in all regions.
Handling Discs
Do not touch the recorded side of the disc. Hold the disc by the edges to avoid
touching the surface with your fingers. Do not apply any paper or sticky tape to
either side of the disc.
Storing Discs
Replace the disc back in its case after playing it. Do not expose the disc to any
direct sunlight or heat sources and never leave it in a parked car that is directly in
the sun, as the temperature in the car can rise dramatically.
Cleaning Discs
Before playing the disc, clean it with a clean cloth. Wipe the disc from the middle
to the edge.
Do not use use any strong solvents such as alcohol, petrol, thinner, commercially
available cleaner or antistatic spray intended for vinyl records.
9 -
The Basics
Terminology from the World of Discs
Title
A title is the main content of the film of music album. It is simple to access using
the assigned title number.
Chapter
A chapter are parts of a film or music track which are part quantities of a title. It
is simple to access one using the assigned chapter number.
Messages
During operation you may see FUNCTION NOT POSSIBLE on the screen. This
means that the required function is (possibly momentarily) not available.
Using the remote control for the first time
To insert or change the batteries, press on the arrow. While doing so, simply
slide the battery compartment lid down and remove it. Insert alkali manganese
batteries LR 03 (AAA) and ensure the correct position of + and –. Slide the cover
on again from the bottom.
Resetting the unit
If one of the following problems occurs
The unit is connected but can not be switched on or off.
•
The display on the console is not working.
•
The Player is not working normally,
•
you can reset the Player as follows:
Press the button on the unit for at least 8 seconds. The unit will
switch itself off or unplug it from the mains; wait for at least 20
seconds and then connect the cable again.
Press the button again to switch the unit back on.
Connecting up – General
➠ Depending on the TV set and the other units that you want to connect, there
are several options available for connecting the Player to your TV set. Only use
the connections described in the following.
➠ If applicable, read the accompanying documentation for your TV set, your
audio system and other units to make the connections described below.
➠ Do not connect the AUDIO OUT socket of the Player to the Phono In socket
of the audio system.
Connecting to the TV set
➠ The Blu-ray Player must be registered in the connection assistant if you have
a Loewe TV set.
HDMI connection
Using the enclosed HDMI cable, connect the socket HDMI OUT of the Player to
the HDMI input socket on the TV set (for Loewe TVs, socket HDMI 2). Make the
settings as described in page 15/16.
Component Video Connection
Using a Y Pb Pr cable (can be obtained from specialist retailers), connect the
COMPONENT VIDEO OUT sockets on the Player to the corresponding input
sockets on the TV set.
S Video Connection
Using an S video cable (can be obtained from specialist retailers), connect the
S-VIDEO AV OUT socket of the Player with the S Video input socket of the TV
set.
Video Connection
Using a cinch cable (can be obtained from specialist retailers), connect the
VIDEO AV OUT socket of the Player with the S Video input socket of the TV set.
Analogue Stereo Audio Output
Using a stereo cinch audio cable (can be obtained from specialist retailers), connect
the 2CH AUDIO AV OUT sockets of the Player to the stereo AUDIO-IN sockets
on the TV set.
Analogue 5.1 Audio Output
Using a 6 pin cinch audio cable (can be obtained from specialist retailers) , connect
the 5.1CH AUDIO AV OUT sockets of the Player to the 5.1 surround AUDIO-IN
sockets on the TV set.
Digital Audio Output
Connect the COAXIAL or OPTICAL DIGITAL AUDIO OUT socket of the Player to
the DIGITAL IN socket of the surround amplifier.
- 10
Initial Set-up
S-VIDEO OUT
Loewe DVD-Recorder
Loewe Flat-TV
Loewe Blu-ray Player
Connecting to a Loewe TV System
Make the connections as shown here:
HDMI cable
SCART cable
HDMI cable
11 -
Initial Set-up
ON
Line IN
Power OUT
OFF
230V~50/60Hz
Surr.
Front
Right
Surr.
Front
Subw.
Left
Right
Center
Left
R
R
L
C
L
Bass Intensity
Phase
Min. Max.
0 180
Crossover Frequency
Audio Link
System connector
50 250.
Loewe Sound Projector
Loewe Flat-TV
Loewe Blu-ray Player
Loewe Individual Sound-System (Subwoofer)
Connecting to a Loewe TV Audio System
Make the connections as shown here:
To show the OSD display of the Sound Projector,
use a SCART Cinch cable.
Digital AUDIO
Audio Link
SCART Cinch
- 12
RS-232C
HDMI cable
SETUP MENU
SELECT ENTER RETURN EXIT
DISPLAYS THE TITLE LIST SETTINGS
ON SCREEN LANGUAGE
Initial Set-up
Connecting to the Mains Supply
First of all, plug the small plug of the mains cable plug into the power supply
socket on the back of the Player and then plug the large mains plug into a mains
socket 220-240V~ 50 Hz.
Switching on/off
Set the remote control for Player operation by briefly pressing
the button DVD.
Press the on/off button on the unit or
The on/off button on the remote control.
The operating indicator flashes red first of all and then lights
up green (page 4).
Press the on/off button on the remote control again to switch
the unit off.
Concealed Set-up
With Digital Link HD (CEC), Loewe TV sets pass the signals from the remote control
via the HDMI connection from the TV set to the Player. Digital Link HD makes sense
if you want to set up the Player concealed, e.g. in a closed rack.
➠ The TV set needs to be switched on.
➠ The function Digital Link HD has to be activated in the
Player (page 19).
On the TV set, select the AV programme slot for HDMI.
As long as HDMI is selected as the programme slot, most TV remote control
commands (ASSIST in TV mode) will be passed on to the connected HDMI unit.
Volume, sound on/off, sound adjustment and picture format however, still affect
operation of the TV set. The DVD commands (ASSIST in DVD mode) are not passed
on by the TV.
With the TV button (press briefly), in TV operation you switch
back to the last station watched and terminate the Player
control.
Configuration Menu
The menu system offers several possibilities to change the settings. Most menus
have several levels on which options can be set. If you press , then first of all
the configuration menu is shown.
Navigation in the Menu
In these operating instructions, the arrow buttons on the Remote Control Assist
are shown as follows:
In the text, the arrows correspond to: "5634".
The OK button on the remote control is shown as OK in the
text.
Call up the menu.
5634 Select required option.
Confirm OK.
Go back one level in the menu.
Close menu.
➠ Marked options are shown in the menu with a blue button.
Options that are currently set are shown with a white button.
By pressing the TV button for a long time, you can switch between
HDMI and TV operation. Pressing the TV button briefly switches
back to TV mode.
➠ The configuration menu can not be opened with concealed set-up;
it can only be opened through direct operation with the remote
control ASSIST in DVD mode.
13 -
MENU [ON SCREEN LANGUAGE]
SELECT ENTER RETURN EXIT
SELECT DISPLAY LANGUAGE.
SÈLECTZIONNER LA LANGUE S'AFFICHAGE.
ANZEIGESPRACHE WÄHLEN.
DEUTSCH
ENGLISH
ESPAÑOL
FRANÇAIS
ITALIANO
SVENSKA
NEDERLANDS
PORTUGEUSE
MENU [AUDIO VIDEO SETTINGS]
SELECT ENTER RETURN EXIT
AUDIO VIDEO SETTINGS
SPEAKER SETTINGS
QUICK START
AUTO POWER OFF
DIGITAL LINK HD
PLAYBACK SETTING
FRONT DISPLAY/LED
VERSION
SOFTWARE UPDATE
SYSTEM RESET
MENU [AUDIO VIDEO SETTINGS - TV ASPECT RATIO]
SELECT ENTER RETURN EXIT
TV ASPECT RATIO
TV TYPE
WIDE
SELECT THE CORRECT ASPECT
RATIO FOR YOUR CONNECTED TV.
NORMAL
COMPONENT VIDEO OUT
HDMI VIDEO OUT
HDMI AUTO DETECTION
AUDIO OUT
DYNAMIC RANGE CONTROL
16 : 9 4 : 3
Initial Set-up
Menu Language
Select a language for menus and dialogues which are shown by the Player.
Call up the menu.
5634 Select option MENU [ON SCREEN LANGUAGE].
Confirm OK.
5634 Select option ENGLISH.
Confirm OK.
Menu Settings
Set the Player up to meet your individual requirements and configuration.
Call the menu.
563 4 In the configuration menu select the option
SETTINGS.
Confirm OK.
Audio / Video Settings
TV Aspect Ratio
WIDE Select this setting if a wide screen TV set with the picture
format 16:9 is connected.
NORMAL Select this setting if a TV set with the picture format 4:3 is
connected. With Letter Box Mode the display of wide screen
formats has black bars at the top and bottom edges of the
picture. Using Pan-Scan, the picture is stretched so that no
black bar is visible, but the left and right edges are cut off.
56 In the menu SETTINGS select the option AUDIO VIDEO
SETTINGS.
Confirm OK.
56 Select option TV ASPECT RATIO.
Confirm OK.
34 Select option WIDE or NORMAL (Letter Box or Pan-
Scan).
Confirm OK.
- 14
TV Type
You can choose between:
AUTO Select this setting if you have a multi-standard TV set
connected.
PAL Select this setting if the TV set you have connected can only
play back the PAL colour standard.
56 In the menu SETTINGS select the option AUDIO VIDEO
SETTINGS.
Confirm OK.
56 Select option TV TYPE.
Confirm OK.
34 Select option AUTO or PAL.
Confirm OK.
MENU [AUDIO VIDEO SETTINGS - COMPONENT VIDEO OUT]
SELECT ENTER RETURN EXIT
TV ASPECT RATIO
TV TYPE
1080i
SELECT COMPONENT VIDEO OUTPUT
RESOLUTION. FOR DVD PLAYBACK,
ONLY 576/480p or 576/480i SIGNAL
CAN BE SUPPORTED.
CURRENT SETTING IS 576/480i.
720p
576/480p
576/480i
COMPONENT VIDEO OUT
HDMI VIDEO OUT
HDMI AUTO DETECTION
AUDIO OUT
DYNAMIC RANGE CONTROL
MENU [AUDIO VIDEO SETTINGS - HDMI VIDEO OUT]
SELECT ENTER RETURN EXIT
TV ASPECT RATIO
TV TYPE
1080p
AUTO
SELECT HDMI VIDEO OUTPUT
RESOLUTION.
IF [AUTO] IS SELECTED, THEN VIDEO
OUTPUT WILL BE SET BASED ON THE
TYPE OF TV CONNECTED.
1080i
720p
576/480p
COMPONENT VIDEO OUT
HDMI VIDEO OUT
HDMI AUTO DETECTION
AUDIO OUT
DYNAMIC RANGE CONTROL
Initial Set-up
Component Video Out
Set the resolution for the analogue video signal at the interface
COMPONENT VIDEO OUT.
56 In the menu SETTINGS, select the option AUDIO VIDEO
SETTINGS.
Confirm OK.
56 Select the option COMPONENT VIDEO OUT.
Confirm OK.
3456 Select option 1080i, 720p, 576/480p or 576/480i
depending on the display options the connected TV set has.
Confirm OK.
34 Select option YES.
Confirm OK.
5 6 Select option CONFIRM.
Confirm OK.
HDMI Video Out
Set the resolution for the digital video signal at the interface
HDMI OUT.
56 In the menu SETTINGS, select the option AUDIO VIDEO
SETTINGS.
Confirm OK.
56 Select the option HDMI VIDEO OUT.
Confirm OK.
3456 Select option 1080p, 1080i, 720p or 576/480p
depending on the display options the connected TV set has, or
select option AUTO for automatic adjustment to the TV set.
Confirm OK.
34 Select option YES.
Confirm OK.
56 Select option CONFIRM.
Confirm OK.
➠ The HDMI Out can not be used at the same time as the
Component Video Out.
➠ If this Player is connected to a TV set that is suitable for
1080p24 display (page 33), the Player switches to this mode for
playback if the option Auto has been selected at HDMI Out.
15 -
MENU [AUDIO VIDEO SETTINGS - HDMI AUTO DETECTION]
SELECT ENTER RETURN EXIT
TV ASPECT RATIO
TV TYPE
IF HDMI AUTO DETECTION IS ENABLED,
VIDEO OUTPUT AUTOMATICALLY
CHANGES
TO HDMI WHEN THE PLAYER DETECTS
HDMI CONNECTION.
TURN ON THE FUNCTION?
*VIDEO SIGNALS CANNOT BE OUTPUTTED
SIMULTANEOUSLY FROM HDMI AND
COMPONENT VIDEO OUTPUT.
YES
NO
COMPONENT VIDEO OUT
HDMI VIDEO OUT
HDMI AUTO DETECTION
AUDIO OUT
DYNAMIC RANGE CONTROL
MENU [AUDIO VIDEO SETTINGS - AUDIO OUT]
SELECT ENTER RETURN EXIT
TV ASPECT RATIO
TV TYPE
SELECT AUDIO OUTPUT TERMINAL THAT
CONNECTS TO SURROUND EQUIPMENT.
HDMI OUTPUT
OPTICAL / COAXIAL DIGITAL OUT
5.1ch AUDIO OUTPUT
2ch AUDIO OUTPUT
COMPONENT VIDEO OUT
HDMI VIDEO OUT
HDMI AUTO DETECTION
AUDIO OUT
DYNAMIC RANGE CONTROL
MENU [AUDIO VIDEO SETTINGS - AUDIO OUT]
SELECT ENTER RETURN EXIT
TV ASPECT RATIO
TV TYPE
SELECT AUDIO OUTPUT FORMAT FROM
HDMI TERMINAL.
* IF [AUTO] IS SELECTED, AUDIO FORMAT
WILL BE SET AUTOMATICALLY IN
ACCORDANCE WITH THE CONNECTED
EQUIPMENT.
AUTO
PCM (SURROUND)
COMPONENT VIDEO OUT
HDMI VIDEO OUT
HDMI AUTO DETECTION
AUDIO OUT
DYNAMIC RANGE CONTROL
Initial Set-up
HDMI Auto Detection
With this setting the Player automatically switches to the HDMI
Out if an HDMI Output signal is detected.
56 In the menu SETTINGS select the option AUDIO VIDEO
SETTINGS.
Confirm OK
56 Select option HDMI AUTO DETECTION.
Confirm OK.
34 Select option YES.
Confirm OK.
Audio Out
Set the audio out to the connected audio equipment.
56 In the menu SETTINGS select the option AUDIO VIDEO
SETTINGS.
Confirm OK.
56 Select option AUDIO OUT.
Confirm OK.
56 Select option according to the audio playback options on
the connected TV set or amplifier.
HDMI Out Audio out via the interface HDMI OUT.
OPTICAL/COAXIAL Audio output via the interface OPTICAL
DIGITAL OUT DIGITAL OUT or COAXIAL DIGITAL OUT.
5.1ch AUDIO OUTPUT
2ch AUDIO OUTPUT
Audio output via the interface 5.1ch AUDIO OUT.
Audio output via the interface 2ch AUDIO L/R.
Confirm OK.
Another menu then appears. Here you select the respective
suitable audio formats for the selected interface.
AUTO Select this option if you have connected a unit with
an integrated multichannel decoder, e.g. Dolby
Digital at the interface HDMI OUT.
PCM (SURROUND) Output of linear PCM Audio Signal with surround
sound at HDMI OUT.
PCM (STEREO) Output of 2 channel sound.
BITSTREAM Output of surround sound to a unit with an
integrated multichannel decoder.
- 16
Confirm OK.
An overview of the selected audio output format settings
appears.
Confirm OK.
➠ The audio format settings depend on each other and can
influence each other.
MENU [AUDIO VIDEO SETTINGS - DYNAMIC RANGE CONTROL]
SELECT ENTER RETURN EXIT
TV ASPECT RATIO
TV TYPE
ADJUST AUDIO RANGE WHEN DOLBY
DIGITAL PLAYBACK SIGNAL IS WEAK.
NORMAL
SHIFT
COMPONENT VIDEO OUT
HDMI VIDEO OUT
HDMI AUTO DETECTION
AUDIO OUT
DYNAMIC RANGE CONTROL
MENU [SPEAKER SETTINGS]
SELECT ENTER RETURN EXIT
AUDIO OUTPUT CAN BE SET ACCORDING TO THE CONNECTED
AMPLIFIER AND SPEAKER SYSTEMS.
(WHEN 5.1 CH OUTPUT TERMINAL IS NOT USED, IT IS NOT NECESSARY
TO SET IT.)
DO YOU WANT TO ADJUST THE SPEAKER SETTINGS?
* SPEAKER SETTINGS ARE AVAILABLE, WHEN PCM (SURROUND) SIGNAL IS
SOURCED FROM HDMI TERMINAL.
YES
NO
TEST START
FINISH
SET THE SPEAKER SIZE, DISTANCE FROM LISTENING POINT, AND THE SOUND
LEVEL TO EACH SPEAKERS. SELECT SPEAKER.
MENU [SPEAKER SETTINGS]
SELECT ENTER RETURN EXIT
LS
2.0m/0dB
3,8m/0dB
L
3,8m/0dB
C
3,8m/0dB
R
SW
0dB
RS
2.0m/0dB
Initial Set-up
Dynamic Range Control
With this setting you can limit the dynamics (this means the
difference between the loudest and the quietest sounds). You can
therefore also play back a film with lower volume differences.
➠ Turn the volume down before changing this setting.
56 In the menu SETTINGS select the option AUDIO VIDEO
SETTINGS.
Confirm OK.
56 Select option DYNAMIC RANGE CONTROL.
Confirm OK.
34 Select option.
NORMAL Unchanged sound output.
SHIFT With the output of Dolby Digital audio signals, the
volume of quiet sounds is raised and the volume of
loud sounds is reduced.
Confirm OK.
Speaker settings
You can connect a surround sound amplifier to the Player. In the speaker settings,
you can set the necessary parameters to do so.
➠ Please also read the notes in the operating instructions for your surround
system.
➠ Remove the disc from the Player before you start adjusting the speaker
settings.
Speaker Set-up
56 In the menu SETTINGS select the option SPEAKER
SETTINGS.
Confirm OK.
34 Select option YES.
Confirm OK.
You will see a menu with the loudspeakers represented as
symbols (L: left speaker, R: right speaker, C: centre speaker, SW:
subwoofer, LS: left surround speaker, RS: right surround speaker)
and their listening position.
34 Select speaker.
Confirm OK.
17 -
SIZE
LARGE 3.8m 0dB
DISTANCE LEVEL
SET THE SPEAKER SIZE, DISTANCE FROM LISTENING POINT, AND THE SOUND
LEVEL TO EACH SPEAKERS.
MENU [SPEAKER SETTINGS]
SELECT ENTER RETURN EXIT
LS
2.0m/0dB
3.8m/0dB
L
3.8m/0dB
C
3.8m/0dB
R
SW
0dB
RS
2.0m/0dB
MENU [QUICK START]
SELECT ENTER RETURN EXIT
IF QUICK START IS ENABLED, THE START-UP TIME FROM
STANDBY MODE WILL BE SHORTENED.
DO YOU WANT TO TURN ON THIS FUNCTION?
YES
NO
MENU [AUTO POWER OFF]
SELECT ENTER RETURN EXIT
WHEN AUTO POWER OFF MODE IS SET, THE UNIT WILL SWITCH TO
STANDBY MODE AUTOMATICALLY AFTER 10 MINUTES WHEN NO
ACTIVITY IS DETECTED.
DO YOU WANT TO ACTIVATE THIS FUNCTION?
YES
NO
Initial Set-up
34 Select option.
34 Select the corresponding parameter respectively.
SIZE Select the option LARGE if the largest speaker in the box has
a diameter of 16 cm or more. Otherwise select SMALL. If you
do not have speakers connected, select NO.
DISTANCE Set the distance from the selected speaker to your listening
position.
LEVEL Set the output level to between -6 dB and +6 dB.
Confirm OK.
Testing Speaker Settings
3456 Select the button TEST START.
Confirm OK.
You will hear test sounds from the speakers one after the
other. If the volume of the sounds differs too much, correct the
setting LEVEL.
6 To do so, select the button TEST TONE STOP
with OK.
Select the required speaker and set the parameters as
described above.
6 Once you have finished with the speaker settings, select the
button END and confirm with OK.
- 18
➠ The distance of the speakers L and R are shifted equally.
➠ The speakers L and R are automatically set to LARGE if
NO subwoofer is selected.
Quick start
If quick start is enabled, the start-up time from standby mode will be shortened.
However the voltage consumption in standby increases slightly (page 28).
56 In the menu SETTINGS select the option QUICK
START.
Confirm OK.
34 Select option YES.
Confirm OK.
Auto Power Off
The Player will automatically switch to standby mode after 10 minutes when no
activity is detected.
56 In the menu SETTINGS select the option AUTO POWER
OFF.
Confirm OK.
and confirm
34 Select option YES.
Confirm OK.
MENU [DIGITAL LINK HD]
SELECT ENTER RETURN EXIT
WHEN THE UNIT IS CONNECTED TO A LOEWE TV VIA
HDMI CONNECTION, IT CAN BE CONTROLLED BY
THE TV REMOTE THROUGH DIGITAL LINK HD FUNCTION.
DO YOU WANT TO ACTIVATE THIS FUNCTION?
YES
NO
MENU [PLAYBACK SETTING - PIN CODE SETTING]
SELECT ENTER RETURN EXIT
PARENTAL CONTROL
DISC LANGUAGE
IN ORDER TO SET THE PARENTAL
CONTROL LEVEL, A PIN CODE NEEDS TO
BE SET UP INITIALLY.
DO YOU WANT TO SET THE PIN CODE?
ANGLE MARK DISPLAY
PIN CODE SETTING
YES
NO
MENU [PLAYBACK SETTING - PIN CODE SETTING]
0 - 9 INPUT RETURN EXIT
ENTER 4-DIGIT PIN CODE.
ENTER PIN CODE AGAIN FOR CONFIRMATION.
* * * *
-
- - --
Initial Set-up
Digital Link HD
With Digital Link HD (CEC), Loewe TV sets pass the signals from the remote control
to the Player via the HDMI connection. Digital Link HD is worthwhile if you want
to set the Player up concealed, e.g. in a closed rack (page 13).
56 In the menu SETTINGS, select the option DIGITAL LINK
HD.
Confirm OK.
34 Select option YES.
Confirm OK.
Playback settings
Setting PIN code
To provide protection from unauthorised changes, a four-digit PIN code can be
set up.
56 In the menu SETTINGS select the option PLAYBACK
SETTINGS.
Confirm OK.
56 Select the option PIN CODE SETTING.
Confirm OK.
If you have not entered a PIN code yet:
34 Select option YES.
Confirm OK.
Use the number buttons to enter a four-digit number.
Then enter the PIN code again for control purposes.
Confirm OK.
➠ If the entry is wrong, press CLEAR/PIP to delete the entry.
Changing PIN code
56 In the menu SETTINGS select the option PLAYBACK
SETTINGS.
Confirm OK .
56 Select the option PIN CODE SETTING.
Confirm OK.
Use number buttons to enter the valid four-digit PIN code.
34 Select option YES.
Confirm OK.
Deleting PIN code
56 In the menu SETTINGS select the option PLAYBACK
SETTINGS.
Confirm OK.
56 Select the option PIN CODE SETTING.
Confirm OK.
Use number buttons to enter the valid four-digit PIN code.
34 Select option NO.
Confirm OK.
19 -
MENU [PLAYBACK SETTING - PARENTAL CONTROL]
RETURN EXIT
PARENTAL CONTROL
DISC LANGUAGE
ANGLE MARK DISPLAY
PIN CODE SETTING
ENTER 4-DIGIT PIN CODE.
-
- - --
0 - 9 INPUT
MENU [PLAYBACK SETTING - PARENTAL CONTROL]
SELECT ENTER RETURN EXIT
PARENTAL CONTROL
DISC LANGUAGE
SET PARENTAL CONTROL LEVEL
FOR DVD VIDEO.
ANGLE MARK DISPLAY
PIN CODE SETTING
◄ ►
OFF
SET PARENTAL CONTROL LEVEL FOR BD-
ROM.
NO LIMIT
SET THE COUNTRY CODE.
UK
MENU [PLAYBACK SETTING - DISC LANGUAGE]
SELECT ENTER RETURN EXIT
PARENTAL CONTROL
DISC LANGUAGE
SELECT THE PREFERRED LANGUAGE
FOR PLAYBACK FROM DISC.
ANGLE MARK DISPLAY
PIN CODE SETTING
◄ ►
ENGLISH
ENGLISH
SUBTITLE
AUDIO
MENU
ENGLISH
Initial Set-up
Parental control
This function prevents discs that have an adult rating from being played, providing
the discs have a corresponding code.
➠ A four-digit PIN code is set up (page 19).
56 In the menu SETTINGS select the option PLAYBACK
SETTING.
Confirm OK.
56 Select the option PARENTAL CONTROL.
Confirm OK.
Use number buttons to enter the valid four-digit PIN code.
The menu PARENTAL CONTROL appears. The option PARENTAL
CONTROL LEVEL FOR DVD VIDEO is selected.
The option PARENTAL CONTROL LEVEL FOR BLU-RAY DISC:
is selected.
34 Set option.
OFF The disc is played completely.
0 ... 99 Only the scenes of the inserted disc are played which
have been marked with the selected parental control
level or lower. Level "0" has the most playback
restrictions.
Confirm OK.
The option COUNTRY CODE is selected.
34 Set required country.
Confirm OK.
Disc Language
You can set the preferred language for subtitles, audio and disc menus.
56 In the menu SETTINGS select the option PLAYBACK
SETTING.
Confirm OK.
56 Select the option DISC LANGUAGE.
Confirm OK.
34 Set option.
OFF The disc is played completely.
LEVEL 1 ... 8 Only the scenes of the inserted disc are played which
- 20
have been marked with the selected parental control
level or lower. Level "1" has the most playback
restrictions.
Confirm OK.
56 Select option.
34 Set parameters.
SUBTITLE Pre-set the language of the subtitles contained on the
disc.
AUDIO Pre-set the language for the soundtrack.
MENU Pre-set the language for the disc menu.
These languages will automatically be used when playing a
disc.
Confirm OK.
MENU [PLAYBACK SETTING - ANGLE MARK DISPLAY]
SELECT ENTER RETURN EXIT
PARENTAL CONTROL
DISC LANGUAGE
WHEN PLAYING BACK A SCENE
RECORDED IN MULTI-ANGLE, THE ANGLE
MARK CAN BE DISPLAYED ON THE
SCREEN.
DISPLAY THE ANGLE MARK ON THE
SCREEN?
ANGLE MARK DISPLAY
PIN CODE SETTING
YES
NO
MENU [FRONT DISPLAY/LED]
SELECT ENTER RETURN EXIT
SELECT WHETHER YOU WANT THE FRONT DISPLAY AND LED
LIGHT ON OR OFF.
IF SELECTED OFF, BOTH THE FRONT DISPLAY AND LED LIGHT
WILL REMAIN OFF EXCEPT FOR THE POWER-ON LED LIGHT.
ON
OFF
MENU [SYSTEM RESET]
SELECT ENTER RETURN EXIT
RESET CONTENTS OF ALL SETTINGS ON THIS UNIT?
RESET ALL SETTINGS BACK TO THE FACTORY SETTINGS
(EXCEPT FOR THE PIN CODE).
RESET
NOT RESET
CANNOT RESTORE AFTER RESETTING.
Initial Set-up
Angle Mark Display
A symbol for the availability of different camera angles (the angle mark) can be
displayed.
56 In the menu SETTINGS select the option PLAYBACK
SETTING.
Confirm OK.
56 Select the option ANGLE MARK DISPLAY.
Confirm OK.
34 Select the option YES.
Confirm OK.
Front Display/LED
The front and Blu-ray displays can be switched off independently of the standby
display (page 4).
56 In the menu SETTINGS select the option FRONT
DISPLAY/LED.
Confirm OK.
34 Select option OFF.
Confirm OK.
Version
The current software version can be displayed in the menu Settings.
Software update
When available, a software update can be uploaded via the USB interface on
the back with a USB stick. Please contact your specialist retailer for a software
update.

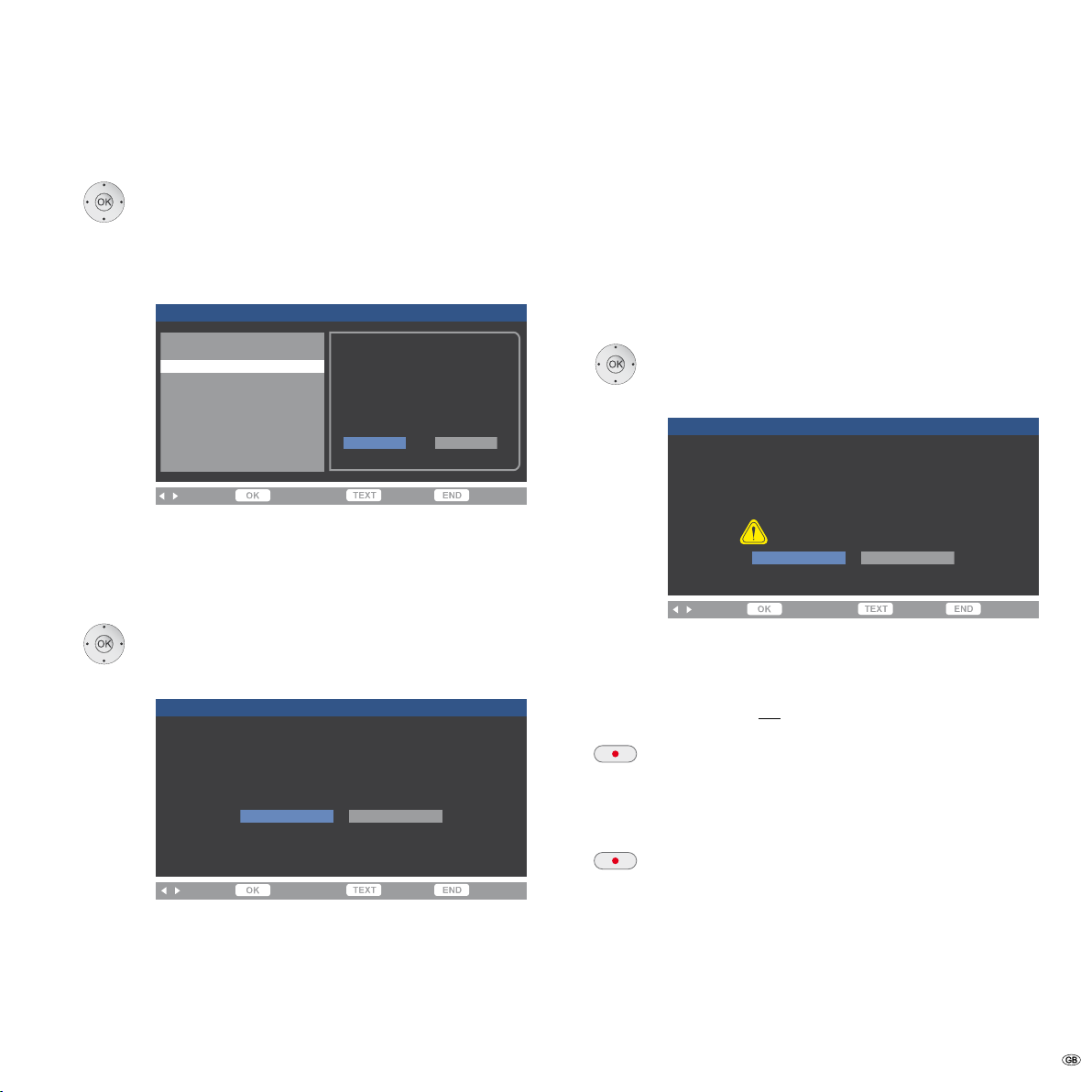

Factory Settings
You can reset the unit to the factory settings.
56 In the menu SETTINGS, select the option SYSTEM
RESET.
Confirm OK.
34 Select the option RESET.
Confirm OK.
Switching video output
If you use the outputs HDMI OUT and COMPONENT VIDEO OUT as an alternative
to each other, you can switch between the two outputs.
Press the button HDMI (>1 and < 5 seconds).
The front display will flash and shows the output that is currently
set.
HD - out Output HDMI OUT is set.
CP - out Output COMPONENT VIDEO OUT is set.
Press the button HDMI and hold for at least 5 seconds so that
the output is switched.
21 -
TITLE 2
22.11. 0:33:12
<< 1/1 >>
TITLE 1
21.11. 0:25:30
TITLE 3
23.11. 0:45:00
TITLE 5
24.11. 0:05:00
TITLE 4
24.11. 0:12:55
TITLE 6
28.11. 0:08:42
DVD+RW
Video Operation
Playing a BluRay disc or DVD
Preparation
Switch the TV set on and set the video source that the Player has been connected
to as the input.
Open disc drawer.
Insert the disc in the drawer with the side that is to be played
facing down.
Close drawer. The message READING THE DISC appears on the
screen while the disc detection runs.
As soon as disc detection is completed, a message is displayed
showing the detected type of media.
Playback
Depending on the medium, playback starts automatically or a title menu is displayed. Follow the instructions in the menu or the documentation with the disc.
A menu may appear on the screen.
3456 Select title
OK Start playback.
Play Start / continue playback.
The display on the Player shows the playtime that has expired.
Pause Stop playback. To continue playback, press again.
Stop End playback.
➠ Playback after STOP can be continued from the same place using PLAY,
providing the disc has not been changed or the unit switched off.
➠ If the parental control level for the disc is higher than that set for the parental control, then the four-digit pin code has to be entered (refer to Parental
control on page 21).
➠ BD/DVD discs have a regional / country code. The Player will not play any
discs which have a different code from the regional/ country code saved in the
unit. This Player has the code B (BD) / 2 (DVD).
General Functions
Selecting a Title
TOP MENU/ASSIST Select top menu / title menu.
5634 Select menu item.
OK Start playback. Follow the instructions in the menu or the
documentation with the disc.
Stop Close menu.
You can also select the title menu via MENU – DISPLAY THE TITLE
LIST. You can also select a specific title using the Function Menu
(page 23).
➠ With some BD/DVD discs, the top menu is also referred to as the title menu.
Depending on the disc, it is possible that there is no such menu and that this
button has no function.
Selecting a Chapter
If a title is subdivided into several chapters, you can select a
chapter directly:
P+ during playback: go to the next chapter or use P- to return
to the start of the current chapter.
Briefly press P- twice: return to the previous chapter.
select a specific chapter using the Function Menu (page 23).
Search
Select the search direction and speed from three speed
categories:
Press several times for quick search backwards or forwards.
You can also
- 22
Speed and direction are shown as symbols on the screen.
Close search mode and continue playback.
Scene selection Extras
Language selection
DVD VIDEO
1/6
2/2
00:06:34
/00:08:00
1 D STEREO
DVD VIDEO
1/6
2/2
00:06:34
OFF
1
OFF
SELECT ENTER
RETURN
Video Operation
Disc Menu
Some discs contain menus to set the language for the film soundtrack, for example,
or for subtitles, or to select certain scenes. Accompanying film material may also
be available. These menus are individually designed, depending on the disc.
POP-UP-M Select Popup /Disc menu. Example:
➠ Depending on the disc, it is possible that there is no such menu. If so, this
button has no function.
5 634 Select menu item.
Confirm OK.
It may be possible to select menu functions with the colour
buttons.
Stop Close menu.
Info Menu
During playback different status information can be displayed on the screen.
Select Info menu.
Function Menu
During playback you can change different settings for the inserted disc and also
display status information as in the "Info Menu".
FUNC (EPG) Select function menu.
Close menu.
Heading Type of medium inserted / playback status
Title currently being played
Chapter currently being played
Time of title already elapsed and new start time for
playback from ...
Selection of subtitle language
Selection of angle mark, if available
Selection of sound format (language, multichannel
sound etc.)
Selection of function Repeat.
Selecting Title / Chapter
FUNC (EPG) Select function menu.
Heading Type of medium inserted / playback status
Title currently being played
Chapter currently being played
Time of title already elapsed / total run time title
Zoom
With the Zoom function you can increase the size of the video image in three steps
and then navigate within the zoomed in picture during playback.
Press ZOOM several times to set the zoom step and to switch
the zoom function off again.
5 634 Moving the zoomed section.
56 Select symbol (Title) or (Chapter).
Confirm OK.
56Select title / chapter or
Enter title / chapter number.
Confirm OK.
23 -
ENTER
SELECT REPEAT PLAYBACK TYPE.
PLAYBACK TITLE
SET START POINT
PLAYBACK CHAP
SCENE SELECTION
Video Operation
Time (playback from ...)
The function "Time" allows you to select any time for playback of a title.
FUNC (EPG) Select function menu.
56 Select symbol (Time).
The time of the title that has already elapsed is shown.
Confirm OK.
Enter time in the format hh:mm:ss.
OK Start playback from a time you have entered.
Subtitles
FUNC (EPG) Select function menu.
56 Select symbol (Subtitles).
Confirm OK.
56 Set subtitle language or set to OFF.
Confirm OK.
Angle mark
If the disc contains scenes that have been recorded from different camera angles,
it is possible to change to a different angle during playback.
➠ An angle mark symbol is shown on the screen during scenes
which have been recorded from different camera angles. If
required, this symbol can be switched off ("Angle Mark Display"
on page 21).
FUNC (EPG) Select function menu.
56 Select symbol (Angle Mark).
Confirm OK.
56 Select camera angle.
Confirm OK.
Digital Sound Formats, Film Language and Audio Channels
You can select the digital sound format and the film language.
FUNC (EPG) Select function menu.
56 Select symbol (Sound format).
Confirm OK.
56 Select film language or sound format.
Confirm OK.
Repeat
FUNC (EPG) Select function menu.
56 Select symbol (Repeat).
Confirm OK.
56 Select ON/OFF.
34 Select repeat playback type.
PLAYBACK TITLE The selected title is repeated continuously.
PLAYBACK CHAP The selected chapter is repeated continuously.
SCENE SELECTION The selected scene is repeated continuously.
Confirm OK.
To repeat a selected scene, use the option SCENE SELECTION.
SET START POINT Set the starting point of the repeat sequence.
SELECT END POINT Set the end point of the repeat sequence.
OK Select the required start point.
OK Select the required end point.
The selected scene is repeated continuously.
To switch off the function "Repeat", under the Symbol (Repeat)
in the function menu, select the option OFF and confirm with OK.
- 24
CD
MUSIC CD
1/18
00:03:53
/00:05:00
1 LPCM STEREO
CD
MUSIC CD
1/18
00:06:34
OFF
SELECT ENTER
RETURN

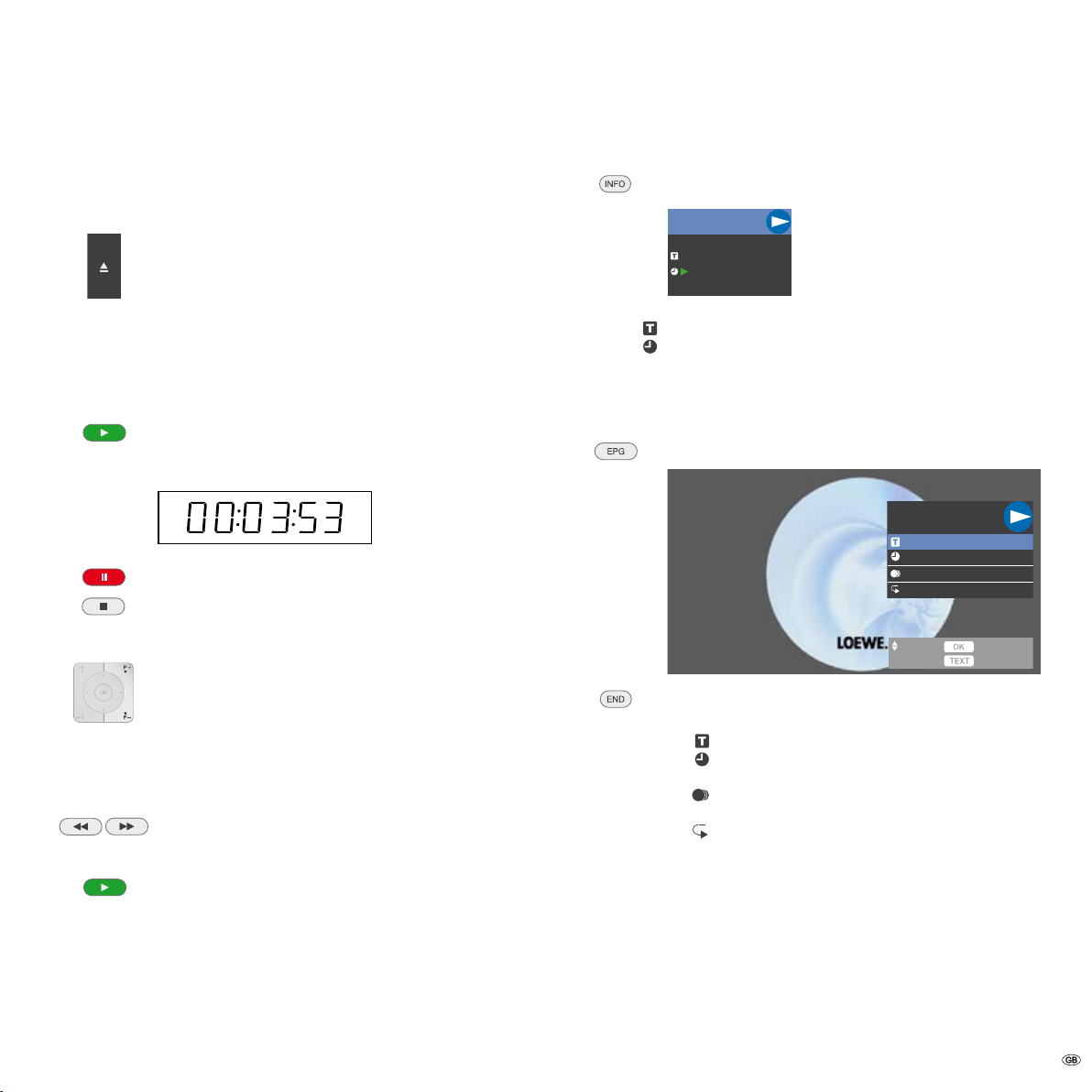

Audio Operation
Audio Playback
The Player can be used to play Audio CDs. Audio recordings (only CD-DA format)
can also be played back from CD-ROM, CD-R or CD-RW discs.
If you have connected the Player to an audio system, switch the audio system on
and select the input that the Player is connected to as the source.
Open disc drawer.
Insert the selected disc in the drawer with the side that is to be
played facing down.
Close drawer. The message READING THE DISC appears on the
screen while the disc detection runs.
As soon as disc detection is completed, a message is displayed
showing the detected type of media. The display on the Player
will show 00:00:00.
Play Start / continue playback.
The display on the Player shows the playtime that has expired.
Pause: Stop playback. To continue playback, press again.
Stop: End playback.
Play another title
P+ or P- during playback: select the next title or return to the start
of the current title.
Briefly press P- twice: return to previous title.
Search
Select the search direction and speed from two speed categories:
Press several times for quick search backwards or forwards.
Speed and direction are shown as symbols on the screen.
Close search mode and continue playback.
Info Menu
During playback different status information can be displayed on the screen.
Select Info menu.
Heading Type of medium inserted / playback status
Title currently being played
Time of title already elapsed / total run time title
Function menu
During playback you can change different settings for the inserted disc and also
display status information as in the "Info Menu".
FUNC (EPG) to select the function menu.
Close menu.
Heading Type of medium inserted / playback status
Title currently being played
Time of title already elapsed and new start time for
playback from ...
Selection of sound format (language, multichannel
sound etc.)
Selection of function Repeat.
25 -
ENTER
SELECT REPEAT PLAYBACK TYPE.
PLAYING DISC
SET START POINT
PLAYING TRACK
SPECIFY THE PART
Audio Operation
Selecting a title
FUNC (EPG) Select function menu.
5 6 Select symbol (Title).
Confirm OK.
5 6 Select title or
Enter title number.
Confirm OK.
Time (playback from ...)
The function "Time" allows you to select any time for playback of a title.
FUNC (EPG) Select function menu.
5 6 Select symbol (Time).
The time of the title that has already elapsed is shown.
Confirm OK.
Enter time in the format hh:mm:ss.
OK Start playback from a time you have entered.
Digital Sound Formats and Audio Channels
You can select the digital sound format.
FUNC (EPG) Select function menu.
5 6 Select symbol (Sound format).
Confirm OK.
5 6 Select sound format.
Confirm OK.
Repeat
FUNC (EPG) Select function menu.
5 6 Select symbol (Repeat).
Confirm OK.
5 6 Select ON/OFF.
34 Select repeat playback type.
PLAYING DISC The whole disc is continuously repeated.
PLAYING TRACK The selected title is repeated continuously.
SPECIFY THE PART The selected part is repeated continuously.
Confirm OK.
To repeat a selected part, use the option SPECIFY THE PART.
SET START POINT The starting point of the repeat sequence.
SET END POINT The end point of the repeat sequence.
OK Select the required start point.
OK Select the required end point.
The selected part is repeated continuously.
To switch off the function "Repeat", in the function menu under
the Symbol (Repeat), select the option OFF and confirm with
OK.
- 26
Troubleshooting
Problem Possible Cause Remedy
Not working at all Mains cable not plugged in. Firmly plug the mains cable into the Player and into a socket.
No picture. TV not switched to receiving signals from the Player. Select the suitable video input mode on the television so that the
HDMI cable not properly connected. Connect HDMI cable properly.
The connected television is switched off. Switch the TV on.
No sound. The audio equipment has not been switched to Player
playback.
The cables are not properly connected. Connect the audio cable properly.
The connected audio equipment is switched off.
The audio cable is faulty. Replace the audio cable.
Poor picture quality. Dirt on disc. Clean the disc.
Playback does not work. No disc has been inserted. Insert a disc (Check whether the disc display in the display window
A disc that can not be played has been inserted. Insert a playable disc (Check the disc type, the colour system and the
The disc has not been inserted with the playable side
facing down.
The disc has not been inserted in the groove.
Dirt on disc. Clean the disc.
Safety level of parental control set. Cancel the safety level or change the parental control.
The remote control is not working properly.
The settings have been deleted.
The Player will not respond to the remote control.
The Player will not react.
Forgotten PIN code for parental protection.
The batteries in the remote control are dead. Replace the batteries with new ones.
Due to a power failure the unit was disconnected from
the mains for more than one hour.
The Player has been set up concealed behind something.
The function Digital Link HD has been switched off.
picture from the Player is shown on the television screen.
Adjust the audio receiver so that you can hear the sound playback
from your Player.
Switch the connected audio equipment on.
is lit up.).
regional code).
Insert the disc with the playable side facing down.
Place the disc correctly in the groove in the disc drawer.
Always switch the unit off using the ON / OFF switch.
Activate the function Digital Link HD (page 19).
Press STOP or END. Switch the unit off and then on again. Carry out
a reset to the factory settings (page 22). Hold the ON / OFF button
pressed until RESET appears.
Hold the ON / OFF button pressed until RESET appears.
27 -
Technical Specifications
General
BluTech Vision Item.No. 67501D/T00
Power supply AC 220-240V, 50 Hz
Power consumption during Operation: 28 W
Standby: < 1 W
Dimensions (approx.) 430 x 67 x 340 mm (W x H x D)
Weight (approx.) 4.7 kg
Operating temperature 5 °C ... 35 °C
Humidity 5 % ... 80 % (no condensation)
Picture formats PAL, 625 lines, 50 fields
NTSC, 525 lines, 60 fields
720p, 50/60Hz
1080i, 50/60Hz
1080p, 50/60Hz
1080p24
Playback
Frequency range DVD (PCM 48 kHz): 8 Hz to 22 kHz,
CD: 8 Hz to 20 kHz
DVD (PCM 96 kHz): 8 Hz to 44 kHz
Noise voltage clearance > 100 dB (DVD/BD)
Dynamic range (1 kHz) > 100 dB (DVD/BD)
Channel separation (1 kHz) > 80 dB (DVD/BD)
Harmonic distortions < 0.006 % (DVD/BD)
Interfaces
HDMI OUT Type A, 19 Pin, LVDS digital, V1.3
VIDEO Composite 1.0 V (p-p), 75 ohms, RCA socket x 1
S VIDEO OUT (Y) 1.0 V (p-p), 75 ohms, negative Sync.,
(C) 0.3 V (p-p) 75 ohms, Mini DIN 4-pin x 1
COMPONENT VIDEO OUT (Y) 1.0 V (p-p), 75 ohms, negative Sync.,
RCA socket x 1 (Pb)/(Pr) 0.7 V (p-p),
75 ohms, RCA socket x 3
Audio output (Digital-Audio) 0.5 V (p-p), 75 ohms, RCA socket x 1
Audio output (Optical-Audio) Optical connection x 1 (TOS link)
2CH AUDIO (Analogue Audio) 2.0 Vrms (1 kHz, 0 dB), 1 kOhm,
RCA socket (L, R) x 2
5.1 CH AUDIO OUT 2.0 Vrms (1 kHz, 0 dB), 600 ohms,
RCA socket (L, R, SL, SR, C, SUBWOOFER) x 6
USB V1.1 (Service)
Masthead
Loewe Opta GmbH is a company incorporated under German law with its Head
Office in Kronach.
Industriestrasse 11, 96317 Kronach
Telephone: + 49 (0)9261 / 99-0
Fax: + 49 (0)9261 / 99-500
E-mail: ccc@loewe.de
Trade Register: Municipal Court Coburg, No. HRB 42243
VAT ID-No.: DE 193216550
WEEE registration number: DE 41359413
Issue 08.08. 3rd edition
© Loewe Opta GmbH, Kronach
All rights reserved including translation.
Design and technical specifications are subject to change without notice.
- 28
Operation of Additional Units
Setting the remote control
Various Loewe units can be set to be used with the remote control Assist as
follows:
Unit Button Combination
Loewe ViewVision 8106 H +
Loewe Centros 11x2 +
Loewe Viewvision, Centros 21x2 +
Loewe Viewvision DR+ DVB-T +
Factory settings
Keep the given button combination pressed until the corresponding LED flashes
twice (approx. 5 seconds).
Operating Loewe Equipment
Using the remote control for a BD/DVD Player
Press DVD button; the display above it
lights up for approx. 5 seconds
Use the remote control for the Auro Preceiver
Press DVD button for a long time; the display
above it lights up for approx. 5 seconds
Using the remote control for a recorder
Press REC button; the display above it
lights up for approx. 5 seconds
Using the remote control for a TV set
Press TV button; the display above it
lights up for approx. 5 seconds
Using the remote control for radio mode in the TV set
Press the RADIO button; the display above
it lights up for approx. 5 seconds
Using the remote control for radio mode in the Auro Preceiver
Press the RADIO button for a long time; the display
above it lights up for approx. 5 seconds
Every time a button is pressed, the display of the selected operation mode lights up
(TV – REC – DVD – RADIO).
29 -
Remote Control Assist – TV Operation
Sound on / off
LED indicator for current operating mode
Switch over to operate TV
Switch over to operate recorder
Timer list
Picture format
EPG programme guide
Teletext
Show/hide menu
Adjusting volume
Switch on/off on standby
TV Radio Digital; long: Radio Auro
Switch over to operate Auro/DVD Player
Sound menu
Select station directly;
MENU: Enter numbers or letters
AV selection
PIP (picture in picture)
Menu "ASSIST+"
Index; MENU: Info texts
Status display; MENU: Hide menu
Select station
- 30
Station list
MENU: confirm/call
Teletext subtitles
Freeze picture on/off; DR+: DR+ archive
Select station down; DR+: Skip back; Rewind
DR+: Record
Freeze picture on/off;
DR+: Pause (Start viewing with timeshift)
PIP: Position of the PIP picture;
MENU: Select/set
56 Move picture vertically;
34 Rotate TV
Previous station
Programme info
Freeze picture off; DR+: Playback/Set bookmark
Select station up; DR+: Skip forward/fast forward
Freeze picture on; DR+: Stop
Service
Loewe Austria GmbH
Parkring 12
1010 Wien, Österreich
Tel +43 - 1 22 88 633 - 0
Fax +43 - 1 22 88 633 - 90
Email loewe@loewe.co.at
International Dynamics
Australasia Pty Ltd.
129 Palmer Street
Richmond 3121, Victoria,
Australia
Tel +61 - 3 - 94 29 08 22
Fax +61 - 3 - 94 29 08 33
Email mail@international
dynamics.com.au
Loewe Opta Benelux NV/SA
Uilenbaan 84
2160 Antwerpen, België
Tel +32 - 3 - 2 70 99 30
Fax +32 - 3 - 2 71 01 08
Email ccc@loewe.be
Darlington Service
Kn. Klementina Street, bl. 193
1618 Soa, Bulgaria
Tel +359 - 2 955 63 99
Fax +359 - 2 955 63 99
Email sac@audio-bg.com
Telion AG
Rütistrasse 26
8952 Schlieren, Schweiz
Tel +41 - 44 732 15 11
Fax +41 - 44 732 15 02
Email lgelpke@telion.ch
HADJIKYRIAKOS & SONS LTD.
121 Prodromos Str., P.O Box
21587
1511 Nicosia, Cyprus
Tel +357 - 22 87 21 11
Fax +357 - 22 66 33 91
Email savvas@hadjikyriakos.
com.cy
K+B PROGRES A.S.
U Expertu 91
25069 Klicany u Prahy, Česko
Tel +420 2 72 12 21 11 (222)
Fax +420 2 72 12 22 39
Email loewe@kbexpert.cz
Loewe Opta GmbH,
Customer Care Center
Industriestraße 11
96317 Kronach, Deutschland
Tel +49 1801–22256393
Fax +49 9261–99500
Email ccc@loewe.de
Kjaerulff 1 A/S
C.F. Tietgens Boulevard 19
5220 Odense SØ, Denmark
Tel +45 - 66 13 54 80
Fax +45 - 66 13 54 10
Email mail@kjaerulff1.com
Gaplasa S.A.
Conde de Torroja, 25
28022 Madrid, España
Tel +34 - 917 48 29 60
Fax +34 - 913 29 16 75
Email loewe@maygap.com
TEDRA TRADING OY
Kuusemetsa 3
Saue 76506, Estonia
Tel +372 - 50 14 817
Fax +372 - 67 09 611
Email raivo@futurehi.com
Loewe Opta France S.A.
13 rue du Dépôt,
Parc del l‘Europe, BP 10010
67014 Strasbourg Cédex, France
Tel +33 - 3- 88 79 72 50
Fax +33 - 3- 88 79 72 59
Email loewe.france@wanadoo.fr
Kjaerulff 1 OY
Uudenmaantie 100
20760 Piispanristi, Finland
Tel +358 - 20 751 3800
Fax +358 - 20 751 3801
Email loewetuki@kjaerulff1.com
Loewe UK Limited
Century Court, Riverside Way
Riverside Business Park, Irvine,
Ayrshire
KA11 5DD, UK
Tel +44 - 1294 315 000
Fax +44 - 1294 315 001
Email enquiries@loewe-uk.com
ISSAGOGIKI EMBORIKI ELLADOS
S.A.
321 Mesogion Av.
152 31 Chalandri-Athens, Hellas
Tel +30 - 210 672 12 00
Fax +30 - 210 674 02 04
Email christina@bose-onkyo.gr
Basys Magyarorszagi KFT
Tó park u.9.
2045 Törökbálint, Magyar
Tel +36 - 2341 56 37 (121)
Fax +36 - 23 41 51 82
Email basys@mail.basys.hu
Plug&Play
Bednjanska 8, 10000 Zagreb
Hrvatska (Kroatia)
Tel +385 1 4929 683
Fax +385 1 4929 682
Email loewe@loewe.hr
Loewe Italiana SRL
Largo del Perlar, 12
37135 Verona (VR), Italia
Tel +39 - 045 82 51 611
Fax +39 - 045 82 51 622
Email Stefano.Borgognoni@
loewe.it
PL Trading (pz 2004) Ltd.
27, Aliat Hanoar St.
Givataiim 53401, Israel
Tel +972 - 3 - 57 27 155
Fax +972 - 3 - 57 27 150
Email zeev@loewe.co.il
Origo Ltd
Unit 23 Magna Drive
Magna Business Park, City West
Dublin 24, Republic of Ireland
Tel +353-1-4666700
Fax +353-1-4666706
Email service@origo.ie
SAS
Hamad Al Haqueel Street,
Rawdah, Jeddah
Kingdom of Saudi Arabia
Tel +966 (2) 665 4616 ext: 666
Fax +966 (2) 660 7864
Email hrant@sas-syseng.com
A Cappella
Ausros Vartu 5, Pasazo skg.
01129 Vilnius, Lithuania
Tel +370 - 52 12 22 96
Fax +370 - 52 62 66 81
Email: aretas@acappella.lt
DONEO CO. LTD
34/36 Danny Cremona Street
Hamrun, HMR02, Malta
Tel +356 - 21 - 22 53 81
Fax +356 - 21 - 23 07 35
Email info@doneo.com.mt
SOMARA S.A.
377, Rue Mustapha El Maani
20000 Casablanca, Morocco
Tel +212 - 22 22 03 08
Fax +212 - 22 26 00 06
Email somara@somara.ma
CableCom AS
Ostre Kullerod 5
3241 Sandefjord, Norge
Tel +47 - 33 48 33 48
Fax +47 - 33 44 60 44
Email odd@cablecom.no
International Dynamics (NZ) Pty
Ltd
PO Box 109 317, Newmarket
Auckland, New Zealand
Tel +64 9 379 0179
Fax +64 9 379 0279
Email: enquiries@international
dynamics.co.nz
Mayro Magnetics Portugal, Lda.
Rua Professor Henrique de Barros
Edifício Sagres, 2º. C
2685-338 Prior Velho, Portugal
Tel +351 - 21 942 78 30
Fax +351 - 21 942 78 30
Email geral.loewe@mayro.pt
DSV TRADING SA
Plac Kaszubski 8
81-350 Gdynia, Polska
Tel +48 - 58 - 6 61 28 00
Fax +48 - 58 - 6 61 44 70
Email market@dsv.com.pl
Avitech Co. SRL
1/II Pipera Tunari St.
007190 Voluntari, Ilfov, Romania
Tel +40 - 21 200 64 64
Fax +40 - 21 200 64 65
Email andrei.silisteanu@avitech.ro
Service Center Loewe
ul. Verkhnaya Maslovka, d. 29
125083 Moscow, Россия
Tel +7 - 495 612 50 43
Fax +7 - 495 612 47 10
Email service@atc.ru
Kjaerulff 1 AB
Ridbanegatan 4, Box 9076
200 39 Malmø, Sverige
Tel +46 - 4 06 79 74 00
Fax +46 - 4 06 79 74 01
Email Sweden@kjaerulff1.com
BaSys Czech & Slovak s.r.o.
Stará Vajnorská 17/A
831 04 Bratislava, Slovakia
Tel + 421 2 49 10 66 18
Fax + 421 2 49 10 66 33
Email: loewe@basys.sk
ENKAY ELEKTRONIK SAN. Ve Tic.
Ltd. Sti.
Alemdag Cad: Site Yolu No.: 10
81230 Ümraniye/ Istanbul, Türkiye
Tel +90 - 216 634 44 44
Fax +90 - 216 634 39 88
Email mhatipog@enkaygroup.com
Dubai Audio Center
P.O. Box 32836, Sheik Zayed Road
Dubai, UAE
Tel +971 - 4 343 14 41
Fax +971 - 4 343 77 48
Email dacdubai@emirates.net.ae
THE SOUNDLAB (PTY) LTD
P.O. Box 31952, Kyalami 1684
Republic of South Africa
Tel +27 - 1 14 66 47 00
Fax +27 - 1 14 66 42 85
Email loewe@mad.co.za
© by Loewe Opta 290508
31
Glossary
24p cinema film showing
Film producers today record their films at 24 images per second (24p); conventional
televisions (and also most DVDs) show 50 pictures per second (50 Hz). To play the
film, the original number of pictures is doubled and the film is accelerated. This is
optimal for sports transmissions, however if you are watching a more sedate film,
it can distort the image quality. The new Loewe TV sets automatically playback 24p
films in the original 24p format.
A
AV socket: Audio and Video signal.
AV sources: Audio/video source.
B
BluRay Disc (BD): Disc format for recording/playing back high definition video
material (HD) for HDTV sets and for storing large amounts of data. A single layer
BD disc has a storage capacity of 25 GB; a dual layer BD disc has a storage capacity
of 50 GB.
C
Cinch cable: Cable for transmitting sound or picture.
Component signal: The component video signal is made up of the "Y" brightness
signal as well as the colour difference signals red and blue "U" and "V". This is why
it is sometimes called a YUV signal. If the signal is transmitted using progressive
scanning, then the signals are called YCrCb. With transmission using interlaced
scanning, the signals are called YPrPb.
D
Digital Link HD: System for controlling units via the HDMI connection of the Loewe
TV set when they have been set up in a covered position.
DTS: Digital surround sound.
Dolby Digital: Digital surround sound.
Dolby Pro Logic: Analogue surround sound.
Dolby Surround: An analogue surround sound system which uses a matrix coding
to fit four sound channels into two sound tracks.
Dolby Virtual: Dolby Pro Logic sound signals are played back through the two
speakers as a virtual surround signal.
Dolby Digital Plus: Digital Sound System as an extension to Dolby Digital. This
audio coding process supports 5.1 surround sound.
Dolby TrueHD: Loss-free audio coding process which supports up to 8 channels.
DVD: Abbreviation of Digital Video Disc and later Digital Versatile Disc.
H
HDMI: High Definition Multimedia Interface, is a newly developed interface for full
digital transmission of audio and video data.
L
LCD: Liquid Crystal Display.
LPCM: Linear Pulse Code Modulation for digital sound.
M
Mono: Single-channel sound.
N
NTSC: American colour standard.
P
PAL: European colour standard.
S
SECAM: French colour standard.
Stereo: Dual channel sound.
Y
Ycc/Ypp: Colour standards for Set Top Boxes.
- 32
Index
A
Advantages of connecting to
a Loewe TV set 7
Audio / Video Settings 14
AUDIO OUT 5,16
Audio Out 16
Audio Playback 25
Auto Power Off 18
C
Cleaning 8
Component Video Connec-
tion 10
COMPONENT VIDEO OUT 5
Concealed Set-up 13
Conguration Menu 13
Connecting up
General 10
Loewe TV Audio System 12
Loewe TV system 11
TV set 10
Covered setup 7
D
Digital Link HD 7,19
Disc drawer 4
Disc Language 20
Disc Menu 23
Display 5
DVD button 29
E
Environmental Protection 7
F
Factory Settings 21
Factory settings 27
Front Display/ LED 21
Front ap 4
Front View 4
Function Menu 23
Digital Sound Formats, Film
Language and Audio
Channels 24
Digital Sound Formats and
Audio Channels 26
Repeat 26
Selecting Title / Chapter 23
Time (playback from ...)
24,26
Function menu
Angle mark 24
Repeat 24
Selecting a title 26
Subtitles 24
G
Glossary 32
H
Handling Discs 9
HDMI 5,10,15,16
I
Info Menu 23,25
M
Mains cable 5
Mains supply 13
Masthead 28
Menu Language 14
Menu Settings 14
O
Operation of additional units
29
P
PIN code 19
Playable Discs 9
Playback 22,28
Search 22
Playback settings 19
Playing a BluRay disc or
DVD 22
Q
Quick start 18
R
Rear View 5
REC button 29
Regional Code 9
Remote Control 3
Remote control 10,30
Reset 10
S
Scope of delivery 6
Search 25
Selecting a Chapter 22
Selecting a Title 22
Service 31
Setting Up 6
Shipping 7
Software update 21
Speaker Set-up 17
Speaker settings 17
Switching on/off 13
System Reset 21
T
Technical Specications 28
Terminology 10
Trademark rights 6
TV Aspect Ratio 14
TV button 29
TV Type 14
V
Version 21
Z
Zoom 23
33 -
