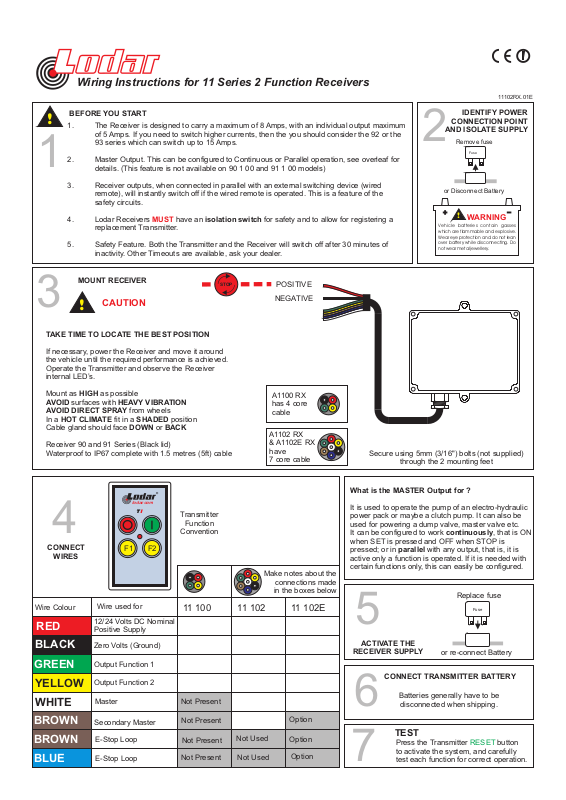

Lodar Function TI Mini RX User Manual
Wiring Instructions for 11 Series 2 Function Receivers
11102RX.01E
BEFORE YOU START
!
1. The Receiver is designed to carry a maximum of 8 Amps, with an individual output maximum
of 5 Amps. If you need to switch higher currents, then the you should consider the 92 or the
93 series which can switch up to 15 Amps.
1
3
2. Master Output. This can be configured to Continuous or Parallel operation, see overleaf for
details. (This feature is not available on 90 1 00 and 91 1 00 models)
3. Receiver outputs, when connected in parallel with an external switching device (wired
remote), will instantly switch off if the wired remote is operated. This is a feature of the
safety circuits.
4. Lodar Receivers have an isolation switch for safety and to allow for registering a MUST
replacement Transmitter.
5. Safety Feature. Both the Transmitter and the Receiver will switch off after 30 minutes of
inactivity. Other Timeouts are available, ask your dealer.
MOUNT RECEIVER
CAUTION
!
TAKE TIME TO LOCATE THE BEST POSITION
If necessary, power the Receiver and move it around
the vehicle until the required performance is achieved.
Operate the Transmitter and observe the Receiver
internal LED’s.
STOP
POSITIVE
NEGATIVE
IDENTIFY POWER
CONNECTION POINT
AND ISOLATE SUPPLY
2
Remove fuse
Fuse
or Disconnect Battery
!
Vehic le b atte ries con tain ga sses
which are flammable and explosive.
Wear eye protection and do not lean
over battery while disconnecting. Do
not wear metal jewellery.
WARNING
Mount as HIGH as possible
AVOID surfaces with HEAVY VIBRATION
AVOID DIRECT SPRAY from wheels
In a HOT CLIMATE fit in a SHADED position
Cable gland should face DOWN or BACK
Receiver 90 and 91 Series (Black lid)
Waterproof to IP67 complete with 1.5 metres (5ft) cable
lodar.com
4
CONNECT
WIRES
Wire Colour
RED
BLACK
GREEN
YELLOW
WHITE
BROWN
BROWN
BLUE
TI
F1 F2
Wire used for
12/24 Volts DC Nominal
Positive Supply
Zero Volts (Ground)
Output Function 1
Output Function 2
Master
Secondary Master
E-Stop Loop
E-Stop Loop
Transmitter
Function
Convention
11 100
Not Present
Not Present
Not Present
Not Present
A1100 RX
has 4 core
cable
A1102 RX
& A1102E RX
have
7 core cable
Make notes about the
connections made
in the boxes below
11 102 11 102E
Option
Not Used
Not Used
Option
Option
Secure using 5mm (3/16") bolts (not supplied)
What is the MASTER Output for ?
It is used to operate the pump of an electro-hydraulic
power pack or maybe a clutch pump. It can also be
used for powering a dump valve, master valve etc.
It can be configured to work continuously, that is ON
when SET is pressed and OFF when STOP is
pressed; or in parallel with any output, that is, it is
active only a function is operated. If it is needed with
certain functions only, this can easily be configured.
through the 2 mounting feet
Replace fuse
Fuse
5
ACTIVATE THE
RECEIVER SUPPLY
CONNECT TRANSMITTER BATTERY
6
7
Batteries generally have to be
disconnected when shipping.
TEST
Press the Transmitter buttonRESET
to activate the system, and carefully
test each function for correct operation.
or re-connect Battery
11 Series Jumper Configuration
9004RX.01E
Jumper
1
2
Jumper
3
4
Jumper
3
Position Position
off
off
Position Position
off
off
Position Position
on
Effect
F1 Momentary
F2 Momentary
Effect
Parallel
Master
Effect
Master
Jumper
1
2
Jumper
3
4
Jumper
3
=
4
off
F3 Momentary
4
NOTE: ONLY THE 11-102E SYSTEMS ARE
SUPPLIED WITH JUMPERS AS STANDARD
on
on
off
on
on
on
Effect
F1 Latch
F2 Latch
Effect
Continuous
Master
Effect
Master
=
F3 Latch
4 Function Transmitters
are supplied for use
with 3 Function systems
SPECIAL ORDER
LED’s marked
“F1 - F2 and M”
when lit indicate
an output
to that function
LED marked “S”
when lit Indicates
system is active
VOLTAGE
Working Range
12 Volts to 24 Volts DC
Nominal
LED marked “POWER”
when lit indicates supply
to control circuits
is GOOD
LED marked “STATUS”
“Flash pause Flash etc.”
indicates coding window
is open.
LED stops flashing when
coding window closes.
LED lit continuously
when any Transmitter
button is pressed.
LED marked “FAULT”
Will flash an error code
when there is an active
fault.
Contact Information:
Lodar Limited,
60 Sandwell Street,
Walsall. WS1 3EB. UK
Tel. +44 1922 613633
Fax. +44 1922 626991
www.lodar.com
