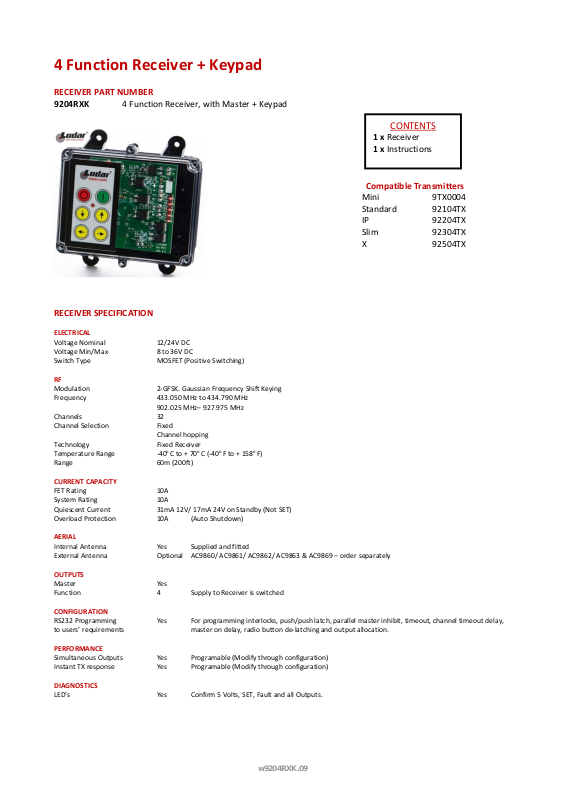

Lodar 9204RXK SPECIFICATION

w9204RXK.09

4 Function Receiver + Keypad

RECEIVER PART NUMBER

9204RXK 4 Function Receiver, with Master + Keypad

Compatible Transmitters

Mini 9TX0004
Standard 92104TX
IP 92204TX
Slim 92304TX

X 92504TX

RECEIVER SPECIFICATION

ELECTRICAL

Voltage Nominal 12/24V DC
Voltage Min/Max 8 to 36V DC
Switch Type MOSFET (Positive Switching)

RF

Modulation 2-GFSK. Gaussian Frequency Shift Keying
Frequency 433.050 MHz to 434.790 MHz

902.025 MHz– 927.975 MHz
Channels 32
Channel Selection Fixed
Channel hopping
Technology Fixed Receiver
Temperature Range -40o C to + 70o C (-40o F to + 158o F)
Range 60m (200ft)

CURRENT CAPACITY

FET Rating 10A
System Rating 10A
Quiescent Current 31mA 12V/ 17mA 24V on Standby (Not SET)
Overload Protection 10A (Auto Shutdown)

AERIAL

Internal Antenna Yes Supplied and fitted
External Antenna Optional AC9860/ AC9861/ AC9862/ AC9863 & AC9869 – order separately

OUTPUTS

Master Yes
Function 4 Supply to Receiver is switched

CONFIGURATION

RS232 Programming Yes For programming interlocks, push/push latch, parallel master inhibit, timeout, channel timeout delay,
to users’ requirements master on delay, radio button de-latching and output allocation.

PERFORMANCE

Simultaneous Outputs Yes Programable (Modify through configuration)
Instant TX response Yes Programable (Modify through configuration)

DIAGNOSTICS

LED’s Yes Confirm 5 Volts, SET, Fault and all Outputs.

CONTENTS

1 x Receiver
1 x Instructions

w9204RXK.09

PROTECTION

Back EMF Yes Diode protection on all outputs
Registration codes Yes Over 16 million
STOP Connection Yes Internal Emergency Stop Connection

WIRING

Wiring Loom Yes 3 metres (10ft) supplied and fitted
Cable Gland Yes Supplied and fitted
Connections Screw terminal into plug and socket on PCB, for easy “swap out”

ENCLOSURE

Weight 0.3 lbs (335gms)
Lid Clear PC/FR V0 and UV stabilised
Base Black PC V0 and UV stabilised
Breather Gortex fitted in base
Mounting 4 external lugs
Fixings 5mm (3/16”) not supplied
IP Rating IP55

ACCESSORIES 9861, 9862, 9863 and 9869 – External Antenna with cable.

92 Series

9200RXK 9202RXK

9204RXK

BUILD SPECIFICATION TABLE FOR MODELS IN

THIS RANGE

Ident

Legend

Connection

+ - F1 F2

Positive, Negative, F1 and F2

S S S F3 F4 M

F3, F4, and Master

M S ST -

STOP and -

S S S+ S-

S+ S- S S

ANT

Internal Antenna

S S S SMA

Connector (external antenna)

S S

LK1 P Master - Parallel

C C

LK2 C Master – Continuous

C C

LK3

RS232

RS232 S S

3 metres 4 core

S 3 metres 7 core

S S 9801 Lo-Cover

S = Standard. M = Standard but Master only connected. C = Customer configured (see “Factory Settings”).

+ Positive 8-36V supply

- Negative 0 Volts
F1 to F4 Outputs to F1 through F4
M Master Output
STOP - STOP, when grounded shuts down the Receiver
S+ S- Master Secondary for Safety solenoid connections etc.
ANT Blade connector for internal antenna
SMA Aerial connection for optional external antenna (internal antenna must be removed)
LK1 Master Selection by Jumper (Parallel)
LK2 Master Selection by Jumper (Continuous)
Factory Settings 418/915MHz configured Parallel, 433.92MHz configured Continuous
RS232 RS232 for Wired Remote and interface to access special programmes
