LINKSYS WRT300NV1 Users Manual

2.4
WIRELESS
GHz
Wireless-N
Broadband Router
User Guide
Model No.
WRT300N
Copyright and Trademarks
Specifications are subject to change without notice. Linksys is a registered trademark or trademark of Cisco Systems, Inc. and/or its affiliates in the U.S. and certain other countries. Copyright © 2006 Cisco Systems, Inc. All rights reserved. Other brands and product names are trademarks or registered trademarks of their respective holders.
WARNING: This product contains chemicals, including lead, known to the State of California to cause cancer, and birth defects or other reproductive harm. Wash hands after handling.
How to Use This User Guide
This User Guide has been designed to make understanding networking with the Wireless-N Broadband Router easier than ever. Look for the following items when reading this User Guide:
This checkmark means there is a note of interest and is something you should pay special attention to while using the Wireless-N Broadband Router.
This exclamation point means there is a caution or warning and is something that could damage your property or the Wireless-N Broadband Router.
This question mark provides you with a reminder about something you might need to do while using the Wireless-N Broadband Router.
In addition to these symbols, there are definitions for technical terms that are presented like this:
word: definition.
Also, each figure (diagram, screenshot, or other image) is provided with a figure number and description, like this:
Figure 0-1: Sample Figure Description
Figure numbers and descriptions can also be found in the “List of Figures” section in the “Table of Contents”.
WRT300N-UG-60324NC JL
Table of Contents
Chapter 1: Introduction 1
Welcome 1 What’s in this User Guide? 2
Chapter 2: Planning Your Wireless Network 4
Network Topology 4 Ad-Hoc versus Infrastructure Mode 4 Network Layout 4
Chapter 3: Getting to Know the Wireless-N Broadband Router 6
The Back Panel 6 The Front Panel 7 The Top Panel 7
Chapter 4: Connecting the Wireless-N Broadband Router 8
Hardware Installation 8
Chapter 5: Configuring the Wireless-N Broadband Router 9
Overview 9 How to Access the Web-based Utility 11 The Setup Tab - Basic Setup 11 The Setup Tab - DDNS 17 The Setup Tab - MAC Address Clone 19 The Setup Tab - Advanced Routing 20 The Wireless Tab - Basic Wireless Settings 22 The Wireless Tab - Wireless Security 23 The Wireless Tab - Wireless MAC Filter 26 The Wireless Tab - Advanced Wireless Settings 27 The Security Tab - Firewall 29 The Security Tab - VPN Passthrough 30 The Access Restrictions Tab - Internet Access Policy 31 The Applications & Gaming Tab - Single Port Forwarding 33 The Applications & Gaming Tab - Port Range Forwarding 34 The Applications & Gaming Tab - Port Range Triggering 35 The Applications & Gaming Tab - DMZ 36 The Applications and Gaming Tab - QoS 37
The Administration Tab - Management 40 The Administration Tab - Log 42 The Administration Tab - Diagnostics 43 The Administration Tab - Factory Defaults 44 The Administration Tab - Firmware Upgrade 45 The Status Tab - Router 46 The Status Tab - Local Network 47 The Status Tab - Wireless 48
Appendix A: Troubleshooting 49
Common Problems and Solutions 49 Frequently Asked Questions 57
Appendix B: Wireless Security 63
Security Precautions 63 Security Threats Facing Wireless Networks 63
Appendix C: Upgrading Firmware 66 Appendix D: Windows Help 67 Appendix E: Finding the MAC Address and IP Address for Your Ethernet Adapter 68
Windows 98SE or Me Instructions 68 Windows 2000 or XP Instructions 69 For the Router’s Web-based Utility 69
Appendix F: Glossary 70 Appendix G: Specifications 75 Appendix H: Warranty Information 77 Appendix I: Regulatory Information 78 Appendix J: Contact Information 84
Wireless-N Broadband Router
List of Figures
Figure 3-1: The Router’s Back Panel 6 Figure 3-2: The Router’s Front Panel 7 Figure 3-3: The Router’s Top Panel 7 Figure 4-1: Connect the Modem 8 Figure 4-2: Connect a PC 8 Figure 4-3: Connect the Power 8 Figure 5-1: Router Login 11 Figure 5-2: Setup Tab - Basic Setup (Automatic Configuration - DHCP) 11 Figure 5-3: Static IP 12 Figure 5-4: PPPoE 12 Figure 5-5: PPTP 13 Figure 5-6: Telstra Cable 13 Figure 5-7: L2TP 14 Figure 5-8: DHCP Reservation 16 Figure 5-9: Setup Tab - DDNS (DynDNS.org) 17 Figure 5-10: Setup Tab - DDNS (TZO.com) 18 Figure 5-11: Setup Tab - MAC Clone 19 Figure 5-12: Setup Tab - Advanced Routing 20 Figure 5-13: Routing Table 21 Figure 5-14: Wireless Tab - Basic Wireless Settings 22 Figure 5-15: Wireless Tab - Wireless Security (PSK-Personal) 23 Figure 5-16: Wireless Security - PSK2-Personal 23 Figure 5-17: Wireless Security - PSK-Enterprise 24 Figure 5-18: Wireless Security - PSK2-Enterprise 24 Figure 5-19: Wireless Security - RADIUS 25 Figure 5-20: Wireless Security - WEP 25 Figure 5-21: Wireless Tab - Wireless MAC Filter 26 Figure 5-22: Wireless Client List 26 Figure 5-23: Wireless Tab - Advanced Wireless Settings 27 Figure 5-24: Security Tab - Firewall 29 Figure 5-25: VPN Passthrough 30
Wireless-N Broadband Router
Figure 5-26: Access Restrictions Tab - Internet Access Policy 31 Figure 5-27: Summary 31 Figure 5-28: List of PCs 32 Figure 5-29: Applications & Gaming Tab - Single Port Forwarding 33 Figure 5-30: Applications & Gaming Tab - Port Range Forwarding 34 Figure 5-31: Applications & Gaming Tab - Port Range Triggering 35 Figure 5-32: Applications & Gaming Tab - DMZ 36 Figure 5-33: DHCP Client Table 36 Figure 5-34: Applications & Gaming Tab - QoS (Applications) 37 Figure 5-35: QoS - Applications (Add a New Application) 38 Figure 5-36: QoS - Online Games 38 Figure 5-37: QoS - MAC Address 38 Figure 5-38: QoS - MAC Address 38 Figure 5-39: QoS - Voice Device 39 Figure 5-40: Administration Tab - Management 40 Figure 5-41: Administration Tab - Log 42 Figure 5-42: View Log 42 Figure 5-43: Administration Tab - Diagnostics 43 Figure 5-44: Ping Test 43 Figure 5-45: Traceroute Test 43 Figure 5-46: Administration Tab - Factory Defaults 44 Figure 5-47: Administration Tab - Firmware Upgrade 45 Figure 5-48: Status Tab - Router 46 Figure 5-49: Status Tab - Local Network 47 Figure 5-50: Status Tab - Local Network 47 Figure 5-51: Status Tab - Wireless 48 Figure C-1: Firmware Upgrade 66 Figure E-1: IP Configuration Screen 68 Figure E-2: MAC Address/Adapter Address 68 Figure E-3: MAC Address/Physical Address 68 Figure E-4: Wireless MAC Filter 69 Figure E-5: MAC Address Cloning 69
Chapter 1: Introduction
Welcome
Thank you for choosing the Linksys Wireless-N Broadband Router. The Wireless-N Broadband Router will allow you to network wirelessly better than ever, sharing Internet access, files and fun, easily and securely and with a greater range of up to three times farther than standard Wireless-G.
How does the Wireless-N Broadband Router do all of this? A router is a device that allows access to an Internet connection over a network. With the Wireless-N Broadband Router, this access can be shared over the four switched ports or via the wireless broadcast.
Use wireless security to secure your wireless network while the whole network is protected through a Stateful Packet Inspection (SPI) firewall and Network Address Translation (NAT) technology. The Router also offers VPN passthrough and other features, which can be configured through the easy-to-use, browser-based utility.
The incredible speed of Wireless-N makes it ideal for media-centric applications like streaming video and Voice over IP (VoIP) telephony, so your network can handle multiple data streams at the same time, with no degradation in performance.
But what does all of this mean?
Networks are useful tools for sharing computer resources. You can access one printer from different computers and access data located on another computer's hard drive. Networks are even used for playing multiplayer video games. So, networks are not only useful in homes and offices, they can also be fun.
PCs on a wired network create a LAN, or Local Area Network. They are connected with Ethernet cables, which is why the network is called “wired”.
PCs equipped with wireless cards or adapters can communicate without cumbersome cables. By sharing the same wireless settings, within their transmission radius, they form a wireless network. This is sometimes called a WLAN, or Wireless Local Area Network. The Wireless-N Broadband Router bridges wireless and wired networks, allowing them to communicate with each other.
Linksys recommends using the Setup Wizard on the Setup CD-ROM for first-time installation of the Router. If you do not wish to run the Setup Wizard, then use the instructions in this Guide to help you connect the Router and configure it. These instructions should be all you need to get the most out of the Wireless-N Broadband Router.
spi (stateful packet inspection) firewall: a technology that inspects incoming packets of information before allowing them to enter the network.
firewall: Security measures that protect the resources of a local network from intruders.
nat (network address translation): NAT technology translates IP addresses of a local area network to a different IP address for the Internet.
lan (local area network): The computers and networking products that make up the network in your home or office.
Chapter 1: Introduction Welcome
1
What’s in this User Guide?
This user guide covers the steps for setting up and using the Wireless-N Broadband Router.
• Chapter 1: Introduction This chapter describes the Router’s applications and this User Guide.
• Chapter 2: Planning Your Wireless Network This chapter describes the basics of wireless networking.
• Chapter 3: Getting to Know the Wireless-N Broadband Router This chapter describes the physical features of the Router.
• Chapter 4: Connecting the Wireless-N Broadband Router This chapter instructs you on how to connect the Router to your network.
• Chapter 5: Configuring the Wireless-N Broadband Router This chapter explains how to use the Web-based Utility to configure the settings on the Wireless-N Broadband Router.
• Appendix A: Troubleshooting This appendix describes some problems and solutions, as well as frequently asked questions, regarding installation and use of the Wireless-N Broadband Router.
• Appendix B: Wireless Security This appendix explains the risks of wireless networking and some solutions to reduce the risks.
• Appendix C: Upgrading Firmware This appendix instructs you on how to upgrade the firmware on the Router should you need to do so.
• Appendix D: Windows Help This appendix describes how you can use Windows Help for instructions about networking, such as installing the TCP/IP protocol.
• Appendix E: Finding the MAC Address and IP Address for your Ethernet Adapter This appendix describes how to find the MAC address for your computer’s Ethernet adapter so you can use the MAC filtering and/or MAC address cloning feature of the Router.
• Appendix F: Glossary This appendix gives a brief glossary of terms frequently used in networking.
Chapter 1: Introduction What’s in this User Guide?
2
• Appendix G: Specifications This appendix provides the technical specifications for the Router.
• Appendix H: Warranty Information This appendix supplies the warranty information for the Router.
• Appendix I: Regulatory Information This appendix supplies the regulatory information regarding the Router.
• Appendix J: Contact Information This appendix provides contact information for a variety of Linksys resources, including Technical Support.
Chapter 1: Introduction What’s in this User Guide?
3
Chapter 2: Planning Your Wireless Network
Network Topology
A wireless local area network (WLAN) is exactly like a regular local area network (LAN), except that each computer in the WLAN uses a wireless device to connect to the network. Computers in a WLAN share the same frequency channel and SSID, which is an identification name shared by the wireless devices belonging to the same wireless network.
Ad-Hoc versus Infrastructure Mode
ssid (service set identifier): your wireless network’s name.
Unlike wired networks, wireless networks have two different modes in which they may be set up: infrastructure and ad-hoc. An infrastructure configuration is a WLAN and wired LAN communicating to each other through an access point. An ad-hoc configuration is wireless-equipped computers communicating directly with each other. Choosing between these two modes depends on whether or not the wireless network needs to share data or peripherals with a wired network or not.
If the computers on the wireless network need to be accessible by a wired network or need to share a peripheral, such as a printer, with the wired network computers, the wireless network should be set up in Infrastructure mode. The basis of Infrastructure mode centers around a wireless router or an access point, such as the Wireless-N Broadband Router, which serves as the main point of communications in a wireless network. The Router transmits data to PCs equipped with wireless network adapters, which can roam within a certain radial range of the Router. You can arrange the Router and multiple access points to work in succession to extend the roaming range, and you can set up your wireless network to communicate with your Ethernet hardware as well.
If the wireless network is relatively small and needs to share resources only with the other computers on the wireless network, then the Ad-Hoc mode can be used. Ad-Hoc mode allows computers equipped with wireless transmitters and receivers to communicate directly with each other, eliminating the need for a wireless router or access point. The drawback of this mode is that in Ad-Hoc mode, wireless-equipped computers are not able to communicate with computers on a wired network. And, of course, communication between the wireless­equipped computers is limited by the distance and interference directly between them.
Network Layout
The Wireless-N Broadband Router has been specifically designed for use with your Wireless-N, Wireless-G, and Wireless-B products. It will work with notebook adapters for your laptop computers, PCI adapters for your
infrastructure: a wireless network that is bridged to a wired network via an access point.
ad-hoc: a group of wireless devices communicating directly to each other (peer-to­peer) without the use of an access point.
Chapter 2: Planning Your Wireless Network Network Topology
4
desktop computers, and USB adapters for your USB connectivity needs. The Router can also communicate with other devices, such as wireless print servers and bridges.
When you wish to connect your wireless network to your wired network, you can use the Router’s four local Ethernet ports. To add more ports, connect one of the Router's local ports to any Linksys switch.
With these, and many other, Linksys products, your networking options are limitless. Go to the Linksys website at www.linksys.com for more information about products that work with the Wireless-N Broadband Router.
Chapter 2: Planning Your Wireless Network Network Layout
5
Chapter 3: Getting to Know the Wireless-N Broadband Router
The Back Panel
The Router's ports, where the cables are connected, and Reset button are located on the back panel.
Figure 3-1: The Router’s Back Panel
INTERNET The Internet port is where you will connect your broadband modem.
ETHERNET 1, 2, 3, 4 These ports (1, 2, 3, 4) connect the Router to your wired PCs and other Ethernet network
devices.
Reset Button There are two ways to reset the Router's factory defaults. Either press the Reset button,
for approximately five seconds, or restore the defaults from the Administration - Factory Defaults tab of the Router's Web-based Utility.
Power The Power port is where you will connect the power adapter.
Chapter 3: Getting to Know the Wireless-N Broadband Router The Back Panel
IMPORTANT: Resetting the Router will erase all of your settings (Internet connection, wireless security, and other settings) and replace them with the factory defaults. Do not reset the Router if you want to retain these settings.
6
The Front Panel
The Router’s LEDs are located on the front panel.
Figure 3-2: The Router’s Front Panel
POWER Green. The POWER LED lights up and will stay on while the Router is powered on.
ETHERNET 1, 2, 3, 4 Green. These numbered LEDs, corresponding with the numbered ports on the Router’s
back panel, serve two purposes. The LED lights up when the Router is connected to a device through the corresponding port. If the LED is flashing, the Router is sending or receiving data over that port.
INTERNET Green. The INTERNET LED lights up when there is a connection through the Internet port.
WIRELESS Green. The WIRELESS LED lights up when there is a wireless connection. If the LED is
flashing, the Router is sending or receiving data over the wireless network.
SECURITY Green. The SECURITY LED indicates when wireless security is enabled.
The Top Panel
The Router has a button reserved for a future function.
Chapter 3: Getting to Know the Wireless-N Broadband Router The Front Panel
Button
Figure 3-3: The Router’s Top Panel
7
Chapter 4: Connecting the Wireless-N Broadband Router
Hardware Installation
1. Make sure that all of your hardware is powered off, including the broadband modem and PCs.
2. Connect your broadband modem’s Ethernet cable to the Router’s Internet port.
3. Connect one end of an Ethernet network cable to one of the numbered ports on the back of the Router. Connect the other end to an Ethernet port on a network device, e.g., a PC, print server, or switch.
Repeat this step to connect more PCs or other network devices to the Router.
4. Power on the broadband modem.
5. Connect the included power adapter to the Router’s Power port, and then plug the power adapter into an electrical outlet. The Power LED on the front panel will light up when the adapter is connected properly.
6. Power on your PC(s).
7. Locate an optimum location for the Router. The best place for the Router is usually at the center of your wireless network, with line of sight to all of your wireless devices.
Proceed to “Chapter 5: Configuring the Wireless-N Broadband Router”.
Figure 4-1: Connect the Modem
Figure 4-2: Connect a PC
Figure 4-3: Connect the Power
IMPORTANT: Make sure you use the power
adapter that is supplied with the Router. Use of a different power adapter could damage the Router.
Chapter 4: Connecting the Wireless-N Broadband Router Hardware Installation
8
Chapter 5: Configuring the Wireless-N Broadband Router
Overview
Linksys recommends using the Setup CD-ROM for first-time installation of the Router. If you do not wish to run the Setup Wizard on the Setup CD-ROM, then you can use the Web-based Utility to configure the Router. For advanced users, you may configure the Router’s advanced settings through the Web-based Utility.
This chapter will describe each web page on the Utility and each page’s key functions. The Utility can be accessed via your web browser through use of a computer connected to the Router. For a basic network setup, most users only have to use the following screens of the Utility:
• Basic Setup. On the Basic Setup screen, enter the Internet connection settings provided by your Internet Service Provider (ISP). If you do not have this information, you can call your ISP to request the settings. When you have the setup information, then you can configure the Router.
• Management. Click the Administration tab and then the Management tab. The Router’s default password is admin. To secure the Router, change the Password from its default.
• Wireless. On the Basic Wireless Settings screen, set the basic configuration for your wireless network.
There are seven main tabs: Setup, Wireless, Security, Access Restrictions, Applications & Gaming, Administration, and Status. Additional tabs will be available after you click one of the main tabs.
Setup
• Basic Setup. Enter the Internet connection and network settings on this screen.
• DDNS. Enable the Router’s Dynamic Domain Name System (DDNS) feature on this screen.
• MAC Address Clone. If you need to clone a MAC address onto the Router, use this screen.
• Advanced Routing. Use this screen to alter dynamic and static routing configurations.
Wireless
• Basic Wireless Settings. Enter the basic settings for your wireless network on this screen.
• Wireless Security. Enable and configure the security settings for your wireless network.
Chapter 5: Configuring the Wireless-N Broadband Router Overview
9
• Wireless MAC Filter. Wireless access can be filtered by using the MAC addresses of the wireless devices transmitting within your network’s radius.
• Advanced Wireless Settings. For advanced users, you can alter data transmission settings on this screen.
Security

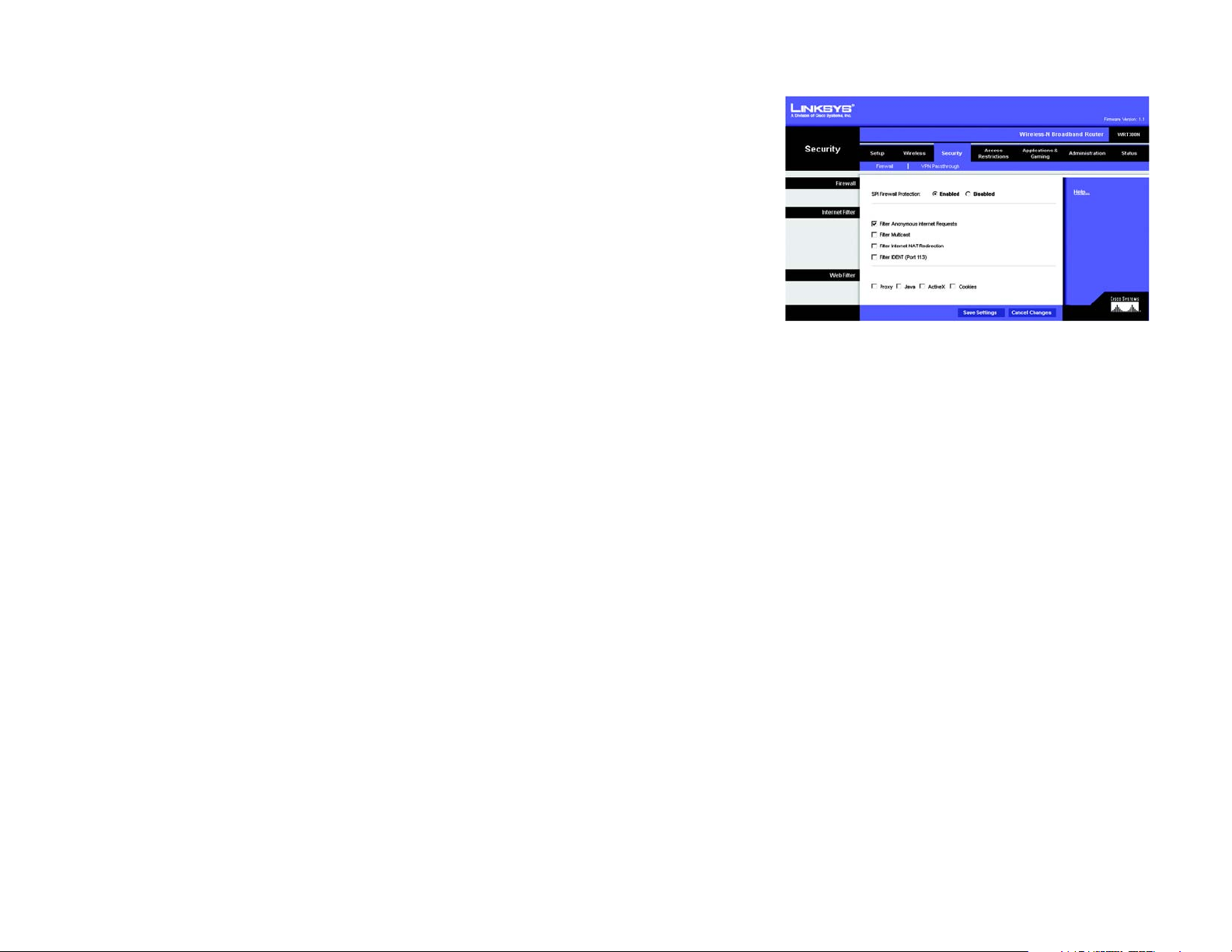

• Firewall. You can enable or disable the Router’s firewall, as well as various filters.
• VPN Passthrough. To enable or disable IPSec, L2TP, and/or PPTP Passthrough, use this screen.
Access Restrictions

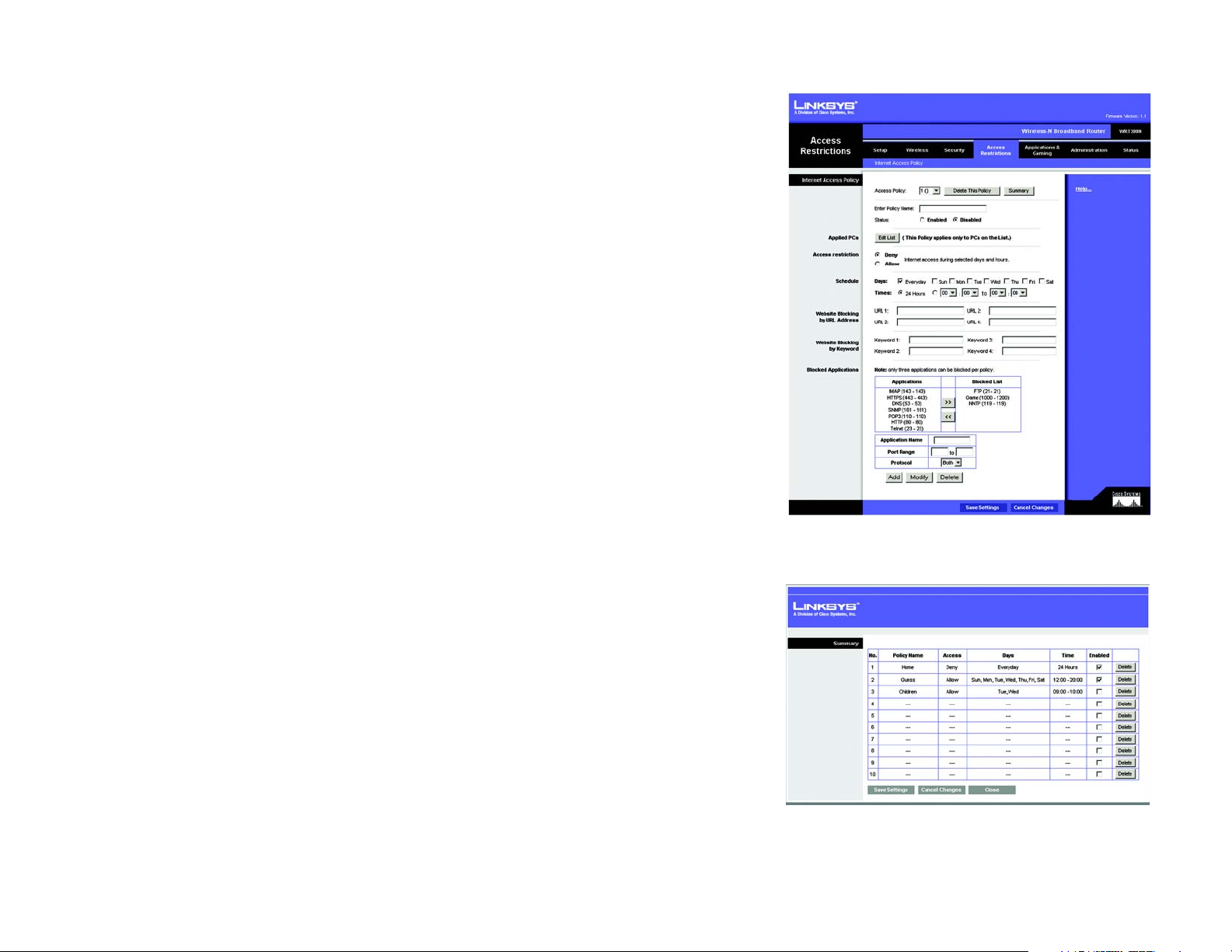

Internet Access Policy. Create policies to control Internet access for your local network users.
Applications & Gaming
• Single Port Forwarding. This allows you to do port mapping and forwarding for a single service port.

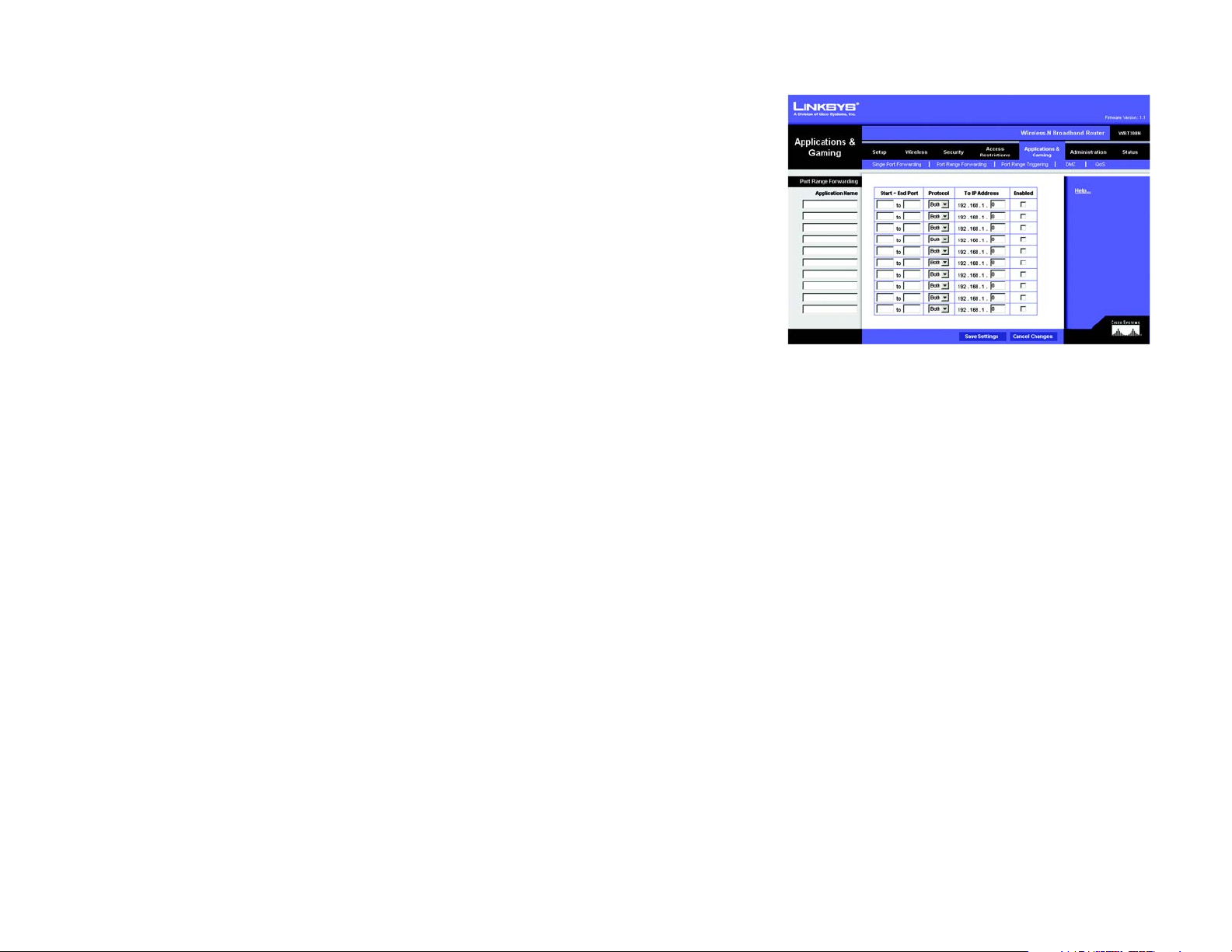

• Port Range Forwarding. Set up public services or other specialized Internet applications on your network.
• Port Range Triggering. Configure the Router to watch outgoing data for specific port numbers.

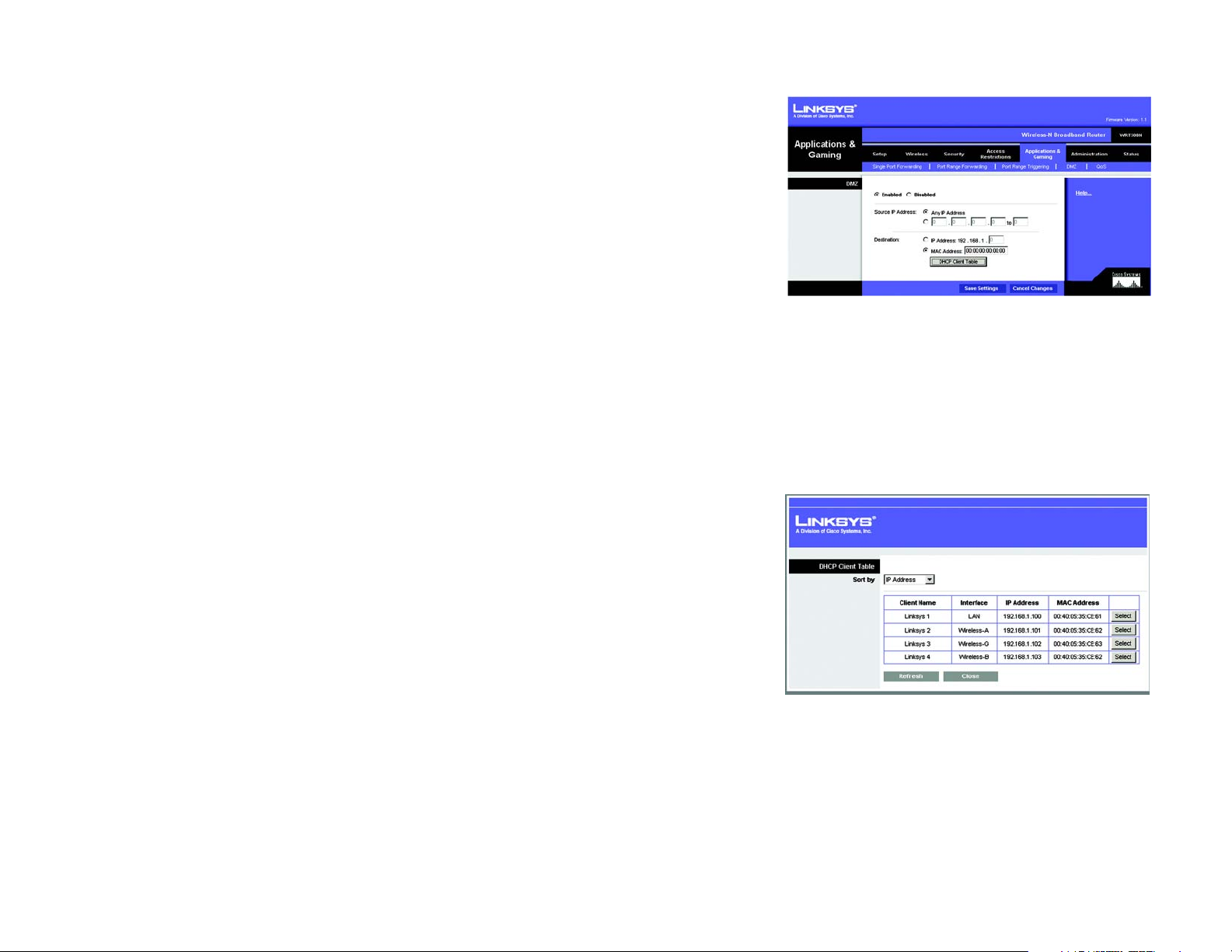

• DMZ. Click this tab to allow one local user to be exposed to the Internet for use of special-purpose services.

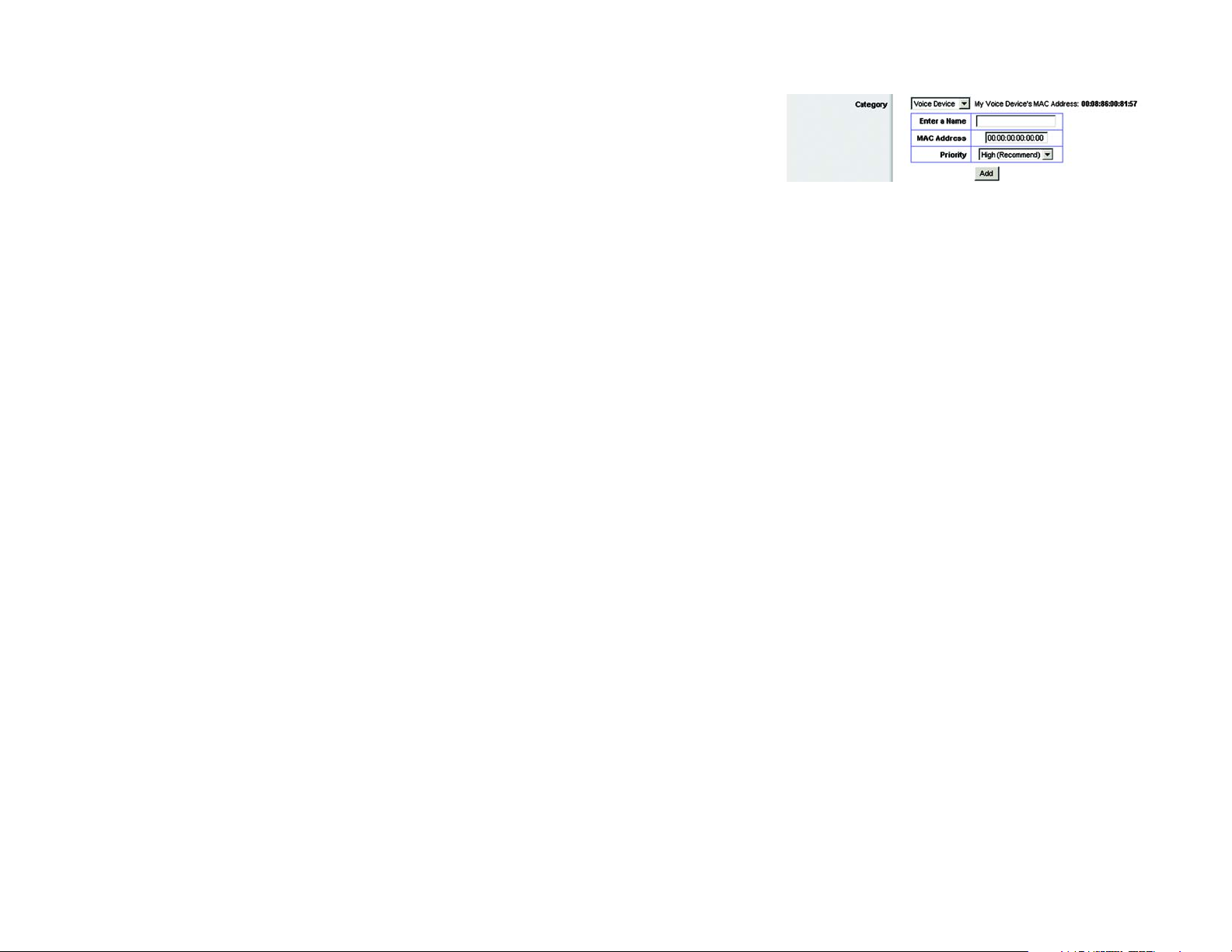

• QoS. Quality of Service (QoS) ensures better service to high-priority types of network traffic.
Administration

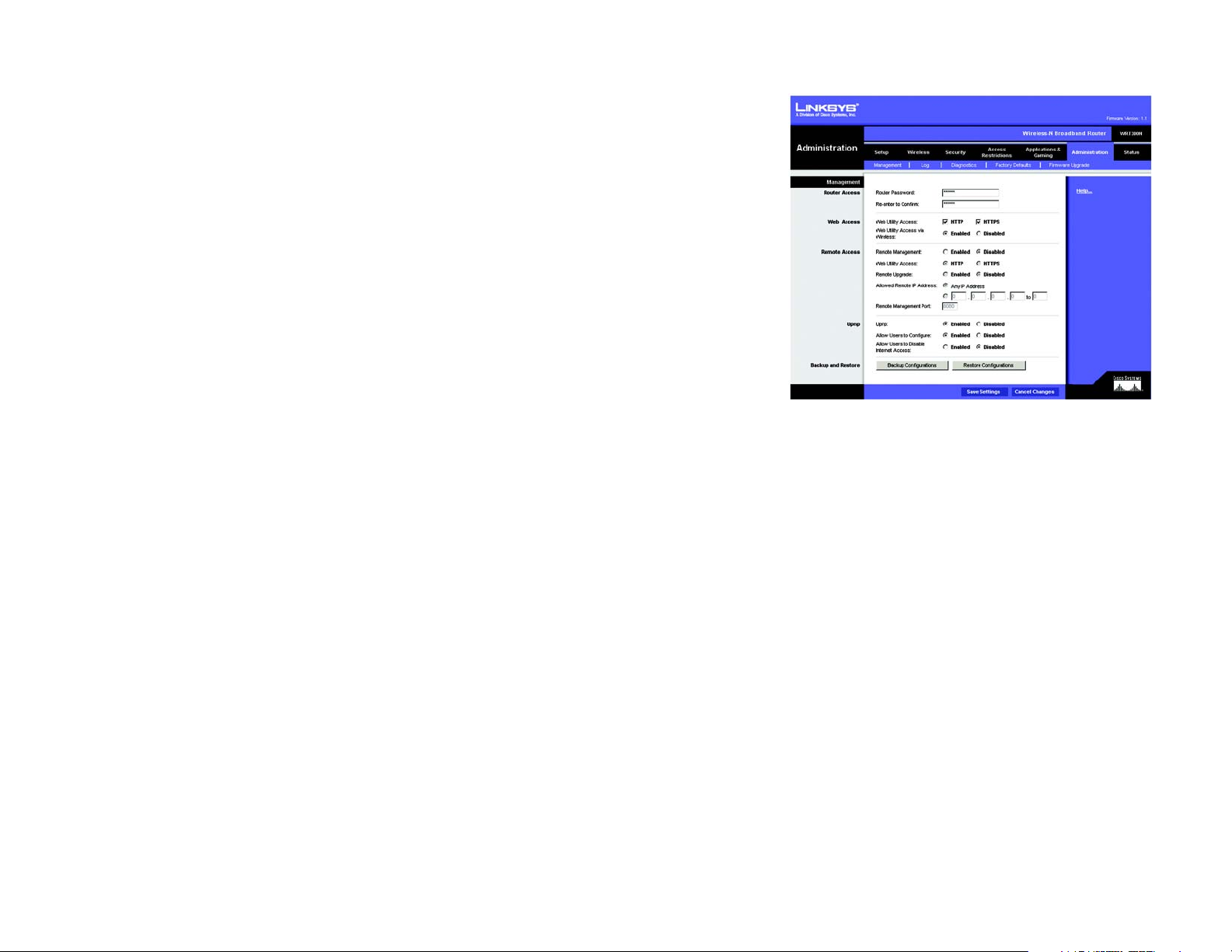

• Management. On this screen, alter the Router’s password, access privileges, and UPnP settings. You can also use this screen to back up and restore the Router’s configuration file.
• Log. If you want to view or save activity logs, click this tab.
• Diagnostics. If you want to run a ping or traceroute test, then use this screen.
• Factory Defaults. If you want to restore the Router’s factory defaults, then use this screen.
• Firmware Upgrade. Click this tab if you want to upgrade the Router’s firmware.
Chapter 5: Configuring the Wireless-N Broadband Router Overview
10
Status

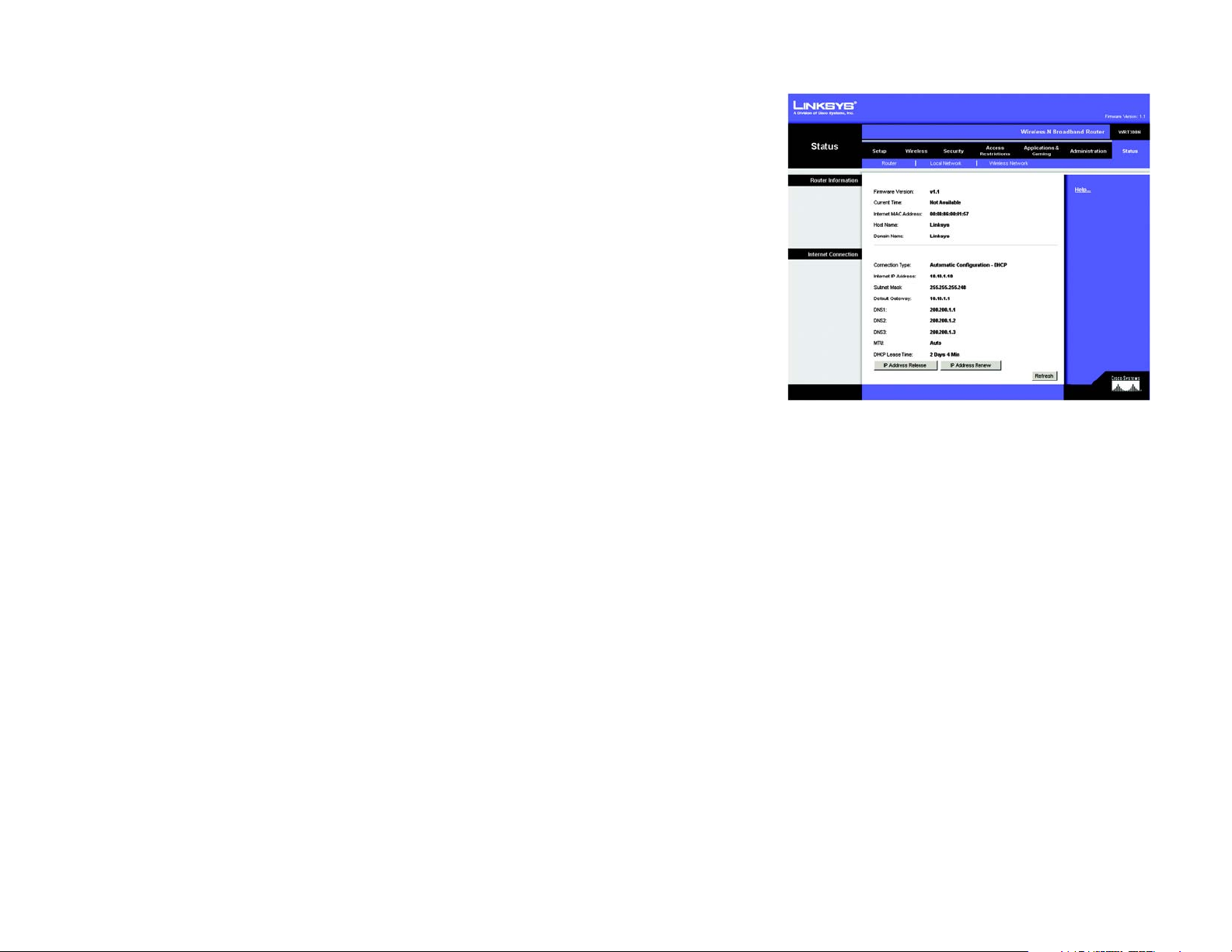

• Router. This screen provides status information about the Router.
• Local Network. This provides status information about the local network.
• Wireless Network. This provides status information about the wireless network.
How to Access the Web-based Utility
To access the Web-based Utility of the Router, launch Internet Explorer or Netscape Navigator, and enter the Router’s default IP address, 192.168.1.1, in the Address field. Press the Enter key.
A screen will appear asking you for your User name and Password. Leave the User Name field blank. Enter admin in the Password field. Then click the OK button.
Make the necessary changes through the Utility. When you have finished making changes to a screen, click the Save Settings button to save the changes, or click the Cancel Changes button to undo your changes. For information on a tab, click Help.
The Setup Tab - Basic Setup
The Basic Setup screen is the first screen you see when you access the Web-based Utility.
Internet Setup
The Internet Setup section configures the Router for your Internet connection type. This information can be obtained from your ISP.
Internet Connection Type

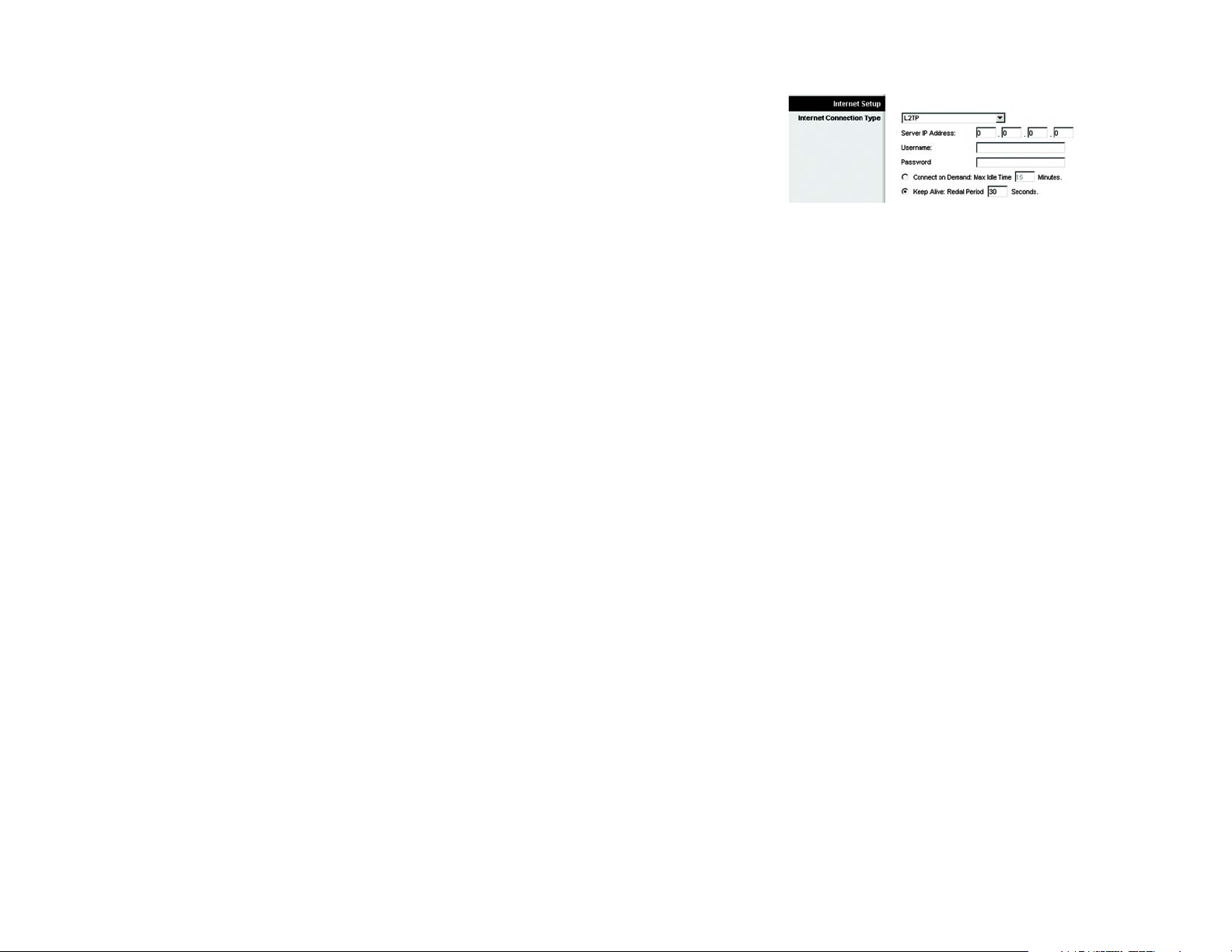

The Router supports six connection types: Automatic Configuration - DHCP, Static IP, PPPoE, PPTP, Telstra Cable, and L2TP. Each Basic Setup screen and available features will differ depending on what kind of connection type you select.
Automatic Configuration - DHCP
Figure 5-1: Router Login
Figure 5-2: Setup Tab - Basic Setup
(Automatic Configuration - DHCP)
By default, the Router’s Internet Connection Type is set to Automatic Configuration - DHCP, and it should be used only if your ISP supports DHCP or you are connecting through a dynamic IP address.
Chapter 5: Configuring the Wireless-N Broadband Router How to Access the Web-based Utility
NOTE: Some of these connection types may not be available in your area.
11
