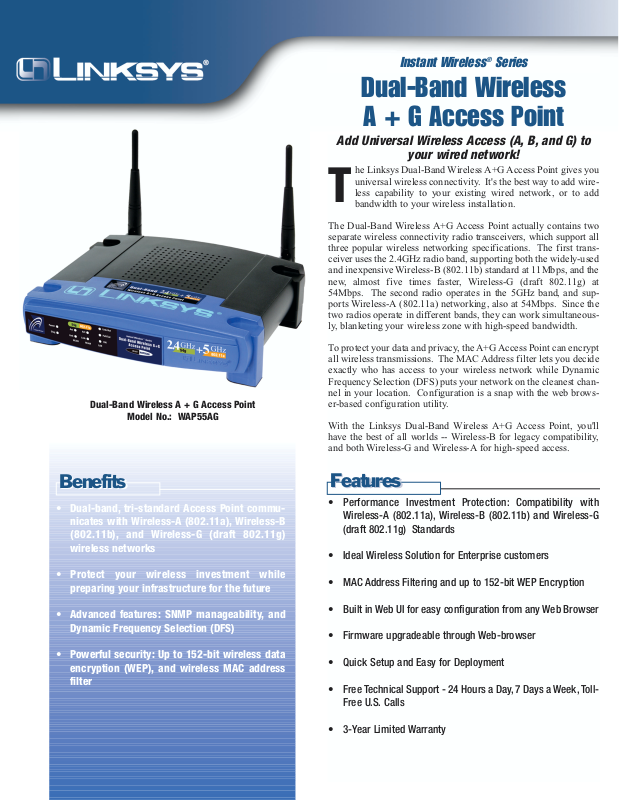

Dual-Band Wireless

A + G Access Point

he Linksys Dual-Band Wireless A+G Access Point gives you
universal wireless connectivity. It's the best way to add wire­less capability to your existing wired network, or to add
bandwidth to your wireless installation.

The Dual-Band Wireless A+G Access Point actually contains two
separate wireless connectivity radio transceivers, which support all
three popular wireless networking specifications. The first trans­ceiver uses the 2.4GHz radio band, supporting both the widely-used
and inexpensive Wireless-B (802.11b) standard at 11Mbps, and the
new, almost five times faster, Wireless-G (draft 802.11g) at
54Mbps. The second radio operates in the 5GHz band, and sup­ports Wireless-A (802.11a) networking, also at 54Mbps. Since the
two radios operate in different bands, they can work simultaneous­ly, blanketing your wireless zone with high-speed bandwidth.

To protect your data and privacy, the A+G Access Point can encrypt
all wireless transmissions. The MAC Address filter lets you decide
exactly who has access to your wireless network while Dynamic
Frequency Selection (DFS) puts your network on the cleanest chan­nel in your location. Configuration is a snap with the web brows­er-based configuration utility.

With the Linksys Dual-Band Wireless A+G Access Point, you'll
have the best of all worlds -- Wireless-B for legacy compatibility,
and both Wireless-G and Wireless-A for high-speed access.

• Performance Investment Protection: Compatibility with
Wireless-A (802.11a), Wireless-B (802.11b) and Wireless-G
(draft 802.11g) Standards

• Ideal Wireless Solution for Enterprise customers

• MAC Address Filtering and up to 152-bit WEP Encryption

• Built in Web UI for easy configuration from any Web Browser

• Firmware upgradeable through Web-browser

• Quick Setup and Easy for Deployment

• Free Technical Support - 24 Hours a Day, 7 Days a Week, Toll­Free U.S. Calls

• 3-Year Limited Warranty

Dual-Band Wireless A + G Access Point

Model No.: WAP55AG

Add Universal Wireless Access (A, B, and G) to

your wired network!

Features

Features

Benefits

Benefits

• Dual-band, tri-standard Access Point commu­nicates with Wireless-A (802.11a), Wireless-B
(802.11b), and Wireless-G (draft 802.11g)
wireless networks

• Protect your wireless investment while
preparing your infrastructure for the future

• Advanced features: SNMP manageability, and
Dynamic Frequency Selection (DFS)

• Powerful security: Up to 152-bit wireless data
encryption (WEP), and wireless MAC address
filter

Instant Wireless®Series

T

Package ContentsSpecifications

Model Number WAP55AG

Standards IEEE 802.11a, IEEE802.11b, draft IEEE

802.11g, 802.3, IEEE 802.u

Ports One 10/100 RJ-45 Port, One Power Port

Buttons One Reset Button

Cabling Type Ethernet Network Cable

LEDs Power, Diag

LAN: Link/Act, Full/Col, 100

802.11a: Act, Link

802.11g: Act, Link

Transmit Power 802.11a: Max. 16dBm

802.11g: typical 14dBm

802.11b: typical 16dBm

Security Features MAC address filtering, WEP Encryption

WEP Key Bits 64/128/152-Bit

Environmental

Dimensions 7.32" x 1.89" x 6.89"

(186 mm x 48 mm x 175 mm)

Unit Weight 14.11 oz. (0.4 kg)

Power External, 5V DC, 2.5A

Certifications FCC

Operating Temp. 32ºF to 104ºF (0ºC to 40ºC)

Storage Temp. -4ºF to 158ºF (-20ºC to 70ºC)

Operating Humidity 10% to 85%, Non-Condensing

Storage Humidity 5% to 90%, Non-Condensing

• Dual-Band Wireless Access Point

• Setup CD-ROM with User Guide

• Power Adapter

• Ethernet Network Cable

• Quick Installation Guide

• Registration Card

• One Pentium Class PC (200 MHz or Faster
Processor) with

• 64 MB RAM

• Internet Explorer 4.0 or Netscape
Navigator 4.7 or Higher for Web-based
Configuration

• CD-ROM Drive

• 802.11a, 802.11b, or draft 802.11g
Wireless Adapter with TCP/IP Protocol
Installed

Minimum Requirements

WAP55AG-DS-30204NC KL
