Linksys USBBT100 User Manual
A Division of Cisco Systems, Inc.
®
Model No.
WIRELESS
USBBT100
Bluetooth
USB Adapter
User Guide
Bluetooth USB Adapter
Copyright and Trademarks
Specifications are subject to change without notice. Linksys is a registered trademark or trademark of Cisco
Systems, Inc. and/or its affiliates in the U.S. and certain other countries. Copyright © 2005 Cisco Systems, Inc. All
rights reserved. Other brands and product names are trademarks or registered trademarks of their respective
holders.
WARNING: This product contains chemicals, including lead, known to the State of California to
cause cancer, and birth defects or other reproductive harm. Wash hands after handling.
How to Use this User Guide
This User Guide to the Bluetooth USB Adapter has been designed to make understanding using the Adapter easier
than ever. Look for the following items when reading this Guide:
This checkmark means there is a Note of interest and
is something you should pay special attention to while
using the Adapter.
This exclamation point means there is a Caution or
warning and is something that could damage your
property or the Adapter.
This question mark provides you with a reminder about
something you might need to do while using the Adapter.
In addition to these symbols, there are definitions for technical terms that are presented like this:
word: definition.
Also, each figure (diagram, screenshot, or other image) is provided with a figure number and description, like
this:
Figure 0-1: Sample Figure Description
Figure numbers and descriptions can also be found in the "List of Figures" section in the “Table of Contents”.
USBBT100-UG-50227 KL
Bluetooth USB Adapter
Chapter 1: Introduction 1
Welcome 1
What’s in this Guide? 2
Chapter 2: Installing the Bluetooth Software and Connecting the Adapter 3
Installing the Bluetooth Software 3
Connecting the Adapter 6
Chapter 3: Using the Bluetooth USB Adapter 7
Navigating from Your Desktop 7
The Bluetooth System Tray Icon 8
Explore My Bluetooth Places 8
The Bluetooth Setup Wizard 9
Advanced Cofiguration 13
Quick Connection 18
Appendix A: Troubleshooting 19
Common Problems and Solutions 19
Frequently Asked Questions 20
Appendix B: Bluetooth Applications and Services 21
Bluetooth Client Applications 21
Services 22
Appendix C: Specifications 23
Appendix D: Warranty Information 25
Appendix E: Regulatory Information 26
Appendix F: Contact Information 29
Dual-Band Wireless Access Point
Figure 1-1: The Bluetooth USB Adapter 1
Figure 2-1: The Setup Wizard’s Welcome Screen 3
Figure 2-2: The InstallShield Wizard’s Welcome Screen 3
Figure 2-3: The License Agreement Screen 4
Figure 2-4: The Destination Folder Screen 4
Figure 2-5: The Install Screen 4
Figure 2-6: The Driver Signature Notice 5
Figure 2-7: The Adapter’s Connection Screen 5
Figure 2-8: The Wizard Completed Screen 5
Figure 2-9: The Bluetooth Icon 6
Figure 2-10: Connecting the Adapter 6
Figure 3-1: The Bluetooth Icon 7

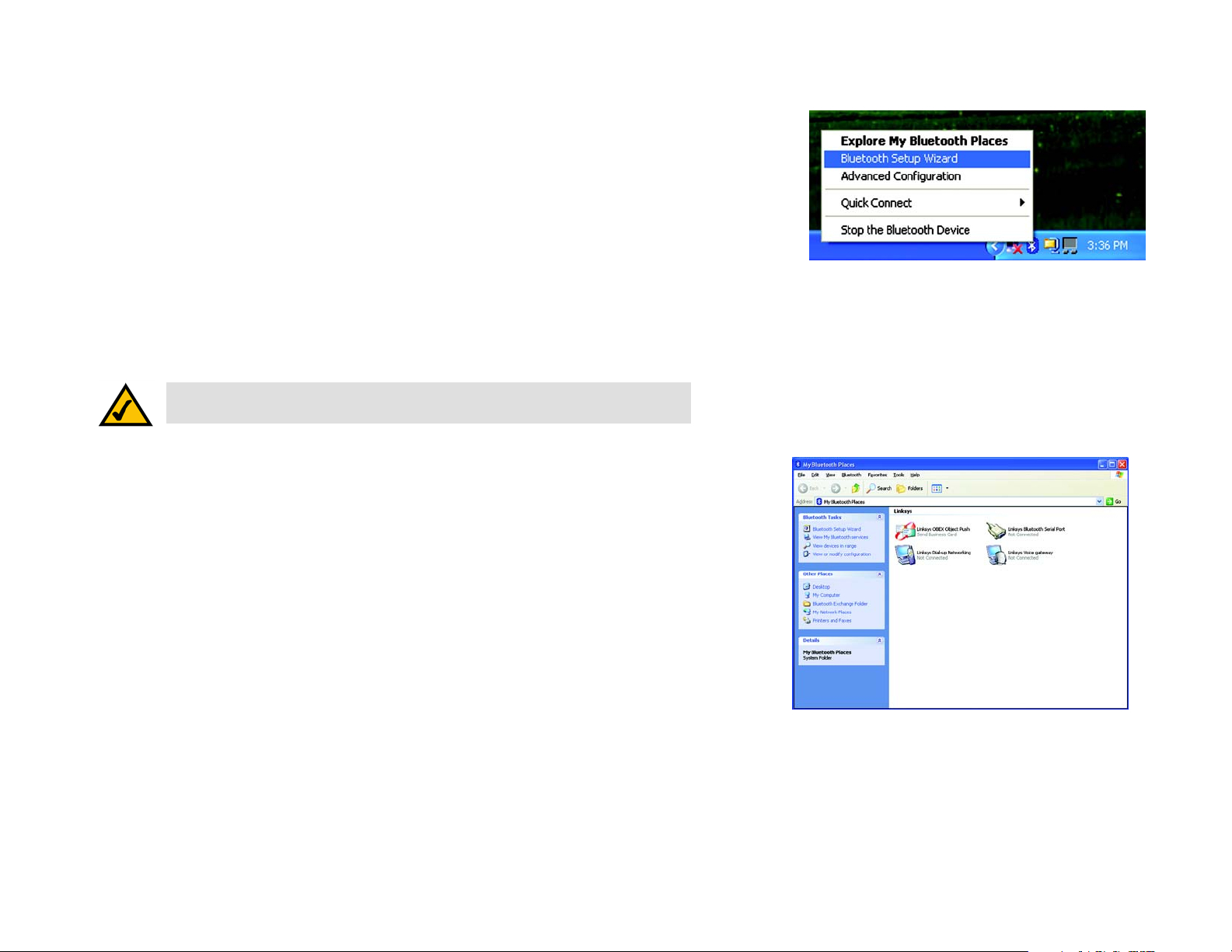

Figure 3-2: The Bluetooth System Tray Icon’s Menu 8
Figure 3-3: My Bluetooth Places 8

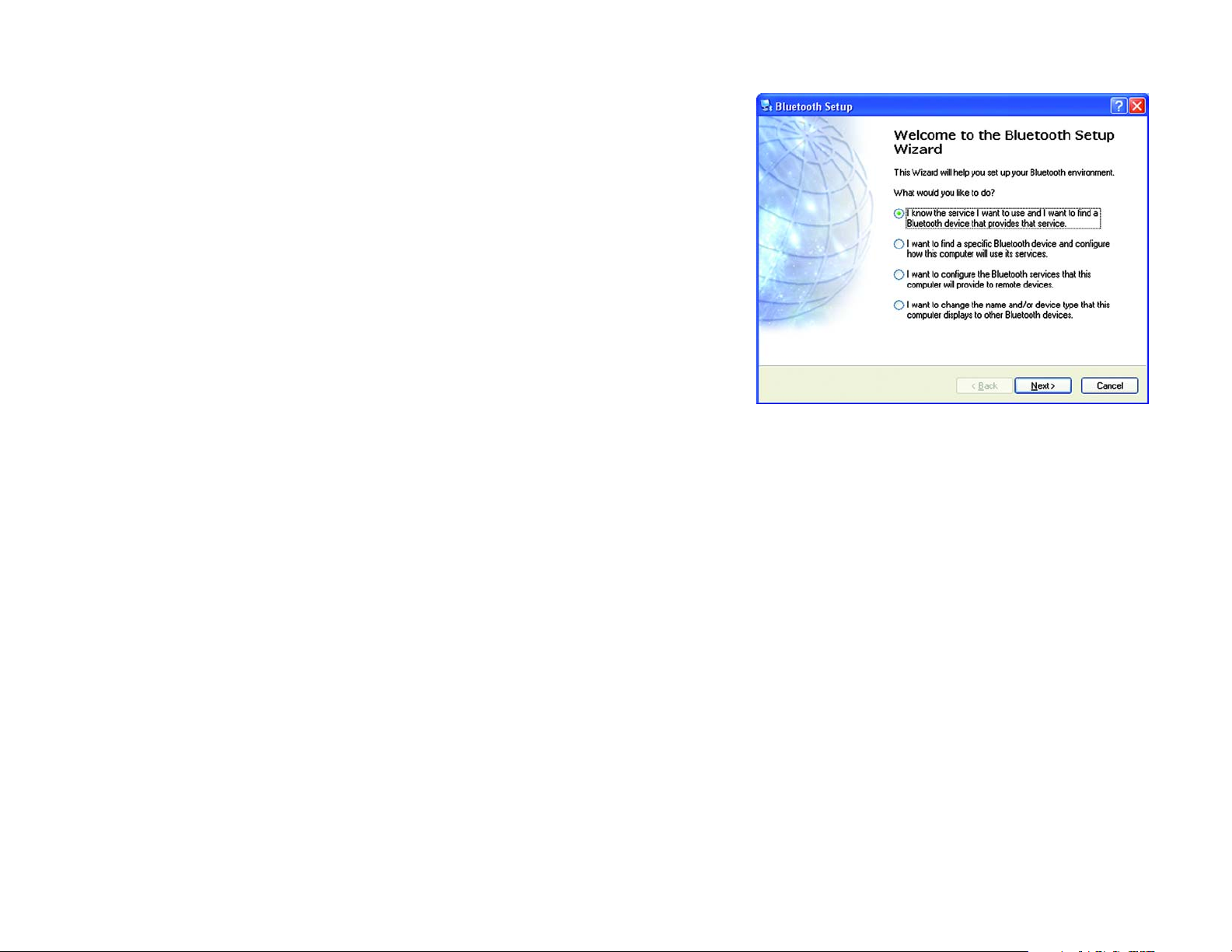

Figure 3-4: The Bluetooth Setup Wizard 9
Figure 3-5: The Bluetooth Service Selection Screen 10
Figure 3-6: The Bluetooth Device Selection Screen 10
Figure 3-7: The Setup Wizard Completion Screen 10
Figure 3-8: The Bluetooth Device Selection Screen 11
Figure 3-9: The Bluetooth Security Setup Screen 11
Figure 3-10: The Bluetooth Service Selection Screen 11
Figure 3-11: The Bluetooth Service Selection Screen 12
Figure 3-12: Change the Computer Name and Type 12
Figure 3-13: Bluetooth Configuration - General tab 13

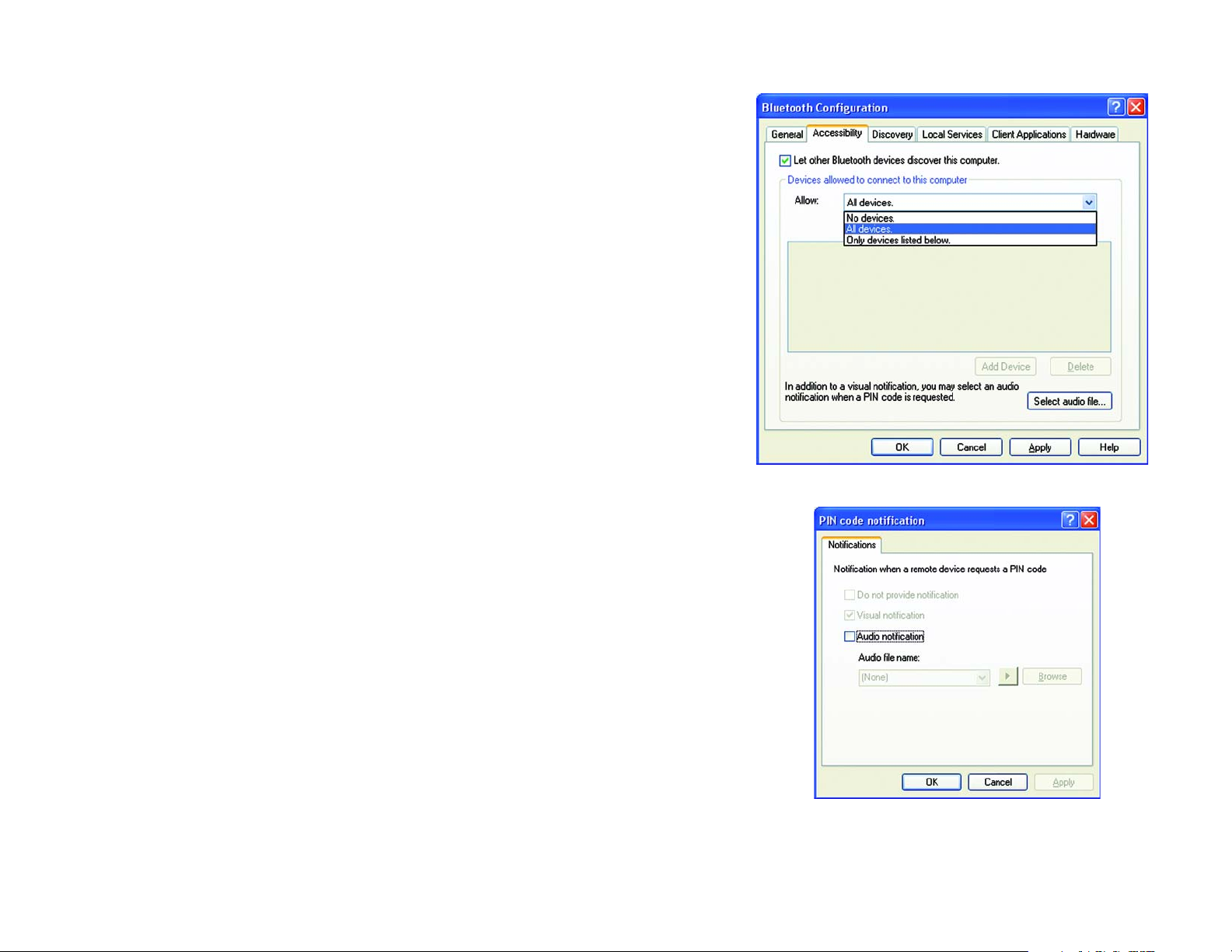

Figure 3-14: Bluetooth Configuration - Accessibility tab 14
Figure 3-15: PIN code notification 14
Figure 3-16: Bluetooth Configuration - Discovery tab 15
Figure 3-17: Bluetooth Configuration - Local Services tab 16
Figure 3-18: Local Services Properties 16
Figure 3-19: Bluetooth Configuration - Client Applications tab 17
Figure 3-20: Client Applications Properties 17
Figure 3-21: Bluetooth Configuration - Hardware 18
Figure 3-22: Quick Connection 18
Bluetooth USB Adapter
Chapter 1: Introduction
Welcome
Thank you for choosing the Bluetooth USB Adapter. This Adapter brings all the uses of Bluetooth directly to your
PC.
As you probably already know, Bluetooth technology provides consumer device connectivity, interfacing with your
cellular phone, allowing PDA synchronization, and so much more. With every new Bluetooth device, your PC will
now grant you access.
But what does all of this mean?
Bluetooth technology is always functioning, and can connect to other Bluetooth devices with Quick Connect.
Consider your Bluetooth cell-phone. When brought within range of the USB Adapter, connected to your PC, you
can upload phone directories onto your phone, dial out on your dial-up Internet connection on your cell-phone, or
grab photos if your phone has an integrated camera. Imagine synchronizing your PDA without cables, using a
Bluetooth mouse without line-of-sight Infrared lights, or printing to a Bluetooth printer.
PCs equipped with the Adapter can communicate without cumbersome cables and, since it’s USB, there’s no
need to open your PC or engage in complex configuration.
Use the instructions in this User Guide to help you connect the Adapter, set it up, and configure it to function with
your Bluetooth devices. These instructions should be all you need to get the most out of the Adapter.
Chapter 1: Introduction
Welcome
Figure 1-1: The Bluetooth USB Adapter
Bluetooth: short-range wireless technology
used for replacing cables in many
consumer-electronics devices.
1
Bluetooth USB Adapter
What’s in this Guide?
This user guide covers the steps for setting up and using the Bluetooth USB Adapter.
• Chapter 1: Introduction
This chapter describes the Adapter’s applications and this User Guide.
• Chapter 2: Installing the Bluetooth Software and Connecting the Adapter
This chapter describes the Adapter’s basic setup and connection.
• Chapter 3: Using the Bluetooth USB Adapter
This chapter instructs you on the Adapter’s various tools and functions.
• Appendix A: Troubleshooting
This appendix describes some problems and solutions, as well as frequently asked questions, regarding
installation and use of the Adapter.
• Appendix B: Bluetooth Applications and Services
This appendix provides information on all the applications and services you may use with the Adapter
• Appendix C: Specifications
This appendix provides the technical specifications for the Adapter.
• Appendix D: Warranty Information
This appendix supplies the warranty information for the Adapter.
• Appendix E: Regulatory Information
This appendix supplies the regulatory information regarding the Adapter.
• Appendix F: Contact Information
This appendix provides contact information for a variety of Linksys resources, including Technical Support.
Chapter 1: Introduction
What’s in this Guide?
2
Bluetooth USB Adapter
Chapter 2: Installing the Bluetooth Software and Connecting the Adapter
Installing the Bluetooth Software
Before connecting the Adapter to your PC’s USB port, you must install the Bluetooth Software, which will install
everything your system needs to use the Adapter. Once the Bluetooth Software is installed, you will be able to
connect the Adapter to your PC.
1. Insert the Adapter’s Setup Wizard CD into your PC’s CD-ROM. It should start up automatically. If it does not,
click Start and choose Run. In the field that appears, enter D:\setup.exe (if “D” is the letter of your CD-ROM
drive). Once the CD starts, the Wizard’s Welcome screen should appear.
IMPORTANT:
Software from the CD included with the Adapter
before connecting the Adapter to your PC.
You must install the Bluetooth
Click the Install button to install the Bluetooth Software. Clicking the User Guide button brought up this User
Guide. Clicking the Exit button will exit the Setup Wizard.
2. After clicking the Install button, the InstallShield Wizard’s Welcome screen will appear. Click the Next button
to continue.
Chapter 2: Installing the Bluetooth Software and Connecting the Adapter
Installing the Bluetooth Software
Figure 2-1: The Setup Wizard’s Welcome Screen
Figure 2-2: The InstallShield Wizard’s Welcome Screen
3
Bluetooth USB Adapter
3. The next screen is the License Agreement screen. Read the License Agreement and click the radio button for
I accept the terms in the license agreement. Then, click the Next button. You may not click the Next
button unless you click the button showing that you accept the terms.
If you wish to move back through the Wizard, click the Back button. If you wish to close the Wizard, click
Cancel.
4. You will next be asked for a Destination folder. This is where the Bluetooth Software will be installed. A
default directory will be displayed but, if you wish to change that, you can click the Change button and select
a different folder. Then, click the Next button.
If you wish to move back through the Wizard, click the Back button. If you wish to close the Wizard, click
Cancel.
Figure 2-3: The License Agreement Screen
5. Now, the Bluetooth Software will be ready to begin installing all of the necessary files. Click the Install button
to begin.
If you wish to move back through the Wizard, click the Back button. If you wish to close the Wizard, click
Cancel.
The files will proceed to install.
Chapter 2: Installing the Bluetooth Software and Connecting the Adapter
Installing the Bluetooth Software
Figure 2-4: The Destination Folder Screen
Figure 2-5: The Install Screen
4
Bluetooth USB Adapter
6. During installation, you may see a Driver Signature Notice. This product has been tested for use with
Windows. Click the OK button to continue.
7. At this point, you should connect the Adapter to your PC’s USB port. (See the description on the next page for
details.) After connecting it, click the OK button. If you do now wish to connect it at this time, click the Cancel
button. The Adapter may be connected after the Bluetooth Software is installed.
Figure 2-6: The Driver Signature Notice
8. The Wizard, along with all you need to install the Adapter, has been successfully installed. Click the Finish
button to close the final window.
9. If requested by Windows, restart your PC at this time.
Chapter 2: Installing the Bluetooth Software and Connecting the Adapter
Installing the Bluetooth Software
Figure 2-7: The Adapter’s Connection Screen
Figure 2-8: The Wizard Completed Screen
5
Bluetooth USB Adapter
Connecting the Adapter
After a moment, Windows will automatically detect the Adapter and a Bluetooth icon will appear in your system
tray.
To connect the Adapter to your PC, simply plug it into any unused USB port.
Figure 2-9: The Bluetooth Icon
NOTE: Before you can start using the Adapter, you must run the Bluetooth
Setup Wizard by right-clicking the Bluetooth icon and selecting the Wizard,
as described in Chapter 3: Using the Bluetooth USB Adapter.
Chapter 2: Installing the Bluetooth Software and Connecting the Adapter
Connecting the Adapter
Figure 2-10: Connecting the Adapter
6
