Linksys USB1000 User Manual
A Division of Cisco Systems, Inc.
®
Model No.
WIRED
USB1000
Gigabit USB Adapter
User Guide
Gigabit USB Adapter
Copyright and Trademarks
Specifications are subject to change without notice. Linksys is a registered trademark or trademark of Cisco
Systems, Inc. and/or its affiliates in the U.S. and certain other countries. Copyright © 2004 Cisco Systems, Inc. All
rights reserved. Other brands and product names are trademarks or registered trademarks of their respective
holders.
WARNING: This product contains chemicals, including lead, known
to the State of California to cause cancer, and birth defects or other
reproductive harm. Wash hands after handling.
How to Use this User Guide
The user guide to the Dual-Band Wireless Access Point has been designed to make understanding networking
with the Access Point easier than ever. Look for the following items when reading this User Guide:
This checkmark means there is a note of interest and
is something you should pay special attention to while
using the Access Point.
This exclamation point means there is a caution or
warning and is something that could damage your
property or the Access Point.
This question mark provides you with a reminder about
something you might need to do while using the Access Point.
In addition to these symbols, there are definitions for technical terms that are presented like this:
word: definition.
Also, each figure (diagram, screenshot, or other image) is provided with a figure number and description, like
this:
Figure numbers and descriptions can also be found in the "List of Figures" section.
USB1000-UG-50314NC BW
Figure 0-1: Sample Figure Description
Gigabit USB Adapter
Table of Contents
Chapter 1: Introduction 1
Welcome 1
What’s in this Guide? 2
Chapter 2: Getting to Know and Connecting the Gigabit USB Adapter 3
The Back Panel 3
The Front Panel 3
USB Icon and Ports 4
Chapter 3: Setup Utility for the Gigabit USB Adapter 5
Setup Utility 5
Setup and Driver Installation 5
Uninstalling the Driver 8
Appendix A: Troubleshooting 10
Common Problems and Solutions 10
Appendix B: Glossary 14
Appendix C: Regulatory Information 21
Appendix D: Specifications 22
Appendix E: Warranty Information 23
Appendix F: Contact Information 24
Gigabit USB Adapter
List of Figures
Figure 2-1: Back Panel 3
Figure 2-2: Front Panel’s LEDs 3
Figure 2-3: Front Panel’s Ethernet Port 4
Figure 3-1: Driver Installation 5
Figure 3-2: Start the Installation 5
Figure 3-3: File Location 6
Figure 3-4: Select Folder 6
Figure 3-5: Setup Being Performed 7
Figure 3-6: Installation Complete 7

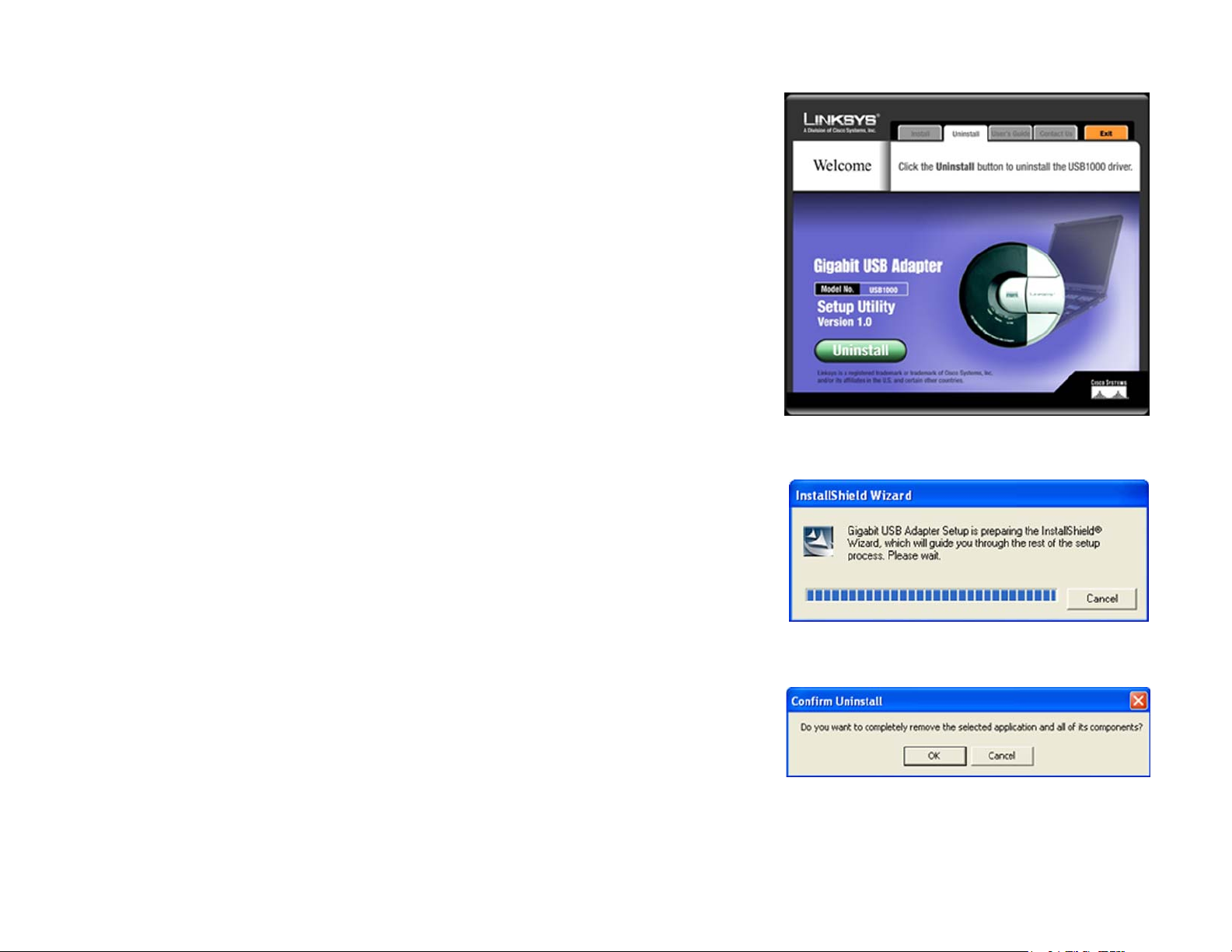

Figure 3-7: Driver Uninstallation 8
Figure 3-8: Setup Being Performed 8
Figure 3-9: Confirm Uninstallation 8

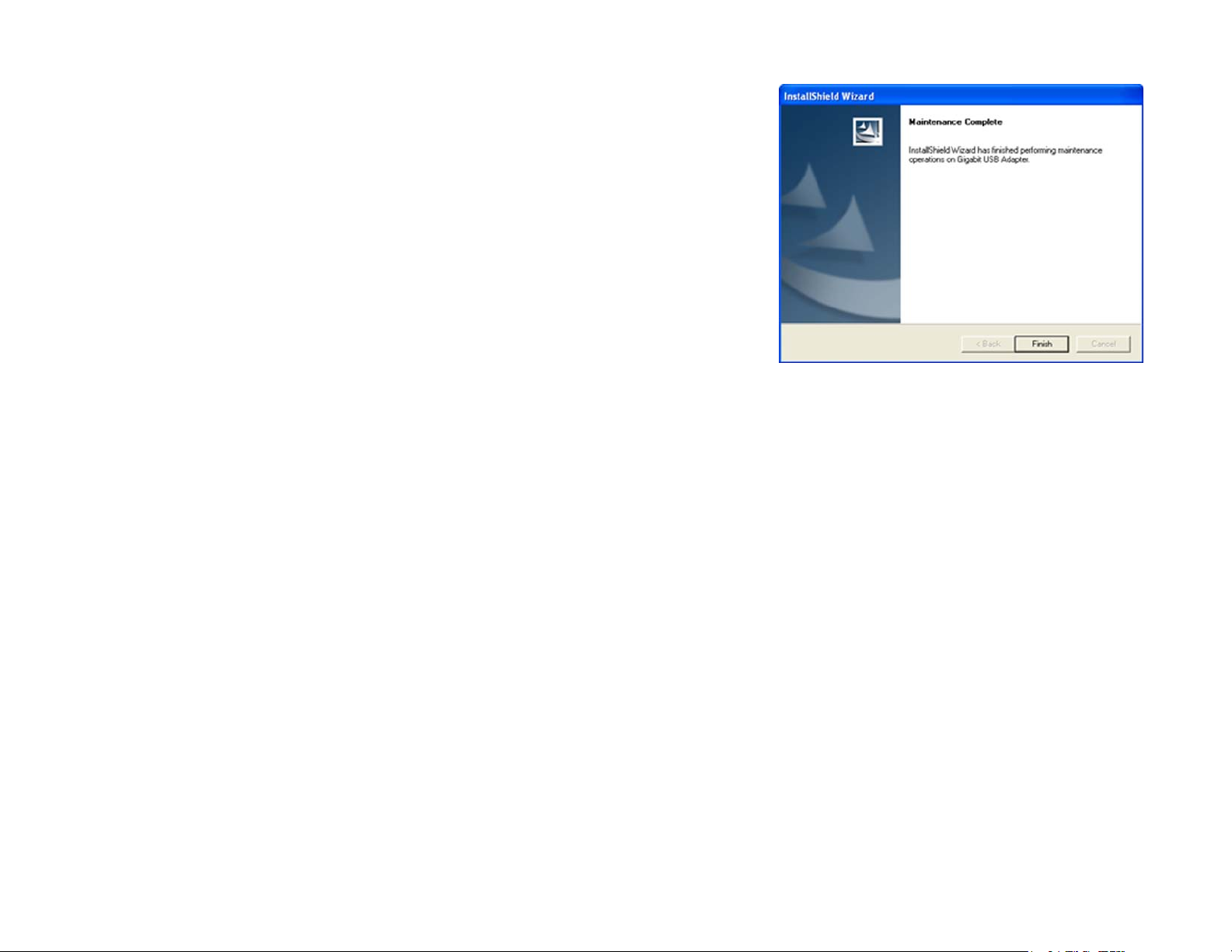

Figure 3-10: Uninstallation Complete 9
Gigabit USB Adapter
Chapter 1: Introduction
Welcome
Thank you for choosing the Gigabit USB Adapter. This Gigabit USB Adapter will allow you to network better than
ever.
How does the Gigabit USB Adapter do all of this? An Gigabit USB Adapter allows you to connect to any 10/
100Mbps or Gigabit hub or switch without having to open your PC. The Gigabit USB Network Adapter from Linksys
allows you to instantly connect to a network from a USB-enabled desktop or notebook PC running Windows
Millennium, 2000, or XP. The Plug-and-Play compatible device attaches to your PC’s USB port via a USB Type A
connector. Simply connect a standard UTP Category 5 network cable into the Gigabit USB Network Adapter’s RJ45 port, install the included network software driver, and you are networked.
The Gigabit USB Network Adapter is bus-powered, drawing power from the host PC and requires no external
power cords. The Adapter features the maximum throughput supported by USB, easy-to-read LEDs, and compact
design.
Use the instructions in this Guide to help you connect the Gigabit USB Adapter, set it up, and configure it to bridge
your different networks. These instructions should be all you need to get the most out of the Gigabit USB Adapter.
Chapter 1: Introduction
Welcome
1
Gigabit USB Adapter
What’s in this Guide?
This user guide covers the steps for setting up and using the Gigabit USB Adapter.
• Chapter 1: Introduction
This chapter describes the Adapter’s applications and this User Guide.
• Chapter 2: Getting to Know and Connecting the Gigabit USB Adapter
This chapter describes the physical features and explains the connection of the Adapter.
• Chapter 3: Setup Utility for the Gigabit USB Adapter
This chapter explains how to install and uninstall the Setup Utility.
• Appendix A: Troubleshooting
This appendix describes some potential problems and solutions, as well as frequently asked questions,
regarding installation and use of the Adapter.
• Appendix B: Glossary
This appendix gives a brief glossary of terms frequently used in networking.
• Appendix C: Specifications
This appendix provides the Adapter’s technical specifications.
• Appendix D: Warranty Information
This appendix supplies the Adapter’s warranty information.
• Appendix E: Regulatory Information
This appendix supplies the Adapter’s regulatory information.
• Appendix F: Contact Information
This appendix provides contact information for a variety of Linksys resources, including Technical Support.
Chapter 1: Introduction
What’s in this Guide?
2
Gigabit USB Adapter
Chapter 2: Getting to Know and Connecting the Gigabit USB Adapter
The Back Panel
The Gigabit USB Adapter's USB connector, is located on the back panel.
USB Connector This USB Connector connects to your PC.
The Front Panel
The Gigabit USB Adapter's LEDs, where information about network activity is displayed, and Ethernet port are
located on the front panel.
Power Green. The Power LED lights up when the Gigabit USB Adapter is connected to your PC.
Gigabit Green. The Gigabit LED lights up when the USB Network Adapter is connected to a Gigabit
network.
10/100 Green. The 10/100 LED lights up when the Compact USB Network Adapter is connected to a
10Mbps or 100Mbps network.
Chapter 2: Getting to Know and Connecting the Gigabi t USB Adapter
The Back Panel
Figure 2-1: Back Panel
Figure 2-2: Front Panel’s LEDs
3
Gigabit USB Adapter
Ethernet Port The Ethernet port connects to the Ethernet port on your network device, such as a router.
Connect one end of an Ethernet cable to the Ethernet port on the Gigabit USB Adapter, then
connect the other end to the Ethernet port of the other device.
USB Icon and Ports
The USB Icon (below) generally indicates where a USB port is located on a desktop or notebook computer.
The picture below shows two USB ports as they might be found on your computer. Note the two USB icons above
the port.
Figure 2-3: Front Panel’s Ethernet Port
With these, and many other, Linksys products, your networking options are limitless. Go to the Linksys website at
www.linksys.com for more information about products that work with the Gigabit USB Adapter.
Chapter 2: Getting to Know and Connecting the Gigabi t USB Adapter
USB Icon and Ports
4
