LINKSYS SVR3000 User Manual

Linksys One Communications Solution
SVR3000 Services Router, PHM1200 IP Phone, and VGA2000 Voice Gateway
QUICK INSTALLATION GUIDE
Internet
Linksys One System Installation Overview
Service Provider
Internet
LAN USB PHONE LINE
Linksys One Communications Solution
137049
1
Linksys One Communications Solution
USB
USB
144552
Internet
2
WAN
Linksys One Communications Solution
Internet
1144546
Linksys One Communications Solution
3
144547
PHM1200 IP Phone
4
Linksys One Communications Solution
144548
Linksys One Communications Solution
5
144544
137056
6
Linksys One Communications Solution
Linksys One Communications Solution
7
LAN USB PHONE LINE
VGA2000 Voice Gateway
8
Linksys One Communications Solution
137054
9
LAN USB PHONE LINE
OR
Linksys One Communications Solution
Not included
137055
144545
10
Linksys One Communications Solution
Linksys One Communications Solution

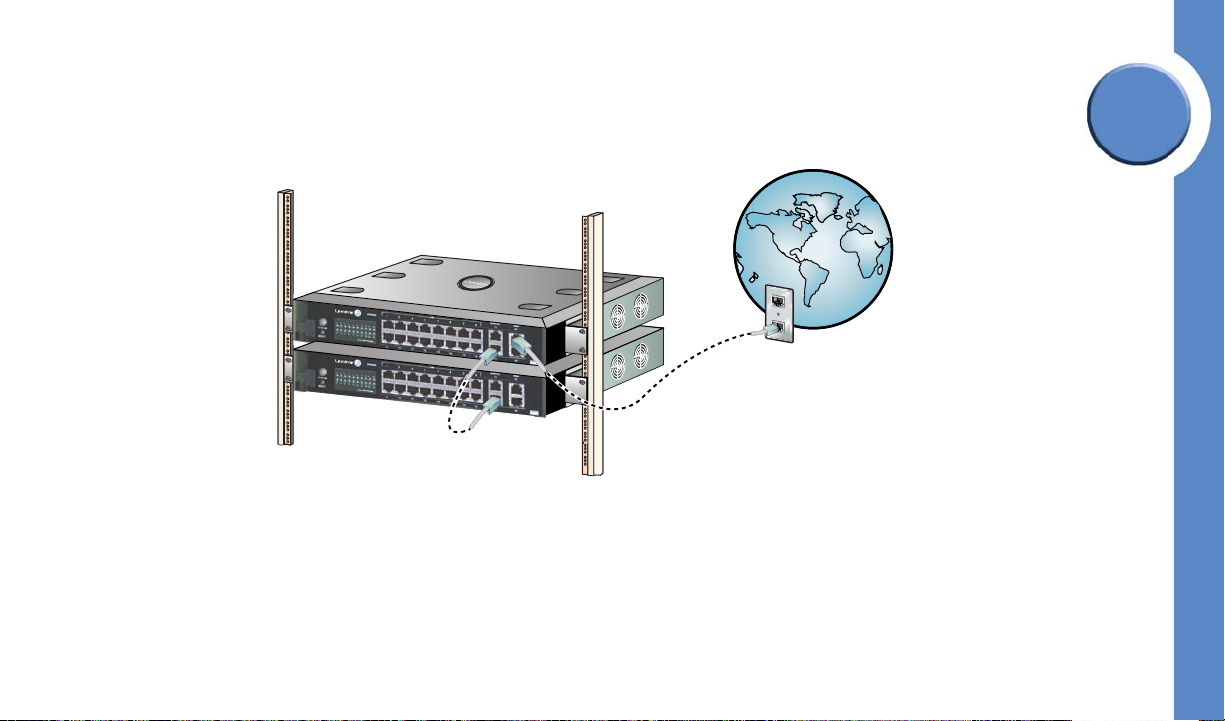

Installing Two SVR3000 Services Routers
1
144520
2
USB
USB
USB
144555
Linksys One Communications Solution
Linksys One Communications Solution
3
CASCADE WAN
C1 W1
CASCADE WAN
C1 W1
144549
Internet
Internet
4
Linksys One Communications Solution
144550
Linksys One Communications Solution
5
144551
SYSTEM
Internet
RESET
6
Internet
Linksys One Communications Solution
144524
Linksys One Communications Solution
Internet
7
Internet
LAN USB PHONE LINE
144525
SVR3000 Services Router Regulatory Compliance and Safety Information
The Linksys One SVR3000 Services Router meets the following regulatory compliance and safety standards:
Specification Description
Regulatory Compliance Products with the CE Marking indicate compliance with the 89/336/EEC and 73/23/EEC directives,
which include the safety and EMC standards listed below.
Safety UL 60950-1
IEC60950-1 CB / TUV/Rh CSA-C22.2 No. 60950 EN 60950
EMC FCC Part 15 (CFR 47) Class A
ICES-003 Class A EN 55022 Class A CISPR22 Class A EN 55024 EN 50082-1 EN 61000-3-2 EN 61000-3-3 EN 61000-6-1
Linksys One Communications Solution
Linksys One Communications Solution
FCC Class A Compliance
This equipment has been tested and found to comply with the limits for a Class A digital device, pursuant to part 15 of the FCC rules. These limits are designed to provide reasonable protection against harmful interference when the equipment is operated in a commercial environment. This equipment generates, uses, and can radiate radio-frequency energy and, if not installed and used in accordance with the instruction manual, may cause harmful interference to radio communications. Operation of this equipment in a residential area is likely to cause harmful interference, in which case users will be required to correct the interference at their own expense.
You can determine whether your equipment is causing interference by turning it off. If the interference stops, it was probably caused by the Cisco equipment or one of its peripheral devices. If the equipment causes interference to radio or television reception, try to correct the interference by using one or more of the following measures:
Turn the television or radio antenna until the interference stops.
Move the equipment to one side or the other of the television or radio.
Move the equipment farther away from the television or radio.
Plug the equipment into an outlet that is on a different circuit from the television or radio. (That is, make certain the equipment and the television or radio are on circuits controlled by different circuit breakers or fuses.)
Modifications to this product not authorized by Cisco Systems could void the FCC approval and negate your authority to operate this product.
Canada Class A Notice
The Class A digital apparatus meets all requirements of the Canadian Interference-Causing Equipment Regulation. Cet appareil numerique de la class A respecte toutes les exigences du Reglement sur le materiel brouilleur du Canada.
Environmental Specifications
Device Dimensions 12.09" x 11.77" x 1.38" (307 mm x 299 mm x 35 mm)
Unit Weight 9.11 lbs. (4.13 kg)
Power 100-240V
Certification UL (UL 1950), CSA (CSA 22.2), CE mark, EN60950 (2001)
Operating Temp 50º F to 104º F (10º C to 40º C)
Storage Temp -40º F to 158º F (-40º C to 70º C)
Operating Humidity 20% to 95% Non-Condensing
Storage Humidity 5% to 90% Non-Condensing
Linksys One Communications Solution
Safety Information
The following statements are warnings or safety guidelines. A warning means danger. You are in a situation that could cause bodily injury. Before working on equipment, be aware of the hazards involved with electrical circuitry and standard safety practices to prevent accidents.
Linksys One Communications Solution
Warning
Warning
IMPORTANT SAFETY INSTRUCTIONS
This warning symbol means danger. You are in a situation that could cause bodily injury. Before you work on any equipment, be aware of the hazards involved with electrical circuitry and be familiar with standard practices for preventing accidents. Use the statement number provided at the end of each warning to locate its translation in the translated safety warnings that accompanied this device. SAVE THESE INSTRUCTIONS
Work During Lightning Activity
Do not work on the system or connect or disconnect cables during periods of lightning activity.
Warning
Installation Instructions
Read the installation instructions before connecting the system to the power source.
Warning
Warning
SELV Circuit
To avoid electric shock, do not connect safety extra-low voltage (SELV) circuits to telephone-network voltage (TNV) circuits. LAN ports contain SELV circuits, and WAN ports contain TNV circuits. Some LAN and WAN ports both use RJ-45 connectors. Use caution when connecting cables.
Linksys One Communications Solution
Equipment Installation
Only trained and qualified personnel should be allowed to install, replace, or service this equipment.
Warning
Comply with Local National Electrical Codes
Installation of the equipment must comply with local and national electrical codes.
Linksys One Communications Solution
Warning
Product Disposal
Ultimate disposal of this product should be handled according to all national laws and regulations.
Caution Inline power circuits provide current through the communication cable. Use the Linksys-provided cable or a minimum
24AWG communication cable.
Power Supply Safety Warnings
When using the SVR3000 Services Router, observe the following power supply safety warnings:
Warning
Warning
Warning
TN Power
The device is designed to work with TN power systems.
Ground Conductor Warning
Never defeat the ground conductor or operate the equipment in the absence of a suitably installed ground conductor. Contact the appropriate electrical inspection authority or an electrician if you are uncertain that suitable grounding is available.
Power Supply Installation Warning
The power supply must be placed indoors.
Linksys One Communications Solution
Warning
Circuit Breaker
This product relies on the building’s installation for short-circuit (overcurrent) protection. Ensure that the protective device is rated not greater than: 120 VAC, 15A U.S. (240 VAC, 10A international)
Linksys One Communications Solution
Warning
Main Disconnecting Device
The plug-socket combination must be accessible at all times, because it serves as the main disconnecting device.
Caution Only use the Linksys-specified power supply. Refer to the installation manual provided with this product.
Linksys Software License Agreement v.2.14.05
THIS LICENSE AGREEMENT IS BETWEEN YOU AND CISCO-LINKSYS LLC ("Linksys"). BY DOWNLOADING OR INSTALLING THE SOFTWARE, OR USING THE PRODUCT CONTAINING THE SOFTWARE, YOU ARE CONSENTING TO BE BOUND BY THIS AGREEMENT. IF YOU DO NOT AGREE TO ALL OF THESE TERMS, THEN YOU MAY NOT DOWNLOAD, INSTALL OR USE THE SOFTWARE. YOU MAY RETURN UNUSED SOFTWARE (OR, IF THE SOFTWARE IS SUPPLIED AS PART OF ANOTHER PRODUCT, THE UNUSED PRODUCT) FOR A FULL REFUND UP TO 30 DAYS AFTER ORIGINAL PURCHASE, SUBJECT TO THE RETURN PROCESS AND POLICIES OF THE PARTY FROM WHICH YOU PURCHASED SUCH PRODUCT OR SOFTWARE.
License. Subject to the terms and conditions of this Agreement, Linksys grants the original end user purchaser of the Linksys product containing the Software ("You") a nonexclusive license to use the Software solely as embedded in or (where authorized in the applicable documentation) for communication with such product. This license may not be sublicensed, and is not transferable except to a person or entity to whom you transfer ownership of the complete Linksys product containing the Software, provided you permanently transfer all rights under this Agreement and do not retain any full or partial copies of the Software, and the recipient agrees to the terms of this Agreement.
"Software" includes, and this Agreement will apply to (a) the Linksys software provided in or with the applicable Linksys product, and (b) any upgrades, updates, bug fixes or modified versions ("Upgrades") or backup copies of the Software supplied to You by Linksys or an authorized reseller, provided you already hold a valid license to the original software and have paid any applicable fee for the Upgrade.
Protection of Information. The Software and documentation contain trade secrets and/or copyrighted materials of Linksys or its suppliers. You will not decompile, decrypt, reverse engineer or disassemble the Software (except to the extent expressly permitted by law notwithstanding this provision), and will not disclose or make available such trade secrets or copyrighted material in any form to any third party. Title to Software and documentation will remain solely with Linksys.
Open Source Software. The GPL source code incorporated into the Software is available for free download at http://www.linksys.com/gpl. If You would like a copy of the GPL source code in this Software on a CD, Linksys will mail to You a CD with such code for $9.99 plus the cost of shipping upon request.
Term and Termination. You may terminate this License at any time by destroying all copies of the Software and documentation. Your rights under this License will terminate immediately without notice from Linksys if You fail to comply with any provision of this Agreement.
Linksys One Communications Solution
©2005 Cisco Systems, Inc. All rights reserved. Linksys is a registered trademark and the Linksys One logo is a trademark of Cisco Systems, Inc.
