MTS - MOTION TECHNOLOGY SELECTORIZED
MTHR HIGH ROW
Customer Support Services
PARTS MANUAL
1Page 1 of 21
MTHR HIGH ROW
Notes:
2Page 2 of 21
MTHR HIGH ROW
Contents
PAGE
COMPONENT ASSEMBLY...............................................................................................4
LEFT MOVEMENT ARM W/PULLEY ...............................................................................5
LEFT MOVEMENT ARM W/COUNTERWEIGHT..............................................................6
RIGHT MOVEMENT ARM W/PULLEY.............................................................................7
RIGHT MOVEMENT ARM W/COUNTERWEIGHT...........................................................8
TOP FRAME ASSEMBLY.................................................................................................9
BOTTOM FRAME ASSEMBLY.........................................................................................10
LEFT SIDE FRAME ..........................................................................................................11
LEFT SIDE FRAME W/WEIGHTS.....................................................................................12
RIGHT SIDE FRAME ........................................................................................................11
RIGHT SIDE FRAME ........................................................................................................13
RIGHT SIDE FRAME W/WEIGHTS..................................................................................14
PADS.................................................................................................................................15
SEAT FRAME WELDMENT..............................................................................................16
SEAT FRAME ASSEMBLY...............................................................................................17
SEAT ROLLER ASSEMBLY.............................................................................................18
INCREMENT WEIGHT......................................................................................................19
WEIGHT STACK...............................................................................................................20
DECALS............................................................................................................................21
3Page 3 of 21
MTHR HIGH ROW
COMPONENT ASSEMBLY
Lo ck Nu t -1 4
0017-00103-0223
Lock Washer-20
0017-00104-0379
Bolt-4
0017-00101-1574
Bolt-10
0017-00101-1573
Shield Rivot-4
0017-00101-1587
Back Panel-2
MTHR-P0041
Hammer Head
Washer-16
0017-00042-1041
Front Frame
Weldment
MTHR-S0008
Side Shield-4
MTHR-P0040
Hex Head Bolt-8
0017-00101-1586
4Page 4 of 21
MTHR HIGH ROW
H-GRIP
LEFT MOVEMENT ARM W/PULLEY
Left Movement
Arm Weldment
End Cap
0017-00042-1038
MTHR-S0005
End Cap
0K50-P0315-2000
Handle Grip
Hex Lock Nut
0017-00103-0223
Internal Lock
Washer-2
0017-00104-0379
Internal Lock
Washer-2
0017-00104-0377
3” Pulley Assembly
0017-00009-1039
Lock Washe r- 2
0017-00104-0379
Hex Bolt
0017-001010-1577
Strap Clamp
0K50-P1021
Bolt-2
(3/8x1-1/ 4)
0017-00101-1412
5Page 5 of 21
MTHR HIGH ROW
LEFT MOVEMENT ARM W/COUNTERWEIGHT
Bolt-2
(1/2x1-3 / 4)
Bolt-2
(1/2x2-3/4)
0017-00101-1595
0017-00101-1595
Internal Lock Nut-4
0017-00104-0379
Hammer Head
Washer-4
0017-00042-1041
Thick Lock Nut-2
0017-00103-0223
Left Movement
Arm Assembly
MTHR-S0005
Thin Lock Nut-2
0017-00103-0224
Counter Weight
0K50-P11 34
Small Bearing - 2
0017-00009-1034
Internal Lock Washer-4
0017-00104-0379
Bolt-2
(1/2x1-1/2)
0017-00101-1584
6Page 6 of 21
MTHR HIGH ROW
RIGHT MOVEMENT ARM W/PULLEY
3” Pulley Assembly
0017-00009-1039
Hex Bolt
0017-001010-1577
Lock Washer-2
0017-00104-0379
End Cap
0017-00042-1038
End Cap
0K50-P0315-2000
HGrip
Right Movement
Arm Weldment
MTHR-S0004
Strap Clam p
0K50-P1021
Bolt-2
(3/8x1 -1/4)
0017-00101-1412
Hex Lock Nut
0017-00103-0223
Internal Lock
Washer-2
0017-00104-0379
Internal Lock
Washer-2
0017-00104-0377
7Page 7 of 21
MTHR HIGH ROW
RIGHT MOVEMENT ARM W/COUNTERWEIGHT
Bolt-2
(1/2x1-1/2)
0017-00101-1584
Intern al Lock Nut-4
0017-00104-0379
Thick Lock Nut-2
0017-00103-0223
Bolt-2
(1/2x1-3/4)
0017-00101-1595
Thin Lock Nut-2
0017-00103-0224
Small Be a ring-2
0017-00009-1034
Intern al Lock Washer-4
0017-00104-0379
Counter Weight
0K50-P1134
Bolt-2
(1/2x2-3/4)
0017-00101-1573
Right Movement
Arm Assembly
MTHR-S0006
Hammer Head
Washer-4
0017-00042-1041
8Page 8 of 21
MTHR HIGH ROW
TOP FRAME ASSEMBLY
Top Frame Weldment
MTHR-S0006
Internal Lock
Washer-4
0017-00104-0379
Lock Nu t -4
0017-00103-0223
Bolt-4
(1/2x1-3/4)
0017-00101-1595
Small Bumper-2
0017-00042-1040
9Page 9 of 21
MTHR HIGH ROW
BOTTOM FRAME SUPPORT
Seat Frame
Weldment
MTHR-S0002
Bolt-2
(1/2x2-3/4)
0017-00101-1573
Bottom Frame
Weldment
MTHR-S0001
Internal Lock Washer-4
0017-00104-0379
Lock N ut - 2
0017-00103-0223
10Page 10 of 21
MTHR HIGH ROW
LEFT SIDE FRAME
Loc k Nut - 2
0017-00103-0223
Bolt-2
(1/2x3-1/4)
0017-00101 -1574
End Cap-2
0017-00042-0945
3” Pulley Assembly-2
0017-00009-1039
Bolt-2
(1/2x4-1/4)
0017-00101-1580
Lock Nu t - 2
0017-00103 -0224
Lock Washer-6
0017-00104-0379
Small Bumper
0017-00042-1040
Right Side Frame
Weldment
MTHR-S0003
11Page 11 of 21
MTHR HIGH ROW
LEFT SIDE FRAME W/WEIGHTS
Hammer Accordian
Shaft Cov er
0017-00042-1042
Flat Belt
0017-00033-0855
Lock C ol lar
0017-00009- 1019
Left Side Frame
MTHR-S0007
Black Plastic
Rod Cap-2
0017-00042-0967
Guide Rod Collar
0K50-P1110
Bolt-2
(1/4x2-1/2)
0017-00101-1585
Weight Stack Donut-2
0017-00042-0993
Bolt-2
(3/8x1-1/4)
0017-00101- 1412
Internal Lock Washer-2
0017-00104-0377
150lbs Belt Attachment
AK50-S0023
¼ “ Lock Nut-2
0017-00103-0226
12Page 12 of 21
MTHR HIGH ROW
RIGHT SIDE FRAME
Lock Nut-2
0017-00103-0223
End Cap-2
0017-00042-0945
3” Pulle y A ssembly-2
0017-00009-1039
Bolt-2
(1/2x4)
0017-00 101-1580
Lock Washer-6
0017-00104-0379
Lock Nut-2
0017-00 103-0224
Bolt-2
(1/2x3-1/4)
0017-00101-1574
Small Bumper
0017-00042-1040
Lef t Side F r ame
Weldment
MTHR-S0007
13Page 13 of 21
MTHR HIGH ROW
RIGHT SIDE FRAME W/WEIGHTS
Hammer Accordian
Shaft Cover
0017-00042-1042
Right Side Frame
MTHR-S0003
Flat Belt
0017-00033-0855
Guide Rod Collar
0K50-P1110
¼ “ Lock Nut-2
0017-00103-0226
Black Plastic
Rod Ca p-2
0017-00042-0967
Lock Collar
0017-00009-1019
Bolt-2
(3/8x1-1/4)
0017-00101-1412
Intern al Lock Washer-2
0017-00104-0377
Weight Stack Donut-2
0017-00042-0993
14Page 14 of 21
Bolt-2
(1/4x2-1/2)
0017-00101-1585
MTHR HIGH ROW
PADS
Chest Pad
0K50-US064-0000
Seat Pad
0K50-US064-0000
Flat Washe r-6
0017-00 104-0313
Bolt-6
(3/8x2-1/4)
0017-00 101-1410
15Page 15 of 21
MTHR HIGH ROW
SEAT FRAME WELDMENT
Black Plastic
Rod Cap-2
0017-00042-0967
Lock Collar -2
0017-00009-1019
Seat Shaft
0K50-P1007
Seatrack (Groved)
0K50-P1018
Lock Nu t -2
0017-00103-0224
Seat Support
0K50-S1001
End Cap
0017-00042-1038
Seatrack (Non-Groved)
0K50-P1017
Bolt-2
(1/2x2-1/2)
0017-00101-1572
Seat Frame Weldment
MTHR-S0002
16Page 16 of 21
MTHR HIGH ROW
SEAT FRAME ASSEMBLY
ITEM NO. QTY. PART NO. DESCRIPTION
1 1 MTDP-S0002 Seat Frame Weldment
2 1 7359401 Seatrack, Roller Serrated
3 1 7359501 Seatrack, Roller Flat
4 1 AK50-A1007 MTS SEAT#2 ASSM. (ROLLER)
5 2 0017-00101-1662 M10 X 64 HXS SOC CS ST ZN
6 4 0017-00104-0377 3/8" Internal Lock Washer
7 2 0017-00103-0289 10mm THIN NYLOC NUT
8 1 73763 ROLLER ASSM.
9 2 0017-00103-0217 3/8" Thin Lock Nut
10 1 0017-00101-1408 3/8 X 2 3/4 Bolt
1 1 1 0017-00101-1664 3/8" FLAT HEAD BOLT
12 1 M051-00296-A000 NUMBER STRIP (1-12)
13 1 0017-00042-0945 1 1/2 X 2 Endcap
14 1 M051-00602-A000 MTAB SEAT INSTR. DECAL
15 1 7442601 MTS SEAT EXTENSION SPRING
17Page 17 of 21
MTHR HIGH ROW
SEAT ROLLER ASSEMBLY
ITEM NO. QTY. PART NO. DESCR I PTION
1 1 0K50-S1006 MTS SEAT #1 (ROLLER)
2 1 AK50-S0040-0000 WELDMENT, PS- ROLLER SEA T HA NDLE
3 1 0017-00009-1110 TORSION SPRING, S.S.
4 2 73763 ROLLER ASSM.
5 3 0017-00101-1662 M10 X 64 HXS SOC CS ST ZN
6 3 0017-00103-0223 1/2" THICK NYLOC NUT
7 6 0017-00104-0377 3/8" Internal Lock Washer
8 2 0017-00042-1038 1.5" X 3.0" PLASTIC END CAP
18Page 18 of 21
MTHR HIGH ROW

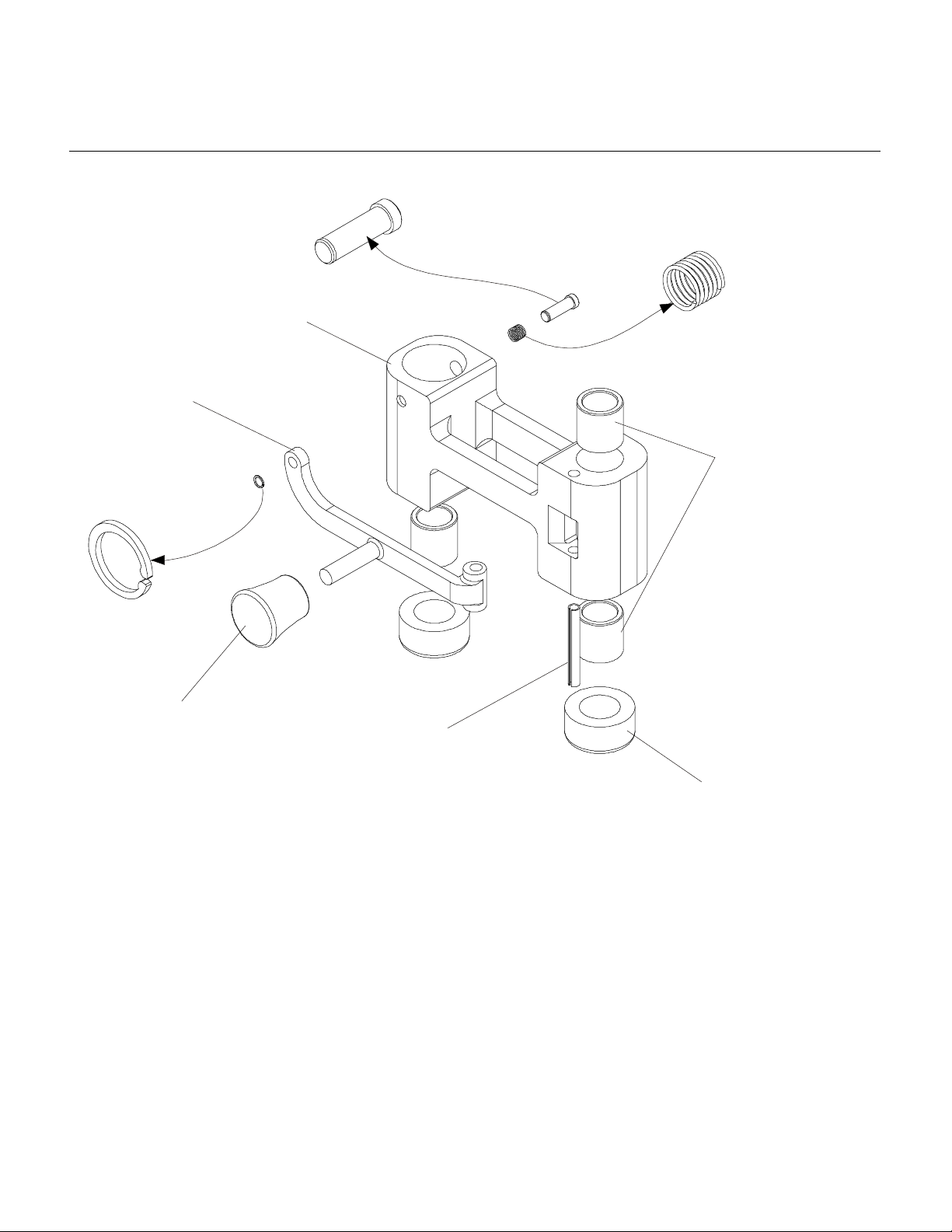

INCREMENT WEIGHT
Body 5 lbs
0K50-P1107
Lever
0K50-P1108
C-Clip
0017-00100-0189
Retaini ng Pin
0K50-P1148
Compression Spring
0017-00009- 1090
Beari ng Slee v e
Guide-3
0017-00006-0240
Knob
0K50-P1125
Slotted Pin
0017-00007- 0249
Bumper-2
0K50-P1127
19Page 19 of 21
MTHR HIGH ROW
k
WEIGHT STACK
Head Plate
0K50-P1012-0000
Weight Stac
Guide-2
MTFP-P0028
150lbs Belt Attachment
AK50-S0023
Bearing
0017-00006-0220
E-Ring
0017-00100-0180
10lbs Weight Plate
0K50-P0483-0000
Bolt-2
(3/8x1)
0017-00101-1464
We ight Stack Pin
0K50-A1101
Lock Washer-2
0017-00104-0377
Bayonet-14 Holes
0K50-P1011-1001
20Page 20 of 21
MTHR HIGH ROW
DECALS
Hammer Strength
Name Plate-2
M051-00289-A000
Hammer
Patent Decal
M051-00299-A000
Seat Adjustment
Number Strip
M051-00296-A000
Wight Stack
Number Strip-2
M051-00294-A000
Increment Weight
Decal (Arrow Left)
M051-00298-A000
Increment Weight
Decal (Arrow Right)
M051-00297-A000
Warning Decal-2
M051-00293-A000
Instructional
Decal
M051-00306-A000
Frame Guard-2
0017-00042-1044
Frame Guard-2
0017-00042-1045
Frame Guard-4
0017-00042-1046
ASTM Warning Decal
M051-00260-A000
Hammer St rength
Shield Decal-2
M051-00297-A000
21Page 21 of 21
