Page 1

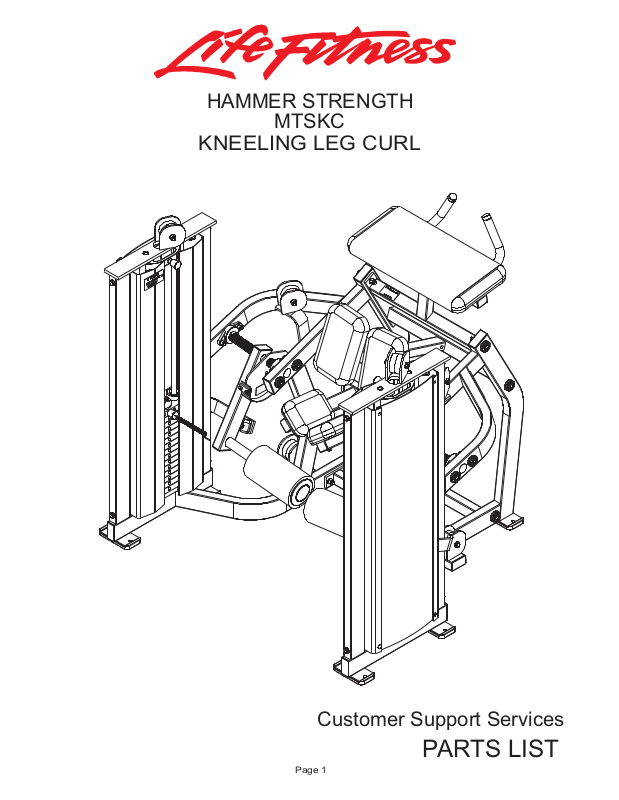

HAMMER STRENGTH
MTSKC
KNEELING LEG CURL
Customer Support Services
PARTS LIST
Page 1
Page 2
COMPONANT ASSEMBLY pg.3
COMPONANT ASSEMBLY CONTINUED 4
COMPONANT ASSEMBLY LEGEND 5
RIGHT SIDE FRAME ASSEMBLY 6
RIGHT SIDE FRAME ASSEMBLY LEGEND 7
RIGHT WORK ARM ASSEMBLY 8
BACK FRAME ASSEMBLY 9
KNEE FRAME ASSEMBLY 10
LEFT SIDE FRAME ASSEMBLY 11
LEFT SIDE FRAME ASSEMBLY LEGEND 12
LEFT WORK ARM ASSEMBLY 13
150 LB. WEIGHT STACK ASSEMBLY 14
INCREMENT WEIGHT ASSEMBLY 15
IMAGE 16
MTSKC KNEELING LEG PRESS
Contents
________________________________________
Page 2
Page 3
14
14
14
14
3
6
6
6
6
5
5
5
5
7
7
7
7
7
9
9
8
8
8
1
2
4
10
10
11
MTSKC KNEELING LEG PRESS
COMPONENT ASSEMBLY
________________________________________
SEE PAGE 5 FOR LEGEND
Page 3
Page 4
MTSKC KNEELING LEG PRESS
21
24
23
4
15
16
20
20
18
16
15
18
17
13
18
18
18
20
20
19
12
21
11
22
COMPONENT ASSEMBLY (Continued)
________________________________________
SEE PAGE 5 FOR LEGEND
Page 4
Page 5
MTSKC KNEELING LEG PRESS
ITEM NO. QTY. PART NO. DESCRIPTION
1 1 7528701 WLDMT, MTKC, BOTTOM FRAME
2 1 7529801 ASSY, MTKC, LEFT SIDE
3 1 7529701 ASSY, MTKC, RIGHT SIDE
4 1 7529601 ASSY, MTKC, BACK FRAME
5 8 7434001 WASHER, MTS, HAMMER HEAD
6 8 3239311 1/2-13 X 2.75 UNS HEX FHB G5 ZN
7 12 3239505 WSH, .500 IN-D ST ZN
8 8 3102801 NUT, NYLOCK 1/2-13 ST ZN
9 4 3239310 1/2-13 X2.50 UNS HEX FHB G5 ZN
10 4 3102804 NUT, NYLOCK-JAM 1/2-13 ST ZN
11 1 7540101 ASSY, MTKC, KNEE FRAME
12 1 7766001 PAD, ELBOW 24 X 11
13 2 7399300 PAD. 7 X 11-1/4
14 6 7388201 Footpad, PS Rubber
15 2 7424701 ASSY, ROLLER PAD - SHORT
16 2 7308701 CAP, BEARING HOUSING
17 2 7563001 PAD, 8 X 6
18 12 3236601 WASHER, 3/8 SAE SS
19 4 3236204 SCREW, M10 X1.5 35MM
20 8 3236210 SCREW, M10 X1.5 65MM
21 4 7488701 LABEL, AXIS OF ROTATION
22 1 8027901 WEAR COVER, ELBOW PAD 24 X 11
23 1 7530001 ASSY, MTKC, RIGHT ARM
24 1 7529901 ASSY, MTKC, LEFT ARM
COMPONENT ASSEMBLY LEGEND
________________________________________
Page 5
Page 6
3
8
8
8
8
8
8
8
6
6
6
3
3
6
5
2
7
1
9
9
17
18
19
33
37
15
13
32
31
30
15
13
15
13
13
13
13
13
21
22
23
10
20
14
11
12
16
41
40
10
10
27
26
24
27
26
25
29
38
28
12
11
4
4
36
35
39
34
30
33
MTSKC KNEELING LEG PRESS

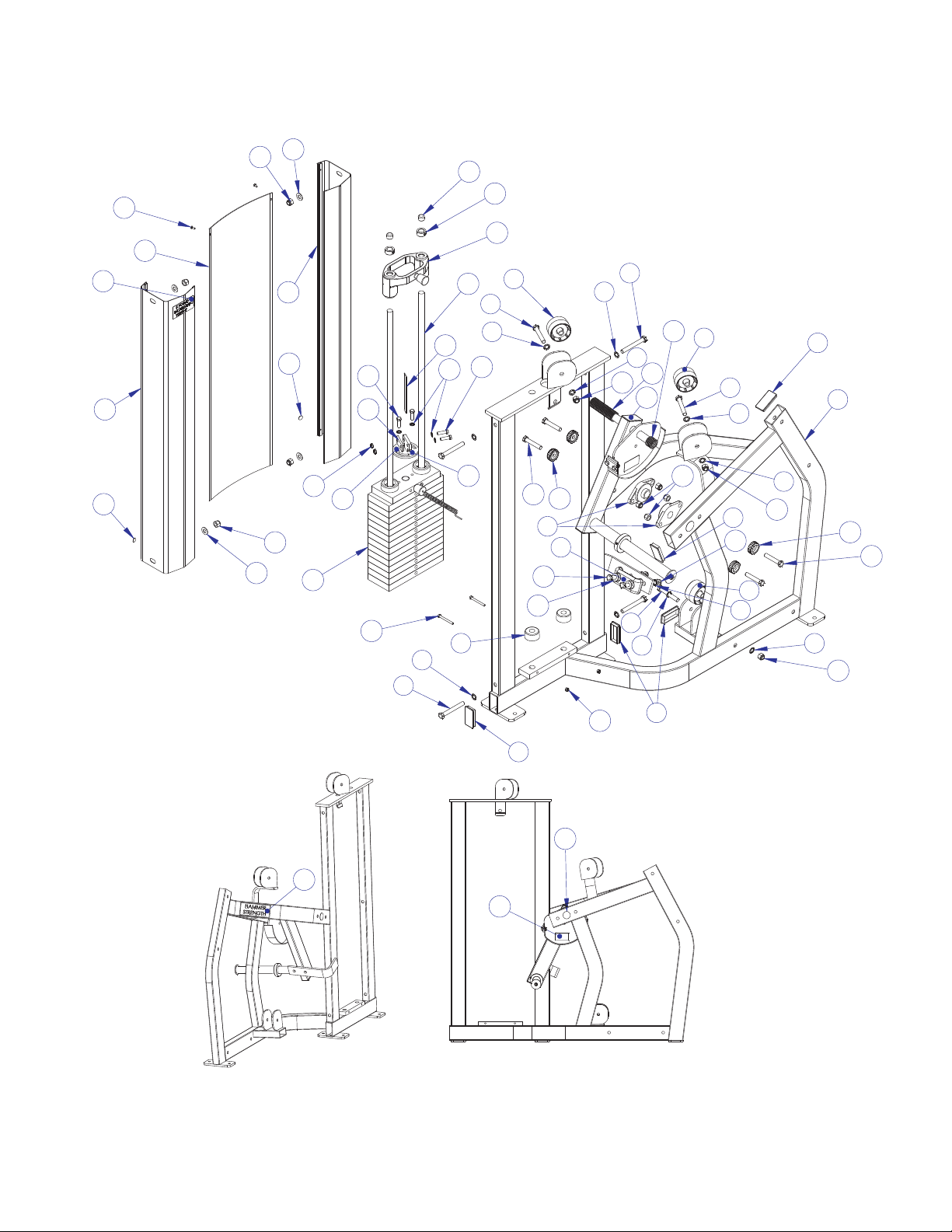

RIGHT SIDE FRAME ASSEMBLY - 7529701
________________________________________
SEE PAGE 7 FOR LEGEND
Page 6
Page 7
MTSKC KNEELING LEG PRESS
ITEM NO. QTY. PART NO. DESCRIPTION
1 1 7528801 WLDMT, MTKC, RIGHT FRAME
2 2 7352101 CUSHION, WEIGHT STACK
3 3 7594601 PULLEY, MTS, 3" BELT
4 2 3239901 BEARING, 2 HOLE FLANGE, 1" ID
5 1 7530001 ASSY, MTKC, RIGHT ARM
6 5 7477401 CAP. END, 1-1/2 X 3, 11GA SGRY
7 1 7352001 BUMPER, 2-1/8 X 4-5/8
8 12 3239505 WSH, .500 IN-D ST ZN
9 4 3239316 1/2-13 X 4.00 UNS HEX FHB G5 ZN
10 3 3239313 1/2-13 X 3.25 UNS HEX FHB G5 ZN
11 4 7434001 WASHER, MTS, HAMMER HEAD
12 4 3239311 1/2-13 X 2.75 UNS HEX FHB G5 ZN
13 11 3102801 NUT, NYLOCK 1/2-13 ST ZN
14 2 3102804 NUT, NYLOCK-JAM 1/2-13 ST ZN
15 6 3102507 WASHER, TYPE A PLAIN
16 2 3239306 1/2-13 X 1.50 UNS HEX FHB G5 ZN
17 2 3102806 NUT, NYLOCK 1/4-20 ZN
18 2 3223809 1/4-20 UNS HEX FHB G5 ZN
19 1 7464701 ASSY, MTS, 150 LB STACK
20 2 7328616 GUIDE ROD, .75 OD SOLID 45.25
21 2 3242701 CAP, END, .75 X .50. RD, BLACK
22 2 3103301 SHAFT COLLAR, 3/4 I.D. ZINC
23 1 7459901 ASSY, MTS, INCREMENT WEIGHT
24 1 7436595 WLDMT, MTS, BELT ATTACH LH
25 1 7435295 PLATE, MTS, BELT CLAMP
26 4 3239503 WSH, .375 IN-D ST ZN
27 4 3223302 3/8-16 X 1.25 HEX HEAD BOLT
28 1 7435101 SHAFT, 3/8" DIA SS, BELT WRAP
29 1 7435701 BELT, SPOOLED, W15/16, T.09
30 2 7465104 SHROUD, MTS, SIDE 44.63" SGRY
31 1 7435605 PANEL, MTS, PLASTIC 44.63"
32 2 0017-00101-1587 SHIELD RIVET
33 2 7564101 LABEL, MTS, .625 DIA HOLE COVER
34 1 M051-00289-A000 HAMMER STRENGTH NAME PLATE
35 1 7422004 LABEL, 2" ASTM WARN
36 1 7422003 LABEL, MOVING PARTS
37 1 M051-00298-A000 INCREMENT WT. DECAL (LEFT)
38 2 3102807 NUT, NYLOCK 3/8-16 LOW HT
39 2 7488701 LABEL, AXIS OF ROTATION
40 1 6912805 SLEEVE, ACCRDN 1.0 ID X 5.5
41 1 6912807 SLEEVE, ACCRDN 1.0 ID X 1
RIGHT SIDE FRAME ASSEMBLY LEGEND
________________________________________
Page 7

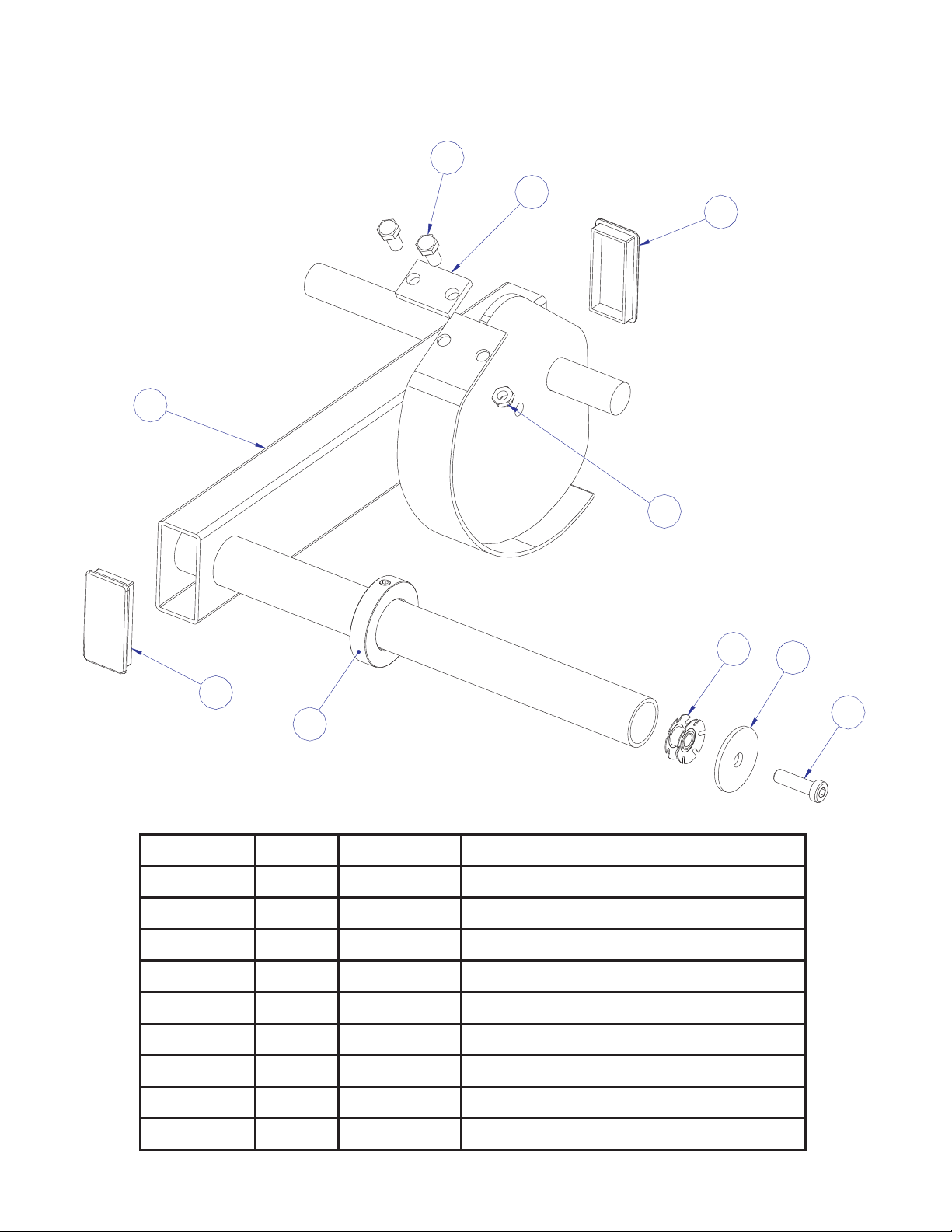

Page 8
MTSKC KNEELING LEG PRESS
9
8
7
5
2
3
4
1
6
5
ITEM NO. QTY. PART NO. DESCRIPTION
1 1 7529201 WLDMT, MTKC, RIGHT ARM
2 1 7436695 PLATE, MTS, BELT CAM ATTACH
3 2 3239803 3/8-16 X 16 HEX HEAD BOLT
4 2 3102807 NUT, NYLOCK 3/8-16 LOW HT
5 2 7477401 CAP. END, 1-1/2 X 3, 11GA SGRY
6 1 7357901 SHAFT COLLAR, 1-1/2" ID ALUM
7 1 7347301 NUT, SPIDER M10 X 1.5
8 1 7322301 PLATE, 1.97 OD X .44 ID 10GA
9 1 3236204 SCREW, M10 X1.5 35MM
RIGHT WORK ARM ASSEMBLY - 7530001
________________________________________
Page 8

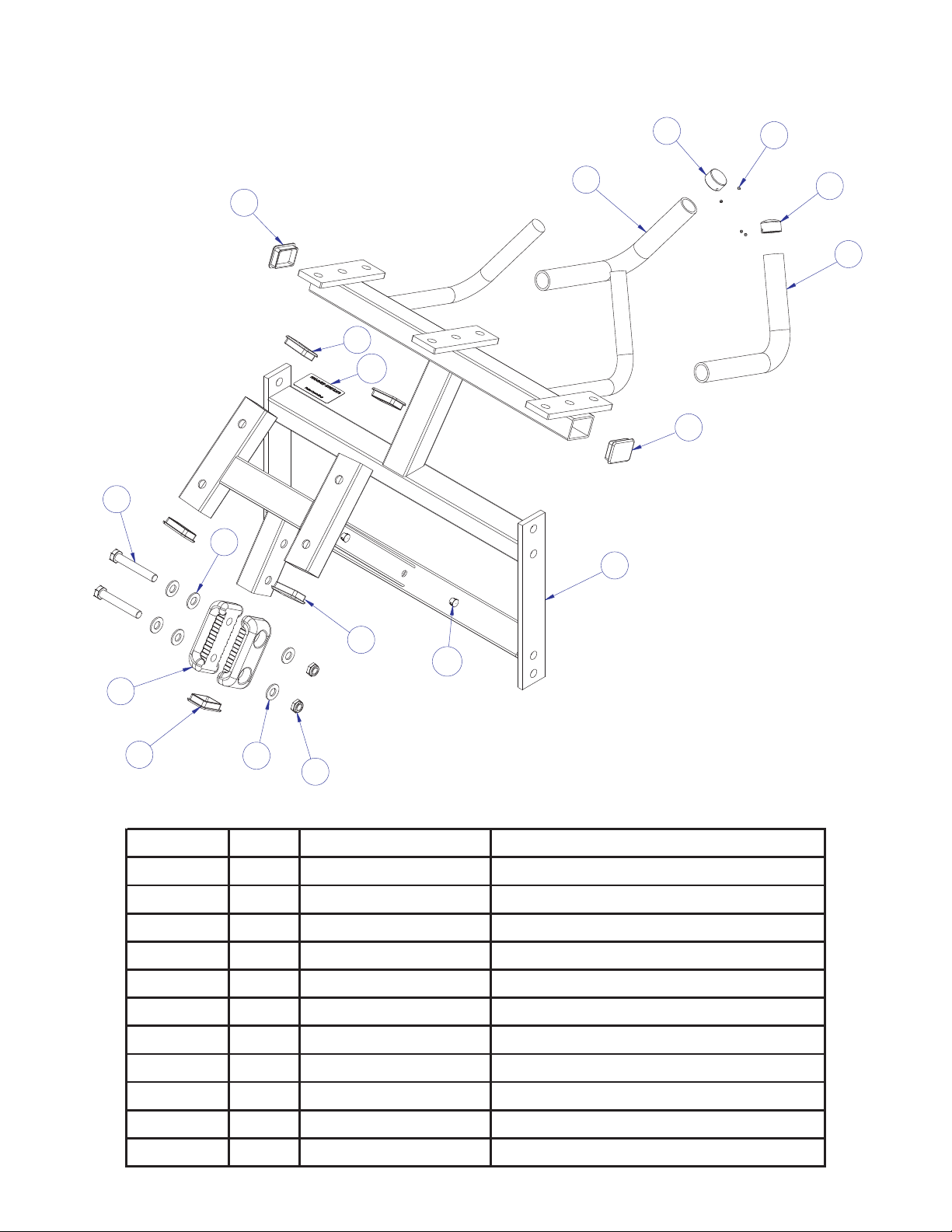

Page 9
MTSKC KNEELING LEG PRESS
3
9
5
3
5
5
5
5
6
6
8
2
7
10
11
1
4
4
ITEM NO. QTY. PART NO. DESCRIPTION
1 1 7529001 WLDMT, MTKC, BACK FRAME
2 2 7352001 BUMPER, 2-1/8 X 4-5/8
3 2 3235801 MTKC GRIP, SHADOW GRAY, 13.88"
4 2 7662901 CAP, GRIP 1.25 OD
5 7 7352201 CAP, END 1-1/2 X 2
6 6 3102507 WASHER, TYPE A PLAIN
7 2 3239313 1/2-13 X 3.25 UNS HEX FHB G5 ZN
8 2 3102804 NUT, NYLOCK-JAM 1/2-13 ST ZN
9 4 3247701 M4 X .7 HXS NO CUP ST BO
10 4 3237401 PLUG, 7/16" HOLE
11 1 M051-00299-A000 HAMMER PATENT DECAL
BACK FRAME ASSEMBLY - 7529601
________________________________________
Page 9

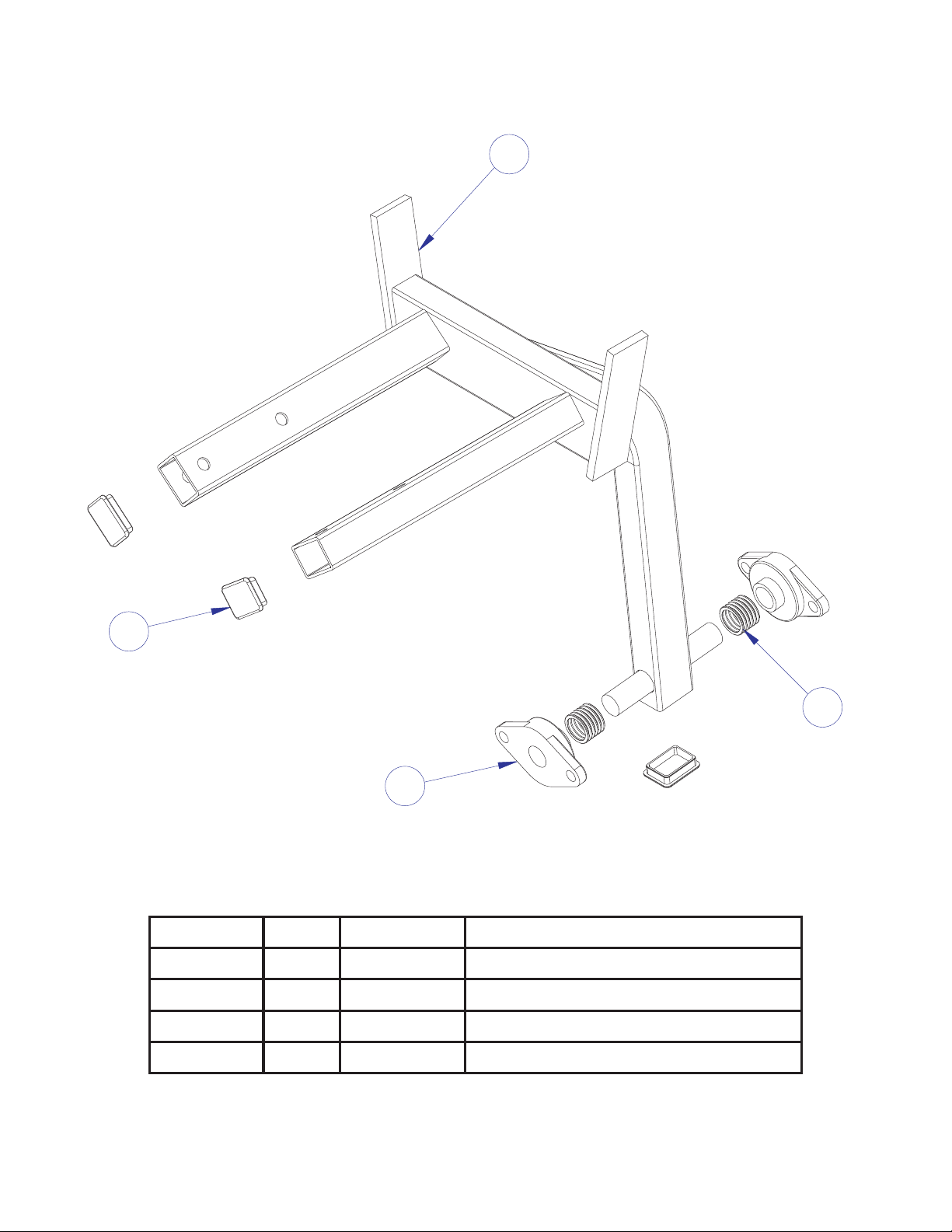

Page 10
3
2
1
4
MTSKC KNEELING LEG PRESS
ITEM NO. QTY. PART NO. DESCRIPTION
1 1 7529101 WLDMT, MTKC, KNEE FRAME
2 3 7352201 CAP, END 1-1/2 X 2
3 2 3239901 BEARING, 2 HOLE FLANGE, 1" ID
4 2 6912807 SLEEVE, ACCRDN 1.0 ID X 1
KNEE FRAME ASSEMBLY - 7540101
________________________________________
Page 10
Page 11
MTSKC KNEELING LEG PRESS
3
3
3
9
9
9
5
5
5
5
7
7
7
7
7
7
7
7
7
8
8
1
6
4
2
19
18
17
29
12
25
26
22
23
23
24
33
13
16
14
15
29
12
31
28
34
12
12
12
12
40
39
36
32
27
21
20
29
11
10
11
10
30
38
37
27
32
35

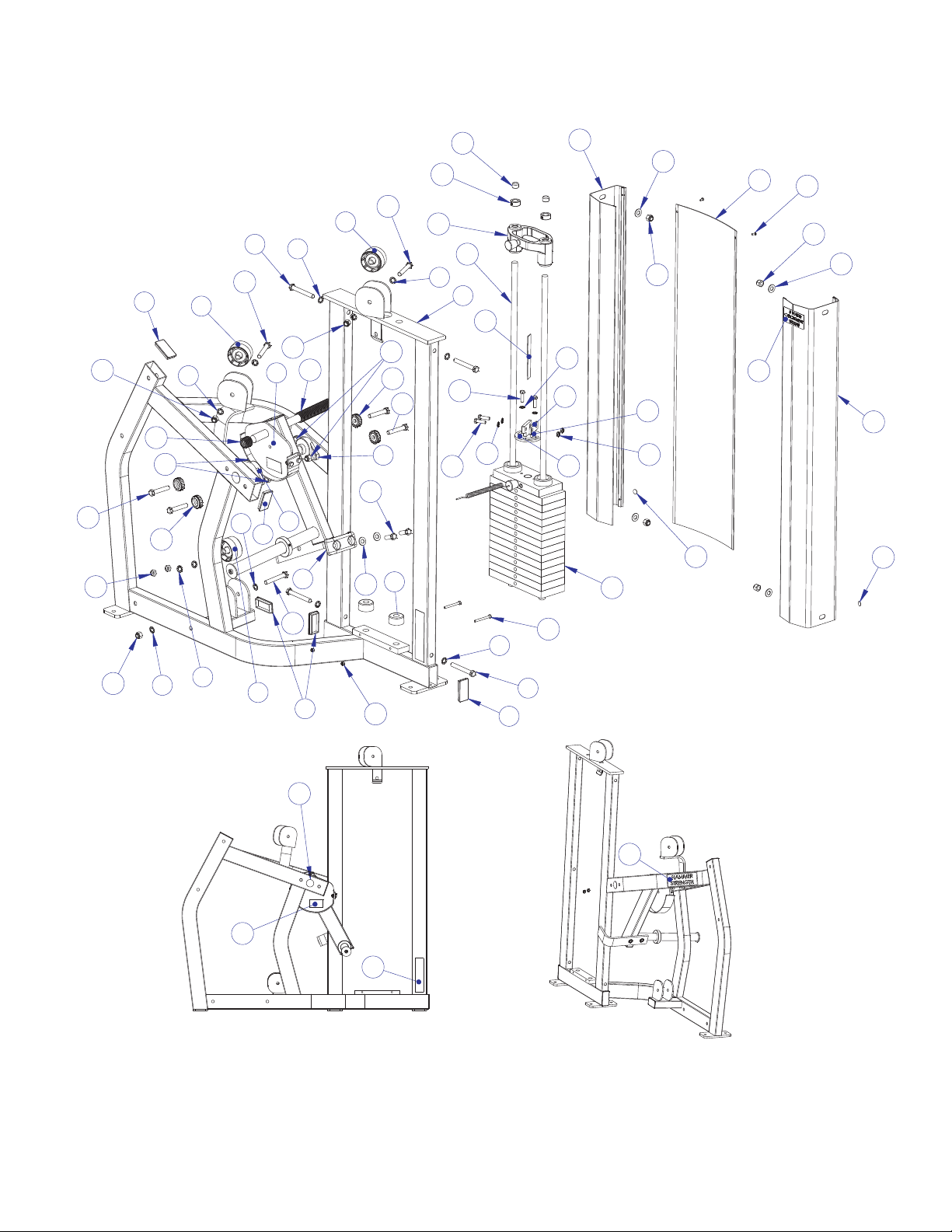

LEFT FRAME ASSEMBLY - 7529801
________________________________________
SEE PAGE 12 FOR LEGEND
Page 11
Page 12
MTSKC KNEELING LEG PRESS
ITEM NO. QTY. PART NO. DESCRIPTION
1 1 7528901 WLDMT, MTKC, LEFT FRAME
2 2 7352101 CUSHION, WEIGHT STACK
3 3 7594601 PULLEY, MTS, 3" BELT
4 2 3239901 BEARING, 2 HOLE FLANGE, 1" ID
5 5 7477401 CAP. END, 1-1/2 X 3, 11GA SGRY
6 1 7352001 BUMPER, 2-1/8 X 4-5/8
7 12 3239505 WSH, .500 IN-D ST ZN
8 4 3239316 1/2-13 X 4.00 UNS HEX FHB G5 ZN
9 3 3239313 1/2-13 X 3.25 UNS HEX FHB G5 ZN
10 4 7434001 WASHER, MTS, HAMMER HEAD
11 4 3239311 1/2-13 X 2.75 UNS HEX FHB G5 ZN
12 11 3102801 NUT, NYLOCK 1/2-13 ST ZN
13 2 7328616 GUIDE ROD, .75 OD SOLID 45.25
14 2 3103301 SHAFT COLLAR, 3/4 I.D. ZINC
15 2 3242701 CAP, END, .75 X .50. RD, BLACK
16 1 7459901 ASSY, MTS, INCREMENT WEIGHT
17 1 7464701 ASSY, MTS, 150 LB STACK
18 2 3223809 1/4-20 UNS HEX FHB G5 ZN
19 2 3102806 NUT, NYLOCK 1/4-20 ZN
20 2 3239306 1/2-13 X 1.50 UNS HEX FHB G5 ZN
21 1 7434895 WLDMT, MTS, BELT ATTACH
22 1 7435295 PLATE, MTS, BELT CLAMP
23 4 3223302 3/8-16 X 1.25 HEX HEAD BOLT
24 4 3239503 WSH, .375 IN-D ST ZN
25 1 7435101 SHAFT, 3/8" DIA SS, BELT WRAP
26 2 3102807 NUT, NYLOCK 3/8-16 LOW HT
27 2 7465104 SHROUD, MTS, SIDE 44.63" SGRY
28 1 7435605 PANEL, MTS, PLASTIC 44.63"
29 6 3102507 WASHER, TYPE A PLAIN
30 2 3102804 NUT, NYLOCK-JAM 1/2-13 ST ZN
31 2 0017-00101-1587 SHIELD RIVET
32 2 7564101 LABEL, MTS, .625 DIA HOLE COVER
33 1 7435701 BELT, SPOOLED, W15/16, T.09
34 1 M051-00297-A000 INCREMENT WT. DECAL (RIGHT)
35 1 M051-00289-A000 HAMMER STRENGTH NAME PLATE
36 1 7529901 ASSY, MTKC, LEFT ARM
37 1 7422003 LABEL, MOVING PARTS
38 2 7488701 LABEL, AXIS OF ROTATION
39 1 6912805 SLEEVE, ACCRDN 1.0 ID X 5.5
40 1 6912807 SLEEVE, ACCRDN 1.0 ID X 1
LEFT SIDE FRAME LEGEND
________________________________________
Page 12

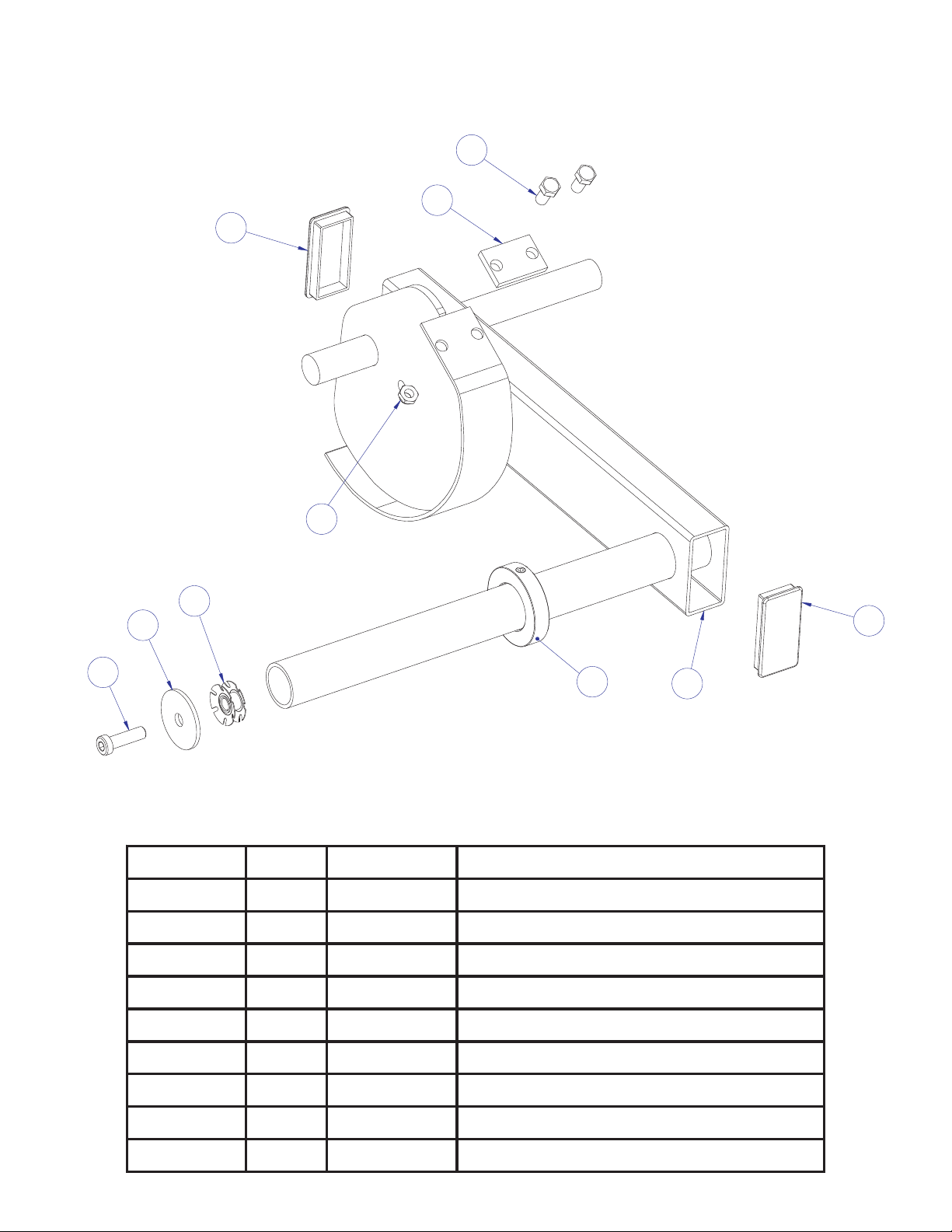

Page 13
MTSKC KNEELING LEG PRESS
3
2
5
1
7
6
8
9
4
4
ITEM NO. QTY. PART NO. DESCRIPTION
1 1 7529301 WLDMT, MTKC, LEFT ARM
2 1 7436695 PLATE, MTS, BELT CAM ATTACH
3 2 3239803 3/8-16 X 16 HEX HEAD BOLT
4 2 7477401 CAP. END, 1-1/2 X 3, 11GA SGRY
5 2 3102807 NUT, NYLOCK 3/8-16 LOW HT
6 1 7347301 NUT, SPIDER M10 X 1.5
7 1 7357901 SHAFT COLLAR, 1-1/2" ID ALUM
8 1 7322301 PLATE, 1.97 OD X .44 ID 10GA
9 1 3236204 SCREW, M10 X1.5 35MM
LEFT WORK ARM ASSEMBLY - 7529901
________________________________________
Page 13

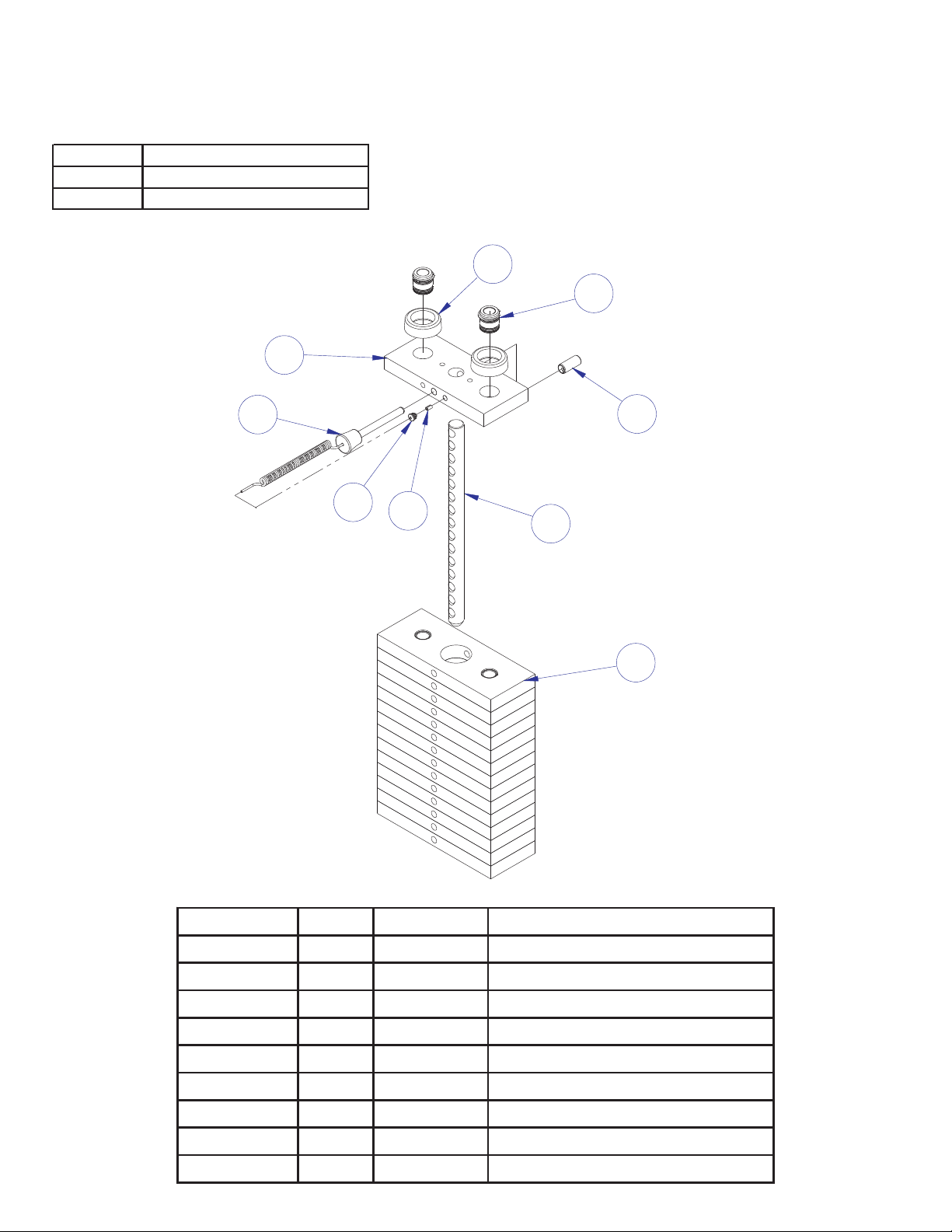

Page 14
MTSKC KNEELING LEG PRESS
1
2
3
4
8
6
5
7
9
Weight Stack Labels
PART NO. DESCRIPTION
8072201 LABEL, MTS, WGHT STK, 150 LBS
8072101 LABEL, MTS, WGHT STK, 80 KG
ITEM NO. QTY. PART NO. DESCRIPTION
1 14 7353701 ASSY, 10 LB PLATE
2 1 7464801 BAYONET, MTS, 15 HOLE
3 1 3236001 BUSHING, SPRING PIN
4 1 7356501 PLUG, LANYARD ATTACHMENT
5 1 7353001 ASSY, SELECTOR PIN
6 1 7434401 HEAD PLATE, MTS
7 2 7338001 BUSHING, HEADPLATE
8 1 7523601 CRIMP, CABLE
9 2 7767601 BUMPER, PS INCREMENT WT
150 LBS. WEIGHT STACK ASSEMBLY - 7464701
________________________________________
Page 14

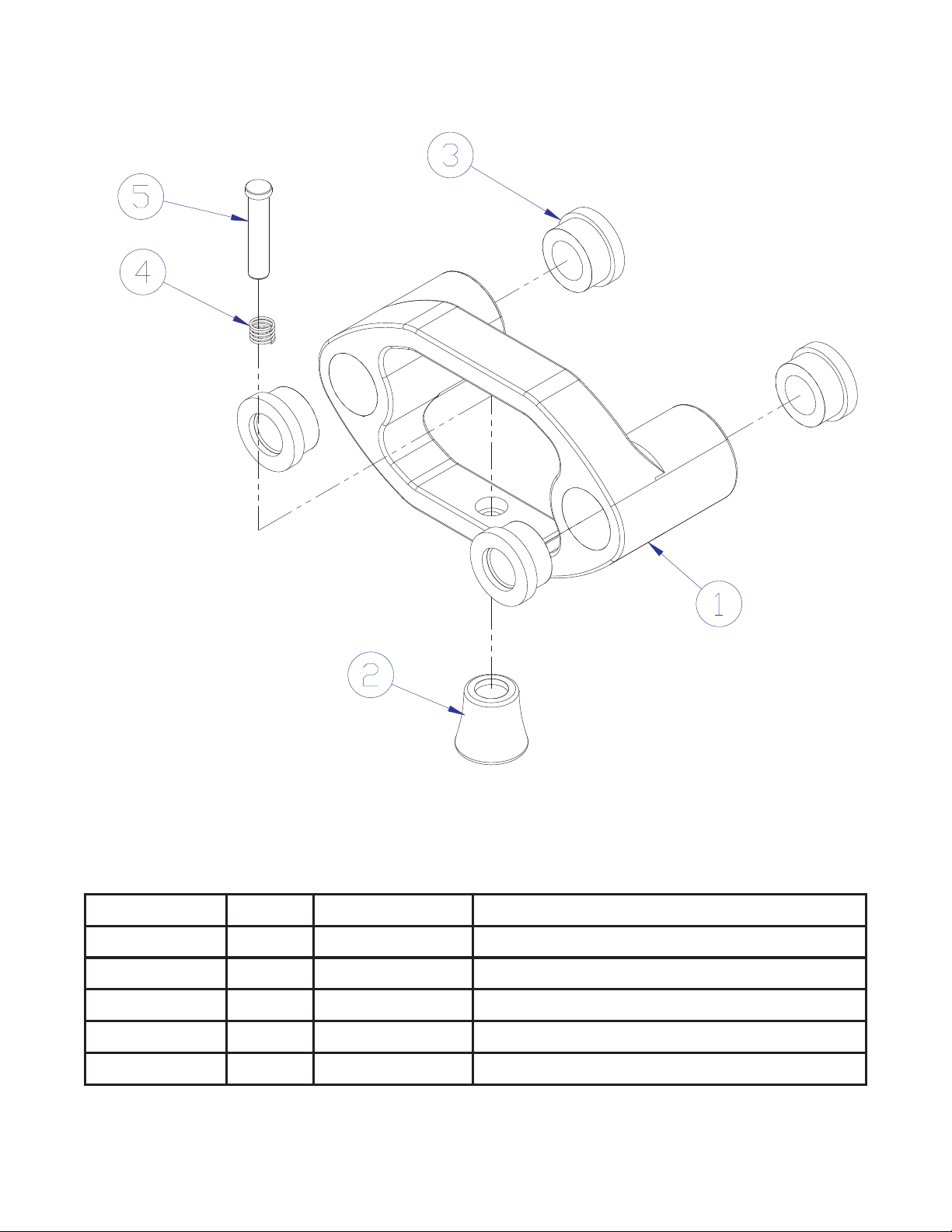

Page 15
ITEM NO. QTY. PART NO. DESCRIPTION
1 1 7459801 BLOCK, MTS, INCREMENT WEIGHT
2 1 7351401 KNOB, TULIP STYLE
3 4 7560001 BUSHING, MTS, INC WEIGHT
4 1 7447001 SPRING, COMPRESSION
5 1 7446901 PIN, RETAINING
MTSKC KNEELING LEG PRESS
INCREMENT WEIGHT ASSEMBLY - 7459901
________________________________________
Page 15

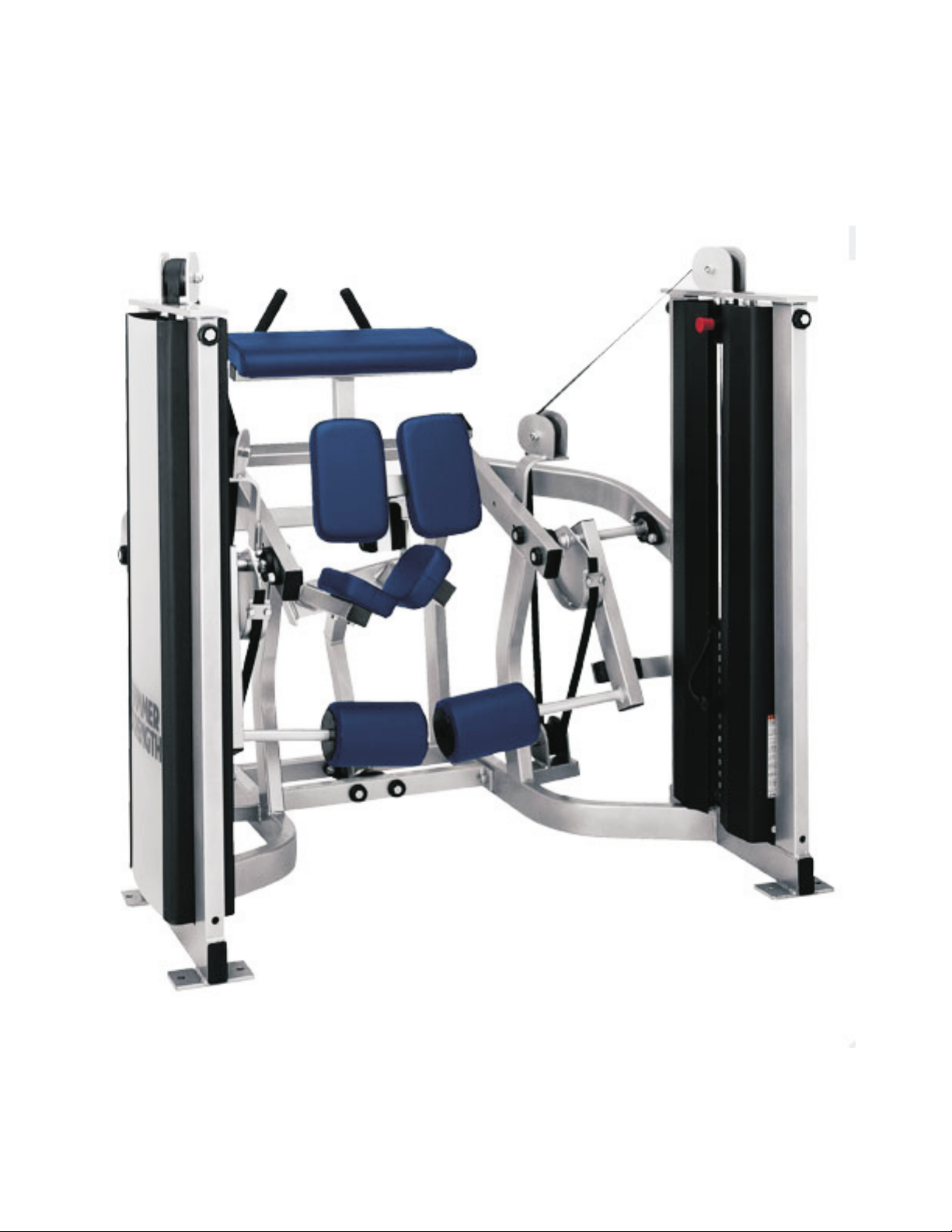

Page 16
MTSKC KNEELING LEG PRESS
________________________________________
Page 16
