Model 97Te, 95Te, 97Ti, 95Ti, and 93T
ARCTIC SILVER Treadmills
Customer Support Services
SERVICE MANUAL
Life Fitness Model 97Te, 95Te, 97Ti, 95Ti and 93T Arctic Silver Treadmills
GENERAL CONTENTS
INTRODUCTION ...............................................................................................................ii
THEORY OF OPERATION ...............................................................................................iii
SPECIAL SERVICE TOOLS .............................................................................................iv
GLOSSARY ......................................................................................................................v
SECTIONAL CONTENTS
TROUBLESHOOTING 1
DIAGNOSTICS LED 2A
DIAGNOSTICS LCD 2B
HOW TO…SERVICE 3
ELECTRONICS 4
MISCELLANEOUS
5
i
Life Fitness Model 97Te, 95Te, 97Ti, 95Ti and 93T Arctic Silver Treadmills
Introduction
This Service Manual provides safe and efficient step-by-step test and service procedures for 97Ti, 97Te, 95Ti, 95Te, and 93T Treadmills. The “Ti” designation stands for Light Emitting Diode (LED) Consoles and the “Te” designation stands for Liquid Crystal Display (LCD) Consoles. Illustrations in this manual reflect service view(s) to compliment the step-by-step procedure. Unnecessary views or details may not be illustrated for the sake of clarity.
When a service problem occurs, it is recommended that you first refer to “Troubleshooting” in Section 1 or “Diagnostics” in Section 2. Refer to “How To…” in Section 3 for actual service procedures, and in addition, Special Service Tools will be listed otherwise, standard tools should be used. Refer to “Electronics” in Section 4 for Block Diagrams and Connector locations. Refer to “Miscellaneous” in Section 5 for ID Tag Location, Maintenance, and other general information pertinent to the product.
Life Fitness Customer Support Services (CSS) can be contacted Monday - Friday 8:00 AM - 5:00 PM Central Standard Time. To response to your needs expeditiously, please provide Life Fitness Customer Support Services with the following information:
Model number
Serial number
Part name and number
Problem or symptom
LIFE FITNESS – CUSTOMER SUPPORT SERVICES 10601 Belmont Avenue; Franklin Park, IL 60131; U.S.A. Telephone: 847.451.0036 Toll-free: 800.351.3737
FAX: 847.288.3702 Toll-free: 800.216.8893
ii
Life Fitness Model 97Te, 95Te, 97Ti, 95Ti and 93T Arctic Silver Treadmills
Theory of Operation
The Treadmill is an electromechanical device that operates on A/C Voltage System and is controlled through the electronics in the Display Console. The key components that make up the Treadmill are the Unit Frame, Electric Motor and Motor Controller, Belt and Deck, Pulleys and Rollers, and the Display Console.
Initially the Line Filter receives the voltage. It is to the Motor Controller and other various electrical and electronic components that activate all the mechanical devices. The operator ultimately controls all electromechanical devices through the Console Display and with a touch of a finger can make settings and adjustments to Speed, Incline, and Custom Workout Programs.
The Unit Frame is critical not only to support the operator but also to support the electromechanical devices and the unit’s overall appearance. Although the frame is a non-maintenance item, its design and structure are essential to providing years of safe and reliable service.
The most critical parts on the Treadmill are the Striding Belt and Deck. Regardless of all other components, the success of a good Treadmill is its Striding Belt and Deck. The Deck is made up of a special particleboard, which allows for flexibility and long wear. The Waxless Striding Belt allows for self lubrication to ensure long life to both belt and deck. Under the Deck are the Lifesprings™, which are designed to support and absorb the shock load.
The Striding Belt is designed to endure constant stress loads. It is mounted directly over the Front and Rear Rollers. The Main Drive Motor has a Pulley on the end of its shaft, which is connected by a Drive Belt to the Front Roller Pulley. The Rear Roller is freewheeling. The Striding Belt tension is adjustable by means of Adjusting Bolts, which are located at the ends of the Rear Roller. When turned, they are used to adjust belt tension and belt centering. In order to increase belt and deck life, it is important to properly keep all areas of the machine clean.
The Display Console is the brain center of the Treadmill. It is here where all electromechanical operations are controlled for specific program operations. Depending on the Display Console, various selections and settings can be easily accomplished either through a Numeric Keypad or Up/Down Arrows. The Display Console allows the operator to selectively choose the program and input pertinent statistical information such as Weight, Age, Language, etc.
The Treadmill is by far one of the most popular pieces of all cardiovascular exercise equipment. With proper routine preventative maintenance and care, it will provide a lifetime of healthy cardiovascular exercise.
iii
Life Fitness Model 97Te, 95Te, 97Ti, 95Ti and 93T Arctic Silver Treadmills
Service Tools
Unless otherwise specified, only basic hand tools are required to perform service procedures outlined in the How To... section of this manual, which consist of:
Philips and Straight-Blade Screw Drivers
TORX
Pliers
Rubber Mallet
Snap Ring Pliers (internal and external)
Removable Thread Locking Compound
Standard and Metric Size Socket Set (3/8" or 1/2" drive)
Standard and Metric Size Combination, open-end, or Box Wrenches
®
Bit Set
iv
Life Fitness Model 97Te, 95Te, 97Ti, 95Ti and 93T Arctic Silver Treadmills
GLOSSARY
Familiarize yourself with those words and acronyms commonly referred to in this manual.
Anti-Scuff Pads
Connectors
Deck
Display Console Board
EEPROM
EEROM
Frame Tag Board
Front Roller
HR Sensor
Idler Pulley Assembly
Rubber strips located on the surface of each side of the frame, and used to ensure sure footing.
Plastic devices used to connect wiring together.
Special particleboard that is used for the running surface.
Electronic board used for making direct input settings and monitoring output messages, which are displayed in the digital readout display.
Electrically erasable programmable read only memory.
Electrically erasable read only memory.
Stores maintenance and error data with date and time stamp.
Motor belt driven, the front roller drives the striding belt.
Located in each handle grip and measures heart rate.
A spring-loaded bracket assembly pulley, which is used to maintain constant load against the main drive belt.
Jumper
LED
LCD
Levelers
Lift Motor
LifePulse
LifeSprings
Electrical connector used to connect between two electrical points.
Light Emitting Diodes.
Liquid Crystal Display
Adjustable supports under the rear of the treadmill, which are used to stabilize the unit.
The motor that raises and lowers the unit for incline and decline operations.
Measures heart rate.
Springs under the deck to absorb impact of the walker or runner.
v
Life Fitness Model 97Te, 95Te, 97Ti, 95Ti and 93T Arctic Silver Treadmills
GLOSSARY
Main Drive Belt
Connects between the main drive motor pulley and the front roller pulley, and used to transmit the driving power of the main drive motor to the front roller.
Main Wire Harness
Motor Controller Overlay Bezel PCB Power Module
Polar Receiver Smart Stop
Sensor Rear Roller
Rear Roller Guards
RPM Static Current Stop Switch Striding Belt
Connected to the operating components of the unit to provide electrical power.
Regulates the speed of the striding belt. A clear plastic covering over the display console. Programmable Circuit Board Receives main electrical source from the wall outlet to distribute voltage throughout
the various electromechanical systems. Monitors heart rate. Senses the presence of an operator.
A free spinning roller with adjusting screws at each end of the roller used for tensioning and centering the striding belt.
Located at the back of each side of the rear roller, are used as protective guards.
Revolutions per minute. Steady current flow. A switch used to interrupt power going to the motor to stop the unit. Sometimes referred to as the 'walking belt' and used to walk or run on.
Telemetry Receiver
Ties Wax/Lift Board
A sensor that reads Heart Rate signal from the operator's chest strap transmitter.
Plastic straps used to secure loose wiring to the main frame. A circuit board, which is located under the motor shroud, is used to communicate
input/output signals to and from the console, wax and lift motors, frame tag, and motor.
vi
Life Fitness Model 97Te, 95Te, 97Ti, 95Ti and 93T Arctic Silver Treadmills
Contents
SECTION 1
TROUBLESHOOTING GUIDE
Page
No Power To Treadmill..............................................................................................................................3
No Power To Treadmill Console................................................................................................................5
No Power ...................................................................................................................................................6
Display Does Not Illuminate.......................................................................................................................6
Striding Belt Slips During Footfall ..............................................................................................................6
Maximum Speed Is Reduced.....................................................................................................................6
Knocking Sound At Rear Of Machine ........................................................................................................6
Knocking Sound Coming From Deck.........................................................................................................6
Rubbing Sound From Underneath Machine ..............................................................................................7
Display Reads Immobilized .......................................................................................................................7
Squeaking Noise........................................................................................................................................7
Loud Groaning Sound From Front Of Machine .........................................................................................7
Loud Groaning Sound On Footfall.............................................................................................................7
Display Overlay Keys Are Not Responding When Pressed....................................................................... 7
Unit Resets Randomly Or Pauses .............................................................................................................7
Striding Belt Is Traveling Beyond Tracking Limits .....................................................................................8
Striding Belt Not Centered .........................................................................................................................9
Striding Belt Misalignment .........................................................................................................................9
LifePulse Heart Rate Does Not Respond ..................................................................................................9
Display Reads Heart Rate With Hands Removed .....................................................................................9
No Chest Strap Detected...........................................................................................................................9
Erratic Heart Rate Readings......................................................................................................................10
Abnormally Elevated Heart Rate Readings ...............................................................................................10
Motor Controller Comm Bad: Check Harness Between Lift
And Controller –P9/P3 ........................................................................................................................10
Motor Controller Comm Bad: Check Power To Motor Controller............................................................... 10
Wax And Lift Board Comm Bad: Check Power On Lift..............................................................................10
Both Lift And Controller Comm Bad: Check Harness Between
Console And Lift –P1 And P1 .............................................................................................................11
System Configured Two Wired ..................................................................................................................11
Incline Inoperative......................................................................................................................................11
Home Switch Error.....................................................................................................................................11
Negative Switch Error ................................................................................................................................11
Smart Stop Unplugged ..............................................................................................................................12
Clock Comm Bad.......................................................................................................................................12
Frame Tag Unplugged...............................................................................................................................12
Sci Error.....................................................................................................................................................12
Dynamic Current Trip.................................................................................................................................12
Checksum Error Xxxx ................................................................................................................................12
Notify Maintenance Motor Controller Error ................................................................................................12
Notify Maintenance Incline Timeout Error..................................................................................................13
Notify Maintenance Home Switch Error.....................................................................................................13
1-1
Life Fitness Model 97Te, 95Te, 97Ti, 95Ti and 93T Arctic Silver Treadmills
Contents (continued)
Page
Notify Maintenance Negative Switch Error ................................................................................................13
Notify Maintenance Frame Tag Unplugged ...............................................................................................13
Unable To Attain Target Speed .................................................................................................................13
Notify Maintenance Speed Sensor Error ...................................................................................................13
External Rom Failure .................................................................................................................................13
Channels or Volume Does Not Change.....................................................................................................14
No Volume For TV Reception....................................................................................................................14
Unable To Receive Channels ....................................................................................................................14
Snow And Noise ........................................................................................................................................14
Screen Is Blank..........................................................................................................................................14
Wrong Buttons Activate ............................................................................................................................14
TV Receives Channels 5 & 6 Only ............................................................................................................14
Screen Does Not Turn On and No Sound .................................................................................................15
No Beeps ...................................................................................................................................................15
Only One Beep ..........................................................................................................................................15
Only One Beep At Power Up .....................................................................................................................15
One Beep Followed By Three Beeps ........................................................................................................15
Only One Beep ..........................................................................................................................................15
One Beep And A Burp ...............................................................................................................................15
One Beep And Three Beeps......................................................................................................................15
Channels Do Not Change..........................................................................................................................16
Sound Does Not Change...........................................................................................................................16
No TV Sound .............................................................................................................................................16
Unable To Receive TV Channels ..............................................................................................................16
Snow And Noise ........................................................................................................................................16
Screen Is Blank..........................................................................................................................................16
Screen Is Dark ...........................................................................................................................................16
Screen Does Not Respond To Touch........................................................................................................16
The Wrong Buttons Activate ......................................................................................................................16
Screen Does Not Turn On and No Sound .................................................................................................16
Console Does Not Light Up .......................................................................................................................16
No Audio From FM Radio ..........................................................................................................................17
Audio Static From FM Radio......................................................................................................................17
Snowy Appearance When Viewing Secure Screen...................................................................................17
No Channel Select.....................................................................................................................................17
Notes` ........................................................................................................................................................18
1-2
Life Fitness Model 97Te, 95Te, 97Ti, 95Ti and 93T Arctic Silver Treadmills
TROUBLESHOOTING GUIDE
NO POWER TO TREADMILL
In order to diagnose NO POWER to Treadmill, the Motor Cover must be removed, and the Treadmill must be plugged into an electrical outlet. Use the following TROUBLESHOOTING CHART to take the proper corrective action for NO POWER TO TREADMILL. In conjunction with this Chart, refer to the next page to reference Test Points (TP1 through TP5) on the Electrical Schematic.
STEPS INSPECT ACTION RESULTS
If Line Voltage is present, then continue on to Step 2. 1 Line Cord Voltage Remove the Line Cord Bracket, unplug the Line Cord from Treadmill, and then test for Line Voltage.
for Line Voltage at TP1.
for Line Voltage at TP2.
for Line Voltage at TP3.
5 Motor Controller Turn the Unit Power Switch ON, and test
for Line Voltage at the Motor Controller Cable at TP5.
6 Auto Transformer
and Wax/Lift Board
Turn the Unit Power Switch ON, and test for 120v AC at the Wax/Lift Board Cable at TP4.
NO LEDs are lit on the Wax/Lift Board. Remove the Wax/Lift Board from the Treadmill.
Fuse No. 1 is open.
Fuses No. 2 or 3 are open. Check for a shorted wire at the Lift Motor. The
If Line Voltage is not present, then test for Voltage at
wall outlet. If no voltage is present, then check the
Main Service Breaker at the Facility. If wall outlet
voltage is present, then replace the Line Cord.
If Line Voltage is present, then continue on to Step 3. 2 Power Switch Turn the Unit Power Switch ON, and test
If Line Voltage is not present, then replace Power
Switch.
If Line Voltage is present, then continue on to Step 4. 3 Line Filter Turn the Unit Power Switch ON, and test
If Line Voltage is not present, then replace the Line
Filter.
If Line Voltage is present, then continue on to Step 5. 4 Circuit Breaker Turn the Unit Power Switch ON, and test
If the Line Voltage is not present, then reset the
Circuit Breaker, or if necessary replace it.
If Line Voltage is present and NO LEDs are lit then
check to see if the Motor Cable is unplugged or
damaged, and replace as necessary.
If Line Voltage is present and NO LEDs are lit, then
check to see if the Motor is overheated or is
damaged. With the Motor unplugged, OHM out the
two blue wires using a Multi-Meter. If there is NO
Continuity, then replace Motor. If NO Line Voltage
present, then check Cables between the Power Box
and Motor Controller, and replace as necessary.
Check for damaged cables and replace. If the cables
are not damaged, replace the Auto Transformer.
Check fuses 1, 2, and 3, with the Multi-Meter set on
resistance. If the fuses are good, then test the power
cable from the Power Box to the Wax/Lift Board for
120 Volts. If fuses are open, then replace the Wax/Lift
PCB.
Inspect the Wax/Lift Board for any signs of damage.
If damaged, replace the Wax/Lift Board.
Inspect cabling from the Wax/Lift Board to: Frame
Tag, Motor Controller, Negative Switch, and Lift Motor
Home Switch. If cabling is damaged, then replace as
necessary.
resistance is checked at the: Black to Red wire, which
should read about 30 OHMS; the White to Red wire
should read 15 OHMS, and the White to Black wire
should also read 15 OHMS. If any of these wires
register ‘0 OHMS’, then replace the Lift Motor.
is
1-3
Life Fitness Model 97Te, 95Te, 97Ti, 95Ti and 93T Arctic Silver Treadmills
TROUBLESHOOTING GUIDE
NO POWER TO TREADMILL - Continued
Multi Meter
TP4
BLACK
Wax/Lift Power
1 2 3
WHITE GREEN
120V DOMESTIC
Settings AC
TP2
Multi Meter
Settings AC
TP1
Multi Meter
Settings AC
#GRN/YLW
Motor Controller Power
Multi Meter
TP5
Multi Meter
Settings AC
TP4
Settings AC
#BLACK
1 2
#WHITE
3
#GREEN
220/230V CABLE SHOWN
AUTO X-FRMR
200V IN
COM
100V IN
220/230V IN
1 2 3 4 5 6
1 2 3 4 5 6
LINE
BLK
GRN/YLW
WHT
#BLK
#WHT
NEU
GND
HOT
LL
MOV
LOAD
NN
LINE FILTER
ON/OFF Switch
100V, 200-240V FOREIGN
120V OUT
240V IN
T3P
Multi Meter
Settings AC
Multi Meter
Settings AC
Wax/Lift Power
Motor Controller Power
Multi Meter
TP5
Settings AC
1 2 3
BLACK WHITE GREEN
1
2
3
BLACK
GREEN
T2P
Multi Meter
Settings AC
Circuit Breaker
L
MOV
LOAD
N
LINE FILTER
1-4
L
LINE
N
BLK
GRN/YLW
WHT
T1P
GRN/YLW
BLK
WHT
NEU
ON/OFF Switch
HOT
Life Fitness Model 97Te, 95Te, 97Ti, 95Ti and 93T Arctic Silver Treadmills
TROUBLESHOOTING GUIDE
NO POWER TO TREADMILL CONSOLE
Use the following procedure to troubleshoot No Power to the Treadmill Console.
1. Turn the Power OFF to the Unit.
2. Remove the Console Assembly to gain access to the Main Wiring Harness (P1). Leave all cables connected for testing.
3. Turn the Power back ON.
4. Place the BLACK Negative lead of the Multi-Meter on Pins No. 1 (yellow) and 2 (orange) to obtain a ground.
5. Place the RED Positive lead of the Multi-Meter on the corresponding wire to the verify voltage.
6. Following the Troubleshooting Chart below to verify problem.
TROUBLESHOOTING – “NO POWER TO DISPLAY CONSOLE”
VOLTS FUSE
NO.
12VDC 4 White Short circuit in the Emergency
8VDC
8VDC
6 Red Short circuit in the Console
5 Brown
WAX/LIFT
BOARD WIRE
POSSIBLE CAUSE SOLUTION
Stop Switch Circuit.
PCB.
Short circuit in the Console PCB.
Short in the Smart Stop Circuit or Cable.
C-SAFE Port, Fuse No. 5, shorts out when plugging in an accessory.
If Voltage is present and the Console is not ON, then replace the Console PCB.
If NO Voltage is present, then check the corresponding Wax Lift Board Fuse.
If Voltage is present and the Console is not ON, then replace the Console PCB.
If NO Voltage is present, then check the corresponding Wax Lift Board Fuse.
If Voltage is present and the Console is not ON, then replace the Console PCB.
If NO Voltage is present, then check the corresponding Wax Lift Board Fuse.
Inspect the Smart Stop Circuit Board and Cables for damage. If necessary, replace.
Unplug the accessory that is connected to the C-SAFE ports. If problem continues with the accessory unplugged, replace the Console. If problem only persists with accessory plugged in, then the accessory vendor must be contacted.
Check for shorts in cables. If necessary, replace.
1-5
Life Fitness Model 97Te, 95Te, 97Ti, 95Ti and 93T Arctic Silver Treadmills
TROUBLESHOOTING GUIDE
SYMPTOM PROBABLE CAUSE CORRECTIVE ACTION
No Power.
Display does not illuminate when machine is powered on.
Striding Belt slips during footfall.
Insufficient power source. Plug treadmill into a proper electrical
configuration. Refer to the Operations Manual.
Circuit breaker, if equipped. Verify that circuit breaker is not open. If
open, reset circuit breaker, if equipped.
Insufficient power source. Plug treadmill into a proper electrical
configuration. Refer To The Operations Manual.
Loose 10-pin connection at display console or wax/lift control board.
Damaged main harness wire connection.
Row of six LEDs not lit. Check that the EEPROM in the Wax
Wax/Lift Board EEPROM not seated or missing.
Striding belt slips on front roller during stall test.
Check all electrical connections for proper attachment.
Replace wire harness. See How To…Replace Main Wire Harness.
Lift Board is seated properly. If necessary replace the Wax Lift Board.
If row of 6 LEDs not lit on top of Wax/Lift Board, then check that the EEPROM in the Wax/Lift Board is seated properly. Replace the Wax/Lift Board if necessary.
Check striding belt & re-tension as necessary. See How…To Adjust Belt Tension.
Maximum speed is reduced.
Knocking sound at rear of machine.
Knocking sound coming from deck.
User is pushing striding belt. Instruct users not to push striding belt
in either direction.
Striding belt/deck malfunction. The deck laminate worn through or the underside of striding belt glazed over (hard, glossy).
Insufficient power source. Plug treadmill into a proper electrical
Faulty rear roller bearings. Replace rear roller assembly.
Life Springs not positioned correctly and/or loose mounting hardware.
Replace belt and deck. See How To…Replace Striding Belt.
configuration. Refer to the Operations Manual.
Reposition or tighten life springs.
1-6
Life Fitness Model 97Te, 95Te, 97Ti, 95Ti and 93T Arctic Silver Treadmills
TROUBLESHOOTING GUIDE
SYMPTOM PROBABLE CAUSE CORRECTIVE ACTION
Rubbing sound from underneath machine.
Display reads immobilized.
Squeaking noise.
Loud groaning sound heard from front of machine while elevating.
Loud groaning on footfall.
Display overlay keys are not responding when depressed.
Foreign objects may be stuck underneath the machine.
Immobilized feature is activated. Press and hold the SPEED Down
Drive Motor Belt tensioning pin may be squeaking.
Drive Motor Belt may be worn or damaged.
Lift mechanism pivot points are dry. Clean and lubricate as necessary.
Faulty lift motor. Replace the lift motor. See How
Obstruction. Inspect wheels or flooring for damage.
High friction between deck and striding belt.
Loose ribbon connection(s). Test the Key Pad function. See
Inspect underneath striding belt and machine. Remove any debris or objects that may cause interference with the treadmill.
Arrow Key and press the Pause Key to toggle ON/OFF.
Clean and lubricate as necessary.
Replace Drive Motor Belt. See How To… Replace Drive Motor Belt.
To…Replace Lift Motor.
Refer to Belt and Deck Test in Diagnostics.
Diagnostics in this Section. Verify that the two ribbon connections are attached to the display PCB. Test Key Pad function.
Unit resets randomly or pauses.
If attached, reseat the connection and verify the operation.
Worn or defective overlay assembly. Replace overlay assembly. See How
To… Replace Overlay Assembly.
Insufficient power source. Plug treadmill into a proper electrical
configuration. Refer to the Operations Manual.
Damaged ground prong on line cord. Replace line cord. See How To…
Replace Line Cord.
Line cord improperly seated in electrical outlet.
Emergency stop magnet not engaged. Re-engage the emergency stop
Towel or magazine may be making contact with stop switch while user is running.
Loose connections at display console. Secure all connections at display
Inspect power connection at electrical outlet and at machine for proper contact.
magnet.
Move all possible obstructions off display console and handlebar.
console PCB.
1-7
Life Fitness Model 97Te, 95Te, 97Ti, 95Ti and 93T Arctic Silver Treadmills
TROUBLESHOOTING GUIDE
SYMPTOM PROBABLE CAUSE CORRECTIVE ACTION
Unit resets randomly or pauses.
The Striding Belt is traveling beyond the tracking limits.
Stop Switch is activated with very light pressure or returns very slowly after being pressed.
Stop switch cable not making proper contact.
Pinched main wire harness. Replace the main wire harness. See
Open ground path. Using voltmeter, check all points for
Inspect Smart Stop system. Disconnect the 4-pin connector and
Striding belt needs to be re-tensioned or tracking needs adjustment.
Unit is not level. Refer to the Operation Manual or
Replace Stop Switch. See How To…Replace Stop Switch.
Re-seat cable from stop switch and verify the operation.
How To…Replace Main Wire Harness.
continuity: console pan screws, console mounting screws, handlebar screws, and handrail mounting screws to frame with respect to ground. Ground must be a non-painted surface.
verify if problem exists. If no, replace Smart Stop PCB. See “How To…” Replace Smart Stop PCB.
Refer to belt tensioning or tracking adjustment procedure in operation or service manual.
Service Manual.
Check to see if the belt barriers are still in place or damaged.
Contact Life Fitness
1-8
Life Fitness Model 97Te, 95Te, 97Ti, 95Ti and 93T Arctic Silver Treadmills
TROUBLESHOOTING GUIDE
SYMPTOM PROBABLE CAUSE CORRECTIVE ACTION
Striding belt not centered.
Striding belt misalignment, but properly tensioned.
Lifepulse Heart Rate System does not respond or improper heart rate reading or "Reading Heart Rate" appears in the message center for more than 2 minutes without giving heart rate reading.
Display reads a continuous heart rate reading when hands are removed.
Striding belt tension or tracking needs to be adjusted.
Improper walking/running. Notify Club Manager.
Dirty handlebar sensors. Wipe sensors with a clean soft cloth.
User running over 4.5 mph (7.5kph). For accurate heart rate reading, user
User may have an unusual heart condition.
Loose connections at display console and handlebar.
Faulty heart rate sensors. Replace handlebar sensors. See How
Faulty display console PCB. Replace display console PCB. See
Harness wires pinched at handlebar or handrail.
See How To…Adjust And Tension The Striding Belt.
Verify operation. Refer to Diagnostics in Section 2.
must slow down to less than 4.5 mph (7.5kph).
Have different people grasp sensors to detect any variance.
Secure connections at display console and handlebar.
To… Replace Heart Rate Kit.
How To… Replace Console PCB.
If the wires are damaged, replace damaged cables. See How To…Replace Handlebar Assembly.
No Chest Strap detected.
Chest strap sensors not making good contact with body of user.
User is out of monitoring range. Move within 3 ft (1 meter) of receiver
Loose connection at receiver. Check connection. See “How
Faulty chest strap. Replace chest strap.
Adjust chest strap and moisten sensors to make better contact with skin.
To”...Replace Telemetry Receiver.
1-9
Life Fitness Model 97Te, 95Te, 97Ti, 95Ti and 93T Arctic Silver Treadmills
TROUBLESHOOTING GUIDE
SYMPTOM PROBABLE CAUSE CORRECTIVE ACTION
No Chest Strap Detected
Erratic Heart Rate readings.
Abnormally elevated heart rate readings.
Faulty receiver. Verify 5VDC at P6 pin 1. If yes, replace
transmitter. If no, replace display console PCB.
Telemetry turned OFF. Enter Manager’s Configuration in the
Diagnostic mode, and then turn telemetry to ON.
Bad connection at Telemetry cable and receiver.
Treadmills are located less than 8” (203 mm) apart.
Electromagnetic interference from television sets and /or antennas.
Electromagnetic interference from cell phones.
Electromagnetic interference from computers.
Electromagnetic interference from cars.
Electromagnetic interference from high voltage power lines.
Check cable jack and receiver connection.
Position treadmills to recommended distances. Refer to the Operations Manual.
Move the treadmill a few inches away from the probable cause, or move the probable cause a few inches away from the treadmill, until the heart rate readings are accurate.
Display Reads: MOTOR CONTROLLER COMM BAD: CHECK HARNESS BETWEEN LIFT & CONTROLLER -P9/P3
Display Reads: MOTOR CONTROLLER COMM BAD: CHECK POWER TO MOTOR CONTROLLER.
Display Reads: WAX/LIFT BOARD COMM BAD: CHECK POWER ON LIFT
Electromagnetic interference from motor driven exercise equipment.
Electromagnetic interference from another heart rate transmitter within 3 ft (1m).
Loose wire harness. Reset connections at wax/lift PCB
connector P9 and motor controller PCB connector P3.
Bad Motor Controller. Verify line voltage at P1 on the Motor
Controller. If voltage exists, replace motor controller. See “How To…” Replace Motor Controller. Refer to Section 4 Voltage Specifications.
Bad Wax/Lift PCB. Verify if the LED 7 (Green) and LED 8
(Red) is lit on the Wax/Lift PCB. If no, replace Wax/Lift PCB. See How To Replace…Wax /Lift PCB.
1-10
Life Fitness Model 97Te, 95Te, 97Ti, 95Ti and 93T Arctic Silver Treadmills
TROUBLESHOOTING GUIDE
SYMPTOM PROBABLE CAUSE CORRECTIVE ACTION
Display Reads: BOTH LIFT and CONTROLLER COMM BAD: CHECK HARNESS BETWEEN CONSOLE & LIFT -P1/P1
Display Reads: SYSTEM CONFIGURED TWO WIRED
Display Reads: INCLINE INOPERATIVE – CONTINUE IF DESIRED
Loose wire harness. Reset connection at Wax/Lift PCB
connector P1 and Display Console PCB connector P1.
Motor Controller is not jumped correctly.
Level or negative switch.
Lift motor adjustment incorrect. See “How To…Replace the Lift Motor”
Lift Motor. Cycle motor in incline manual and
Reset jumper at JM1 on both pins.
Refer to the Diagnostics Section 2, Incline Automatic to verify the operation. If replacement is required. See “How To…” Replace Leveler or Negative Switch.
Inspect wire harness for damage, and replace if needed.
and refer to the step in the procedure that describes 13-3/4” tube adjustment.
verify 120VAC at P7 on Wax/Lift PCB. If not, replace lift motor. See How To Replace…Lift Motor.
Display Reads: HOME SWITCH ERROR
Display Reads: NEGATIVE SWITCH ERROR
Lift switches wire harnesses are backward (applies only to 97Ti).
Lift switches wire harnesses are backward (applies only to 97Ti decline).
Switch the wire harnesses on the negative and level switches.
Switch the wire harnesses on the negative and level switches.
1-11
Life Fitness Model 97Te, 95Te, 97Ti, 95Ti and 93T Arctic Silver Treadmills
TROUBLESHOOTING GUIDE
SYMPTOM PROBABLE CAUSE CORRECTIVE ACTION
Display Reads: SMART STOP UNPLUGGED (95Ti and 97Ti are equipped)
Display Reads: CLOCK COMM BAD
Display Reads: FRAME TAG UNPLUGGED
Display Reads: SCI ERROR
Display Reads: DYNAMIC CURRENT TRIP
Display Reads: CHECKSUM ERROR XXXX
Display Reads: NOTIFY MAINTENANCE MOTOR CONTROLLER COMM BAD ERROR
Broken, damaged, or unplugged harness.
Frame board or bad wire harness. See Diagnostic Test Frame Tag EEPROM.
Disconnected wire harness. Reconnect wire harness.
Bad wire harness connection. Bad wire harness or noise. Reseat
Motor Controller, striding belt or deck. Perform belt and deck test in
Display Console Replace Display Console
Motor Controller. Overheated motor caused by worn or
Reseat or replace smart stop harness.
Verify continuity on wire harness. If continuity exists, replace frame tag PCB. See How To… Replace Frame Tag PCB.
If continuity does not exist, replace wire harness.
connection and verify operation. If problem exists, reconnect your connection at the display console to wax/lift PCB
Diagnostic Section 2.
damaged belt and deck. See Belt and Deck Test in Diagnostic Sect 2.
1-12
Life Fitness Model 97Te, 95Te, 97Ti, 95Ti and 93T Arctic Silver Treadmills
TROUBLESHOOTING GUIDE
SYMPTOM PROBABLE CAUSE CORRECTIVE ACTION
Display Reads: NOTIFY MAINTENANCE INCLINE TIMEOUT ERROR
Display Reads: NOTIFY MAINTENANCE
HOME SWITCH ERROR
Display Reads: NOTIFY MAINTENANCE NEGATIVE SWITCH ERROR
Display Reads: NOTIFY MAINTENANCE FRAME TAG UNPLUGGED
Display Reads: UNABLE TO OBTAIN TARGET SPEED
Lift Motor. Cycle motor in incline auto and verify
120VAC at P7 on Wax/Lift PCB. Replace lift motor.
Level switch, negative switch or wire harness is defective.
Lift switches wire harnesses are backward. This applies only to 97Ti.
Lift switches wire harnesses are backward. This applies only to 97Ti.
Broken, damaged or unplugged harness.
Incorrect power requirements. Refer to the Operations Manual
Striding belt/deck malfunction. If the deck laminate is worn through or the underside of striding belt is glazed over (hard, glossy).
In incline auto in diagnostics, verify the operation of the switches. Replace switches if defective. See How To…Replace Switches.
Verify the wire for continuity, replace wire harness if defective.
Switch the wire harnesses on the negative and level switches.
Switch the wire harnesses on the negative and level switches.
Re-seat the frame tag wire harness.
Perform belt and deck test in Diagnostics Section 2.
Replace belt and deck. See How To… Replace Striding Belt.
Display Reads: NOTIFY MAINTENANCE SPEED SENSOR ERROR
Display Reads: EXTERNAL ROM FAILURE
Motor Controller. Replace motor controller.
Speed sensor or disconnected wire harness.
Display PCB. Replace display PCB.
This error will appear after a workout, but the unit will continue to function. Enter diagnostics, Speed Manual, and look for a RPM reading. If no reading exists, check continuity on the wire harness. No continuity, replace wire harness. If continuity exists, replace speed sensor.
1-13
Life Fitness Model 97Te, 95Te, 97Ti, 95Ti and 93T Arctic Silver Treadmills
TROUBLESHOOTING GUIDE
SYMPTOM PROBABLE CAUSE CORRECTIVE ACTION
Key Pad malfunction. Run Key pad test in diagnostics. TV Channels or volume does
not change.
Interface PC board defective. Replace Interface PC board.
No volume for TV Reception.
Unable to receive any channels when using cable.
Snow and noise appear on the screen.
Screen is blank or dark with or without sound
Faulty headphones. Replace headphones.
Faulty headphone jack assembly. Replace headphone jack assembly.
Faulty cable to Headphone jack assembly
Problem on the single board computer Replace single board computer.
Problem on Interface board Replace interface board
Air/cable setting may not be correct. Follow the setup procedures in the
Air/cable setting may not be correct. Follow the setup procedures in the
75 ohm coax may be bad. Replace 75 ohm coax.
75 ohm coax may be unplugged. Make sure cable is properly secure.
Air/cable setting may not be correct. Follow the setup procedures in the
75 ohm coax may be bad. Replace 75 ohm coax.
Back Light power inverter bad Replace/reconnect LCD/Touch Screen
LCD Back Light Replace/reconnect backlight inverter
LCD Screen failure Replace/reconnect LCD/Touch Screen
Replace cable to headphone jack assembly.
operator manual.
operator manual.
operator manual.
The wrong buttons activate when the touch screen is touched.
TV receives channels 5 & 6 only.
Problem on the single board computer Replace single board computer.
Touch Screen not calibrated correctly
Cable selection standard. TV configuration correct setting
Calibrated Touch Screen in diagnostics
Replace LCD/Touch Screen
1-14
Life Fitness Model 97Te, 95Te, 97Ti, 95Ti and 93T Arctic Silver Treadmills
TROUBLESHOOTING GUIDE
SYMPTOM PROBABLE CAUSE CORRECTIVE ACTION
Screen does not turn ON and no sounds
No beeps are heard at power up. After 15-20 seconds console shows “System Comm Unit time-out…..” error message.
Only one beep is heard at power-up. After 15-20 seconds a second beep.
One beep is heard at power­up followed by one burp sound.
One beep is heard at power­up followed by 3 beeps. After 15-20 seconds another beep is never heard and the screen stays black.
No power.
Interface Board did not power up. Check Interface Board power cable.
Interface Board wasn’t able to establish communications with all of the treadmill modules. Console shows error message of module that didn’t respond.
Interface Board checksum error detected. Console shows “System Comm Unit time-out…” error message.
Console Board did not power up. Interface Board has successfully
powered up and all treadmill modules are responding properly.
Check Wax/lift board for 12 & 5 volts DC and replace if faulty.
If Wax/Lift board ok check wire harnesses and connectors.
Check power and cable coming from Wax/Lift board.
Do a System Comm Test in Diagnostics to get more information on what modules are not working properly.
Update Interface Board with the latest software.
Check Console Board power cable.
One beep is heard at power­up followed by 3 beeps. After 15-20 seconds another beep is heard but the screen stays white.
One beep is heard at power­up followed by 3 beeps. After 15-20 seconds another beep is heard but the screen stays black.
Only one beep At power-up Interface board has power and is up
Only one beep and then one burp
Only one beep followed by 3 beeps in a row
System is up and running but display cable isn’t connected properly or is faulty.
Display inverter isn’t working correctly. Check for disconnected or faulty
At power-up Interface board has power and has
At power-up Interface board is up and running and
Check display cable.
inverter cables.
and running
detected a checksum error. Unit will not work
has successfully communicated with all of the treadmill modules
1-15
Life Fitness Model 97Te, 95Te, 97Ti, 95Ti and 93T Arctic Silver Treadmills
TROUBLESHOOTING GUIDE
SYMPTOM PROBABLE CAUSE CORRECTIVE ACTION
TV Channels do not change.
TV Sound does not change.
No TV sound.
Unable to receive any TV channels when using cable.
Snow and noise appear on the screen.
Key pad malfunction. Run Key pad test in diagnostics.
Replace if defective.
Interface PC board defective. Replace Interface PC board.
Key pad malfunction. Run Key pad test in diagnostics.
Replace if defective.
Interface PC board defective. Replace Interface PC board.
Faulty headphones. Replace headphones.
Faulty headphone jack assembly. Replace headphone jack assembly.
Faulty cable to Headphone jack assembly
Air/cable setting may not be correct Follow the set up procedures in the
Air/cable setting may not be correct. Follow the setup procedures in the
Coax Cable may be bad. Replace Coax Cable.
Coax Cable may be unplugged Reconnect Cable.
Air/cable setting may not be correct. Follow the setup procedures in the
Coax cable may be bad. Replace Coax cable.
Replace Headphone jack cable.
operator manual.
operator manual.
operator manual.
Screen is blank
touch.
when the touch screen is touched.
Screen does not turn ON and no sound.
there are audible Beeps
LCD Back Light burned up. Replace LCD/Touch Screen.
Back Light power inverter bad Replace backlight inverter
LCD Screen failure Replace LCD/Touch Screen.
Problem on the single board computer Replace Single Board Computer.
LCD Back Light burned up. Replace LCD/Touch Screen. Screen is dark.
Back Light power inverter bad Replace backlight inverter
Touch screen failure. Replace LCD/Touch Screen. Screen Does not respond to
Problem with Single Board Computer. Replace Single Board Computer.
Touch Screen not calibrated correctly Calibrate Touch Screen in Diagnostics.The wrong buttons activate
Touch Screen Damaged. Replace LCD/Touch Screen.
No power. Check Wax/lift board for 12 & 5 volts
DC and replace if faulty.
Faulty wire harness to console. Replace Wire Harness
Back light inverter defective. Replace inverter. Console does not Light up but
LCD defective. Replace LCD\TOUCH screen
1-16
Life Fitness Model 97Te, 95Te, 97Ti, 95Ti and 93T Arctic Silver Treadmills
TROUBLESHOOTING GUIDE
SYMPTOM PROBABLE CAUSE CORRECTIVE ACTION
No audio from FM radio
Audio static from FM radio Weak signal, bad interface board. Replace interface board or contact
"Snowy" appearance when viewing secure video
No Channel Select FM Radio stations not configured. Input channels manually or go through
Coaxial cable is unplugged. Reconnect coaxial cable.
Volume control set too low. Adjust volume control.
Faulty headphones. Replace headphones as necessary.
Faulty headphone jack assembly. Replace headphone jack assembly.
Customer not wired for FM Radio. Notify club owner
cable provider.
Coaxial cable is unplugged. Reconnect coaxial cable.
Secure video set to improper channel. Adjust channel assignment of secure
video. (See TV/FM Radio Configuration in Section 2B)
Weak signal, bad interface board. Replace interface board or contact
cable provider.
automatic scan
1-17
Life Fitness Model 97Te, 95Te, 97Ti, 95Ti and 93T Arctic Silver Treadmills
TROUBLESHOOTING GUIDE
NOTES
1-18
Life Fitness Model 97Te, 95Te, 97Ti, 95Ti and 93T Arctic Silver Treadmills
SECTION 2A
DIAGNOSTIC MODES
FOR LED UNITS
Page
Display Consoles ............................................................................................................................... 3
Initial Setting Of Real Time Clock ...................................................................................................... 5
Diagnostic Entry................................................................................................................................. 6
Maintenance Configuration-Quick Entry Reference .......................................................................... 7
Diagnostics: Sub-Categories ............................................................................................................. 8
Diagnostics: System Communication (Comm) Test.......................................................................... 9
Diagnostics: System Test Menu ........................................................................................................ 11
Diagnostics: System Test – Speed Automatic................................................................................... 12
Diagnostics: System Test – Speed Manual....................................................................................... 13
Diagnostics: System Test – Controller Errors.................................................................................... 14
Diagnostics: System Test – Incline Automatic................................................................................... 15
Diagnostics: System Test – Incline Manual....................................................................................... 16
Diagnostics: System Test – Incline Errors......................................................................................... 17
Diagnostics: System Test – Belt / Deck Test..................................................................................... 18
Diagnostics: System Test – LifePulse Test ....................................................................................... 19
Diagnostics: System Test – Telemetry Test ...................................................................................... 20
Diagnostics: System Test – Smart Stop Test .................................................................................... 21
Diagnostics: System Test – Display Test .......................................................................................... 22
Diagnostics: System Test – Real Time Clock Mode ......................................................................... 23
Diagnostics: System Test – Frame Tag EEPROM Test.................................................................... 24
Diagnostics: System Test – Display Console EEPROM Test ........................................................... 25
Diagnostics: System Test – LifeCenter Test ..................................................................................... 26
Diagnostics: System Test – CSAFE Test .......................................................................................... 27
Diagnostics: Information Menu ..................................................................................................
Diagnostics: Information – System Statistics..................................................................................... 29

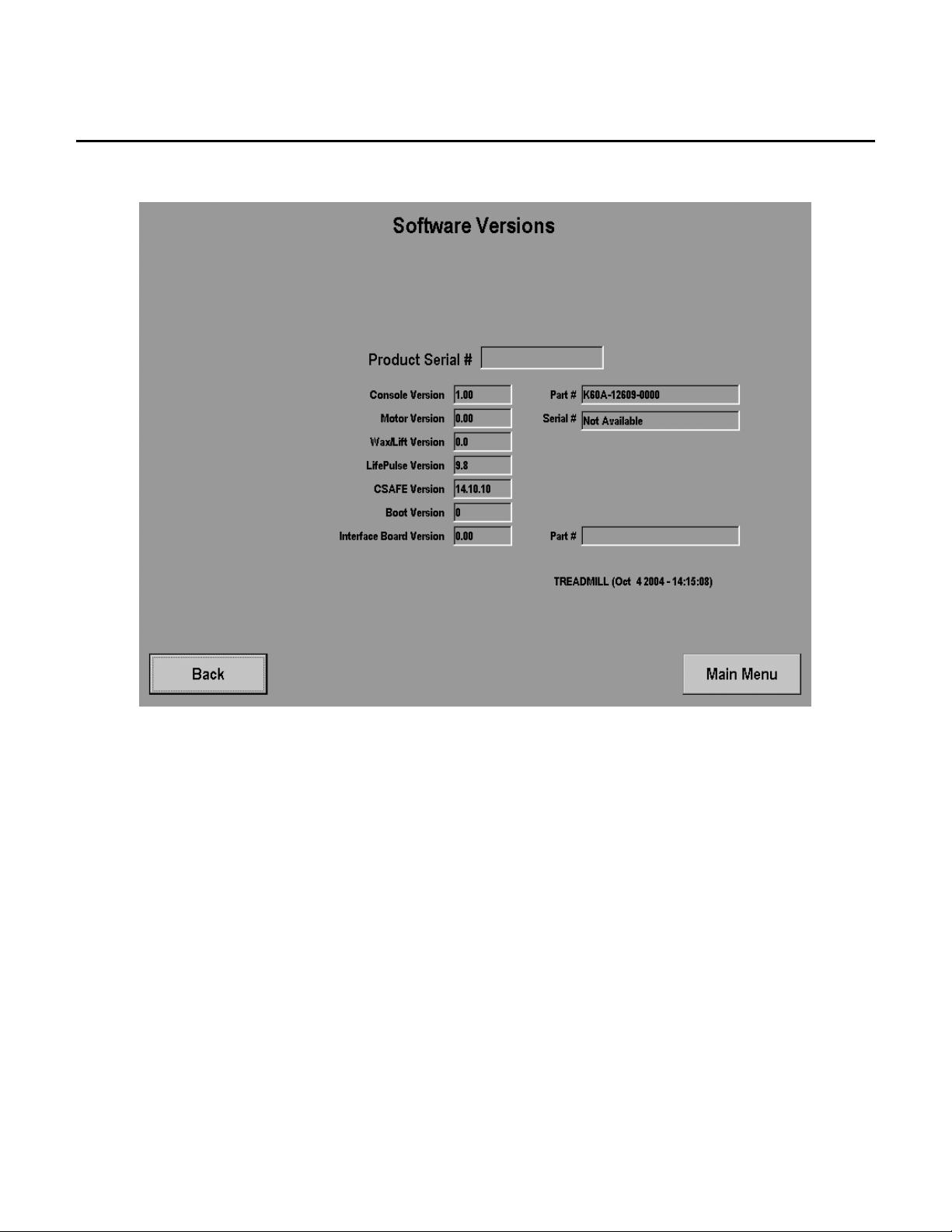

Diagnostics: Information – Software Version..................................................................................... 30
Diagnostics: Information – Main Motor .............................................................................................. 31
Diagnostics: Information – Lift Motor ................................................................................................. 32
Diagnostics: Information – Clock ....................................................................................................... 33

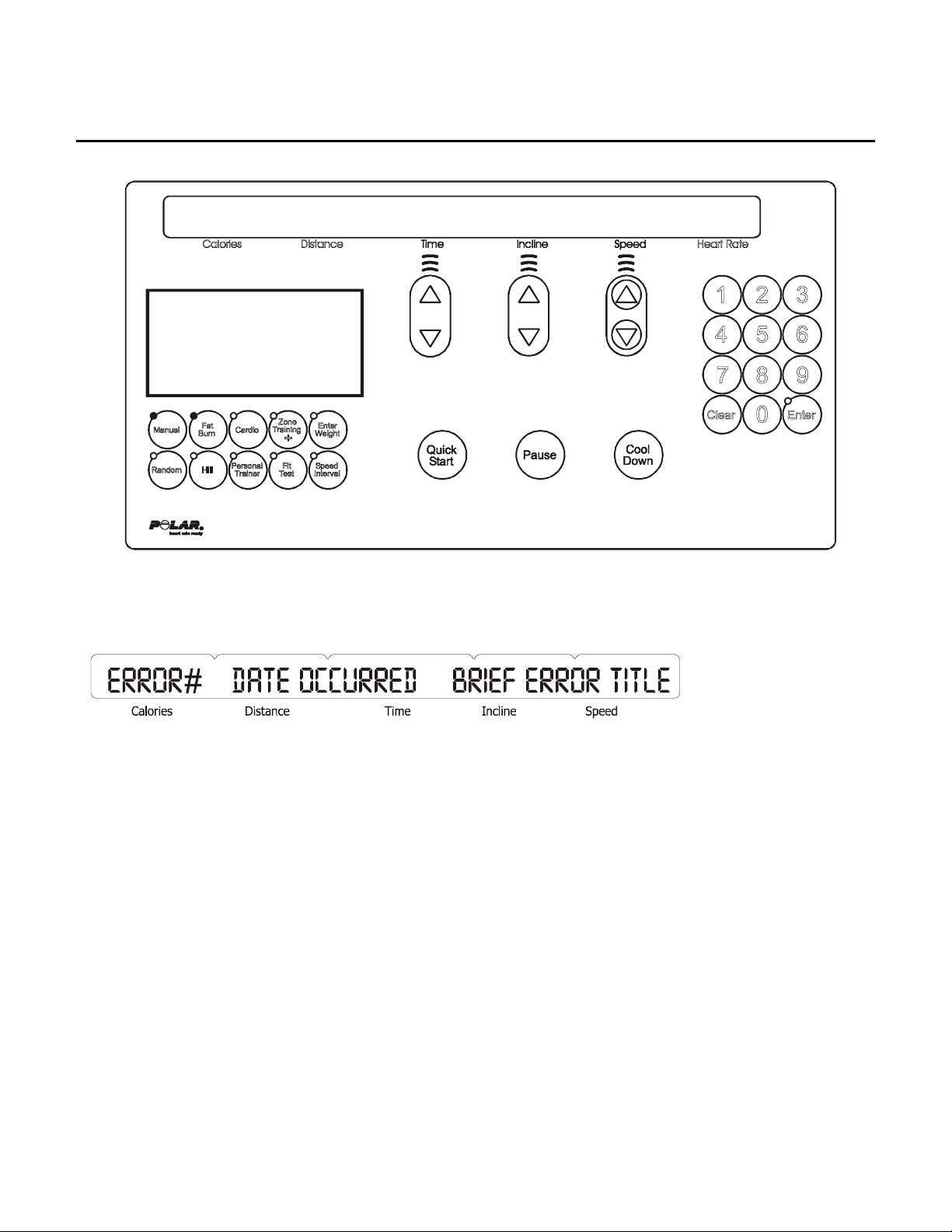

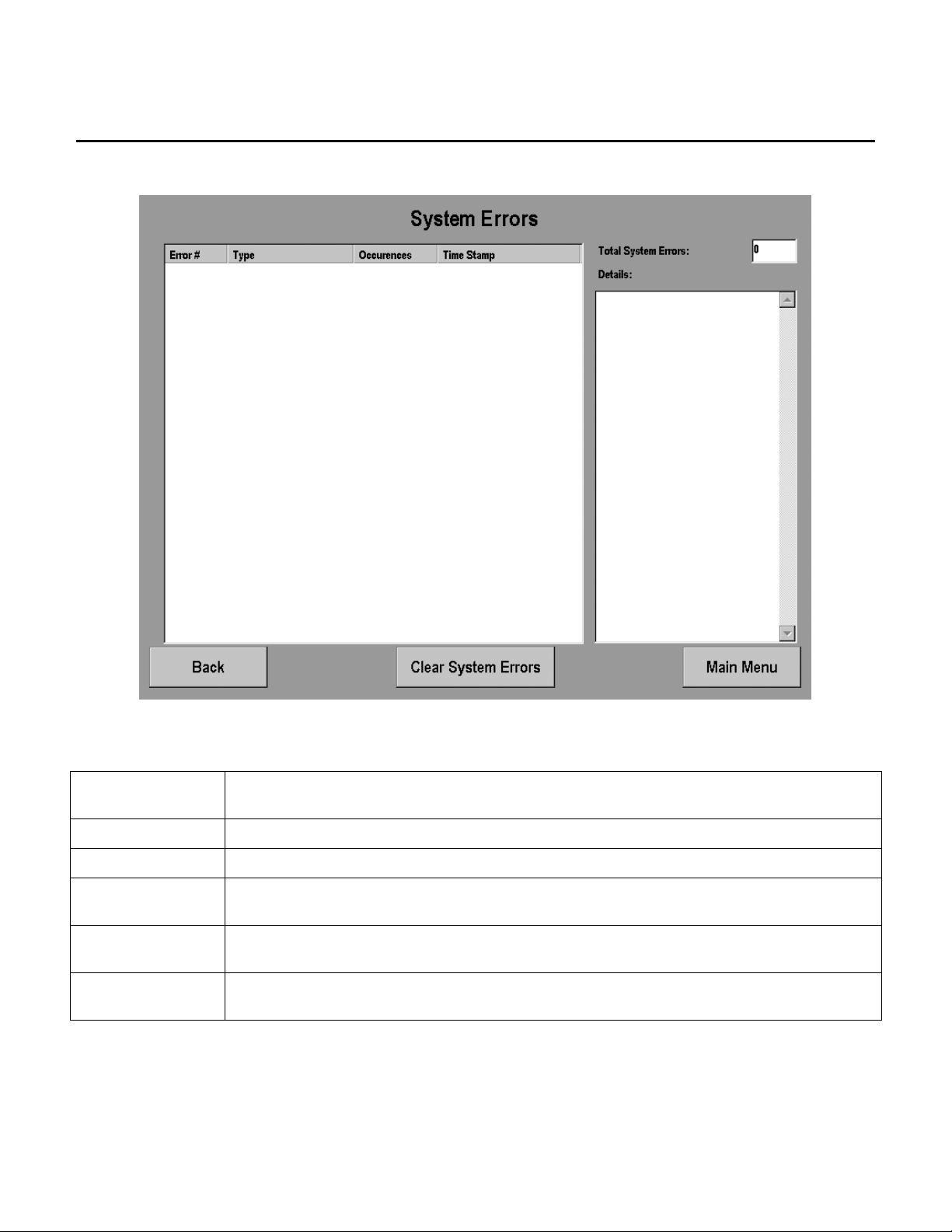

Diagnostics: Information – System Errors ......................................................................................... 34
Diagnostics: Information – Maintenance ........................................................................................... 35
Diagnostics: Maintenance Menu........................................................................................................ 36
Diagnostics: Configuration Menu....................................................................................................... 37
Diagnostics: Configuration – Manager .............................................................................................. 38
Diagnostics: Configuration – Manufacturer ....................................................................................... 40
Diagnostics: Configuration – Clock.................................................................................................... 41
Notes.................................................................................................................................................. 42
........ 28
2A-1
Life Fitness Model 97Te, 95Te, 97Ti, 95Ti and 93T Arctic Silver Treadmills
NOTES
2A-2
Life Fitness Model 97Te, 95Te, 97Ti, 95Ti and 93T Arctic Silver Treadmills

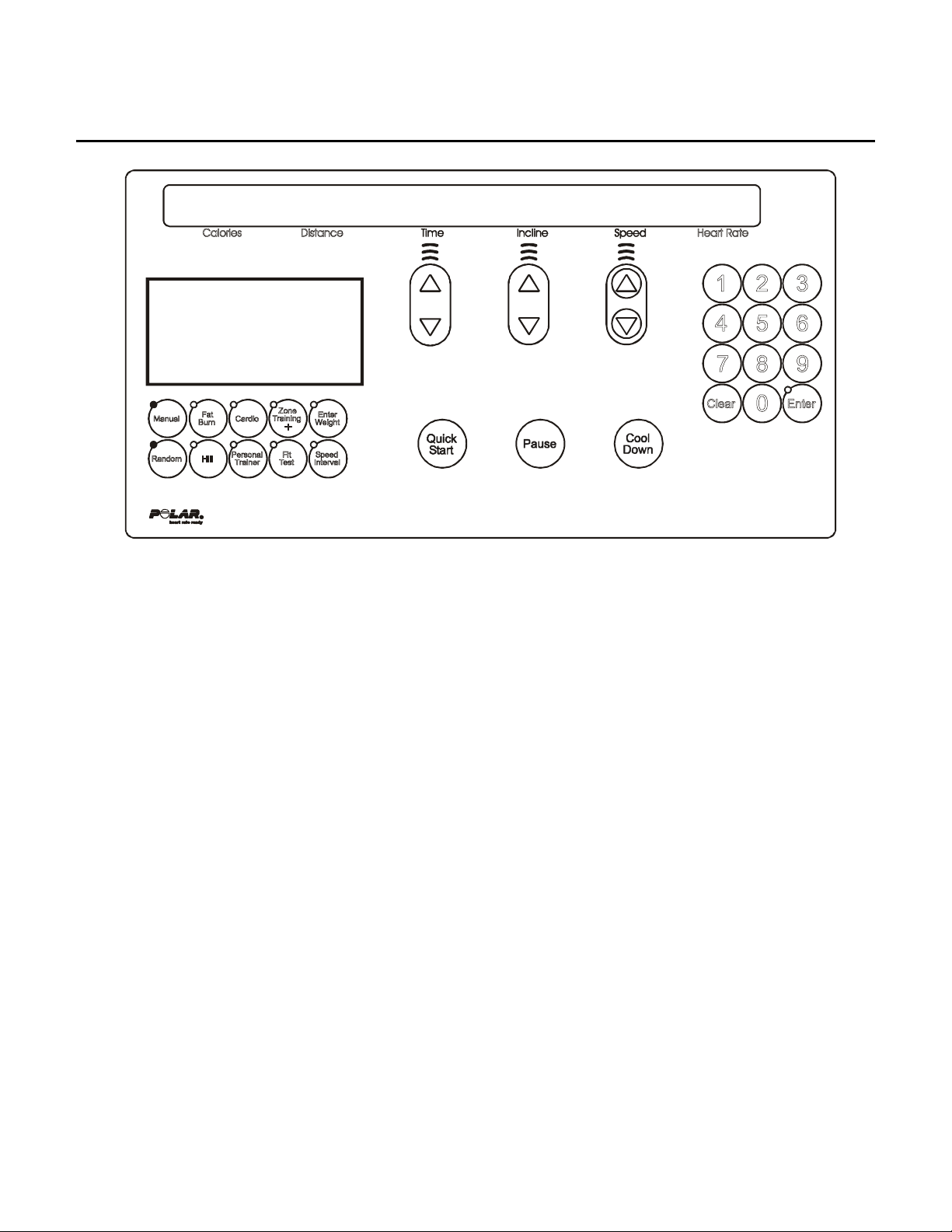

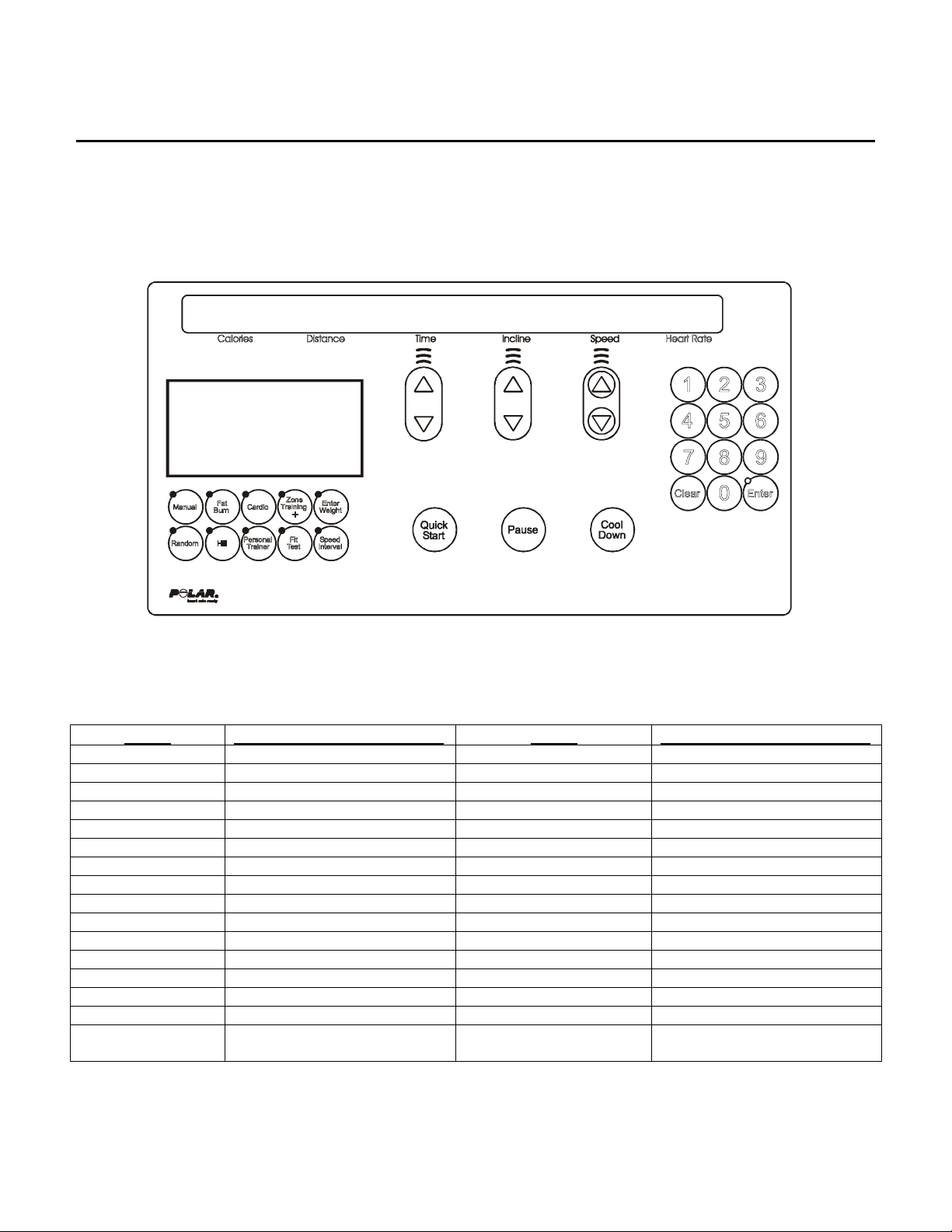

DISPLAY CONSOLES
Use the following to aid you in control and message locations:
Profile Window
WORKOUT PROFILES
FAT BURN
CARDIO
HILL
RANDOM
FIT TEST
MANUAL
Workout Profile Information
Message Center
Fat
Manual
Cardio
Burn
Personal
HillRandom
Trainer
Zone
Enter
Training
Weight
+
Fit
Speed
Test
Interval
Quick Keys
Up/Down ArrowsButtons
Quick
Sta rt
Pause
Cool
Down
Numeric Keypad
Heart RateCalories Distance Time Incline Speed
123 456
809
7
Clear Enter
Display LEDs
Heart Rate
ZONE TRAINING
AGE
65% 80%
136
168
10
Time in Zone
160
130
20
152
123
30
144
117
40
136
110
50
128
104
60
120
97
70
112
91
80
104
90
84
96
78
100
SUGGESTED TARGET HEART RATE AS % OF MAX ACSM HEAR T RATE RANGE:
55% - 90%
2A-3
Life Fitness Model 97Te, 95Te, 97Ti, 95Ti and 93T Arctic Silver Treadmills

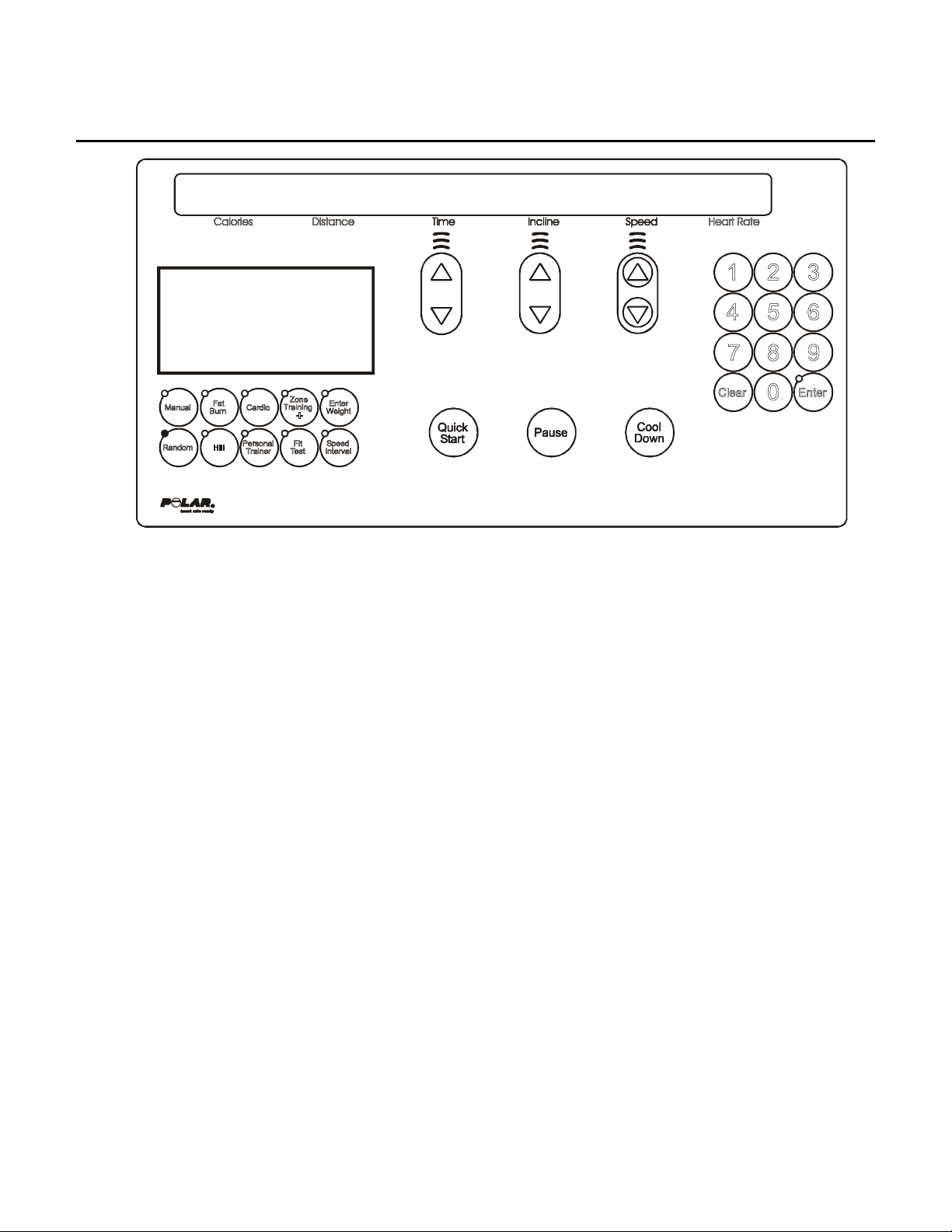

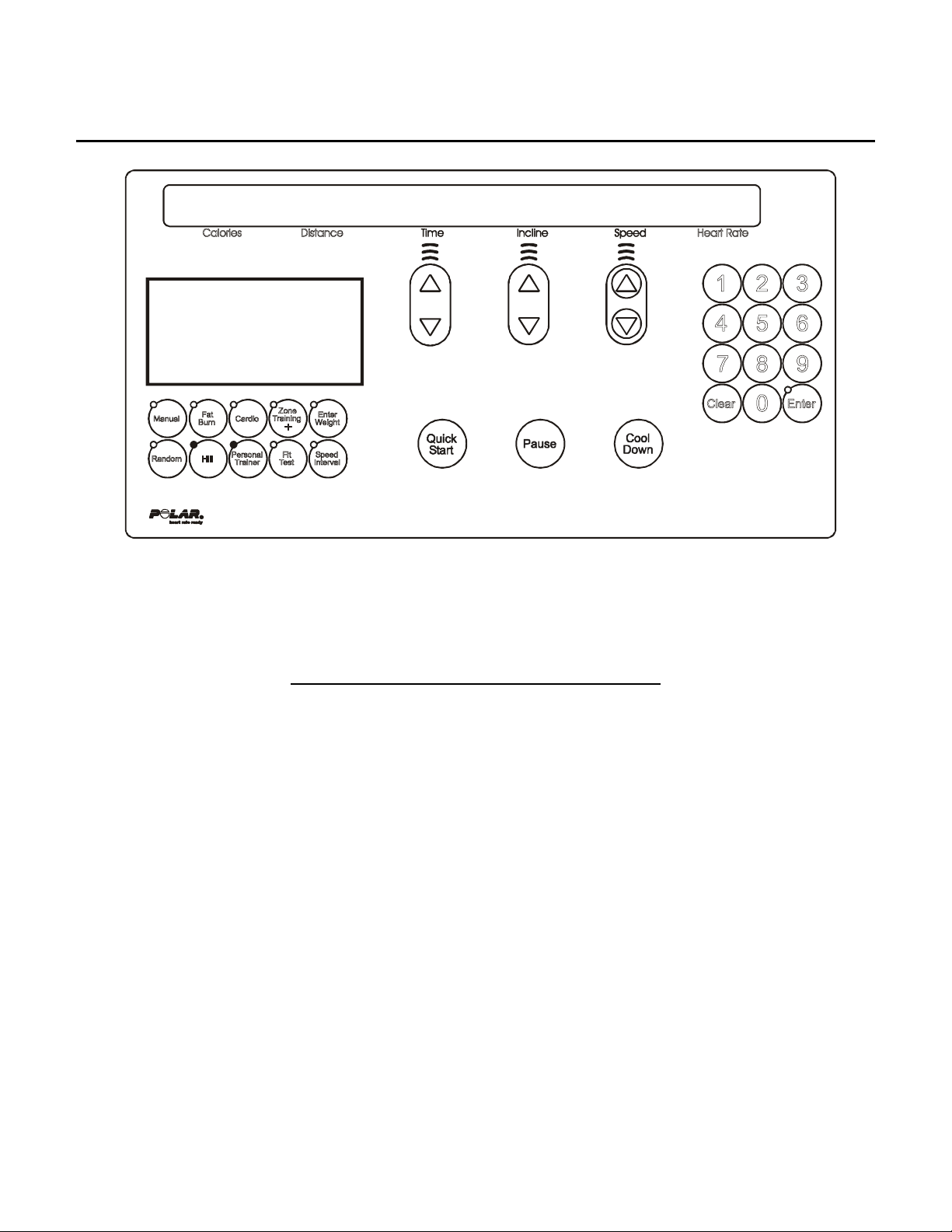

DISPLAY CONSOLES - Continued
97Ti Treadmill
95Ti Treadmill
2A-4
Life Fitness Model 97Te, 95Te, 97Ti, 95Ti and 93T Arctic Silver Treadmills
INITIAL SETTING OF THE REAL TIME CLOCK
As part of the initial installation of the treadmill, the real time clock may be configured to the local time. Initially the real time clock is set to Greenwich meantime (GMT) which is the mean solar time for the meridian at Greenwich, England, used as a basis for calculating time throughout most of the world. Upon powering up the unit the following message will be displayed:
IF YES PRESS ENTER
IF NO PRESS CLEAR
If the user wants to set the real time clock to the local time, the user must press the ‘ENTER’ key. The user will be asked to set the display mode. The two display modes are 12-hour mode with AM/PM or 24 hour mode with no am/pm. displayed. The message will be:
By pressing any of the arrow keys, the user toggles between the two modes. Once the mode is set, press the ‘ENTER’ key to continue. After the display mode is set the user will now be asked to set the local time. The following message will appear:
“CLOCK SET TO GMT”,
“USE ARROW KEYS TO ” “CHANGE SYSTEM CLOCK”, “TIME KEYS - HOURS”, “INCLINE KEYS-MINUTES”, “SPEED KEYS – SECONDS”
By pressing the specific arrow key, the user can set the real time clock to the local time. After setting the local time, press the ‘CLEAR’ key to exit the real time clock setting mode. The message “UPDATING CLOCK” will appear in the message center. The unit will then continue with the normal powering up sequence.
If the user does not want to set up the real time clock at this time, a ‘CLEAR’ key can be pressed to clear the initial message. The unit will continue with it’s normal powering up sequence. The unit will ask a total of 5 times upon powering up if the real time clock wants to be set. After the 5th time the message will no longer appear. Refer to clock configuration to change the clock settings.
2A-5
Loading...
+ 160 hidden pages
