Page 1

User Guide

Quality, Design and Innovation

home.liebherr.com/fridge-manuals

Page 2

Contents

MaxIce*...................................................................... 17

1 Appliance at a glance............................................ 3

1.1 Scope of delivery.......................................................... 3

1.2 Overview of the appliance and equipment.............. 3

1.3 SmartDevice.................................................................. 3

1.4 Appliance range of use............................................... 4

1.5 Conformity..................................................................... 4

2 General safety instructions.................................. 4

3 Functionality of the Touch display....................... 6

3.1 Navigation and symbol explanation......................... 6

3.2 Menus............................................................................. 6

3.3 Sleep mode................................................................... 7

4 Putting into operation........................................... 7

4.1 Switching on appliance (first use)............................ 7

4.2 Starting the IceMaker for the first time*................. 7

5 Storage.................................................................. 8

5.1 Information regarding storage................................... 8

5.2 Fridge compartment.................................................... 8

5.3 EasyFresh..................................................................... 8

5.4 Freezer compartment.................................................. 8

5.5 Storage times............................................................... 9

6 Saving energy........................................................ 9

7 Controls................................................................. 9

7.1 Controls and displays.................................................. 9

7.1.1 Status display..............................................................9

7.1.2 Display symbols.......................................................... 9

7.2 Appliance functions..................................................... 9

7.2.1 Notes on the appliance functions............................9

Switching the appliance off and on........................9

Switching temperature zone off and on.............. 10

WiFi............................................................................ 10

Temperature.............................................................. 11

Temperature unit......................................................12

D-Value*.....................................................................12

SuperCool..................................................................12

PowerCool ................................................................ 13

SuperFrost.................................................................13

Start defrosting cycle..............................................14

PartyMode ................................................................ 14

HolidayMode............................................................. 14

SabbathMode............................................................15

E-Saver ......................................................................16

IceMaker *................................................................. 16

IceMaker water supply*..........................................16

TubeClean *............................................................... 17

CleaningMode...........................................................18

Display brightness...................................................18

Door alarm.................................................................18

Input lock...................................................................19

Device information...................................................19

Software.................................................................... 19

Reminder....................................................................19

Demo mode.............................................................. 20

Resetting to factory settings.................................21

7.3 Messages...................................................................... 21

7.3.1 Overview of warnings...............................................21

7.3.2 Ending warnings........................................................21

7.3.3 Overview of reminders.............................................22

7.3.4 Ending reminders......................................................22

8 Features................................................................. 23

8.1 Door rack....................................................................... 23

8.2 Shelves.......................................................................... 23

8.3 Dividing shelf*.............................................................. 24

8.4 VarioSafe *.................................................................... 24

8.5 Space for baking tray.................................................. 26

8.6 Drawers.......................................................................... 26

8.7 EasyFresh-Safe cover.................................................. 28

8.8 Adjusting the moisture levels.................................... 28

8.9 Glass shelves................................................................ 28

8.10 IceMaker*...................................................................... 29

8.11 VarioSpace.................................................................... 30

8.12 Bottle holder................................................................. 30

8.13 Flexible ice compartment divider*............................ 30

9 Maintenance.......................................................... 30

9.1 FreshAir carbon filter................................................... 30

9.2 Disassembling / assembling pull-out systems...... 31

9.3 Defrosting the appliance............................................ 31

9.4 Cleaning the appliance............................................... 31

10 Customer help....................................................... 33

10.1 Technical specifications............................................. 33

10.2 Operating noises.......................................................... 33

10.3 Technical fault.............................................................. 33

10.4 Customer Service......................................................... 35

10.5 Model plate................................................................... 35

11 Shutting down....................................................... 35

12 Disposal................................................................. 35

12.1 Preparing appliance for disposal.............................. 35

12.2 Disposing of the appliance in an environmentally

friendly manner............................................................ 35

The manufacturer is continually working on the further development of all types and models. Please be aware that we reserve the right to make changes to the shape, equip‐ ment and technology.

2 * Depending on model and options

Page 3

Appliance at a glance

Symbol Explanation

Read instructions

Please read the information in these instruc‐ tions carefully to understand all of the benefits of your new appliance.

Additional information on the Internet

The digital manual with additional information can be found via the QR code on the front of the manual or by entering the service number at home.liebherr.com/fridge-manuals.

The service number can be found on the serial tag:

Check appliance

Check all parts for transport damage. If you have any complaints, please contact your agent or customer service.

Differences

These instructions apply to a range of models, so differences are possible. Sections that apply to certain models only are marked with an asterisk (*).

Instructions and results

Instructions are marked with a . Results are marked with a .

1.2 Overview of the appliance and equipment

Fig.Example illustration

Videos

Videos about the appliances are available on the YouTube channels of Liebherr-Hausgeräte.

These operating instructions apply to:

ICN(h)

Note

If your appliance has an N in its appliance designation, it is a NoFrost appliance.

51..

1 Appliance at a glance

1.1 Scope of delivery

Check all parts for transport damage. Contact your dealer or customer service in the event of complaints. (see 10.4 Customer Service)

Your new appliance comes with the following parts:

Built-in appliance

Features (depending on the model)

Installation materials (depending on the model)

“Quick Start Guide”

“Installation Guide”

Fig. 1 Example illustration

Temperature range

(A)

Fridge section (C) Freezer section

(B) EasyFresh (D) Coldest area

Equipment

(1)

Controls (11) EasyFresh-Safe

(2) Fan with FreshAir acti‐

vated charcoal filter

(3) Dry rear wall* (13) IceMaker* (4) Divisible shelf* (14) VarioSpace (5) Shelf (15) Type plate (6) VarioSafe* (16) Door racks (7) IceMaker water tank* (17) Bottle holder (8) Space for baking tray (18) Closing damper* (9) Lid for EasyFresh-Safe (19) Adjustable feet

(10) Drain opening

Note

Shelves, drawers and baskets are arranged for optimum energy efficiency when the appliance is delivered. Changing how the shelves, for example, are inserted in the fridge compartment does not have any impact on energy consumption.

(12) Freezer drawer

1.3 SmartDevice

SmartDevice is the networking solution for your fridgefreezer.

If your appliance SmartDevice-enabled or compatible, you can quickly and easily connect your appliance to your WiFi. With the SmartDevice app, you can operate your appli‐

* Depending on model and options 3

Page 4

General safety instructions

ance from a mobile device. Additional functions and setting options are available in the SmartDevice SmartDevice app.

SmartDevicecompatible appli‐ ance:

More information about SmartDe‐ vice:

Purchasing the SmartDeviceBox in the LiebherrHausgeräte store:

Downloading the SmartDevice app:

Note

The SmartDevice function is not available in the following countries: Russia, Belarus, Kazakhstan.

You cannot use the SmartDeviceBox.

Your appliance is compatible for use with the SmartDeviceBox. You must first purchase and install the Smart‐ DeviceBox. In order to connect your appliance to the WiFi, you need to download the SmartDevice app.

smartdevice.liebherr.com

home.liebherr.com/shop/de/deu/ smartdevicebox.html

After installing and configuring the SmartDevice, you can connect your appliance to the WiFi using the SmartDevice app and the WiFi appli‐ ance function (seeWiFi) .

Misusing the appliance may lead to damage to the goods stored or they may spoil.

Climate classifications

Depending on the climate classification the appliance is designed to operate in restricted ambient temperatures. The climate classifica‐ tion applying to your appliance is printed on the rating plate.

Note

Keep to the specified ambient tempera‐ tures in order to guarantee that the appli‐ ance works properly.

Climate clas‐ sification

SN 10°C to 32°C

N 16°C to 32°C

ST 16°C to 38°C

T 16°C to 43°C

SN-ST 10°C to 38°C

SN-T 10°C to 43°C

for ambient temperatures of

1.5 Conformity

The refrigerant circuit has been tested for leaks. When installed, the appliance complies with the applicable safety regulations and with the corresponding directives.

The full text of the EU Declaration of Conformity is available on the following website: www.Liebherr.com

1.4 Appliance range of use

Intended use

The appliance is only suitable for cooling food products in a domestic or household-like environment. This includes, for example, use:

in staff kitchens, bed and breakfast estab‐ lishments,

by guests in country houses, hotels, motels and other accommodation,

for catering and similar services in the wholesale trade.

All other types of use are not permitted.

Foreseeable misuse

The following applications are expressly forbidden:

Storing and refrigerating medicines, blood plasma, laboratory preparations or similar substances and products based on the Medical Device Directive 2007/47/EC

Use in outdoor areas with very high humidity *

Use in areas at risk of explosions

2 General safety instructions

Please keep these instructions in a safe place and pass them on to any subsequent owners.

Read these operating instructions carefully before use to ensure safe and correct use of the appliance. Follow the instructions, safety instructions and warning messages included at all times. They are important for ensuring you can operate and install the appliance safely and without any problems.

Danger for the user:

This device can be used by children and people with impaired physical, sensory or mental abilities or with a lack of experi‐ ence and knowledge provided that they are supervised or have received instruction in the safe use of this device, and about the resulting hazards. Children must not play with this appliance. Cleaning and user maintenance work must not be carried out by children without adult supervision. Chil‐ dren aged between 3 and 8 are allowed to load and unload the appliance. Children below the age of 3 must be kept away from

4 * Depending on model and options

Page 5

General safety instructions

the appliance unless they are under contin‐ uous adult supervision.

The socket must be easily accessible so that the appliance can be disconnected quickly from the electricity in an emer‐ gency. It must not be located in the area behind the appliance.

When disconnecting the appliance from the supply, always take hold of the plug. Do not pull the cable.

In the event of a fault pull out the mains plug or deactivate the fuse.

Do not damage the mains power cable. Do not operate the appliance with a defective mains power cable.

If the supply cord is damaged, it must be replaced by a special cord or assembly available from the manufacturer or its service agent.

Only customer service or other specially trained staff may repair or perform other operations on the appliance.

Only install, connect and dispose of the appliance according to the instructions.

Only use the appliance when is installed.

Special lights, such as LED lights on the appliance, are used to illuminate the inte‐ rior of the appliance and are not suitable for room lighting.

Fire hazard:

This appliance contains a refrigerant which is environmentally friendly, but flam‐ mable. Leaking refrigerant may ignite. It is hazardous for anyone other than an Authorised Service Person to service this appliance. In Queensland, the authorised Service Person MUST hold a Gas Work Authorisation for hydrocarbon refrigerants, to carry out Servicing or repairs where the gas system is being opened or charged.

The coolant used (information on the model plate) is ecofriendly but also flammable. Any leaking coolant may ignite.

•

Do not damage the refrigerant circuit pipes.

•

Do not handle ignition sources inside the appliance.

•

Do not use electrical appliances inside the appliance (e.g. steam cleaners, heaters, ice cream makers, etc.).

•

If the refrigerant leaks: remove any naked flames or ignition sources from the vicinity of the leakage point. Properly air the room. Inform customer services.

Do not store explosives or sprays using combustible propellants such as butane,

propane, pentane, etc. in the appliance. To identify these spray cans, look for the list of contents printed on the can, or a flame symbol. Gases possibly escaping may ignite due to electrical components.

Keep burning candles, lamps and other items with naked flames away from the appliance so that they do not set the appli‐ ance on fire.

WARNING: Keep ventilation openings, in the appliance enclosure or in the built-in structure, clear of obstruction.

WARNING: Do not use mechanical devices or other means to accelerate the defrosting process, other than those recommended by the manufacturer.

WARNING: Do not damage the refrigerant circuit.

Please be sure to store alcoholic drinks or other packaging containing alcohol in tightly closed containers. Any alcohol that leaks out may be ignited by electrical components.

Danger of tipping and falling:

Do not misuse the plinth, drawers, doors etc. as a step or for support. This applies particularly to children.

Danger of food poisoning:

Do not consume food which has been stored too long.

Danger of frostbite, numbness and pain:

Avoid prolonged skin contact with cold surfaces or refrigerated/frozen goods or take protective measures, e.g wear gloves.

Do not consume ice cream, water ice or ice cubes immediately and do not consume them too cold.

Danger of injury and damage:

Hot steam can lead to injury. Do not use electrical heating or steam cleaning equip‐ ment, open flames or defrosting sprays to defrost.

Do not use sharp implements to remove the ice.

Risk of crushing:

Do not hold the hinge when opening and closing the door. Fingers may get caught.

Symbols on the appliance:

* Depending on model and options 5

Page 6

Functionality of the Touch display

This symbol may be located on the compressor. It relates to the oil in the compressor and makes reference to the risk that: Swallowing or inhaling can be fatal. This advice is only relevant to recy‐ cling. There is no danger in normal opera‐ tion.

This symbol is located on the compressor and indicates the danger of flammable materials. Do not remove the sticker.

This or a similar sticker may be located on the rear of the appliance. This sticker indicates that there are vacuum insulation panels (VIP) or perlite panels in the door and/or housing. This advice is only relevant to recycling. Do not remove the sticker.

Please note the warning messages and other specific advice in the other chapters:

DANGER

WARNING indicates a hazardous situation

CAUTION indicates a hazardous situation

NOTICE indicates a hazardous situation

Note indicates useful instructions and

indicates an immediately hazardous situation which will lead to death or serious injuries if it is not avoided.

which may lead to death or serious injuries if it is not avoided.

which may lead to minor or moderate injuries if it is not avoided.

which may lead to damage to property if it is not avoided.

tips.

3 Functionality of the Touch display

You operate your appliance using the Touch display. You select appliance functions in the Touch display (hereafter referred to as display) by tapping them. If you do not perform any action on the display for 10 seconds, the display either jumps back to the higher-level menu or directly to the status display.

3.1 Navigation and symbol explanation

In the illustrations, different symbols are used to navigate the display. The following table describes these symbols.

Symbol

Description

Press the Next navigation arrow:

Navigates to the next option in the menu.

Press the Back navigation arrow:

Jumps back one option in the menu.

Symbol Description

Press the navigation arrow several times in succession:

Navigates in the menu to the desired function.

Press the Confirm symbol:

Activates/deactivates function. Opens submenu.

Press the Confirm symbol together with the back icon:

Jumps back one menu level.

Arrow with clock:

It takes more than 10 seconds for the following message to appear in the display.

Arrow with a time indication:

It takes the specified amount of time until the following message appears in the display.

“Open Settings menu” symbol:

Navigates to the Settings menu and opens the settings menu.

If necessary: Navigate to the desired function in the Settings menu.

(see 3.2.1 Opening the Settings menu)

“Open Advanced menu” symbol:

Navigates to the Advanced menu and opens the advanced menu.

If necessary: Navigate to the desired function in the Advanced menu.

(see 3.2.2 Opening the Advanced menu)

No action for 10seconds

Opening door and closing it again

Note: Illustrations of the display are shown in the English version.

If you do not perform any action on the display for 10 seconds, the display either jumps back to the higher-level menu or directly to the status display.

If you open the door and immedi‐ ately close it again, the display jumps directly back to the status display.

3.2 Menus

The appliance functions can be found in various menus.

Main menu When you switch the appliance on, you are

Description

automatically in the main menu. From here you can navigate to the most

important appliance functions, to the Settings menu and to the Advanced menu.

6 * Depending on model and options

Page 7

Putting into operation

Menu Description

The Settings menu contains additional appliance functions for setting up your appliance.

(see 3.2.1 Opening the Settings menu)

Settings menu

Advanced menu

The advanced menu contains special appli‐ ance functions for setting up your appli‐ ance. Access to the Advanced menu is protected by the numerical code 151.

(see 3.2.2 Opening the Advanced menu)

3.2.1 Opening the Settings menu

Fig. 2 Example illustration

Carry out action steps according to the illustration.

Settings menu is open.

If necessary: Navigate to the desired function.

3.2.2 Opening the Advanced menu

Fig.3

4 Putting into operation

4.1 Switching on appliance (first use)

Make sure that the following requirements are fulfilled:

The appliance is properly installed and connected

according to the installation instructions. All adhesive strips, adhesive and protective films and

transport locks are removed from inside and on the appli‐ ance. All marketing leaflets are removed from the drawers.

You are familiar with the functionality of the Touch

display. (see3 Functionality of the Touch display)

Switch on the appliance using the Touch display:

If the display is in sleep mode: Briefly touch the display.

Carry out action steps according to the illustration.

Fig. 5 Example illustration

The status display appears.

The appliance cools to the temperature set at the factory.

The appliance starts in demo mode (status display with DEMO appears): If the appliance starts in demo mode, you can deactivate demo mode within the next 5 minutes. (seeDemo mode)

More information:

Start the IceMaker for the first time. (see 4.2 Starting the

IceMaker for the first time*) * Start the SmartDevice for the first time. (see 1.3 Smart‐

Device) and (seeWiFi)

Fig. 4 Example illustration, access with numerical code 151

Carry out action steps according to the illustration.

The expanded menu is open.

If necessary: Navigate to the desired function.

3.3 Sleep mode

If you do not touch the display for 1 minute, the display switches to sleep mode. In sleep mode, the display bright‐ ness is dimmed.

3.3.1 Ending sleep mode

Press any navigation key.

Sleep mode is ended.

Note

The manufacturer recommends:

Stock with food: Wait for around 6 hours until the set temperature is reached.

Store frozen foods at -18°C or colder.

Observe the notes on storing food. (see 5.1 Information regarding storage)

Note

Accessories can be purchased from the LiebherrHausgeräte store at home.liebherr.com/shop/de/deu/

zubehor.html.

4.2 Starting the IceMaker for the first time*

If your appliance is equipped with IceMaker, you must clean the IceMaker before using it for the first time.

Make sure that the following requirements are fulfilled:

The appliance is properly installed and connected.

Clean the IceMaker and water tank. (see 9.4.5 Cleaning the IceMaker*) *

Fill the water tank. (see 8.10.1 Fill the water tank*) *

* Depending on model and options 7

Page 8

Storage

5 Storage

5.1 Information regarding storage

Risk of fire

Note

The energy consumption increases and the cooling power goes down if ventilation is not sufficient.

Observe the following specifications for storage:

Note

Failure to follow these guidelines can lead to foodstuffs spoiling.

5.2 Fridge compartment

WARNING

Do not use any electrical appliances in the food area of the appliance unless recommended by the manufacturer.

Always keep air slots clear.

In the freezer compartment: Package food properly. Package or cover foods that readily take on or give off

odours or taste in closed containers. Package raw meat or fish in clean, closed containers. This will prevent meat or fish from touching or dripping onto other food. Keep liquids in closed containers.

Leave space between goods to ensure good air circula‐ tion. Store food according to the instructions on the pack‐ aging. Always observe the best-before date indicated on the packaging.

5.4.1 Freezing food

Freezing quantity

The maximum amount of fresh food that you can freeze within 24 hours is specified on the type plate (see 10.5 Model plate) under “Freezing capacity ... kg/24h”.

To ensure that food quickly freezes through, adhere to the following quantities per package:

Fruit and vegetables up to 1 kg

Meat up to 2.5 kg

Freezing food using SuperFrost

Depending on the quantity to be frozen, you can activate SuperFrost before freezing in order to achieve lower freezing temperatures. (see SuperFrost)

Activate SuperFrost if the amount of food you have to freeze is more than approx. 2 kg.

The time at which you activate SuperFrost depends on the amount of food you have to freeze:

Freezing quan‐ tity

Small amount of food to freeze

Maximum amount of food to freeze

Arranging your food properly

Time at which you should activate SuperFrost

Activate SuperFrost about 6 hours before freezing.

You can place the food in the freezer as soon as the appliance automatically deactivates SuperFrost.

Activate SuperFrost about 24 hours before freezing.

You can place the food in the freezer as soon as the appliance automatically deactivates SuperFrost.

The air circulation in the appliance creates different temper‐ ature zones. You will find the different temperature zones in the appliance and equipment overview. (see 1.2 Overview of the appliance and equipment)

5.2.1 Arranging your food properly

Upper area and door: Store butter, cheese, tinned food and tubes.

Coldest temperature zone: Store perishable foods such as pre-cooked meals, meat and lunch meats.

Bottom shelf: Store raw meat or fish.

5.3 EasyFresh

EasyFresh is great for non-packaged foods, such as fruit and vegetables.

The humidity in the compartment depends on the moisture content of the chilled goods placed in it, and also depends on how often the compartment is opened. You can regulate the humidity level. (see8.8 Adjusting the moisture levels)

5.3.1 Arranging your food properly

Store unpackaged fruit and vegetables. If the humidity is too high:

Regulate the humidity. (see 8.8 Adjusting the moisture levels)

Risk of injury from broken glass! Bottles and cans with beverages can burst during freezing. This applies in particular to carbonated beverages.

Only freeze bottles and cans with beverages if you have activated the BottleTimer function in the SmartDevice app.

Freezing quantity Arranging your food properly

Small amount of food to freeze

Maximum amount of food to freeze

Distribute packaged groceries throughout all drawers.

If possible, place groceries at the back of the drawer near the rear wall.

Distribute packaged groceries throughout all drawers.

If possible, place groceries at the back of the drawer near the rear wall.

5.4.2 Defrosting food

CAUTION

Risk of food poisoning!

u u

WARNING

Do not re-freeze thawed food. Use defrosted foodstuff as soon as possible.

5.4 Freezer compartment

Here, a dry, frosty storage climate is created at -18 °C. The frosty storage climate is suitable for storing frozen food for several months, for making ice cubes or freezing fresh food.

You can defrost food in several ways:

In the fridge compartment

In the microwave

8 * Depending on model and options

Page 9

In the oven/fan-assisted oven

At room temperature

Take out only as much food as necessary.

5.5 Storage times

Refer to the specified storage times as a guide. In the case of foods with a minimum shelf life, the date

indicated on the packaging still applies.

5.5.1 Fridge section

Always follow the best-before date stated on the packaging.

Saving energy

7 Controls

7.1 Controls and displays

7.1.1 Status display

5.5.2 Freezer compartment

Recommended storage period for various types of food

Ice cream at -18°C 2 to 6 months

Sausages, ham at -18°C 2 to 3 months

Bread, baked goods at -18°C 2 to 6 months

Game, pork at -18°C 6 to 9 months

Fatty fish at -18°C 2 to 6 months

Lean fish at -18°C 6 to 8 months

Cheese at -18°C 2 to 6 months

Poultry, beef at -18°C 6 to 12 months

Vegetables, fruit at -18°C 6 to 12 months

6 Saving energy

Pay attention to good ventilation. Do not cover ventilation

holes or grids. Always keep the fan air slits clear.

Do not install the appliance in direct sunlight or near

radiators or similar sources of heat. If the appliance is installed directly next to an oven,

the energy consumption may increase slightly. This is dependent on the service life and usage intensity of the oven. Energy consumption depends on the installation condi‐

tions, e.g. the ambient temperature (see 1.4 Appliance range of use) . A warmer ambient temperature can increase the energy consumption. Open the appliance for as short a time as possible.

The lower the temperature is set the higher the energy

consumption. Sort your food: home.liebherr.com/food.

Keep all food properly packed and covered. This prevents

frost from forming. Only take food out for as long as necessary so that it

doesn’t warm up too much. Inserting warm food: allow to cool down to room temper‐

ature first. Thaw frozen food in the refrigerator.

For longer periods of absence, use HolidayMode

(seeHolidayMode) .

Fig.6

Temperature display of

(1)

the fridge section

The Status display shows the set temperature and is the home display. From there, you can navigate to the options and settings.

(2) Freezer compartment

temperature display

7.1.2 Display symbols

Display symbols provide information on the current appli‐ ance status:

Symbol

Appliance status

Standby

The appliance or temperature zone is switched off.

Flashing number

Appliance is working. Temperature flashes until the set value is reached.

Flashing symbol

Appliance is working. Setting is made.

Bar grows steadily

Function is activated.

7.2 Appliance functions

7.2.1 Notes on the appliance functions

The appliance functions are set at the factory so that your appliance is fully functional.

Before you alter, activate or deactivate the device functions, make sure that the following requirements are met:

You have read and understood the descriptions of how

the display works. (see 3 Functionality of the Touch display) You have familiarised yourself with the operating and

display elements of your appliance.

Switching the appliance off and on

Use this function to switch the entire appliance off and on.

Switching off the appliance

When you switch the appliance off, then the previously saved settings are saved.

Make sure that the following requirements are fulfilled:

Handling instructions (see 11 Shutting down) are carried

out.

* Depending on model and options 9

Page 10

Controls

Fig.7

Fig.8

Carry out action steps according to the illustration.

Appliance is switched off.

The standby symbol appears in the display.

Display turns black.

Switching on the appliance

If the display is in sleep mode:

Press any navigation key.

Fig. 10 Example illustration

Carry out action steps according to the illustration.

Refrigerator compartment is switched off.

Switching the fridge compartment on

Fig. 9 Example illustration

Carry out action steps according to the illustration. When the appliance starts in demo mode:

Deactivating demo mode. (see Deactivating demo mode)

The appliance is switched on.

Previous settings are restored.

The appliance cools to the target temperature set.

Switching temperature zone off and on

You can switch temperature zones of the appliance off inde‐ pendently.

Application:

Cleaning

Defrosting

Switching the fridge compartment off

Make sure that the following requirements are fulfilled:

Refrigerator compartment has been emptied.

Fig. 11 Example illustration

Carry out action steps according to the illustration.

Refrigerator compartment is switched on.

The appliance cools to the last set temperature.

WiFi

Use this function to connect your appliance to WiFi. You can then operate it via the SmartDevice app on a mobile device. You can also use this function to disconnect or reset the WiFi connection.

To connect your device to WiFi, you need the SmartDevi‐ ceBox.

More information on the SmartDevice: (see 1.3 SmartDevice)

Note

The SmartDevice function is not available in the following countries: Russia, Belarus, Kazakhstan.

You cannot use the SmartDeviceBox.

Establishing the WiFi connection for the first time

Make sure that the following requirements are fulfilled:

You have purchased and inserted a SmartDeviceBox.

(see 1.3 SmartDevice) You have installed the SmartDevice app (see

apps.home.liebherr.com).

Registration in the SmartDevice app is completed.

Fig.12

10 * Depending on model and options

Page 11

Fig.13

Carry out action steps according to the illustration.

Connection is established.

Disconnecting from the WiFi

Fig. 14

Controls

Showing information about the WiFi connection

Fig. 18

Fig. 19

Carry out action steps according to the illustration.

Fig. 15

Carry out action steps according to the illustration.

There is no connection.

Resetting the WiFi connection

Fig. 16

Temperature

Use this function to set the temperature.

The temperature depends on the following factors:

Frequency of door opening

Duration of door opening

Room temperature of the installation site

Type, temperature and quantity of food

Temperature zone

Fridge section

Freezer section

Setting the temperature in the fridge section

Factory-set temperature

5°C 4°C

-18°C -18°C

Recommended setting

Fig.17

Carry out action steps according to the illustration.

WiFi connection and other WiFi settings are reset to factory settings.

Fig. 20 Example illustration

Carry out action steps according to the illustration.

Temperature is set.

* Depending on model and options 11

Page 12

Controls

Setting the temperature in the freezer section

Fig. 21 Example illustration

Carry out action steps according to the illustration.

Temperature is set.

You can remove the rear wall for cleaning. (see 9.4.3 Cleaning the dry rear panel*) In order to operate the appliance without a rear wall, you must set the D-Value to D2.

Note

The declared energy consumption was determined without a dry rear wall. The appliance is fully functional with a dry rear wall but its energy consumption will be slightly higher. Liebherr recommends:

Operate the appliance with a dry rear wall in order to prevent visible condensate and the food freezing.

Setting the D-Value

Fig. 24

Temperature unit

Use this function to set the temperature unit. You can set degrees Celsius or degrees Fahrenheit as the temperature unit.

Setting the temperature unit

Fig.22

Fig. 23 Example illustration: Switch from degreesCelsius to degrees Fahrenheit.

Carry out action steps according to the illustration.

The temperature unit is set.

Fig. 25 Example illustration: Switch from D1 to D2.

Carry out action steps according to the illustration.

The D-Value is set.

SuperCool

You can use this function to activate or deactivate Super‐ Cool. If SuperCool is activated, then the appliance increases the cooling capacity. It allows you to achieve lower cooling temperatures. You can activate SuperCool when you would like to cool a large quantity of food quickly.

If the function is active, the appliance operates at higher power. As a result, the appliance's operating noise may be temporarily louder and energy consumption will increase.

Activating SuperCool

Time for activation of the function:

When you would like to store fresh food in the fridge

section: Activate the function when inserting food.

Fig. 26

D-Value*

Use this function to set the D-Value. The D-Value specifies whether you are operating your fridge

section with a dry rear wall or without a dry rear wall. The rear wall is installed in the appliance as delivered. The DValue is pre-set to D1.

12 * Depending on model and options

Fig.27

Carry out action steps according to the illustration.

SuperCool is activated.

Page 13

Controls

Deactivating SuperCool

SuperCool is deactivated automatically after 18 hours. However, you can also deactivate SuperCool manually at any time:

Fig.28

Fig.29

Carry out action steps according to the illustration.

SuperCool is deactivated.

The appliance continues to run in normal mode.

The appliance cools to the temperature set previously.

PowerCool

You can use this function to activate or deactivate Power‐ Cool. PowerCool ensures optimised temperature layers for cooling your food.

The function applies to the fridge section.

Application:

At higher room temperatures (as of approx.35°C)

At high humidity, e.g. on summer days

When storing moist food, in order to prevent condensate

forming in the interior

Note

The fan may also run even if the function is deactivated. It therefore ensures even temperature distribution in the appliance.

Deactivating PowerCool

Fig.32

Fig.33

Carry out action steps according to the illustration.

PowerCool is deactivated.

SuperFrost

You can use this function to activate or deactivate SuperFrost. If SuperFrost is activated, then the appliance increases the freezing capacity. It allows you to achieve lower freezing temperatures.

Application:

Quickly freeze fresh food through to the core.

This ensures that the nutrition, appearance and taste of frozen food is maintained. Increase the cold reserve in stored frozen food before

defrosting the appliance.

If the function is active, the appliance operates at higher power. As a result, the appliance's operating noise may be temporarily louder and energy consumption will increase.

Activating SuperFrost

Make sure that the following requirements are fulfilled:

Freezing quantity and time for activation of SuperFrost

are taken into account. (see Freezing food using SuperFrost)

If the function is active, the device operates at higher power. As a result, the device's operating noise may be temporarily louder and energy consumption will increase.

Activating PowerCool

Fig.30

Fig.31

Carry out action steps according to the illustration.

PowerCool is activated.

Fig.34

Fig.35

Carry out action steps according to the illustration.

SuperFrost is activated.

Deactivating SuperFrost

SuperFrost is automatically deactivated after 56 to 72 hours depending on the quantity of the food inserted. However, you can also deactivate SuperFrost manually at any time:

* Depending on model and options 13

Page 14

Controls

Fig.36

Fig.37

Carry out action steps according to the illustration.

SuperFrost is deactivated.

The appliance continues to run in normal mode.

The appliance cools to the temperature set previously.

Start defrosting cycle

Use this function to start the automatic defrosting cycle manually if it does not start automatically in the event of a fault.

Starting defrosting cycle

Fig.38

Fig. 39

Carry out action steps according to the illustration.

Defrosting cycle has started: Icon flashes until defrosting cycle is automatically completed.

When defrosting cycle is finished: The device continues to run in normal mode.

Cancelling defrosting cycle

The defrosting cycle will be stopped automatically. However, you can also cancel the defrosting cycle at any time during the defrosting process:

You can adjust all listed functions individually and flexibly. When you deactivate PartyMode, all changes are discarded.

If the function is active, the device operates at higher power. As a result, the device's operating noise may be temporarily louder and energy consumption will increase.

Activating PartyMode

Make sure that the following requirements are fulfilled:*

The IceMaker has been started. (see 4.2 Starting the

IceMaker for the first time*)

Fig. 41

Fig. 42

Carry out action steps according to the illustration.

PartyMode and the associated functions are activated.

The current temperature flashes until the target tempera‐ ture is reached.

Deactivating PartyMode

The PartyMode is automatically deactivated after 24 seconds. However, you can also deactivate PartyMode manually at any time:

Fig.43

Fig.44

Carry out action steps according to the illustration.

PartyMode is deactivated.

Fig.40

Carry out action steps according to the illustration.

Defrosting cycle is cancelled.

The device continues to run in normal mode.

The appliance cools to the temperature set previously: The current temperature flashes until the target tempera‐ ture is reached.

HolidayMode

PartyMode

You can use this function to activate or deactivate Party‐ Mode. PartyMode activates various functions that are useful for a party.

PartyMode activates the following functions:

SuperCool

SuperFrost

IceMaker (see IceMaker *) and MaxIce (see MaxIce*) *

14 * Depending on model and options

You can use this function to activate or deactivate Holiday‐ Mode. If you activate HolidayMode, the fridge section is set to 15 °C. This saves you energy during longer periods of absence and prevents bad odours and growth of mould.

Appliance status when HolidayMode is active

Fridge section cools to 15°C.

EasyFresh cools to 15°C.

The set temperature is maintained in the freezer section.

Page 15

Controls

Appliance status when HolidayMode is active

PartyMode is deactivated.

SuperCool is deactivated.

PowerCool is deactivated.

Activating HolidayMode

Empty the fridge section completely.

Empty EasyFresh completely.

Fig.45

Fig.46

Carry out action steps according to the illustration.

HolidayMode is activated.

Temperature display shows HolidayMode symbol.

Deactivating HolidayMode

Device status when SabbathMode is active

Reminders are not implemented. The set time interval stops.

Reminders and warnings are not displayed.

There is no door alarm.

There is no temperature alarm.

The IceMaker is switched off.*

The defrosting cycle operates only for the specified time, without considering the device consumption.

After a power failure, the device returns to SabbathMode.

Device status

Note

This appliance has certification from the “Institute for Science and Halacha”. (www.machonhalacha.co.il)

You can find a list of STAR-K-certified appliances at

www.star-k.org/appliances.

Activating SabbathMode

WARNING

Danger of food poisoning from spoiled food! If you have SabbathMode activated and a power failure occurs, no message appears in the status display about the power failure. Once the power is restored, the appliance continues to operate in SabbathMode. The power failure may mean that food spoils and the consumption of this food could lead to food poisoning. After a power failure:

Do not consume food that was frozen and has thawed out.

Fig. 47

Fig.48

Carry out action steps according to the illustration.

HolidayMode is deactivated.

The appliance cools to the temperature set previously.

SabbathMode

You can use this function to activate or deactivate SabbathMode. If you activate this function, some electronic functions are switched off. As a result, your device meets the religious requirements for Jewish holidays such as Sabbath and complies with STAR-K Kosher certification.

Device status when SabbathMode is active

The status display shows SabbathMode permanently.

All functions on the display are locked except for the Deactivate SabbathMode function.

Active functions remain active.

The display remains bright when you close the door.

The interior lighting is deactivated.

Fig. 49

Fig.50

Carry out action steps according to the illustration.

SabbathMode is activated.

The status display shows SabbathMode permanently.

Deactivating SabbathMode

The SabbathMode is automatically deactivated after 80 hours. However, you can also deactivate SabbathMode manually at any time:

Fig.51

Carry out action steps according to the illustration.

SabbathMode is deactivated.

* Depending on model and options 15

Page 16

Controls

E-Saver

You can use this function to activate or deactivate Energy saving mode. If energy saving mode is activated, the energy consumption decreases and the temperature in the device increases. The food remains fresh, but the shelf life is short‐ ened.

Temperature zone Recommended

setting (see Setting the temperature in the fridge section)

4°C 7°C

Fridge section

-18°C -16°C

Freezer section

Temperatures

Activating E-Saver

Fig.52

Fig.53

Carry out action steps according to the illustration.

Energy saving mode is activated.

Deactivating E-Saver

Temperature with active ESaver

Further information on the IceMaker water supply:

More information on cleaning the lines of the IceMaker:

If the function is active, the device operates at higher power. As a result, the device's operating noise may be temporarily louder and energy consumption will increase.

Activating IceMaker

Make sure that the following requirements are fulfilled:

IceMaker is put into operation. (see 8.10 IceMaker*)

Water tank is filled. (see 8.10.1 Fill the water tank*) *

Fig.56

Fig.57

Carry out action steps according to the illustration.

IceMaker is activated. It can take up to 24 hours for the IceMaker to produce the first ice cubes.

Deactivating IceMaker

Make sure that the following requirements are fulfilled:*

Water tank is empty. (see 8.10 IceMaker*)

(see IceMaker water supply*)

(see TubeClean *)

Fig.54

Fig.55

Carry out action steps according to the illustration.

Energy saving mode is deactivated.

IceMaker *

You can activate or deactivate ice cube production with this function.

More information on the number of ice cubes:

More information on increasing the number of ice cubes:

(see 10.1 Technical specifications)

(see MaxIce*)

Fig.58

Fig. 59

Carry out action steps according to the illustration.

IceMaker is deactivated.

If ice cubes are currently being made, the system completes the process.

The IceMaker goes off automatically.

IceMaker water supply*

Use this function to set the IceMaker water supply. The IceMaker water supply regulates the amount of water supplied. The IceMaker water supply can be changed if the water supply does not match the water pressure and the ice cube size dispensed.

The IceMaker water supply is pre-set to value 5 as delivered. A value from 1 (smallest inflow volume) to 8 (largest inflow volume) can be selected.

16 * Depending on model and options

Page 17

Setting the IceMaker water supply

Make sure that the following requirements are fulfilled:

The IceMaker has been started. (see 4.2 Starting the

IceMaker for the first time*) IceMaker is activated. (see IceMaker *)

Fig.60

Fig. 61 Example illustration: Switch from value 5 to value6.

Carry out action steps according to the illustration.

IceMaker water supply is set.

MaxIce*

Use this function to increase the number of ice cubes in the IceMaker.

Controls

Fig.64

Fig.65

Carry out action steps according to the illustration.

MaxIce is deactivated.

TubeClean *

You can use this function to activate or deactivate Tube‐ Clean. If TubeClean is activated, it cleans the IceMaker lines.

Activating TubeClean

Make sure that the following requirements are fulfilled:

IceMaker cleaning is prepared. (see 9.4.5 Cleaning the

IceMaker*) Empty container with a capacity of 1.5 l and with a

maximum height of 10cm is ready.

Place the container in the drawer under the IceMaker.

More information on the number of ice cubes:

Activating MaxIce

If you activate MaxIce and have not previously activated the IceMaker (see IceMaker *) function, then by pressing MaxIce you can also automatically activate the IceMaker function.

If you have not yet activated the IceMaker function, make sure that the following requirements are met:

IceMaker is put into operation. (see 8.10 IceMaker*)

Water tank is filled. (see 8.10.1 Fill the water tank*) *

Fig. 62

(see 10.1 Technical specifi‐ cations)

Fig.66

Fig. 67

Carry out action steps according to the illustration.

TubeClean is activated.

The cleaning process has started: Icon flashes until the cleaning process is automatically completed after 60 minutes.

When the cleaning process is complete: The device continues to run in normal mode.

Deactivating TubeClean

TubeClean is automatically ended after 60 minutes. However, TubeClean can also be deactivated at any time during the cleaning process:

Fig.63

Carry out action steps according to the illustration.

MaxIce is activated.

If you have not activated the IceMaker function before: IceMaker is activated.

Deactivating MaxIce

If you deactivate MaxIce, then the IceMaker function is still activated.

Fig.68

Carry out action steps according to the illustration.

TubeClean is deactivated: Cleaning process is aborted.

The device continues to run in normal mode.

* Depending on model and options 17

Page 18

Controls

CleaningMode

You can use this function to activate or deactivate Cleaning‐ Mode. CleaningMode enables the appliance to be cleaned conveniently.

This setting applies to the fridge section.

Application:

Clean the fridge section. (see 9.4Cleaning the appliance)

Device status when CleaningMode is active

The status display shows CleaningMode permanently.

The fridge section is switched off.

Interior lighting is activated.

The reminders and warnings are not displayed. No signal tone sounds.

Device status

Activating CleaningMode

Fig. 69

Fig.70

Carry out action steps according to the illustration.

CleaningMode is activated.

The status display shows CleaningMode permanently.

Deactivating CleaningMode

CleaningMode is deactivated automatically after 60 minutes. However, you can also deactivate Cleaning‐ Mode manually at any time:

Setting the brightness

Fig.72

Fig. 73 Example illustration: Switch from 80 % to 60%.

Carry out action steps according to the illustration.

The brightness is set.

Door alarm

Use this function to activate or deactivate the door alarm. The door alarm sounds if the door is open for too long. The door alarm is activated on delivery. You can set how long the door may be open before the door alarm sounds.

The following values can be set:

1 minute

2 minutes

3 minutes

Off

Setting the door alarm

Fig. 74

Fig.71

Carry out action steps according to the illustration.

CleaningMode is deactivated.

The appliance cools to the temperature set previously.

Display brightness

Use this function to set the display brightness in stages.

You can select the following brightness levels:

40%

60%

80%

100 % (pre-setting)

Fig. 75 Example illustration: Change door alarm from 1 minute to 3 minutes.

Carry out action steps according to the illustration.

The door alarm is set.

Deactivating the door alarm

Fig.77

18 * Depending on model and options

Page 19

Fig.78

Displ. Lock

Carry out action steps according to the illustration.

The door alarm is deactivated.

Input lock

You can use this function to activate or deactivate the input lock. The input lock prevents the appliance being operated accidentally, e.g. by children.

Application:

Avoid unintentional modification of functions.

Avoid unintentional switching off of the device.

Avoid unintentional temperature setting.

Activating the input lock

If you activate the input lock, you can continue to navigate in the menus but you cannot select or change other func‐ tions.

Controls

Device information

Use this function to indicate the model name, index, serial number and service number of your device. You will need the device information when you contact customer service. (see 10.4 Customer Service)

This function also opens the Advanced menu. (see 3 Func‐ tionality of the Touch display)

Indicating the device information

Fig.83

Fig.84

Carry out action steps according to the illustration.

Display indicates device information.

Software

Use this function to indicate the software version of your device.

Indicating the software version

Fig.79

Fig.80

Carry out action steps according to the illustration.

Input lock is activated.

Deactivating the input lock

Fig.81

Fig.82

Carry out action steps according to the illustration.

Input lock is deactivated.

Fig.85

Fig.86

Carry out action steps according to the illustration.

Display indicates software version.

Reminder

Use this function to activate or deactivate the reminders. The function is activated on delivery.

If the function is activated, the following reminders will appear:

Replace the FreshAir activated carbon filter (see Replace

the FreshAir activated carbon filter)

Activating the reminder

Fig. 87

* Depending on model and options 19

Page 20

Controls

Fig.88

Carry out action steps according to the illustration.

Reminder is activated.

Deactivating the reminder

Fig.89

Fig.90

Carry out action steps according to the illustration.

Reminder is deactivated.

Demo mode

Demo mode is a special feature for dealers who want to demonstrate appliance features. If you activate demo mode, all refrigeration functions are deactivated.

If you switch on your appliance and “Demo” appears in the status display, then demo mode is already activated.

If you activate and then deactivate demo mode, the appli‐ ance will be reset to factory defaults. (see Resetting to factory settings)

Activating demo mode

Fig.92

Carry out action steps according to the illustration.

Demo mode is activated.

Appliance is switched off.

Switch on the appliance. (see 4.1 Switching on appliance (first use))

“DEMO” appears in the status display.

Deactivating demo mode

Fig. 93

Fig. 91

20 * Depending on model and options

Page 21

Controls

Fig. 94

Carry out action steps according to the illustration.

Demo mode is deactivated.

Appliance is switched off.

Switch on the appliance. (see 4.1 Switching on appliance (first use))

Appliance is reset to factory settings.

Resetting to factory settings

Use this function to reset all settings to factory defaults. All settings you have made so far are reset to their original settings.

Performing a reset

Fig.95

Message Cause Exit the

message

The message appears if the freezing temper‐ ature has risen due to a power failure.

Power outage alarm

The message appears if the freezing temper‐ ature does not corre‐ spond to the set temperature.

Temperature alarm

The message appears if there is an appliance error. A component of the appliance has a fault.

Error

Carry out action steps (see Power outage alarm) .

Carry out action steps (see Tempera‐ ture alarm) .

Carry out action steps (see Error) .

7.3.2 Ending warnings

Door alarm

Fig.96

Carry out action steps according to the illustration.

Device is reset.

Device is switched off.

Restart the device. (see 4.1 Switching on appliance (first use))

7.3 Messages

There are two categories of messages:

Category

Warning Warnings appear in the event of a door alarm or

Reminder Reminders remind you of general processes.

7.3.1 Overview of warnings

Behaviour of the appliance in the event of warnings:

Warning appears on the display.

The alarm tone sounds at an ever-increasing volume.

The interior lighting pulsates for some warnings.

Message

Door alarm

Importance

malfunction. Simple warnings can be cancelled by yourself.

In the event of serious malfunctions, you must contact customer service. (see 10.4 Customer Service)

You can carry out these operations to end the message.

Cause Exit the

message

The message appears if the door is open for too long.

Carry out action steps (see Door alarm) .

Fig. 97 Example illustration

Carry out action steps according to the illustration.

-or-

Close the door.

The display returns to the status indicator.

You can set how long the door may be open before the door alarm sounds. (see Setting the door alarm)

Power outage alarm

When the power failure has ended, the appliance cools down to the previously set target temperature.

Fig. 98 Example illustration

Press the confirmation symbol.

Warmest freezing temperature is displayed.

If the freezing temperature was below -9 °C: Food can still be consumed. If the freezing temperature has risen above -9°C:

Check the food.

Press the confirmation symbol.

The display returns to the status indicator: Current temperature and target temperature are displayed.

* Depending on model and options 21

Page 22

Controls

Temperature alarm

Temperature differences can be caused by:

You have put in warm, fresh food.

Too much warm air has got in while you were sorting out

the freezer or removing items. There has been a longer power failure.

The appliance is faulty.

Eliminate causes.

The appliance cools to the target temperature set previ‐ ously.

Fig. 99 Example illustration

Press the confirmation symbol.

Warmest freezing temperature is displayed.

If the freezing temperature was below -9 °C: Food can still be consumed. If the freezing temperature has risen above -9°C:

Check the food.

Press the confirmation symbol.

The display returns to the status indicator: Current temperature and target temperature are displayed.

Error

Message Cause Exit the message

Insert the IceMaker drawer*

Replace the Fres‐ hAir activated carbon filter

The message appears if the IceMaker is acti‐ vated but the IceMaker drawer is open.*

The message appears when the activated carbon filter needs to be replaced.

Carry out action steps (see Insert the IceMaker drawer*) .*

Carry out action steps (see Replace the FreshAir activated carbon filter) .

7.3.4 Ending reminders

Fill the water tank*

Fig. 101 Example illustration

Press the confirmation symbol.

Fill the water tank.

-or-

Deactivate IceMaker. (see IceMaker *)

When the water tank is full and the IceMaker is activated: IceMaker produces ice cubes.

Fig. 100 Example illustration

Press the confirmation symbol.

Error code is displayed.

Note the error code.

Press the confirmation symbol.

The display returns to the status indicator.

Contact Customer Service. (see 10.4 Customer Service)

7.3.3 Overview of reminders

Behaviour of the appliance during reminders:

Reminder appears on the display.

Alarm tone sounds.

The interior lighting pulsates for some reminders.

Message

Fill the water tank*

Cause Exit the message

The message appears if the IceMaker is acti‐ vated but there is not enough water in the water tank.*

Carry out action steps (see Fill the water tank*) .*

Fig. 102

If you have filled the water tank and the reminder persists:

Check whether the float Fig. 102(1) is jammed. If the float is jammed:

Empty the water tank.

Move the float with a thin tool, e. g. a cotton bud. If you have checked the float and the reminder persists:

Contact Customer Service. (see 10.4 Customer Service)

Insert the IceMaker drawer*

Fig. 103 Example illustration

Press the confirmation symbol.

22 * Depending on model and options

Page 23

Insert the IceMaker drawer.

-or-

Deactivate IceMaker. (see IceMaker *)

If IceMaker drawer is inserted and IceMaker is activated: IceMaker produces ice cubes.

Replace the FreshAir activated carbon filter

Liebherr recommends: Replace the FreshAir activated carbon filter every 6 months.

Note

FreshAir activated charcoal filters can be purchased from the Liebherr-Hausgeräte store at home.liebherr.com/

shop/de/deu/zubehor.html.

Fig. 106

Disassemble the door rack.

8.2 Shelves

Features

Fig. 104 Example illustration

Press the confirmation symbol.

Replace the activated carbon filter. (see 9.1 FreshAir carbon filter)

Activated carbon filter ensures optimum air quality in the cooling unit.

Reminder appears again after 6 months.

If you no longer wish to receive this reminder, you can deac‐ tivate it. (see Deactivating the reminder)

8 Features

8.1 Door rack

8.1.1 Move/remove the door rack

8.2.1 Adjusting/removing the shelves

The shelves are prevented from being pulled out acciden‐ tally by pull out stops.

Fig. 107

Lift the shelf and pull forward.

Line up the side runner.

Adjust the height of the shelf: Lift or lower it to the desired height and slide it in.

-or-

Fig. 105

Slide the rack upwards.

Pull forwards.

Re-insert it in reverse order.

8.1.2 Disassembling the door rack

The door rack can be taken apart for cleaning.

Fig. 108

Remove the shelf completely: Pull it out to the front.

Easier removal: Set the shelf at an angle.

Insert the shelf again: Slide it in all the way.

The pull-out stoppers point downwards.

The pull-out stoppers are behind the front support.

You can also remove the shelf above the EasyFresh compartments.

Fig. 109

Removing the shelf:

* Depending on model and options 23

Page 24

Features

If the IceMaker (see 8.10 IceMaker*) has been removed:*

Lift the shelf at the front and back.*

Pull it out towards you. Do not store any goods on the compartment cover below! Inserting the shelf:

Place the shelf at an angle, sloping down towards the

back.

The pull-out stoppers point downwards.

Slide the shelf into place.

8.2.2 Dismantling the shelves

The shelves can be dismantled for cleaning.

Fig. 110

Dismantling the shelf.

8.3 Dividing shelf*

8.3.1 Using the dividing shelf

The shelves are prevented from being pulled out acciden‐ tally by pull out stops.

8.4 VarioSafe *

The VarioSafe offers space in the refrigerator compartment for small groceries, packages, tubes and jars, for example.

Fig.113

VarioSafe drawer (3) Recesses on the left and

(1)

(2) Side panels with ribs

for VarioSafe drawer

8.4.1 Inserting the VarioSafe

right side panel

(4) Stop edge

Fig.111

Push the dividing shelf underneath as shown.

Fig.112

Adjusting the height:

Pull the glass panels out Fig.112(1) from the front, one at

a time.

Release the support rails and click in at the height you

want.

Slide in the glass panels one at a time.

Flat pull-out stoppers at the front, right behind the

support rails.

High pull-out stoppers at the back.

Using both shelves:

Hold the glass panel with one hand and pull it to the

front.

The glass panel Fig.112(1) and trim strip are at the front.

The stops Fig.112(3) point down.

Fig. 114

Insert the VarioSafe into the fridge section at an angle Fig. 114 (1) until the recesses in the side Fig. 114 (2) of the VarioSafe are at the level of the support rib in the fridge section.

Fig. 115

Set VarioSafe straight. Fig. 115(1)

24 * Depending on model and options

Page 25

Features

Lift VarioSafe at the front. Fig. 115(2)

Fig. 116

Lift VarioSafe up toward the front.

Push VarioSafe in to the rear.

Lower VarioSafe.

VarioSafe audibly engages.

VarioSafe is inserted.

8.4.2 Repositioning the VarioSafe

You can move the VarioSafe as a whole in the refrigerator compartment.

Move VarioSafe up or down in the refrigerator compart‐ ment until the desired height is reached. Fig. 118(2)

Fig. 119

Lift VarioSafe at the front.

Push VarioSafe in to the rear.

VarioSafe audibly engages.

VarioSafe is offset in height.

8.4.3 Moving the VarioSafe drawer

You can use the VarioSafe drawer at two different heights. If you would like to store taller foodstuffs in the VarioSafe drawer, slide the VarioSafe drawer in on the bottom rib. If you would like to store smaller foodstuffs in the VarioSafe drawer, slide the VarioSafe drawer in on the top rib.

Fig.117

Lift VarioSafe at the front.

Fig.120

Pull out the VarioSafe drawer as far as it will go.

Lift the VarioSafe drawer up at the front.

Remove the VarioSafe drawer to the front.

Fig.121

Lift the VarioSafe drawer up at the front.

Fig. 118

Pull VarioSafe forwards until the recesses in the side of the VarioSafe are at the level of the support rib in the refrigerator compartment. Fig. 118(1)

Place the VarioSafe drawer behind the stoppers on desired rib Fig.121(1) or Fig.121(2).

VarioSafe drawer is offset in height.

* Depending on model and options 25

Page 26

Features

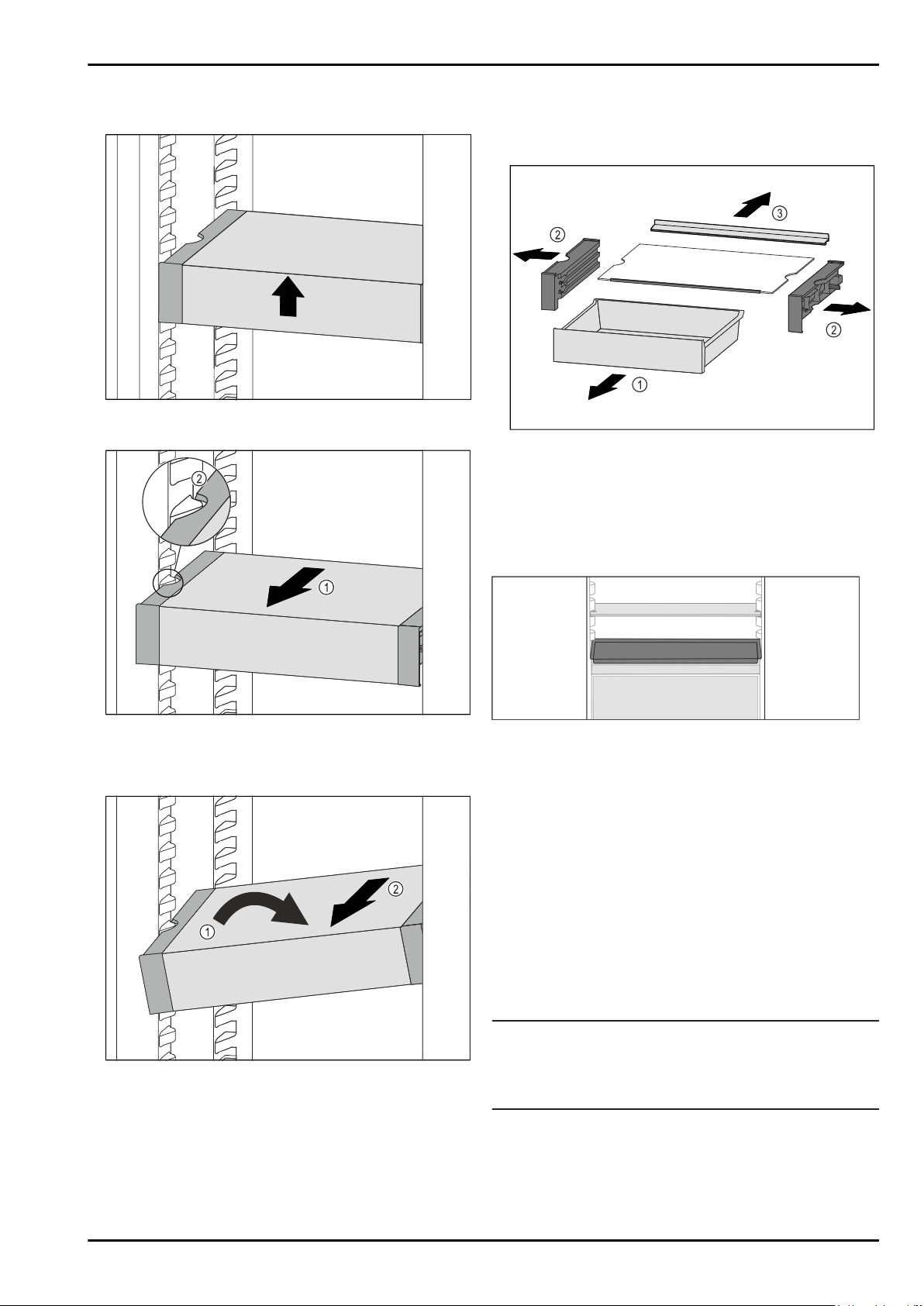

8.4.4 Removing the VarioSafe

You can remove the VarioSafe as a whole.

Fig.122

Lift VarioSafe at the front.

8.4.5 Disassembling the VarioSafe

You can disassemble the VarioSafe into its individual parts if you want to clean the VarioSafe or if you need to install or remove parts.

Fig.125

Remove VarioSafe as a whole. (see 8.4.4 Removing the VarioSafe )

Disassemble VarioSafe according to the illustration.

8.5 Space for baking tray

Fig.123

Pull VarioSafe forwards Fig. 123 (1) until the recesses in

the side of the VarioSafe are at the level of the support

rib in the fridge section. Fig.123(2)

There is space for a baking tray Fig.1(8) above the drawers.

Fig. 126

Ensure that the following conditions are met:

Max. baking tray dimensions are adhered to

(see 10.1 Technical specifications) . Baking tray is cooled to room temperature.

The lowest door rack is set at least one position higher.

With the door open to 90°:

Slide the baking tray onto the lower side runners.

8.6 Drawers

You can remove the drawers for cleaning. You can remove the drawers to use VarioSpace. The way to remove/insert the drawers varies depending

on the pull-out system. Your appliance can contain various pull-out systems.

Note

The energy consumption increases and the cooling power

Fig. 124

Set VarioSafe in refrigerator compartment at an angle.

Fig. 124(1)

Take VarioSafe out to the front. Fig. 124(2)

VarioSafe is removed.

goes down if ventilation is not sufficient.

Leave the bottom drawer in the appliance!

Always leave the fan air vents clear on the back wall!

8.6.1 Drawer on appliance base or glass shelf

The drawer runs directly on the appliance base or on a glass shelf. There are no rails.

When you remove the drawers, you can use the glass shelves below them as storage shelves.

26 * Depending on model and options

Page 27

Features

Removing drawer

Fig.127

Remove drawer as shown in the illustration.

Inserting drawer

Fig.128

Insert drawer as shown in the illustration.

8.6.2 Drawer on rails

Removing drawer

Fig.131

Pull out drawer as far as it will go.

Lift left clamp and simultaneously pull drawer forwards on the left. Fig.131(1)

Lift right clamp and simultaneously pull drawer forwards on the right. Fig.131(2)

Remove drawer to the front. Fig.131(3)

Slide rails in.

Inserting drawer

Fig.132

Slide rails in.

Place drawer on rails.

Slide in drawer to the back.

Drawer latches in audibly at the back.

Partial pull-out fridge compartment*

Removing drawer

Fig.129

Remove drawer as shown in the illustration.

Inserting drawer

Fig.130

Insert drawer as shown in the illustration.

8.6.3 Drawer on telescopic rails

The drawer runs on extendible rails (telescopic rails). There are fully extendible telescopic rails and telescopic rails with partial pull-out. Drawers which are fully extendible can be pulled out fully from the appliance. Drawers with partial pull-out cannot be removed fully from the appliance. The system in your appliance depends on the type of appliance.

Fully extendible*

If you have fully extendible rails, there is a clamp located at the back on the left and right of the rail.

Fig.133

Pull out drawer half-way. Fig.133(1)

Push the drawer down at the front. Fig.133(2)

Push the left rail in by about 2cm. Fig.133(3)

Push the right rail in by about 2cm. Fig.133(4)

Remove drawer to the front. Fig.133(5)

Fig.134

If the rails are not yet fully inserted after removing the drawer:

Push rails in completely.

* Depending on model and options 27

Page 28

Features

Inserting drawer

Fig.135

Slide rails in.

Place drawer on rails.

Slide in drawer to the back.

8.7 EasyFresh-Safe cover

You can remove the compartment cover for cleaning.

8.7.1 Removing the compartment cover

Fig.138

Low air humidity

Open the drawer.

Slide the compartment cover forwards.

With the drawer closed: Gap between the cover and the compartment.

The air moisture in the Safe decreases.

High air moisture

Open the drawer.

Slide the cover back.

With the drawer closed: The cover seals the compart‐ ment.

The air moisture in the Safe increases. If there is too much moisture in the compartment:

Choose the setting “low air moisture”.

-or-

Remove any excess moisture with a cloth.

Fig.136

When the drawers are removed:

Pull the lid up at the front to the opening in the retaining

parts Fig.136(1).

Lift from the back and pull it up and out Fig.136(2).

8.7.2 Inserting the compartment cover

Fig.137

If the text THIS SIDE UP points upwards:

Insert the lip of the cover over the opening of the rear

bracket Fig.137(1) and click into place Fig.137(2).

Position the cover where you want it (see 8.8 Adjusting

the moisture levels) .

8.9 Glass shelves

You can remove the glass shelves under the drawers for cleaning.

You can remove the glass shelves under the drawers to use VarioSpace.

8.9.1 Removing / inserting the glass shelf

Make sure that the following requirements are fulfilled:

Glass shelf under the drawer: The drawer has been

removed. (see8.6 Drawers)

Removing glass shelf

Fig. 139 Example illustration of glass shelf

Lift glass shelf at the front. Fig. 139(1)

Take out glass shelf to the front. Fig. 139(2)

8.8 Adjusting the moisture levels

You can adjust the moisture in the drawer yourself by adjusting the compartment cover.

The compartment lid is attached to the drawer and can be hidden by a shelf or additional drawers.

28 * Depending on model and options

Page 29

Inserting glass shelf

Fig. 140 Example illustration of glass shelf

Position glass shelf at an angle behind the stoppers. (see Fig. 140)

Lower glass shelf.

Slide in glass shelf to the back.

8.10 IceMaker*

The IceMaker produces ice cubes with the water tank in the fridge section. The water tank can also be used to provide cooled drinking water.*

The IceMaker will produce ice cubes for household use only.

Ensure that the following conditions are met:

IceMaker is cleaned (see9 Maintenance) .

The water tank is clean (see9 Maintenance) .*

IceMaker drawer is cleaned.

IceMaker drawer is fully inserted.

8.10.1 Fill the water tank*

Unclean water! Contaminants.

u u

WARNING

Only fill the water tank with potable water. If you are not using the IceMaker: Empty the water tank. (see 9.4.5 Cleaning the IceMaker*)

Features

Fig. 141

Pull the water tank towards you and out.

Remove the lid.

Fill with drinking water.

Put the lid on.

Insert the water tank into the brackets and slide in all the way.

8.10.2 Producing ice cubes

The volume depends on the freezing temperature. The colder the temperature, the more ice cubes the system can produce in a certain time period.

After the IceMaker is turned on for the first time, it can take up to 24 hours for the first ice cubes to be made.

Activate the IceMaker function .

To make a high number of ice cubes: Activate the MaxIce function .

To make a high number of ice cubes: Move the divider in the IceMaker drawer or remove it completely.*

Distribute the ice cubes evenly in the drawer to increase the capacity.

Closing the drawer: IceMaker starts making ice cubes again automatically.

Note

When a certain level is reached in the IceMaker drawer, it stops producing ice cubes. The IceMaker does not fill the drawer all the way to the top.

NOTICE

Sugar-content liquids! Damage to IceMaker.

Only fill with cold drinking water.

Note

Using filtered, decarbonised water ensures the best-tasting drinking water for your ice cubes. This water quality can be achieved using a table water filter of the kind available in trade retail outlets.

Always fill the water tank only with filtered, decarbonised drinking water.

The IceMaker is supplied with water from the water tank (see1Appliance at a glance) .

If the water tank is empty, the following reminder appears

on the display

(see 7.3Messages) .

8.10.3 Using the drawer with the IceMaker deactivated

If you deactivate the IceMaker, then you can use the entire IceMaker drawer as a freezer drawer.

Deactivate IceMaker. (see Deactivating IceMaker )

Fig. 142

Place food in drawer. If you put food in the left side of the drawer:

Watch out for the IceMaker Fig. 142(1).

* Depending on model and options 29

Page 30

Maintenance

8.11 VarioSpace

Fig. 143

You can remove drawers and glass panels from your appli‐ ance. This provides more room for large food items such as poultry, joints of meat, large game, and tall baked products. You can then freeze these items whole for later preparation.

Note the weight limits on the drawers and glass panels

(see 10.1 Technical specifications) .

8.12 Bottle holder

8.12.1 Using the bottle holder

Fig. 146 Example illustration of the ice compartment divider

Move the ice compartment divider to the desired position.

8.13.2 Removing the flexible ice compartment divider

Make sure that the following requirements are fulfilled:

Ice cube drawer is removed. (see8.6 Drawers)

Fig. 147

Lift the rear part of the ice compartment divider.

Fig. 147(1)

Remove the ice compartment divider upwards. Fig. 147(2)

Fig. 144

Push the bottle holder onto the bottles.

The bottles are prevented from falling over.

8.12.2 Removing the bottle holder

Fig. 145

Move the bottle holder all the way to the right.

Push the bottle holder to the back to remove.

8.13 Flexible ice compartment divider*

The IceMaker’s ice cube drawer has a flexible ice compart‐ ment divider. This allows you to store larger quantities of ice cubes or additional food items as needed. You can move or remove the ice compartment divider.

8.13.1 Moving in the flexible ice compartment divider

8.13.3 Putting in the flexible ice compartment divider

Make sure that the following requirements are fulfilled:

Ice cube drawer is removed. (see8.6 Drawers)

Fig. 148

Insert the front part of the ice compartment divider.

Fig. 148(1)

Lower the rear part of the ice compartment divider to the drawer bottom. Fig. 148(2)

9 Maintenance

9.1 FreshAir carbon filter

The FreshAir carbon filter is in the compartment above the fan.

It guarantees the best air quality.

Replace the carbon filter every 6 months.

When the reminder is set, a message on the display prompts you to change it. The carbon filter can be disposed of with the regular

household waste.

30 * Depending on model and options

Page 31

Maintenance

Note

FreshAir activated charcoal filters can be purchased from the Liebherr-Hausgeräte store at home.liebherr.com/

shop/de/deu/zubehor.html.

9.1.1 Removing the FreshAir carbon filter

Fig. 149

Pull out the compartment Fig. 149(1).

Remove the carbon filter Fig. 149(2).

9.1.2 Inserting the FreshAir carbon filter

9.3 Defrosting the appliance

9.3.1 Defrosting the fridge compartment

Defrosting is performed automatically. The water from the thawing process drains through the outlet and evaporates.

Water drops or a thin layer of frost or ice can form on the back wall; this is a completely normal part of the applian‐ ce’s function. This must not be removed.*

A layer of frost or ice can from briefly due to the energyoptimised control of the device.*

Clean the drain opening regularly (see 9.4 Cleaning the appliance) .

9.3.2 Defrosting the freezer compartment with NoFrost

Defrosting is performed automatically with the NoFrost system. The moisture is deposited on the evaporator, is peri‐ odically defrosted and evaporates.

The appliance does not need to be defrosted.

9.4 Cleaning the appliance

9.4.1 Ready

Fig. 150

Insert the carbon filter as shown in the diagram Fig. 150(1).

The carbon filter clicks into place. If the carbon filter is pointing downwards:

Push the compartment in Fig. 150(2).

The carbon filter is now ready for use.

9.2 Disassembling / assembling pullout systems

9.2.1 Notes on disassembly

You can disassemble some of the pull-out systems for cleaning. Your appliance can contain a variety of pull-out systems.

The following pull-out systems can be disassembled or cannot be disassembled:

Pull-out system

Drawer on appliance base or glass shelf

Drawer on rails cannot be disassembled

Fully extendible* cannot be disassembled*

Partial pull-out fridge compart‐ ment*

can be disassembled/ cannot be disassembled

cannot be disassembled

cannot be disassembled*

Danger of electric shock!

Remove the refrigerator connector or interrupt the power supply.

WARNING

Risk of fire

Do not damage the refrigeration circuit.

Empty the appliance.

Remove mains connector.

-or-

Activate CleaningMode. (seeCleaningMode)

9.4.2 Cleaning the interior

NOTICE

Improper cleaning! Damage to the appliance.

Only use soft cleaning cloths and ph-neutral all-purpose cleaners.

Do not uses abrasive sponges or steel wool which may cause scratches.

Do not use any sharp or abrasive cleaning agents, nor any that contain sand, chloride or acid.

Plastic surfaces: clean by hand with a soft clean cloth, lukewarm water and a little detergent.

Metal surfaces: clean by hand with a soft clean cloth, lukewarm water and a little detergent.

Drain hole: remove deposits using a thin item (for example a cotton bud).

9.4.3 Cleaning the dry rear panel*

You can remove the dry rear panel for cleaning.

Removing the rear panel

Remove all equipment parts.

* Depending on model and options 31

Page 32

Maintenance

Fig. 151*

Unscrew the bracket of the water tank with a torx screw‐

driver.*

The bracket remains attached to the side panel via

various connections and cannot be completely removed.*

9.4.4 Clean the components

NOTICE

Improper cleaning! Damage to the appliance.

Only use soft cleaning cloths and ph-neutral all-purpose cleaners.

Do not uses abrasive sponges or steel wool which may cause scratches.

Do not use any sharp or abrasive cleaning agents, nor any that contain sand, chloride or acid.

Clean with a soft, clean cloth, lukewarm water and some detergent:

- Door rack

- Shelf

- Dividing shelf*

- VarioSafe*

- EasyFresh-Safe cover

- Drawer Please note: Do not remove the magnet on the drawer. The magnet ensures the functionality of the IceMaker.*

- Divider in the IceMaker drawer*

Clean with a damp cloth:

- Retractable rails Please note: The grease in the tracks is used for lubrica‐ tion and must not be removed!

Wash in the dishwasher up to 60°C:

- Bottle rack

- Holder of the dividing shelf*

- IceMaker water tank and water tank lid*

- Ice cube tray*

- Ice cube scoop*

To disassemble components: see the relevant section.

Clean the components.

Fig. 152

Hold the rear panel with both hands at the bottom and pull downward vigorously at the same time.

Pull the rear panel out to the front by the bottom end.

The rear panel has been removed. If you want to continue operating the appliance with the rear panel removed:

Set the D-Value to D2. (see D-Value*)

Inserting the rear panel

Fig. 153

Make sure the appliance is completely empty.

Slide in the rear panel from below to the top.

Press back vigorously on the left-hand side of the rear panel.

The rear panel clicks into place.

Screw the water tank bracket firmly in place.*

Insert the equipment parts.

Set the D-Value to D1. (see D-Value*)

9.4.5 Cleaning the IceMaker*

There are various options for cleaning the IceMaker.

Cleaning is required in the following cases:

Initial operation

With water tank:*

If out of use for more than 48 hours.*

Ensure that the following conditions are met:

Water tank is clean and has been filled. (see 8.10.1 Fill

the water tank*) * IceMaker drawer is emptied.

IceMaker drawer is in place.

The IceMaker is activated.

First use or after a long period of non-use

Clean the IceMaker with the TubeClean function.

Put an empty 1.5 l vessel (max. height 10 cm) in the drawer under the IceMaker.

Activate the TubeClean function.

The rinse process is prepared (max. 60 min.): Symbol flashes.

Water pipes are rinsed: Symbol flashes.

Rinsing process is complete: Function turns off automati‐ cally.

Remove the IceMaker drawer and remove the container.

Clean the IceMaker drawer with warm water and a little detergent.

Push the IceMaker drawer in.

The system starts making ice cubes automatically.

Dispose of any ice cubes that were made 24 hours after the first ice cubes.

If cleaning is required

Clean the IceMaker by hand.

32 * Depending on model and options

Page 33

Remove the IceMaker drawer and clean with warm water and a little detergent.

Push the IceMaker drawer in.

The system starts making ice cubes automatically.

9.4.6 After cleaning

Wipe the appliance and the components dry.

Connect and switch on the appliance.

Activate SuperFrost (see 7.2Appliance functions) . The temperature is cold enough:

Place the food inside.

Repeat cleaning regularly.

10 Customer help

10.1 Technical specifications

Temperature range

Cooling 2°C to 9°C

Freeze -26°C to -15°C

Maximum freezing quantity/24h

Freezer compart‐ ment

Maximum component capacity

Features Appliance

Drawer on glass shelf

(see 8.6.1 Drawer on appliance base or glass shelf)

Maximum size baking tray

Width 466mm

Depth 386mm

Height 50mm

Ice cube production with IceMaker*

Ice cube produc‐ tion/24h

Maximum ice cube production/24h

See “Freezing capacity …/24 h” on the type plate

Appliance width 550 mm (see instal‐ lation instruc‐ tions, appliance dimen‐ sions)

12 kg 15 kg --

At a temperature of -18 °C: 1.2 kg of ice cubes

With the MaxIce function on: 1.5 kg of ice cubes

width

600 mm

(see

installa‐

tion

instruc‐

tions,

appliance

dimen‐

sions)

Appliance width 700 mm (see instal‐ lation instruc‐ tions, appli‐ ance dimen‐ sions)

Customer help

10.2 Operating noises

The appliance makes different noises when it is on.

At higher temperatures the appliance uses less energy

but works for longer. It is quieter. At lower temperatures the food is cooled faster. It is

louder.

Examples:

Functions on (see 7.2Appliance functions)

•

Fan running

•

Food recently added

•

High ambient temperature

•

Door open for a while

•

Noise

Bubbling and splashing

Hissing Coolant sprays

Humming The appliance

Suction noises* Soft-closing door

Humming and rustling

Clicking Components are

Rattling or humming

Noise Possible

Vibration Improper

Rattling Components,

10.3 Technical fault

Possible cause Type of noise

Coolant flowing into the cooling circuit.

into the cooling circuit.

is cooling. The volume depends on the cooling output.

is being opened and closed.*

The fan is running. Normal operating

switched on and off.

Valves or flaps are working.

The water tank pump is on.*

Type of noise Lifting

cause

Defective

installation

items inside the appliance

noise

Defective noise

Normal operating noise

Normal operating noise*

noise

Normal switching noise

Check the installation.

Level the appliance.

Secure components.

Leave enough space between the items.

Your appliance is designed and built to ensure it works reli‐ ably and has a long service life. In the unlikely event that a fault occurs during operation, please check whether it is due to an operating error. If so, you will be charged for the callout and repair costs even if it falls within the warranty period.

* Depending on model and options 33

Page 34

Customer help

You can fix the following faults yourself.

Defect Cause Remedy

The appliance is not working.

Temperature is not cold enough.

The door seal is defective or needs to be replaced for another reason.

The appliance builds up too much ice or condensa‐ tion.

→ The appliance is not switched on.

→ The power plug is not properly

plugged into the socket.

→ There is something wrong with the

power outlet fuse.

→ Power cut

→ The appliance plug does not fit the

appliance properly.

→ The appliance door is not closed

properly.

→ Not enough ventilation.

→ The ambient temperature is too

high.

→ The appliance was opened too

many times or for too long.

→ Too much fresh food was placed

inside without SuperFrost.

→ The temperature is set incorrectly.

→ The appliance is too close to a heat

source (oven, radiator, etc).

→ The appliance was not correctly

installed in the recess.

→ The door seal can be replaced. It

can be replaced without the need for special tools.

→ The door seal may have slipped out

of its groove.

10.3.1 Appliance function

Switch the appliance on.

Check the power plug.

Check the fuse.

Keep the appliance closed.

Protecting food: Lay freezer packs on top of the food or use another freezer if the power is off for a prolonged period.

Do not re-freeze defrosted food,

Check the appliance plug.

Close the appliance door.

Keep ventilation grille clear, and clean it.

Problem solution: (see1.4 Appliance range of use)

Wait to see if the required temperature corrects itself. If not, contact Customer Service. (see 10.4 Customer Service)

Solution: (see SuperFrost)

Turn down the temperature and check after 24 hours.

Move the appliance or the heat source.

Check if the appliance was installed correctly and that the door closes properly.

Contact Customer Service. (see 10.4 Customer Service)

Check that the door seal is well fitted in the groove.

10.3.2 Features

Defect Cause Remedy

The IceMaker is not producing ice cubes.*

The internal light does not come on.

→ The IceMaker is not on.

→ The drawer of the IceMakers is not

connected properly.

→ The water tank is not pushed in

properly.

→ There is not enough water in the

water tank.

→ The appliance is not switched on.

→ The door was open for longer than

15 minutes.

34 * Depending on model and options

Activate the IceMaker.

Push the drawer in correctly.

Push the water tank in.*

Fill the water tank.*

Switch the appliance on.

Interior lighting turns off automatically after approx. 15 min. with the door open.

Page 35

Defect Cause Remedy

→ The LED interior light is faulty or

the lid is damaged.

Contact Customer Service. (see 10.4 Customer Service)

Shutting down

10.4 Customer Service

First check whether you can rectify the fault yourself (see 10 Customer help) . If you cannot rectify the problem, contact Customer Service.

You can find the address at home.liebherr.com/service.

WARNING

Unprofessional repair! Injuries.

Have any repairs and action - not expressly specified on the appliance and mains cable carried out by service personnel only. (see9 Maintenance)

A damaged mains cable may only be replaced by the manufacturer, the manufacturer’s Customer Service or a similarly qualified person.

In the case of appliances with an IEC connector, the change may be made by the customer.

10.4.1 Contacting Customer Service

Make sure that the following appliance information is avail‐ able:

Appliance name (model and index)

Service no. (Service)

Serial no. (S no.)

Call up the appliance information via the display. (see Device information)

-or-

Refer to the type plate for appliance information. (see 10.5 Model plate)

Note down the appliance information.

Notify customer service: Report errors and the appliance information.

This will help us to provide you with a faster, more accu‐ rate service.

Follow further instructions from Customer Service.

10.5 Model plate

11 Shutting down

Empty the appliance.

Deactivate IceMaker. (see Deactivating IceMaker ) *

Switch off appliance. (see Switching the appliance off and on)

Remove mains connector.

Remove appliance connector if required: Remove and move from left to right at the same time.

Clean appliance. (see 9.4Cleaning the appliance)

Leave the door open, so that no unpleasant odours arise.

12 Disposal

12.1 Preparing appliance for disposal

Liebherr uses batteries in some of its appli‐ ances. In the EU, for environmental reasons, legislation obliges the end user to remove these batteries before disposing of old appli‐ ances. If your appliance contains batteries, a corresponding notice is attached.

Lamps If you can remove the lamps yourself without

destroying them, also remove these before disposal.

Take the appliance out of operation.

Appliances with batteries: remove the batteries. For description, see Maintenance chapter.

If possible: remove lamps without destroying them.

12.2 Disposing of the appliance in an environmentally friendly manner

The appliance still contains valuable materials and must be disposed of separately from unsorted municipal waste.

The model plate is behind the drawers on the inside of the appliance.

Fig. 154

Appliance description (3) Serial no.

(1) (2) Service no.

Note the data on the model plate.

Lamps Dispose of removed lamps

Dispose of batteries separately from the old appliance. To do this, you can return the batteries free of charge to retailers as well as recycling centres and collection centres for recyclable materials.

via the respective collection systems.

* Depending on model and options 35

Page 36

Disposal

Leaking coolant and oil!

WARNING

Fire. The coolant contained in the appliance is eco-friendly, but also flammable. The oil contained in the appliance is flammable. Escaping coolant and oil can ignite if the concentration is high enough and in contact with an external heat source.

Do not damage the pipelines of the coolant circuit and the compressor.

Observe the notes on transporting the appliance.

Transport the appliance without damaging it.

Dispose of batteries, lamps and the appliance according to the above specifications.

36 * Depending on model and options

Page 37

Disposal

* Depending on model and options 37

Page 38

home.liebherr.com/fridge-manuals

Integrated fridge/freezer

Issue date: 20240521

Part number index:7088453-00

Liebherr-Hausgeräte GmbH

Memminger Straße 77-79

88416Ochsenhausen

Deutschland

Liebherr ICNH5123RHH, ICNH5123LHH, ICNH5103RHH, ICNH5103LHH User Manual

Specifications and Main Features

Frequently Asked Questions

User Manual
