Design Guide
Wine
Release 05 2018
2
Welcome
Liebherr's engineering excellence in Germany provides the largest
selection of freezers, refrigerators and wine refrigerators worldwide.
Liebherr is one of the World’s leading Manufacturers of Premium Refrigeration.
For more than 60 years, Liebherr has specialized in developing and manufacturing
first class refrigerators and freezers as well as wine cabinets. We focus on
performance and efficiency as well as keeping food fresher longer. Produced
in Austria and Germany, Liebherr has a full line of premium models tailored
specifically for the North American marketplace to fit any design vision you have
for your kitchen.
Our freestanding stainless models are sleek centerpieces that make a definite
statement. Our built-in models are perfect for designs that call for units that slide
into cabinet surrounds. And our fully-integrated models become one with your
kitchen design, hidden seamlessly behind your custom cabinetry.
High quality materials, perfectly detailed finishes, precise electronic control
systems, elite cooling components, variable speed compressors and the latest
production processes ensure energy efficiency and performance for years to
come. Our superior products offer premium quality, cutting edge design and
innovative features that fit with your busy lifestyle.
Liebherr's Commitment to the Environment
The components of Liebherr products can be recycled when the necessary
resources are available. A concern for the environment and a desire to protect
resources has led to increased levels of recycling year after year. When Liebherr
manufactures products, it is essential that the recyclable recovery rate of the
materials we use constantly increases.
Recycling is a common goal among all manufacturers, municipalities and
recycling companies to protect our environment. Protecting the environment
and producing products which have a low impact on the environment, is one of
Liebherr's core values. When the time comes, please attempt to dispose of your
old appliances in an environmentally safe and friendly manner.
3
Introduction
LIEBHERR WARRANTY PLAN
FULL TWO YEAR WARRANTY
For two years from the date of original purchase, your Liebherr warranty covers all parts and labor to repair or replace
any part of the product which proves to be defective in materials or workmanship.
FULL FIVE YEAR WARRANTY
For five years from the date of original purchase, your Liebherr warranty covers all parts and labor to repair or replace
any components that prove to be defective in materials or workmanship in the sealed system. The “Sealed System”
means only the compressor, condenser, evaporator, drier and all connecting tubing.
LIMITED 6TH THROUGH 12TH YEAR WARRANTY
From the 6th through 12th year from the date of original purchase, your Liebherr warranty covers all parts that prove to
be defective in materials or workmanship in the Sealed System (parts only).
For Service in the U.S.
Liebherr Service Center
Toll Free: 1-866-LIEBHER
1-866-543-2437
Email: Service-appliances.us@liebherr.com
PlusOne Solutions, Inc.
3501 Quadrangle Blvd, Suite 120
Orlando, FL 32817
For Service in Canada
Liebherr Service Center
Toll Free: 1-888-LIEBHER
1-888-543-2437
For Installation Questions
Install.Americas@liebherr.com
www.euro-parts.ca
EURO-PARTS CANADA
39822 Belgrave Road
Belgrave, Ontario, N0G 1E0
Phone: (519) 357-3320
Fax: (519) 357-1326
4
Content
DesignGuide
Safety Warnings ................................................................................................................................................7
Electrical Requirements & Safety ...................................................................................................................8
Area Requirements ...........................................................................................................................................9
Safety Regulations ............................................................................................................................................9
Specifications ..................................................................................................................................................10
Undercounter Wine Cabinet WU 3400 / WU 4500 / WUgb 3400 ............................................................... 17
Built in Wine Cabinet HWS 1800 ................................................................................................................... 20
Built in Wine Cabinet HWgb 1803, HWgw 1803 ..........................................................................................22
Built in Wine Cabinet HWgb(w) 3300 ...........................................................................................................24
Built in Wine Cabinet HWgb(w) 5100 ............................................................................................................26
Built in Wine Cabinet HWgb(w) 8300 ...........................................................................................................28
Built in Wine Cabinet HW 3000 .....................................................................................................................30
Built in Wine Cabinet HW 4800 .....................................................................................................................32
Built in Wine Cabinet HW 8000 .....................................................................................................................34
Freestanding Wine Cabinet WS 17800 .........................................................................................................37
Accessories ......................................................................................................................................................41
WU 3400 .............................................................................................................................................................................. 10
WUgb 3400 .......................................................................................................................................................................... 10
WU 4500 .............................................................................................................................................................................. 10
HWS 180 0 ............................................................................................................................................................................ 11
HWgb 1803
HWgw 1803 (white glass front) ...............................................................................................................11
HW gb(w) 3300 ................................................................................................................................................................... 12
HW gb(w) 5100 .................................................................................................................................................................... 12
HW gb(w) 8300 ................................................................................................................................................................... 13
HW 3000 ..............................................................................................................................................................................14
HW 4800 .............................................................................................................................................................................. 14
HW 8000 ..............................................................................................................................................................................15
WS 178 00 ............................................................................................................................................................................ 16
Cabinet Dimensions ............................................................................................................................................................ 17
Appliance Dimensions ........................................................................................................................................................ 18
Ventilation requirements ..................................................................................................................................................... 19
Dimensions of Appliance Door ........................................................................................................................................... 19
Appliance Dimensions ........................................................................................................................................................20
Cabinet Dimensions ............................................................................................................................................................21
Cabinet Dimensions - Flush Face Installation ................................................................................................................... 21
Appliance Venting ...............................................................................................................................................................21
Cabinet Dimension - Accessory Drawer ............................................................................................................................ 21
Appliance Dimensions ........................................................................................................................................................22
Cabinet Dimensions ............................................................................................................................................................22
Cabinet Dimensions - Flush Face Installation ................................................................................................................... 23
Appliance Venting ...............................................................................................................................................................23
Types of air outlet ................................................................................................................................................................ 23
Cabinet Dimension - Accessory Drawer ............................................................................................................................ 23
Appliance Dimensions ........................................................................................................................................................ 24
Cabinet Dimensions ............................................................................................................................................................25
Appliance Venting ...............................................................................................................................................................25
Types of air outlet ................................................................................................................................................................ 25
Kitchen Cabinet Base Grille ................................................................................................................................................25
Appliance Dimensions ........................................................................................................................................................ 26
Cabinet Dimensions ............................................................................................................................................................27
Appliance Venting ...............................................................................................................................................................27
Types of air outlet ................................................................................................................................................................ 27
Appliance Dimensions ........................................................................................................................................................ 28
Cabinet Dimensions ............................................................................................................................................................29
Appliance Venting ...............................................................................................................................................................29
Types of air outlet ................................................................................................................................................................ 29
Appliance Dimensions ........................................................................................................................................................30
Cabinet Dimensions ............................................................................................................................................................31
Appliance Venting ...............................................................................................................................................................31
Types of air outlet ................................................................................................................................................................ 31
Appliance Dimensions ........................................................................................................................................................32
Cabinet Dimensions ............................................................................................................................................................33
Appliance Venting ...............................................................................................................................................................33
Types of air outlet ................................................................................................................................................................ 33
Appliance Dimensions ........................................................................................................................................................34
Cabinet Dimensions ............................................................................................................................................................35
Cabinet Dimensions for 84" ................................................................................................................................................ 35
Appliance Venting ...............................................................................................................................................................36
Types of air outlet ................................................................................................................................................................ 36
Appliance Dimensions ........................................................................................................................................................ 37
Cabinet Opening Dimensions .............................................................................................................................................38
Side by Side WS 17800 ......................................................................................................................................................38
Door Swing Clearance WS 17800 ...................................................................................................................................... 39
(black glass front) ...............................................................................................................11
5
6
General Remarks
Safety Warnings
PLEASE READ AND FOLLOW THESE INSTRUCTIONS
This design guide contains Warning and Important statements. This information is important for planning a safe and
efficient installation. Please refer to the Installation Manual specific to your model for complete installation instructions.
This design guide is intended for planning purposes and is not a replacement for your appliance's Use and Care
Manual which contains important information on how to use Liebherr appliances.
Always read and follow all Warning and Important statements!
WARNING!
Warning indicates a potentially hazardous
situation which, if not avoided, could
result in death or serious injury.
IMPORTANT
This highlights information that is especially relevant
to a problem-free installation and operation.
Make sure incoming voltage is the same as the unit rating.
To reduce the risk of fire, electric shock, or personal injury, the installation work and electrical wiring must be done by a
qualified electrician in accordance with all applicable codes and standards, including fire rated construction.
To the Installer
It is very important that the guidelines and instructions are followed in this design guide to ensure proper installation
and operation of the unit. The Installation Guidelines section contains important information for making sure the installation is correct. Read and understand all the information and installation guidelines in this manual before the unit is
installed.
It is also very important to know the Safety Information.
7
General Remarks
Electrical Requirements & Safety
A 15 amp or 20 amp, 110-120 VAC, circuit which is
grounded and protected by a circuit breaker or fuse is
required.
We recommend using a dedicated circuit for each
appliance to prevent circuit overload and the chance of
interruption to the appliance.
The appliances are equipped with a three-prong
(grounding) polarized plug for protection against possible
shock hazards.
Comply with the National Electrical Code as well
as local codes and ordinances when installing the
receptacle.
WARNING!
Electrocution hazard.
Electrical grounding required.
Do not remove the round grounding
•
prong from the plug.
WARNING!
Electrocution hazard.
For outdoor use, connect this appliance to
a GFCI receptacle only.
Failure to follow these instructions may
result in fire, electrical shock or death.
IMPORTANT
Do not place the appliance where it may be in
standing water or where the power cord may be
immersed.
Do not use extension cords or
•
ungrounded (two-prong) adapters.
• Donotuseapowercordthatisfrayedor
damaged.
• Do not use a power strip.
Failure to follow these instructions may
result in fire, electrical shock or death.
8
General Remarks
Area Requirements
Verify the following:
• Finishedkitchenoorheightislevel.Theappliance
mustbeshimmedtotheoorlevel,orlevelled,to
make sure air vents are not obstructed.
• Removeanythingattachedtotherearorsidewalls
that can obstruct the refrigerator opening.
• Cutoutdimensionsareaccurate.
• Electricaloutletisincorrectlocation.
Do not install this appliance next to any other refrigerator
or freezer except another Liebherr model.
Liebherr models are designed to allow side by side
installation. They are equipped with a heating system to
eliminate condensation when units are installed side by
side.
Installing this appliance next to any other refrigerator or
freezer can cause condensation or cause damage to the
appliance.
Safety Regulations
The appliances are designed to cool and store wine and
beverages.
The appliances are manufactured to operate within
specific ambient temperature limits according to its
climate rating.
The climate rating indicates the ambient temperature at
which the appliance may be operated in order to deliver
optimal refrigeration performance.
The climate rating for each model is visible in chapter
"Specifications".
Climate Rating Ambient Temperature
SN 50°F to 90°F (10°C to 32°C)
N 61°F to 90°F (16°C to 32°C)
ST 61°F to 100°F (16°C to 38°C)
T 61°F to 109°F (16°C to 43°C)
SN-ST 50°F to 100°F (10°C to 38°C)
SN-T 50°F to 109°F (10°C to 43°C)
IMPORTANT
Do not operate the appliance outside the specified
ambient temperature range.
IMPORTANT
To protect the refrigerator from possible damage,
allow the appliance to stand 1 hour in place before
turning the electricity on. This allows the refrigerant
and system lubrication to reach equilibrium.
- Refrigerant circuits are tested for leaks.
- The appliances
WU 3400
WUgb 3400
WU 4500
HWgb 1803
HWgw 1803
HW gb(w) 3300
HW gb(w) 5100
HW gb(w) 8300
HW 3000
HW 4800
HW 8000
complies with current safety regulations
CAN /CSA C22.2 No.60335-1-11
UL 60335-1 Fifth Edition
CAN/CSA C22.2 No. 60335-2-24-06
UL 60335-2-24 First Edition
- The appliances
HWS 1800
WS 17800
complies with current safety regulations
CAN/CSA C22.2 # 63
UL 250
9
Wine
Specifications
Wine Cabinets WU 3400, WUgb 3400, WU 4500
WU 3400
Energy Supply: 115V / 60Hz / 2A
Climate Rating: SN-ST
Door hinges: right/reversible
Door: glass door with stainless
steel frame
•Touchelectroniccontrolsystem
•Telescopicwineshelves
•Activatedcharcoallter
•LED-light
WUgb 3400
Energy Supply: 115V / 60Hz / 2A
Climate Rating: SN-ST
Door hinges: right/reversible
Door: glass door
•Touchelectroniccontrolsystem
•Telescopicwineshelves
•Activatedcharcoallter
•LED-light
•Tipopendoormechanism
WU 4500
Energy Supply: 115V / 60Hz / 1.5A
Climate Rating: SN-ST
Door hinges: right/reversible
Door: glass door with stainless
steel frame
10
•Touchelectroniccontrolsystem
•Telescopicwineshelves
•Activatedcharcoallter
•LED-light
Wine
Specifications
Wine Cabinets HWS 1800, HWgb 1803, HWgw 1803
HWS 1800
Energy Supply: 115V / 60Hz / 1A
Climate Rating: SN
Door hinges: right/reversible
Door: glass door with stainless
steel frame
•Touchelectroniccontrolsystem
•Telescopicwineshelves
•Activatedcharcoallter
•LED-light
HWgb 1803 (black glass front)
HWgw 1803 (white glass front)
Energy Supply: 115V / 60Hz / 1A
Climate Rating: SN-ST
Door: Drop down glass door
•Touchelectroniccontrolsystem
•Telescopicwineshelves
•Activatedcharcoallter
•LED-light
•Tipopendoormechanism
11
Wine
Specifications
Wine Cabinet
HW gb(w) 3300, HW gb(w) 5100, HW gb(w) 8300
HW gb(w) 3300
Energy Supply: 115V / 60Hz / 2A
Climate Rating: SN-ST
Door hinges: right/reversible
Door: glass door (black / white)
•Touchelectroniccontrolsystem
•Telescopicwineshelves
•Activatedcharcoallter
•LED-light
•Tipopendoormechanism
HW gb(w) 5100
Energy Supply: 115V / 60Hz / 2A
Climate Rating: SN-ST
Door hinges: right/reversible
Door: glass door (black / white)
•Touchelectroniccontrolsystem
•Telescopicwineshelves
•Activatedcharcoallter
•LED-light
•Tipopendoormechanism
12
Wine
Specifications
HW gb(w) 8300
Energy Supply: 115V / 60Hz / 2A
Climate Rating: SN-ST
Door hinges: right/reversible
Door: glass door (black / white)
•Touchelectroniccontrolsystem
•Telescopicwineshelves
•Activatedcharcoallter
•LED-light
•Tipopendoormechanism
13
Wine
Specifications
Wine Cabinet HW 3000, HW 4800, HW 8000
HW 3000
Energy Supply: 115V / 60Hz / 2A
Climate Rating: SN-ST
Door hinges: right/reversible
Door: variable door panel
•Touchelectroniccontrolsystem
•Telescopicwineshelves
•Activatedcharcoallter
•LED-light
HW 4800
Energy Supply: 115V / 60Hz / 2A
Climate Rating: SN-ST
Door hinges: right/reversible
Door: variable door panel
•Touchelectroniccontrolsystem
•Telescopicwineshelves
•Activatedcharcoallter
•LED-light
14
Wine
Specifications
HW 8000
Energy Supply: 115V / 60Hz / 2A
Climate Rating: SN-ST
Door hinges: right/reversible
Door: variable door panel
•Touchelectroniccontrolsystem
•Telescopicwineshelves
•Activatedcharcoallter
•LED-light
15
Wine
Specifications
Wine Cabinet WS 17800
WS 1780 0
Energy Supply: 115V / 60Hz / 2A
Climate Rating: SN-ST
Door hinges: right/reversible
Door: glass door with stainless
steel frame
•Touchelectroniccontrolsystem
•Telescopicwineshelves
•Activated charcoal filter
•LED-light
16
Wine
Undercounter Wine Cabinet WU 3400 / WU 4500 / WUgb 3400
WU 3400
WU 4500
WUgb 3400
Cabinet Dimensions
R600a Refrigerant
WARNING!
The refrigerant R600a contained within the
appliances is environmentally friendly, but
flammable. Leaking refrigerant can ignite.
To prevent possible ignition, designed
ventilation is required.
These models can be assembled side by side using a
SBS kit. Please see accessories section for kit number.
Counter depth
dimension
without cabinet
door
The power cord extits the
rear of the appliance at
this location.
Free length of the power cord = 78 - 3/4 inch (2000 mm)
IMPORTANT
The electrical outlet must not be situated behind
the appliance and must be easily accessible.
To adjust your wine unit to the counter, an adjustable toe
kick is available. Height can be adjusted from 4 to 6 ½”,
please see accessories section for the kit number.
Also a trim kit to adjust above the wine unit is available,
please see accessories section for the kit number.
17
Wine
Appliance Dimensions
WU 3400, WU 4500
Side view
Height when adjustable feet have been screwed in as
far as they will go.
WUgb 3400
Side view
Height when adjustable feet have been screwed in as
far as they will go.
Delivery status = feet approx. 1/8" unscrewed.
Maximum height adjustment = 2" (51 mm) to
allow for a 6" (153 mm) toe kick.
Top view
Maximum door
opening angle
Delivery status = feet approx. 1/8" unscrewed.
Maximum height adjustment = 2" (51 mm) to
allow for a 6" (153 mm) toe kick.
Top view
Maximum door
opening angle = 115°
IMPORTANT
The floor on which the appliance stands must be
horizontal and level. The kitchen units must be
aligned horizontally and vertically.
18
IMPORTANT
The floor on which the appliance stands must be
horizontal and level. The kitchen units must be
aligned horizontally and vertically.
Wine
Ventilation requirements
IMPORTANT
To ensure proper refrigeration performance of
the appliance, the ventilation grille supplied must
be installed.
The ventilation grille must be
installed into the toe kick panel.
The foam block supplied
must be installed in order to ensure the
required air flow through the appliance
base.
Failure to follow this
instruction may result
in poor refrigeration
performance.
Dimensions of Appliance Door
WU 3400, WU 4500
Cut-out section in the
toe kick panel
IMPORTANT
The cut-out section in the toe kick panel must be
centered in relation to the appliance and in the
uppermost part of the toe kick.
An overlay kit is available to install custom panel door.
Please see accessories section for kit number.
WUgb 3400
19
Wine
Built in Wine Cabinet HWS 1800
For installation in a 30" recess the Trim Kit is required.
See chapter "Accessories".
Appliance Dimensions
Side view
20
Dimensions of Appliance Door
Top view
Maximum door
opening angle
Wine
The power cord
exits the rear of
the appliance at
this location.
Free length of the
power cord = 48"
(1220 mm)
Cabinet Dimensions
Appliance Venting
IMPORTANT
The electrical outlet must not be situated behind
the appliance and must be easily accessible.
Cabinet Dimensions - Flush Face
Installation
Cabinet dimensions for installations into a cabinet wall.
Front of appliance door is flush with the cabinet front surface.
Front opening results in a 3/16" gap between appliance door
and outer recess.
IMPORTANT
The appliance must be centered in the recess to
avoid collision of the right door edge with the cabinet
when the door is opened.
IMPORTANT
The clear ventilation cross section must be at
least 31 sq inches from the lower to the top
opening.
Cabinet Dimension - Accessory Drawer
21
Wine
Built in Wine Cabinet HWgb 1803,
HWgw 1803
R600a Refrigerant
WARNING!
The refrigerant R600a contained within the
appliance is environmentally friendly, but
flammable. Leaking refrigerant can ignite.
Top view
Dimensions of Appliance Door
To prevent possible ignition, designed
ventilation is required.
Appliance Dimensions
Side view
Maximum door
opening angle
Cabinet Dimensions
The power cord exits the
rear of the appliance at
this location.
Free length of the power
cord = 102" (2600 mm)
The electrical
outlet must not be
situated behind
the appliance and
must be easily
accessible.
22
Wine
Cabinet Dimensions - Flush Face
Installation
Cabinet dimensions for installations into a cabinet wall.
Front of appliance door is flush with the cabinet front surface.
Front opening results in a 3/16" gap between appliance door
and outer recess.
Types of air outlet
1
Directly above the appliance
2
Above the top unit
3
From the front of the top unit with decor grille
IMPORTANT
When using decor grills, the sum of the individual
openings must total a minimum of 31 square inches.
A cut-out section of 31 square inches (200 cm²) for
installing the ventilation grille is thus not sufficient.
Appliance Venting
Important
The area of ventilation
above the unit should be
at least 31 square inches
(200 cm²).
The air supply passes
below the appliance door.
Cabinet Dimension - Accessory Drawer
23
Wine

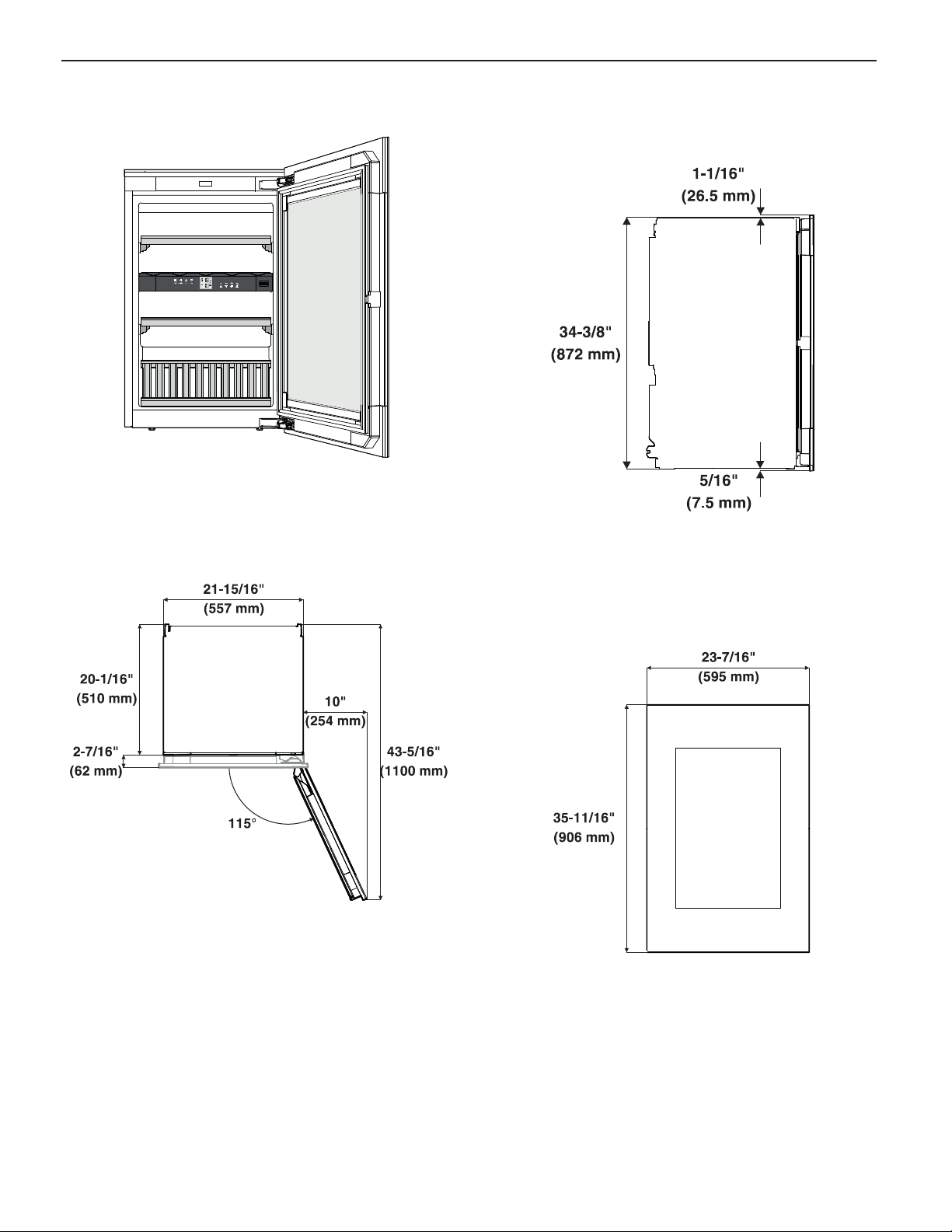

Built in Wine Cabinet HWgb(w) 3300
Side view
Appliance Dimensions
Top view
Dimensions of Appliance Door
24
Wine
Cabinet Dimensions
The power cord exits the
rear of the appliance at
this location.
Free length of the power
cord = 78" (2000 mm)
IMPORTANT
The electrical outlet must not be situated behind
the appliance and must be easily accessible.
Types of air outlet
1
Directly above the appliance
2
Above the top unit
3
From the front of the top unit with decor grille
IMPORTANT
When using decor grills, the sum of the individual
openings must total a minimum of 31 square inches.
A cut-out section of 31 square inches (200 cm²) for
installing the ventilation grille is thus not sufficient.
Appliance Venting
Cabinet Base Grille
Ventilation through the cabinet base at the bottom can be
achieved by installing the ventilation grille (3) offered as
accessory (see accessory list for more information) or by a
ventilation opening of at least 31 in.² (200 cm²).
When using the ventilation grille (3), please proceed as follows:
•Inthecabinetbase,cutoutaventilationopeningthatis
17-23/32 in. (450 mm) in width and 2-7/32 in. (56 mm) in
height.
•Insertventilation(3)grilleintothecabinetbasecut-out(1).
•Fromthebackside,slidethesnap-ts(2)intothegrilleuntil
the hooks make contact with the cabinet base.
•Completelymountcabinetbase(withventilationgrilleand
snap-fits) to kitchen cabinet.
IMPORTANT
The clear ventilation cross section must be at
least 31 sq inches from the lower to the top
opening.
25
Wine
Built in Wine Cabinet HWgb(w) 5100
Side view
Appliance Dimensions
Top view
Dimensions of Appliance Door
26
Wine
Cabinet Dimensions
The power cord exits the
rear of the appliance at
this location.
Free length of the power
cord = 78" (2000 mm)
Appliance Venting
IMPORTANT
The electrical outlet must not be situated behind
the appliance and must be easily accessible.
IMPORTANT
The clear ventilation cross section must be at least
31 sq inches from the lower to the top opening.
Types of air outlet
1
Directly above the appliance
2
Above the top unit
3
From the front of the top unit with decor grille
IMPORTANT
When using decor grills, the sum of the individual
openings must total a minimum of 31 square inches.
A cut-out section of 31 square inches (200 cm²) for
installing the ventilation grille is thus not sufficient.
“Cabinet Base Grille”, see page 25
27
Wine
Built in Wine Cabinet HWgb(w) 8300
Side view
Appliance Dimensions
Top view
Dimensions of Appliance Door
28
Wine
Cabinet Dimensions
The power cord exits the
rear of the appliance at
this location.
Free length of the power
cord = 110" (2000 mm)
Appliance Venting
IMPORTANT
The electrical outlet must not be situated behind
the appliance and must be easily accessible.
IMPORTANT
The clear ventilation cross section must be at least
31 sq inches from the lower to the top opening.
Types of air outlet
1
Directly above the appliance
2
Above the top unit
3
From the front of the top unit with decor grille
IMPORTANT
When using decor grills, the sum of the individual
openings must total a minimum of 31 square inches.
A cut-out section of 31 square inches (200 cm²) for
installing the ventilation grille is thus not sufficient.
“Cabinet Base Grille”, see page 25
29
Wine
Built in Wine Cabinet HW 3000
Side view
Appliance Dimensions
Top view
Dimensions without door panel
Dimensions of Appliance Door
30
Wine
Custom Panel Dimension
Maximum weight of the custom panel door is 44 lbs
(20kg).
The door should be at least 5/8 in. (16 mm) thick to allow
the connecting rails to be fastened to it. The maximum
thickness of the door panel can be 3/4 in. (19mm).
Appliance Venting
IMPORTANT
The clear ventilation cross section must be at least
31 sq inches from the lower to the top opening.
Cabinet Dimensions
The power cord exits the
rear of the appliance at
this location.
Free length of the power
cord = 78" (2000 mm)
IMPORTANT
The electrical outlet must not be situated behind
the appliance and must be easily accessible.
Types of air outlet
1
Directly above the appliance
2
Above the top unit
3
From the front of the top unit with decor grille
IMPORTANT
When using decor grills, the sum of the individual
openings must total a minimum of 31 square inches.
A cut-out section of 31 square inches (200 cm²) for
installing the ventilation grille is thus not sufficient.
“Cabinet Base Grille”, see page 25
31
Wine
Built in Wine Cabinet HW 4800
Side view
Appliance Dimensions
Top view
Dimensions of Appliance Door
32
Dimensions without door panel
Wine
Custom Panel Dimension
Maximum weight of the custom panel door is 44 lbs
(20kg).
The door should be at least 5/8 in. (16 mm) thick to allow
the connecting rails to be fastened to it. The maximum
thickness of the door panel can be 3/4 in. (19mm).
Cabinet Dimensions
Appliance Venting
IMPORTANT
The clear ventilation cross section must be at least
31 sq inches from the lower to the top opening.
Types of air outlet
The power cord exits the
rear of the appliance at
this location.
Free length of the power
cord = 78" (2000 mm)
IMPORTANT
The electrical outlet must not be situated behind
the appliance and must be easily accessible.
1
Directly above the appliance
2
Above the top unit
3
From the front of the top unit with decor grille
IMPORTANT
When using decor grills, the sum of the individual
openings must total a minimum of 31 square inches.
A cut-out section of 31 square inches (200 cm²) for
installing the ventilation grille is thus not sufficient.
“Cabinet Base Grille”, see page 25
33
Wine
Built in Wine Cabinet HW 8000
Side view
Appliance Dimensions
Top view
Dimensions of Appliance Door
34
Dimensions without door panel
Wine
Custom Panel Dimension
Custom panel dimension for 84”
Maximum weight of the custom panel door is 44 lbs
(20kg).
The door should be at least 5/8 in. (16 mm) thick to allow
the connecting rails to be fastened to it. The maximum
thickness of the door panel can be 3/4 in. (19mm).
Cabinet Dimensions
The power cord exits the
rear of the appliance at
this location.
Free length of the power
cord = 110" (2000 mm)
Installation at 84” height
This unit can be installed in a 84” niche installation,
by raising the cabinet 10 inches above the toe kick,
5” below the unit and 5” on top as shown on cabinet
dimensions below:
Cabinet Dimensions for 84"
IMPORTANT
The electrical outlet must not be situated behind
the appliance and must be easily accessible.
35
Wine
Appliance Venting
IMPORTANT
The clear ventilation cross section must be at least
31 sq inches from the lower to the top opening.
Types of air outlet
1
Directly above the appliance
2
Above the top unit
3
From the front of the top unit with decor grille
IMPORTANT
When using decor grills, the sum of the individual
openings must total a minimum of 31 square inches.
A cut-out section of 31 square inches (200 cm²) for
installing the ventilation grille is thus not sufficient.
“Cabinet Base Grille”, see page 25
36
Wine
Freestanding Wine Cabinet WS 17800
Wine cooler with three temperature zones.
Every temperature zone can be adjusted separately and
independent from the other zones.
Appliance Dimensions
Appliance Dimensions Top view
The handle protrudes approx. 1/8" to the
left side wall of the appliance.
37
Wine
Cabinet Opening Dimensions
Optional venting 46 square inches
The power cord exits
the rear of the appliance at this location.
Free length of the
power cord is 90".
The electrical
outlet must not be
situated behind
the appliance and
must be easily
accessible.
Side by Side WS 17800
To avoid condensation on the side walls at side by side
applications a minimum distance of 2" between the
appliances is required.
The given cabinet opening height dimension includes 2"
for ventilation.
If the appliance will be vetilated above the cabinet or in a
soffit, the height dimension can be adjusted accordingly.
IMPORTANT
Minimum ventilation opening is 46 sq in !
With a cabinet depth of 27", the front of the appliance
housing is flush with the cabinet frame. (see chapter
"Appliance Dimensions Top View")
38
Wine
Door Swing Clearance WS 17800
Right side wall of appliance housing
Front of appliance housing
Top View
Door closed
The door has its maximum outreach to
the right at 56° opening angle.
Door opening angle 56°
39
Wine
Right side wall of appliance housing
Front of appliance housing
Top View
Maximum door opening angle 145°
40
Wine
Accessories
Image Article number Name of the item For use with model
7434 557-00 Charcoal Filter WU 3400
WUgb 3400
WU 4500
HWgb 1803
HWgw 1803
HWgb(w) 3300
HWgb(w) 5100
HWgb(w) 8300
HW 3000
HW 4800
HW 8000
7440 999-00 Charcoal Filter HWS 1800
WS 17800
9590 131-00 Overlay Kit
Includes hinges, brackets, screws and manual.
Panel is not included.
9901 647-00 Side by Side Kit
Includes angle brackets,
screws and installation
manual.
WU 3400
WU 4500
RU 510
WU 3400
WUgb 3400
WU 4500
RU 510
41
Wine
Image Article number Name of the item For use with model
9901 649-00 Angle bracket for cover panel
One is included with the appliance.
The bracket can be mounted at top or
bottom of the appliance.
9901 599-00 Trim Kit
Cover panel with black glass front
(for use with angle bracket
9901 651-00)
WU 3400
WUgb 3400
WU 4500
RU 510
WUgb 3400
9901 601-00 Trim Kit
Cover panel with stainless steel front
(for use with angle bracket
9901 651-00)
9900 073-00 Trim Kit for 30" wide recess HWS 1800
WU 3400
WU 4500
RU 510
42
Wine
Image Article number Name of the item For use with model
9901 086-00 Accessory drawer white
for White Tip Open wine
Cabinet
9901 085-00 Accessory drawer black
for Black Tip Open wine
cabinet
9901 084-00 Accessory drawer stain-
less steel for stainless
steel wine cabinet
HWg w 1803
HWg b 1803
HWS 1800
9094 397-00 Labels (2 pieces) HWgb(w) 3300
HWgb(w) 5100
HWgb(w) 8300
HW 3000
HW 4800
HW 8000
9901 561-00 handle
(aluminium anodized)
551003363-S
551003363-B
Adjustable toe kick
4 - 6 1/2" height
HW 3000
HW 4800
HW 8000
WU 3400
WU 4500
WUgb 3400
RU 510
43
Wine
Image Article number Name of the item For use with model
handle
profile frame
stainless
steel panel
handle
profile frame
9901 577-00 Stainless steel panel
(with handle)
9901 575-00 Stainless steel panel
(with handle)
HW 3000
HW 4800
stainless
steel panel
handle
profile frame
stainless
steel panel
9901 573-00 Stainless steel panel
(with handle)
HW 8000
44
Wine
Image Article number Name of the item For use with model
9901 075-00 Profile frame 3/4"
(19mm)
9901 079-00 Profile frame 3/4"
(19mm)
HW 3000
HW 4800
9901 080-00 Profile frame 3/4"
(19mm)
HW 8000
45
Wine
Image Article number Name of the item For use with model
9901 081-00 Profile frame 7/8"
(22mm)
9901 082-00 Profile frame 7/8"
(22mm)
HW 3000
HW 4800
9901 083-00 Profile frame 7/8"
(22mm)
HW 8000
46
Wine
Image Article number Name of the item For use with model
7427 640-00 Ventillation grille HW 3000
HWgb 3300
HWgw 3300
HW 4800
HWgb 5100
HWgw 5100
HW 8000
HWgb 8300
HWgw 8300
47
Loading...
