Liebherr CS2061 Installation Guide
Installation
Instructions
For Free Standing NoFrost
Combined Refrigerator-Freezers
Instructions de montage
Pour le réfrigérateur-congélateur combinés NoFrost amovibles
Instrucciones de instalación
Para combinados frigoríficocongelador NoFrost independientes
Parlez-vous français? Voir page 12
Habla español? Véase página 22
CS 2060, CS 2061 7082 483-00
Important
PLEASE READ AND FOLLOW THESE INSTRUCTIONS
These instructions contain Warning and Caution statements. This information is important for safe and efficient installation.
Always read and follow all Warning and Caution statements!
Warning indicates a potentially hazardous situation which, if not avoided, could result in death or serious injury.
Caution indicates a potentially hazardous situation which, if not avoided, may result in minor or moderate injury.
IMPORTANT
This highlights information that is especially relevant to a problem-free installation.
Make sure incoming voltage is the same as the unit rating.
To reduce the risk of fire, electric shock, or personal injury, installation work and electrical wiring must be done by a qualified electrician in accordance with all applicable codes and standards, including fire-rated construction.
TO THE INSTALLER
It is very important that the guidelines and instructions are followed in the manual to ensure proper installation and operation of the unit. The Installation Guidelines section contains important information for making sure the installation is correct. Read and understand all the information in Installation Guidelines and in this manual before the unit is installed.
Always wear protective devices such as protective gloves and eye shields when installing the appliance. Also use
hearing protection when drilling holes into concrete floors.
Contents |
Page |
Planning information |
|
Unit dimensions............................................... |
4 |
Unit venting...................................................... |
4 |
Cabinet opening dimensions........................... |
5 |
Blocking for safety |
|
Mounting the anti tipping device on concrete |
|
floors................................................................ |
6 |
Mounting the anti tipping device on wooden |
|
floors................................................................ |
6 |
Mounting the anti tipping device in cabinets |
|
deeper than 24"............................................... |
7 |
Mounting the top anti tipping bracket.............. |
7 |
Ice Maker |
|
Safety instructions and warnings.................... |
8 |
Water connection............................................. |
8 |
Connection to the water supply....................... |
8 |
Installation |
|
Leveling the appliance................................... |
10 |
Mounting the ventilation grille........................ |
10 |
Top door hinge clearance................................ |
11 |
2

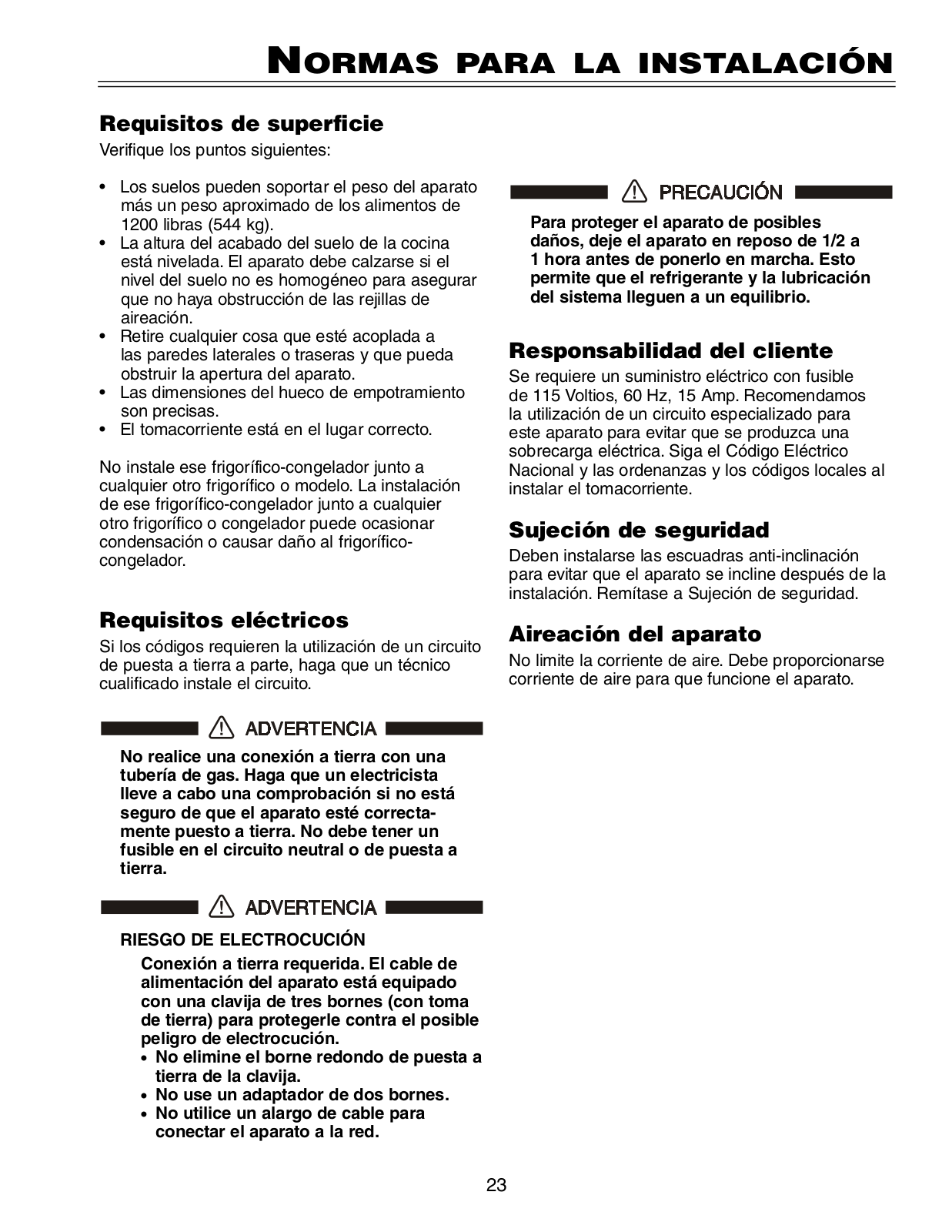

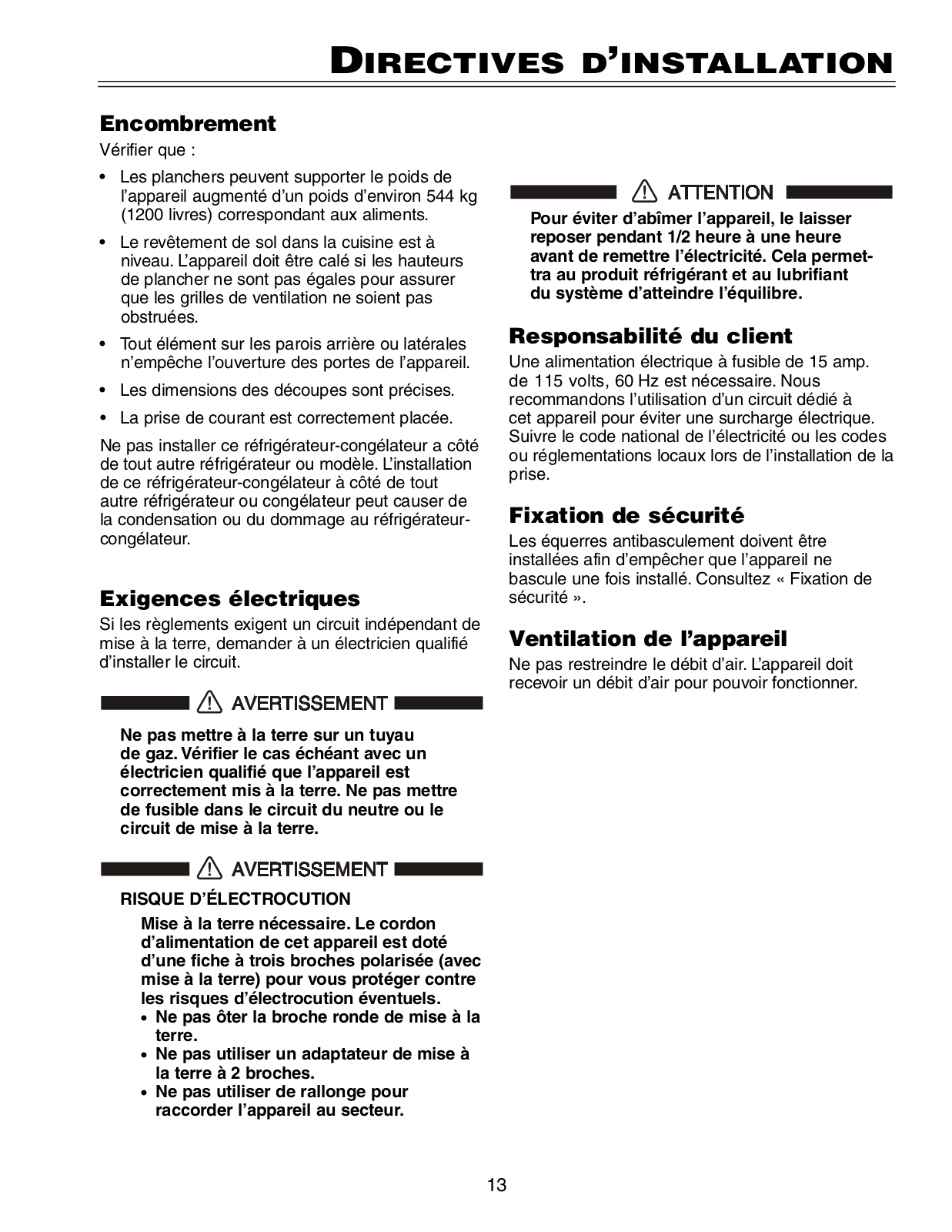

Installation Guidelines
Area Requirements
Verify the following:
•Floors can support refrigerator’s weight plus approximately 1200 pounds (544 kg) of food weight.
•Finished kitchen floor height is level. Appliance must be shimmed level if the floor heights
are not equal to make sure air vents are not obstructed.
•Remove anything attached to rear or side walls that can obstruct appliance opening.
•Cutout dimensions are accurate.
•Electrical outlet is in correct location.
Do not install this refrigerator-freezer next to any other refrigerator. Installing this refrigerator-freezer next to any other refrigerator or freezer can cause condensation or cause damage to the appliance.
To protect the appliance from possible damage, allow the appliance to stand 1/2 to 1 hour in place before turning the electricity on. This allows the refrigerant and system lubrication to reach equilibrium.
Customer’s Responsibility
A 115 Volt, 60 Hz, 15 Amp fused electrical supply is required. We recommend using a dedicated circuit for this appliance to prevent electrical overload. Follow the National Electrical Code and local codes and ordinances when installing the receptacle.
Blocking for Safety
The anti tipping brackets must be installed to prevent the unit from tipping after it is installed. Refer to Blocking for Safety.
Electrical Requirement
If codes require a separate grounding circuit to be used, have a qualified electrician install the circuit.
Do not ground to a gas pipe. Check with a qualified electrician if you are not sure
the appliance is properly grounded. Do not have a fuse in the neutral or grounding circuit.
ELECTROCUTION HAZARD
Electrical grounding required. This appliance is equipped with a three-prong (grounding) polarized plug for your protection against possible shock hazards.
•Do not remove the round grounding prong from the plug.
•Do not use a two-prong grounding adapter.
•Do not use an extension cord to connect power to the unit.
Unit Venting
Do not restrict the air flow. Air flow must be provided for the unit to operate.
3

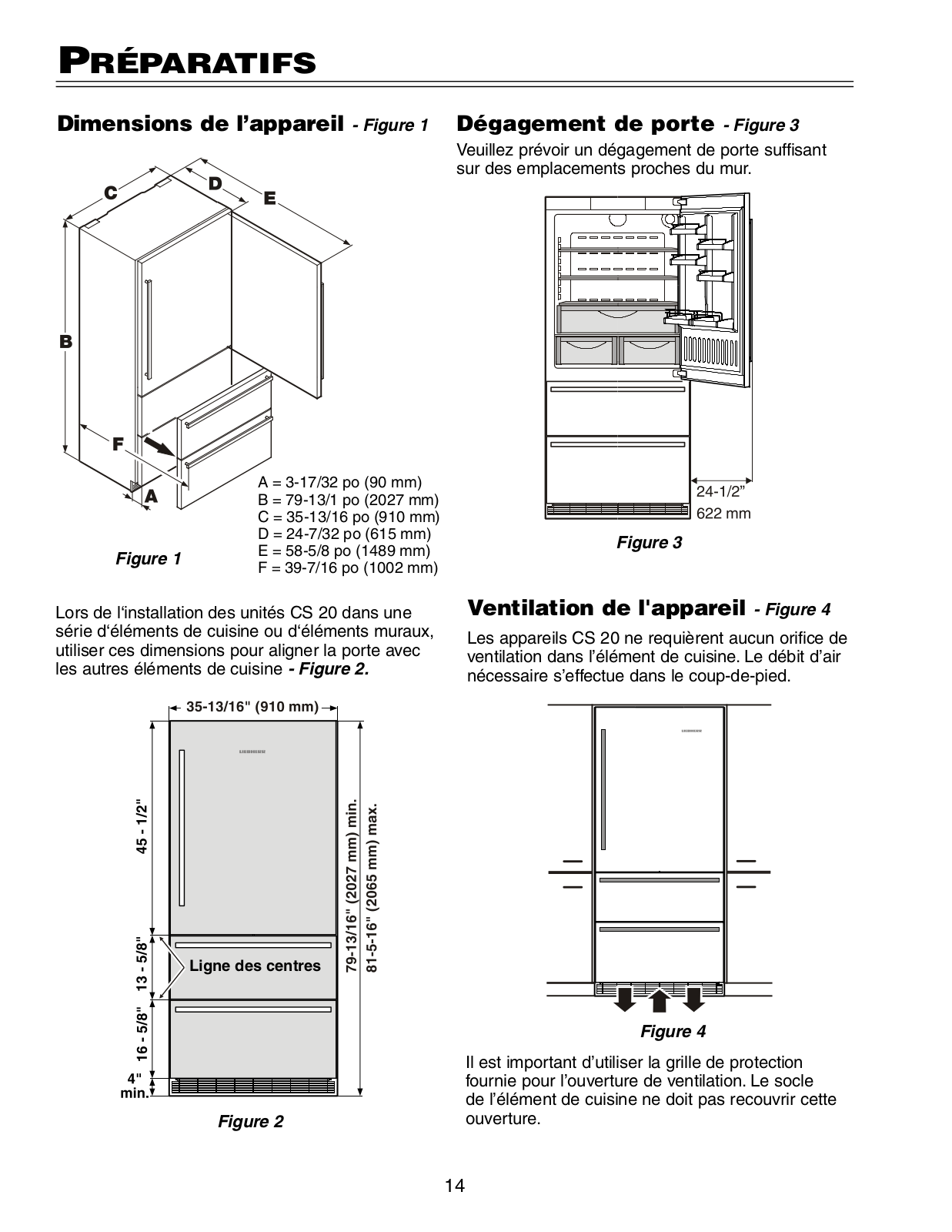

Planning Information
Unit Dimensions - Figure 1 |
Door swing clearence - Figure 3 |
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
||
|
|
|
|
|
|
|
|
|
A = 3-17/32" (90 mm) |
||
|
|
|
|
|
|
|
|
||||
|
|
|
|
|
|
|
|
|
B = 79-13/16" (2027 mm) |
||
|
|
|
|
|
|
|
|||||
|
|
|
|
|
|
|
|||||
|
|
|
|
|
|
|
|||||
|
|
|
|
|
|
|
|
|
C = 35-13/16" (910 mm) |
||
|
|
|
|
|
|
|
|
|
D = 24-7/32" (615 mm) |
||
Figure 1 |
|
|
E = 58-5/8" (1489 mm) |
||||||||
|
|
|
|
|
|
|
|
|
F = 39-7/16" (1002 mm) |
||
|
|
|
|
|
|
|
|
|
|
|
|
Please allow for door swing clearance at locations next to a wall.
Figure 3
Unit Venting - Figure 4
When installing CS 2061 units into a row of cabinets or wall units; use these dimensions to achieve a custom look with the cabinetry - Figure 2.
CS 20 appliances do not require any ventilation openings in the cabinet. The required airflow is directed through the toe kick area.
Centerline
Figure 4
It is important to use the provided cover grille for
the ventilation opening. This opening must not be
covered with a cabinet base.
Figure 2
4
Planning Information
Cabinet Opening Dimensions - Figure 5
The appliance can be used freestanding or semi built-in.
If semi built-in, please consider the cabinet opening dimensions as shown in Figure 4. The requirements for water supply and electrical outlet are the same for both applications.
IMPORTANT
Do not install the shut-off valve behind the appliance.
The position of the electrical outlet can be within the grey shaded areas or above the appliance.
Water line opening
Water supply line
A. 36" (914 mm)
B. |
24" |
(610 mm) |
|
|
|
|
Figure 5 |
C. |
80" |
(2032 mm) |
|
|
|
|
|
|
|
|
|
||||
|
|
|
|
|
|||
|
|
|
|
|
|
|
|
IMPORTANT
With 24" cabinets, the water line opening must be in the location as shown in Figure 5.
With cabinets deeper than 24" there is room to fit the pipe behind the appliance and the wall so there are no requirements for the water line lead out position.
IMPORTANT
The free length of the water supply line must be at least 31 - 1/2" (800 mm) when the tube comes out of the prescribed opening.
5

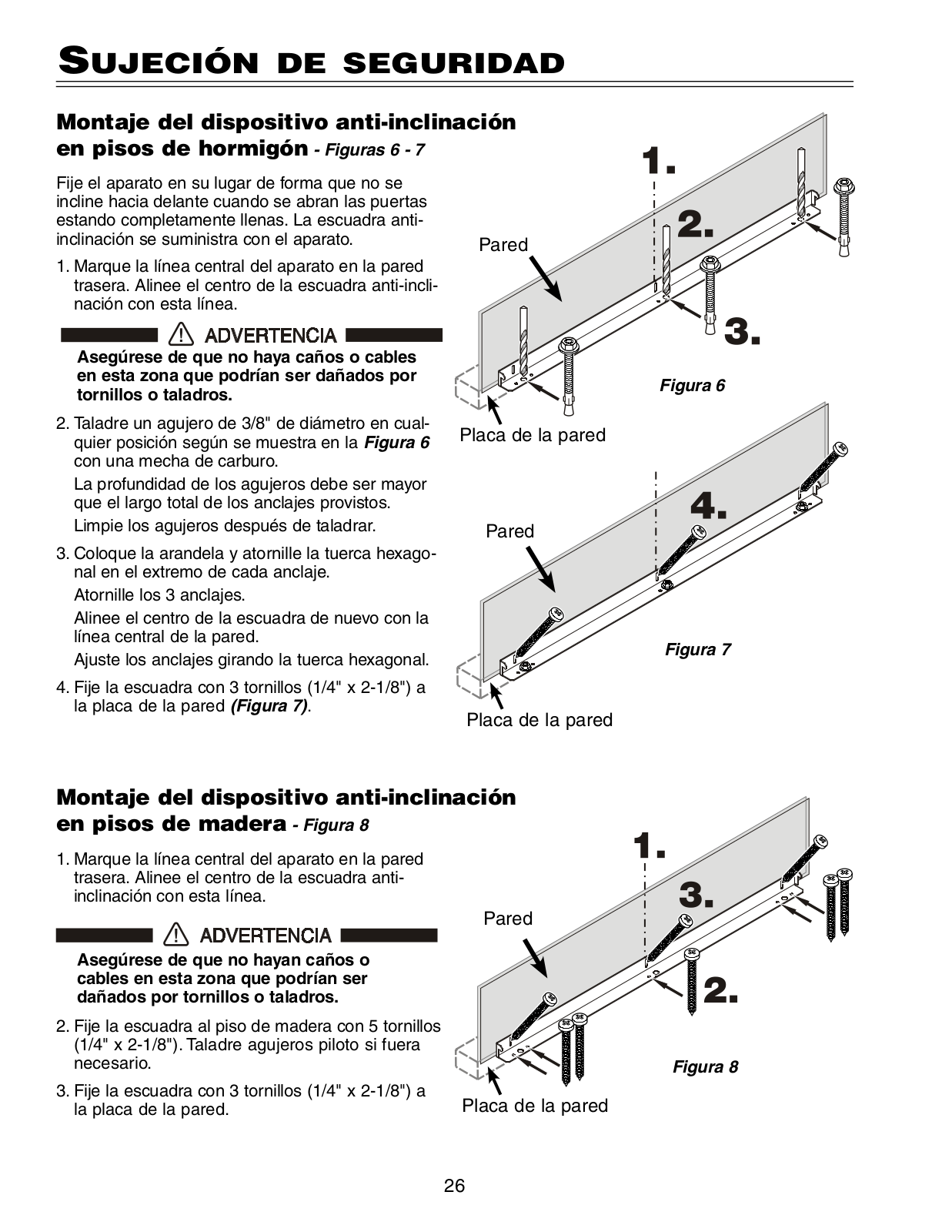

Blocking for Safety
Mounting the anti tipping device on concrete floors - Figure 6 - 7
Secure the appliance in place so it does not tip forward when the fully stocked door is opened. The anti tipping bracket is provided with the appliance.
1. Mark the center line of the appliance on the back |
Wall |
|
|
||
wall. Align the anti tipping bracket center to this |
|
|
line. |
|
|
Be sure that there is no plumbing or |
|
|
electrical wiring located in this area which |
|
|
screws or drills could damage. |
|
|
2. Drill a 3/8" diameter hole in any position as |
Wall Plate |
|
shown in Figure 6 using a carbide drill bit. |
||
|
||
The depth of the holes must exceed the overall |
|
|
length of the anchors provided. |
|
|
Clean the holes after drilling. |
Wall |
|
|
3.Attach washer and screw on hex nut to the end of each anchor.
Drive in all 3 anchors.
Align the bracket center to the center line on the back wall again.
Fasten the anchors by turning the hex nut.
4. Fasten bracket with 3 screws (1/4" x 2-1/8") into |
|
the wall plate (Figure 7). |
Wall Plate |
Mounting the anti tipping device on wooden floors
1.Mark the center line of the appliance on the back wall. Align the anti tipping bracket center to this line.
Be sure that there is no plumbing or |
Wall |
electrical wiring located in this area which |
|
screws or drills could damage. |
|
2. Fasten bracket to the wooden floor using |
|
5 screws (1/4" x 2-1/8"). Drill pilot holes if neces- |
|
sary. |
|
3. Fasten bracket with 3 screws (1/4" x 2-1/8") into the wall plate.
Wall Plate
Figure 6
Figure 7
Figure 8
6

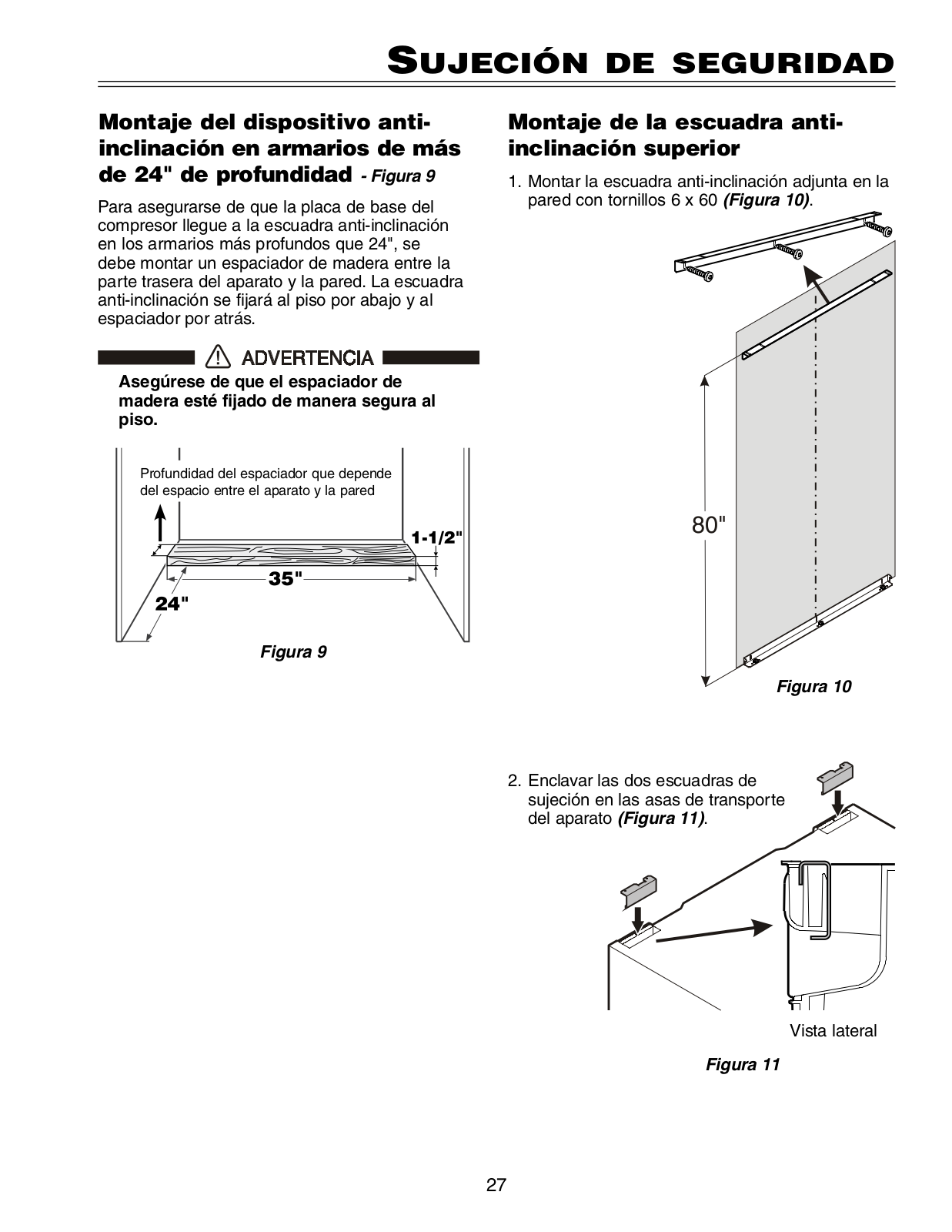

Blocking for Safety
Mounting the anti tipping device in cabinets deeper than 24" -
Figure 9
To ensure the compressor mounting plate reaches the anti tipping bracket at cabinets deeper than 24", a wooden spacer must be mounted between the appliance back and the wall. The anti tipping bracket will be fastened to the floor downwards and to the spacer backwards.
Be sure the wooden spacer is fastened securely to the floor.
Depth of spacer depending on clearence between appliance and wall.
Mounting the top anti-tipping bracket
1.Mount the anti-tipping bracket provided on the wall using 6 x 60 screws (Figure 10).
Figure 9
Figure 10
2. Clip both attachment brackets into the transport grips of the appliance
(Figure 11).
Side view
Figure 11
7

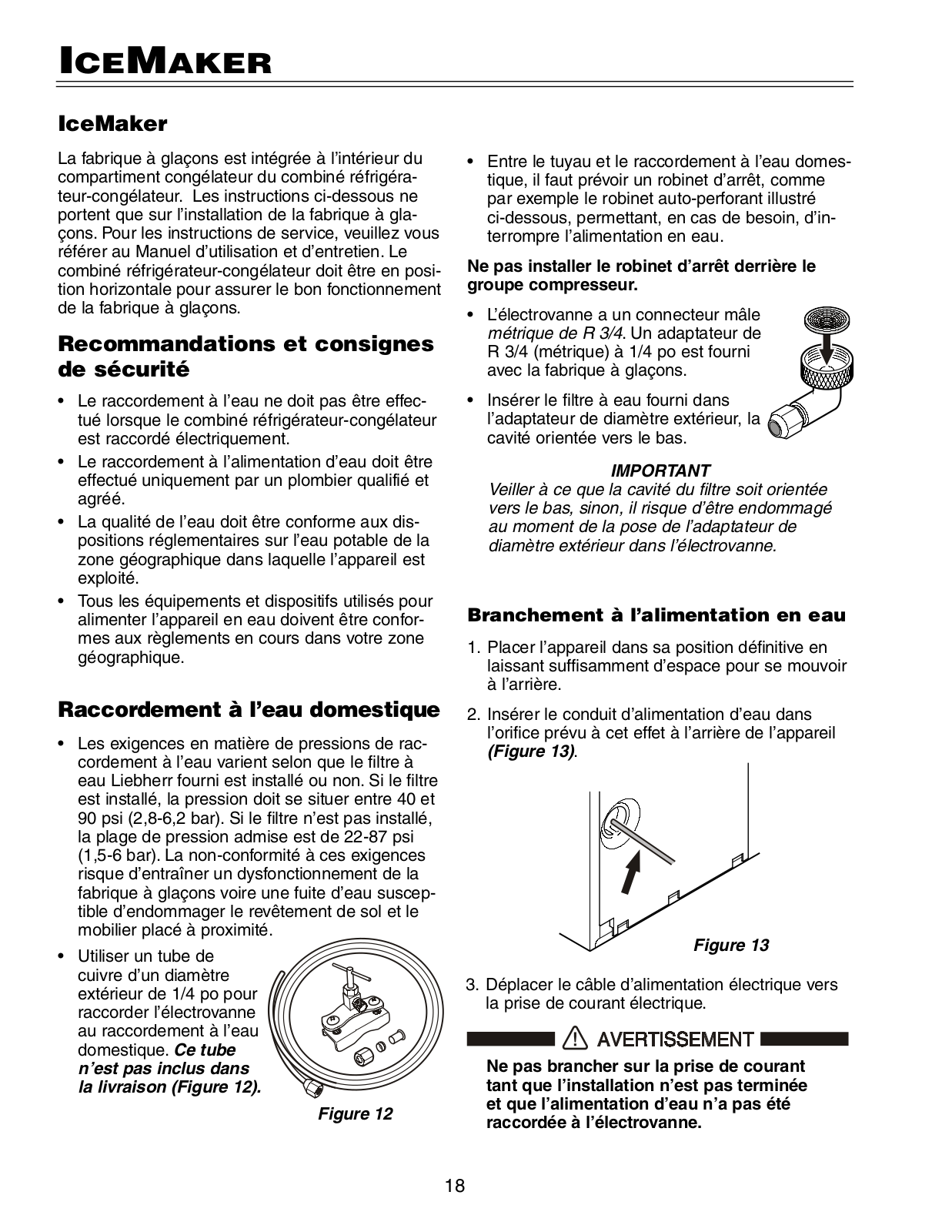

IceMaker
IceMaker
The ice maker for the combined refrigerator-freezer is located in the freezer compartment. These instructions only refer to the installation of the icemaker. Please refer to the Use and Care Manual provided with the appliance for operation instructions. The combined refrigerator-freezer must be level for the ice maker to function properly.
Safety Instructions and Warnings
•Do not install the water connection while the combined refrigerator-freezer is connected to an electrical outlet.
•The connection to the water supply may only be made by a trained and licensed plumber.
•The water quality must comply with the drinking water regulations for the geographical area where the appliance is located.
•All equipment and devices used to supply the water to the appliance must comply with the current regulations for your geographical area.
• The solenoid valve has a metric R3/4 male connector. A R3/4 (metric) to a 1/4" OD adapter is supplied with the ice maker.
• Insert the water strainer provided into the OD adapter with the cavity downwards.
IMPORTANT
Be sure the strainer is inserted with the cavity downwards. Otherwise the strainer could be damaged when mounting the OD adapter onto the solenoid valve.
Connection to the Water Supply
1.Move the appliance towards the final position and leave enough space to work behind.
2.Insert the water supply line into it's intended opening at the back of the appliance (Figure 13).
Water Connection
•The water supply pressure requirements are different based on whether or not the supplied Liebherr water filter is installed. With the filter installed, the pressure must be in the range of 40-90 psi (2.8-6.2 bar). Without the filter
installed the acceptable pressure range is 22-87 psi (1.5-6 bar). Failure to meet these requirements will likely result in ice maker malfunction and possibly cause a water leakage that can damage flooring and surrounding furniture.
•Use a 1/4" OD copper line to connect the water
supply to the solenoid valve. This is not supplied with the appliance (Figure 12).
• A shut-off valve, such as the saddle valve
illustrated here, must be installed between
the hose line and the
main water supply so the water supply can be stopped if necessary.
Do not install the shut-off valve behind the refrigeration unit.
Figure 13
3.Move the power supply line to the area of the electrical outlet.
Do not connect to the electrical outlet before the installation is completed and the water line is connected to the solenoid valve.
8
IceMaker
4.Push the appliance slowly to the back wall until the compressor mounting plate makes contact with the anti tipping bracket (Figure 14).
To prevent the appliance from tipping forward the compressor mounting plate must have contact with the anti tipping bracket (Figure 14).
Wall
Appliance
Anti tipping bracket
Compressor mounting
plate
Figure 14
5.Remove the cover from the valve connector
(Figure 15).
6.The water line is visible at the front of the aplliance. Connect the water line with the OD adapter (Figure 15).
7.Bleed the air from the water line by opening the water supply temporarily.
8.Screw the OD adapter onto the solenoid valve
(Figure 16).
Figure 15
Figure 16
9.Open the shut-off valve for the water supply and check the entire water system for leaks.
IMPORTANT
After starting up the appliance, the water pipe system must be purged of any air. Refer
to chapter "Bleeding the ice maker" in the operating instructions.
9

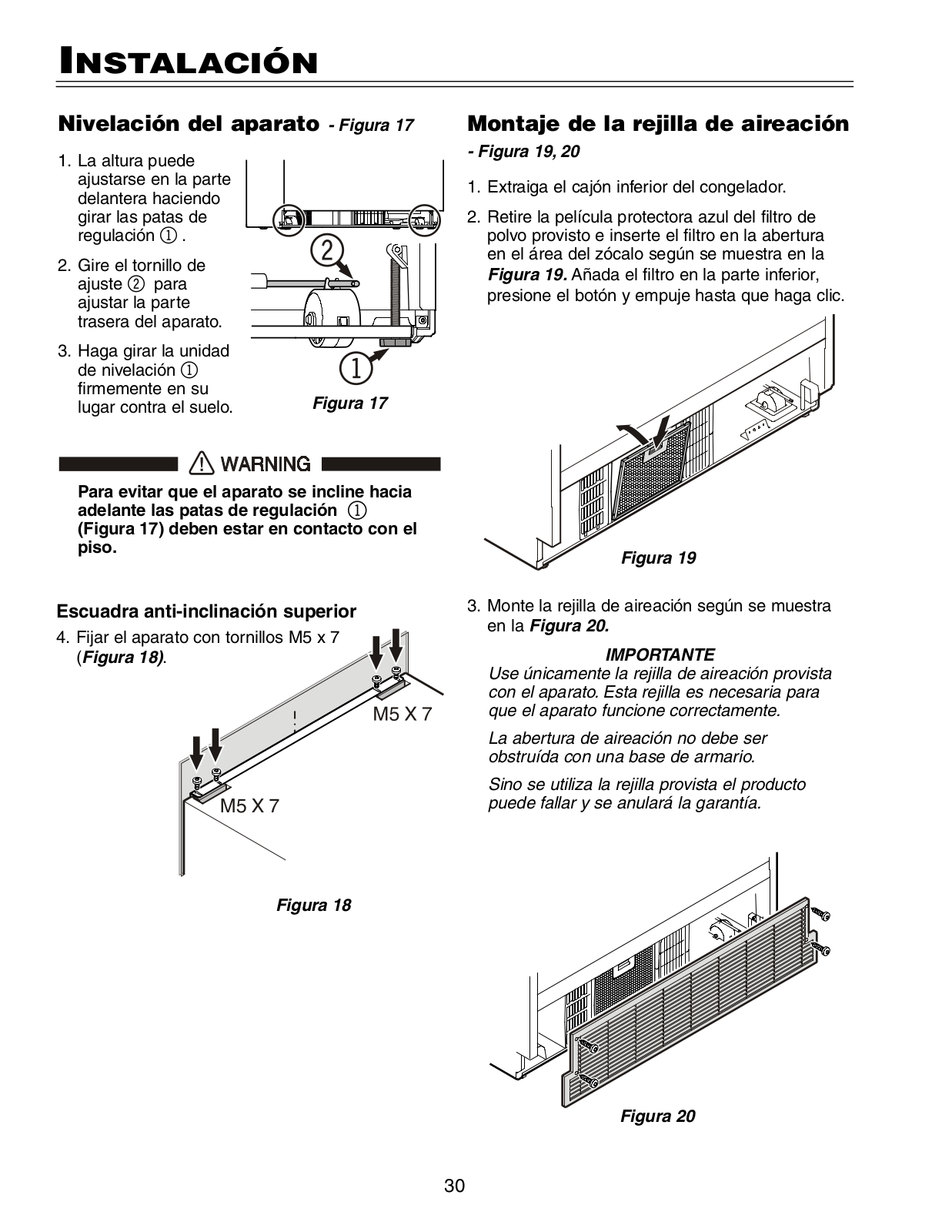

Installation
Leveling the Appliance - Figure 17
1. The height can be adjusted in front by twisting the leveling feet 1.
2. Twist the adjusting bolt 2to set up the back of the refrigerator.
3. Rotate leveling feet |
|
1until firmly in |
|
place against the |
|
floor. |
Figure 17 |
|
To prevent the appliance from tipping forward the leveling feet 1(Figure 17) must have contact with the floor.
Top anti-tipping bracket
4. Secure the appliance with M5 x 7 screws (Figure 18).
Figure 18
Mounting the Ventilation Grille -
Figure 19, 20
1.Pull out the bottom freezer drawer.
2.Remove the blue protection film from the dust filter provided and insert the filter into its opening in the toe kick area as shown in Figure 19. Attach the filter at the bottom, press down the button and click into place.
Figure 19
3. Mount the ventilation grille as shown in Figure 20.
IMPORTANT
Only use the ventilation grille provided with the appliance. This grille is required for proper operation of the appliance.
The ventilation opening must not be covered with a cabinet base.
Failure to use the supplied grille can result in product failure and will void the warranty.
Figure 20
