LC420EUS
Product Specification
SPECIFICATION
FOR
APPROVAL
)
(
(
Preliminary Specification
)
Final Specification
Title 42.0” WUXGA TFT LCD
MODEL
APPROVED BY
/
/
SIGNATURE
DATE
SUPPLIER LG.Display Co., Ltd.
*MODEL LC420EUS
SUFFIX SCA2 (RoHS Verified)
*When you obtain standard approval,
please use the above model name without suffix
APPROVED BY
J.Y. LEE / Team Leader
REVIEWED BY
J.K.KIM / Project Leader
SIGNATURE
DATE
PREPARED BY
/
Please return 1 copy for your confirmation with
your signature and comments.
Ver. 1.0
W.K.SANG / Engineer
TV Products Development Dept.
LG. Display LCD Co., Ltd
One step solution for LCD / PDP / OLED panel application: Datasheet, inventory and accessory!
0/35
www.panelook.com
Global LCD Panel Exchange Center
www.panelook.com
LC420EUS
Product Specification
CONTENTS
Number ITEM
COVER 0
CONTENTS
RECORD OF REVISIONS
1 GENERAL DESCRIPTION
2 ABSOLUTE MAXIMUM RATINGS
3 ELECTRICAL SPECIFICATIONS
3-1 ELECTRICAL CHARACTERISTICS
3-2 INTERFACE CONNECTIONS
3-3 SIGNAL TIMING SPECIFICATIONS
3-4 DATA MAPPING AND TIMING
3-5 PANEL PIXEL STRUCTURE
3-6 POWER SEQUENCE
4 OPTICAL SPECIFICATIONS
5 MECHANICAL CHARACTERISTICS
Page
1
2
3
4
5
5
9
12
15
16
17
18
22
6 RELIABILITY
7 INTERNATIONAL STANDARDS
7-1 SAFETY
7-2 ENVIRONMENT
8 PACKING
8-1 INFORMATION OF LCM LABEL
8-2 PACKING FORM
9 PRECAUTIONS
9-1 MOUNTING PRECAUTIONS
9-2 OPERATING PRECAUTIONS
9-3 ELECTROSTATIC DISCHARGE CONTROL
9-4 PRECAUTIONS FOR STRONG LIGHT EXPOSURE
9-5 STORAGE
9-6 HANDLING PRECAUTIONS FOR PROTECTION FILM
Ver. 1.0
25
26
26
26
27
27
27
28
28
28
29
29
29
29
1/35
One step solution for LCD / PDP / OLED panel application: Datasheet, inventory and accessory!
www.panelook.com
Global LCD Panel Exchange Center
Revision No. Revision Date Page Description
0.0 June, 11, 2010 - Preliminary Specification(First Draft)
0.1 Aug.12.2010 7,8 Note 7 is inserted as LED Life Time
www.panelook.com
LC420EUS
Product Specification
RECORD OF REVISIONS
18
1.0 Aug.18.2010 Final CAS
3
3
24
Rising/Falling Response Timing is changed Rising/Falling : 5(Typ)-> 6(Typ) , 7(Max)->8(Max)
Outline Dimension is changed because of simple LCM
973.2(H) x 566.2 (V) x 10.8 mm(B)/25.3(D) (Typ.)
→ 973.2(H) x 566.2 (V) x 10.8 mm(B)
Power Consumption is changed Total 111.2 W (Typ.) (Logic=18.7 W with LGD T-Con Board, Backlight=92.5W @ with Driver
→ Total 100.06 W (Typ.) (Logic=18.66 W with LGD T-Con Board, Backlight=81.4W @ with Driver
Power connector wire length is inserted
355·XW
Ver. 1.0
One step solution for LCD / PDP / OLED panel application: Datasheet, inventory and accessory!
2/35
www.panelook.com
Global LCD Panel Exchange Center
1. General Description
The LC420EUS is a Color Active Matrix Liquid Crystal Display with an integral Light Emitting Diode (LED) backlight system. The matrix employs a-Si Thin Film Transistor as the active element. It is a transmissive type display operating in the normally black mode. It has a 42.02 inch diagonally measured active display area with WUXGA resolution (1080 vertical by 1920 horizontal pixel array). Each pixel is divided into Red, Green and Blue sub-pixels or dots which are arranged in vertical stripes. Gray scale or the luminance of the sub-pixel color is determined with a 8-bit gray scale signal for each dot. Therefore, it can present a palette of more than 16.7M(true) colors. It is intended to support LCD TV, PCTV where high brightness, super wide viewing angle, high color gamut,
high color depth and fast response time are important.
Power (VCC, VDD, VGH, VGL)
Source Control Signal
Gate Control Signal
Gamma Reference Voltage
mini-LVDS (RGB) for Left drive
CN1
(60pin)
www.panelook.com
Product Specification
Gate Driver Circuit
G1
LC420EUS
Source Driver Circuit
S1 S1920
Power (VCC, VDD, VGH, VGL)
Source Control Signal
Gate Control Signal
Gamma Reference Voltage
mini-LVDS (RGB) for Right drive
LED Anode
LED Cathode
CN2
(60pin)
CN1 (12pin) CN2 (13pin)
G1080
TFT - LCD Panel
(1920 Ý RGB Ý 1080 pixels)
[Gate In Panel]
H : 6 Block
V : 2Block
Local Dimming : 12 Block
General Features
Active Screen Size 42.02 inches(1067.31mm) diagonal
Outline Dimension 973.2(H) x 566.2 (V) x 10.8 mm(B)
Pixel Pitch 0.4845 mm x 0.4845 mm
Pixel Format 1920 horiz. by 1080 vert. Pixels, RGB stripe arrangement
Color Depth
Drive IC Data Interface
Luminance, White 450 cd/m
Viewing Angle (CR>10) Viewing angle free ( R/L 178 (Min.), U/D 178 (Min.))
Power Consumption
Weight 11.1Kg (Typ.)
Display Mode Transmissive mode, Normally black
Surface Treatment Hard coating (3H), Anti-glare treatment of the front polarizer (Haze 10%)
8-bit, 16.7 M colors (Ć 1.06B colors @ 10 bit (D) System Output )
Source D-IC : 8-bit mini-LVDS, gamma reference voltage, and control signals Gate D-IC : Line on Glass(LOG) Through Source D-IC
2
(Center 1point ,Typ.)
Total 100.06 W (Typ.) (Logic=18.66 W with LGD T-Con Board, Backlight=81.4W @ with Driver
Ver. 1.0
One step solution for LCD / PDP / OLED panel application: Datasheet, inventory and accessory!
3/35
www.panelook.com
Global LCD Panel Exchange Center
2. Absolute Maximum Ratings
The following items are maximum values which, if exceeded, may cause faulty operation or damage to the LCD module.
Table 1. ABSOLUTE MAXIMUM RATINGS
www.panelook.com
LC420EUS
Product Specification
Parameter Symbol
Unit Note
Min Max
Value
Logic Power Voltage VCC -0.5 +4.0 V
Gate High Voltage VGH +18.0 +30.0 V
DC
DC
Gate Low Voltage VGL -8.0 -4.0 VDC
Source D-IC Analog Voltage VDD -0.3 +18.0 VDC
Gamma Ref. Voltage (Upper) VGMH ½VDD-0.5 VDD+0.5 VDC
Gamma Ref. Voltage (Low) VGML -0.3 ½ VDD+0.5 VDC
LED Input Voltage Vf - +180.0 VDC
Panel Front Temperature TSUR -+68
Operating Temperature T
Storage Temperature T
Operating Ambient Humidity H
Storage Humidity H
Note:
1. Ambient temperature condition (Ta = 25 2 C )
OP 0+50
ST -20 +60
OP 10 90 %RH
ST 10 90 %RH
C
C
C
2. Temperature and relative humidity range are shown in the figure below. Wet bulb temperature
should be Max 39 C and no condensation of water.
3. Gravity mura can be guaranteed below 40ć condition.
4. The maximum operating temperature is based on the test condition that the surface temperature
of display area is less than or equal to 68 ć with LCD module alone in a temperature controlled chamber. Thermal management should be considered in final product design to prevent the surface
temperature of display area from being over 68 ć. The range of operating temperature may
degrade in case of improper thermal management in final product design.
90%
60
60%
1
4
2,3
Wet Bulb Temperature [
10
0
10 20 30 40 50 60 70 800-20
Dry Bulb Temperature [
C]
20
30
40
50
C]
40%
10%
Humidity
[(%)RH]
Storage
Operation
Ver. 1.0
One step solution for LCD / PDP / OLED panel application: Datasheet, inventory and accessory!
4/35
www.panelook.com
Global LCD Panel Exchange Center
3. Electrical Specifications
3-1. Electrical Characteristics
It requires several power inputs. The VCC is the basic power of LCD Driving power sequence, Which is used to logic power voltage of Source D-IC and Gate D-IC.
Table 2. ELECTRICAL CHARACTERISTICS
Parameter Symbol Condition MIN TYP MAX Unit Note
Logic Power Voltage VCC - 3.0 3.3 3.6 VDC
Logic High Level Input Voltage VIH 2.3 VCC VDC
Logic Low Level Input Voltage VIL 0 0.8 VDC
www.panelook.com
LC420EUS
Product Specification
Source D-IC Analog Voltage VDD - 16.6 16.8 17.0 VDC
Half Source D-IC Analog Voltage
Gamma Reference Voltage
Common Voltage Vcom - 5.7 6.0 6.3 V
Mini-LVDS Clock frequency CLK 3.0V≤VCC ≤3.6V 312 MHz
mini-LVDS input Voltage (Center)
mini-LVDS input Voltage Distortion (Center)
mini-LVDS differential Voltage range
mini-LVDS differential Voltage range Dip
Gate High Voltage VGH 26.7 27.0 27.3 V
Gate Low Voltage VGL -5.2 -5.0 -4.8 VDC
Gate High Modulation Voltage VGHM - - 18.2 -VDC Fig.1
Total Power Current
Total Power Consumption
H_VDD - 8.15 8.4 8.65 VDC
V
GMH
V
GML
IB
V
IB 0.8 V
ΔV
ID 150 800 mV
V
ΔV
ID 25 800 mV
I
LCD --1555 mA 1,2
PL
CD --18.66 Watt
(GMA1 ~ GMA9) ½*VDD VDD-0.2
(GMA10 ~ GMA18) 0.2 ½*VDD
0.7 +
(VID/2)
Mini-LVDS Clock
and Data
(VCC-1.2)
− VID / 2
V
DC
5
Note:
1. The specified current and power consumption are under the VLCD=12V., 25 2¶C, fV=240Hz
condition whereas mosaic pattern(8 x 6) is displayed and f
is the frame frequency.
V
2. The above spec is based on the basic model.
3. All of the typical gate voltage should be controlled within 1% voltage level
4. Ripple voltage level is recommended under 10%
5. In case of mini-LVDS signal spec, refer to Fig 2 for the more detail.
6. Logic level Input Signal : SOE, POL, GSP, H_CONV, OPT_N
7. HVDD Voltage level is half of VDD and it should be between Gamma9 and Gamma10
Ver. 1.0
One step solution for LCD / PDP / OLED panel application: Datasheet, inventory and accessory!
5/35
www.panelook.com
Global LCD Panel Exchange Center
څٻڮ ۊ ې ۍھۀٻګ ڞ ڝ
QGkGw
}pk
୞}pkGG
}pk
୞}pkGG
}jtGOW}PG
QGhGw
୞}pi
}piG
VGH
VGHM
GND
VGL
www.panelook.com
LC420EUS
Product Specification
Without GPM With GPM
FIG. 1 Gate Output Wave form without GPM and with GPM

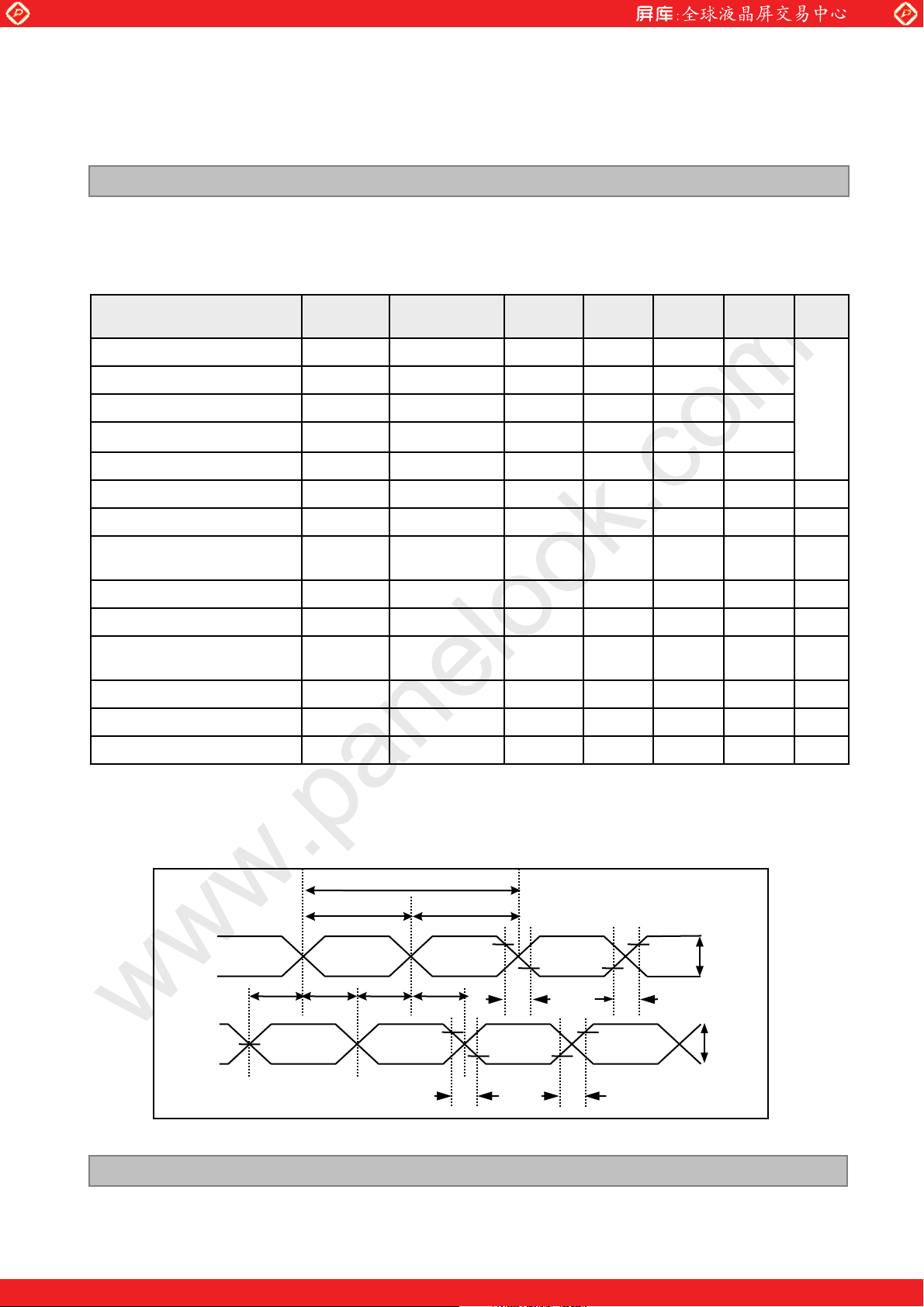

FIG. 2 Description of VID, ΔVIB, ΔVID
FIG. 3 Measure point
Ver. 1.0
One step solution for LCD / PDP / OLED panel application: Datasheet, inventory and accessory!
6/35
www.panelook.com
Global LCD Panel Exchange Center
Table 3. ELECTRICAL CHARACTERISTICS (Continue)
www.panelook.com
LC420EUS
Product Specification
Parameter Symbol
Values
Unit Note
Min Typ Max
Backlight Assembly :
165 mAdc
384 mAdc
Forward Current
Anode I
F (anode)
(one array)
Cathode I
F (cathode)
52.25 55 57.75 mAdc
121.6 128 134.4 mAdc
Forward Voltage V
Forward Voltage Variation
୞V
118.2
F
F
131.0
123.4
136.3
128.5 Vdc
141.6 Vdc
1.7 Vdc
81.4 84.8 W
Power Consumption P
Burst Dimming Duty On duty
BL
62.8 65.2 W
1 100 %
130%
Burst Dimming Frequency 1/T 95 252 Hz
LED Array : (APPENDIX-V)
·5%
2, 3
3D Mode
·5%
2, 3
3D Mode
4
3D Mode
5
6
3D Mode
On Duty=30%
3D Mode
8
Life Time 30,000 Hrs
Notes :
The design of the LED driver must have specifications for the LED array in LCD Assembly. The electrical characteristics of LED driver are based on Constant Current driving type. The performance of the LED in LCM, for example life time or brightness, is extremely influenced by the characteristics of the LED Driver. So, all the parameters of an LED driver should be carefully designed. When you design or order the LED driver, please make sure unwanted lighting caused by the mismatch of the LED and the driver (no lighting, flicker, etc) has never been occurred. When you confirm it, the LCD–
Assembly should be operated in the same condition as installed in your instrument.
Ver. 1.0
7
7/35
One step solution for LCD / PDP / OLED panel application: Datasheet, inventory and accessory!
www.panelook.com
Global LCD Panel Exchange Center
¶ ¶ ¶
¶ ¶ ¶
¶ ¶ ¶
¶ ¶ ¶
www.panelook.com
Product Specification
Notes :
1. Electrical characteristics are based on LED Array specification.
2. Specified values are defined for a Backlight Assembly. (IBL : 4 LED array, 165mA/LED array)
3. Each LED array has one anode terminal and three cathode terminals. The forward current(I
) of the anode terminal is 165mA and it supplies 55mA into three strings, respectively
F
19 (LED Pakage / 1string)
LC420EUS
Anode
4. The forward voltage(V
5. ΔV
means Max VF-Min VFin one Backlight. So VFvariation in a Backlight isn’t over Max. 1.7V
F
) of LED array depends on ambient temperature (Appendix-V)
F
Cathode #1
Cathode #2
3(LED String / 1 Array)
Cathode #3
6. Maximum level of power consumption is measured at initial turn on.
Typical level of power consumption is measured after 1hrs aging at 25 2¶C.
7. The life time(MTTF) is determined as the time at which brightness of the LED is 50% compared to that of
initial value at the typical LED current on condition of continuous operating at 25 2C, based on duty 100%.
8. The reference method of burst dimming duty ratio. It is recommended to use synchronous V-sync frequency to prevent waterfall (Vsync x 1 =Burst Frequency)
Ver. 1.0
One step solution for LCD / PDP / OLED panel application: Datasheet, inventory and accessory!
8/35
www.panelook.com
Global LCD Panel Exchange Center
3-2. Interface Connections
www.panelook.com
LC420EUS
Product Specification
Ver. 1.0
One step solution for LCD / PDP / OLED panel application: Datasheet, inventory and accessory!
9/35
www.panelook.com
Global LCD Panel Exchange Center
3-2-2. Backlight Module
www.panelook.com
LC420EUS
Product Specification
Ver. 1.0
One step solution for LCD / PDP / OLED panel application: Datasheet, inventory and accessory!
10 /35
www.panelook.com
Global LCD Panel Exchange Center
3-3. Signal Timing Specifications
Table 6. Timing Requirements
Parameter Symbol Condition Min Typ Max Unit Note
www.panelook.com
LC420EUS
Product Specification
Mini Clock pulse period
Mini Clock pulse low period
Mini Clock pulse high period
Mini Data setup time
Mini Data hold time
Reset low to SOE rising time
SOE to Reset input time
Receiver off to SOE timing
POL signal to SOE setup time
POL signal to SOE hold time
Reset High Period
SOE signal GSP setup time
SOE signal GSP Hold time
SOE signal Pulse Width
Note :
1. mini-LVDS timing measure conditions:
: 268 MHz < Clock Frequency <312 MHz , 150mV < VID < 800mV @ 3.0< VCC <3.3
2. Setup time and hold time should be satisfied at the same time
T1
T2
T3
T6
T7
T8
T9
T10
T11
T12
T13
T14
T15
T16
3.2 3.4 ns
1.6 - - ns
1.6 - - ns
0.60 - - ns
0.60 - - ns
0--ns
200 - - ns
10 - -
-5 - - ns
6--ns
3
100 ns
100 ns
200 ns
CLK
cycle
CLK
cycle
1
T1
70%
T7
T2
T5
70%
30%
T5
30%
30%
T4
30%
70%
VDIFF
T4
70%
VDIFF
CLK-
CLK+
LV0+, -
to
LV5+,-
T6 T7
50%
T3
T6
FIG 4. Source D-IC Input Data Latch Timing Waveform
Ver. 1.0
One step solution for LCD / PDP / OLED panel application: Datasheet, inventory and accessory!
11 /35
www.panelook.com
Global LCD Panel Exchange Center
www.panelook.com
LC420EUS
Product Specification
CLK+
LV0+,-
LV1+,-
to
LV5+,-
SOE
Read The Reset=H
NA
NA
T8
70%
30%
R=H R=H R=H NAR=L R=L NA D D DR=L DD
NA NA NA NANA NA NA D D DNA DD
T9
T13
Read The Reset=L 1
T1
T2
T3
FIG 5-1. Input Data Timing for 1stSource D-IC Chip
Last DATA
st
DATA
Ver. 1.0
CLK+
LV0+,-
LV1+,-
to
LV5+,-
SOE
(240)
D D D
D D D
(241)
NA NA NA NA NA R=LNA R=L R=L
NA NA NA NA NA NANA NA NA
T10
FIG 5-2. Last Data Latch to SOE Timing
T8
70%
30%
12 /35
One step solution for LCD / PDP / OLED panel application: Datasheet, inventory and accessory!
www.panelook.com
Global LCD Panel Exchange Center
www.panelook.com
LC420EUS
Product Specification
SOE
POL
GSP
GSP
70%
T16
T14
T11
70%
30%
30%
70%
T15
T12
70%
30%
70%
30%
70%
Ver. 1.0
SOE
1stline data 1stline output
FIG 6. POL, GSP and SOE Timing Waveform
13 /35
One step solution for LCD / PDP / OLED panel application: Datasheet, inventory and accessory!
www.panelook.com
Global LCD Panel Exchange Center
3-4. Data Mapping and Timing
www.panelook.com
LC420EUS
Product Specification
Display data and control signal (RESET) are input to
3-4-1. Control signal input mode
CLK +
LV0 +
ylzl{ ylzl{ ylzl{ ylzl{ ylzl{ ylzl{ ylzl{ ylzl{ ylzl{ ylzl{
3-4-2. Display data input mode
CLK+
LV0+
LV1+
LV2+
LV3+
LV4+
LV5+
D01 D02 D03 D04 D05 D06D00
D11 D12 D13 D14 D15 D16D10 D17
D21 D22 D23 D24 D25 D26D20 D27
D31 D32 D33 D34 D35 D36D30 D37
D41 D42 D43 D44 D45 D46D40 D47
D51 D52 D53 D54 D55 D56D50 D57
LV0 to LV5.
D07 D00
D10
D20
D30
D40
D50
Note :
Ver. 1.0
DATA INPUT CYCLE
Fig. 7 Mini-LVDS Data
1. For data mapping, please refer to panel pixel structure Fig.8
14 /35
One step solution for LCD / PDP / OLED panel application: Datasheet, inventory and accessory!
www.panelook.com
Global LCD Panel Exchange Center
3-5. Panel Pixel Structure
D1 D2 D3 D4 D5 D1918 D1919 D1920 D1921
G1
G2
G3
www.panelook.com
LC420EUS
Product Specification
G4
G5
G6
G1078
G1079
G1080
FIG. 8 Panel Pixel Structure
Ver. 1.0
One step solution for LCD / PDP / OLED panel application: Datasheet, inventory and accessory!
15 /35
www.panelook.com
Global LCD Panel Exchange Center
3-6. Power Sequence
3-6-1. LCD Driving circuit3-6-1. LCD Driving circuit
www.panelook.com
LC420EUS
Product Specification
Power Supply For LCD VCC
Power Supply For LCD VDD, HVDD, VGH,
Gamma Ref. Voltage
Power Supply For LCD VGL
GSC and GOE Signal
Power for Lamp
0V
0V
GSC
GOE
70%
50%
T1
T4
T2
VGH=Vcc
100%
Don’t care
T7
50% 50%
......
......
..
T3
T5
Lamp ON
T5’
50%
30%
30%
T6
Table 7. POWER SEQUENCE
Parameter
T
1 0.5 - ms
2 0.01
T
T
3 10
4 0T2ms
T
5 / T5’ 20 - ms
T
T
6 2-sec
T7 0.5 - s
Min Typ Max
Value
Unit Notes
-
-
ms
ms
Note : 1. Power sequence for Source D-IC must be kept. Ć Please refer to Appendix IV for more details
2. The Gate D-IC power on sequence must be VCC, VGL, logic input & VGH.
st
3. The 1
start of GSC is located between VGL and VGH.
4. GOE rising is before GSC.
5. Power off sequence order is reverse of power on sequence.
Ver. 1.0
16 /35
One step solution for LCD / PDP / OLED panel application: Datasheet, inventory and accessory!
www.panelook.com
Global LCD Panel Exchange Center

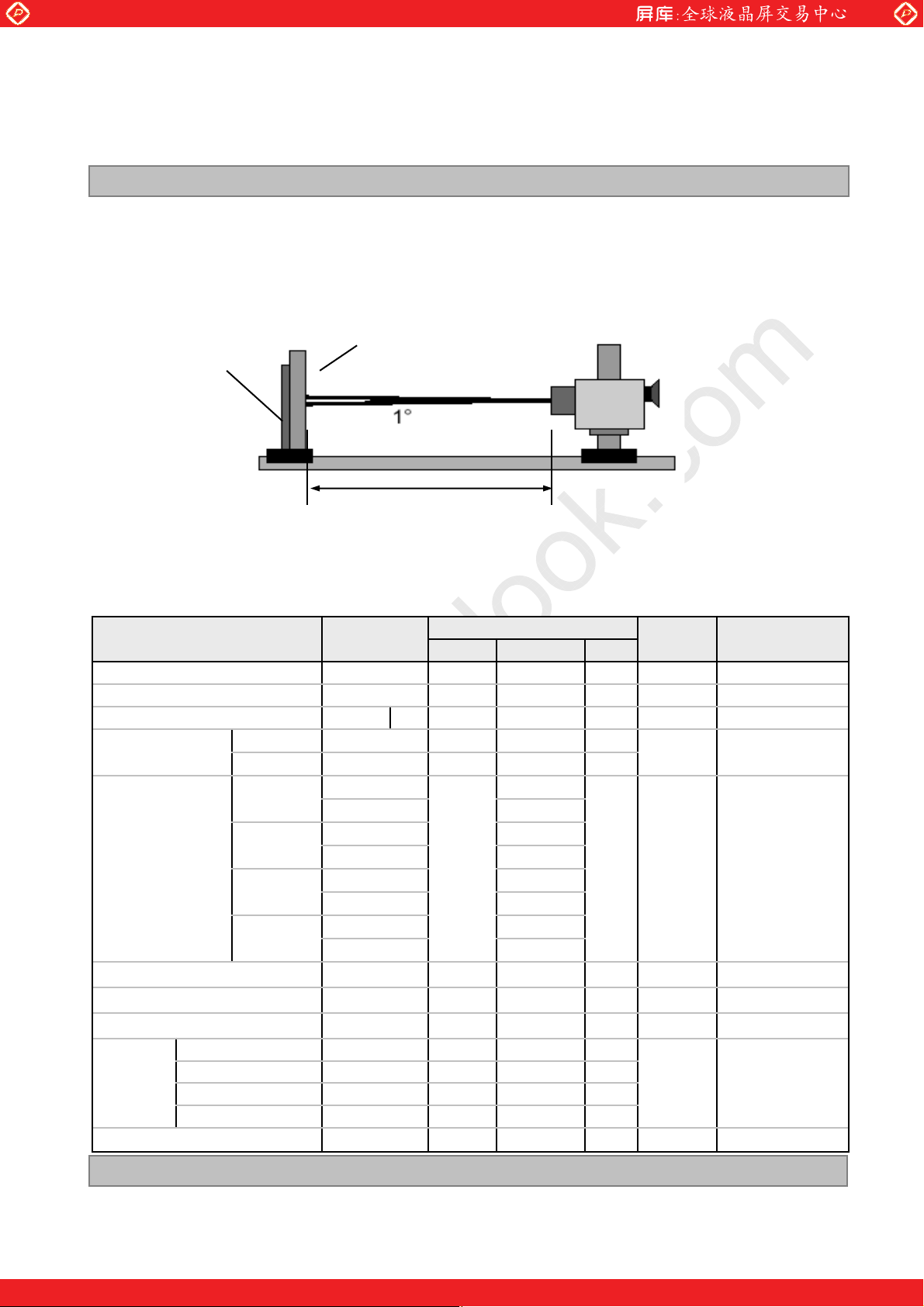

4. Optical Specification
Optical characteristics are determined after the unit has been ‘ON’ and stable in a dark environment at 25·2¶C. The values are specified at an approximate distance 50cm from the LCD surface at a viewing angle of and equal to 0 ¶. It is presented additional information concerning the measurement equipment and method in FIG. 9.
www.panelook.com
LC420EUS
Product Specification
Optical Stage(x,y)
LCD Module
Pritchard 880 or equivalent
50cm
FIG. 9 Optical Characteristic Measurement Equipment and Method
Ta= 25·2¶C, VDD,H_VDD,VGH,VGL=typ,
Table 8. OPTICAL CHARACTERISTICS
Parameter Symbol
Contrast Ratio CR
Surface Luminance, white L
Luminance Variation
Response Time
Color Coordinates [CIE1931]
Color Temperature 10,000 K
Color Gamut 72 % NTSC
Viewing Angle (CR>10)
x axis, right( =0¶)
x axis, left ( =180¶)
y axis, up ( =90) y axis, down ( =270¶)
Gray Scale - - - 6
Rising Tr -
Falling Tf -
RED
GREEN
BLUE
WHITE
WHITE
Wx
Wy
WH
5P - - 1.3 3
Rx
Ry
Gx
Gy
Bx
By
r
l
u
d
Min Typ Max
900 1300 - 1
360 450 - cd/m
Typ
-0.03
89 - -
89 - -
89 - -
89 - -
fV=240Hz, Clk=297MHz, IF=165 mA (Typ.)
Value
ࣲࣴ
Unit Note
2
ms 4
ࣲࣴ
ࣰࣲ࣮࣬࣪
ࣱ࣯࣯࣬࣪
࣯࣬࣪࣬ࣴ
ࣲ࣮࣬࣪࣬
ࣱࣲ࣭࣬࣪
Typ
+0.03
ࣲ࣭࣬࣪࣬
࣮࣬࣪ࣳࣵ
࣮࣮࣬࣪ࣵ
degree 5
2
Ver. 1.0
One step solution for LCD / PDP / OLED panel application: Datasheet, inventory and accessory!
17 /35
www.panelook.com
Global LCD Panel Exchange Center
www.panelook.com
LC420EUS
Product Specification
Note :
1. Contrast Ratio(CR) is defined mathematically as :
Surface Luminance at all white pixels
CR =
Surface Luminance at all black pixels
It is measured at center 1-point.
2. Surface luminance is determined after the unit has been ‘ON’ and 1Hour after lighting the
backlight in a dark environment at 25·2¶C. Surface luminance is the luminance value at center 1-point across the LCD surface 50cm from the surface with all pixels displaying white. For more information see the FIG. 10.
3. The variation in surface luminance , WHITE is defined as : WHITE(5P) = Maximum(L
Where L
on1
to L
are the luminance with all pixels displaying white at 5 locations .
on5
on1,Lon2
on3
on4
) / Minimum(L
on5
on1,Lon2
, L
on3
, L
on4
, L
on5
)
, L
, L
, L
For more information, see the FIG. 10.
4. Response time is the time required for the display to transit from G(255) to G(0) (Rise Time, Tr
and from G(0) to G(255) (Decay Time, Tr
).
D
5. Viewing angle is the angle at which the contrast ratio is greater than 10. The angles are
determined for the horizontal or x axis and the vertical or y axis with respect to the z axis which
is normal to the LCD module surface. For more information, see the FIG. 12.
6. Gray scale specification
Gamma Value is approximately 2.2. For more information, see the Table 9.
)
R
Table 9. GRAY SCALE SPECIFICATION
Gray Level Luminance [%] (Typ)
L0 0.07
L15 0.24
L31 1.04
L47 2.49
L63 4.68
L79 7.66
L95 11.5
L111 16.1
L127 21.6
L143 28.1
L159 35.4
L175 43.7
L191 53.0
L207 63.2
L223 74.5
L239 86.7
L255 100
Positive
Voltage
Negative
Voltage
Gray Level Gamma Ref.
L0 Gamma9
L31 Gamma7
L63 Gamma6
L127 Gamma5
L191 Gamma4
L223 Gamma3
L254 Gamma2
L255 Gamma1
L255 Gamma18
L254 Gamma17
L223 Gamma16
L191 Gamma15
L127 Gamma14
L63 Gamma13
L31 Gamma12
L0 Gamma10
Ver. 1.0
One step solution for LCD / PDP / OLED panel application: Datasheet, inventory and accessory!
18 /35
www.panelook.com
Global LCD Panel Exchange Center
ྙ
ྛྚ
ྜྷ
ྜ
Measuring point for surface luminance & luminance variation
www.panelook.com
LC420EUS
Product Specification
H
A
V
B
A:H/4mm
FIG.10 5 Points for Luminance Measure
Response time is defined as the following figure and shall be measured by switching the input signal for
“Gray(N)” and “Gray(M)”.
TrR
100
90
TrD
B:V/4mm @ H,V : Active Area
Optical Response
Ver. 1.0
10
0
Gray(N)
N,M = Black~White, N<M
FIG.11 Response Time
Gray(M)
Gray(N)
One step solution for LCD / PDP / OLED panel application: Datasheet, inventory and accessory!
19 /35
www.panelook.com
Global LCD Panel Exchange Center
Dimension of viewing angle range
www.panelook.com
LC420EUS
Product Specification
= 180 , Left
= 270 , Down
Normal
FIG.12 Viewing Angle
E
Y
= 90 , Up
= 0 , Right
Ver. 1.0
One step solution for LCD / PDP / OLED panel application: Datasheet, inventory and accessory!
20 /35
www.panelook.com
Global LCD Panel Exchange Center
5. Mechanical Characteristics
Table 10 provides general mechanical characteristics.
Table 10. MECHANICAL CHARACTERISTICS
Item Value
www.panelook.com
LC420EUS
Product Specification
Horizontal 973.2 mm
Outline Dimension
Bezel Area
Active Display Area
Weight 11.1 Kg
Vertical 566.2 mm
Depth 10.8 mm
Horizontal 937.2 mm
Vertical 530.2 mm
Horizontal 930.24 mm
Vertical 523.26 mm
Note : Please refer to a mechanical drawing in terms of tolerance at the next page.
Ver. 1.0
One step solution for LCD / PDP / OLED panel application: Datasheet, inventory and accessory!
21 /35
www.panelook.com
Global LCD Panel Exchange Center
[ FRONT VIEW ][ FRONT VIEW ]
www.panelook.com
LC420EUS
Product Specification
Ver. 1.0
One step solution for LCD / PDP / OLED panel application: Datasheet, inventory and accessory!
22 /35
www.panelook.com
Global LCD Panel Exchange Center
[ REAR VIEW ][ REAR VIEW ]
www.panelook.com
LC420EUS
Product Specification
T-Con
Ver. 1.0
One step solution for LCD / PDP / OLED panel application: Datasheet, inventory and accessory!
23 /35
www.panelook.com
Global LCD Panel Exchange Center
6. Reliability
Table 11. ENVIRONMENT TEST CONDITION
No. Test Item Condition
www.panelook.com
LC420EUS
Product Specification
1 High temperature storage test
2 Low temperature storage test
3 High temperature operation test
4 Low temperature operation test
Vibration test
5
(non-operating)
Shock test
6
(non-operating)
7 Humidity condition Operation
Altitude operating
8
storage / shipment
Ta= 60C 240h
Ta= -20C 240h
Ta= 50C 50%RH 240h
Ta= 0C 240h
Wave form : random
Vibration level : 1.0Grms
Bandwidth : 10-300Hz Duration : X,Y,Z, 30 min
Each direction per 10 min
Shock level : 50Grms Waveform : half sine wave, 11ms Direction : ᇹX, ᇹY, ᇹZ
One time each direction
Ta= 40 C ,90%RH
0 - 15,000 ft 0 - 40,000 ft
Note : Before and after Reliability test, LCM should be operated with normal function.
Ver. 1.0
One step solution for LCD / PDP / OLED panel application: Datasheet, inventory and accessory!
24 /35
www.panelook.com
Global LCD Panel Exchange Center
7. International Standards
7-1. Safety
a) UL 60065, Seventh Edition, Underwriters Laboratories Inc.
Audio, Video and Similar Electronic Apparatus - Safety Requirements.
b) CAN/CSA C22.2 No.60065:03, Canadian Standards Association.
Audio, Video and Similar Electronic Apparatus - Safety Requirements.
d) IEC 60065:2005 + A1:2005, The International Electrotechnical Commission (IEC).
Audio, Video and Similar Electronic Apparatus - Safety Requirements.
(Including report of IEC60825-1:2001 clause 8 and clause 9)
Notes
1. Laser (LED Backlight) Information
www.panelook.com
LC420EUS
Product Specification
Class 1M LED Product
IEC60825-1 : 2001
Embedded LED Power (Class1M)
2. Caution
: LED inside.
Class 1M laser (LEDs) radiation when open. Do not open while operating.
7-2. Environment
a) RoHS, Directive 2002/95/EC of the European Parliament and of the council of 27 January 2003 on the
restriction of the use of certain hazardous substances in electrical and electronic equipment
Ver. 1.0
One step solution for LCD / PDP / OLED panel application: Datasheet, inventory and accessory!
25 /35
www.panelook.com
Global LCD Panel Exchange Center
8. Packing
8-1. Information of LCM Label
a) Lot Mark
ABCDEFGHI JKLM
A,B,C : SIZE(INCH) D : YEAR E : MONTH F ~ M : SERIAL NO.
www.panelook.com
LC420EUS
Product Specification
Note
1. YEAR
Year
Mark
321
200452005
4
200320022001
2006720078200892009
6
2. MONTH
Month
Mark
Apr5May
4
Jun7Jul8Aug9Sep
6
b) Location of Lot Mark
Serial NO. is printed on the label. The label is attached to the backside of the LCD module. This is subject to change without prior notice.
8-2. Packing Form
a) Package quantity in one pallet : 15 ea
b) Pallet Size : 1140 mm X 990 mm X 125.5mm
2010
0
Oct
A
Nov
B
DecMarFebJan
C321
Ver. 1.0
One step solution for LCD / PDP / OLED panel application: Datasheet, inventory and accessory!
26 /35
www.panelook.com
Global LCD Panel Exchange Center
9. Precautions
Please pay attention to the followings when you use this TFT LCD module.
9-1. Mounting Precautions
(1) You must mount a module using specified mounting holes (Details refer to the drawings). (2) You should consider the mounting structure so that uneven force (ex. Twisted stress) is not applied to the
module. And the case on which a module is mounted should have sufficient strength so that external force is not transmitted directly to the module.
(3) Please attach the surface transparent protective plate to the surface in order to protect the polarizer.
Transparent protective plate should have sufficient strength in order to the resist external force. (4) You should adopt radiation structure to satisfy the temperature specification. (5) Acetic acid type and chlorine type materials for the cover case are not desirable because the former
generates corrosive gas of attacking the polarizer at high temperature and the latter causes circuit break by electro-chemical reaction.
(6) Do not touch, push or rub the exposed polarizers with glass, tweezers or anything harder than HB
pencil lead. And please do not rub with dust clothes with chemical treatment.
Do not touch the surface of polarizer for bare hand or greasy cloth.(Some cosmetics are detrimental
to the polarizer.) (7) When the surface becomes dusty, please wipe gently with absorbent cotton or other soft materials like
chamois soaks with petroleum benzine. Normal-hexane is recommended for cleaning the adhesives
used to attach front / rear polarizers. Do not use acetone, toluene and alcohol because they cause chemical damage to the polarizer.
(8) Wipe off saliva or water drops as soon as possible. Their long time contact with polarizer causes
deformations and color fading.
(9) Do not open the case because inside circuits do not have sufficient strength.
9-2. Operating Precautions
(1) The spike noise causes the mis-operation of circuits. It should be lower than following voltage :
V=·200mV(Over and under shoot voltage)
(2) Response time depends on the temperature.(In lower temperature, it becomes longer.) (3) Brightness depends on the temperature. (In lower temperature, it becomes lower.)
And in lower temperature, response time(required time that brightness is stable after turned on) becomes longer
(4) Be careful for condensation at sudden temperature change.Condensation makes damage to polarizer or
electrical contacted parts. And after fading condensation, smear or spot will occur. (5) When fixed patterns are displayed for a long time, remnant image is likely to occur. (6) Module has high frequency circuits. Sufficient suppression to the electromagnetic interference shall be
done by system manufacturers. Grounding and shielding methods may be important to minimized the interference.
(7) Please do not give any mechanical and/or acoustical impact to LCM. Otherwise, LCM can’t be operated
its full characteristics perfectly.
(8) A screw which is fastened up the steels should be a machine screw.
(if not, it can causes conductive particles and deal LCM a fatal blow) (9) Please do not set LCD on its edge. (10) The conductive material and signal cables are kept away from LED driver inductor to prevent abnormal
display, sound noise and temperature rising.
www.panelook.com
LC420EUS
Product Specification
Ver. 1.0
One step solution for LCD / PDP / OLED panel application: Datasheet, inventory and accessory!
27 /35
www.panelook.com
Global LCD Panel Exchange Center
(12) Partial darkness may happen under the long-term operation of any dimming without power on/off.
This phenomenon which disappears naturally after 5 minutes is not a problem about reliability but
LCD characteristics.
9-3. Electrostatic Discharge Control
Since a module is composed of electronic circuits, it is not strong to electrostatic discharge. Make certain that
treatment persons are connected to ground through wrist band etc. And don’t touch interface pin directly.
9-4. Precautions for Strong Light Exposure
Strong light exposure causes degradation of polarizer and color filter.
www.panelook.com
LC420EUS
Product Specification
9-5. Storage
When storing modules as spares for a long time, the following precautions are necessary.
(1) Store them in a dark place. Do not expose the module to sunlight or fluorescent light. Keep the temperature
between 5C and 35C at normal humidity.
(2) The polarizer surface should not come in contact with any other object.
It is recommended that they be stored in the container in which they were shipped.
9-6. Handling Precautions for Protection Film
(1) The protection film is attached to the bezel with a small masking tape.
When the protection film is peeled off, static electricity is generated between the film and polarizer.
This should be peeled off slowly and carefully by people who are electrically grounded and with well ion-
blown equipment or in such a condition, etc.
(2) When the module with protection film attached is stored for a long time, sometimes there remains a very
small amount of glue still on the bezel after the protection film is peeled off.
(3) You can remove the glue easily. When the glue remains on the bezel surface or its vestige is recognized,
please wipe them off with absorbent cotton waste or other soft material like chamois soaked with normal-
hexane.
Ver. 1.0
One step solution for LCD / PDP / OLED panel application: Datasheet, inventory and accessory!
28 /35
www.panelook.com
Global LCD Panel Exchange Center
# APPENDIX-I
LC420EUS-SCA2– Pallet Ass’y
www.panelook.com
LC420EUS
Product Specification
Ver. 1.0
NO. DESCRIPTION MATERIAL
1 LCD Module
2 BAG 42INCH
3 TAPE MASKING 20MMX50M
4 PALLET Plywood 1140X990X125.5mm
5 PACKING,BOTTOM EPS
6 PACKING,TOP EPS
7 ANGLE,POST PAPER
8 ANGLE,PACKING PAPER
9 ANGLE.COVER PAPER
10 BAND,CLIP STEEL or PP
11 BAND PP
12 LABEL YUPO 80G 100X70
29 /35
One step solution for LCD / PDP / OLED panel application: Datasheet, inventory and accessory!
www.panelook.com
Global LCD Panel Exchange Center
ͽʹͶΆ΄ ΄ʹͲ
# APPENDIX- II-1
غ LC420EUS-SCA2-LCM Label
www.panelook.com
LC420EUS
Product Specification
Model
UL, TUV Mark
LGD Logo
US PATENT No. Origin
Serial No.
Ver. 1.0
One step solution for LCD / PDP / OLED panel application: Datasheet, inventory and accessory!
30 /35
www.panelook.com
Global LCD Panel Exchange Center
# APPENDIX- II-2
غ LC420EUS-SCA2-Pallet Label
LC420EUS
www.panelook.com
LC420EUS
Product Specification
SCA2
15 PCS
MADE IN KOREA
001/01-01
XXXXXXXXXXXXX XXX
RoHS Verified
Ver. 1.0
One step solution for LCD / PDP / OLED panel application: Datasheet, inventory and accessory!
31 /35
www.panelook.com
Global LCD Panel Exchange Center
غ
غ
غ
ć
ć
ć
# APPENDIX-III
LED Array Electrical Spec
www.panelook.com
LC420EUS
Product Specification
Forward Current vs. Forward Voltage
Ta=0
Ta=50
Ambient Temperature vs. Forward Voltage
-20
Ver. 1.0
One step solution for LCD / PDP / OLED panel application: Datasheet, inventory and accessory!
32 /35
www.panelook.com
Global LCD Panel Exchange Center
غ
J[TX
J[TY J[TZ JZTZ
JXTX
JXTY JXTZ
JYTZ
JYTY
JYTX
Z
JYTX
JYTY JYTZ JXTZ
JZTX
JZTY JZTZ
J[TZ
J[TY
J[TX
# APPENDIX- IV
Local Dimming Block Pin Matching
www.panelook.com
LC420EUS
Product Specification
[ CN2 ]
Pin No
1 Vo_2
2N.C
3 A6
4 A5
5 A4
6N.C
7N.C
8N.C
9 A3
10 A2
11 A1
12 N.C
13 Vo_2
Block
T-con
JZTY
Front
B5B4B3B2B1
JXTY
Front
JZTX
A6A5A4A3A2A1
B6
JXTX
B1B2B3B4B5B6
[ CN1]
Pin No
1 Vo_1
2N.C
3 B1
4 B2
5 B3
6N.C
7N.C
8 B4
9 B5
10 B6
11 N.C
12 Vo_1
Block
Ver. 1.0
T-con
A2A3A4A5A6
A1
33 /35
One step solution for LCD / PDP / OLED panel application: Datasheet, inventory and accessory!
www.panelook.com
Global LCD Panel Exchange Center
# APPENDIX- V
غ LC420EUS-SCA2-Source D-IC Power Sequence
www.panelook.com
LC420EUS
Product Specification
Ver. 1.0
One step solution for LCD / PDP / OLED panel application: Datasheet, inventory and accessory!
34 /35
www.panelook.com
Loading...
Buy Points How it Works FAQ Contact Us Questions and Suggestions Privacy Policy Cookie Policy Terms of Use
