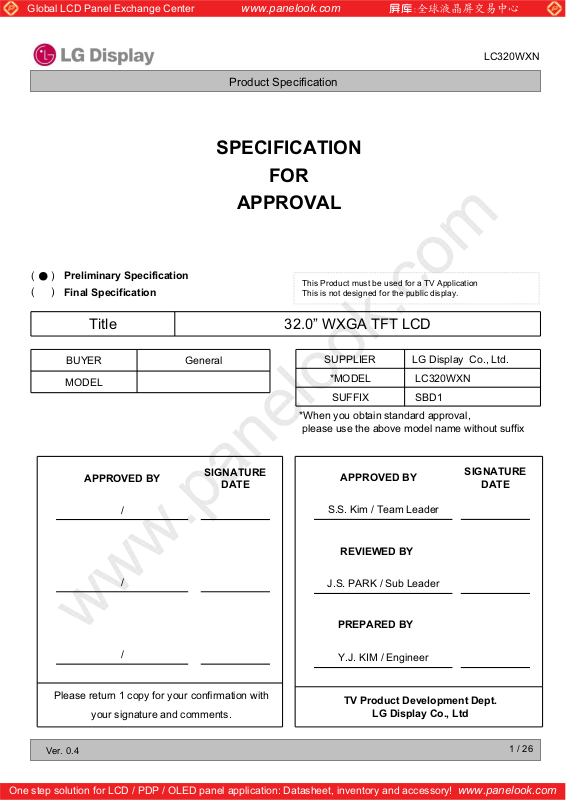

LG Display LC320WXN-SBD1 Specification

Global LCD Panel Exchange Center

)

(

(

Preliminary Specification



)

Final Specification

www.panelook.com

LC320WXN

Product Specification

SPECIFICATION

FOR

APPROVAL

This Product must be used for a TV Application
This is not designed for the public display.

Title 32.0” WXGA TFT LCD

BUYER General

MODEL

APPROVED BY

/

/

SIGNATURE

DATE

SUPPLIER LG Display Co., Ltd.

*MODEL LC320WXN

SUFFIX SBD1

*When you obtain standard approval,

please use the above model name without suffix

APPROVED BY

S.S. Kim / Team Leader

REVIEWED BY

J.S. PARK / Sub Leader

SIGNATURE

DATE

PREPARED BY

/

Please return 1 copy for your confirmation with

your signature and comments.

Ver. 0.4

One step solution for LCD / PDP / OLED panel application: Datasheet, inventory and accessory!

Y.J. KIM / Engineer

TV Product Development Dept.

LG Display Co., Ltd

1/ 26

www.panelook.com

Global LCD Panel Exchange Center

www.panelook.com

LC320WXN

Product Specification

CONTENTS

Number ITEM

COVER

CONTENTS

RECORD OF REVISIONS

1 GENERAL DESCRIPTION

2 ABSOLUTE MAXIMUM RATINGS

3 ELECTRICAL SPECIFICATIONS

3-1 ELECTRICAL CHARACTERISTICS

3-2 INTERFACE CONNECTIONS

3-3 SIGNAL TIMING SPECIFICATIONS

3-4 SIGNAL TIMING WAVEFORMS

3-5 COLOR DATA REFERENCE

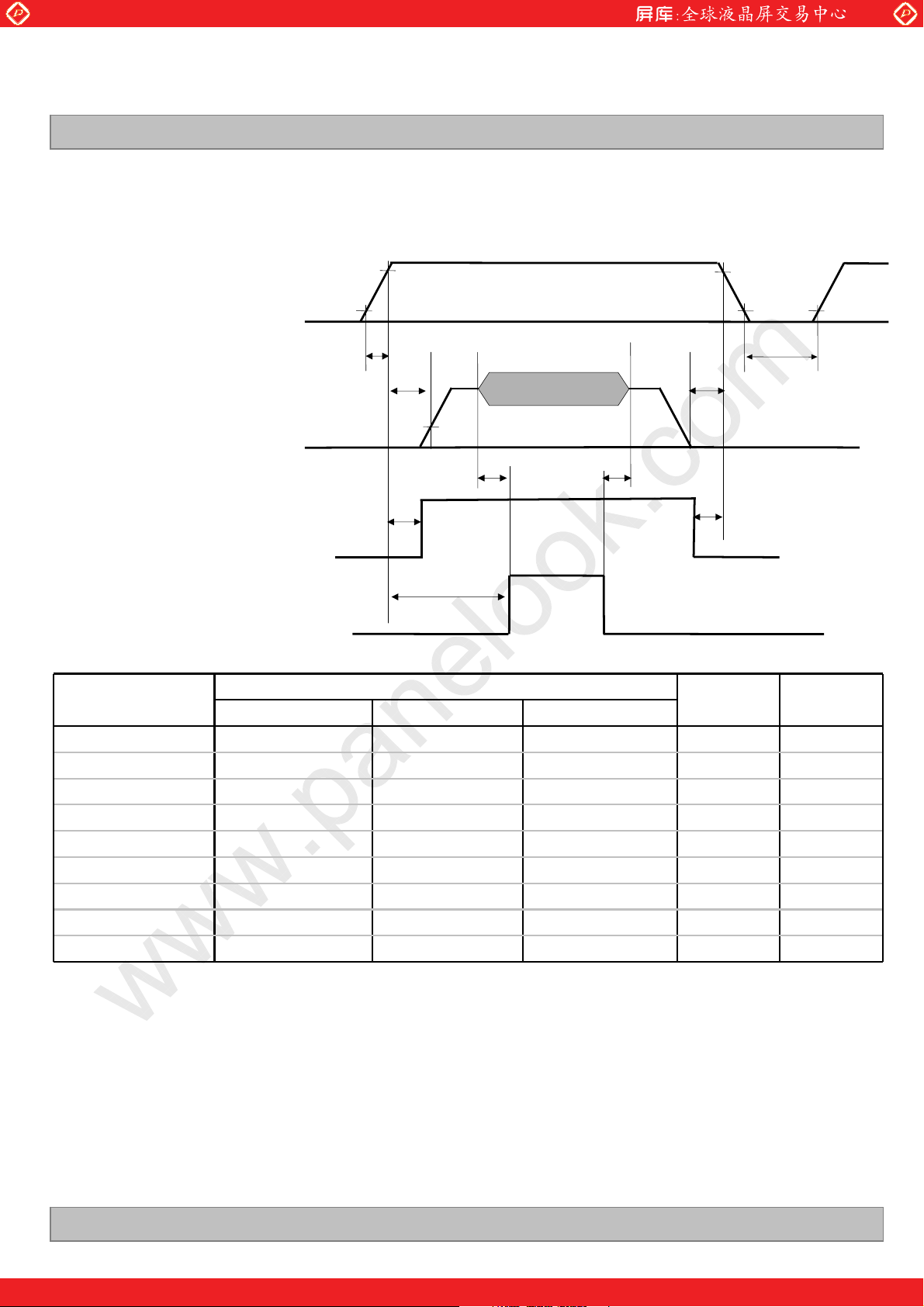

3-6 POWER SEQUENCE

4 OPTICAL SPECIFICATIONS

Page

1

2

3

4

5

6

6

8

10

11

12

13

15

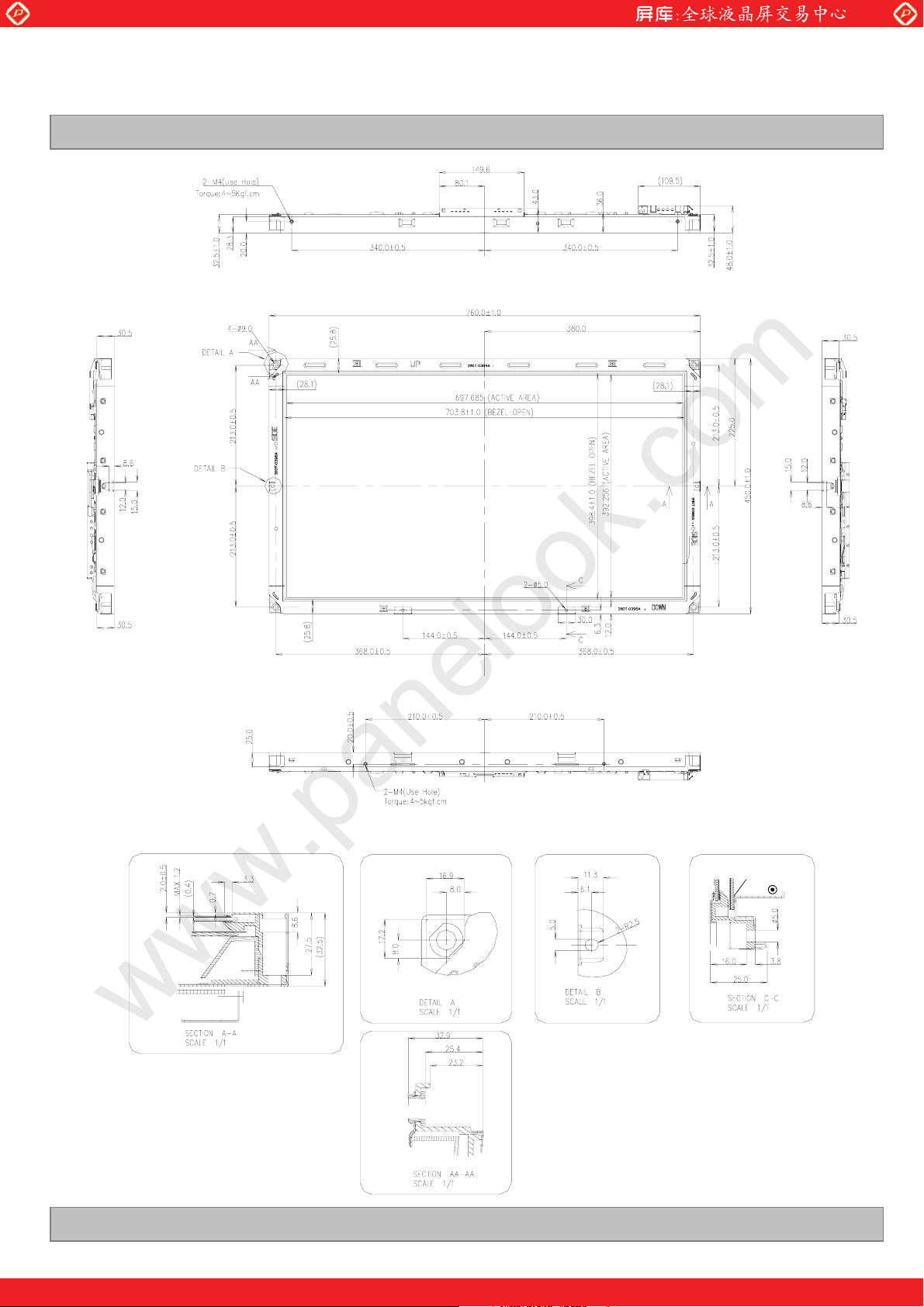

5 MECHANICAL CHARACTERISTICS

6 RELIABILITY

7 INTERNATIONAL STANDARDS

7-1 SAFETY

7-2 EMC

8 PACKING

8-1 DESIGNATION OF LOT MARK

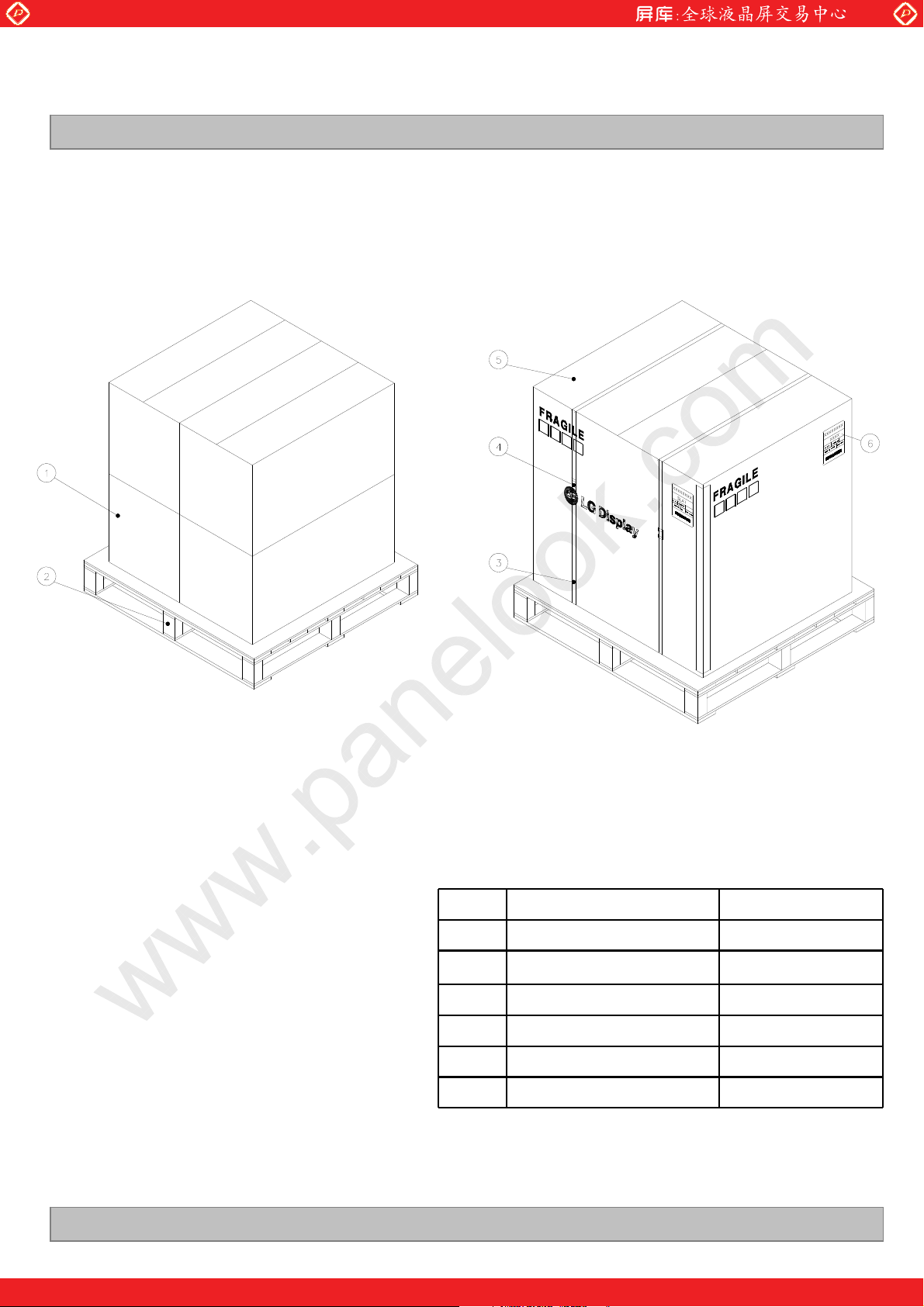

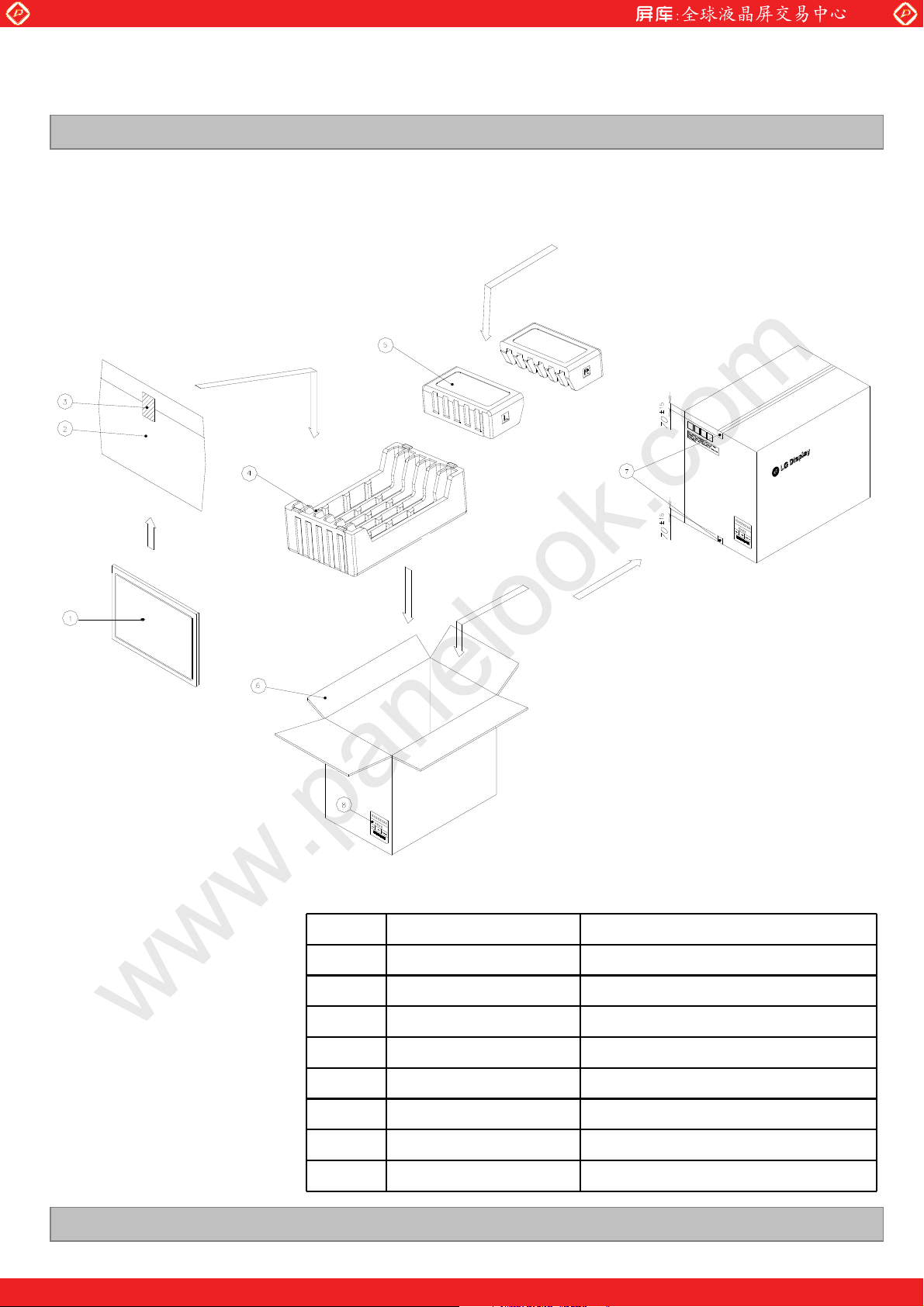

8-2 PACKING FORM

9 PRECAUTIONS

9-1 MOUNTING PRECAUTIONS

9-2 OPERATING PRECAUTIONS

9-3 ELECTROSTATIC DISCHARGE CONTROL

9-4 PRECAUTIONS FOR STRONG LIGHT EXPOSURE

9-5 STORAGE

19

22

23

23

23

24

24

24

25

25

25

26

26

26

9-6 HANDLING PRECAUTIONS FOR PROTECTION FILM

Ver. 0.4

One step solution for LCD / PDP / OLED panel application: Datasheet, inventory and accessory!

26

2/ 26

www.panelook.com

Global LCD Panel Exchange Center

www.panelook.com

Product Specification

RECORD OF REVISIONS

Revision No. Revision Date Page Description

0.1 Jun, 30, 2008 - Preliminary Specification(First Draft)

0.2 Jul, 14, 2008 21 Change of Mechanical drawing(Cover bottom)

0.3 Aug, 12, 2008 21 Change of Mechanical drawing( UDM Hole Size)

0.4 Aug, 20, 2008 - Change of TDB SPEC

LC320WXN

Ver. 0.4

One step solution for LCD / PDP / OLED panel application: Datasheet, inventory and accessory!

3/ 26

www.panelook.com

Global LCD Panel Exchange Center

www.panelook.com

LC320WXN

Product Specification

1. General Description

The LC320WXN is a Color Active Matrix Liquid Crystal Display with an integral External Electrode Fluorescent
Lamp(EEFL) backlight system. The matrix employs a-Si Thin Film Transistor as the active element.
It is a transmissive type display operating in the normally black mode. It has a 31.51 inch diagonally measured
active display area with WXGA resolution (768 vertical by 1366 horizontal pixel array).
Each pixel is divided into Red, Green and Blue sub-pixels or dots which are arranged in Horizontal stripes.
Gray scale or the luminance of the sub-pixel color is determined with a 8-bit gray scale signal for each dot,
thus presenting a palette of more than 16.7M(true) colors.
It has been designed to apply the 8-bit 1-port LVDS interface.
It is intended to support LCD TV, PCTV where high b
high color depth and fast response time are important.

rightness, super wide viewing angle, high color gamut,

EEPROM

+12.0V

LVDS 1Port

LVDS Select

EXTVBR-B

VBR_B out

OPC EN

+24.0V```

VBR-A, EXT.VBR-B
On/off ,Status

#9

#28

#27

#10

CN1

(30pin)

SCL

Timing Controller

[LVDS Rx + ODC + OPC

+ SDRAM + Spread Spectrum

integrated]

Power Circuit

Block

CN2, Inverter (Master, 14Pin, High)

SDA

RGB

General Features

Active Screen Size 31.51 inches(800.4mm) diagonal

TFT - LCD Panel

(1366 Ý 768 x RGB pixels)

[Gate In Panel]

S1 S1366

Source Driver Circuit

Back light Assembly (12EEFL)

Outline Dimension 760.0 mm(H) x 450.0 mm(V) x 48.0 mm(D) (Typ.)

Pixel Pitch 510.75༁ x 170.25༁ x RGB

Pixel Format 1366 horiz. by 768 vert. pixels RGB stripe arrangement

Color Depth 8bit, 16,7 M colors

Luminance, White 500 cd/m2(Center 1 point) (Typ.)

Viewing Angle (CR>10) Viewing angle free ( R/L 178(Typ.), U/D 178(Typ.))

Power Consumption Total 87.8Watt (Typ.) (Logic=3.8 W, Inverter= 84W [VBR-A=1.65V] )

Weight 6,000g(Typ.)

Display Operating Mode Transmissive mode, normally black

Surface Treatment Hard coating(3H), anti-glare treatment of the front polarizer (Haze 10%)

Ver. 0.4

One step solution for LCD / PDP / OLED panel application: Datasheet, inventory and accessory!

4/ 26

www.panelook.com

Global LCD Panel Exchange Center

www.panelook.com

LC320WXN

Product Specification

2. Absolute Maximum Ratings

The following items are maximum values which, if exceeded, may cause faulty operation or damage to the
LCD module.

Table 1. ABSOLUTE MAXIMUM RATINGS

Parameter Symbol

Unit Remark

Min Max

Value

Power Input

Voltage

ON/OFF Control Voltage V

Brightness Control Voltage VBR 0 +5.0 VDC

Operating Temperature TOP 0 +50

Storage Temperature TST -20 +60

Operating Ambient Humidity HOP 10 90 %RH

Storage Humidity HST 10 90 %RH

LCM VLCD -0.3 +14.0 VDC at 25 r 2 ¶C

Backlight inverter VBL -0.3 +27.0 VDC

ON/OFF

-0.3 +5.5 VDC

¶C

¶C

Notes : 1. Temperature and relative humidity range are shown in the figure below.

Wet bulb temperature should be 39 ¶C Max. and no condensation of water.

2. Gravity mura can be guaranteed under 40୅condition.

Note 1,2

Ver. 0.4

Wet Bulb
Temperature [

10

0

10 20 30 40 50 60 70 800-20

Dry Bulb Temperature [

¶C]

20

30

40

¶C]

50

60

90%

60%

40%

10%

Storage

Operation

Humidity [(%)RH]

5/ 26

One step solution for LCD / PDP / OLED panel application: Datasheet, inventory and accessory!

www.panelook.com

Global LCD Panel Exchange Center

www.panelook.com

Product Specification

3. Electrical Specifications

3-1. Electrical Characteristics

It requires two power inputs. One is employed to power for the LCD circuit.

The other Is used for the EEFL backlight and inverter circuit.

Table 2. ELECTRICAL CHARACTERISTICS

Value

Parameter Symbol

Min Typ Max

Circuit :

LC320WXN

Unit Note

Power Input Voltage V

LCD

10.8 12.0 13.2 V

- 311 405 mA 1

Power Input Current I

Power Consumption P

Rush current I

LCD

LCD

RUSH

- 270 360 mA 2

- 3.73 4.75 Watt 1

- - 3.0 A 3

Notes : 1. The specified current and power consumption are under the V

condition whereas mosaic pattern(8 x 6) is displayed and f

is the frame frequency.

V

2. The current is specified at maximum current pattern.

3. The duration of rush current is about 2ms and rising time of power input is 0.5ms (min.).

White : 255 Gray
Black : 0 Gray

DC

=12.0V, 25 r 2¶C, fV=60Hz

LCD

Mosaic Pattern(8 x 6)

Ver. 0.4

One step solution for LCD / PDP / OLED panel application: Datasheet, inventory and accessory!

6/ 26

www.panelook.com

Global LCD Panel Exchange Center

Product Specification

Table 3. ELECTRICAL CHARACTERISTICS

www.panelook.com

LC320WXN

Parameter Symbol

Inverter :

Power Supply Input Voltage

Power Supply Input Voltage Ripple

After Aging
Power Supply
Input Current

Before Aging

Power Supply Input Current (In-Rush)

Power Consumption

Brightness Adjust

On/Off

Input Voltage for

Control System

Signals

Lamp:

Brightness Adjust

PWM Frequency for
NTSC & PAL

Pulse Duty

Level(PWM)

(Burst mode)

On

Off

Values

Unit Notes

Min Typ Max

VBL 22.8 24.0 25.2 Vdc 1

- - 0.5 Vp-p 1

IBL_A

IBL_B

Irush - - 6.3 A

PBL - 84 92.4 WV

VBR-A

V on 2.5 - 5.0 Vdc

V off -0.3 0.0 0.8 Vdc

Ext. VBR-B

-

-

- 4.0

- 4.5

0.0 1.65 3.3 Vdc

30 - 100 %

NTSC

PAL

High Level

Low Level

2.5 - 5.0

0.0 - 0.8

3.5

3.6

120

100

3.85

4.0

4.5

5.0

AV

AV

AV

AV

VBL = 22.8V
Ext V

V

Hz

Hz

Vdc

Vdc

= 1.65V … 1

BR-A

= 3.3V … 1

BR-A

= 1.65V … 2

BR-A

= 3.3V … 2

BR-A

BR-B = 100%

= 1.65V

BR-A

= 1.65V … 1

BR-A

On Duty

5

HIGH: Lamp on

LOW:Lamp off

Discharge Stabilization Time Ts

Life Time

50,000 Hrs 4

3min 3

Notes :

1. Electrical characteristics are determined after the unit has been ‘ON’ and stable for approximately 120

minutes at 25·2¶C. The specified current and power consumption are under the typical supply Input voltage
24Vand V

BR (VBR-A : 1.65V & ExtVBR-B : 100%), it is total power consumption.

The ripple voltage of the power supply input voltage is under 0.5 Vp-p. LGD recommend Input Voltage is

24.0V · 5%.

2. Electrical characteristics are determined within 30 minutes at 25·2¶C.

The specified currents are under the typical supply Input voltage 24V.

3. The brightness of the lamp after lighted for 5minutes is defined as 100%.
TS is the time required for the brightness of the center of the lamp to be not less than 95% at typical current.

The screen of LCD module may be partially dark by the time the brightness of lamp is stable after turn on.

4. Specified Values are for a single lamp which is aligned horizontally.
The life time is determined as the time which luminance of the lamp is 50% compared to that of initial value
at the typical lamp current (V

BR-A : 1.65V & ExtVBR-B :100%), on condition of continuous operating at 25· 2¶C

5. LGD recommend that the PWM freq. is synchronized with Two times harmonic of Vsync signal of system.

6. The duration of rush current is about 10ms.

Ver. 0.4

7/ 26

One step solution for LCD / PDP / OLED panel application: Datasheet, inventory and accessory!

www.panelook.com

Global LCD Panel Exchange Center

www.panelook.com

Product Specification

3-2. Interface Connections

This LCD module employs two kinds of interface connection, a 30-pin connector is used for the module
electronics and One connectors(14-pin) are used for the integral backlight system.

3-2-1. LCD Module

-LCD Connector(CN1) : FI-X30SSL-HF (Manufactured by JAE) or Equivalent

-Mating Connector : FI-X30C2L (Manufactured by JAE) or Equivalent

Table 4. MODULE CONNECTOR(CN1) PIN CONFIGURATION

Pin No. Symbol Description Note

1 VLCD Power Supply +12.0V
2 VLCD Power Supply +12.0V
3 VLCD Power Supply +12.0V
4 VLCD Power Supply +12.0V
5 GND Ground
6 GND Ground
7 GND Ground
7 GND Ground

9 LVDS Select
10
11 GND Ground
12 RA- LVDS Receiver Signal(-)
13 RA+ LVDS Receiver Signal(+)
14 GND Ground
15 RB- LVDS Receiver Signal(-)
16 RB+ LVDS Receiver Signal(+)
17 GND Ground
18 RC- LVDS Receiver Signal(-)
19 RC+ LVDS Receiver Signal(+)
20 GND Ground
21 RCLK- LVDS Receiver Clock Signal(-)
22 RCLK+ LVDS Receiver Clock Signal(+)
23 GND Ground
24 RD- LVDS Receiver Signal(-)
25 RD+ LVDS Receiver Signal(+)
26 GND Ground
27
28

29 GND Ground

30 GND Ground 5

OPC Enable OPC Enable(‘L’ = Disable, ‘H’ = Enable)

OPC OUT OPC Output (From LCM)
EXT_VBR External VBR (From System)

‘H’ =JEIDA , ‘L’ or NC = VESA

LC320WXN

Notes :

1. All GND(ground) pins should be connected together to the LCD module’s metal frame.

2. All V

LCD (power input) pins should be connected together.

3. All Input levels of LVDS signals are based on the EIA 644 Standard.

4. Specific pins(pin No. #10,#27,#28) are used for OPC function of the LCD module.
If not used, these pins are no connection. (Please see the Appendix V for more information.)

5. Specific pin No. #30 is used for “No signal detection” of system signal interface.
It should be GND for NSB(No Signal Black) during the system interface signal is not.
If this pin is “H”, LCD Module displays AGP(Auto Generation Pattern).

Ver. 0.4

One step solution for LCD / PDP / OLED panel application: Datasheet, inventory and accessory!

8/ 26

www.panelook.com

Global LCD Panel Exchange Center

୛

˟

www.panelook.com

Product Specification

3-2-2. Backlight Inverter

Master

-Inverter Connector : 20022WR-14B1

(manufactured by Yeon-Ho) or Equivalent

- Mating Connector : 20022HS-14 or Equivalent

Table 5. INVERTER CONNECTOR PIN CONFIGULATION

Pin No Symbol Description Master Note

LC320WXN

1

2

3

4

5

6

7

8

9

10

11

12

13

14

VBL Power Supply +24.0V VBL

VBL Power Supply +24.0V VBL

VBL Power Supply +24.0V VBL

VBL Power Supply +24.0V VBL

VBL Power Supply +24.0V VBL

GND Backlight Ground GND

GND Backlight Ground GND

GND Backlight Ground GND

GND Backlight Ground GND

GND Backlight Ground GND

VBR-A

ON/OFF

V

EXTVBR-B

Status

Analog Dimming

Backlight ON/OFF control

External PWM

Lamp Status

EXTVBR-B

VBR-A 2

ON/OFF

V

Status 5

1

3

4

Notes : 1. GND should be connected to the LCD module’s metal frame.

2. Minimum Brightness : 0.0V / Maximum Brightness : 3.3V / “OPEN” : 1.65V

3. ON : 2.5 ~ 5.0V / OFF : 0.0 ~ 0.8V . Open or ‘H’ for B/L On is default status.

4. High : Lamp ON/ Low : Lamp OFF, Pin#13 can be opened. ( if Pin #13 is open , EXTVBR-B is 100% )
Please see Appendix V for more information.

5. Normal : Low (under 0.7V) / Abnormal : High (upper 3.0V)
Please see Appendix VI for more information.

6. Each impedance of pin #11, 12 and 13 is TBD [K

Rear view of LCM

PCB

] , TBD [K˟] and TBD [K˟].

14

…

…

1

Ver. 0.4

One step solution for LCD / PDP / OLED panel application: Datasheet, inventory and accessory!

9/ 26

www.panelook.com

Global LCD Panel Exchange Center

www.panelook.com

LC320WXN

Product Specification

3-3. Signal Timing Specifications

Table 6-1 shows the signal timing required at the input of the LVDS transmitter. All of the interface signal
timing should be satisfied with the following specification for normal operation.

[ DE (Data Enable) Only ]

ITEM Symbol Min Typ Max Unit Note

Period tCLK 12.5 13.8 15.8 ns

DCLK

Frequency - 63 72.4 80 MHz

Hsync

Vsync

Period t

Horizontal Valid tHV 1366 1366 1366 tCLK

Horizontal Blank

Frequency fH 45 47.4 50

Width tWH -32-tCLK

Horizontal Back Porch tHBP 24 50 -

Horizontal Front Porch t

Period t

Vertical Valid tVV 768 768 768 tHP

Vertical Blank - tVP- tVV 22 tVP- tVV tHP

Frequency fV

Width t

Vertical Back Porch tVBP 5

Vertical Front Porch t

HT 1456 1528 1920 tCLK

-

HFP 40 80 -

VT

WV -

VFP 1

tHP- tHV 162 tHP- tHV

776

(894)

57

(47)

790

(948)

60

(50)

5

(12)

15

(128)

2

(40)

1063

(1008)

63

(53)

-t

-Hz

-tHP

KHz

t

Hz

HP

HP

Note 1)
NTSC : 57~63Hz
(PAL : 47~53Hz)

Note :

. The input of HSYNC & VSYNC signal does not have an effect on normal operation(DE Only Mode).

1

If you use spread spectrum of EMI, add some additional clock to minimum value for clock margin.

2. The performance of the electro-optical characteristics may be influenced by variance of the vertical
refresh rate and the horizontal frequency

3. Timing should be set based on clock frequency.

Ver. 0.4

One step solution for LCD / PDP / OLED panel application: Datasheet, inventory and accessory!

10 / 26

www.panelook.com

Global LCD Panel Exchange Center

3-4. Signal Timing Waveforms

www.panelook.com

LC320WXN

Product Specification

DCLK

First data

Second data

tCLK

DE(Data Enable)

0.5 VDD

Invalid data

Invalid data

DE, Data

Pixel 0,0

Pixel 1,0

0.7VDD

Valid data

Pixel 2,0

Valid data

Pixel 3,0

0.3VDD

Invalid data

Invalid data

DE(Data Enable)

tHV

tHT

1 768

tVV

tVT

Ver. 0.4

One step solution for LCD / PDP / OLED panel application: Datasheet, inventory and accessory!

11 / 26

www.panelook.com

Global LCD Panel Exchange Center

www.panelook.com

LC320WXN

Product Specification

3-5. Color Data Reference

The brightness of each primary color(red,green,blue) is based on the 8-bit gray scale data input for the color.
The higher binary input, the brighter the color. Table 7 provides a reference for color versus data input.

Table 7. COLOR DATA REFERENCE

Input Color Data

Basic
Color

RED

Color

Black 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0

Red (255) 1 1 1 1 1 1 1 1 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0

Green (255) 0 0 0 0 0 0 0 0 1 1 1 1 1 1 1 1 0 0 0 0 0 0 0 0

Blue (255) 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 1 1 1 1 1 1 1 1

Cyan 0 0 0 0 0 0 0 0 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1

Magenta 1 1 1 1 1 1 1 1 0 0 0 0 0 0 0 0 1 1 1 1 1 1 1 1

Yellow 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 0 0 0 0 0 0 0 0

White 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1

RED (000) Dark 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0

RED (001) 0 0 0 0 0 0 0 1 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0

... ... ... ...

RED (254) 1 1 1 1 1 1 1 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0

MSB LSB

R7 R6 R5 R4 R3 R2 R1 R0 G7 G6 G5 G4 G3 G2 G1 G0 B7 B6 B5 B4 B3 B2 B1 B0

RED

MSB LSB

GREEN

BLUE

MSB LSB

GREEN

BLUE

Ver. 0.4

RED (255) 1 1 1 1 1 1 1 1 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0

GREEN (000) Dark 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0

GREEN (001) 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 1 0 0 0 0 0 0 0 0

... ... ... ...

GREEN (254) 0 0 0 0 0 0 0 0 1 1 1 1 1 1 1 0 0 0 0 0 0 0 0 0

GREEN (255) 0 0 0 0 0 0 0 0 1 1 1 1 1 1 1 1 0 0 0 0 0 0 0 0

BLUE (000) Dark 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0

BLUE (001) 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 1

... ... ... ...

BLUE (254) 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 1 1 1 1 1 1 1 0

BLUE (255) 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 1 1 1 1 1 1 1 1

12 / 26

One step solution for LCD / PDP / OLED panel application: Datasheet, inventory and accessory!

www.panelook.com

Global LCD Panel Exchange Center

3-6. Power Sequence

3-6-1. LCD Driving circuit

www.panelook.com

LC320WXN

Product Specification

Power Supply For LCD

V

LCD

Interface Signal (Tx)

Option Signal

(LVDS_select, OPC_Enable)

Power for Lamp

Table 9. POWER SEQUENCE

Parameter

T1 0.5 - 20 ms

T2 0.5 - - ms 4

T3 200 - - ms 3

T4 200 - - ms 3

T5 0 - - ms

T6 2.0 - - s 5

T7 0.5 -T2ms4

T8 0 - - ms 4

T9 T

90%

10%

T6

0V

10%

90%

1

T

Valid Data

T2

Invalid
Data

T7

Invalid
Data

T9

Value

T3 T4

Lamp ON

30%

0V

Min Typ Max

2 +T3 -5s

T5

T8

Unit Notes

Note : 1. Please avoid floating state of interface signal at invalid period.

2. When the interface signal is invalid, be sure to pull down the power supply V

LCD

3. The T3/T4 is recommended value, the case when failed to meet a minimum specification,
abnormal display would be shown. There is no reliability problem.

4. If the on time of signals(Interface signal and Option signals) precedes the on time of Power(V
it will be happened abnormal display.

5. T6 should be measured after the Module has been fully discharged between power off and on
period.

Ver. 0.4

One step solution for LCD / PDP / OLED panel application: Datasheet, inventory and accessory!

to 0V.

),

LCD

13 / 26

www.panelook.com

Global LCD Panel Exchange Center

࣬ࣜ

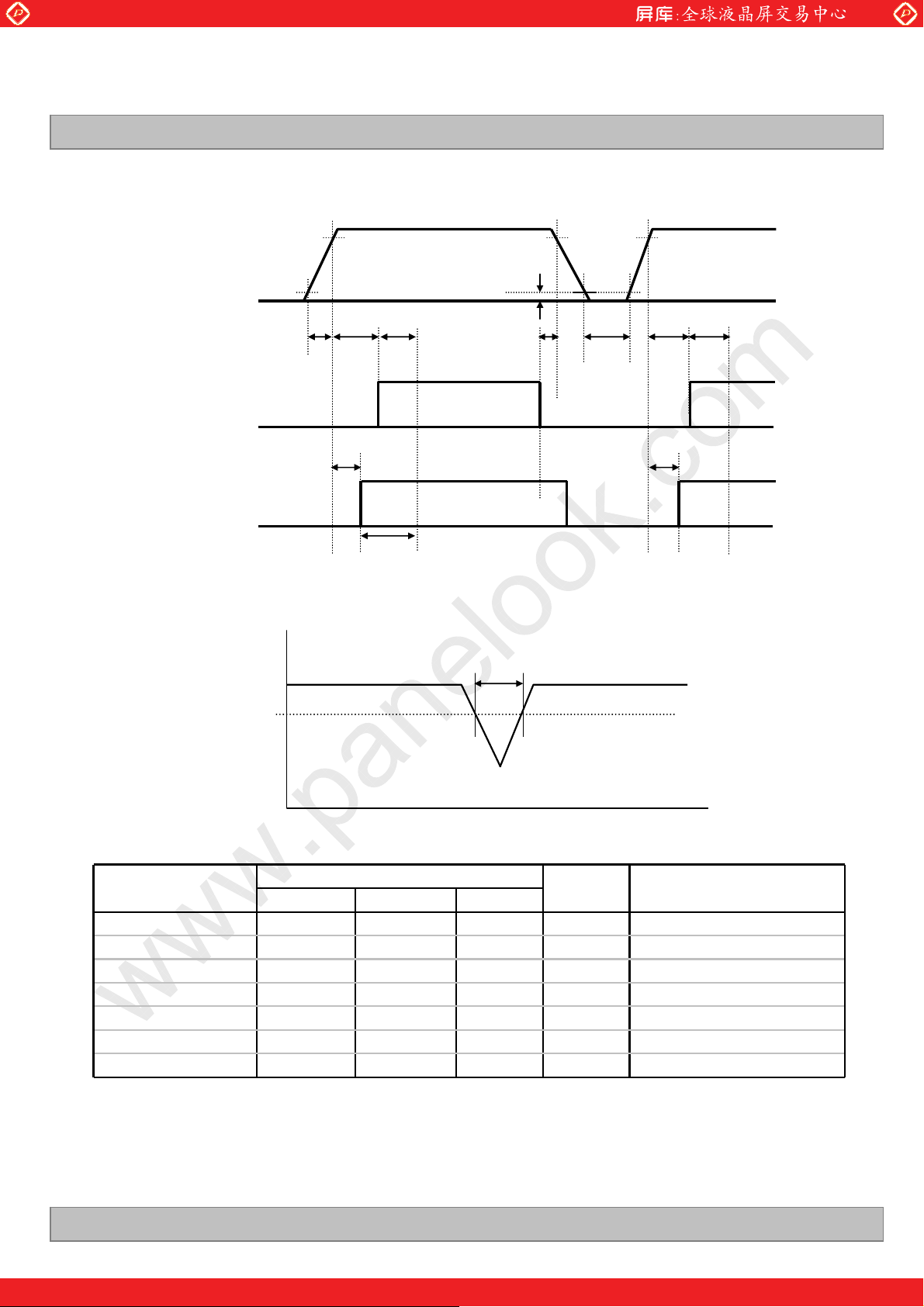

3-6-2. On/Off for Inverter

www.panelook.com

LC320WXN

Product Specification

Power Supply For Inverter

90%

V

BL

10%

0V

ON/OFF

V

VBR-A &

BR

-B

Ext. V

3-6-3. Deep condition for Inverter

V

BL

T1 T2

24V (typ.)

0.7V

1000ms (Min) 1000ms (Min)

T5

T3 T2

Lamp ON

T4

T7

ࣲ

T4

V

: 24V

BL

ࣤࣥࣜࣜ࣬࣪ࣴ

V

BL

Table 9. Power Sequence for Inverter

Parameter

T1 20 - - ms 1

T2 500 - - ms

T3 200 - - ms 2
T4 0 - ms

T5 10 - - ms

T6 - - 10 ms V

T7 1000 - - ms 3

Min Typ Max

Values

Units Remarks

(Typ) x 0.8

BL

Notes : 1. T1 describes rising time of 0V to 24V and this parameter does not applied at restarting time.

2. T4(max) is less than T2.

3. In T7 section, EXTV

BR-B is recommended 100%.

Ver. 0.4

One step solution for LCD / PDP / OLED panel application: Datasheet, inventory and accessory!

14 / 26

www.panelook.com

Global LCD Panel Exchange Center

www.panelook.com

LC320WXN

Product Specification

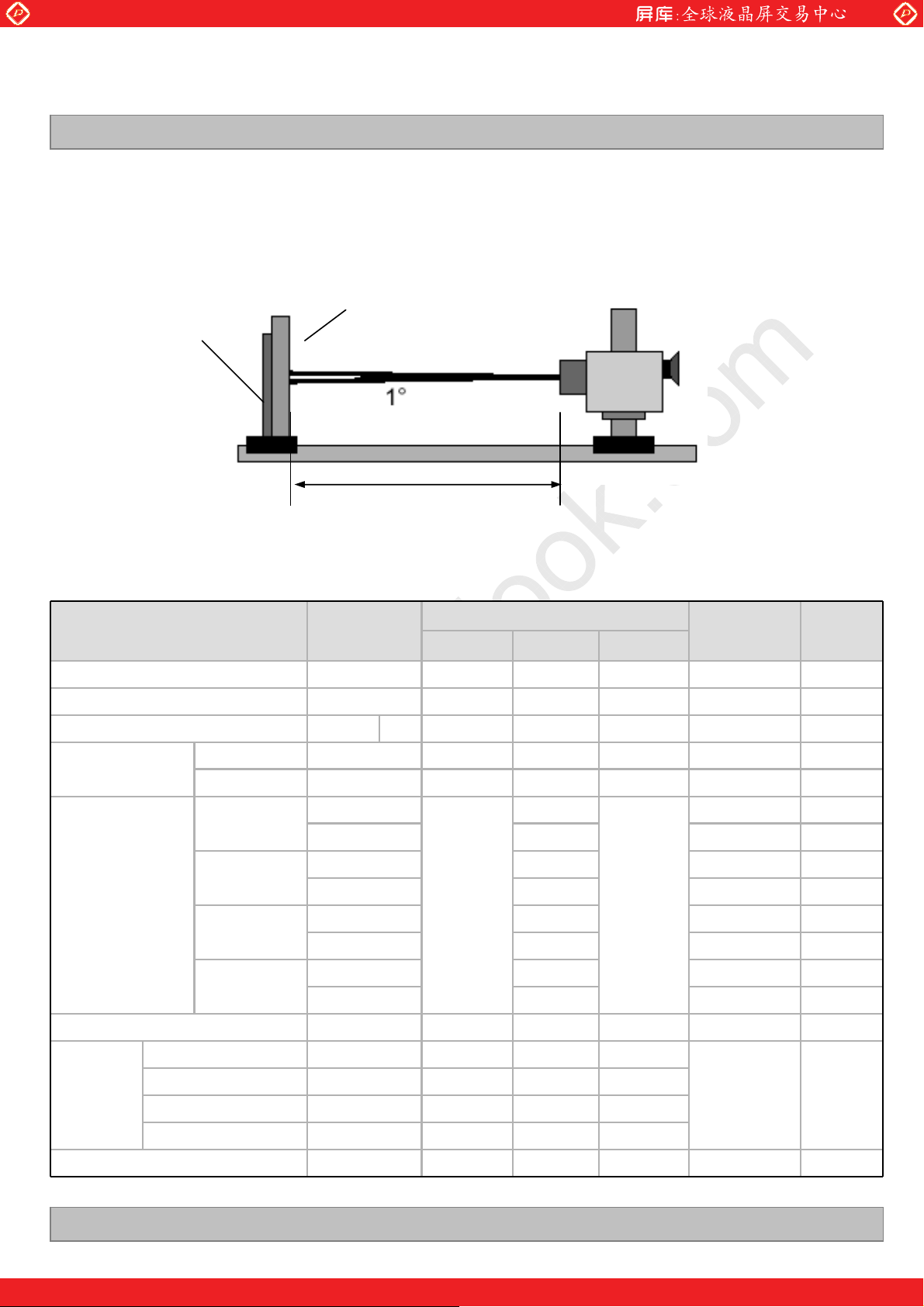

4. Optical Specification

Optical characteristics are determined after the unit has been ‘ON’ and for 30 minutes in a dark environment at
25·2¶C. The values are specified at an approximate distance 50cm from the LCD surface at a viewing angle of
) and T equal to 0 ¶.
FIG. 1 shows additional information concerning the measurement equipment and method.

Optical Stage(x,y)

LCD Module

Pritchard 880 or
equivalent

50cm

FIG. 1 Optical Characteristic Measurement Equipment and Method

Table 10. OPTICAL CHARACTERISTICS

Ta= 25·2¶C, V

=12.0V, fV=60Hz, Dclk=72.4MHz, VBR-A =1.65V, Ext. VBR-B =100%

LCD

Value

Parameter Symbol

Unit Note

Min Typ Max

Contrast Ratio CR 900 1200 - 1

Surface Luminance, white L

Luminance Variation G

Gray-to-Gray G to G -812 ms 4

Response Time

Uniformity G

RED

WHITE

WH

5P - - 1.3 3

G TO G

Rx 0.639

Ry 0.333

400 500 cd/m

--1 5

2

2

GREEN
Color Coordinates
[CIE1931]

BLUE

WHITE

Viewing Angle (CR>10)

x axis, right(I=0¶) Tr 89 - -

x axis, left (I=180¶) Tl 89 - -

y axis, up (I=90¶) Tu 89 - -

y axis, down (I=270¶) Td 89 - -

Gray Scale 2.2 7

Ver. 0.4

Gx 0.292

Gy 0.603

Bx 0.145

By 0.063

Wx 0.279

Wy

Typ

-0.03

0.292

Typ

+0.03

degree 6

One step solution for LCD / PDP / OLED panel application: Datasheet, inventory and accessory!

15 / 26

www.panelook.com

Global LCD Panel Exchange Center

www.panelook.com

Product Specification

Notes :1. Contrast Ratio(CR) is defined mathematically as :

CR =

It is measured at center 1-point.

2. Surface luminance are determined after the unit has been ‘ON’ and 30min after lighting the

backlight in a dark environment at 25·2¶C. Surface luminance is the luminance value at center
1-point across the LCD surface 50cm from the surface with all pixels displaying white.
For more information see the FIG. 2.

3. The variation in surface luminance , G WHITE is defined as :
G WHITE(5P) = Maximum(L

Surface Luminance at all white pixels

Surface Luminance at all black pixels

, L

on1,Lon2

on3

, L

on4

, L

) / Minimum(L

on5

on1,Lon2

, L

on3

, L

on4

LC320WXN

, L

)

on5

Where L

on1

to L

are the luminance with all pixels displaying white at 5 locations .

on5

For more information, see the FIG. 2.

4. Response time is the time required for the display to transition from G(N) to G(M) (Rise Time, Tr

and from G(M) to G(N) (Decay Time, Tr

). For additional information see the FIG. 3. (N<M)

D

୔ G to G Spec stands for average value of all measured points.

5. Gray to Gray Response time uniformity is Reference data. Please see Appendix XI.

6. Viewing angle is the angle at which the contrast ratio is greater than 10. The angles are

determined for the horizontal or x axis and the vertical or y axis with respect to the z axis which
is normal to the LCD module surface. For more information, see the FIG. 4.

7. Gray scale specification

Gamma Value is approximately 2.2. For more information, see the Table 11.

Table 11. GRAY SCALE SPECIFICATION

Gray Level Luminance [%] (Typ.)

L0

L15

L31

L47

L63

L79

L95

L111

L127

L143

L159

L175

L191

L207

L223

L239

L255

0.09

0.32

1.10

2.60

4.90

8.10

12.1

16.7

21.6

28.0

35.4

43.9

53.3

64.1

75.8

88.0

100

)

R

Ver. 0.4

One step solution for LCD / PDP / OLED panel application: Datasheet, inventory and accessory!

16 / 26

www.panelook.com

Global LCD Panel Exchange Center

ྙ

ྛྚ

ྜྷ

ྜ

www.panelook.com

Product Specification

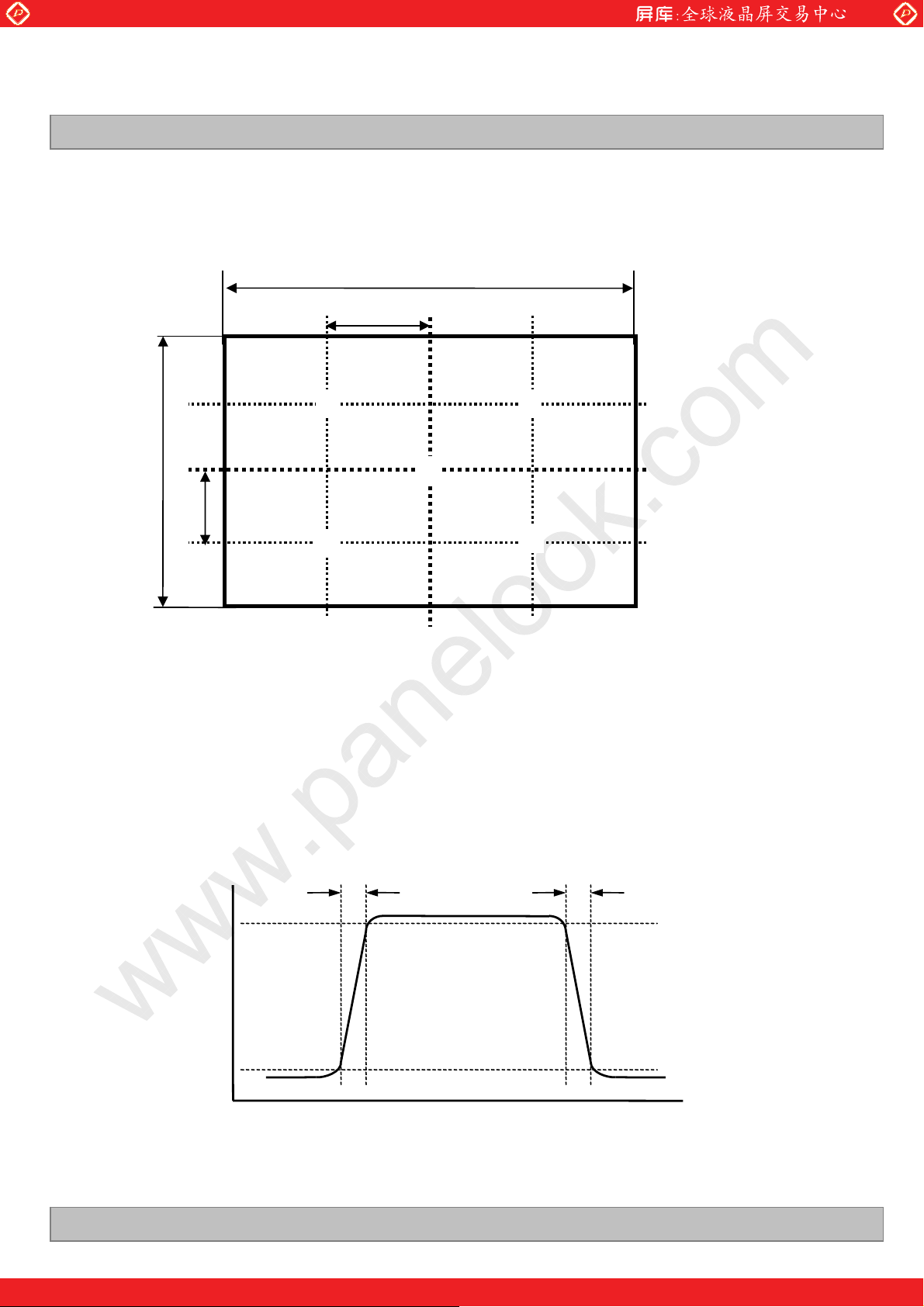

Measuring point for surface luminance & measuring point for luminance variation.

H

A

LC320WXN

V

B

FIG. 2 5 Points for Luminance Measure

Response time is defined as the following figure and shall be measured by switching the input signal for
“Gray(N)” and “Gray(M)”.

Tr

100

90

Tf

A : H / 4 mm
B : V / 4 mm

H : 697.685 mm
V : 392.256 mm

@ H,V : Active Area

Optical
Response

10

0

Ver. 0.4

One step solution for LCD / PDP / OLED panel application: Datasheet, inventory and accessory!

Gray(N)

N,M = 0(Black)~255(White), N<M

FIG. 3 Response Time

Gray(M)

Gray(N)

17 / 26

www.panelook.com

Global LCD Panel Exchange Center

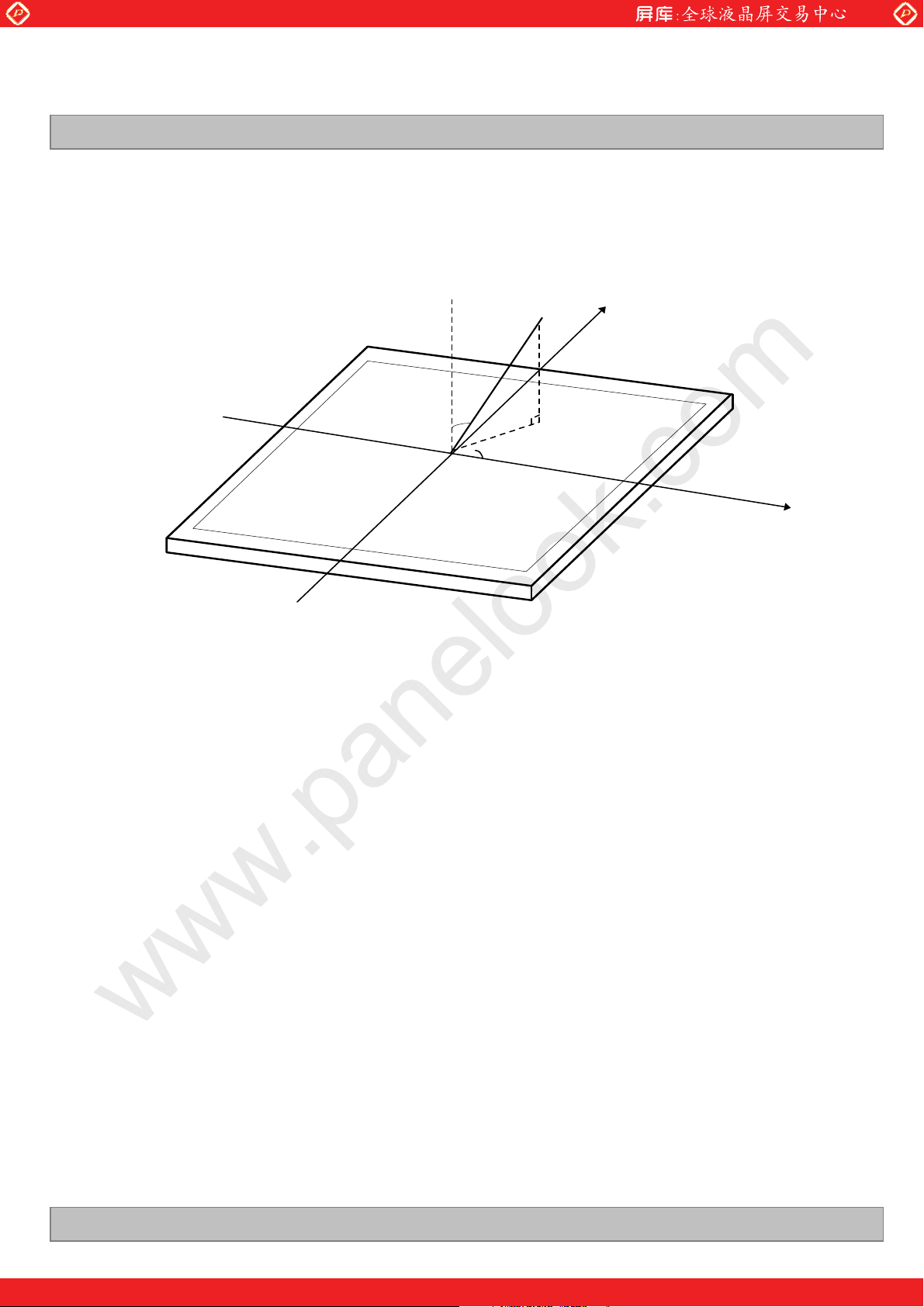

Dimension of viewing angle range

I

= 180q, Left

www.panelook.com

Product Specification

Normal

E

T

I

Y

I

= 90q, Up

LC320WXN

I

= 270q, Down

FIG. 4 Viewing Angle

I

= 0q, Right

Ver. 0.4

One step solution for LCD / PDP / OLED panel application: Datasheet, inventory and accessory!

18 / 26

www.panelook.com

Global LCD Panel Exchange Center

www.panelook.com

Product Specification

5. Mechanical Characteristics

Table 12 provides general mechanical characteristics.

Table 12. MECHANICAL CHARACTERISTICS

Item Value

LC320WXN

760.0mm

450.0 mm

48.0 mm

703.8mm

Outline Dimension

Horizontal

Vertical

Depth

Horizontal

Bezel Area

Vertical

Horizontal

398.4mm

697.685mm

Active Display Area

392.256mm

Weight

Vertical

6,000 g(Typ.), 6,300g(Max)

Note : 1.Please refer to a mechanic drawing in terms of tolerance at the next page.

Ver. 0.4

One step solution for LCD / PDP / OLED panel application: Datasheet, inventory and accessory!

19 / 26

www.panelook.com

Global LCD Panel Exchange Center

<FRONT VIEW>

www.panelook.com

LC320WXN

Product Specification

Ver. 0.4

One step solution for LCD / PDP / OLED panel application: Datasheet, inventory and accessory!

20 / 26

www.panelook.com

Global LCD Panel Exchange Center

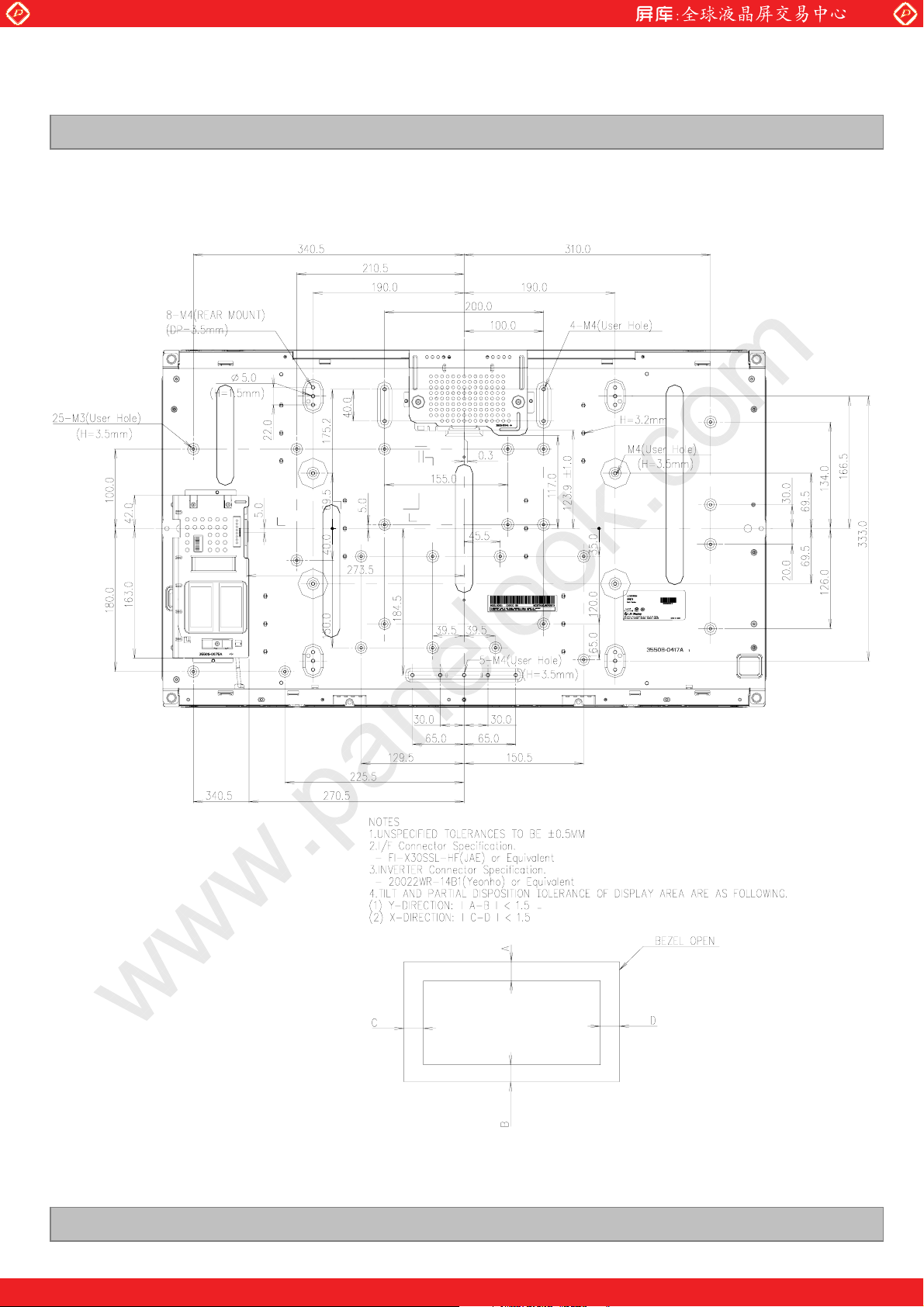

<REAR VIEW><REAR VIEW>

www.panelook.com

LC320WXN

Product Specification

Ver. 0.4

One step solution for LCD / PDP / OLED panel application: Datasheet, inventory and accessory!

21 / 26

www.panelook.com

Global LCD Panel Exchange Center

www.panelook.com

Product Specification

6. Reliability

Table 13. ENVIRONMENT TEST CONDITION

No. Test Item Condition

1 High temperature storage test Ta= 60¶C 240h

2 Low temperature storage test Ta= -20¶C 240h

3 High temperature operation test Ta= 50¶C 50%RH 240h

4 Low temperature operation test Ta= 0¶C 240h

LC320WXN

Wave form : random

5

6

7 Humidity condition Operation Ta= 40 ¶C ,90%RH

8

Vibration test
(non-operating)

Shock test
(non-operating)

Altitude operating

storage / shipment

Vibration level : 1.0G RMS
Bandwidth : 10-300Hz
Duration : X,Y,Z, 10 min

One time each direction

Shock level : 100G
Waveform : half sine wave, 2ms
Direction : ᇹX, ᇹY, ᇹZ

One time each direction

0 - 15,000 ft
0 - 40,000 ft

Note : Before and after Reliability test, LCM should be operated with normal function.

Ver. 0.4

One step solution for LCD / PDP / OLED panel application: Datasheet, inventory and accessory!

22 / 26

www.panelook.com

Global LCD Panel Exchange Center

7. International Standards

7-1. Safety

th

a) UL 60065, 7

Standard for Audio, Video and Similar Electronic Apparatus.

b) CAN/CSA C22.2, No. 60065:03, Canadian Standards Association,

Standard for Audio, Video and Similar Electronic Apparatus.

c) IEC60065:2001, 7

Safety requirements for Audio, Video and Similar Electronic Apparatus..

Edition, dated June 30, 2003, Underwriters Laboratories, Inc.,

th

Edition CB-scheme and EN 60065:2002,

www.panelook.com

LC320WXN

Product Specification

7-2. EMC

a) ANSI C63.4 “Methods of Measurement of Radio-Noise Emissions from Low-Voltage Electrical and

Electrical Equipment in the Range of 9kHZ to 40GHz. “American National Standards Institute(ANSI),
1992

b) CISPR13 "Limits and Methods of Measurement o

and Television broadcast receivers and associated equipment"

CISPR22 "Limits and Methods of Measurement of Rad

Technology Equipment" International Special Committee on Radio Interference.

c) EN55013 "Limits and Methods of Measurement of Rad

Television broadcast receivers and associated equipment"

EN55022 "Limits and Methods of Measurement of Rad

Technology Equipment" European Committee for Electro Technical Standardization.(CENELEC),
1988(Including A1:2000)

f Radio interference characteristics of Sound

io interference characteristics of Information

io interference characteristics of Sound and

io interference characteristics of Information

Ver. 0.4

One step solution for LCD / PDP / OLED panel application: Datasheet, inventory and accessory!

23 / 26

www.panelook.com

Global LCD Panel Exchange Center

8. Packing

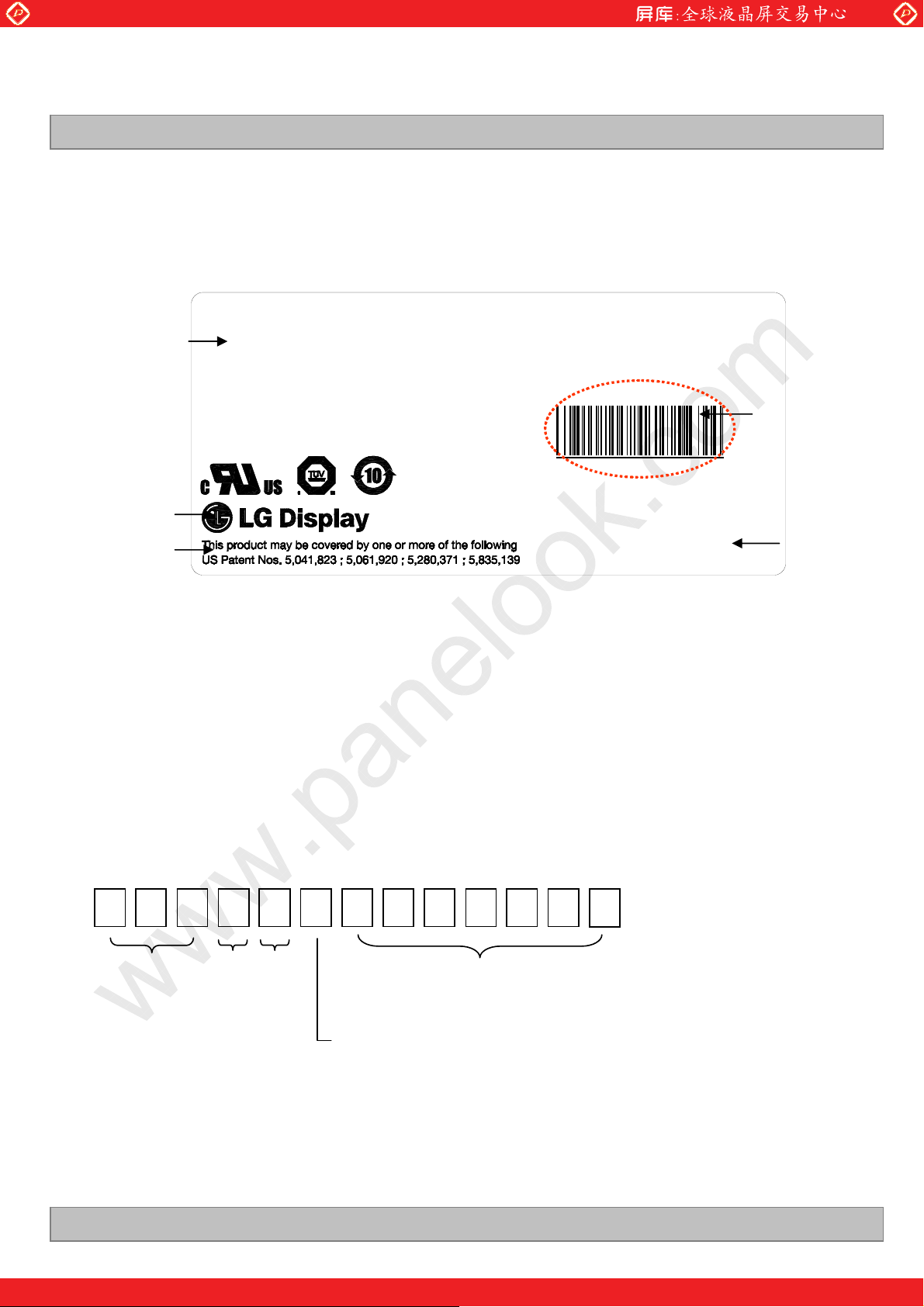

8-1. Designation of Lot Mark

a) Lot Mark

ABCDEFGHI JKLM

A,B,C : SIZE(INCH)
D : YEAR E : MONTH
F : PANEL CODE G : FACTORY CODE
H : ASSEMBLY CODE I,J,K,L,M : SERIAL NO.

www.panelook.com

LC320WXN

Product Specification

Note

1. YEAR

Year

Mark

321

200452005

4

200320022001

2006720078200892009

6

2. MONTH

Month

Mark

Apr5May

4

Jun

6

Jul

7

Aug9Sep

8

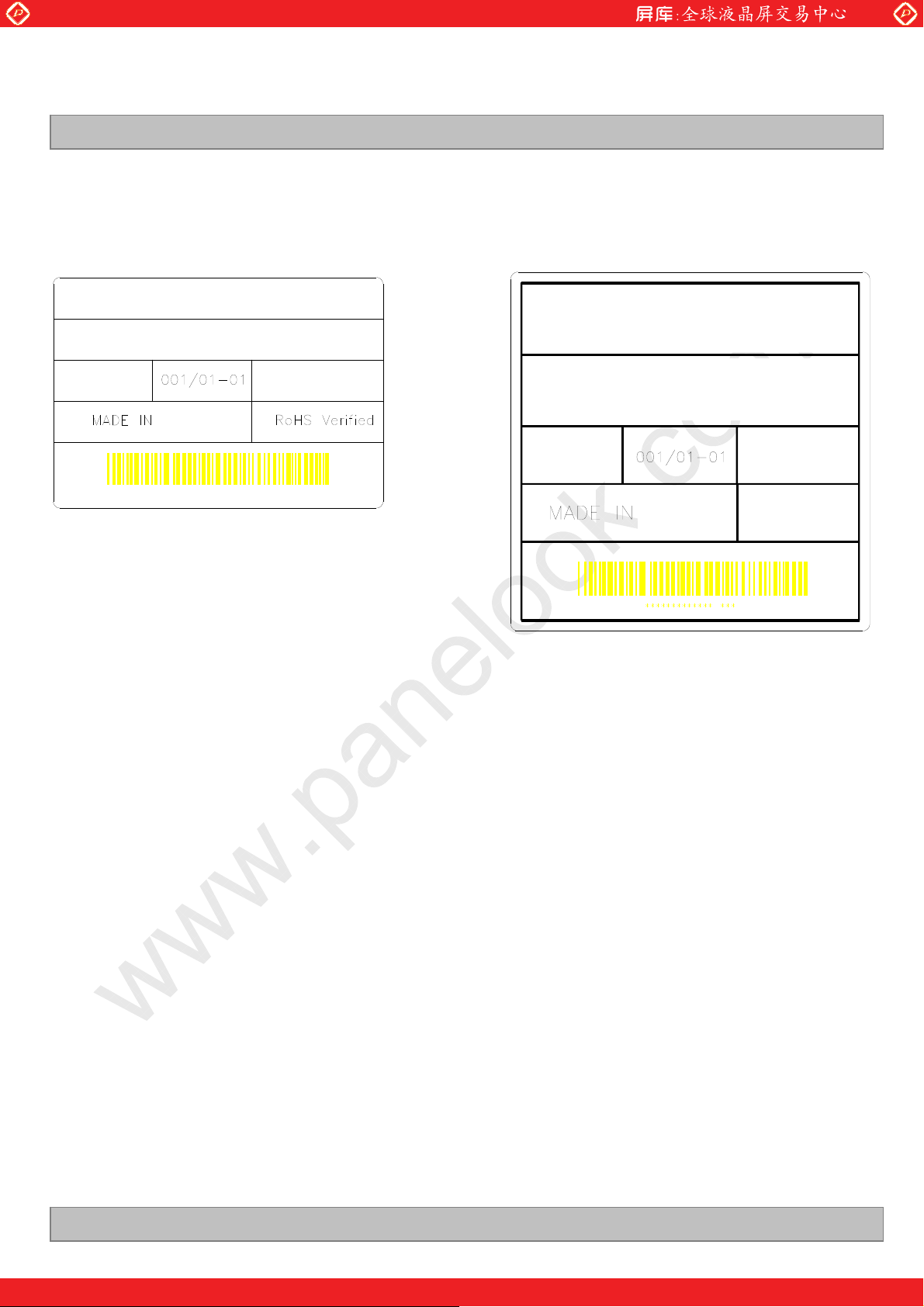

b) Location of Lot Mark

Serial No. is printed on the label. The label is attached to the backside of the LCD module.
This is subject to change without prior notice.

8-2. Packing Form

a) LCM quantity in one pallet : 24 pcs

2010

0

Oct

A

Nov

B

DecMarFebJan

C321

b) Pallet Size : 1030mm X 870mm X 1210mm

Ver. 0.4

One step solution for LCD / PDP / OLED panel application: Datasheet, inventory and accessory!

24 / 26

www.panelook.com

Global LCD Panel Exchange Center

www.panelook.com

LC320WXN

Product Specification

9. Precautions

Please pay attention to the followings when you use this TFT LCD module.

9-1. Mounting Precautions

(1)You must mount a module using specified mounting holes (Details refer to the drawings).
(2) You should consider the mounting structure so that uneven force (ex. Twisted stress) is not applied to the

module. And the case on which a module is mounted shou
force is not transmitted directly to the module.

(3) Please attach the surface transparent protective plate to the su

Transparent protective plate should have sufficient strength in order to the resist external force.
(4) You should adopt radiation structure to satisfy the temperature specification.
(5) Acetic acid type and chlorine type materials for the cover case are not desirable because the former

generates corrosive gas of attacking the polarizer at high temperature and the latter causes circuit break
by electro-chemical reaction.

(6) Do not touch, push or rub the exposed polarizers with glass, tweezers or anything harder than HB

pencil lead. And please do not rub with dust clothes with chemical treatment.

Do not touch the surface of polarizer for bare hand or greasy cloth.(Some cosmetics are detrimental

to the polarizer.)
(7) When the surface becomes dusty, please wipe gently w

chamois soaks with petroleum benzine. Normal-hexane is recommended for cleaning the adhesives
used to attach front / rear polarizers. Do not use
chemical damage to the polarizer.

(8) Wipe off saliva or water drops as soon as possible

deformations and color fading.

(9) Do not open the case because inside circuits do not have sufficient strength.

acetone, toluene and alcohol because they cause

ld have sufficient strength so that external

rface in order to protect the polarizer.

ith absorbent cotton or other soft materials like

. Their long time contact with polarizer causes

9-2. Operating Precautions

(1) The spike noise causes the mis-operation of circuits. It should be lower than following voltage :

V=·200mV(Over and under shoot voltage)

(2) Response time depends on the temperature.(In lower temperature, it becomes longer.)
(3) Brightness depends on the temperature. (In lower temperature, it becomes lower.)

And in lower temperature, response time(required time that brightness is stable after turned on) becomes

longer.

(4) Be careful for condensation at sudden temperature

electrical contacted parts. And after fading condensation, smear or spot will occur.
(5) When fixed patterns are displayed for a long time, remnant image is likely to occur.
(6) Module has high frequency circuits. Sufficient suppression to the electromagnetic interference shall be

done by system manufacturers. Grounding and shielding methods may be important to minimized the

interference.
(7) Please do not give any mechanical and/or acoustical impact to LCM. Otherwise, LCM can’t be operated

its full characteristics perfectly.

(8) A screw which is fastened up the steels should be a machine screw.

(if not, it causes metallic foreign material and deal LCM a fatal blow)
(9) Please do not set LCD on its edge.
(10) It is recommended to avoid the signal cable and conductive material over the inverter transformer

for it can cause the abnormal display and temperature rising.

(11) Partial darkness may happen during 3~5 minutes when LCM is operated initially in condition that

luminance is under 40% at low temperature (under 5୅

after 3~5 minutes is not a problem about reliability but LCD characteristic.

change. Condensation makes damage to polarizer or

). This phenomenon which disappears naturally

Ver. 0.4

One step solution for LCD / PDP / OLED panel application: Datasheet, inventory and accessory!

25 / 26

www.panelook.com

Global LCD Panel Exchange Center

www.panelook.com

LC320WXN

Product Specification

9-3. Electrostatic Discharge Control

Since a module is composed of electronic circuits, it is not strong to electrostatic discharge. Make certain that
treatment persons are connected to ground through wrist band etc. And don’t touch interface pin directly.

9-4. Precautions for Strong Light Exposure

Strong light exposure causes degradation of polarizer and color filter.

9-5. Storage

When storing modules as spares for a long time, the following precautions are necessary.

(1) Store them in a dark place. Do not expose the module to sunlight or fluorescent light. Keep the temperature

between 5¶C and 35¶C at normal humidity.

(2) The polarizer surface should not come in contact with any other object.

It is recommended that they be stored in the container in which they were shipped.

9-6. Handling Precautions for Protection Film

(1) The protection film is attached to the bezel with a small masking tape.

When the protection film is peeled off, static electricity is generated between the film and polarizer.
This should be peeled off slowly and carefully by people who are electrically grounded and with well ion­blown equipment or in such a condition, etc.

(2) When the module with protection film attached is sto

small amount of glue still on the bezel after the protection film is peeled off.

(3) You can remove the glue easily. When the glue remains on the bezel surface or its vestige is recognized,

please wipe them off with absorbent cotton waste or other soft material like chamois soaked with normal­hexane.

red for a long time, sometimes there remains a very

Ver. 0.4

One step solution for LCD / PDP / OLED panel application: Datasheet, inventory and accessory!

26 / 26

www.panelook.com

Global LCD Panel Exchange Center

˟

˟

˟

˟

˟

www.panelook.com

Product Specification

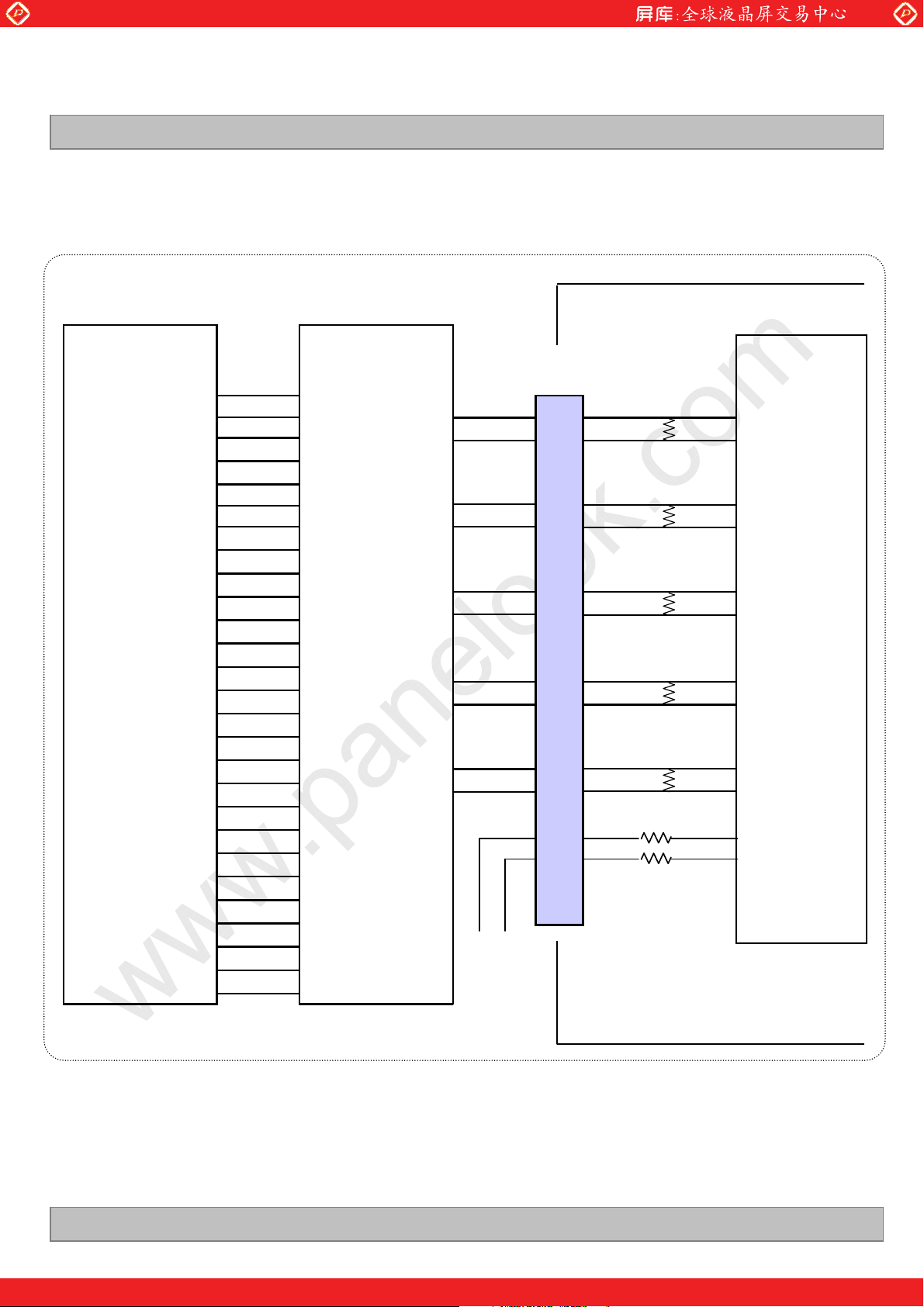

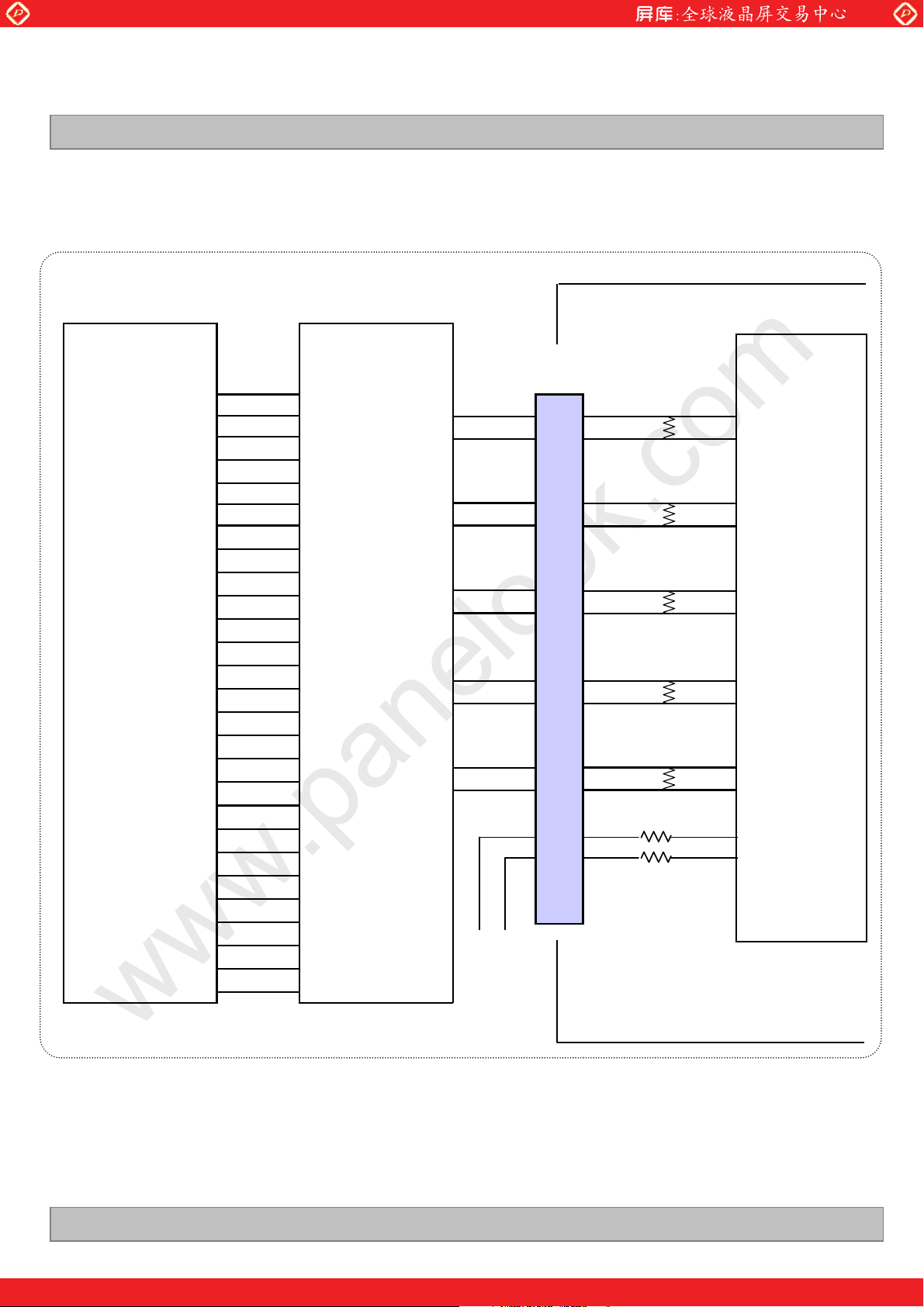

# APPENDIX-I-1

 Required signal assignment for Flat Link Transmitter(Pin9=“L”)

LC320WXN

Host System

24 Bit

RED0
RED1
RED2
RED3
RED4
RED5
RED6

RED7
GREEN0
GREEN1
GREEN2
GREEN3
GREEN4
GREEN5
GREEN6
GREEN7

BLUE0
BLUE1
BLUE2
BLUE3
BLUE4
BLUE5
BLUE6
BLUE7

Hsync
Vsync

Data Enable

CLOCK

DS90C385

or Compatible

51
52
54
55
56
3
50
2
4
6
7
11
12
14
8
10
15
19
20
22
23
24
16
18
27
28
30
31

TxCLKOUT­TxCLKOUT+

TxOUT0­TxOUT0+

TxOUT1­TxOUT1+

TxOUT2­TxOUT2+

TxOUT3­TxOUT3+

IS100-L30B-C23

48

47

46

45

42

41

40

39

38

37

GND

GND

12
13

15
16

18
19

21
22

24
25

9

30

100

100

100

100

100

LCD Module

Timing

Controller

RxIN0­RxIN0+

RxIN1­RxIN1+

RxIN2­RxIN2+

RxCLKIN­RxCLKIN+

RxIN3­RxIN3+

VESA / JEIDA

LCD Test

Notes:

1. The LCD module uses a 100 Ohm(ᆅ) resistor between positive and negative lines

of each receiver input.

2. Refer to LVDS transmitter data sheet for detail descriptions. (DS90C385 or Compatible)

3. ‘7’ means MSB and ‘0’ means LSB at R,G,B pixel data.

Ver. 0.4

One step solution for LCD / PDP / OLED panel application: Datasheet, inventory and accessory!

A- 1 / 14

www.panelook.com

Global LCD Panel Exchange Center

˟

˟

˟

˟

˟

www.panelook.com

Product Specification

# APPENDIX-I-2

 Required signal assignment for Flat Link Transmitter(Pin9=“H”)

LC320WXN

Host System

24 Bit

RED0

RED1

RED2

RED3

RED4

RED5

RED6

RED7
GREEN0
GREEN1
GREEN2
GREEN3
GREEN4
GREEN5
GREEN6
GREEN7

BLUE0
BLUE1
BLUE2
BLUE3
BLUE4
BLUE5
BLUE6
BLUE7

Hsync
Vsync

Data Enable

CLOCK

DS90C385

or Compatible

50
2
51
52
54
55
56
3
8
10
4
6
7
11
12
14

16
18
15
19
20
22
23
24
27
28
30
31

TxOUT0­TxOUT0+

TxOUT1­TxOUT1+

TxOUT2­TxOUT2+

TxCLKOUT­TxCLKOUT+

TxOUT3­TxOUT3+

IS100-L30B-C23

48

47

46

45

42

41

40

39

38

37

GND

Vcc

12
13

15
16

18
19

21
22

24
25

9

30

100

100

100

100

100

LCD Module

Timing

Controller

RxIN0­RxIN0+

RxIN1­RxIN1+

RxIN2­RxIN2+

RxCLKIN­RxCLKIN+

RxIN3­RxIN3+

VESA /

LCD Test

JEIDA

Notes:

1. The LCD module uses a 100 Ohm(ᆅ) resistor between positive and negative lines

of each receiver input.

2. Refer to LVDS transmitter data sheet for detail descriptions. (DS90C385 or Compatible)

3. ‘7’ means MSB and ‘0’ means LSB at R,G,B pixel data.

Ver. 0.4

One step solution for LCD / PDP / OLED panel application: Datasheet, inventory and accessory!

A- 2 / 14

www.panelook.com

Global LCD Panel Exchange Center

Product Specification

# APPENDIX-้-1

 LC320WXN-SBD1 Packing Ass’y

www.panelook.com

LC320WXN

NO. DESCRIPTION MATERIAL

1LCD MODULE

Ver. 0.4

2BAG

3TAPE

4 PACKING, BOTTOM

5 PACKING, TOP R_L

6BOX

7TAPE

8 LABEL

MASKING 20MM X 50M

OPP 70MMX300M

YUPO PAPER 100X100

AL

EPS

EPS

PAPER_DW3

One step solution for LCD / PDP / OLED panel application: Datasheet, inventory and accessory!

A- 3/ 14

www.panelook.com

Global LCD Panel Exchange Center

# APPENDIX-้-2

 LC320WXN-SBD1 Pallet Ass’y

www.panelook.com

LC320WXN

Product Specification

NO. DESCRIPTION MATERIAL

1 PACKING ASS’Y

2 PALLET

Box quantity per pallet: 4ea

3BAND

Pallet size: L1030 x W870 x H1210

4 CLIP, BAND

5 ANGLE, PACKING

6 LABEL

Ver. 0.4

One step solution for LCD / PDP / OLED panel application: Datasheet, inventory and accessory!

Plywood

PP

STEEL

PAPER (SWR4)

PAPER

30 / 26

A- 4 / 14

www.panelook.com

Global LCD Panel Exchange Center

غ

# APPENDIX- III

غ LCM Label

www.panelook.com

LC320WXN

Product Specification

Model

UL, TUV Mark

LPL Logo

LC320WXN
(SB)(D1)

RoHS Verified

MADE IN KOREA

Serial No.

Origin

Serial No. (See CAS 24page for more information)

81 2 3 4 5 6 7 9 10 11 12

Inch

Ver. 0.4

One step solution for LCD / PDP / OLED panel application: Datasheet, inventory and accessory!

MonthYear

Serial No.

M Ass’y Factory code

13

31 / 26

A- 5 / 14

www.panelook.com

Global LCD Panel Exchange Center

www.panelook.com

Product Specification

# APPENDIX- IV

 Box Label  Pallet Label

LC320WXN

LC320WXN

6 PCS

SBD1

rvylh

LC320WXN

SBD1

24 PCS

rvylh

RoHS Verified

Ver. 0.4

One step solution for LCD / PDP / OLED panel application: Datasheet, inventory and accessory!

32 / 26

A- 6 / 14

www.panelook.com

Global LCD Panel Exchange Center

zG

sjt

t

p

X[

X

ZWJX

ujGVGXU]\}

}iyTh

}iyTiGGw~tG

OGhUGGGzUP

JXWGaGvwjGlGw

XZ

XX

ZUZ}

vwjGv

vwjGv

JY_GaG}iyTiGp

JY^GaGvwjTv|{

sjtGjGi

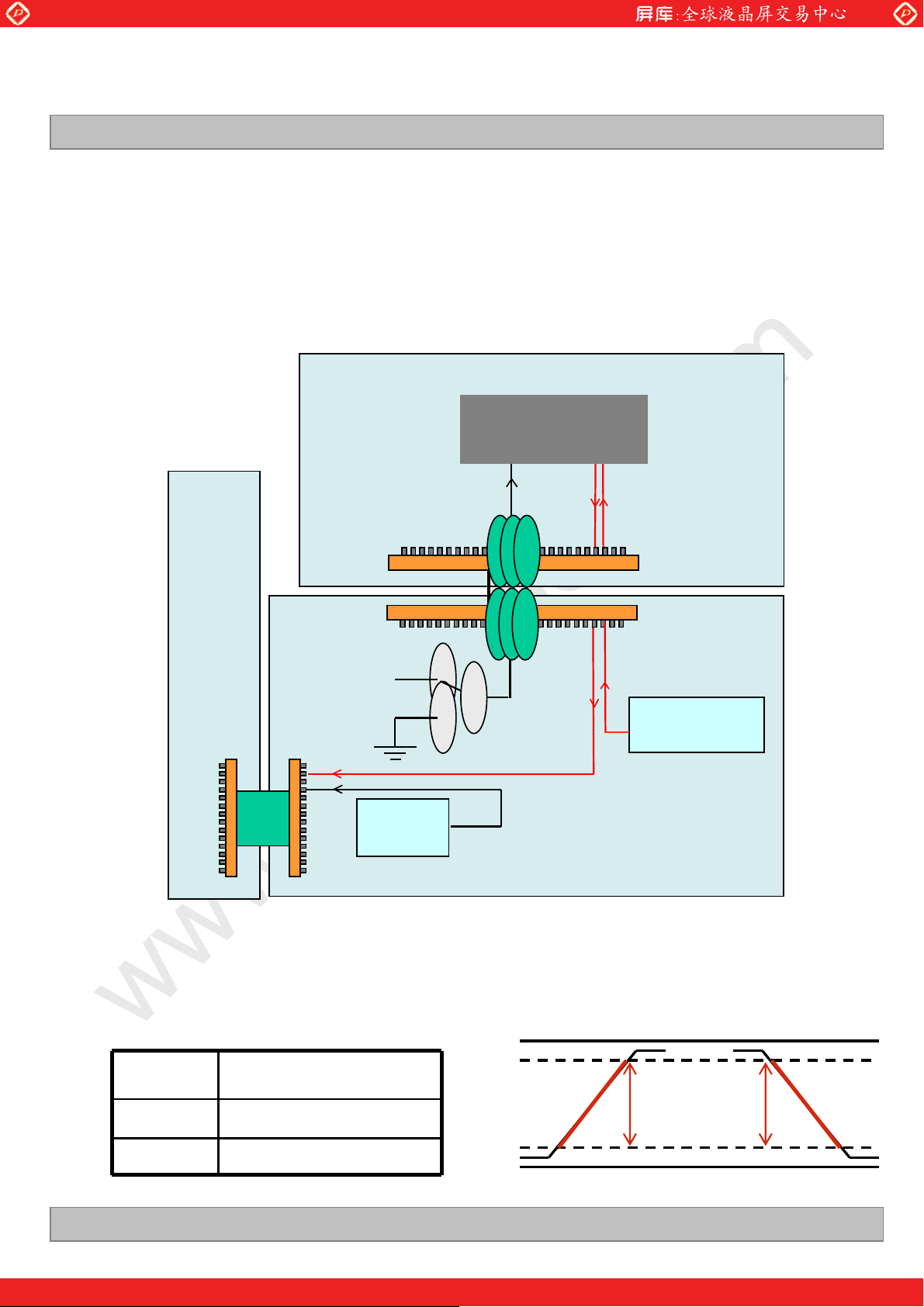

# APPENDIX- V

Inverter 13thPin (EXTVBR-B) Design Guide

 When OPC Enable is “L", OPC Output = System Dimming.

OPC Output( PWM Signal) is synchronized with V-Sync Freq. of System in T-Con Board.

 Regardless of OPC, System should always give dimming Signal (EXTVBR-B) to T-con.

www.panelook.com

LC320WXN

Product Specification

T-Con

ك PWM Sp

ecification ( VDD = 3.3V ) @ OPC

1. PWM High Voltage Range : 2.5V~3.6V

2. PWM Low Voltage Range : 0.0V~0.8V

VDD

VDD*0.9

Rising Time

Falling Time

VDD*0.1

0

Ver. 0.4

Input

Frequency

Rising Time

Falling Time

MAX 1Khz
(Recommendation:50~200Hz)

MAX 10.0 Ɇs

MAX 10.0 Ɇs

One step solution for LCD / PDP / OLED panel application: Datasheet, inventory and accessory!

33 / 26

A- 7 / 14

www.panelook.com

Global LCD Panel Exchange Center

www.panelook.com

Product Specification

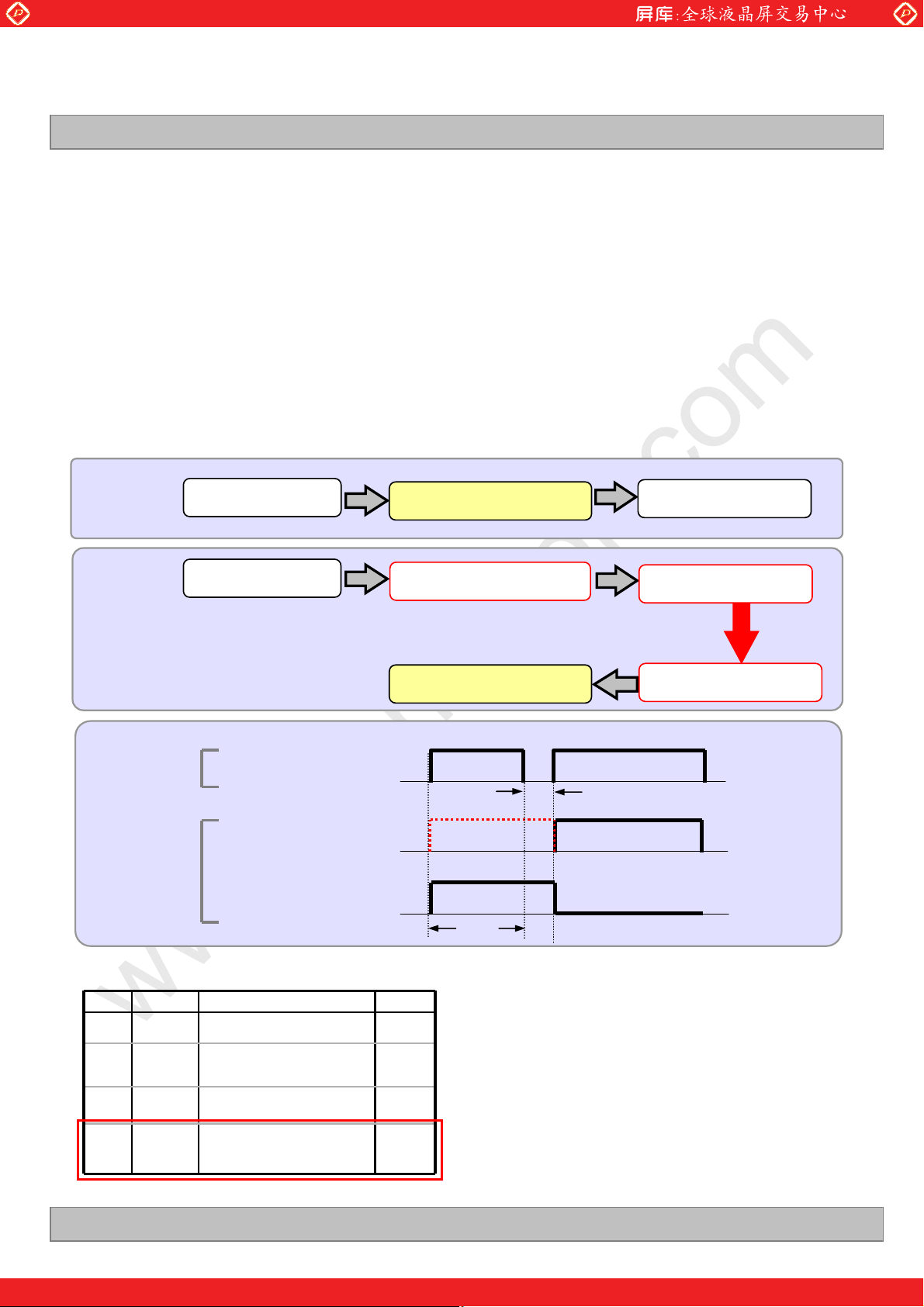

# APPENDIX- VI

Inverter 14thPin (Status) Design Guide

 Function of Status pin

- Purpose : Preventing of backlight off by restarting the inverter technically

- Purpose : Preventing of backlight off by restarting the inverter technically

- How to : When inverter is abnormal operation, TV system inputs the Von signal

- How to : When inverter is abnormal operation, TV system inputs the Von signal

in the inverter once more to turn on the lamp safely

in the inverter once more to turn on the lamp safely

- Attention : Restart system’s Von signal when status pin continue over 1sec high

- Attention : Restart system’s Von signal when status pin continue over 1sec high

(The turn on time of lamp can be late such as the low temperature or the storage time)

(The turn on time of lamp can be late such as the low temperature or the storage time)

 Status operation modes in TV set Status operation modes in TV set

LC320WXN

Normal

Mode

Status

operation

mode

System

Inverter

System Von

System Von

VON/OFF [12pin]

Backlight

Status [14pin]

Lamp turn on

Fail of Lamp turn on

Lamp turn on

V

ON

Fail

Status

1sec

Feedback to system

Restart V

0.1sec

Lamp ON

Status level low

Status level High

Again System Von

ON

 Inverter pin map Inverter pin map

Pin No

Symbol Description Inv.

11 VBR-A

12 VON/OFF 0.0V ~ 5.0V On/Off

13 ExtVBR-B

Status

14

Analog dimming voltage
DC 0.0V ~ 3.3V (Typ : 1.65V)

Burst Dimming Control
PWM signal input

Normal : Under 0.7V
Abnormal : Upper 3.0V

VBR-A

External

PWM

status

1/2

Ver. 0.4

One step solution for LCD / PDP / OLED panel application: Datasheet, inventory and accessory!

34 / 26

A- 8 / 14

www.panelook.com

Global LCD Panel Exchange Center

˟

˟

˟

˟

˟

www.panelook.com

Product Specification

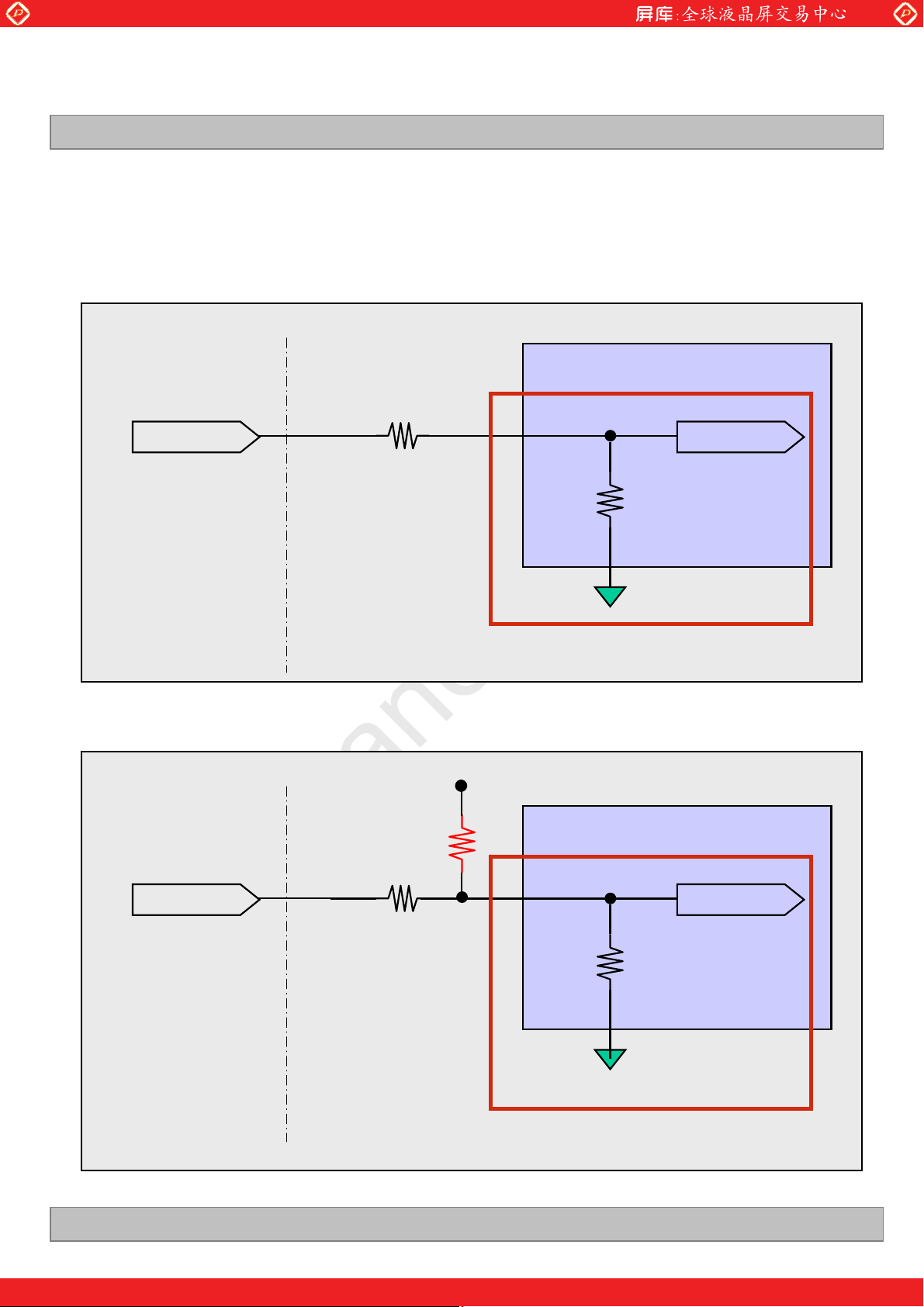

# APPENDIX- VII

Option Pin Circuit Block Diagram

Circuit Block Diagram of LVDS Format Selection pin

1K

Selector (Pin 9) Selector

LC320WXN

System Side LCM Side

Circuit Block Diagram of OPC_Enable pin

VCC

Open

1K

Selector (Pin 10) Selector

50K

(TBD)

50K

ASIC

(TCON)

(TBD)

ASIC

(TCON)

System Side

R1 ˺1K

LCM Side

Ver. 0.4

One step solution for LCD / PDP / OLED panel application: Datasheet, inventory and accessory!

35 / 26

A- 9 / 14

www.panelook.com

Global LCD Panel Exchange Center

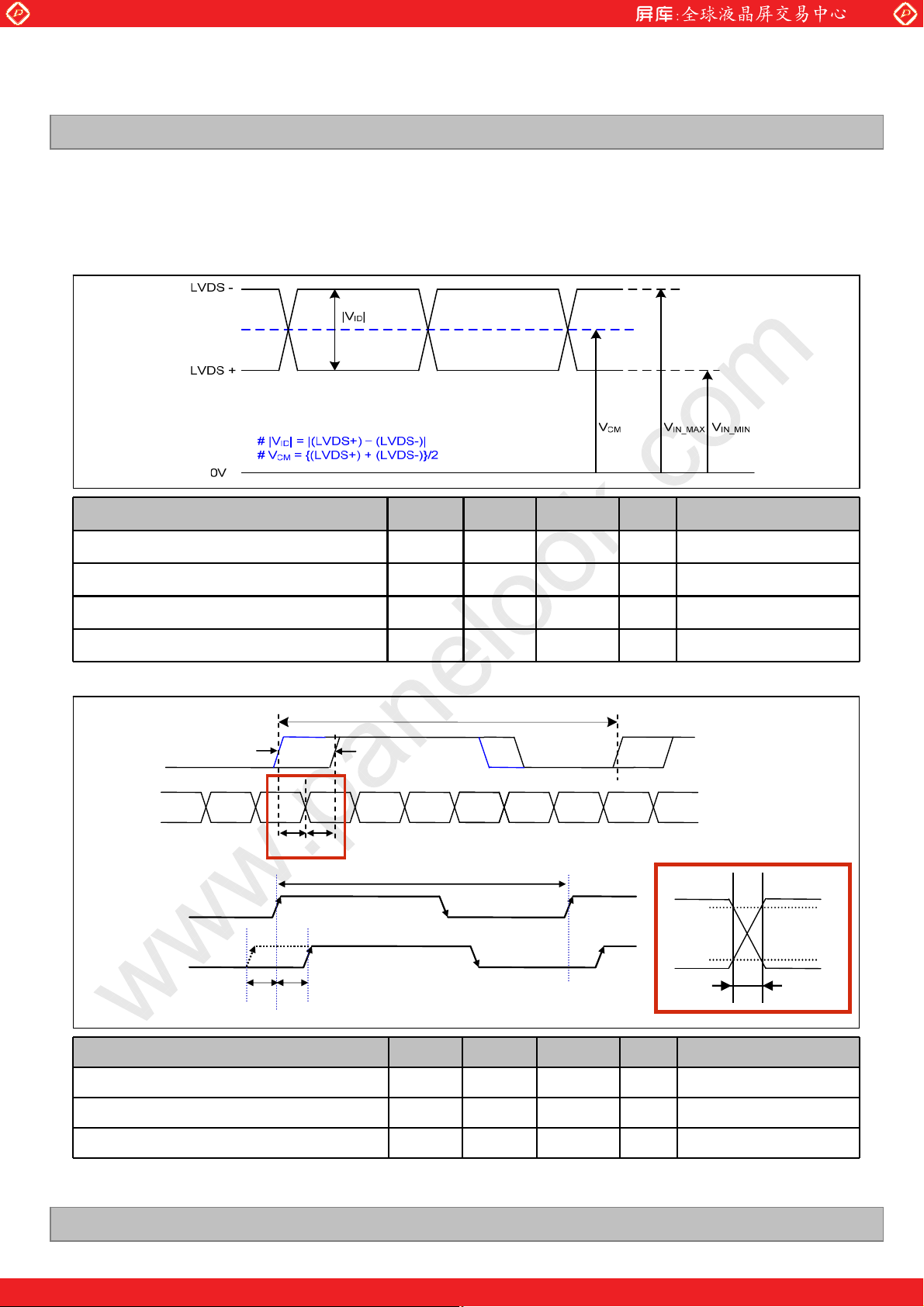

# APPENDIX- VIII

LVDS Input characteristics

1. DC Specification

www.panelook.com

LC320WXN

Product Specification

Description Symbol Min Max Unit Notes

LVDS Single end Voltage |V

LVDS Common mode Voltage V
LVDS Input Voltage Range V
Change in common mode Voltage ȟV

2. AC Specification

LVDS Clock

A

LVDS Data

tSKEW

tSKEW

LVDS 1’st Clock

LVDS 2nd/ 3rd/ 4thClock

T

skew_minTskew_max

| 200 600 mV -

ID

1.1 1.5 V -

0.7 1.8 V ­150 mV -

T

clk

)

clk

(F

CM

IN

CM

= 1/T

clk

T

clk

A

80%

20%

t

RF

Description Symbol Min Max Unit Notes

LVDS Clock to Data Skew Margin t
LVDS Clock/DATA Rising/Falling time t
LVDS Clock to Clock Skew Margin (Even to Odd) t

SKEW_EO

SKEW

RF

260 (0.3*T

400 ps 78MHz > Fclk ˻ 70MHz

)/7 ps -

clk

1/7* T

clk

T

clk

Note. All Input levels of LVDS signals are based on the EIA 644 Standard.

Ver. 0.4

One step solution for LCD / PDP / OLED panel application: Datasheet, inventory and accessory!

-

36 / 26

A- 10 / 14

www.panelook.com

Global LCD Panel Exchange Center

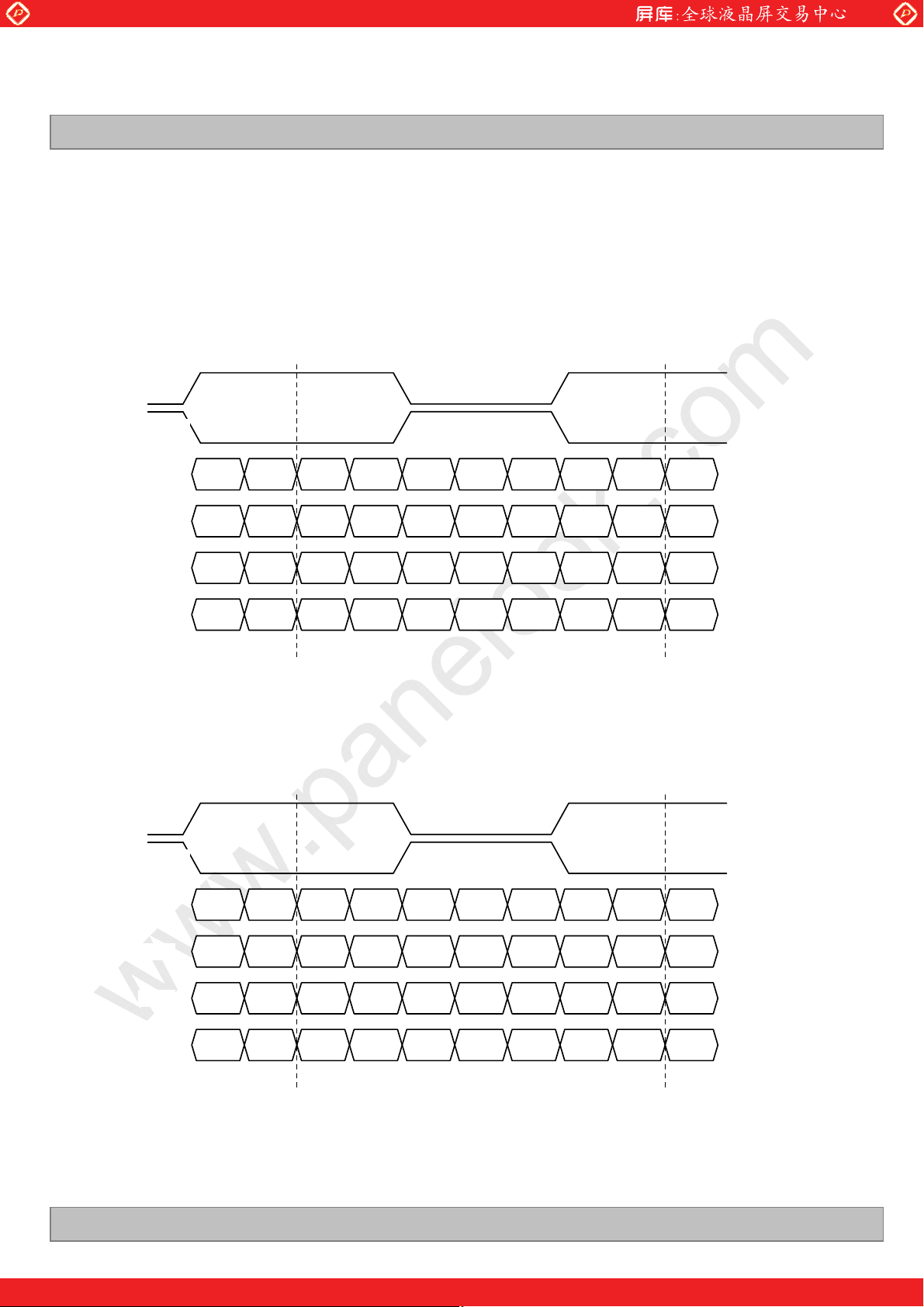

# APPENDIX- IX

LVDS Data-Mapping info. (8bit)

 LVDS Select : “H” Data-Mapping (JEIDA format)

RCLKP

RCLKM

www.panelook.com

LC320WXN

Product Specification

RAP

RBP

RCP

RDP

R17 R16 R15 R14G12 R13R12’ R12R13’ G12”

B12 G17 G16 G15B13 G14G13’ G13G14’ B13”

V

SYNCHSYNC

B11 B10 G11 G10X R11R10’ R10R11’ X”

B17 B16DE B15B14’ B14B15’ DE”

 LVDS Select : “L” Data-Mapping (VESA format)

RCLKP

RCLKM

RAP

R15 R14 R13 R12G10 R11R10’ R10R11’ G10”

RBP

RCP

RDP

Ver. 0.4

One step solution for LCD / PDP / OLED panel application: Datasheet, inventory and accessory!

B10 G15 G14 G13B11 G12G11’ G11G12’ B15”

V

SYNCHSYNC

B17 B16 G17 G16X R17R16’ R16R17’ X”

B15 B14DE B13B12’ B12B13’ DE”

37 / 26

A- 11 / 14

www.panelook.com

Global LCD Panel Exchange Center

vG

pGvuG

shtwGvu

www.panelook.com

Product Specification

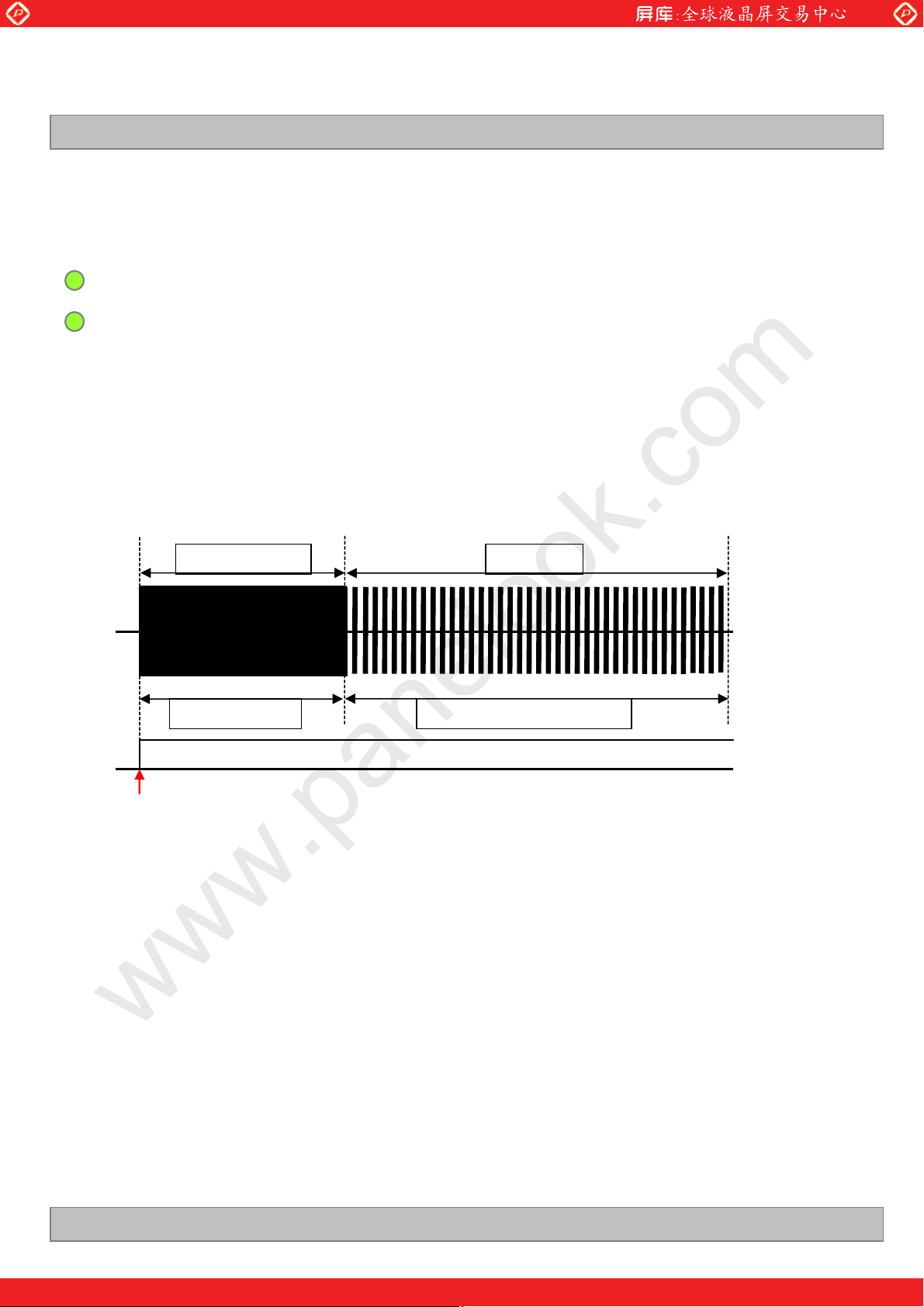

# APPENDIX- X-1

Mega DCR using condition(1)

After Inverter ON signal, PWM Duty 100% should be sustained during 2sec.

It is recommended not to sustain more than 10 min for Deep Dimming

( PWM Low Duty 0%~20%).

The deep dimming must be used very carefully due to limitation of lamp characteristics and specification.

1) For stable lamp on, its duty condition should follow below the condition.

After Inverter ON signal, T0 duration should be sustained.

LC320WXN

{WGdGtGYG

w~tGoGkOYWLG¥XWWLPw~tGkGXWWL

2) Low duty(0%~20%) of the inverter output current, B/L may not satisfy some of LCM specification.

- Duration : the low duty operation(0 ~ 20%) must be limited within 10 minutes for one time operation.

- Ratio

: the period of the low duty operation must be less than 1/5 compare to that of the high duty

operation(20~100%) in a certain period to prevent unwanted operation.

tGZ

- FOS : partial darkness or darkness of center area during the low duty might be happened due to
insufficient lamp current.

- Warm up : the low duty must be used 3 min after the lamps “ON”. In case of low temperature, more

warm up time may be needed.

Ver. 0.4

One step solution for LCD / PDP / OLED panel application: Datasheet, inventory and accessory!

38 / 26

A- 12 / 14

www.panelook.com

Global LCD Panel Exchange Center

vG

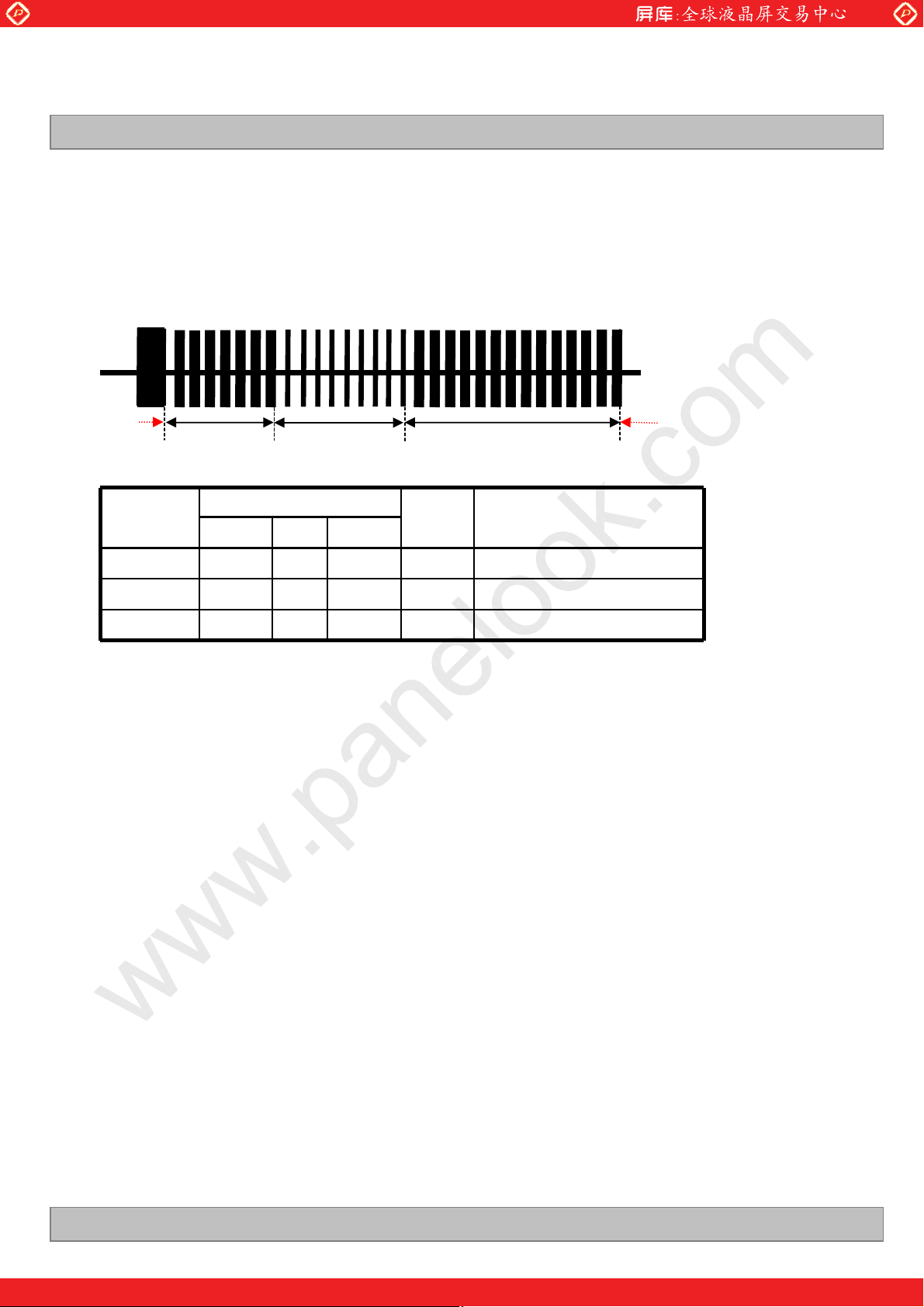

# APPENDIX- X-2

Mega DCR using condition(2)

www.panelook.com

LC320WXN

Product Specification

{W

Value

Parameter

Min Typ Max

T1 3 - - min PWM High Duty[20~100%]

T2 - - 10 min PWM Low Duty[0~20%]

T3 T2 x 5 - - min PWM High Duty[20~100%]

{Y {Z{X {Y

Unit Note

3) The output current duty may not be same as input PWM duty due to rise/fall time of output.

4) Following the recommended conditions as aforementioned, there is no difference of lamp

lifetime between conventional method and new one.

Ver. 0.4

One step solution for LCD / PDP / OLED panel application: Datasheet, inventory and accessory!

39 / 26

A- 13 / 14

www.panelook.com

Global LCD Panel Exchange Center

www.panelook.com

Product Specification

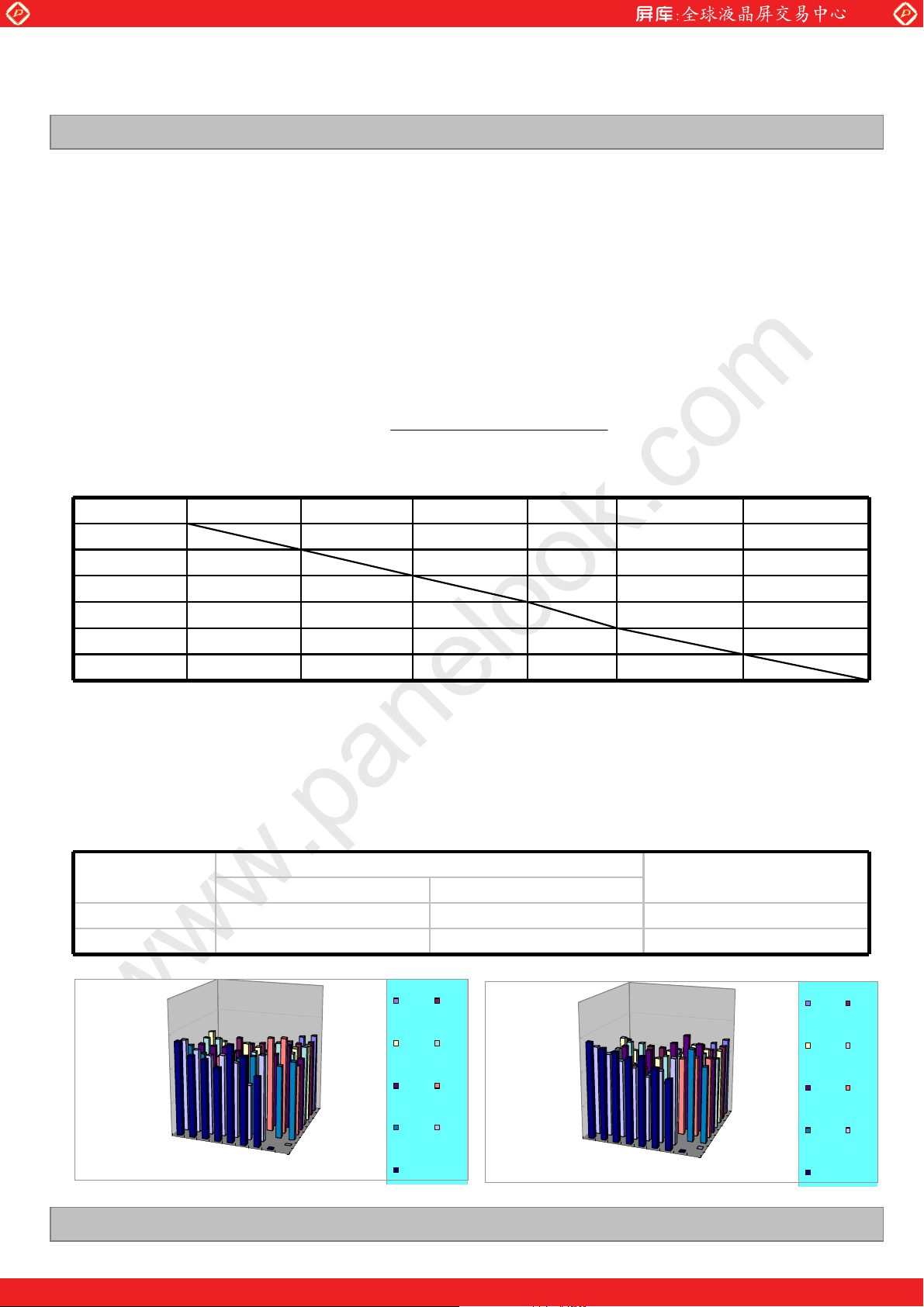

# APPENDIX- XI

Gray to Gray Response Time Uniformity

This is only the reference data of G to G and uniformity for LC320WXN-SBD1 model.

1. G to G Response Time :
Response time is defined as Figure3 and shall be measured by switching the input signal for
“Gray (N) ” and “Gray(M)”.(32Gray Step at 8bit)

2. G to G Uniformity
The variation of G to G Uniformity , G

G to G Uniformity =

G to G is defined as :

)()(

GtoGTypicalGtoGMaximum 

)(

GtoGTypical

ᆙ1

LC320WXN

*Maximum (GtoG) means maximum value of measured time (N, M = 0 (Black) ~ 255(White), 32 gray step).

0Gray 32Gray 64Gray … 223Gray 255Gray

0Gray

32Gray

64Gray

…

223Gray

255Gray

TrD:32GÆ0G TrR:32GÆ64G … TrR:32GÆ223G TrR:32GÆ255G

TrD:64GÆ0G TrD:64GÆ32G … TrR:64GÆ223G TrR:64GÆ255G

……… … …

TrD:223GÆ0G TrD:223GÆ32G TrD:223GÆ64G … TrR:223GÆ255G

TrD:255GÆ0G TrD:255GÆ32G TrD:255GÆ64G … TrD:255GÆ223G

TrR:0GÆ32G TrR:0GÆ64G … TrR:0GÆ223G TrR:0GÆ225G

3. Sampling Size : 2 pcs

4. Measurement Method : Follow the same rule as optical characteristics measurement.

5. Current Status

Below table is actual data of production on ---. --, 2008 ( LGD RV Event Sample)

G to G Response Time [ms]

Min. Max.

# 1 8.8 8.9

# 2 8.8 8.9

Uniformity











͸

͸

͸

͸

͸

͸

͸

͸

͸

͸

͸

͸

͸ ͸

͸ ͸

͸ ͸

͸ ͸

͸











͸

͸

͸

͸

͸

͸

͸

͸

͸

͸

< # 1 > < # 2 >

Ver. 0.4

One step solution for LCD / PDP / OLED panel application: Datasheet, inventory and accessory!

͸ ͸

͸ ͸

͸ ͸

͸

͸

͸ ͸

͸

40 / 26

A- 14 / 14

www.panelook.com
