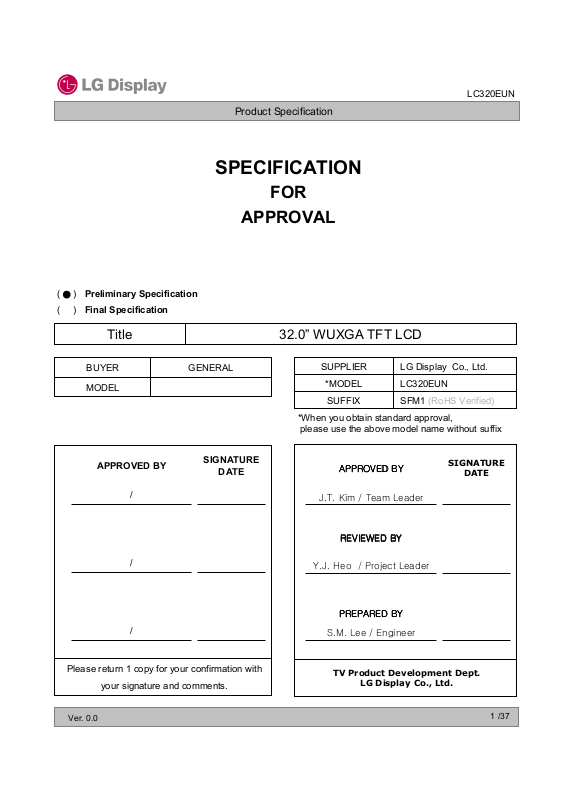

LG Display LC320EUN-SFM1 Specification

)

(

Preliminary Specification

●

)

(

Final Specification

LC320EUN

Product Specification

SPECIFICATION

FOR

APPROVAL

32.0” WUXGA TFT LCDTitle

MODEL

APPROVED BY

/

/

/

GENERALBUYER

SIGNATURE

DATE

LG Display Co., Ltd.SUPPLIER

LC320EUN*MODEL

SFM1 (RoHS Verified)SUFFIX

*When you obtain standard approval,

please use the above model name without suffix

APPROVED BY

APPROVED BY

APPROVED BYAPPROVED BY

J.T. Kim / Team Leader

REVIEWED BY

REVIEWED BY

REVIEWED BYREVIEWED BY

Y.J. Heo / Project Leader

PREPARED BY

PREPARED BY

PREPARED BYPREPARED BY

S.M. Lee / Engineer

SIGNATURE

DATE

Please return 1 copy for your confirmation with

your signature and comments.

Ver. 0.0

TV Product Development Dept.

LG Display Co., Ltd.

1 /37

Product Specification

CONTENTS

CONTENTS

CONTENTSCONTENTS

LC320EUN

CONTENTS

RECORD OF REVISIONS

GENERAL DESCRIPTION1

ABSOLUTE MAXIMUM RATINGS2

ELECTRICAL SPECIFICATIONS3

ELECTRICAL CHARACTERISTICS3-1

INTERFACE CONNECTIONS3-2

SIGNAL TIMING SPECIFICATIONS3-3

LVDS SIGNAL SPECIFICATIONS3-4

COLOR DATA REFERENCE3-5

POWER SEQUENCE3-6

OPTICAL SPECIFICATIONS4

MECHANICAL CHARACTERISTICS5

ITEMNumber

Page

1COVER

2

3

4

5

6

6

8

10

11

14

15

17

21

Ver. 0.0

RELIABILITY6

INTERNATIONAL STANDARDS7

SAFETY7-1

EMC7-2

ENVIRONMENT7-3

PACKING8

INFORMATION OF LCM LABEL8-1

PACKING FORM8-2

PRECAUTIONS9

MOUNTING PRECAUTIONS9-1

OPERATING PRECAUTIONS9-2

ELECTROSTATIC DISCHARGE CONTROL9-3

PRECAUTIONS FOR STRONG LIGHT EXPOSURE9-4

STORAGE9-5

HANDLING PRECAUTIONS FOR PROTECTION FILM9-6

24

25

25

25

25

26

26

26

27

27

27

28

28

28

28

2 /37

Product Specification

RECORD OF REVISIONS

RECORD OF REVISIONS

RECORD OF REVISIONSRECORD OF REVISIONS

DescriptionPageRevision DateRevision No.

Preliminary Specification (First Draft)-Apr, 26, 20120.0

LC320EUN

Ver. 0.0

3 /37

LC320EUN

Product Specification

1. General Description

The LC320EUN is a Color Active Matrix Liquid Crystal Display with an integral Light Emitting Diode (LED)
bac k li ght s y st em. T h e m a tr i x em plo ys a - Si T h in Fi l m T ra n s is t or as th e a c tiv e e lem e nt.
It is a transmissive display type which is operating in the normally black mode. It has a 31.55 inch diagonally
measured active display area with WUXGA resolution (1080 vertical by 1920 horizontal pixel array).
Each pixel is divided into Red, Green and Blue sub-pixels or dots which are arrayed in vertical stripes.
Gray scale or the luminance of the sub-pixel color is determined with a 8-bit gray scale signal for each dot.
Therefore, it can present a palette of more than 16.7Milion colors.
It has been designed to apply the 8-bit 2-port LVDS interface.
It is intended to support LCD TV, PCTV where high brightness, super wide viewing angle, high color gamut,
high color depth and fast response time are important.

LVDS

2Port

LVDS
Select

OPC
Enable

ExtVBR-B

+12.0V

PWM_OUT

1~3

+24.0V, GND, On/Off

CN1

(51pin)

CN2

(8 pin)

LVDS 1,2

Option
signal

I2C

PWM_OUT

1~3

General Features

Outline Dimension

Power Consumption

Weight

Ver. 0.0

EEPROM

SCL

SDA

EPI(RGB)

Source Driver Circuit

S1 S1920

G1

Timing Controller

LVDS Rx + OPC + DGA

Integrated

Power Circuit

Block

Control
Signals

G1080

Power Signals

TFT - LCD Panel

(

1920 × RGB × 1080 pixels)

[Gate In Panel]

Scanning Block 1

Scanning Block 2

LED Driver

31.55 inches(801.31mm) diagonalActive Screen Size

727.4(H) × 429.0 (V) X 9.9 (B)/22.7 mm(D) (Typ.)

0.36375 mm x 0.36375 mmPixel Pitch

1920 horiz. by 1080 vert. Pixels, RGB stripe arrangementPixel Format

8bit, 16.7Million colorsColor Depth

350 cd/m2 (Center 1point ,Typ.)Luminance, White

Viewing angle free ( R/L 178 (Min.), U/D 178 (Min.))Viewing Angle (CR>10)

Total 44.74W(TBD)(Typ.) [Logic= 6.04W, LED Driver=38.7(TBD)W
(ExtVbr_B=100% )]

5.4 Kg (Typ.)[TBD]

Transmissive mode, Normally blackDisplay Mode

Hard coating(3H), Anti-glare treatment of the front polarizer (Haze 10%) Surface Treatment

Scanning Block 3

4 /37

LC320EUN

Product Specification

2. Absolute Maximum Ratings

The following items are maximum values which, if exceeded, may cause faulty operation or permanent damage
to the LCD module.

Table 1. ABSOLUTE MAXIMUM RATINGS

Value

Value

Parameter

Parameter Symbol

ParameterParameter

Power Input Voltage

Driver Control Voltage

T-Con Option Selection Voltage VLOGIC -0.3 +4.0 VDC

Operating Temperature TOP

Storage Temperature TST

Panel Front Temperature TSUR - +68 °C 4

Operating Ambient Humidity HOP

Storage Humidity HST 10 90 %RH

LCD Circuit VLCD

Driver VBL -0.3 + 27.0 VDC

ON/OFF VOFF / VON

Brightness EXTVBR-B

Symbol

SymbolSymbol

ValueValue

Min

Min Max

MinMin

-0.3 +14.0

-0.3 +5.5

0.0 +3.6

0 +50

-20 +60

10 90

Max

MaxMax

Unit

Unit Note

UnitUnit

VDC

VDC

VDC

°C

°C

%RH

Note

NoteNote

2,3

2,3

1

Note

1. Ambient temperature condition (Ta = 25 ± 2 °C )

2. Temperature and relative humidity range are shown in the figure below.

Wet bulb temperature should be Max 39°C, and no condensation of water.

3. Gravity mura can be guaranteed below 40°C condition.

4. The maximum operating temperatures is based on the test condition that the surface temperature

of display area is less than or equal to 68°C with LCD module alone in a temperature controlled chamber.
Thermal management should be considered in final product design to prevent the surface temperature of
display area from being over 68℃. The range of operating temperature may be degraded in case of
improper thermal management in final product design.

90%

60

60%

Wet Bulb
Temperature [°C]

20

10

0

10 20 30 40 50 60 70 800-20
Dry Bulb Temperature [°C]

30

40

50

40%

Humidity [(%)RH]

10%

Storage

Operation

Ver. 0.0

5 /37

LC320EUN

Product Specification

3. Electrical Specifications

3. Electrical Specifications

3. Electrical Specifications3. Electrical Specifications

3333----1. Electrical Characteristics

1. Electrical Characteristics

1. Electrical Characteristics1. Electrical Characteristics

It requires two power inputs. One is employed to power for the LCD circuit. The other Is used for the LED
backlight and LED Driver circuit.

Table 2. ELECTRICAL CHARACTERISTICS

Value

Value

ValueValue

TypMin

TypTyp

Max

MaxTyp

MaxMax

Unit

UnitUnit

VDC13.212.010.8VLCDPower Input Voltage

Note

NoteUnit

NoteNote

Circuit :

Circuit :

Circuit :Circuit :

Parameter

Parameter Symbol

ParameterParameter

Symbol

SymbolSymbol

Min

MinMin

ILCDPower Input Current

ExtV

BR-B

Brightness Adjust for Back Light

ExtV

BR-B

Frequency

Pulse Duty Level
(PWM)

Note

1. The specified current and power consumption are under the V

High Level

Low Level

5

1

=12.0V, Ta=25 ± 2°C, fV=60Hz

LCD

condition, and mosaic pattern(8 x 6) is displayed and fVis the frame frequency.

2. The current is specified at the maximum current pattern.

3. The duration of rush current is about 2ms and rising time of power input is 0.5ms (min.).

4. ExtV
After Driver ON signal is applied, ExtV
After that, ExtV

signal have to input available duty range and sequence.

BR-B

1% and 100% is possible

BR-B

should be sustained from 5% to 100% more than 500ms.

BR-B

For more information, please see 3-6-2. Sequence for LED Driver.

5. Ripple voltage level is recommended under ±5% of typical voltage

1mA654503[TBD]-

2mA954734[TBD]-

1Watt7.856.04[TBD]PLCDPower Consumption

3A5.0--IRUSHRush current

%100-

%100-

Hz8050/6040

Vdc3.6-2.5

Vdc0.8-0

On Duty

4

HIGH : on

duty

LOW : off duty

Ver. 0.0

Mosaic Pattern(8 x 6)

White :

255 Gray

Black : 0 Gray

6 /37

Product Specification

Table 3. ELECTRICAL CHARACTERISTICS (Continue)

LC320EUN

Parameter Symbol

LED Driver :

Power Supply Input Voltage VBL 22.8 24.0 25.2 Vdc 1

Power Supply Input Current IBL

Power Supply Input Current (In-Rush) In-rush - -

Power Consumption PBL

Input Voltage for

Control System

Signals

LED :

Life Time 30,000 50,000 Hrs 2

On/Off

On V on 2.5 - 5.0 Vdc

Off V off -0.3 0.0 0.7 Vdc

Min Typ Max

Values

-

-

1.61

[TBD]

38.7

[TBD]

1.73

[TBD]

3

[TBD]

41.6

[TBD]

Unit Notes

A 1

VBL = 22.8V

A

ExtV

BR-B

W 1

= 100%

3

Notes :

1. Electrical characteristics are determined after the unit has been ‘ON’ and stable for approximately 60

minutes at 25±2°C. The specified current and power consumption are under the typical supply Input voltage
24Vand VBR (ExtVBR-B : 100%), it is total power consumption.

2. The life time (MTTF) is determined as the time which luminance of the LED is 50% compared to that of initial
value at the typical LED current (ExtVBR-B :100%) on condition of continuous operating in LCM state at
25±2°C.

3. The duration of rush current is about 200ms. This duration is applied to LED on time.

4. Even though inrush current is over the specified value, there is no problem if I2T spec of fuse is satisfied.

Ver. 0.0

7 /37

LC320EUN

Product Specification

3-2. Interface Connections

This LCD module employs two kinds of interface connection, 51-pin connector is used for the module
electronics and 14-pin connector is used for the integral backlight system.

3-2-1. LCD Module

- LCD Connector(CN1): FI-R51S-HF(manufactured by JAE) or compatible
Refer to below and next Page table

- Mating Connector : FI-R51HL(JAE) or compatible

Table 4. MODULE CONNECTOR(CN1) PIN CONFIGURATION

No Symbol Description No Symbol Description

1

2

3

4

5

6

7

8

9

10
11

12

13

14

15

16

17

18

19

20
21
22

23

24
25
26

NC

NC

NC

NC

NC

NC

LVDS Select

ExtVBR-B

NC

OPC Enable ‘H’ = Enable , ‘L’ or NC = Disable

GND

R1AN

R1AP

R1BN

R1BP

R1CN

R1CP

GND

R1CLKN
R1CLKP

GND
R1DN

R1DP

NC
NC

NC or GND

No Connection (Note 4)

No Connection (Note 4)

No Connection (Note 4)

No Connection (Note 4)

No Connection (Note 4)

No Connection (Note 4)

‘H’ =JEIDA , ‘L’ or NC = VESA

External PWM (from System)

No Connection (Note 4)

Ground

FIRST LVDS Receiver Signal (A-)

FIRST LVDS Receiver Signal (A+)

FIRST LVDS Receiver Signal (B-)

FIRST LVDS Receiver Signal (B+)

FIRST LVDS Receiver Signal (C-)

FIRST LVDS Receiver Signal (C+)
Ground

FIRST LVDS Receiver Clock Signal(-)

FIRST LVDS Receiver Clock Signal(+)
Ground

FIRST LVDS Receiver Signal (D-)

FIRST LVDS Receiver Signal (D+)
No Connection
No Connection
No Connection or Ground

27

28

29

30

31

32

33

34

35

36

37

38

39
40

41

42

43

44

45

46
47
48

49

50
51

- - -

NC

R2AN

R2AP

R2BN

R2BP

R2CN

R2CP

GND

R2CLKN

R2CLKP

GND

R2DN

R2DP

NC

NC

NC or GND

NC or GND

GND Ground

GND Ground

GND Ground

NC No connection

VLCD Power Supply +12.0V

VLCD Power Supply +12.0V

VLCD Power Supply +12.0V
VLCD Power Supply +12.0V

No Connection

SECOND LVDS Receiver Signal (A-)

SECOND LVDS Receiver Signal (A+)

SECOND LVDS Receiver Signal (B-)

SECOND LVDS Receiver Signal (B+)

SECOND LVDS Receiver Signal (C-)

SECOND LVDS Receiver Signal (C+)
Ground

SECOND LVDS Receiver Clock Signal(-)

SECOND LVDS Receiver Clock Signal(+)
Ground

SECOND LVDS Receiver Signal (D-)

SECOND LVDS Receiver Signal (D+)
No Connection

No Connection

No Connection or Ground

No Connection or Ground

Note

Ver. 0.0

1. All GND(ground) pins should be connected together to the LCD module’s metal frame.

2. All VLCD (power input) pins should be connected together.

3. All Input levels of LVDS signals are based on the EIA 644 Standard.

4. #1~#6 & #9 NC (No Connection): These pins are used only for LGD (Do not connect)

5. Specific pins(pin No. #10) are used for Scanning function of the LCD module.
If not used, these pins are no connection. (Please see the Appendix VI for more information.)

6. Specific pin No. #44 is used for “No signal detection” of system signal interface.
It should be GND for NSB(No Signal Black) during the system interface signal is not.
If this pin is “H”, LCD Module displays AGP(Auto Generation Pattern).

8 /37

Product Specification

3-2-2. Backlight Module

Master

-LED Driver Connector
: 20022WR - H14B2(Yeonho) or compatible

- Mating Connector
: 20022HS - 14B2 or compatible

Table 5. LED DRIVER CONNECTOR PIN CONFIGURATION

Pin No Symbol Description Note

LC320EUN

1

2

3

4

5

6

7

8

9

10

11

12

13

14

VBL Power Supply +24.0V

VBL Power Supply +24.0V

VBL Power Supply +24.0V

VBL Power Supply +24.0V

VBL Power Supply +24.0V

GND

GND

GND

GND

GND

Status

ON/OFF

V

NC

NC

Backlight Ground

Backlight Ground

Backlight Ground

Backlight Ground

Backlight Ground

Back Light Status

Backlight ON/OFF control

Don’t care

Don’t care

Notes :1. GND should be connected to the LCD module’s metal frame.

2. Normal : Low (under 0.7V) / Abnormal : Open

3. Each impedance of pin #12 is over TBD [KΩ] .

1

2

◆ Rear view of LCM

1

Ver. 0.0

…

14

<Master>

◆ Status

PCB

1

14

…

9 /37

LC320EUN

Product Specification

3-3. Signal Timing Specifications

Table 6 shows the signal timing required at the input of the LVDS transmitter. All of the interface signal
timings should be satisfied with the following specification for normal operation.

Table 6. TIMING TABLE (DE Only Mode)

Symbol

ITEM

ITEMITEM

Symbol

SymbolSymbol

MinITEM

MinMin

TypMin

TypTyp

MaxTyp

MaxMax

UnitMax

UnitUnit

Note

NoteUnit

NoteNote

Display

Period

Horizontal

Horizontal

HorizontalHorizontal

Vertical

Vertical 1Lines

VerticalVertical

ITEM

ITEMITEM

Frequency

Frequency

FrequencyFrequency

Blank

Total

Display

Period

DCLK

Horizontal

Vertical

tHV

tHB

tHP

tVBBlank

tVPTotal

SymbolITEM

SymbolSymbol

fCLK

fH

fV

20

(228)

1100

(1308)

MinSymbol

MinMin

57

(47)

45

(270)

1125

(1350)

TypMin

TypTyp

60

(50)

69

(300)

1149

(1380)

MaxTyp

MaxMax

63

(53)

tCLK120011001060

Lines108010801080tVV

Lines

MHz78.0074.2563.00

UnitMax

UnitUnit

Hz

1920 / 2tCLK960960960

1tCLK240140100

Note

NoteUnit

NoteNote

2KHz7067.557.3

2
NTSC : 57~63Hz
(PAL : 47~53Hz)

Note: 1. The input of HSYNC & VSYNC signal does not have an effect on normal operation (DE Only Mode).

If you use spread spectrum of EMI, add some additional clock to minimum value for clock margin.

2. The performance of the electro-optical characteristics may be influenced by variance of the vertical
refresh rate and the horizontal frequency

※ Timing should be set based on clock frequency.

Ver. 0.0

10 /37

3-4. LVDS Signal Specification

3-4-1. LVDS Input Signal Timing Diagram

LC320EUN

Product Specification

DE, Data

DCLK

First data

Second data

0.7VDD

0.3VDD

tCLK

Invalid data

Invalid data

DE(Data Enable)

0.5 VDD

Valid data

Pixel 0,0 Pixel 2,0

Valid data

Pixel 1,0 Pixel 3,0

tHP

Invalid data

Invalid data

tHV

DE(Data Enable)

Ver. 0.0

1 1080

tVV

tVP

11 /37

3-4-2. LVDS Input Signal Characteristics

1) DC Specification

LVDS -

LVDS +

LC320EUN

Product Specification

0V

LVDS Common mode Voltage

LVDS Input Voltage Range

2) AC Specification

LVDS Clock

LVDS Data

LVDS 1’st Clock

LVDS 2nd/ 3rd/ 4thClock

t

SKEW_mintSKEW_max

# VCM= {(LVDS +) + ( LVDS -)} /2

CM

A

(F

tSKEW

tSKEW

clk

T

clk

IN

= 1/T

V

CM

V

IN _ MAXVIN _MIN

NoteUnitMaxMinSymbolDescription

-V1.51.0V

-V1.80.7V

-mV250ΔVCMChange in common mode Voltage

T

clk

)

clk

A

80%

20%

t

RF

LVDS Differential Voltage

High Threshold

Low Threshold

LVDS Clock to Data Skew

LVDS Clock/DATA Rising/Falling time

Effective time of LVDS

LVDS Clock to Clock Skew (Even to Odd)

Note

1. All Input levels of LVDS signals are based on the EIA 644 Standard.

2. If tRFisn’t enough, t

should be meet the range.

eff

3. LVDS Differential Voltage is defined within t

TH

TL

SKEW

RF

eff

SKEW_EO

260 ps|(0.3*T

eff

Ver. 0.0

NoteUnitMaxMinSymbolDescription

mV300100V

3

mV-100-300V

)/7|-t

clk

)/7|t

clk

-ps|(0.25*T

2

-ps-|±360|t

ps|1/7* T

|-t

clk

-

12 /37

Product Specification

360ps

LC320EUN

V+
data

Vcm

V­data

V+
clk

Vcm

0.5tui

tui

VTH

VTL

360ps

teff

tui : Unit Interval

V­clk

Ver. 0.0

13 /37

LC320EUN

Product Specification

3-5. Color Data Reference

The brightness of each primary color(red,green,blue) is based on the 8bit gray scale data input for the color.
The higher binary input, the brighter the color. Table 7 provides a reference for color versus data input.

Table 7. COLOR DATA REFERENCE

Input Color Data

RED

RED

Color

Black 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0

Red (255) 1 1 1 1 1 1 1 1 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0

Green (255) 0 0 0 0 0 0 0 0 1 1 1 1 1 1 1 1 0 0 0 0 0 0 0 0

MMMMSB LLLLSB

R7 R6 R5 R4 R3 R2 R1 R0

R7 R6 R5 R4 R3 R2 R1 R0 G7 G6 G5 G4 G3 G2 G1 G0

R7 R6 R5 R4 R3 R2 R1 R0R7 R6 R5 R4 R3 R2 R1 R0

REDRED

MMMMSB LLLLSB

G7 G6 G5 G4 G3 G2 G1 G0 B7 B6 B5 B4 B3 B2 B1 B0

G7 G6 G5 G4 G3 G2 G1 G0G7 G6 G5 G4 G3 G2 G1 G0

GREEN

GREEN

GREENGREEN

BLUE

BLUE

BLUEBLUE

MMMMSB LLLLSB

B7 B6 B5 B4 B3 B2 B1 B0

B7 B6 B5 B4 B3 B2 B1 B0B7 B6 B5 B4 B3 B2 B1 B0

Basic

Basic

BasicBasic

Color

Color

ColorColor

RED

RED

REDRED

GREEN

GREEN

GREENGREEN

Blue (255) 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 1 1 1 1 1 1 1 1

Cyan 0 0 0 0 0 0 0 0 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1

Magenta 1 1 1 1 1 1 1 1 0 0 0 0 0 0 0 0 1 1 1 1 1 1 1 1

Yellow 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 0 0 0 0 0 0 0 0

White 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1

RED (000) 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0

RED (001) 0 0 0 0 0 0 0 1 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0

... ... ... ...

RED (254) 1 1 1 1 1 1 1 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0

RED (255) 1 1 1 1 1 1 1 1 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0

GREEN (000) 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0

GREEN (001) 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 1 0 0 0 0 0 0 0 0

... ... ... ...

GREEN (254) 0 0 0 0 0 0 0 0 1 1 1 1 1 1 1 0 0 0 0 0 0 0 0 0

GREEN (255) 0 0 0 0 0 0 0 0 1 1 1 1 1 1 1 1 0 0 0 0 0 0 0 0

BLUE (000) 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0

BLUE (001) 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 1

BLUE

BLUE

BLUEBLUE

Ver. 0.0

... ... ... ...

BLUE (254) 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 1 1 1 1 1 1 1 0

BLUE (255) 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 1 1 1 1 1 1 1 1

14 /37

3-6. Power Sequence

3-6-1. LCD Driving circuit

LC320EUN

Product Specification

Power Supply For LCD

V

LCD

Interface Signal (Tx_clock)

User Control Signal

(LVDS_select, OPC Enable,

Power for LED

Table 8. POWER SEQUENCE

Parameter

Parameter

ParameterParameter

90%

10%

0V

T1

30%

0V

T6

ExtVBR-B)

Min

Min Typ

MinMin

T2

100%

T7

Value

Value

ValueValue

Typ Max

TypTyp

Valid Data

T3 T4

LED ON

Max

MaxMax

90%

10%

T8

T5

Vcm : LVDS Common mode Voltage

Unit

Unit Notes

UnitUnit

10%

Notes

NotesNotes

Note :

Ver. 0.0

TTTT1

1 0.5 - 20 ms

11

TTTT2

2 0 - - ms

22

TTTT3

3 200 - - ms

33

TTTT4

4 200 - - ms

44

TTTT5

5 1.0 - - s

55

TTTT6

6 - - T2 ms

66

7

77

TTTT8

8 100 - - ms

88

1. Even though T1 is over the specified value, there is no problem if I2T spec of fuse is satisfied.

2. If T2 is satisfied with specification after removing LVDS Cable, there is no problem.

3. The T3 / T4 is recommended value, the case when failed to meet a minimum specification,
abnormal display would be shown. There is no reliability problem.

4. T5 should be measured after the Module has been fully discharged between power off and on period.

5. If the on time of signals (Interface signal and user control signals) precedes the on time of Power (V
it will be happened abnormal display. When T6 is NC status, T6 doesn’t need to be measured.

6. If there is no abnormal display, no problem.

7. It is recommendation specification that T8 has to be 100ms as a minimum value.

※ Please avoid floating state of interface signal at invalid period.
※ When the power supply for LCD (VLCD) is off, be sure to pull down the valid and invalid data to 0V.

LCD

1

2

3

3

4

5

6s--0.5TTTT7

7

),

15 /37

3-6-2. Sequence for LED Driver

Power Supply For LED Driver

VBL

0V

10%

Product Specification

24V (typ.)

90%

LC320EUN

90%

T1 T2

VON/OFF

ExtVBR-B

3-6-3. Dip condition for LED Driver

VBL(Typ.) x 0.8

Table 9. Power Sequence for LED Driver

T4 T6

LED ON

T5

T3

V

BL

0 V

: 24V

Parameter

Min Typ Max

Values

Units Remarks

T1 20 - - ms 1
T2 500 - - ms
T3 10 - ---- ms
T4 0 - - ms

T5

VVVV

(Typ) x 0.8

BL

BL

BLBL

0.8ms10--

0.80.8

2ms--500T6

Notes : 1. T1 describes rising time of 0V to 24V and this parameter does not applied at restarting time.

Even though T1 is over the specified value, there is no problem if I2T spec of fuse is satisfied.

2. In T6 section, ExtVBR-B should be sustained from 5% to 100% .

Ver. 0.0

16 /37

LC320EUN

Product Specification

4. Optical Specification

Optical characteristics are determined after the unit has been ‘ON’ and stable in a dark environment at 25±2°C.
The values are specified at 50cm from the LCD surface at a viewing angle of Φ and θ equal to 0 °.
FIG. 1 shows additional information concerning the measurement equipment and method.

Optical Stage(x,y)

LCD Module

Pritchard 880 or
equivalent

50cm

FIG. 1 Optical Characteristic Measurement Equipment and Method

Ta= 25±2°C, V

Table 10. OPTICAL CHARACTERISTICS

Value

Value

Parameter

Parameter Symbol

ParameterParameter

Contrast Ratio CR 1000 1400 - 1
Surface Luminance, white L

Luminance Variation

Response Time

Color Coordinates
[CIE1931]

Color Temperature 10,000 K

Color Gamut 68 %

Viewing Angle (CR>10)

x axis, right(φ=0°) θr

x axis, left (φ=180°) θl

y axis, up (φ=90°) θu

y axis, down (φ=270°) θd

Gray Scale - - - 7

Variation G to G

RED

GREEN

BLUE

WHITE

Symbol

SymbolSymbol

WH

δ

WHITE

5P - - 1.3 3

σ

Rx

Ry

Gx

Gy

Bx

By

Wx 0.281

Wy 0.288

Min

Min Typ

MinMin

280 350 - cd/m

Typ

-0.03

89 - -

89 - -

89 - -

89 - -

ValueValue

Typ Max

TypTyp

0.637(TBD)

0.344(TBD)

0.321(TBD)

0.604(TBD)

0.155(TBD)

0.055(TBD)

=12.0V, fV=60Hz, Dclk=74.25MHz,

LCD

EXTVBR-B =100%

Unit

Unit Note

Max

MaxMax

6 9 ms 4

Typ

+0.03

UnitUnit

2

degree 6

Note

NoteNote

2

5Gray to Gray (BW) G to G BW 8 12

Ver. 0.0

17 /37

Product Specification

Note : 1. Contrast Ratio(CR) is defined mathematically as :

CR(Contrast Ratio) = Maximum CRn (n=1, 2, 3, 4, 5)

CRn =

2. Surface luminance are determined after the unit has been ‘ON’ and 1 Hour after lighting the

backlight in a dark environment at 25±2°C. Surface luminance is the luminance value at center
1-point across the LCD surface 50cm from the surface with all pixels displaying white.
For more information see the FIG. 2.

3. The variation in surface luminance , δ WHITE is defined as :
δ WHITE(5P) = Maximum(L

Where L

For more information, see the FIG. 2.

4. Response time is the time required for the display to transit from any gray to white (Rise Time, TrR)

and from any gray to black (Decay time, TrD). For additional information see the FIG. 3.
※ G to GBWSpec stands for average value of all measured points.

5. G to G σis Variation of Gray to Gray response time composing a picture

Surface Luminance at position n with all white pixels

Surface Luminance at position n with all black pixels

n = the Position number(1, 2, 3, 4, 5). For more information, see FIG 2.

, L

, L

on4

, L

on5

on1

to L

are the luminance with all pixels displaying white at 5 locations .

on5

on1,Lon2

on3

Photo Detector : RD-80S / Field : 2 °

) / Minimum(L

on1,Lon2

, L

on3

, L

on4

, L

on5

)

LC320EUN

G to G (σ) =

√

Σ(Xi- u)

N

6. Viewing angle is the angle at which the contrast ratio is greater than 10. The angles are

determined for the horizontal or x axis and the vertical or y axis with respect to the z axis which
is normal to the LCD module surface. For more information, see the FIG. 4.

7. Gray scale specification

Gamma Value is approximately 2.2. For more information, see the Table 11.

Table 11. GRAY SCALE SPECIFICATION

Gray Level

Gray Level

Gray LevelGray Level

L0
L15
L31
L47
L63
L79
L95

L111
L127
L143
L159
L175
L191
L207
L223

L239

L255

2

Xi = Individual Data
u = Data average
N : The number of Data

Luminance [%] (Typ)

Luminance [%] (Typ)

Luminance [%] (Typ)Luminance [%] (Typ)

0.07

0.28

1.05

2.50

4.69

7.67

11.47

16.11

21.64

28.07

35.43

43.73

52.99

63.23

74.47

86.72

100

Ver. 0.0

18 /37

Product Specification

Measuring point for surface luminance & measuring point for luminance variation.

H

A

③③③③②②②②

LC320EUN

V

①①①①

B

A : H / 4 mm

④④④④

FIG. 2 5 Points for Luminance Measure

Response time is defined as the following figure and shall be measured by switching the input signal for
“Gray(N)” and “Gray(M)”.

TrR

100

90

⑤⑤⑤⑤

TrD

B : V / 4 mm
@ H,V : Active Area

Ver. 0.0

Optical
Response

10

0

Gray(N)

N,M = Black~White, N<M

FIG. 3 Response Time

Gray(M)

Gray(N)

19 /37

Dimension of viewing angle range

LC320EUN

Product Specification

φ

= 180°, Left

φ

= 270°, Down

Normal

θ

φ

FIG. 4 Viewing Angle

E

Y

φ

= 90°, Up

φ

= 0°, Right

Ver. 0.0

20 /37

Product Specification

5. Mechanical Characteristics

5. Mechanical Characteristics

5. Mechanical Characteristics5. Mechanical Characteristics

Table 12 provides general mechanical characteristics.

Table 12. MECHANICAL CHARACTERISTICS

LC320EUN

ValueItem

727.4 mm

429.0 mm

9.9 mm

705.6 mm

400.1 mm

698.4 mm

392.9 mm

Outline Dimension

Bezel Area

Active Display Area

Weight

Horizontal

Vertical

Depth

Horizontal

Vertical

Horizontal

Vertical

5.4 Kg (TBD)

Note : Please refer to a mechanical drawing in terms of tolerance at the next page.

Ver. 0.0

21 /37

[ FRONT VIEW ]

p

Product Specification

Set : Top

m

i

l

e

r

i

n

a

r

LC320EUN

y

Ver. 0.0

Set : Down

22 /37

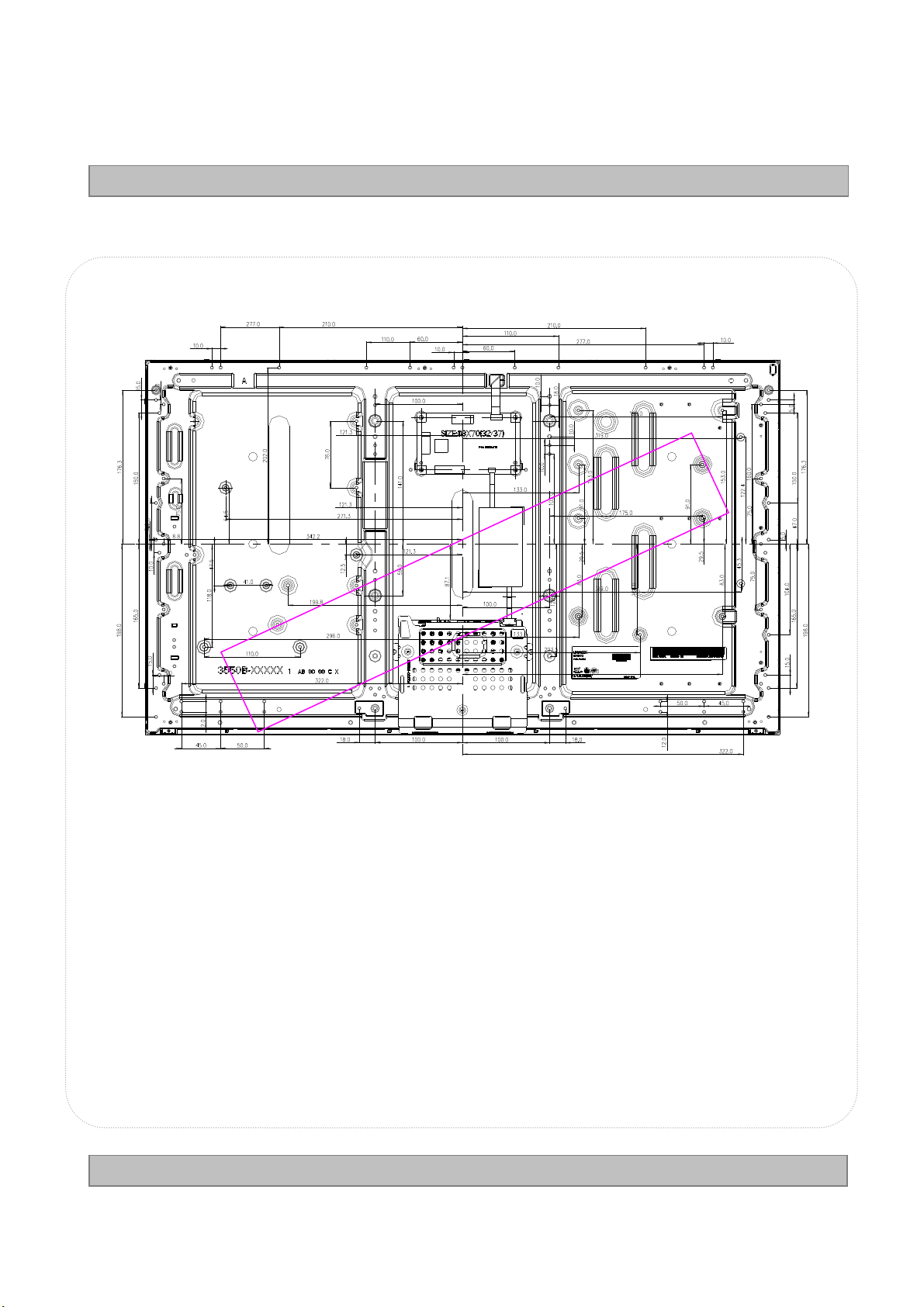

[ REAR VIEW ]

p

Product Specification

m

i

l

e

r

i

n

a

r

LC320EUN

y

Ver. 0.0

23 /37

Product Specification

6. Reliability

6. Reliability

6. Reliability6. Reliability

Table 13. ENVIRONMENT TEST CONDITION

No.

No. Test Item

No.No.

1 High temperature storage test Ta= 60°C 240h

2 Low temperature storage test Ta= -20°C 240h

3 High temperature operation test Ta= 50°C 50%RH 240h

4 Low temperature operation test Ta= 0°C 240h

Vibration test

5

(non-operating)

Shock test

6

(non-operating)

Test Item Condition

Test ItemTest Item

Wave form : random
Vibration level : 1.0Grms
Bandwidth : 10-300Hz
Duration : X,Y,Z,

Each direction per 10 min

Shock level : 50Grms
Waveform : half sine wave, 11ms
Direction : ±X, ±Y, ±Z

One time each direction

Condition

ConditionCondition

LC320EUN

7 Humidity condition Operation Ta= 40 °C ,90%RH

Altitude operating

8

storage / shipment

0 - 15,000 ft
0 - 40,000 ft

Note : Before and after Reliability test, LCM should be operated with normal function.

Ver. 0.0

24 /37

Product Specification

7. International Standards

7-1. Safety

a) UL 60065, Seventh Edition, Underwriters Laboratories Inc.

Audio, Video and Similar Electronic Apparatus - Safety Requirements.

b) CAN/CSA C22.2 No.60065:03, Canadian Standards Association.

Audio, Video and Similar Electronic Apparatus - Safety Requirements.

c) EN 60065:2002 + A11:2008, European Committee for Electrotechnical Standardization (CENELEC).

Audio, Video and Similar Electronic Apparatus - Safety Requirements.

d) IEC 60065:2005 + A1:2005, The International Electrotechnical Commission (IEC).

Audio, Video and Similar Electronic Apparatus - Safety Requirements.

(Including report of IEC60825-1:2001 clause 8 and clause 9)

Notes

1. Laser (LED Backlight) Information

Class 1M LED Product

IEC60825-1 : 2001

Embedded LED Power (Class 1)

LC320EUN

2. Caution
: LED inside.

Class 1 laser (LEDs) radiation when open.
Do not open while operating.

7-2. EMC

a) ANSI C63.4 “American National Standard for Methods of Measurement of Radio-Noise

Emissions from Low-Voltage Electrical and Electronic Equipment in the Range of 9 kHz to 40 GHz.”
American National Standards Institute (ANSI), 2003.

b) CISPR 22 “Information technology equipment – Radio disturbance characteristics – Limit and

methods of measurement." International Special Committee on Radio Interference
(CISPR), 2005.

c) CISPR 13 “Sound and television broadcast receivers and associated equipment – Radio disturbance

characteristics – Limits and method of measurement." International Special Committee on Radio
Interference (CISPR), 2006.

7-3. Environment

a) RoHS, Directive 2002/95/EC of the European Parliament and of the council of 27 January 2003

Ver. 0.0

25 /37

Product Specification

8. Packing

8-1. Designation of Lot Mark

a) Lot Mark

A B C D E F G H I J K L M

A,B,C : SIZE(INCH) D : YEAR
E : MONTH F ~ M : SERIAL NO.

Note

1. YEAR

LC320EUN

Year

Mark

CBA

2014E2015

D

201320122011

2016G2017H2018J2019

F

2. MONTH

Month

Mark

Apr5May

4

Jun7Jul8Aug9Sep

6

b) Location of Lot Mark

Serial No. is printed on the label. The label is attached to the backside of the LCD module.
This is subject to change without prior notice.

8-2. Packing Form

8-2-1. PJ/GZ/NJ

a) Package quantity in one Pallet : 6 pcs

b) Pallet Size : 1140 mm X 870 mm X 1161 mm.

2020

K

Oct

A

Nov

B

DecMarFebJan

C321

8-2-2. WR

a) Package quantity in one Pallet : TBD pcs

b) Pallet Size : TBD mm X TBD mm X TBD mm.

Ver. 0.0

26 /37

LC320EUN

Product Specification

9. Precautions

Please pay attention to the followings when you use this TFT LCD module.

9-1. Mounting Precautions

(1) You must mount a module using specified mounting holes (Details refer to the drawings).
(2) You should consider the mounting structure so that uneven force (ex. Twisted stress) is not applied to the

module. And the case on which a module is mounted should have sufficient strength so that external
force is not transmitted directly to the module.

(3) Please attach the surface transparent protective plate to the surface in order to protect the polarizer.

Transparent protective plate should have sufficient strength in order to the resist external force.
(4) You should adopt radiation structure to satisfy the temperature specification.
(5) Acetic acid type and chlorine type materials for the cover case are not desirable because the former

generates corrosive gas of attacking the polarizer at high temperature and the latter causes circuit break
by electro-chemical reaction.

(6) Do not touch, push or rub the exposed polarizers with glass, tweezers or anything harder than HB

pencil lead. And please do not rub with dust clothes with chemical treatment.

Do not touch the surface of polarizer for bare hand or greasy cloth.(Some cosmetics are detrimental

to the polarizer.)
(7) When the surface becomes dusty, please wipe gently with absorbent cotton or other soft materials like

chamois soaks with petroleum benzine. Normal-hexane is recommended for cleaning the adhesives
used to attach front / rear polarizers. Do not use acetone, toluene and alcohol because they cause
chemical damage to the polarizer

(8) Wipe off saliva or water drops as soon as possible. Their long time contact with polarizer causes

deformations and color fading.

(9) Do not open the case because inside circuits do not have sufficient strength.

9-2. Operating Precautions

(1) The spike noise causes the mis-operation of circuits. It should be lower than following voltage :

V=±200mV(Over and under shoot voltage)

(2) Response time depends on the temperature.(In lower temperature, it becomes longer.)
(3) Brightness depends on the temperature. (In lower temperature, it becomes lower.)

And in lower temperature, response time(required time that brightness is stable after turned on)
becomes longer

(4) Be careful for condensation at sudden temperature change.Condensation makes damage to polarizer or

electrical contacted parts. And after fading condensation, smear or spot will occur.
(5) When fixed patterns are displayed for a long time, remnant image is likely to occur.
(6) Module has high frequency circuits. Sufficient suppression to the electromagnetic interference shall be

done by system manufacturers. Grounding and shielding methods may be important to minimized the
interference.

(7) Please do not give any mechanical and/or acoustical impact to LCM. Otherwise, LCM can’t be operated

its full characteristics perfectly.

(8) A screw which is fastened up the steels should be a machine screw.

(if not, it can causes conductive particles and deal LCM a fatal blow)
(9) Please do not set LCD on its edge.
(10) The conductive material and signal cables are kept away from LED driver inductor to prevent abnormal

display, sound noise and temperature rising.

Ver. 0.0

27 /37

LC320EUN

Product Specification

9-3. Electrostatic Discharge Control

Since a module is composed of electronic circuits, it is not strong to electrostatic discharge. Make certain that
treatment persons are connected to ground through wrist band etc. And don’t touch interface pin directly.

9-4. Precautions for Strong Light Exposure

Strong light exposure causes degradation of polarizer and color filter.

9-5. Storage

When storing modules as spares for a long time, the following precautions are necessary.

(1) Store them in a dark place. Do not expose the module to sunlight or fluorescent light. Keep the temperature

between 5°C and 35°C at normal humidity.

(2) The polarizer surface should not come in contact with any other object.

It is recommended that they be stored in the container in which they were shipped.
(3) Storage condition is guaranteed under packing conditions.
(4) The phase transition of Liquid Crystal in the condition of the low or high storage temperature will be

recovered when the LCD module returns to the normal condition.

9-6. Handling Precautions for Protection Film

(1) The protection film is attached to the bezel with a small masking tape

When the protection film is peeled off, static electricity is generated between the film and polarizer.

This should be peeled off slowly and carefully by people who are electrically grounded and with well ion-

blown equipment or in such a condition, etc.

(2) When the module with protection film attached is stored for a long time, sometimes there remains a very

small amount of glue still on the bezel after the protection film is peeled off.

(3) You can remove the glue easily. When the glue remains on the bezel surface or its vestige is recognized,

please wipe them off with absorbent cotton waste or other soft material like chamois soaked with normal-

hexane.

.

Ver. 0.0

28 /37

# APPENDIX-I-1

■■■■ Pallet Ass’y

LC320EUN

Product Specification

Ver. 0.0

10
11
12

MATERIALDESCRIPTIONNO
1
2
3

5
6
7
8
9

MASKING 20MM X 50MTAPE

Plastic (1140X870X120)PALLET

YUPO PAPER 80G 100X100 LABEL

-LCD Module

32INCHBAG

EPSPACKING4
EPSPACKING

PAPERBOX

OPPTAPE

PAPERANGLE COVER

STEELBAND,CLIP

PPBAND

29 /37

# APPENDIX-II-1

■ LC320EUN-SFM1 - LCM Label

LC320EUN

Product Specification

Model

UL, TUV Mark

LGD Logo

LC320EUN
(SF)(M1)

RoHS Verified

MADE IN KOREA

Serial No.

Origin

Ver. 0.0

30 /37

# APPENDIX-II-2

■ Box Label

LC320EUN

Product Specification

LC320EUN

SFM1

■ Pallet Label

6 PCS

MADE IN KOREA

001/01-01

XXXXXXXXXXXXX XXX

LC320EUN

SFM1

36 PCS

MADE IN KOREA

001/01-01

RoHS Verified

RoHS Verified

Ver. 0.0

XXXXXXXXXXXXX XXX

31 /37

# APPENDIX- III-1

LC320EUN

Product Specification

■ Required signal assignment for Flat Link (Thine : THC63LVD103) Transmitter(Pin7

Host System

30 Bit

RED0
RED1
RED2
RED3
RED4
RED5
RED6
RED7
RED8

RED9
GREEN0
GREEN1
GREEN2
GREEN3
GREEN4
GREEN5
GREEN6
GREEN7
GREEN8
GREEN9

BLUE0
BLUE1
BLUE2
BLUE3
BLUE4
BLUE5
BLUE6
BLUE7
BLUE8
BLUE9

Hsync

Vsync

Data Enable

CLOCK

THC63LVD103

or Compatible

33
34
35
36
37
38
59
61
4
5
40
41
42
44
45
46
62
63
6
8
48
49
50
52
53
54
64
1
9
11
55
57
58
12

TA-

TA+

TB-

TB+

TC-

TC+

TCLK-

TCLK+

TD-

TD+

31

30

29

28

25

24

23

22

21

20

GND

FI-RE51S-HF

12

13

14

15

16

17

19

20

22

23

7

100Ω

100Ω

100Ω

100Ω

100Ω

LCM Module

=“L” or “NC”)

Timing

Controller

RO0N

RO0P

RO1N

RO1P

RO2N

RO2P

ROCLKN

ROCLKP

RO3N

RO3P

VESA/ JEIDA

Note: 1. The LCD module uses a 100 Ohm[Ω] resistor between positive and negative lines of each receiver

input.

2. Refer to LVDS Transmitter Data Sheet for detail descriptions. (THC63LVD103 or Compatible)

3. ‘9’ means MSB and ‘0’ means LSB at R,G,B pixel data.

Ver. 0.0

32 /37

# APPENDIX- III-2

LC320EUN

Product Specification

■ Required signal assignment for Flat Link (Thine : THC63LVD103) Transmitter(Pin7=“

Host System

30 Bit

RED0
RED1
RED2
RED3
RED4
RED5
RED6
RED7
RED8

RED9
GREEN0
GREEN1
GREEN2
GREEN3
GREEN4
GREEN5
GREEN6
GREEN7
GREEN8
GREEN9

BLUE0
BLUE1
BLUE2
BLUE3
BLUE4
BLUE5
BLUE6
BLUE7
BLUE8
BLUE9

Hsync

Vsync

Data Enable

CLOCK

THC63LVD103

or Compatible

33
34
35
36
37
38
59
61
4
5
40
41
42
44
45
46
62
63
6
8
48
49
50
52
53
54
64
1
9
11
55
57
58
12

TA-

TA+

TB-

TB+

TC-

TC+

TCLK-

TCLK+

TD-

TD+

31

30

29

28

25

24

23

22

21

20

VCC

FI-RE51S-HF

12

13

14

15

16

17

19

20

22

23

7

100Ω

100Ω

100Ω

100Ω

100Ω

LCM Module

H”)

Timing

Controller

RO0N

RO0P

RO1N

RO1P

RO2N

RO2P

ROCLKN

ROCLKP

RO3N

RO3P

VESA/

JEIDA

Note :1. The LCD module uses a 100 Ohm[Ω] resistor between positive and negative lines of each receiver

input.

2. Refer to LVDS Transmitter Data Sheet for detail descriptions. (THC63LVD103 or Compatible)

3. ‘9’ means MSB and ‘0’ means LSB at R,G,B pixel data.

Ver. 0.0

33 /37

Product Specification

# APPENDIX- IV

■ LVDS Data-Mapping Information (8 Bit )

1) LVDS Select : “H” Data-Mapping (JEIDA format)

RCLKP

RCLKM

LC320EUN

RAP

RBP

RCP

RDP

R17 R16 R15 R14G12 R13R12’ R12R13’ G12”

B12 G17 G16 G15B13 G14G13’ G13G14’ B13”

V

SYNCHSYNC

B17 B16DE B15B14’ B14B15’ DE”

B11 B10 G11 G10X R11R10’ R10R11’ X”

2) LVDS Select : “L” Data-Mapping (VESA format)

RCLKP

RCLKM

RAP

RBP

R15 R14 R13 R12G10 R11R10’ R10R11’ G10”

B10 G15 G14 G13B11 G12G11’ G11G12’ B15”

Ver. 0.0

RCP

RDP

V

SYNCHSYNC

B15 B14DE B13B12’ B12B13’ DE”

B17 B16 G17 G16X R17R16’ R16R17’ X”

34 /37

Product Specification

# APPENDIX- V

■ Option Pin Circuit Block Diagram

1) Circuit Block Diagram of LVDS Format Selection pin

LVDS Select Pin : Pin 7

1KΩΩΩΩ

LVDS Select

(Pin 7)

LC320EUN

LVDS Select

50KΩΩΩΩ

ASIC

(TCON)

System Side LCM Side

2) Circuit Block Diagram of OPC Enable Selection pin

OPC Enable Pin : Pin 10

VCC

OPEN

R1

OPC _Enable

(Pin 10)

System Side

R1 ≤≤≤≤ 1KΩΩΩΩ

1KΩΩΩΩ

LCM Side

50kΩΩΩΩ

OPC _Enable

ASIC

(TCON)

Ver. 0.0

35 /37

Product Specification

# APPENDIX- VI

■■■■ Scanning and OPC Design Guide

◊ When OPC Enable is “L", OPC Output = System Dimming.

OPC Output( PWM Signal) is synchronized with V-Sync Freq. of System in T-Con Board.

(4pin)
#1 : PWM_OUT #1
#2 : PWM_OUT #2
#3 : PWM_OUT #3
#4 : GND

(51pin)

#8 : Ext_PWM
#10 : OPC_EN

#1

#4

#1 51

LC320EUN

LCM T-con Board

T-Con

CNT1 51pin

#4

B/L Signal
Generation

#1

Block

LED

Driver

14pin

◊ PWM Specification ( VDD = 3.3V ) @ OPC

1. PWM High Voltage Range : 2.5V~3.6V

2. PWM Low Voltage Range : 0.0V~0.8V

EXTV

EXTVBR-B

EXTVEXTV

Frequency

50 Hz for PAL
60 Hz for NTSC

CNT4

System
Main IC

(PWM Generator)

<With Driver Model>

VDD

VDD*0.9

OPC On

3.3V

OPC Off

Chassis

Rising Time

Rising Time

Falling Time

Ver. 0.0

MAX 10.0 μs

MAX 10.0 μs

Falling Time

VDD*0.1

0

36 /37
