Global LCD Panel Exchange Center
www.panelook.com
LC320DXN
Product Specification
SPECIFICATION
FOR
APPROVAL
)
(
(
Preliminary Specification
)
Final Specification
Title 32.0” WXGA TFT LCD
BUYER
MODEL
APPROVED BY
SIGNATURE
DATE
/
SUPPLIER LG Display Co., Ltd.
*MODEL LC320DXN
SUFFIX SER3 (RoHS Verified)
*When you obtain standard approval,
please use the above model name without suffix
APPROVED BY
J.T. KIM / Team Leader
REVIEWED BY
SIGNATURE
DATE
/
/
Please return 1 copy for your confirmation with
your signature and comments.
Ver. 1.0
J.Y.JEONG / Project Leader
PREPARED BY
S.W. KWAG / Engineer
TV Product Development Dept.
LG Display Co., Ltd
One step solution for LCD / PDP / OLED panel application: Datasheet, inventory and accessory!
1 / 36
www.panelook.com
Global LCD Panel Exchange Center
www.panelook.com
LC320DXN
Product Specification
CONTENTS
Number ITEM
COVER
CONTENTS
RECORD OF REVISIONS
1 GENERAL DESCRIPTION
2 ABSOLUTE MAXIMUM RATINGS
3 ELECTRICAL SPECIFICATIONS
3-1 ELECTRICAL CHARACTERISTICS
3-2 INTERFACE CONNECTIONS
3-3 SIGNAL TIMING SPECIFICATIONS

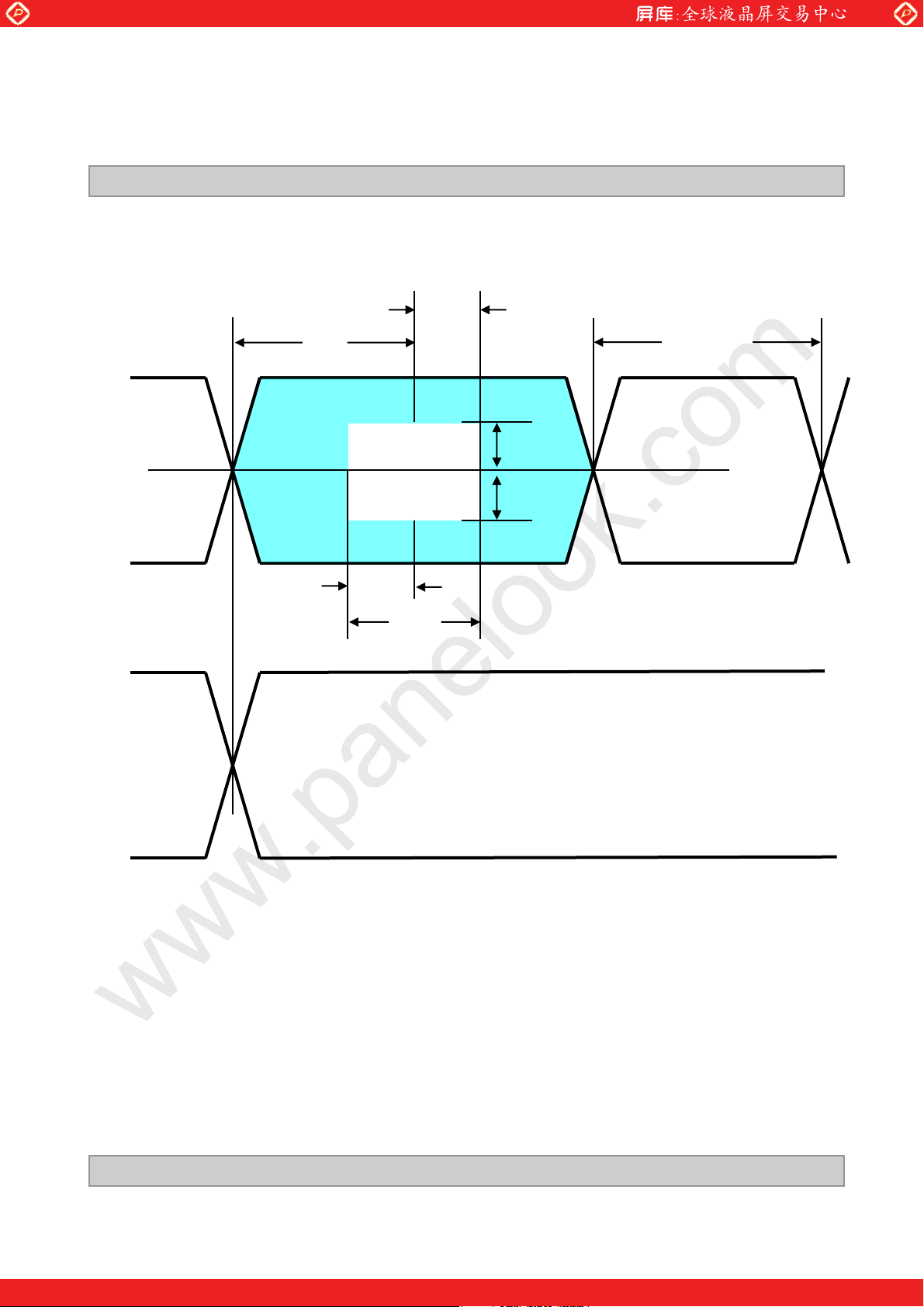

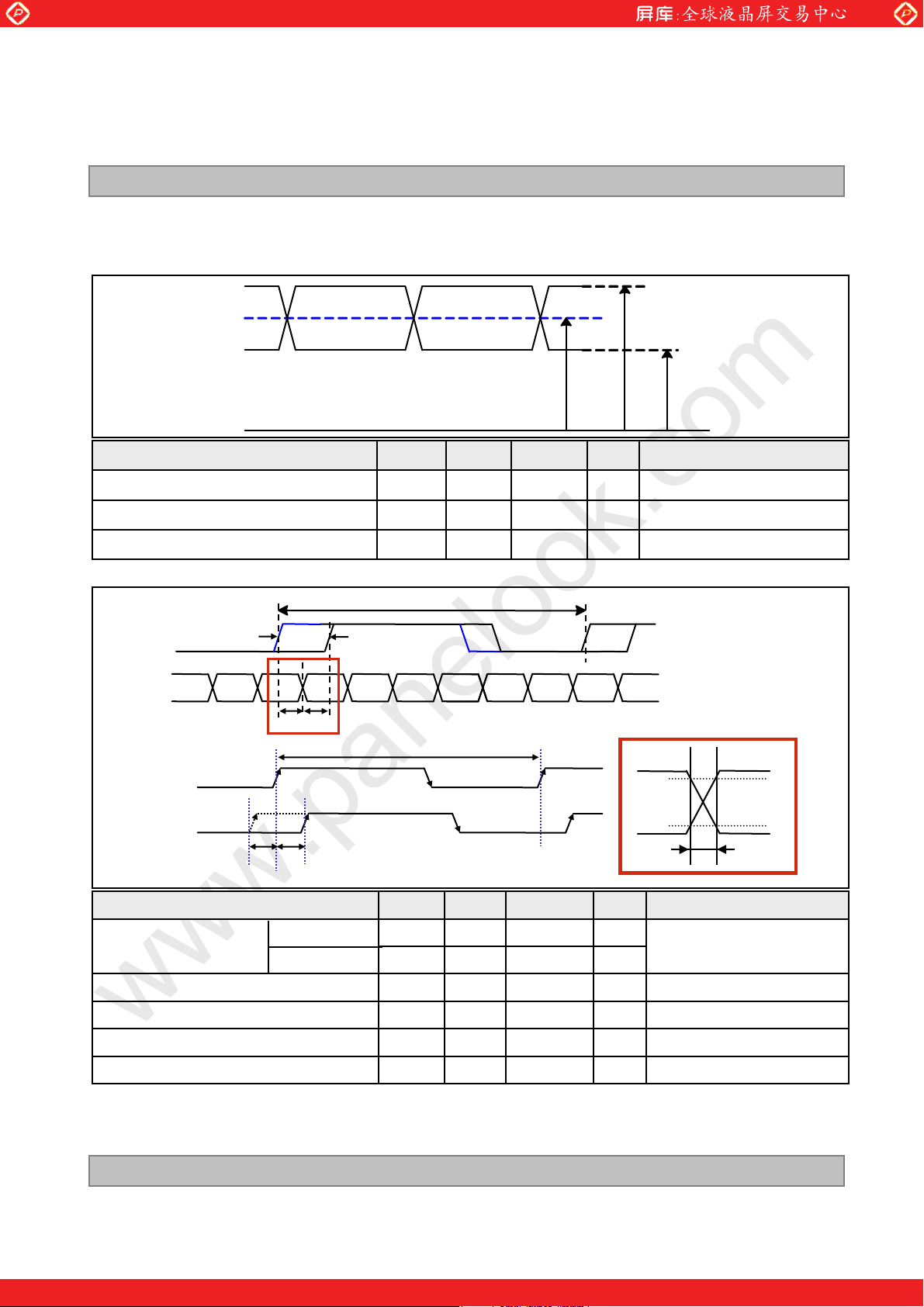

3-4 LVDS SIGNAL SPECIFICATIONS
3-5 COLOR DATA REFERENCE

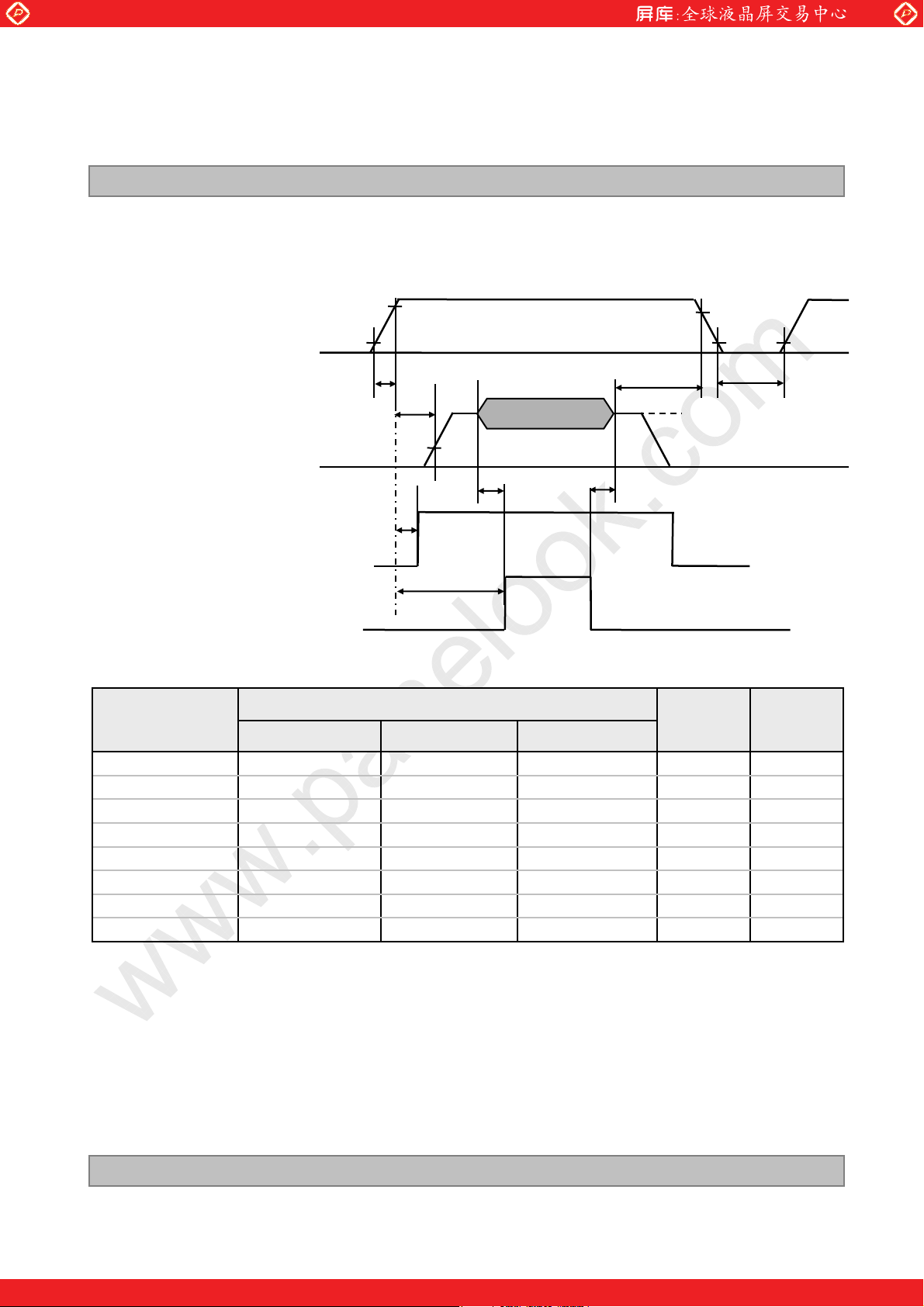

3-6 POWER SEQUENCE
4 OPTICAL SPECIFICATIONS

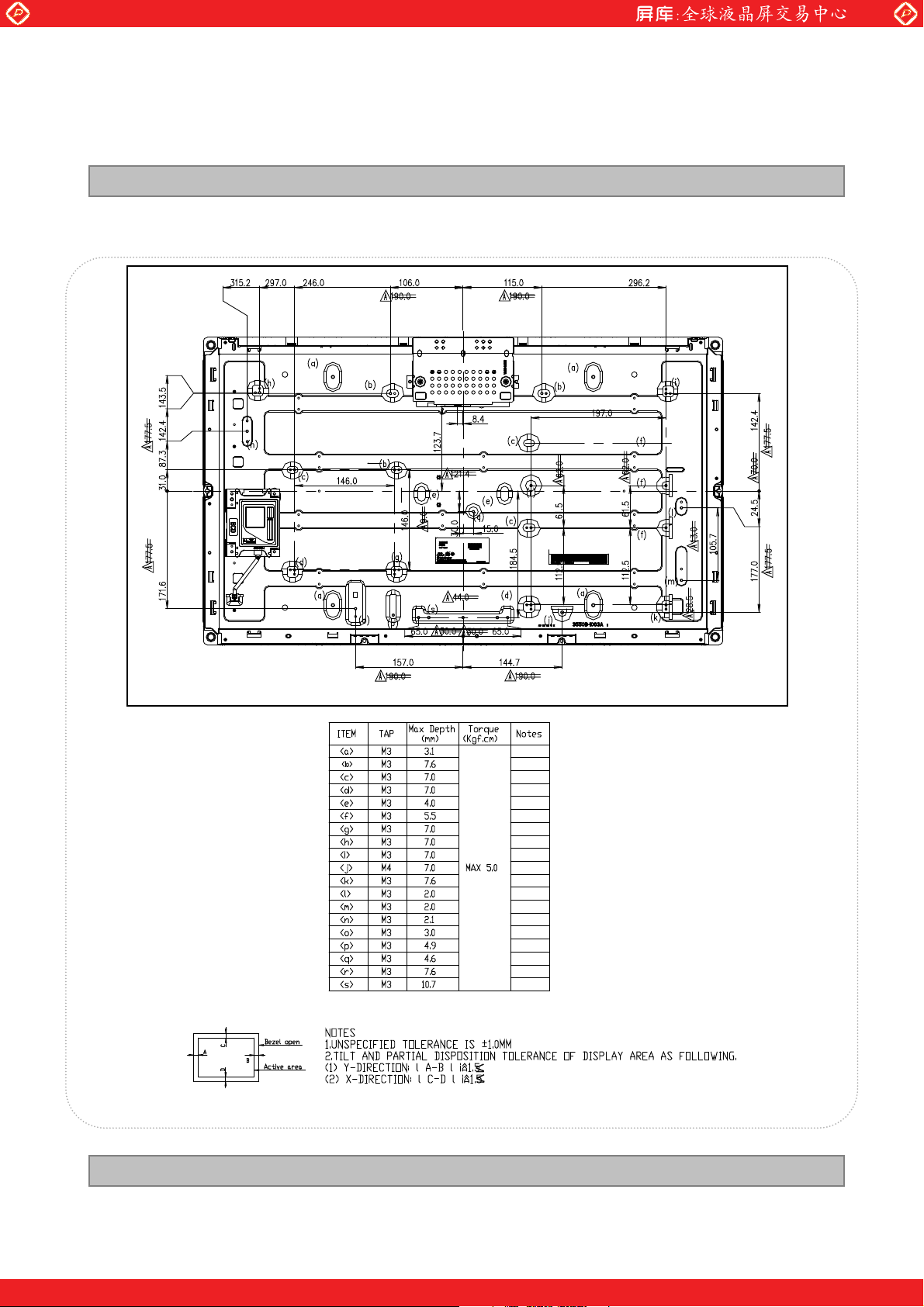

5 MECHANICAL CHARACTERISTICS
6 RELIABILITY
Page
1
2
3
4
5
6
6
8
10
11
14
15
17
21
24
7 INTERNATIONAL STANDARDS
7-1 SAFETY
7-2 EMC
7-3 ENVIRONMENT
8 PACKING

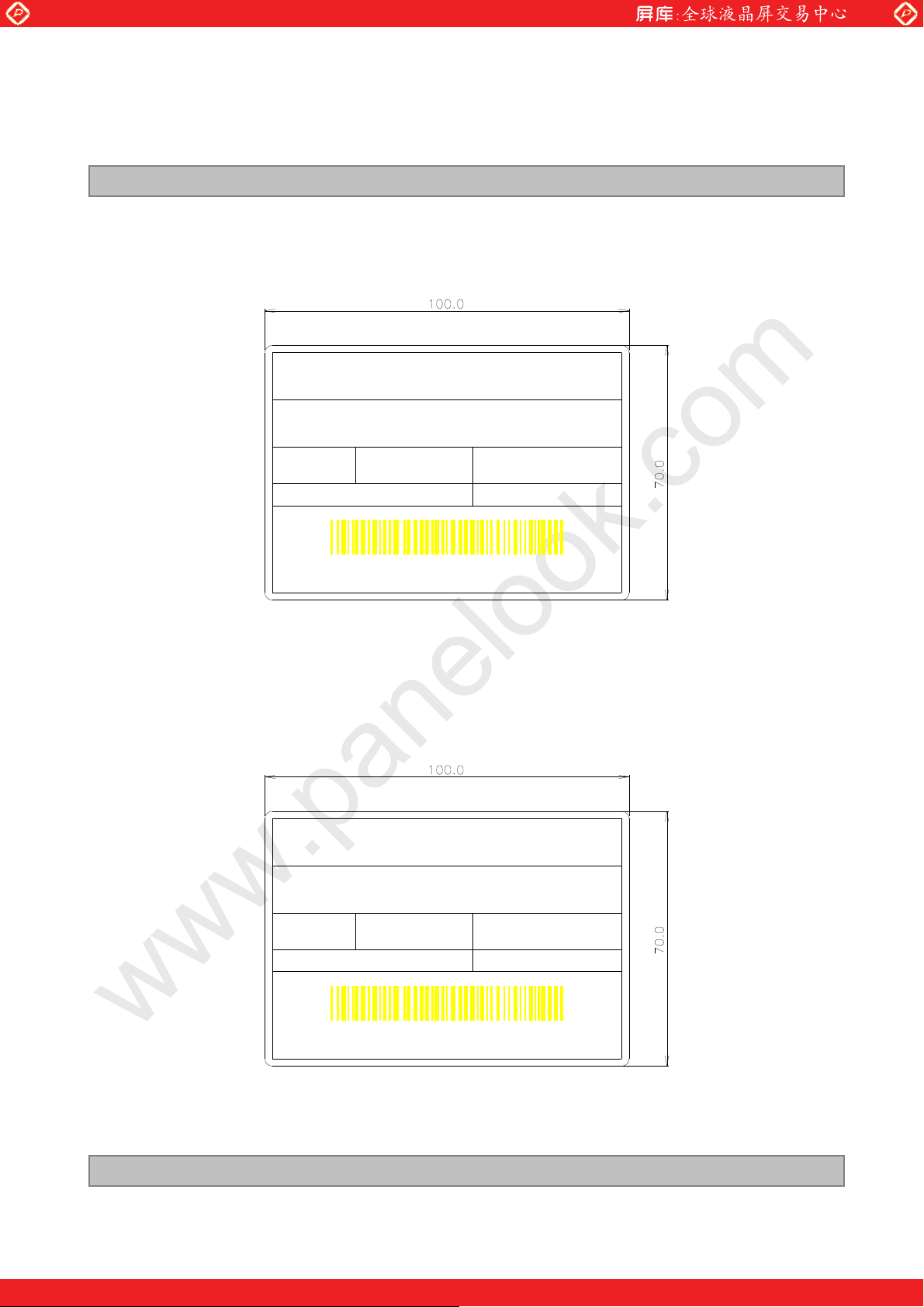

8-1 DESIGNATION OF LOT MARK
8-2 PACKING FORM
9 PRECAUTIONS
9-1 MOUNTING PRECAUTIONS
9-2 OPERATING PRECAUTIONS
9-3 ELECTROSTATIC DISCHARGE CONTROL
9-4 PRECAUTIONS FOR STRONG LIGHT EXPOSURE
9-5 STORAGE
9-6 HANDLING PRECAUTIONS FOR PROTECTION FILM
Ver. 1.0
25
25
25
25
26
26
26
27
27
27
28
28
28
28
2 / 36
One step solution for LCD / PDP / OLED panel application: Datasheet, inventory and accessory!
www.panelook.com
Global LCD Panel Exchange Center
Revision No. Revision Date Page Description
1.0 May. 14. 2012 - Final specification
www.panelook.com
LC320DXN
Product Specification
RECORD OF REVISIONS
Ver. 1.0
One step solution for LCD / PDP / OLED panel application: Datasheet, inventory and accessory!
3 / 36
www.panelook.com
Global LCD Panel Exchange Center
1. General Description
The LC320DXN is a Color Active Matrix Liquid Crystal Display with an integral Light Emitting Diode (LED)
backlight system. The matrix employs a-Si Thin Film Transistor as the active element.
It is a transmissive display type which is operating in the normally black mode. It has a 31.51 inch diagonally
measured active display area with WXGA resolution (768 vertical by 1366 horizontal pixel array).
Each pixel is divided into Red, Green and Blue sub-pixels or dots which are arranged in Horizontal stripes.
Gray scale or the luminance of the sub-pixel color is determined with a 8-bit gray scale signal for each dot,
thus presenting a palette of more than 16.7M(6bit + A-FRC) colors.
It has been designed to apply the 8-bit 1-port LVDS interface.
It is intended to support LCD TV, PCTV where high brightness, super wide viewing angle, high color gamut,
high color depth and fast response time are important.
www.panelook.com
LC320DXN
Product Specification
Mini LVDS(RGB)
Control
Signals
Source Driver Circuit
S1 S1366
G1
TFT - LCD Panel
(1366 Ý 768 x RGB pixels)
LVDS Select
LVDS 1Port
+12.0V
#9
CN1
(30pin)
EEPROM
SCL
SDA
Timing Controller
[LVDS Rx]
[Gate In Panel]
G768
Back light Assembly
+24.0V, GND, On/off
Ext VBR-B
Power Circuit
Block
LED Driver
Power Signals
General Features
Active Screen Size 31.51 inches(800.4mm) diagonal
Outline Dimension 760.0 X 450.0 X 32.5(B) (Typ.)
Pixel Pitch
Pixel Format 1366 horiz. by 768 vert. pixels RGB stripe arrangement
Color Depth 8bit(D), 16,7 M colors
Luminance, White 300 cd/m
Viewing Angle (CR>10) Viewing angle free ( R/L 178(Min.), U/D 178(Min.))
Power Consumption Total 42.98 Watt (Logic=4.08 W , LED Driver =38.9W @ [ExtVbr_B=100%] )
Weight 4.6kg(Typ)
Display Operating Mode Transmissive mode, normally black
Surface Treatment Hard coating(3H), Anti-reflection treatment of the front polarizer (Haze 1%)
510.75༁ x 510.75༁ x R,G,B
2
(Center 1 point) (Typ.)
Ver. 1.0
One step solution for LCD / PDP / OLED panel application: Datasheet, inventory and accessory!
4 / 36
www.panelook.com
Global LCD Panel Exchange Center
2. Absolute Maximum Ratings
The following items are maximum values which, if exceeded, may cause faulty operation or permanent damage
to the LCD module.
Table 1. ABSOLUTE MAXIMUM RATINGS
www.panelook.com
LC320DXN
Product Specification
Parameter Symbol
Power Input Voltage
Driver Control Voltage
T-Con Option Selection Voltage VLOGIC -0.3 +4.0 VDC
Operating Temperature TOP 0+50
Storage Temperature T
Panel Front Temperature TSUR -+68
Operating Ambient Humidity H
Storage Humidity H
Note
1. Ambient temperature condition (Ta = 25 r 2 ¶C )
LCD Circuit V
Driver V
ON/OFF V
Brightness EXT VBR-B 0.0 +5.5 VDC
LCD -0.3 +14.0 VDC
BL -0.3 + 27.0 VDC
OFF / VON -0.3 +5.5 VDC
ST -20 +60
OP 10 90 %RH
ST 10 90 %RH
Value
Unit Note
Min Max
¶C
¶C
¶C
2. Temperature and relative humidity range are shown in the figure below.
Wet bulb temperature should be Max 39¶C, and no condensation of water.
3. Gravity mura can be guaranteed below 40¶C condition.
4. The maximum operating temperatures is based on the test condition that the surface temperature
of display area is less than or equal to 68¶C with LCD module alone in a temperature controlled chamber.
Thermal management should be considered in final product design to prevent the surface temperature of
display area from being over 68. The range of operating temperature may be degraded in case of
improper thermal management in final product design.
1
2,3
4
2,3
90%
60
60%
Ver. 1.0
Wet Bulb
Temperature [
10
0
10 20 30 40 50 60 70 800-20
Dry Bulb Temperature [
¶C]
20
30
40
50
40%
Humidity [(%)RH]
10%
¶C]
Storage
Operation
One step solution for LCD / PDP / OLED panel application: Datasheet, inventory and accessory!
5 / 36
www.panelook.com
Global LCD Panel Exchange Center
3. Electrical Specifications
3-1. Electrical Characteristics
It requires two power inputs. One is employed to power for the LCD circuit. The other Is used for the LED
backlight and LED Driver circuit.
Table 2. ELECTRICAL CHARACTERISTICS
www.panelook.com
LC320DXN
Product Specification
Parameter Symbol
Value
Min Typ Max
Circuit :
Power Input Voltage V
LCD
10.8 12.0 13.2 V
- 340 445 mA 1
Power Input Current I
Power Consumption P
Rush current I
Note
1. The specified current and power consumption are under the V
condition, and mosaic pattern(8 x 6) is displayed and f
LCD
LCD
RUSH
- 430 560 mA 2
- 4.08 5.30 Watt 1
- - 3.0 A 3
=12.0V, Ta=25 r 2¶C, fV=60Hz
LCD
is the frame frequency.
V
2. The current is specified at the maximum current pattern.
3. The duration of rush current is about 2ms and rising time of power input is 0.5ms (min.).
4. Ripple voltage level is recommended under ·5% of typical voltage
White : 255 Gray
Black : 0 Gray
Unit Note
DC
Mosaic Pattern(8 x 6)
Ver. 1.0
One step solution for LCD / PDP / OLED panel application: Datasheet, inventory and accessory!
6 / 36
www.panelook.com
Global LCD Panel Exchange Center
Table 3. ELECTRICAL CHARACTERISTICS (Continue)
www.panelook.com
LC320DXN
Product Specification
Parameter Symbol
LED Driver :
Power Supply Input Voltage VBL 22.8 24.0 25.2 Vdc 1
Power Supply Input Current IBL_A
Power Supply Input Current (In-Rush) Irush - - 4 A
Power Consumption PBL -
On/Off
Brightness Adjust ExtV
ExtVBR-B Frequency
ExtVBR-B Level
LED :
Life Time 30,000 50,000 Hrs 2
On V on 2.5 - 5.0 Vdc
Off V off -0.3 0.0 0.7 Vdc
BR-B
PAL 100 Hz 3
NTSC 120 Hz 3
High Level 2.5 - 5.0
Low Level 0.0 - 0.7
Min Typ Max
Values
-
5 - 100
1 - 100
1.6 1.7 A Ext V
38.9 41.2
Unit Notes
BR-B = 100%
BL = 22.8V
V
Ext VBR-B = 100%
WExt V
%
Vdc
Vdc
BR-B = 100%
On Duty
HIGH : on duty
LOW : off duty
4
6
Notes :
1. Electrical characteristics are determined after the unit has been ‘ON’ and stable for approximately 60
minutes at 25·2¶C. The specified current and power consumption are under the typical supply Input voltage
24Vand V
BR (ExtVBR-B : 100%), it is total power consumption.
2. The life time (MTTF) is determined as the time which luminance of the LED is 50% compared to that of initial
value at the typical LED current (ExtVBR-B :100%) on condition of continuous operating in LCM state at
25·2¶C.
3. LGD recommend that the PWM freq. is synchronized with One time harmonic of V_sync signal of system.
Though PWM frequency is over 120Hz (max 252Hz), function of LED Driver is not affected.
4. The duration of rush current is about 200ms. This duration is applied to LED on time.
5. Even though inrush current is over the specified value, there is no problem if I
6. ExtV
After Driver ON signal is applied, ExtV
After that, ExtV
signal have to input available duty range and sequence.
BR-B
1% and 100% is possible
BR-B
should be sustained from 5% to 100% more than 500ms.
BR-B
2
T spec of fuse is satisfied.
For more information, please see 3-6-2. Sequence for LED Driver.
Ver. 1.0
7 / 36
One step solution for LCD / PDP / OLED panel application: Datasheet, inventory and accessory!
www.panelook.com
Global LCD Panel Exchange Center
3-2. Interface Connections
This LCD module employs two kinds of interface connection, a 30-pin connector is used for the module
electronics and 14-pin connector is used for the integral backlight system.
3-2-1. LCD Module
- LCD Connector(CN1) : KDF71G-30S-1H(Hirose) or FI-X30SSL-HF(JAE)
- Mating Connector : : FI-X30C2L (Manufactured by JAE or compatible
Table 4. MODULE CONNECTOR(CN1) PIN CONFIGURATION
Pin No. Symbol Description Note
1 VLCD Power Supply +12.0V
2 VLCD Power Supply +12.0V
3 VLCD Power Supply +12.0V
4 VLCD Power Supply +12.0V
5 GND Ground
6 GND Ground
7 GND Ground
8 GND Ground
9
10
11 GND Ground
12 RA- LVDS Receiver Signal(-)
13 RA+ LVDS Receiver Signal(+)
14 GND Ground
15 RB- LVDS Receiver Signal(-)
16 RB+ LVDS Receiver Signal(+)
17 GND Ground
18 RC- LVDS Receiver Signal(-)
19 RC+ LVDS Receiver Signal(+)
20 GND Ground
21 RCLK- LVDS Receiver Clock Signal(-)
22 RCLK+ LVDS Receiver Clock Signal(+)
23 GND Ground
24 RD- LVDS Receiver Signal(-)
25 RD+ LVDS Receiver Signal(+)
26 GND Ground
27
28
29
30 GND Ground
LVDS Select ಫHಬ =JEIDA , ಫLಬ or NC = VESA
uj No Connection
uj
uj
uj
www.panelook.com
LC320DXN
Product Specification
Appendix V
No Connection
No Connection
No Connection 4
4
4
4
Notes :
1. All GND (Ground) pins should be connected together to the LCD module’s metal frame.
2. All VLCD (power input) pins should be connected together.
3. All Input levels of LVDS signals are based on the EIA 644 Standard.
4. These pins are used only for LGD (Do not connect)
5. Specific pin No. #30 is used for “No signal detection” of system signal interface.
It should be GND for NSB (No Signal Black) while the system interface signal is not.
If this pin is “H”, LCD Module displays AGP (Auto Generation Pattern).
Ver. 1.0
One step solution for LCD / PDP / OLED panel application: Datasheet, inventory and accessory!
8 / 36
www.panelook.com
Global LCD Panel Exchange Center
3-2-2. Backlight Module
Master
-LED Driver Connector
: 20022WR - H14B2(Yeonho)
-.Mating Connector
: 20022HS - 14B2 or compatible
Table 5. LED DRIVER CONNECTOR PIN CONFIGURATION
Pin No Symbol Description Note
www.panelook.com
LC320DXN
Product Specification
1
2
3
4
5
6
7
8
9
10
11
12
13
14
VBL Power Supply +24.0V
VBL Power Supply +24.0V
VBL Power Supply +24.0V
VBL Power Supply +24.0V
VBL Power Supply +24.0V
GND
GND
GND
GND
GND
Status
ON/OFF
V
NC Don’t care
EXTVBR-B External PWM
Backlight Ground
Backlight Ground
Backlight Ground
Backlight Ground
Backlight Ground
Back Light Status 2
Backlight ON/OFF control
Notes : 1. GND should be connected to the LCD module’s metal frame.
2. Normal : Low (under 0.7V) / Abnormal : open
3. High : on duty / Low : off duty, Pin#14 can be opened. ( if Pin #14 is open , EXTVBR-B is 100% )
4. Each impedance of pin #12 and 14 is over 50 [KΩ].
1
ଝ Rear view of LCM
ଝ Status
PCB
1
14
…
1
14
…
<Master>
Ver. 1.0
One step solution for LCD / PDP / OLED panel application: Datasheet, inventory and accessory!
9 / 36
www.panelook.com
Global LCD Panel Exchange Center
{G]TXUGG{ptpunG{hislGOklGvGtP
3-3. Signal Timing Specifications
Table 6 shows the signal timing required at the input of the LVDS transmitter. All of the interface signal
timings should be satisfied with the following specification for normal operation.
ITEM Symbol Min Typ Max Unit Note
www.panelook.com
LC320DXN
Product Specification
Horizontal
Vertical
Frequency
Display
Period
Blank t
Total t
Display
Period
Blank tVB
Total t
ITEM Symbol Min Typ Max Unit Note
DCLK f
Horizontal f
Vertical f
tHV - 1366 - tclk
HB 90 162 410 tclk
HP 1456 1528 1776 tclk
VV - 768 - tHP
t
20
(126)
VP
CLK 63.0 72.4 80.0 MHz
H 45 47.4 55 KHz 2
V
788
(894)
57
(47)
22
(180)
790
(948)
60
(50)
240
(295)
1008
(1063)
63
(53)
tHP 1
tHP
Hz
NTSC :
57~63Hz
(PAL : 47~53Hz)
2
Note: 1. The input of HSYNC & VSYNC signal does not have an effect on normal operation (DE Only Mode).
If you use spread spectrum of EMI, add some additional clock to minimum value for clock margin.
2. The performance of the electro-optical characteristics may be influenced by variance of the vertical
refresh rate and the horizontal frequency
Timing should be set based on clock frequency.
Ver. 1.0
One step solution for LCD / PDP / OLED panel application: Datasheet, inventory and accessory!
10 / 36
www.panelook.com
Global LCD Panel Exchange Center
3-4. Signal Timing Waveforms
3-4-1. LVDS Input Signal Timing Diagram
www.panelook.com
LC320DXN
Product Specification
DCLK
1366
tCLK
DE(Data Enable)
0.5 Vcc
Invalid data
DE, Data
tHT
Valid data
1
0.7VDD
tHV
0.3VDD
1366
Invalid data
DE(Data Enable)
Ver. 1.0
768
1 768
tVV
tVT
11 / 36
One step solution for LCD / PDP / OLED panel application: Datasheet, inventory and accessory!
www.panelook.com
Global LCD Panel Exchange Center
3-4-2. LVDS Input Signal Characteristics
1) DC Specification
LVDS -
LVDS +
www.panelook.com
LC320DXN
Product Specification
#VCM= {(LVDS +) + ( L VDS - )}/ 2
0V
V
CM
V
IN _ MAXVIN _ MIN
Description Symbol Min Max Unit Note
LVDS Common mode Voltage V
LVDS Input Voltage Range V
CM
IN
1.0 1.5 V -
0.7 1.8 V -
Change in common mode Voltage ΔVCM - 250 mV -
2) AC Specification
T
clk
LVDS Clock
A
LVDS Data
(F
=1/T
)
clk
A
LVDS 1’st Clock
LVDS 2nd/ 3rd/ 4thClock
tSKEW
tSKEW
t
SKEW_mintSKEW_max
clk
T
clk
80%
20%
t
RF
Description Symbol Min Max Unit Note
LVDS Differential Voltage
High Threshold
Low Threshold
LVDS Clock to Data Skew t
LVDS Clock/DATA Rising/Falling time t
Effective time of LVDS t
LVDS Clock to Clock Skew (Even to Odd) t
1. All Input levels of LVDS signals are based on the EIA 644 Standard.
Note
2. If t
isn’t enough, t
RF
should be meet the range.
eff
V
TH
V
TL
SKEW
RF
eff
SKEW_EO
3. LVDS Differential Voltage is defined within t
Ver. 1.0
100 300 mV
-300 -100 mV
- |(0.20*T
260 |(0.3*T
|·360|
- |1/7* T
eff
)/7| ps -
clk
)/7| ps 2
clk
-ps -
|ps -
clk
One step solution for LCD / PDP / OLED panel application: Datasheet, inventory and accessory!
3
12 / 36
www.panelook.com
Global LCD Panel Exchange Center
www.panelook.com
LC320DXN
Product Specification
360ps
V+
data
Vcm
Vdata
V+
clk
Vcm
0.5tui
tui
VTH
VTL
360ps
teff
tui : Unit Interval
Vclk
Ver. 1.0
One step solution for LCD / PDP / OLED panel application: Datasheet, inventory and accessory!
13 / 36
www.panelook.com
Global LCD Panel Exchange Center
3-5. Color Data Reference
The brightness of each primary color (Red, Green, Blue) is based on the 8-bit gray scale data input for the color.
The higher binary input, the brighter the color. Table 7 provides a reference for color versus data input.
Table 7. COLOR DATA REFERENCE
www.panelook.com
LC320DXN
Product Specification
Input Color Data
Basic
Color
RED
Color
Black 000000000000000000000000
Red (255) 1 1 1 1 1 1 1 1 0 0 00000000000000
Green (255) 0 0 0 0 0 0 0 0 1 1 11111100000000
Blue (255) 0 0 0 0 0 0 0 0 0 0 00000011111111
Cyan 000000001111111111111111
Magenta 1 1 1 1 1 1 1 1 0 0 00000011111111
Yellow 111111111111111100000000
White 111111111111111111111111
RED (000) Dark 0 0 0 0 0 0 0 0 0 0 00000000000000
RED (001) 0 0 0 0 0 0 0 1 0 0 00000000000000
... ... ... ...
RED (254) 1 1 1 1 1 1 1 0 0 0 00000000000000
RED (255) 1 1 1 1 1 1 1 1 0 0 00000000000000
GREEN (000) Dark 0 0 0 0 0 0 0 0 0 0 00000000000000
MSB LSB
R7 R6 R5 R4 R3 R2 R1 R0 G7 G6 G5 G4 G3 G2 G1 G0 B7 B6 B5 B4 B3 B2 B1 B0
RED
MSB LSB
GREEN
BLUE
MSB LSB
GREEN (001) 0 0 0 0 0 0 0 0 0 0 00000100000000
GREEN
GREEN (254) 0 0 0 0 0 0 0 0 1 1 11111000000000
GREEN (255) 0 0 0 0 0 0 0 0 1 1 11111100000000
BLUE (000) Dark 0 0 0 0 0 0 0 0 0 0 00000000000000
BLUE (001) 0 0 0 0 0 0 0 0 0 0 00000000000001
BLUE
BLUE (254) 0 0 0 0 0 0 0 0 0 0 00000011111110
BLUE (255) 0 0 0 0 0 0 0 0 0 0 00000011111111
... ... ... ...
... ... ... ...
Ver. 1.0
One step solution for LCD / PDP / OLED panel application: Datasheet, inventory and accessory!
14 / 36
www.panelook.com
Global LCD Panel Exchange Center
3-6. Power Sequence
3-6-1. LCD Driving circuit
www.panelook.com
LC320DXN
Product Specification
Power Supply For LCD
V
LCD
Interface Signal (Tx_clock)
User Control Signal
(LVDS_select)
Power for LED
Table 8. POWER SEQUENCE
Parameter
90%
10%
0V
1
T
T2
30%
0V
100%
T6
T7
Value
Min Typ Max
Valid Data
T3 T4
LED ON
90%
10%
T
8
T5
Vcm : LVDS Common mode Voltage
Unit Notes
10%
Note :
Ver. 1.0
1 0.5 - 20 ms 1
T
2 0--ms2
T
T
3 200 - - ms 3
4 200 - - ms 3
T
T
5 1.0 - - s 4
T
6 --T2ms5
7 0.5 - - s 6
T
T
8 100 - - ms 7
1. Even though T1 is over the specified value, there is no problem if I2T spec of fuse is satisfied.
2. If T2 is satisfied with specification after removing LVDS Cable, there is no problem.
3. The T3 / T4 is recommended value, the case when failed to meet a minimum specification,
abnormal display would be shown. There is no reliability problem.
4. T5 should be measured after the Module has been fully discharged between power off and on period.
5. If the on time of signals (Interface signal and user control signals) precedes the on time of Power (V
it will be happened abnormal display. When T6 is NC status, T6 doesn’t need to be measured.
6. If there is no abnormal display, no problem.
7. It is recommendation specification that T8 has to be 100ms as a minimum value.
Please avoid floating state of interface signal at invalid period.
When the power supply for LCD (VLCD) is off, be sure to pull down the valid and invalid data to 0V.
LCD
),
15 / 36
One step solution for LCD / PDP / OLED panel application: Datasheet, inventory and accessory!
www.panelook.com
Global LCD Panel Exchange Center
3-6-2. Sequence for LED Driver
Power Supply For LED Driver
VBL
0V
10%
www.panelook.com
Product Specification
24V (typ.)
90%
LC320DXN
90%
T1 T2
VON/OFF
ExtVBR-B
3-6-3. Dip condition for LED Driver
(Typ.) x 0.8
V
BL
Table 9. Power Sequence for LED Driver
T4 T6
LED ON
T5
T3
V
BL
0 V
: 24V
Parameter
T1 20 - - ms 1
T2 500 - - ms
T3 10 - - ms
T4 0 - - ms
T5 --10ms V
T6 500 - - ms 2
Min Typ Max
Values
Units Remarks
(Typ) x 0.8
BL
Notes : 1. T1 describes rising time of 0V to 24V and this parameter does not applied at restarting time.
Even though T1 is over the specified value, there is no problem if I
2. In T6 section,
Ver. 1.0
ExtVBR-B should be sustained from 5% to 100% .
2
T spec of fuse is satisfied.
One step solution for LCD / PDP / OLED panel application: Datasheet, inventory and accessory!
16 / 36
www.panelook.com
Global LCD Panel Exchange Center
4. Optical Specification
Optical characteristics are determined after the unit has been ‘ON’ and stable in a dark environment at 25·2¶C.
The values are specified at distance 50cm from the LCD surface at a viewing angle of ) and T equal to 0 ¶.
FIG. 1 shows additional information concerning the measurement equipment and method.
www.panelook.com
LC320DXN
Product Specification
Optical Stage(x,y)
LCD Module
Pritchard 880 or
equivalent
50cm
FIG. 1 Optical Characteristic Measurement Equipment and Method
Table 10. OPTICAL CHARACTERISTICS
Ta= 25·2¶C, V
=12.0V, fV=60Hz, Dclk=72.4MHz,
LCD
EXTV
BR_B=100%
Value
Parameter Symbol
Unit Note
Min Typ Max
Contrast Ratio CR 850 1200 - 1
Surface Luminance, white L
Luminance Variation G
Response Time
Variation G to G
G to G(BW) G to G
RED
2D 240 300 cd/m
WH
5P - - 1.3 3
WHITE
σ
BW 913ms4
Rx
Ry 0.333
69ms5
0.649
2
2
Color Coordinates
[CIE1931]
Color Temperature 10,000 K
Color Gamut 68 %
Viewing
Angle
(CR>10)
Gray Scale 2.2 7
Ver. 1.0
2D
(CR>10)
GREEN
BLUE
WHITE
x axis, right(I=0¶)
x axis, left (I=180¶)
y axis, up (I=90¶)
y axis, down (I=270¶)
Gx 0.303
Gy 0.605
Bx 0.150
By 0.066
Wx 0.279
Wy 0.292
Tr89 - -
Tl89 - -
Tu89 - -
Td89 - -
Typ
-0.03
Typ
+0.03
degree 6
17 / 36
One step solution for LCD / PDP / OLED panel application: Datasheet, inventory and accessory!
www.panelook.com
Global LCD Panel Exchange Center
Note : 1. Contrast Ratio(CR) is defined mathematically as :
www.panelook.com
LC320DXN
Product Specification
Contrast Ratio =
Surface Luminance with all white pixels
Surface Luminance with all black pixels
It is measured at center 1-point.
2. Surface luminance are determined after the unit has been ‘ON’ and 1 Hour after lighting the
backlight in a dark environment at 25·2¶C. Surface luminance is the luminance value at center
1-point across the LCD surface 50cm from the surface with all pixels displaying white.
For more information see the FIG. 2.
3. The variation in surface luminance , G WHITE is defined as :
G WHITE(5P) = Maximum(L
Where L
on1
to L
are the luminance with all pixels displaying white at 5 locations .
on5
on1,Lon2
, L
on3
, L
on4
, L
) / Minimum(L
on5
on1,Lon2
, L
on3
, L
on4
, L
on5
)
For more information, see the FIG. 2.
4. Response time is the time required for the display to transit from any gray to white (Rise Time, Tr
and from any gray to black (Decay time, Tr
G to G
Spec stands for average value of all measured points.
BW
). For additional information see the FIG. 3.
D
Photo Detector : RD-80S / Field : 2 ¶
5. G to G
is Variation of Gray to Gray response time composing a picture
σ
G to G (σ) =
√
Σ(Xi-u)
N
2
Xi = Individual Data
u = Data average
N : The number of Data
6. Viewing angle is the angle at which the contrast ratio is greater than 10. The angles are
determined for the horizontal or x axis and the vertical or y axis with respect to the z axis which
is normal to the LCD module surface. For more information, see the FIG. 4.
7. Gray scale specification
Gamma Value is approximately 2.2. For more information, see the Table 11.
)
R
Table 11. GRAY SCALE SPECIFICATION
Gray Level Luminance [%] (Typ.)
L0
L15
L31
L47
L63
L79
L95
L111
L127
L143
L159
L175
L191
L207
L223
L239
L255
Ver. 1.0
0.08
0.27
1.04
2.49
4.68
7.66
11.5
16.1
21.6
28.1
35.4
43.7
53.0
63.2
74.5
86.7
100
18 / 36
One step solution for LCD / PDP / OLED panel application: Datasheet, inventory and accessory!
www.panelook.com
Global LCD Panel Exchange Center
ྙ
ྛྚ
ྜྷ
ྜ
Measuring point for surface luminance & measuring point for luminance variation.
www.panelook.com
LC320DXN
Product Specification
H
A
V
B
FIG. 2 5 Points for Luminance Measure
Response time is defined as the following figure and shall be measured by switching the input signal for
“Gray(N)” and “Black or White”.
Tr
100
90
Tf
A:H/4mm
B:V/4mm
@ H,V : Active Area
Optical
Response
10
Black
Ver. 1.0
0
Gray(N)
White
N = 0(Black)~255(White)
FIG. 3 Response Time
Gray(N)
One step solution for LCD / PDP / OLED panel application: Datasheet, inventory and accessory!
19 / 36
www.panelook.com
Global LCD Panel Exchange Center
Dimension of viewing angle range
www.panelook.com
LC320DXN
Product Specification
I
= 180q, Left
I
= 270q, Down
Normal
T
I
FIG. 4 Viewing Angle
E
Y
I
= 90q, Up
I
= 0q, Right
Ver. 1.0
One step solution for LCD / PDP / OLED panel application: Datasheet, inventory and accessory!
20 / 36
www.panelook.com
Global LCD Panel Exchange Center
5. Mechanical Characteristics
Table 12 provides general mechanical characteristics.
Table 12. MECHANICAL CHARACTERISTICS
Item Value
www.panelook.com
LC320DXN
Product Specification
Horizontal
Outline Dimension
Bezel Area
Active Display Area
Weight
Note : 1.Please refer to a mechanical drawing in terms of tolerance at the next page.
Vertical
Depth
Horizontal
Vertical
Horizontal
Vertical
4.6Kg (Typ.), 4.8Kg (Max.)
760.0mm
450.0 mm
32.5 mm
703.8mm
398.4mm
697.6845mm
392.256mm
Ver. 1.0
One step solution for LCD / PDP / OLED panel application: Datasheet, inventory and accessory!
21 / 36
www.panelook.com
Global LCD Panel Exchange Center
<FRONT VIEW>
www.panelook.com
LC320DXN
Product Specification
Ver. 1.0
One step solution for LCD / PDP / OLED panel application: Datasheet, inventory and accessory!
22 / 36
www.panelook.com
Global LCD Panel Exchange Center
<REAR VIEW><REAR VIEW>
www.panelook.com
LC320DXN
Product Specification
Ver. 1.0
One step solution for LCD / PDP / OLED panel application: Datasheet, inventory and accessory!
23 / 36
www.panelook.com
Global LCD Panel Exchange Center
6. Reliability
Table 13. ENVIRONMENT TEST CONDITION
No. Test Item Condition
www.panelook.com
LC320DXN
Product Specification
1 High temperature storage test
2 Low temperature storage test
3 High temperature operation test
4 Low temperature operation test
Vibration test
5
(non-operating)
Shock test
6
(non-operating)
7 Humidity condition Operation
Altitude operating
8
storage / shipment
Ta= 60¶C, 240h
Ta= -20¶C, 240h
Ta= 50¶C, 50%RH, 240h
Ta= 0¶C, 240h
Wave form : random
Vibration level : 1.0Grms
Bandwidth : 10-300Hz
Duration : X,Y,Z, 30 min
Each direction per 10 min
Shock level : 50Grms
Waveform : half sine wave, 11ms
Direction : ᇹX, ᇹY, ᇹZ
One time each direction
Ta= 40 ¶C, 90%RH
0 - 15,000 ft
0 - 40,000 ft
Note : Before and after Reliability test, LCM should be operated with normal function.
Ver. 1.0
One step solution for LCD / PDP / OLED panel application: Datasheet, inventory and accessory!
24 / 36
www.panelook.com
Global LCD Panel Exchange Center
7. International Standards
7-1. Safety
a) UL 60065, Underwriters Laboratories Inc.
Audio, Video and Similar Electronic Apparatus - Safety Requirements.
b) CAN/CSA C22.2 No.60065:03, Canadian Standards Association.
Audio, Video and Similar Electronic Apparatus - Safety Requirements.
c) EN 60065, European Committee for Electrotechnical Standardization (CENELEC).
Audio, Video and Similar Electronic Apparatus - Safety Requirements.
d) IEC 60065, The International Electrotechnical Commission (IEC).
Audio, Video and Similar Electronic Apparatus - Safety Requirements.
(Including report of IEC60825-1:2001 clause 8 and clause 9)
Notes
1. Laser (LED Backlight) Information
www.panelook.com
LC320DXN
Product Specification
Class 1M LED Product
IEC60825-1 : 2001
Embedded LED Power (Class1M)
2. Caution
: LED inside.
Class 1M laser (LEDs) radiation when open.
Do not open while operating.
7-2. EMC
a) ANSI C63.4 “American National Standard for Methods of Measurement of Radio-Noise
Emissions from Low-Voltage Electrical and Electronic Equipment in the Range of 9 kHz to 40 GHz.”
American National Standards Institute (ANSI), 2003.
b) CISPR 22 “Information technology equipment – Radio disturbance characteristics – Limit and
methods of measurement." International Special Committee on Radio Interference
(CISPR), 2005.
c) CISPR 13 “Sound and television broadcast receivers and associated equipment – Radio disturbance
characteristics – Limits and method of measurement." International Special Committee on Radio
Interference (CISPR), 2006.
7-3. Environment
a) RoHS, Directive 2002/95/EC of the European Parliament and of the council of 27 January 2003
Ver. 1.0
One step solution for LCD / PDP / OLED panel application: Datasheet, inventory and accessory!
25 / 36
www.panelook.com
Global LCD Panel Exchange Center
8. Packing
8-1. Information of LCM Label
a) Lot Mark
ABCDEFGHI JKLM
A,B,C : SIZE(INCH) D : YEAR
E : MONTH F ~ M : SERIAL NO.
Note
1. YEAR
www.panelook.com
LC320DXN
Product Specification
Year
Mark
CBA
2014E2015
D
201320122011
2016G2017H2018J2019
F
2. MONTH
Month
Mark
Apr5May
4
Jun7Jul8Aug9Sep
6
b) Location of Lot Mark
Serial No. is printed on the label. The label is attached to the backside of the LCD module.
This is subject to change without prior notice.
8-2. Packing Form
a) Package quantity in one Pallet : 30 pcs
b) Pallet Size : 1140 mm X 870 mm X 1161 mm.
2020
K
Oct
A
Nov
B
DecMarFebJan
C321
Ver. 1.0
One step solution for LCD / PDP / OLED panel application: Datasheet, inventory and accessory!
26 / 36
www.panelook.com
Global LCD Panel Exchange Center
9. Precautions
Please pay attention to the followings when you use this TFT LCD module.
9-1. Mounting Precautions
(1)You must mount a module using specified mounting holes (Details refer to the drawings).
(2) You should consider the mounting structure so that uneven force (ex. Twisted stress) is not applied to
the
module. And the case on which a module is mounted should have sufficient strength so that external
force is not transmitted directly to the module.
(3) Please attach the surface transparent protective plate to the surface in order to protect the polarizer.
Transparent protective plate should have sufficient strength in order to the resist external force.
(4) You should adopt radiation structure to satisfy the temperature specification.
(5) Acetic acid type and chlorine type materials for the cover case are not desirable because the former
generates corrosive gas of attacking the polarizer at high temperature and the latter causes circuit break
by electro-chemical reaction.
(6) Do not touch, push or rub the exposed polarizers with glass, tweezers or anything harder than HB
pencil lead. And please do not rub with dust clothes with chemical treatment.
Do not touch the surface of polarizer for bare hand or greasy cloth.(Some cosmetics are detrimental
to the polarizer.)
(7) When the surface becomes dusty, please wipe gently with absorbent cotton or other soft materials like
chamois soaks with petroleum benzine. Normal-hexane is recommended for cleaning the adhesives
used to attach front / rear polarizers. Do not use acetone, toluene and alcohol because they cause
chemical damage to the polarizer. * {GGGGGwGGGG\GVGφXW
(8) Wipe off saliva or water drops as soon as possible. Their long time contact with polarizer causes
deformations and color fading.
(9) Do not open the case because inside circuits do not have sufficient strength.
www.panelook.com
LC320DXN
Product Specification
9-2. Operating Precautions
(1) The spike noise causes the mis-operation of circuits. It should be lower than following voltage :
V=·200mV(Over and under shoot voltage)
(2) Response time depends on the temperature.(In lower temperature, it becomes longer.)
(3) Brightness depends on the temperature. (In lower temperature, it becomes lower.)
And in lower temperature, response time(required time that brightness is stable after turned on) becomes
longer.
(4) Be careful for condensation at sudden temperature change. Condensation makes damage to polarizer or
electrical contacted parts. And after fading condensation, smear or spot will occur.
(5) When fixed patterns are displayed for a long time, remnant image is likely to occur.
(6) Module has high frequency circuits. Sufficient suppression to the electromagnetic interference shall be
done by system manufacturers. Grounding and shielding methods may be important to minimized the
interference.
(7) Please do not give any mechanical and/or acoustical impact to LCM. Otherwise, LCM can’t be operated
its full characteristics perfectly.
(8) A screw which is fastened up the steels should be a machine screw.
(if not, it causes metallic foreign material and deal LCM a fatal blow)
(9) Please do not set LCD on its edge.
(10) The conductive material and signal cables are kept away from LED driver inductor to prevent abnormal
display, sound noise and temperature rising.
Ver. 1.0
27 / 36
One step solution for LCD / PDP / OLED panel application: Datasheet, inventory and accessory!
www.panelook.com
Global LCD Panel Exchange Center
9-3. Electrostatic Discharge Control
Since a module is composed of electronic circuits, it is not strong to electrostatic discharge. Make certain that
treatment persons are connected to ground through wrist band etc. And don’t touch interface pin directly.
9-4. Precautions for Strong Light Exposure
Strong light exposure causes degradation of polarizer and color filter.
9-5. Storage
When storing modules as spares for a long time, the following precautions are necessary.
www.panelook.com
LC320DXN
Product Specification
(1) Store them in a dark place. Do not expose the module to sunlight or fluorescent light. Keep the temperature
between 5¶C and 35¶C at normal humidity.
(2) The polarizer surface should not come in contact with any other object.
It is recommended that they be stored in the container in which they were shipped.
(3) Storage condition is guaranteed under packing conditions.
(4) The phase transition of Liquid Crystal in the condition of the low or high storage temperature will be
recovered when the LCD module returns to the normal condition
9-6. Handling Precautions for Protection Film
(1) The protection film is attached to the bezel with a small masking tape.
When the protection film is peeled off, static electricity is generated between the film and polarizer.
This should be peeled off slowly and carefully by people who are electrically grounded and with well ion-
blown equipment or in such a condition, etc.
(2) When the module with protection film attached is stored for a long time, sometimes there remains a very
small amount of glue still on the bezel after the protection film is peeled off.
(3) You can remove the glue easily. When the glue remains on the bezel surface or its vestige is recognized,
please wipe them off with absorbent cotton waste or other soft material like chamois soaked with normal-
hexane.
Ver. 1.0
One step solution for LCD / PDP / OLED panel application: Datasheet, inventory and accessory!
28 / 36
www.panelook.com
Global LCD Panel Exchange Center
# APPENDIX- I
Pallet Ass’y
www.panelook.com
LC320DXN
Product Specification
NO. DESCRIPTION MATERIAL
1 PACKING ASS’Y
2 PALLET Plywood
3BAND PP
4 CLIP, BAND STEEL
5 Angle Cover PAPER
6 WRAP LDPE
7 LABEL ART 100X70
Ver. 1.0
One step solution for LCD / PDP / OLED panel application: Datasheet, inventory and accessory!
29 / 36
www.panelook.com
Global LCD Panel Exchange Center
Packing Ass’y
www.panelook.com
LC320DXN
Product Specification
NO. DESCRIPTION MATERIAL
1LCD Module
2 BAG AL
3 TAPE MASKING 20MMX50M
4 Packing,Bottom EPS
5 Packing,Top EPS
6 BOX PAPER_DW3
7 TAPE OPP 70MMX300M
8 Label ART 100X70
Ver. 1.0
One step solution for LCD / PDP / OLED panel application: Datasheet, inventory and accessory!
30 / 36
www.panelook.com
Global LCD Panel Exchange Center
# APPENDIX- II-1
غ LCM Label
www.panelook.com
LC320DXN
Product Specification
Model
UL, TUV Mark
LGD Logo
LC320DXN
(SE)(R3)
RoHS Verified
XXXXXXXXXXXXX XXXX
MADE IN KOREA
Serial No.
Origin
Ver. 1.0
One step solution for LCD / PDP / OLED panel application: Datasheet, inventory and accessory!
31 / 36
www.panelook.com
Global LCD Panel Exchange Center
# APPENDIX- II-2
Box Label
www.panelook.com
LC320DXN
Product Specification
LC320DXN
SER3
Pallet Label
5 PCS
MADE IN KOREA
001/01-01
XXXXXXXXXXXXX XXX
LC320DXN
SER3
RoHS Verified
30 PCS
MADE IN KOREA
Ver. 1.0
One step solution for LCD / PDP / OLED panel application: Datasheet, inventory and accessory!
001/01-01
RoHS Verified
XXXXXXXXXXXXX XXX
32 / 36
www.panelook.com
Global LCD Panel Exchange Center
www.panelook.com
Product Specification

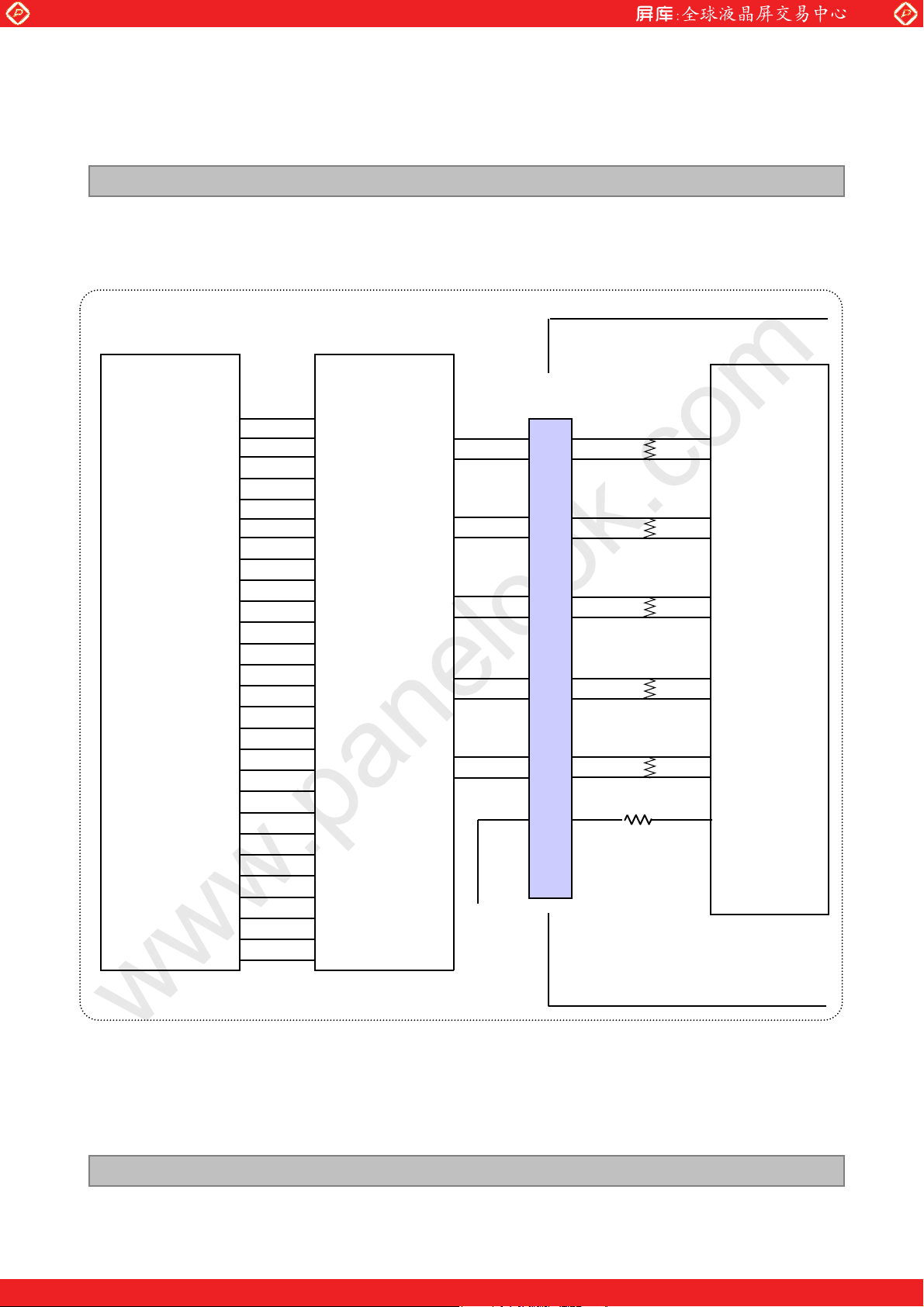

# APPENDIX-III-1
Required signal assignment for Flat Link Transmitter(Pin9=“L” or NC)
LC320DXN
Host System
24 Bit
RED0
RED1
RED2
RED3
RED4
RED5
RED6
RED7
GREEN0
GREEN1
GREEN2
GREEN3
GREEN4
GREEN5
GREEN6
GREEN7
BLUE0
BLUE1
BLUE2
BLUE3
BLUE4
BLUE5
BLUE6
BLUE7
Hsync
Vsync
Data Enable
CLOCK
DS90C385
or Compatible
51
52
54
55
56
3
50
2
4
6
7
11
12
14
8
10
15
19
20
22
23
24
16
18
27
28
30
31
TxCLKOUTTxCLKOUT+
TxOUT0TxOUT0+
TxOUT1TxOUT1+
TxOUT2TxOUT2+
TxOUT3TxOUT3+
KDF71G-30S-1H
48
47
46
45
42
41
40
39
38
37
GND
12
13
15
16
18
19
21
22
24
25
Timing
Controller
100Ω
100Ω
100Ω
100Ω
100Ω
9
RxIN0RxIN0+
RxIN1RxIN1+
RxIN2RxIN2+
RxCLKINRxCLKIN+
RxIN3RxIN3+
VESA / JEIDA
LCD Module
Notes:
1. The LCD module uses a 100 Ohm(Ω) resistor between positive and negative lines
of each receiver input.
2. Refer to LVDS transmitter data sheet for detail descriptions. (DS90C385 or Compatible)
3. ‘7’ means MSB and ‘0’ means LSB at R,G,B pixel data.
Ver. 1.0
One step solution for LCD / PDP / OLED panel application: Datasheet, inventory and accessory!
33 / 36
www.panelook.com
Global LCD Panel Exchange Center
www.panelook.com
Product Specification
# APPENDIX-III-2
Required signal assignment for Flat Link Transmitter(Pin9=“H”)
LC320DXN
Host System
24 Bit
RED0
RED1
RED2
RED3
RED4
RED5
RED6
RED7
GREEN0
GREEN1
GREEN2
GREEN3
GREEN4
GREEN5
GREEN6
GREEN7
BLUE0
BLUE1
BLUE2
BLUE3
BLUE4
BLUE5
BLUE6
BLUE7
Hsync
Vsync
Data Enable
CLOCK
DS90C385
or Compatible
50
2
51
52
54
55
56
3
8
10
4
6
7
11
12
14
16
18
15
19
20
22
23
24
27
28
30
31
TxCLKOUTTxCLKOUT+
TxOUT0TxOUT0+
TxOUT1TxOUT1+
TxOUT2TxOUT2+
TxOUT3TxOUT3+
KDF71G-30S-1H
48
47
46
45
42
41
40
39
38
37
Vcc
12
13
15
16
18
19
21
22
24
25
Timing
Controller
100Ω
100Ω
100Ω
100Ω
100Ω
9
RxIN0RxIN0+
RxIN1RxIN1+
RxIN2RxIN2+
RxCLKINRxCLKIN+
RxIN3RxIN3+
VESA /
JEIDA
LCD Module
Notes:
1. The LCD module uses a 100 Ohm(Ω) resistor between positive and negative lines
of each receiver input.
2. Refer to LVDS transmitter data sheet for detail descriptions. (DS90C385 or Compatible)
3. ‘7’ means MSB and ‘0’ means LSB at R,G,B pixel data.
Ver. 1.0
One step solution for LCD / PDP / OLED panel application: Datasheet, inventory and accessory!
34 / 36
www.panelook.com
Global LCD Panel Exchange Center
# APPENDIX- IV
LVDS Select : “H” Data-Mapping (JEIDA format)
RCLKP
www.panelook.com
LC320DXN
Product Specification
LVDS Data-Mapping info. (8bit)
RCLKM
RAP
RBP
RCP
RDP
R17 R16 R15 R14G12 R13R12’ R12R13’ G12”
B12 G17 G16 G15B13 G14G13’ G13G14’ B13”
V
SYNCHSYNC
B11 B10 G11 G10X R11R10’ R10R11’ X”
B17 B16DE B15B14’ B14B15’ DE”
LVDS Select : “L” Data-Mapping (VESA format)
RCLKP
RCLKM
RAP
R15 R14 R13 R12G10 R11R10’ R10R11’ G10”
RBP
RCP
RDP
Ver. 1.0
B10 G15 G14 G13B11 G12G11’ G11G12’ B15”
V
SYNCHSYNC
B17 B16 G17 G16X R17R16’ R16R17’ X”
B15 B14DE B13B12’ B12B13’ DE”
One step solution for LCD / PDP / OLED panel application: Datasheet, inventory and accessory!
35 / 36
www.panelook.com
Global LCD Panel Exchange Center

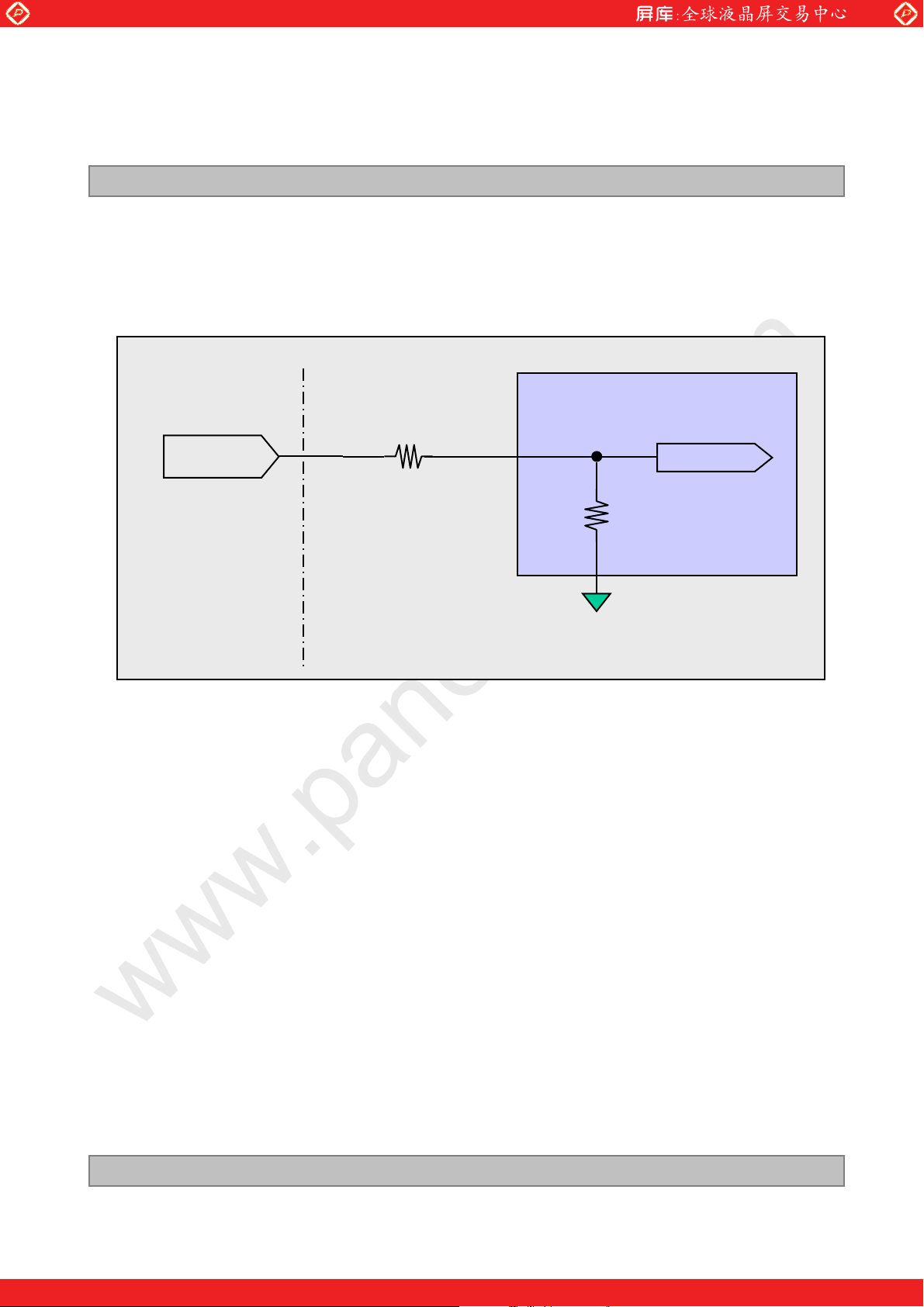

# APPENDIX- V
Option Pin Circuit Block Diagram
Circuit Block Diagram of LVDS Format Selection pin
www.panelook.com
LC320DXN
Product Specification
LVDS Select
(Pin 9)
1KΩ
System Side LCM Side
Selector
50KΩ
ASIC
(TCON)
Ver. 1.0
One step solution for LCD / PDP / OLED panel application: Datasheet, inventory and accessory!
36 / 36
www.panelook.com
Loading...
