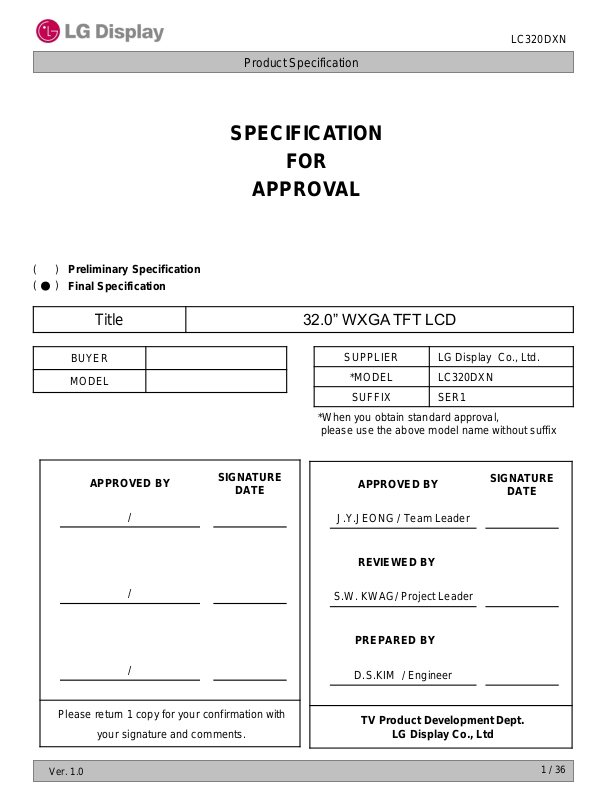

LG Display LC320DXN-SER1 Specification
LC320DXN
Product Specification
SPECIFICATION
FOR
APPROVAL
)
(
(
Preliminary Specification
)
Final Specification
●
Title 32.0” WXGA TFT LCD
BUYER
MODEL
APPROVED BY
SUPPLIER LG Display Co., Ltd.
*MODEL LC320DXN
SUFFIX SER1
*When you obtain standard approval,
please use the above model name without suffix
SIGNATURE
DATE
/
/
/
APPROVED BY
J.Y.JEONG / Team Leader
REVIEWED BY
S.W. KWAG/ Project Leader
PREPARED BY
D.S.KIM / Engineer
SIGNATURE
DATE
Please return 1 copy for your confirmation with
your signature and comments.
Ver. 1.0
TV Product Development Dept.
LG Display Co., Ltd
1 / 36
Product Specification
CONTENTS
LC320DXN
Number ITEM
COVER
CONTENTS
RECORD OF REVISIONS
1 GENERAL DESCRIPTION
2 ABSOLUTE MAXIMUM RATINGS
3 ELECTRICAL SPECIFICATIONS
3-1 ELECTRICAL CHARACTERISTICS
3-2 INTERFACE CONNECTIONS
3-3 SIGNAL TIMING SPECIFICATIONS
3-4 LVDS SIGNAL SPECIFICATIONS
3-5 COLOR DATA REFERENCE
3-6 POWER SEQUENCE
4 OPTICAL SPECIFICATIONS
5 MECHANICAL CHARACTERISTICS
6 RELIABILITY
Page
1
2
3
4
5
6
6
8
10
11
14
15
17
21
24
7 INTERNATIONAL STANDARDS
7-1 SAFETY
7-2 EMC
7-3 ENVIRONMENT
8 PACKING
8-1 DESIGNATION OF LOT MARK
8-2 PACKING FORM
9 PRECAUTIONS
9-1 MOUNTING PRECAUTIONS
9-2 OPERATING PRECAUTIONS
9-3 ELECTROSTATIC DISCHARGE CONTROL
9-4 PRECAUTIONS FOR STRONG LIGHT EXPOSURE
9-5 STORAGE
9-6 HANDLING PRECAUTIONS FOR PROTECTION FILM
Ver. 1.0
25
25
25
25
26
26
26
27
27
27
28
28
28
28
2 / 36
Product Specification
RECORD OF REVISIONS
Revision No. Revision Date Page Description
0.0 Sep. 30, 2011 - Preliminary Specification (First Draft)
0.1 Nov. 07. 2011 7 LED Driver Electrical Characteristics Fixed
17 Color Coordinates Fixed
0.2 Nov. 24. 2011 22,23 Mechanical drawing update
1.0 DEC. 16. 2011 Final Specification
LC320DXN
Ver. 1.0
3 / 36
LC320DXN
Product Specification
1. General Description
The LC320DXN is a Color Active Matrix Liquid Crystal Display with an integral Light Emitting Diode (LED)
backlight system. The matrix employs a-Si Thin Film Transistor as the active element.
It is a transmissive display type which is operating in the normally black mode. It has a 31.51 inch diagonally
measured active display area with WXGA resolution (768 vertical by 1366 horizontal pixel array).
Each pixel is divided into Red, Green and Blue sub-pixels or dots which are arranged in Horizontal stripes.
Gray scale or the luminance of the sub-pixel color is determined with a 8-bit gray scale signal for each dot,
thus presenting a palette of more than 16.7M(6bit + A-FRC) colors.
It has been designed to apply the 8-bit 1-port LVDS interface.
It is intended to support LCD TV, PCTV where high brightness, super wide viewing angle, high color gamut,
high color depth and fast response time are important.
Mini LVDS(RGB)
Control
Signals
Source Driver Circuit
S1 S1366
G1
TFT - LCD Panel
(1366 × 768 x RGB pixels)
LVDS Select
LVDS 1Port
+12.0V
#9
CN1
(30pin)
EEPROM
SCL
SDA
Timing Controller
[LVDS Rx]
[Gate In Panel]
G768
Back light Assembly
+24.0V, GND, On/off
Ext VBR-B
Power Circuit
Block
LED Driver
Power Signals
General Features
Active Screen Size 31.51 inches(800.4mm) diagonal
Outline Dimension 760.0 X 450.0 X 32.5(B) (Typ.)
Pixel Pitch
Pixel Format 1366 horiz. by 768 vert. pixels RGB stripe arrangement
Color Depth 8bit(D), 16,7 M colors
Luminance, White 300 cd/m2 (Center 1 point) (Typ.)
Viewing Angle (CR>10) Viewing angle free ( R/L 178(Min.), U/D 178(Min.))
Power Consumption Total 42.98 Watt (Logic=4.08 W , LED Driver =38.9W @ [ExtVbr_B=100%] )
Weight 4.8kg(Typ)
Display Operating Mode Transmissive mode, normally black
Surface Treatment Hard coating(3H), Anti-reflection treatment of the front polarizer (Haze 1%)
510.75㎛ x 510.75㎛ x R,G,B
Ver. 1.0
4 / 36
LC320DXN
Product Specification
2. Absolute Maximum Ratings
The following items are maximum values which, if exceeded, may cause faulty operation or permanent damage
to the LCD module.
Table 1. ABSOLUTE MAXIMUM RATINGS
Parameter Symbol
Unit Note
Min Max
LCD Circuit VLCD -0.3 +14.0 VDC
Power Input Voltage
Driver VBL -0.3 + 27.0 VDC
Value
ON/OFF VOFF / VON -0.3 +5.5 VDC
1
Driver Control Voltage
Brightness EXT VBR-B 0.0 +5.5 VDC
T-Con Option Selection Voltage VLOGIC
Operating Temperature TOP 0 +50
-0.3 +4.0 VDC
°C
2,3
Storage Temperature TST -20 +60
Panel Front Temperature TSUR
- +68
°C
°C
4
Operating Ambient Humidity HOP 10 90 %RH
2,3
Storage Humidity HST 10 90 %RH
Note
1. Ambient temperature condition (Ta = 25 2 °C )
2. Temperature and relative humidity range are shown in the figure below.
Wet bulb temperature should be Max 39°C, and no condensation of water.
3. Gravity mura can be guaranteed below 40°C condition.
4. The maximum operating temperatures is based on the test condition that the surface temperature
of display area is less than or equal to 68°C with LCD module alone in a temperature controlled chamber.
Thermal management should be considered in final product design to prevent the surface temperature of
display area from being over 68℃. The range of operating temperature may be degraded in case of
improper thermal management in final product design.
Ver. 1.0
Wet Bulb
Temperature [°C]
20
10
0
10 20 30 40 50 60 70 80 0 -20
Dry Bulb Temperature [°C]
30
40
50
60
90%
60%
40%
10%
Storage
Operation
Humidity [(%)RH]
5 / 36
LC320DXN
Product Specification
3. Electrical Specifications
3-1. Electrical Characteristics
It requires two power inputs. One is employed to power for the LCD circuit. The other Is used for the LED
backlight and LED Driver circuit.
Table 2. ELECTRICAL CHARACTERISTICS
Parameter Symbol
Unit Note
Min Typ Max
Circuit :
Value
Power Input Voltage V
LCD
10.8 12.0 13.2 V
DC
- 340 445 mA 1
Power Input Current I
Power Consumption P
Rush current I
Note
1. The specified current and power consumption are under the V
LCD
LCD
RUSH
- 430 560 mA 2
- 4.08 5.30 Watt 1
- - 3.0 A 3
=12.0V, Ta=25 2°C, fV=60Hz
LCD
condition, and mosaic pattern(8 x 6) is displayed and fV is the frame frequency.
2. The current is specified at the maximum current pattern.
3. The duration of rush current is about 2ms and rising time of power input is 0.5ms (min.).
4. Ripple voltage level is recommended under ± 5% of typical voltage
White : 255 Gray
Black : 0 Gray
Ver. 1.0
Mosaic Pattern(8 x 6)
6 / 36
Product Specification
Table 3. ELECTRICAL CHARACTERISTICS (Continue)
LC320DXN
Parameter Symbol
LED Driver :
Power Supply Input Voltage VBL
Power Supply Input Current IBL_A
Power Supply Input Current (In-Rush) Irush - - 4 A
Power Consumption PBL
On/Off
Brightness Adjust ExtVBR-B
ExtVBR-B Frequency
ExtVBR-B Level
LED :
Life Time 30,000 50,000 Hrs 2
On V on 2.5 - 5.0 Vdc
Off V off -0.3 0.0 0.7 Vdc
PAL 100 Hz 3
NTSC 120 Hz 3
High Level 2.5 - 5.0
Low Level 0.0 - 0.7
Min Typ Max
22.8 24.0 25.2 Vdc 1
Values
-
-
5 - 100
1 - 100
1.6 1.7 A Ext VBR-B = 100%
38.9 41.2
Unit Notes
VBL = 22.8V
Ext VBR-B = 100%
W Ext VBR-B = 100%
%
Vdc
Vdc
On Duty
HIGH : on duty
LOW : off duty
4
6
Notes :
1. Electrical characteristics are determined after the unit has been ‘ON’ and stable for approximately 60
minutes at 25± 2°C. The specified current and power consumption are under the typical supply Input voltage
24Vand VBR (ExtVBR-B : 100%), it is total power consumption.
2. The life time (MTTF) is determined as the time which luminance of the LED is 50% compared to that of initial
value at the typical LED current (ExtVBR-B :100%) on condition of continuous operating in LCM state at
25± 2°C.
3. LGD recommend that the PWM freq. is synchronized with One time harmonic of V_sync signal of system.
Though PWM frequency is over 120Hz (max 252Hz), function of LED Driver is not affected.
4. The duration of rush current is about 200ms. This duration is applied to LED on time.
5. Even though inrush current is over the specified value, there is no problem if I2T spec of fuse is satisfied.
6. ExtV
After Driver ON signal is applied, ExtV
After that, ExtV
signal have to input available duty range and sequence.
BR-B
1% and 100% is possible
BR-B
should be sustained from 5% to 100% more than 500ms.
BR-B
For more information, please see 3-6-2. Sequence for LED Driver.
Ver. 1.0
7 / 36
LC320DXN
Product Specification
3-2. Interface Connections
This LCD module employs two kinds of interface connection, a 30-pin connector is used for the module
electronics and 14-pin connector is used for the integral backlight system.
3-2-1. LCD Module
- LCD Connector(CN1) : FI-X30SSL-HF(JAE) or compatible
- Mating Connector : : FI-X30C2L (Manufactured by JAE or compatible
Table 4. MODULE CONNECTOR(CN1) PIN CONFIGURATION
Pin No. Symbol Description Note
1 VLCD Power Supply +12.0V
2 VLCD Power Supply +12.0V
3 VLCD Power Supply +12.0V
4 VLCD Power Supply +12.0V
5 GND Ground
6 GND Ground
7 GND Ground
8 GND Ground
9
10
11 GND Ground
12 RA- LVDS Receiver Signal(-)
13 RA+ LVDS Receiver Signal(+)
14 GND Ground
15 RB- LVDS Receiver Signal(-)
16 RB+ LVDS Receiver Signal(+)
17 GND Ground
18 RC- LVDS Receiver Signal(-)
19 RC+ LVDS Receiver Signal(+)
20 GND Ground
21 RCLK- LVDS Receiver Clock Signal(-)
22 RCLK+ LVDS Receiver Clock Signal(+)
23 GND Ground
24 RD- LVDS Receiver Signal(-)
25 RD+ LVDS Receiver Signal(+)
26 GND Ground
27
28
29
30 GND Ground
LVDS Select ‘H’ =JEIDA , ‘L’ or NC = VESA
NC No Connection
NC
NC
NC
No Connection
No Connection
No Connection 4
Appendix V
4
4
4
Notes :
Ver. 1.0
1. All GND (Ground) pins should be connected together to the LCD module’s metal frame.
2. All VLCD (power input) pins should be connected together.
3. All Input levels of LVDS signals are based on the EIA 644 Standard.
4. These pins are used only for LGD (Do not connect)
5. Specific pin No. #30 is used for “No signal detection” of system signal interface.
It should be GND for NSB (No Signal Black) while the system interface signal is not.
If this pin is “H”, LCD Module displays AGP (Auto Generation Pattern).
8 / 36
Product Specification
3-2-2. Backlight Module
Master
-LED Driver Connector
: 20022WR - H14B2(Yeonho)
-.Mating Connector
: 20022HS - 14B2 or compatible
Table 5. LED DRIVER CONNECTOR PIN CONFIGURATION
Pin No Symbol Description Note
LC320DXN
1
2
3
4
5
6
7
8
9
10
11
12
13
14
VBL Power Supply +24.0V
VBL Power Supply +24.0V
VBL Power Supply +24.0V
VBL Power Supply +24.0V
VBL Power Supply +24.0V
GND
GND
GND
GND
GND
Status
ON/OFF
V
NC Don’t care
EXTVBR-B External PWM
Backlight Ground
Backlight Ground
Backlight Ground
Backlight Ground
Backlight Ground
Back Light Status 2
Backlight ON/OFF control
1
Notes : 1. GND should be connected to the LCD module’s metal frame.
2. Normal : Low (under 0.7V) / Abnormal : open
3. High : on duty / Low : off duty, Pin#14 can be opened. ( if Pin #14 is open , EXTVBR-B is 100% )
4. Each impedance of pin #12 and 14 is over 50 [KΩ] .
◆ Rear view of LCM
1
Ver. 1.0
◆ Status
PCB
14
1
…
14
…
<Master>
9 / 36
LC320DXN
Product Specification
3-3. Signal Timing Specifications
Table 6 shows the signal timing required at the input of the LVDS transmitter. All of the interface signal
timings should be satisfied with the following specification for normal operation.
Table 6-1. TIMING TABLE (DE Only Mode)
ITEM Symbol Min Typ Max Unit Note
Horizontal
Vertical
Frequency
Display
Period
Blank tHB 90 162 410 tclk
Total tHP 1456 1528 1776 tclk
Display
Period
Blank tVB
Total tVP
ITEM Symbol Min Typ Max Unit Note
DCLK fCLK 63.0 72.4 80.0 MHz
Horizontal fH 45 47.4 55 KHz 2
Vertical fV
tHV - 1366 - tclk
tVV - 768 - tHP
20
(126)
788
(894)
57
(47)
22
(180)
790
(948)
60
(50)
240
(295)
1008
(1063)
63
(53)
tHP 1
tHP
Hz
2
NTSC :
57~63Hz
(PAL : 47~53Hz)
Note: 1. The input of HSYNC & VSYNC signal does not have an effect on normal operation (DE Only Mode).
If you use spread spectrum of EMI, add some additional clock to minimum value for clock margin.
2. The performance of the electro-optical characteristics may be influenced by variance of the vertical
refresh rate and the horizontal frequency
※ Timing should be set based on clock frequency.
Ver. 1.0
10 / 36
3-4. Signal Timing Waveforms
3-4-1. LVDS Input Signal Timing Diagram
LC320DXN
Product Specification
DCLK
1366
tCLK
0.5 Vcc
Invalid data
DE(Data Enable)
DE, Data
tHT
Valid data
1
0.7VDD
tHV
0.3VDD
1366
Invalid data
DE(Data Enable)
Ver. 1.0
768
1 768
tVV
tVT
11 / 36
Loading...
