LG PTVK430 INSTALLATION INSTRUCTIONS

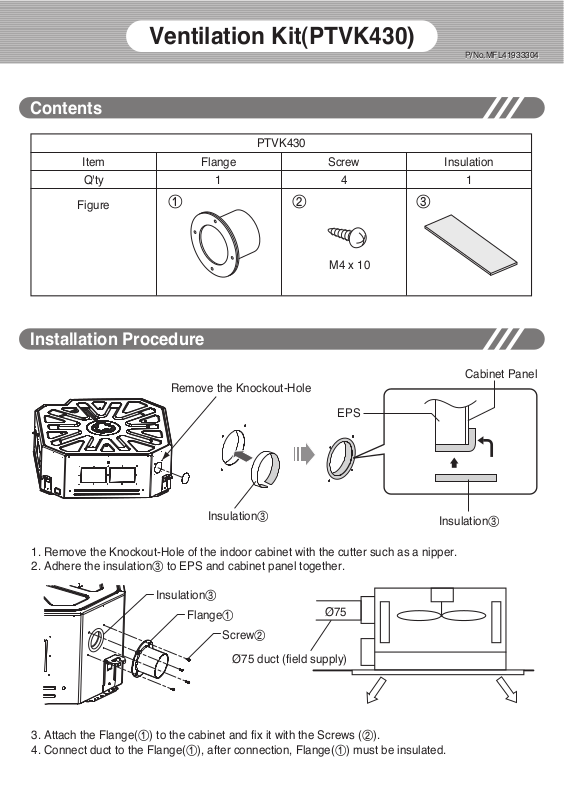

Ventilation Kit(PTVK430)
P/No.MFL41933304
Contents
PTVK430
Item |
Flange |
Screw |
Insulation |
Q'ty |
1 |
4 |
1 |
Figure |
|
|
|
|
|
M4 x 10 |
|
Installation Procedure
Cabinet Panel
Remove the Knockout-Hole
EPS
|
|
|
|
Insulation |
|
|
|
Insulation |
|||
1.Remove the Knockout-Hole of the indoor cabinet with the cutter such as a nipper.
2.Adhere the insulation to EPS and cabinet panel together.
Insulation
Flange |
Ø75 |
Screw |
|
Ø75 duct (field supply) |
|
3.Attach the Flange( ) to the cabinet and fix it with the Screws ( ).
4.Connect duct to the Flange( ), after connection, Flange( ) must be insulated.
