ENGLISH

PF391

P/NO : MFL42173804(R1)

PF391P-P-AESPLLW-ENG 11/19/07 4:34 PM Page 1

CAUTION: TO REDUCE THE RISK OF ELECTRIC SHOCK. DO NOT REMOVE

COVER (OR BACK). NO USER-SERVICEABLE PARTS INSIDE. REFER SERVICING TO QUALIFIED SERVICE PERSONNEL.

This lightning flash with arrowhead symbol within an equilateral triangle is intended to alert the user to the presence of uninsulated dangerous voltage within the product’s enclosure that may be of sufficient magnitude to constitute a risk of electric shock to persons.

The exclamation point within an equilateral triangle is intended to alert the user to the presence of important operating and maintenance (servicing) instructions in the literature accompanying the product.

WARNING: TO PREVENT FIRE OR ELECTRIC SHOCK HAZARD, DO NOT EXPOSE THIS PRODUCT TO RAIN OR MOISTURE.

WARNING: Do not install this equipment in a confined space such as a book case or similar unit.

CAUTION: Do not block any ventilation openings. Install in accordance with the manufacturer's instructions. Slots and openings in the cabinet are provided for ventilation and to ensure reliable operation of the product and to protect it from over heating. The openings should be never be blocked by placing the product on a bed, sofa, rug or other similar surface. This product should not be placed in a built-in installation such as a bookcase or rack unless proper ventilation is provided or the manufacturer's instruction has been adhered to.

CAUTION: The apparatus should not be exposed to water (dripping or splashing) and no objects filled with liquids, such as vases, should be placed on the apparatus.

CAUTION concerning the Power Cord Most appliances recommend they be placed upon a dedicated circuit;

That is, a single outlet circuit which powers only that appliance and has no additional outlets or branch circuits. Check the specification page of this owner's manual to be certain.Do not overload wall outlets. Overloaded wall outlets, loose or damaged wall outlets, extension cords, frayed power cords, or damaged or cracked wire insulation are dangerous. Any of these conditions could result in electric shock or fire. Periodically examine the cord of your appliance, and if its appearance indicates damage or deterioration, unplug it, discontinue use of the appliance, and have the cord replaced with an exact replacement part by an authorized service center. Protect the power cord from physical or mechanical abuse, such as being twisted, kinked, pinched, closed in a door, or walked upon. Pay particular attention to plugs, wall outlets, and the point where the cord exits the appliance. To disconnect power from the mains, pull out the mains cord plug. When installing the product, ensure that the plug is easily accessible.

Disposal of your old appliance

1. When this crossed-out wheeled bin symbol is attached to a product it means the product is covered by the European Directive 2002/96/EC.

2. All electrical and electronic products should be disposed of separately from the municipal waste stream via designated collection facilities appointed by the government or the local authorities.

3. The correct disposal of your old appliance will help prevent potential negative consequences for the environment and human health.

4. For more detailed information about disposal of your old appliance, please contact your city office, waste disposal service or the shop where you purchased the product.

This product is manufactured to comply with the EEC DIRECTIVE 2004/108/EC, and 2006/95/EC.

Safety Precaution

CAUTION

RISK OF ELECTRIC SHOCK

DO NOT OPEN

PF391P-P-AESPLLW-ENG 11/19/07 4:34 PM Page 2

Contents

Safety Precaution . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .2

Contents . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .3

Features . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .3

Main Unit . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .4

Getting Started . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .5

• Inserting or removing a memory card . . . . . . . . . . . . . . . . . . . . . . . . . . .5

• Connecting an USB Device . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .5

• Connecting the Power Cable . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .6

• Turning On or Off the Unit . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .6

• Power Save mode . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .6

• Installing the Stand . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .6

• Using the Device Menu . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .7

Adjust the settings . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .7-8

Viewing a Photo file . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .9

Playing a Movie file . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .10

Playing a Music file . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .11

Using a File menu . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .12

Viewing the Calendar . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .13

PC Connection (USB) . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .14

Troubleshooting . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .15

Specifications . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .15

Features

• Live picture gallery: High resolution and deep digital color from LCD wide screen.

• Easy power save mode: Better 1 second power save mode than 15 seconds power off and on.

• Portable digital album: Share your memories with built-in battery for easy mobility

• Plug-in viewer: Easy viewing photos via memory card slot and USB port

• 2,000 photo storage: 2,000 precious memories with 256MB built-in flash memory

• Digital calendar & alarm clock: For your efficient date and time scheduling

• Convenient photo explorer: Coolest interface navigation for easiest access to your memory

• Premium interior decorator 3 different changeable faceplate to suit various interior

PF391P-P-AESPLLW-ENG 11/19/07 4:34 PM Page 3

Main Unit

a LCD screen b Faceplate (interchangeable)

Four edges of the faceplate are magnetic, so that the faceplate can easily be attached or detached.

c 1 BAT. (Power button and Battery indicator)

Turns the unit ON or OFF and indicates the battery status. The indicator lights in red during charging the battery. The indicator lights in green when battery is full.

d P-SAVE (Power Save)

Accesses or exits the power save mode.

e MENU

Accesses or exits the option menu.

f b VOLUME B

Adjusts the volume of the unit. To adjust the volume, press and hold VOLUME (b or B) during playback of the movie or music file. Left and Right buttons for selecting an item on the menu.

g b PAGE B

Press and hold for 2 seconds to move to the previous or next page on the [Photo], [Movie] or [Music] menu. Up and Down buttons for selecting an item on the menu.

h ENTER

Selects an option or executes a command.

i ROTATE

Rotates the photo in full screen counterclockwise.

j BACK

Returns to a previous menu or screen.

k NX

Starts playback. Press to pause playback; press again to restart.

l USB connector

Connect the supplied USB adapter cable then connect an USB device.

m Memory card slot

Insert a memory card (SD, MMC or MS).

n DC 12V IN

Connect the supplied AC adapter.

cd e f

nml

i j

PF391P-P-AESPLLW-ENG 11/19/07 4:34 PM Page 4

Getting Started

Inserting or removing a memory card

Insert a memory card to the memory card slot on the unit. To withdraw the memory card from the slot, press on the center of the memory card then withdraw it carefully.

Card useable on this unit

• Secure Digital Card (SD)

• Multi Media Card (MMC)

• Memory Stick (MS)

• Compatible with: FAT 12, FAT 16, or FAT 32

• Only use the memory cards recommended above.

• The card will only fit in one direction; do not force it. The card should fit snugly when properly inserted.

• Any memory card may not be available on the unit.

• Do not extract the memory card in operating (play, copy, etc.).

Regarding Write Protect

For cards that have a write protect switch, it will not be possible to write, erase or format the card if the switch is on.

Connecting an USB Device

Connect the small end of the USB adapter cable to the USB port on the unit. Connect an USB Device and the USB adapter. Use an USB cable, if you need.

• This unit supports only USB Device with FAT16 or FAT32 format.

• Do not extract the USB Device during operation (play, copy, etc.).

• USB Device: USB Device that support USB 1.1 and USB 2.0. (For example: USB Flash Drive, Memory Card Reader, Digital Camera, etc.)

• An USB Device which requires additional program installation when you have connected it to a PC, is not supported.

USB Flash Drive

(For example)

USB Adapter Cable

To USB port

or or

MMC

PF391P-P-AESPLLW-ENG 11/19/07 4:34 PM Page 5

Connecting the Power Cable

Connect the supplied power cable from the unit to a power outlet.

AC adapter

• This AC adapter operates on 100-240V~ 1A 50/60Hz.

• Contact an electrical parts distributor for assistance in selecting a suitable AC plug adapter or AC cord set.

• Manufactured by WANLIDA GROUP CO., LTD

Rechargeable battery

• Its internal rechargeable battery provides you with the freedom to pass it around and play the files without the power cord.

• The internal rechargeable battery will start charging only when the unit is turned off and the AC adapter is connected to a power outlet.

• The charging is stopped if you turn on the unit.

• The charging will take approximately 2 hour.

• The 1 BAT. indicator turns red in charging. If the charging is complete, the indicator changes to green color.

• When the remaining time of the battery power is under 10 minutes, “ ” will appear on the screen and the 1 BAT. indicator flashes.

Turning On or Off the Unit

To turn on the unit, press and hold 1 BAT. for 2 seconds. The demonstration slideshow will start and then the [Device Menu] will appear. Press any button to skip the demonstration slideshow. The demonstration photos are located in the internal memory, and you cannot change or delete them. Press 1 BAT. again to turn off the unit.

Power Save mode

You can set up the unit into an economic power save mode. Press P-SAVE and the LCD screen is turned off. To exit the power save mode, press P-SAVE or 1 BAT.

Installing the Stand

Attach the detachable stand on the back of the unit as below.

To “DC 12V IN” jack

Attach the power plug to the body of the AC adapter.

Power cord

release knob

To AC outlet

PF391P-P-AESPLLW-ENG 11/19/07 4:34 PM Page 6

Using the Device Menu

The Device Menu will appear when the unit is turned on and you can display the Device Menu by pressing BACK repeatedly. Use b VOLUME B to select an option on the [Device Menu] then press

ENTER.

• USB-C ..... USB-Z

You can play a file(s) in the connected USB device.

• SD/MMC/MS

You can play a file(s) in the external memory card.

• Flash

You can play a file(s) in the internal memory card.

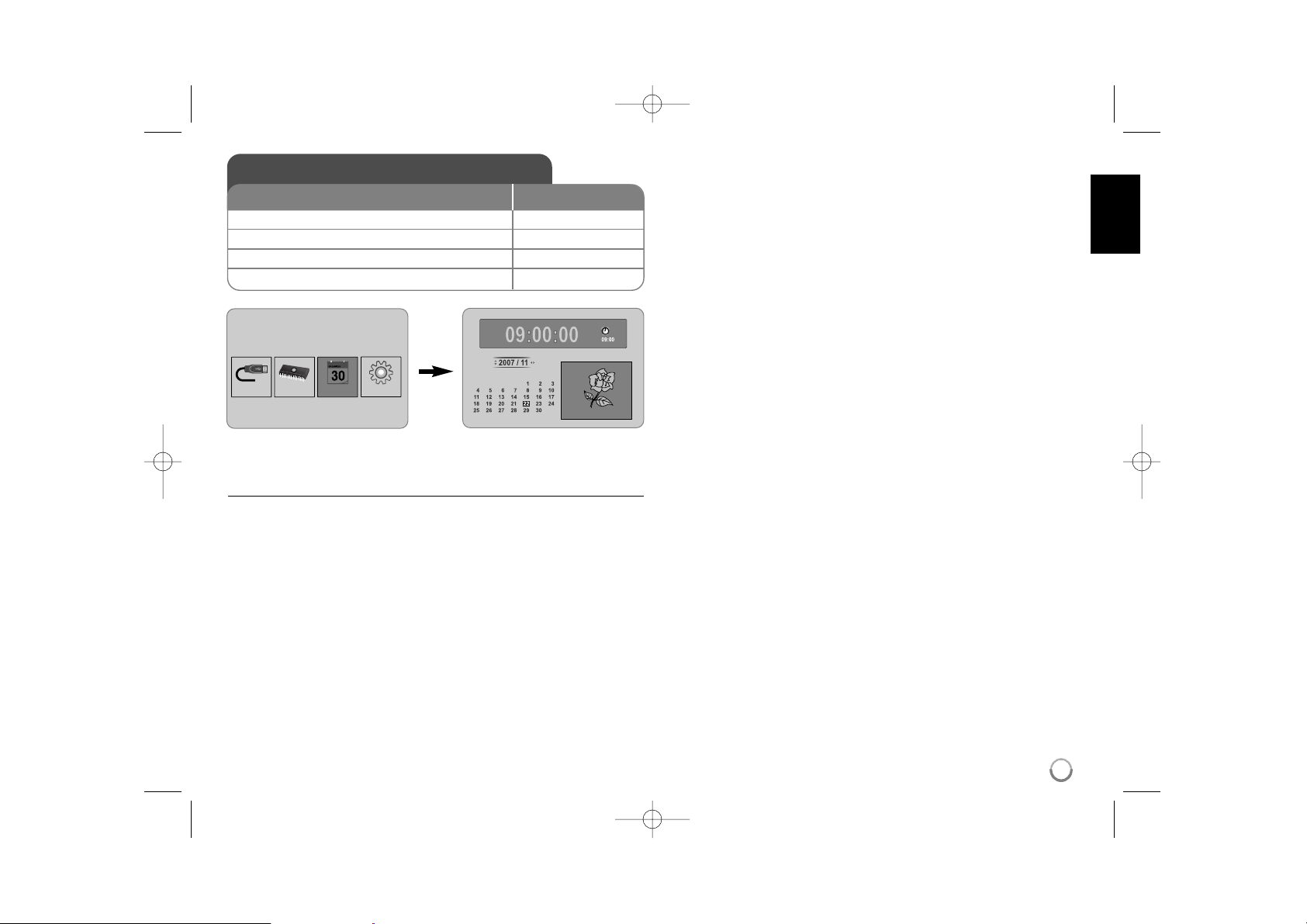

• Calendar

You can view the current date, clock and alarm information through calendar screen.

• Setup

You can change the settings of the unit on the [Setup] menu.

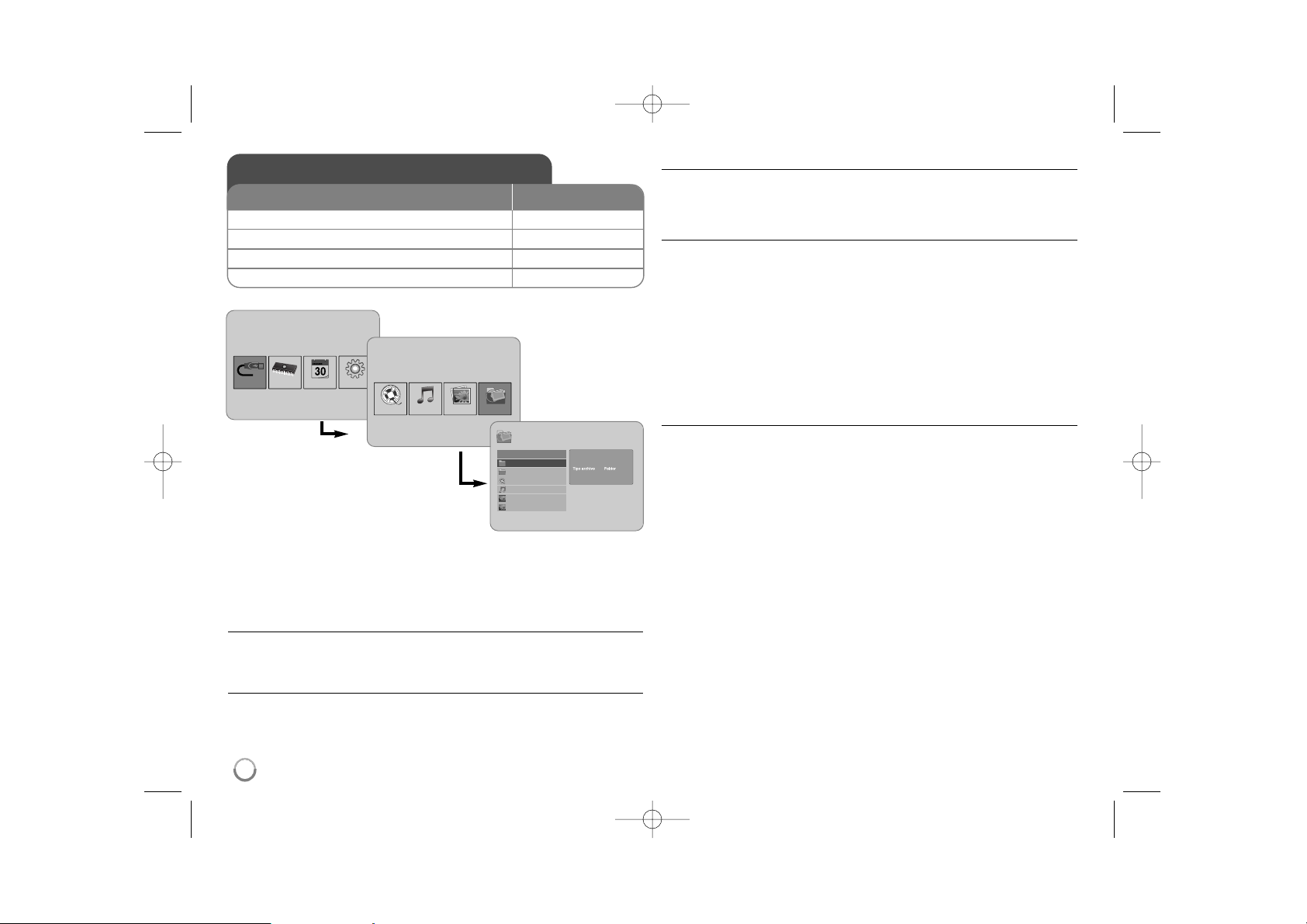

Adjust the settings - more you can do

To display the [Setup] menu

Use b VOLUME B to select the [Setup] option on the [Device Menu] then press ENTER.

[Language]

Select a language for the Setup menu and on-screen display.

[Slideshow time]

Specify how long each picture is displayed in a slideshow; 3 seconds, 5 seconds, 15 seconds, 1 minutes, 15 minutes, 1 hour.

Device Menu

USB-C Flash SetupCalendar

Device Menu

USB-C Flash SetupCalendar

Setup

Language Slideshow time 5s: Slideshow mode Random: Display mode Normal: Time format 24h: Time 2007 / 11 / 22 21 : 17: Auto On 2007 / 11 / 22 00 : 00 Off: Auto Off 2007 / 11 / 22 00 : 00 Off: Alarm 00 : 00 Ring1 Off: Default Reset:

English

Adjust the settings

1 Select [Setup] on the [Device Menu]:

VOLUME BB, ENTER

2 Select a desired option:

PAGE

3 Change the setting:

VOLUME

BUTTON

PF391P-P-AESPLLW-ENG 11/19/07 4:34 PM Page 7

[Slideshow mode]

Specify the transition style between pictures in a slideshow; Random, Fading, Off, Bottom-To-Top, Top-To-Bottom, Left-To-Right, Right-To-Left, Door-Close, Door-Open, Hori-Cross, Verti-Cross. If you select [Off], the slideshow does not work and the screen is fixed with one picture.

[Display mode]

Specify the display mode for viewing photo file; Normal, Fit. [Normal]: Retains the original aspect ratio of the image. [Fit]: Optimizes the image to fit the screen

[Time format]

Specify the time format for displaying the clock ; 12h, 24h [12h]: 12-hour display type with am or pm [24h]: 24-hour display type without am or pm

[Time]

Specify the time and date of the unit to use the various timer features of the unit.

1. Select [Time] option then press VOLUME B.

2. Enter the necessary information for date and time.

b VOLUME B (left/right): Moves the cursor to the previous or next column. b PAGE B (up/down): Changes the setting at the current cursor position.

3. Press ENTER to confirm your setting.

[Auto On]

Specify when the unit turns on automatically.

1. Select [Auto On] option then press VOLUME B.

2. Follow step 2 as shown in [Time] above.

3. Choose a desired repeat mode; [Off], [Once] or [Everyday].

Select [Off] if you do not use this function.

4. Press ENTER to confirm your setting.

[Auto Off]

Specify when the unit turns off automatically.

1. Select [Auto Off] option then press VOLUME B.

2. Follow step 2 as shown in [Time] above.

3. Choose a desired repeat mode; [Off], [Once] or [Everyday]. Select [Off] if you do not use this function.

4. Press ENTER to confirm your setting.

[Alarm]

Specify the clock for alarm function. If you set the alarm, the unit will be turned on automatically at the alarm time and the alarm will sound. To turn off the alarm sound, press any button on the unit.

1. Select [Alarm] option then press VOLUME B.

2. Enter the necessary information for clock.

b VOLUME B (left/right): Moves the cursor to the previous or next column. b PAGE B (up/down): Changes the setting at the current cursor position.

3. Choose a ring option; [Ring1], [Ring2] or [Ring3]. For example, if you select [Ring2]; Alarm sound (1 min.) c Mute (15 sec.) c Alarm sound (1 min.) c Mute (15 sec.) c Normal mode

4. Choose a desired repeat mode; [Off], [Once] or [Everyday]. Select [Off] if you do not use this function. [Off]: Alarm function is not activated. [Once]: Alarm function is activated once after setting the alarm. [Everyday]: Alarm function is activated everyday.

5. Press ENTER to confirm your setting.

[Default]

Reset the unit to its original factory settings. Select [Default] option then press

ENTER.

PF391P-P-AESPLLW-ENG 11/19/07 4:34 PM Page 8

Viewing a Photo file - more you can do

Viewing photo files as a slideshow

On the [Photo] menu, use b VOLUME B and b PAGE B to select a photo file then press NX to start the slideshow. Press NX to pause the slideshow temporarily, press again to exit pause mode.

Options during viewing a photo file in full screen

You can use various features during viewing a picture in full screen.

1. Press MENU to display the option menu.

2. Use b VOLUME B and ENTER to select an option and execute it.

To view the previous photo file.

To start the slideshow.

To pause the slideshow.

To view the next photo file.

To rotate the photo in 90 degrees clockwise. Press ENTER repeatedly to select a degrees.

To stop viewing the photo in full screen and returns to [Photo] menu.

To enlarge the photo image. Press ENTER repeatedly to select a zoom mode or normal mode.

To switch on or off the clock display.

To adjust the brightness of the screen. Press ENTER and the brightness menu will appear, and use b VOLUME B to adjust the brightness then press ENTER.

You can listen to music during slideshow, if the current media contain music and photo files together. Press ENTER and will appear lowerright side of the screen. To exit this function, press ENTER again.

3. Use MENU to exit the option menu.

Photo file requirement

JPEG file compatibility with this unit is limited as follows:

• File extensions: “.jpg”

• Photo size: Less than 8,000 x 8,000 (W x H) pixel (baseline) Less than 100,000 pixel (progressive)

• Maximum Files/Media: Less than 650 recommended

Notes on JPEG file

• Lossless compression JPEG image files are not supported.

• Depending on the size and number of the JPEG files, it may take several minutes to read the contents of the media.

Viewing a Photo file

1 Select a device on the [Device Menu]:

VOLUME BB, ENTER

2 Select [Photo] on the [Media Menu]:

VOLUME BB, ENTER

3 Select a photo file on the [Photo] menu:

VOLUME BB,

PAGE

4 Display the selected file in full screen: ENTER, NX 5 To return to the [Photo] menu: BACK

BUTTON

Device Menu

USB-C Flash SetupCalendar

Media Menu

Movie

Music


File


1/2

DSC_0029.jpg 2007/11/22 12:00:00

PF391P-P-AESPLLW-ENG 11/19/07 4:34 PM Page 9

Playing a Movie file - more you can do

Options during playing a movie file

You can use various features during playing a movie file.

1. Press MENU to display the option menu during playback.

2. Use b VOLUME B and ENTER to select an option and execute it. To return to the beginning of the current file. Press ENTER twice briefly

to play the previous movie file.

To play fast reverse during playback. To change the various playback speed, press ENTER repeatedly.

To start playback.

To pause playback.

To play fast forward during playback. To change the various playback speed, press ENTER repeatedly.

To play the next movie file.

To stop playback and returns to [Movie] menu.

To select a repeat mode (TRACK, ALL, OFF).

To enlarge the video image. Press ENTER repeatedly to select a zoom mode or normal mode.

To switch on or off the clock display.

To adjust the brightness of the screen. Press ENTER and the brightness control menu will appear, and use b VOLUME B to adjust the brightness then press ENTER.

3. Use MENU to exit the option menu.

Movie file requirement

Movie file compatibility with this unit is limited as follows:

• Available resolution size: 720x576 (W x H) pixel.

• Bit rate: Less than 15 Mbps

• Movie file extensions: “.avi”, “.mpg”, “.mpeg”

• This unit does not support to display the subtitle of the movie file.

• Playable Codec format: “MPEG1”, “MPEG2”, “MJPEG”

• Playable Audio format: “MPEG1”, “MPEG2”, “MPEG3”, “PCM”

• “Not Support” will appear on the screen if the movie file is not playable.

• Maximum Files/Media: Less than 650 recommended

Playing a Movie file

1 Select a device on the [Device Menu]:

VOLUME BB, ENTER

2 Select [Movie] on the [Media Menu]:

VOLUME BB, ENTER

3 Select a movie file on the [Movie] menu:

PAGE

4 Start playback: ENTER, NX 5 To return to the [Movie] menu: BACK

BUTTON

Device Menu

USB-C Flash SetupCalendar

Media Menu

Movie

Music


File

Movie

Movie 1.avi

Movie 2.avi Movie 3.avi Movie 4.avi Movie 5.avi Movie 6.avi Movie 7.avi

File Name Movie 1.avi

File Size 14MB

File Type AVI

PF391P-P-AESPLLW-ENG 11/19/07 4:34 PM Page 10

+ 22 hidden pages
