LG PD239P User manual

Owner’s manual
Bluetooth®
Please read this manual carefully before operating your device.
MODEL :
PD239W/ PD239P/ PD239Y/ PD239TW/ PD239TP/
PD239TY/ PD239SP
The actual device may dier from the image.
Safety information
CAUTION
RISK OF ELECTRIC SHOCK
DO NOT OPEN
CAUTION: TO REDUCE THE RISK OF ELECTRIC SHOCK DO NOT REMOVE COVER (OR BACK) NO USER­SERVICEABLE PARTS INSIDE REFER SERVICING TO QUALIFIED SERVICE PERSONNEL.
This lightning ash with arrowhead symbol within an equilateral triangle is intended to alert the user to the presence
the product’s enclosure that may be of sucient magnitude to constitute a risk of electric shock to persons.
instructions in the literature accompanying the product.
2
of uninsulated dangerous voltage within
The exclamation point within an equilateral triangle is intended to alert the user to the presence of important operating and maintenance (servicing)
WARNING: TO PREVENT FIRE OR ELECTRIC SHOCK HAZARD, DO NOT EXPOSE THIS PRODUCT TO RAIN OR MOISTURE.
WARNING: Do not install this equipment in a conned space such as a book case or similar unit.
CAUTION: Do not block any ventilation openings. Install in accordance with the manufacturer’s instructions. Slots and openings in the cabinet are provided for ventilation and to ensure reliable operation of the product and to protect it from over heating. The openings shall never be blocked by placing the product on a bed, sofa, rug or other similar surface. This product shall not be placed in a built­in installation such as a bookcase or rack unless proper ventilation is provided or the manufacturer’s instruction has been adhered to.
CAUTION concerning the Power Cord
Most appliances recommend they be placed upon a dedicated circuit;
That is, a single outlet circuit which powers only that appliance and has no additional outlets or branch circuits. Check the specication page of this owner’s manual to be certain. Do not overload wall outlets. Overloaded wall outlets, loose or damaged wall outlets, extension cords, frayed power cords, or damaged or cracked wire insulation are dangerous. Any of these conditions could result in electric shock or re. Periodically examine the cord of your appliance, and if its appearance indicates damage or deterioration, unplug it, discontinue use of the appliance, and have the cord replaced with an exact replacement part by an authorized service center. Protect the power cord from physical or mechanical abuse, such as being twisted, kinked, pinched, closed in a door, or walked upon. Pay particular attention to plugs, wall outlets, and the point where the cord exits the appliance. To disconnect power from the mains, pull out the mains cord plug. When installing the product, ensure that the plug is easily accessible.
This device is equipped with a portable battery or accumulator.
Safety way to remove the battery or the battery from the equipment: Remove the old battery
or battery pack, follow the steps in reverse order than the assembly. To prevent contamination of the environment and bring on possible threat to human and animal health, the old battery or the battery put it in the appropriate container at designated collection points. Do not dispose of batteries or battery together with other waste. It is recommended that you use local, free reimbursement systems for batteries and accumulators. The battery shall not be exposed to excessive heat such as sunshine, re or the like.
NOTICE: For safety making information including product identication and supply ratings, please refer to the main label inside the apparatus.
NOTICE: Only use the AC adaptor supplied with this device. Do not use a power supply from another device or another manufacturer. Using any other power cable or power supply may cause damage to the device and void your warranty.
3
CAUTION:
yThe apparatus should not be exposed to water
(dripping or splashing) and objects lled with liquids, such as vases, shouldn’t be placed on the apparatus.
yMinimum distance around the apparatus for
sucient ventilation, no less than 5 cm.
yThe ventilation should not be impeded by
covering the ventilation openings with items, such as newspapers, table-cloth, curtains etc.
yNo naked ame sources, such as lighted candles,
should be placed on the apparatus.
yThe unit’s internal lithium battery should only be
serviced by an authorised service centre.
4
Note
,
Device operating temperature
When operating in cold weather, the device shall not print. Bring it inside from the cold and give about 10 min to adjust to the specied operating temperature (5 °C - 40 °C). Then try printing again. (For the appropriate use, it is recommended not to operate it outdoors in winter.)
Caution
>
CAUTION when using this product in environments of low humidity
yIt may cause static electricity in
environments of low humidity.
yIt is recommended to use this product after
touching any metal object which conducts electricity.
Contents
Safety information ......................2
STEP 1 Getting Started ..................6
Supplied items............................6
Product Overview.........................6
Power On / O ............................7
STEP 2 Charging Battery .................7
STEP 3 Inserting Photo Paper ............9
Cleaning printer head using Smart Sheet 10
About photo paper ......................10
Paper Jam Solution ......................12
STEP 4 Installing App ................. 12
Installing App for Android phone ........12
App Setting .............................13
Installing App for iPhone .................14
Setting Bluetooth of iPhone..............14
STEP 5 Printing Photo ................. 15
Printing using Android phone............15
Printing using iPhone ....................19
Using the edit mode .....................21
Notes on the printing ....................21
Checking where to buy paper ...........22
Updating the device .....................22
Checking Label........................ 23
About LED Indicator ...................24
Specications ......................... 26
Troubleshooting ......................28
5
STEP 1 Getting Started
Supplied items
Product Overview
Switch (Power)
Paper exit slot
LG Pocket Photo Printer
USB cable
ZINK Photo Paper
yDepending on the model, supplied items may
dier. (ex. Charger, Photo Paper etc.)
Charger
Simple manual
6
Micro USB port (for recharging)
LED indicator
Paper tray
Reset hole
Upper cover button
Power On / O
On: Slide the switch to direction of the arrow.
O: Slide the switch to the opposite direction.
Note
,
yWhen turning the device on, LED indicator
ashes for 5 sec. Then printing is
available.
yFor more information, see “About LED
indicator”.
STEP 2 Charging Battery
This device uses built-in battery. Before using it, charge the battery in full. (Refer to below)
Battery charging time : 1.5 hours
Checking the charging status with LED indicators
yPower-o
y0 % : ashes for about 30 sec. and turns o. yLG Pocket Photo is always charged when
connected to the power supply except for being printed.
:
Charging : Full charge :
7
Charger (AC Adapter)
yModel : ADS-5MA-06A 05050GPG/ ADS-5MA-06A
05050GPCU/ ADS-5MA-06A 05050GPB/ ADS-5MA­06A 05050GPI/ ADS-5MA-06A 05050GPSA
yManufacturer : SHENZHEN HONOR ELECTRONIC
CO. ,LTD. yInput : 100 - 240 V ~, 50 / 60 Hz Max. 0.3 A yOutput : 5 V 0 1.0 A
Caution
>
yHandle with care during charging to prevent
electric shock.
yDo not place near heating appliance.
yDo not disassemble or deform.
yDo not give shock on.
yAvoid too high or low temperature or
humidity.
8
Note
,
yYou can connect the device to PC using the
supplied USB cable, but charging time can be longer.
yThe operating time on battery may vary
depending on the battery status, operational status and environment conditions.
yWhen the battery is discharged, printing is
available after charging it for more than 10 min. (Charge in full to print in a row.)
STEP 3 Inserting Photo
Paper
1. Open the upper cover.
2. Unwrap the pack of the photo papers.
3. Slide Smart Sheet (Blue) and photo papers together into the Paper insert slot. Smart Sheet will be ejected automatically before rst printing.
yDo not insert more than 1 pack (10 Photo papers
and 1 Smart Sheet). Otherwise 2 papers may be ejected at once or paper jam may occur.
yOnce the pack is unwrap, keep the remaining
papers after using in an airtight plastic bag.
yWhen power is turned on, you cannot open the
upper cover. To open it, turn o the power.
Photo Paper with White side up
Smart Sheet with Barcode side down
9
Cleaning printer head using Smart Sheet
Smart sheet (Cleaner)
When you insert new smart sheet and photo papers, this device scans the barcode of smart sheet to maintain optimized photo paper. (It will be ejected before the rst printing.)
To maintain the best quality, remove foreign material of the head using cleaning feature.
10
Note on Smart sheet
When using Smart Sheet, it should be used with photo papers in the same pouch.
yUsing smart sheet from other pouch may
result in low quality.
yIf print quality is abnormal or low, print
out the smart sheet 3-5 times repeatedly.
yReuse the smart sheet until use up the
photo papers from same pouch.
About photo paper
Photo paper pouch
Use exclusive photo paper for LG Pocket Photo.
Otherwise, the print quality cannot be guaranteed, and it may cause damage of Pocket Photo.
Note on Photo paper
yDo not damage or bend the papers.
yUsing soiled paper may result in malfunction.
yEnsure to use the papers within its valid
date.
yHandle with care not to get dirt on, when
you touch the paper.
yOnce unpacked, the papers may begin to
curl up or discolor after a period of time. It is recommended to use them as soon as possible.
yUsing photo papers from other company
may result in malfunction, paper jam or low quality.
yDo not place inside a car or, expose to direct
sunlight or moisture.
yDo not leave in a place where the
temperature or humidity is too high or low. It may reduce the quality of the printed photo.
11
Paper Jam Solution
Do not pull the paper out. Turn the device o and on again, the paper will be ejected automatically.
yIf there are foreign material or dust on the roller, it
may not be ejected properly. In that case, remove the foreign material of the head with scotch tape rst. And then, clean using smart sheet and try again.
yIf this problem is not solved, please refer to
“Troubleshooting”.
STEP 4 Installing App
Installing App for Android phone
From Play Store (Android market)
Search for “LG Pocket Photo”.
Using QR code
Scan the QR code on the product box.
12
Using NFC
Refer to “Printing using NFC” .
Taging: Tagging for the rst time, it links to Play Store
where you can download LG Pocket Photo App.
Preparation : Before using NFC
To print a photo using NFC, go to [setting] of smart phone and then, activate [Read and Write]mode.
App Setting
Set the options in [
yNFC* : Prints using NFC (NFC-enabled phone only)
yBluetooth : Prints using Bluetooth
yGPS** : Saves the location where you took a photo
* NFC : Near Field Communication ** GPS : Global Positioning System using a satellite
Setting
].
yTo optimize printing photo, activate all modes and
use pocket photo App.
See “Help” for details
For more information about the App, touch [ ]
13
Installing App for iPhone
From App Store
Search for “LG Pocket Photo”.
Using QR code
Scan the QR code on the product box.
Setting Bluetooth of iPhone
1. On your iPhone’s home screen, touch [Settings].
2. Touch “Bluetooth” and touch the slider to turn Bluetooth [On].
3. To connect your Pocket Photo device to the iPhone, turn on your device and make sure it is discoverable mode.
4. When you nd the device, touch the model name of Pocket Photo on the screen.
14
See “Help” for details
For more information about the App, touch [ ].
STEP 5 Printing Photo
Printing using Android phone
Printing using Bluetooth (
Preparation : Turn the device on, and start printing with the LED indicator turning on.

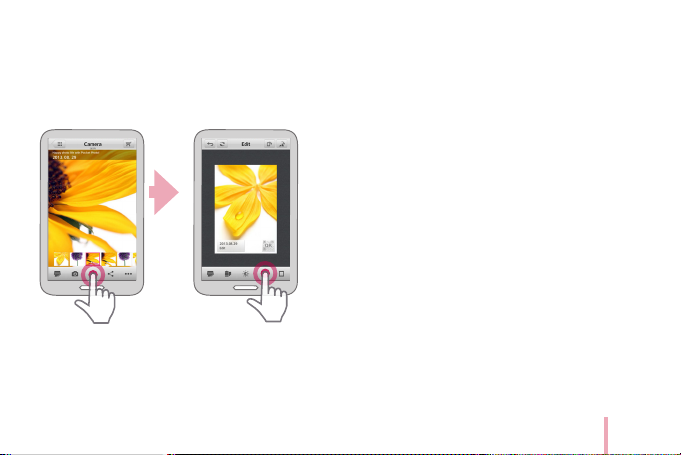

1. Run LG Pocket Photo App on Android phone.
2. Select a photo to print, and touch [ ].
3. Touch [OK], then it will start searching for Bluetooth devices.
yTo print, set print mode or the number of photo
on the preview screen.
4.
When LG Pocket Photo is paired for the rst time, [Bluetooth pairing request] appears. To start printing, touch [Pairing] or input the PIN code ‘0000’.
yIf Smart Sheet is in the device, it will be ejected
before the printing starts.
)
15
Printing using NFC (
NFC
Check whether your Android phone supports NFC rst.
yHow to read NFC tag : Bring your smartphone close
to the NFC tag on the device.
1. Tagging for the rst time, it links to Play Store where you can download LG Pocket Photo App.
2. Go to [
Setting
[NFC].
)
] in the App installed, and check
16
3. Choose a photo to print and tag, then printing is started immediately. From this time, you can run the App and print a photo by just tagging.
Caution
>
yIf NFC tag is not read, check its position on
LG Pocket Photo and smartphone. Then try again. (Depending on the type of smartphone, the position of NFC tag on it may dier.)
yIf your smartphone case is plated with
chrome, NFC is unavailable. Depending on your case’s material or thickness, NFC may not be read well.
yDo not place the smartphone on the pocket
photo when using NFC.(Same image can be printed repeatedly.)
,You can print photos directly from Android
phones or PC via Bluetooth without the App. Choose a photo and select [Bluetooth] in [Share] or [Menu].
Caution
>
yCheck the power of the Pocket Photo, when
your device can not search for Bluetooth device.
yThe photo le less than 10 MB can be printed.
ySetting screen may dier depending on the
phone manufacturer.
yWhen connecting to the other company’s
smartphone, some functions may be limited depending on conditions.
17
Setting Pocket Photo App of Android phone
You can check remaining battery, the number of photos printed, Help, Where to buy paper, device version, update, MAC address, and setting of print mode, etc.
1. Run LG Pocket Photo App on Android phone. (To check [Device information], set to [On] the Bluetooth of smartphone.)
2. Go to
3. Touch [Device Information].
Setting
.
18
[ ] Paper Full
[ ] Image Full
Auto Power O Set a time so that the device
yThe longer time you set [ Auto Power O]
to, the more the battery consumption is. The number of maximum prints may dier.
yIt is recommended to keep default setting of
the device.
Prints without white space. (The edge of the image can be cut o.)
Prints an image as a whole. (White space can occur at the edge of the paper.)
turns itself o. (Default is [5 min]. If you set to [O ], the device can be on for up to 2.5 hours when fully charged.)
Note
,
Printing using iPhone
Printing using Bluetooth (
Preparation : Turn the device on, and start printing with the LED indicator turning on.
1. Run LG Pocket Photo App on iPhone.
2. Select a photo to print, and touch [ ].
3. “Do you want to print?” message appeares. Touch [OK] to start printing.
yTo print set print mode or the number of photo
on the preview screen.
yIf Bluethooth is not connected, “ Paired device
not found” message is appeared. (refer to the Bluetooth setting for iPhone.)
)
yIf Smart Sheet is in the device, it will be ejected
before starting printing.
19
Setting iPhone Pocket Photo App
You can check remaining battery, the number of the photos printed, Help, Where to buy paper, device version, update, MAC address, and setting of print mode, etc.
1. Run LG Pocket Photo App on iPhone. (To check [Device information], set to [On] the Bluetooth of iPhone.)
2. Go to
3. Touch
.
Setting
options to change.
Setting
20
[ ] Paper Full
[ ] Image Full
Auto Power O Set a time so that the device
yThe longer time you set [ Auto Power O]
to, the more the battery consumption is. The number of maximum prints may dier.
yIt is recommended to keep default setting of
the device.
Prints without white space. (The edge of the image can be cut o.)
Prints an image as a whole. (White space can occur at the edge of the paper.)
turns itself o. (Default is [5 min]. If you set to [O ], the device can be on for up to 2.5 hours when fully charged.)
Note
,
Using the edit mode
You can edit a photo quality, color or size using edition tool on the menu.
Use the edit function with a variety of image correction lter
Notes on the printing
yThe printed image may dier from the orginal
image due to the printing method (thermal transfer printing).
yUse the lastest App of LG Pocket Photo ( when
printing a photo, it makes optimized image.)
yThe higher resolution the image has, the higher
quality the printed photo has. (The proper resolution is more than 1280 x 2448 pixel.)
yOnce the battery is fully charged, you can print up
to 30 papers in a row.
yThe maximum prints are based on ISO 24712
Colour image standard and the number of photos printed may vary depending on user enviromental conditions (time, temperture,humidity or printing method).
yIf there are more than a LG Pocket Photo device,
check MAC address on the label to choose one you want to use. (Refer to “Checking Label”.)
yThe Bluetooth searching and transferring may
fail depending on its environment. Check the Bluetooth condition on your phone and try again.
21
yIf pairing multiple smartphone, re-pairing may
occur.
Caution
>
yDo not pull paper out by force during
printing.
yDo not open the upper cover during
printing.
yDo not place an object in front of the Paper
exit slot.
yIf the device is vibrated or given shock, the
quality of the printed photo may be reduced.
yPrinting for Passport / VISA image may be
unsuitable as the case may be. Printing the image taken in studio is recommended.
yThe printing quality may dier depending
on the original image (When too dark or dim). Use the image after correcting it using Pocket photo App.
yPocket photo APP’s resolution is optimized
in 800x480 xel.
22
Checking where to buy paper
1. To check where to buy paper, go to setting or menu screen.
2. After touching [ ], select a country.
Updating the device
You can update the device by pairing smart phone to the latest software to enhance the products operation and /or add new features.
1. Connect the device and smart phone via Bluetooth.
2. Run the Pocket Photo App and then, touch [Setting] menu.
3. The current version and higher version are shown if new version is existed.
4. Touch [Update]button to update the device.
Note
,
yDuring the device update procedure, do
not turn o the power or press Reset button.
yThis device cannot be updated to previous
version.
yIf there is no higher version, the Message
[This is the lastest version.] appears.
Checking Label
In case there are more than a LG Pocket Photo device, check MAC address on the product label to choose one you want to use.
1. Open the upper cover.
23
2. You can nd the product label.
Note
,
When power is turned on, you cannot open the upper cover. To open it, turn o the power.
About LED Indicator
The LED indicators shows the device condition.
LED color
Condition/
Power
Waiting/
On
Description
Waits for printing. Device turns itself o, if it is left unused for a while.
24
Updating/
Blink
Updating or turning on or power o (Auto)
To print, turn on the
O
device.
Error/ blink Update Failed
Charging
To print, turn on the device.
Battery is high
temperature
(above 45 °C)
Error/Blink
Low battery/
Blink
While continuous printing, battery temperature is overheated. (Wait for a while.)
No paper, Paper jam, Cancelled, Opened, Low/high temperature, Unsupported le format
To print, charge the device.
Full charge Battery is fully charged.
Charge the
battery
Remaining battery is less than 30%
25
26
Printing/ Blink
Cooling mode/
Blink
Transferring data via Bluetooth or Printing
After continuous printing the device may automatically cool down its internal temperature. Wait for a while to print again.
Specications
Photo size
Image le type/ size
Media paper used
Media paper storage environment
Device operation environment
Optimum print environment
50 mm x 76 mm (Dot size : 640 x 1224)
PNG (Max: 1350x1050), JPEG (Baseline) / less than 10 MB (Progressive JPEG is not supported.)
ZINKTM Photo Paper (exclusive for LG)
Temperature : 20 - 25 °C Humidity : 40 - 55 % RH
Temperature : 5 - 40 °C Humidity : less than 70 % (35 °C) (An temperature limitation message appears on the App.)
Temperature : 15 - 32 °C Humidity : less than 70 % (32 °C)
Power / Waiting / Bluetooth
LED indicator
Communication
External connector
Bus Power Supply (USB)
Battery life
Power supply AC adapter (DC 5 V 0 1.0 A)
Image resolution
Dimensions (W x D x H)
Net Weight 202 g
transmitting / Charged / Discharged / Error / Condition of printer/ Update
Bluetooth 4.0
Micro USB port for charging battery
(Adapter) DC 5 V 0 1.0 A
500 mAh Li-Polymer rechargeable battery
More than 1280 x 2448 pixels
76 mm x 126 mm x 20 mm
yYour phone may be incompatible with the device
depending on its manufacturer, environment or (Android or iOS) operating system.
yDesign and specications are subject to change
without prior notice.
yAll other product and brand names are trademarks
or registered trademarks of their respective owners.
27
Troubleshooting
Symptom Cause / Solution
No power The battery is discharged.
Bluetooth paring does not work well.
28
Be sure the device is connected to charger or PC properly when charging.
Switch Bluetooth o and on again on your smartphone, then pair with the device in the smartphone’s settings.
Turn on the device and try printing (pairing) again in 5 sec.
Be sure the device is on.
The paper is jammed before printing.
The paper is jammed during printing.
The printed photo has lines.
No or incomplete image is printed.
The edge of the image on the photo is cut o.
1. Turn the device o and on again then paper is ejected automatically.
2. If above solution does not work, open the Upper cover and arrange the papers. Then insert them with Smart Sheet (Blue) or pull the paper out slowly and gently.
Open the Upper cover, arrange the papers and insert them with Smart Sheet locating at the bottom. Then try printing again. (To open the Upper cover, refer to “Checking Label”.
Set Print mode to [ ] in the App’s setting then the image is printed as a whole.
White space appears at the edge of the paper.
When print mode is set to [ ] , white space may
appears if the aspect ratio of the paper and your image is not the same. When print mode is set to
[ ] , the edge of the image
can be cut o or white space
at the edge of the paper may appear.
Quality of printed photo is too low.
In case you magnify an image using [ ] menu in the App,
the quality of the printed photo may be reduced.
Turn o the device and insert Smart Sheet locating at the bottom of the papers. Then try printing again.
Be sure the photo size is bigger than the proper resolution.(1280 x 2448 pixels)
When using Smart Sheet, it should be used with photo papers in the same pouch.
If you use other company’s photo paper, it cannot be guaranteed for print quality or damage of pocket photo.
29
Device does not print.
Device is turned o automatically.
Above solutions do not work.
30
Preheating is needed. Wait for about 2 min.
Be sure there are papers in the device.
It may take time to print after Smart Sheet is ejected.
Be sure the photo le is less than 10 MB. Only baseline JPEG, PNG (Max: 1350x1050) format is supported.
Check [Auto Power O] time in the App’s setting.
Press Reset hole with a pointed thing like mechanical pencil to initialize.
Loading...
