LG 50PJ350, PB02A Schematic

PLASMA TV

SERVICE MANUAL

CAUTION

BEFORE SERVICING THE CHASSIS, READ THE SAFETY PRECAUTIONS IN THIS MANUAL.

CHASSIS : PB02A

MODEL : 50PJ350 50PJ350-SA

North/Latin America http://aic.lgservice.com Europe/Africa http://eic.lgservice.com Asia/Oceania http://biz.lgservice.com

Internal Use Only

Printed in Korea

P/NO : MFL63140202(1004-REV00)

- 2 -

Only for training and service purposes

CONTENTS

CONTENTS ............................................................................................................................... 2

SAFETY PRECAUTIONS ...........................................................................................................3

SPECIFICATION.........................................................................................................................4

ADJUSTMENT INSTRUCTION ..................................................................................................8

BLOCK DIAGRAM ...................................................................................................................15

EXPLODED VIEW ...................................................................................................................16

SVC. SHEET ................................................................................................................................

- 3 -

Only for training and service purposes

SAFETY PRECAUTIONS

Many electrical and mechanical parts in this chassis have special safety-related characteristics. These parts are identified by in the Schematic Diagram and Exploded View. It is essential that these special safety parts should be replaced with the same components as recommended in this manual to prevent X-RADIATION, Shock, Fire, or other Hazards. Do not modify the original design without permission of manufacturer.

General Guidance

An isolation Transformer should always be used during the servicing of a receiver whose chassis is not isolated from the AC power line. Use a transformer of adequate power rating as this protects the technician from accidents resulting in personal injury from electrical shocks.

It will also protect the receiver and it's components from being damaged by accidental shorts of the circuitry that may be inadvertently introduced during the service operation.

If any fuse (or Fusible Resistor) in this monitor is blown, replace it with the specified.

When replacing a high wattage resistor (Oxide Metal Film Resistor, over 1W), keep the resistor 10mm away from PCB.

Keep wires away from high voltage or high temperature parts.

Due to high vacuum and large surface area of picture tube, extreme care should be used in handling the Picture Tube. Do not lift the Picture tube by it's Neck.

Leakage Current Cold Check(Antenna Cold Check)

With the instrument AC plug removed from AC source, connect an electrical jumper across the two AC plug prongs. Place the AC switch in the on position, connect one lead of ohm-meter to the AC plug prongs tied together and touch other ohm-meter lead in turn to each exposed metallic parts such as antenna terminals, phone jacks, etc. If the exposed metallic part has a return path to the chassis, the measured resistance should be between 1MΩ and 5.2MΩ. When the exposed metal has no return path to the chassis the reading must be infinite. An other abnormality exists that must be corrected before the receiver is returned to the customer.

Leakage Current Hot Check (See below Figure)

Plug the AC cord directly into the AC outlet.

Do not use a line Isolation Transformer during this check.

Connect 1.5K/10watt resistor in parallel with a 0.15uF capacitor between a known good earth ground (Water Pipe, Conduit, etc.) and the exposed metallic parts. Measure the AC voltage across the resistor using AC voltmeter with 1000 ohms/volt or more sensitivity. Reverse plug the AC cord into the AC outlet and repeat AC voltage measurements for each exposed metallic part. Any voltage measured must not exceed 0.75 volt RMS which is corresponds to 0.5mA. In case any measurement is out of the limits specified, there is possibility of shock hazard and the set must be checked and repaired before it is returned to the customer.

Leakage Current Hot Check circuit

1.5 Kohm/10W

To Instrument's exposed METALLIC PARTS

Good Earth Ground such as WATER PIPE, CONDUIT etc.

AC Volt-meter

IMPORTANT SAFETY NOTICE

0.15uF

- 4 -

Only for training and service purposes

SPECIFICATIONS

NOTE : Specifications and others are subject to change without notice for improvement

.

1. Application Range

(1) This spec sheet is applied all of PDP TV with PB02A chassis.

2. Specification

Each part is tested as below without special appointment. (1) Temperature : 25 °C ± 5 °C (77 °F ± 9 °F), CST : 40 °C ± 5 °C (2) Relative Humidity : 65 % ± 10 % (3) Power Voltage : Standard input voltage (100 V - 240 V ~ 50 / 60 Hz)

* Standard Voltage of each product is marked by models

(4) Specification and performance of each parts are followed each drawing and specification by part number in accordance with

BOM.

(5) The receiver must be operated for about 5 minutes prior to the adjustment.

3. Test Method

(1) Performance : LGE TV test method followed. (2) Demanded other specification

Safety : UL, CSA, IEC specification, CE EMC : FCC, ICES, IEC specification, CE

Model Name Market Brand 50PJ350-SA Brazil LG

Model Name Market Appliance 50PJ350-SA Brazil Safety : IEC/EN60065

- 5 -

Only for training and service purposes

4. General Specification

No Item Specification Remark

1. Receiving System 1) SBTVD / NTSC / PAL-M / PAL-N

2. Available Channel 1) VHF : 02~13

2) UHF : 14~69

3) DTV : 07-69 (VHF high/UHF)

4) CATV : 02~135

3. Input Voltage 1)AC 100 ~ 240V 50/60Hz

4. Market BRAZIL

5. Screen Size 127 cm (50 inch) Wide(1365 X 768) 50PJ350-SA, 50PJ250-SA 106 cm (42 inch) Wide(1024 X 768) 42PJ350-SA, 42PJ250-SA

42PJ230-SB

6. Aspect Ratio 16:9

7. Tuning System FS

8. Module PDP50T1#### (1365 X 768) 50PJ350-SA, 50PJ250-SA PDP42T1#### (1024 X 768) 42PJ350-SA, 42PJ250-SA

42PJ230-SB

9. Operating Environment 1) Temp : 0 deg ~ 40 deg

2) Humidity : ~ 80 %

10. Storage Environment 1)Temp : -20 deg ~ 60 deg

2) Humidity : 0 ~ 90 %

- 6 -

Only for training and service purposes

No Resolution H-freq(kHz) V-freq.(Hz) Pixel clock(MHz) Proposed

PC DDC

1. 640*350 31.468 70.09 25.17 EGA X

2. 720*400 31.469 70.08 28.32 DOS 0

3. 640*480 31.469 59.94 25.17 VESA(VGA) 0

4. 800*600 37.879 60.31 40.00 VESA(SVGA) 0

5. 1024*768 48.363 60.00 65.00 VESA(XGA) 0

6. 1280*768 47.776 59.870 79.5 CVT(WXGA) 0

7. 1360*768 47.712 60.015 85.50 VESA (WXGA) 0

8. 1280*1024 63.981 60.020 108.00 VESA (SXGA) 0

9. 1600*1200 75.00 60.00 162 VESA (UXGA) 0

10 1920*1080 67.5 60 148.5 HDTV 1080P 0

6. RGB Input (PC)

No Resolution H-freq(kHz) V-freq.(Hz) Pixel clock(MHz) Proposed

1. 720*480 15.73 60 13.5135 SDTV ,DVD 480I

2. 720*480 15.73 59.94 13.5 SDTV ,DVD 480I

3. 720*480 31.50 60 27.027 SDTV 480P

4. 720*480 31.47 59.94 27.0 SDTV 480P

5. 1280*720 45.00 60.00 74.25 HDTV 720P

6. 1280*720 44.96 59.94 74.176 HDTV 720P

7. 1920*1080 33.75 60.00 74.25 HDTV 1080I

8. 1920*1080 33.72 59.94 74.176 HDTV 1080I

9. 1920*1080 67.50 60 148.50 HDTV 1080P

10. 1920*1080 67.432 59.94 148.352 HDTV 1080P

11. 1920*1080 27.00 24.00 74.25 HDTV 1080P

12. 1920*1080 26.97 23.976 74.176 HDTV 1080P

13. 1920*1080 33.75 30.00 74.25 HDTV 1080P

14. 1920*1080 33.71 29.97 74.176 HDTV 1080P

5. Component Input (Y, CB/PB, CR/PR)

- 7 -

Only for training and service purposes

No Resolution H-freq(kHz) V-freq.(Hz) Pixel clock(MHz) Proposed

PC DDC 1 640*350 31.468 70.09 25.17 EGA X 2 720*400 31.469 70.08 28.32 DOS 0 3 640*480 31.469 59.94 25.17 VESA(VGA) 0 4 800*600 37.879 60.31 40.00 VESA(SVGA) 0 5 1024*768 48.363 60.00 65.00 VESA(XGA) 0 6 1280*768 47.776 59.870 79.5 CVT(WXGA) 0 7 1360*768 47.712 60.015 85.50 VESA (WXGA) 0 8 1280*1024 63.981 60.020 108.00 VESA (SXGA) 0 9 1600*1200 75.00 60.00 162 VESA (UXGA) 0

10 1920*1080 67.5 60 148.5 HDTV 1080P 0

DTV 1 720*480 31.50 60 27.027 SDTV 480P 2 720*480 31.47 59.94 27.00 SDTV 480P 3 1280*720 45.00 60.00 74.25 HDTV 720P 4 1280*720 44.96 59.94 74.176 HDTV 720P 5 1920*1080 33.75 60.00 74.25 HDTV 1080I 6 1920*1080 33.72 59.94 74.176 HDTV 1080I 7 1920*1080 67.50 60 148.50 HDTV 1080P 8 1920*1080 67.432 59.94 148.352 HDTV 1080P 9 1920*1080 27.00 24.00 74.25 HDTV 1080P

10 1920*1080 26.97 23.976 74.176 HDTV 1080P 11 1920*1080 33.75 30.00 74.25 HDTV 1080P 12 1920*1080 33.71 29.97 74.176 HDTV 1080P

7. HDMI Input(PC/DTV)

- 8 -

Only for training and service purposes

ADJUSTMENT INSTRUCTION

1. Application Range

This spec. sheet applies to PB02A Chassis applied PDP TV all models manufactured in TV factory.

2. Specification

(1) Because this is not a hot chassis, it is not necessary to use

an isolation transformer. However, the use of isolation transformer will help protect test instrument.

(2) Adjustment must be done in the correct order. But it is

flexible when its factory local problem occurs.

(3) The adjustment must be performed in the circumstance of

25 cC ± 5 cC of temperature and 65 % ± 10 % of relative

humidity if there is no specific designation.

(4) The input voltage of the receiver must keep 100 V - 240 V,

50 / 60 Hz.

(5) Before adjustment, execute Heat-Run for 5 minutes.

V After Receive 100% Full white pattern (06CH) then

process Heat-run

(or “8. Test pattern” condition of Ez-Adjust status)

V How to make set white pattern

1) Press Power ON button of Service Remocon

2) Press ADJ button of Service remocon. Select “10. Test pattern” and, after select “White” using navigation button, and then you can see 100% Full White pattern.

* In this status you can maintain Heat-Run useless any

pattern generator

* Notice: if you maintain one picture over 20 minutes

(Especially sharp distinction black with white pattern – 13Ch, or Cross hatch pattern – 09Ch) then it can appear image stick near black level.

3. Adjustment items

3-1. PCB Assembly adjustment

(1) Adjust 480i Comp1 (2) Adjust 1080p Comp1/RGB

- If it is necessary, it can adjustment at Manufacture Line

- You can see set adjustment status at “9. ADJUST CHECK” of the “In-start menu”

3-2. Set Assembly Adjustment

(1) EDID (The Extended Display Identification Data ) (2) Color Temperature (White Balance) Adjustment (3) Make sure RS-232C control (4) Selection Factory output option

4. PCB Assembly Adjustment

4-1. Using RS-232C

- Adjust 3 items at 3-1 PCB assembly adjustments “ (3) Adjustment sequence” one after the order.

(1) Adjustment protocol

(2) Necessary items before Adjustment items

O Pattern Generator : (MSPG-925FA) O Adjust 480i Comp1

(MSPG-925FA:model :209, pattern :65) – Comp1 Mode

O Adjust 1080p Comp1

(MSPG-925FA:model :225 , pattern :65) – Comp1 Mode

O Addjust RGB (MSPG-925FA:model :225 , pattern :65)

– RGB-PC Mode

* If you want more information then see the below Adjustment

method (Factory Adjustment)

(3) Adjustment sequence

O aa 00 00: Enter the ADC Adjustment mode. O xb 00 40: Change the mode to Component1 (No actions) O ad 00 10: Adjust 480i Comp O ad 00 10: Adjust 1080p comp O xb 00 60: Change to RGB-PC mode(No action) O ad 00 10: Adjust 1080p RGB O xb 00 90: Endo of Adjustmennt

< See ADC Adjustment RS232C Protocol_Ver1.0 >

5. Factory Adjustment

-> PB02A : USE INTERNAL ADC(S7) : using internal pattern.

5-1. Auto Adjust Component

480i/1080p RGB 1080p

(1) Summary : Adjustment component 480i/1080i and RGB

1080p is Gain and Black level setting at Analog to Digital converter, and compensate the RGB deviation

(2) Using instrument

1) Adjustment remocon, 801GF(802B, 802F, 802R) or MSPG925FA pattern generator

(It can output 480i/1080i horizontal 100 % color bar pattern signal, and its output level must setting

0.7 V ± 0.1 V p-p correctly)

* You must make it sure its resolution and pattern cause every

instrument can have different setting

2) Adjustment method 480i Comp1, Adjust 1080p Comp1/RGB (Factory adjustment)

O ADC 480i Component1 adjustment -

- Check connection of Component1

- MSPG-925FA Ë Model: 209, Pattern 65

O Set Component 480i mode and 100% Horizontal

Color Bar Pattern(HozTV31Bar), then set TV set to Component1 mode and its screen to “NORMAL”

O ADC 1080p Component1 / RGB adjustment

- Check connection both of Component1 and RGB

- MSPG-925FA Ë Model: 225, Pattern 65

O Set Component 1080p mode and 100% Horizontal

Color Bar Pattern(HozTV31Bar), then set TV set to Component1 mode and its screen to “NORMAL”

O After get each the signal, wait more a second and

enter the “IN-START” with press IN-START key of Service remocon. After then select “7. External ADC” with navigator button and press “Enter”.

O After Then Press key of Service remocon “Right

Arrow(VOL+)”

O You can see “ADC Component1 Success” O Component1 1080p, RGB 1080p Adjust is same

method.

O Component 1080p Adjustment in Component1 input

mode

O RGB 1080p adjustment in RGB input mode O If you success RGB 1080p Adjust. You can see “ADC

RGB-DTV Success”

Caution : Set Volume 0 after adjustment

5-2. Use Internal ADC(S7)

- ADJ(EZ ADJUST) -> 6.ADC Calibration -> ADC Calibration(START)

5-3. EDID(The Extended Display

Identification Data) / DDC(Display Data Channel) download

(1) Summary

1) It is established in VESA, for communication between PC and Monitor without order from user for building user condition. It helps to make easily use realize “Plug and Play” function.

2) For EDID data write, we use DDC2B protocol.

5-4. Auto Download

(1) After enter Service Mode by pushing “ADJ” key, (2) Enter EDID D/L mode. (3) Enter “START” by pushing “OK” key.

Caution

- Never connect HDMI & D-sub Cable when the user downloading .

- Use the proper cables below for EDID Writing.

- 9 -

Only for training and service purposes

< Adjustment pattern : 480i / 1080p 60Hz Pattern >

* Edid data and Model option download(RS232)

5-5. Manual Download

(1) Write HDMI EDID data

1) Using instruments

- Jig. (PC Serial to D-Sub connection) for PC, DDC adjustment.

- S/W for DDC recording (EDID data write and read)

- D-sub jack

- Additional HDMI cable connection Jig.

2) Preparing and setting.

- Set instruments and Jig. Like pic.5), then turn on PC and Jig.

- Operate DDC write S/W (EDID write & read)

- It will operate in the DOS mode.

- EDID data (Model name = LG TV)

- 2010 EDID DATA CHECK SUM.

- 10 -

Only for training and service purposes

BLOCK(0) BLOCK(1)

HD HDMI1 3B 2C

HDMI2 3B 1C HDMI3 3B 0C

RGB A3 25

FHD HDMI1 3B 2C

HDMI2 3B 1C HDMI3 3B 0C HDMI4 3B FC

RGB A3 25

< For write EDID data, setting Jig and another instruments >

* See Working Guide if you want more information about EDID

communication.

5-6. Adjustment Color Temperature

(White balance)

(1) Using Instruments

1) Color Analyzer: CA-210 (CH 9)

- Using LCD color temperature, Color Analyzer (CA-

210) must use CH 9, which Matrix compensated (White, Red, Green, Blue compensation) with CS-

2100. See the Coordination bellowed one.

2) Auto-adjustment Equipment (It needs when Autoadjustment – It is availed communicate with RS-232C : Baud rate: 115200)

3) Video Signal Generator MSPG-925F 720p, 216Gray (Model: 217, Pattern 78)

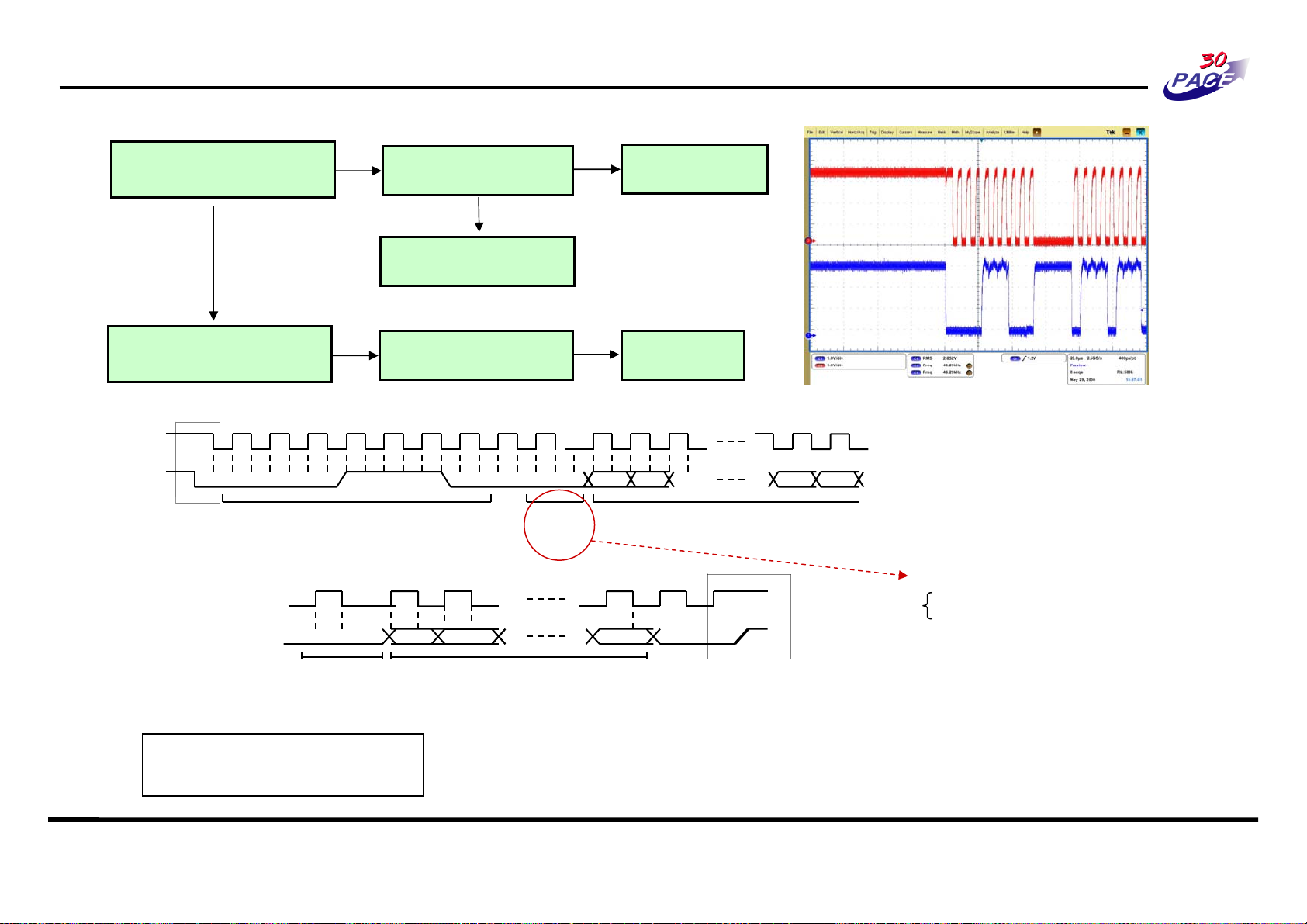

(2) Connection Diagram (Auto Adjustment)

1) Using Inner Pattern

2) Using HDMI input

(3) White Balance Adjustment

- If you can’t adjust with inner pattern, then you can adjust it using HDMI pattern. You can select option at “Ez-Adjust Menu – 7. White Balance” there items “NONE, INNER, HDMI”. It is normally setting at inner basically. If you can’t adjust using inner pattern you can select HDMI item, and you can adjust.

- In manual Adjust case, if you press ADJ button of service remocon, and enter “Ez-Adjust Menu – 7. White Balance”, then automatically inner pattern operates. (In case of “Inner” originally “Test-Pattern. On” will be selected in The “Test-Pattern. On/Off”.

O Connect all cables and equipments like Pic.5) O Set Baud Rate of RS-232C to 115200. It may set

115200 orignally.

O Connect RS-232C cable to set O Connect HDMI cable to set

V RS-232C COMMAND(Commonly apply)

O wb 00 00”: Start Auto-adjustment of white balance. O “wb 00 10”: Start Gain Adjustment (Inner pattern) O “jb 00 c0” : O … O “wb 00 1f”: End of Adjustment

* If it needs, offset adjustment (wb 00 20-start, wb 00 2f-

end)

O “wb 00 ff”: End of white balance adjustment (inner

pattern disappear)

- 11 -

Only for training and service purposes

RS-232C COMMAND [CMD ID DATA] Meaning wb 00 00 White Balance adjustment start. wb 00 10 Start of adjust gain

(Inner white pattern) wb 00 1f End of gain adjust wb 00 20 Start of offset adjust

(Inner white pattern) wb 00 2f End of offset adjust wb 00 ff End of White Balance adjust

(Inner pattern disappeared)

< Connection Diagram for Adjustment White balance >

V Adjustment Mapping information

O When Color temperature (White balance) Adjustment

(Automatically)

- Press “Power only key” of service remocon and operate automatically adjustment.

- Set BaudRate to 115200.

O You must start “wb 00 00” and finish it “wb 00 ff”. O If it needs, then adjustment “Offset”.

(4) White Balance Adjustment (Manual adjustment)

1) Test Equipment: CA-210

- Using PDP color temperature, Color Analyzer (CA-

210) must use CH 10, which Matrix compensated (White, Red, Green, Blue compensation) with CS-

2100. See the Coordination bellowed one.

2) Manual adjustment sequence is like bellowed one.

- Turn to “Ez-Adjust” mode with press ADJ button of service remocon.

- Select “10.Test Pattern” with CH+/- button and press enter. Then set will go on Heat-run mode. Over 30 minutes set let on Heat-run mode.

- Let CA-210 to zero calibration and must has gap more 10cm from center of PDP module when adjustment.

- Press “ADJ” button of service remocon and select “7.White-Balance” in “Ez-Adjust” then press “

G” button

of navigation key. (When press “

G” button then set will

go to full white mode)

- Adjust at three mode (Cool, Medium, Warm)

- If “cool” mode

Let B-Gain to 192 and R, G, B-Cut to 64 and then control R, G gain adjustment High Light adjustment.

- If “Medium” and “Warm” mode Let R-Gain to 192 and

R, G, B-Cut to 64 and then control G, B gain adjustment High Light adjustment.

- All of the three mode

Let R-Gain to 192 and R, G, B-Cut to 64 and then control G, B gain adjustment High Light adjustment.

- With volume button (+/-) you can adjust.

- After all adjustment finished, with Enter (_ key) turn to

Ez-Adjust mode. Then with ADJ button, exit from adjustment mode

* Attachment: White Balance adjustment coordination and color

temperature.

O Using CS-1000 Equipment.

- COOL : T=11000K, _uv=0.000, x=0.276 y=0.283

- MEDIUM : T=9300K, _uv=0.000, x=0.285 y=0.293

- WARM : T=6500K, _uv=0.000, x=0.313 y=0.329

O Using CA-210 Equipment. (10 CH)

- Contras value : 216 Gray

- Brighness spec.

6. Test of RS-232C control.

- Press In-Start button of Service Remocon then set the “4.Baud Rate” to 115200. Then check RS-232C control and

7. Selection of Country option.

- Selection of country option is allowed only North American model (Not allowed Korean model). It is selection of Country about Rating and Time Zone.

(1) Models: All models which PB82C Chassis (See the first

page.)

(2) Press “In-Start” button of Service Remocon, then enter the

“Option” Menu with “PIP CH-“ Button

(3) Select one of these three (USA, CANADA, MEXICO)

defends on its market using “Vol. +/-“button.

Caution : Don’t push The INSTOP KEY after completing the

function inspection

Caution : Inspection only PAL M

- 12 -

Only for training and service purposes

Color Test Color Coordination

temperature Equipment x y

COOL CA-210 0.276±0.002 0.283±0.002

MEDIUM CA-210 0.285±0.002 0.293±0.002

WARM CA-210 0.313±0.002 0.329±0.002

Item Min Typ Max Unit Remark White 49 60 - cd/m - 100%Window White average Pattern brightness - 100IRE(255Gray)

- Picture: Vivid(Medium ) Brightness -20 +20 % - 85IRE(216Gray) 100% uniformity Window White Pattern

- Picture: Vivid(Medium)

RS-232C COMMAND

CENTER

[CMD ID DATA] MIN (DEFAULT) MAX

Cool Mid Warm Cool Mid Warm R Gain jg Ja jd 00 184 192 192 192 G Gain jh Jb je 00 187 183 159 192 B Gain ji Jc jf 00 192 161 95 192

R Cut 64 64 64 127

G Cut 64 64 64 127

B Cut 64 64 64 127

8. GND and ESD Testing

8-1. Prepare GND and ESD Testing.

- Check the connection between set and power cord

8-2. Operate GND and ESD auto-test.

(1) Fully connected (Between set and power cord) set enter

the Auto-test sequence. (2) Connect D-Jack AV jack test equipment. (3) Turn on Auto-controller(GWS103-4) (4) Start Auto GND test. (5) If its result is NG, then notice with buzzer. (6) If its result is OK, then automatically it turns to ESD Test. (7) Operate ESD test (8) If its result is NG, then notice with buzzer. (9) If its result is OK, then process next steps. Notice it with

Good lamp and STOPER Down.

8-3. Check Items.

(1) Test Voltage

GND: 1.5KV/min at 100mA

Signal: 3KV/min at 100mA (2) Test time: just 1 second. (3) Test point

GND test: Test between Power cord GND and Signal cable

metal GND.

ESD test: Test between Power cord GND and Live and

neutral. (4) Leakage current: Set to 0.5mA(rms)

9. POWER PCB Ass’y Voltage Adjustment

(Va/Vs Voltage Adjustment)

(1)Test equipment : D.M.M 1EA (2) Connection Diagram for Measuring : refer to fig.1

9-1. Adjustment method

(1) Vs adjustment (refer fig.1)

1) Connect + terminal of D.M.M. to Vs pin of P812(42”:P811), connect -terminal to GND pin of P812(42”:P811)

2) After turning VR901, voltage of D.M.M adjustment as same as Vs voltage which on label of panel left/top ( deviation ; ±0.5V)

(2) Va adjustment (refer fig.1)

1) After receiving 100% Full White Pattern, HEAT RUN.

2) Connect + terminal of D.M.M. to Va pin of P812(42”:P811), connect -terminal to GND pin of P811(42”:P812).

3) After turning VR502,voltage of D.M.M adjustment as same as Va voltage which on label of panel left/top (deviation; ±0.5V)

10. Default Service option.

10-1. ADC-Set.

V R-Gain adjustment Value (default 128) V G-Gain adjustment Value (default 128) V B-Gain adjustment Value (default 128) V R-Offset adjustment Value (default 128) V G-Offset adjustment Value (default 128) V B-Offset adjustment Value (default 128)

10-2. White balance. Value.

10-3. Temperature Threshold

V Threshold Down Low 20 V Threshold Up Low 23 V Threshold Down High 70 V Threshold Up High 75

- 13 -

Only for training and service purposes

< fig.1 : 50HD Power PCB Assy Voltage adjustment >

CENTER (DEFAULT)

Cool Mid Warm R Gain 192 192 192 G Gain 192 192 192 B Gain 192 192 192 R Cut 64 64 64 G Cut 64 64 64 B Cut 64 64 64

11. USB DOWNLOAD (*.epk file download)

V Put the USB Stick to the USB socket V Press Menu key, and move OPTION

V Press “FAV” Press 7 times.

V Select download file (epk file)

V After download is finished, remove the USB stick.

V Press “IN-START” key of ADJ remote control, check the

S/W version.

CAUTION

- DO NOT REMOVE USB MEMORY CARD FROM USB PORT WHEN YOU FIND BELOW DESCRIPTION

- " Do not remove the memory card from the port! "

- 14 -

Only for training and service purposes

- 15 -

Only for training and service purposes

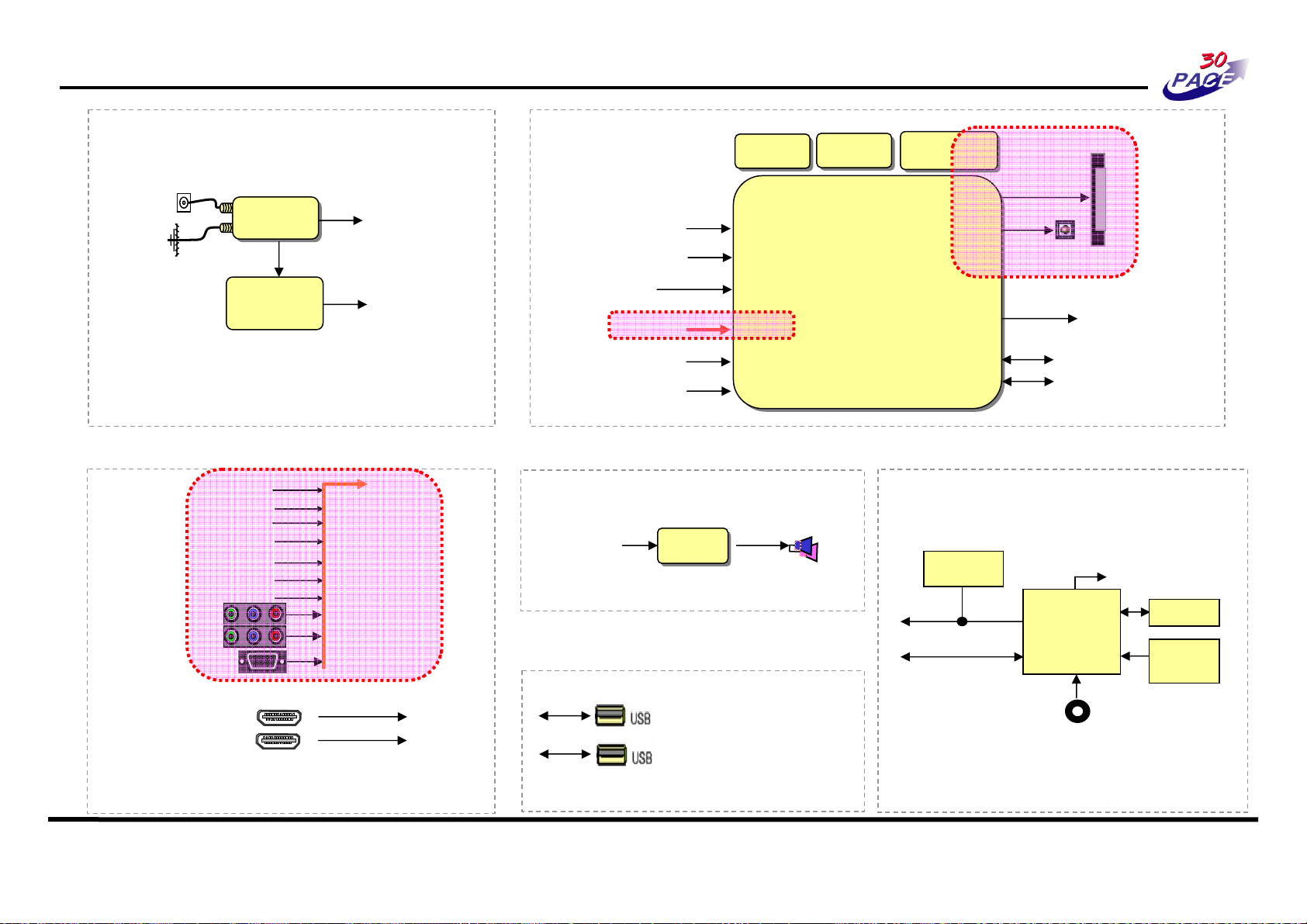

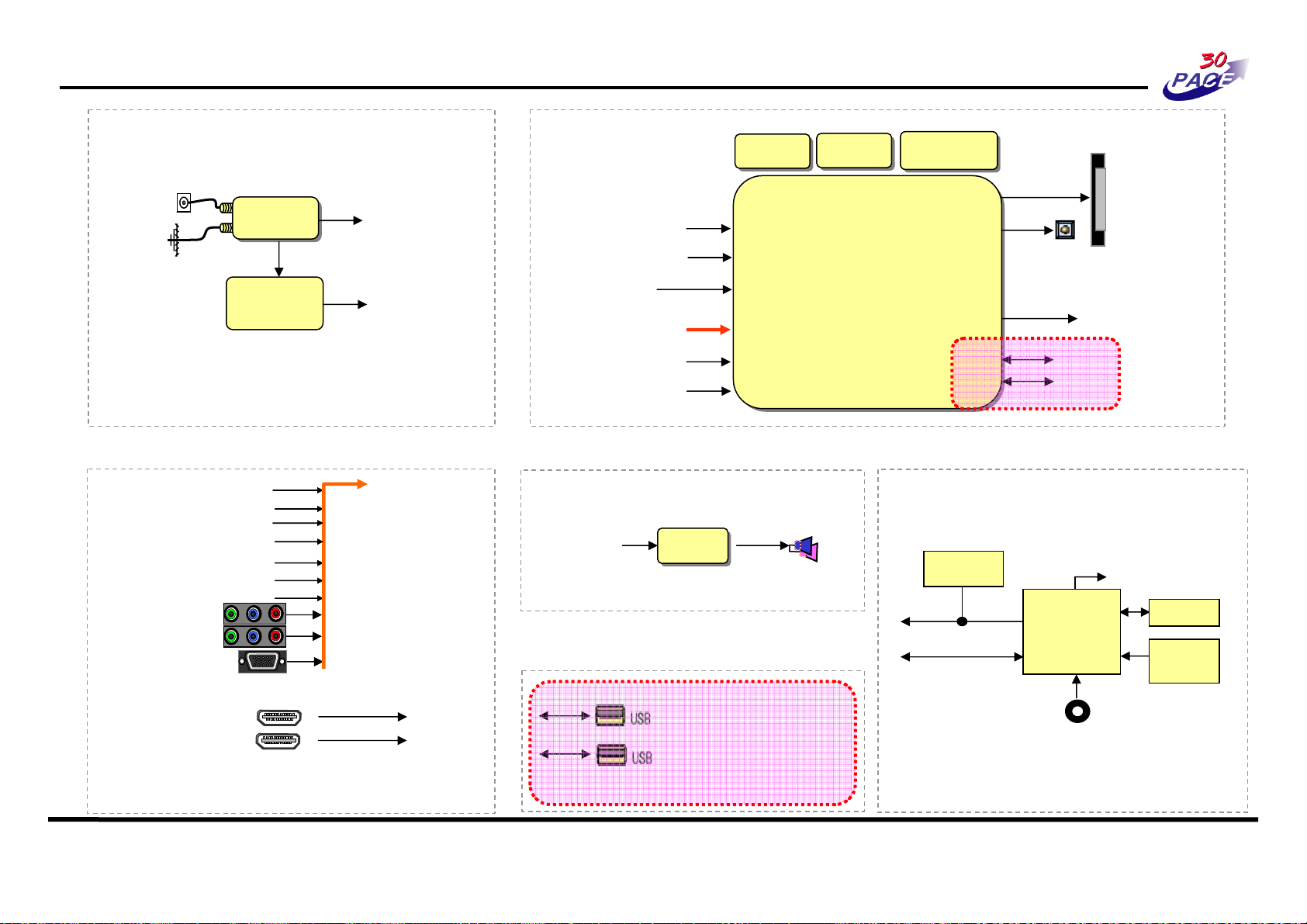

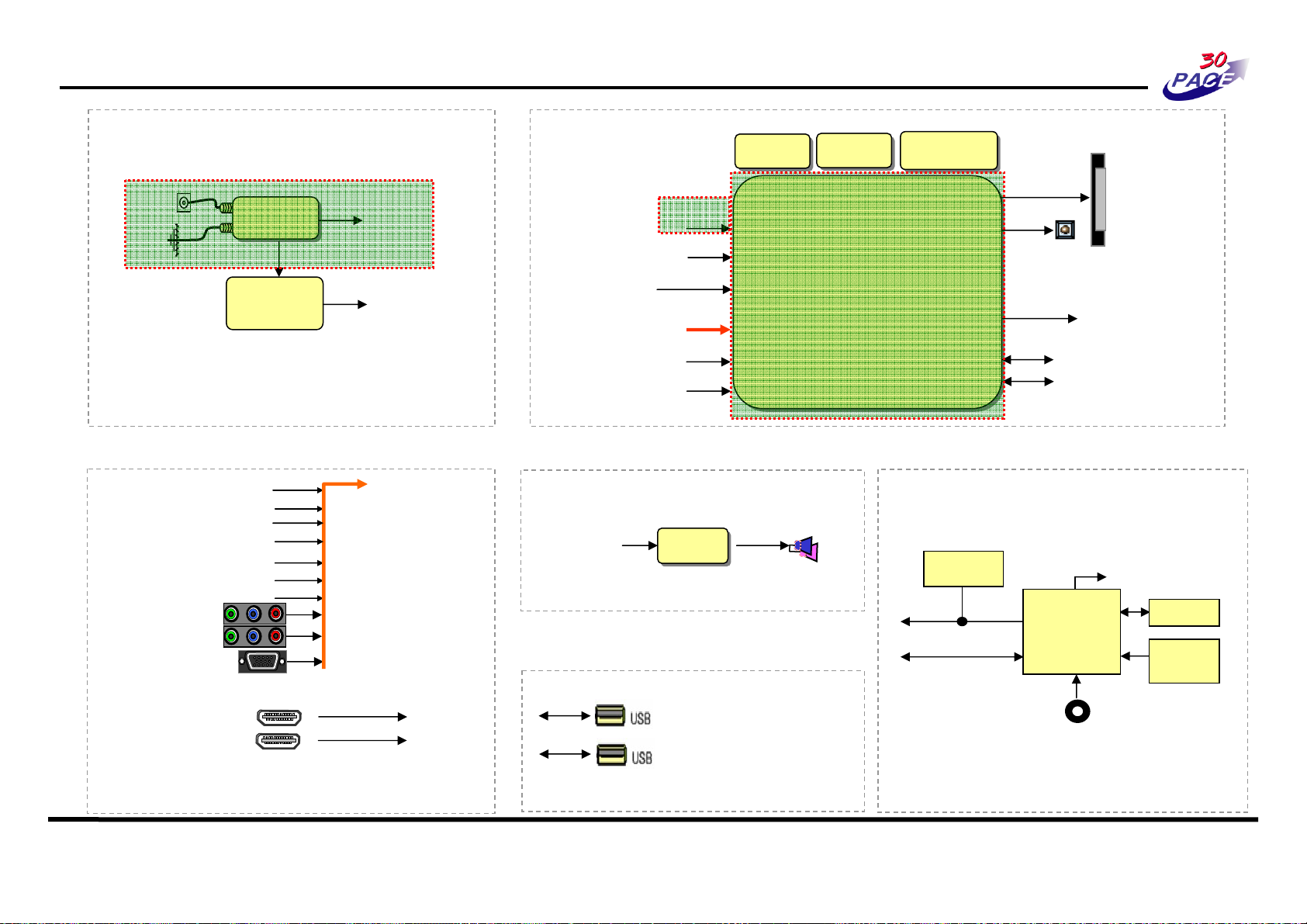

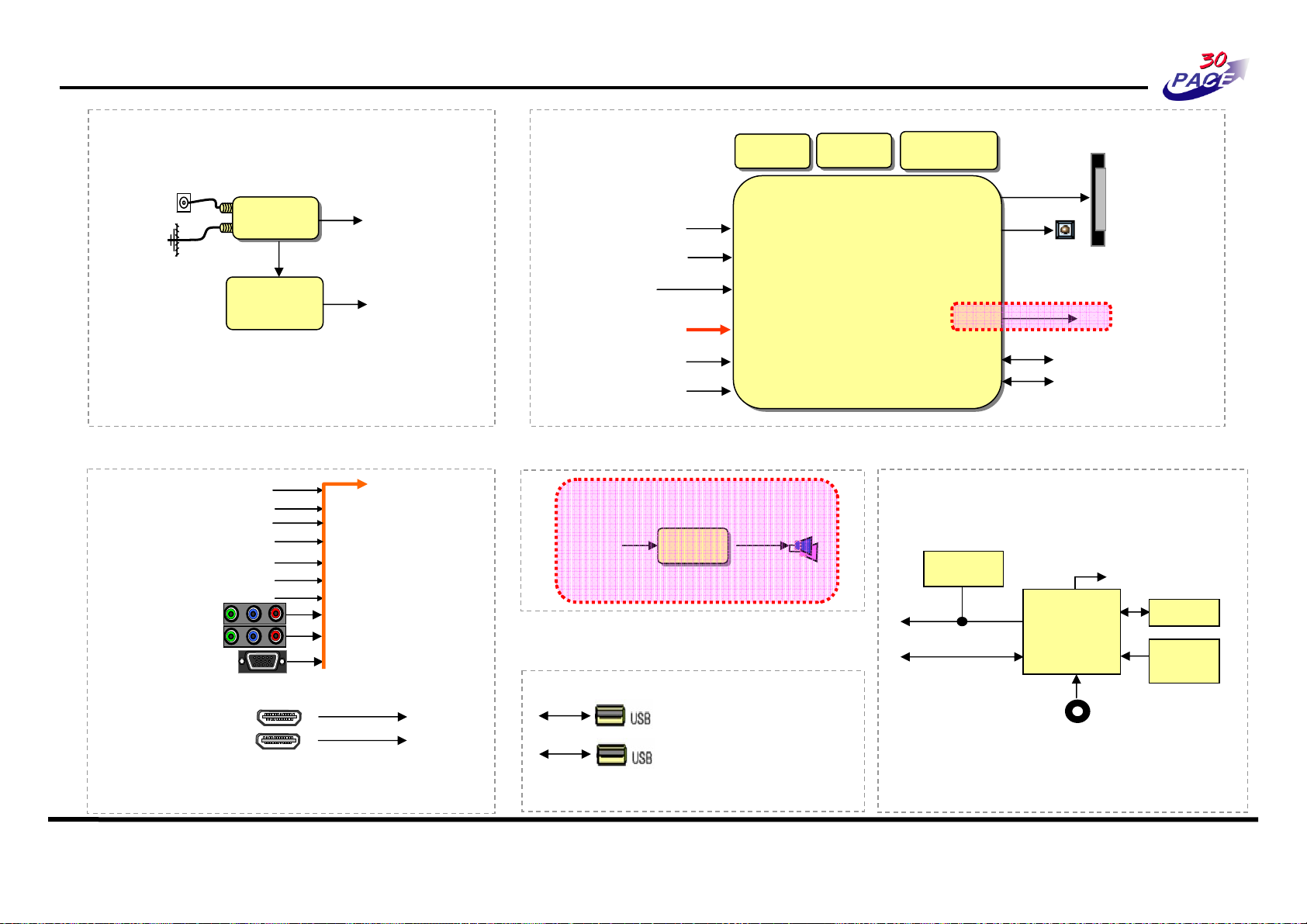

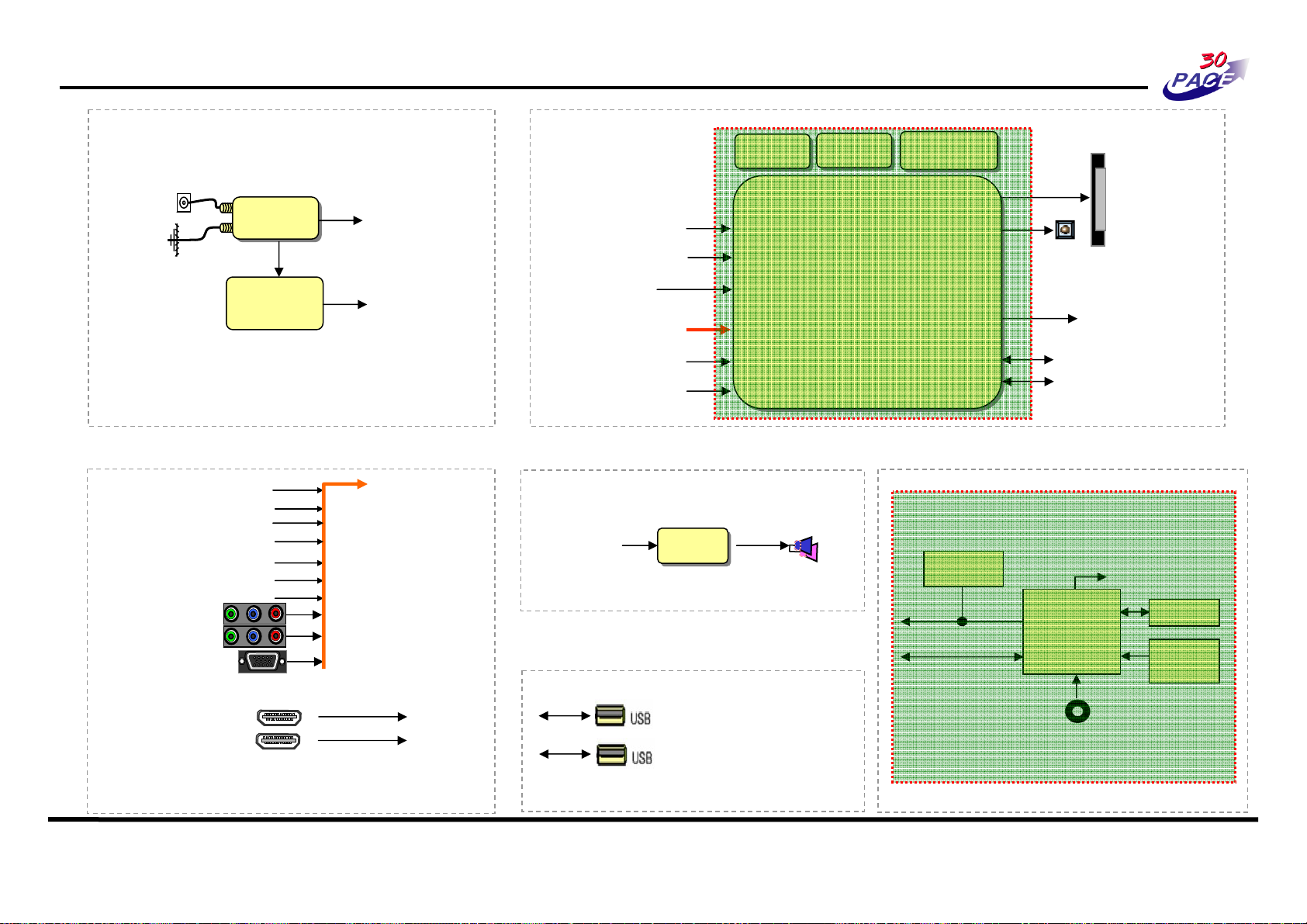

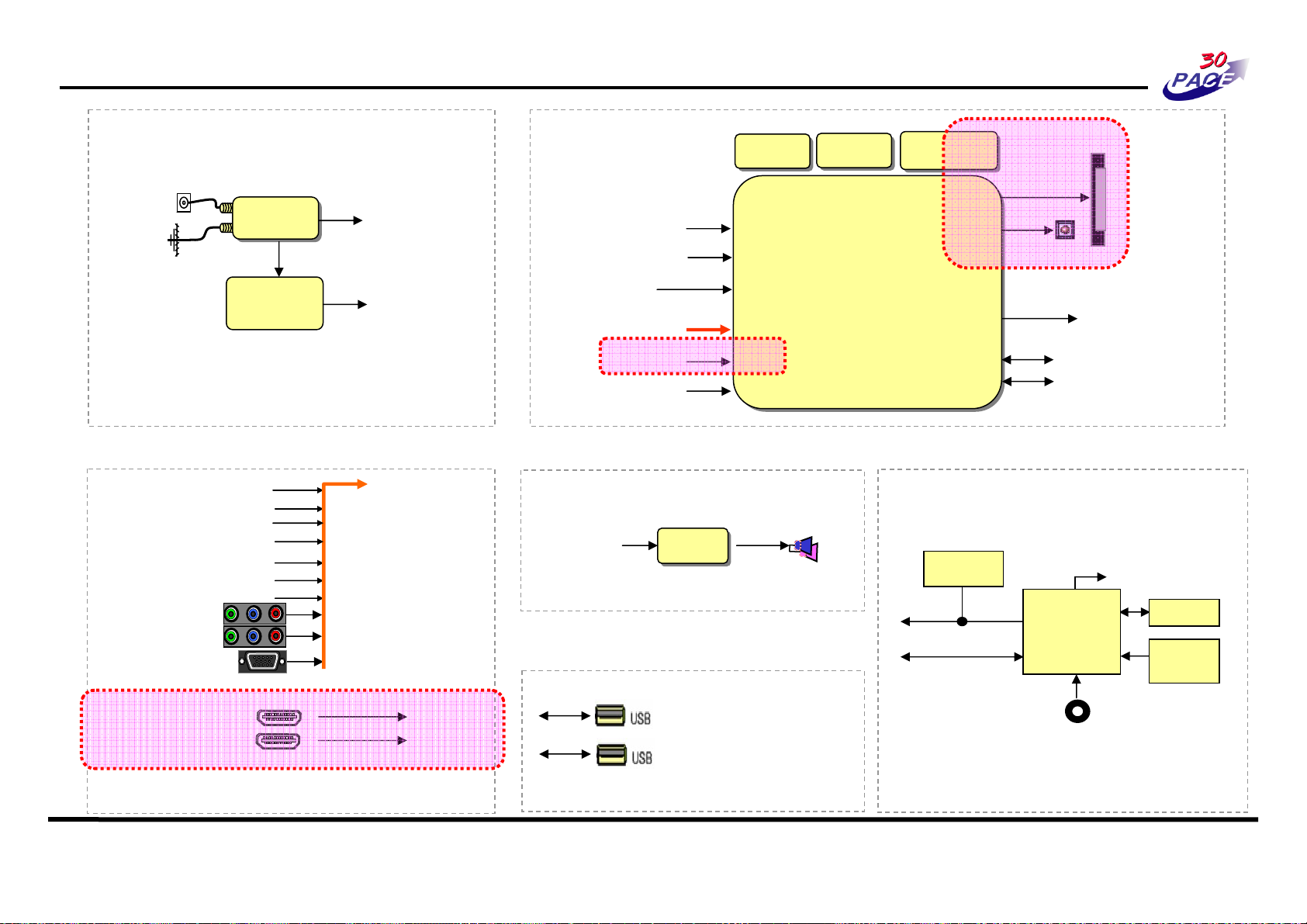

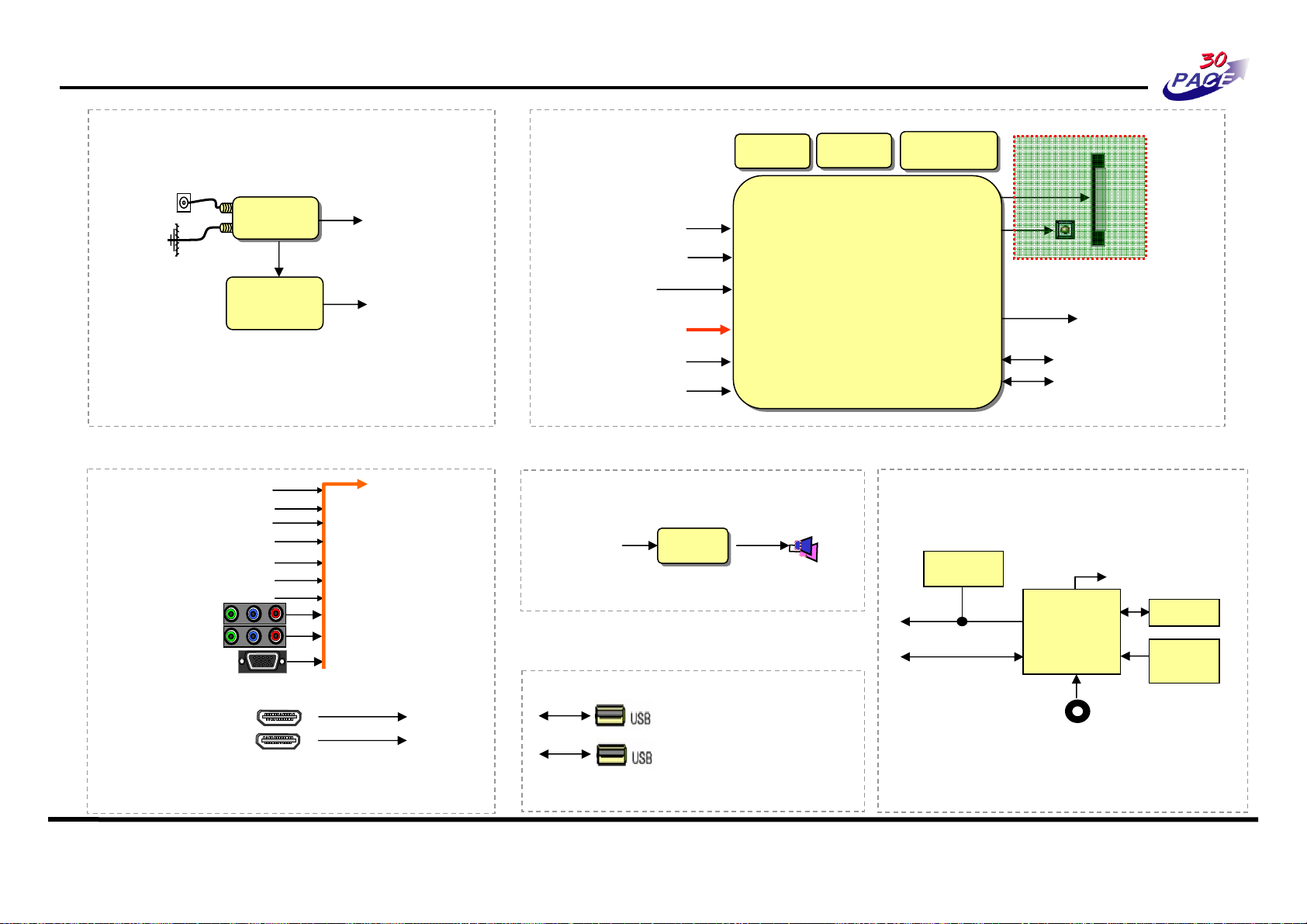

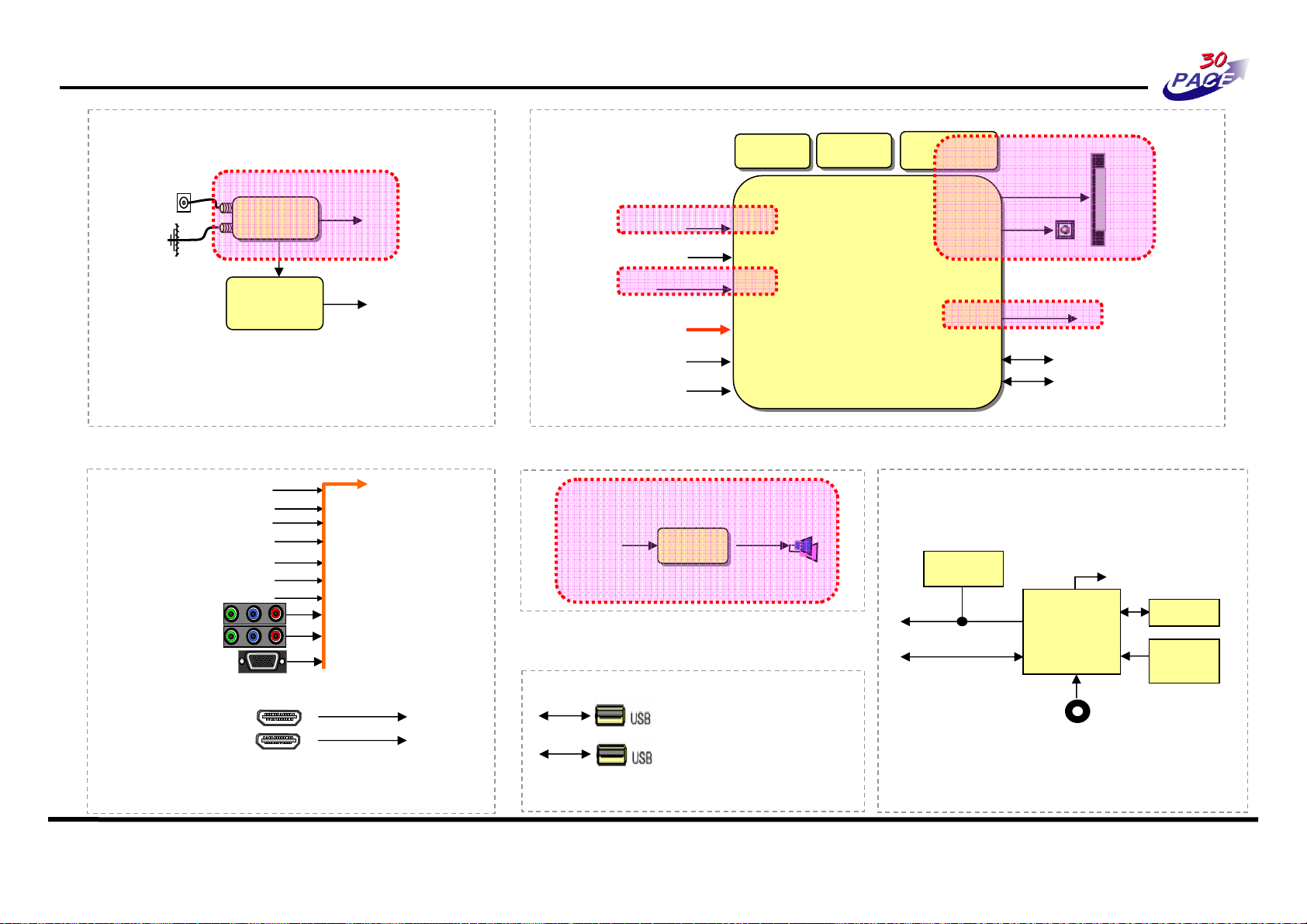

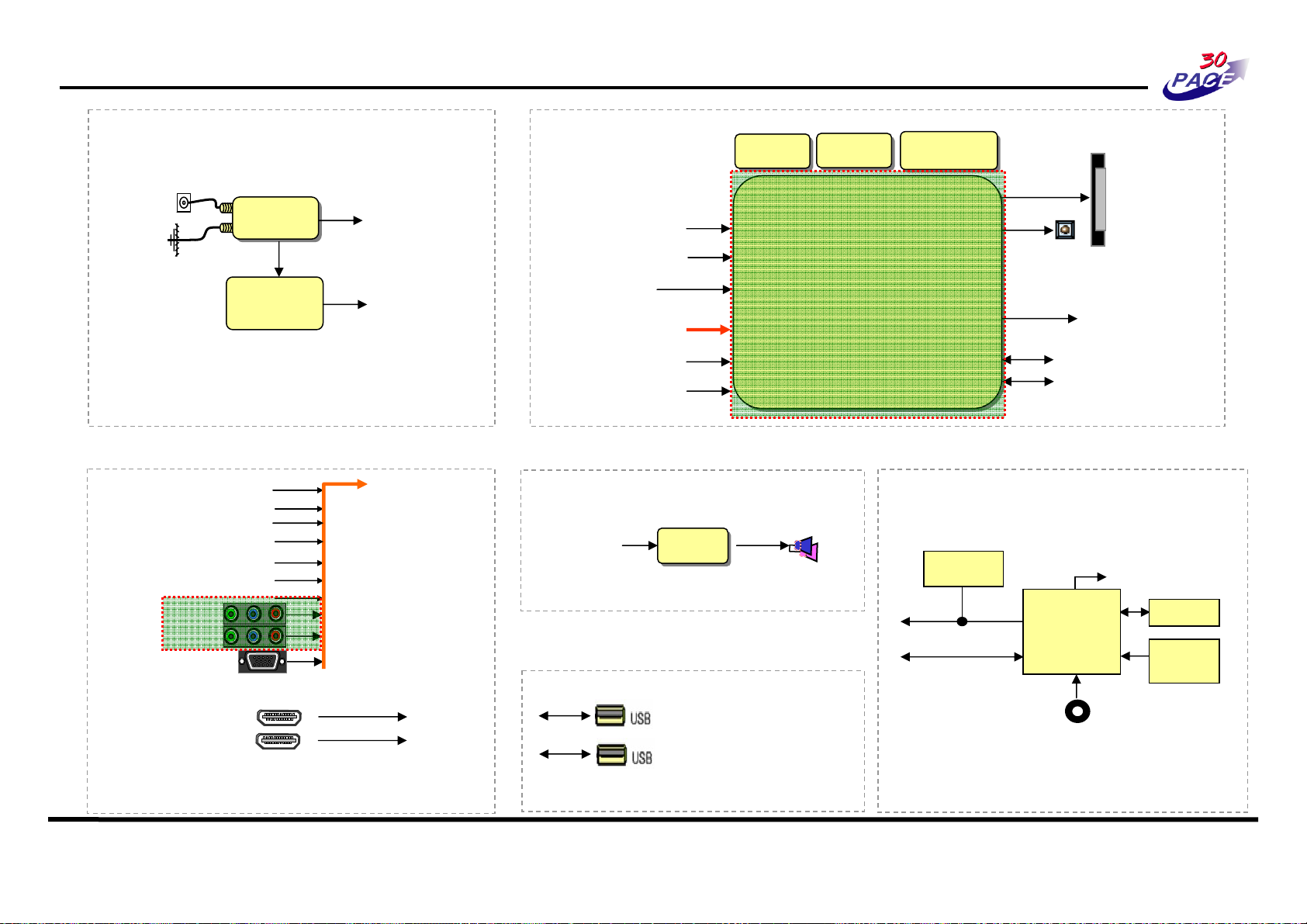

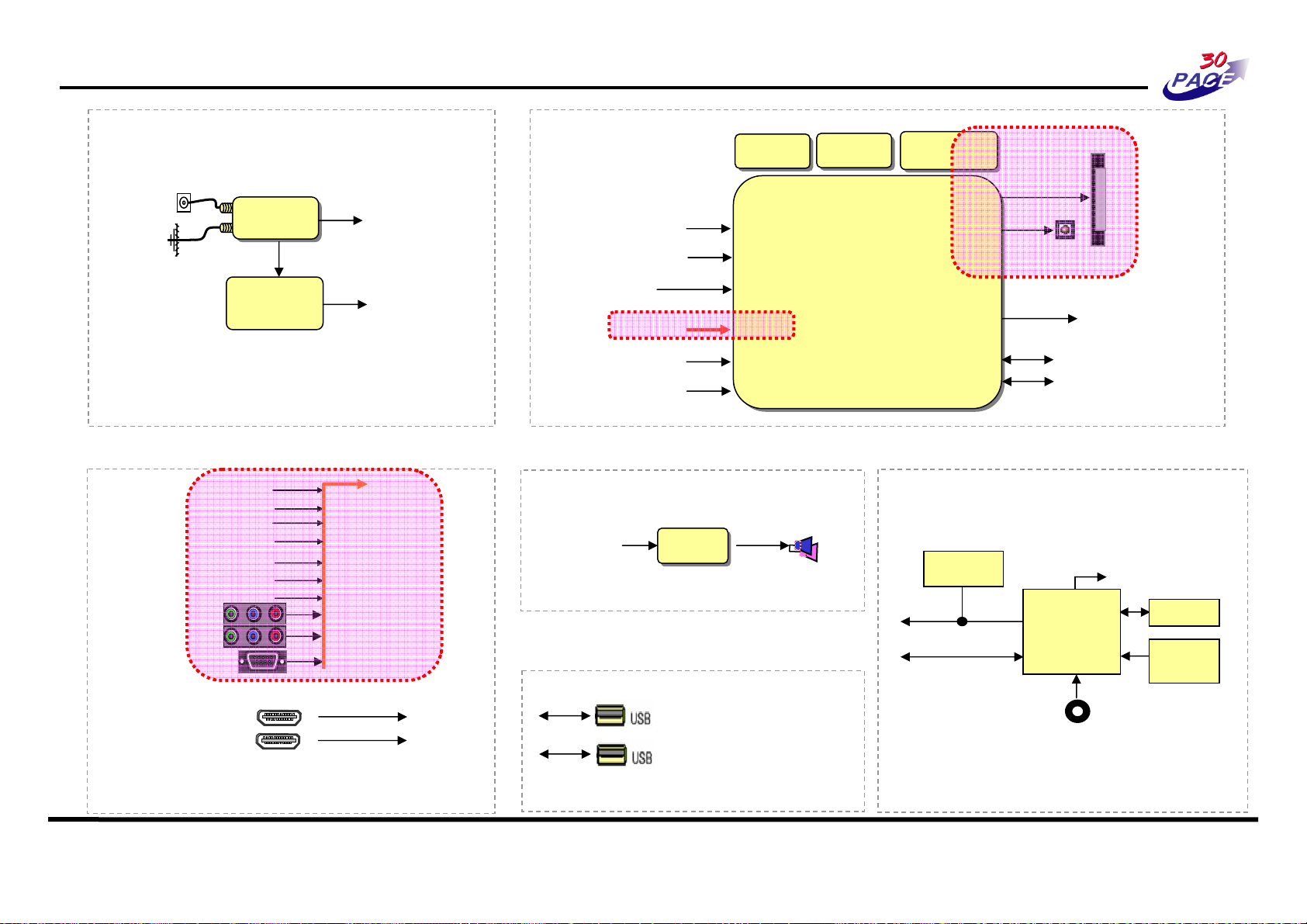

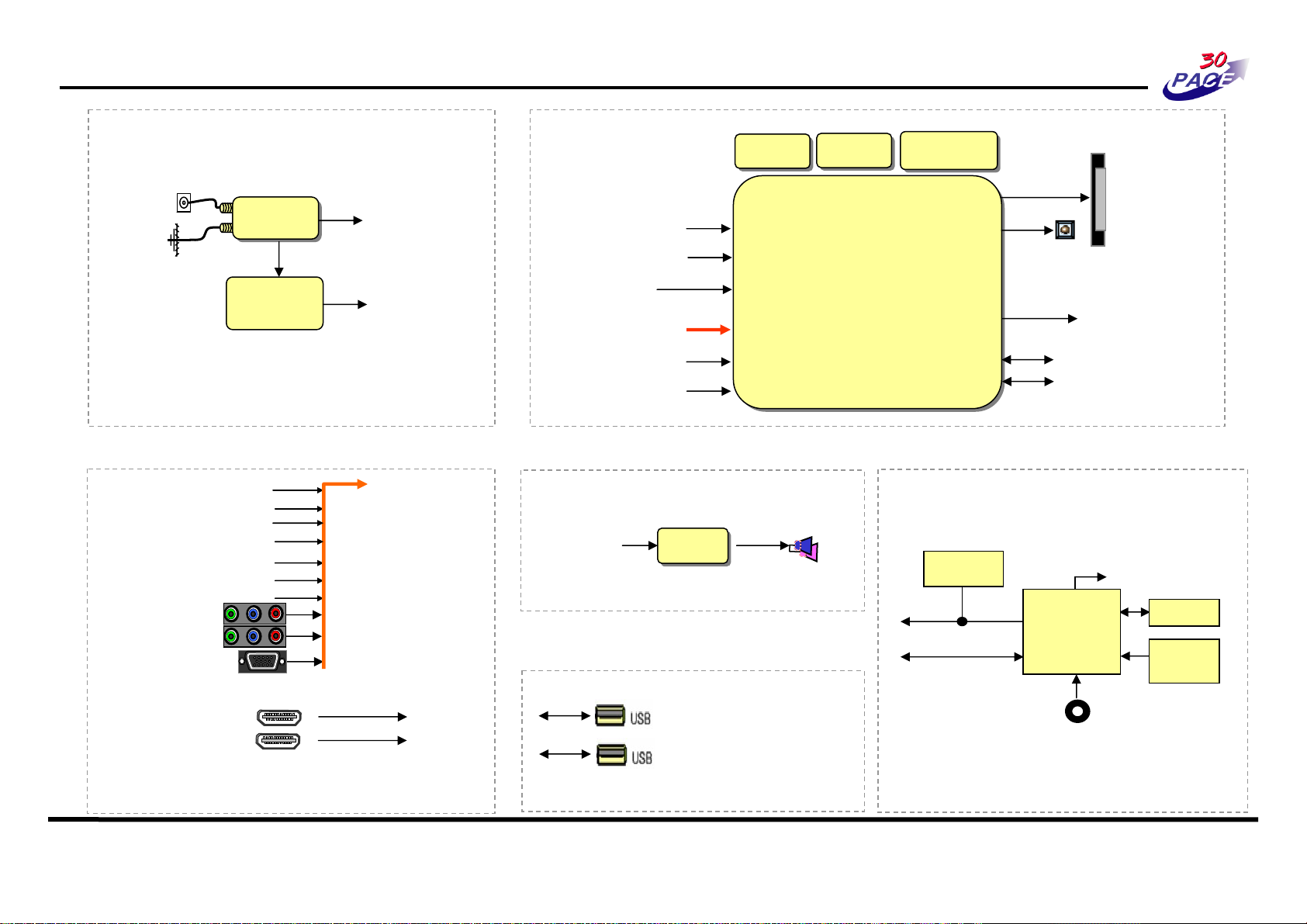

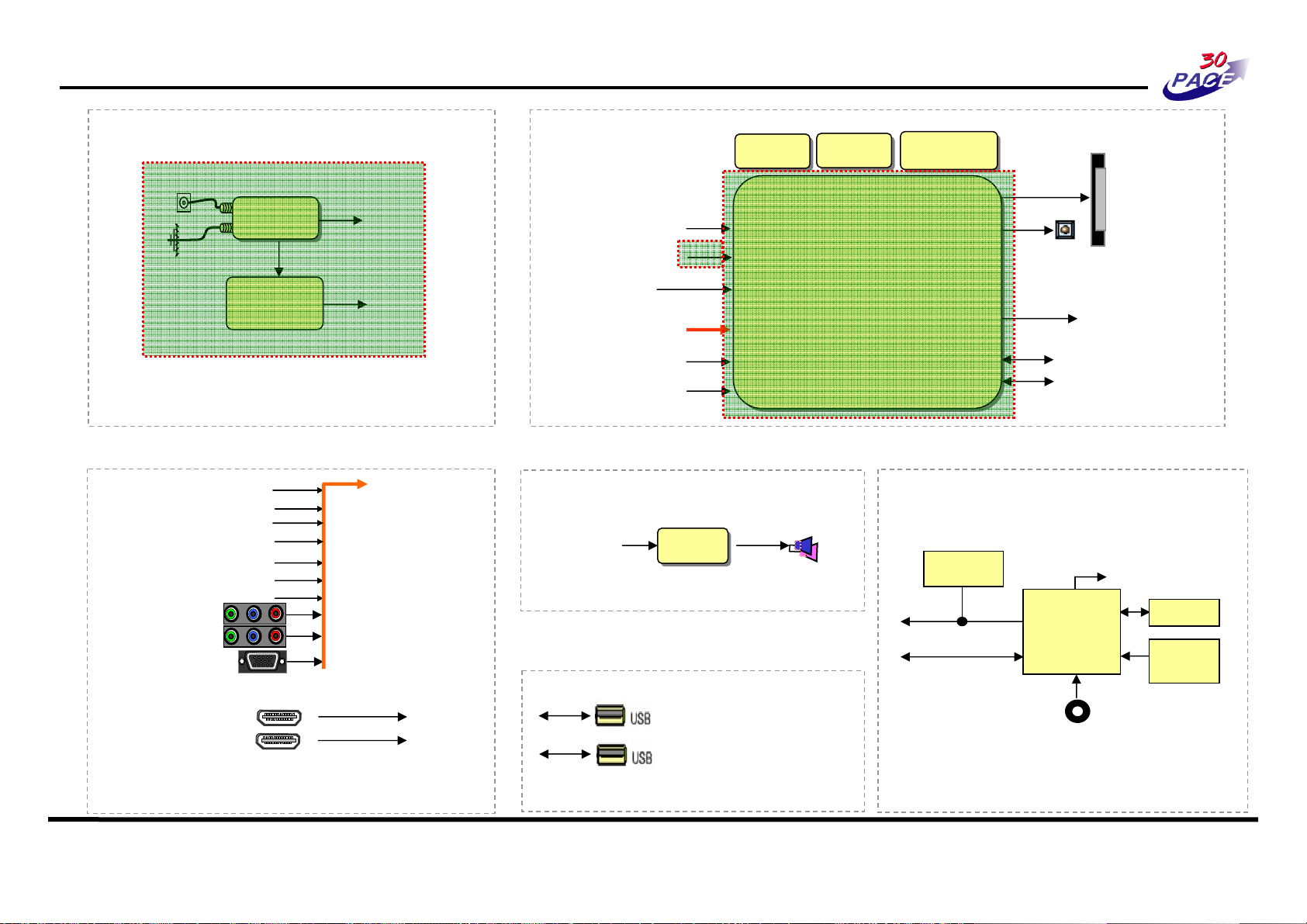

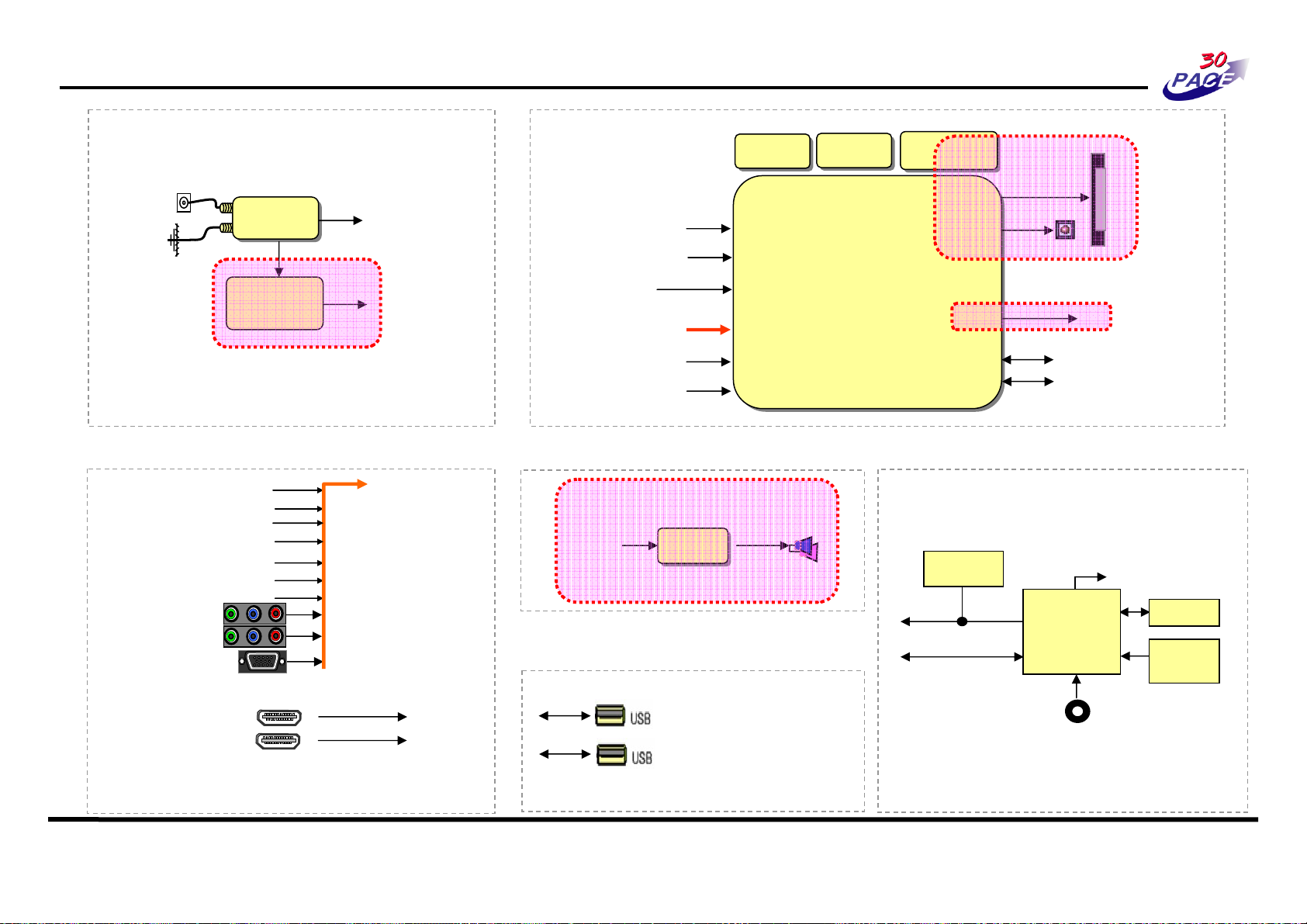

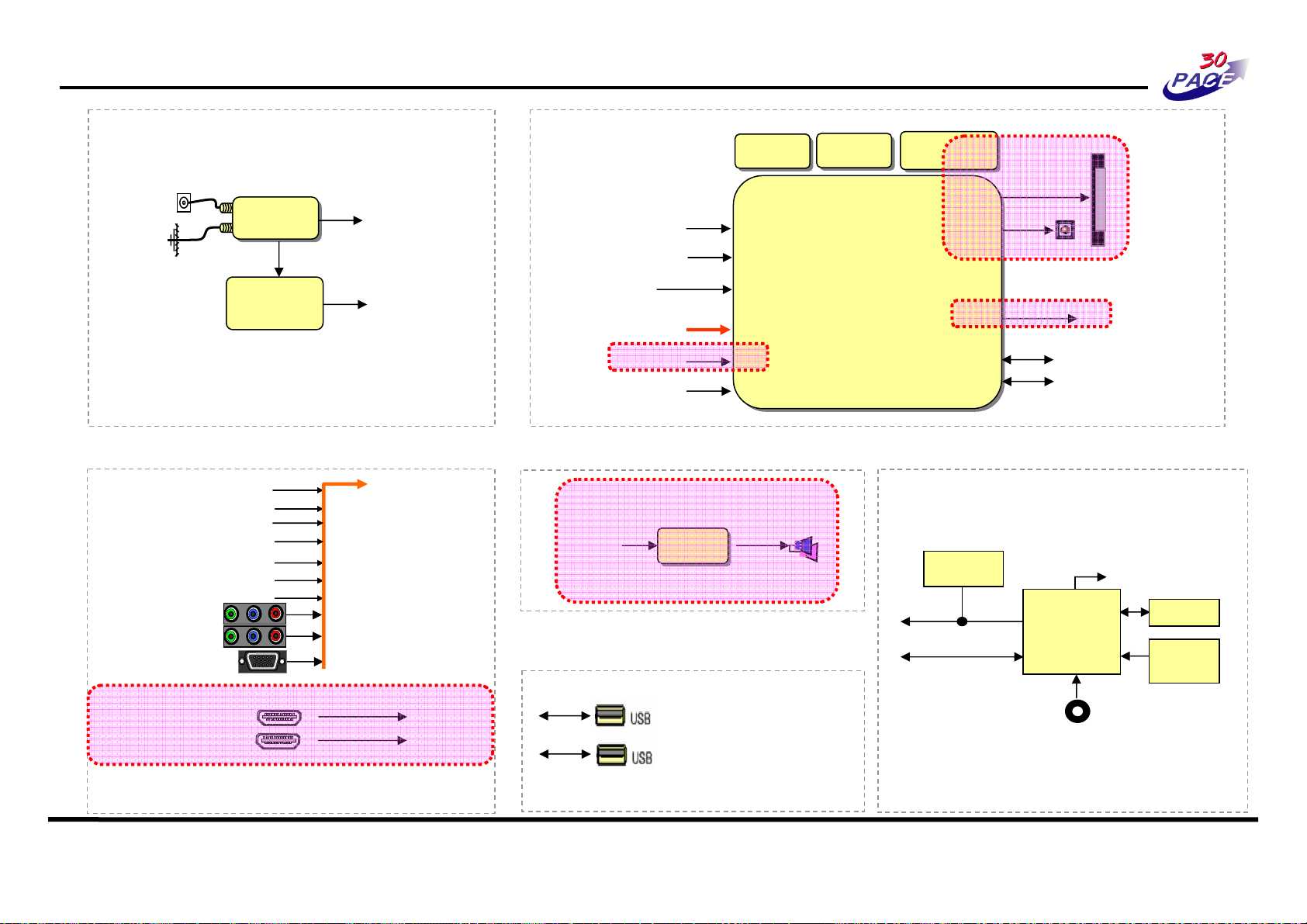

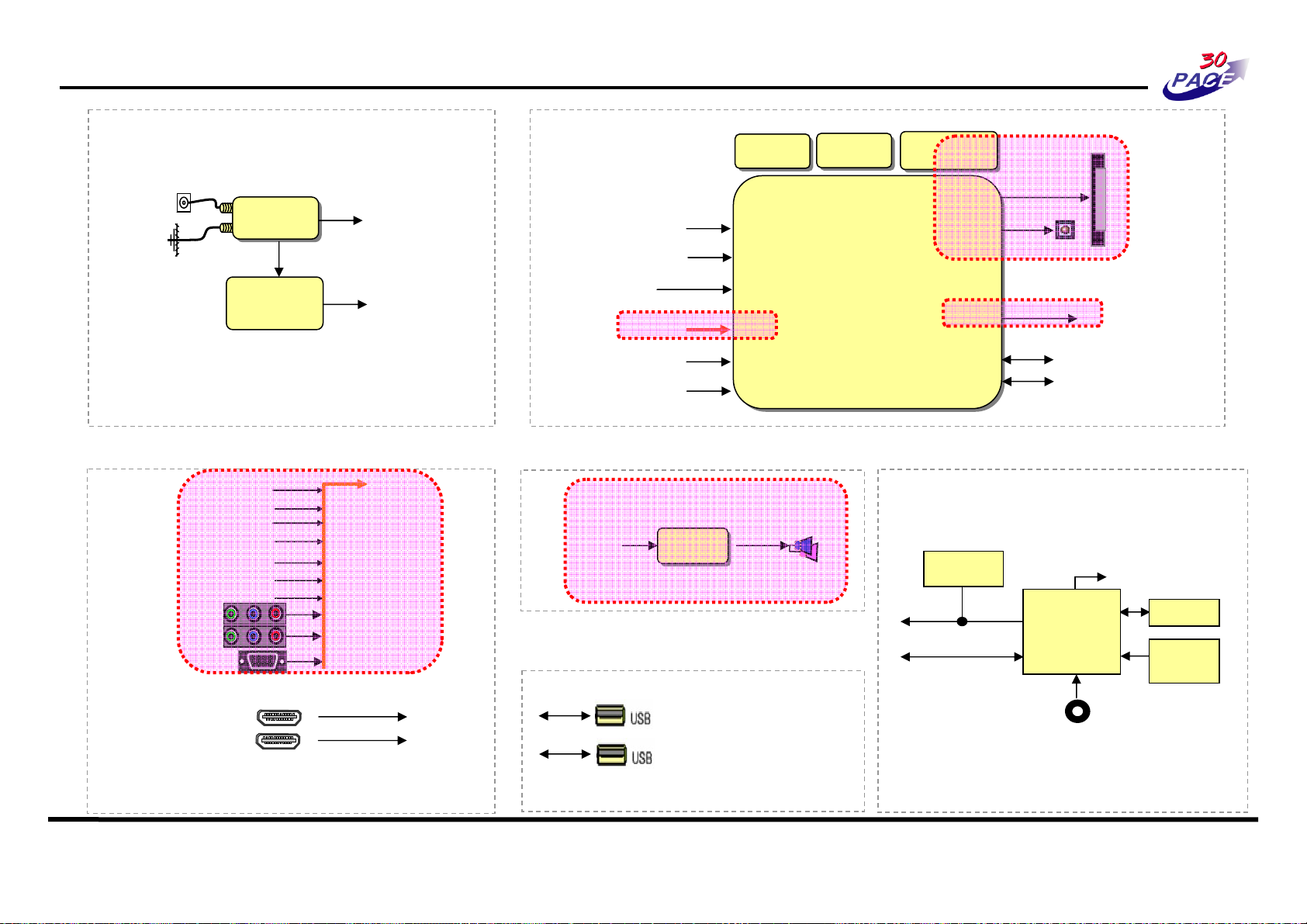

BLOCK DIAGRAM

- 16 -

LGE Internal Use Only

EXPLODED VIEW

200

580

400

300

900

120

590

604

202

520

204

602

206

203

208

302

501

301

303

205

305

201

240

207

601

302

910

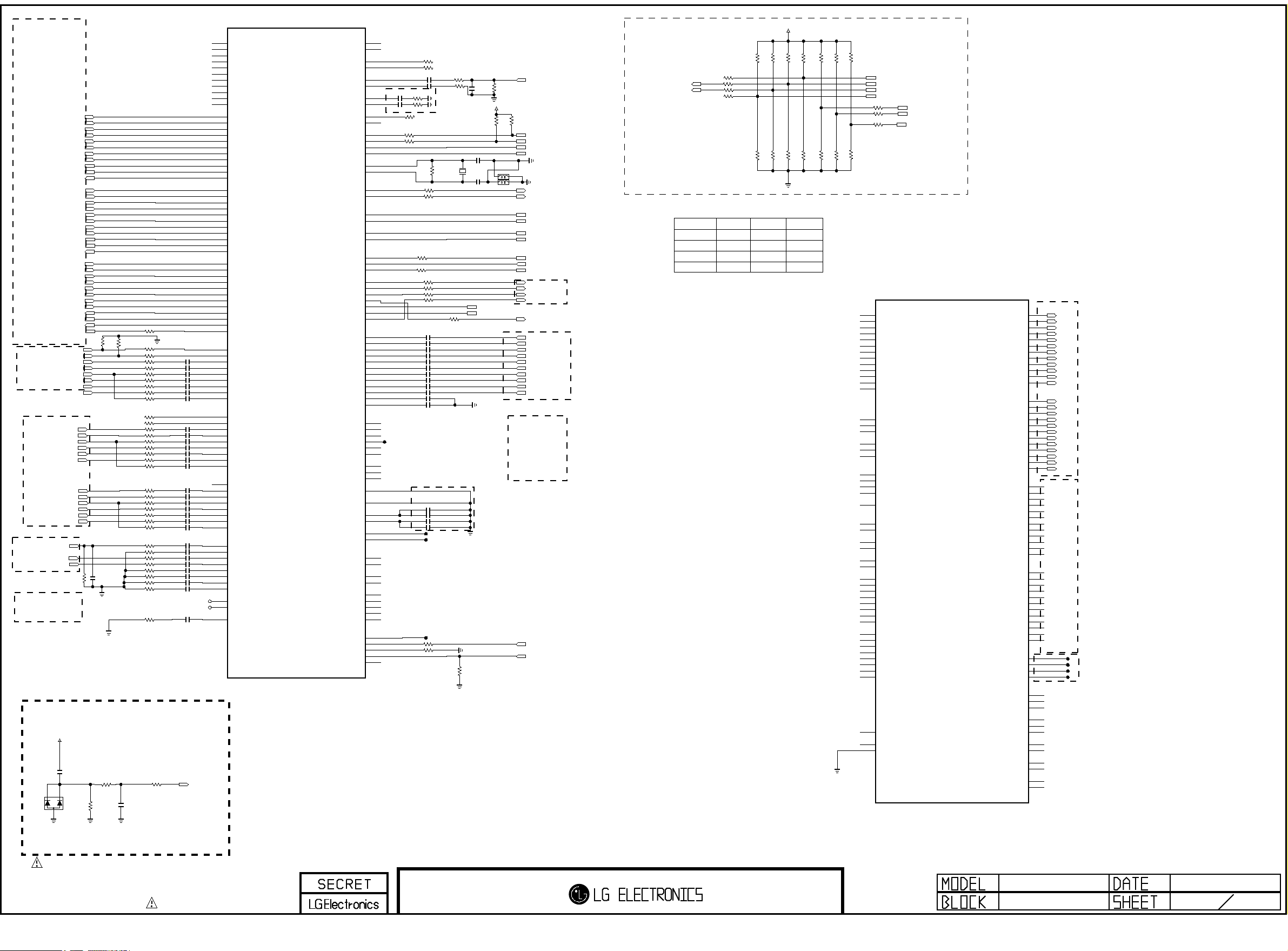

Many electrical and mechanical parts in this chassis have special safety-related characteristics. These parts are identified by in the Schematic Diagram and EXPLODED VIEW. It is essential that these special safety parts should be replaced with the same components as recommended in this manual to prevent X-RADIATION, Shock, Fire, or other Hazards. Do not modify the original design without permission of manufacturer.

IMPORTANT SAFETY NOTICE

A2

A10

A9

LV1

A12

VCC_1.5V_DDR

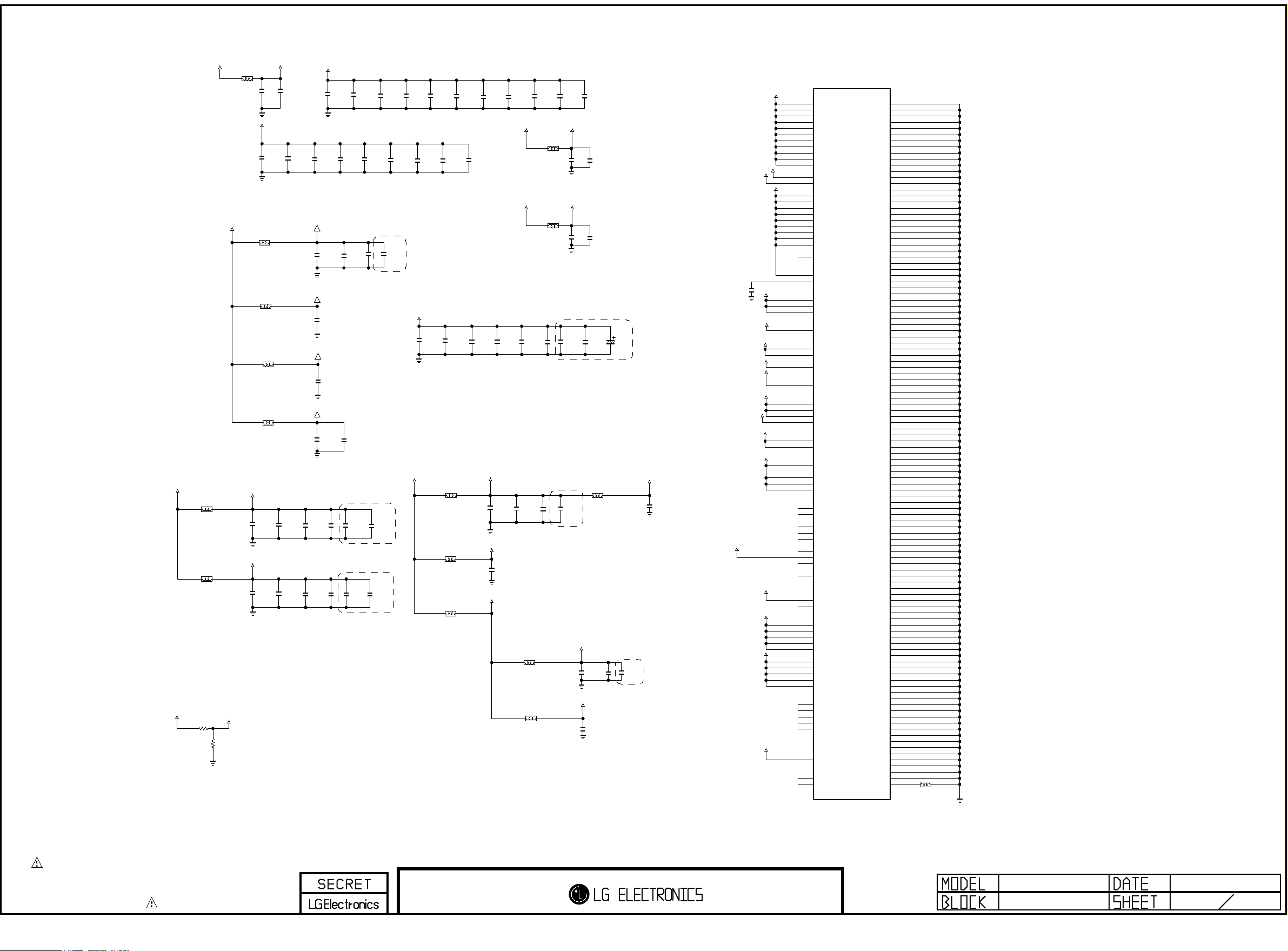

LGE Internal Use Only

R1201

1K 1%

R1202

1K 1%

0. 1uF 1000 pF

C1202

C1201

CLose t o DDR3

A-MVREFDQ

VCC_1.5V_DDR

R1204

1K 1%

0. 1uF

R1205

1K 1%

C1204

C1203

CLo se t o Sa turn 7M I C

1000 pF

VCC_1.5V_DDR

0. 1uF

C1249

C1250

R1227

1K 1%

R1228

1K 1%

VCC_1.5V_DDR

A-MVREFCA

1000 pF

10uF

C1205

0. 1uF

C1206

Clo se t o DD R Po wer Pin

DDR 3 1. 5V B y CAP - P lace thes e Ca ps n ear M emor y

C1216

0. 1uF

C1207

C1208

C1212

0. 1uF

0. 1uF C1211

C1210

0. 1uF

0. 1uF C1215

C1214

C1213

0. 1uF

C1217

C1218

DDR 3 1. 5V B y CAP - P lace thes e Ca ps n ear M emor y

0. 1uF

C1219

0. 1uF

C1220

C1221

C1222

0. 1uF

0. 1uF C1223

C1224

0. 1uF

0. 1uF C1229

C1228

C1227

0. 1uF

0. 1uF C1230

0. 1uF

C1232

C1231

C1235

0. 1uF

0. 1uF C1234

C1233

0. 1uF

0. 1uF C1236

0. 1uF

C1238

C1237

C1239

0. 1uF

0. 1uF C1242

C1241

C1243

Clo se t o DD R Po wer Pin

VCC_1.5V_DDR

R1224

1K 1%

B-MVREFCA

0. 1uF

10uF

0. 1uF

0. 1uF C1244

C1246

C1245

1000 pF

C1247

C1248

CLo se t o Sa turn 7M I C

B-MVREFDQ

R1225

1K 1%

CLose t o DDR3

A-MVREFCA

A-MVREFDQ

VCC_1.5V_DDR

R1203

240

1%

IC12 01

H5TQ1G63BFR-H9C

M8

VREFCA

H1

VREFDQ

L8

ZQ

B2

VDD_1

D9

VDD_2

G7

VDD_3

K2

VDD_4

K8

VDD_5

N1

VDD_6

N9

VDD_7

R1

VDD_8

R9

VDD_9

A1

VDDQ_1

A8

VDDQ_2

C1

VDDQ_3

C9

VDDQ_4

D2

VDDQ_5

E9

VDDQ_6

F1

VDDQ_7

H2

VDDQ_8

H9

VDDQ_9

J1

NC_1

J9

NC_2

L1

NC_3

L9

NC_4

T7

NC_6

A9

VSS_1

B3

VSS_2

E1

VSS_3

G8

VSS_4

J2

VSS_5

J8

VSS_6

M1

VSS_7

M9

VSS_8

P1

VSS_9

P9

VSS_10

T1

VSS_11

T9

VSS_12

B1

VSSQ_1

B9

VSSQ_2

D1

VSSQ_3

D8

VSSQ_4

E2

VSSQ_5

E8

VSSQ_6

F9

VSSQ_7

G1

VSSQ_8

G9

VSSQ_9

A10/AP

A12/BC

BA0

BA1

BA2

CKE

ODT

RAS

CAS

RESET

DQSL

DQSU

DML

DMU

DQL0

DQL1

DQL2

DQL3

DQL4

DQL5

DQL6

DQL7

DQU0

DQU1

DQU2

DQU3

DQU4

DQU5

DQU6

DQU7

+1.5V_DDR_IN

VCC_1.5V_DDR

L1201

C1225

C1226

A-MA0

A-MA2

A-MA11

A-MA1

A-MA8

A-MCK

A-MCKB

A-MA6

A-MBA0

A-MA3

A-MA5

A-MA7

A-MA4

A-MA12

A-MBA1

A-MA10

A-MRESETB

A-MBA2

A-MA13

A-MA9

A-MCK

A-MCKB

A-MRASB

A-MCASB

A-MODT

A-MWEB

A-MDQSL

A-MDQSLB

A-MDQSU

A-MDQSUB

A-MDQL1

A-MDQL3

A-MDML

A-MDQU2

A-MCKE

A-MDQL7

A-MDQL5

A-MDQL0

A-MDQL2

A-MDQL6

A-MDQL4

A-MDQU7

A-MDQU3

A-MDQU5

A-MDMU

A-MDQU6

A-MDQU0

A-MDQU4

A-MDQU1

A-MCKE

N3

A0

P7

A1

P3

A2

N2

A3

P8

A4

P2

A5

R8

A6

R2

A7

T8

A8

R3

A9

L7

R7

A11

N7

T3

A13

M7

A15

M2

N8

M3

J7

CK

K7

CK

K9

L2

CS

K1

J3

K3

L3

WE

T2

F3

G3

C7

B7

E7

D3

E3

F7

F2

F8

H3

H8

G2

H7

D7

C3

C8

C2

A7

A2

B8

A3

A-MA0

A-MA1

A-MA2

A-MA3

A-MA4

A-MA5

A-MA6

A-MA7

A-MA8

A-MA9

A-MA10

A-MA11

A-MA12

A-MA13

A-MBA0

A-MBA1

A-MBA2

A-MCKE

A-MODT

A-MRASB

A-MCASB

A-MWEB

A-MRESETB

A-MDQSL

A-MDQSLB

A-MDQSU

A-MDQSUB

A-MDML

A-MDMU

A-MDQL0

A-MDQL1

A-MDQL2

A-MDQL3

A-MDQL4

A-MDQL5

A-MDQL6

A-MDQL7

A-MDQU0

A-MDQU1

A-MDQU2

A-MDQU3

A-MDQU4

A-MDQU5

A-MDQU6

A-MDQU7

56

C1209

R1235

0. 01u F

56

R1236

VCC_1.5V_DDR

R1231 10K

R1213

R1214

AR1208

10

AR1203

10

AR1204

10

AR1201

10

R1206

10

R1207

10

AR1202

10

R1208

10

R1209

10

R1211

R1212

AR1209

10

AR1210

10

AR1205

10

AR1206

10

AR1207

10

R1210

10

A-TMA0

A-TMA2

A-TMA11

A-TMA1

A-TMA8

A-TMA6

A-TMBA0

A-TMA3

A-TMA5

A-TMA7

A-TMA4

A-TMA12

A-TMBA1

A-TMA10

A-TMRESETB

A-TMBA2

A-TMA13

A-TMA9

A-TMCK

A-TMCKB

A-TMRASB

A-TMCASB

A-TMODT

A-TMWEB

A-TMDQSL

A-TMDQSLB

A-TMDQSU

A-TMDQSUB

A-TMDQL1

A-TMDQL3

A-TMDML

A-TMDQU2

A-TMCKE

A-TMDQL7

A-TMDQL5

A-TMDQL0

A-TMDQL2

A-TMDQL6

A-TMDQL4

A-TMDQU7

A-TMDQU3

A-TMDQU5

A-TMDMU

A-TMDQU6

A-TMDQU0

A-TMDQU4

A-TMDQU1

10KR1233

A-TMA0

A-TMA1

A-TMA2

A-TMA3

A-TMA4

A-TMA5

A-TMA6

A-TMA7

A-TMA8

A-TMA9

A-TMA10

A-TMA11

A-TMA12

A-TMA13

A-TMBA0

A-TMBA1

A-TMBA2

A-TMCK

A-TMCKB

A-TMCKE

A-TMODT

A-TMRASB

A-TMCASB

A-TMWEB

A-TMRESETB

A-TMDQSL

A-TMDQSLB

A-TMDQSU

A-TMDQSUB

A-TMDML

A-TMDMU

A-TMDQL0

A-TMDQL1

A-TMDQL2

A-TMDQL3

A-TMDQL4

A-TMDQL5

A-TMDQL6

A-TMDQL7

A-TMDQU0

A-TMDQU1

A-TMDQU2

A-TMDQU3

A-TMDQU4

A-TMDQU5

A-TMDQU6

A-TMDQU7

LGE101D (S 7 Non_Tcon/R M)

B8

A_DDR3_A0/DDR2_A13

B9

A_DDR3_A1/DDR2_A8

A8

A_DDR3_A2/DDR2_A9

C21

A_DDR3_A3/DDR2_A1

B10

A_DDR3_A4/DDR2_A2

A22

A_DDR3_A5/DDR2_A10

A10

A_DDR3_A6/DDR2_A4

B22

A_DDR3_A7/DDR2_A3

C9

A_DDR3_A8/DDR2_A6

C23

A_DDR3_A9/DDR2_A12

B11

A_DDR3_A10/DDR2_RASZ

A9

A_DDR3_A11/DDR2_A11

C10

A_DDR3_A12/DDR2_A0

B23

A_DDR3_A13/DDR2_A7

B21

A_DDR3_BA0/DDR2_BA2

A11

A_DDR3_BA1/DDR2_CASZ

A23

A_DDR3_BA2/DDR2_A5

A12

A_DDR3_MCLK/DDR2_MCLK

C11

A_DDR3_MCLKZ/DDR2_MCLKZ

B12

A_DDR3_CKE/DDR2_DQ5

C20

A_DDR3_ODT/DDR2_ODT

A20

A_DDR3_RASZ/DDR2_WEZ

B20

A_DDR3_CASZ/DDR2_BA1

A21

A_DDR3_WEZ/DDR2_BA0

C22

A_DDR3_RESETB

C16

A_DDR3_DQSL/DDR2_DQS0

B16

A_DDR3_DQSLB/DDR2_DQSB0

A16

A_DDR3_DQSU/DDR2_DQSB1

C15

A_DDR3_DQSUB/DDR2_DQS1

A14

A_DDR3_DML//DDR2_DQ13

B18

A_DDR3_DMU/DDR2_DQ6

C18

A_DDR3_DQL0/DDR2_DQ3

B13

A_DDR3_DQL1/DDR2_DQ7

A19

A_DDR3_DQL2/DDR2_DQ1

C13

A_DDR3_DQL3/DDR2_DQ10

C19

A_DDR3_DQL4/DDR2_DQ4

A13

A_DDR3_DQL5/DDR2_DQ0

B19

A_DDR3_DQL6/DDR2_CKE

C12

A_DDR3_DQL7/DDR2_DQ2

A15

A_DDR3_DQU0/DDR2_DQ15

A17

A_DDR3_DQU1/DDR2_DQ9

B14

A_DDR3_DQU2/DDR2_DQ8

C17

A_DDR3_DQU3/DDR2_DQ11

B15

A_DDR3_DQU4/DDR2_DQM1

A18

A_DDR3_DQU5/DDR2_DQ12

C14

A_DDR3_DQU6/DDR2_DQM0

B17

A_DDR3_DQU7/DDR2_DQ14

10uF

0. 1uF

10V

16V

IC10 1

B_DDR3_A0/DDR2_A13

B_DDR3_A1/DDR2_A8

B_DDR3_A2/DDR2_A9

B_DDR3_A3/DDR2_A1

B_DDR3_A4/DDR2_A2

B_DDR3_A5/DDR2_A10

B_DDR3_A6/DDR2_A4

B_DDR3_A7/DDR2_A3

B_DDR3_A8/DDR2_A6

B_DDR3_A9/DDR2_A12

B_DDR3_A10/DDR2_RASZ

B_DDR3_A11/DDR2_A11

B_DDR3_A12/DDR2_A0

B_DDR3_A13/DDR2_A7

B_DDR3_BA0/DDR2_BA2

B_DDR3_BA1/DDR2_CASZ

B_DDR3_BA2/DDR2_A5

B_DDR3_MCLK/DDR2_MCLK

B_DDR3_MCLKZ/DDR2_MCLKZ

B_DDR3_CKE/DDR2_DQ5

B_DDR3_ODT/DDR2_ODT

B_DDR3_RASZ/DDR2_WEZ

B_DDR3_CASZ/DDR2_BA1

B_DDR3_WEZ/DDR2_BA0

B_DDR3_RESETB

B_DDR3_DQSL/DDR2_DQS0

B_DDR3_DQSLB/DDR2_DQSB0

B_DDR3_DQSU/DDR2_DQSB1

B_DDR3_DQSUB/DDR2_DQS1

B_DDR3_DML/DDR2_DQ13

B_DDR3_DMU/DDR2_DQ6

B_DDR3_DQL0/DDR2_DQ3

B_DDR3_DQL1/DDR2_DQ7

B_DDR3_DQL2/DDR2_DQ1

B_DDR3_DQL3/DDR2_DQ10

B_DDR3_DQL4/DDR2_DQ4

B_DDR3_DQL5/DDR2_DQ0

B_DDR3_DQL6/DDR2_CKE

B_DDR3_DQL7/DDR2_DQ2

B_DDR3_DQU0/DDR2_DQ15

B_DDR3_DQU1/DDR2_DQ9

B_DDR3_DQU2/DDR2_DQ8

B_DDR3_DQU3/DDR2_DQ11

B_DDR3_DQU4/DDR2_DQM1

B_DDR3_DQU5/DDR2_DQ12

B_DDR3_DQU6/DDR2_DQM0

B_DDR3_DQU7/DDR2_DQ14

A25

B24

A24

P25

C24

P26

B26

R24

B25

T26

D24

A26

C25

T25

P24

C26

R26

D26

D25

E24

N25

M26

N24

N26

R25

J2 5

J2 4

H26

H25

F26

L24

L25

F24

L26

F25

M25

E26

M24

E25

G26

J2 6

G24

K25

H24

K26

G25

K24

B-TMA0

B-TMA1

B-TMA2

B-TMA3

B-TMA4

B-TMA5

B-TMA6

B-TMA7

B-TMA8

B-TMA9

B-TMA10

B-TMA11

B-TMA12

B-TMA13

B-TMBA0

B-TMBA1

B-TMBA2

B-TMCK

B-TMCKB

B-TMCKE

B-TMODT

B-TMRASB

B-TMCASB

B-TMWEB

B-TMRESETB

B-TMDQSL

B-TMDQSLB

B-TMDQSU

B-TMDQSUB

B-TMDML

B-TMDMU

B-TMDQL0

B-TMDQL1

B-TMDQL2

B-TMDQL3

B-TMDQL4

B-TMDQL5

B-TMDQL6

B-TMDQL7

B-TMDQU0

B-TMDQU1

B-TMDQU2

B-TMDQU3

B-TMDQU4

B-TMDQU5

B-TMDQU6

B-TMDQU7

B-TMA0

B-TMA2

B-TMA11

B-TMA1

B-TMA8

B-TMA6

B-TMBA0

B-TMA3

B-TMA5

B-TMA7

B-TMA4

B-TMA12

B-TMBA1

B-TMA10

B-TMRESETB

B-TMBA2

B-TMA13

B-TMA9

B-TMCK

B-TMCKB

B-TMRASB

B-TMCASB

B-TMODT

B-TMWEB

B-TMDQSL

B-TMDQSLB

B-TMDQSU

B-TMDQSUB

B-TMDQL1

B-TMDQL3

B-TMDML

B-TMDQU2

B-TMCKE

B-TMDQL7

B-TMDQL5

B-TMDQL0

B-TMDQL2

B-TMDQL6

B-TMDQL4

B-TMDQU7

B-TMDQU3

B-TMDQU5

B-TMDMU

B-TMDQU6

B-TMDQU0

B-TMDQU4

B-TMDQU1

R1215

10

R1216

10

AR1211

10

AR1214

10

AR1215

10

AR1219

10

R1222

10

R1223

10

AR1220

10

R1219

10

R1220

10

R1217

10

R1218

10

AR1212

10

AR1213

10

AR1216

10

AR1217

10

AR1218

10

R1221

10

10K R1234

B-MA0

B-MA2

B-MA11

B-MA1

B-MA8

B-MA6

B-MBA0

B-MA3

B-MA5

B-MA7

B-MA4

B-MA12

B-MBA1

B-MA10

B-MRESETB

B-MBA2

B-MA13

B-MA9

B-MCK

B-MCKB

B-MRASB

B-MCASB

B-MODT

B-MWEB

B-MDQSL

B-MDQSLB

B-MDQSU

B-MDQSUB

B-MDQL1

B-MDQL3

B-MDML

B-MDQU2

B-MCKE

B-MDQL7

B-MDQL5

B-MDQL0

B-MDQL2

B-MDQL6

B-MDQL4

B-MDQU7

B-MDQU3

B-MDQU5

B-MDMU

B-MDQU6

B-MDQU0

B-MDQU4

B-MDQU1

B-MCK

B-MCKB

VCC_1.5V_DDR

B-MCKE

C1240

0. 01u F

R1232

10K

56

R1237

56

R1238

B-MODT

B-MRASB

B-MCASB

B-MWEB

B-MRESETB

B-MDQSL

B-MDQSLB

B-MDQSU

B-MDQSUB

B-MDML

B-MDMU

B-MDQL0

B-MDQL1

B-MDQL2

B-MDQL3

B-MDQL4

B-MDQL5

B-MDQL6

B-MDQL7

B-MDQU0

B-MDQU1

B-MDQU2

B-MDQU3

B-MDQU4

B-MDQU5

B-MDQU6

B-MDQU7

B-MA0

B-MA1

B-MA2

B-MA3

B-MA4

B-MA5

B-MA6

B-MA7

B-MA8

B-MA9

B-MA10

B-MA11

B-MA12

B-MA13

B-MBA0

B-MBA1

B-MBA2

B-MCKE

IC12 02

H5TQ1G63BFR-H9C

N3

A0

P7

A1

P3

A2

N2

A3

P8

A4

P2

A5

R8

A6

R2

A7

T8

A8

R3

A9

L7

A10/AP

R7

A11

N7

A12/BC

T3

A13

M7

A15

M2

BA0

N8

BA1

M3

BA2

J7

CK

K7

CK

K9

CKE

L2

CS

K1

ODT

J3

RAS

K3

CAS

L3

WE

T2

RESET

F3

DQSL

G3

DQSL

C7

DQSU

B7

DQSU

E7

DML

D3

DMU

E3

DQL0

F7

DQL1

F2

DQL2

F8

DQL3

H3

DQL4

H8

DQL5

G2

DQL6

H7

DQL7

D7

DQU0

C3

DQU1

C8

DQU2

C2

DQU3

A7

DQU4

A2

DQU5

B8

DQU6

A3

DQU7

VREFCA

VREFDQ

VDD_1

VDD_2

VDD_3

VDD_4

VDD_5

VDD_6

VDD_7

VDD_8

VDD_9

VDDQ_1

VDDQ_2

VDDQ_3

VDDQ_4

VDDQ_5

VDDQ_6

VDDQ_7

VDDQ_8

VDDQ_9

NC_1

NC_2

NC_3

NC_4

NC_6

VSS_1

VSS_2

VSS_3

VSS_4

VSS_5

VSS_6

VSS_7

VSS_8

VSS_9

VSS_10

VSS_11

VSS_12

VSSQ_1

VSSQ_2

VSSQ_3

VSSQ_4

VSSQ_5

VSSQ_6

VSSQ_7

VSSQ_8

VSSQ_9

M8

H1

L8

ZQ

B2

D9

G7

K2

K8

N1

N9

R1

R9

A1

A8

C1

C9

D2

E9

F1

H2

H9

J1

J9

L1

L9

T7

A9

B3

E1

G8

J2

J8

M1

M9

P1

P9

T1

T9

B1

B9

D1

D8

E2

E8

F9

G1

G9

B-MVREFCA

B-MVREFDQ

R1226

240 1%

VCC_1.5V_DDR

THE SYMBOL MARK OF THIS SCHEMETIC DIAGRAM INCORPORATES SPECIAL FEATURES IMPORTANT FOR PROTECTION FROM X-RADIATION. FILRE AND ELECTRICAL SHOCK HAZARDS, WHEN SERVICING IF IS ESSENTIAL THAT ONLY MANUFATURES SPECFIED PARTS BE USED FOR THE CRITICAL COMPONENTS IN THE SYMBOL MARK OF THE SCHEMETIC.

EAX61373301

DDR

09/04/ 0 2

1 2 1 3

USB1 SIDE

LGE Internal Use Only

Ca pac ito rs on VBU SA sho uld be pl a ce d a s cl o sd t o c on ne c to r a s po s si bl e .

250 _350

4000-4-BU-AJK

2011P

1234

MAERTS NWOD BSU

10mm

5

USB2 REAR(SVC)

C1122 10uF 16V

250 _350

USB1_OCD

C1116 100u F 16V 250 _350

D1100 CDS3C05HDMI1

5. 6V READY

R1129

10K

250 _350

22R1124

250 _350

D1102 CDS3C05HDMI1

5. 6V READY

+3. 3V

SWITCH ADDED

250_350

IC1101

AP2191SG-13

NC

8

OUT_2

7

$0 .1 1

OUT_1

6

FLG

5

+3. 3V

1

2

3

4

READY

IN_1

IN_2

EN

250 _350

22R1145

USB1_CTL

R1141

10K

GND

P_+5V

C1120

0. 1u F 16V

25 0_3 50

USB1_DM_to_MAIN

USB1_DP_to_MAIN

KJA-U B-0-0 037

THE SYMBOL MARK OF THIS SCHEMETIC DIAGRAM INCORPORATES SPECIAL FEATURES IMPORTANT FOR PROTECTION FROM X-RADIATION. FILRE AND ELECTRICAL SHOCK HAZARDS, WHEN SERVICING IF IS ESSENTIAL THAT ONLY MANUFATURES SPECFIED PARTS BE USED FOR THE CRITICAL COMPONENTS IN THE SYMBOL MARK OF THE SCHEMETIC.

0LCML00003B

MLB- 201209 -0120P -N2

PJ2 30

JK110 0

1

2

3

4

5

L11 00

+5V

C1121

0. 1u F 16V

D1101

CDS3C05HDMI1

5. 6V READY

D1103

CDS3C05HDMI1

5. 6V READY

USB2_DM_to_MAIN

USB2_DP_to_MAIN

EAX61373301

USB HUB

1 1 1 3

JK1 001

LGE Internal Use Only

PP J23 7-0 1

[RD1]E-LUG

6C

[RD1]O-SPRI NG

5C

[RD1]CONTACT

4C

[WH1]O-SPRING

5B

[YL1]CONTACT

4A

[YL1]O-SP RING

5A

[YL1]E-LUG

6A

[RD2]E-LUG

6H

[RD2]O- SPRING_2

5H

[RD2]CONTACT

4H

[WH2]O-SPRING

5G

[RD2]O- SPRING_1

5F

[RD2] E-LUG- S

7F

[BL2]O- SPRING

5E

[BL2 ]E-LUG- S

7E

[GN2]CONTACT

4D

[GN2]O-SPRING

5D

[GN2]E-LUG

6D

[RD3]E-LUG

6N

[RD3]O- SPRING_2

5N

[RD3]CONTACT

4N

[WH3]O-SPRING

5M

[RD3]O- SPRING_1

5L

[RD3] E-LUG- S

7L

[BL3]O- SPRING

5K

[BL3 ]E-LUG- S

7K

[GN3]CONTACT

4J

[GN3]O-SPRING

5J

[GN3]E-LUG

6J

D1003

5.6 V

D1004

5.6 V

D1005

30V

D1006

5.6 V

D1007

5.6 V

D1008 30V

D1009

30V

D1010 30V

D1011

5.6 V

D1012

5.6 V

D1013 30V

D1014 30V

D1015

30V

R1060 0

1/16W 5%

R1061 0

1/16W 5%

R1063 0

1/16W 5%

R1064 0

1/16W 5%

R1065 0

1/16W 5%

R1062 0

1/16W 5%

R1010 470K

R1011 470K

R1014 75

R1013 75

R1012 75

R1021 75

R1015 470K

R1016 470K

R1005

75

R1018 470K

R1004 470K

R1020 75

R1022

75

READY

820p F

C1018 47pF 50V

C1032 820p F 50V

READY

C1033 10pF 50V

READY

C1025 10pF 50V

READY

C1027 820p F 50V

C1028 820p F 50V

C1029 10pF 50V

C1030 10pF 50V

C1031 10pF 50V

C1020

820p F

50V

C1021

50V

C1017 820p F 50V

C1026 10pF 50V

R1027 10K

R1028 10K

R1025 10K

R1026 10K

R1029

R1030

SIDE CVBS

250 _350

5A

[YL]E-LUG

4A

[YL]O-SPRING

3A

[YL]CONTACT

4B

[WH]O-SPRING

3C

[RD]CONTACT

4C

[RD]O-SPRING

5C

R1031

12K

R1032

12K

R1033

12K

R1034 12K

10K

R1035

12K

10K

R1006 12K

AV_RIN

AV_LIN

AV_CVBS_IN

COMP2_RIN

COMP2_LIN

COMP2_Pr+

COMP2_Pr-

COMP2_Pb+

COMP2_Pb-

COMP2_Y+

COMP2_Y-

COMP1_RIN

COMP1_LIN

COMP1_Pr+

COMP1_Pr-

COMP1_Pb+

COMP1_Pb-

COMP1_Y+

COMP1_Y-

+3.3V_AVDD

R1023

10K

D1002

C1019 100p F

5.6 V 50V

READY

COMPONENT 2

+3.3V_AVDD

R1000

10K

R1001 1K

D1000

5.6 V

COMPONENT 1

+3.3V_AVDD

R1002

10K

D1001

5.6 V

R1003 1K

R1024

1K

AV 1

AV_CVBS_DET

COMP2_DET

COMP1_DET

PPJ 235 -01

JK100 2

[RD]E-LUG

SPDIF

SPDIF_OUT

GND

NL17SZ00DFT2G

1A5

NAND

B

2

GATE

3

IC1000

VCC

R1055 100

Y

4

R1051 100

READY

+3. 3V

R1058

1K

D1020

D1021

D1019

R1036

30V

C1022 22pF

+3. 3V

10K

8301R

7301R

+3. 3V

C1023

0. 1uF 50V

D1022

30V

C1013

0. 1uF 16V

R1040 10K

C1015 820p F

K074

R1039 10K

C1014

K074

820p F

C1024 10uF 16V

R1019 1K

READY

12K

R1043

R1042

GND

VCC

VINPUT

R1044

75

JK100 3

JST 122 3-00 1

1

2

3

4

C1016 47pF 50V

SIDE_CVBS_DET

SIDE_LIN

SIDE_RIN

citpO rebiF

FIX_POLE

SIDE_CVBS_IN

THE SYMBOL MARK OF THIS SCHEMETIC DIAGRAM INCORPORATES SPECIAL FEATURES IMPORTANT FOR PROTECTION FROM X-RADIATION. FILRE AND ELECTRICAL SHOCK HAZARDS, WHEN SERVICING IF IS ESSENTIAL THAT ONLY MANUFATURES SPECFIED PARTS BE USED FOR THE CRITICAL COMPONENTS IN THE SYMBOL MARK OF THE SCHEMETIC.

EAX61373301

JACK

1 0 1 3

RGB

LGE Internal Use Only

RS232C

RS232C_TXD

RS232C_RXD

PC_SER_DATA

PC_SER_CLK

250 _350

P900 SPG09-DB-010

6

1

7

2

8

3

9

4

10

5

16

SHILED

GND

D914

D915

30V

PJ23 0

11

12

13

14

15

R998

R999

PJ2 30

RED_GND

GND_2

RED

GREEN_GND

DDC_DATA

GREEN

BLUE_GND

H_SYNC

BLUE

NC

V_SYNC

GND_1

SYNC_GND

DDC_CLOCK

DDC_GND

+3.3V _ST

0

R900

4.7 K

D905

C900

0. 1uF 16V

R973

D904

0R974

0

READY

D906

ROM DOWNLOAD FOR PDP

+3.3V_AVDD

R975 1K

R976

D901

1K

C909

0. 1uF 50V

C910

0. 1uF 50V

+1C

+V

2

1

61

51

DNG

CCV

D902 ADUC30S03010L_AMODIODE

30V

D903

ADUC30S03010L_AMODIODE

30V

9

10

4

5

+3.3V _ST

C911

0. 1uF 50V

READY

Q900EB

2SC3052

%5

W01/1

READY

C

10K

R918

READY

R901

4.7 K

C902

0. 1uF 50V

2NIR

8

9

2TUOR

READY

C901 270p F 50V

READY

2TUOD

7

01

2NID

P901

R902 10

C906 220p F 50V

READY

6

MAX3232CDR

11

220p F 50VC903

220p F 50VC904

SPG09-D B-009

R903 10

C905 220p F 50V

READY

C908 220p F 50V

READY

D900

C907

0. 1uF 50V

-1C

-2C +2C

-V

4

3

5

IC9 00

$0. 179

41

31

21

1TUOD

1TUOR

1NID

1NIR

R904

100

R905

100

6

7

8

1

2

3

D907

+3.3V_AVDD

PC_SER_DATA

PC_SER_CLK

IR

100K

R919

100K

R920

D908

R906 75

L902

DSUB_R

DSUB_R-

DDC_SDA/UART_TX

DSUB_G

DSUB_G-

DSUB_DET

DSUB_B

DSUB_B-

DSUB_HSYNC

DSUB_VSYNC

R911

READY

R915 22

R916 22

10K

D909 30V

L905

L904

R907 75

R908

75

C914

0.1 uF 16V

READY

C916 10pF 50V

C917 10pF 50V

1KR917

DDC_SCL/UART_RX

250_ 350

IC901

AT24C02BN-10SU-1.8

1

8

2

7

3

6

4

5

C918

18pF

R912

18K

EDID_WP

C919

18pF

50V

PC AUDIO

250 _350

JK900

PEJ 027 -01

3

6A

7A

4

5

7B

6B

E_SPRING

T_TERMINAL1

B_TERMINAL1

R_SPRING

T_SPRING

B_TERMINAL2

T_TERMINAL2

For 2 30 Deb u g ging

PJ2 30

DDC_SCL/UART_RX

DDC_SDA/UART_TX

R980

R981

PJ2 30

D910

5.6 V

D911

5.6 V

+3.3V

R956

R957

Q904

R958

0

4.7 K

G

22R959

S

SDA1

4.7 K

D

2N7 002( F)

HD

P90 3

SMW200-26C

2

4

6

8

10

12

14

16

18

20

+3.3V

R964

1

3.3 K

3

5

7

9

11

22R961

HD

13

15

17

19

2122

2324

2526

100R949

HD

R960 27K

R923

4.7 K

R924

4.7 K

R929 0

R930 0

R932 0

R934 0

+5V_ST

C922

0.1 uF

+3.3V

R963

3.3 K

MOD_ROM_TX

SDA1_1 SCL1_1

RXB0+

RXB1+

RXB2+

RXBCK+

RXB3+

RXB4+

PC_SER_DATA

22R962

HD

HD LVDS

DDC_SCL/UART_RX

DDC_SDA/UART_TX

RGB_DDC_SCL

RGB_DDC_SDA

SUB Board I/F

R941

10K

READY

R909

READY

4.7 K

+3.3V _ST

+3.3 V

R914

4.7 K

R910

4.7 K

+5V_ST

R937

4.7 K

R939

4.7 K

C925

L903

MLB-2 01209-0 120P-N 2

L906

MLB-2 01209-0 120P-N 2

R945 22

R946 22

R947 22

C924 10pF

READY

C923 10pF

READY

L900

MLB-20 1209-01 20P-N2

L901

MLB-20 1209-01 20P-N2

L907

MLB-2 01209-0 120P-N 2

10pF

C933 10pF

C926

10pF

C927

0. 1uF 16V

C930 10pF

C931 10pF

C932

0. 1uF 16V

D913

R931

C920

10K

820p F

50V

C921 820p F

50V

PJ2 30

P906

12507WR-03L

0

1

0

2

3

4

R926 470K

R927 470K

R933 10K

12K

R935 12K

R936

PC_RIN

PC_LIN

LED_RED

LED_WHITE

KEY1

KEY2

SUB_SCL

SUB_SDA

+3.3V _ST

IR

R938

10K

+3.3 V

R951

4.7 K

D

Q903

2N7 002( F)

MOD_ROM_RX

RXB0-

RXB1-

RXB2-

RXBCK-

RXB3-

RXB4-

PC_SER_CLK

DISP_EN

+3.3V

R952

0

G

S

P902

12507WS-1 2L

1

2

3

4

5

6

7

8

9

10

11

12

13

R953

4.7 K

R954

FHD LVDS

FHD

22

SCL1

52

51

TF05 -51S

P904

50

49

48

47

46

45

44

43

42

41

40

39

38

37

36

35

34

33

32

31

30

29

28

27

26

25

24

23

22

21

20

19

18

17

16

15

14

13

12

11

10

9

8

7

6

5

4

3

2

1

R970

FHD

22R9 68

FHD

100R969

22

FHD

PC_SER_CLK

PC_SER_DATA

SCL1_1

DISP_EN

SDA1_1

RXA0+

RXA0-

RXA1+

RXA1-

RXA2+

RXA2-

RXACK+

RXACK-

RXA3+

RXA3-

RXA4+

RXA4-

RXB0+

RXB0-

RXB1+

RXB1-

RXB2+

RXB2-

RXBCK+

RXBCK-

RXB3+

RXB3-

RXB4+

RXB4-

MOD_ROM_TX

MOD_ROM_RX

THE SYMBOL MARK OF THIS SCHEMETIC DIAGRAM INCORPORATES SPECIAL FEATURES IMPORTANT FOR PROTECTION FROM X-RADIATION. FILRE AND ELECTRICAL SHOCK HAZARDS, WHEN SERVICING IF IS ESSENTIAL THAT ONLY MANUFATURES SPECFIED PARTS BE USED FOR THE CRITICAL COMPONENTS IN THE SYMBOL MARK OF THE SCHEMETIC.

EAX61141601

LVDS/RS232//RGB

9 13

SHIELD

LGE Internal Use Only

20

$0 .4 7

-> $0 .28

10332095GAE

JK803

5V_DET_HDMI_3

5V_HDMI_3

R842

1K

R841

IC8 02

1.8 K

R843

3.3 K

0. 1uF

VCC

8

WP

7

SCL

6

SDA

5

19

18

17

16

15

14

13

12

11

CK+

10

D0-

9

D0_GND

8

D0+

7

D1-

6

D1_GND

5

D1+

4

D2-

3

D2_GND

2

D2+

1

READY

GND

AT24C02 BN-10SU- 1.8

A0

1

A1

2

A2

3

GND

4

D807

AVRL161A1R1NT

R845

R844

R846

C809

C808

0. 1uF 16V

22

0

R850

C

18K

22R8 48

22R849

B

Q806

E

2SC3875S (ALY)

EDID_WP

R851

10K

5V_HDMI_3

R852 18K

HPD3

DDC_SDA_3

DDC_SCL_3

CEC_REMOTE

CK-_HDMI3

CK+_HDMI3

D0-_HDMI3

D0+_HDMI3

D1-_HDMI3

D1+_HDMI3

D2-_HDMI3

D2+_HDMI3

+5V

1A

2A

D804 ENKMC2838-T112

C

R853 18K

DDC_SCL_3

DDC_SDA_3

JACK_GND

KJA -ET -0- 0032

10mm

250 _350

20

$0 .2 7

JK804

19

HPD

18

+5V_POWER

17

DDC/CEC_GND

16

SDA

15

SCL

14

NC

13

CEC

12

CLK-

11

CLK_SHIELD

10

CLK+

9

DATA0-

8

DATA0_SHIELD

7

DATA0+

6

DATA1-

5

DATA1_SHIELD

4

DATA1+

3

DATA2-

2

DATA2_SHIELD

1

DATA2+

GND

250 _350

AT24C02 BN-10SU- 1.8

A0

1

A1

2

A2

3

GND

4

5V_HDMI_4

R857

1K

R856

1.8 K

D808 READY AVRL161A1R1NT

IC8 04

5V_DET_HDMI_4

R860

3.3 K

R878

C811

0. 1uF

VCC

8

WP

7

SCL

6

SDA

5

Q807EB

2SC3875S (ALY)

C810

0. 1uF 16V

22R858

22R859

0

R864

18K

EDID_WP

22R862

22R863

C

5V_HDMI_4

R867 18K

R869

2A

10K

HPD4

DDC_SDA_4

DDC_SCL_4

CEC_REMOTE

CK-_HDMI4

CK+_HDMI4

D0-_HDMI4

D0+_HDMI4

D1-_HDMI4

D1+_HDMI4

D2-_HDMI4

D2+_HDMI4

+5V

1A

ENKMC2838-T112 D805

C

R868 18K

DDC_SCL_4

DDC_SDA_4

EAG59023302

SHIELD

20

$0 .4 7

-> $0 .27

JK801

READY

GND

19

18

17

16

15

14

13

12

11

CK+

10

D0-

9

D0_GND

8

D0+

7

D1-

6

D1_GND

5

D1+

4

D2-

3

D2_GND

2

D2+

1

AT24C02 BN-10SU- 1.8

A0

A1

A2

GND

SIDE HDMI

5V_HDMI_2

GND

1

2

3

4

5V_DET_HDMI_2

READY

R823

1K

R822

1.8 K

READY

D806

READY

AVRL161A1R1NT

READY

IC8 01

C

E

C803

R824

0. 1uF

3.3 K 16V

READY

R826

22

22R827

READY

R828

0

READY

C805

0. 1uF

VCC

8

R831

18K

WP

READY

7

SCL

6

SDA

5

READY

EDID_WP

22R830

22R8 29

R833

B

READY Q805 READY

2SC3875S (ALY)

5V_HDMI_2

R832 18K

READY

10K

+5V

1A

2A

ENKMC2838-T112 D803

READY

C

R834 18K

READY

HPD2

DDC_SDA_2

DDC_SCL_2

CEC_REMOTE

CK-_HDMI2

CK+_HDMI2

D0-_HDMI2

D0+_HDMI2

D1-_HDMI2

D1+_HDMI2

D2-_HDMI2

D2+_HDMI2

DDC_SCL_2

DDC_SDA_2

CEC_REMOTE

+3.3 V

R871

R872

READY

0

G

Q800

BSS83

S

B

D

HDMI_CEC_S7

0

S7

CEC_REMOTE

R800

68K

D801

MMBD301LT1G

HDMI_JACK MICOM

HDMI_JACK

R870

68K

D802

MMBD301LT1G

READY

R874

READY

+3.3V _ST

R875

D

0

R877 68K

MICOM_CEC_ON/OFF

HDMI_CEC

0R873

G

Q801

BSS83

S

B

THE SYMBOL MARK OF THIS SCHEMETIC DIAGRAM INCORPORATES SPECIAL FEATURES IMPORTANT FOR PROTECTION FROM X-RADIATION. FILRE AND ELECTRICAL SHOCK HAZARDS, WHEN SERVICING IF IS ESSENTIAL THAT ONLY MANUFATURES SPECFIED PARTS BE USED FOR THE CRITICAL COMPONENTS IN THE SYMBOL MARK OF THE SCHEMETIC.

EAX61373301

HDMI

8 1 3

LG 50PJ350, PB02A Schematic

Specifications and Main Features

Frequently Asked Questions

User Manual
