LG OLED65G7P Schematic

CONFIDENTIAL

OLED TV

SERVICE MANUAL

CHASSIS : EA71H

MODEL : OLED65G7P OLED65G7P-U

CAUTION

BEFORE SERVICING THE CHASSIS, READ THE SAFETY PRECAUTIONS IN THIS MANUAL.

P/NO : MFL69826607 (1702-REV00)

Any reproduction, duplication, distribution (including by way of email, facsimile or other electronic means), publication, modification, copying or transmission of this Service Manual is STRICTLY PROHIBITED unless you have obtained the prior written consent of the LG Electronics entity from which you received this Service Manual. The material covered by this prohibition includes, without limitation, any text, graphics or logos in this Service Manual.

CONTENTS

CONTENTS .............................................................................................. 2

SAFETY PRECAUTIONS ........................................................................ 3

SERVICING PRECAUTIONS ................................................................... 4

SPECIFICATION ....................................................................................... 6

SOFTWARE UPDATE .............................................................................. 9

BLOCK DIAGRAM ................................................................................. 10

EXPLODED VIEW .................................................................................. 15

ASSEMBLY / DISASSEMBLY GUIDE .................................... APPENDIX

TROUBLE SHOOTING GUIDE ................................................ APPENDIX

- 2 -

SAFETY PRECAUTIONS

IMPORTANT SAFETY NOTICE

Many electrical and mechanical parts in this chassis have special safety-related characteristics. These parts are identified by in the Exploded View. It is essential that these special safety parts should be replaced with the same components as recommended in this manual to prevent Shock, Fire, or other Hazards. Do not modify the original design without permission of manufacturer.

General Guidance

An isolation Transformer should always be used during the servicing of a receiver whose chassis is not isolated from the AC power line. Use a transformer of adequate power rating as this protects the technician from accidents resulting in personal injury from electrical shocks.

It will also protect the receiver and it's components from being damaged by accidental shorts of the circuitry that may be inadvertently introduced during the service operation.

If any fuse (or Fusible Resistor) in this TV receiver is blown, replace it with the specified.

When replacing a high wattage resistor (Oxide Metal Film Resistor, over 1 W), keep the resistor 10 mm away from PCB.

Keep wires away from high voltage or high temperature parts.

Before returning the receiver to the customer,

always perform an AC leakage current check on the exposed metallic parts of the cabinet, such as antennas, terminals, etc., to be sure the set is safe to operate without damage of electrical shock.

Leakage Current Cold Check(Antenna Cold Check)

With the instrument AC plug removed from AC source, connect an electrical jumper across the two AC plug prongs. Place the AC switch in the on position, connect one lead of ohm-meter to the AC plug prongs tied together and touch other ohm-meter lead in turn to each exposed metallic parts such as antenna terminals, phone jacks, etc. If the exposed metallic part has a return path to the chassis, the measured resistance should be between 1 MΩ and 5.2 MΩ. When the exposed metal has no return path to the chassis the reading must be infinite. An other abnormality exists that must be corrected before the receiver is returned to the customer.

Leakage Current Hot Check (See below Figure)

Plug the AC cord directly into the AC outlet.

Do not use a line Isolation Transformer during this check. Connect 1.5 K / 10 watt resistor in parallel with a 0.15 uF capacitor between a known good earth ground (Water Pipe, Conduit, etc.) and the exposed metallic parts. Measure the AC voltage across the resistor using AC voltmeter with 1000 ohms/volt or more sensitivity. Reverse plug the AC cord into the AC outlet and repeat AC voltage measurements for each exposed metallic part. Any voltage measured must not exceed 0.75 volt RMS which is corresponds to

0.5 mA. In case any measurement is out of the limits specified, there is possibility of shock hazard and the set must be checked and repaired before it is returned to the customer.

Leakage Current Hot Check circuit

- 3 -

SERVICING PRECAUTIONS

CAUTION: Before servicing receivers covered by this service manual and its supplements and addenda, read and follow the

SAFETY PRECAUTIONS on page 3 of this publication. NOTE: If unforeseen circumstances create conict between the

following servicing precautions and any of the safety precautions on page 3 of this publication, always follow the safety precautions. Remember: Safety First.

General Servicing Precautions

1. Always unplug the receiver AC power cord from the AC power source before;

a. Removing or reinstalling any component, circuit board mod-

ule or any other receiver assembly.

b. Disconnecting or reconnecting any receiver electrical plug or

other electrical connection.

c. Connecting a test substitute in parallel with an electrolytic

capacitor in the receiver. CAUTION: A wrong part substitution or incorrect polarity installation of electrolytic capacitors may result in an explosion hazard.

2. Test high voltage only by measuring it with an appropriate high voltage meter or other voltage measuring device (DVM, FETVOM, etc) equipped with a suitable high voltage probe. Do not test high voltage by "drawing an arc".

3. Do not spray chemicals on or near this receiver or any of its assemblies.

4. Unless specied otherwise in this service manual, clean

electrical contacts only by applying the following mixture to the contacts with a pipe cleaner, cotton-tipped stick or comparable non-abrasive applicator; 10 % (by volume) Acetone and 90 % (by volume) isopropyl alcohol (90 % - 99 % strength)

CAUTION: This is a ammable mixture. Unless specied otherwise in this service manual, lubrication of

contacts in not required.

5. Do not defeat any plug/socket B+ voltage interlocks with which receivers covered by this service manual might be equipped.

6. Do not apply AC power to this instrument and/or any of its electrical assemblies unless all solid-state device heat sinks are correctly installed.

7. Always connect the test receiver ground lead to the receiver chassis ground before connecting the test receiver positive lead. Always remove the test receiver ground lead last.

8. Use with this receiver only the test xtures specied in this

service manual.

CAUTION: Do not connect the test xture ground strap to any

heat sink in this receiver.

Electrostatically Sensitive (ES) Devices

Some semiconductor (solid-state) devices can be damaged easily by static electricity. Such components commonly are called Electrostatically Sensitive (ES) Devices. Examples of typical ES

devices are integrated circuits and some eld-effect transistors

and semiconductor “chip” components. The following techniques should be used to help reduce the incidence of component damage caused by static by static electricity.

1. Immediately before handling any semiconductor component or semiconductor-equipped assembly, drain off any electrostatic charge on your body by touching a known earth ground. Alternatively, obtain and wear a commercially available discharging wrist strap device, which should be removed to prevent potential shock reasons prior to applying power to the unit under test.

2. After removing an electrical assembly equipped with ES devices, place the assembly on a conductive surface such as aluminum foil, to prevent electrostatic charge buildup or exposure of the assembly.

3. Use only a grounded-tip soldering iron to solder or unsolder ES devices.

4. Use only an anti-static type solder removal device. Some solder

removal devices not classied as “anti-static” can generate electrical charges sufcient to damage ES devices.

5. Do not use freon-propelled chemicals. These can generate

electrical charges sufcient to damage ES devices.

6. Do not remove a replacement ES device from its protective package until immediately before you are ready to install it. (Most replacement ES devices are packaged with leads electrically shorted together by conductive foam, aluminum foil or comparable conductive material).

7. Immediately before removing the protective material from the leads of a replacement ES device, touch the protective material to the chassis or circuit assembly into which the device will be installed. CAUTION: Be sure no power is applied to the chassis or circuit, and observe all other safety precautions.

8. Minimize bodily motions when handling unpackaged replacement ES devices. (Otherwise harmless motion such as the brushing together of your clothes fabric or the lifting of your

foot from a carpeted oor can generate static electricity sufcient to damage an ES device.)

General Soldering Guidelines

1. Use a grounded-tip, low-wattage soldering iron and appropriate tip size and shape that will maintain tip temperature within the range or 500 °F to 600 °F.

2. Use an appropriate gauge of RMA resin-core solder composed of 60 parts tin/40 parts lead.

3. Keep the soldering iron tip clean and well tinned.

4. Thoroughly clean the surfaces to be soldered. Use a mall wirebristle (0.5 inch, or 1.25 cm) brush with a metal handle. Do not use freon-propelled spray-on cleaners.

5. Use the following unsoldering technique

a. Allow the soldering iron tip to reach normal temperature.

(500 °F to 600 °F) b. Heat the component lead until the solder melts. c. Quickly draw the melted solder with an anti-static, suction-

type solder removal device or with solder braid.

CAUTION: Work quickly to avoid overheating the circuit board printed foil.

6. Use the following soldering technique. a. Allow the soldering iron tip to reach a normal temperature

(500 °F to 600 °F)

b. First, hold the soldering iron tip and solder the strand against

the component lead until the solder melts.

c. Quickly move the soldering iron tip to the junction of the

component lead and the printed circuit foil, and hold it there only until the solder ows onto and around both the component lead and the foil. CAUTION: Work quickly to avoid overheating the circuit board printed foil.

d. Closely inspect the solder area and remove any excess or

splashed solder with a small wire-bristle brush.

- 4 -

IC Remove/Replacement

Some chassis circuit boards have slotted holes (oblong) through which the IC leads are inserted and then bent at against the circuit foil. When holes are the slotted type, the following technique should be used to remove and replace the IC. When working with boards using the familiar round hole, use the standard technique as outlined in paragraphs 5 and 6 above.

Removal

1. Desolder and straighten each IC lead in one operation by gently prying up on the lead with the soldering iron tip as the solder melts.

2. Draw away the melted solder with an anti-static suction-type solder removal device (or with solder braid) before removing the IC.

Replacement

1. Carefully insert the replacement IC in the circuit board.

2. Carefully bend each IC lead against the circuit foil pad and solder it.

3. Clean the soldered areas with a small wire-bristle brush. (It is not necessary to reapply acrylic coating to the areas).

"Small-Signal" Discrete Transistor Removal/Replacement

1. Remove the defective transistor by clipping its leads as close as possible to the component body.

2. Bend into a "U" shape the end of each of three leads remaining on the circuit board.

3. Bend into a "U" shape the replacement transistor leads.

4. Connect the replacement transistor leads to the corresponding leads extending from the circuit board and crimp the "U" with long nose pliers to insure metal to metal contact then solder each connection.

Power Output, Transistor Device Removal/Replacement

1. Heat and remove all solder from around the transistor leads.

2. Remove the heat sink mounting screw (if so equipped).

3. Carefully remove the transistor from the heat sink of the circuit board.

4. Insert new transistor in the circuit board.

5. Solder each transistor lead, and clip off excess lead.

6. Replace heat sink.

Diode Removal/Replacement

1. Remove defective diode by clipping its leads as close as possible to diode body.

2. Bend the two remaining leads perpendicular y to the circuit board.

3. Observing diode polarity, wrap each lead of the new diode around the corresponding lead on the circuit board.

4. Securely crimp each connection and solder it.

5. Inspect (on the circuit board copper side) the solder joints of the two "original" leads. If they are not shiny, reheat them and if necessary, apply additional solder.

3. Solder the connections. CAUTION: Maintain original spacing between the replaced component and adjacent components and the circuit board to prevent excessive component temperatures.

Circuit Board Foil Repair

Excessive heat applied to the copper foil of any printed circuit board will weaken the adhesive that bonds the foil to the circuit board causing the foil to separate from or "lift-off" the board. The following guidelines and procedures should be followed whenever this condition is encountered.

At IC Connections

To repair a defective copper pattern at IC connections use the following procedure to install a jumper wire on the copper pattern side of the circuit board. (Use this technique only on IC connections).

1. Carefully remove the damaged copper pattern with a sharp knife. (Remove only as much copper as absolutely necessary).

2. carefully scratch away the solder resist and acrylic coating (if used) from the end of the remaining copper pattern.

3. Bend a small "U" in one end of a small gauge jumper wire and carefully crimp it around the IC pin. Solder the IC connection.

4. Route the jumper wire along the path of the out-away copper pattern and let it overlap the previously scraped end of the good copper pattern. Solder the overlapped area and clip off any excess jumper wire.

At Other Connections

Use the following technique to repair the defective copper pattern at connections other than IC Pins. This technique involves the installation of a jumper wire on the component side of the circuit board.

1. Remove the defective copper pattern with a sharp knife. Remove at least 1/4 inch of copper, to ensure that a hazardous condition will not exist if the jumper wire opens.

2. Trace along the copper pattern from both sides of the pattern break and locate the nearest component that is directly connected to the affected copper pattern.

3. Connect insulated 20-gauge jumper wire from the lead of the nearest component on one side of the pattern break to the lead of the nearest component on the other side. Carefully crimp and solder the connections. CAUTION: Be sure the insulated jumper wire is dressed so the it does not touch components or sharp edges.

Fuse and Conventional Resistor Removal/Replacement

1. Clip each fuse or resistor lead at top of the circuit board hollow stake.

2. Securely crimp the leads of replacement component around notch at stake top.

- 5 -

SPECIFICATION

NOTE : Specifications and others are subject to change without notice for improvement

.

1. Application range

This specification is applied to the OLED TV used EA71H chassis.

2. Test condition

Each part is tested as below without special appointment. (1) Temperature : 25 ºC ± 5 ºC(77 ± 9 ºF) , CST : 40 ºC ± 5 ºC (2) Relative Humidity: 65 % ± 10 % (3) Power Voltage

: Standard input voltage (AC 100-240 V~, 50/60 Hz) * Standard Voltage of each products is marked by models.

(4) Specification and performance of each parts are followed

each drawing and specification by part number in accordance with BOM.

(5) The receiver must be operated for about 5 minutes prior to

the adjustment.

3. Test method

(1) Performance: LGE TV test method followed (2) Demanded other specification

- Safety : UL, CSA, CE, IEC specification

- EMC : FCC, ICES, CE, IEC specification

4. General Specification

No Item Specication Remark

1 Market North America

2 Broadcasting system ATSC / NTSC-M, 64 & 256 QAM

3 Available Channel VHF : 02~13

UHF : 14~69

DTV : 02-69

CATV : 01~135

CADTV : 01~135

4 Receiving system Digital : ATSC, 64 & 256 QAM

Analog : NTSC-M

5 Video Input NTSC-M Rear gender(1EA)

6 HDMI Input HDMI 1 PC / DTV format Side, Support 6Gbps

HDMI 2 PC / DTV format Side, Support 6Gbps, Support ARC

HDMI 3 PC / DTV format Side, Support 6Gbps

HDMI 4 PC / DTV format Side, Support 6Gbps

7 Audio Input AV Audio / DVI Audio Rear(AV Gender),

AV and DVI use same jack

8 SPDIF out(1EA) Optical Audio out Rear (1EA),

9 USB Input(3EA) EMF, DivX HD, For SVC (download) JPEG, MP3, DivX HD

Side(1EA), Rear(2EA)

- 6 -

5. External Input Support Format

5.1. HDMI Input (PC/DTV)

No. Resolution H-freq(kHz) V-freq.(kHz) Pixel clock(MHz) Proposed

HDMI-PC

1 640*350 31.46 70.09 25.17 EGA

2 720*400 31.46 70.08 28.32 DOS

3 640*480 31.46 59.94 25.17 VESA(VGA)

4 800*600 37.87 60.31 40 VESA(SVGA)

5 1024*768 48.36 60.00 65 VESA(XGA)

6 1360*768 47.71 60.01 84.75 VESA(WXGA)

7 1152*864 54.34 60.05 80 VESA

8 1280*1024 63.98 60.02 109.00 SXGA Support to HDMI-PC

9 1920*1080 67.5 60 158.40 WUXGA

(Reduced Blanking)

10 1920*1080 135 120 297

11 3840*2160 54 24.00 297.00 UDTV 2160P

12 3840*2160 56.25 25.00 297.00 UDTV 2160P

13 3840*2160 67.5 30.00 297.00 UDTV 2160P

14 4096*2160 53.95 23.97 296.70 UDTV 2160P

15 4096*2160 54 24 297 UDTV 2160P

- 7 -

No. Resolution H-freq(kHz) V-freq.(kHz) Pixel clock(MHz) Proposed

DTV

1 640*480 31.46 59.94 25.12 SDTV 480P

2 640*480 31.5 60.00 25.12 SDTV 480P

3 720*480 15.73 59.94 13.50 SDTV, DVD 480I(525I) Spec. out but display

4 720*480 15.75 60.00 13.51 SDTV, DVD 480I(525I)

5 720*576 15.62 50.00 13.50 SDTV, DVD 576I(625I)

50Hz

6 720*480 31.47 59.94 27 SDTV 480P

7 720*480 31.5 60.00 27.02 SDTV 480P

8 720*576 31.25 50.00 27 SDTV 576P

9 1280*720 44.96 59.94 74.17 HDTV 720P

10 1280*720 45 60.00 74.25 HDTV 720P

11 1280*720 37.5 50.00 74.25 HDTV 720P

12 1920*1080 28.12 50.00 74.25 HDTV 1080I

13 1920*1080 33.72 59.94 74.17 HDTV 1080I

14 1920*1080 33.75 60.00 74.25 HDTV 1080I

15 1920*1080 26.97 23.97 63.29 HDTV 1080P

16 1920*1080 27.00 24.00 63.36 HDTV 1080P

17 1920*1080 33.71 29.97 79.120 HDTV 1080P

18 1920*1080 33.75 30.00 79.20 HDTV 1080P

19 1920*1080 56.25 50.00 148.5 HDTV 1080P

20 1920*1080 67.43 59.94 148.35 HDTV 1080P

21 1920*1080 67.5 60.00 148.50 HDTV 1080P

22 1920*1080 112.5 100 297.00 HDTV 1080P

23 1920*1080 134.86 119.88 296.70 HDTV 1080P

24 1920*1080 135.00 120 297 HDTV 1080P

25 3840*2160 53.95 23.98 296.70 UDTV 2160P

26 3840*2160 54 24.00 297.00 UDTV 2160P

27 3840*2160 56.25 25.00 297.00 UDTV 2160P

28 3840*2160 61.43 29.97 296.70 UDTV 2160P

29 3840*2160 67.5 30.00 297.00 UDTV 2160P

30 3840*2160 112.5 50.00 594 UDTV 2160P When HDMI1,2,3,4

31 3840*2160 134.86 59.94 593.40 UDTV 2160P

32 3840*2160 135 60.00 594 UDTV 2160P

33 4096*2160 53.95 23.98 296.70 UDTV 2160P

34 4096*2160 54 24.00 297 UDTV 2160P

35 4096*2160 56.25 25.00 297 UDTV 2160P

36 4096*2160 61.43 29.97 296.70 UDTV 2160P

37 4096*2160 67.5 30.00 297 UDTV 2160P

38 4096*2160 112.5 50.00 594 UDTV 2160P When HDMI1,2,3/4

39 4096*2160 134.86 59.94 593.40 UDTV 2160P

40 4096*2160 135 60.00 594 UDTV 2160P

UHD DEEP COLOUR ON

- 8 -

SOFTWARE UPDATE

1. USB

(1) Insert the USB memory Stick to the USB port (2) Automatically detect the SW Version and show the below

message

(3) Click [YES]: initiate the download and install of the update.

2. NSU

(This Function is needed to connect to the internet)

(1) Menu -> All Settings -> General -> About This TV

(2) Click [CHEK FOR UPDATES] : system check newest

version

(4) Click [Check Now]: move to “About This TV” page for

update

(5) TV is updating

(6) After finished the update, below Pop-up appear

(7) Click [Yes] : TV will be DC OFF -> ON (8) After TV turned on, Check the updated SW Version and

Tool Option

(3) Click [DOWNLOAD AND INSTALL] (4) TV is updating

(5) After finished the update, below Pop-up appear

(6) Turn OFF the TV and On. Check the updated SW Version

and Tool Option

- 9 -

OCP

1.5A

Audio 2 AM P

(NTP7515D)

IC101

M16+

IF (+/-)

USB1 (3.0)

OPTIC

LAN

DDR3 2133 X 16

(512MB X 2EA)

HDMI1 (2.0)

HDMI2 (2.0)

HDMI3 (2.0)

SYSTEM EEPROM

(256Kb)

USB2 (2.0)

USB3 (2.0)

eMMC

(4GB)

SubMicom

(RENESAS

R5F1000G)

DDR3 2133 X 16

(512MB X 2EA)

P_TS

X_TAL

24MHz

I2S Out

H/P

AV

D-Demod : I2C 2

R

E

A

R

S

I

D

E

R

E

A

R

(H)

HP

AMP

SPDIF OUT

BLUTOOTH

IR / KEY/EYE

WIFI

SUB

ASSY

IR

KEY

Tuner : I2C 5

X_TAL

25MHz

I2C

CVBS/SIF

Tuner

COMP

(ARC)

X_TAL

32.768kHz

OCP

1.5A

OCP

1.5A

Component / H/PSpec Out

HDMI4 (2.0)

US

1. SOC

BLOCK DIAGRAM

- 10 -

M16+

AC29 [TP_DVB_CLK]

AC30 [TP_DVB_SOP]

AB30 [TP_DVB_VAL]

AN31 [DMD_ADC_INP]

AN32 [DMD_ADC_INN]

TUNER

[FE_DEMOD1_TS_ERROR_TU] 14

[FE_DEMOD1_1_TS_CLK] 15

[FE_DEMOD1_TS_SYNC] 16

[FE_DEMOD1_TS_VAL] 17

FE_DEMOD1_TS_DATA[0] 18

FE_DEMOD1_TS_DATA[1] 19

FE_DEMOD1_TS_DATA[2] 20

FE_DEMOD1_TS_DATA[3] 21

FE_DEMOD1_TS_DATA[4] 22

FE_DEMOD1_TS_DATA[5] 23

FE_DEMOD1_TS_DATA[6] 24

FE_DEMOD1_TS_DATA[7] 25

+1.2V_Demod_Core

[+3.3V_LNA_TU] 3

+3.3V_TUNER

[I2C_SCL5_TU] 1

[I2C_SDA5_TU] 2

[IF_AGC_TU] 5

[/TU_RESET1_TU] 10

FILTER

FE_DEMOD1_TS_CLK

FE_DEMOD1_TS_SYNC

FE_DEMOD1_TS_VAL

FE_DEMOD1_TS_DATA [0-7]

IF_P

IF_N

IF_AGC

ADC_I_INP

ADC_I_INN

I2C_SCL5

I2C_SDA5

33 Ω

/TU_RESET1

AH25[SCL5]

AH26[SDA5]

AK14 [GPIO26]

AL31[IF_AGC]

FE_DEMOD1_TS_ERROR

[+3.3V_TUNER] 11

[D_Demod_Core] 13

[IF_P] 7

[IF_N] 8

AB28 [TP_DVB_DATA0]

AC28 [TP_DVB_DATA1]

AD28 [TP_DVB_DATA2]

AD29 [TP_DVB_DATA3]

AE29 [TP_DVB_DATA4]

AE30 [TP_DVB_DATA5]

AF29 [TP_DVB_DATA6]

AF30 [TP_DVB_DATA7]

+3.3V_TUNER

1.2KΩ

33 Ω

TPO_DATA[0-7] CI_IN_TS_DATA[0-7]

CI Slot

100 Ω

TPI_DATA [0-7] CI_TS_DATA[0-7]

/PCM_WE

/PCM_OE

/PCM_IRQA

/PCM_REG

PCM_INPACK

/PCM_WAIT

PCM_RESET

CI_TS_DATA[0-7]

CI_ADDR[0-14]

/PCM_IORD

/PCM_IOWR

/PCM_CE1.2

CI_TS_VAL

/CI_CD1,2

CI 5V

Power detect

PCM_5V_CTL

+5V_CI_ON

CI_IN_TS_SYNC

CI_IN_TS_VAL

CI_IN_TS_CLK

[TPO_DATA[ 0~7] CI_IN_TS_DATA[0-7]

[TPI_DATA 0~7] CI_TS_DATA[0~7]

/CI_CD1,2

C23[CAM_CD1_N]

B23[CAM_CD2_N]

CI_TS_VAL G28[TPI_VAL]

B25[CAM_CE1_N]

B26[CAM_CE2_N]

/PCM_CE1.2

10K Ω

B29 [EB_BE_N1]

E28 [EB_EB_N0]

/PCM_IOWR

/PCM_IORD

[EB_ADDR_0~14]

[EB_DATA_0~7]

CI_ADDR[0-14]

CI_DAT[0-7]

A24[CAM_RESET]

C24[CAM_WAIT_N]

A25[CAM_REG_N]

B24[CAM_IREQ_N]

A32 [EB_OE_N]

D28 [EB_WE_N]

P30 [TPO_CLK]

P29 [TPO_VAL]

N29 [TPO_SOP]

CI_IN_TS_CLK

CI_IN_TS_VAL

CI_IN_TS_SYNC

PCM_RESET

/PCM_WAIT

PCM_INPACK

/PCM_REG

/PCM_IRQA

/PCM_OE

/PCM_WE

VCC

C25 [CAM_VCCEN_N]

+5V_CI_ON +3.3V_NORMAL

47K Ω

2. Tuner + CI

- 11 -

M16+

AM24 [CVBS_IN2]

AV_CVBS_IN

AV1

Phone JACK

Component 1

Phone JACK

AV1_CVBS_IN_SOC

AM20 [SOY1_IN]

AN20 [Y1_IN]

AL21 [PB1_IN]

AM22 [PR1_IN]

COMP2_Pb

COMP2_Y

COMP2_Pr

COMP2_SOG2_IN_SOC

COMP2_Y_IN_SOC

COMP2_Pb_IN_SOC

COMP2_Pr_IN_SOC

Jack Side SOC Side

SPDIF_OUT

SPDIF OUT

H/P JACK

HP_LOUT_JACK

HP_ROUT_JACK

AM14 [IEC958OUT]

AL15 [AUDA_OUTL]

AM15 [AUDA_OUTR]

SPDIF_OUT_ARC

[PHY0_ARC_OUT]

COMP2/AV_L_IN

COMP2/AV_R_IN

AL18 [AUAD_L_CH2_IN

AM18 [AUAD_R_CH2_IN]

AUAD_L_CH2_IN

AUAD_R_CH2_IN

HP AMP

TPA6138

ARC OUT

(HDMI2)

Front Speaker

Woofer Speaker

MICOM

AMP_RESET

[SCK]

[LRCK]

[DACLRCH]

[I2C_SCL_0/SDA_0]

I2S

[GPIO23]

Audio

AMP

NTP7515

Audio

AMP

NTP7515

AMP_MUTE

(WOOFER_MUTE)

Component Spec Out

H/PSpec Out

US

3. Video & Audio IN/OUT

- 12 -

CEC_REMOTE

MICOM

Port_4

DDC_I2C_4

HDMI_HPD_4

HDCP1.4

HDCP2.2

M16+

LG1313

HDMI 2

(2.0)_V

ARC

HDMI 1

(2.0)_V

CEC_REMOTE

Port_2

DDC_I2C_2

SPDIF_OUT_ARC

HDMI_HPD_2

CEC_REMOTE

Port_1

DDC_I2C_1

HDMI_HPD_1

HDMI2.0

LGE PHY

HDCP1.4

HDCP2.2

HDCP1.4

HDCP 2.2

HDMI2.0

LGE PHY

HDMI2.0

LGE PHY

+5V

HDMI 4

(2.0)_H

HDCP1.4

HDCP2.2

HDMI 3

(2.0)_V

CEC_REMOTE

Port_3

DDC_I2C_3

SPDIF_OUT_ARC

HDMI_HPD_3

HDMI2.0

LGE PHY

[HDMI2_3_HPD]

[HDMI2_3_SDA]

[HDMI2_3_SCL]

[HDMI2_2_HPD]

[HDMI2_2_SDA]

[HDMI2_2_SCL]

[HDMI2_1_HPD]

[HDMI2_1_SDA]

[HDMI2_1_SCL]

[HDMI2_0_HPD]

[HDMI2_0_SDA]

[HDMI2_0_SCL]

[PHY0_ARC_OUT]

+5V

4. HDMI 2.0

- 13 -

IR + Wi-Fi /BT

Wafer 25P

P5902

[UART0_RXD/GPIO106]

USB3.0_1_TX_DP0 / DM0

USB3.0_1_RX_DP0 / DM0

USB3.0_1_DP0 / DM0

[USB3_0_TX0_P / M]

RS232 IC

IC7200

WIFI_DP / DM

MICOM

IC3000

WOL/WIFI_POWER_ON

[USB2_2_DP0 / DM0]

SOC_RX/TX

[USB3_0_DP0 / DM0]

[USB3_0_RX0_P / M]

[USB2_1_DP0 / DM0]

USB2.0_2_DP1 / DM1

USB2.0_3_DP0 / DM0

[USB2_0_DP0 / DM0]

[UART1_RXD / TXD]

Debug Wafer

P202

UART1_RX/TX

JK6200

RS232C phone Jack

SOC_RX/TX

UART wafer

P3401

SOC_RX/TX

(*) US model only

USB 1

(3.0)_V

USB 2

(2.0)_H

USB 3

(2.0)_H

WIFI_EN

+3.5V_WIFI

OCP BD224G

[GPIO90]

USB_CTL1

+5V_USB_1

OCP BD224G

[GPIO95]

USB_CTL2

+5V_USB_2

OCP BD224G

[GPIO34]

USB_CTL3

+5V_USB_3

[UART0_TXD/GPIO105]

M16+

LG1313

5. USB / Wi-Fi / M-Remote / UART

- 14 -

+3.3V_NORMAL

3.3KΩ

IC102

NVRAM

3.3KΩ

+3.3V_NORMAL

33Ω

+3.3V_NORMAL

3.3KΩ

IC5400

NTP7515D(AMP)

100 Ω

TUNER (D emod)

2.7KΩ

+3.3V_TU

33Ω

IC101

M16+

IC3000

R5F100GEAFB(MICOM)

33Ω

IC6900

LNB

IR / KEY/EYE

100Ω

3.3KΩ

E

YE_I2C_SDA

E

YE_I2C_SCL

+3.5V_ST

33pF

18pF

Cap Ready

0x56

0x52

0xCA

0x10

0xA0

Device

address

I2C_SCL4: AJ21[SCL4]

I2C_SDA4: AH21[SDA4]

I2C_SCL1: AK22[SCL1]

I2C_SDA1: AJ22[SDA1]

I2C_SCL3: AH24[SCL3]

I2C_SDA3: AJ24[SDA3]

I2C_SCL0: AK23[SCL0]

I2C_SDA0: AJ23[SDA0]

I2C_SCL2: AH23[SCL2]

I2C_SDA2: AH22[SDA2]

I2C_SCL5: AH25[SCL5]

I2C_SDA5: AH26[SDA5]

Tuner

1.2KΩ (EU)

+3.3V_TU

33Ω

47pF

+3.3V_NORMAL

3.3KΩ

IC8000 (EPI – PMIC)

SW50205 P7601 (Vx1 – 51Pin wafer)

33 Ω

IC5300

NTP7515D(AMP)

0x54

100 Ω

33pF

0xC0

6. I2C Map

- 15 -

EXPLODED VIEW

200

900

910

911

LV1

400

100

570

530

590

540

531

571

122

510

511

550

500

502

120

901

121

123

420

430

902

820

821

700

A10

AR1

200T

AW2 AA1

Wall Mount

Screw

AR2

AW1

AG1

412

414

415

416

411

413

IMPORTANT SAFETY NOTICE

Many electrical and mechanical parts in this chassis have special safety-related characteristics. These parts are identified by in the EXPLODED VIEW. It is essential that these special safety parts should be replaced with the same components as recommended in this manual to prevent Shock, Fire, or other Hazards. Do not modify the original design without permission of manufacturer.

- 16 -

TROUBLE SHOOTING GUIDE

Contents of Standard Repair Process

No. Error symptom (High category) Error symptom (Mid category) Page Remarks

1

2 No video/No audio 2

3 Picture broken/ Freezing 3

4 Color error 4

5

6

7

8

9 Wrecked audio/discontinuation/noise 9

10

11

12

A. Video error

B. Power error

C. Audio error

D. Function error

No video/Normal audio 1

Vertical/Horizontal bar, residual image,

light spot, external device color error

No power 6

Off when on, off while viewing, power auto on/off

No audio/Normal video 8

Remote control & Local switch checking

MR15RA operating checking 11

Wifi operating checking 12

5

7

10

13 External device recognition error 13

14 E. Noise Circuit noise, mechanical noise 14

15 F. Exterior error Exterior defect 15

First of all, Check whether there is SVC Bulletin in GSCS System for these model.

Standard Repair Process

symptom

Error

A. Video error

No video/ Normal audio

Established

date

Revised date

First of all, Check whether all of cables between board is inserted properly or not.

(Main B/D↔ Power B/D, Vx1 Cable, Speaker Cable, IR B/D Cable,,,)

☞A9

Board (Main) 20V, 12V etc.

Replace module

Normal

voltage

N

Repair Power Board or parts

End

Y

Replace Main Board

No video Normal audio

Normal

audio

N

Move to No video/No audio

Y

☞A1

Check Vx1 lock voltage

☞A9

Check Power Board (Module) 24V output

0V

Normal voltage

N

Repair Power Board or parts

Y N Check Power

Y

1/15

※Precaution

Always check & record S/W Version and White Balance value before replacing the Main Board

☞A4 & A2

Replace Main Board

1

Re-enter White Balance value

Standard Repair Process

symptom

Error

A. Video error

No video/ No audio

Established

date

Revised date

2/15

☞A9

No Video/ No audio

Check various voltages of Power Board (Main) (20V, 12V…)

Normal

voltage?

N

Replace Power Board and repair parts

Y

Check and replace MAIN B/D

End

2

Standard Repair Process

☞ A3

Check RF Signal level

Normal Signal?

N

Check RF Cable

Connection

1. Reconnection

2. Install Booster

Normal

Picture?

Y

Close

Y

N

Error

symptom

A. Video error

Picture broken/ Freezing

Established

date

Revised date

. By using Digital signal level meter . By using Diagnostics menu on OSD

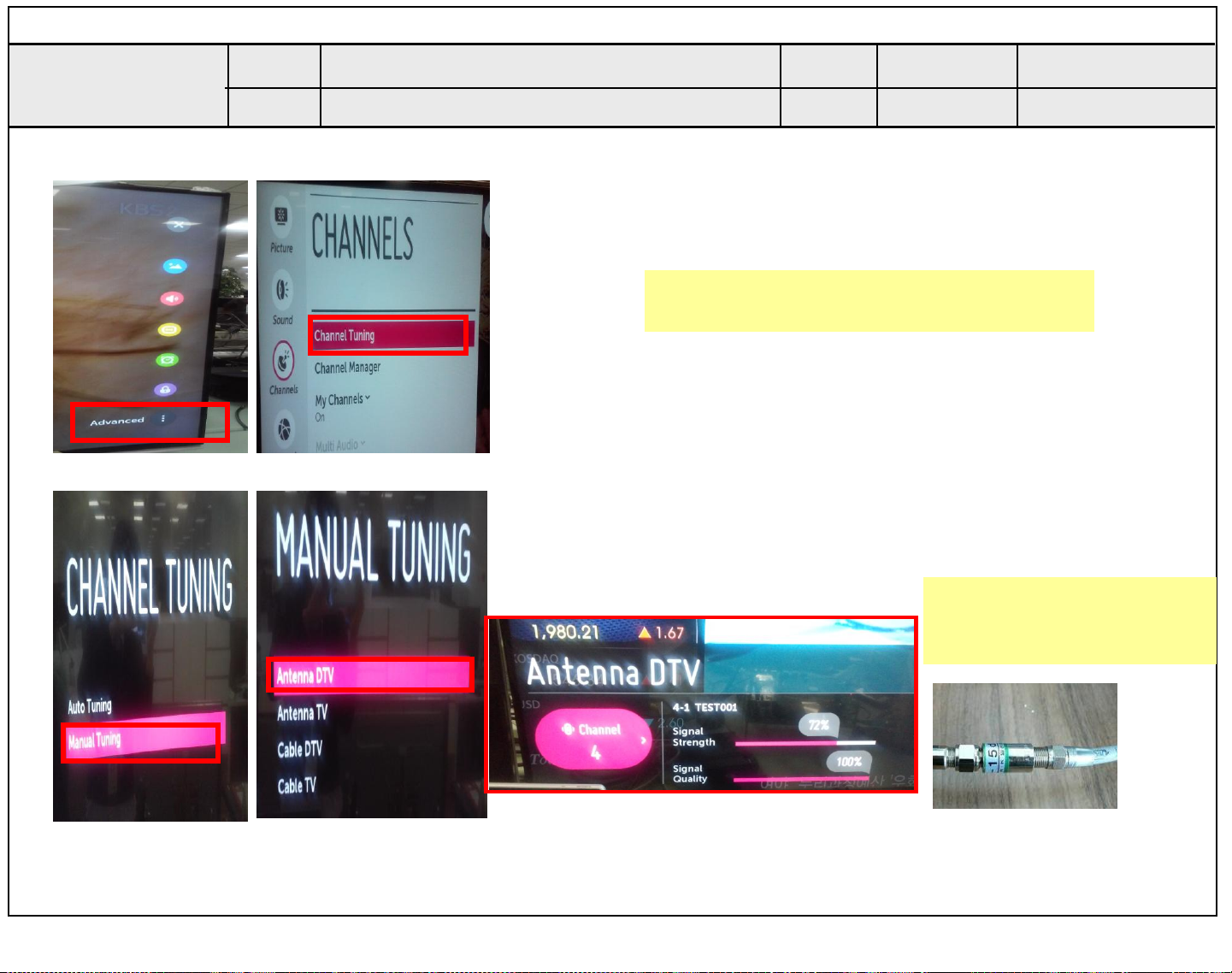

( All Settings→ Channels → Channel Tuning → Manual Tuning → Check the Signal )

- Signal strength (Normal : over 50%)

- Signal Quality (Normal: over 50%)

Check whether other equipments have problem or not.

(By connecting RF Cable at other equipment)

→ DVD Player ,Set-Top-Box, Different maker TV etc`

☞ A4

Normal

Picture?

Contact with signal distributor

or broadcaster (Cable or Air)

Y

S/W Version

N

Check

SVC

Bulletin?

S/W Upgrade

Normal

Picture?

Y

N

Check

Tuner soldering

N

Replace

Main B/D

3/15

Y

Close

3

Standard Repair Process

☞A6

Check color by input

-External Input

-AV

-HDMI

☞A15

Check Test pattern

Error

symptom

Color

error?

N

Check error color input mode

A. Video error

☞ A7

※ Check

and replace

Y

Link Cable (V by one) and contact condition

External Input

error

Color error

Color

error?

N

Check external device and cable

Y

Replace Main B/D

Established

date

Revised date

External device

/Cable

normal

N

Color

error?

End

Y

Replace module

N

Replace Main B/D

4/15

HDMI

error

Check external

device and cable

4

Request repair

for external

device/cable

N

External device

/Cable

normal

Y

Replace Main B/D

Standard Repair Process

symptom

Vertical / Horizontal bar, residual image,

Error

A. Video error

light spot, external device color error

Vertical/Horizontal bar, residual image, light spot

☞A6

Check color condition by input

-External Input

-HDMI

☞A15

Check Test pattern

Screen

normal?

N

Replace module

Check external

Y

device connection condition

Normal?

N

Request repair

for external device

External device screen error-Color error

Check screen condition by input

Check S/W Version

Check

version

Y

S/W Upgrade

Normal

screen?

Y

N

-External Input

-AV

-HDMI/DVI

☞ A7

Check and

Y

replace Link Cable

External

Input

error

HDMI/

DVI

Established

date

Revised date

Y

N

Replace Main B’D

for LGD Panel

Replace Main B’D

Screen

normal?

End

Connect other external device and cable

(Check normal operation of External Input, HDMI/DVI by connecting Jig, pattern Generator ,Set-top Box etc.

Connect other external device and cable

(Check normal operation of External Input, Component, RGB and HDMI/DVI by connecting Jig, pattern

Generator ,Set-top Box etc.

Screen

normal?

Request repair for external device

Screen

normal?

N

Y

N

5/15

Replace Module

N

Screen

normal?

Y

End

Replace Main B/D / Module

End

5

Standard Repair Process

symptom

☞A8

Check Logo LED

. Stand-By: Red or Turn On . Operating: Turn Off

Power LED

Check Power cord was inserted properly

Error

On?

N

Normal?

Y

Close

Y

N

Check ST-BY (7.8V)

☞A9

B. Power error

No power

DC Power on by pressing Power Key On Remote control

Normal

voltage?

Y

N

Established

date

Revised date

☞A9

Y

N

Check Power On ‘”High”

Replace Main B/D

Normal

operation?

☞A9

Measure voltage of each output of Power B/D

N

Y

Replace Main B/D

Normal

voltage?

Replace Power B/D

OK?

Y

6/15

Replace

Power B/D

Replace Power B/D

6

Standard Repair Process

Check outlet

Check A/C cord

Check for all 2- phase power out

Error

symptom

Error?

Y

Fix A/C cord & Outlet and check each 2 phase out

B. Power error

Off when on, off while viewing, power auto on/off

☞A10

N

Check Power Off Mode

☞A9

(If Power Off mode is not displayed) Check Power B/D voltage

※ Caution Check and fix exterior of Power B/D Part

Abnormal

Established

date

Revised date

CPU

1

Normal

voltage?

Replace Power B/D

Replace Main B/D

Y

N

Replace Power B/D

Replace Main B/D

Normal?

N

7/15

Y

End

* Please refer to the all cases which can be displayed on power off mode.

Status Power off List Explanation

"POWER_OFF_BY_REMOTE_KEY” Power off by REMOTE CONTROL

"POWER_OFF_BY_OFF_TIMER" Power off by OFF TIMER

"POWER_OFF_BY_SLEEP_TIMER" Power off by SLEEP TIMER "POWER_OFF_BY_INSTOP" Power off by INSTOP KEY "POWER_OFF_BY_AUTO_OFF" Power off by AUTO OFF

Normal

Abnormal

"POWER_OFF_BY_ON_TIMER" Power off by ON TIMER "POWER_OFF_BY_RS232C" Power off by RS232C "POWER_OFF_BY_RESREC" Power off by Reservated Record "POWER_OFF_BY_RECEND" Power off by End of Recording "POWER_OFF_BY_SW_DW" Power off by S/W Download

"POWER_OFF_BY_UNKNOWN" Power off by unknown status except listed case

"POWEROFF_ABNORMAL1" Power off by abnormal status except CPU trouble "POWEROFF_CPUABNORMAL" Power off by CPU Abnormal

7

Standard Repair Process

No audio Screen normal

Error

C. Audio error

symptom

No audio/ Normal video

☞A11 ☞A12+A9

Check user menu > Speaker off

Off

Cancel OFF

N

Y

Check audio B+ 20V of Power Board

Replace Power Board and repair parts

Established

date

Revised date

Normal

voltage

Y

N

8/15

Check Speaker disconnection

Disconnection

Y

connecting Speaker

8

N

Replace MAIN Board

End

Standard Repair Process

Check input signal

-RF

-External Input

signal

Error

symptom

C. Audio error

Wrecked audio/ discontinuation/noise

Established

date

Revised date

→ abnormal audio/discontinuation/noise is same after “Check input signal” compared to No audio

☞A12+A9

Check audio B+ Voltage (20V)

Y

Normal

voltage?

N

Replace Power B/D

Replace Main B/D

N

Y

Signal

normal?

N

Y

(When RF signal is not received)

Request repair to external

cable/ANT provider

(In case of

External Input

signal error) Check and fix external device

Wrecked audio/ Discontinuation/

Noise for

all audio

Wrecked audio/

Discontinuation/

Noise only

for D-TV

Wrecked audio/

Discontinuation/

Noise only

for Analog

Wrecked audio/

Discontinuation/

Noise only

for External Input

Check and replace speaker and connector

Replace Main B/D

Connect and check other external device

Normal

audio?

9/15

End

Check and fix external device

9

Standard Repair Process

Error

symptom

D. Function error

Remote control & Local switch checking

1. Remote control(R/C) operating error

☞A13

Check R/C itself

Operation

Check R/C Operating

When turn off light

in room

If R/C operate,

Explain the customer

cause is interference

from light in room.

operating?

Normal

N

Check & Replace

Baterry of R/C

operating?

Replace R/C

Check & Repair

Y

Cable connection Connector solder

Normal

N

Y

Close

Normal

operating?

Y

Close

☞A13

N

On Main B/D

Established

date

Revised date

Check B+

3.5V

Normal

Voltage?

N

☞A9

Check 7.8V on Power B/D

Replace Power B/D or

Replace Main B/D

(Power B/D don’t have problem)

☞A13

Y

Check IR

Output signal

10/15

Replace

Main B/D

Normal

Signal?

N

Repair/Replace

IR B/D

Y

10

Standard Repair Process

Error

symptom

D. Function error

MR16A operating checking

2. MR16A (Magic Remocon) operating error

☞A4

Check MR16A

Check the

INSTART menu

RF Receiver ver

is “00.00”?

☞A14

Check & Repair

connection

Y

RF assy

☞A4

RF Receiver ver

is “00.00”?

Y

Down load the Firmware

* INSTART MENU12.RF

Remocon Test Receiver

Firmware download

N

itself Operation

N

Close

Normal

operating?

Check & Replace

Battery of MR16A

Normal

operating?

Replace

MR16A

Y

N

Y

N

Press the

wheel

Close

Established

date

Revised date

Turn off/on the

Y

N

set and press

N

the wheel

Press the back key about 5sec

Is show ok

message?

Close

Is show ok

message?

Close

•If you conduct the loop at 3times, change the MR16A.

11/15

11

Standard Repair Process

Error

symptom

3.Wifi operating error

☞A4

Check the

INSTART menu

Wi-Fi Mac value

is “NG”?

☞A14

Check & Repair

Y

Wifi cable

connection

☞A4

Wi-Fi Mac value

is “NG”?

D. Function error

Wifi operating checking

☞A14

N

Check the Wifi wafer

N

Close

1pin

Established

date

Revised date

Normal

Voltage?

Y

Close

N

12/15

Replace

Main B/D

Change the Wifi

Y

assy

12

Standard Repair Process

Check input signal

symptom

Signal

input?

N

Y

Check technical information

- Fix information

- S/W Version

Check and fix

external device/cable

Error

D. Function error

External device recognition error

Technical

information?

Y

Fix in

accordance

with technical

information

N

External Input

Recognition error

DVI, Optical

Recognition error

Established

Revised date

HDMI/

date

13/15

Replace Main B/D

13

Standard Repair Process

Identify nose type

Error

symptom

Circuit

noise

Mechanical

noise

※ Mechanical noise is a natural phenomenon, and apply the 1st level description. When the customer does not agree, apply the process by stage. ※ Describe the basis of the description in “Part related to nose” in the Owner’s Manual.

Check location of noise

Circuit noise, mechanical noise

E. Noise

Replace PSU

※ When the nose is severe, replace the module

(For models with fix information, upgrade the S/W or provide the description)

OR

※ If there is a “Tak Tak” noise from the cabinet, refer to the KMS fix information and then proceed as shown in the solution manual (For models without any fix information, provide the description)

Established

date

Revised date

14/15

14

Standard Repair Process

Error

symptom

Zoom part with exterior damage

Module

damage

Cabinet

damage

Remote

control

damage

F. Exterior defect

Exterior defect

Replace module

Replace cabinet

Replace remote control

Established

date

Revised date

15/15

Stand

dent

Replace stand

15

Contents of Standard Repair Process Detail Technical Manual

No. Error symptom Content Page Remarks

1

A. Video error_ No video/Normal audio

2 Check White Balance value A2

3

A. Video error_ video error /Video lag/stop

4 Version checking method A4

5 Tuner Checking Part A5

A. Video error _Vertical/Horizontal bar,

6

residual image, light spot

7

A. Video error_ Color error

8 Adjustment Test pattern - ADJ Key A15

9

Defected Type caused by T-Con/ Power / Module

Check Vx1 lock A1

TUNER input signal strength checking method

Connection diagram A6

Check Link Cable (Vx1) reconnection condition

Exchange Main Board (1) A-1/5

Exchange Main Board (2) A-2/5

Exchange Power Board (PSU) A-3/5

Exchange Module (1) A-4/5

A3

A7

Exchange Module (2) A-5/5

Contents of Standard Repair Process Detail Technical Manual

Continued from previous page

No. Error symptom Content Page Remarks

10

B. Power error_ No power

11 Check power input Voltage & ST-BY 3.5V A9

12

13

14

15

16

17 Wifi operation checking method A14

18 E. Etc Tool option changing method A15

B. Power error_Off when on, off while viewing

C. Audio error_ No audio/Normal video

D. Function error

Check front display LED A8

POWER OFF MODE checking method A10

Checking method in menu when there is no audio

Voltage and speaker checking method when there is no audio

Remote control operation checking method

Motion Remote operation checking method

A11

A12

A13

A14

Standard Repair Process Detail Technical Manual

Error

symptom

Content

A. Video error_No video/Normal audio

Check Vx1 lock

Established

date

Revised

date

A1

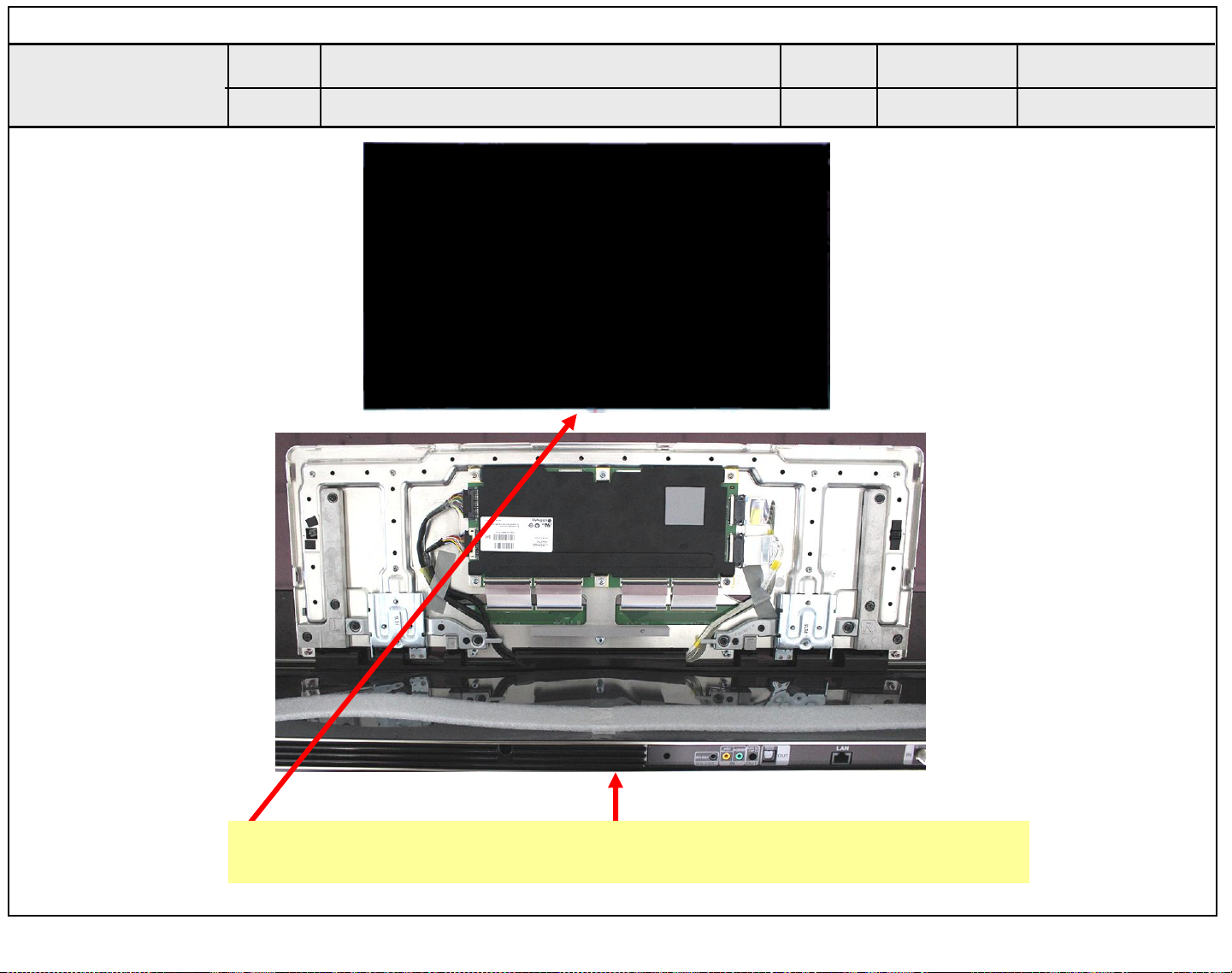

After Remove the Rear Cover, turning on the power and check with the naked eye, Whether you can see video

A1

Standard Repair Process Detail Technical Manual

Error

symptom

Content

A. Video error_No video/Normal audio

Check White Balance value

Established

date

Revised

date

A2

Entry method

1. Press the ADJ button on the remote control for adjustment.

2. Enter into White Balance of item 12.

3. After recording the R, G, B (GAIN, Cut) value of Color Temp (Cool/Medium/Warm), re-enter the value after replacing the MAIN BOARD.

A2

Standard Repair Process Detail Technical Manual

Error

symptom

Content

A. Video error_Video error, video lag/stop

TUNER input signal strength checking method

Established

date

Revised

date

All Settings  Channels  Channel Tuning  Manual Tuning

A3

When the signal is strong,

use the attenuator (-10dB, -

15dB, -20dB etc.)

A3

Standard Repair Process Detail Technical Manual

Error

symptom

Content

Version

A. Video error_Video error, video lag/stop

OLED TV Version checking method

1. Checking method for remote control for adjustment

Established

date

Revised

date

A4

Press the IN-START with the remote control for adjustment

A4

Standard Repair Process Detail Technical Manual

Error

symptom

Content

A. Video error_Video error, video lag/stop

TUNER checking part

Established

date

Revised

date

A5

Checking method:

1. Check the signal strength or check whether the screen is normal when the external device is connected.

2. After measuring each voltage from power supply, finally replace the MAIN BOARD.

A5

Standard Repair Process Detail Technical Manual

Error

symptom

Content

A. Video error _Vertical/Horizontal bar,

residual image, light spot

OLED TV Connection diagram

Established

date

Revised

date

A6

As the part connecting to the external input, check the screen condition by signal

A6

Standard Repair Process Detail Technical Manual

Error

symptom

Content

Check Link Cable (Vx1) reconnection condition

A. Video error_Color error

Established

date

Revised

date

A7

Check the contact condition of the Link Cable, especially dust or mis insertion.

A7

Appendix : Exchange Main Board (1)

Solder defect, CNT Broken

T-Con Defect, CNT Broken

Solder defect, CNT Broken

T-Con Defect, CNT Broken

Solder defect, CNT Broken

Abnormal Power Section

Solder defect, Short/Crack

Abnormal Power Section Solder defect, Short/Crack

A - 1/5

Appendix : Exchange Main Board (2)

Abnormal Power Section

Solder defect, Short/Crack

Abnormal Power Section

Fuse Open, Abnormal power section

Solder defect, Short/Crack

Abnormal Display

GRADATION

Noise

A - 2/5

GRADATION

Appendix : Exchange Power Board (PSU)

No Light

No picture/Sound Ok

A - 3/5

Appendix : Exchange the Module (1)

Vertical abnormal display

Brightness difference

Line Dim

Crosstalk Crosstalk Press damage

Un-repairable Cases In this case please exchange the module.

Burnt

A - 4/5

Appendix : Exchange the Module (2)

Angle view Color difference

Brightness difference

Brightness dot noise

Green Noise on power on/off time Line Defect

Half dead

Un-repairable Cases In this case please exchange the module.

Mura

A - 5/5

Standard Repair Process Detail Technical Manual

Error

symptom

Content

B. Power error _No power

Check front Power Indicator

For OLED65G7 OLED77G7

Established

date

Revised

date

A8

ST-BY condition: On or Off

Power ON condition: Turn Off

A8

Standard Repair Process Detail Technical Manual

Error

symptom

Content

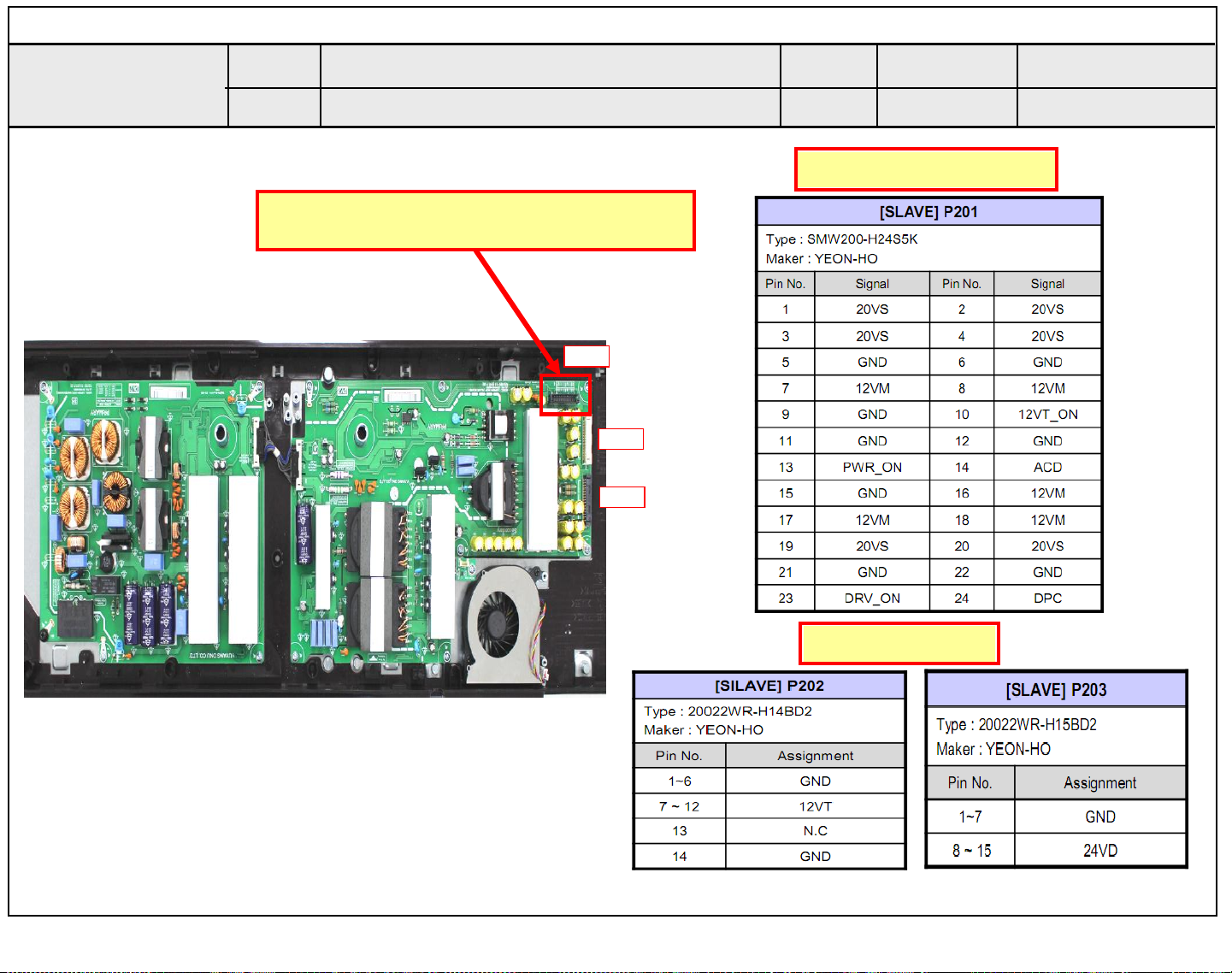

Check the DC 12VM line for ST-BY Voltage (ST-BY : 7.8V, Normal : 12V)

B. Power error _No power

Check power input voltage and ST-BY 3.5V

P201

P202

P203

Established

date

Revised

date

Power To Main and Sub B’d

A9

Power To Module

A9

Standard Repair Process Detail Technical Manual

Error

symptom

Content

B. Power error _Off when on, off whiling viewing

POWER OFF MODE checking method

Established

date

Revised

date

A10

Entry method

1. Press the IN-START button of the remote control for adjustment

2. Check the entry into adjustment item 3 (Power On/Off Status)

A10

Standard Repair Process Detail Technical Manual

Error

symptom

Content

C. Audio error_No audio/Normal video

Checking method in menu when there is no audio

Established

date

Revised

date

A11

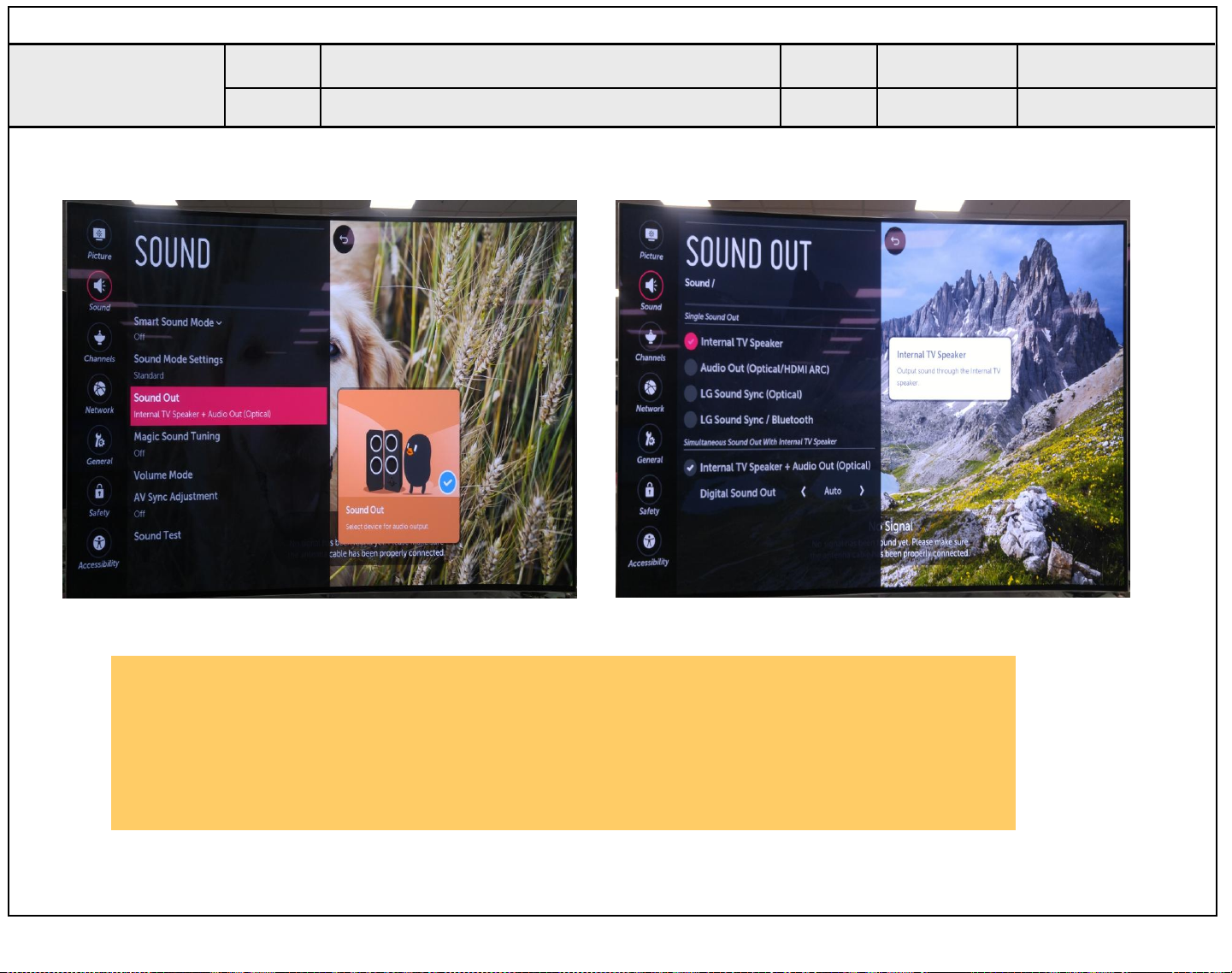

Checking method

1. Press the Setting button on the remote control

2. Select the Sound function of the Menu

3. Select the Sound Out

4. Select TV Speaker

A11

Standard Repair Process Detail Technical Manual

1

SPK_R-_FT

2

SPK_R+_FT

3

SPK_L-_FT

4

SPK_L+_FT

1

SPK_R-_TW

2

SPK_R+_TW

3

SPK_L-_TW

4

SPK_L+_TW

5

SPK_R-_WF2

6

SPK_R+_WF2

7

SPK_L-_WF2

8

SPK_L+_WF2

9

SPK_R-_CT

10

SPK_R+_CT

11

SPK_L-_CT

12

SPK_L+_CT

Error

symptom

Content

C. Audio error_No audio/Normal video

Voltage and speaker checking method when there is no audio

②

Established

date

Revised

date

A12

③

①

③

Checking order when there is no audio

① Check the contact condition of or 20V connector of Main Board

② Measure the 20V input voltage supplied from Power Board

(If there is no input voltage, remove and check the connector)

③ Connect the tester RX1 to the speaker terminal and if you hear the Chik Chik sound when you touch the

GND and output terminal, the speaker is normal.

A12

Standard Repair Process Detail Technical Manual

Error

symptom

Content

Remote control operation checking method

D. Function error

Established

date

Revised

date

A13

①

②

③

1 GND 2 +3.3V_NORMAL 3 +3.3V_NORMAL 4 +3.5V_ST 5 EYE_SDA_WALLMOUNT 6 OLED_ACCEL 7 EYE_SCL_WALLMOUNT 8 GND

9 EYE_SDA_STAND 10 GND 11 EYE_SCL_STAND 12 KEY1 13 GND 14 KEY2 15 IR 16 +3.5V_ST 17 LIGHT_WAFER

18 GND

P4000

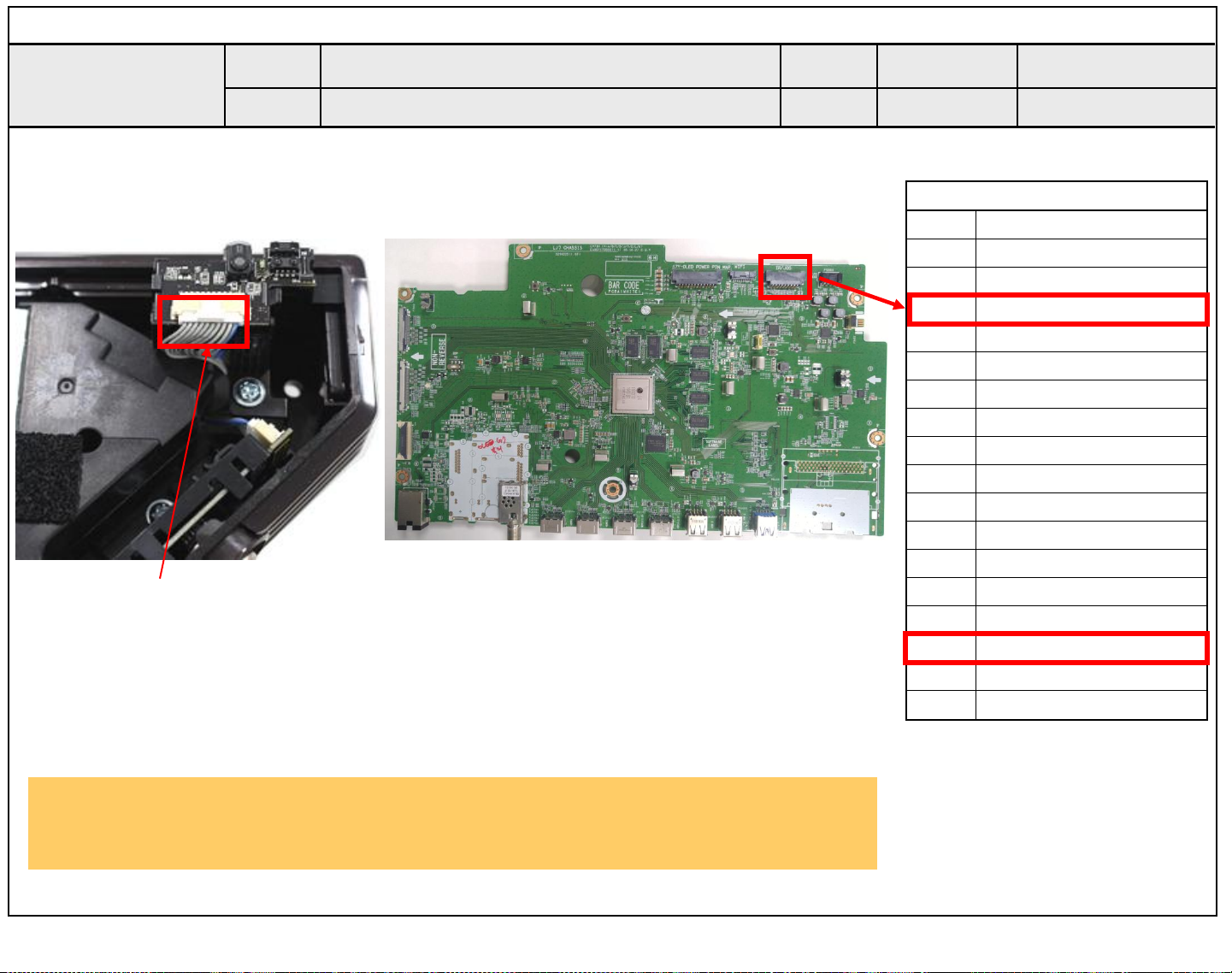

Checking order to check remote control

Checking order 1, 2. Check IR cable condition between IR & Main board.

3. Check the st-by 3.5V on the terminal 4

A13

Standard Repair Process Detail Technical Manual

Error

symptom

Content

•Wifi operation checking method

D. Function error

③

Established

date

Revised

date

③

A14

① ②

P4004

1 +3.5V_WIFI

2 WIFI_DM

3 WIFI_DP 4 GND

5 WOL/WIFI_POWER_ON

6 +3.5V_WIFI 7 COMBO_RESET

8 GND

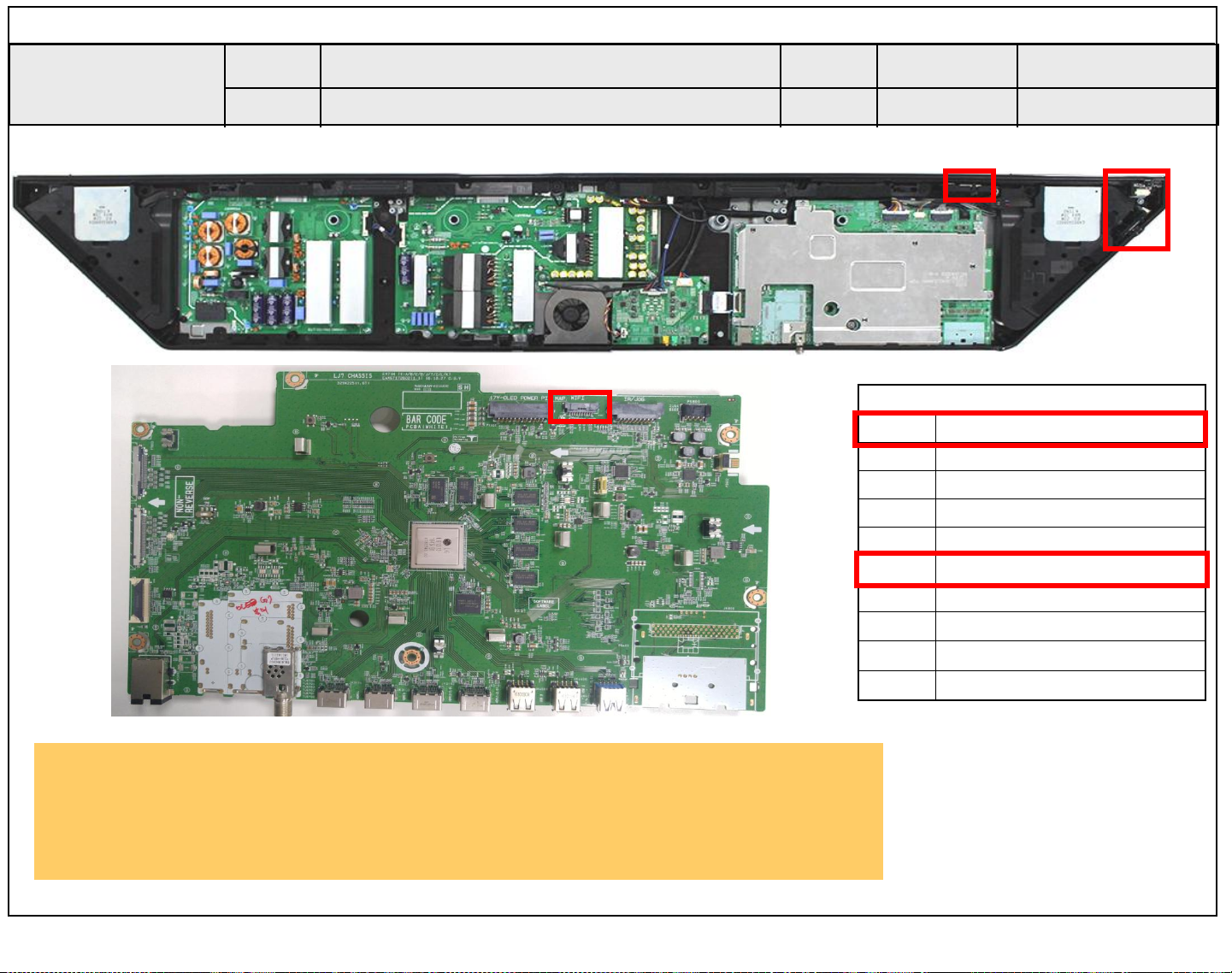

Checking order

1. Check IR cable condition between IR & Main board.

2. Check WIFI Combo cable condition between WIFI Combo Assy & Main board.

3. Check the st-by 3.5V P4000 on the terminal 4

4. Check the 3.5V_WIFI P4004 on the terminal 1

A14

9 BT_WAKEUP_DEVICE

10 BT_WAKEUP_HOST

Standard Repair Process Detail Technical Manual

Error

1

symptom

Content

2

3

A. Video error_Color error

Adjustment Test pattern

Established

date

Revised

date

A15

Press the P-ONLY  HDMI HOT  CH + or -

You can view 11 types of patterns using the CH+ or - key

Checking item : 1. Defective pixel 2. Residual image 3. MODULE error (ADD-BAR,SCAN BAR..)

4.Video error (Classification of MODULE or Main-B/D!)

A15

LG OLED65G7P Schematic

Specifications and Main Features

Frequently Asked Questions

User Manual
