LG LSU090HSV4, LSU120HSV4, LMDN126HV, LMU480HV User Manual

Download

HOME COMFORT & LIGHT

COMMERCIAL SYSTEMS

2016

ABOUT LG

About LG Electronics USA

LG Electronics USA, Inc., based in Englewood Cliffs, NJ., is the North American subsidiary of LG Electronics, Inc., a $56 billion global force and technology leader in consumer electronics, home

appliances and mobile communications. LG Electronics, a proud 2015 ENERGY STAR of the Year, sells a range of stylish and innovative home entertainment products, mobile phones, home appliances, commercial displays, air conditioning systems and solar energy solutions in the United States, all under LG’s “Life’s Good” marketing theme. For more news and information on LG Electronics, please visit www.LG.com.

Partner

LG Electronics USA Air Conditioning Systems

The LG Electronics USA Commercial Air Conditioning business is based in Alpharetta, GA. LG is a leading player in the global air conditioning market, manufacturing both commercial and residential air conditioners and providing total sustainability and building management solutions. From consumer and individual units to industrial and specialized air conditioning systems, LG provides a wide range of products for heating, ventilating and air conditioning. For more information, please visit www.lghvac.com.

LG Air Conditioning Systems

DUCT-FREE SYSTEMS:

LG air conditioning systems

A NEW WAY TO THINK ABOUT AIR CONDITIONING

For truly personalized comfort in all rooms, consider an LG Duct-Free Split air conditioning system. LG air conditioning systems make it easier to provide customized cooling and heating in every room without any bulky window units or costly ductwork, and with several indoor unit designs sure to match any décor, LG air conditioning systems can be right for every job.

are THE smart alternative to traditional air conditioning.

Our Commitment to You:

QUALITY

TRAINING

PERFORMANCE

INNOVATION

LG air conditioning systems reect our commitment to building high-quality

products. Operating several state-of-the-art research & development facilities across the globe, LG invests heavily to ensure we are combining the best technologies with the best ideas.

With several LG training academies throughout the United States and even more regional partner academies, LG makes it easy to learn about LG systems and product applications.

LG makes a wide range of products with powerful cooling and heating

capabilities while maintaining industry-leading efciencies and enjoyable, quiet

operation for the end user.

LG has built smart technology to enhance the user’s experience as well as the technician’s experience during routine maintenance or service. Our continued efforts to look for the most innovative ideas in HVAC as well as our commitment to building green technologies ensures that we will continue to bring to market smarter, sustainable products.

LG Air Conditioning Systems

TABLE OF CONTENTS

INTRODUCTION

About LG

About LG LG Advantages

LG Advantages Training & Recognition

Training & Recognition Installation Best Practices

Installation Best Practices Key Features

Key Features

SINGLE ZONE SYSTEMS

™

ART COOL

Wall Mounted

™

- Gallery

- Premier

- Mirror

- High Efciency

- Standard & Extended Piping

- Mega Inverter

1 5

5 7

7 8

8 9

Ceiling Cassette

High Static Ducted

MULTI ZONE SYSTEMS

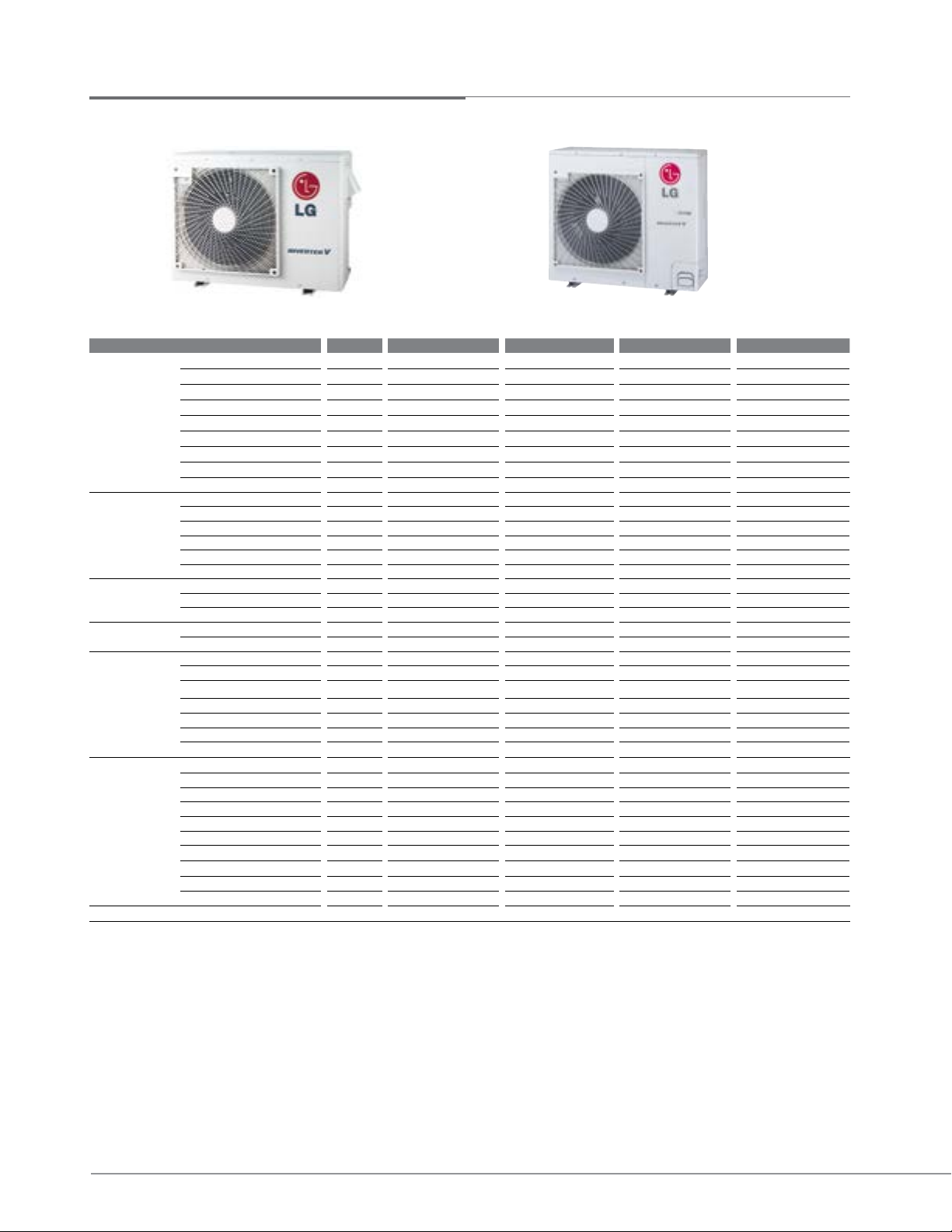

Outdoor Units

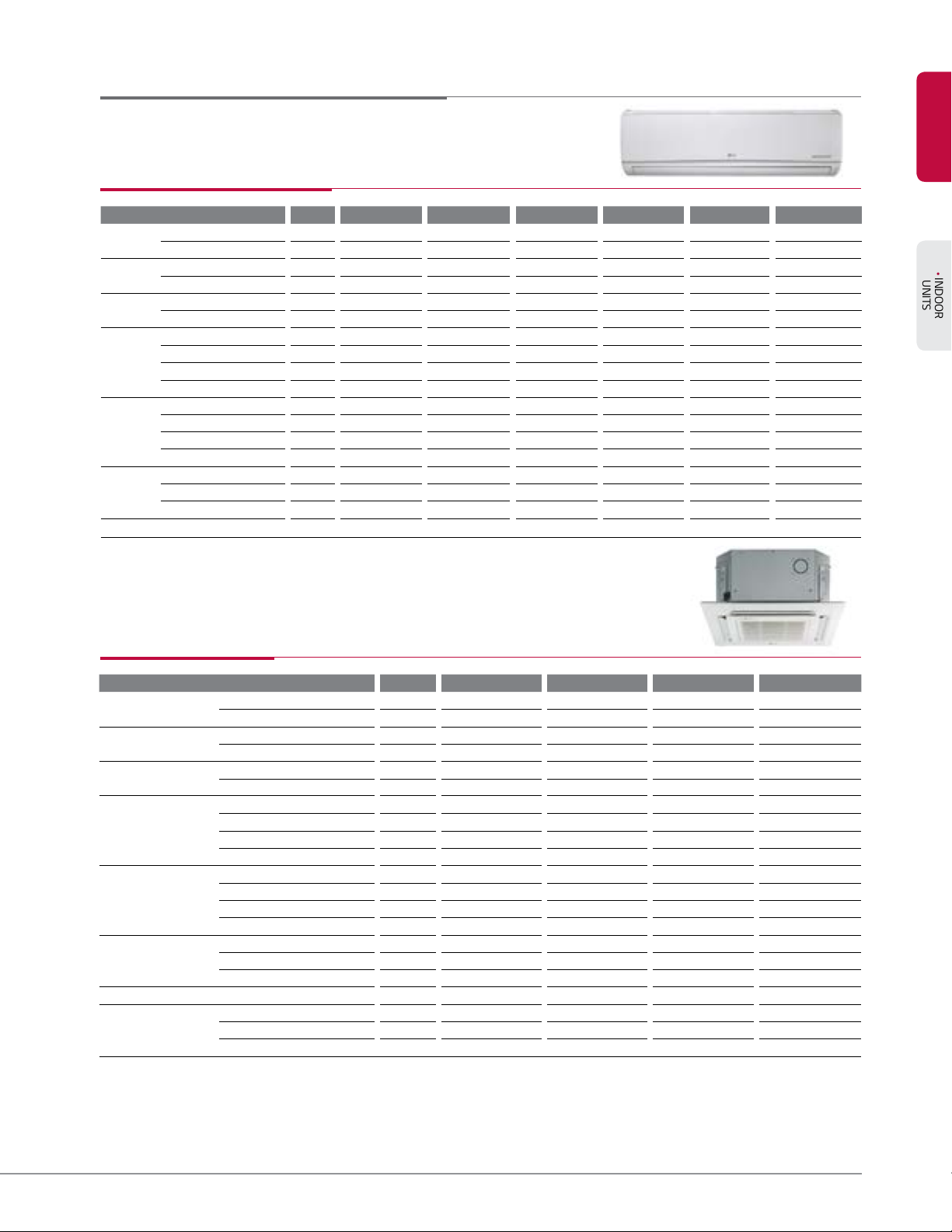

Outdoor Units Indoor Units

Indoor Units Multi F MAX Piping Accessories

Multi F MAX Piping Accessories Multi Zone Combination Tables

Multi Zone Combination Tables

ACCESSORIES

Controls

Controls Indoor Accessories

Indoor Accessories Outdoor Accessories

Outdoor Accessories Air Technologies

Air Technologies

REFERENCE TABLES

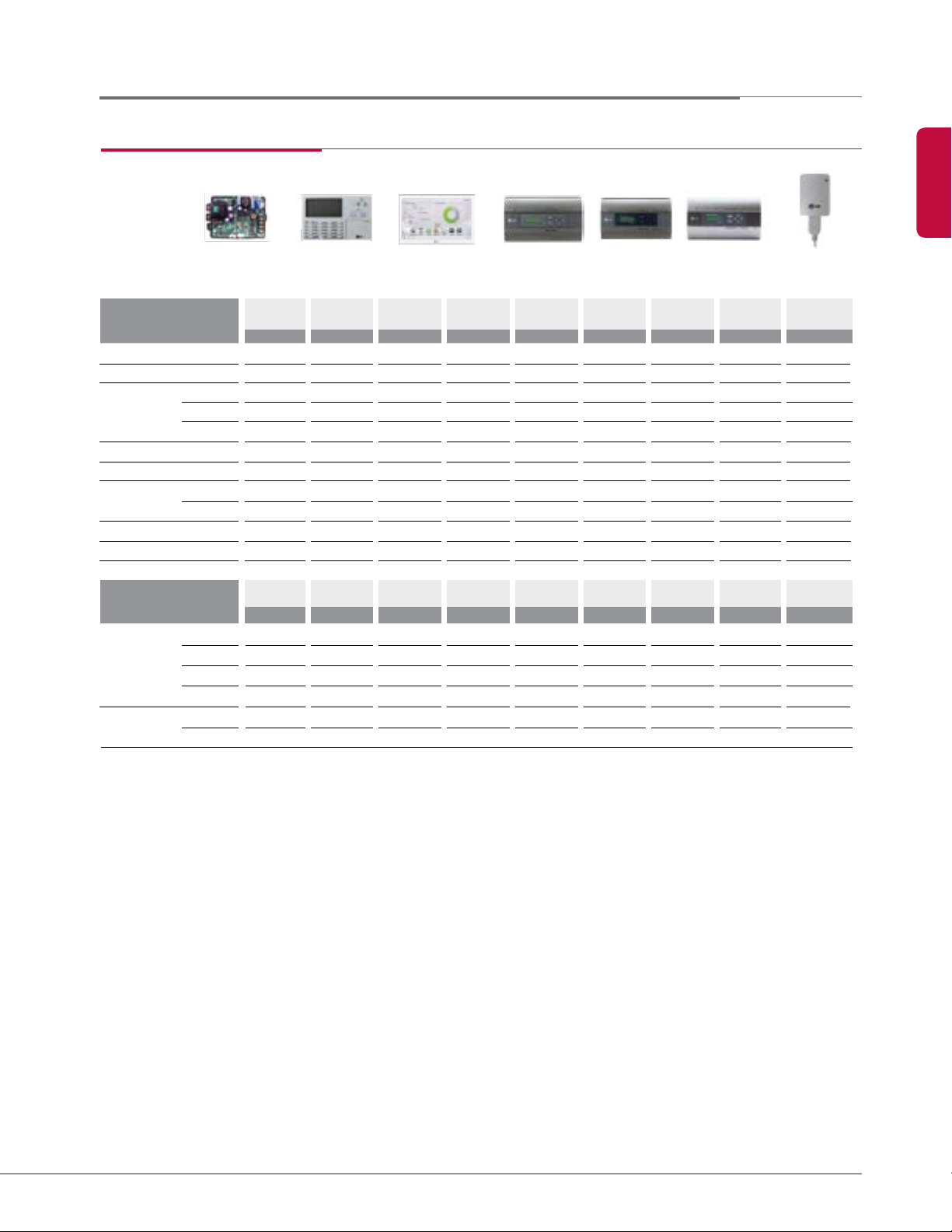

Controls & Accessories Compatibility

ENERGY STAR

ENERGY STAR Model Number Nomenclature

Model Number Nomenclature

Systems

LG ADVANTAGES

ROOM-BY-ROOM CONTROL

With a controller for each indoor unit, LG air conditioning systems offer precise temperature settings in each zone while maximizing energy savings by heating or cooling only the zones in use.

QUIET OPERATION

LG DFS systems operate at low sound levels, thanks to LG’s

unique low-vibration compressor, skew fan and brushless direct

current (BLDC) motor technology that eliminates unnecessary noise and allows for smooth operation.

TECHNOLOGY

Inverter variable-speed outdoor units are measurably quieter

and use less energy than conventional air conditioners. Unlike conventional air conditioners that cycle on and off, an inverter compressor ramps up or down to match the capacity and maintain comfort levels.

Indoor Unit

Bird Calls

LG AC Indoor Unit

as low as 17 dB

Art Cool Premier

(Sleep Mode)

Temperature

DESIRED

TEMP

Noise Level Comparison (dB)

Conversation

at Home

Energy Saving

Conversation in Restaurant

Vacuum Cleaner

Conventional AC

LG Inverter

Energy Saving

LG Air Conditioning Systems

Energy Saving

Time

0.3µm

.3µm

Indoor Unit / Evaporator

Conduit for Refrigerant Lines & Wiring

Outdoor Unit / Condenser

LG ADVANTAGES

SMART AC

Whenever, wherever, and no matter how many air conditioners you have, the LG Smart AC app and Wi-Fi adapter let you easily access and control your air conditioner from your mobile phone.

EASY INSTALLATION & NO DUCTWORK

LG Duct-Free Systems are designed for easier and more

efcient installation. They require little to no ductwork, and most indoor units can mount on any wall. Installation requires

only a small hole to be drilled in the wall. Smaller indoor and outdoor units ensure space-saving convenience. Moreover, long refrigerant piping lengths allow for extra installation and

design exibility.

Diagram of a Single Zone System

AIR QUALITY

3M Micro protection lters reduce dust and microscopic particles

Self-Cleaning Indoor Coil

The interior of the air conditioner is maintained by drying off the heat exchanger, eliminating unwanted mold and odors.

including pollen, pet dander and odors while primary lters are

antifungal and washable, reducing operation costs. Indoor units also self-clean the coil to protect against mold growth.

3M Micro protection lter, a high air ow lter

with low noise, collects harmful microscopic

substances including pollen and ne dust.

Air Filter

This primary  lter captures dust size over 10μm.

TRAINING & RECOGNITION

Training

The LG US Air Conditioning division is headquartered near Atlanta in Alpharetta, GA, along with a full training academy. Additional training academies are located in California, Texas and New Jersey. Since 2008, our academies have trained thousands on the advantages of LG air conditioning systems, and even more have been trained through LG’s online training modules. Classes are taught by world-class trainers with years of experience in ductless technology, and topics cover everything from installation to service for the full range of LG air conditioning products.

For HVAC professionals, LG offers online instruction via our Learning Management System and classroom training at our training academies, strategically placed throughout the country. Training is open to all contractors; ask your LG Electronics authorized distributor for details.

For more information and to nd out how you can be part of the next training class near you, visit lg.learnernation.com.

Service Tools

As part of our commitment to innovation, LG has developed innovative ways to enhance the service technician’s experience during routine maintenance or service with these tools:

• LG SIMS (Smart Inverter Monitoring System) connects to select outdoor units and allows technicians to troubleshoot accurately by interfacing directly with the unit and following step-by-step troubleshooting guidelines via a free smartphone app developed by LG factory engineers.

• LG Telepresence connects technicians in the eld directly to LG Technical Assistance representatives via a live video

feed through the technician’s smartphone, allowing you to bring LG technical support with you to any jobsite.

TAKE YOUR BUSINESS TO NEW LEVELS

The LG Excellence Contractor Program provides training and recognition for contractors who install LG Home Comfort Solutions and Light Commercial Systems, helping to set you apart from your competitors. Along with great incentives and recognition, the LG Excellence Contractor Program provides an enhanced warranty, a website listing with LG Excellence designation on the LG contractor locator, consumer lead referrals and advertising materials.

To nd out how to put these tools to work for you, visit lghvac.com/excellence.

LG Air Conditioning Systems

INSTALLATION BEST PRACTICES

For jobs small to large, look for opportunities to use LG systems everywhere! Explore the many applications of LG single- and multi-zone systems: whole home renovations, older system replacements, home additions, energy savings opportunities, hot or cold zones … and many, many more!

Paramount to the success of an LG air conditioning system is proper sizing and installation. With the proper installation per

factory guidelines found in the installation manual, LG systems offer signicant advantages over traditional air conditioning systems like increased energy efciency, customizable design aesthetics and comfort control, room by room.

Unit Placement (Indoor & Outdoor)

• Leave appropriate clearances on all sides for all indoor and outdoor units to allow for proper

airow and for service access

• Include space for drainage to ensure condensate

ows properly out of the unit

• Units should be properly anchored to prevent unnecessary vibrations

Additionally for indoor units:

• Keep unit away from any indoor steam or excessive heat

• No obstacles should be placed around unit

• Do not install near a doorway

• Condensation drain should be routed away from the unit

Piping

• Use only the correct line sizes as determined by the indoor unit

• Use only copper refrigerant piping

• Insulate both refrigerant lines independently of each other

• Flare connections using a 45-degree aring tool

• Consider Flaretite ttings for all connections and torque ares to specs

• Do not exceed the maximum pipe length or install

less than the required minimum

• Do not make vertical loops in the refrigerant piping

• Support pipe runs from sagging or bending

Wiring

• Use wire that fullls or exceeds the minimum wire requirements:

• Multi F MAX to BD box: 16-4

• All other wiring: 18-4

• L1 and L2 are polarity sensitive on all models

• Indoor units are 208/230 volts (or 115 volt on the Mega HXV)

• Terminal 3 is 115 volts

• Never use wire nuts or splices in wiring

• Use non-insulated spade connectors on all terminal connections

• Use a JIS screwdriver on terminal block to avoid stripping out the screws

• Only a dedicated electrical circuit is allowed

• Always ground indoor and outdoor unit

• Only connect 1 end of the shielded cable if using shielded wire

*NOTE* All wiring must comply with applicable local and national codes

Charging

• Leak test with dry nitrogen to at least 550 p.s.i.

• Never use anything but soap bubbles designed for HVAC leak testing

• Use only an approved evacuation hose for proper evacuation and leak testing

• If possible, remove cores from system prior to starting evacuation

• Start with fresh vacuum pump oil and evacuate to less than 500 microns

• If refrigerant is added, use an electronic scale and weigh in the precise amount

• Open service valves prior to energizing the unit

Installation and Service Tools:

• Quality Flaring Tool

• Digital Refrigerant Charging Scale

• Torque Wrench

• JIS Screwdriver

• Micron Gauge

• Vacuum Pump

• High-Quality Multimeter

KEY FEATURES

STYLISH DESIGN

LG air conditioning systems come in a variety of indoor units, including the Art Cool Gallery, which includes a panel that works like a customizable picture frame. For Single Zone and Multi F systems, mix and match from several different designs and capacities to match load demands appropriately while maintaining the aesthetic of any décor.

OPTIMIZED AIRFLOW

Jet Cool / Jet Heat Mode operates the unit at a high speed for

up to 30 minutes to quickly cool or heat a room.

Auto Operation adjusts the temperature and fan speed automatically to match the user’s preference from three levels

of comfort.

DEHUMIDIFYING MODE

Uses sensors in the indoor unit to accurately measure room temperature and control humidity by adjusting the set point and fan speed.

AUTO SLEEP MODE

Automatically increases the

temperature setting 2˚F twice

in 30 minute increments. The indoor unit shuts off when the timer setting is reached.

Swirl Wind / Chaos Wind allows for customized louver and fan speed operation to create a stronger,

wider airow for reduced temperature stratication

and to provide more natural air circulation.

Art Cool

directional airow for more natural and effective air

circulation.

Gallery 3D Airow uniquely provides three-

DEFROST CONTROL

Removes frost from the outdoor coil when ambient outdoor temperatures are low and simultaneously shuts down the indoor fan to prevent cold air from being blown into the controlled space.

AUTO RESTART

Automatically restarts the system after a power failure.

Restart

in 3min

GOLD FIN

Gold Fin™ Coating is an anticorrosion coating to help protect your system from corrosive elements, allowing the coil to maintain excellent heat transfer properties for an extended time.

LG Air Conditioning Systems

SINGLE ZONE SYSTEMS

Lineup

kBtu 9 12 18 24 30 36 42

Gallery

LA090HVP LA120HVP

SINGLE ZONE

Art Cool

Wall-Mounted

Premier

Mirror

High

Efciency /

Standard

Extended

Piping

208/230V

Coming

Spring 2016

LA090HYV1 LA120HYV1

LA090HSV4 LA120HSV4 LA180HSV4 LA240HSV3

LS090HSV4 LS120HSV4 LS180HSV4 LS240HSV3 LS307HV3 LS360HV3

LS090HEV1 LS120HEV1 LS180HEV1 LS240HEV1

Coming

Spring 2016

LS240HLV LS300HLV LS360HLV

Mega Inverter

Light Commercial

115V

LS090HXV LS120HXV

Ceiling

Cassette

LC187HV LC247HV LC367HV LC427HV

High Static

Ducted

LH247HV LH367HV

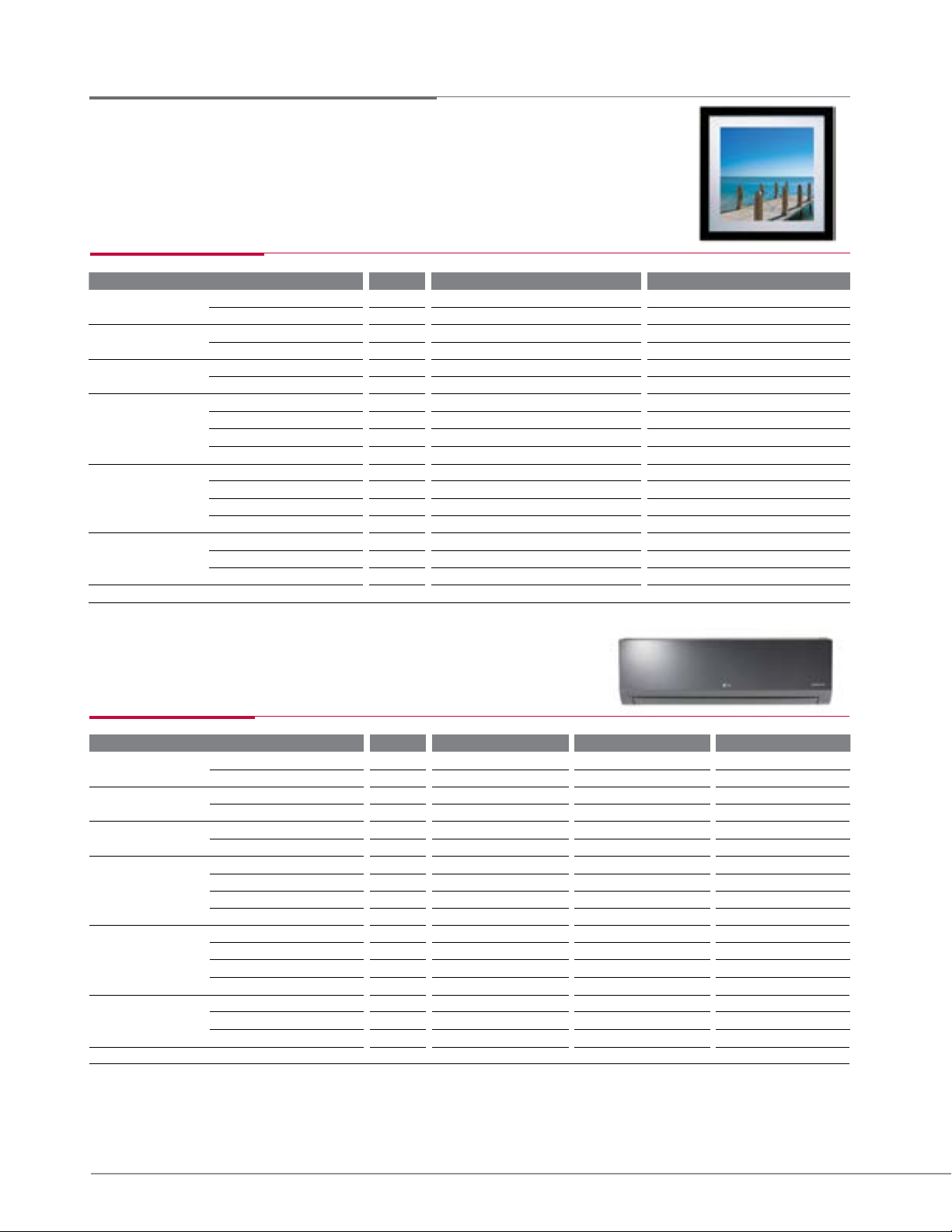

ART COOL GALLERY

LA090HVP

LA120HVP

Model

Capacity

Power

Operating Range

Dimensions

Weight

Unit Data

Sound Pressure

Piping

Warranty Warranty (Parts, Comp) Controller Supplied

Specication Unit LA090HVP LA120HVP

Indoor Unit LAN090HVP LAN120HVP Outdoor Unit LAU090HVP LAU120HVP Rated Cooling Capacity Btu/h

Cooling Capacity Range Btu/h Rated Heating Capacity Btu/h Heating Capacity Range Btu/h

Max Heating Capacity at 17˚F Btu/h

SEER, EER HSPF Voltage (IDU) V, Ø, Hz Voltage (ODU) V, Ø, Hz Cooling Power Input kW Heating Power Input kW MCA, MOCP A

Power/Communication Wiring Rated Amps Cool/Heat A

Heating Operation Range °F WB Cooling Operation Range °F DB

Optional Wind Bafe

IDU Operation Range Cooling °F WB IDU Operation Range Heating °F DB Setpoint Range Cooling °F Setpoint Range Heating °F IDU Dimensions (WxHxD) in ODU Dimensions (WxHxD) in

IDU Weight (Net/Shipping) lbs ODU Weight (Net/Shipping) lbs Airow (Max/H/M/L) CFM Dehumidication pts/hr

Compressor Type Refrigerant Type Indoor (H/M/L) dB(A) Outdoor Max dB(A) Liquid Line in Suction Line in Pipe Length (Min/Max) ft Max Pipe Elevation ft Precharge Pipe Length ft Additional Refrigerant oz/f t Drain (OD, ID) in

9,000 11,200

4,436 ~ 11,942 4,436 ~ 13,648

10,800 13,300

4,436 ~ 14,330 4,436 ~ 17,060

10,960 13,500

16, 12.5 16, 12

8.2 8.2

208/230-1-60 208/230-1-60

0.72 0.93

0.85 1.25

No. x AWG

10, 15 10, 15

4 x 18 4 x 18

7.3/8.1 7.3/8.1

14 ~ 65 14 ~ 65

14 ~ 118 14 ~ 118

Yes (0˚F) Yes (0˚F)

53 ~ 75 53 ~ 75

60 ~ 86 60 ~ 86

64 ~ 86 64 ~ 86

60 ~ 86 60 ~ 86

23-5/8x23-5/8x5-3/4 23-5/8x23-5/8x5-3/4

30-5/16x21-1/2x11-5/16 30-5/16x21-1/2x11-5/16

31/34 31/34

78/82 78/82

370/335/311/247 370/346/311/247

2.54 3.17

Rotary Rotary

R410A R410A

42/36/32 42/36/32

45 45

1/4 1/4

3/8 3/8

9.8/49.2 9.8/49.2

22.9 22.9

24.6 24.6

0.22 0.22

27/32, 5/8 27/32, 5/8

5, 7 5, 7

AKB73635606 AKB73635606

Digital Airow Control

The airow can be controlled to ensure maximum comfort and convenience.

Normal Jet Cool Sleep Mode

Customizable Picture Frame

With LG’s revolutionary Art Cool Gallery, you can change the look of your air conditioner to whatever you want,

whenever you want.

LG Air Conditioning Systems

ART COOL PREMIER

SINGLE ZONE

LA090HYV1 LA120HYV1

Model

Capacity

Power

Operating Range

Dimensions

Weight

Unit Data

Sound Pressure

Piping

Warranty Warranty (Parts, Comp)

Controller Supplied

Specications Unit LA090HYV1 LA120HYV1

Indoor Unit LAN090HYV1 LAN120HYV1 Outdoor Unit LAU090HYV1 LAU120HYV1

Rated Cooling Capacity

Cooling Capacity Range Btu/h

Rated Heating Capacity Btu/h

Heating Capacity Range Btu/h

Max Heating Capacity at 17°F Btu/h

Max Heating Capacity at 5°F Btu/h

Max Heating Capacity at -13°F Btu/h

SEER, EER

HSPF

Voltage (IDU) V, Ø, Hz

Voltage (ODU) V, Ø, Hz

Cooling Power Input kW

Heating Power Input kW

MCA, MOCP A

Power/Communication Wiring

Rated Amps Cool/Heat A

Heating Operation Range °F WB

Cooling Operation Range °F DB

Optional Wind Bafe

IDU Operation Range Cooling °F WB

IDU Operation Range Heating °F DB

Setpoint Range Cooling °F

Setpoint Range Heating °F

IDU Dimensions (WxHxD) in

ODU Dimensions (WxHxD) in

IDU Weight (Net/Shipping) lbs

ODU Weight (Net/Shipping) lbs

Airow (Max/H/M/L) CFM

Dehumidication pts/hr

Compressor Type

Refrigerant Type

Indoor (H/M/L/SL) dB(A)

Outdoor Max dB(A)

Liquid Line in

Suction Line in

Pipe Length (Min/Max) ft

Max Pipe Elevation ft

Precharge Pipe Length ft

Additional Refrigerant oz/ft

Drain (OD, ID) in

Btu/h

No. x AWG

9,000 11,000

1,023 ~ 12,966 1,023 ~ 13,785

11,000 12,000

1,023 ~ 20,472 1,023 ~ 22,178

11,940 14,650

11,220 13,630

7,870 9,520

27.5, 15.65 25.5, 13.75

12 12

208/230-1-60 208/230-1-60

0.58 0.8

0.71 0.75

11.2, 15 11.2, 15

4 x 18 4 x 18

8.7/8.7 8.7/8.7

-13 ~ 65 -13 ~ 65

14~118 14~118

Yes (0˚F) Yes (0˚F)

53 ~ 75 53 ~ 75

60 ~ 86 60 ~ 86

64 ~ 86 64 ~ 86

60 ~ 86 60 ~ 86

34-7/16x11-5/8x9-1/4 34-7/16x11-5/8x9-1/4

30-5/16x21-1/2x11-5/16 30-5/16x21-1/2x11-5/16

24/30 24/30

77/82 77/82

547/494/417/283 547/494/417/283

3.20 3.60

Twin Rotary Twin Rotary

R410A R410A

42/36/25/17 42/36/25/17

45 45

1/4 1/4

3/8 3/8

6.6/65.6 6.6/65.6

32.8 32.8

41 41

0.22 0.22

27/32, 5/8 27/32, 5/8

5, 7 5, 7

AKB73835320 AKB73835320

Note:

1. Rated capacity at 0 ft. above sea level with 25 ft. of refrigerant line and a 0 ft. level difference between outdoor and indoor unit.

2. Rated cooling capacity obtained with air entering the indoor unit at 80˚F dry bulb (DB) and 67˚F wet bulb (WB) and outdoor ambient conditions of 95˚F dry bulb (DB) and 75˚F wet bulb (WB). Rated heating capacity obtained with air entering the indoor unit at 70˚F dry bulb (DB) and 60˚F wet bulb (WB) and outdoor ambient conditions of 47˚F dry bulb (DB) and 43˚F wet bulb (WB).

For capacity information, see engineering manual capacity tables.

3. Sound pressure levels are tested in an anechoic chamber under ISO Standard 3745 and are the same in both cooling and heating mode. These values can increase due to ambient conditions during operation.

4. All power/communication wiring minimum 4-conductor, stranded, shielded, and must comply with applicable local and national codes.

5. Piping lengths are equivalent.

6. Installation of an optional Low Ambient Wind Baffle Kit will allow operation down to 0˚F in cooling mode for applicable outdoor units.

7. Due to our policy of innovation, some specifications may be changed without notification.

ART COOL MIRROR

LA090HSV4 LA120HSV4 LA180HSV4 LA240HSV3

Model Specication Unit

1,2

Capacity

Power

Operating Range

Dimensions

Weight

Unit Data

Sound Pressure

Piping

Warranty

Controller

Indoor Unit Outdoor Unit

Rated Cooling Capacity Btu/h

Cooling Capacity Range Btu/h

Rated Heating Capacity Btu/h

Heating Capacity Range Btu/h

Max Heating Capacity at 17°F Btu/h

Max Heating Capacity at 5°F Btu/h

Max Heating Capacity at -4°F Btu/h

SEER, EER

HSPF

Voltage (IDU) V, Ø, Hz

Voltage (ODU) V, Ø, Hz

Cooling Power Input kW

Heating Power Input kW

MCA, MOCP A

Power/Communication Wiring

Rated Amps Cool/Heat A

Heating Operation Range °F WB

Cooling Operation Range °F DB

Optional Wind Bafe

IDU Operation Range Cooling °F WB

IDU Operation Range Heating °F DB

Setpoint Range Cooling °F

Setpoint Range Heating °F

IDU Dimensions (WxHxD) in

ODU Dimensions (WxHxD) in

IDU Weight (Net/Shipping) lbs

ODU Weight (Net/Shipping) lbs

Airow (Max/H/M/L) CFM

Dehumidication pts/hr

Compressor Type

Refrigerant Type

Indoor (H/M/L/SL) dB(A)

Outdoor Max dB(A)

Liquid Line in

Suction Line in

Pipe Length (Min/Max) ft

Max Pipe Elevation ft

Precharge Pipe Length ft

Additional Refrigerant oz/ft

Drain (OD, ID) in

Warranty (Parts, Comp)

Supplied

No. x AWG

LA090HSV4 LA120HSV4 LA180HSV4 LA240HSV3

LAN090HSV4 LAN120HSV4 LAN180HSV4 LAN240HSV3

LSU090HSV4 LSU120HSV4 LSU180HSV4 LAU240HSV3

9,000 11,200 18,200 22,000

1,023 ~ 12,625 1,023 ~ 13,785 3,070 ~ 29,515 3,070 ~ 30,030

10,800 13,300 22,000 27,600

1,023 ~ 17,061 1,023 ~ 22,178 3,070 ~ 38,898 3,070 ~ 38,898

11,080 13,500 22,340 28,020

9,570 11,670 19,300 24,220

8,310 10,140 16,760 21,030

21.5, 13.3 21.5, 12.5 20.5, 12.6 20.0, 10.8

10.8 11 9.7 10.0

208/230-1-60 208/230-1-60 208/230-1-60 208/230-1-60

0.68 0.90 1.45 2.04

0.70 1.00 1.76 2.67

10, 15 10, 15 19, 25 19, 25

4 x 18 4 x 18 4 x 18 4 x 18

8.7/8.7 8.7/8.7 15.4/15.4 15.4/15.4

-4 ~ 65 -4 ~ 65 -4 ~ 65 -4 ~ 65

14 ~ 118 14 ~ 118 14 ~ 118 14 ~ 118

Yes (0˚F) Yes (0˚F) Yes (0˚F) Yes (0˚F)

53 ~ 75 53 ~ 75 53 ~ 75 53 ~ 75

60 ~ 86 60 ~ 86 60 ~ 86 60 ~ 86

64 ~ 86 64 ~ 86 64 ~ 86 64 ~ 86

60 ~ 86 60 ~ 86 60 ~ 86 60 ~ 86

34-13/16 x 11-1/4 x 8-1/16 34-13/16 x 11-1/4 x 8-1/16 40-9/16 x 12-13/16 x 9-11/16 40-9/16 x 12-13/16 x 9-11/16

30-5/16 x 21-1/2 x 11-5/16 30-5/16 x 21-1/2 x 11-5/16 34-1/4 x 31-1/2 x 12-19/32 34-1/4 x 31-1/2 x 12-19/32

24/29 24/29 32/39 32/39

75/79 75/79 121/131 121/131

423/335/272/191 423/353/272/191 735/622/509/399 735/622/509/399

2.30 2.30 5.5 5.5

Rotary Rotary Twin Rotary Twin Rotary

R410A R410A R410A R410A

38/33/23/19 39/33/23/19 45/40/35/29 45/40/35/29

45 45 53 53

1/4 1/4 3/8 3/8

3/8 3/8 5/8 5/8

6.6/65.6 6.6/65.6 9.84/98.4 9.84/98.4

32.8 32.8 49.2 49.2

41 41 24.6 24.6

0.22 0.22 0.38 0.38

27/32, 5/8 27/32, 5/8 27/32, 5/8 27/32, 5/8

5, 7 5, 7 5, 7 5, 7

AKB73835317 AKB73835317 AKB73835317 AKB73835320

Note:

1. Rated capacity at 0 ft. above sea level with 25 ft. of refrigerant line and a 0 ft. level difference between outdoor and indoor unit.

For capacity information, see engineering manual capacity tables.

4. All power/communication wiring minimum 4-conductor, stranded, shielded, and must comply with applicable local and national codes.

5. Piping lengths are equivalent.

6. Installation of an optional Low Ambient Wind Baffle Kit will allow operation down to 0˚F in cooling mode for applicable outdoor units.

7. Due to our policy of innovation, some specifications may be changed without notification.

LG Air Conditioning Systems

HIGH EFFICIENCY WALL MOUNTED

SINGLE ZONE

LS090HSV4 LS120HSV4 LS180HSV4 LS240HSV3

Model Specication Unit

Capacity

Power

Operating Range

Dimensions

Weight

Unit Data

Sound Pressure

Piping

Warranty

Controller

Indoor Unit Outdoor Unit

Rated Cooling Capacity Btu/h

Cooling Capacity Range Btu/h

Rated Heating Capacity Btu/h

Heating Capacity Range Btu/h

Max Heating Capacity at 17°F Btu/h

Max Heating Capacity at 5°F Btu/h

Max Heating Capacity at -4°F Btu/h

SEER, EER

HSPF

Voltage (IDU) V, Ø, Hz

Voltage (ODU) V, Ø, Hz

Cooling Power Input kW

Heating Power Input kW

MCA, MOCP A

Power/Communication Wiring

Rated Amps Cool/Heat A

Heating Operation Range °F WB

Cooling Operation Range °F DB

Optional Wind Bafe

IDU Operation Range Cooling °F WB

IDU Operation Range Heating °F DB

Setpoint Range Cooling °F

Setpoint Range Heating °F

IDU Dimensions (WxHxD) in

ODU Dimensions (WxHxD) in

IDU Weight (Net/Shipping) lbs

ODU Weight (Net/Shipping) lbs

Airow (Max/H/M/L) CFM

Dehumidication pts/hr

Compressor Type

Refrigerant Type

Indoor (H/M/L/SL) dB(A)

Outdoor Max dB(A)

Liquid Line in

Suction Line in

Pipe Length (Min/Max) ft

Max Pipe Elevation ft

Precharge Pipe Length ft

Additional Refrigerant oz/ft

Drain (OD, ID) in

Warranty (Parts, Comp)

Supplied

No. x AWG

LS090HSV4 LS120HSV4 LS180HSV4 LS240HSV3

LSN090HSV4 LSN120HSV4 LSN180HSV4 LSN240HSV3

LSU090HSV4 LSU120HSV4 LSU180HSV4 LSU240HSV3

9,000 11,200 18,200 22,000

1,023 ~12,625 1,023 ~ 13,785 3,070 ~ 29,515 3,070 ~ 30,030

10,800 13,300 22,000 27,600

1,023 ~ 17,061 1,023 ~ 22,178 3,070 ~ 38,898 3,070 ~ 38,900

11,080 13,500 22,340 28,020

9,570 11,670 19,300 24,220

8,310 10,140 16,760 21,030

21.5, 13.3 21.5, 12.5 20.5, 12.6 20.0, 12.5

10.8 11 9.7 10.2

208/230-1-60 208/230-1-60 208/230-1-60 208/230-1-60

0.68 0.90 1.45 1.76

0.70 1.00 1.76 2.38

10, 15 10, 15 19, 25 19, 25

4 x 18 4 x 18 4 x 18 4 x 18

8.7/8.7 8.7/8.7 15.4/15.4 15.4/15.4

-4 ~ 65 -4 ~ 65 -4 ~ 65 -4 ~ 65

14 ~ 118 14 ~ 118 14 ~ 118 14 ~ 118

Yes (0˚F) Yes (0˚F) Yes (0˚F) Yes (0˚F)

53 ~ 75 53 ~ 75 53 ~ 75 53 ~ 75

60 ~ 86 60 ~ 86 60 ~ 86 60 ~ 86

64 ~ 86 64 ~ 86 64 ~ 86 64 ~ 86

60 ~ 86 60 ~ 86 60 ~ 86 60 ~ 86

34-13/16 x 11-1/4 x 8-1/4 34-13/16 x 11-1/4 x 8-1/4 40-9/16 x 12-13/16 x 9-13/16 47-19/32 x 13-5/8 x 8-1/16

30-5/16 x 21-1/2 x 11-5/16 30-5/16 x 21-1/2 x 11-5/16 34-1/4 x 31-1/2 x 12-19/32 34-1/4 x 31-1/2 x 12-19/32

20/26 20/26 31/36 36/42

75/79 75/79 121/131 128/137

423/353/272/191 423/353/272/191 735/622/509/399 883/742/629/424

2.30 2.30 5.50 6.00

Rotary Rotary Twin Rotary Twin Rotary

R410A R410A R410A R410A

38/33/23/19 39/33/23/19 45/40/35/29 46/43/39/37

45 45 53 55

1/4 1/4 3/8 3/8

3/8 3/8 5/8 5/8

6.6/65.6 6.6/65.6 9.84/98.4 9.84/98.4

32.8 32.8 49.2 49.2

41 41 24.6 24.6

0.22 0.22 0.38 0.38

27/32, 5/8 27/32, 5/8 27/32, 5/8 27/32, 5/8

5, 7 5, 7 5, 7 5, 7

AKB73835317 AKB73835317 AKB73835317 AKB73835313

Note:

1. Rated capacity at 0 ft. above sea level with 25 ft. of refrigerant line and a 0 ft. level difference between outdoor and indoor unit.

For capacity information, see engineering manual capacity tables.

4. All power/communication wiring minimum 4-conductor, stranded, shielded, and must comply with applicable local and national codes.

5. Piping lengths are equivalent.

6. Installation of an optional Low Ambient Wind Baffle Kit will allow operation down to 0˚F in cooling mode for applicable outdoor units.

7. Due to our policy of innovation, some specifications may be changed without notification.

STANDARD & EXTENDED PIPING WALL MOUNTED

LS307HV3 / LS360HV3 LS240HLV / LS300HLV / LS360HLV

Model Specication Unit

Indoor Unit Outdoor Unit

Rated Cooling Capacity Btu/h

Cooling Capacity Range Btu/h

Rated Heating Capacity Btu/h

Heating Capacity Range Btu/h

Capacity

Max Heating Capacity at 17°F Btu/h

Max Heating Capacity at 5°F Btu/h

Max Heating Capacity at -4°F Btu/h

SEER, EER

HSPF

Voltage (IDU) V, Ø, Hz

Voltage (ODU) V, Ø, Hz

Cooling Power Input kW

Power

Heating Power Input kW

MCA, MOCP A

Power/Communication Wiring

No. x AWG

Rated Amps Cool/Heat A

Heating Operation Range °F WB

Operating Range

Cooling Operation Range °F DB

Optional Wind Bafe

IDU Operation Range Cooling °F WB

IDU Operation Range Heating °F DB

Setpoint Range Cooling °F

Setpoint Range Heating °F

Dimensions

Weight

IDU Dimensions (WxHxD) in

ODU Dimensions (WxHxD) in

IDU Weight (Net/Shipping) lbs

ODU Weight (Net/Shipping) lbs

Airow (Max/H/M/L) CFM

Unit Data

Dehumidication pts/hr

Compressor Type

Refrigerant Type

Sound Pressure

Indoor (H/M/L/SL) dB(A)

Outdoor Max dB(A)

Liquid Line in

Suction Line in

Pipe Length (Min/Max) ft

Piping

Max Pipe Elevation ft

Precharge Pipe Length ft

Additional Refrigerant oz/ft

Drain (OD, ID) in

Warranty Warranty (Parts, Comp)

Controller Supplied

LS307HV3 LS360HV3 LS240HLV LS300HLV LS360HLV

LSN307HV3 LSN360HV3 LSN240HLV LSN300HLV LSN360HLV

LSU307HV3 LSU360HV3 LSU240HLV LSU300HLV LSU360HLV

30,000 33,000 22,000 30,000 33,000

3,070 ~ 34,000 3,070 ~ 34,000 3,070 ~ 29,515 3,070 ~ 34,000 3,070 ~ 34,000

32,000 35,200 27,000 32,000 35,200

3,070 ~ 38,900 3,070 ~ 38,900 3,070 ~ 38,898 3,070 ~ 38,898 3,070 ~ 38,898

32,490 35,740 27,410 32,490 35,740

28,080 30,890 23,690 28,080 30,890

24,390 26,820 20,580 24,390 26,820

18, 10.0 16.1, 8.2 21.5, 12.5 18.5, 10.0 17.5, 8.2

9.5 9.9 11 10.0 10

208/230-1-60 208/230-1-60 208/230-1-60 208/230-1-60 208/230-1-60

3.00 4.04 1.76 3.00 4.04

3.10 3.84 2.38 3.10 3.84

19, 25 19, 25 23, 35 23, 35 23, 35

4 x 18 4 x 18 4 x 18 4 x 18 4 x 18

15.4/15.4 15.4/15.4 17.55/17.55 17.55/17.55 17.55/17.55

-4 ~ 65 -4 ~ 65 -4 ~ 65 -4 ~ 65 -4 ~ 65

14 ~ 118 14 ~ 118 14 ~ 118 14 ~ 118 14 ~ 118

Yes (0˚F) Yes (0˚F) Yes (0˚F) Yes (0˚F) Yes (0˚F)

53 ~ 75 53 ~ 75 53 ~ 75 53 ~ 75 53 ~ 75

60 ~ 86 60 ~ 86 60 ~ 86 60 ~ 86 60 ~ 86

64 ~ 86 64 ~ 86 64 ~ 86 64 ~ 86 64 ~ 86

60 ~ 86 60 ~ 86 60 ~ 86 60 ~ 86 60 ~ 86

47-19/32 x 13-5/8 x 8-1/16 47-19/32 x 13-5/8 x 8-1/16 46-7/8 x 13-5/8 x 10-7/16 46-7/8 x 13-5/8 x 10-7/16 46-7/8 x 13-5/8 x 10-7/16

34-1/4 x 31-1/2 x 12-19/32 34-1/4 x 31-1/2 x 12-19/32 34-1/4 x 31-1/2 x 12-5/8 34-1/4 x 31-1/2 x 12-5/8 34-1/4 x 31-1/2 x 12-5/8

36/42 36/42 40/46 40/46 40/46

128/137 128/137 125/133 125/133 125/133

883/742/629/424 883/770/629/424 953/848/706/530 953/848/706/530 953/848/706/530

10.60 10.60 5.6 5.91 6.50

Twin Rotary Twin Rotary Twin Rotary Twin Rotary Twin Rotary

R410A R410A R410A R410A R410A

49/44/39/37 49/44/39/37 49/44/40/37 49/44/40/37 49/44/40/37

55 55 55 55 55

3/8 3/8 3/8 3/8 3/8

5/8 5/8 5/8 5/8 5/8

9.84/98.4 9.84/98.4 9.84/164 9.84/164 9.84/164

49.2 49.2 98.4 98.4 98.4

24.6 24.6 24.6 24.6 24.6

0.38 0.38 0.38 0.38 0.38

27/32, 5/8 27/32, 5/8 27/32, 5/8 27/32, 5/8 27/32, 5/8

5, 7 5, 7 5, 7 5, 7 5, 7

AKB73835313 AKB73835313 AKB74055401 AKB74055401 AKB74055401

Note:

1. Rated capacity at 0 ft. above sea level with 25 ft. of refrigerant line and a 0 ft. level difference between outdoor and indoor unit.

For capacity information, see engineering manual capacity tables.

4. All power/communication wiring minimum 4-conductor, stranded, shielded, and must comply with applicable local and national codes.

5. Piping lengths are equivalent.

6. Installation of an optional Low Ambient Wind Baffle Kit will allow operation down to 0˚F in cooling mode for applicable outdoor units.

7. Due to our policy of innovation, some specifications may be changed without notification..

LG Air Conditioning Systems

MEGA INVERTER

SINGLE ZONE

LS090HEV1

LS090HXV

LS120HEV1

LS120HXV LS180HEV1 LS240HEV1

Model System Model# Unit LS090HEV1 LS090HXV LS120HEV1 LS120HXV LS180HEV1 LS240HEV1

Capacity

Power

Operating Range

Dimensions

Weight

Unit Data

Sound Pressure

Piping

Warranty Warranty (Parts, Comp) 5, 7 5, 7 5, 7 5, 7 5, 7 5, 7

Controller Supplied AKB73835318 AKB73456121 AKB73835318 AKB73456121 AKB73835318 AKB73835318

Note:

1. Rated capacity at 0 ft. above sea level with 25 ft. of refrigerant line and a 0 ft. level difference between outdoor and indoor unit.

For capacity information, see engineering manual capacity tables.

4. All power/communication wiring minimum 4-conductor, stranded, shielded, and must comply with applicable local and national codes.

5. Piping lengths are equivalent.

6. Installation of an optional Low Ambient Wind Baffle Kit will allow operation down to 0˚F in cooling mode for applicable outdoor units.

7. Due to our policy of innovation, some specifications may be changed without notification.

Indoor Unit LSN090HEV1 LSN090HXV LSN120HEV1 LSN120HXV LSN180HEV1 LSN240HEV1

Outdoor Unit LSU090HEV1 LSU090HXV LSU120HEV1 LSU120HXV LSU180HEV1 LSU240HEV1

Rated Cooling Capacity Btu/h 8,500 8,500 12,000 12,000 17,000 22,000

Cooling Capacity Range Btu/h 3,070 ~ 9,500 1,023 ~ 13,785 3,070 ~ 13,780 1,023 ~ 13,785 3,685 ~ 18,493 3,685 ~ 24,000

Rated Heating Capacity Btu/h 9,000 10,900 12,000 13,000 19,000 22,000

Heating Capacity Range Btu/h 3,070 ~ 10,500 1,023 ~ 22,178 3,070 ~ 13,780 1,023 ~ 22,178 3,685 ~ 22,997 3,685 ~ 24,226

ax Heating Capacity at 17°F

SEER, EER 19.0, 12.5 17.0, 12.01 17.0, 10.52 17.0, 10.5 18.0, 10.97 17.0, 10.76

HSPF 9.0 9.0 9.2 9.0 9.0 9.0

Voltage (IDU) V, Ø, Hz 208/230-1-60 115-1-60 208/230-1-60 115-1-60 208/230-1-60 208/230-1-60

Voltage (ODU) V, Ø, Hz 208/230-1-60 115-1-60 208/230-1-60 115-1-60 208/230-1-60 208/230-1-60

Cooling Power Input kW 0.68 0.71 1.14 1.14 1.55 2.04

Heating Power Input kW 0.78 0.88 0.98 1.09 1.59 1.94

MCA, MOCP A 10, 15 13.5, 20 10, 15 13.5, 20 12, 20 15, 20

Power/Communication

Wiring Rated Amps Cool/Heat A 7.5/7.5 10.4/10.4 7.5/7.5 10.4/10.4 9.61/9.41 11.52/11.08

Heating Operation Range °F WB 14 ~ 65 14 ~ 65 14 ~ 65 14 ~ 65 14 ~ 65 14 ~ 65

Cooling Operation Range °F DB 14 ~ 118 14 ~ 118 14 ~ 118 14 ~ 118 14 ~ 118 14 ~ 118

Optional Wind Bafe

IDU Operation Range Cooling °F WB 53 ~ 75 53 ~ 75 53 ~ 75 53 ~ 75 53 ~ 75 53 ~ 75

IDU Operation Range Heating °F DB 60 ~ 86 60 ~ 86 60 ~ 86 60 ~ 86 60 ~ 86 60 ~ 86

Setpoint Range Cooling °F 64 ~ 86 64 ~ 86 64 ~ 86 64 ~ 86 64 ~ 86 64 ~ 86

Setpoint Range Heating °F 60 ~ 86 60 ~ 86 60 ~ 86 60 ~ 86 60 ~ 86 60 ~ 86

IDU Dimensions (WxHxD) in 29-3/4 x 10-7/16 x 7-1/4 34-27/32 x 11-1/4 x 8-9/32 34-13/16 x 11-1/4 x 8-1/4 34-27/32 x 11-1/4 x 8-9/32 40-9/16 x 12-13/16 x 9-13/16 40-9/16 x 12-13/16 x 9-13/16

ODU Dimensions (WxHxD) in 28-1/4 x 19-1/2 x 9-1/16 28-1/4 x 19-1/2 x 9-1/16 28-1/4 x 19-1/2 x 9-1/16 28-1/4 x 19-1/2 x 9-1/16 30-5/16 x 21-1/2 x 11-5/16 34-1/4 x 25-13/16 x 12-19/32

IDU Weight (Net/Shipping) lbs 17/20 23/26 23/28 23/26 28/33 28/34

ODU Weight (Net/Shipping) lbs 62/67 67/79 62/67 67/79 76/81 95/104

Airow (Max/H/M/L) CFM 318/276/226/177 335/272/212/124 424/353/272/212 335/272/212/124 629/512/441/353 689/600/494/388

Dehumidication pts/hr 2.12 2.30 2.76 2.80 3.39 4.88

Compressor Type Rotar y Rotary Rotar y Rotary Twin Rotary Twin Rotary

Refrigerant Type R410A R410A R410A R410A R410A R410A

Indoor (H/M/L/SL) dB(A) 39/33/25/19 39/33/23/19 39/33/25/19 39/33/23/19 42/40/35/29 45/40/35/29

Outdoor Max dB(A) 47 47 47 47 51 53

Liquid Line in 1/4 1/4 1/4 1/4 1/4 1/4

Suction Line in 3/8 3/8 3/8 3/8 1/2 5/8

Pipe Length (Min/Max) ft 9.8/49.2 6.6/49.2 9.8/49.2 6.6/49.2 9.8/65.6 9.8/65.6

Max Pipe Elevation ft 22.9 22.9 22.9 22.9 32.8 32.8

Precharge Pipe Length ft 24.6 24.6 24.6 24.6 24.6 24.6

Additional Refrigerant oz/ft 0.22 0.22 0.22 0.22 0.33 0.33

Drain (OD, ID) in 27/32, 5/8 27/32, 5/8 27/32, 5/8 27/32, 5/8 27/32, 5/8 27/32, 5/8

Btu/h 9,140 11,070 12,180 13,200 19,290 22,340

No. x AWG 4 x 18 4 x 18 4 x 18 4 x 18 4 x 18 4 x 18

No No No No No No

CEILING CASSETTE

LC187HV LC247HV LC367HV LC427HV

Model Specication Unit

Capacity

Power

Operating Range

Dimensions

Weight

Unit Data

Sound Pressure

Piping

Warranty Warranty (Parts, Comp)

Controller Supplied

Accessories

Indoor Unit Outdoor Unit

Rated Cooling Capacity Btu/h

Cooling Capacity Range Btu/h

Rated Heating Capacity Btu/h

Heating Capacity Range Btu/h

Max Heating Capacity at 17°F Btu/h

Max Heating Capacity at 5°F Btu/h

SEER, EER

HSPF

Voltage (IDU) V, Ø, Hz

Voltage (ODU) V, Ø, Hz

Cooling Power Input kW

Heating Power Input kW

MCA, MOCP A

Power/Communication Wiring

Rated Amps Cool/Heat A

Heating Operation Range °F WB

Cooling Operation Range °F DB

Optional Wind Bafe

IDU Operation Range Cooling °F WB

IDU Operation Range Heating °F DB

Setpoint Range Cooling °F

Setpoint Range Heating °F

IDU Dimensions (WxHxD) in

ODU Dimensions (WxHxD) in

IDU Weight (Net/Shipping) lbs

ODU Weight (Net/Shipping) lbs

Airow (H/M/L) CFM

Dehumidication pts/hr

Compressor Type

Refrigerant Type

Indoor (H/M/L) dB(A)

Outdoor Max dB(A)

Liquid Line in

Suction Line in

Pipe Length (Min/Max) ft

Max Pipe Elevation ft

Precharge Pipe Length ft

Additional Refrigerant oz/ft

Drain (OD, ID) in

Grille

Grille Weight (Net/Shipping)

No. x AWG

lbs 11/20 11/20 11/20 11/20

LC187HV LC247HV LC367HV LC427HV

LCN187HV LCN247HV LCN367HV LCN427HV

LUU187HV LUU247HV LUU367HV LUU427HV

18,000 24,000 36,000 42,000

9,500 ~ 19,800 9,700 ~ 26,700 14,000 ~ 42,000 17,100 ~ 47,100

20,000 27,000 40,000 47,000

9,300 ~ 22,000 10,900 ~ 30,000 14,500 ~ 45,000 17,100 ~ 52,600

14, 330 21,343 30 ,3 11 34,6 81

11, 271 20,7 78 29,250 33 ,351

20 , 15. 0 17.0, 12.6 19.0, 13.5 17.0 , 10. 3

10.1 9.7 9.5 8.6

208/230-1-60 208/230-1-60 208/230-1-60 208/230-1-60

1.26 1.91 2.97 4.07

1.50 2.60 3.20 4.05

18.1, 30 18.1, 30 24.5, 40 24.5, 40

4 x 18 4 x 18 4 x 18 4 x 18

14.7/14.7 15.1/15.1 20.2/20.8 20.2/20.8

0 ~ 64 0 ~ 64 0 ~ 64 0 ~ 64

5 ~ 118 5 ~ 118 5 ~ 118 5 ~ 118

Yes (0˚F) Yes (0˚F) Yes (0˚F) Yes (0˚F)

57 ~ 77 57 ~ 77 57 ~ 77 57 ~ 77

59 ~ 81 59 ~ 81 59 ~ 81 59 ~ 81

64 ~ 86 64 ~ 86 64 ~ 86 64 ~ 86

60 ~ 86 60 ~ 86 60 ~ 86 60 ~ 86

33-1/16 x 8-1/32 x 33-1/16 33-1/16 x 8-1/32 x 33-1/16 33-1/16 x 11-11/32 x 33-1/16 33-1/16 x 11-11/32 x 33-1/16

37-13/32 x 32-27/32 x 13 37-13/32 x 32-27/32 x 13 37-13/32 x 54-11/32 x 13 37-13/32 x 54-11/32 x 13

46 / 55 46 / 55 55 / 65 55 / 65

133 / 148 133 / 148 203 / 227 203 / 227

565/494/424 600/530/459 1,060/989/918 1,060/989/918

5.10 5.10 7.70 7.70

Twin Rotary Twin Rotary Twin Rotary Twin Rotary

R410A R410A R410A R410A

38/36/34 38/36/34 46/44/43 46/44/43

52 52 54 54

3/8 3/8 3/8 3/8

5/8 5/8 5/8 5/8

6.6/164 6.6/164 6.6/246.1 6.6/246.1

98.4 98.4 98.4 98.4

25 25 25 25

0.43 0.43 0.43 0.43

1.25/1 1.25/1 1.25/1 1.25/1

5, 7 5, 7 5, 7 5, 7

PQWRHDF0 PQWRHDF0 PQWRHDF0 PQWRHDF0

PT-UMC1 PT-UMC1 PT-UMC1 PT-UMC1

Note:

1. Rated capacity at 0 ft. above sea level with 25 ft. of refrigerant line and a 0 ft. level difference between outdoor and indoor unit.

For capacity information, see engineering manual capacity tables.

4. All power/communication wiring minimum 4-conductor, stranded, shielded, and must comply with applicable local and national codes.

5. Piping lengths are equivalent.

6. Installation of an optional Low Ambient Wind Baffle Kit will allow operation down to 0˚F in cooling mode for applicable outdoor units.

7. Due to our policy of innovation, some specifications may be changed without notification.

LG Air Conditioning Systems

HIGH STATIC DUCTED

SINGLE ZONE

LH247HV LH367HV

Model Specication Unit

Indoor Unit Outdoor Unit

Rated Cooling Capacity Btu/h

Cooling Capacity Range Btu/h

Rated Heating Capacity Btu/h

Capacity

Heating Capacity Range Btu/h

Max Heating Capacity at 17°F Btu/h

Max Heating Capacity at 5°F Btu/h

SEER, EER

HSPF

Voltage (IDU) V, Ø, Hz

Voltage (ODU) V, Ø, Hz

Cooling Power Input kW

Power

Heating Power Input kW

MCA, MOCP A

Power/Communication Wiring

No. x AWG

Rated Amps Cool/Heat A

Heating Operation Range °F WB

Operating Range

Cooling Operation Range °F DB

Optional Wind Bafe

IDU Operation Range Cooling °F WB

IDU Operation Range Heating °F DB

Setpoint Range Cooling °F

Setpoint Range Heating °F

Dimensions

Weight

IDU Dimensions (WxHxD) in

ODU Dimensions (WxHxD) in

IDU Weight (Net/Shipping) lbs

ODU Weight (Net/Shipping) lbs

Airow (Max/H/M/L) CFM

Unit Data

Dehumidication pts/hr

Compressor Type

Refrigerant Type

in wg 0.78 0.60

Sound Pressure

Max External Static Pressure

Indoor (H/M/L) dB(A)

Outdoor Max dB(A)

Liquid Line in

Suction Line in

Pipe Length (Min/Max) ft

Piping

Max Pipe Elevation ft

Precharge Pipe Length ft

Additional Refrigerant oz/ft

Drain (OD, ID) in

Warranty Warranty (Parts, Comp)

Controller Supplied

LH247HV LH367HV

LHN247HV LHN367HV

LUU247HV LUU367HV

24,000 36,000

9,700 ~ 26,700 16,000 ~ 41,400

27,000 40,000

10,900 ~ 30,000 17,500 ~ 48,000

20,257 32,332

19,556 31,200

17.0, 12.0 17.6, 12.1

10.0 9.2

208/230-1-60 208/230-1-60

2.00 2.91

2.28 3.36

18.1, 30 24.5, 40

4 x 18 4 x 18

15.1/15.1 20.8/21.4

0 ~ 64 0 ~ 64

5 ~ 118 5 ~ 118

Yes (0˚F) Yes (0˚F)

57 ~ 77 57 ~ 77

59 ~ 81 59 ~ 81

64 ~ 86 64 ~ 86

60 ~ 86 60 ~ 86

46-17/32 x 11-23/32 x 17-23/32 48-7/16 x 14-31/32 x 23-7/32

37-13/32 x 32-27/32 x 13 37-13/32 x 54-11/32 x 13

73 / 95 125 / 139

133 / 146 203 / 227

688/618/530 1,130/953/706

7.00 10.60

Twin Rotary Twin Rotary

R410A R410A

38/36/35 39/38/37

52 54

3/8 3/8

5/8 5/8

6.6/164 6.6/246.1

98.4 98.4

25 25

0.43 0.43

1.25/1 1.25/1

5, 7 5, 7

PQRCVCL0QW PQRCVCL0QW

Note:

1. Rated capacity at 0 ft. above sea level with 25 ft. of refrigerant line and a 0 ft. level difference between outdoor and indoor unit.

For capacity information, see engineering manual capacity tables.

4. All power/communication wiring minimum 4-conductor, stranded, shielded, and must comply with applicable local and national codes.

5. Piping lengths are equivalent.

6. Installation of an optional Low Ambient Wind Baffle Kit will allow operation down to 0˚F in cooling mode for applicable outdoor units.

7. Due to our policy of innovation, some specifications may be changed without notification.

MULTI ZONE

Lineup

OUTDOOR UNITS

kBtu Multi F Maximum Indoor Units Combination Sample

LMU18CHV

LMU24CHV

LMU30CHV

LMU36CHV

kBtu Multi F MAX Maximum Indoor Units Combination Sample

LMU480HV

LMU540HV

For proper system operation:

1. At least two operable indoor units must be connected to the outdoor unit.

2. Total connected indoor unit nominal capacity should be a minimum 40% and a maximum of 133% of outdoor unit nominal capacity.

3. To calculate the connected total indoor unit nominal capacity, simply sum up the nominal capacities of all indoor units.

· For 24,000 and 36,000 Btu/h high static duct and vertical-horizontal air handling indoor units, a 1.3 multiplier must first be applied before adding to the sum of other smaller indoor units.

· When two 24,000 Btu/h or one 24,000 Btu/h and one 36,000 Btu/h high static duct and/or vertical-horizontal air handling indoor units are the only connected indoor units, the multiplier is 1.2.

LG Air Conditioning Systems

Coming Spring 2016

MULTI ZONE

Lineup

INDOOR UNITS

Type 7 kBtu 9 kBtu 12 kBtu 15 kBtu 18 kBtu 24 kBtu 36 kBtu

Standard

LMN078HVT LSN090HSV4 LSN120HSV4 LMN158HVT LSN180HSV4 LMN248HVT

MULTI ZONE

Wall-Mounted Unit

Cassette

Ceiling-Mounted

Ceiling Concealed Duct

Art Cool Mirror

Art Cool Gallery

4-Way Cassette

LMCN077HV LMCN097HV LMCN125HV LMCN185HV

High-Static Pressure

LAN090HSV4 LAN120HSV4 LAN180HSV4

LMAN097HVP LMAN127HVP

LMHN240HV LMHN360HV

Vertical AHU

Low-Static Pressure

LMDN096HV LMDN126HV LMDN186HV

LMVN240HV LMVN360HV

MULTI F OUTDOOR UNITS

LMU18CHV LMU24CHV

Model Specication Unit LMU18CHV LMU24CHV LMU30CHV LMU36CHV

Capacity

Power

Operating Range

Dimensions & Weight

Unit Data

Piping

Warranty Warranty (Parts, Comp)

Rated Cooling Capacity Btu/h

Cooling Capacity Range Btu/h

Rated Heating Capacity Btu/h

Heating Capacity Range Btu/h

Max Heating Capacity at 17˚F Btu/h

Max Heating Capacity at 5˚F Btu/h

Max Heating Capacity at -4˚F Btu/h

SEER, EER

HSPF

Voltage V, Ø, Hz

Cooling Power Input kW

Heating Power Input kW

MCA, MOCP A

Rated Amps (Cool/Heat) A

Power/Communication Wiring

Heating Operation Range ˚F

Cooling Operation Range ˚F

Optional Wind Bafe

Dimensions (WxHxD) in

Weight (Net/Shipping) lbs

Refrigerant Type

Compressor Type

Sound Pressure (Cooling / Heating) dB(A)

Maximum Air Volume CFM

Minimum Connectable IDUs Qty

Maximum Connectable IDUs Qty

Max Total IDU Connected Capacity Btu/h

Liquid Line in

Suction Line in

Maximum Total Pipe Length ft

Minimum Pipe Length per Segment ft

Maximum Pipe Length ODU to IDU ft

Precharge Pipe Length ft

Maximum Elevation ODU to IDU ft

Maximum Elevation IDU to IDU ft

Factory Charge of R410A lbs

Additional Refrigerant oz/ft

No. x AWG

17,000 20,000 30,000 32,000

8,400 ~ 19,000 8,400 ~ 25,000 8,400 ~ 36,000 8,400 ~ 38,400

22,000 24,000 32,000 36,000

10,248 ~ 24,000 9,240 ~ 28,800 9,240 ~ 38,400 9,240 ~ 41,600

19,161 21,097 26,739 29,105

14,807 14,595 20,622 22,057

9,912 10,385 13,753 15,823

22.0, 13.0 21.7, 13.5 22.0, 13.0 22.0, 13.0

9.7 10.6 10.0 10.0

208/230-1-60 208/230-1-60 208/230-1-60 208/230-1-60

1.31 1.48 2.31 2.46

2.04 1.80 2.49 2.74

13.3, 20 14.3, 20 16.6, 25.0 17.9, 25

11.09/11.09 11.99/11.99 13.93/13.93 15.13/15.13

4 x 18 4 x 18 4 x 18 4 x 18

-4 ~ 64 -4 ~ 64 -4 ~ 64 -4 ~ 64

14 ~ 118 14 ~ 118 14 ~ 118 14 ~ 118

Yes (-4˚F) Yes (-4˚F) Yes (-4˚F) Yes (-4˚F)

34-1/4 x 25-25/32 x 12-19/32 34-1/4 x 25-25/32 x 12-19/32 37-13/32 x 32-27/32 x 13 37-13/32 x 32-27/32 x 13

100/108 100/108 137/148 137/148

R410A R410A R410A R410A

Twin Rotary Twin Rotary Twin Rotary Twin Rotary

49/52 49/52 52/55 52/55

1,766 1,766 2,119 2,119

2 2 2 2

2 3 4 4

24,000 33,000 40,000 48,000

1/4 x 2 1/4 x 3 1/4 x 4 1/4 x 4

3/8 x 2 3/8 x 3 3/8 x 4 3/8 x 4

164 246.1 246.1 246.1

9.8 9.8 9.8 9.8

82 82 82 82

49.2 73.8 98.4 98.4

49.2 49.2 49.2 49.2

24.6 24.6 24.6 24.6

3.96 3.96 6.18 6.18

0.22 0.22 0.22 0.22

5, 7 5, 7 5, 7 5, 7

LMU30CHV LMU36CHV

Note:

1. Rated capacity at 0 ft. above sea level with 25 ft. of refrigerant line and a 0 ft. level difference between outdoor and indoor unit.

For capacity information, see engineering manual capacity tables. Capacities are based on connection of Non-Ducted indoor units.

4. All power/communication wiring minimum 4-conductor, stranded, shielded, and must comply with applicable local and national codes.

5. Piping lengths are equivalent.

6. Installation of an optional Low Ambient Wind Baffle Kit will allow operation down to -4˚F in cooling mode for applicable outdoor units.

7. Due to our policy of innovation, some specifications may be changed without notification.

LG Air Conditioning Systems

MULTI ZONE

• OUTDOOR

UNITS

MULTI F MAX OUTDOOR UNITS

Model Specication Unit LMU480HV LMU540HV

Capacity

Power

Operating Range

Dimensions & Weight

Unit Data

Piping

Warranty Warranty (Parts, Comp)

Rated Cooling Capacity Btu/h

Cooling Capacity Range Btu/h

Rated Heating Capacity Btu/h

Heating Capacity Range Btu/h

Max Heating Capacity at 17˚F Btu/h

Max Heating Capacity at 5˚F Btu/h

Max Heating Capacity at -4˚F Btu/h

SEER, EER

HSPF

Voltage V, Ø, Hz

Cooling Power Input kW

Heating Power Input kW

MCA, MOCP A

Rated Amps (Cool/Heat) A

Power/Communication Wiring

Heating Operation Range ˚F

Cooling Operation Range ˚F

Optional Wind Bafe

Dimensions (WxHxD) in

Weight (Net/Shipping) lbs

Refrigerant Type

Compressor Type

Sound Pressure (Cooling / Heating) dB(A)

Maximum Air Volume CFM

Minimum Connectable IDUs Qty

Maximum Connectable IDUs Qty

Max Total IDU Connected Capacity Btu/h

Liquid Line in

Suction Line in

Maximum Total Pipe Length ft

Minimum Pipe Length per Segment ft

Maximum Pipe Length ODU to IDU ft

Precharge Pipe Length ft

Maximum Elevation ODU to IDU ft

Maximum Elevation IDU to IDU ft

Factory Charge of R410A lbs

Additional Refrigerant oz/ft

No. x AWG

ODU --> BDU: 4 x 16 BDU --> IDU: 4 x 18 ODU --> BDU: 4 x 16 BDU --> IDU: 4 x 18

48,000 52,500

14,400 ~ 58,000 14,400 ~ 63,200

54,000 58,000

15,840 ~ 61,000 16,272 ~ 64,000

49,014 51,832

38,900 41,137

27,529 29,112

19.5, 12.5 18.4, 10.3

10.0 8.7

208/230-1-60 208/230-1-60

3.84 5.1

4.32 5.4

27.3, 40 29.4, 40

22.96/22.96 24.76/24.76

-4 ~ 64 -4 ~ 64

14 ~ 118 14 ~ 118

Yes (-4˚F) Yes (-4˚F)

37-13/32 × 54-11/32 × 13 37-13/32 × 54-11/32 × 13

214/236 214/236

R410A R410A

Twin Rotary Twin Rotary

54/56 54/56

2,119 x 2 2,119 x 2

2 2

8 8

65,000 73,000

3/8 3/8

3/4 3/4

475.7 475.7

9.8 9.8

229.6 229.6

Main: 16.4 Branch: 131.2 Main: 16.4 Branch: 131.2

98.4 98.4

49.2 49.2

9.7 9.7

Main: 0.54 Branch: 0.22 Main: 0.54 Branch: 0.22

5, 7 5, 7

MULTI ZONE

LMU480HV LMU540HV

Note:

1. Rated capacity at 0 ft. above sea level with 25 ft. of refrigerant line and a 0 ft. level difference between outdoor and indoor unit.

For capacity information, see engineering manual capacity tables. Capacities are based on connection of Non-Ducted indoor units.

4. All power/communication wiring minimum 4-conductor, stranded, shielded, and must comply with applicable local and national codes.

5. Piping lengths are equivalent.

6. Installation of an optional Low Ambient Wind Baffle Kit will allow operation down to -4˚F in cooling mode for applicable outdoor units.

7. Due to our policy of innovation, some specifications may be changed without notification.

MULTI F INDOOR UNITS

Art Cool Gallery

Specication Unit LMAN097HVP LMAN127HVP

Capacity

Power

Operating Range

Fan

Unit Data

Piping

Controller Supplied AKB73635607 AKB73635607

Cooling Btu/h 9,000 11,200

Heating Btu/h 10,400 13,300

Voltage V, Ø, Hz 208/230-1-60 208/230-1-60

Power/Communication Wiring

Cooling °F WB 57 ~ 77

Heating °F DB

Type Turbo Turbo

Motor Output x Qty W 24 x 1 24 x 1

Motor/Drive BLDC BLDC

Airow (H/M/L) CFM 272/208/155 314/258/198

Rated Amps A 0.2 0.2

Sound Pressure Level (H/M/L)

Dimensions (WxHxD) in 23-5/8 x 23-5/8 x 5-25/32 23-5/8 x 23-5/8 x 5-25/32

Weight (Net/Shipping) lbs 32/37 32/37

Liquid in 1/4 1/4

Vapor in 3/8 3/8

Drain (OD, ID) in 27/32, 5/8 27/32, 5/8

No. x AWG 4 x 18 4 x 18

57 ~ 81

dB(A) 39/35/31 42/38/34

57 ~ 77

57 ~ 81

Art Cool Mirror

Specication Unit LAN090HSV4 LAN120HSV4 LAN180HSV4

Capacity

Power

Operating Range

Fan

Unit Data

Piping

Controller Supplied AKB73835317 AKB73835317 AKB73835317

Note:

1. Rated capacity at 0 ft. above sea level with 25 ft. of refrigerant line and a 0 ft. level difference between outdoor and indoor unit.

4. All power/communication wiring minimum 4-conductor, stranded, shielded, and must comply with applicable local and national codes.

5. Due to our policy of innovation, some specifications may be changed without notification.

Cooling Btu/h 9,000 12,000 18,000

Heating Btu/h 10,400 13,800 20,800

Voltage V, Ø, Hz 208/230-1-60 208/230-1-60 208/230-1-60

Power/Communication Wiring

Cooling °F WB 57 ~ 77 57 ~ 77 57 ~ 77

Heating °F DB 59 ~ 81 59 ~ 81 59 ~ 81

Type Cross Flow Cross Flow Cross Flow

Motor Output x Qty W 14.4 x 1 14.4 x 1 76.0 x 1

Motor/Drive BLDC BLDC BLDC

Airow (H/M/L) CFM 247/230/212 335/318/300 572/501/434

Rated Amps A 0.2 0.2 0.3

Sound Pressure Level (H/M/L)

Dimensions (WxHxD) in 34-13/16 x 11-1/4 x 8-1/16 34-13/16 x 11-1/4 x 8-1/16 40-9/16 x 12-3/4 x 9-11/16

Weight (Net/Shipping) lbs 24/29 24/29 32/39

Liquid in 1/4 1/4 1/4

Vapor in 3/8 3/8 1/2

Drain (OD/ID) in 27/32, 5/8 27/32, 5/8 27/32, 5/8

No. x AWG 4 x 18 4 x 18 4 x 18

dB(A) 33/30/27 39/36/31 37/33/28

LG Air Conditioning Systems

MULTI ZONE

• INDOOR

UNITS

MULTI F INDOOR UNITS

Standard Wall Mount

Specication Unit LMN078HVT LSN090HSV4 LSN120HSV4 LMN158HVT LSN180HSV4 LMN248HVT

Capacity

Power

Operating Range

Fan

Unit Data

Piping

Controller Supplied

Cooling Btu/h

Heating Btu/h

Voltage V, Ø, Hz

Power/Communication Wiring4No. x AWG

Cooling °F WB

Heating °F DB

Type

Motor Output x Qty W

Motor/Drive

Airow (H/M/L) CFM

Rated Amps A

Sound Pressure Level (H/M/L)3dB(A)

Dimensions (WxHxD) in

Weight (Net/Shipping) lbs

Liquid in

Vapor in

Drain (OD, ID) in

7,000 9,000 12,000 14,300 18,000 24,000

8,100 10,400 13,800 16,500 20,800 27,000

208/230-1-60 208/230-1-60 208/230-1-60 208/230-1-60 208/230-1-60 208/230-1-60

4 x 18 4 x 18 4 x 18 4 x 18 4 x 18 4 x 18

57 ~ 77 57 ~ 77 57 ~ 77 57 ~ 77 57 ~ 77 57 ~ 77

59 ~ 81 59 ~ 81 59 ~ 81 59 ~ 81 59 ~ 81 59 ~ 81

Cross Flow Cross Flow Cross Flow Cross Flow Cross Flow Cross Flow

14.4 x 1 14.4 x 1 14.4 x 1 14.4 x 1 76.0 x 1 76.0 x 1

BLDC BLDC BLDC BLDC BLDC BLDC

198/177/162 247/230/212 335/318/300 371/318/247 572/501/434 720/600/466

0.2 0.2 0.2 0.2 0.3 0.3

33/30//26 33/30/27 39/36/31 43/39/34 37/33/28 42/39/36

35-1/4 x 11-3/8 x 8-9/32 34-7/8 x 11-1/4 x 8-1/4 34-7/8 x 11-1/4 x 8-1/4 35-1/4 x 11-3/8 x 8-9/32 40-9/16 x 12-13/16 x 9-13/16 40-9/16 x 12-13/16 x 9-13/16

23 / 26 20/26 20/26 23/26 31/36 31/37

1/4 1/4 1/4 1/4 1/4 1/4

3/8 3/8 3/8 3/8 1/2 1/2

27/32, 5/8 27/32, 5/8 27/32, 5/8 27/32, 5/8 27/32, 5/8 27/32, 5/8

AKB73635606 AKB73835312 AKB73835312 AKB73635606 AKB73835312 AKB73635606

MULTI ZONE

Ceiling Cassette

Specication Unit LMCN077HV LMCN097HV LMCN125HV LMCN185HV

Capacity

Power

Operating Range

Fan

Unit Data

Piping

Controller Supplied

Grille (Sold Separately)

Note:

1. Rated capacity at 0 ft. above sea level with 25 ft. of refrigerant line and a 0 ft. level difference between outdoor and indoor unit.

4. All power/communication wiring minimum 4-conductor, stranded, shielded, and must comply with applicable local and national codes.

5. Due to our policy of innovation, some specifications may be changed without notification.

6. Supplied AKB72955816 controller is equivalent to PQRCVCL0QW.

Cooling Btu/h

Heating Btu/h

Voltage V, Ø, Hz

Power/Communication Wiring

Cooling °F WB

Heating °F DB

Type

Motor Output x Qty W

Motor/Drive

Airow (H/M/L) CFM

Rated Amps A

Sound Pressure Level (H/M/L)

Dimensions (WxHxD) in

Weight (Net/Shipping) lbs

Liquid in

Vapor in

Drain (OD/ID) in

Model

Dimensions (WxHxD) in

Weight (Net/Shipping) lbs

No. x AWG

dB(A)

7,000 9,000 12,000 18,000

8,100 10,400 13,800 20,800

208/230-1-60 208/230-1-60 208/230-1-60 208/230-1-60

4 x 18 4 x 18 4 x 18 4 x 18

57 ~ 77 57 ~ 77 57 ~ 77 57 ~ 77

59 ~ 81 59 ~ 81 59 ~ 81 59 ~ 81

Turbo Turbo Turbo Turbo

43 x 1 43 x 1 43 x 1 43 x 1

BLDC BLDC BLDC BLDC

265/212/177 300/265/230 335/283/247 459/424/388

0.25 0.25 0.25 0.25

31/27/24 36/33/30 38/35/32 38/37/34

22-7/16 x 8-7/16 x 22-7/16 22-7/16 x 8-7/16 x 22-7/16 22-7/16 x 8-7/16 x 22-7/16 22-7/16 x 10-3/32 x 22-7/16

31/34 31/36 31/40 34/42

1/4 1/4 1/4 1/4

3/8 3/8 3/8 1/2

1-1/4, 1 1-1/4, 1 1-1/4, 1 1-1/4, 1

AKB73757604 AKB73757604 AKB73757604 AKB73757604

PT-UQC PT-UQC PT-UQC PT-UQC

27-9/16 x 7/8 x 27-9/16 27-9/16 x 7/8 x 27-9/16 27-9/16 x 7/8 x 27-9/16 27-9/16 x 7/8 x 27-9/16

7/11 7/11 7/11 7/11

MULTI F INDOOR UNITS

Low-Static Ducted

Specication Unit LMDN096HV LMDN126HV LMDN186HV

Capacity

Power

Operating Range

Fan

Unit Data

Piping

Controller Supplied

Cooling Btu/h 9,000 12,000 18,000

Heating Btu/h 10,400 13,800 20,800

Voltage V, Ø, Hz 208/230-1-60 208/230-1-61 208/230-1-62

Power/Communication Wiring

Cooling °F WB 57 ~ 77 57 ~ 77 57 ~ 77

Heating °F DB 59 ~ 81 59 ~ 81 59 ~ 81

Type Sirocco Sirocco Sirocco

Motor Output x Qty W 19 x 1 5 x 1, 19 x 1 5 x 1, 19 x 1

Motor/Drive BLDC BLDC BLDC

Airow (H/M/L) CFM 318/247/194 353/300/247 530/441/353

Rated Amps A 0.4 0.8 0.8

Factory Set External Static Pressure in. wg 0.1 0.1 0.1

Max. External Static Pressure in. wg 0.2 0.2 0.2

Sound Pressure Level (H/M/L)

Dimensions (WxHxD) in 27-9/16 x 7-15/32 x 27-9/16 35-7/16 x 7-15/32 x 27-9/16 35-7/16 x 7-15/32 x 27-9/16

Weight (Net/Shipping) lbs 39/45 51/57 51/57

Liquid in 1/4 1/4 1/4

Vapor in 3/8 3/8 1/2

Drain (OD/ID) in 1-1/4, 1 1-1/4, 1 1-1/4, 1

No. x AWG 4 x 18 4 x 18 4 x 18

dB(A) 30/26/23 31/28/27 36/34/31

AKB72955816 AKB72955816 AKB72955816

High-Static Ducted

Specication Unit LMHN240HV LMHN360HV

Capacity

Power

Operating Range

Fan

Unit Data

Piping

Controller Supplied

Note:

1. Rated capacity at 0 ft. above sea level with 25 ft. of refrigerant line and a 0 ft. level difference between outdoor and indoor unit.

4. All power/communication wiring minimum 4-conductor, stranded, shielded, and must comply with applicable local and national codes.

5. Due to our policy of innovation some specifications may be changed without notification

6. Supplied AKB72955816 controller is equivalent to PQRCVCL0QW.

Cooling Btu/h 24,000 36,000

Heating Btu/h 27,000 40,000

Voltage V, Ø, Hz 208/230-1-63 208/230-1-64

Power/Communication Wiring

Cooling °F WB 57 ~ 77 57 ~ 77

Heating °F DB 59 ~ 81 59 ~ 81

Type Sirocco Sirocco

Motor Output x Qty W 154 x 1 350 x 1

Motor/Drive BLDC BLDC

Airow (H/M/L) CFM 688/618/530 1,130/953/706

Rated Amps A 0.9 1.4

Factory Set External Static Pressure in. wg 0.39 0.39

Max. External Static Pressure in. wg 0.78 0.55

Sound Pressure Level (H/M/L)

Dimensions (WxHxD) in 46-17/32 x 11-23/32 x 17-23/32 46-17/32 x 11-23/32 x 17-23/32

Weight (Net/Shipping) lbs 80/91 91/101

Liquid in 1/4 3/8

Vapor in 1/2 5/8

Drain (OD/ID) in 1-1/4, 1 1-1/4, 1

No. x AWG 4 x 18 4 x 18

dB(A) 37/36/35 44/42/40

AKB72955816 AKB72955816

LG Air Conditioning Systems

MULTI F INDOOR UNITS

• INDOOR

UNITS

Vertical AHU

MULTI ZONE

Specication Unit LMVN240HV LMVN360HV

Capacity

Power

Operating Range

Fan

Unit Data

Piping

Controller Supplied

Cooling Btu/h 24,000 36,000

Heating Btu/h 27,000 40,000

Voltage V, Ø, Hz 208/230-1-60 208/230-1-60

Power/Communication Wiring

Cooling °F WB 57 ~ 77 57 ~ 77

Heating °F DB 59 ~ 81 59 ~ 81

Type Sirocco Sirocco

Motor Output x Qty W 96 x 1 182 x 1

Motor/Drive BLDC BLDC

Airow (H/M/L

Rated Amps A 0.59 1.12

Max. External Static Pressure in. wg 1 1

Sound Pressure Level (H/M/L)

Dimensions (WxHxD) in 18 x 48-21/32 x 21-1/4 18 x 48-21/32 x 21-1/4

Weight (Net/Shipping) lbs 117/130 121/135

Liquid in 1/4 3/8

Vapor in 1/2 5/8

Drain in Primary & Secondary: 3/4 FPT Primary & Secondary: 3/4 FPT

) CFM 710/640/480 990/880/800

No. x AWG 4 x 18 4 x 18

dB(A) 43/42/41 45/44/43

AKB72955816 AKB72955816

Note:

1. Rated capacity at 0 ft. above sea level with 25 ft. of refrigerant line and a 0 ft. level difference between outdoor and indoor unit.

3. At 0.5" WG ESP.

4. Sound pressure levels are tested in an anechoic chamber under ISO Standard 3745 and are the same in both cooling and heating mode. These values can increase due to ambient conditions during operation.

5. All power/communication wiring minimum 4-conductor, stranded, shielded, and must comply with applicable local and national codes.

6. Due to our policy of innovation, some specifications may be changed without notification.

7. Supplied AKB72955816 controller is equivalent to PQRCVCL0QW.

Distributor Box

MULTI F MAX PIPING ACCESSORIES

Accessory Lineup

For 2 IDUs 3 IDUs 4 IDUs 4 IDUs

Branch Distribution Unit

PMBD3620 PMBD3630

Y-Branch

PMBL5620

Branch Distribution Unit Features

• Distribution of refrigerant to various indoor units.

• 4 models (2, 3, 4 indoor units)

• Integral EEVs

• Controlling PCB inside the unit

• Internally insulated (prevents condensation)

• Flare joints for easy and clean installation

• Compact design (low height)

• Flexible installation

PMBD3640 PMBD3641

Specications

Unit PMBD3620 PMBD3630 PMBD3640 PMBD3641

Max Nominal Port Capacity

Connectable Indoor Units 1 ~ 2 1 ~ 3 1 ~ 4 1 ~ 4

Operating Range

Voltage V, Ø, Hz 208/230-1-60 208/230-1-60 208/230-1-60 208/230-1-60

Power Input

Rated Amps

Dimensions WxHxD

Weight

Pipe Connection Size (In from ODU)

Pipe Connection Size (Out to IDU)

Max Pipe Length BD Box to IDU

Max Pipe Elevation

Note : 1. Branch Distribution Unit should be installed indoors.

2. Due to our policy of innovation, some specifications may be changed without notification.

Each Port Btu/h

Sum of Ports Btu/h 48,000 72,000 73,000 73,000

°F DB 0 ~ 150 0 ~ 150 0 ~ 150 0 ~ 150

inch

Net

Shipping

Liquid

Suction

Liquid

Suction

BD Box to IDU

BD Box to BD Box

lbs

24,000 24,000 24,000

16 24 32 32

0.08 0.12 0.16 0.16

17-3/32 x 6-13/32 x 10-23/32 17-3/32 x 6-13/32 x 10-23/32 17-3/32 x 6-13/32 x 10-23/32 17-3/32 x 6-13/32 x 10-23/32

13 15 16 16

15 17 18 18

3/8 3/8 3/8 3/8

3/4 3/4 3/4 3/4

1/4 (x2) 1/4 (x3) 1/4 (x3)

3/8 (x2) 3/8 (x3) 3/8 (x3)

49.2 49.2 49.2 49.2

32.8 32.8 32.8 32.8

49.2 49.2 49.2 49.2

Ports A ~ C: 24,000

Port D: 36,000

1/4 (x3) 3/8 (x1)

3/8 (x3) 5/8 (x1)

LG Air Conditioning Systems

COMBINATION TABLES

• COMBINATION

TABLES

• MULTI F MAX

PIPING ACCESSORIES

LMU18CHV

Table 1: LMU18CHV with Non-Ducted, Ducted and Mixed Indoor Units — Rated Cooling Combination Table.

Cooling Capacity

No. of Indoor

Units

Combination (kBtu/h)

IDU 1IDU 2IDU 3IDU

Non-Ducted Indoor Units

7 7 - - 14 7,000 7,000 - - 8,400 2.46 14,000 4.10 16,800 4.92 826 1,180 1,652 11.9 20.1 7 9 - - 16 7,000 9,000 - - 9,600 2.81 16,000 4.69 19,000 5.57 868 1,240 1,736 12.9 21.9

9 9 - - 18 8,500 8,500 - - 10,200 3.16 17,000 4.98 19,000 5.57 917 1,310 1,834 13.0 22.0

Two

7 12 - - 19 6,263 10,737 - - 10,200 2.99 17,000 4.98 19,000 5.57 917 1,310 1,834 13.0 22.0 9 12 - - 21 7,286 9,714 - - 10,200 3.16 17,000 4.98 19,000 5.57 917 1,310 1,834 13.0 22.0

Units

7 15 - - 22 5,409 11,591 - - 10,200 2.99 17,000 4.98 19,000 5.57 917 1,310 1,834 13.0 22.0 9 15 - - 24 6,375 10,625 - - 10,200 2.99 17,000 4.98 19,000 5.57 917 1,310 1,834 13.0 22.0

12 12 - - 24 8,500 8,500 - - 10,200 3.16 17,000 4.98 19,000 5.57 917 1,310 1,834 13.0 22.0

Ducted Indoor Units

9 9 - - 18 7,000 7,000 - - 8,400 3.16 14,000 4.10 19,000 5.57 916 1,308 1,831 10.7 17.2

Two

9 12 - - 21 6,000 8,000 - - 8,400 3.16 14,000 4.10 19,000 5.57 916 1,308 1,831 10.7 17.2

Units

12 12 - - 24 7,000 7,000 - - 8,400 3.16 14,000 4.10 19,000 5.57 916 1,308 1,831 10.7 17.2

Mixed Indoor Units

7 9 - - 16 6,382 8,206 - - 8,753 2.57 14,588 4.28 19,000 5.57 867 1,239 1,735 11.8 19.5 9 9 - - 18 7,750 7,750 - - 9,300 3.16 15,500 4.54 19,000 5.57 916 1,309 1,833 11.8 19.6

Two

7 12 - - 19 5,711 9,789 - - 9,300 2.73 15,500 4.54 19,000 5.57 916 1,309 1,833 11.8 19.6 9 12 - - 21 6,643 8,857 - - 9,300 3.16 15,500 4.54 19,000 5.57 916 1,309 1,833 11.8 19.6

Units

9 15 - - 24 5,813 9,688 - - 9,300 2.73 15,500 4.54 19,000 5.57 916 1,309 1,833 11.8 19.6

12 12 - - 24 7,750 7,750 - - 9,300 3.16 15,500 4.54 19,000 5.57 916 1,309 1,833 11.8 19.6

Each Capacity

Total Unit 1 Unit 2 Unit 3 Unit 4

(Btu/h)

Minimum Rated Maximum

Btu/h kW Btu/h kW Btu/h kW

Total Capacity Input (W)

MULTI ZONE

EER SEER

Min. Rated Max.

Table 2: LMU18CHV with Non-Ducted, Ducted and Mixed Indoor Units — Rated Heating Combination Table.

Heating Capacity

Indoor Unit Combination

No. of Indoor

IDU 1IDU 2IDU 3IDU

Units

(kBtu/h)

Room Capacity (Btu/h)

Unit 1 Unit 2 Unit 3 Unit 4

Total

Minimum Rated Maximum

Btu/h kW Btu/h kW Btu/h kW

Total Capacity Input (W)

Min. Rated Max.

Non-Ducted Indoor Units

7 7 - - 14 8,540 8,540 - - 10,248 3.00 17,080 5.01 19,642 5.76 1,155 1,650 2,310 3.0 9.3 7 9 - - 16 8,540 10,980 - - 11,712 3.43 19,520 5.72 22,448 6.58 1,309 1,870 2,420 3.1 9.4 9 9 - - 18 11,000 11,000 - - 13,200 3.87 22,000 6.45 24,000 7.03 1,428 2,040 2,420 3.2 9.7 7 12 - - 19 8,105 13,895 - - 13,200 3.87 22,000 6.45 24,000 7.03 1,428 2,040 2,420 3.2 9.7

Two

Units

9 12 - - 21 9,429 12,571 - - 13,200 3.87 22,000 6.45 24,000 7.03 1,428 2,040 2,420 3.2 9.7 7 15 - - 22 7,000 15,000 - - 13,200 3.87 22,000 6.45 24,000 7.03 1,428 2,040 2,420 3.2 9.7 9 15 - - 24 8,250 13,750 - - 13,200 3.87 22,000 6.45 24,000 7.03 1,428 2,040 2,420 3.2 9.7

12 12 - - 24 11,000 11,000 - - 13,200 3.87 22,000 6.45 24,000 7.03 1,428 2,040 2,420 3.2 9.7

Ducted Indoor Units

9 9 - - 18 9,900 9,900 - - 11,880 3.48 19,800 5.80 24,000 7.03 1,386 1,980 2,420 2.9 9.7

Two

Units

9 12 - - 21 8,486 11,314 - - 11,880 3.48 19,800 5.80 24,000 7.03 1,386 1,980 2,420 2.9 9.7

12 12 - - 24 9,900 9,900 - - 11,880 3.48 19,800 5.80 24,000 7.03 1,386 1,980 2,420 2.9 9.7

Mixed Indoor Units

7 9 - - 16 8,113 10,431 - - 11,126 3.26 18,544 5.43 21,326 6.25 1,290 1,843 2,420 2.9 9.4 9 9 - - 18 10,450 10,450 - - 12,540 3.68 20,900 6.13 24,000 7.03 1,407 2,010 2,420 3.0 9.7 7 12 - - 19 7,700 13,200 - - 12,540 3.68 20,900 6.13 24,000 7.03 1,407 2,010 2,420 3.0 9.7

Two

Units

Note: Combination Tables convey the allocation of outdoor unit Rated Capacity to each of the indicated indoor units when calling for conditioning at the same time. Refer to the Multi F ODU Combination and Performance Data manuals for more detailed information.

1. Capacity as rated: 0 ft. above sea level with 25 ft. of refrigerant piping. 0 ft. level difference between outdoor and indoor units.

2. Cooling capacity rating obtained with air entering the indoor unit at 80°F dry bulb (DB) and 67°F wet bulb (WB), and outdoor ambient conditions of 95°F dry bulb (DB) and 75°F wet bulb (WB).

3. Wiring cable size must comply with the applicable local and national codes.

9 12 - - 21 8,957 11,943 - - 12,540 3.68 20,900 6.13 24,000 7.03 1,407 2,010 2,420 3.0 9.7 9 15 - - 24 7,838 13,063 - - 12,540 3.68 20,900 6.13 24,000 7.03 1,407 2,010 2,420 3.0 9.7

12 12 - - 24 10,450 10,450 - - 12,540 3.68 20,900 6.13 24,000 7.03 1,407 2,010 2,420 3.0 9.7

4. The specification may be subject to change without prior notice for purpose of improvement.

5. At least two indoor units should be connected.

6. Heating capacity rating obtained with air entering the indoor unit at 70°F dry bulb (DB) and 60°F wet bulb (WB), and outdoor ambient conditions of 47°F dry bulb (DB) and 43°F wet bulb (WB).

COP HSPF

COMBINATION TABLES

LMU24CHV

Table 3: LMU24CHV with Non-Ducted and Ducted Indoor Units — Rated Cooling Combination Table.

Cooling Capacity

Indoor Unit Combination

No. of Indoor

IDU 1IDU 2IDU 3IDU

Units

(kBtu/h)

Total Unit 1 Unit 2 Unit 3 Unit 4

Non-Ducted Indoor Units

7 7 - - 14 7,000 7,000 - - 8,400 2.46 14,000 4.10 16,800 4.92 798 1,140 1,596 12.3 19.7

7 9 - - 16 7,000 9,000 - - 9,600 2.81 16,000 4.69 19,200 5.63 903 1,290 1,806 12.4 19.9

9 9 - - 18 9,000 9,000 - - 10,800 3.17 18,000 5.28 21,600 6.33 1,008 1,440 2,016 12.5 20.1

7 12 - - 19 7,000 12,000 - - 11,400 3.34 19,000 5.57 22,800 6.68 1,057 1,510 2,114 12.6 20.2

9 12 - - 21 8,571 11,429 - - 12,000 3.52 20,000 5.86 24,000 7.03 1,106 1,580 2,212 12.7 20.3

7 15 - - 22 6,364 13,636 - - 12,000 3.52 20,000 5.86 24,000 7.03 1,106 1,580 2,212 12.7 20.3

9 15 - - 24 7,500 12,500 - - 12,000 3.52 20,000 5.86 24,000 7.03 1,106 1,580 2,212 12.7 20.3

12 12 - - 24 10,000 10,000 - - 12,000 3.52 20,000 5.86 24,000 7.03 1,106 1,580 2,212 12.7 20.3

Two

7 18 - - 25 5,600 14,400 - - 12,000 3.52 20,000 5.86 24,000 7.03 1,106 1,580 2,212 12.7 20.3

Units

9 18 - - 27 6,667 13,333 - - 12,000 3.52 20,000 5.86 24,000 7.03 1,106 1,580 2,212 12.7 20.3

12 15 - - 27 8,889 11,111 - - 12,000 3.52 20,000 5.86 24,000 7.03 1,106 1,580 2,212 12.7 20.3

12 18 - - 30 8,000 12,000 - - 12,000 3.52 20,000 5.86 24,000 7.03 1,106 1,580 2,212 12.7 20.3

15 15 - - 30 10,000 10,000 - - 12,000 3.52 20,000 5.86 24,000 7.03 1,106 1,580 2,212 12.7 20.3

7 24 - - 31 4,516 15,484 - - 12,000 3.52 20,000 5.86 24,000 7.03 1,106 1,580 2,212 12.7 20.3

9 24 - - 33 5,455 14,545 - - 12,000 3.52 20,000 5.86 24,000 7.03 1,106 1,580 2,212 12.7 20.3

15 18 - - 33 9,091 10,909 - - 12,000 3.52 20,000 5.86 24,000 7.03 1,106 1,580 2,212 12.7 20.3

7 7 7 - 21 6,667 6,667 6,667 - 12,000 3.52 20,000 5.86 25,000 7.33 1,037 1,481 2,073 13.5 21.7

7 7 9 23 6,087 6,087 7,826 - 12,000 3.52 20,000 5.86 25,000 7.33 1,037 1,481 2,073 13.5 21.7

7 9 9 25 5,600 7,200 7,200 - 12,000 3.52 20,000 5.86 25,000 7.33 1,037 1,481 2,073 13.5 21.7

7 7 12 26 5,385 5,385 9,231 - 12,000 3.52 20,000 5.86 25,000 7.33 1,037 1,481 2,073 13.5 21.7

9 9 9 - 27 6,667 6,667 6,667 - 12,000 3.52 20,000 5.86 25,000 7.33 1,037 1,481 2,073 13.5 21.7

7 9 12 28 5,000 6,429 8,571 - 12,000 3.52 20,000 5.86 25,000 7.33 1,037 1,481 2,073 13.5 21.7

Three

7 7 15 29 4,828 4,828 10,345 - 12,000 3.52 20,000 5.86 25,000 7.33 1,037 1,481 2,073 13.5 21.7

Units

9 9 12 - 30 6,000 6,000 8,000 - 12,000 3.52 20,000 5.86 25,000 7.33 1,037 1,481 2,073 13.5 21.7

7 9 15 31 4,516 5,806 9,677 - 12,000 3.52 20,000 5.86 25,000 7.33 1,037 1,481 2,073 13.5 21.7

7 12 12 31 4,516 7,742 7,742 - 12,000 3.52 20,000 5.86 25,000 7.33 1,037 1,481 2,073 13.5 21.7

7 7 18 32 4,375 4,375 11,250 - 12,000 3.52 20,000 5.86 25,000 7.33 1,037 1,481 2,073 13.5 21.7

9 9 15 33 5,455 5,455 9,091 - 12,000 3.52 20,000 5.86 25,000 7.33 1,037 1,481 2,073 13.5 21.7

9 12 12 - 33 5,455 7,273 7,273 - 12,000 3.52 20,000 5.86 25,000 7.33 1,037 1,481 2,073 13.5 21.7

Ducted Indoor Units

9 9 - - 18 8,010 8,010 - - 9,612 2.82 16,020 4.70 19,224 5.63 1,054 1,505 2,107 10.6 16.2

9 12 - - 21 7,629 10,171 - - 10,680 3.13 17,800 5.22 21,360 6.26 1,156 1,651 2,312 10.8 16.4

Two

12 12 - - 24 8,900 8,900 - - 10,680 3.13 17,800 5.22 21,360 6.26 1,156 1,651 2,312 10.8 16.4

Units

9 18 - - 27 5,933 11,867 - - 10,680 3.13 17,800 5.22 21,360 6.26 1,156 1,651 2,312 10.8 16.4

12 18 - - 30 7,120 10,680 - - 10,680 3.13 17,800 5.22 21,360 6.26 1,156 1,651 2,312 10.8 16.4

9 9 9 - 27 5,933 5,933 5,933 - 10,680 3.13 17,800 5.22 22,250 6.52 1,084 1,548 2,167 11.5 17.5

Three

9 9 12 - 30 5,340 5,340 7,120 - 10,680 3.13 17,800 5.22 22,250 6.52 1,084 1,548 2,167 11.5 17.5

Units

9 12 12 - 33 4,855 6,473 6,473 - 10,680 3.13 17,800 5.22 22,250 6.52 1,084 1,548 2,167 11.5 17.5

Room Capacity Total Capacity Input (W)

Minimum Rated Maximum

Btu/h kW Btu/h kW Btu/h kW

Min. Rated Max.

EER SEER

1. Capacity as rated: 0 ft. above sea level with 25 ft. of refrigerant piping. 0 f t. level difference between outdoor and indoor units.

2. Cooling capacity rating obtained with air entering the indoor unit at 80°F dry bulb (DB) and 67°F wet bulb (WB), and outdoor ambient conditions of 95°F dry bulb (DB) and 75°F wet bulb (WB).

LG Air Conditioning Systems

3. Wiring cable size must comply with the applicable local and national codes.

4. The specification may be subject to change without prior notice for purpose of improvement. *At least two indoor units should be connected.

COMBINATION TABLES

• COMBINATION

TABLES

LMU24CHV

Table 4: LMU24CHV with Mixed Indoor Units — Rated Cooling Combination Table.

Cooling Capacity

Indoor Unit Combination

No. of

Indoor

Units

(kBtu/h)

IDU 1IDU 2IDU 3IDU

Total Unit 1 Unit 2 Unit 3 Unit 4

Mixed Indoor Units

7 9 - - 16 6,615 8,505 - - 9,072 2.66 15,120 4.43 18,144 5.32 923 1,319 1,847 11.5 18.0

9 9 - - 18 8,505 8,505 - - 10,206 2.99 17,010 4.99 20,412 5.98 1,031 1,473 2,062 11.6 18.1

7 12 - - 19 6,615 11,340 - - 10,773 3.16 17,955 5.26 21,546 6.31 1,081 1,544 2,162 11.6 18.3

9 12 - - 21 8,100 10,800 - - 11,340 3.32 18,900 5.54 22,680 6.65 1,131 1,616 2,262 11.7 18.4

9 15 - - 24 7,088 11,813 - - 11,340 3.32 18,900 5.54 22,680 6.65 1,131 1,616 2,262 11.7 18.4

12 12 - - 24 9,450 9,450 - - 11,340 3.32 18,900 5.54 22,680 6.65 1,131 1,616 2,262 11.7 18.4

Two

7 18 - - 25 5,292 13,608 - - 11,340 3.32 18,900 5.54 22,680 6.65 1,131 1,616 2,262 11.7 18.4

Units

9 18 - - 27 6,300 12,600 - - 11,340 3.32 18,900 5.54 22,680 6.65 1,131 1,616 2,262 11.7 18.4

12 15 - - 27 8,400 10,500 - - 11,340 3.32 18,900 5.54 22,680 6.65 1,131 1,616 2,262 11.7 18.4

12 18 - - 30 7,560 11,340 - - 11,340 3.32 18,900 5.54 22,680 6.65 1,131 1,616 2,262 11.7 18.4

15 18 - - 33 8,591 10,309 - - 11,340 3.32 18,900 5.54 22,680 6.65 1,131 1,616 2,262 11.7 18.4

9 24* - - 33 5,155 13,745 - - 11,340 3.32 18,900 5.54 22,680 6.65 1,131 1,616 2,262 11.7 18.4

7 7 9 - 23 5,752 5,752 7,396 - 11,340 3.32 18,900 5.54 23,625 6.92 1,060 1,515 2,120 12.5 19.6

7 9 9 - 25 5,292 6,804 6,804 - 11,340 3.32 18,900 5.54 23,625 6.92 1,060 1,515 2,120 12.5 19.6

7 7 12 - 26 5,088 5,088 8,723 - 11,340 3.32 18,900 5.54 23,625 6.92 1,060 1,515 2,120 12.5 19.6

9 9 9 - 27 6,300 6,300 6,300 - 11,340 3.32 18,900 5.54 23,625 6.92 1,060 1,515 2,120 12.5 19.6

7 9 12 - 28 4,725 6,075 8,100 - 11,340 3.32 18,900 5.54 23,625 6.92 1,060 1,515 2,120 12.5 19.6

Three

9 9 12 - 30 5,670 5,670 7,560 - 11,340 3.32 18,900 5.54 23,625 6.92 1,060 1,515 2,120 12.5

Units

7 9 15 - 31 4,268 5,487 9,145 - 11,340 3.32 18,900 5.54 23,625 6.92 1,060 1,515 2,120 12.5 19.6

7 12 12 - 31 4,268 7,316 7,316 - 11,340 3.32 18,900 5.54 23,625 6.92 1,060 1,515 2,120 12.5 19.6

7 7 18 - 32 4,134 4,134 10,631 - 11,340 3.32 18,900 5.54 23,625 6.92 1,060 1,515 2,120 12.5 19.6

9 9 15 - 33 5,155 5,155 8,591 - 11,340 3.32 18,900 5.54 23,625 6.92 1,060 1,515 2,120 12.5 19.6

9 12 12 - 33 5,155 6,873 6,873 - 11,340 3.32 18,900 5.54 23,625 6.92 1,060 1,515 2,120 12.5 19.6

Room Capacity Total Capacity Input (W)

Minimum Rated Maximum

Btu/h kW Btu/h kW Btu/h kW

MULTI ZONE

EER SEER

Min. Rated Max.

19.6

1. Capacity as rated: 0 ft. above sea level with 25 ft. of refrigerant piping. 0 f t. level difference between outdoor and indoor units.

2. Cooling capacity rating obtained with air entering the indoor unit at 80°F dry bulb (DB) and 67°F wet bulb (WB), and outdoor ambient conditions of 95°F dry bulb (DB) and 75°F wet bulb (WB).

3. Wiring cable size must comply with the applicable local and national codes.

4. The specification may be subject to change without prior notice for purpose of improvement.

5. At least two indoor units should be connected. *The indoor unit must be non-ducted type.

COMBINATION TABLES

LMU24CHV

Table 5: LMU24CHV with Non-Ducted and Ducted Indoor Units — Rated Heating Combination Table.

Heating Capacity

Indoor Unit Combination

No. of

Indoor

IDU 1IDU 2IDU 3IDU

Units

(kBtu/h)

Total

Room Capacity (Btu/h)

Unit 1 Unit 2 Unit 3 Unit 4

Minimum Rated Maximum

Btu/h kW Btu/h kW Btu/h kW

Non-Ducted Indoor Units

7 7 - - 14 7,700 7,700 - - 9,240 2.71 15,400 4.51 17,710 5.19 1,092 1,560 2,184 2.9 7.8

7 9 - - 16 7,700 9,900 - - 10,560 3.09 17,600 5.16 20,240 5.93 1,134 1,620 2,268 3.2 8.6

9 9 - - 18 9,900 9,900 - - 11,880 3.48 19,800 5.80 22,770 6.67 1,197 1,710 2,394 3.4 9.2

7 12 - - 19 7,700 13,200 - - 12,540 3.68 20,900 6.13 24,035 7.04 1,232 1,760 2,464 3.5 9.4

9 12 - - 21 9,900 13,200 - - 13,860 4.06 23,100 6.77 26,565 7.79 1,323 1,890 2,580 3.6 9.7

7 15 - - 22 7,636 16,364 - - 14,400 4.22 24,000 7.03 27,600 8.09 1,358 1,940 2,580 3.6 9.8

9 15 - - 24 9,000 15,000 - - 14,400 4.22 24,000 7.03 27,600 8.09 1,358 1,940 2,580 3.6 9.8

12 12 - - 24 12,000 12,000 - - 14,400 4.22 24,000 7.03 27,600 8.09 1,358 1,940 2,580 3.6 9.8

Two

7 18 - - 25 6,720 17,280 - - 14,400 4.22 24,000 7.03 27,600 8.09 1,358 1,940 2,580 3.6 9.8

Units

9 18 - - 27 8,000 16,000 - - 14,400 4.22 24,000 7.03 27,600 8.09 1,358 1,940 2,580 3.6 9.8

12 15 - - 27 10,667 13,333 - - 14,400 4.22 24,000 7.03 27,600 8.09 1,358 1,940 2,580 3.6 9.8

12 18 - - 30 9,600 14,400 - - 14,400 4.22 24,000 7.03 27,600 8.09 1,358 1,940 2,580 3.6 9.8

15 15 - - 30 12,000 12,000 - - 14,400 4.22 24,000 7.03 27,600 8.09 1,358 1,940 2,580 3.6 9.8

7 24 - - 31 5,419 18,581 - - 14,400 4.22 24,000 7.03 27,600 8.09 1,358 1,940 2,580 3.6 9.8

9 24 - - 33 6,545 17,455 - - 14,400 4.22 24,000 7.03 27,600 8.09 1,358 1,940 2,580 3.6 9.8

15 18 - - 33 10,909 13,091 - - 14,400 4.22 24,000 7.03 27,600 8.09 1,358 1,940 2,580 3.6 9.8

7 7 7 - 21 7,700 7,700 7,700 - 13,860 4.06 23,100 6.77 27,720 8.12 1,246 1,780 2,492 3.8 10.3

7 7 9 23 7,304 7,304 9,391 - 14,400 4.22 24,000 7.03 28,800 8.44 1,260 1,800 2,520 3.9

7 9 9 25 6,720 8,640 8,640 - 14,400 4.22 24,000 7.03 28,800 8.44 1,260 1,800 2,520 3.9 10.6

7 7 12 26 6,462 6,462 11,077 - 14,400 4.22 24,000 7.03 28,800 8.44 1,260 1,800 2,520 3.9 10.6

9 9 9 - 27 8,000 8,000 8,000 - 14,400 4.22 24,000 7.03 28,800 8.44 1,260 1,800 2,520 3.9 10.6

7 9 12 28 6,000 7,714 10,286 - 14,400 4.22 24,000 7.03 28,800 8.44 1,260 1,800 2,520 3.9 10.6

Three

7 7 15 29 5,793 5,793 12,414 - 14,400 4.22 24,000 7.03 28,800 8.44 1,260 1,800 2,520 3.9 10.6

Units

9 9 12 - 30 7,200 7,200 9,600 - 14,400 4.22 24,000 7.03 28,800 8.44 1,260 1,800 2,520 3.9 10.6

7 9 15 31 5,419 6,968 11,613 - 14,400 4.22 24,000 7.03 28,800 8.44 1,260 1,800 2,520 3.9 10.6

7 12 12 31 5,419 9,290 9,290 - 14,400 4.22 24,000 7.03 28,800 8.44 1,260 1,800 2,520 3.9 10.6

7 7 18 32 5,250 5,250 13,500 - 14,400 4.22 24,000 7.03 28,800 8.44 1,260 1,800 2,520 3.9 10.6

9 9 15 33 6,545 6,545 10,909 - 14,400 4.22 24,000 7.03 28,800 8.44 1,260 1,800 2,520 3.9 10.6

9 12 12 33 6,545 8,727 8,727 - 14,400 4.22 24,000 7.03 28,800 8.44 1,260 1,800 2,520 3.9 10.6

Ducted Indoor Units

9 9 - - 18 9,281 9,281 - - 11,138 3.26 18,563 5.44 21,347 6.26 1,275 1,822 2,551 3.0 8.5

9 12 - - 21 9,281 12,375 - - 12,994 3.81 21,656 6.35 24,905 7.3 1,410 2,014 2,580 3.2 9.0

Two

12 12 - - 24 11,200 11,200 - - 13,440 3.94 22,400 6.57 25,760 7.55 1,447 2,067 2,580 3.2 9.1

Units

9 18 - - 27 7,467 14,933 - - 13,440 3.94 22,400 6.57 25,760 7.55 1,447 2,067 2,580 3.2 9.1

12 18 - - 30 8,960 13,440 - - 13,440 3.94 22,400 6.57 25,760 7.55 1,447 2,067 2,580 3.2 9.1

9 9 9 - 27 7,467 7,467 7,467 - 13,440 3.94 22,400 6.57 26,880 7.88 1,343 1,918 2,685 3.4 9.8

Three

9 9 12 - 30 6,720 6,720 8,960 - 13,440 3.94 22,400 6.57 26,880 7.88 1,343 1,918 2,685 3.4 9.8

Units

9 12 12 - 33 6,109 8,145 8,145 - 13,440 3.94 22,400 6.57 26,880 7.88 1,343 1,918 2,685 3.4 9.8

Total Capacity Input (W)

Min. Rated Max.

COP HSPF

10.6

1. Capacity as rated: 0 ft. above sea level with 25 ft. of refrigerant piping. 0 f t. level difference between outdoor and indoor units.

2. Heating capacity rating obtained with air entering the indoor unit at 70°F dry bulb (DB) and 60°F wet bulb (WB), and outdoor ambient conditions of 47°F dry bulb (DB) and 43°F wet bulb (WB).

LG Air Conditioning Systems

3. Wiring cable size must comply with the applicable local and national codes.

4. The specification may be subject to change without prior notice for purpose of improvement.

5. At least two indoor units should be connected.

COMBINATION TABLES

• COMBINATION

TABLES

LMU24CHV

Table 6: LMU24CHV with Mixed Indoor Units — Rated Heating Combination Table.

Heating Capacity

Indoor Unit Combination

No. of

Indoor

Units

(kBtu/h)

IDU 1IDU 2IDU 3IDU

Total

Mixed Indoor Units

7 9 - - 16 7,459 9,591 - - 10,230 3.00 17,050 5.00 19,608 5.75 1,171 1,673 2,342 3.0 8.3

9 9 - - 18 9,591 9,591 - - 11,509 3.37 19,181 5.62 22,058 6.46 1,236 1,766 2,472 3.2 8.9

7 12 - - 19 7,459 12,788 - - 12,148 3.56 20,247 5.93 23,284 6.82 1,272 1,818 2,545 3.3 9.1

9 12 - - 21 9,591 12,788 - - 13,427 3.94 22,378 6.56 25,735 7.54 1,366 1,952 2,580 3.4 9.4

9 15 - - 24 8,719 14,531 - - 13,950 4.09 23,250 6.81 26,738 7.84 1,403 2,004 2,580 3.4 9.5

12 12 - - 24 11,625 11,625 - - 13,950 4.09 23,250 6.81 26,738 7.84 1,403 2,004 2,580 3.4 9.5

Two

7 18 - - 25 6,510 16,740 - - 13,950 4.09 23,250 6.81 26,738 7.84 1,403 2,004 2,580 3.4 9.5

Units

9 18 - - 27 7,750 15,500 - - 13,950 4.09 23,250 6.81 26,738 7.84 1,403 2,004 2,580 3.4 9.5

12 15 - - 27 10,333 12,917 - - 13,950 4.09 23,250 6.81 26,738 7.84 1,403 2,004 2,580 3.4 9.5

12 18 - - 30 9,300 13,950 - - 13,950 4.09 23,250 6.81 26,738 7.84 1,403 2,004 2,580 3.4 9.5

15 18 - - 33 10,568 12,682 - - 13,950 4.09 23,250 6.81 26,738 7.84 1,403 2,004 2,580 3.4 9.5

9 24* - - 33 6,341 16,909 - - 13,950 4.09 23,250 6.81 26,738 7.84 1,403 2,004 2,580 3.4 9.5

7 7 9 - 23 7,076 7,076 9,098 - 13,950 4.09 23,250 6.81 27,900 8.18 1,301 1,859 2,603 3.7 10.2

7 9 9 - 25 6,510 8,370 8,370 - 13,950 4.09 23,250 6.81 27,900 8.18 1,301 1,859 2,603 3.7 10.2

7 7 12 - 26 6,260 6,260 10,731 - 13,950 4.09 23,250 6.81 27,900 8.18 1,301 1,859 2,603 3.7 10.2

9 9 9 - 27 7,750 7,750 7,750 - 13,950 4.09 23,250 6.81 27,900 8.18 1,301 1,859 2,603 3.7 10.2

7 9 12 - 28 5,813 7,473 9,964 - 13,950 4.09 23,250 6.81 27,900 8.18 1,301 1,859 2,603 3.7 10.2

Three

9 9 12 - 30 6,975 6,975 9,300 - 13,950 4.09 23,250 6.81 27,900 8.18 1,301 1,859 2,603

Units

7 9 15 - 31 5,250 6,750 11,250 - 13,950 4.09 23,250 6.81 27,900 8.18 1,301 1,859 2,603 3.7 10.2

7 12 12 - 31 5,250 9,000 9,000 - 13,950 4.09 23,250 6.81 27,900 8.18 1,301 1,859 2,603 3.7 10.2

7 7 18 - 32 5,086 5,086 13,078 - 13,950 4.09 23,250 6.81 27,900 8.18 1,301 1,859 2,603 3.7 10.2

9 9 15 - 33 6,341 6,341 10,568 - 13,950 4.09 23,250 6.81 27,900 8.18 1,301 1,859 2,603 3.7 10.2

9 12 12 - 33 6,341 8,455 8,455 - 13,950 4.09 23,250 6.81 27,900 8.18 1,301 1,859 2,603 3.7 10.2

Room Capacity (Btu/h)

Unit 1 Unit 2 Unit 3 Unit 4

Minimum Rated Maximum

Btu/h kW Btu/h kW Btu/h kW

MULTI ZONE

Total Capacity Input (W)

COP HSPF

Min. Rated Max.

3.7 10.2

1. Capacity as rated: 0 ft. above sea level with 25 ft. of refrigerant piping. 0 f t. level difference between outdoor and indoor units.

2. Heating capacity rating obtained with air entering the indoor unit at 70°F dry bulb (DB) and 60°F wet bulb (WB), and outdoor ambient conditions of 47°F dry bulb (DB) and 43°F wet bulb (WB).

3. Wiring cable size must comply with the applicable local and national codes.

4. The specification may be subject to change without prior notice for purpose of improvement.

5. At least two indoor units should be connected. *The indoor unit must be non-ducted type.

COMBINATION TABLES

LMU30CHV

Table 7: LMU30CHV with Non-Ducted Indoor Units — Rated Cooling Combination Table.

Cooling Capacity

Indoor Unit Combination

No. of Indoor

Units

(kBtu/h)

IDU 1IDU 2IDU 3IDU

Total Unit 1 Unit 2 Unit 3 Unit 4

Non-Ducted Indoor Units

7 7 - - 14 7,000 7,000 - - 8,400 2.46 14,000 4.10 15,540 4.55 936 1,337 1,872 10.5 17.7 7 9 - - 16 7,000 9,000 - - 9,600 2.81 16,000 4.69 17,760 5.21 1,053 1,504 2,106 10.6 18.0 9 9 - - 18 9,000 9,000 - - 10,800 3.17 18,000 5.28 19,980 5.86 1,184 1,691 2,367 10.6 18.0 7 12 - - 19 7,000 12,000 - - 11,400 3.34 19,000 5.57 21,090 6.18 1,239 1,769 2,477 10.7 18.2 9 12 - - 21 9,000 12,000 - - 12,600 3.69 21,000 6.15 23,310 6.83 1,356 1,936 2,711 10.8 18.4 7 15 - - 22 7,000 15,000 - - 13,200 3.87 22,000 6.45 24,420 7.16 1,404 2,005 2,807 11.0 18.6 9 15 - - 24 9,000 15,000 - - 14,400 4.22 24,000 7.03 26,640 7.81 1,500 2,143 3,000 11.2 19.0

12 12 - - 24 12,000 12,000 - - 14,400 4.22 24,000 7.03 26,640 7.81 1,500 2,143 3,000 11.2 19.0

7 18 - - 25 7,000 18,000 - - 15,000 4.40 25,000 7.33 27,750 8.13 1,555 2,222 3,110 11.3 19.1

Two

9 18 - - 27 9,000 18,000 - - 16,200 4.75 27,000 7.91 29,970 8.78 1,665 2,379 3,330 11.4 19.2

Units

12 15 - - 27 12,000 15,000 - - 16,200 4.75 27,000 7.91 29,970 8.78 1,665 2,379 3,330 11.4 19.2 12 18 - - 30 12,000 18,000 - - 18,000 5.28 30,000 8.79 33,300 9.76 1,810 2,585 3,619 11.6 19.7 15 15 - - 30 15,000 15,000 - - 18,000 5.28 30,000 8.79 33,300 9.76 1,810 2,585 3,619 11.6 19.7

7 24 - - 31 6,774 23,226 - - 18,000 5.28 30,000 8.79 33,300 9.76 1,810 2,585 3,619 11.6 19.7

9 24 - - 33 8,182 21,818 - - 18,000 5.28 30,000 8.79 33,300 9.76 1,810 2,585 3,619 11.6 19.7 15 18 - - 33 13,636 16,364 - - 18,000 5.28 30,000 8.79 33,300 9.76 1,810 2,585 3,619 11.6 19.7 18 18 - - 36 15,000 15,000 - - 18,000 5.28 30,000 8.79 33,300 9.76 1,810 2,585 3,619 11.6 19.7 12 24 - - 36 10,000 20,000 - - 18,000 5.28 30,000 8.79 33,300 9.76 1,810 2,585 3,619 11.6 19.7

24 - - 39 11,538 18,462 - - 18,000 5.28 30,000 8.79 33,300 9.76 1,810 2,585 3,619 11.6 19.7

7 7 7 - 21 7,000 7,000 7,000 - 12,600 3.69 21,000 6.15 24,150 7.08 1,314 1,877 2,628 11.2 18.9

7 7 9 - 23 7,000 7,000 9,000 - 13,800 4.04 23,000 6.74 26,450 7.75 1,417 2,025 2,835 11.4 19.2

7 9 9 - 25 7,000 9,000 9,000 - 15,000 4.40 25,000 7.33 28,750 8.43 1,528 2,182 3,055 11.5 19.4

7 7 12 - 26 7,000 7,000 12,000 - 15,600 4.57 26,000 7.62 29,900 8.76 1,555 2,222 3,110 11.7 19.8

9 9 9 - 27 9,000 9,000 9,000 - 16,200 4.75 27,000 7.91 31,050 9.10 1,583 2,261 3,165 11.9 20.2

7 9 12 - 28 7,000 9,000 12,000 - 16,800 4.92 28,000 8.21 32,200 9.44 1,617 2,310 3,234 12.1 20.5

7 7 15 - 29 7,000 7,000 15,000 - 17,400 5.10 29,000 8.50 33,350 9.77 1,651 2,359 3,303 12.3 20.8

9 9 12 - 30 9,000 9,000 12,000 - 18,000 5.28 30,000 8.79 34,500 10.11 1,693 2,418 3,385 12.4 21.0

7 9 15 - 31 6,774 8,710 14,516 - 18,000 5.28 30,000 8.79 34,500 10.11 1,693 2,418 3,385 12.4 21.0

7 12 12 - 31 6,774 11,613 11,613 - 18,000 5.28 30,000 8.79 34,500 10.11 1,693 2,418 3,385 12.4 21.0

7 7 18 - 32 6,563 6,563 16,875 - 18,000 5.28 30,000 8.79 34,500 10.11 1,693 2,418 3,385 12.4 21.0

9 9 15 - 33 8,182 8,182 13,636 - 18,000 5.28 30,000 8.79 34,500 10.11 1,693 2,418 3,385 12.4 21.0

Three

9 12 12 - 33 8,182 10,909 10,909 - 18,000 5.28 30,000 8.79 34,500 10.11 1,693 2,418 3,385 12.4 21.0

7 9 18 - 34 6,176 7,941 15,882 - 18,000 5.28 30,000 8.79 34,500 10.11 1,693 2,418 3,385 12.4 21.0

Units

7 12 15 - 34 6,176 10,588 13,235 - 18,000 5.28 30,000 8.79 34,500 10.11 1,693 2,418 3,385 12.4 21.0

9 9 18 - 36 7,500 7,500 15,000 - 18,000 5.28 30,000 8.79 34,500 10.11 1,693 2,418 3,385 12.4 21.0

9 12 15 - 36 7,500 10,000 12,500 - 18,000 5.28 30,000 8.79 34,500 10.11 1,693 2,418 3,385 12.4 21.0 12 12 12 - 36 10,000 10,000 10,000 - 18,000 5.28 30,000 8.79 34,500 10.11 1,693 2,418 3,385 12.4 21.0

7 12 18 - 37 5,676 9,730 14,595 - 18,000 5.28 30,000 8.79 34,500 10.11 1,693 2,418 3,385 12.4

7 15 15 - 37 5,676 12,162 12,162 - 18,000 5.28 30,000 8.79 34,500 10.11 1,693 2,418 3,385 12.4 21.0

7 7 24 - 38 5,526 5,526 18,947 - 18,000 5.28 30,000 8.79 34,500 10.11 1,693 2,418 3,385 12.4 21.0

9 12 18 - 39 6,923 9,231 13,846 - 18,000 5.28 30,000 8.79 34,500 10.11 1,693 2,418 3,385 12.4 21.0

9 15 15 - 39 6,923 11,538 11,538 - 18,000 5.28 30,000 8.79 34,500 10.11 1,693 2,418 3,385 12.4 21.0 12 12 15 - 39 9,231 9,231 11,538 - 18,000 5.28 30,000 8.79 34,500 10.11 1,693 2,418 3,385 12.4 21.0

7 9 24 - 40 5,250 6,750 18,000 - 18,000 5.28 30,000 8.79 34,500 10.11 1,693 2,418 3,385 12.4 21.0

7 15 18 - 40 5,250 11,250 13,500 - 18,000 5.28 30,000 8.79 34,500 10.11 1,693 2,418 3,385 12.4 21.0

Room Capacity (Btu/h) Total Capacity Input (W)

Minimum Rated Maximum

Btu/h kW Btu/h kW Btu/h kW

Min. Rated Max.

EER SEER

21.0

1. Capacity as rated: 0 ft. above sea level with 25 ft. of refrigerant piping. 0 f t. level difference between outdoor and indoor units.

2. Cooling capacity rating obtained with air entering the indoor unit at 80°F dry bulb (DB) and 67°F wet bulb (WB), and outdoor ambient conditions of 95°F dry bulb (DB) and 75°F wet bulb (WB).

LG Air Conditioning Systems

3. Wiring cable size must comply with the applicable local and national codes.

4. The specification may be subject to change without prior notice for purpose of improvement.

At least two indoor units should be connected.

COMBINATION TABLES

• COMBINATION

TABLES

LMU30CHV

Table 8: LMU30CHV with Non-Ducted, Ducted and Mixed Indoor Units — Rated Cooling Combination Table.

Cooling Capacity

Indoor Unit Combination

No. of

Indoor

IDU 1IDU 2IDU 3IDU

Units

(kBtu/h)

Total Unit 1 Unit 2 Unit 3 Unit 4

Room Capacity

(Btu/h)

Minimum Rated Maximum

Btu/h kW Btu/h kW Btu/h kW

Non-Ducted Indoor Units

7 7 7 7 28 7,000 7,000 7,000 7,000 16,800 4.92 28,000 8.21 33,600 9.85 1,514 2,163 3,028 12.9 21.9 7 7 7 9 30 7,000 7,000 7,000 9,000 18,000 5.28 30,000 8.79 36,000 10.55 1,617 2,310 3,234 13.0 22.0 7 7 9 9 32 6,563 6,563 8,438 8,438 18,000 5.28 30,000 8.79 36,000 10.55 1,617 2,310 3,234 13.0 22.0 7 7 7 12 33 6,364 6,364 6,364 10,909 18,000 5.28 30,000 8.79 36,000 10.55 1,617 2,310 3,234 13.0 22.0 7 9 9 9 34 6,176 7,941 7,941 7,941 18,000 5.28 30,000 8.79 36,000 10.55 1,617 2,310 3,234 13.0 22.0 7 7 9 12 35 6,000 6,000 7,714 10,286 18,000 5.28 30,000 8.79 36,000 10.55 1,617 2,310 3,234 13.0 22.0 7 7 7 15 36 5,833 5,833 5,833 12,500 18,000 5.28 30,000 8.79 36,000 10.55 1,617 2,310 3,234 13.0 22.0

Four

9 9 9 9 36 7,500 7,500 7,500 7,500 18,000 5.28 30,000 8.79 36,000 10.55 1,617 2,310 3,234 13.0 22.0

Units

7 9 9 12 37 5,676 7,297 7,297 9,730 18,000 5.28 30,000 8.79 36,000 10.55 1,617 2,310 3,234 13.0 22.0 7 7 9 15 38 5,526 5,526 7,105 11,842 18,000 5.28 30,000 8.79 36,000 10.55 1,617 2,310 3,234 13.0 22.0 7 7 12 12 38 5,526 5,526 9,474 9,474 18,000 5.28 30,000 8.79 36,000 10.55 1,617 2,310 3,234 13.0 22.0 7 7 7 18 39 5,385 5,385 5,385 13,846 18,000 5.28 30,000 8.79 36,000 10.55 1,617 2,310 3,234 13.0 22.0 9 9 9 12 39 6,923 6,923 6,923 9,231 18,000 5.28 30,000 8.79 36,000 10.55 1,617 2,310 3,234 13.0 22.0 7 9 9 15 40 5,250 6,750 6,750 11,250 18,000 5.28 30,000 8.79 36,000 10.55 1,617 2,310 3,234 13.0 22.0 7 9 12 12 40 5,250 6,750 9,000 9,000 18,000 5.28 30,000 8.79 36,000 10.55 1,617 2,310 3,234 13.0 22.0

Ducted Indoor Units

9 9 - - 18 7,809 7,809 - - 9,371 2.75 15,618 4.58 17,336 5.08 1,276 1,823 2,552 8.6 14.2 9 12 - - 21 7,809 10,412 - - 10,933 3.20 18,221 5.34 20,225 5.93 1,462 2,088 2,923 8.7 14.4

Two

12 12 - - 24 10,412 10,412 - - 12,494 3.66 20,824 6.10 23,115 6.77 1,618 2,311

9 18 - - 27 7,809 15,618 - - 14,056 4.12 23,427 6.87 26,004 7.62 1,796 2,565 3,591 9.1 15.1

Units

12 18 - - 30 10,412 15,618 - - 15,618 4.58 26,030 7.63 28,893 8.47 1,951 2,788 3,903 9.3 15.4 18 18 - - 36 13,700 13,700 - - 16,440 4.82 27,400 8.03 30,414 8.91 1,951 2,788 3,903 9.8 16.3

9 9 9 - 27 7,809 7,809 7,809 - 14,056 4.12 23,427 6.87 26,941 7.90 1,707 2,438 3,413 9.6 15.9 9 9 12 - 30 7,809 7,809 10,412 - 15,618 4.58 26,030 7.63 29,935 8.77 1,825 2,608 3,651 10.0 16.5

Three

9 12 12 - 33 7,473 9,964 9,964 - 16,440 4.82 27,400 8.03 31,510 9.24 1,825 2,608 3,651 10.5 17.4 9 9 18 - 36 6,850 6,850 13,700 - 16,440 4.82 27,400 8.03 31,510 9.24 1,825 2,608 3,651 10.5 17.4

Units

12 12 12 - 36 9,133 9,133 9,133 - 16,440 4.82 27,400 8.03 31,510 9.24 1,825 2,608 3,651 10.5 17.4

9 12 18 - 39 6,323 8,431 12,646 - 16,440 4.82 27,400 8.03 31,510 9.24 1,825 2,608 3,651 10.5 17.4 9 9 9 9 36 6,850 6,850 6,850 6,850 16,440 4.82 27,400 8.03 32,880 9.64 1,744 2,491 3,487 11.0 18.2

Four

9 9 9 12 39 6,323 6,323 6,323 8,431 16,440 4.82 27,400 8.03 32,880 9.64 1,744 2,491 3,487 11.0 18.2

Units

Mixed Indoor Units

7 9 - - 16 6,537 8,405 - - 8,965 2.63 14,941 4.38 16,585 4.86 1,094 1,563 2,188 9.6 16.1 9 9 - - 18 8,405 8,405 - - 10,085 2.96 16,809 4.93 18,658 5.47 1,230 1,757 2,460 9.6 16.1 7 12 - - 19 6,537 11,206 - - 10,646 3.12 17,743 5.20 19,695 5.77 1,287 1,839 2,574 9.6 16.2 9 12 - - 21 8,405 11,206 - - 11,766 3.45 19,611 5.75 21,768 6.38 1,409 2,012 2,817 9.7 16.4 9 15 - - 24 8,405 14,008 - - 13,447 3.94 22,412 6.57 24,877 7.29 1,559 2,227 3,118 10.1 16.9

12 12 - - 24 11,206 11,206 - - 13,447 3.94 22,412 6.57 24,877 7.29 1,559 2,227 3,118 10.1 16.9

7 18 - - 25 6,537 16,809 - - 14,008 4.11 23,346 6.84 25,914 7.59 1,616 2,309 3,232 10.1 17.0

Two

9 18 - - 27 8,405 16,809 - - 15,128 4.43 25,214 7.39 27,987 8.20 1,730 2,472 3,461 10.2 17.2

12 15 - - 27 11,206 14,008 - - 15,128

Units

12 18 - - 30 11,206 16,809 - - 16,809 4.93 28,015 8.21 31,097 9.11 1,881 2,686 3,761 10.4 17.6

7 24 - - 31 6,403 21,954 - - 17,015 4.99 28,358 8.31 31,477 9.23 1,881 2,686 3,761 10.6 17.8

9 24* - - 33 7,827 20,873 - - 17,220 5.05 28,700 8.41 31,857 9.34 1,881 2,686 3,761 10.7 18.0 15 18 - - 33 13,045 15,655 - - 17,220 5.05 28,700 8.41 31,857 9.34 1,881 2,686 3,761 10.7 18.0 18 18 - - 36 14,350 14,350 - - 17,220 5.05 28,700 8.41 31,857 9.34 1,881 2,686 3,761 10.7 18.0 12 24* - - 36 9,567 19,133 - - 17,220 5.05 28,700 8.41 31,857 9.34 1,881 2,686 3,761 10.7 18.0 15 24* - - 39 11,038 17,662 - - 17,220 5.05 28,700 8.41 31,857 9.34 1,881 2,686 3,761 10.7 18.0

Total Capacity Input (W)

Min. Rated Max.

4.43 25,214 7.39 27,987 8.20 1,730 2,472 3,461 10.2 17.2

MULTI ZONE

EER SEER

3,235 9.0 14.9

1. Capacity as rated: 0 ft. above sea level with 25 ft. of refrigerant piping. 0 f t. level difference between outdoor and indoor units.

2. Cooling capacity rating obtained with air entering the indoor unit at 80°F dry bulb (DB) and 67°F wet bulb (WB), and outdoor ambient conditions of 95°F dry bulb (DB) and 75°F wet bulb (WB).

3. Wiring cable size must comply with the applicable local and national codes.

4. The specification may be subject to change without prior notice for purpose of improvement.

At least two indoor units should be connected.

The indoor unit must be non-ducted type.

COMBINATION TABLES

LMU30CHV

Table 9: LMU30CHV with Mixed Indoor Units — Rated Cooling Combination Table.

Cooling Capacity

Indoor Unit Combination

No. of Indoor

Units

(kBtu/h)

IDU 1IDU 2IDU 3IDU

Total Unit 1 Unit 2 Unit 3 Unit 4

Mixed Indoor Units

7 7 9 - 23 6,537 6,537 8,405 - 12,887 3.78 21,478 6.29 24,700 7.24 1,473 2,104 2,946 10.2 17.2 7 9 9 - 25 6,537 8,405 8,405 - 14,008 4.11 23,346 6.84 26,848 7.87 1,587 2,268 3,175 10.3 17.3 7 7 12 - 26 6,537 6,537 11,206 - 14,568 4.27 24,280 7.12 27,922 8.18 1,616 2,309 3,232 10.5 17.7 9 9 9 - 27 8,405 8,405 8,405 - 15,128 4.43 25,214 7.39 28,996 8.50 1,645 2,349 3,289 10.7 18.1 7 9 12 - 28 6,537 8,405 11,206 - 15,688 4.60 26,147 7.66 30,069 8.81 1,680 2,400 3,361 10.9 18.3 9 9 12 - 30 8,405 8,405 11,206 - 16,809 4.93 28,015 8.21 32,217 9.44 1,759 2,513 3,518 11.1 18.8 7 9 15 - 31 6,326 8,133 13,556 - 16,809 4.93 28,015 8.21 32,217 9.44 1,759 2,513 3,518 11.1 18.8 7 12 12 - 31 6,403 10,977 10,977 - 17,015 4.99 28,358 8.31 32,611 9.56 1,759 2,513 3,518 11.3 19.0 7 7 18 - 32 6,278 6,278 16,144 - 17,220 5.05 28,700 8.41 33,005 9.67 1,759 2,513 3,518 11.4 19.2 9 9 15 - 33 7,827 7,827 13,045 - 17,220 5.05 28,700 8.41 33,005 9.67 1,759 2,513 3,518 11.4 19.2 9 12 12 - 33 7,827 10,436 10,436 - 17,220 5.05 28,700 8.41 33,005 9.67 1,759 2,513 3,518 11.4 19.2

Three

7 9 18 - 34 5,909 7,597 15,194 - 17,220 5.05 28,700 8.41 33,005 9.67 1,759 2,513 3,518 11.4 19.2

Units

7 12 15 - 34 5,909 10,129 12,662 - 17,220 5.05 28,700 8.41 33,005 9.67 1,759 2,513 3,518 11.4 19.2 9 9 18 - 36 7,175 7,175 14,350 - 17,220 5.05 28,700 8.41 33,005 9.67 1,759 2,513 3,518 11.4 19.2 9 12 15 - 36 7,175 9,567 11,958 - 17,220 5.05 28,700 8.41 33,005 9.67 1,759 2,513 3,518 11.4 19.2

12 12 12 - 36 9,567 9,567 9,567 - 17,220 5.05 28,700 8.41 33,005 9.67 1,759 2,513 3,518 11.4 19.2

7 12 18 - 37 5,430 9,308 13,962 - 17,220 5.05 28,700 8.41 33,005 9.67 1,759 2,513 3,518 11.4 19.2 7 7 24* - 38 5,287 5,287 18,126 - 17,220 5.05 28,700 8.41 33,005 9.67 1,759 2,513 3,518 11.4 19.2 9 12 18 - 39 6,623 8,831 13,246 - 17,220 5.05 28,700 8.41 33,005 9.67 1,759 2,513 3,518 11.4 19.2 9 15 15 - 39 6,623 11,038 11,038 - 17,220 5.05 28,700 8.41 33,005 9.67 1,759 2,513 3,518 11.4 19.2

12 12 15 - 39 8,831 8,831 11,038 - 17,220 5.05 28,700 8.41 33,005 9.67 1,759 2,513 3,518 11.4 19.2

7 9 24* - 40 5,023 6,458 17,220 - 17,220 5.05 28,700 8.41 33,005 9.67 1,759 2,513 3,518 11.4 19.2 7 15 18 - 40 5,023 10,763 12,915 - 17,220 5.05 28,700 8.41 33,005 9.67 1,759 2,513 3,518 11.4 19.2 7 7 7 9 30 6,537 6,537 6,537 8,405 16,809 4.93 28,015 8.21 33,618 9.85 1,680 2,400 3,361 11.7 19.6 7 7 9 9 32 6,278 6,278 8,072 8,072 17,220 5.05 28,700 8.41 34,440 10.09 1,680 2,400 3,361 12.0 20.1 7 7 7 12 33 6,088 6,088 6,088 10,436 17,220 5.05 28,700 8.41 34,440 10.09 1,680 2,400 3,361 12.0 20.1 7 9 9 9 34 5,909 7,597 7,597 7,597 17,220 5.05 28,700 8.41 34,440 10.09 1,680 2,400 3,361 12.0 20.1 7 7 9 12 35 5,740 5,740 7,380 9,840 17,220 5.05 28,700 8.41 34,440 10.09 1,680 2,400 3,361 12.0 20.1 9 9 9 9 36 7,175 7,175 7,175 7,175 17,220 5.05 28,700 8.41 34,440 10.09 1,680 2,400 3,361 12.0 20.1

Four

7 9 9 12 37 5,430 6,981 6,981 9,308 17,220 5.05 28,700 8.41 34,440 10.09 1,680 2,400 3,361 12.0 20.1

Units

7 7 9 15 38 5,287 5,287 6,797 11,329 17,220 5.05 28,700 8.41 34,440 10.09 1,680 2,400 3,361 12.0 20.1 7 7 12 12 38 5,287 5,287 9,063 9,063 17,220 5.05 28,700 8.41 34,440 10.09 1,680 2,400 3,361 12.0 20.1 7 7 7 18 39 5,151 5,151 5,151 13,246 17,220 5.05 28,700 8.41 34,440 10.09 1,680 2,400 3,361 12.0 20.1 9 9 9 12 39 6,623 6,623 6,623 8,831 17,220 5.05 28,700 8.41 34,440 10.09 1,680 2,400 3,361 12.0 20.1 7 9 9 15 40 5,023 6,458 6,458 10,763 17,220 5.05 28,700 8.41 34,440 10.09 1,680 2,400 3,361 12.0 20.1 7 9 12 12 40 5,023 6,458 8,610 8,610 17,220 5.05 28,700 8.41 34,440 10.09 1,680 2,400 3,361 12.0 20.1

Room Capacity (Btu/h) Total Capacity Input (W)

Minimum Rated Maximum

Btu/h kW Btu/h kW Btu/h kW

Min. Rated Max.

EER SEER

1. Capacity as rated: 0 ft. above sea level with 25 ft. of refrigerant piping. 0 f t. level difference between outdoor and indoor units.

2. Cooling capacity rating obtained with air entering the indoor unit at 80°F dry bulb (DB) and 67°F wet bulb (WB), and outdoor ambient conditions of 95°F dry bulb (DB) and 75°F wet bulb (WB).

LG Air Conditioning Systems

3. Wiring cable size must comply with the applicable local and national codes.

4. The specification may be subject to change without prior notice for purpose of improvement.

5. At least two indoor units should be connected. *The indoor unit must be non-ducted type.

COMBINATION TABLES

• COMBINATION

TABLES

LMU30CHV

Table 10: LMU30CHV with Non-Ducted Indoor Units — Rated Heating Combination Table.

Heating Capacity

Indoor Unit Combination

No. of Indoor

IDU 1IDU 2IDU 3IDU

Units

(kBtu/h)

Total Unit 1 Unit 2 Unit 3 Unit 4

Room Capacity

Non-Ducted Indoor Units

7 7 - - 14 7,700 7,700 - - 9,240 2.71 15,400 4.51 16,940 4.96 1,043 1,490 2,086 3.0 8.0

7 9 - - 16 7,700 9,900 - - 10,560 3.09 17,600 5.16 19,360 5.67 1,153 1,648 2,307 3.1 8.3

9 9 - - 18 9,900 9,900 - - 11,880 3.48 19,800 5.80 21,780 6.38 1,276 1,824 2,553 3.2 8.4

7 12 - - 19 7,700 13,200 - - 12,540 3.68 20,900 6.13 22,990 6.74 1,328 1,898 2,657 3.2 8.6

9 12 - - 21 9,900 13,200 - - 13,860 4.06 23,100 6.77 25,410 7.45 1,438 2,055 2,877 3.3 8.7

7 15 - - 22 7,700 16,500 - - 14,520 4.26 24,200 7.09 26,620 7.80 1,484 2,120 2,968 3.3 8.9

9 15 - - 24 9,900 16,500 - - 15,840 4.64 26,400 7.74 29,040 8.51 1,575 2,249 3,149 3.4 9.1 12 12 - - 24 13,200 13,200 - - 15,840 4.64 26,400 7.74 29,040 8.51 1,575 2,249 3,149 3.4 9.1

7 18 - - 25 7,700 19,800 - - 16,500 4.84 27,500 8.06 30,250 8.87 1,626 2,323 3,253 3.5 9.2

Two

9 18 - - 27 9,900 19,800 - - 17,820 5.22 29,700 8.70 32,670 9.58 1,730 2,471 3,460 3.5 9.4

Units

12 15 - - 27 13,200 16,500 - - 17,820 5.22 29,700 8.70 32,670 9.58 1,730 2,471 3,460 3.5 9.4 12 18 - - 30 12,800 19,200 - - 19,200 5.63 32,000 9.38 35,200 10.32 1,866 2,666 3,732 3.5 9.3 15 15 - - 30 16,000 16,000 - - 19,200 5.63 32,000 9.38 35,200 10.32 1,866 2,666 3,732 3.5 9.3

7 24 - - 31 7,226 24,774 - - 19,200 5.63 32,000 9.38 35,200 10.32 1,866 2,666 3,732 3.5 9.3

9 24 - - 33 8,727 23,273 - - 19,200 5.63 32,000 9.38 35,200 10.32 1,866 2,666 3,732 3.5 9.3 15 18 - - 33 14,545 17,455 - - 19,200 5.63 32,000 9.38 35,200 10.32 1,866 2,666 3,732 3.5 9.3 18 18 - - 36 16,000 16,000 - - 19,200 5.63 32,000 9.38 35,200 10.32 1,866 2,666 3,732 3.5 9.3 12 24 - - 36 10,667 21,333 - - 19,200 5.63 32,000 9.38 35,200 10.32 1,866 2,666 3,732 3.5 9.3 15 24 - - 39 12,308 19,692 - - 19,200 5.63 32,000 9.38 35,200 10.32 1,866 2,666 3,732 3.5 9.3

7 7 7 - 21 7,700 7,700 7,700 - 13,860 4.06 23,100 6.77 26,565 7.79 1,400 1,999 2,799 3.4 9.0

7 7 9 - 23 7,700 7,700 9,900 - 15,180 4.45 25,300 7.42 29,095 8.53 1,497 2,138 2,994 3.5 9.2

7 9 9 - 25 7,700 9,900 9,900 - 16,500 4.84 27,500 8.06 31,625 9.27 1,600 2,286 3,201 3.5 9.4

7 7 12 - 26 7,700 7,700 13,200 - 17,160 5.03 28,600 8.38 32,890 9.64 1,626 2,323 3,253 3.6 9.6

9 9 9 - 27 9,900 9,900 9,900 - 17,820 5.22 29,700 8.70 34,155 10.01 1,652 2,360 3,305 3.7 9.8

7 9 12 - 28 7,700 9,900 13,200 - 18,480 5.42 30,800 9.03 35,420 10.38 1,685 2,407 3,369 3.8 10.0

7 7 15 - 29 7,700 7,700 16,500 - 19,140 5.61 31,900 9.35 36,685 10.75 1,717 2,453 3,434 3.8 10.1

9 9 12 - 30 9,600 9,600 12,800 - 19,200 5.63 32,000 9.38 36,800 10.79 1,756 2,509 3,512 3.7 9.9

7 9 15 - 31 7,226 9,290 15,484 - 19,200 5.63 32,000 9.38 36,800 10.79 1,756 2,509 3,512 3.7 9.9

7 12 12 - 31 7,226 12,387 12,387 - 19,200 5.63 32,000 9.38 36,800 10.79 1,756 2,509 3,512 3.7 9.9

7 7 18 - 32 7,000 7,000 18,000 - 19,200 5.63 32,000 9.38 36,800 10.79 1,756 2,509 3,512 3.7 9.9

9 9 15 - 33 8,727 8,727 14,545 - 19,200 5.63 32,000 9.38 36,800 10.79 1,756 2,509 3,512 3.7 9.9

Three

9 12 12 - 33 8,727 11,636 11,636 - 19,200 5.63 32,000 9.38 36,800 10.79 1,756 2,509 3,512 3.7 9.9

7 9 18 - 34 6,588 8,471 16,941 - 19,200 5.63 32,000 9.38 36,800 10.79 1,756 2,509 3,512 3.7 9.9

Units

7 12 15 - 34 6,588 11,294 14,118 - 19,200 5.63 32,000 9.38 36,800 10.79 1,756 2,509 3,512 3.7 9.9

9 9 18 - 36 8,000 8,000 16,000 - 19,200 5.63 32,000 9.38 36,800 10.79 1,756 2,509 3,512 3.7 9.9

9 12 15 - 36 8,000 10,667 13,333 - 19,200 5.63 32,000 9.38 36,800 10.79 1,756 2,509 3,512 3.7 9.9 12 12 12 - 36 10,667 10,667 10,667 - 19,200 5.63 32,000 9.38 36,800 10.79 1,756 2,509 3,512 3.7 9.9

7 12 18 - 37 6,054 10,378 15,568 - 19,200 5.63 32,000 9.38 36,800 10.79 1,756 2,509 3,512

7 15 15 - 37 6,054 12,973 12,973 - 19,200 5.63 32,000 9.38 36,800 10.79 1,756 2,509 3,512 3.7 9.9

7 7 24 - 38 5,895 5,895 20,211 - 19,200 5.63 32,000 9.38 36,800 10.79 1,756 2,509 3,512 3.7 9.9

9 12 18 - 39 7,385 9,846 14,769 - 19,200 5.63 32,000 9.38 36,800 10.79 1,756 2,509 3,512 3.7 9.9

9 15 15 - 39 7,385 12,308 12,308 - 19,200 5.63 32,000 9.38 36,800 10.79 1,756 2,509 3,512 3.7 9.9 12 12 15 - 39 9,846 9,846 12,308 - 19,200 5.63 32,000 9.38 36,800 10.79 1,756 2,509 3,512 3.7 9.9

7 9 24 - 40 5,600 7,200 19,200 - 19,200 5.63 32,000 9.38 36,800 10.79 1,756 2,509 3,512 3.7 9.9

7 15 18 - 40 5,600 12,000 14,400 - 19,200 5.63 32,000 9.38 36,800 10.79 1,756 2,509 3,512 3.7 9.9

(Btu/h) Total Capacity Input (W)

Minimum Rated Maximum

Btu/h kW Btu/h kW Btu/h kW

Min. Rated Max.

MULTI ZONE

COP HSPF

3.7 9.9

1. Capacity as rated: 0 ft. above sea level with 25 ft. of refrigerant piping. 0 f t. level difference between outdoor and indoor units.

2. Heating capacity rating obtained with air entering the indoor unit at 70°F dry bulb (DB) and 60°F wet bulb (WB), and outdoor ambient conditions of 47°F dry bulb (DB) and 43°F wet bulb (WB).

3. Wiring cable size must comply with the applicable local and national codes.

4. The specification may be subject to change without prior notice for purpose of improvement.

5. At least two indoor units should be connected.

COMBINATION TABLES

LMU30CHV

Table 11: LMU30CHV with Non-Ducted, Ducted and Mixed Indoor Units — Rated Heating Combination Table.

Heating Capacity

Indoor Unit Combination

No. of

Indoor

Units

(kBtu/h)

IDU 1IDU 2IDU 3IDU

Total Unit 1 Unit 2 Unit 3 Unit 4

Non-Ducted Indoor Units

7 7 7 7 28 7,700 7,700 7,700 7,700 18,480 5.42 30,800 9.03 36,960 10.83 1,691 2,416 3,382 3.7 9.9 7 7 7 9 30 7,467 7,467 7,467 9,600 19,200 5.63 32,000 9.38 38,400 11.25 1,743 2,490 3,486 3.8 10.0 7 7 9 9 32 7,000 7,000 9,000 9,000 19,200 5.63 32,000 9.38 38,400 11.25 1,743 2,490 3,486 3.8 10.0 7 7 7 12 33 6,788 6,788 6,788 11,636 19,200 5.63 32,000 9.38 38,400 11.25 1,743 2,490 3,486 3.8 10.0 7 9 9 9 34 6,588 8,471 8,471 8,471 19,200 5.63 32,000 9.38 38,400 11.25 1,743 2,490 3,486 3.8 10.0

7 7 9 12 35 6,400 6,400 8,229 10,971 19,200 5.63 32,000 9.38 38,400 11.25 1,743 2,490 3,486 3.8 10.0 7 7 7 15 36 6,222 6,222 6,222 13,333 19,200 5.63 32,000 9.38 38,400 11.25 1,743 2,490 3,486 3.8 10.0

Four

9 9 9 9 36 8,000 8,000 8,000 8,000 19,200 5.63 32,000 9.38 38,400 11.25 1,743 2,490 3,486 3.8 10.0

Units

7 9 9 12 37 6,054 7,784 7,784 10,378 19,200 5.63 32,000 9.38 38,400 11.25 1,743 2,490 3,486 3.8 10.0 7 7 9 15 38 5,895 5,895 7,579 12,632 19,200 5.63 32,000 9.38 38,400 11.25 1,743 2,490 3,486 3.8 10.0 7 7 12 12 38 5,895 5,895 10,105 10,105 19,200 5.63 32,000 9.38 38,400 11.25 1,743 2,490 3,486 3.8 10.0 7 7 7 18 39 5,744 5,744 5,744 14,769 19,200 5.63 32,000 9.38 38,400 11.25 1,743 2,490 3,486 3.8 10.0 9 9 9 12 39 7,385 7,385 7,385 9,846 19,200 5.63 32,000 9.38 38,400 11.25 1,743 2,490 3,486 3.8 10.0 7 9 9 15 40 5,600 7,200 7,200 12,000 19,200 5.63 32,000 9.38 38,400 11.25 1,743 2,490 3,486 3.8 10.0 7 9 12 12 40 5,600 7,200 9,600 9,600 19,200 5.63 32,000 9.38 38,400 11.25 1,743 2,490 3,486 3.8 10.0

Ducted Indoor Units

9 9 - - 18 9,188 9,188 - - 11,026 3.23 18,377 5.39 20,215 5.92 1,430 2,043 2,861 2.6 7.4 9 12 - - 21 9,188 12,251 - - 12,864 3.77 21,440 6.28 23,584 6.91 1,612 2,303 3,224 2.7 7.6

Two

12 12 - - 24 12,251 12,251 - - 14,702 4.31 24,503 7.18 26,953 7.90 1,764 2,520

9 18 - - 27 9,188 18,377 - - 16,539 4.85 27,565 8.08 30,322 8.89 1,938 2,769 3,877 2.9 8.2

Units

12 18 - - 30 11,880 17,820 - - 17,820 5.22 29,700 8.70 32,670 9.58 2,091 2,987 4,182 2.9 8.2 18 18 - - 36 16,500 16,500 - - 19,800 5.80 33,000 9.67 36,300 10.64 2,091 2,987 4,182 3.2 9.1

9 9 9 - 27 9,188 9,188 9,188 - 16,539 4.85 27,565 8.08 31,700 9.29 1,851 2,645 3,703 3.1 8.5 9 9 12 - 30 8,910 8,910 11,880 - 17,820 5.22 29,700 8.70 34,155 10.01 1,968 2,811 3,935 3.1 8.7

Three

9 12 12 - 33 9,000 12,000 12,000 - 19,800 5.80 33,000 9.67 37,950 11.12 1,968 2,811 3,935 3.4 9.6 9 9 18 - 36 8,250 8,250 16,500 - 19,800 5.80 33,000 9.67 37,950 11.12 1,968 2,811 3,935 3.4 9.6

Units

12 12 12 - 36 11,000 11,000 11,000 - 19,800 5.80 33,000 9.67 37,950 11.12 1,968 2,811 3,935 3.4 9.6

9 12 18 - 39 7,615 10,154 15,231 - 19,800 5.80 33,000 9.67 37,950 11.12 1,968 2,811 3,935 3.4 9.6 9 9 9 9 36 8,250 8,250 8,250 8,250 19,800 5.80 33,000 9.67 41,600 12.19 1,953 2,790 3,906 3.5 9.7

Four

9 9 9 12 39 7,615 7,615 7,615 10,154 19,800 5.80 33,000 9.67 41,600 12.19 1,953 2,790 3,906 3.5 9.7

Units

Mixed Indoor Units

7 9 - - 16 7,423 9,544 - - 10,181 2.98 16,968 4.97 18,664 5.47 1,223 1,747 2,446 2.8 7.8 9 9 - - 18 9,544 9,544 - - 11,453 3.36 19,088 5.59 20,997 6.15 1,353 1,933 2,707 2.9 7.9 7 12 - - 19 7,423 12,726 - - 12,089 3.54 20,149 5.91 22,164 6.50 1,408 2,012 2,817 2.9 8.0 9 12 - - 21 9,544 12,726 - - 13,362 3.92 22,270 6.53 24,497 7.18 1,525 2,179 3,050 3.0 8.2 9 15 - - 24 9,544 15,907 - - 15,271 4.48 25,451 7.46 27,996 8.21 1,669 2,385 3,339 3.1 8.6

12 12 - - 24 12,726 12,726 - - 15,271 4.48 25,451 7.46 27,996 8.21 1,669 2,385 3,339 3.1 8.6

7 18 - - 25 7,423 19,088 - - 15,907 4.66 26,512 7.77 29,163 8.55 1,724 2,463 3,449 3.2 8.6

Two

9 18 - - 27 9,544 19,088 - - 17,180 5.04 28,633 8.39 31,496 9.23 1,834 2,620 3,669 3.2 8.8

12 15 - - 27 12,726 15,907 - - 17,180

Units

12 18 - - 30 12,340 18,510 - - 18,510 5.42 30,850 9.04 33,935 9.95 1,979 2,826 3,957 3.2 8.7

7 24 - - 31 7,097 24,331 - - 18,857 5.53 31,428 9.21 34,570 10.13 1,979 2,826 3,957 3.3 8.9

9 24* - - 33 8,864 23,636 - - 19,500 5.72 32,500 9.53 35,750 10.48 1,979 2,826 3,957 3.4 9.2 15 18 - - 33 14,773 17,727 - - 19,500 5.72 32,500 9.53 35,750 10.48 1,979 2,826 3,957 3.4 9.2 18 18 - - 36 16,250 16,250 - - 19,500 5.72 32,500 9.53 35,750 10.48 1,979 2,826 3,957 3.4 9.2 12 24* - - 36 10,833 21,667 - - 19,500 5.72 32,500 9.53 35,750 10.48 1,979 2,826 3,957 3.4 9.2 15 24* - - 39 12,500 20,000 - - 19,500 5.72 32,500 9.53 35,750 10.48 1,979 2,826 3,957 3.4 9.2

Room Capacity

(Btu/h) Total Capacity Input (W)

Minimum Rated Maximum

Btu/h kW Btu/h kW Btu/h kW

5.04 28,633 8.39 31,496 9.23 1,834 2,620 3,669 3.2 8.8

Min. Rated Max.

COP HSPF

3,528 2.8 8.0

1. Capacity as rated: 0 ft. above sea level with 25 ft. of refrigerant piping. 0 f t. level difference between outdoor and indoor units.

2. Heating capacity rating obtained with air entering the indoor unit at 70°F dry bulb (DB) and 60°F wet bulb (WB), and outdoor ambient conditions of 47°F dry bulb (DB) and 43°F wet bulb (WB).

LG Air Conditioning Systems

3. Wiring cable size must comply with the applicable local and national codes.

4. The specification may be subject to change without prior notice for purpose of improvement.

5. At least two indoor units should be connected. *The indoor unit must be non-ducted type.

COMBINATION TABLES

• COMBINATION

TABLES

LMU30CHV

Table 12: LMU30CHV with Mixed Indoor Units — Rated Heating Combination Table.

Heating Capacity

Indoor Unit Combination

No. of Indoor

Units

(kBtu/h)

IDU 1IDU 2IDU 3IDU

Total Unit 1 Unit 2 Unit 3 Unit 4

Mixed Indoor Units

7 7 9 - 23 7,423 7,423 9,544 - 14,634 4.29 24,391 7.15 28,049 8.22 1,587 2,267 3,174 3.2 8.6 7 9 9 - 25 7,423 9,544 9,544 - 15,907 4.66 26,512 7.77 30,488 8.94 1,697 2,424 3,394 3.2 8.8 7 7 12 - 26 7,423 7,423 12,726 - 16,543 4.85 27,572 8.08 31,708 9.29 1,724 2,463 3,449 3.3 9.0 9 9 9 - 27 9,544 9,544 9,544 - 17,180 5.04 28,633 8.39 32,928 9.65 1,752 2,503 3,504 3.4 9.2 7 9 12 - 28 7,423 9,544 12,726 - 17,816 5.22 29,693 8.70 34,147 10.01 1,786 2,552 3,572 3.4 9.3 9 9 12 - 30 9,255 9,255 12,340 - 18,510 5.42 30,850 9.04 35,478 10.40 1,862 2,660 3,723 3.4 9.3 7 9 15 - 31 7,097 9,124 15,207 - 18,857 5.53 31,428 9.21 36,142 10.59 1,862 2,660 3,723 3.5 9.5 7 12 12 - 31 7,097 12,165 12,165 - 18,857 5.53 31,428 9.21 36,142 10.59 1,862 2,660 3,723 3.5 9.5 7 7 18 - 32 7,109 7,109 18,281 - 19,500 5.72 32,500 9.53 37,375 10.95 1,862 2,660 3,723 3.6 9.8 9 9 15 - 33 8,864 8,864 14,773 - 19,500 5.72 32,500 9.53 37,375 10.95 1,862 2,660 3,723 3.6 9.8 9 12 12 - 33 8,864 11,818 11,818 - 19,500 5.72 32,500 9.53 37,375 10.95 1,862 2,660 3,723 3.6 9.8

Three

7 9 18 - 34 6,691 8,603 17,206 - 19,500 5.72 32,500 9.53 37,375 10.95 1,862 2,660 3,723 3.6 9.8

Units

7 12 15 - 34 6,691 11,471 14,338 - 19,500 5.72 32,500 9.53 37,375 10.95 1,862 2,660 3,723 3.6 9.8 9 9 18 - 36 8,125 8,125 16,250 - 19,500 5.72 32,500 9.53 37,375 10.95 1,862 2,660 3,723 3.6 9.8 9 12 15 - 36 8,125 10,833 13,542 - 19,500 5.72 32,500 9.53 37,375 10.95 1,862 2,660 3,723 3.6 9.8

12 12 12 - 36 10,833 10,833 10,833 - 19,500 5.72 32,500 9.53 37,375 10.95 1,862 2,660 3,723 3.6 9.8

7 12 18 - 37 6,149 10,541 15,811 - 19,500 5.72 32,500 9.53 37,375 10.95 1,862 2,660 3,723 3.6 9.8 7 7 24* - 38 5,987 5,987 20,526 - 19,500 5.72 32,500 9.53 37,375 10.95 1,862 2,660 3,723 3.6 9.8 9 12 18 - 39 7,500 10,000 15,000 - 19,500 5.72 32,500 9.53 37,375 10.95 1,862 2,660 3,723 3.6 9.8 9 15 15 - 39 7,500 12,500 12,500 - 19,500 5.72 32,500 9.53 37,375 10.95 1,862 2,660 3,723 3.6 9.8

12 12 15 - 39 10,000 10,000 12,500 - 19,500 5.72 32,500 9.53 37,375 10.95 1,862 2,660 3,723 3.6 9.8

7 9 24* - 40 5,688 7,313 19,500 - 19,500 5.72 32,500 9.53 37,375 10.95 1,862 2,660 3,723 3.6 9.8 7 15 18 - 40 5,688 12,188 14,625 - 19,500 5.72 32,500 9.53 37,375 10.95 1,862 2,660 3,723 3.6 9.8 7 7 7 9 30 7,198 7,198 7,198 9,255 18,510 5.42 30,850 9.04 37,020 10.85 1,848 2,640 3,696 3.4 9.4 7 7 9 9 32 7,109 7,109 9,141 9,141 19,500 5.72 32,500 9.53 41,600 12.19 1,848 2,640 3,696 3.6 9.9 7 7 7 12 33 6,894 6,894 6,894 11,818 19,500 5.72 32,500 9.53 41,600 12.19 1,848 2,640 3,696 3.6 9.9 7 9 9 9 34 6,691 8,603 8,603 8,603 19,500 5.72 32,500 9.53 41,600 12.19 1,848 2,640 3,696 3.6 9.9 7 7 9 12 35 6,500 6,500 8,357 11,143 19,500 5.72 32,500 9.53 41,600 12.19 1,848 2,640 3,696 3.6 9.9 9 9 9 9 36 8,125 8,125 8,125 8,125 19,500 5.72 32,500 9.53 41,600 12.19 1,848 2,640 3,696 3.6 9.9

Four

7 9 9 12 37 6,149 7,905 7,905 10,541 19,500 5.72 32,500 9.53 41,600 12.19 1,848 2,640 3,696 3.6 9.9

Units

7 7 9 15 38 5,987 5,987 7,697 12,829 19,500 5.72 32,500 9.53 41,600 12.19 1,848 2,640 3,696 3.6 9.9 7 7 12 12 38 5,987 5,987 10,263 10,263 19,500 5.72 32,500 9.53 41,600 12.19 1,848 2,640 3,696 3.6 9.9 7 7 7 18 39 5,833 5,833 5,833 15,000 19,500 5.72 32,500 9.53 41,600 12.19 1,848 2,640 3,696 3.6 9.9 9 9 9 12 39 7,500 7,500 7,500 10,000 19,500 5.72 32,500 9.53 41,600 12.19 1,848 2,640 3,696 3.6 9.9 7 9 9 15 40 5,688 7,313 7,313 12,188 19,500 5.72 32,500 9.53 41,600 12.19 1,848 2,640 3,696 3.6 9.9 7 9 12 12 40 5,688 7,313 9,750 9,750 19,500 5.72 32,500 9.53 41,600 12.19 1,848 2,640 3,696 3.6 9.9

Room Capacity (Btu/h) Total Capacity Input (W)

Minimum Rated Maximum

Btu/h kW Btu/h kW Btu/h kW

MULTI ZONE

COP HSPF

Min. Rated Max.

1. Capacity as rated: 0 ft. above sea level with 25 ft. of refrigerant piping. 0 f t. level difference between outdoor and indoor units.

2. Heating capacity rating obtained with air entering the indoor unit at 70°F dry bulb (DB) and 60°F wet bulb (WB), and outdoor ambient conditions of 47°F dry bulb (DB) and 43°F wet bulb (WB).

3. Wiring cable size must comply with the applicable local and national codes.

4. The specification may be subject to change without prior notice for purpose of improvement.

5. At least two indoor units should be connected. *The indoor unit must be non-ducted type.

COMBINATION TABLES

LMU36CHV

Table 13: LMU36CHV with Non-Ducted Indoor Units — Rated Cooling Combination Table.

Cooling Capacity

Indoor Unit Combination

No. of

Indoor

Units

(kBtu/h)

IDU 1IDU 2IDU 3IDU

Total Unit 1 Unit 2 Unit 3 Unit 4

Non-Ducted Indoor Units

7 7 - - 14 7,000 7,000 - - 8,400 2.46 14,000 4.10 15,540 4.55 952 1,360 1,904 10.3 17.4 7 9 - - 16 7,000 9,000 - - 9,600 2.81 16,000 4.69 17,760 5.21 1,071 1,530 2,142 10.5 17.7 9 9 - - 18 9,000 9,000 - - 10,800 3.17 18,000 5.28 19,980 5.86 1,204 1,720 2,408 10.5 17.7 7 12 - - 19 7,000 12,000 - - 11,400 3.34 19,000 5.57 21,090 6.18 1,260 1,800 2,520 10.6 17.9 9 12 - - 21 9,000 12,000 - - 12,600 3.69 21,000 6.15 23,310 6.83 1,379 1,970 2,758 10.7 18.0 7 15 - - 22 7,000 15,000 - - 13,200 3.87 22,000 6.45 24,420 7.16 1,428 2,040 2,856 10.8 18.2 9 15 - - 24 9,000 15,000 - - 14,400 4.22 24,000 7.03 26,640 7.81 1,526 2,180 3,052 11.0 18.6

12 12 - - 24 12,000 12,000 - - 14,400 4.22 24,000 7.03 26,640 7.81 1,526 2,180 3,052 11.0 18.6

7 18 - - 25 7,000 18,000 - - 15,000 4.40 25,000 7.33 27,750 8.13 1,582 2,260 3,164 11.1 18.7 9 18 - - 27 9,000 18,000 - - 16,200 4.75 27,000 7.91 29,970 8.78 1,694 2,420 3,388 11.2 18.9

Two

12 15 - - 27 12,000 15,000 - - 16,200 4.75 27,000 7.91 29,970 8.78 1,694 2,420 3,388 11.2 18.9

Units

12 18 - - 30 12,000 18,000 - - 18,000 5.28 30,000 8.79 33,300 9.76 1,841 2,630 3,682 11.4 19.3 15 15 - - 30 15,000 15,000 - - 18,000 5.28 30,000 8.79 33,300 9.76 1,841 2,630 3,682 11.4 19.3

7 24 - - 31 7,000 24,000 - - 18,600 5.45 31,000 9.09 34,410 10.08 1,883 2,690 3,766 11.5 19.5

9 24 - - 33 8,727 23,273 - - 19,200 5.63 32,000 9.38 35,520 10.41 1,932 2,760 3,864 11.6 19.6 15 18 - - 33 14,545 17,455 - - 19,200 5.63 32,000 9.38 35,520 10.41 1,932 2,760 3,864 11.6 19.6 18 18 - - 36 16,000 16,000 - - 19,200 5.63 32,000 9.38 35,520 10.41 1,932 2,760 3,864 11.6 19.6 12 24 - - 36 10,667 21,333 - - 19,200 5.63 32,000 9.38 35,520 10.41 1,932 2,760 3,864 11.6 19.6 15 24 - - 39 12,308 19,692 - - 19,200 5.63 32,000 9.38 35,520 10.41 1,932 2,760 3,864 11.6 19.6 18 24 - - 42 13,714 18,286 - - 19,200 5.63 32,000 9.38 35,520 10.41 1,932 2,760 3,864 11.6 19.6 24 24 - - 48 16,000 16,000 - - 19,200 5.63 32,000 9.38 35,520 10.41 1,932 2,760 3,864 11.6 19.6

7 7 7 - 21 7,000 7,000 7,000 - 12,600 3.69 21,000 6.15 24,150 7.08 1,337 1,910 2,674 11.0 18.6

7 7 9 - 23 7,000 7,000 9,000 - 13,800 4.04 23,000 6.74 26,450 7.75 1,442 2,060 2,884 11.2 18.9

7 9 9 - 25 7,000 9,000 9,000 - 15,000 4.40 25,000 7.33 28,750 8.43 1,554 2,220 3,108 11.3 19.1

7 7 12 - 26 7,000 7,000 12,000 - 15,600 4.57 26,000 7.62 29,900 8.76 1,582 2,260 3,164 11.5 19.5

9 9 9 - 27 9,000 9,000 9,000 - 16,200 4.75 27,000 7.91 31,050 9.10 1,610 2,300 3,220 11.7 19.9

7 9 12 - 28 7,000 9,000 12,000 - 16,800 4.92 28,000 8.21 32,200 9.44 1,645 2,350 3,290 11.9 20.2

7 7 15 - 29 7,000 7,000 15,000 - 17,400 5.10 29,000 8.50 33,350 9.77 1,680 2,400 3,360 12.1 20.4

9 9 12 - 30 9,000 9,000 12,000 - 18,000 5.28 30,000 8.79 34,500 10.11 1,722 2,460 3,444 12.2 20.6

7 9 15 - 31 7,000 9,000 15,000 - 18,600 5.45 31,000 9.09 35,650 10.45 1,764 2,520 3,528 12.3 20.8

7 12 12 - 31 7,000 12,000 12,000 - 18,600 5.45 31,000 9.09 35,650 10.45 1,764 2,520 3,528 12.3 20.8

7 7 18 - 32 7,000 7,000 18,000 - 19,200 5.63 32,000 9.38 36,800 10.79 1,806 2,580 3,612 12.4 21.0

9 9 15 - 33 8,727 8,727 14,545 - 19,200 5.63 32,000 9.38 36,800 10.79 1,806 2,580 3,612 12.4 21.0

9 12 12 - 33 8,727 11,636 11,636 - 19,200 5.63 32,000 9.38 36,800 10.79 1,806 2,580 3,612 12.4 21.0

Three

7 9 18 - 34 6,588 8,471 16,941 - 19,200 5.63 32,000 9.38 36,800 10.79 1,806 2,580 3,612 12.4 21.0

7 12 15 - 34 6,588 11,294 14,118 - 19,200 5.63 32,000 9.38 36,800 10.79 1,806 2,580 3,612 12.4 21.0

Units

9 9 18 - 36 8,000 8,000 16,000 - 19,200 5.63 32,000 9.38 36,800 10.79 1,806 2,580 3,612 12.4 21.0

9 12 15 - 36 8,000 10,667 13,333 - 19,200 5.63 32,000 9.38 36,800 10.79 1,806 2,580 3,612 12 12 12 - 36 10,667 10,667 10,667 - 19,200 5.63 32,000 9.38 36,800 10.79 1,806 2,580 3,612 12.4 21.0

7 12 18 - 37 6,054 10,378 15,568 - 19,200 5.63 32,000 9.38 36,800 10.79 1,806 2,580 3,612 12.4 21.0

7 15 15 - 37 6,054 12,973 12,973 - 19,200 5.63 32,000 9.38 36,800 10.79 1,806 2,580 3,612 12.4 21.0

7 7 24 - 38 5,895 5,895 20,211 - 19,200 5.63 32,000 9.38 36,800 10.79 1,806 2,580 3,612 12.4 21.0

9 12 18 - 39 7,385 9,846 14,769 - 19,200 5.63 32,000 9.38 36,800 10.79 1,806 2,580 3,612 12.4 21.0

9 15 15 - 39 7,385 12,308 12,308 - 19,200 5.63 32,000 9.38 36,800 10.79 1,806 2,580 3,612 12.4 21.0 12 12 15 - 39 9,846 9,846 12,308 - 19,200 5.63 32,000 9.38 36,800 10.79 1,806 2,580 3,612 12.4 21.0

7 9 24 - 40 5,600 7,200 19,200 - 19,200 5.63 32,000 9.38 36,800 10.79 1,806 2,580 3,612 12.4 21.0

7 15 18 - 40 5,600 12,000 14,400 - 19,200 5.63 32,000 9.38 36,800 10.79 1,806 2,580 3,612 12.4 21.0

9 9 24 - 42 6,857 6,857 18,286 - 19,200 5.63 32,000 9.38 36,800 10.79 1,806 2,580 3,612 12.4 21.0

9 15 18 - 42 6,857 11,429 13,714 - 19,200 5.63 32,000 9.38 36,800 10.79 1,806 2,580 3,612 12.4 21.0

Room Capacity

(Btu/h) Total Capacity Input (W)

Minimum Rated Maximum

Btu/h kW Btu/h kW Btu/h kW

Min. Rated Max.

EER SEER

12.4 21.0

1. Capacity as rated: 0 ft. above sea level with 25 ft. of refrigerant piping. 0 f t. level difference between outdoor and indoor units.

2. Cooling capacity rating obtained with air entering the indoor unit at 80°F dry bulb (DB) and 67°F wet bulb (WB), and outdoor ambient conditions of 95°F dry bulb (DB) and 75°F wet bulb (WB).

3. Wiring cable size must comply with the applicable local and national codes.

LG Air Conditioning Systems

4. The specification may be subject to change without prior notice for purpose of improvement.

5. At least two indoor units should be connected.

COMBINATION TABLES

• COMBINATION

TABLES

LMU36CHV

Table 14: LMU36CHV with Non-Ducted Indoor Units — Rated Cooling Combination Table.

Cooling Capacity

Indoor Unit Combination

No. of

Indoor

Units

(kBtu/h)

IDU 1IDU 2IDU 3IDU

Total

Non-Ducted Indoor Units

12 12 18 - 42 9,143 9,143 13,714 - 19,200 5.63 32,000 9.38 36,800 10.79 1,806 2,580 3,612 12.4 21.0 12 15 15 - 42 9,143 11,429 11,429 - 19,200 5.63 32,000 9.38 36,800 10.79 1,806 2,580 3,612 12.4 21.0

7 12 24 - 43 5,209 8,930 17,860 - 19,200 5.63 32,000 9.38 36,800 10.79 1,806 2,580 3,612 12.4 21.0 7 18 18 - 43 5,209 13,395 13,395 - 19,200 5.63 32,000 9.38 36,800 10.79 1,806 2,580 3,612 12.4 21.0 9 12 24 - 45 6,400 8,533 17,067 - 19,200 5.63 32,000 9.38 36,800 10.79 1,806 2,580 3,612 12.4 21.0 9 18 18 - 45 6,400 12,800 12,800 - 19,200 5.63 32,000 9.38 36,800 10.79 1,806 2,580 3,612 12.4 21.0

Three

12 15 18 - 45 8,533 10,667 12,800 - 19,200 5.63 32,000 9.38 36,800 10.79 1,806 2,580 3,612 12.4 21.0

Units

15 15 15 - 45 10,667 10,667 10,667 - 19,200 5.63 32,000 9.38 36,800 10.79 1,806 2,580 3,612 12.4 21.0

7 15 24 - 46 4,870 10,435 16,696 - 19,200 5.63 32,000 9.38 36,800 10.79 1,806 2,580 3,612 12.4 21.0

9 15 24 - 48 6,000 10,000 16,000 - 19,200 5.63 32,000 9.38 36,800 10.79 1,806 2,580 3,612 12.4 21.0 12 12 24 - 48 8,000 8,000 16,000 - 19,200 5.63 32,000 9.38 36,800 10.79 1,806 2,580 3,612 12.4 21.0 12 18 18 - 48 8,000 12,000 12,000 - 19,200 5.63 32,000 9.38 36,800 10.79 1,806 2,580 3,612 12.4 21.0 15 15 18 - 48 10,000 10,000 12,000 - 19,200 5.63 32,000 9.38 36,800 10.79 1,806 2,580 3,612 12.4 21.0

7 7 7 7 28 7,000 7,000 7,000 7,000 16,800 4.92 28,000 8.21 33,600 9.85 1,540 2,200 3,080 12.7 21.5

7 7 7 9 30 7,000 7,000 7,000 9,000 18,000 5.28 30,000 8.79 36,000 10.55 1,645 2,350 3,290 12.8 21.6

7 7 9 9 32 7,000 7,000 9,000 9,000 19,200 5.63 32,000 9.38 38,400 11.25 1,723 2,461 3,445 13.0 22.0

7 7 7 12 33 6,788 6,788 6,788 11,636 19,200 5.63 32,000 9.38 38,400 11.25 1,723 2,461 3,445 13.0 22.0

7 9 9 9 34 6,588 8,471 8,471 8,471 19,200 5.63 32,000 9.38 38,400 11.25 1,723 2,461 3,445

7 7 9 12 35 6,400 6,400 8,229 10,971 19,200 5.63 32,000 9.38 38,400 11.25 1,723 2,461 3,445 13.0 22.0

7 7 7 15 36 6,222 6,222 6,222 13,333 19,200 5.63 32,000 9.38 38,400 11.25 1,723 2,461 3,445 13.0 22.0

9 9 9 9 36 8,000 8,000 8,000 8,000 19,200 5.63 32,000 9.38 38,400 11.25 1,723 2,461 3,445 13.0 22.0

7 9 9 12 37 6,054 7,784 7,784 10,378 19,200 5.63 32,000 9.38 38,400 11.25 1,723 2,461 3,445 13.0 22.0

7 7 9 15 38 5,895 5,895 7,579 12,632 19,200 5.63 32,000 9.38 38,400 11.25 1,723 2,461 3,445 13.0 22.0

7 7 12 12 38 5,895 5,895 10,105 10,105 19,200 5.63 32,000 9.38 38,400 11.25 1,723 2,461 3,445 13.0 22.0

7 7 7 18 39 5,744 5,744 5,744 14,769 19,200 5.63 32,000 9.38 38,400 11.25 1,723 2,461 3,445 13.0 22.0

9 9 9 12 39 7,385 7,385 7,385 9,846 19,200 5.63 32,000 9.38 38,400 11.25 1,723 2,461 3,445 13.0 22.0

7 9 9 15 40 5,600 7,200 7,200 12,000 19,200 5.63 32,000 9.38 38,400 11.25 1,723 2,461 3,445 13.0 22.0

7 9 12 12 40 5,600 7,200 9,600 9,600 19,200 5.63 32,000 9.38 38,400 11.25 1,723 2,461 3,445 13.0 22.0

7 7 9 18 41 5,463 5,463 7,024 14,049 19,200 5.63 32,000 9.38 38,400 11.25 1,723 2,461 3,445 13.0 22.0

7 7 12 15 41 5,463 5,463 9,366 11,707 19,200 5.63 32,000 9.38 38,400 11.25 1,723 2,461 3,445 13.0 22.0

Four

9 9 9 15 42 6,857 6,857 6,857 11,429 19,200 5.63 32,000 9.38 38,400 11.25 1,723 2,461 3,445 13.0 22.0

9 9 12 12 42 6,857 6,857 9,143 9,143 19,200 5.63 32,000 9.38 38,400 11.25 1,723 2,461 3,445 13.0 22.0

Units

7 9 9 18 43 5,209 6,698 6,698 13,395 19,200 5.63 32,000 9.38 38,400 11.25 1,723 2,461 3,445 13.0 22.0

7 9 12 15 43 5,209 6,698 8,930 11,163 19,200 5.63 32,000 9.38 38,400 11.25 1,723 2,461 3,445 13.0 22.0

7 12 12 12 43 5,209 8,930 8,930 8,930 19,200 5.63 32,000 9.38 38,400 11.25 1,723 2,461 3,445 13.0 22.0

7 7 12 18 44 5,091 5,091 8,727 13,091 19,200 5.63 32,000 9.38 38,400 11.25 1,723 2,461 3,445 13.0 22.0

7 7 15 15 44 5,091 5,091 10,909 10,909 19,200 5.63 32,000 9.38 38,400 11.25 1,723 2,461 3,445 13.0 22.0

7 7 7 24 45 4,978 4,978 4,978 17,067 19,200 5.63 32,000 9.38 38,400 11.25 1,723 2,461 3,445

9 9 9 18 45 6,400 6,400 6,400 12,800 19,200 5.63 32,000 9.38 38,400 11.25 1,723 2,461 3,445 13.0 22.0

9 9 12 15 45 6,400 6,400 8,533 10,667 19,200 5.63 32,000 9.38 38,400 11.25 1,723 2,461 3,445 13.0 22.0

9 12 12 12 45 6,400 8,533 8,533 8,533 19,200 5.63 32,000 9.38 38,400 11.25 1,723 2,461 3,445 13.0 22.0

7 9 12 18 46 4,870 6,261 8,348 12,522 19,200 5.63 32,000 9.38 38,400 11.25 1,723 2,461 3,445 13.0 22.0

7 9 15 15 46 4,870 6,261 10,435 10,435 19,200 5.63 32,000 9.38 38,400 11.25 1,723 2,461 3,445 13.0 22.0

7 12 12 15 46 4,870 8,348 8,348 10,435 19,200 5.63 32,000 9.38 38,400 11.25 1,723 2,461 3,445 13.0 22.0

7 7 9 24 47 4,766 4,766 6,128 16,340 19,200 5.63 32,000 9.38 38,400 11.25 1,723 2,461 3,445 13.0 22.0

7 7 15 18 47 4,766 4,766 10,213 12,255 19,200 5.63 32,000 9.38 38,400 11.25 1,723 2,461 3,445 13.0 22.0

9 9 12 18 48 6,000 6,000 8,000 12,000 19,200 5.63 32,000 9.38 38,400 11.25 1,723 2,461 3,445 13.0 22.0

9 9 15 15 48 6,000 6,000 10,000 10,000 19,200 5.63 32,000 9.38 38,400 11.25 1,723 2,461 3,445 13.0 22.0 12 12 12 12 48 8,000 8,000 8,000 8,000 19,200 5.63 32,000 9.38 38,400 11.25 1,723 2,461 3,445 13.0 22.0

Room Capacity

(Btu/h) Total Capacity Input (W)

Unit 1 Unit 2 Unit 3 Unit 4

Minimum Rated Maximum

Btu/h kW Btu/h kW Btu/h kW

Min. Rated Max.

MULTI ZONE

EER SEER

13.0 22.0

1. Capacity as rated: 0 ft. above sea level with 25 ft. of refrigerant piping. 0 f t. level difference between outdoor and indoor units.

2. Cooling capacity rating obtained with air entering the indoor unit at 80°F dry bulb (DB) and 67°F wet bulb (WB), and outdoor ambient conditions of 95°F dry bulb (DB) and 75°F wet bulb (WB).

3. Wiring cable size must comply with the applicable local and national codes.

4. The specification may be subject to change without prior notice for purpose of improvement.

5. At least two indoor units should be connected.

COMBINATION TABLES

LMU36CHV

Table 15: LMU36CHV with Ducted Indoor Units — Rated Cooling Combination Table.

Cooling Capacity

Indoor Unit Combination

No. of

Indoor

IDU 1IDU 2IDU 3IDU

Units

(kBtu/h)

Total

Room Capacity (Btu/h)

Unit 1 Unit 2 Unit 3 Unit 4

Minimum Rated Maximum

Btu/h kW Btu/h kW Btu/h kW

Ducted Indoor Units

9 9 - - 18 7,875 7,875 - - 9,450 2.8 15,750 4.6 17,483 5.1 1,245 1,779 2,491 8.9 14.6 9 12 - - 21 7,875 10,500 - - 11,025 3.2 18,375 5.4 20,396 6.0 1,426 2,038 2,853 9.0 14.9

12 12 - - 24 10,500 10,500 - - 12,600 3.7 21,000 6.2 23,310 6.8 1,578 2,255 3,157 9.3 15.4

Two

9 18 - - 27 7,875 15,750 - - 14,175 4.2 23,625 6.9 26,224 7.7 1,752 2,503 3,504 9.4 15.6

12 18 - - 30 10,500 15,750 - - 15,750 4.6 26,250 7.7 29,138 8.5 1,904 2,720 3,808 9.6 16.0

Units

9 24* - - 33 7,636 20,364 - - 16,800 4.9 28,000 8.2 31,080 9.1 1,998 2,855 3,997 9.8 16.2 18 18 - - 36 14,000 14,000 - - 16,800 4.9 28,000 8.2 31,080 9.1 1,998 2,855 3,997 9.8 16.2 12 24* - - 36 9,333 18,667 - - 16,800 4.9 28,000 8.2 31,080 9.1 1,998 2,855 3,997 9.8 16.2

9 9 9 - 27 7,875 7,875 7,875 - 14,175 4.2 23,625 6.9 27,169 8.0 1,665 2,379 3,331 9.9 16.4

9 9 12 - 30 7,875 7,875 10,500 - 15,750 4.6 26,250 7.7 30,188 8.8 1,781 2,544 3,562 10.3 17.1

9 12 12 - 33 7,636 10,182 10,182 - 16,800 4.9 28,000 8.2 32,200 9.4 1,868 2,669 3,736 10.5 17.4

9 9 18 - 36 7,000 7,000 14,000 - 16,800 4.9 28,000 8.2 32,200 9.4 1,868 2,669 3,736 10.5 17.4

Three

12 12 12 - 36 9,333 9,333 9,333 - 16,800 4.9 28,000 8.2 32,200 9.4 1,868 2,669 3,736 10.5 17.4

Units

9 12 18 - 39 6,462 8,615 12,923 - 16,800 4.9 28,000 8.2 32,200 9.4 1,868 2,669 3,736 10.5 17.4 12 12 18 - 42 8,000 8,000 12,000 - 16,800 4.9 28,000 8.2 32,200 9.4 1,868 2,669 3,736 10.5 17.4

9 18 18 - 45 5,600 11,200 11,200 - 16,800 4.9 28,000 8.2 32,200 9.4 1,868 2,669 3,736 10.5 17.4 12 18 18 - 48 7,000 10,500 10,500 - 16,800 4.9 28,000 8.2 32,200 9.4 1,868 2,669 3,736 10.5 17.4

9 9 9 9 36 7,000 7,000 7,000 7,000 16,800 4.9 28,000 8.2 33,600 9.8 1,782 2,545 3,564 11.0 18.2

9 9 9 12 39 6,462 6,462 6,462 8,615 16,800 4.9 28,000 8.2 33,600 9.8 1,782 2,545 3,564 11.0 18.2

9 9 12 12 42 6,000 6,000 8,000 8,000 16,800 4.9 28,000 8.2 33,600 9.8 1,782 2,545 3,564 11.0 18.2

Four

9 9 9 18 45 5,600 5,600 5,600 11,200 16,800 4.9 28,000 8.2 33,600 9.8 1,782 2,545 3,564 11.0 18.2

Units

9 12 12 12 45 5,600 7,467 7,467 7,467 16,800 4.9 28,000 8.2 33,600 9.8 1,782 2,545 3,564 11.0 18.2

9 9 12 18 48 5,250 5,250 7,000 10,500 16,800 4.9 28,000 8.2 33,600 9.8 1,782 2,545 3,564 11.0 18.2 12 12 12 12 48 7,000 7,000 7,000 7,000 16,800 4.9 28,000 8.2 33,600 9.8 1,782 2,545 3,564 11.0 18.2

Total Capacity Input (W)

Min. Rated Max.

EER SEER

1. Capacity as rated: 0 ft. above sea level with 25 ft. of refrigerant piping. 0 ft. level difference between outdoor and indoor units.

2. Cooling capacity rating obtained with air entering the indoor unit at 80°F dry bulb (DB) and 67°F wet bulb (WB), and outdoor ambient conditions of 95°F dry bulb (DB) and 75°F wet bulb (WB).

LG Air Conditioning Systems

3. Wiring cable size must comply with the applicable local and national codes.

4. The specification may be subject to change without prior notice for purpose of improvement.

5. At least two indoor units should be connected. *A 1.3 multiplier is necessary for the calculation of total combination.

COMBINATION TABLES

• COMBINATION

TABLES

LMU36CHV

Table 16: LMU36CHV with Mixed Indoor Units — Rated Cooling Combination Table.

Cooling Capacity

Indoor Unit Combination

No. of Indoor

IDU 1IDU 2IDU 3IDU

Units

(kBtu/h)

Total

Room Capacity (Btu/h)

Unit 1 Unit 2 Unit 3 Unit 4

Minimum Rated Maximum

Btu/h kW Btu/h kW Btu/h kW

Mixed Indoor Units

7 9 - - 16 6,563 8,438 - - 9,000 2.6 15,000 4.4 16,650 4.9 1,089 1,556 2,179 9.6 16.2 9 9 - - 18 8,438 8,438 - - 10,125 3.0 16,875 4.9 18,731 5.5 1,225 1,750 2,449 9.6 16.2 7 12 - - 19 6,563 11,250 - - 10,688 3.1 17,813 5.2 19,772 5.8 1,282 1,831 2,563 9.7 16.3 9 12 - - 21 8,438 11,250 - - 11,813 3.5 19,688 5.8 21,853 6.4 1,403 2,004 2,805 9.8 16.5 9 15 - - 24 8,438 14,063 - - 13,500 4.0 22,500 6.6 24,975 7.3 1,552 2,217 3,104 10.1 17.0

12 12 - - 24 11,250 11,250 - - 13,500 4.0 22,500 6.6 24,975 7.3 1,552 2,217 3,104 10.1 17.0

7 18 - - 25 6,563 16,875 - - 14,063 4.1 23,438 6.9 26,016 7.6 1,609 2,299 3,218 10.2 17.1 9 18 - - 27 8,438 16,875 - - 15,188 4.5 25,313 7.4 28,097 8.2 1,723 2,462 3,446 10.3 17.2

12 15 - - 27 11,250 14,063 - - 15,188 4.5 25,313 7.4 28,097 8.2 1,723 2,462 3,446 10.3 17.2

Two

12 18 - - 30 11,250 16,875 - - 16,875 4.9 28,125 8.2 31,219 9.1 1,873 2,675 3,745 10.5 17.6

Units

7 24 - - 31 6,563 22,500 - - 17,438 5.1 29,063 8.5 32,259 9.5 1,915 2,736 3,831 10.6 17.8

9 24 - - 33 8,182 21,818 - - 18,000 5.3 30,000 8.8 33,300 9.8 1,965 2,807 3,930 10.7 17.9 15 18 - - 33 13,636 16,364 - - 18,000 5.3 30,000 8.8 33,300 9.8 1,965 2,807 3,930 10.7 17.9 18 18 - - 36 15,000 15,000 - - 18,000 5.3 30,000 8.8 33,300 9.8 1,965 2,807 3,930 10.7 17.9 12 24 - - 36 10,000 20,000 - - 18,000 5.3 30,000 8.8 33,300 9.8 1,965 2,807 3,930 10.7 17.9 15 24 - - 39 11,538 18,462 - - 18,000 5.3 30,000 8.8 33,300 9.8 1,965 2,807 3,930 10.7 17.9 18 24* - - 42 12,857 17,143 - - 18,000 5.3 30,000 8.8 33,300 9.8 1,965 2,807 3,930 10.7 17.9

24* 24* - - 48 15,000 15,000 - - 18,000 5.3 30,000 8.8 33,300 9.8 1,965 2,807 3,930 10.7 17.9

7 7 9 - 23 6,563 6,563 8,438 - 12,938 3.8 21,563 6.3 24,797 7.3 1,467 2,095 2,933 10.3 17.3

7 9 9 - 25 6,563 8,438 8,438 - 14,063 4.1 23,438 6.9 26,953 7.9 1,581 2,258 3,161 10.4 17.4

7 7 12 - 26 6,563 6,563 11,250 - 14,625 4.3 24,375 7.1 28,031 8.2 1,609 2,299 3,218 10.6 17.8

9 9 9 - 27 8,438 8,438 8,438 - 15,188 4.5 25,313 7.4 29,109 8.5 1,638 2,339 3,275 10.8 18.1

7 9 12 - 28 6,563 8,438 11,250 - 15,750 4.6 26,250 7.7 30,188 8.8 1,673 2,390 3,346 11.0 18.4

9 9 12 - 30 8,438 8,438 11,250 - 16,875 4.9 28,125 8.2 32,344 9.5 1,752 2,502 3,503 11.2 18.9

7 9 15 - 31 6,563 8,438 14,063 - 17,438 5.1 29,063 8.5 33,422 9.8 1,794 2,563 3,589 11.3 19.0

7 12 12 - 31 6,563 11,250 11,250 - 17,438 5.1 29,063 8.5 33,422 9.8 1,794 2,563 3,589 11.3 19.0

7 7 18 - 32 6,563 6,563 16,875 - 18,000 5.3 30,000 8.8 34,500 10.1 1,837 2,624 3,674 11.4 19.2

9 9 15 - 33 8,182 8,182 13,636 - 18,000 5.3 30,000 8.8 34,500 10.1 1,837 2,624 3,674 11.4 19.2

9 12 12 - 33 8,182 10,909 10,909 - 18,000 5.3 30,000 8.8 34,500 10.1 1,837 2,624 3,674 11.4 19.2

7 9 18 - 34 6,176 7,941 15,882 - 18,000 5.3 30,000 8.8 34,500 10.1 1,837 2,624 3,674 11.4 19.2

7 12 15 - 34 6,176 10,588 13,235 - 18,000 5.3 30,000 8.8 34,500 10.1 1,837 2,624 3,674 11.4 19.2

9 9 18 - 36 7,500 7,500 15,000 - 18,000 5.3 30,000 8.8 34,500 10.1 1,837 2,624 3,674 11.4 19.2

9 12 15 - 36 7,500 10,000 12,500 - 18,000 5.3 30,000 8.8 34,500 10.1 1,837 2,624 3,674 11.4 19.2

Three

12 12 12 - 36 10,000 10,000 10,000 - 18,000 5.3 30,000 8.8 34,500 10.1 1,837 2,624 3,674 11.4 19.2

Units

7 12 18 - 37 5,676 9,730 14,595 - 18,000 5.3 30,000 8.8 34,500 10.1 1,837 2,624 3,674 11.4 19.2 7 7 24 - 38 5,526 5,526 18,947 - 18,000 5.3 30,000 8.8 34,500 10.1 1,837 2,624 3,674 11.4 19.2 9 12 18 - 39 6,923 9,231 13,846 - 18,000 5.3 30,000 8.8 34,500 10.1 1,837 2,624 3,674 11.4 19.2 9 15 15 - 39 6,923 11,538 11,538 - 18,000 5.3 30,000 8.8 34,500 10.1 1,837 2,624 3,674

12 12 15 - 39 9,231 9,231 11,538 - 18,000 5.3 30,000 8.8 34,500 10.1 1,837 2,624 3,674 11.4 19.2

7 9 24 - 40 5,250 6,750 18,000 - 18,000 5.3 30,000 8.8 34,500 10.1 1,837 2,624 3,674 11.4 19.2

7 15 18 - 40 5,250 11,250 13,500 - 18,000 5.3 30,000 8.8 34,500 10.1 1,837 2,624 3,674 11.4 19.2

9 9 24* - 42 6,429 6,429 17,143 - 18,000 5.3 30,000 8.8 34,500 10.1 1,837 2,624 3,674 11.4 19.2

9 15 18 - 42 6,429 10,714 12,857 - 18,000 5.3 30,000 8.8 34,500 10.1 1,837 2,624 3,674 11.4 19.2 12 12 18 - 42 8,571 8,571 12,857 - 18,000 5.3 30,000 8.8 34,500 10.1 1,837 2,624 3,674 11.4 19.2 12 15 15 - 42 8,571 10,714 10,714 - 18,000 5.3 30,000 8.8 34,500 10.1 1,837 2,624 3,674 11.4 19.2

7 12 24* - 43 4,884 8,372 16,744 - 18,000 5.3 30,000 8.8 34,500 10.1 1,837 2,624 3,674 11.4 19.2

7 18 18 - 43 4,884 12,558 12,558 - 18,000 5.3 30,000 8.8 34,500 10.1 1,837 2,624 3,674 11.4 19.2

9 12 24* - 45 6,000 8,000 16,000 - 18,000 5.3 30,000 8.8 34,500 10.1 1,837 2,624 3,674 11.4 19.2

9 18 18 - 45 6,000 12,000 12,000 - 18,000 5.3 30,000 8.8 34,500 10.1 1,837 2,624 3,674 11.4 19.2

Total Capacity Input (W)

Min. Rated Max.

MULTI ZONE

EER SEER

11.4 19.2

1. Capacity as rated: 0 ft. above sea level with 25 ft. of refrigerant piping. 0 ft. level difference between outdoor and indoor units.

2. Cooling capacity rating obtained with air entering the indoor unit at 80°F dry bulb (DB) and 67°F wet bulb (WB), and outdoor ambient conditions of 95°F dry bulb (DB) and 75°F wet bulb (WB).

3. Wiring cable size must comply with the applicable local and national codes.

4. The specification may be subject to change without prior notice for purpose of improvement.

5. At least two indoor units should be connected. *The indoor unit must be non-ducted type.

COMBINATION TABLES

LMU36CHV

Table 17: LMU36CHV with Mixed Indoor Units — Rated Cooling Combination Table.

Cooling Capacity

Indoor Unit Combination

No. of

Indoor

IDU 1IDU 2IDU 3IDU

Units

(kBtu/h)

Total

Room Capacity (Btu/h)

Unit 1 Unit 2 Unit 3 Unit 4

Minimum Rated Maximum

Btu/h kW Btu/h kW Btu/h kW

Mixed Indoor Units

12 15 18 - 45 8,000 10,000 12,000 - 18,000 5.3 30,000 8.8 34,500 10.1 1,837 2,624 3,674 11.4 19.2

7 15 24* - 46 4,565 9,783 15,652 - 18,000 5.3 30,000 8.8 34,500 10.1 1,837 2,624 3,674 11.4 19.2

9 15 24* - 48 5,625 9,375 15,000 - 18,000 5.3 30,000 8.8 34,500 10.1 1,837 2,624 3,674 11.4 19.2

Three

12 12 24* - 48 7,500 7,500 15,000 - 18,000 5.3 30,000 8.8 34,500 10.1 1,837 2,624 3,674 11.4 19.2

Units

12 18 18 - 48 7,500 11,250 11,250 - 18,000 5.3 30,000 8.8 34,500 10.1 1,837 2,624 3,674 11.4 19.2

15 15 18 - 48 9,375 9,375 11,250 - 18,000 5.3 30,000 8.8 34,500 10.1 1,837 2,624 3,674 11.4 19.2

7 7 7 9 30 6,563 6,563 6,563 8,438 16,875 4.9 28,125 8.2 33,750 9.9 1,673 2,390 3,346 11.8 19.7

7 7 9 9 32 6,563 6,563 8,438 8,438 18,000 5.3 30,000 8.8 36,000 10.6 1,752 2,503 3,505 12.0 20.1

7 7 7 12 33 6,364 6,364 6,364 10,909 18,000 5.3 30,000 8.8 36,000 10.6 1,752 2,503 3,505 12.0 20.1

7 9 9 9 34 6,176 7,941 7,941 7,941 18,000 5.3 30,000 8.8 36,000 10.6 1,752 2,503 3,505 12.0 20.1

7 7 9 12 35 6,000 6,000 7,714 10,286 18,000 5.3 30,000 8.8 36,000 10.6 1,752 2,503 3,505 12.0 20.1

9 9 9 9 36 7,500 7,500 7,500 7,500 18,000 5.3 30,000 8.8 36,000 10.6 1,752 2,503 3,505 12.0 20.1

7 9 9 12 37 5,676 7,297 7,297 9,730 18,000 5.3 30,000 8.8 36,000 10.6 1,752 2,503 3,505 12.0 20.1

7 7 9 15 38 5,526 5,526 7,105 11,842 18,000 5.3 30,000 8.8 36,000 10.6 1,752 2,503 3,505 12.0 20.1

7 7 12 12 38 5,526 5,526 9,474 9,474 18,000 5.3 30,000 8.8 36,000 10.6 1,752 2,503 3,505 12.0 20.1

7 7 7 18 39 5,385 5,385 5,385 13,846 18,000 5.3 30,000 8.8 36,000 10.6 1,752 2,503 3,505 12.0 20.1

9 9 9 12 39 6,923 6,923 6,923 9,231 18,000 5.3 30,000 8.8 36,000 10.6 1,752 2,503 3,505 12.0 20.1

7 9 9 15 40 5,250 6,750 6,750 11,250 18,000 5.3 30,000 8.8 36,000 10.6 1,752 2,503 3,505

7 9 12 12 40 5,250 6,750 9,000 9,000 18,000 5.3 30,000 8.8 36,000 10.6 1,752 2,503 3,505 12.0 20.1

7 7 9 18 41 5,122 5,122 6,585 13,171 18,000 5.3 30,000 8.8 36,000 10.6 1,752 2,503 3,505 12.0 20.1

7 7 12 15 41 5,122 5,122 8,780 10,976 18,000 5.3 30,000 8.8 36,000 10.6 1,752 2,503 3,505 12.0 20.1

9 9 9 15 42 6,429 6,429 6,429 10,714 18,000 5.3 30,000 8.8 36,000 10.6 1,752 2,503 3,505 12.0 20.1

Four

9 9 12 12 42 6,429 6,429 8,571 8,571 18,000 5.3 30,000 8.8 36,000 10.6 1,752 2,503 3,505 12.0 20.1

Units

7 9 9 18 43 4,884 6,279 6,279 12,558 18,000 5.3 30,000 8.8 36,000 10.6 1,752 2,503 3,505 12.0 20.1

7 9 12 15 43 4,884 6,279 8,372 10,465 18,000 5.3 30,000 8.8 36,000 10.6 1,752 2,503 3,505 12.0 20.1

7 12 12 12 43 4,884 8,372 8,372 8,372 18,000 5.3 30,000 8.8 36,000 10.6 1,752 2,503 3,505 12.0 20.1

7 7 12 18 44 4,773 4,773 8,182 12,273 18,000 5.3 30,000 8.8 36,000 10.6 1,752 2,503 3,505 12.0 20.1

7 7 7 24* 45 4,667 4,667 4,667 16,000 18,000 5.3 30,000 8.8 36,000 10.6 1,752 2,503 3,505 12.0 20.1

9 9 9 18 45 6,000 6,000 6,000 12,000 18,000 5.3 30,000 8.8 36,000 10.6 1,752 2,503 3,505 12.0 20.1

9 9 12 15 45 6,000 6,000 8,000 10,000 18,000 5.3 30,000 8.8 36,000 10.6 1,752 2,503 3,505 12.0 20.1

9 12 12 12 45 6,000 8,000 8,000 8,000 18,000 5.3 30,000 8.8 36,000 10.6 1,752 2,503 3,505 12.0 20.1

7 9 12 18 46 4,565 5,870 7,826 11,739 18,000 5.3 30,000 8.8 36,000 10.6 1,752 2,503 3,505 12.0 20.1

7 9 15 15 46 4,565 5,870 9,783 9,783 18,000 5.3 30,000 8.8 36,000 10.6 1,752 2,503 3,505 12.0 20.1

7 12 12 15 46 4,565 7,826 7,826 9,783 18,000 5.3 30,000 8.8 36,000 10.6 1,752 2,503 3,505 12.0 20.1

7 7 9 24* 47 4,468 4,468 5,745 15,319 18,000 5.3 30,000 8.8 36,000 10.6 1,752 2,503 3,505 12.0 20.1

7 7 15 18 47 4,468 4,468 9,574 11,489 18,000 5.3 30,000 8.8 36,000 10.6 1,752 2,503 3,505 12.0 20.1

9 9 12 18 48 5,625 5,625 7,500 11,250 18,000 5.3 30,000 8.8 36,000 10.6 1,752 2,503 3,505 12.0 20.1

9 9 15 15 48 5,625 5,625 9,375 9,375 18,000 5.3 30,000 8.8 36,000 10.6 1,752 2,503 3,505

12 12 12 12 48 7,500 7,500 7,500 7,500 18,000 5.3 30,000 8.8 36,000 10.6 1,752 2,503 3,505 12.0 20.1

Total Capacity Input (W)

Min. Rated Max.

EER SEER

12.0 20.1

1. Capacity as rated: 0 ft. above sea level with 25 ft. of refrigerant piping. 0 ft. level difference between outdoor and indoor units.

2. Cooling capacity rating obtained with air entering the indoor unit at 80°F dry bulb (DB) and 67°F wet bulb (WB), and outdoor ambient conditions of 95°F dry bulb (DB) and 75°F wet bulb (WB).

LG Air Conditioning Systems

3. Wiring cable size must comply with the applicable local and national codes.

4. The specification may be subject to change without prior notice for purpose of improvement.

5. At least two indoor units should be connected. *The indoor unit must be non-ducted type.

COMBINATION TABLES

• COMBINATION

TABLES

LMU36CHV

Table 18: LMU36CHV with Non-Ducted Indoor Units — Rated Heating Combination Table.

Heating Capacity

Indoor Unit Combination

No. of Indoor

Units

(kBtu/h)

IDU 1IDU 2IDU 3IDU

Total

Non-Ducted Indoor Units

7 7 - - 14 7,700 7,700 - - 9,240 2.71 15,400 4.51 16,940 4.96 1,127 1,610 2,254 2.8 7.3

7 9 - - 16 7,700 9,900 - - 10,560 3.09 17,600 5.16 19,360 5.67 1,246 1,780 2,492 2.9 7.5

9 9 - - 18 9,900 9,900 - - 11,880 3.48 19,800 5.80 21,780 6.38 1,379 1,970 2,758 2.9 7.6

7 12 - - 19 7,700 13,200 - - 12,540 3.68 20,900 6.13 22,990 6.74 1,435 2,050 2,870 3.0 7.8

9 12 - - 21 9,900 13,200 - - 13,860 4.06 23,100 6.77 25,410 7.45 1,554 2,220 3,108 3.0 7.9

7 15 - - 22 7,700 16,500 - - 14,520 4.26 24,200 7.09 26,620 7.80 1,603 2,290 3,206 3.1 8.0

9 15 - - 24 9,900 16,500 - - 15,840 4.64 26,400 7.74 29,040 8.51 1,701 2,430 3,402 3.2 8.3

12 12 - - 24 13,200 13,200 - - 15,840 4.64 26,400 7.74 29,040 8.51 1,701 2,430 3,402 3.2 8.3

7 18 - - 25 7,700 19,800 - - 16,500 4.84 27,500 8.06 30,250 8.87 1,757 2,510 3,514 3.2 8.3

9 18 - - 27 9,900 19,800 - - 17,820 5.22 29,700 8.70 32,670 9.58 1,869 2,670 3,738 3.3 8.5

Two

12 15 - - 27 13,200 16,500 - - 17,820 5.22 29,700 8.70 32,670 9.58 1,869 2,670 3,738 3.3 8.5

Units

12 18 - - 30 13,200 19,800 - - 19,800 5.80 33,000 9.67 36,300 10.64 2,016 2,880 4,032 3.4 8.7

15 15 - - 30 16,500 16,500 - - 19,800 5.80 33,000 9.67 36,300 10.64 2,016 2,880 4,032 3.4 8.7

7 24 - - 31 7,700 26,400 - - 20,460 6.00 34,100 9.99 37,510 10.99 2,058 2,940 4,116 3.4 8.8

9 24 - - 33 9,818 26,182 - - 21,600 6.33 36,000 10.55 39,600 11.61 2,107 3,010 4,214 3.5 9.1

15 18 - - 33 16,364 19,636 - - 21,600 6.33 36,000 10.55 39,600 11.61 2,107 3,010 4,214 3.5 9.1

18 18 - - 36 18,000 18,000 - - 21,600 6.33 36,000 10.55 39,600 11.61 2,107 3,010 4,214 3.5 9.1

12 24 - - 36 12,000 24,000 - - 21,600 6.33 36,000 10.55 39,600 11.61 2,107 3,010 4,214 3.5 9.1

15 24 - - 39 13,846 22,154 - - 21,600 6.33 36,000 10.55 39,600 11.61 2,107 3,010 4,214 3.5 9.1

18 24 - - 42 15,429 20,571 - - 21,600 6.33 36,000 10.55 39,600 11.61 2,107 3,010 4,214 3.5 9.1

24 24 - - 48 18,000 18,000 - - 21,600 6.33 36,000 10.55 39,600 11.61 2,107 3,010 4,214 3.5 9.1

7 7 7 - 21 7,700 7,700 7,700 - 13,860 4.06 23,100 6.77 26,565 7.79 1,512 2,160 3,024 3.1 8.1

7 7 9 - 23 7,700 7,700 9,900 - 15,180 4.45 25,300 7.42 29,095 8.53 1,617 2,310 3,234 3.2 8.3

7 9 9 - 25 7,700 9,900 9,900 - 16,500 4.84 27,500 8.06 31,625 9.27 1,729 2,470 3,458 3.3 8.5

7 7 12 - 26 7,700 7,700 13,200 - 17,160 5.03 28,600 8.38 32,890 9.64 1,757 2,510 3,514 3.3 8.7

9 9 9 - 27 9,900 9,900 9,900 - 17,820 5.22 29,700 8.70 34,155 10.01 1,785 2,550 3,570 3.4 8.9

7 9 12 - 28 7,700 9,900 13,200 - 18,480 5.42 30,800 9.03 35,420 10.38 1,820 2,600 3,640 3.5 9.0

7 7 15 - 29 7,700 7,700 16,500 - 19,140 5.61 31,900 9.35 36,685 10.75 1,855 2,650 3,710 3.5 9.2

9 9 12 - 30 9,900 9,900 13,200 - 19,800 5.80 33,000 9.67 37,950 11.12 1,897 2,710 3,794 3.6 9.3

7 9 15 - 31 7,700 9,900 16,500 - 20,460 6.00 34,100 9.99 39,215 11.49 1,939 2,770 3,878 3.6 9.4

7 12 12 - 31 7,700 13,200 13,200 - 20,460 6.00 34,100 9.99 39,215 11.49 1,939 2,770 3,878 3.6 9.4

7 7 18 - 32 7,700 7,700 19,800 - 21,120 6.19 35,200 10.32 40,480 11.86 1,981 2,830 3,962 3.6 9.5

9 9 15 - 33 9,818 9,818 16,364 - 21,600 6.33 36,000 10.55 41,400 12.13 1,981 2,830 3,962 3.7 9.7

9 12 12 - 33 9,818 13,091 13,091 - 21,600 6.33 36,000 10.55 41,400 12.13 1,981 2,830 3,962 3.7 9.7

7 9 18 - 34 7,412 9,529 19,059 - 21,600 6.33 36,000 10.55 41,400 12.13 1,981 2,830 3,962 3.7 9.7

Three

7 12 15 - 34 7,412 12,706 15,882 - 21,600 6.33 36,000 10.55 41,400 12.13 1,981 2,830 3,962 3.7 9.7

Units

9 9 18 - 36 9,000 9,000 18,000 - 21,600 6.33 36,000 10.55 41,400 12.13 1,981 2,830 3,962 3.7 9.7

9 12 15 - 36 9,000 12,000 15,000 - 21,600 6.33 36,000 10.55 41,400 12.13 1,981 2,830 3,962

12 12 12 - 36 12,000 12,000 12,000 - 21,600 6.33 36,000 10.55 41,400 12.13 1,981 2,830 3,962 3.7 9.7

7 12 18 - 37 6,811 11,676 17,514 - 21,600 6.33 36,000 10.55 41,400 12.13 1,981 2,830 3,962 3.7 9.7

7 15 15 - 37 6,811 14,595 14,595 - 21,600 6.33 36,000 10.55 41,400 12.13 1,981 2,830 3,962 3.7 9.7

7 7 24 - 38 6,632 6,632 22,737 - 21,600 6.33 36,000 10.55 41,400 12.13 1,981 2,830 3,962 3.7 9.7

9 12 18 - 39 8,308 11,077 16,615 - 21,600 6.33 36,000 10.55 41,400 12.13 1,981 2,830 3,962 3.7 9.7

9 15 15 - 39 8,308 13,846 13,846 - 21,600 6.33 36,000 10.55 41,400 12.13 1,981 2,830 3,962 3.7 9.7

12 12 15 - 39 11,077 11,077 13,846 - 21,600 6.33 36,000 10.55 41,400 12.13 1,981 2,830 3,962 3.7 9.7

7 9 24 - 40 6,300 8,100 21,600 - 21,600 6.33 36,000 10.55 41,400 12.13 1,981 2,830 3,962 3.7 9.7

7 15 18 - 40 6,300 13,500 16,200 - 21,600 6.33 36,000 10.55 41,400 12.13 1,981 2,830 3,962 3.7 9.7

9 9 24 - 42 7,714 7,714 20,571 - 21,600 6.33 36,000 10.55 41,400 12.13 1,981 2,830 3,962 3.7 9.7

9 15 18 - 42 7,714 12,857 15,429 - 21,600 6.33 36,000 10.55 41,400 12.13 1,981 2,830 3,962 3.7 9.7

Room Capacity (Btu/h)

Unit 1 Unit 2 Unit 3 Unit 4

Total Capacity Input (W)

Minimum Rated Maximum

Btu/h kW Btu/h kW Btu/h kW

Min. Rated Max.

MULTI ZONE

COP HSPF

3.7 9.7

1. Capacity as rated: 0 ft. above sea level with 25 ft. of refrigerant piping. 0 ft. level difference between outdoor and indoor units.

2. Heating capacity rating obtained with air entering the indoor unit at 70°F dry bulb (DB) and 60°F wet bulb (WB), and outdoor ambient conditions of 47°F dry bulb (DB) and 43°F wet bulb (WB).

3. Wiring cable size must comply with the applicable local and national codes.

4. The specification may be subject to change without prior notice for purpose of improvement.

5. At least two indoor units should be connected.

COMBINATION TABLES

LMU36CHV

Table 19: LMU36CHV with Non-Ducted Indoor Units — Rated Heating Combination Table.

Heating Capacity

Indoor Unit Combination

No. of

Indoor

IDU 1IDU 2IDU 3IDU

Units

(kBtu/h)

Total

Room Capacity (Btu/h)

Unit 1 Unit 2 Unit 3 Unit 4

Minimum Rated Maximum

Btu/h kW Btu/h kW Btu/h kW

Non-Ducted Indoor Units

12 12 18 - 42 10,286 10,286 15,429 - 21,600 6.33 36,000 10.55 41,400 12.13 1,981 2,830 3,962 3.7 9.7

12 15 15 - 42 10,286 12,857 12,857 - 21,600 6.33 36,000 10.55 41,400 12.13 1,981 2,830 3,962 3.7 9.7

7 12 24 - 43 5,860 10,047 20,093 - 21,600 6.33 36,000 10.55 41,400 12.13 1,981 2,830 3,962 3.7 9.7

7 18 18 - 43 5,860 15,070 15,070 - 21,600 6.33 36,000 10.55 41,400 12.13 1,981 2,830 3,962 3.7 9.7 9 12 24 - 45 7,200 9,600 19,200 - 21,600 6.33 36,000 10.55 41,400 12.13 1,981 2,830 3,962 3.7 9.7 9 18 18 - 45 7,200 14,400 14,400 - 21,600 6.33 36,000 10.55 41,400 12.13 1,981 2,830 3,962 3.7 9.7

Three

12 15 18 - 45 9,600 12,000 14,400 - 21,600 6.33 36,000 10.55 41,400 12.13 1,981 2,830 3,962 3.7 9.7

Units

15 15 15 - 45 12,000 12,000 12,000 - 21,600 6.33 36,000 10.55 41,400 12.13 1,981 2,830 3,962 3.7 9.7

7 15 24 - 46 5,478 11,739 18,783 - 21,600 6.33 36,000 10.55 41,400 12.13 1,981 2,830 3,962 3.7 9.7

9 15 24 - 48 6,750 11,250 18,000 - 21,600 6.33 36,000 10.55 41,400 12.13 1,981 2,830 3,962 3.7 9.7 12 12 24 - 48 9,000 9,000 18,000 - 21,600 6.33 36,000 10.55 41,400 12.13 1,981 2,830 3,962 3.7 9.7 12 18 18 - 48 9,000 13,500 13,500 - 21,600 6.33 36,000 10.55 41,400 12.13 1,981 2,830 3,962 3.7 9.7 15 15 18 - 48 11,250 11,250 13,500 - 21,600 6.33 36,000 10.55 41,400 12.13 1,981 2,830 3,962 3.7 9.7

7 7 7 7 28 7,700 7,700 7,700 7,700 18,480 5.42 30,800 9.03 36,960 10.83 1,827 2,610 3,654 3.5 9.0 7 7 7 9 30 7,700 7,700 7,700 9,900 19,800 5.80 33,000 9.67 39,600 11.61 1,883 2,690 3,766 3.6 9.3 7 7 9 9 32 7,700 7,700 9,900 9,900 21,120 6.19 35,200 10.32 41,600 12.19 1,918 2,740 3,836 3.8 9.8 7 7 7 12 33 7,636 7,636 7,636 13,091 21,600 6.33 36,000 10.55 41,600 12.19 1,918 2,740 3,836 3.9 10.0 7 9 9 9 34 7,412 9,529 9,529 9,529 21,600 6.33 36,000 10.55 41,600 12.19 1,918 2,740 3,836 7 7 9 12 35 7,200 7,200 9,257 12,343 21,600 6.33 36,000 10.55 41,600 12.19 1,918 2,740 3,836 3.9 10.0 7 7 7 15 36 7,000 7,000 7,000 15,000 21,600 6.33 36,000 10.55 41,600 12.19 1,918 2,740 3,836 3.9 10.0 9 9 9 9 36 9,000 9,000 9,000 9,000 21,600 6.33 36,000 10.55 41,600 12.19 1,918 2,740 3,836 3.9 10.0 7 9 9 12 37 6,811 8,757 8,757 11,676 21,600 6.33 36,000 10.55 41,600 12.19 1,918 2,740 3,836 3.9 10.0 7 7 9 15 38 6,632 6,632 8,526 14,211 21,600 6.33 36,000 10.55 41,600 12.19 1,918 2,740 3,836 3.9 10.0 7 7 12 12 38 6,632 6,632 11,368 11,368 21,600 6.33 36,000 10.55 41,600 12.19 1,918 2,740 3,836 3.9 10.0 7 7 7 18 39 6,462 6,462 6,462 16,615 21,600 6.33 36,000 10.55 41,600 12.19 1,918 2,740 3,836 3.9 10.0 9 9 9 12 39 8,308 8,308 8,308 11,077 21,600 6.33 36,000 10.55 41,600 12.19 1,918 2,740 3,836 3.9 10.0 7 9 9 15 40 6,300 8,100 8,100 13,500 21,600 6.33 36,000 10.55 41,600 12.19 1,918 2,740 3,836 3.9 10.0 7 9 12 12 40 6,300 8,100 10,800 10,800 21,600 6.33 36,000 10.55 41,600 12.19 1,918 2,740 3,836 3.9 10.0 7 7 9 18 41 6,146 6,146 7,902 15,805 21,600 6.33 36,000 10.55 41,600 12.19 1,918 2,740 3,836 3.9 10.0 7 7 12 15 41 6,146 6,146 10,537 13,171 21,600 6.33 36,000 10.55 41,600 12.19 1,918 2,740 3,836 3.9 10.0

Four

9 9 9 15 42 7,714 7,714 7,714 12,857 21,600 6.33 36,000 10.55 41,600 12.19 1,918 2,740 3,836 3.9 10.0 9 9 12 12 42 7,714 7,714 10,286 10,286 21,600 6.33 36,000 10.55 41,600 12.19 1,918 2,740 3,836 3.9 10.0

Units

7 9 9 18 43 5,860 7,535 7,535 15,070 21,600 6.33 36,000 10.55 41,600 12.19 1,918 2,740 3,836 3.9 10.0 7 9 12 15 43 5,860 7,535 10,047 12,558 21,600 6.33 36,000 10.55 41,600 12.19 1,918 2,740 3,836 3.9 10.0 7 12 12 12 43 5,860 10,047 10,047 10,047 21,600 6.33 36,000 10.55 41,600 12.19 1,918 2,740 3,836 3.9 10.0 7 7 12 18 44 5,727 5,727 9,818 14,727 21,600 6.33 36,000 10.55 41,600 12.19 1,918 2,740 3,836 3.9 10.0 7 7 15 15 44 5,727 5,727 12,273 12,273 21,600 6.33 36,000 10.55 41,600 12.19 1,918 2,740 3,836 3.9 10.0 7 7 7 24 45 5,600 5,600 5,600 19,200 21,600 6.33 36,000 10.55 41,600 12.19 1,918 2,740 3,836 9 9 9 18 45 7,200 7,200 7,200 14,400 21,600 6.33 36,000 10.55 41,600 12.19 1,918 2,740 3,836 3.9 10.0 9 9 12 15 45 7,200 7,200 9,600 12,000 21,600 6.33 36,000 10.55 41,600 12.19 1,918 2,740 3,836 3.9 10.0 9 12 12 12 45 7,200 9,600 9,600 9,600 21,600 6.33 36,000 10.55 41,600 12.19 1,918 2,740 3,836 3.9 10.0 7 9 12 18 46 5,478 7,043 9,391 14,087 21,600 6.33 36,000 10.55 41,600 12.19 1,918 2,740 3,836 3.9 10.0 7 9 15 15 46 5,478 7,043 11,739 11,739 21,600 6.33 36,000 10.55 41,600 12.19 1,918 2,740 3,836 3.9 10.0 7 12 12 15 46 5,478 9,391 9,391 11,739 21,600 6.33 36,000 10.55 41,600 12.19 1,918 2,740 3,836 3.9 10.0 7 7 9 24 47 5,362 5,362 6,894 18,383 21,600 6.33 36,000 10.55 41,600 12.19 1,918 2,740 3,836 3.9 10.0 7 7 15 18 47 5,362 5,362 11,489 13,787 21,600 6.33 36,000 10.55 41,600 12.19 1,918 2,740 3,836 3.9 10.0 9 9 12 18 48 6,750 6,750 9,000 13,500 21,600 6.33 36,000 10.55 41,600 12.19 1,918 2,740 3,836 3.9 10.0 9 9 15 15 48 6,750 6,750 11,250 11,250 21,600 6.33 36,000 10.55 41,600 12.19 1,918 2,740 3,836 3.9 10.0

12 12 12 12 48 9,000 9,000 9,000 9,000 21,600 6.33 36,000 10.55 41,600 12.19 1,918 2,740 3,836 3.9 10.0

Total Capacity Input (W)

Min. Rated Max.

COP HSPF

3.9 10.0

1. Capacity as rated: 0 ft. above sea level with 25 ft. of refrigerant piping. 0 ft. level difference between outdoor and indoor units.

2. Heating capacity rating obtained with air entering the indoor unit at 70°F dry bulb (DB) and 60°Fwetbulb (WB), and outdoor ambient conditions of 47°F dry bulb (DB) and 43°F wet bulb (WB).

LG Air Conditioning Systems

3. Wiring cable size must comply with the applicable local and national codes.

4. The specification may be subject to change without prior notice for purpose of improvement.

5. At least two indoor units should be connected.

COMBINATION TABLES

• COMBINATION

TABLES

LMU36CHV

Table 20: LMU36CHV with Ducted Indoor Units — Rated Heating Combination Table.

Heating Capacity

Indoor Unit Combination

No. of Indoor

IDU 1IDU 2IDU 3IDU

Units

(kBtu/h)

Total

Room Capacity (Btu/h)

Unit 1 Unit 2 Unit 3 Unit 4

Minimum Rated Maximum

Btu/h kW Btu/h kW Btu/h kW

Ducted Indoor Units

9 9 - - 18 9,350 9,350 - - 11,220 3.3 18,700 5.5 20,570 6.0 1,426 2,037 2,852 2.7 7.4 9 12 - - 21 9,350 12,467 - - 13,090 3.8 21,817 6.4 23,998 7.0 1,607 2,295 3,213 2.8 7.7

12 12 - - 24 12,467 12,467 - - 14,960 4.4 24,933 7.3 27,427 8.0 1,759 2,512 3,517 2.9 8.0

Two

9 18 - - 27 9,350 18,700 - - 16,830 4.9 28,050 8.2 30,855 9.0 1,932 2,761 3,865 3.0 8.2

12 18 - - 30 12,467 18,700 - - 18,700 5.5 31,167 9.1 34,283 10.0 2,084 2,978 4,169 3.1 8.5

Units

9 24* - - 33 9,273 24,727 - - 20,400 6.0 34,000 10.0 37,400 11.0 2,179 3,112 4,357 3.2 8.8 18 18 - - 36 17,000 17,000 - - 20,400 6.0 34,000 10.0 37,400 11.0 2,179 3,112 4,357 3.2 8.8 12 24* - - 36 11,333 22,667 - - 20,400 6.0 34,000 10.0 37,400 11.0 2,179 3,112 4,357 3.2 8.8

9 9 9 - 27 9,350 9,350 9,350 - 16,830 4.9 28,050 8.2 32,258 9.5 1,846 2,637 3,691 3.1 8.6

9 9 12 - 30 9,350 9,350 12,467 - 18,700 5.5 31,167 9.1 35,842 10.5 1,961 2,802 3,923 3.3 9.0

9 12 12 - 33 9,273 12,364 12,364 - 20,400 6.0 34,000 10.0 39,100 11.5 2,048 2,926 4,096 3.4 9.4

9 9 18 - 36 8,500 8,500 17,000 - 20,400 6.0 34,000 10.0 39,100 11.5 2,048 2,926 4,096 3.4 9.4

Three

12 12 12 - 36 11,333 11,333 11,333 - 20,400 6.0 34,000 10.0 39,100 11.5 2,048 2,926 4,096 3.4 9.4

Units

9 12 18 - 39 7,846 10,462 15,692 - 20,400 6.0 34,000 10.0 39,100 11.5 2,048 2,926 4,096 3.4 9.4 12 12 18 - 42 9,714 9,714 14,571 - 20,400 6.0 34,000 10.0 39,100 11.5 2,048 2,926 4,096 3.4 9.4

9 18 18 - 45 6,800 13,600 13,600 - 20,400 6.0 34,000 10.0 39,100 11.5 2,048 2,926 4,096 3.4 9.4 12 18 18 - 48 8,500 12,750 12,750 - 20,400 6.0 34,000 10.0 39,100 11.5 2,048 2,926 4,096 3.4 9.4

9 9 9 9 36 8,500 8,500 8,500 8,500 20,400 6.0 34,000 10.0 41,600 12.2 1,983 2,833 3,966 3.5 9.7

9 9 9 12 39 7,846 7,846 7,846 10,462 20,400 6.0 34,000 10.0 41,600 12.2 1,983 2,833 3,966 3.5 9.7

9 9 12 12 42 7,286 7,286 9,714 9,714 20,400 6.0 34,000 10.0 41,600 12.2 1,983 2,833 3,966 3.5 9.7

Four

9 9 9 18 45 6,800 6,800 6,800 13,600 20,400 6.0 34,000 10.0 41,600 12.2 1,983 2,833 3,966 3.5 9.7

Units

9 12 12 12 45 6,800 9,067 9,067 9,067 20,400 6.0 34,000 10.0 41,600 12.2 1,983 2,833 3,966 3.5 9.7

9 9 12 18 48 6,375 6,375 8,500 12,750 20,400 6.0 34,000 10.0 41,600 12.2 1,983 2,833 3,966 3.5 9.7 12 12 12 12 48 8,500 8,500 8,500 8,500 20,400 6.0 34,000 10.0 41,600 12.2 1,983 2,833 3,966 3.5 9.7

Total Capacity Input (W)

Min. Rated Max.

MULTI ZONE

COP HSPF

1. Capacity as rated: 0 ft. above sea level with 25 ft. of refrigerant piping. 0 ft. level difference between outdoor and indoor units.

2. Heating capacity rating obtained with air entering the indoor unit at 70°F dry bulb (DB) and 60°F wet bulb (WB), and outdoor ambient conditions of 47°F dry bulb (DB) and 43°F wet bulb (WB)

3. Wiring cable size must comply with the applicable local and national codes.

4. The specification may be subject to change without prior notice for purpose of improvement.

5. At least two indoor units should be connected. *A 1.3 multiplier is necessary for the calculation of total combination.

COMBINATION TABLES

LMU36CHV

Table 21: LMU36CHV with Mixed Indoor Units — Rated Heating Combination Table.

Heating Capacity

Indoor Unit Combination

No. of

Indoor

Units

(kBtu/h)

IDU 1IDU 2IDU 3IDU

Total

Mixed Indoor Units

7 9 - - 16 7,486 9,625 - - 10,267 3.0 17,111 5.0 18,822 5.5 1,267 1,810 2,534 2.8 7.4 9 9 - - 18 9,625 9,625 - - 11,550 3.4 19,250 5.6 21,175 6.2 1,402 2,003 2,805 2.8 7.5 7 12 - - 19 7,486 12,833 - - 12,192 3.6 20,319 6.0 22,351 6.6 1,459 2,085 2,919 2.9 7.6 9 12 - - 21 9,625 12,833 - - 13,475 3.9 22,458 6.6 24,704 7.2 1,580 2,258 3,161 2.9 7.8 9 15 - - 24 9,625 16,042 - - 15,400 4.5 25,667 7.5 28,233 8.3 1,730 2,471 3,460 3.0 8.1

12 12 - - 24 12,833 12,833 - - 15,400 4.5 25,667 7.5 28,233 8.3 1,730 2,471 3,460 3.0 8.1

7 18 - - 25 7,486 19,250 - - 16,042 4.7 26,736 7.8 29,410 8.6 1,787 2,553 3,574 3.1 8.2 9 18 - - 27 9,625 19,250 - - 17,325 5.1 28,875 8.5 31,763 9.3 1,901 2,715 3,801 3.1 8.3

Two

12 15 - - 27 12,833 16,042 - - 17,325 5.1 28,875 8.5 31,763 9.3 1,901 2,715 3,801 3.1 8.3 12 18 - - 30 12,833 19,250 - - 19,250 5.6 32,083 9.4 35,292 10.3 2,050 2,929 4,100 3.2 8.6

Units

7 24 - - 31 7,486 25,667 - - 19,892 5.8 33,153 9.7 36,468 10.7 2,093 2,990 4,186 3.2 8.7

9 24 - - 33 9,545 25,455 - - 21,000 6.2 35,000 10.3 38,500 11.3 2,143 3,061 4,286 3.4 9.0 15 18 - - 33 15,909 19,091 - - 21,000 6.2 35,000 10.3 38,500 11.3 2,143 3,061 4,286 3.4 9.0 18 18 - - 36 17,500 17,500 - - 21,000 6.2 35,000 10.3 38,500 11.3 2,143 3,061 4,286 3.4 9.0 12 24 - - 36 11,667 23,333 - - 21,000 6.2 35,000 10.3 38,500 11.3 2,143 3,061 4,286 3.4 9.0 15 24 - - 39 13,462 21,538 - - 21,000 6.2 35,000 10.3 38,500 11.3 2,143 3,061 4,286 3.4 9.0 18 24* - - 42 15,000 20,000 - - 21,000 6.2 35,000 10.3 38,500 11.3 2,143 3,061 4,286 3.4 9.0 24 24* - - 48 17,500 17,500 - - 21,000 6.2 35,000 10.3 38,500 11.3 2,143 3,061 4,286 3.4 9.0

7 7 9 - 23 7,486 7,486 9,625 - 14,758 4.3 24,597 7.2 28,287 8.3 1,644 2,349 3,289 3.1 8.2

7 9 9 - 25 7,486 9,625 9,625 - 16,042 4.7 26,736 7.8 30,747 9.0 1,758 2,512 3,517 3.1 8.3

7 7 12 - 26 7,486 7,486 12,833 - 16,683 4.9 27,806 8.1 31,976 9.4 1,787 2,553 3,574 3.2 8.5

9 9 9 - 27 9,625 9,625 9,625 - 17,325 5.1 28,875 8.5 33,206 9.7 1,815 2,593 3,631 3.3 8.7

7 9 12 - 28 7,486 9,625 12,833 - 17,967 5.3 29,944 8.8 34,436 10.1 1,851 2,644 3,702 3.3 8.9

9 9 12 - 30 9,625 9,625 12,833 - 19,250 5.6 32,083 9.4 36,896 10.8 1,929 2,756 3,858 3.4 9.1

7 9 15 - 31 7,486 9,625 16,042 - 19,892 5.8 33,153 9.7 38,126 11.2 1,972 2,817 3,944 3.4 9.2

7 12 12 - 31 7,486 12,833 12,833 - 19,892 5.8 33,153 9.7 38,126 11.2 1,972 2,817 3,944 3.4 9.2

7 7 18 - 32 7,486 7,486 19,250 - 20,533 6.0 34,222 10.0 39,356 11.5 2,015 2,878 4,029 3.5 9.3

9 9 15 - 33 9,545 9,545 15,909 - 21,000 6.2 35,000 10.3 40,250 11.8 2,015 2,878 4,029 3.6 9.5

9 12 12 - 33 9,545 12,727 12,727 - 21,000 6.2 35,000 10.3 40,250 11.8 2,015 2,878 4,029 3.6 9.5

7 9 18 - 34 7,206 9,265 18,529 - 21,000 6.2 35,000 10.3 40,250 11.8 2,015 2,878 4,029 3.6 9.5

7 12 15 - 34 7,206 12,353 15,441 - 21,000 6.2 35,000 10.3 40,250 11.8 2,015 2,878 4,029 3.6 9.5

9 9 18 - 36 8,750 8,750 17,500 - 21,000 6.2 35,000 10.3 40,250 11.8 2,015 2,878 4,029 3.6 9.5

Three

9 12 15 - 36 8,750 11,667 14,583 - 21,000 6.2 35,000 10.3 40,250 11.8 2,015 2,878 4,029 3.6 9.5 12 12 12 - 36 11,667 11,667 11,667 - 21,000 6.2 35,000 10.3 40,250 11.8 2,015 2,878 4,029 3.6 9.5

Units

7 12 18 - 37 6,622 11,351 17,027 - 21,000 6.2 35,000 10.3 40,250 11.8 2,015 2,878 4,029 3.6 9.5

7 7 24 - 38 6,447 6,447 22,105 - 21,000 6.2 35,000 10.3 40,250 11.8 2,015 2,878 4,029 3.6 9.5

9 12 18 - 39 8,077 10,769 16,154 - 21,000 6.2 35,000 10.3 40,250 11.8 2,015 2,878 4,029 3.6 9.5

9 15 15 - 39 8,077 13,462 13,462 - 21,000 6.2 35,000 10.3 40,250 11.8 2,015 2,878 4,029 12 12 15 - 39 10,769 10,769 13,462 - 21,000 6.2 35,000 10.3 40,250 11.8 2,015 2,878 4,029 3.6 9.5

7 9 24 - 40 6,125 7,875 21,000 - 21,000 6.2 35,000 10.3 40,250 11.8 2,015 2,878 4,029 3.6 9.5

7 15 18 - 40 6,125 13,125 15,750 - 21,000 6.2 35,000 10.3 40,250 11.8 2,015 2,878 4,029 3.6 9.5

9 9 24* - 42 7,500 7,500 20,000 - 21,000 6.2 35,000 10.3 40,250 11.8 2,015 2,878 4,029 3.6 9.5

9 15 18 - 42 7,500 12,500 15,000 - 21,000 6.2 35,000 10.3 40,250 11.8 2,015 2,878 4,029 3.6 9.5 12 12 18 - 42 10,000 10,000 15,000 - 21,000 6.2 35,000 10.3 40,250 11.8 2,015 2,878 4,029 3.6 9.5 12 15 15 - 42 10,000 12,500 12,500 - 21,000 6.2 35,000 10.3 40,250 11.8 2,015 2,878 4,029 3.6 9.5

7 12 24* - 43 5,698 9,767 19,535 - 21,000 6.2 35,000 10.3 40,250 11.8 2,015 2,878 4,029 3.6 9.5

7 18 18 - 43 5,698 14,651 14,651 - 21,000 6.2 35,000 10.3 40,250 11.8 2,015 2,878 4,029 3.6 9.5

9 12 24* - 45 7,000 9,333 18,667 - 21,000 6.2 35,000 10.3 40,250 11.8 2,015 2,878 4,029 3.6 9.5

Room Capacity (Btu/h)

Unit 1 Unit 2 Unit 3 Unit 4

Total Capacity Input (W)

Minimum Rated Maximum

Btu/h kW Btu/h kW Btu/h kW

Min. Rated Max.

COP HSPF

3.6 9.5

1. Capacity as rated: 0 ft. above sea level with 25 ft. of refrigerant piping. 0 ft. level difference between outdoor and indoor units.

2. Heating capacity rating obtained with air entering the indoor unit at 70°F dry bulb (DB) and 60°F wet bulb (WB), and outdoor ambient conditions of 47°F dry bulb (DB) and 43°F wet bulb (WB).

3. Wiring cable size must comply with the applicable local and national codes.

LG Air Conditioning Systems

4. The specification may be subject to change without prior notice for purpose of improvement.

5. At least two indoor units should be connected. *The indoor unit must be non-ducted type.

COMBINATION TABLES

• COMBINATION

TABLES

LMU36CHV

Table 22: LMU36CHV with Mixed Indoor Units — Rated Heating Combination Table.

Heating Capacity

Indoor Unit Combination

No. of

Indoor

IDU 1IDU 2IDU 3IDU

Units

(kBtu/h)

Total

Room Capacity (Btu/h)

Unit 1 Unit 2 Unit 3 Unit 4

Minimum Rated Maximum

Btu/h kW Btu/h kW Btu/h kW

Mixed Indoor Units

9 18 18 - 45 7,000 14,000 14,000 - 21,000 6.2 35,000 10.3 40,250 11.8 2,015 2,878 4,029 3.6 9.5

12 15 18 - 45 9,333 11,667 14,000 - 21,000 6.2 35,000 10.3 40,250 11.8 2,015 2,878 4,029 3.6 9.5

7 15 24* - 46 5,326 11,413 18,261 - 21,000 6.2 35,000 10.3 40,250 11.8 2,015 2,878 4,029 3.6 9.5

Three

9 15 24* - 48 6,563 10,938 17,500 - 21,000 6.2 35,000 10.3 40,250 11.8 2,015 2,878 4,029 3.6 9.5

Units

12 12 24* - 48 8,750 8,750 17,500 - 21,000 6.2 35,000 10.3 40,250 11.8 2,015 2,878 4,029 3.6 9.5 12 18 18 - 48 8,750 13,125 13,125 - 21,000 6.2 35,000 10.3 40,250 11.8 2,015 2,878 4,029 3.6 9.5 15 15 18 - 48 10,938 10,938 13,125 - 21,000 6.2 35,000 10.3 40,250 11.8 2,015 2,878 4,029 3.6 9.5

7 7 7 9 30 7,486 7,486 7,486 9,625 19,250 5.6 32,083 9.4 38,500 11.3 1,915 2,736 3,830 3.4 9.2 7 7 9 9 32 7,486 7,486 9,625 9,625 20,533 6.0 34,222 10.0 41,600 12.2 1,951 2,787 3,901 3.6 9.6 7 7 7 12 33 7,424 7,424 7,424 12,727 21,000 6.2 35,000 10.3 41,600 12.2 1,951 2,787 3,901 3.7 9.9 7 9 9 9 34 7,206 9,265 9,265 9,265 21,000 6.2 35,000 10.3 41,600 12.2 1,951 2,787 3,901 3.7 9.9 7 7 9 12 35 7,000 7,000 9,000 12,000 21,000 6.2 35,000 10.3 41,600 12.2 1,951 2,787 3,901 3.7 9.9 9 9 9 9 36 8,750 8,750 8,750 8,750 21,000 6.2 35,000 10.3 41,600 12.2 1,951 2,787 3,901 3.7 9.9 7 9 9 12 37 6,622 8,514 8,514 11,351 21,000 6.2 35,000 10.3 41,600 12.2 1,951 2,787 3,901 3.7 9.9 7 7 9 15 38 6,447 6,447 8,289 13,816 21,000 6.2 35,000 10.3 41,600 12.2 1,951 2,787 3,901 3.7 9.9 7 7 12 12 38 6,447 6,447 11,053 11,053 21,000 6.2 35,000 10.3 41,600 12.2 1,951 2,787 3,901 3.7 9.9 7 7 7 18 39 6,282 6,282 6,282 16,154 21,000 6.2 35,000 10.3 41,600 12.2 1,951 2,787 3,901 3.7 9.9 9 9 9 12 39 8,077 8,077 8,077 10,769 21,000 6.2 35,000 10.3 41,600 12.2 1,951 2,787 3,901 7 9 9 15 40 6,125 7,875 7,875 13,125 21,000 6.2 35,000 10.3 41,600 12.2 1,951 2,787 3,901 3.7 9.9 7 9 12 12 40 6,125 7,875 10,500 10,500 21,000 6.2 35,000 10.3 41,600 12.2 1,951 2,787 3,901 3.7 9.9 7 7 9 18 41 5,976 5,976 7,683 15,366 21,000 6.2 35,000 10.3 41,600 12.2 1,951 2,787 3,901 3.7 9.9 7 7 12 15 41 5,976 5,976 10,244 12,805 21,000 6.2 35,000 10.3 41,600 12.2 1,951 2,787 3,901 3.7 9.9 9 9 9 15 42 7,500 7,500 7,500 12,500 21,000 6.2 35,000 10.3 41,600 12.2 1,951 2,787 3,901 3.7 9.9

Four

9 9 12 12 42 7,500 7,500 10,000 10,000 21,000 6.2 35,000 10.3 41,600 12.2 1,951 2,787 3,901 3.7 9.9

Units

7 9 9 18 43 5,698 7,326 7,326 14,651 21,000 6.2 35,000 10.3 41,600 12.2 1,951 2,787 3,901 3.7 9.9 7 9 12 15 43 5,698 7,326 9,767 12,209 21,000 6.2 35,000 10.3 41,600 12.2 1,951 2,787 3,901 3.7 9.9 7 12 12 12 43 5,698 9,767 9,767 9,767 21,000 6.2 35,000 10.3 41,600 12.2 1,951 2,787 3,901 3.7 9.9 7 7 12 18 44 5,568 5,568 9,545 14,318 21,000 6.2 35,000 10.3 41,600 12.2 1,951 2,787 3,901 3.7 9.9 7 7 7 24* 45 5,444 5,444 5,444 18,667 21,000 6.2 35,000 10.3 41,600 12.2 1,951 2,787 3,901 3.7 9.9 9 9 9 18 45 7,000 7,000 7,000 14,000 21,000 6.2 35,000 10.3 41,600 12.2 1,951 2,787 3,901 3.7 9.9 9 9 12 15 45 7,000 7,000 9,333 11,667 21,000 6.2 35,000 10.3 41,600 12.2 1,951 2,787 3,901 3.7 9.9 9 12 12 12 45 7,000 9,333 9,333 9,333 21,000 6.2 35,000 10.3 41,600 12.2 1,951 2,787 3,901 3.7 9.9 7 9 12 18 46 5,326 6,848 9,130 13,696 21,000 6.2 35,000 10.3 41,600 12.2 1,951 2,787 3,901 3.7 9.9 7 9 15 15 46 5,326 6,848 11,413 11,413 21,000 6.2 35,000 10.3 41,600 12.2 1,951 2,787 3,901 3.7 9.9 7 12 12 15 46 5,326 9,130 9,130 11,413 21,000 6.2 35,000 10.3 41,600 12.2 1,951 2,787 3,901 3.7 9.9 7 7 9 24* 47 5,213 5,213 6,702 17,872 21,000 6.2 35,000 10.3 41,600 12.2 1,951 2,787 3,901 3.7 9.9 7 7 15 18 47 5,213 5,213 11,170 13,404 21,000 6.2 35,000 10.3 41,600 12.2 1,951 2,787 3,901 3.7 9.9 9 9 12 18 48 6,563 6,563 8,750 13,125 21,000 6.2 35,000 10.3 41,600 12.2 1,951 2,787 3,901 9 9 15 15 48 6,563 6,563 10,938 10,938 21,000 6.2 35,000 10.3 41,600 12.2 1,951 2,787 3,901 3.7 9.9

12 12 12 12 48 8,750 8,750 8,750 8,750 21,000 6.2 35,000 10.3 41,600 12.2 1,951 2,787 3,901 3.7 9.9

Total Capacity Input (W)

Min. Rated Max.

MULTI ZONE

COP HSPF

3.7 9.9

1. Capacity as rated: 0 ft. above sea level with 25 ft. of refrigerant piping. 0 ft. level difference between outdoor and indoor units.

2. Heating capacity rating obtained with air entering the indoor unit at 70°F dry bulb (DB) and 60°F wet bulb (WB), and outdoor ambient conditions of 47°F dry bulb (DB) and 43°F wet bulb (WB).

3. Wiring cable size must comply with the applicable local and national codes.

4. The specification may be subject to change without prior notice for purpose of improvement.

5. At least two indoor units should be connected. *The indoor unit must be non-ducted type.

COMBINATION TABLES

LMU480HV

The individual indoor unit capacity can be calculated based on the outdoor unit rated capacity as follows.

Individual Indoor Unit Combination

Capacity (Qidu [Combi])

To calculate the individual IDU capacity based on ODU corrected capacity, replace (Qodu [Rated]) with (Qodu [Corrected]) where (Qodu [Corrected])

Outdoor Unit Rated

Capacity (Qodu [Rated])

Individual Indoor Unit Rated Capacity (Qidu [Rated])

Total Connected Indoor Unit Rated Capacity (∑Qidu [Rated])

is obtained from the capacity tables referencing design conditions.

Table 23: LMU480HV with Non-Ducted Indoor Units — Rated Cooling Combination Table.

Total Indoor Unit

Capacity (kBtu/h)

24 14,400 4.22 24,000 7.03 26,400 7.74 968 1,500 1,800 16.0 21.0 25 15,000 4.40 25,000 7.33 27,500 8.06 1,031 1,598 1,917 15.6 20.9 26 15,600 4.57 26,000 7.62 28,600 8.38 1,094 1,695 2,034 15.3 20.9 27 16,200 4.75 27,000 7.91 29,700 8.70 1,156 1,793 2,151 15.1 20.8 28 16,800 4.92 28,000 8.21 30,800 9.03 1,219 1,890 2,268 14.8 20.8 29 17,400 5.10 29,000 8.50 31,900 9.35 1,282 1,988 2,385 14.6 20.7 30 18,000 5.28 30,000 8.79 33,000 9.67 1,345 2,085 2,502 14.4 20.6 31 18,600 5.45 31,000 9.09 34,100 9.99 1,408 2,183 2,619 14.2 20.6 32 19,200 5.63 32,000 9.38 35,200 10.32 1,471 2,280 2,736 14.0 20.5 33 19,800 5.80 33,000 9.67 36,300 10.64 1,534 2,378 2,853 13.9 20.4 34 20,400 5.98 34,000 9.96 37,400 10.96 1,597 2,475 2,970 13.7 20.4 35 21,000 6.15 35,000 10.26 38,500 11.28 1,660 2,573 3,087 13.6 20.3 36 21,600 6.33 36,000 10.55 39,600 11.61 1,723 2,670 3,204 13.5 20.3 37 22,200 6.51 37,000 10.84 40,700 11.93 1,785 2,768 3,321 13.4 20.2 38 22,800 6.68 38,000 11.14 41,800 12.25 1,848 2,865 3,438 13.3 20.1 39 23,400 6.86 39,000 11.43 42,900 12.57 1,911 2,963 3,555 13.2 20.1 40 24,000 7.03 40,000 11.72 44,000 12.90 1,974 3,060 3,672 13.1 20.0 41 24,600 7.21 41,000 12.02 45,100 13.22 2,037 3,158 3,789 13.0 19.9 42 25,200 7.39 42,000 12.31 46,200 13.54 2,100 3,255 3,906 12.9 19.9 43 25,800 7.56 43,000 12.60 47,300 13.86 2,163 3,353 4,023 12.8 19.8 44 26,400 7.74 44,000 12.90 48,400 14.19 2,226 3,450 4,140 12.8 19.8 45 27,000 7.91 45,000 13.19 49,500 14.51 2,289 3,548 4,257 12.7 19.7 46 27,600 8.09 46,000 13.48 50,600 14.83 2,352 3,645 4,374 12.6 19.6 47 28,200 8.26 47,000 13.77 51,700 15.15 2,415 3,743 4,491 12.6 19.6 48 28,800 8.44 48,000 14.07 52,800 15.47 2,477 3,840 4,608 12.5 19.5 49 28,967 8.49 48,278 14.15 53,106 15.56 2,512 3,894 4,673 12.4 19.3 50 29,134 8.54 48,556 14.23 53,412 15.65 2,547 3,948 4,738 12.3 19.2 51 29,301 8.59 48,834 14.31 53,718 15.74 2,582 4,002 4,803 12.2 19.0 52 29,467 8.64 49,112 14.39 54,024 15.83 2,617 4,056 4,868 12.1 18.9 53 29,634 8.69 49,390 14.48 54,329 15.92 2,652 4,111 4,933 12.0 18.7 54 29,801 8.73 49,668 14.56 54,635 16.01 2,687 4,165 4,998 11.9 18.6 55 29,968 8.78 49,947 14.64 54,941 16.10 2,722 4,219 5,063 56 30,135 8.83 50,225 14.72 55,247 16.19 2,757 4,273 5,128 11.8 18.3 57 30,302 8.88 50,503 14.80 55,553 16.28 2,792 4,327 5,192 11.7 18.2 58 30,468 8.93 50,781 14.88 55,859 16.37 2,827 4,381 5,257 11.6 18.1 59 30,635 8.98 51,059 14.96 56,165 16.46 2,861 4,435 5,322 11.5 18.0 60 30,802 9.03 51,337 15.05 56,471 16.55 2,896 4,489 5,387 11.4 17.8 61 30,969 9.08 51,615 15.13 56,776 16.64 2,931 4,544 5,452 11.4 17.7 62 31,136 9.13 51,893 15.21 57,082 16.73 2,966 4,598 5,517 11.3 17.6 63 31,303 9.17 52,171 15.29 57,388 16.82 3,001 4,652 5,582 11.2 17.5 64 31,470 9.22 52,449 15.37 57,694 16.91 3,036 4,706 5,647 11.1 17.4 65 31,636 9.27 52,727 15.45 58,000 17.00 3,071 4,760 5,712 11.1 17.3

Minimum Rated Maximum

Btu/h kW Btu/h kW Btu/h kW Minimum Rated Maximum

Cooling Capacity

Input (W)

EER SEER

11.8 18.5

1. Capacity as rated: 0 ft. above sea level with piping length as main pipe (16.4 ft.) + branch pipe (98.4 ft.) = 115 ft. 0 ft. level difference between outdoor and indoor units.

2. Cooling capacity rating obtained with air entering the indoor unit at 80°F dry bulb (DB) and 67°F wet bulb (WB), and outdoor ambient conditions of 95°F dry bulb (DB) and 75°F wet bulb (WB).

LG Air Conditioning Systems

3. Wiring cable size must comply with the applicable local and national codes.

4. The specification may be subject to change without prior notice for purpose of improvement.

5. Sum of connected indoor units’ capacity is 24~65 kBtu/h.

6. At least two indoor units should be connected.

COMBINATION TABLES

• COMBINATION

TABLES

LMU480HV

Table 24: LMU480HV with Ducted Indoor Units — Rated Cooling Combination Table.

MULTI ZONE

Total Indoor Unit

Capacity (kBtu/h)

24 13,200 3.87 22,000 6.45 24,200 7.09 935 1,450 1,740 15.2 20.0 25 13,750 4.03 22,917 6.72 25,208 7.39 1,006 1,559 1,871 14.7 19.9 26 14,300 4.19 23,833 6.99 26,217 7.68 1,077 1,669 2,002 14.3 19.8 27 14,850 4.35 24,750 7.25 27,225 7.98 1,147 1,778 2,134 13.9 19.7 28 15,400 4.51 25,667 7.52 28,233 8.27 1,218 1,887 2,265 13.6 19.6 29 15,950 4.67 26,583 7.79 29,242 8.57 1,288 1,997 2,396 13.3 19.5 30 16,500 4.84 27,500 8.06 30,250 8.87 1,359 2,106 2,527 13.1 19.4 31 17,050 5.00 28,417 8.33 31,258 9.16 1,429 2,215 2,658 12.8 19.3 32 17,600 5.16 29,333 8.60 32,267 9.46 1,500 2,325 2,790 12.6 19.2 33 18,150 5.32 30,250 8.87 33,275 9.75 1,570 2,434 2,921 12.4 19.1 34 18,700 5.48 31,167 9.13 34,283 10.05 1,641 2,543 3,052 12.3 19.0

35 19,250 5.64 32,083 9.40 35,292 10.34 1,711 2,653 3,183 12.1 18.9 36 19,800 5.80 33,000 9.67 36,300 10.64 1,782 2,762 3,314 11.9 18.8 37 20,350 5.96 33,917 9.94 37,308 10.93 1,852 2,871 3,446 11.8 18.6 38 20,900 6.13 34,833 10.21 38,317 11.23 1,923 2,981 3,577 11.7 18.5 39 21,450 6.29 35,750 10.48 39,325 11.53 1,994 3,090 3,708 11.6 18.4 40 22,000 6.45 36,667 10.75 40,333 11.82 2,064 3,199 3,839 11.5 18.3 41 22,550 6.61 37,583 11.02 41,342 12.12 2,135 3,309 3,970 11.4 18.2 42 23,100 6.77 38,500 11.28 42,350 12.41 2,205 3,418 4,102 11.3 18.1 43 23,650 6.93 39,417 11.55 43,358 12.71 2,276 3,527 4,233 11.2 18.0 44 24,200 7.09 40,333 11.82 44,367 13.00 2,346 3,637 4,364 11.1 17.9 45 24,750 7.25 41,250 12.09 45,375 13.30 2,417 3,746 4,495 11.0 17.8 46 25,300 7.42 42,167 12.36 46,383 13.59 2,487 3,855 4,626 10.9 17.7 47 25,850 7.58 43,083 12.63 47,392 13.89 2,558 3,965 4,758 10.9 17.6 48 26,400 7.74 44,000 12.90 48,400 14.19 2,628 4,074 4,889 10.8 17.5 49 26,553 7.78 44,255 12.97 48,680 14.27 2,665 4,131 4,958 10.7 17.4 50 26,706 7.83 44,510 13.05 48,961 14.35 2,702 4,189 5,027 10.6 17.2 51 26,859 7.87 44,765 13.12 49,241 14.43 2,740 4,246 5,095 10.5 17.1 52 27,012 7.92 45,020 13.19 49,522 14.51 2,777 4,304 5,164 10.5 17.0 53 27,165 7.96 45,275 13.27 49,802 14.60 2,814 4,361 5,233 10.4 16.8 54 27,318 8.01 45,529 13.34 50,082 14.68 2,851 4,418 5,302 10.3 16.7

55 27,471 8.05 45,784 13.42 50,363 14.76 2,888 4,476 5,371 56 27,624 8.10 46,039 13.49 50,643 14.84 2,925 4,533 5,440 10.2 16.5 57 27,776 8.14 46,294 13.57 50,924 14.92 2,962 4,591 5,509 10.1 16.3 58 27,929 8.19 46,549 13.64 51,204 15.01 2,999 4,648 5,578 10.0 16.2 59 28,082 8.23 46,804 13.72 51,484 15.09 3,036 4,706 5,647 9.9 16.1 60 28,235 8.28 47,059 13.79 51,765 15.17 3,073 4,763 5,716 9.9 16.0 61 28,388 8.32 47,314 13.87 52,045 15.25 3,110 4,820 5,784 9.8 15.9 62 28,541 8.36 47,569 13.94 52,325 15.34 3,147 4,878 5,853 9.8 15.8 63 28,694 8.41 47,824 14.02 52,606 15.42 3,184 4,935 5,922 9.7 15.7 64 28,847 8.45 48,078 14.09 52,886 15.50 3,221 4,993 5,991 9.6 15.6 65 29,000 8.50 48,333 14.17 53,167 15.58 3,258 5,050 6,060 9.6 15.5

Minimum Rated Maximum Input (W)

Btu/h kW Btu/h kW Btu/h kW Minimum Rated Maximum

Cooling Capacity

EER SEER

10.2 16.6

1. Capacity as rated: 0 ft. above sea level with piping length as main pipe (16.4 ft.) + branch pipe (98.4 ft.) = 115 ft. 0 ft. level difference between outdoor and indoor units.

2. Cooling capacity rating obtained with air entering the indoor unit at 80°F dry bulb (DB) and 67°F wet bulb (WB), and outdoor ambient conditions of 95°F dry bulb (DB) and 75°F wet bulb (WB).

3. Wiring cable size must comply with the applicable local and national codes.

4. The specification may be subject to change without prior notice for purpose of improvement.

5. Sum of connected indoor units’ capacity is 24~65 kBtu/h.

6. At least two indoor units should be connected.

COMBINATION TABLES

LMU480HV

Table 25: LMU480HV with Mixed Indoor Units — Rated Cooling Combination Table.

Total Indoor Unit

Capacity (kBtu/h)

24 13,800 4.04 23,000 6.74 25,300 7.42 952 1,475 1,770 15.6 20.5 25 14,375 4.21 23,958 7.02 26,354 7.72 1,018 1,578 1,894 15.2 20.4 26 14,950 4.38 24,917 7.30 27,408 8.03 1,085 1,682 2,018 14.8 20.3 27 15,525 4.55 25,875 7.58 28,463 8.34 1,152 1,785 2,142 14.5 20.3 28 16,100 4.72 26,833 7.86 29,517 8.65 1,218 1,889 2,266 14.2 20.2 29 16,675 4.89 27,792 8.15 30,571 8.96 1,285 1,992 2,391 14.0 20.1 30 17,250 5.06 28,750 8.43 31,625 9.27 1,352 2,096 2,515 13.7 20.0 31 17,825 5.22 29,708 8.71 32,679 9.58 1,419 2,199 2,639 13.5 19.9 32 18,400 5.39 30,667 8.99 33,733 9.89 1,485 2,302 2,763 13.3 19.8 33 18,975 5.56 31,625 9.27 34,788 10.20 1,552 2,406 2,887 13.1 19.8 34 19,550 5.73 32,583 9.55 35,842 10.50 1,619 2,509 3,011 13.0 19.7 35 20,125 5.90 33,542 9.83 36,896 10.81 1,686 2,613 3,135 12.8 19.6 36 20,700 6.07 34,500 10.11 37,950 11.12 1,752 2,716 3,259 12.7 19.5 37 21,275 6.24 35,458 10.39 39,004 11.43 1,819 2,819 3,383 12.6 19.4 38 21,850 6.40 36,417 10.67 40,058 11.74 1,886 2,923 3,507 12.5 19.3 39 22,425 6.57 37,375 10.95 41,113 12.05 1,952 3,026 3,632 12.4 19.3 40 23,000 6.74 38,333 11.23 42,167 12.36 2,019 3,130 3,756 12.2 19.2 41 23,575 6.91 39,292 11.52 43,221 12.67 2,086 3,233 3,880 12.2 19.1 42 24,150 7.08 40,250 11.80 44,275 12.98 2,153 3,337 4,004 12.1 19.0 43 24,725 7.25 41,208 12.08 45,329 13.29 2,219 3,440 4,128 12.0 18.9 44 25,300 7.42 42,167 12.36 46,383 13.59 2,286 3,543 4,252 11.9 18.8 45 25,875 7.58 43,125 12.64 47,438 13.90 2,353 3,647 4,376 11.8 18.8 46 26,450 7.75 44,083 12.92 48,492 14.21 2,419 3,750 4,500 11.8 18.7 47 27,025 7.92 45,042 13.20 49,546 14.52 2,486 3,854 4,624 11.7 18.6 48 27,600 8.09 46,000 13.48 50,600 14.83 2,553 3,957 4,748 11.6 18.5

49 27,760 8.14 46,266 13.56 50,893 14.92 2,589 4,013 4,815 11.5 18.3 50 27,920 8.18 46,533 13.64 51,186 15.00 2,625 4,069 4,882 11.4 18.2 51 28,080 8.23 46,799 13.72 51,479 15.09 2,661 4,124 4,949 11.3 18.1 52 28,240 8.28 47,066 13.79 51,773 15.17 2,697 4,180 5,016 11.3 17.9 53 28,399 8.32 47,332 13.87 52,066 15.26 2,733 4,236 5,083 11.2 17.8 54 28,559 8.37 47,599 13.95 52,359 15.35 2,769 4,292 5,150 11.1 17.7

55 28,719 8.42 47,865 14.03 52,652 15.43 2,805 4,347 5,217 56 28,879 8.46 48,132 14.11 52,945 15.52 2,841 4,403 5,284 10.9 17.4 57 29,039 8.51 48,398 14.18 53,238 15.60 2,877 4,459 5,351 10.9 17.3 58 29,199 8.56 48,665 14.26 53,531 15.69 2,913 4,515 5,418 10.8 17.2 59 29,359 8.60 48,931 14.34 53,825 15.78 2,949 4,570 5,485 10.7 17.0 60 29,519 8.65 49,198 14.42 54,118 15.86 2,985 4,626 5,551 10.6 16.9 61 29,679 8.70 49,464 14.50 54,411 15.95 3,021 4,682 5,618 10.6 16.8 62 29,839 8.75 49,731 14.58 54,704 16.03 3,057 4,738 5,685 10.5 16.7 63 29,998 8.79 49,997 14.65 54,997 16.12 3,093 4,793 5,752 10.4 16.6 64 30,158 8.84 50,264 14.73 55,290 16.20 3,129 4,849 5,819 10.4 16.5 65 30,318 8.89 50,530 14.81 55,583 16.29 3,165 4,905 5,886 10.3 16.4

Minimum Rated Maximum Input (W)

Btu/h kW Btu/h kW Btu/h kW Minimum Rated Maximum

Cooling Capacity

EER SEER

11.0 17.5

1. Capacity as rated: 0 ft. above sea level with piping length as main pipe (16.4 ft.) + branch pipe (98.4 ft.) = 115 ft. 0 ft. level difference between outdoor and indoor units.

2. Cooling capacity rating obtained with air entering the indoor unit at 80°F dry bulb (DB) and 67°F wet bulb (WB), and outdoor ambient conditions of 95°F dry bulb (DB) and 75°F wet bulb (WB).

3. Wiring cable size must comply with the applicable local and national codes.

LG Air Conditioning Systems

4. The specification may be subject to change without prior notice for purpose of improvement.

5. Sum of connected indoor units’ capacity is 24~65 kBtu/h.

6. At least two indoor units should be connected.

COMBINATION TABLES

• COMBINATION

TABLES

LMU480HV

Table 26: LMU480HV with Non-Ducted Indoor Units — Rated Heating Combination Table.

Heating Capacity

Total Indoor Unit

Capacity (kBtu/h)

24 15,840 4.64 26,400 7.74 27,720 8.12 1,419 2,200 2,640 3.5 11.0 25 16,500 4.84 27,500 8.06 28,875 8.46 1,476 2,288 2,746 3.5 11.0 26 17,160 5.03 28,600 8.38 30,030 8.80 1,533 2,377 2,852 3.5 10.9 27 17,820 5.22 29,700 8.70 31,185 9.14 1,590 2,465 2,958 3.5 10.9 28 18,480 5.42 30,800 9.03 32,340 9.48 1,647 2,553 3,064 3.5 10.8 29 19,140 5.61 31,900 9.35 33,495 9.82 1,704 2,642 3,170 3.5 10.8 30 19,800 5.80 33,000 9.67 34,650 10.16 1,761 2,730 3,276 3.5 10.8 31 20,460 6.00 34,100 9.99 35,805 10.49 1,818 2,818 3,382 3.5 10.7

32 21,120 6.19 35,200 10.32 36,960 10.83 1,875 2,907 3,488 3.5 10.7 33 21,780 6.38 36,300 10.64 38,115 11.17 1,932 2,995 3,594 3.6 10.6 34 22,440 6.58 37,400 10.96 39,270 11.51 1,989 3,083 3,700 3.6 10.6 35 23,100 6.77 38,500 11.28 40,425 11.85 2,046 3,172 3,806 3.6 10.5 36 23,760 6.96 39,600 11.61 41,580 12.19 2,103 3,260 3,912 3.6 10.5 37 24,420 7.16 40,700 11.93 42,735 12.52 2,160 3,348 4,018 3.6 10.5 38 25,080 7.35 41,800 12.25 43,890 12.86 2,217 3,437 4,124 3.6 10.4 39 25,740 7.54 42,900 12.57 45,045 13.20 2,274 3,525 4,230 3.6 10.4 40 26,400 7.74 44,000 12.90 46,200 13.54 2,331 3,613 4,336 3.6 10.3 41 27,060 7.93 45,100 13.22 47,355 13.88 2,388 3,702 4,442 3.6 10.3 42 27,720 8.12 46,200 13.54 48,510 14.22 2,445 3,790 4,548 3.6 10.3 43 28,380 8.32 47,300 13.86 49,665 14.56 2,502 3,878 4,654 3.6 10.2

44 29,040 8.51 48,400 14.19 50,820 14.89 2,559 3,967 4,760 3.6 10.2 45 29,700 8.70 49,500 14.51 51,975 15.23 2,616 4,055 4,866 3.6 10.1 46 30,360 8.90 50,600 14.83 53,130 15.57 2,673 4,143 4,972 3.6 10.1 47 31,020 9.09 51,700 15.15 54,285 15.91 2,730 4,232 5,078 3.6 10.0 48 32,400 9.50 54,000 15.83 56,700 16.62 2,787 4,320 5,184 3.7 10.0 49 32,588 9.55 54,313 15.92 56,953 16.69 2,819 4,369 5,233 3.6 10.0 50 32,775 9.61 54,626 16.01 57,206 16.77 2,850 4,418 5,282 3.6 9.9 51 32,963 9.66 54,939 16.10 57,459 16.84 2,882 4,466 5,332 3.6 9.8 52 33,151 9.72 55,251 16.19 57,712 16.91 2,913 4,515 5,381 3.6 9.8 53 33,339 9.77 55,564 16.28 57,965 16.99 2,945 4,564 5,430 3.6 9.7 54 33,526 9.83 55,877 16.38 58,218 17.06 2,976 4,613 5,479 3.6 9.7 55 33,714 9.88 56,190 16.47 58,471 17.14 3,008 4,662 5,528

56 33,902 9.94 56,503 16.56 58,724 17.21 3,039 4,711 5,577 3.5 9.6 57 34,089 9.99 56,816 16.65 58,976 17.29 3,071 4,759 5,627 3.5 9.6 58 34,277 10.05 57,128 16.74 59,229 17.36 3,102 4,808 5,676 3.5 9.5 59 34,465 10.10 57,441 16.84 59,482 17.43 3,134 4,857 5,725 3.5 9.5 60 34,652 10.16 57,754 16.93 59,735 17.51 3,165 4,906 5,774 3.5 9.4 61 34,840 10.21 58,067 17.02 59,988 17.58 3,197 4,955 5,823 3.4 9.4 62 35,028 10.27 58,380 17.11 60,241 17.66 3,228 5,004 5,872 3.4 9.3 63 35,216 10.32 58,693 17.20 60,494 17.73 3,260 5,052 5,922 3.4 9.3 64 35,403 10.38 59,005 17.29 60,747 17.80 3,291 5,101 5,971 3.4 9.3 65 35,591 10.43 59,318 17.39 61,000 17.88 3,323 5,150 6,020 3.4 9.2

Minimum Rated Maximum Input (W)

Btu/h kW Btu/h kW Btu/h kW Minimum Rated Maximum

MULTI ZONE

COP HSPF

3.5 9.7

1. Capacity as rated: 0 ft. above sea level with piping length as main pipe (16.4 ft.) + branch pipe (98.4 ft.) = 115 ft. 0 ft. level difference between outdoor and indoor units.

2. Heating capacity rating obtained with air entering the indoor unit at 70°F dry bulb (DB) and 60°F wet bulb (WB), and outdoor ambient conditions of 47°F dry bulb (DB) and 43°F wet bulb (WB).

3. Wiring cable size must comply with the applicable local and national codes.

4. The specification may be subject to change without prior notice for purpose of improvement.

5. Sum of connected indoor units’ capacity is 24~65 kBtu/h.

6. At least two indoor units should be connected.

COMBINATION TABLES

LMU480HV

Table 27: LMU480HV with Ducted Indoor Units — Rated Heating Combination Table.

Heating Capacity

Total Indoor Unit

Capacity (kBtu/h)

24 14,667 4.30 24,444 7.16 25,667 7.52 1,379 2,138 2,566 3.4 10.7 25 15,278 4.48 25,463 7.46 26,736 7.84 1,443 2,237 2,684 3.3 10.6 26 15,889 4.66 26,481 7.76 27,806 8.15 1,507 2,335 2,802 3.3 10.6 27 16,500 4.84 27,500 8.06 28,875 8.46 1,570 2,434 2,921 3.3 10.5 28 17,111 5.01 28,519 8.36 29,944 8.78 1,634 2,532 3,039 3.3 10.5 29 17,722 5.19 29,537 8.66 31,014 9.09 1,697 2,631 3,157 3.3 10.5 30 18,333 5.37 30,556 8.96 32,083 9.40 1,761 2,730 3,275 3.3 10.4 31 18,944 5.55 31,574 9.25 33,153 9.72 1,825 2,828 3,394 3.3 10.4 32 19,556 5.73 32,593 9.55 34,222 10.03 1,888 2,927 3,512 3.3 10.3 33 20,167 5.91 33,611 9.85 35,292 10.34 1,952 3,025 3,630 3.3 10.3 34 20,778 6.09 34,630 10.15 36,361 10.66 2,015 3,124 3,749 3.2 10.3 35 21,389 6.27 35,648 10.45 37,431 10.97 2,079 3,222 3,867 3.2 10.2 36 22,000 6.45 36,667 10.75 38,500 11.28 2,143 3,321 3,985 3.2 10.2 37 22,611 6.63 37,685 11.04 39,569 11.60 2,206 3,420 4,104 3.2 10.1 38 23,222 6.81 38,704 11.34 40,639 11.91 2,270 3,518 4,222 3.2 10.1 39 23,833 6.99 39,722 11.64 41,708 12.22 2,333 3,617 4,340 3.2 10.1 40 24,444 7.16 40,741 11.94 42,778 12.54 2,397 3,715 4,458 3.2 10.0 41 25,056 7.34 41,759 12.24 43,847 12.85 2,461 3,814 4,577 3.2 10.0 42 25,667 7.52 42,778 12.54 44,917 13.16 2,524 3,913 4,695 3.2 9.9 43 26,278 7.70 43,796 12.84 45,986 13.48 2,588 4,011 4,813 3.2 9.9 44 26,889 7.88 44,815 13.13 47,056 13.79 2,651 4,110 4,932 3.2 9.9 45 27,500 8.06 45,833 13.43 48,125 14.10 2,715 4,208 5,050 3.2 9.8 46 28,111 8.24 46,852 13.73 49,194 14.42 2,779 4,307 5,168 3.2 9.8 47 28,722 8.42 47,870 14.03 50,264 14.73 2,842 4,405 5,287 3.2 9.7 48 30,000 8.79 50,000 14.65 52,500 15.39 2,906 4,504 5,405 3.3 9.7 49 30,174 8.84 50,290 14.74 52,804 15.48 2,939 4,555 5,450 3.2 9.7 50 30,348 8.89 50,579 14.82 53,108 15.57 2,971 4,606 5,496 3.2 9.7 51 30,521 8.95 50,869 14.91 53,412 15.65 3,004 4,657 5,542 3.2 9.6 52 30,695 9.00 51,159 14.99 53,717 15.74 3,037 4,708 5,587 3.2 9.6 53 30,869 9.05 51,448 15.08 54,021 15.83 3,070 4,759 5,633 3.2 9.5 54 31,043 9.10 51,738 15.16 54,325 15.92 3,103 4,809 5,678 3.2 9.5 55 31,217 9.15 52,028 15.25 54,629 16.01 3,136 4,860 5,724

56 31,390 9.20 52,317 15.33 54,933 16.10 3,169 4,911 5,770 3.1 9.4 57 31,564 9.25 52,607 15.42 55,237 16.19 3,201 4,962 5,815 3.1 9.4 58 31,738 9.30 52,897 15.50 55,541 16.28 3,234 5,013 5,861 3.1 9.3 59 31,912 9.35 53,186 15.59 55,846 16.37 3,267 5,064 5,906 3.1 9.3 60 32,086 9.40 53,476 15.67 56,150 16.46 3,300 5,115 5,952 3.1 9.2 61 32,259 9.45 53,766 15.76 56,454 16.55 3,333 5,166 5,998 3.1 9.2 62 32,433 9.51 54,055 15.84 56,758 16.63 3,366 5,217 6,043 3.0 9.1 63 32,607 9.56 54,345 15.93 57,062 16.72 3,398 5,268 6,089 3.0 9.1 64 32,781 9.61 54,635 16.01 57,366 16.81 3,431 5,318 6,134 3.0 9.1 65 32,955 9.66 54,924 16.10 57,670 16.90 3,464 5,369 6,180 3.0 9.0

Minimum Rated Maximum Input (W)

Btu/h kW Btu/h kW Btu/h kW Minimum Rated Maximum

COP HSPF

3.1 9.5

1. Capacity as rated: 0 ft. above sea level with piping length as main pipe (16.4 ft.) + branch pipe (98.4 ft.) = 115 ft. 0 ft. level difference between outdoor and indoor units.

2. Heating capacity rating obtained with air entering the indoor unit at 70°F dry bulb (DB) and 60°F wet bulb (WB), and outdoor ambient conditions of 47°F dry bulb (DB) and 43°F wet bulb (WB).

LG Air Conditioning Systems

3. Wiring cable size must comply with the applicable local and national codes.

4. The specification may be subject to change without prior notice for purpose of improvement.

5. Sum of connected indoor units’ capacity is 24~65 kBtu/h.

6. At least two indoor units should be connected.

COMBINATION TABLES

• COMBINATION

TABLES

LMU480HV

Table 28: LMU480HV with Mixed Indoor Units — Rated Heating Combination Table.

Heating Capacity

Total Indoor Unit

Capacity (kBtu/h)

24 15,253 4.47 25,422 7.45 26,693 7.82 1,399 2,169 2,603 3.4 10.8 25 15,889 4.66 26,481 7.76 27,806 8.15 1,460 2,262 2,715 3.4 10.8 26 16,524 4.84 27,541 8.07 28,918 8.48 1,520 2,356 2,827 3.4 10.8 27 17,160 5.03 28,600 8.38 30,030 8.80 1,580 2,449 2,939 3.4 10.7 28 17,796 5.22 29,659 8.69 31,142 9.13 1,641 2,543 3,051 3.4 10.7 29 18,431 5.40 30,719 9.00 32,254 9.45 1,701 2,636 3,164 3.4 10.6 30 19,067 5.59 31,778 9.31 33,367 9.78 1,761 2,730 3,276 3.4 10.6 31 19,702 5.77 32,837 9.62 34,479 10.11 1,821 2,823 3,388 3.4 10.5 32 20,338 5.96 33,896 9.93 35,591 10.43 1,882 2,917 3,500 3.4 10.5 33 20,973 6.15 34,956 10.24 36,703 10.76 1,942 3,010 3,612 3.4 10.5 34 21,609 6.33 36,015 10.56 37,816 11.08 2,002 3,104 3,724 3.4 10.4 35 22,244 6.52 37,074 10.87 38,928 11.41 2,063 3,197 3,836 3.4 10.4 36 22,880 6.71 38,133 11.18 40,040 11.74 2,123 3,291 3,949 3.4 10.3 37 23,516 6.89 39,193 11.49 41,152 12.06 2,183 3,384 4,061 3.4 10.3 38 24,151 7.08 40,252 11.80 42,264 12.39 2,243 3,477 4,173 3.4 10.3 39 24,787 7.26 41,311 12.11 43,377 12.71 2,304 3,571 4,285 3.4 10.2 40 25,422 7.45 42,370 12.42 44,489 13.04 2,364 3,664 4,397 3.4 10.2 41 26,058 7.64 43,430 12.73 45,601 13.36 2,424 3,758 4,509 3.4 10.1

42 26,693 7.82 44,489 13.04 46,713 13.69 2,485 3,851 4,622 3.4 10.1

43 27,329 8.01 45,548 13.35 47,826 14.02 2,545 3,945 4,734 3.4 10.1

44 27,964 8.20 46,607 13.66 48,938 14.34 2,605 4,038 4,846 3.4 10.0

45 28,600 8.38 47,667 13.97 50,050 14.67 2,666 4,132 4,958 3.4 10.0

46 29,236 8.57 48,726 14.28 51,162 14.99 2,726 4,225 5,070 3.4 9.9

47 29,871 8.75 49,785 14.59 52,274 15.32 2,786 4,319 5,182 3.4 9.9

48 31,200 9.14 52,000 15.24 54,600 16.00 2,846 4,412 5,294 3.5 9.9

49 31,381 9.20 52,301 15.33 54,879 16.08 2,879 4,462 5,342 3.4 9.9

50 31,561 9.25 52,602 15.42 55,157 16.17 2,911 4,512 5,389 3.4 9.8

51 31,742 9.30 52,904 15.51 55,436 16.25 2,943 4,562 5,437 3.4 9.7

52 31,923 9.36 53,205 15.59 55,714 16.33 2,975 4,611 5,484 3.4 9.7

53 32,104 9.41 53,506 15.68 55,993 16.41 3,007 4,661 5,531 3.4 9.6

54 32,284 9.46 53,807 15.77 56,271 16.49 3,039 4,711 5,579 3.3 9.6

55 32,465 9.52 54,109 15.86 56,550 16.57 3,072 4,761 5,626 56 32,646 9.57 54,410 15.95 56,828 16.66 3,104 4,811 5,674 3.3 9.5 57 32,827 9.62 54,711 16.03 57,107 16.74 3,136 4,861 5,721 3.3 9.5 58 33,007 9.67 55,012 16.12 57,385 16.82 3,168 4,911 5,768 3.3 9.4 59 33,188 9.73 55,314 16.21 57,664 16.90 3,200 4,960 5,816 3.3 9.4 60 33,369 9.78 55,615 16.30 57,943 16.98 3,232 5,010 5,863 3.3 9.3 61 33,550 9.83 55,916 16.39 58,221 17.06 3,265 5,060 5,910 3.2 9.3 62 33,730 9.89 56,217 16.48 58,500 17.15 3,297 5,110 5,958 3.2 9.2 63 33,911 9.94 56,519 16.56 58,778 17.23 3,329 5,160 6,005 3.2 9.2 64 34,092 9.99 56,820 16.65 59,057 17.31 3,361 5,210 6,053 3.2 9.2 65 34,273 10.04 57,121 16.74 59,335 17.39 3,393 5,260 6,100 3.2 9.1

Minimum Rated Maximum Input (W)

Btu/h kW Btu/h kW Btu/h kW Minimum Rated Maximum

MULTI ZONE

COP HSPF

3.3 9.6

1. Capacity as rated: 0 ft. above sea level with piping length as main pipe (16.4 ft.) + branch pipe (98.4 ft.) = 115 ft. 0 f t. level difference between outdoor and indoor units.

2. Heating capacity rating obtained with air entering the indoor unit at 70°F dry bulb (DB) and 60°F wet bulb (WB), and outdoor ambient conditions of 47°F dry bulb (DB) and 43°F wet bulb (WB).

3. Wiring cable size must comply with the applicable local and national codes.

4. The specification may be subject to change without prior notice for purpose of improvement.

5. Sum of connected indoor units’ capacity is 24~65 kBtu/h.

6. At least two indoor units should be connected.

COMBINATION TABLES

LMU540HV

The individual indoor unit capacity can be calculated based on the outdoor unit rated capacity as follows.

Individual Indoor Unit Combination

Capacity (Qidu [Combi])

To calculate the individual IDU capacity based on ODU corrected capacity, replace (Qodu [Rated]) with (Qodu [Corrected]) where (Qodu [Corrected])

Outdoor Unit Rated

Capacity (Qodu [Rated])

Individual Indoor Unit Rated Capacity (Qidu [Rated])

Total Connected Indoor Unit Rated Capacity (∑Qidu [Rated])

is obtained from the capacity tables referencing design conditions.

Table 29: LMU540HV with Non-Ducted Indoor Units — Rated Cooling Combination Table.

Total Indoor Unit

Capacity (kBtu/h)

24 14,000 4.10 23,333 6.84 25,813 7.57 1,000 1,550 2,336 15.10 19.6 25 14,583 4.27 24,306 7.12 26,889 7.88 1,168 1,668 2,433 14.60 19.5 26 15,167 4.45 25,278 7.41 27,964 8.20 1,251 1,786 2,530 14.10 19.5 27 15,750 4.62 26,250 7.69 29,040 8.51 1,333 1,905 2,628 13.80 19.4 28 16,333 4.79 27,222 7.98 30,116 8.83 1,517 2,023 2,725 13.50 19.4 29 16,917 4.96 28,194 8.26 31,191 9.14 1,606 2,141 2,822 13.20 19.4 30 17,500 5.13 29,167 8.55 32,267 9.46 1,695 2,259 2,919 12.90 19.3 31 18,083 5.30 30,139 8.83 33,342 9.77 1,855 2,378 3,017 12.70 19.3 32 18,667 5.47 31,111 9.12 34,418 10.09 1,947 2,496 3,114 12.50 19.3 33 19,250 5.64 32,083 9.40 35,493 10.40 2,039 2,614 3,211 12.30 19.2 34 19,833 5.81 33,056 9.69 36,569 10.72 2,131 2,732 3,309 12.10 19.2 35 20,417 5.98 34,028 9.97 37,644 11.03 2,280 2,851 3,406 11.90 19.1 36 21,000 6.15 35,000 10.26 38,720 11.35 2,375 2,969 3,503 11.80 19.1 37 21,583 6.33 35,972 10.54 39,796 11.66 2,470 3,087 3,601 11.70 19.1 38 22,167 6.50 36,944 10.83 40,871 11.98 2,564 3,205 3,698 11.50 19.0 39 22,750 6.67 37,917 11.11 41,947 12.29 2,659 3,324 3,795 11.40 19.0 40 23,333 6.84 38,889 11.40 43,022 12.61 2,753 3,442 3,893 11.30 18.9 41 23,917 7.01 39,861 11.68 44,098 12.92 2,848 3,560 3,990 11.20 18.9 42 24,500 7.18 40,833 11.97 45,173 13.24 2,943 3,678 4,087 11.10 18.9 43 25,083 7.35 41,806 12.25 46,249 13.55 3,037 3,796 4,185 11.00 18.8 44 25,667 7.52 42,778 12.54 47,324 13.87 3,132 3,915 4,282 10.90 18.8 45 26,250 7.69 43,750 12.82 48,400 14.19 3,226 4,033 4,379 10.80 18.7 46 26,833 7.86 44,722 13.11 49,476 14.50 3,321 4,151 4,476 10.80 18.7 47 27,417 8.04 45,694 13.39 50,551 14.82 3,415 4,269 4,574 10.70 18.7 48 28,000 8.21 46,667 13.68 51,627 15.13 3,510 4,388 4,671 10.60 18.6 49 28,583 8.38 47,639 13.96 52,702 15.45 3,605 4,506 4,768 10.60 18.6 50 29,167 8.55 48,611 14.25 53,778 15.76 3,699 4,624 4,866 10.50 18.6 51 29,750 8.72 49,583 14.53 54,853 16.08 3,794 4,742 4,963 10.50 18.5 52 30,333 8.89 50,556 14.82 55,929 16.39 3,888 4,861 5,060 10.40 18.5 53 30,917 9.06 51,528 15.10 57,004 16.71 3,983 4,979 5,158 10.30 18.4 54 31,500 9.23 52,500 15.39 58,080 17.02 4,078 5,097 5,255 10.30 18.4 55 31,892 9.35 52,666 15.44 58,349 17.10 4,102 5,128 5,287 56 32,285 9.46 52,832 15.48 58,619 17.18 4,127 5,159 5,319 10.20 18.2 57 32,677 9.58 52,997 15.53 58,888 17.26 4,152 5,190 5,351 10.20 18.1 58 33,069 9.69 53,163 15.58 59,158 17.34 4,176 5,221 5,382 10.20 18.0 59 33,462 9.81 53,329 15.63 59,427 17.42 4,201 5,252 5,414 10.20 17.9 60 33,854 9.92 53,495 15.68 59,697 17.50 4,226 5,282 5,446 10.10 17.8 61 34,247 10.04 53,661 15.73 59,966 17.58 4,251 5,313 5,478 10.10 17.7 62 34,639 10.15 53,826 15.78 60,236 17.65 4,275 5,344 5,510 10.10 17.6 63 35,031 10.27 53,992 15.82 60,505 17.73 4,300 5,375 5,542 10.00 17.5 64 35,424 10.38 54,158 15.87 60,775 17.81 4,325 5,406 5,573 10.00 17.4 65 35,816 10.50 54,324 15.92 61,044 17.89 4,350 5,437 5,605 10.00 17.3 66 36,208 10.61 54,489 15.97 61,314 17.97 4,374 5,468 5,637 10.00 17.2 67 36,601 10.73 54,655 16.02 61,583 18.05 4,399 5,499 5,669 9.90 17.1 68 36,993 10.84 54,821 16.07 61,853 18.13 4,424 5,530 5,701 9.90 17.0 69 37,386 10.96 54,987 16.12 62,122 18.21 4,448 5,561 5,733 9.90 16.9 70 37,778 11.07 55,153 16.16 62,392 18.29 4,473 5,591 5,764 9.90 16.9 71 38,170 11.19 55,318 16.21 62,661 18.36 4,498 5,622 5,796 9.80 16.8 72 38,563 11.30 55,484 16.26 62,931 18.44 4,523 5,653 5,828 9.80 16.7 73 38,955 11.42 55,650 16.31 63,200 18.52 4,547 5,684 5,860 9.80 16.6

Minimum Rated Maximum Input (W)

Btu/h kW Btu/h kW Btu/h kW Minimum Rated Maximum

Cooling Capacity

EER SEER

10.30 18.3

1. Capacity as rated: 0 ft. above sea level with piping length as main pipe (16.4 ft.) + banch pipe (98.4 ft.) = 115 ft. 0 f t. level difference between outdoor and indoor units.

2. Cooling capacity rating obtained with air entering the indoor unit at 80°F dry bulb (DB) and 67°F wet bulb (WB), and outdoor ambient conditions of 95°F dry bulb (DB) and 75°F wet bulb (WB).

LG Air Conditioning Systems

3. Wiring cable size must comply with the applicable local and national codes.

4. The specification may be subject to change without prior notice for purpose of improvement.

5. Sum of connected indoor units’ capacity is 24~73 kBtu/h.

6. At least two indoor units should be connected.

COMBINATION TABLES

• COMBINATION

TABLES

LMU540HV

Table 30: LMU540HV with Ducted Indoor Units — Rated Cooling Combination Table.

Total Indoor Unit

Capacity (kBtu/h)

24 13,989 4.10 23,314 6.83 25,646 7.52 1,000 1,550 2,337 15.0 18.3 25 14,571 4.27 24,286 7.12 26,714 7.83 1,076 1,668 2,434 14.6 18.2 26 15,154 4.44 25,257 7.40 27,783 8.14 1,153 1,787 2,532 14.1 18.1 27 15,737 4.61 26,229 7.69 28,851 8.46 1,229 1,905 2,629 13.8 18.1 28 16,320 4.78 27,200 7.97 29,920 8.77 1,305 2,023 2,726 13.4 18.0 29 16,903 4.95 28,171 8.26 30,989 9.08 1,382 2,142 2,824 13.2 17.9 30 17,486 5.12 29,143 8.54 32,057 9.40 1,458 2,260 2,921 12.9 17.8 31 18,069 5.30 30,114 8.83 33,126 9.71 1,534 2,378 3,019 12.7 17.7 32 18,651 5.47 31,086 9.11 34,194 10.02 1,611 2,497 3,116 12.5 17.6 33 19,234 5.64 32,057 9.40 35,263 10.33 1,687 2,615 3,213 12.3 17.6 34 19,817 5.81 33,029 9.68 36,331 10.65 1,763 2,733 3,311 12.1 17.5 35 20,400 5.98 34,000 9.96 37,400 10.96 1,840 2,852 3,408 11.9 17.4 36 20,983 6.15 34,971 10.25 38,469 11.27 1,916 2,970 3,505 11.8 17.3 37 21,566 6.32 35,943 10.53 39,537 11.59 1,992 3,088 3,603 11.6 17.2 38 22,149 6.49 36,914 10.82 40,606 11.90 2,069 3,207 3,700 11.5 17.1 39 22,731 6.66 37,886 11.10 41,674 12.21 2,145 3,325 3,798 11.4 17.1 40 23,314 6.83 38,857 11.39 42,743 12.53 2,222 3,443 3,895 11.3 17.0 41 23,897 7.00 39,829 11.67 43,811 12.84 2,298 3,562 3,992 11.2 16.9 42 24,480 7.17 40,800 11.96 44,880 13.15 2,374 3,680 4,090 11.1 16.8 43 25,063 7.35 41,771 12.24 45,949 13.47 2,451 3,798 4,187 11.0 16.7 44 25,646 7.52 42,743 12.53 47,017 13.78 2,527 3,917 4,284 10.9 16.6 45 26,229 7.69 43,714 12.81 48,086 14.09 2,603 4,035 4,382 10.8 16.6 46 26,811 7.86 44,686 13.10 49,154 14.41 2,680 4,153 4,479 10.8 16.5 47 27,394 8.03 45,657 13.38 50,223 14.72 2,756 4,272 4,576 10.7 16.4 48 27,977 8.20 46,629 13.67 51,291 15.03 2,832 4,390 4,674 10.6 16.3 49 28,560 8.37 47,600 13.95 52,360 15.35 2,909 4,508 4,771 10.6 16.2 50 29,143 8.54 48,571 14.24 53,429 15.66 2,985 4,627 4,869 10.5 16.1 51 29,726 8.71 49,543 14.52 54,497 15.97 3,061 4,745 4,966 10.4 16.1 52 30,309 8.88 50,514 14.80 55,566 16.29 3,138 4,863 5,063 10.4 16.0 53 30,454 8.93 50,757 14.88 55,833 16.36 3,214 4,982 5,161 10.2 15.9 54 30,600 8.97 51,000 14.95 56,100 16.44 3,290 5,100 5,258 10.0 15.8 55 30,697 9.00 51,161 14.99 56,474 16.55 3,310 5,131 5,290 56 30,793 9.02 51,322 15.04 56,847 16.66 3,330 5,161 5,321 9.9 15.8 57 30,890 9.05 51,483 15.09 57,221 16.77 3,350 5,192 5,353 9.9 15.8 58 30,987 9.08 51,644 15.14 57,595 16.88 3,370 5,223 5,385 9.9 15.8 59 31,083 9.11 51,805 15.18 57,968 16.99 3,389 5,254 5,416 9.9 15.8 60 31,180 9.14 51,966 15.23 58,342 17.10 3,409 5,284 5,448 9.8 15.8 61 31,276 9.17 52,127 15.28 58,716 17.21 3,429 5,315 5,480 9.8 15.8 62 31,373 9.19 52,288 15.32 59,089 17.32 3,449 5,346 5,512 9.8 15.8 63 31,470 9.22 52,449 15.37 59,463 17.43 3,469 5,377 5,543 9.8 15.8 64 31,566 9.25 52,611 15.42 59,837 17.54 3,489 5,407 5,575 9.7 15.8 65 31,663 9.28 52,772 15.47 60,211 17.65 3,508 5,438 5,607 9.7 15.8 66 31,760 9.31 52,933 15.51 60,584 17.76 3,528 5,469 5,638 9.7 15.8 67 31,856 9.34 53,094 15.56 60,958 17.87 3,548 5,500 5,670 9.7 15.8 68 31,953 9.36 53,255 15.61 61,332 17.98 3,568 5,530 5,702 9.6 15.8 69 32,049 9.39 53,416 15.66 61,705 18.08 3,588 5,561 5,733 9.6 15.8 70 32,146 9.42 53,577 15.70 62,079 18.19 3,608 5,592 5,765 9.6 15.8 71 32,243 9.45 53,738 15.75 62,453 18.30 3,627 5,623 5,797 9.6 15.8 72 32,339 9.48 53,899 62,826 18.41 3,647 5,653 5,828 9.5 15.8 73 32,436 9.51 54,060 15.84 63,200 18.52 3,667 5,684 5,860 9.5 15.8

Minimum Rated Maximum Input (W)

Btu/h kW Btu/h kW Btu/h kW Minimum Rated Maximum

Cooling Capacity

MULTI ZONE

EER SEER

10.0 15.8

1. Capacity as rated: 0 ft. above sea level with piping length as main pipe (16.4 ft.) + banch pipe (98.4 ft.) = 115 ft. 0 ft. level difference between outdoor and indoor units.

2. Cooling capacity rating obtained with air entering the indoor unit at 80°F dry bulb (DB) and 67°F wet bulb (WB), and outdoor ambient conditions of 95°F dry bulb (DB) and 75°F wet bulb (WB).

3. Wiring cable size must comply with the applicable local and national codes.

4. The specification may be subject to change without prior notice for purpose of improvement.

5. Sum of connected indoor units’ capacity is 24~73 kBtu/h.

6. At least two indoor units should be connected.

COMBINATION TABLES

LMU540HV

Table 31: LMU540HV with Non-Ducted Indoor Units — Rated Heating Combination Table.

Heating Capacity

Total Indoor Unit

Capacity (kBtu/h)

24 16,272 4.77 27,120 7.95 28,476 8.35 1,394 2,161 2,474 3.7 10.3 25 16,950 4.97 28,250 8.28 29,663 8.69 1,464 2,269 2,578 3.6 10.2 26 17,628 5.17 29,380 8.61 30,849 9.04 1,534 2,377 2,681 3.6 10.2 27 18,306 5.37 30,510 8.94 32,036 9.39 1,603 2,485 2,784 3.6 10.1 28 18,984 5.56 31,640 9.27 33,222 9.74 1,673 2,593 2,887 3.6 10.1 29 19,662 5.76 32,770 9.60 34,409 10.08 1,742 2,701 2,990 3.6 10.0 30 20,340 5.96 33,900 9.94 35,595 10.43 1,812 2,809 3,093 3.5 10.0 31 21,018 6.16 35,030 10.27 36,782 10.78 1,882 2,917 3,196 3.5 9.9 32 21,696 6.36 36,160 10.60 37,968 11.13 1,951 3,025 3,299 3.5 9.9 33 22,374 6.56 37,290 10.93 39,155 11.48 2,021 3,133 3,402 3.5 9.8 34 23,052 6.76 38,420 11.26 40,341 11.82 2,091 3,241 3,505 3.5 9.8 35 23,730 6.95 39,550 11.59 41,528 12.17 2,160 3,349 3,609 3.5 9.7

36 24,408 7.15 40,680 11.92 42,714 12.52 2,230 3,457 3,712 3.4 9.7 37 25,086 7.35 41,810 12.25 43,901 12.87 2,300 3,565 3,815 3.4 9.6 38 25,764 7.55 42,940 12.58 45,087 13.21 2,369 3,673 3,918 3.4 9.6 39 26,442 7.75 44,070 12.92 46,274 13.56 2,439 3,781 4,021 3.4 9.5 40 27,120 7.95 45,200 13.25 47,460 13.91 2,509 3,888 4,124 3.4 9.4 41 27,798 8.15 46,330 13.58 48,647 14.26 2,578 3,996 4,227 3.4 9.4 42 28,476 8.35 47,460 13.91 49,833 14.61 2,648 4,104 4,330 3.4 9.3 43 29,154 8.54 48,590 14.24 51,020 14.95 2,718 4,212 4,433 3.4 9.3 44 29,832 8.74 49,720 14.57 52,206 15.30 2,787 4,320 4,536 3.4 9.2 45 30,510 8.94 50,850 14.90 53,393 15.65 2,857 4,428 4,640 3.4 9.2 46 31,188 9.14 51,980 15.23 54,579 16.00 2,927 4,536 4,743 3.4 9.1 47 31,866 9.34 53,110 15.57 55,766 16.34 2,996 4,644 4,846 3.4 9.1 48 32,544 9.54 54,240 15.90 56,952 16.69 3,066 4,752 4,949 3.3 9.0 49 32,920 9.65 54,867 16.08 57,610 16.88 3,136 4,860 5,052 3.3 9.0 50 33,296 9.76 55,493 16.26 58,268 17.08 3,205 4,968 5,155 3.3 8.9 51 33,672 9.87 56,120 16.45 58,926 17.27 3,275 5,076 5,258 3.2 8.9 52 34,048 9.98 56,747 16.63 59,584 17.46 3,345 5,184 5,361 3.2 8.8 53 34,424 10.09 57,373 16.82 60,242 17.66 3,414 5,292 5,464 3.2 8.8 54 34,800 10.20 58,000 17.00 60,900 17.85 3,484 5,400 5,567 3.1 8.7

55 34,910 10.23 58,183 17.05 61,063 17.90 3,504 5,432 5,600 56 35,020 10.26 58,366 17.11 61,226 17.94 3,525 5,464 5,633 3.1 8.7 57 35,130 10.30 58,549 17.16 61,389 17.99 3,545 5,495 5,666 3.1 8.7 58 35,240 10.33 58,733 17.21 61,553 18.04 3,566 5,527 5,698 3.1 8.7 59 35,349 10.36 58,916 17.27 61,716 18.09 3,586 5,559 5,731 3.1 8.7 60 35,459 10.39 59,099 17.32 61,879 18.14 3,607 5,591 5,764 3.1 8.7 61 35,569 10.42 59,282 17.37 62,042 18.18 3,627 5,623 5,797 3.1 8.7 62 35,679 10.46 59,465 17.43 62,205 18.23 3,648 5,654 5,830 3.1 8.7 63 35,789 10.49 59,648 17.48 62,368 18.28 3,668 5,686 5,862 3.1 8.7 64 35,899 10.52 59,832 17.54 62,532 18.33 3,689 5,718 5,895 3.1 8.7 65 36,009 10.55 60,015 17.59 62,695 18.37 3,709 5,750 5,928 3.1 8.7 66 36,119 11.72 60,198 17.64 62,858 18.42 3,730 5,781 5,961 3.1 8.7 67 36,229 11.85 60,381 17.70 63,021 18.47 3,750 5,813 5,993 3.0 8.7

68 36,339 11.98 60,564 17.75 63,184 18.52 3,771 5,845 6,026 3.0 8.7

69 36,448 12.10 60,747 17.80 63,347 18.57 3,792 5,877 6,059 3.0 8.7

70 36,558 12.23 60,931 17.86 63,511 18.61 3,812 5,909 6,092 3.0 8.7

71 36,668 12.36 61,114 17.91 63,674 18.66 3,833 5,940 6,124 3.0 8.7

72 36,778 12.49 61,297 17.97 63,837 18.71 3,853 5,972 6,157 3.0 8.7

73 36,888 12.61 61,480 18.02 64,000 18.76 3,874 6,004 6,190 3.0 8.7

1. Capacity as rated: 0 ft. above sea level with piping length as main pipe (16.4 ft.) + branch pipe (98.4 ft.) = 115 ft. 0 ft. level difference between outdoor and indoor units.

2. Heating capacity rating obtained with air entering the indoor unit at 70°F dry bulb (DB) and 60°F wet bulb (WB), and outdoor ambient conditions of 47°F dry bulb (DB) and 43°F wet bulb (WB).

Minimum Rated Maximum Input (W)

Btu/h kW Btu/h kW Btu/h kW Minimum Rated Maximum

3. Wiring cable size must comply with the applicable local and national codes.

4. The specification may be subject to change without prior notice for purpose of improvement.

5. Sum of connected indoor units’ capacity is 24~73 kBtu/h.

6. At least two indoor units should be connected.

COP HSPF

3.1 8.7

LG Air Conditioning Systems

• COMBINATION

TABLES

COMBINATION TABLES

LMU540HV

Table 32: LMU540HV with Mixed Indoor Units — Rated Cooling Combination Table.

Total Indoor Unit

Capacity (kBtu/h)

24 14,194 4.16 23,657 6.93 26,023 7.63 1,000 1,550 2,337 15.3 19.0 25 14,786 4.33 24,643 7.22 27,107 7.94 1,076 1,668 2,434 14.8 18.9 26 15,377 4.51 25,629 7.51 28,191 8.26 1,153 1,787 2,531 14.3 18.8 27 15,969 4.68 26,614 7.80 29,276 8.58 1,229 1,905 2,629 14.0 18.8 28 16,560 4.85 27,600 8.09 30,360 8.90 1,305 2,023 2,726 13.6 18.7 29 17,151 5.03 28,586 8.38 31,444 9.22 1,382 2,141 2,823 13.3 18.6 30 17,743 5.20 29,571 8.67 32,529 9.53 1,458 2,260 2,920 13.1 18.6 31 18,334 5.37 30,557 8.96 33,613 9.85 1,534 2,378 3,018 12.9 18.5 32 18,926 5.55 31,543 9.24 34,697 10.17 1,610 2,496 3,115 12.6 18.5 33 19,517 5.72 32,529 9.53 35,781 10.49 1,687 2,615 3,212 12.4 18.4 34 20,109 5.89 33,514 9.82 36,866 10.80 1,763 2,733 3,310 12.3 18.3 35 20,700 6.07 34,500 10.11 37,950 11.12 1,839 2,851 3,407 12.1 18.3 36 21,291 6.24 35,486 10.40 39,034 11.44 1,916 2,969 3,504 12.0 18.2 37 21,883 6.41 36,471 10.69 40,119 11.76 1,992 3,088 3,602 11.8 18.1 38 22,474 6.59 37,457 10.98 41,203 12.08 2,068 3,206 3,699 11.7 18.1 39 23,066 6.76 38,443 11.27 42,287 12.39 2,145 3,324 3,797 11.6 18.0 40 23,657 6.93 39,429 11.56 43,371 12.71 2,221 3,443 3,894 11.5 18.0 41 24,249 7.11 40,414 11.84 44,456 13.03 2,297 3,561 3,991 11.3 17.9 42 24,840 7.28 41,400 12.13 45,540 13.35 2,374 3,679 4,089 11.3 17.8 43 25,431 7.45 42,386 12.42 46,624 13.66 2,450 3,797 4,186 11.2 17.8 44 26,023 7.63 43,371 12.71 47,709 13.98 2,526 3,916 4,283 11.1 17.7 45 26,614 7.80 44,357 13.00 48,793 14.30 2,603 4,034 4,381 11.0 17.7 46 27,206 7.97 45,343 13.29 49,877 14.62 2,679 4,152 4,478 10.9 17.6 47 27,797 8.15 46,329 13.58 50,961 14.94 2,755 4,271 4,575 10.8 17.5 48 28,389 8.32 47,314 13.87 52,046 15.25 2,831 4,389 4,673 10.8 17.5 49 28,980 8.49 48,300 14.16 53,130 15.57 2,908 4,507 4,770 10.7 17.4 50 29,571 8.67 49,286 14.44 54,214 15.89 2,984 4,625 4,868 10.7 17.3 51 30,163 8.84 50,271 14.73 55,299 16.21 3,060 4,744 4,965 10.6 17.3 52 30,754 9.01 51,257 15.02 56,383 16.52 3,137 4,862 5,062 10.5 17.2 53 30,902 9.06 51,504 15.09 56,654 16.60 3,213 4,980 5,160 10.3 17.2 54 31,050 9.10 51,750 15.17 56,925 16.68 3,289 5,099 5,257 10.2 17.1 55 31,148 9.13 51,913 15.21 57,255 16.78 3,309 5,129 5,289 56 31,246 9.16 52,077 15.26 57,586 16.88 3,329 5,160 5,320 10.1 17.0 57 31,344 9.19 52,240 15.31 57,916 16.97 3,349 5,191 5,352 10.1 17.0 58 31,442 9.22 52,404 15.36 58,246 17.07 3,369 5,222 5,384 10.0 16.9 59 31,540 9.24 52,567 15.41 58,576 17.17 3,389 5,253 5,415 10.0 16.9 60 31,638 9.27 52,731 15.45 58,907 17.26 3,409 5,283 5,447 10.0 16.8 61 31,736 9.30 52,894 15.50 59,237 17.36 3,429 5,314 5,479 10.0 16.8 62 31,834 9.33 53,057 15.55 59,567 17.46 3,448 5,345 5,511 9.9 16.7 63 31,932 9.36 53,221 15.60 59,897 17.55 3,468 5,376 5,543 9.9 16.7 64 32,031 9.39 53,384 15.65 60,228 17.65 3,488 5,407 5,574 9.9 16.6 65 32,129 9.42 53,548 15.69 60,558 17.75 3,508 5,437 5,606 9.8 16.6 66 32,227 9.45 53,711 15.74 60,888 17.85 3,528 5,468 5,638 9.8 16.5 67 32,325 9.47 53,874 15.79 61,218 17.94 3,548 5,499 5,670 9.8 16.5 68 32,423 9.50 54,038 15.84 61,549 18.04 3,568 5,530 5,702 9.8 16.4 69 32,521 9.53 54,201 15.89 61,879 18.14 3,588 5,561 5,733 9.7 16.4 70 32,619 9.56 54,365 15.93 62,209 18.23 3,607 5,592 5,765 9.7 16.3 71 32,717 9.59 54,528 15.98 62,539 18.33 3,627 5,622 5,797 9.7 16.3 72 32,815 9.62 54,692 16.03 62,870 18.43 3,647 5,653 5,828 9.7 16.2 73 35,696 10.46 54,855 16.08 63,200 18.52 3,667 5,684 5,860 9.7 16.2

1. Capacity as rated: 0 ft. above sea level with piping length as main pipe (16.4 ft.) + branch pipe (98.4 ft.) = 115 ft. 0 ft. level difference between outdoor and indoor units.

2. Cooling capacity rating obtained with air entering the indoor unit at 80°F dry bulb (DB) and 67°F wet bulb (WB), and outdoor ambient conditions of 95°F dry bulb (DB) and 75°F wet bulb (WB).

Minimum Rated Maximum Input (W)

Btu/h kW Btu/h kW Btu/h kW Minimum Rated Maximum

Cooling Capacity

3. Wiring cable size must comply with the applicable local and national codes.

4. The specification may be subject to change without prior notice for purpose of improvement.

5. Sum of connected indoor units’ capacity is 24~73 kBtu/h.

6. At least two indoor units should be connected.

MULTI ZONE

EER SEER

10.1 17.1

COMBINATION TABLES

LMU540HV

Table 33: LMU540HV with Ducted Indoor Units — Rated Heating Combination Table.

Heating Capacity

Total Indoor Unit

Capacity (kBtu/h)

24 15,909 4.66 26,514 7.77 27,840 8.16 1,490 2,310 2,557 3.4 9.8 25 16,571 4.86 27,619 8.09 29,000 8.50 1,561 2,419 2,663 3.3 9.8 26 17,234 5.05 28,724 8.42 30,160 8.84 1,631 2,528 2,770 3.3 9.7 27 17,897 5.25 29,829 8.74 31,320 9.18 1,701 2,637 2,876 3.3 9.7 28 18,560 5.44 30,933 9.07 32,480 9.52 1,772 2,746 2,983 3.3 9.6 29 19,223 5.63 32,038 9.39 33,640 9.86 1,842 2,855 3,090 3.3 9.6 30 19,886 5.83 33,143 9.71 34,800 10.20 1,912 2,964 3,196 3.3 9.5

31 20,549 6.02 34,248 10.04 35,960 10.54 1,983 3,073 3,303 3.3 9.5 32 21,211 6.22 35,352 10.36 37,120 10.88 2,053 3,182 3,409 3.3 9.4 33 21,874 6.41 36,457 10.68 38,280 11.22 2,123 3,291 3,516 3.2 9.4 34 22,537 6.61 37,562 11.01 39,440 11.56 2,194 3,400 3,622 3.2 9.3 35 23,200 6.80 38,667 11.33 40,600 11.90 2,264 3,509 3,729 3.2 9.3 36 23,863 6.99 39,771 11.66 41,760 12.24 2,334 3,618 3,835 3.2 9.2 37 24,526 7.19 40,876 11.98 42,920 12.58 2,405 3,727 3,942 3.2 9.2 38 25,189 7.38 41,981 12.30 44,080 12.92 2,475 3,836 4,048 3.2 9.1 39 25,851 7.58 43,086 12.63 45,240 13.26 2,545 3,945 4,155 3.2 9.1 40 26,514 7.77 44,190 12.95 46,400 13.60 2,615 4,054 4,261 3.2 9.0 41 27,177 7.97 45,295 13.28 47,560 13.94 2,686 4,163 4,368 3.2 9.0 42 27,840 8.16 46,400 13.60 48,720 14.28 2,756 4,272 4,475 3.2 8.9 43 28,503 8.35 47,505 13.92 49,880 14.62 2,826 4,381 4,581 3.2 8.9 44 29,166 8.55 48,610 14.25 51,040 14.96 2,897 4,490 4,688 3.2 8.8 45 29,829 8.74 49,714 14.57 52,200 15.30 2,967 4,599 4,794 3.2 8.8 46 30,491 8.94 50,819 14.89 53,360 15.64 3,037 4,708 4,901 3.2 8.7 47 31,154 9.13 51,924 15.22 54,520 15.98 3,108 4,817 5,007 3.2 8.7 48 31,817 9.33 53,029 15.54 55,680 16.32 3,178 4,926 5,114 3.2 8.6 49 32,480 9.52 54,133 15.87 56,840 16.66 3,248 5,035 5,220 3.2 8.6 50 33,143 9.71 55,238 16.19 58,000 17.00 3,319 5,144 5,327 3.1 8.5 51 33,806 9.91 56,343 16.51 59,160 17.34 3,389 5,253 5,433 3.1 8.5 52 34,469 10.10 57,448 16.84 60,320 17.68 3,459 5,362 5,540 3.1 8.4 53 34,634 10.15 57,724 16.92 60,610 17.76 3,530 5,471 5,646 3.1 8.4 54 34,800 10.20 58,000 17.00 60,900 17.85 3,600 5,580 5,753 3.0 8.3

55 34,910 10.23 58,183 17.05 61,021 17.88 3,614 5,602 5,776 3.0 8.3 56 35,020 10.26 58,366 17.11 61,142 17.92 3,629 5,625 5,799 3.0 8.3 57 35,130 10.30 58,549 17.16 61,263 17.96 3,643 5,647 5,822 3.0 8.3 58 35,240 10.33 58,733 17.21 61,384 17.99 3,658 5,669 5,845 3.0 8.3 59 35,349 10.36 58,916 17.27 61,505 18.03 3,672 5,692 5,868 3.0 8.3 60 35,459 10.39 59,099 17.32 61,626 18.06 3,686 5,714 5,891 3.0 8.3 61 35,569 10.42 59,282 17.37 61,747 18.10 3,701 5,736 5,914 3.0 8.3 62 35,679 10.46 59,465 17.43 61,868 18.13 3,715 5,759 5,937 3.0 8.3

63 35,789 10.49 59,648 17.48 61,989 18.17 3,730 5,781 5,960 3.0 8.3

64 35,899 10.52 59,832 17.54 62,111 18.20 3,744 5,803 5,983 3.0 8.3

65 36,009 10.55 60,015 17.59 62,232 18.24 3,758 5,825 6,006 3.0 8.3

66 36,119 10.59 60,198 17.64 62,353 18.27 3,773 5,848 6,029 3.0 8.3

67 36,229 10.62 60,381 17.70 62,474 18.31 3,787 5,870 6,052 3.0 8.3

68 36,339 10.65 60,564 17.75 62,595 18.35 3,802 5,892 6,075 3.0 8.3

69 36,448 10.68 60,747 17.80 62,716 18.38 3,816 5,915 6,098 3.0 8.3

70 36,558 10.71 60,931 17.86 62,837 18.42 3,830 5,937 6,121 3.0 8.3

71 36,668 10.75 61,114 17.91 62,958 18.45 3,845 5,959 6,144 3.0 8.3

72 36,778 10.78 61,297 17.97 63,079 18.49 3,859 5,982 6,167 3.0 8.3

73 36,888 10.81 61,480 18.02 63,200 18.52 3,874 6,004 6,190 3.0 8.3

Minimum Rated Maximum Input (W)

Btu/h kW Btu/h kW Btu/h kW Minimum Rated Maximum

COP HSPF

1. Capacity as rated: 0 ft. above sea level with piping length as main pipe (16.4 ft.) + branch pipe (98.4 ft.) = 115 ft. 0 ft. level difference between outdoor and indoor units.

2. Heating capacity rating obtained with air entering the indoor unit at 70°F dry bulb (DB) and 60°F wet bulb (WB), and outdoor ambient conditions of 47°F dry bulb (DB) and 43°F wet bulb (WB).

LG Air Conditioning Systems

3. Wiring cable size must comply with the applicable local and national codes.

4. The specification may be subject to change without prior notice for purpose of improvement.

5. Sum of connected indoor units’ capacity is 24~73 kBtu/h.

6. At least two indoor units should be connected.

COMBINATION TABLES

• COMBINATION

TABLES

LMU540HV

Table 34: LMU540HV with Mixed Indoor Units — Rated Heating Combination Table.

Heating Capacity

Total Indoor Unit

Capacity (kBtu/h)

24 16,090 4.72 26,817 7.86 28,158 8.25 1,442 2,236 2,516 3.5 10.1 25 16,761 4.91 27,935 8.19 29,331 8.60 1,512 2,344 2,621 3.5 10.0 26 17,431 5.11 29,052 8.51 30,505 8.94 1,582 2,452 2,726 3.5 9.9 27 18,102 5.31 30,169 8.84 31,678 9.28 1,652 2,561 2,830 3.5 9.9 28 18,772 5.50 31,287 9.17 32,851 9.63 1,722 2,669 2,935 3.4 9.8 29 19,442 5.70 32,404 9.50 34,024 9.97 1,792 2,778 3,040 3.4 9.8 30 20,113 5.89 33,521 9.82 35,198 10.32 1,862 2,886 3,145 3.4 9.7 31 20,783 6.09 34,639 10.15 36,371 10.66 1,932 2,995 3,250 3.4 9.7 32 21,454 6.29 35,756 10.48 37,544 11.00 2,002 3,103 3,354 3.4 9.6 33 22,124 6.48 36,874 10.81 38,717 11.35 2,072 3,212 3,459 3.4 9.6 34 22,795 6.68 37,991 11.13 39,891 11.69 2,142 3,320 3,564 3.4 9.5 35 23,465 6.88 39,108 11.46 41,064 12.04 2,212 3,429 3,669 3.3 9.5 36 24,135 7.07 40,226 11.79 42,237 12.38 2,282 3,537 3,774 3.3 9.4 37 24,806 7.27 41,343 12.12 43,410 12.72 2,352 3,646 3,879 3.3 9.4 38 25,476 7.47 42,460 12.44 44,584 13.07 2,422 3,754 3,983 3.3 9.3 39 26,147 7.66 43,578 12.77 45,757 13.41 2,492 3,863 4,088 3.3 9.3 40 26,817 7.86 44,695 13.10 46,930 13.75 2,562 3,971 4,193 3.3 9.2 41 27,488 8.06 45,813 13.43 48,103 14.10 2,632 4,080 4,298 3.3 9.2 42 28,158 8.25 46,930 13.75 49,277 14.44 2,702 4,188 4,403 3.3 9.1 43 28,828 8.45 48,047 14.08 50,450 14.79 2,772 4,297 4,507 3.3 9.1 44 29,499 8.65 49,165 14.41 51,623 15.13 2,842 4,405 4,612 3.3 9.0 45 30,169 8.84 50,282 14.74 52,796 15.47 2,912 4,514 4,717 3.3 9.0

46 30,840 9.04 51,400 15.06 53,970 15.82 2,982 4,622 4,822 3.3 8.9 47 31,510 9.24 52,517 15.39 55,143 16.16 3,052 4,731 4,927 3.3 8.9 48 32,181 9.43 53,634 15.72 56,316 16.51 3,122 4,839 5,032 3.2 8.8 49 32,700 9.58 54,500 15.97 57,225 16.77 3,192 4,948 5,136 3.2 8.8 50 33,219 9.74 55,366 16.23 58,134 17.04 3,262 5,056 5,241 3.2 8.7 51 33,739 9.89 56,231 16.48 59,043 17.30 3,332 5,165 5,346 3.2 8.7 52 34,258 10.04 57,097 16.73 59,952 17.57 3,402 5,273 5,451 3.2 8.6 53 34,529 10.12 57,549 16.87 60,426 17.71 3,472 5,382 5,555 3.1 8.6 54 34,800 10.20 58,000 17.00 60,900 17.85 3,542 5,490 5,660 3.1 8.5

55 34,910 10.23 58,183 17.05 61,042 17.89 3,559 5,517 5,688 3.1 8.5 56 35,020 10.26 58,366 17.11 61,184 17.93 3,577 5,544 5,716 3.1 8.5 57 35,130 10.30 58,549 17.16 61,326 17.97 3,594 5,571 5,744 3.1 8.5 58 35,240 10.33 58,733 17.21 61,468 18.02 3,612 5,598 5,772 3.1 8.5 59 35,349 10.36 58,916 17.27 61,611 18.06 3,629 5,625 5,800 3.1 8.5 60 35,459 10.39 59,099 17.32 61,753 18.10 3,647 5,652 5,828 3.1 8.5 61 35,569 10.42 59,282 17.37 61,895 18.14 3,664 5,679 5,856 3.1 8.5 62 35,679 10.46 59,465 17.43 62,037 18.18 3,682 5,706 5,884 3.1 8.5 63 35,789 10.49 59,648 17.48 62,179 18.22 3,699 5,733 5,911 3.0 8.5 64 35,899 10.52 59,832 17.54 62,321 18.27 3,716 5,761 5,939 3.0 8.5 65 36,009 10.55 60,015 17.59 62,463 18.31 3,734 5,788 5,967 3.0 8.5 66 36,119 10.59 60,198 17.64 62,605 18.35 3,751 5,815 5,995 3.0 8.5 67 36,229 10.62 60,381 17.70 62,747 18.39 3,769 5,842 6,023 3.0 8.5 68 36,339 10.65 60,564 17.75 62,889 18.43 3,786 5,869 6,051 3.0 8.5 69 36,448 10.68 60,747 17.80 63,032 18.47 3,804 5,896 6,079 3.0 8.5 70 36,558 10.71 60,931 17.86 63,174 18.52 3,821 5,923 6,107 3.0 8.5 71 36,668 10.75 61,114 17.91 63,316 18.56 3,839 5,950 6,134 3.0 8.5 72 36,778 10.78 61,297 17.97 63,458 18.60 3,856 5,977 6,162 3.0 8.5 73 36,888 10.81 61,480 18.02 63,600 18.64 3,874 6,004 6,190 3.0 8.5

Minimum Rated Maximum Input (W)

Btu/h kW Btu/h kW Btu/h kW Minimum Rated Maximum

MULTI ZONE

COP HSPF

1. Capacity as rated: 0 ft. above sea level with piping length as main pipe (16.4 ft.) + branch pipe (98.4 ft.) = 115 ft. 0 ft. level difference between outdoor and indoor units.

2. Heating capacity rating obtained with air entering the indoor unit at 70°F dry bulb (DB) and 60°F wet bulb (WB), and outdoor ambient conditions of 47°F dry bulb (DB) and 43°F wet bulb (WB).

3. Wiring cable size must comply with the applicable local and national codes.

4. The specification may be subject to change without prior notice for purpose of improvement.

5. Sum of connected indoor units’ capacity is 24~73 kBtu/h.

6. At least two indoor units should be connected.

CONTROLS

Individual Control

PQRCHCA0Q

Model Description

PQRCHCA0Q Simple Wired Remote Controller (Black w/o mode selection)

PQRCHCA0QW Simple Wired Remote Controller (White w/o mode selection)

PQRCVCL0Q Simple Wired Remote Controller (Black)

PQRCVCL0QW Simple Wired Remote Controller (White)

PREMTA000 Premium Wire Controller, GEN 4

PREMTB10U Programmable Wired Controller

PQWRHQ0FDB Wireless Remote Controller

Central Control

Model Description

PQCSZ250S0 AC EZ Central Controller

PACP4B000 ACP IV

PACS4B000 AC Smart IV

PQRCHCA0QW PQRCVCL0Q PQRCVCL0QW PREMTA000 PREMTB10U PQWRHQ0FDB

PQCSZ250S0

PACP4B000

PACS4B000

PBACNA000

Integration Devices

PDRYCB100

Model Description

PDRYCB100 Simple Dry Contact

PDRYCB300 Dry Contact for Thermostat (5-12Vdc, 24Vac)

PQDSBC1 Dry Contact for Economizer

PQRSTA0 Remote Temperature Sensor

PZCWRC1 32.8' Wired Remote Extension Cable

PZCWRCG3 Group Control Cable Kit (required for each additional A/H with single zone controller)

PMNFP14A1 PI 485 for DFS OUTDOOR

PBACNA000 AC Smart BACnet

PLNWKB100 LonWorks

PQNFB17C1 ACP BACnet

LG Air Conditioning Systems

PDRYCB300 PQDSBC1 PQRSTA0

Gateway

PZCWRC1

PZCWRCG3

PMNFP14A1

PLNWKB100

PQNFB17C1

ACCESSORIES

Indoor Accessories

PCRCUDT3 PTDCM

Type Model Description Used with

Smart AC PCRCUDT3 Smart AC WLAN Module See Compatibility Table

Aux Heater Relay Kit

Auto Elevation Grill PTEGM0 Auto Elevation Grill Kit LCN***HV

Cassette Cover

Cassette Grill

Cassette Ventilation

Plasma Filter Kit

VAHU HEAT KIT

HSD Filter Box

PRARH0

PRARS1

PRARH0 Auxiliary Heat Kit for Cassettes & Ducted IDUs See Compatibility Table

PRARS1 Auxiliary Heat Kit for Wall-Mounted IDUs See Compatibility Table

PTDCM Decorative Cover for 4-Way Ceiling Cassettes Using PT-UMC1 Grill LCN***HV

PTDCQ Decorative Cover for 4-Way Ceiling Cassettes Using PT-UQC Grill LMCN***HV

PT-UMC1 4-Way Ceiling Cassette Matte Grill LCN***HV

PT-UMC1B 4-Way Ceiling Cassette Black Grill LCN***HV

PT-UQC 4-Way Ceiling Cassette Matte Grill LMCN***HV

PT-QCHW0 4-Way Ceiling Cassette 2X2 Matte Grilll LMCN***HV

PTVK410 Ventilation Air Intake Spacer for 4-Way Ceiling Cassettes (requires PTVK420) LCN***HV

PTVK420 6" Ø Ventilation Air Connection for 4-Way Ceiling Cassettes (requires PTVK410) LCN***HV

PTVK430 3" Ø Ventilation Air Connection for all 4-Way Ceiling Cassettes LCN***HV, LMCN***HV

PTPKM0 Pl asma Filter Kit for 4-Way Ceiling Cassette LCN***HV

PTPKQ0 Plasma Filter Kit for 4-Way Ceiling Cassette LMCN***HV

ANEH053B1 5 k w Electric Heat Kit for VAHU LMVN***HV

ANEH103B2 10 kw Electric Heat Kit for VAHU LMVN***HV

ANEH153B2 15 kw Electric Heat Kit for VAHU LMVN***HV

ANEH203B2 20 kw Electric Heat Kit for VAHU LMVN***HV

ZFBXBG01A High-capacity lter box for BG HSD chassis LMHN***HV, LHN247HV

ZFBXBR01A High-capacity lter box for BR HSD chassis LHN367HV

PTEGM0

PTDCQ

PT-QCHW0 / PT-UMC1

PT-UQC

PTVK410 PTVK420 PTVK430 PTPKM0

PTPKQ0

ACCESSORIES

CONTROLS &

Outdoor Accessories

Category Model Description Used with

Wind Bafe

Base Pan Heater

ZLABGP01A Wind Bafe for Low Ambient Cooling 9kBtu & 12kBtu | HSV4, HYV1, HVP

ZLABGP02A Wind Bafe for Low Ambient Cooling

ZLABGP03A Wind Bafe for Low Ambient Cooling LMU18CHV, LMU24CHV

ZLABGP04A Wind Bafe for Low Ambient Cooling

PQSH1200 Base Pan Heater for Multi F All Multi F and Multi F MAX Outdoor Units

PQSH1201 Base Pan Heater for Single Zone LSU180HSV4, LAU240HSV3

LMU480HV, LMU540HV, LUU367HV, LUU427HV

18kBtu+ | HSV4, HV3, HLV

LMU30CHV, LMU36CHV, LUU187HV, LUU247HV

Air Technologies

ARVU053ZEA2 / ARVU063ZEA2

Category Model Description

ARVU053ZEA2 Energy Recovery Ventilator 465 cfm

ERV

ARVU063ZEA2 Energy Recovery Ventilator 600 cfm ARVU093ZFA2 Energy Recovery Ventilator 900 cfm ARVU123ZFA2 Energy Recovery Ventilator 1,200 cfm

ERV Accessory

PSNFP14A0 PI485 for ERV (INDOOR)

PES-C0RV0 CO

ARVU093ZFA2 / ARVU123ZFA2

2 Sensor

Wind BafeBase Pan Heater

24kBtu | HSV2, HSV3

PSNFP14A0 PES-C0RV0

1. LMU480HV, LMU540HV, LUU367HV, and LUU427HV require Qty. 2 of ZLABGP04A.

2. Base Pan Heater is factory supplied for 9kBtu and 12kBtu systems in the following series: HSV4, HVP, HYV1.

CONTROLS & ACCESSORIES COMPATIBILITY

Indoor Accessories

Single Zone

PREMTA000APCRCUDT3 PDRYCB100 PDRYCB400 PDRYCB300 PQRSTA0 PZCWRCG3

PZCWRC1

Smart AC

Wi-Fi Module

PCRCUDT3

Premium

Remote

Controller

PREMTA000A PDRYCB100 PDRYCB400 PDRYCB300 PQRSTA0 PZCWRCG3 PZCWRC1 PRARS1 PRARH0

Simple Dry

Contact

Dry

Contact

Dry Contact for Thermostat

Remote Temp

Sensor

Group Control Cable Extension

Aux Heater

Relay Kit

PRARS1 PRARH0

Aux Heater

Relay Kit

Mega LS---HEV1 X X X X X X X X X -

Mega 115V LS---HXV X O O O O X X O X -

LS---HSV4 O O O O O X X O X -

Standard

LS240HSV3 O O O O O X X O X -

LS---HV3 O O O O O X X O X -

Longpipe LS---HLV X O O O O X X O X -

Art Cool Gallery LA---HVP X O O O O X X O X -

Art Cool Mirror

LA---HSV4 X O O O O X X O X -

LA240HSV3 X O O O O X X O X -

Art Cool Premier LA---HYV1 O O O O O X X O X -

Cassette LC---HV X O O O O O O O - O

Ducted LH---HV X O O O O O O O - O

Multi Zone

Smart AC

Wi-Fi Module

PCRCUDT3

Premium

Remote

Controller

PREMTA000A PDRYCB100 PDRYCB400 PDRYCB300 PQRSTA0 PZCWRCG3 PZCWRC1 PRARS1 PRARH0

Simple Dry

Contact

Dry

Contact

Dry Contact for Thermostat

Remote Temp

Sensor

Group Control Cable Extension

Aux Heater

Relay Kit

Aux Heater

Relay Kit

LMN078HVT X O O O O X O O O -

LSN090HSV4 X O O O O X O O O -

Standard

LSN120HSV4 X O O O O X O O O -

LMN158HVT X O O O O X O O O -

LSN180HSV4 X O O O O X O O O -

LMN248HVT X O O O O X O O O -

LAN090HSV4 X O O O O X O O O -

Art Cool

Mirror

LAN120HSV4 X O O O O X O O O -

LAN180HSV4 X O O O O X O O O -

Art Cool

Gallery

LMAN097HVP X O O O O X O O O

LMAN127HVP X O O O O X O O O

LMCN077HV X O O O O O O O - O

LMCN097HV X O O O O O O O - O

Cassette

LMCN125HV X O O O O O O O - O

LMCN185HV X O O O O O O O - O

LMDN096HV X O O O O O O O - O

Ceiling

Concealed Duct

High-Static Duct

Vertical AHU

“O” in a cell indicates available; “X” indicates not available; “-“ indicates not applicable.

IDUs shown compatible with wired Premium Remote Controller (PREMTA000A) are compatible with all LG wired controllers. Some IDUs have a control wire terminal block to connect a wired controller with field-supplied control cable instead of the LG control cable (with Molex connection). See IDU engineering manual or installation manual for details.

1. Emergency Heat function is not available with Aux Heat Relay Kit. 2. Aux Heat Relay Kit is applicable for models produced after June 2014.

LMDN126HV X O O O O O O O

LMDN186HV X O O O O O O O - O

LMHN240HV X O O O O O O O - O

LMHN360HV X O O O O O O O - O

LMVN240HV X O O O O O O O - O

LMVN360HV X O O O O O O O - O

- O

LG Air Conditioning Systems

CONTROLS & ACCESSORIES COMPATIBILITY

Outdoor Accessories

PMNFP14A1 PQCSZ250S0 PACS4B000

PBACNA000

Single Zone

PI485 for ODU PDI

PMNFP14A1

PQNUD1S41 PQCSZ250S0 PACS4B000 PACP4B000 PBACNA000 PQNFB17C1 PLNWKB100 PSWMOZ3

AC EZ Central

Control

AC Smart IV

Central Control

Mega LS---HEV1 X X X X X X X X O

Mega 115V LS---HXV X X X X X X X X O

LS---HSV4 O O O O O O O O O

Standard

LS240HSV3 O O O O O O O O O

LS---HV3 O O O O O O O O O

Longpipe LS---HLV O O O O O O O O O

Art Cool Gallery LA---HVP X X X X X X X X O

Art Cool Mirror

LA---HSV4 O O O O O O O O O

LA240HSV3 O O O O O O O O O

Art Cool Premier LA---HYV1 X X X X X X X X O

Cassette LC---HV O O O O O O O O O

Ducted LH---HV O O O O O O O O O

Multi Zone

PI485 for ODU PDI

PMNFP14A1

PQNUD1S41 PQCSZ250S0 PACS4B000 PACP4B000 PBACNA000 PQNFB17C1 PLNWKB100 PSWMOZ3

AC EZ Central

Control

AC Smart IV

Central Control

LMU18CHV O O O O O O O O O

Multi F

LMU24CHV O O O O O O O O O

LMU30CHV O O O O O O O O O

LMU36CHV O O O O O O O O O

Multi F Max

LMU480HV O O O O O O O O O

LMU540HV O O O O O O O O O

PACP4B000 PQNFB17C1 PLNWKB100 PSWMOZ3

ACP IV

Central Control

ACP IV

Central Control

AC Smart

BACnet

AC Smart

BACnet

ACP IV

BACnet

ACP IV

BACnet

ACP

LonWorks

ACP

LonWorks

LG SIMS

ACCESSORIES

CONTROLS &

“O” in a cell indicates available; “X” indicates not available; “-“ indicates not applicable.

ENERGY STAR® SYSTEMS

With several models winning the Energy Star® Most Efcient designation, LG Air Conditioning Systems have industry-leading SEER and HSPF ratings.

Single Zone Systems

AHRI Reference

Number

7947563 LAU090HYV1 LAN090HYV1 15.65 27.50 12.00

7849625 LAU120HYV1 LAN120HYV1 13.80 25.50 12.00

7484109 LSU090HSV4 LAN090HSV4 13.30 21.50 10.80

7484111 LSU120HSV4 LAN120HSV4 12.50 21.50 11.00

7484113 LSU180HSV4 LAN180HSV4 12.60 20.50 9.70

7484110 LSU090HSV4 LSN090HSV4 13.30 21.50 10.80

7484112 LSU120HSV4 LSN120HSV4 12.50 21.50 11.00

7484114 LSU180HSV4 LSN180HSV4 12.60 20.50 9.70

6236101 LSU240HSV3 LSN240HSV3 12.50 20.00 10.20

8032527 LSU090HEV1 LSN090HEV1 12.50 19.00 9.00

5859619 LUU187HV LCN187HV 15.00 20.00 10.10

5584107 LUU247HV LCN247HV 12.60 17.00 9.70

5859620 LUU367HV LCN367HV 13.50 19.00 9.50

7012586 LSU240HLV LSN240HLV 12.50 21.50 11.00

Outdoor Indoor EER 95

°F SEER HSPF

Multi Zone Systems

Most

Efcient

AHRI Reference

Number

7180060 LMU18CHV

7180062 LMU24CHV

7184507 LMU24CHV

8111355 LMU30CHV

7180063 LMU36CHV

8111358 LMU480HV

Note:

1. List is current as of December 2015. For the most up-to-date list of Energy Star

Outdoor Indoor EER 95

°F SEER HSPF

Non-Ducted Indoor Units

Mixed Ducted and Non-Ducted

Indoor Units

Non-Ducted Indoor Units

and Energy Star® Most Efficient models, visit the AHRI Directory at ahridirectory.org.

13.00 22.00 9.70

13.50 21.70 10.60

12.50 19.60 10.20

13.00 22.00 10.00

12.50 19.50 10.00

ENERGY STAR® is a joint program of the U.S. Environmental Protection Agency

(EPA) and the U.S. Department of Energy (DOE) created to promote energy-efcient

products and practices. The ENERGY STAR

products meet energy efciency performance levels set by U.S. EPA and U.S. DOE

logo helps homeowners identify which

LG Air Conditioning Systems

HOW TO READ LG MODEL NUMBERS

SINGLE ZONE SYSTEMS – INDOOR/OUTDOOR

Brand

Family

Component

Nominal Capacity

Generation

Cycle

Product Type

Features

Family

Component

Nominal Capacity

L LG

A Art Cool Wall-Mounted

C Four-Way Ceiling Cassette H Ceiling-Concealed Duct (High Static)

N Indoor Unit

09 9,000

12 12,000 18 18,000 24 24,000

0~7

H Heat Pump

EV Mega Inverter LV Extended Pipe Inverter

SV Art Cool Mirror Inverter

High-Efciency Inverter

1~2~3~4 Model-Specic Features/Improvements

Generation

Cycle

Product Type

Features

U Cassette/Duct ODU S Standard Wall-Mounted

U Outdoor Unit

30 30,000 36 36,000 42 42,000

V Standard Inverter VP Art Cool Gallery Inverter XV Mega 115v Inverter YV Art Cool Premier Inverter

ENERGY STAR

& NOMENCLATURE

SYSTEMS

MULTI ZONE SYSTEMS – INDOOR/OUTDOOR

Brand

Family

Product

Nominal Capacity

Generation

Cycle/Type

Style

Family

Product

L LG

M Multi Zone

AN Art Cool Wall-Mounted Indoor Unit CN Four-Way Ceiling-Cassette Indoor Unit DN Ceiling-Concealed Duct (Low-Static) Indoor Unit HN Ceiling-Concealed Duct (High-Static) Indoor Unit

07 7,000 09 9,000

12 12,000

15 15,000 18 18,000

0~5~6~7~8~C

H Heat Pump

P Art Cool Gallery IDU

Nominal

Capacity

Generation

Cycle/Type

Style

N Standard Wall-Mounted Indoor Unit

U Outdoor Unit VN Vertical-Horizontal Air Handling Indoor Unit

24 24,000

30 30,000 36 36,000 48 48,000 54 54,000

V Inverter

T High Wall IDU

20001747

LG ELECTRONICS INC.

ISO 9001: 2008

LG Electronics USA, Inc.

Air Conditioning Systems 4300 North Point Parkway, Alpharetta, GA 30022

www.lghvac.com www.lg-dfs.com

Distributed by

Document Number: PB_Single_Multi_DFS_Systems_12_15

LG LSU090HSV4, LSU120HSV4, LMDN126HV, LMU480HV User Manual

Specifications and Main Features

Frequently Asked Questions

User Manual
