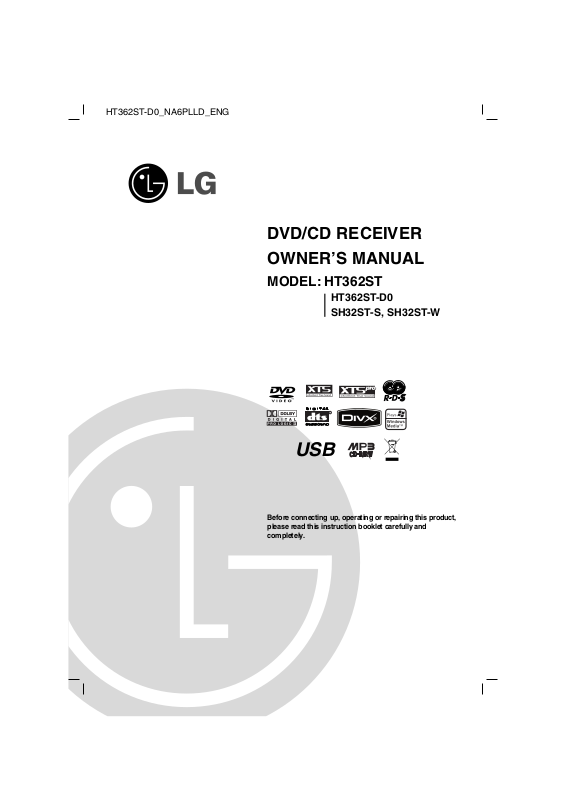

R

DVD/CD RECEIVER

OWNER’S MANUAL

MODEL: HT362ST

HT362ST-D0
SH32ST-S, SH32ST-W

Before connecting up, operating or repairing this product,
please read this instruction booklet carefully and
completely.

HT362ST-D0_NA6PLLD_ENG

USB

2

This lightning flash with arrowhead symbol within
an equilateral triangle is intended to alert the user
to the presence of uninsulated dangerous voltage
within the product’s enclosure that may be of
sufficient magnitude to constitute a risk of electric
shock to persons.

The exclamation point within an equilateral
triangle is intended to alert the user to the
presence of important operating and maintenance
(servicing) instructions in the literature
accompanying the product.

WARNING: Do not install this equipment in a confined space
such as a book case or similar unit.

CAUTION:

This product employs a Laser System.
To ensure proper use of this product, please read this
owner’s manual carefully and retain it for future reference.
Should the unit require maintenance, contact an authorized
service center.
Use of controls, adjustments or the performance of
procedures other than those specified herein may result in
hazardous radiation exposure.
To prevent direct exposure to laser beam, do not try to open
the enclosure. Visible laser radiation when open. DO NOT
STARE INTO BEAM.

CAUTION: The apparatus should not be exposed to water
(dripping or splashing) and no objects filled with liquids, such
as vases, should be placed on the apparatus.

CAUTION concerning the Power Cord

Most appliances recommend they be placed upon
a dedicated circuit;

That is, a single outlet circuit which powers only that
appliance and has no additional outlets or branch
circuits. Check the specification page of this owner's
manual to be certain.

Do not overload wall outlets. Overloaded wall outlets,
loose or damaged wall outlets, extension cords,
frayed power cords, or damaged or cracked wire
insulation are dangerous. Any of these conditions
could result in electric shock or fire. Periodically
examine the cord of your appliance, and if its
appearance indicates damage or deterioration, unplug
it, discontinue use of the appliance, and have the cord
replaced with an exact replacement part by an
authorized servicer.

Protect the power cord from physical or mechanical
abuse, such as being twisted, kinked, pinched, closed
in a door, or walked upon. Pay particular attention to
plugs, wall outlets, and the point where the cord
exits the appliance.

To disconnect power from the mains, pull out the
mains cord plug. When installing the product, ensure
that the plug is easily accessible.

Disposal of your old appliance

1. When this crossed-out wheeled bin symbol is
attached to a product it means the product is
covered by the European Directive
2002/96/EC.

2. All electrical and electronic products should
be disposed of separately from the
municipal waste stream via designated
collection facilities appointed by the
government or the local authorities.

3. The correct disposal of your old appliance
will help prevent potential negative
consequences for the environment and
human health.

4. For more detailed information about disposal
of your old appliance, please contact your
city office, waste disposal service or the
shop where you purchased the product.

This product is manufactured to comply
with the EEC DIRECTIVE 89/336/EEC,
93/68/EEC and 73/23/EEC.

CLASS 1 LASER PRODUCT
KLASSE 1

LASER PRODUKT
LUOKAN 1 LASER LAITE
KLASS 1

LASER APPARAT
CLASSE 1

PRODUIT LASER

CAUTION

RISK OF ELECTRIC SHOCK

DO NOT OPEN

CAUTION: TO REDUCE THE RISK

OF ELECTRIC SHOCK

DO NOT REMOVE COVER (OR BACK)

NO USER-SERVICEABLE PARTS INSIDE

REFER SERVICING TO QUALIFIED SERVICE

PERSONNEL.

WARNING: TO PREVENT FIRE OR ELECTRIC SHOCK
HAZARD, DO NOT EXPOSE THIS PRODUCT TO RAIN
OR MOISTURE.

Note:

The marking of product shall be on the exterior of the
apparatus

3

Introduction

Maintenance and Service . . . . . . . . . . . . . . . . .3

Before use . . . . . . . . . . . . . . . . . . . . . . . . . . . . .4

Front Panel/Rear Panel . . . . . . . . . . . . . . . . . . .5

Remote Control . . . . . . . . . . . . . . . . . . . . . . . . .6

Installation and Setup

TV Connection . . . . . . . . . . . . . . . . . . . . . . . . . .7

Optional Equipment Connection . . . . . . . . . . . .8

Antenna Connection . . . . . . . . . . . . . . . . . . . . .8

Speaker System Connection . . . . . . . . . . . . . . .9

Displaying Disc Information on-screen . . . . . .10

Initial Settings . . . . . . . . . . . . . . . . . . . . . . . . .10

General Operation . . . . . . . . . . . . . . . . . . . . . .10

Language . . . . . . . . . . . . . . . . . . . . . . . . . . .10

Display . . . . . . . . . . . . . . . . . . . . . . . . . . . . .11

Audio . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .12

5.1 Speaker Setup . . . . . . . . . . . . . . . . . . . . .12

Lock (Parental Control) . . . . . . . . . . . . . . . . .13

Others . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .13

Operation

General features . . . . . . . . . . . . . . . . . . . . . . .14

Additional features . . . . . . . . . . . . . . . . . . . . .15

Playing an Audio CD or MP3/WMA file . . . . . .16

Programmed Playback . . . . . . . . . . . . . . . . . .16

Viewing a JPEG file . . . . . . . . . . . . . . . . . . . .17

Playing a DivX Movie file . . . . . . . . . . . . . . . . .18

Presetting the Radio Stations . . . . . . . . . . . . .19

Listening to the Radio . . . . . . . . . . . . . . . . . . .19

RDS Operation . . . . . . . . . . . . . . . . . . . . . . . . .20

Sleep Timer Setting . . . . . . . . . . . . . . . . . . . . .21

Dimmer . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .21

Mute . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .21

Selecting input source . . . . . . . . . . . . . . . . . . .21

XTS/XTS pro . . . . . . . . . . . . . . . . . . . . . . . . . . .21

VIRTUAL sound . . . . . . . . . . . . . . . . . . . . . . . .21

Sound Mode . . . . . . . . . . . . . . . . . . . . . . . . . . .21

REFERENCE

Language Codes . . . . . . . . . . . . . . . . . . . . . . .22

Area Codes . . . . . . . . . . . . . . . . . . . . . . . . . . .22

Troubleshooting . . . . . . . . . . . . . . . . . . . . .23-24

Specifications . . . . . . . . . . . . . . . . . . . . . . . . .25

Maintenance and Service

Refer to the information in this chapter before
contacting a service technician.

Handling the unit

When shipping the unit

Please save the original shipping carton and packing
materials. If you need to ship the unit, for maximum
protection, re-pack the unit as it was originally packed
at the factory.

Keeping the exterior surfaces clean



Do not use volatile liquids such as insecticide spray
near the unit.



Do not leave rubber or plastic products in contact
with the unit for a long period of time. since they
leave marks on the surface.

Cleaning the unit

To clean the player, use a soft, dry cloth. If the
surfaces are extremely dirty, use a soft cloth lightly
moistened with a mild detergent solution.

Do not use strong solvents such as alcohol, benzine,
or thinner, as these might damage the surface of the
unit.

Maintaining the Unit

The DVD/CD Receiver is a high-tech, precision
device. If the optical pick-up lens and disc drive parts
are dirty or worn, the picture quality could be
diminished.

Depending on the operating environment, regular
inspection and maintenance are recommended after
every 1,000 hours of use.

For details, please contact your nearest authorized
service center.

4

Before use

To ensure proper use of this product, please read this
owner’s manual carefully and retain it for future
reference.

This manual provides information on the operation
and maintenance of your DVD/CD Receiver. Should
the unit require service, contact an authorized service
location.

About the Symbol Display

“ ” may appear on your TV display during
operation and indicates that the function explained in
this owner’s manual is not available on that specific
DVD video disc.

Symbol Used in this Manual

Note:

Indicates special notes and operating features.

Tip:

Indicates tips and hints for making the task easier.

A section whose title has one of the following symbols
is applicable only to the disc represented by the
symbol.

DVD and finalized DVD±R/RW

Video CDs

Audio CDs

MP3 files

WMA files

JPEG files

DivX files

Manufactured under license from Dolby Laboratories.
“Dolby”, “Pro Logic”, and the double-D symbol are
trademarks of Dolby Laboratories. Confidential Unpublished
works. Copyright 1992-1997 Dolby Laboratories. All rights
reserved.

Manufactured under license from Digital Theater Systems,
Inc. U.S. Pat. No’s. 5,451,942; 5,956,674; 5,974,380;
5,978,762; 6,226,616; 6,487,535 and other U.S. and world­wide patents issued and pending. "DTS" and "DTS Digital
Surround” are registered trademarks of Digital Theater
Systems, Inc. Copyright 1996, 2003 Digital Theater
Systems, Inc. All Rights Reserved."

Types of Playable Discs

DVD
(8 cm / 12 cm disc)

Video CD (VCD)
(8 cm / 12 cm disc)

Audio CD
(8 cm / 12 cm disc)

In addition, this unit can play a DVD-RW, DVD+RW,
SVCD and CD-R or CD-RW that contains audio titles,
MP3, WMA, JPEG or DivX files.

Notes:



Depending on the conditions of the recording
equipment or the CD-R/RW (or DVD-RW,
DVD+RW) disc itself, some CD-R/RW (or DVD-RW,
DVD+RW) discs may not be played on the unit.



Do not attach any seal or label to either side (the
labeled side or the recorded side) of a disc.



Do not use irregularly shaped CDs (e.g., heart­shaped

or octagonal). It may result in malfunctions.

Regional Code

This unit has a regional code printed on the bottom of
the unit. This unit can play only DVD discs labelled as
the same as the rear of the unit or “ALL”.

Notes on Regional Codes



Most DVD discs have a globe with one or more
numbers in it clearly visible on the cover. This
number must match your DVD player’s regional
code or the disc cannot play.



If you try to play a DVD with a different regional
code from your player, the message “Check
Regional Code” appears on the TV screen.

DivX

JPEG

WMA

MP3

ACD

VCD

DVD-V

Introduction

5

Introduction

OPEN/CLOSE button

TUNING(-/+)
/SKIP/SCAN
(..bb/BB>>)
buttons

Remote sensor

VOLUME controller

STANDBY/ON
STANDBY indicator

Lights red when the
receiver is in Standby
mode (off).

DISPLAY Window

DISC Tray

Do not touch the inner pins of the jacks on the rear
panel. Electrostatic discharge may cause
permanent damage to the unit.

USB Port

Connect to a USB port of
multimedia
(USB memory etc.)

FUNC./PLAY

Press and hold down this button
about 3 seconds, then press
repeatedly to select other function.

MONO/ST./

PAUSE/STEP

STOP

S
C
A
R
T

C
O
M
P.

FM Antenna connector

AM Loop Antenna connectors

SPEAKER connectors

Power Cord

AUX AUDIO Input (L/R) Connectors

Front Panel/Rear Panel

OUTPUT (TO TV)
EURO AV socket

Connect to a TV with
SCART jack.

COMPONENT VIDEO OUT terminals

Connect to a TV with Y PB PR inputs.

VIDEO OUT SELECTOR
switch

6

Remote Control Operation Range

Point the remote control at the remote sensor and press the
buttons.



Distance: About 23 ft (7 m) from the front of the remote
sensor



Angle: About 30° in each direction in front of the remote
sensor

Remote control battery installation

Remove the battery cover on the rear of
the remote control, and insert two R03

(size AAA) batteries with and
aligned correctly.

Caution

Do not mix old and new batteries. Never mix different types of batteries (standard, alkaline, etc.).

Remote Control

OPEN/CLOSE (ZZ)

Opens and closes the disc tray.

AUX

Selects input source.

USB

Plays the multimedia files.

SLEEP

Sets the System to turn off automatically
at a specified time.

DIMMER

Changes brightness of the display
window on the front panel during in
power-on status.



MARKER

Marks a point during playback.



SEARCH

Displays MARKER SEARCH menu.

SUBTITLE

Selects a subtitle language (DVD).

VSM

Selects the VIRTUAL sound

DISPLAY

Accesses On-Screen display.



b/B/v/V (left/right/up/down)

Selects an option in the menu.



ENTER

Acknowledges the menu selection.



PRESET(v/V):

Selects programme of Radio.



TUN.(-/+) (b/B):

Tunes in the desired radio station.

TITLE

Displays the disc’s Title menu, if available.

VOLUME (+/-)

Adjusts speaker volume.



PROG.

Accesses or removes Program menu.



MEMO.

Enter a radio station’s frequency into the
tuner.



CLEAR

Removes a track number on the
program menu or a mark on the
MARKER SEARCH menu.



MUTE



ZOOM

POWER

DVD

Selects the output source (CD/DVD)

BAND

Select the System’s tuner (FM and AM

bands)

0-9 numerical buttons

Selects a service, programme number

directly or selects numbered options in

a menu.

XTS Pro

Supplies more natural and realistic

sound.

Supplies great sound effect.

RETURN

Removes the setup menu.

AUDIO

Selects an audio language (DVD) or

an audio channel (CD).

SOUND

Selects the sound mode.

SETUP

Accesses or removes setup menu .

MENU

Accesses the menu on a DVD disc.

SCAN/SLOW(bb/BB)



Searches backward or forward.

Reverse/ Forward slow playback.

REVERSE/FORWARD SKIP

(../>>)



STOP (xx)



PAUSE/STEP (XX)



PLAY (B)



REPEAT



Repeats chapter, track, title, all

REPEAT A-B



Repeats sequence.

RDS

Views the various displays of the RDS

options.

7

Installation and Setup

Make one of the following connections, depending on
the capabilities of your existing equipment.

Tips:



Depending on your TV and other equipment you
wish to connect, there are various ways you could
connect the

DVD/CD Receiver

. Use one of the

connections described below.



Please refer to the manuals of your TV, VCR,
Stereo System or other devices as necessary to
make the best connections.

Caution:



Make sure the DVD/CD Receiver is connected
directly to the TV. Select the correct AV input on
your TV.



Do not connect your

DVD/CD Receiver

to TV via
your VCR. The DVD image could be distorted by
the copy protection system.

SCART connection

Connect the EURO AV OUTPUT (TO TV) socket on
the DVD/CD Receiver to the corresponding jacks on
the TV using the scart cable (T).



If your television is a high-definition or “digital
ready” television, you may take advantage of the
DVD/CD Receiver’s progressive scan output for
higher video resolution.



If your TV does not accept your resolution setting,
abnormal picture appears on the screen. Please
read owner’s manual for TV then set the resolution
that your TV can accept.

Component Video connection

Connect the COMPONENT VIDEO OUT jacks from
the DVD/CD Receiver to the corresponding jacks on
the TV using an Y P

B PR cable (C).

Note:

A picture via scart input is not supported.

Caution

VIDEO OUT SELECTOR switch

In power-off state, select either
COMPONENT VIDEO OUT
(PROGRESSIVE SCAN) or SCART signal of
EURO AV TO TV terminal depending on how
to connect the unit to the TV.

TV Connection

Installation and Setup

S
C
A
R
T

C
O
M
P.

Rear of TV

COMPONENT VIDEO /

PROGRESSIVE SCAN INPUT

Y

Pr

Pb

C

Rear of DVD/CD Receiver

S

C

C

O

A

M

R

P.

T

SCART INPUT

T

8

Optional Equipment Connection



Connect a VCR to the AUX IN connectors.



Connect the USB port of a USB Memory (or MP3
player, etc.) to the USB port on the front of the unit.

Removing

the USB Device from the unit

1. Choose a different function mode or press STOP (x)

twice in a row.

2. Remove the USB device from the unit.

Notes:



Don’t extract the USB device while operating.



Music files (MP3/WMA), image files (JPEG) and DivX
files can be played.



This unit can not use a USB HUB.



Recommended Memory Cards.
Compact Flash Card (CFC), Micro Drive (MD), Smart
Media Card (SMC), Memory Stick (MS), Secure Digital
Card (SD), Multi Media Card (MMC), Memory Stick Pro
(MS-Pro)

- Compatible with : FAT16, FAT32

- Only use the memory cards recommended.



Devices which require additional program installation

when you have connected the unit to a computer are

not supported.



In case of a USB HDD, make sure to connect an

auxiliary power cord to the USB HDD for proper

operation. Up to four primary partitions of a drive are

supported. If there is an extension partition, it will not

be supported.



If the drive of USB device is two or more, a drive

folder is displayed on the screen. If you want to

move to the initial menu after you select a folder,

press RETURN.



Digital cameras and mobile phones are not

supported.

Antenna Connection

Connect the supplied FM/AM antenna for listening to
the radio.



Connect the AM Loop aerial to the AM aerial
connector.



Connect the FM Wire aerial to the FM aerial
connector.

Notes:



To prevent noise pickup, keep the AM Loop aerial away
from the DVD/CD Receiver and other components.



Be sure to fully extend the FM wire aerial.



After connecting the FM Wire aerial, keep it as horizontal as
possible.

C
O
M
P

AUDIO (L)

AUDIO (R)

Rear of VCR

To AV IN AUDIO (L/R)

Front of DVD/CD Receiver

To AUDIO OUT (L/R)

USB Memory, MP3 Player (or

Memory Card Reader, etc.)

To AUX IN AUDIO(L/R)

FM Wire Antenna
(supplied)

AM Loop Antenna
(supplied)

C
O
M
P.

S
C
A
R
T
