LG GL-B433PZI, GL-C432HXCL, GL-H502HXHN, GL-M433PZI, GL-H502HXHL Owner’s Manual

ENGLISH

P/NO : MFL71664404

Rev.02_030720

Copyright © 2020 LG electronics Inc. All rights reserved.

IMPORTANT SAFETY INFORMATION ............3

INSTALLATION...............................................10

INNER PARTS ................................................11

OPERATIONS.................................................13

G*-*4**/ G*-*5**

Starting

Before Setting The Temperature

Door Alarm

Self Test

Controls For Freezer Compartment

Controls For Refrigerator Compartment

Express Freeze

Child Lock (Optional)

Wi-Fi

Door Cooling+

Vegetable Drawer

Defrosting

Deodorizer

Ice Making

Hygiene Fresh (Optional)

Water Dispenser (Optional)

Smart Functions (Only for applied Models)

Lamp Replacement

Vacation Time

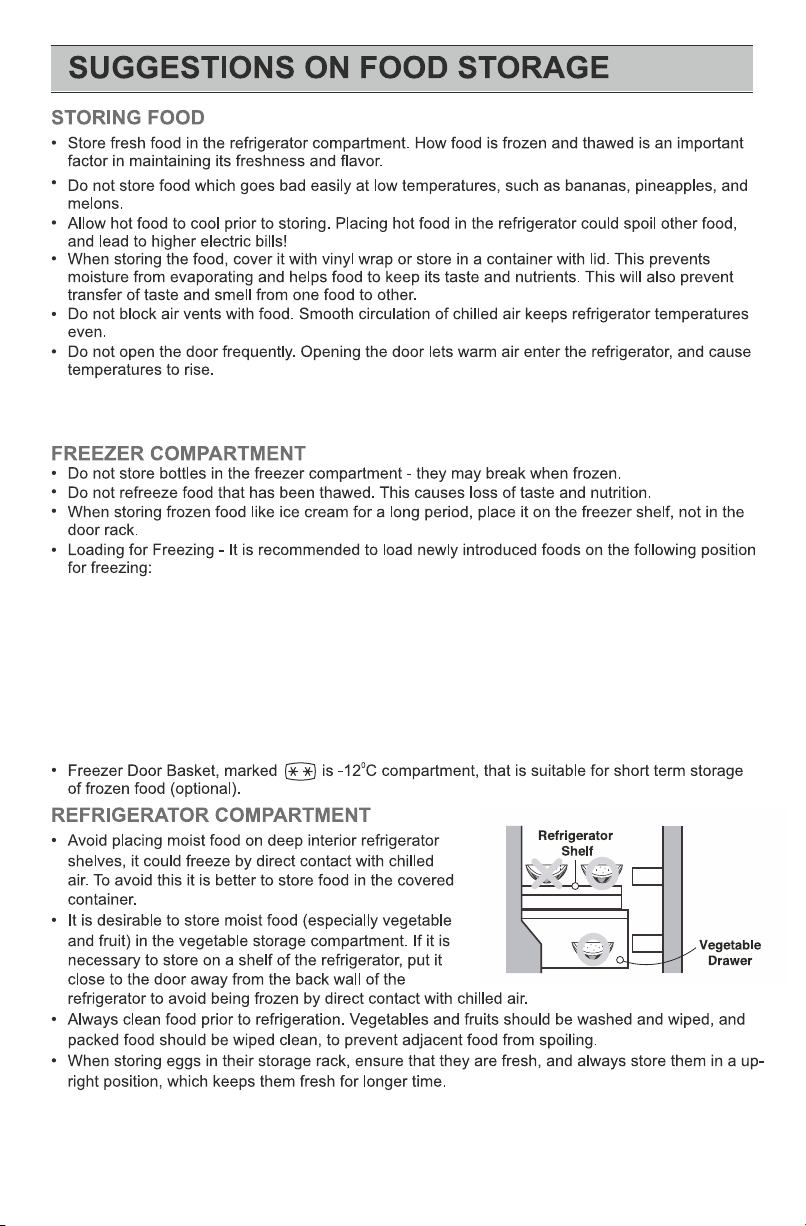

SUGGESTIONS ON FOOD STORAGE .........23

CLEANING .....................................................24

GENERAL INFORMATION .............................25

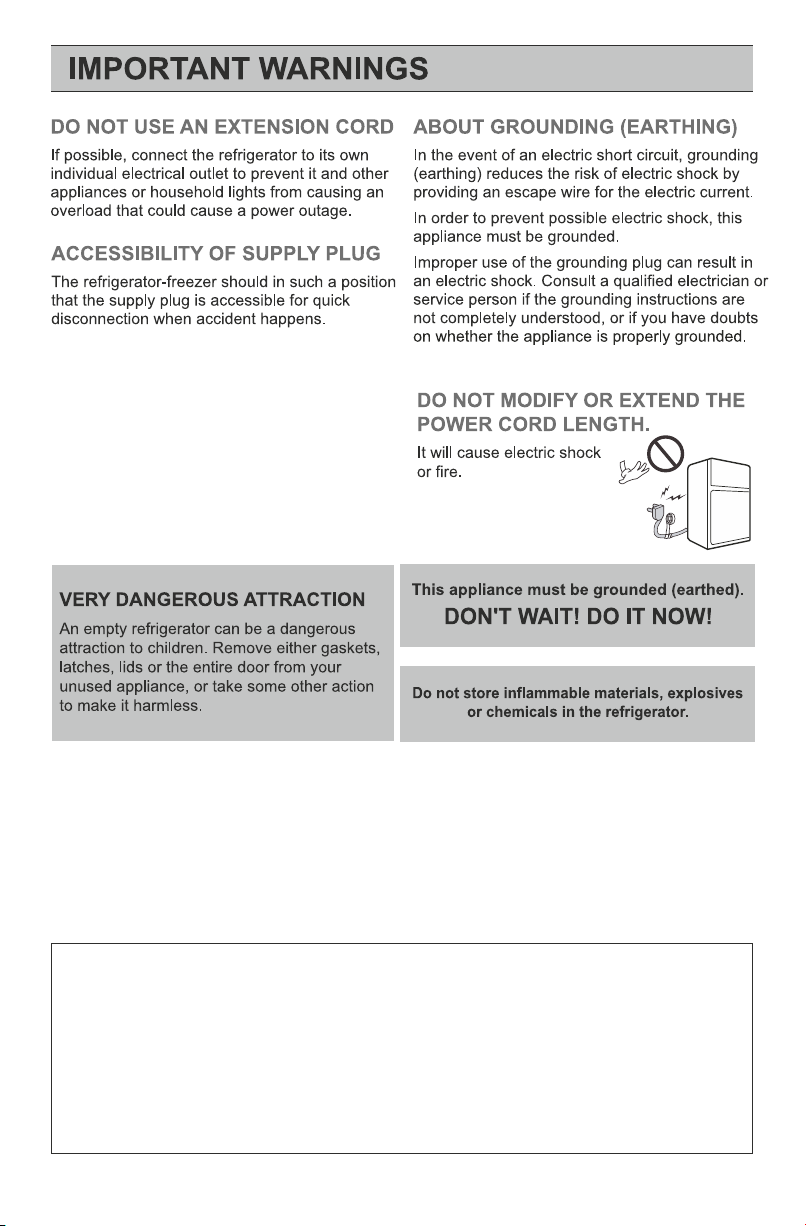

IMPORTANT WARNINGS ..............................26

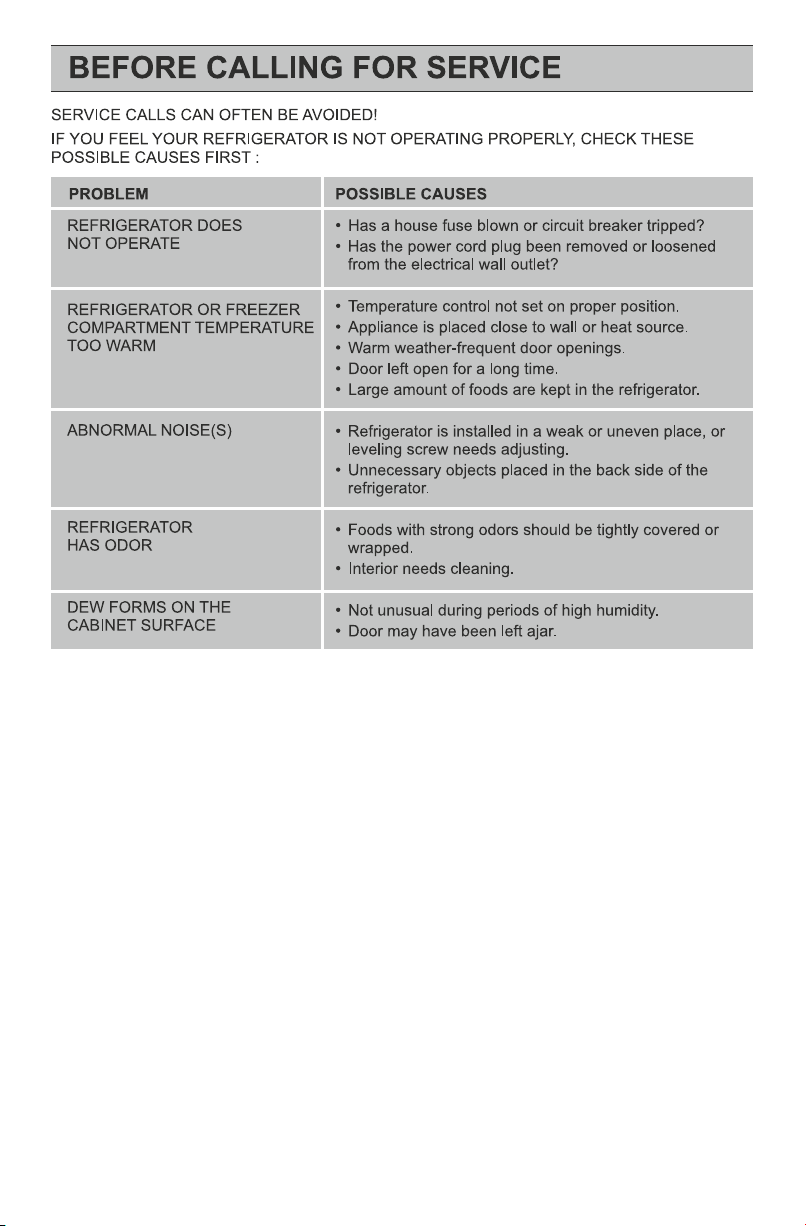

BEFORE CALLING FOR SERVICE ...............27

2

WARNING

Keep ventilation openings, in the appliance enclosure or in
the built-in-structure, clear of obstruction.
Do not use mechanical devices or other means to accelerate
the defrosting process, other than those recommended by the
manufacturer.
Do not damage the refrigerant circuit.
Do not use electrical appliances inside the food storage
compartment, unless they are recommended by the
manufacturer.
The refrigerant and insulation blowing gas used in the
appliance requires special disposal procedures. When
disposal, please consult with services agent or a similarly
qualified person.

3

Risk of Fire and Flammable Materials

This symbol alerts you to flammable materials that can ignite and
cause a fire if you do not take care.

This appliance contains a small amount of isobutane refrigerant

(R600a), but it is also combustible. When transporting and
installing the appliance, care should be taken to ensure that no
parts of the refrigerating circuit are damaged.

If a leak is detected, avoid any naked flames or potential sources of ignition and

air the room in which the appliance is standing for several minutes. In order to
avoid the creation of a flammable gas air mixture if a leak in the refrigerating
circuit occurs, the size of the room in which the appliance is used should
correspond to the amount of refrigerant used. The room must be 1 m in size for
every 8 g of R600a refrigerant inside the appliance.

When positioning the appliance, ensure the supply cord is not trapped or

damaged.

Do not locate multiple portable socket-outlets or portable power supplies at the

rear of the appliance.

2

4

Do not use or store
inflammable materials like
ether, benzene, alcohol,
medicine, LP gas, spray or
cosmetics
near or in the
refrigerator.

It may cause
explosion or fire.

5

If there is a gas leakage (isobutane, propane,
natural gas, etc.), do not touch the appliance
or power plug and ventilate the area
immediately. This appliance uses a refrigerant
gas (isobutane,R600a). Although it uses a
small amount of the gas,
it is still combustible
gas. Gas leakage
during appliance
transport, installation
or operation can
cause fire,
explosion or injury if sparks are caused

Install in places away from the fire
such as the place
where flammable
gas is leaked.

It may cause fire.

6

like gasket

7

Do not place glass containers,
bottles or cans (especially
those containing carbonated
drinks) in the freezer
compartment, shelves or ice
bin that will be exposed to
temperatures below freezing.

Completely empty inside before taking
out the container from the door.

8

Please do not use a dishwasher to clean the lower drawers; the high temperature may cause

damage to the baskets which make them unusable.

If the appliance is equipped with a lock (some countries only), keep the key out of reach of children.

This appliance is intended to be used in household and similar applications such as

- staff kitchen areas in shops, offices and other working environments;

- farm houses and by clients in hotels, motels and other residential type environments;

- bed and breakfast type environments;

- catering and similar non-retail applications.

9
