LG EAX64623201 Schematic

3-563-55
A
1
2
3
4
5
6
7
8
9
10
11
12
B C D E F G H I J K L M N O P Q R ST
Warning Parts that are shaded are critical with respect to risk of fire or electrical shock.
No Power
D103~D106 are Defective
S/W Error
IC101 is Defective
Switching Error
IC102/IC103 are Defective
14VA No Power
D126/D130 are Defective
5.1VA No Power
D127 is Defective
No Power
F101 is Defective
No Power
R101 is Defective
No Power
D102 is Defective
CIRCUIT DIAGRAMS

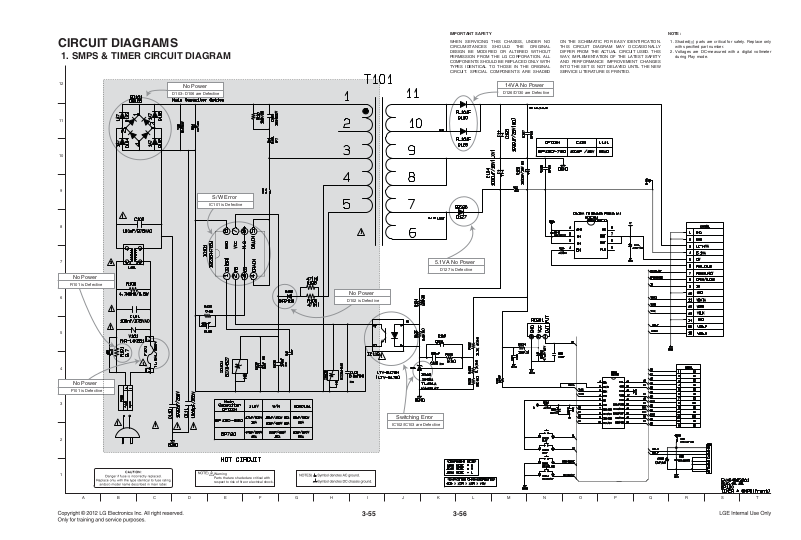

1. SMPS & TIMER CIRCUIT DIAGRAM
WHEN SERVICING THIS CHASS IS, UNDER NO CIRC UMSTA NCES SHOU LD THE ORIG INAL DESIGN BE MODIFIED OR ALTERED WITHOUT PERMISSION FROM THE LG CORPORATION. ALL COMPONENTS SHOULD BE REPLACED ONLY WITH TYPES IDENTICAL TO THOSE IN THE ORIGINAL CIRCUIT. SPECIAL COMPONENTS ARE SHADED
ON THE SCHEMATIC FOR EASY IDENTIFICATION. THIS CIR CUIT DIAGRAM MAY OCCASIONALLY DIFFER FROM THE ACTUAL CIRCUIT USED. THIS WAY, IMPLEMENTATION OF THE LATEST SAFETY AND PERFORMANCE IMPROVEMENT CHANGES INTO THE SET IS NOT DELAYED UNTIL THE NEW SERVICE LITERATURE IS PRINTED.
1. Shaded( ) parts are critical for safety. Replace only with specified part number.
2. Voltages are DC-measured with a digital voltmeter during Play mode.
IMPORTANT SAFETY NOTE :
