LG EAX63328002 Schematic

2-402-39

A

1

2

3

4

5

6

7

8

9

10

11

12

B C D E F G H I J K L M N O P Q R ST

SMPS

EAX63328002, Rev1.4(4)

2012. 08. 13

Warning
Parts that are shaded are critical with
respect to risk of fire or electrical shock.

CIRCUIT DIAGRAMS

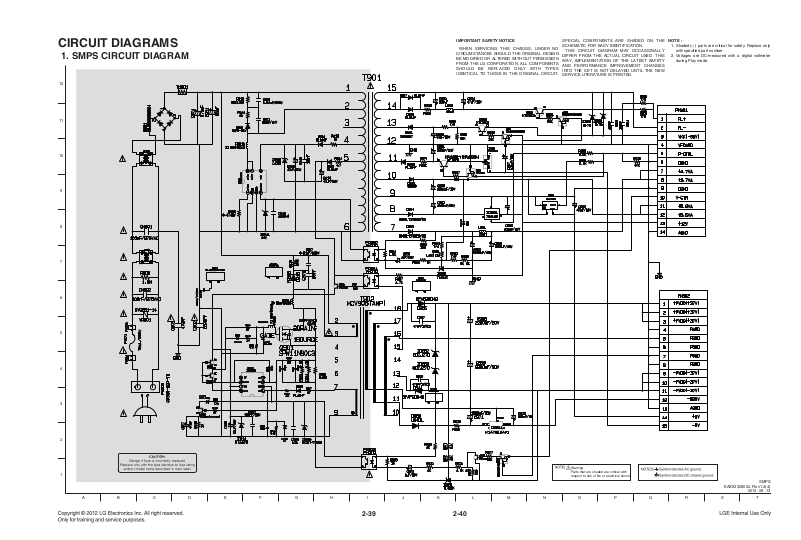

1. SMPS CIRCUIT DIAGRAM

IMPORTANT SAFETY NOTICE

WHEN SERVICING THIS CHASSIS, UNDER NO
CIRCUMSTANCES SHOULD THE ORIGINAL DESIGN
BE MODIFIED OR ALTERED WITH OUT PERMISSION
FROM THE LG CORPORATION. ALL COMPONENTS
SHOULD BE REPL ACED ON LY WITH TYPES
IDENTICAL TO THOSE IN THE ORIGINAL CIRCUIT.

SPECIAL COMPONENTS ARE SHADED ON THE
SCHEMATIC FOR EASY IDENTIFICATION.
THIS CIRCUIT DIAGRAM MAY OCCA SIONALLY
DIFFER FROM THE ACTUAL CIRCUIT USED. THIS
WAY, IMPLEMENTATION OF THE LATEST SAFETY
AND PERFORMANCE IMPROVEMENT CHANG ES
INTO THE SET IS NOT DELAYED UNTIL THE NEW
SERVICE LITERATURE IS PRINTED.

NOTE :

1. Shaded( ) parts are critical for safety. Replace only
with specified part number.

2. Voltages are DC-measured with a digital voltmeter

during Play mode.
