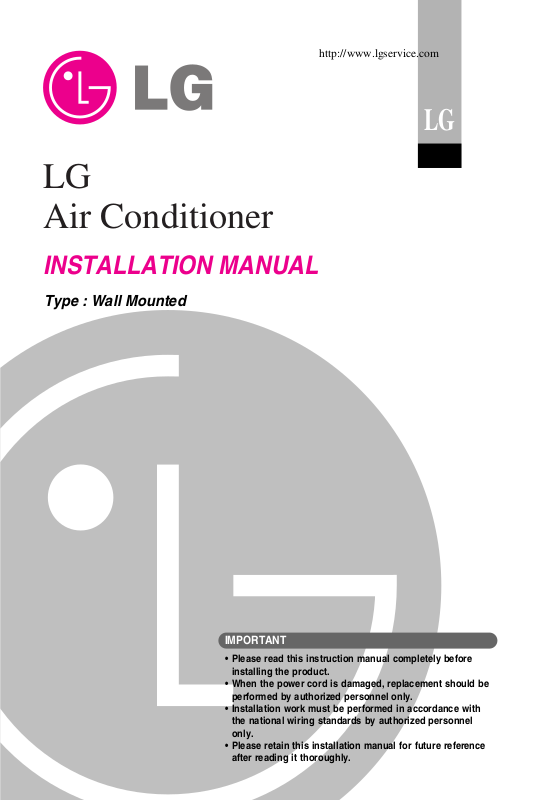

Page 1
LG
Air Conditioner
INSTALLATION MANUAL
LG
Type : Wall Mounted
http://www.lgservice.com
IMPORTANT
• Please read this instruction manual completely before
installing the product.
• When the power cord is damaged, replacement should be
performed by authorized personnel only.
• Installation work must be performed in accordance with
the national wiring standards by authorized personnel
only.
• Please retain this installation manual for future reference
after reading it thoroughly.
Page 2
Air Conditioner Installation Manual
CONTENTS
Installation
Requirements
Required Parts Required Tools
Safety Precautions
Introduction
Symbols used in this manual...................6
Installation
Installation parts..............................................7
Installation tools ...............................................7
Installation map.................................................8
Selecting the best location .........................9
Piping Length and Elevation ...............10
Fixing Installation Plate ...............................11
Drilling a hole in the wall...........................11
Flaring work.....................................................12
Connecting the piping ..............................13
Connecting the cables ...............................19
Checking the drainage ................................21
Forming the piping.......................................22
Air purging.........................................................23
Test running.....................................................25
Installation guide at the seaside. ...........27
..............................................3
...........................................................6
............................................................7
Some pieces of type "A" screws
Connecting cable
Installation guide map
Pipes: Gas side
Insulation materials
Additional drain pipe
(Outer diameter ..............15.5mm)
Some pieces of type "B" screws
Some pieces of type "C" screws
Level gauge
Screw driver
Electric drill
Liquid side
Hole core drill(ø70mm)
Horizontal meter
Flaring tool set
Specied torque wrenches
1.8kg.m, 4.2kg.m, 5.5kg.m,
6.6kg.m
(dierent depending on model No.)
Spanner ........................Half union
A glass of water
Hexagonal wrench(4mm)
Gas-leak detector
Vacuum pump
Gauge manifold
Owner's manual
Thermometer
Remote controller holder
2 Air conditoner
Page 3
Safety Precautions
To prevent the injury of the user or other people and property damage, the following instructions
must be followed.
■ Be sure to read before installing the air conditioner.
■ Be sure to observe the cautions specified here as they include important items related to safety.
■ Incorrect operation due to ignoring instruction will cause harm or damage. The seriousness is
classified by the following indications.
■ The meanings of the symbols used in this manual are as shown below.
This symbol indicates the possibility of death or serious injury.
This symbol indicates the possibility of injury or damage to properties only.
■ Installation
Be sure not to do.
Be sure to follow the instruction.
Safety Precautions
Always perform grounding.
• Otherwise, it may cause
electrical shock.
Don’t use a power cord, a
plug or a loose socket
which is damaged.
• Otherwise, it may cause a fire
or electrical shock.
For installation of the product,
always contact the service
center or a professional
installation agency.
• Otherwise, it may cause a fire,
electrical shock, explosion or
injury.
Securely attach the
electrical cover to indoor
and pipe cover to outdoor
unit.
• If the electrical part cover to
indoor unit and pipe cover to
outdoor unit are not attached
securely, it could result in a
fire or electric shock due to
dust, water, etc.
Always install a current
leakage breaker and a
dedicated switching board.
• No installation may cause a
fire and electrical shock.
Do not keep or use
flammable gases or
combustibles near the air
conditioner.
• Otherwise, it may cause a fire
or the failure of product.
Ensure that an installation frame of the
outdoor unit is not damaged due to use for
a long time.
• It may cause injury or an accident.
Do not disassemble or repair the product
randomly.
• It will cause a fire or electrical shock.
IQVWDOODWLRQ0DQXDO 3
Page 4
Safety Precautions
Do not install the product at a place where
there is concern of falling down.
• Otherwise, it may result in personal injury.
Use caution when unpacking and installing.
• Sharp edges may cause injury.
Take the power plug out if
necessary, holding the head
of the plug and do not touch
it with wet hands.
• Otherwise, it may cause a fire
or electrical shock.
Do not use the power cord
near the heating tools.
• Otherwise, it may cause a fire
and electrical shock.
Do not open the inlet of the
indoor/outdoor unit during
operation.
• Otherwise, it may cause
electrical shock and failure.
Do not allow water to run
into electrical parts.
• Otherwise, it may cause the
failure of machine or electrical
shock.
Hold the plug by the head
when taking it out.
• It may cause electric shock
and damage.
Never touch the metal parts
of the unit when removing
the filter.
• They are sharp and may
cause injury.
Do not share the outlet with
other appliances.
• It will cause an electric shock
or a fire due to heat
generation.
Do not use the damaged
power cord.
• Otherwise, it may cause a fire
or electrical shock.
Do not modify or extend the
power cord randomly.
• Otherwise, it may cause a fire
or electrical shock.
Take care so that the power
cord may not be pulled
during operation.
• Otherwise, it may cause a fire
or electrical shock.
Unplug the unit if strange
sound, smell, or smoke
comes from it.
• Otherwise, it may cause
electrical shock or a fire.
Keep the flames away.
• Otherwise, it may cause a fire.
Do not step on the indoor/outdoor unit and
do not put anything on it.
• It may cause an injury through dropping of the
unit or falling down.
Do not place a heavy object on the power
cord.
• Otherwise, it may cause a fire or electrical
shock.
When the product is submerged into water,
always contact the service center.
• Otherwise, it may cause a fire or electrical
shock.
Take care so that children may not step on
the outdoor unit.
• Otherwise, children may be seriously injured
due to falling down.
■ Operation
4 Air conditoner
Page 5
Safety Precautions
■ Installation
Install the drain hose to ensure that drain
can be securely done.
• Otherwise, it may cause water leakage.
Install the product so that the noise or hot
wind from the outdoor unit may not cause
any damage to the neighbors.
• Otherwise, it may cause dispute with the
neighbors.
Always inspect gas leakage after the
installation and repair of product.
• Otherwise, it may cause the failure of product.
Keep level parallel while installing the
product.
• Otherwise, it may cause vibration or water
leakage.
Avoid excessive cooling and perform
ventilation sometimes.
• Otherwise, it may do harm to your health.
Use a soft cloth to clean. Do not use wax,
thinner, or a strong detergent.
• The appearance of the air conditioner may
deteriorate, change color, or develop surface
flaws.
Do not use the appliance for special
purposes such as preserving animals
vegetables, precision machine, or art articles.
• Otherwise, it may damage your properties.
Do not place obstacles around the flow inlet
or outlet.
• Otherwise, it may cause the failure of appliance
or an accident.
■ Operation
,QVWDOODWLRQ0DQXDO 5
Page 6
The gure of product can be dierent according to the type of model.
Introduction
This symbol alerts you to the risk of electric shock.
This symbol alerts you to hazards that may cause harm to
the air conditioner.
This symbol indicates special notes.
NOTICE
Introduction
Symbols used in this Manual
Features
Indoor unit
Air Inlet
Front Panel
Air Discharge
Signal Receptor
Outdoor unit
Air Intake Vents
Air Outlet Vents
Base Plate
Air Intake Vents
Connecting
Wires
Piping
Drain Hose
Air Outlet Vents
Connecting
Wires
Piping
Drain Hose
Base Plate
Page 7
Type "A" screw
Type "C" screwType "B" screw
The feature can be changed according a type of model.
Remote control holder
Installation plate
Figure FigureName
Screw driver
Electric drill
Measuring tape, Knife
Hole core drill
Spanner
Torque wrench
Multi-meter
Hexagonal wrench
Ammeter
Gas-leak detector
Thermometer,
Level
Flaring tool set
Name
Installation
Installation Parts
Installation Tools
Installation
Read carefully, and then follow step by step.
IQVWDOODWLRQ0DQXDO7
Page 8
Installation
Installation Map
Saddle
Installation plate
Sleeve
Bushing-Sleeve
Putty(Gum Type Sealant)
Bend the pipe as closely
on the wall as possible,
but be careful that it
doesn't break.
Vinyl tape (Wide)
• Apply after carrying out a
drainage test.
• To carry out the drainage
test, remove the air filters
and pour water into the heat
exchanger.
Air Inlet Vents
Air Outlet Vents
Base Plate
- The feature can be changed according a type of model.
NOTICE
You should purchase the installation parts.
8 Air conditioner
Gas side piping (Optional Parts)
Liquid side piping (Optional Parts)
Additional drain pipe
Vinyl tape (Narrow)
Drain Hose
Connecting cable
(Optional Parts)
Page 9
Select the best Location
More than 15cm.
More than
5cm.
More than 2.3m.
More than
5cm.
Install the indoor unit on the wall where the height from the floor is more than 2.3m.
More than
30cm.
More than
30cm.
Fence or
obstacles
Sun
r
oof
More than
70cm.
More than
60cm.
Installation
Indoor unit
1. There should not be any heat or steam near
the unit.
2. Select a place where there are no obstacles
around of the unit.
3. Make sure that condensation drainage can be
conveniently routed away.
4. Do not install near a doorway.
5. Ensure that the interval between a wall and
the left (or right) of the unit is more than
5cm. The unit should be installed as high
as possible on the wall, allowing a minimum
of 15cm. from ceiling.
6. Use a metal detector to locate studs to
prevent unnecessary damage to the wall.
Outdoor unit
1. If an awning is built over the unit to prevent
direct sunlight or rain exposure, make sure
that heat radiation from the condenser is not
restricted.
2. Ensure that the space around the back and
sides is more than 30cm. The space in front
of the unit should be more than 70cm. of
space.
3. Do not place animals and plants in the path
of the warm air.
4. Take the weight of the air conditioner into
account and select a place where noise and
vibration are minimum.
5. Select a place where the warm air and noise
from the air conditioner do not disturb
neighbors.
Installation Manual 9
Page 10
Installation
Installation Manual 10
Piping Length and Elevation
9k Ø9.52 3/8 Ø 6.35 1/4 7.5 10 2 15 20
Pipe Size
Capacity
(Btu/h)
GAS LIQUID
mm inch mm inch
Max.
Length
A (m)
Min
Length
A (m)
Additional
Refrigerant (g/m)
Max.
Elevation
B (m)
Standard
Length
(m)
Outdoor unit
Indoor unit
A
B
Outdoor unit
Indoor unit
A
B
Capacity is based on standard length and maximum allowable length is on the basis of reliability.
Additional refrigerant must be charged after 7.5 m
12k Ø12.7 1/2 Ø6.35 1/4 7.5 10 2 15
Trap oil ccmpressor
Indoor unit
Use this case level of unit to difference > 5m.
20
Outdoor unit
Trap oil of compressor should to installation every 5-7 m.
Page 11
Indoor unit
The wall you select should be strong and solid
enough to prevent vibration
1. Mount the installation plate on the wall with
type "A" screws. If mounting the unit on a
concrete wall, use anchor bolts.
• Mount the installation plate horizontally by
aligning the centerline using Horizontal meter
.
2. Measure the wall and mark the centerline. It is also important to use caution concerning the
location of the installation plate. Routing of the wiring to power outlets is through the walls
typically. Drilling the hole through the wall for piping connections must be done safely.
Fixing Installation Plate
Installation Plate
Chassis
Hook
Type "A" Screws
• Drill the piping hole with a ø70mm hole core
drill. Drill the piping hole at either the right or
the left with the hole slightly slanted to the
outdoor side.
Drill a Hole in the Wall
5-7mm
(3/16"~5/16")
Indoor
WALL
Outdoor
Indoor unit
Unit Outline
442 442
Ø70
Left rear piping
133
175
Place a level on raised tab
Installation Plate
Ø70
Right rear piping
95
217
(Unit : mm)
IQVWDOODWLRQ0DQXDO11
Page 12
Installation
Flaring Work
Main cause for gas leakage is due to defect of flaring work. Carry out correct flaring work in the
following procedure.
Cut the pipes and the cable.
1. Use the piping kit accessory or the pipes
purchased locally.
2. Measure the distance between the indoor and
the outdoor unit.
3. Cut the pipes a little longer than measured
distance.
4. Cut the cable 1.5m longer than the pipe length.
Burrs removal
1. Completely remove all burrs from the cut cross
section of pipe/tube.
2. While removing burrs put the end of the copper
tube/pipe in a downward direction while
removing burrs location is also changed in
order to avoid dropping burrs into the tubing.
Putting nut on
• Remove flare nuts attached to indoor and
outdoor unit, then put them on pipe/tube having
completed burr removal.
(not possible to put them on after finishing flare
work)
Flaring work
1. Firmly hold copper pipe in a bar with the
dimension shown in below table table below.
2. Carry out flaring work with the flaring tool.
Copper
pipe
90°
Slanted Uneven Rough
mm inch mm
Ø6.35 1/4 1.1~1.3
Ø9.52 3/8 1.5~1.7
Ø12.7 1/2 1.6~1.8
Ø15.88 5/8 1.6~1.8
Ø19.05 3/4 1.9~2.1
Outside diameter A
Bar
Copper pipe
Clamp handle
Red arrow mark
Cone
Yoke
Handle
Bar
"A"
Pipe
Reamer
Point down
Flare nut
Copper tube
12 Air conditioner
Page 13
Installation
Check
1. Compare the ared work with the gure by.
2. If a ared section is defective, cut it o and
do aring work again.
1.
Pull the screw cap at the bottom of the indoor unit
2. Remove the chassis cover from the unit by
loosing 2 screws
3. Pull back the tubing holder.
4. Remove pipe port cover and positioning the
tubing
Inclined
Inside is shiny without scratches
Smooth all round
Even length
all round
Surface
damaged
Cracked Uneven
thickness
= Improper aring =
Connecting the Piping
Connecting the Piping inside indoor
Indoor
1. Prepare the indoor unit's piping and drain hose for installation through the wall.
2. Remove the plastic tubing retainer(see the
illustration by) and pull the tubing and drain
hose away from chassis.
3. Replace the plastic tubing holder in the
original position.(Optional)
Indoor unit back side view
Right
Downwards
Chassis cover
Tubing holder
Left
Backwards
IQVWDOODWLRQ0DQXDO13
Page 14
Installation
Installation Information. For right piping. Follow the instruction below.
Good case
• Press on the tubing cover and unfold the tubing to downward slowly. And then bend to the left
side slowly.
Bad case
• Following bending case from right to left directly may cause damage to the tubing.
14 Air conditioner
Page 15
Installation
Installation of Indoor Unit
1. Hook the indoor unit onto the upper portion of
the installation plate.( engage the three hooks
at the top of the indoor unit with the upper edge
of the installation plate) Ensure that the hooks
are properly seated on the installation plate by
moving it left and right
2. Unlock the tubing holder from the chassis and
mount between the chassis and installation
plate in order to separate the bottom side of the
indoor unit from the wall
1. Insert the connecting cable through the bottom side of indoor unit and connect the cable (You
can see detail contents in 'Connecting the cables' section)
2. Secure the cable onto the control board with the cable retainer.
>gnipip edis thgiR<>gnipip edis tfeL<
Piping
2
1
Installation plate
Tubing Holder
View
Terminal block
Connecting cable
Cable retainer
View
Terminal block
Connecting cable
Cable retainer
IQVWDOODWLRQ0DQXDO15
Page 16
Installation
3. Tape the tubing pipe, drain hose and the connection cable. Be sure that the drain hose is located
at the lowest side of the bundle. Locating at the upper side can cause overflow from the drain pan
through the inside of the unit.
If the drain hose is routed inside the room insulate the hose with an insulation material* so that
dripping from sweating (condensation) will not damage furniture or floors.
* Foamed polyethylene or equivalent is recommended.
Connecting the installation pipe and
drain hose to the indoor unit.
1. Align the center of the pipes and sufficiently
tighten the flare nut by hand
2. Tighten the flare nut with a wrench
3. When needed to extend the drain hose of
indoor unit, assembly the drain pipe as shown
on the drawing
Connecting pipe
Connecting
cable
Tape
Drain hose
mm inch kgf.m
Ø6.35 1/4 1.8~2.5
Ø9.52 3/8 3.4~4.2
Ø12.7 1/2 5.5~6.5
Ø15.88 5/8 6.3~8.2
Ø19.05 3/4 9.9~12.1
Outside diameter Torque
Indoor unit tubing Flare nut Pipes
<Left side piping> <Right side piping>
Drain hose
Connecting pipe
Connecting
cable
Tape
Drain hose
16 Air conditioner
Wrench
Indoor unit tubing
Drain pipe
Adhesive
Open-end wrench (fixed)
Flare nut
Connection pipe
Indoor unit drain hose
Vinyl tape(narrow)
Page 17
Installation
Wrap the insulation material around the
connecting portion.
1. Overlap the connection pipe insulation
material and the indoor unit pipe insulation
material. Bind them together with vinyl tape
so that there may be no gap.
2. Wrap the area which accommodates the rear
piping housing section with vinyl tape.
3. Bundle the piping and drain hose together by
wrapping them with vinyl tape sufficient
enough to cover where they fit into the rear
piping housing section.
Finishing the indoor unit installation
1.
Mount the tubing holder in the original positon.
2. Ensure that the hooks are properly seated on
the installation plate by moving it left and
right.
3. Press the lower left and right sides of the unit
against the installation plate until the hooks
engage into their slots (clicking sound).
4. Finish the assembly by screwing the unit to
the installation plate by using two pieces of
type "C" screws. And assemble a chassis
cover.
Insulation material
Connection pipe
Vinyl tape (wide)
Connecting cable
Indoor unit pipe
Wrap with vinyl tape
Pipe
Vinyl tape(narrow)
Pipe
Drain hose
Wrap with vinyl tape
Vinyl tape(wide)
Type 'C' screw
IQVWDOODWLRQ0DQXDO17
Page 18
1. Align the center of the pipings and sufficiently
tighten the flare nut by hand.
2. Finally, tighten the flare nut with torque
wrench until the wrench clicks.
• When tightening the flare nut with torque
wrench, ensure the direction for tightening
follows the arrow on the wrench.
mm inch kgf.m
Ø6.35 1/4 1.8~2.5
Ø9.52 3/8 3.4~4.2
Ø12.7 1/2 5.5~6.5
Ø15.88 5/8 6.3~8.2
Ø19.05 3/4 9.9~12.1
Outside diameter Torque
Installation
Outdoor unit
Outdoor unit
Liquid side piping
(Smaller diameter)
Gas side
piping
(Bigger
diameter)
Torque wrench
18 Air conditioner
Page 19
Installation
Indoor unit
Connect the cable to the indoor unit by connecting the wires to the terminals on the control board
individually according to the outdoor unit connection. (Ensure that the color of the wires of the
outdoor unit and the terminal No. are the same as those of the indoor unit.)
Connecting the Cables
• The circuit diagram is a subject to change without notice.
• The earth wire should be longer than the common wires.
• When installing, refer to the circuit diagram on the chassis cover.
• Connect the wires firmly so that they may not be pulled out easily.
• Connect the wires according to color codes, referring to the wiring diagram.
The power cord connected to the unit should be selected according to the following
specifications(Type "B" approved by HAR or SAA).
The power connecting cable connecting the indoor and outdoor unit should be selected according
to the following specifications (Type "B" approved by HAR or SAA).
45
±
5
10
±
3
2.5~3.5kw
1.0
roodnI)A(tinU
F-VV50H)B(epyT elbaC
NORMAL CROSS SECTIONAL AREA
Grade
(mm2)
2.5~3.5kw
1.0
F-NR70H)B(epyT elbaC
NORMAL CROSS
-SECTIONAL AREA
Grade
(mm2)
45
±
5
10
±
3
Do not use Single cord for power connecting.
It may cause fire when connecting loose.
Installation Manual 19
Page 20
Installation
Outdoor unit
1. Connect the wires to the terminals on the
control board individually.
2. Secure the cable onto the control board with
the cord clamp.
3. Use a recognized circuit breaker between the
power source and the unit.
A disconnecting device to adequately
disconnect all supply lines must be tted.
Outdoor Unit
Cover control
Cord clamp
Connecting
cable
According to the conrmation of the above conditions, prepare the wiring as follows.
1.
Never fail to have an individual power circuit specically for the air conditioner. As for the
method of wiring, be guided by the circuit diagram posted on the inside of control cover.
2.
The screw which fasten the wiring in the casing of electrical ttings are liable to come loose from
vibrations to which the unit is subjected during the course of transportation. Check them and make
sure that they are all tightly fastened. (If they are loose, it could cause burn-out of the wires.)
3. Specication of power source.
4. Conrm that electrical capacity is sucient.
5. See that the starting voltage is maintained at more than 90 percent of the rated
voltage marked on the name plate.
6. Conrm that the cable thickness is as specied in the power source specication.
(Particularly note the relation between cable length and thickness.
7. Always install an earth leakage circuit breaker in a wet or moist area.
8. The following would be caused by voltage drop.
• Vibration of a magnetic switch, which will damage the contact point, fuse breaking, disturbance of
the normal function of the overload.
9.
The means for disconnection from a power supply shall be incorporated in the xed wiring
and have an air gap contact separation of at least 3mm in each active(phase) conductors.
2.5~3.5kw
15
Circuit Breaker(A)
Grade
Provide the circuit breaker between power
source and the unit as shown by
Air
Conditioner
Main power source
Circuit Breaker
Use a circuit breake
or time delay fuse.
20 Air conditioner
Page 21
Installation
Checking the Drainage
To check the drainage.
1. Pour a glass of water on the evaporator.
2. Ensure the water flows through the drain
hose of the indoor unit without any leakage
and goes out the drain exit.
Drain piping
1. The drain hose should point downward for
easy drain flow.
2. Do not make drain piping like the following.
Drain pan
Drain
hose
Leakage
checking
Connecting area
drain hose
Leakage
checking
Do not raise
Water
leakage
Water
leakage
Accumulated
drain water
Air
Waving
Water
leakage
Tip of drain hose
dipped in water
Ditch
Downward slope
Less than
50mm gap
IQVWDOODWLRQ0DQXDO21
Page 22
Installation
Forming the Piping
Form the piping by wrapping the
connecting portion of the indoor unit
with insulation material and secure it
with two kinds of vinyl tapes.
• If you want to connect an additional drain
hose, the end of the drain outlet should be
routed above the ground. Secure the drain
hose appropriately.
In cases where the outdoor unit is
installed below the indoor unit
perform the following.
1. Tape the piping, drain hose and connecting
cable from down to up.
2. Secure the tapped piping along the exterior
wall using saddle or equivalent.
In cases where the Outdoor unit is
installed above the Indoor unit
perform the following.
1. Tape the piping and connecting cable from
down to up.
2. Secure the taped piping along the exterior
wall. Form a trap to prevent water entering
the room.
3. Fix the piping onto the wall using saddle or
equivalent.
Drain hose
Seal small openings
around pipings with a
gum type sealant.
Pipe
Vinyl tape(narrow)
Wrap with
vinyl tape(wide)
Taping
Drain hose
Pipings
Connecting cable
22 Air conditioner
Trap is required to prevent water
from entering into electrical parts.
Seal a small opening
around the pipings
with gum type sealant.
Trap
Trap
Page 23
Installation
Air Purging
The air and moisture remaining in the refrigerant system have undesirable effects as indicated below.
1. Pressure in the system rises.
2. Operating current rises.
3. Cooling(or heating) efficiency drops.
4. Moisture in the refrigerant circuit may freeze and block capillary tubing.
5. Water may lead to corrosion of parts in the refrigeration system.
Therefore, after evacuating the system, take a leak test for the piping and tubing between the
indoor and outdoor unit.
Air purging with vacuum pump
1. Preparation
• Check that each tube(both liquid and gas side tubes) between the indoor and outdoor units have been
properly connected and all wiring for the test run has been completed. Remove the service valve caps
from both the gas and the liquid side on the outdoor unit. Note that both the liquid and the gas side
service valves on the outdoor unit are kept closed at this stage.
2. Leak test
• Connect the manifold valve(with pressure gauges) and dry nitrogen gas cylinder to this service port with
charge hoses.
Be sure to use a manifold valve for air purging. If it is not available, use a stop valve for this
purpose. The knob of the 3-way valve must always be kept close.
• Pressurize the system to not more than 150 P.S.I.G. with dry nitrogen gas and close the cylinder
valve when the gauge reading reaches 150 P.S.I.G. Next, test for leaks with liquid soap.
To avoid nitrogen entering the refrigerant system in a liquid state, the top of the cylinder must be
higher than its bottom when you pressurize the system. Usually, the cylinder is used in a vertical
standing position.
1. Do a leak test of all joints of the tubing(both indoor and outdoor) and both gas and liquid side
service valves.
Bubbles indicate a leak. Be sure to
wipe off the soap with a clean
cloth.
2. After the system is found to be free
of leaks, relieve the nitrogen
pressure by loosening the charge
hose connector at the nitrogen
cylinder. When the system pressure
is reduced to normal, disconnect
the hose from the cylinder.
Lo Hi
Indoor unit
Outdoor unit
Manifold valve
Charge hose
Nitrogen gas
cylinder(in vertical
standing position)
Pressure
gauge
IQVWDOODWLRQ0DQXDO23
Page 24
Installation
Soap water method
1. Remove the caps from the 2-way and 3-way valves.
2. Remove the service-port cap from the 3-way valve.
3. Apply a soap water or a liquid neutral detergent on
the indoor unit connection or outdoor unit
connections by a soft brush to check for leakage of
the connecting points of the piping.
4. If bubbles come out, the pipes have leakage
Evacuation
1. Connect the charge hose end described in the
preceding steps to the vacuum pump to
evacuate the tubing and indoor unit.
Confirm the "Lo" knob of the pressure Gauge is
open. Then, run the vacuum pump.
The operation time for evacuation varies with
tubing length and capacity of the pump. The
following table shows the time required for
evacuation.
2. When the desired vacuum is reached, close the
knob of the 3-way valve and stop the vacuum
pump.
Finishing the Job
1. With a service valve wrench, turn the valve of
liquid side counter-clockwise to fully open the
valve
2. Turn the valve of gas side counter clockwise to
fully open the valve
3. Loosen the charge hose connected to the gas
side service port slightly to release the pressure,
then remove the hose.
4. Replace the flare nut and its bonnet on the gas
side service port and fasten the flare nut
securely with an adjustable wrench. This
process is very important to prevent leakage
from the system
5. Replace the valve caps at both gas and liquid
side service valves and fasten them tight.
This completes air purging with a vacuum pump.
6. Replace the pipe cover to the outdoor unit by
one screw
Now the air conditioner is ready for test run.
Gas side
Liquid side
Cap
Hexagonal wrench
2-way valve
(Open)
3-way valve
(Close)
Required time for evacuation when 30 gal/h vacuum
pump is used
10 min. or more 15 min. or more
If tubing length is less
than 10m (33 ft)
If tubing length is longer
than 10m (33 ft)
Indoor unit
Outdoor unit
Lo Hi
Manifold valve
Vacuum pump
Pressure
gauge
Open
Close
24 Air conditioner
Page 25
Installation
1. Check that all tubing and wiring are properly connected.
2. Check that the gas and liquid side service valves are fully open.
• Rational type
1. Pull out the triple filter and allergy free filter
from the separately packed plastic bag.
2. Insert the triple filter into the left case and
insert the allergy free filter into the right case.
3. Detach two nitto tapes from the plasma filter.
Prepare remote controller
1. Remove the battery cover by pulling it
according to the arrow direction.
2. Insert new batteries making sure that the (+)
and (–) of battery are installed correctly.
3. Reattach the cover by pushing it back into
position.
• Use 2 AAA(1.5volt) batteries. Do not use
rechargeable batteries.
•
Remove the batteries from the remote controller
if the system is not used for a long time.
NOTICE
Test Running
Triple Filter Plasma FilterAllergy Free Filter
IQVWDOODWLRQ0DQXDO25
Page 26
Installation
If the actual pressure is higher than shown, the system is most likely over-charged, and charge
should be removed. If the actual pressure are lower than shown, the system is most likely
undercharged, and charge should be added.
NOTICE
PUMP DOWN
This is performed when the unit is relocated or the refrigerant circuit is serviced.
Pump Down means collecting all refrigerant into the outdoor unit without the loss of refrigerant.
Be sure to perform Pump Down procedure in the cooling mode.
Pump Down Procedure
1. Connect a low-pressure gauge manifold hose to the charge port on the gas side service valve.
2.
Open the gas side service valve halfway and purge the air in the manifold hose using the refrigerant.
3. Close the liquid side service valve(all the way).
4. Turn on the unit's operating switch and start the cooling operation.
5. When the low-pressure gauge reading becomes 1 to
0.5kg/cm
2
G(14.2 to 7.1 P.S.I.G.)
, fully close
and all refrigerant is collected into the outdoor unit.
Settlement of outdoor unit
1. Fix the outdoor unit with a bolt and
nut(ø10mm) tightly and horizontally on a
concrete or rigid mount.
2.
When installing on the wall, roof or rooftop, anchor
the mounting base securely with a nail or wire
3.
If the vibration of the unit is transmitted to the
pipe, secure the unit with an anti-vibration rubber.
Evaluation of the performance
Operate the unit for 15~20 minutes, then check
the system refrigerant charge:
1. Measure the pressure of the gas side service
valve.
2. Measure the air temperature from inlet and
outlet of air conditiioner.
outlet temperature is more than 8 °C.
4. For reference; the gas side pressure at
optimum condition is shown on table (cooling)
The air conditioner is now ready to use.
Bolt
Tubing connection
Discharge
temperature
Discharge air
Intake temperature
2
Outside ambient
TEMP.
Refrigerant
The pressure of the gas side
R410a
35°C(95°F)
8.5~9.5kg/cm
G(120~135 P.S.I.G.)
26 Air conditioner
Page 27
Installation
Installation guide at the seaside
1.
Air conditioners should not be installed in areas where corrosive gases, such as acid or alkaline gas, are produced.
2. Do not install the product where it could be exposed to sea wind (salty wind) directly. It can result corrosion
on the product. Corrosion, particularly on the condenser and evaporator fins, could cause product malfunction or inefficient performance.
3. If outdoor unit is installed close to the seaside, it should avoid direct exposure to the sea wind. Otherwise it
needs additional anticorrosion treatment on the heat exchanger.
1.
If you can’t meet above guide line in the seaside installation, please contact LG Electronics for the additional anticorrosion treatment.
2. Periodic ( more than once/year ) cleaning of the dust or salt particles stuck on the heat exchanger by using water
Selecting the location(Outdoor Unit)
1) If the outdoor unit is to be installed close to the seaside, then direct exposure to the sea wind should be avoided.
Install the outdoor unit on the opposite side of the sea wind direction.
2) In case of installing the outdoor unit on the sea side, setup a windbreak to prevent sea wind.
3) Select a well-drained place.
• It should be strong enough like concrete to prevent the
sea wind from the sea.
• The height and width should be more than 150%
of the outdoor unit.
• Keep more than 70 cm of space between
outdoor unit and the windbreak for easy air flow.
Sea wind
Windbreak
Sea wind Sea wind
IQVWDOODWLRQ0DQXDO27
Page 28
P/No.: MFL62106406
After reading this manual, keep it in a place easily accessible to the user for
future reference.
Loading...
