OWNER’S MANUAL

MONITOR SIGNAGE

Please read this manual carefully before operating the your set and retain it

for future reference.

MONITOR SIGNAGE MODELS

42LS55A 47LS55A 55LS55A

www.lg.com

TABLE OF CONTENTS

ENGLISH

TABLE OF CONTENTS

3 LICENSES

4 ASSEMBLY AND

PREPARATION

4 Accessories

5 Optional Accessories

7 Parts and Buttons

8 Connecting the Stand

8 Connecting the Speakers

9 Connecting IR & Light Sensor

9 Portrait Layout

10 Installing on a Wall

12 REMOTE CONTROL

14 MAKING CONNECTIONS

14 Connecting to a PC

16 External Device Connection

17 Using the Input List

17 ENTERTAINMENT

28 USER SETTINGS

28 Main Menu Settings

28 - Quick Settings 29 - Picture Setting 33 - Sound Settings 34 - Network Settings 36 - General Settings

37 TROUBLESHOOTING

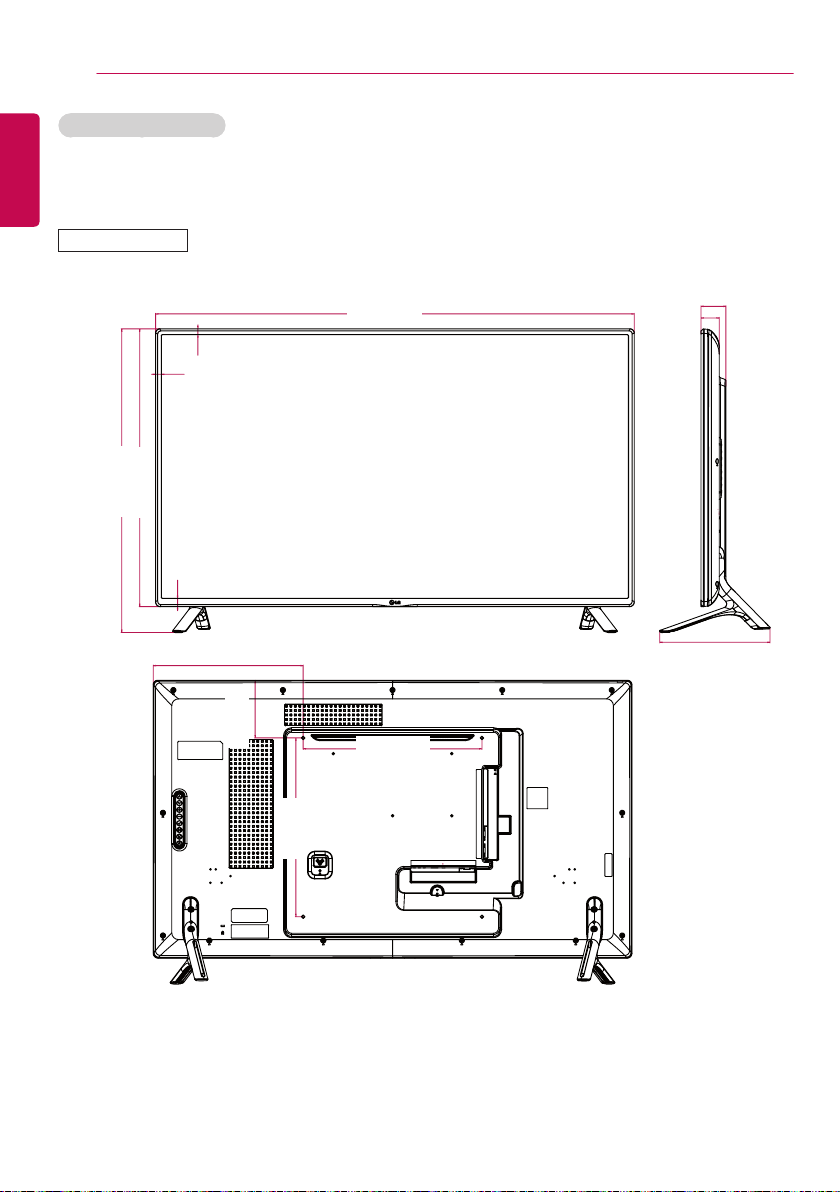

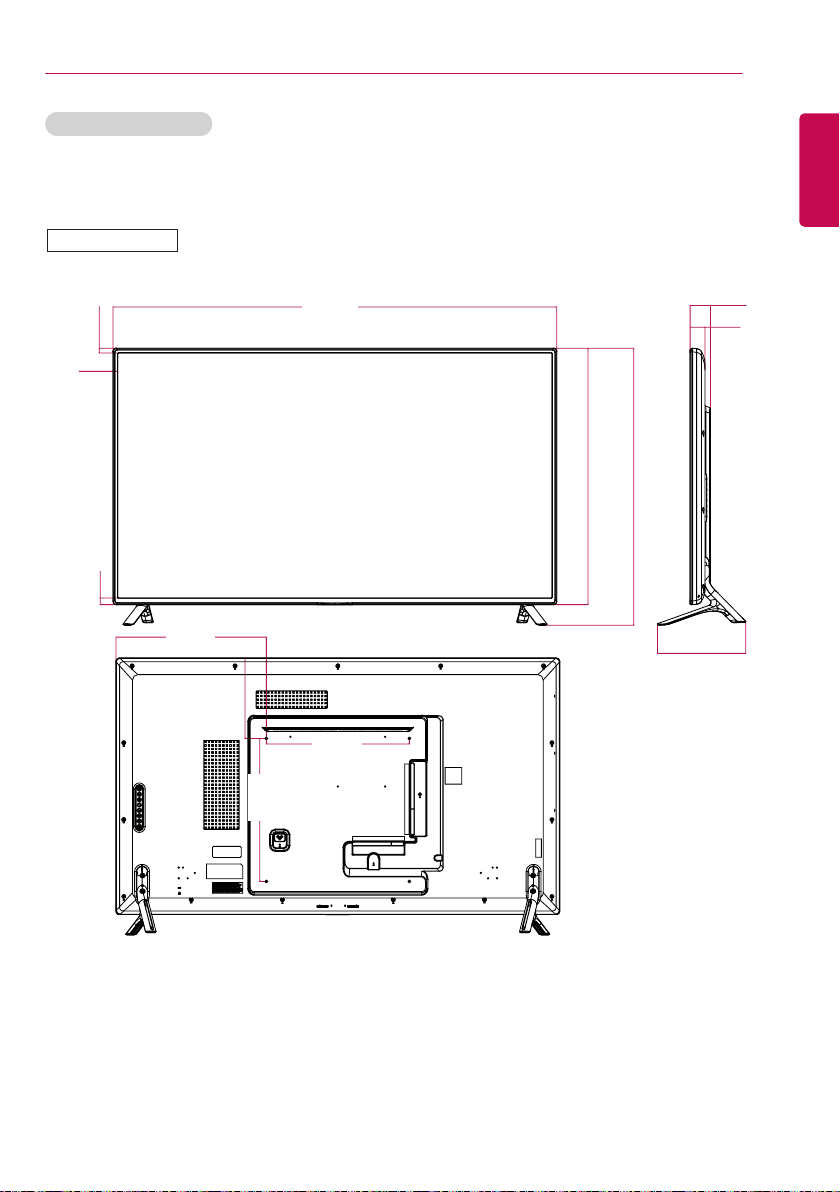

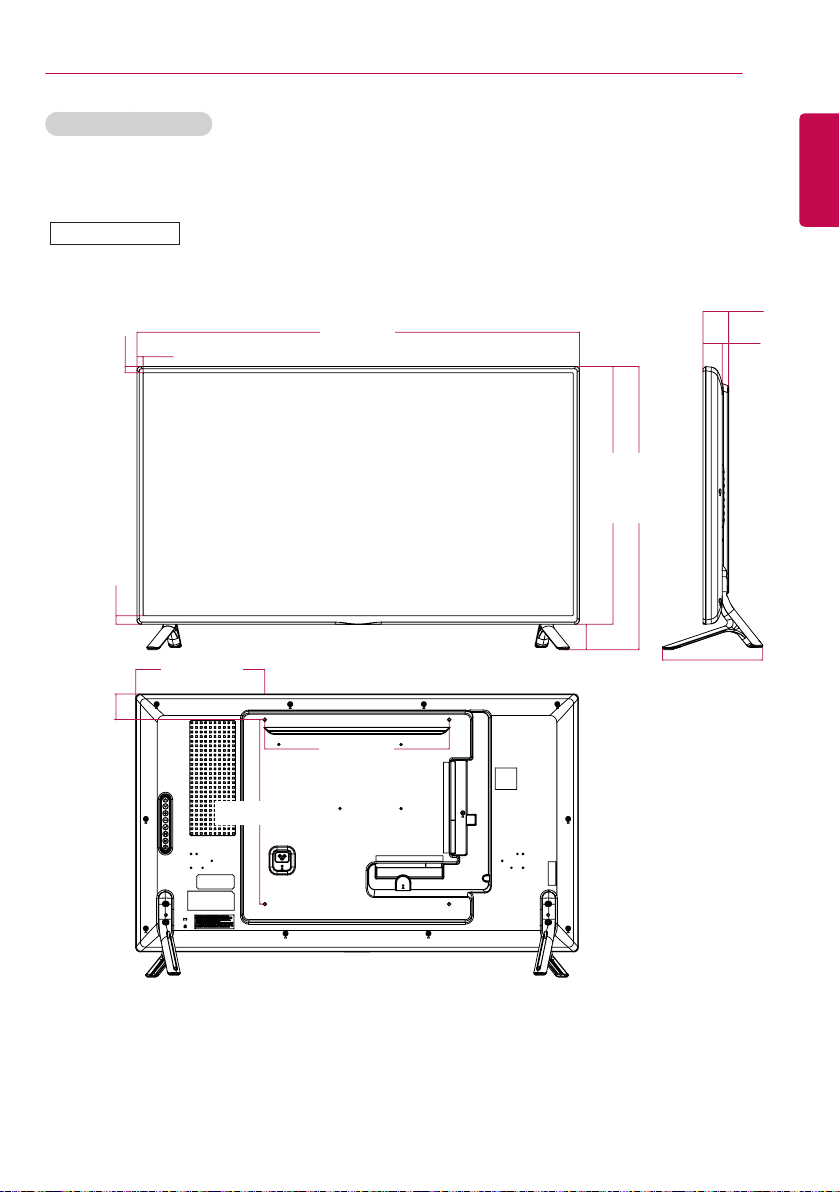

39 PRODUCT SPECIFICATIONS

49 IR CODES

51 TO CONTROL MULTIPLE

PRODUCTS

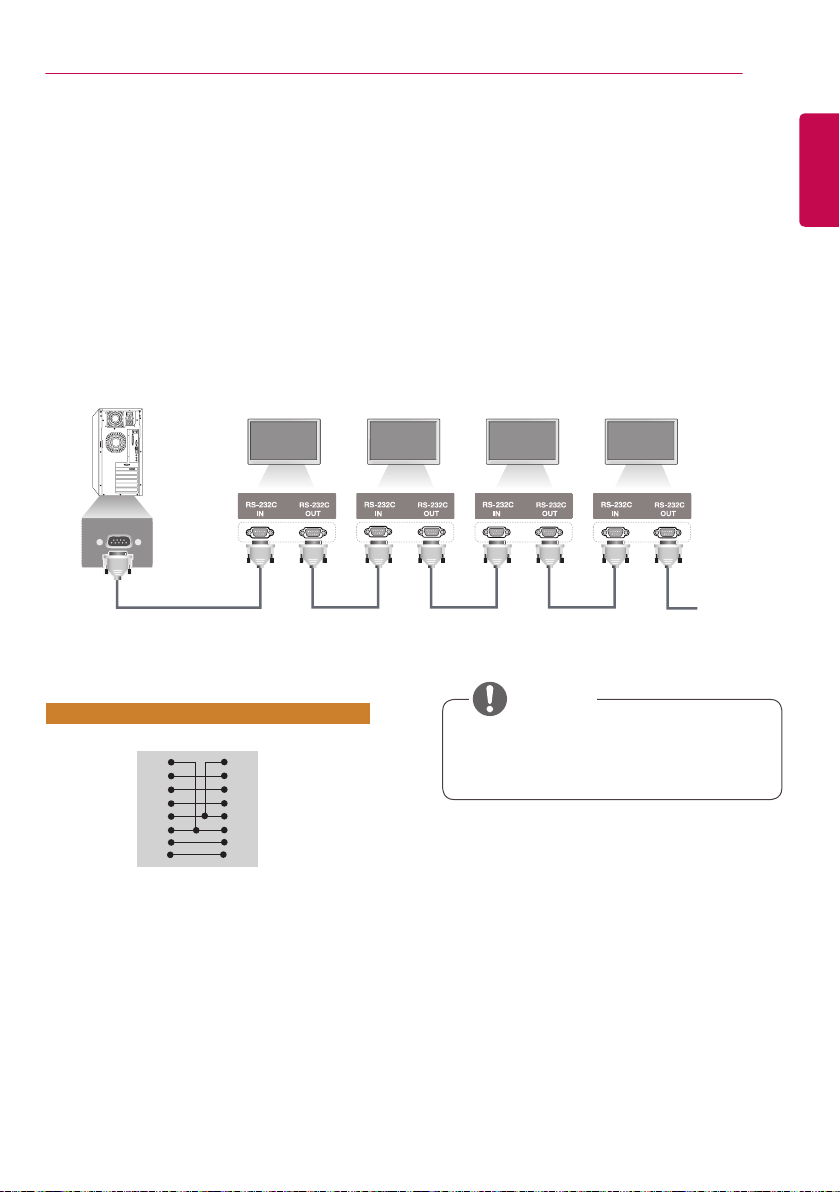

51 Connecting the cable

51 RS-232C Configurations

51 Communication Parameter

52 Command Reference List

54 Transmission/Reception Protocol

17 Using My Media

17 - Connecting USB storage devices 19 - Browsing Files 19 - Files Supported by My Media 22 - Viewing Videos 24 - Viewing Photos 24 - Listening to Music 25 - Settings 26 SuperSign Contents

26 Information

26 File Manager

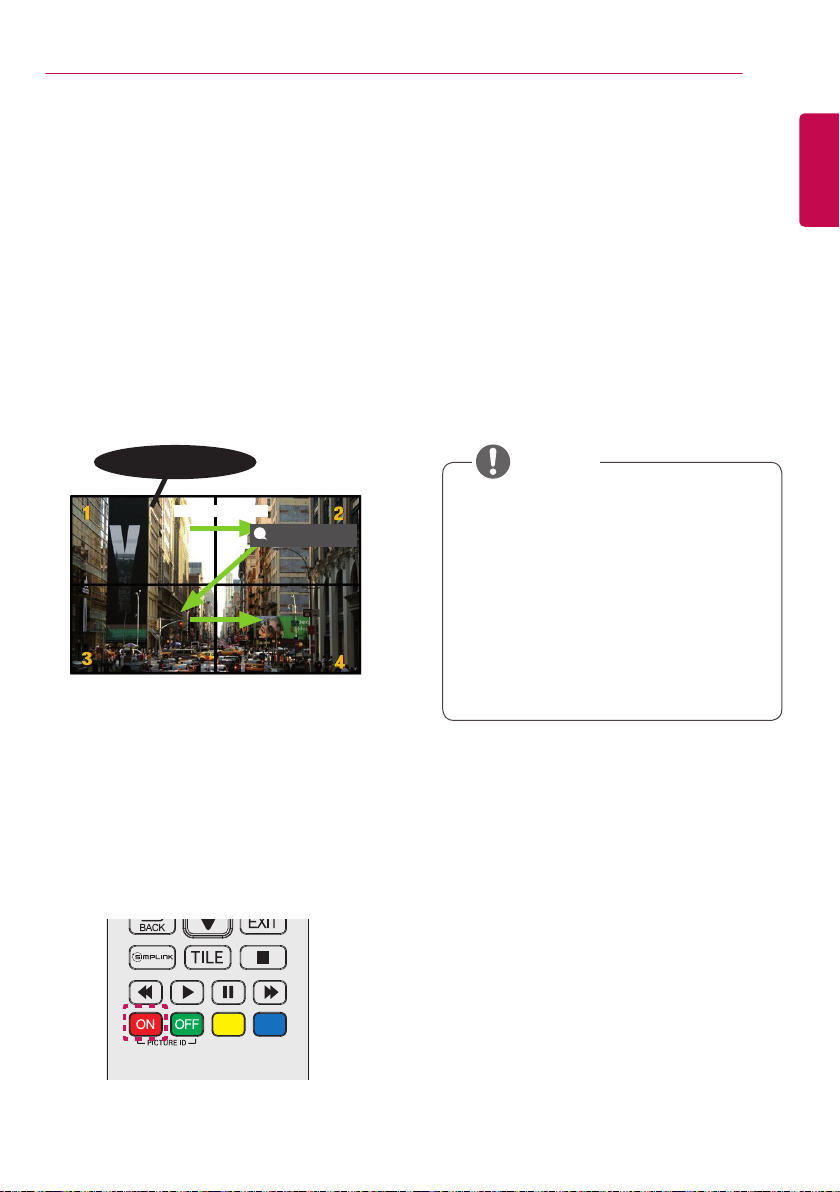

27 Picture ID Settings

LICENSES

Supported licenses may differ by model. For more information of the licenses, visit www.lg.com.

The terms HDMI and HDMI High-Definition Multimedia Interface, and the HDMI logo are trademarks or registered trademarks of HDMI Licensing LLC in the United States and other countries.

ABOUT DIVX VIDEO: DivX® is a digital video format created by DivX, LLC, a subsidiary of Rovi Corporation. This is an official DivX Certified® device that has passed rigorous testing to verify that it plays DivX video. Visit divx.com for more information and software tools to convert your files into DivX video.

ABOUT DIVX VIDEO-ON-DEMAND: This DivX Certified® device must be registered in order to play purchased DivX Video-on-Demand (VOD) movies. To obtain your registration code, locate the DivX VOD section in your device setup menu. Go to vod.divx.com for more information on how to complete your registration.

“DivX Certified® to play DivX® video up to HD 1080p, including premium content.”

“DivX®, DivX Certified® and associated logos are trademarks of Rovi Corporation or its subsidiaries and are used under license.”

“Covered by one or more of the following U.S. patents :

7,295,673; 7,460,668; 7,515,710; 7,519,274”

ENGLISH

Manufactured under license from Dolby Laboratories. Dolby and the double-D symbol are trademarks of Dolby Laboratories.

For DTS patents, see http://patents.dts.com. Manufactured under license from DTS Licensing Limited. DTS, the Symbol, & DTS and the Symbol together are registered trademarks, and DTS 2.0 Channel is a trademark of DTS, Inc. © DTS, Inc. All Rights Reserved.

NOTE

• The warranty will not cover any damage caused by using the product in an excessively dusty

environment.

ASSEMBLY AND PREPARATION

ENGLISH

ASSEMBLY AND PREPARATION

Accessories

Please check whether all the components are included in the box before using the product. If there are any missing components, contact the retail store where you purchased the product. The illustrations in this manual may differ from the actual product and accessories.

Remote Control,

Batteries (AAA) 2EA

CD (Owner’s Manual/

Card HDMI Cable

Power Cord IR & Light Sensor

CAUTION

• Always use genuine components to ensure safety and product performance.

• The product warranty will not cover damage or injury caused by the use of counterfeit components.

NOTE

• The accessories supplied with your product may vary depending on the model.

• Product specifications or contents in this manual may be changed without prior notice due to

upgrade of product functions.

• SuperSign Software & Manual

- Downloading from the LG Electronics website.

- Visit the LG Electronics website (www.lgecommercial.com/supersign) and download the latest software for your model.

ASSEMBLY AND PREPARATION

Optional Accessories

Without prior notice, optional accessories are subject to change to improve the performance of the product, and new accessories may be added. The illustrations in this manual may differ from the actual product and accessories.

Stand

ST-421T (42LS55A)

ST-471T (47LS55A)

(55LS55A)

Diameter 4.0 mm x Pitch 0.7 mm x

Length 14 mm (including spring washer)

Stand kit

Screws

ENGLISH

Speakers

SP-2100

Cable Holders/

Cable Ties

Screws

Diameter 4.0 mm x Pitch

0.7 mm x Length 8 mm (including spring washer)

Screws

Diameter 4.0 mm x Pitch

1.6 mm x Length 10 mm

Speaker kit

NOTE

• Cable holder/Cable tie may not be available in some areas or for some models.

• Optional accessories are available for some models. If necessary, please purchase them separately.

ENGLISH

ASSEMBLY AND PREPARATION

Media Player

MP500/MP700

Screws Owner’s Manual

(supplied on CD-ROM) /

Card

Media Player kit

KT-SP0

Pixel sensor kit

NOTE

• Optional accessories are available for some models. If necessary, please purchase them separately.

• Pixel sensor is sold separately. You can obtain additional accessories from your local retail store.

ASSEMBLY AND PREPARATION

Parts and Buttons

3 4

PIXEL

SENSOR

___

3.3V 0.25mA

---

IR&LIGHT

SENSOR

ENGLISH

Screen

Buttons

No. Description

Adjusts up and down.

Moves left and right.

Displays the current signal and mode.

Accesses the main menus, or saves your input and exits the menus.

Change the input signal.

Turns the power on or off.

Connection

Panel

ASSEMBLY AND PREPARATION

ENGLISH

Connecting the Stand

Connecting the Speakers

- For certain models only.

1. Place a soft cloth on the table and place the

product with the screen facing downward.

2. Use the screws to secure the stand to the

back of the product as shown below.

- For certain models only.

1. Connect an input signal cable before

installing the speakers.

2. Mount the speakers by using screws as

shown below. Make sure the power cable is

disconnected before making a connection.

3. Connect the speaker cables noting the

correct polarity. Use cable holders and cable

ties to organize the speaker cables.

ASSEMBLY AND PREPARATION

Connecting IR & Light Sensor

When you connect the cable to the product, the feature for receiving remote control signals is activated. The IR & light sensor is magnetic. Attach it to the front edge of the product for use.

[Front]

Portrait Layout

Using Kensington Lock

The Kensington security system connector is located at the back of the monitor. For more information on installation and use of this system, refer to the manual provided with the Kensington security system or visit

kensington.com

Connect the Kensington security system cable between the monitor and a table.

http://www.

ENGLISH

When installing in a portrait layout, rotate the monitor counterclockwise 90 degrees (when facing the screen).

NOTE

• The Kensington security system is optional.

You can obtain additional accessories from most electronics retail stores.

ASSEMBLY AND PREPARATION

ENGLISH

Installing on a Wall

CAUTION

For proper ventilation, allow a clearance of 10 cm on each side and from the wall. Detailed installation instructions are available from your dealer, see the optional Tilt Wall Mounting Bracket Installation and Setup Guide.

10cm

To install your monitor on a wall, attach a wall mounting bracket (optional part) to the back of the monitor.

Make sure that the wall mounting bracket is securely fixed to the monitor and to the wall.

10cm

1. Use only screws and wall mounting brackets

that conform to VESA standards.

2. Screws which are longer than standard

length may damage the inside of the monitor.

3. A non-VESA standard screw may damage

the product and cause the monitor to fall.

LG Electronics is not liable for any accidents

related to the use of non-standard screws.

4. Please use VESA standard as below.

• 785 mm and above

* Fixing screws: Diameter 6.0 mm x Pitch

1.0 mm x Length 12 mm

• Disconnect the power cord before moving or

installing the monitor to avoid risk of electric shock.

• If you install the monitor on a ceiling

or slanted wall, it may fall and result in injury. Use an authorized LG wall mount and contact your local dealer or qualified personnel to assist with the installation.

• Do not over tighten the screws as this may

damage the monitor and void your warranty.

• Use only screws and wall mounting brackets

that meet the VESA standard. Any damage or injuries caused by misuse or use of improper accessories are not covered by the warranty.

• To prevent injury, this apparatus must be

securely attached to the wall in accordance with the instrallation instructions. (This only pertains to Australia and New Zealand.)

NOTE

• The wall mount kit includes the installation

guide and all necessary parts.

• The wall mounting bracket is optional. You

can obtain additional accessories from your local dealer.

• The length of screws required may differ

depending on the wall mount. Be sure to use the correct length.

• For more information, please refer to the

guide provided with the wall mount.

785 mm

ASSEMBLY AND PREPARATION

Securing the monitor to a wall (optional)

Procedure may differ depending on the model.

1. Insert and tighten the eyebolts, or brackets

and bolts on the back of the monitor.

- If there are already bolts inserted in the

eyebolts’ position, remove the other bolts first.

2. Mount the wall brackets with the bolts to the

wall. Match the location of the wall bracket and the eyebolts on the rear of the monitor.

3. Connect the eyebolts and wall brackets

tightly with a sturdy cord. Make sure the securing cord is horizontal with the flat surface.

ENGLISH

WARNING

• If the monitor is not positioned in a

sufficiently stable location, there is a danger that it will fall. Many injuries, particularly to children, can be avoided by taking simple precautions such as:

» Using cabinets or stands

recommended by the manufacturer.

» Only using furniture that can safely

support the monitor.

» Ensuring the monitor is not

overhanging the edge of the supporting furniture.

» Not placing the monitor on tall furniture

(for example, cupboards or bookcases) without anchoring both the furniture and the monitor to a suitable support.

» Not placing cloth or other materials

between the monitor and supporting furniture.

» Educating children about the dangers

of climbing on furniture to reach the monitor or its controls.

CAUTION

• Make sure that children do not climb on or

hang from the monitor.

NOTE

• Use a platform or cabinet that is large

and strong enough to support the monitor securely.

• Brackets, bolts, and cords are sold

separately. You can obtain additional accessories from your local retail store.

REMOTE CONTROL

ENGLISH

REMOTE CONTROL

The descriptions in this manual are based on the buttons on the remote control. Please read this manual carefully to use the monitor correctly.

To install batteries, open the battery cover, place batteries (1.5 V AAA) matching and terminals to the labels inside the compartment, and close the battery cover.

To remove the batteries, perform the installation actions in reverse.

CAUTION

• Do not mix old and new batteries, as this

may damage the remote control.

• Be sure to point the remote control toward

the remote control sensor on the monitor.

Turns the monitor on or off.

(POWER)

MONITOR ON

Turns the monitor on.

MONITOR OFF

Turns the monitor off.

1/a/A Button

Toggles between numerical and

alphabetical.

(Depending on the model, this

feature may not be supported.)

ARC

Selects the Aspect Ratio

mode.

Volume Up/Down

Button

Adjusts the volume.

PSM

Selects the Picture Mode.

MUTE

Mutes all sounds.

ENERGY SAVING( )

Adjusts the brightness of the picture to reduce energy consumption.

INPUT

Selects the input mode.

Depending on the model, this feature may not be supported.

Number and Alphabet buttons

Enters numerical or alphabetical characters depending on the setting. (Depending on the model, this feature may not be supported.)

CLEAR

Deletes the entered numerical or alphabetical character. (Depending on the model, this feature may not be supported.)

BRIGHTNESS Button

Adjusts the brightness of the display. (Depending on the model, this feature may not be supported.)

Activates the Launcher.

HOME

SETTINGS

Accesses the main menus

or saves your input and exit

menus.

Selects menus or options and

confirms your input.

BACK

Allows you to move back one step

in the user interaction function.

REMOTE CONTROL

AUTO

Automatically adjusts picture position and minimizes image instability (available for RGB input only). (Depending on the model, this feature may not be supported.)

W.BAL

This model does not support this.

S.MENU

SuperSign menu key (Depending on the model, this feature may not be supported.)

Navigation Buttons

Scrolls through menus or options.

ENGLISH

Allows you to control

various multimedia devices to

enjoy multimedia simply by using

the remote control

through the SimpLink menu.

(Depending on the model, this

feature may not be supported.)

ID ON/OFF

When the Picture ID number

matches the Set ID number, you

can control whichever monitor you

want in multi-display format.

Exit

Clears all on-screen displays and returns to monitor viewing from any menu.

TILE

Depending on the model, this feature may not be supported.

USB Menu Control Buttons

Controls media playback.

MAKING CONNECTIONS

ENGLISH

MAKING CONNECTIONS

You can connect various external devices to your monitor. Change the input mode and select the external device you want to connect.

For more information about external device connections, see the user manual provided with each device.

Connecting to a PC

The illustrations may differ from the actual accessories. Some of the cables are not provided.

This monitor supports the Plug & Play* feature.

* Plug & Play: a feature that enables a PC to recognize devices attached by the user without device configuration or user intervention when powering up.

(not included)

DVI OUT

___

3.3V 0.25mA

---

(not included)

DP OUT

(not included)

HDMI

MAKING CONNECTIONS

NOTE

• For the best image quality, using the monitor with HDMI connection is recommended.

• To comply with the standard specifications of the product, use a shielded interface cable with a ferrite

core, such as a DVI cable.

• If you turn the monitor on when the set is cold, the screen may flicker. This is normal.

• Sometimes red, green, or blue spots may appear on the screen. This is normal.

• Use a High Speed HDMI™ cable.

• If you cannot hear any sound in HDMI mode please check your PC settings. Some PCs require you

to manually change the default audio output to HDMI.

• If you want to use HDMI-PC mode, you must set your PC/DTV to PC mode.

• You may experience compatibility issues if you use HDMI-PC mode.

• Make sure the power cable is disconnected.

CAUTION

• Connect the signal input cable and tighten it by turning the screws clockwise.

• Do not press the screen with your finger for a prolonged period as this may

result in temporary distortion on the screen.

• Avoid displaying static images on the screen for a long period of time to prevent

image burn. Use a screensaver if possible.

• A wireless communication device near your monitor can affect the image.

ENGLISH

NOTE

• If you connect a gaming device to the monitor, use the cable provided with the gaming device.

• It is recommended to use the speakers that are provided as optional accessories.

• Use a High Speed HDMI™ cable.

• High Speed HDMI™ cables transmit a HD signal up to 1080p and higher.

MAKING CONNECTIONS

ENGLISH

External Device Connection

Connect a HD receiver, DVD, or VCR player to the monitor and select an appropriate input mode.

The illustrations may differ from the actual accessories. Some of the cables are not provided. For the best picture and sound quality, connecting external devices to your monitor using HDMI cables is recommended.

(not included)

Direct Connection/

Using the Router/

Using the Internet

USB

(not included)

Network

___

3.3V 0.25mA

---

(not included)

HD Receiver/DVD/VCR

Camcorder/Camera/Gaming Device

HDMI

Speakers

NOTE

• If you connect a gaming device to the monitor, use the cable provided with the gaming device.

• It is recommended to use the speakers that are provided as optional accessories.

• Use a High Speed HDMI™ cable.

• High Speed HDMI™ cables transmit a HD signal up to 1080p and higher.

ENTERTAINMENT

Using the Input List

Remote Control (HOME)

Input Mode Description

HDMI1

HDMI2

DisplayPort

DVI

You can watch content on a PC, DVD player, Digital set-top box, and other high definition devices.

ENTERTAINMENT

Using My Media

Connecting USB storage devices

Connect a USB storage device such as a USB flash memory or an external hard drive to the display and use multimedia features.

Connect a USB flash memory or USB memory card reader to the display as shown in the following illustration.

ENGLISH

CAUTION

• Do not turn off the monitor or remove a USB

storage device when the My Media screen is activated. This could result in loss of files or damage to the USB storage device.

• Back up files you have saved on a USB

storage device frequently, as loss or damage to the files may be not covered by the warranty.

ENTERTAINMENT

ENGLISH

Tips for using USB storage devices

• Only a USB storage device can be recognized.

• A USB device does not work effectively when it is connected via a USB hub.

• A USB storage device using an automatic recognition program may not be recognized.

• A USB storage device using its own driver may not be recognized.

• The recognition speed of a USB storage device may depend on each device.

• Please do not turn off the display or unplug the USB storage device when the connected device is

working. If the USB storage device is suddenly disconnected, the stored files or the device itself may be damaged.

• Please do not connect a USB storage device which was modified to work on a PC. The device may

cause the monitor to malfunction or the content fail to be played. Use only a USB storage device which contains normal music, image or video files.

• A USB storage device formatted as a utility program not supported by Windows may not be

recognized.

• A USB storage device (over 0.5 A) which requires an external power supply must be connected to a

power supply separately. If it is not, the device may not be recognized.

• Please connect the USB storage device using the cable provided by the device manufacturer.

• Some USB storage devices may not be supported or operate smoothly.

• File alignment method of USB storage devices is similar to that of Window XP and filenames can

recognize up to 100 English characters.

• Back up important files regularly as data stored on a USB storage device may be damaged. We will

not be responsible for any data loss.

• If the USB HDD does not have an external power source, the USB device may not be detected. To

ensure the device is detected, connect the external power source.

- Please use a power adapter for an external power source. We do not provide a USB cable for an external power source.

• If your USB storage device has multiple partitions, or if you use a USB multi-card reader, you can use

up to four partitions or USB storage devices.

• If a USB storage device is connected to a USB multi-card reader, its volume data may not be

detected.

• If the USB storage device does not work properly, disconnect and reconnect it.

• Detection speed differs from device to device.

• If the USB storage device is connected in Standby Mode, the specific hard disk will automatically be

loaded when the display is turned on.

• The recommended capacity is 1 TB or less for a USB external hard drive and 32 GB or less for USB

memory stick.

• Any device with more than the recommended capacity may not work properly.

• If a USB external hard drive with an “Energy Saving” function does not work, try turning the hard drive

off and on again.

• USB storage devices below USB 2.0 are also supported but may not function correctly in the Videos.

• A maximum of 999 sub-folders or files can be recognized under one folder.

ENTERTAINMENT

Browsing Files

Browses files stored on a USB storage device.

To browse a file stored on a USB storage device,

Remote Control (HOME) Photos/ Videos/ Music/ All/ the Search List

To use Select Play,

Remote Control (HOME) Photos/ Videos/ Music

• Play Selection: plays back selected content.

To set Device Selection,

Remote Control (HOME) Photos/ Videos/ Music

• Device Connection Wizard: import contents from the selected device.

ENGLISH

Files Supported by My Media

Supported External Subtitle Format

• *.smi, *.srt, *.sub (MicroDVD, SubViewer 1.0/2.0), *.ass, *.ssa, *.txt (TMPlayer), *.psb (PowerDivX)

ENTERTAINMENT

ENGLISH

Supported Internal Subtitle Format

• FULL HD Video

1920 X 1080: XSUB (Supports internal subtitles generated from DivX6)

Supported Video Codec

Extension Codec

.asf .wmv

.divx .avi

.mp4 .m4v .mov

.3gp .3g2

mkv Videos MPEG-2, MPEG-4, H.264/AVC, VP8

.ts .trp .tp .mts

.mpg .mpeg .dat

.vob Videos MPEG-1, MPEG-2

Videos VC-1 Advanced Profile (excluding WMVA), VC-1 Simple and Main Profiles

Audio WMA Standard (excluding WMA v1/WMA Speech), WMA 9 Professional

Videos DivX3.11, DivX4, DivX5, DivX6, XViD (except 3 warp-point GMC), H.264/AVC,

Audio MPEG-1 Layer I, II, MPEG-1 Layer III (MP3), Dolby Digital, Dolby Digital Plus,

Videos H.264/AVC, MPEG-4

Audio AAC, MPEG-1 Layer III (MP3)

Videos H.264/AVC, MPEG-4

Audio AAC, AMR-NB, AMR-WB(standard)

Audio Dolby Digital, PCM, DTS, MPEG-1 Layer I, II, MPEG-1 Layer III (MP3),

Videos H.264/AVC, MPEG-2

Audio MPEG-1 Layer I, II, MPEG-1 Layer III (MP3), Dolby Digital, Dolby Digital Plus,

Videos MPEG-1, MPEG-2

Audio MPEG-1 Layer I, II, MPEG-1 Layer III (MP3)

Audio Dolby Digital, MPEG-1 Layer I, II, DVD-LPCM

Motion Jpeg, MPEG-4

LPCM, ADPCM, DTS

Vorbis, AAC

AAC, PCM

+ 45 hidden pages
